PET101 - Water dispenser LIVOO - Free user manual and instructions

Product Type	Pet Water Fountain
Brand	Livoo
Model	PET101
Power Supply	5 V ⎓ 1 A via power adapter (model KA06E-0501000EU)
Power	5 W
Tank Capacity	Not specified (domestic pet use)
Material	Plastic
Filtration Type	Replaceable filter (recommended every 3 to 4 weeks)
Operation	Submersible pump, continuous water circulation
Maintenance	Clean the filter once a week; clean the pump if flow decreases
Safety	Use only the provided adapter; do not operate without filter; unplug before cleaning; indoor use only
Spare Parts	Filter, pump, power adapter
Usage	Domestic, for pets (dogs, cats)
Warranty	Not specified

Frequently Asked Questions - PET101 LIVOO

How to clean the filter of the PET101 fountain?

Rinse the filter with clean water once a week. Replace it every 3 to 4 weeks for optimal efficiency.

What to do if the pump stops working or water flow decreases?

Disassemble the pump (see figure 3 of the manual) and clean each part with a brush to remove dust, deposits, and hair.

What power supply is required for the PET101?

The device operates with an input of 5 V - 1 A. Use only the provided adapter (ref. KA06E-0501000EU).

Can I use the fountain without a filter?

No, never use the device without a filter. This could damage the pump and affect water quality.

How often should I refill the water tank?

Regularly fill the fountain to prevent the pump from running dry. Check the level daily.

Can I leave the fountain on continuously?

Yes, the device is designed for continuous use. Ensure sufficient water level and clean regularly.

How to clean the fountain tank?

Empty the water and clean the bowl with soapy water. Rinse thoroughly before reuse.

Where can I buy replacement filters for the PET101?

Filters are available from Livoo manufacturer or authorized dealers. Use only Livoo-recommended filters.

Is the fountain suitable for puppies and kittens?

Yes, it is suitable for animals of all sizes, but monitor young animals during first uses.

What to do if the power adapter is damaged?

The adapter must be replaced by the manufacturer, its after-sales service, or a qualified person. Do not use another adapter.

USER MANUAL PET101 LIVOO

Exterior view of a modern glass and white product container with ribbed base (no text or symbols visible)

Livoo

Version : v.1.0

1 2 3 4 5

Figure 1

Illustration of a faucet pouring liquid into a drain with granular material below (no text or symbols)

Figure 2

Diagram showing three-step assembly of a device with numbered components and directional arrows indicating process flow.

Figure 3

Thank you for choosing a Livoo product!

Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day.

That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible.

Find our entire collection on our website www.livoo.en.

Livoo, your daily companion till social networks

@Livoo

@livoo_officiel

@Livoo

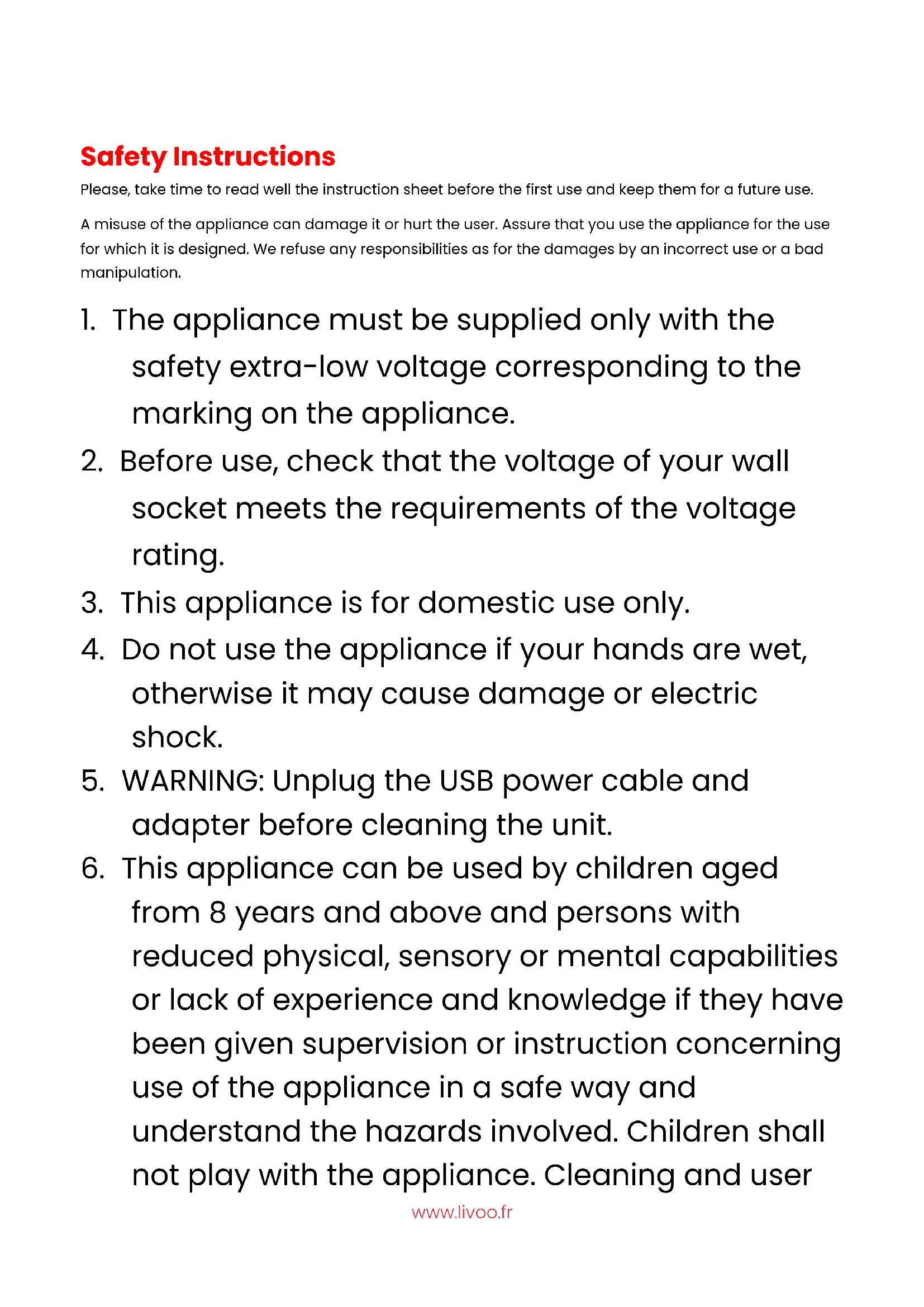

Safety Instructions

Please, take time to read well the instruction sheet before the first use and keep them for a future use.

A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

1. The appliance must be supplied only with the safety extra-low voltage corresponding to the marking on the appliance.
2. Before use, check that the voltage of your wall socket meets the requirements of the voltage rating.
3. This appliance is for domestic use only.
4. Do not use the appliance if your hands are wet, otherwise it may cause damage or electric shock.
5. WARNING: Unplug the USB power cable and adapter before cleaning the unit.
6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

1. Only use the detachable supply unit KA06E-0501000EU provided with this appliance.
2. If the adapter supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (*).
3. Always attach plug to appliance, then adapter to outlet. To disconnect, turn all controls to OFF, then remove adapter from outlet, then detach power cord from the appliance for storage.
4. Do not use the appliance if the filter is not installed! Do not use filters other than those recommended by the manufacturer.
5. Do not allow the pump to run if the water level is too low as this will damage the pump. Refill the fountain regularly.
6. Place the water cooler on a flat, stable surface.
7. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments

- farm houses

• by clients in hotels, motels and other residential type environments
  • bed and breakfast type environments

(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician

Technical characteristics Product only

Input: 5.0 V -1.0 A 5.0 W

Technical Specifications of adaptor

Company name and address of manufacturer	DELTA - 1 rue Foch - 67450 Mundolsheim - France
Model reference	KA06E-0501000EU
Input voltage	100-240 V
CA Input frequency	50/60 Hz
Output voltage	5.0 V
Output current	1.0 A
Output power	5.0 W
	115 V	230 V
Average active efficiency	74.37 %	73.90%
Efficiency at low load (10 %)	N/A	N/A
No-load power consumption	0.038W	0.063

Logo	Description
	Insulation class logo II.
	Logo inside use only.
	The logo indicates the presence of a safety isolation transformer protected against short circuits
	Identifies an electronic device incorporating one or more transformers and electronic circuits that converts electrical power into one or more power outputs
	If the pins of the plug are damaged, the plug-in power supply shall be scrapped

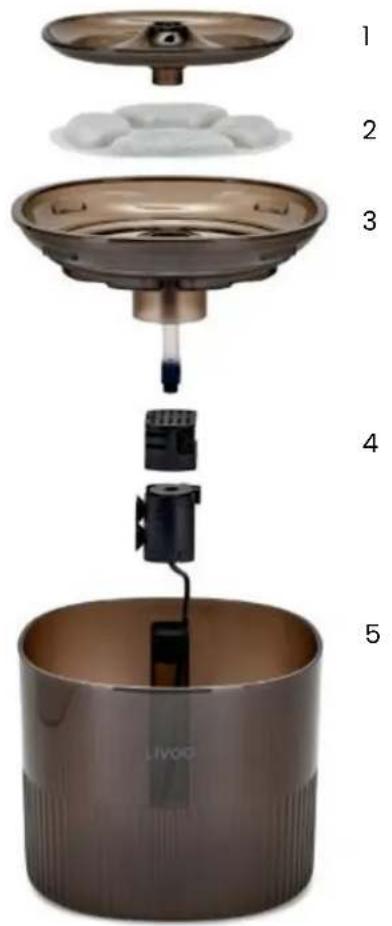

Drawing of the device

Figure 1

1	Top tray
2	Filter
3	Cover
4	Pump
5	Bowl

Before use:

Clean the tray, lid, filter and bowl and dry them. Connect the pump to the lid using the transparent tube. Remember to place the suction cups on the bottom of the unit to prevent the pump from moving.

Use of the device

Fill the bowl with fresh water and place the lid on the bowl, filter and tray (Figure 1). Connect the USB port to the adapter provided and plug the adapter into your wall socket.

Cleaning and maintenance

Empty and clean the tank regularly.

Cleaning the Filter : (Figure 2)

Rinse the filter in a sink once a week.

We recommend replacing the filter every three to four weeks.

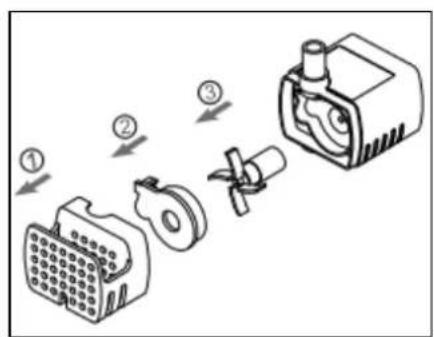

Cleaning the pump: (Figure 3)

Clean the water pump when it stops working or when the water flow decreases. Dismantle it (Figure 3) and use a brush to clean dust, possible deposits and hair from each part.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Correct disposal of the unit (Electrical and Electronic Equipment).

(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.

• Non contractual illustration
- Product information is subject to change without prior notice.
