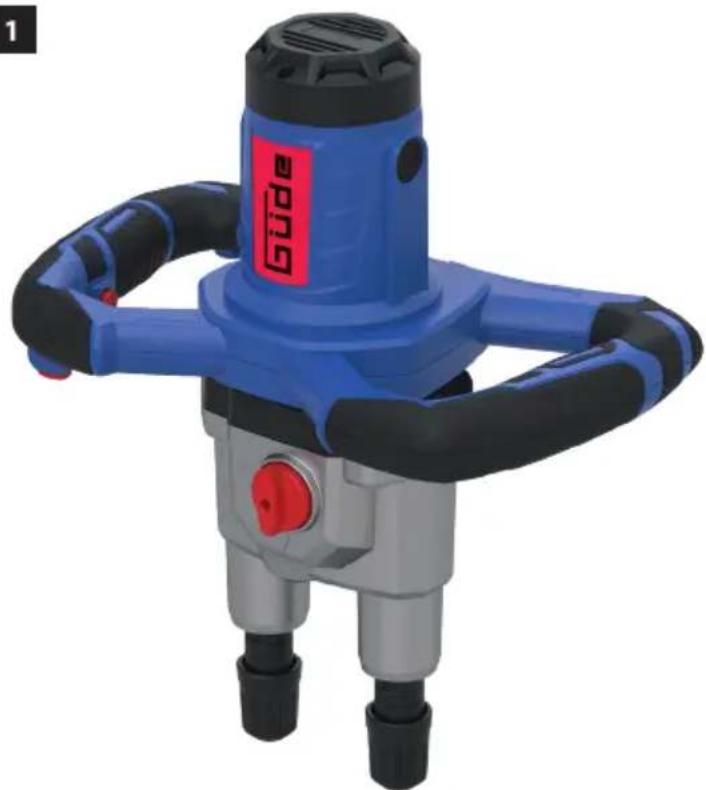

| Product Type | Double Electric Mixer (TWIN) |
| Brand | Güde |
| Model | GRW 1811.1 TWIN |
| Power Supply | 230 V ~ 50 Hz |
| Maximum Power | 1800 W |
| No-Load Speed (1) | 0 - 460 min⁻¹ |
| No-Load Speed (2) | 0 - 620 min⁻¹ |
| Mixer Attachment | Hexagonal |
| Max. Diameter of Mixing Tools | 2 x 110 mm |
| Max. Mixing Volume | 100 litres |
| Net Weight | 7.38 kg |
| Gross Weight | 8.08 kg |
| Protection Class | II |
| Protection Rating | IP 20 |
| Sound Pressure Level | 93 dB(A) |
| Sound Power Level | 104 dB(A) |
| Vibration Value | 2.96 m/s² (K uncertainty = 1.5 m/s²) |
| Intended Use | Mixing render, mortar, adhesive, paint |
| Safety Measures | Residual-current device (30 mA) mandatory; hearing and eye protection |
| Maintenance | Clean after use; do not use water on the device |
| Warranty | 24 months consumer, 12 months professional use |
| Customer Service | www.guede.com ; support@ts.guede.com |
Frequently Asked Questions - GRW 1811.1 TWIN Güde
User questions about GRW 1811.1 TWIN Güde
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Mixer in PDF format for free! Find your manual GRW 1811.1 TWIN - Güde and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GRW 1811.1 TWIN by Güde.
USER MANUAL GRW 1811.1 TWIN Güde
58044
GÜDE GmbH & Co. KG
Birkichstrasse 6
74549 Wolpertshausen
Deutschland
Güde
®
ENGLISH Please read the instructions carefully before starting the machine.
English Technical Data /Device description /Safety Warnings / Specified Conditions of Use / Emergency procedure / Symbols / Maintenance / Disposal / Guarantee / Service ____ 11
Français Caractéristiques techniques / Description du dispositif / Instructions De Sécurité Particulieres / Utilisation conforme aux prescriptions / Conduite en cas d'urgence / Symboles / Entretien / Elimination / Garantie / Service ____ 15
Italiano Dati tecnici / Descripción del dispositivo / Norme Di Sicurezza / Utilizzo conforme / Comportamento in caso d'emergenza / Simboli / Manutenzione / Smaltimento / Garanzia / Servizio ____ 20
Nederlands Technische gegevens / Beschrijving van het apparaat / Veiligheidsadviezen / Voorge-schreven gebruik van het systeem / Handelswijze in noodgeval / Symbolen / Onderhoud / Afvoer / Garantie / Service ____ 25
Čeština Technická data /Popis zařízení / Speciální Bezpečnostní Upozornění / Oblast Využití / Chování v případě nouze / Symboly / Údržba / Likvidace / Záruka / Servis ____ 30
Slovenský Technické údaje /Opis zariadenia / Špeciálne Bezpečnostné Pokyny / Použitie podľa predpisov / Správanie v prípade núdze / Symboly / Údrzba / Likvidácia / Záruka / Servi ____ 34
Magyar Műszaki Adatok / Eszközleírás / Rendeltetés szerinti használat / Biztonsági utasítások / Karbantartás / Jótállás 38
Polski Dane techniczne / Opis urządzenia / Instrukcje Dotyczące Bezpieczeństwa / Warunki użytkowania / Postępowanie w nagłym przypadku / Symbole / Utrzymanie I Konserwacja / Utylizacja / Gwarancja / Serwis ____ 43
Español Datos técnicos / Descripción del dispositivo / Indicaciones de seguridad / Aplicación de acuerdo a la finalidad / Comportamento in caso d'emergenza / Símbolos / Mantenimiento / Eliminación / Garantía / Servicio ____ 48

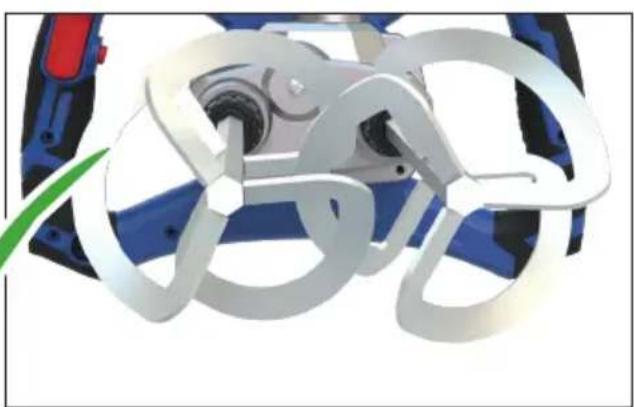

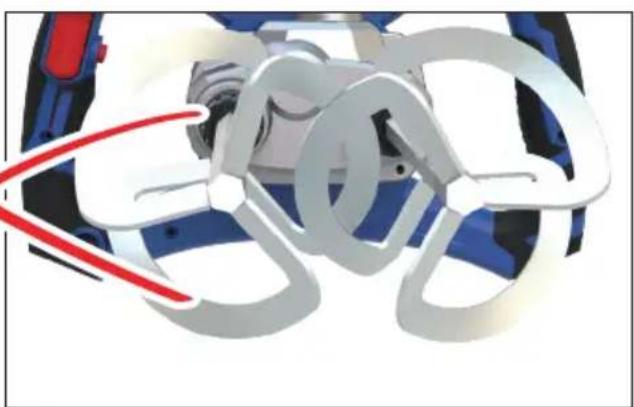

Montage
EN Operation FR Fonctionnement IT Esercizio ES Operação
EN starting-up the device FR Mise en service IT Messa in funzione
ES Puesta en marcha NL Toestel in gebruik nemen cz Uvedení do provozu


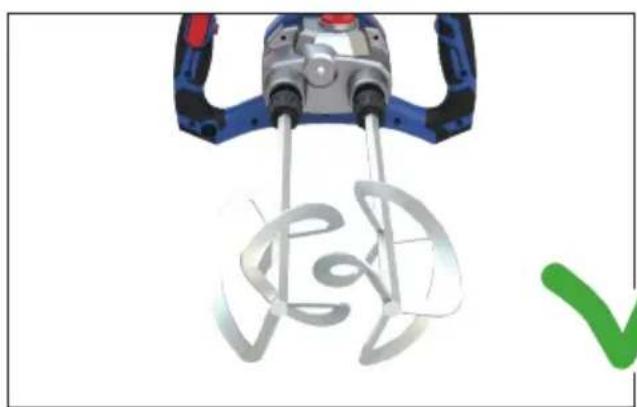

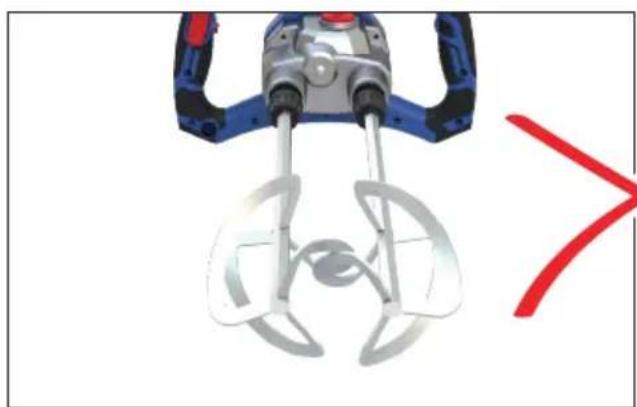

1 L R L R


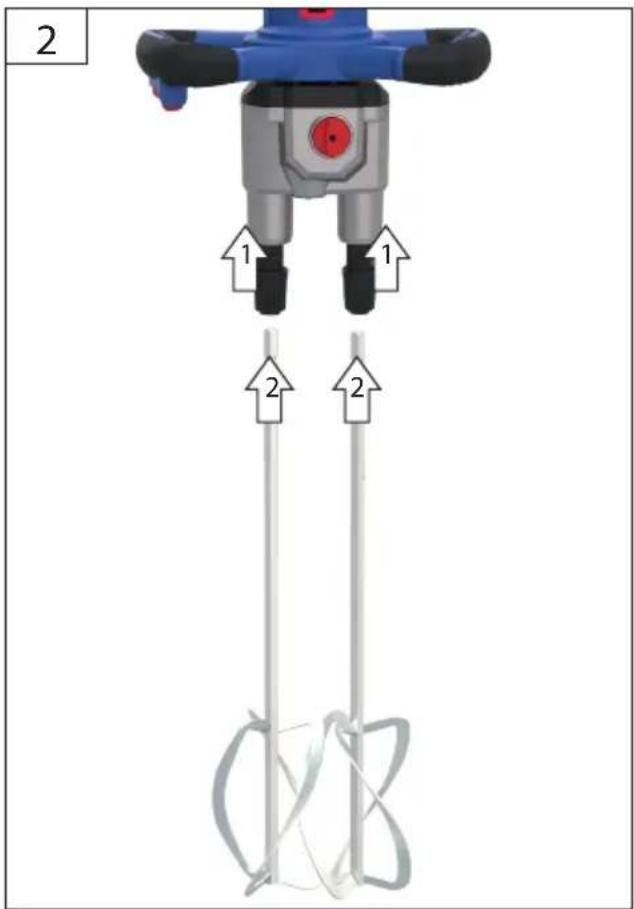

2 1 1 2 2


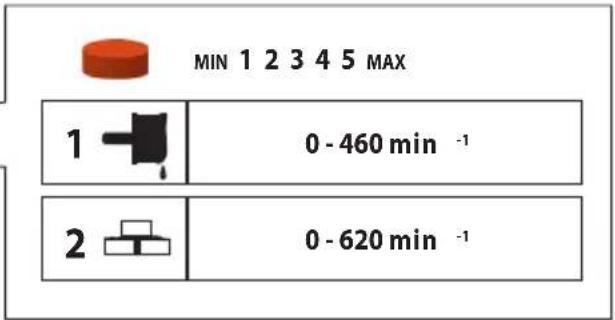

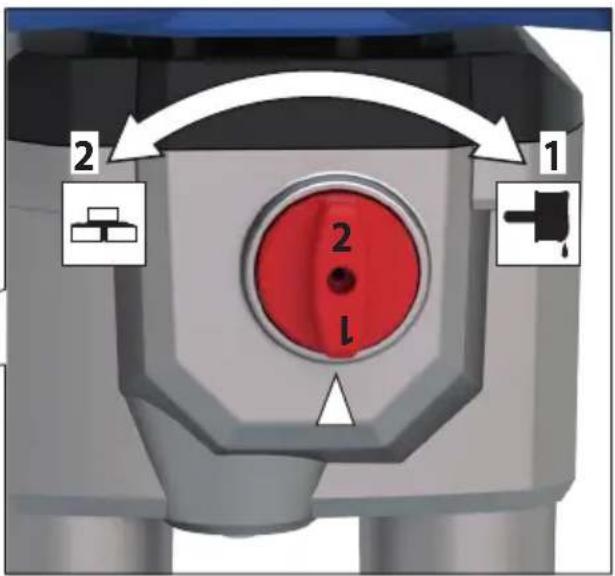

MIN 1 2 3 4 5 MAX 1 0 - 460 min -1 2 0 - 620 min -1


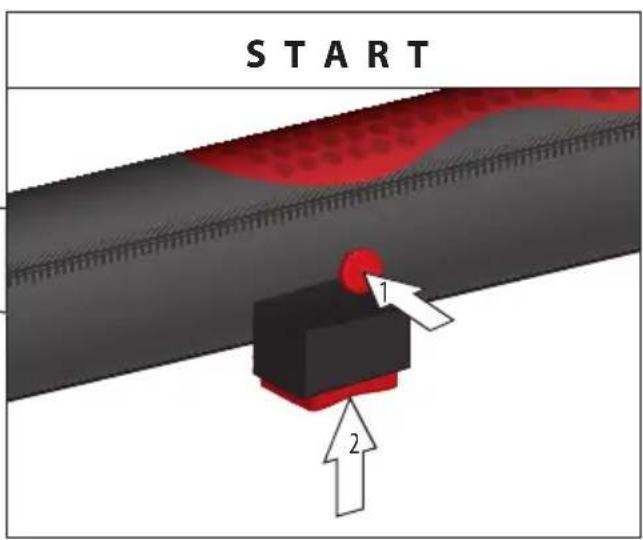

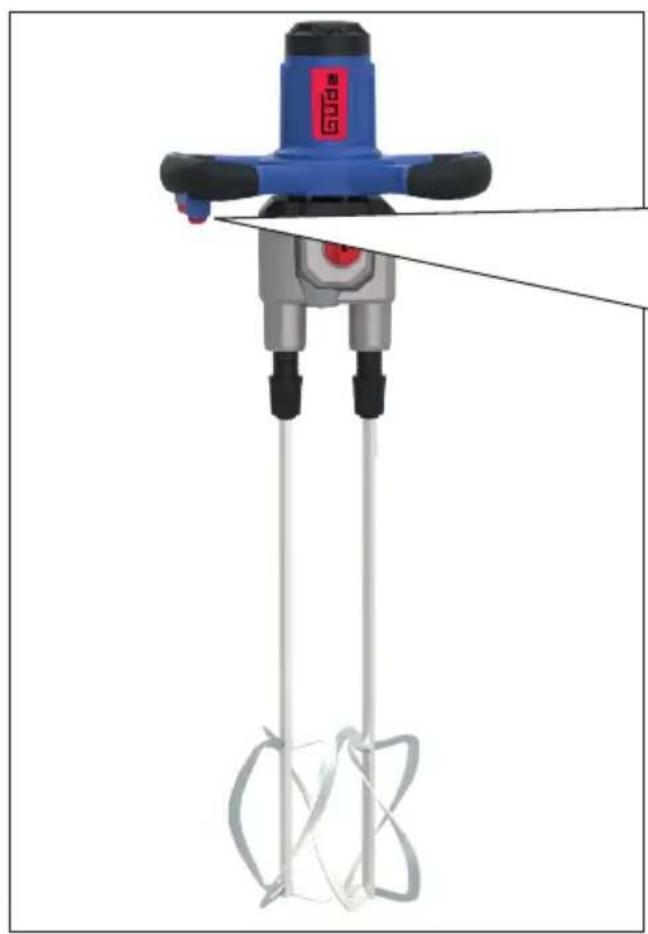

START 1 2

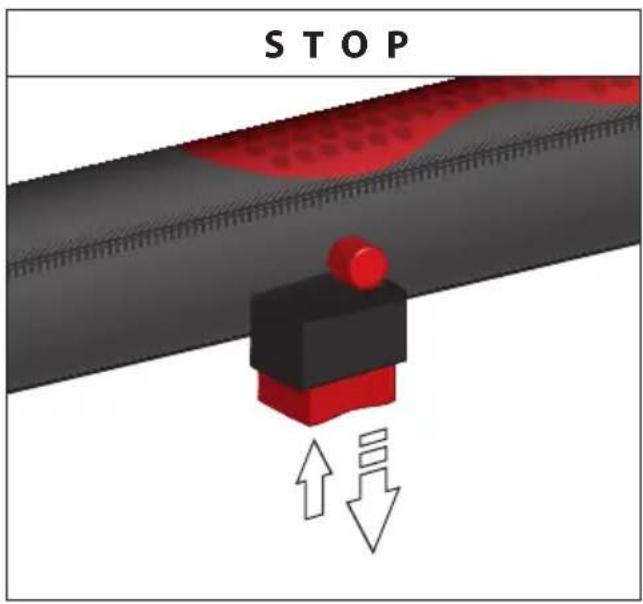

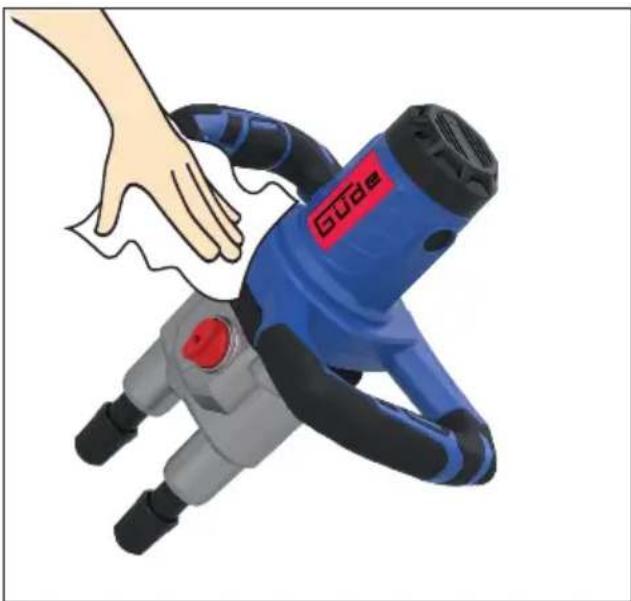

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.
The vibration emission level may be used to compare one tool with another.
It may be used for a preliminary assessment of exposure.
An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Read and understand the operating instructions before using the appliance. Familiarise with the
control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.
The operator is responsible for accidents or risks to third parties.
Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
In case of any doubts about connection and operation refer please to our customer center
Specified Conditions Of Use
The stirrer may only be used to stir plaster, mortar, glue or paint.
The device must not be used as a drill or drive any other device, e.g. for polishing, grinding, rpening, engraving with special adapters.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Residual risks
Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.
- Risk of crushing
Contact with the rotating stirrer
• Cutting injury When touching the rotating stirrer - Hearing damage A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!
- Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly.
Despite the observance of the operating instructions there still may be some hidden residual risks.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information:
- Accident site
- Accident type
- Number of injured persons
- Injury type(s)
Symbols
WARNING/CAUTION!
WARNING - Read the operating instructions to reduce the risk of injury.
Wear eye protective goggles! Wear ear protectors!
Wear a respirator!
Unplug the machine before any work on it.
For a mixture of e.g. mortar, grouts, cement, whitewash, concrete, screed, etc.
For a mixture of e.g. glues, varnishes, paints, etc.
CE marking
Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
General Power Tool Safety Warnings
WARNING
Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
3) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use power tools, insert tools, insert tools, etc. according to these instructions. Take into account the working conditions and the work to be carried out. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
4) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Safety information for agitators
Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).
Keep children and other persons including animals in a safe distance when using the appliance.
Wear suitable work clothing such as sturdy shoes with non-slip sole, safety glasses and hearing protection!
The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.
Do not wear loose clothing or jewels as they could get caught by the rotating parts. Do not use the device when you go barefoot or wear open sandals.
Please turn the device immediately off when the tool used gets blocked! Do not turn the device on again when the tool is still blocked. This could cause bounce back with a high reaction moment. Deter - mine and remove the cause of the blocking of the tool used while respecting the safety instructions.
Possible causes include::
- Jamming
• Overload of power tools
Do not reach into the running device.
Always keep the connection cable from the working area of the device. Always guide the cable back - wards, away from the device!
⚠️ Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.
The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.
Do not use the device near flammable liquids or gases. Risk of fire and explosion in case of short circuit.
Work instructions
Do not reach into the rotating mixer (rotating stirrer).
Hold the device firmly with two hands and away from your body.
Avoid splashing! Work with low revolutions when immersing or removing the mixed to / from the mixture being stirred.

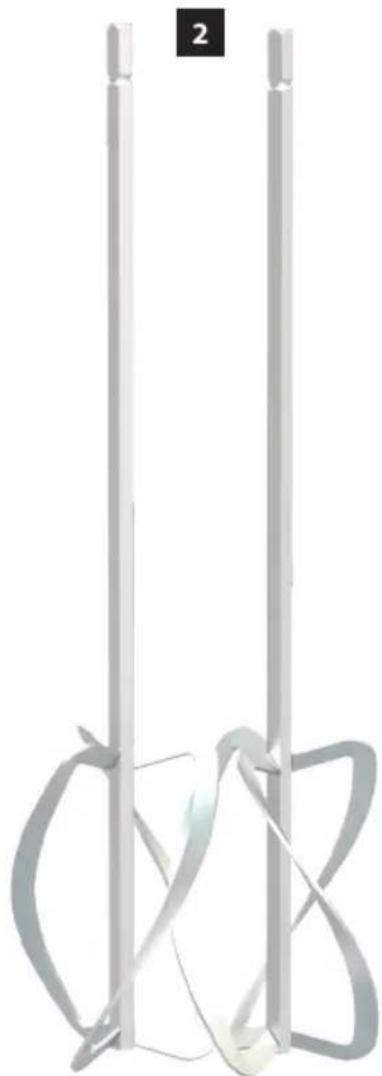

The stirring extensions included in the supply are suitable for stirred materials with heavier and tougher consistency: e.g. mortar, grouts, cement, plaster, whitewash, concrete, screed, etc.
- Increase the revolutions when stirring. Run the mixer in the mixture being stirrer until it is completely mixed. Follow the processing instructions of the manufacturer.
- Do not work with low revolutions in continuous operation. This would lead to engine overload / overheating.
Maintenance
Unplug the machine before any work on it.
Repairs and works specified in these Instructions may only be performed by qualified authorised staff.
Use only original accessories and original spare parts. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!
Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

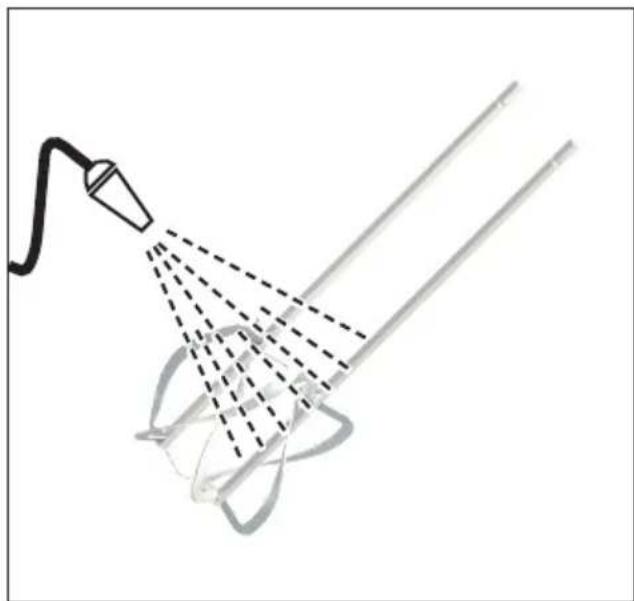

After each use, clean the stirring mechanism properly.
Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guede.com.
Disposal
Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.
Transport packaging disposal
The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.
Risk of suffocation!
Keep parts of the packagings out of reach of children and dispose them as soon as possible.
Guarantee
Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.
The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period..
The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.
Service
Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. To always have these data at hand, please enter them below.
Serial No.:
Art. No:
Year of production:
Tel.: +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
E-Mail: support@ts.guede.com
WAARSCHUWING/OPGELET!
Translation of the EC-Declaration of Conformity
We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.
In case of any change to the appliance not discussed with us the Declaration expires.
Notified Body Name: No: Adress:
Type Ex. Cert.-No.:
97/68/EC_&2016/1628/EU
Emission No.:
2000/14/EC_2005/88/EC
