HBS7600B - Blender BEKO - Free user manual and instructions

Brand	Beko
Model	HBS7600B
Product type	Hand blender
Rated power	600 W
Supply voltage	220-240 V~, 50-60 Hz
Variable speed	Yes, with speed adjustment knob
Turbo function	Yes, dedicated Turbo button
Included accessories	Blending shaft, measuring cup, non-slip base
Measuring cup capacity	Approx. 600 ml (estimate)
Removable blades	Yes, for cleaning
Shaft material	Metal and plastic
Approximate weight	0.8 kg (estimate)
Dimensions (L x W x H)	40 × 7 × 7 cm (estimate)
Cable length	Approx. 1.2 m (estimate)
Safety	Double insulation, overheat protection
Cleaning	Blades and measuring cup washable in water; do not immerse the motor unit
Maintenance	Clean after each use, do not use abrasives
Intended use	Domestic, for chopping and blending small quantities
Warranty	2 years (generic)
Country of manufacture	Not specified

Frequently Asked Questions - HBS7600B BEKO

How to adjust the speed of the mixer?

Turn the speed adjustment knob (1) to gradually increase the speed. Always start at low speed to avoid splashes.

What to do if the blender does not start?

Check that the appliance is properly plugged into a 220-240 V socket. Ensure the On/Off button is pressed. If the problem persists, contact an authorized service.

Can I blend hot food with this blender?

No, do not use the appliance to process hot food. Allow it to cool before blending.

How to clean the blending shaft?

Wash the shaft by hand with soapy water. Do not put it in the dishwasher and do not immerse the inner part of the shaft in water.

Can you chop nuts with this blender?

Yes, shelled hazelnuts and almonds can be chopped (up to 100-200 g). Use the PULSE function for better control.

How to use the Turbo function?

Press the Turbo button (3) for maximum power. Ideal for blending hard foods or achieving a smooth texture.

Can the appliance be used without food in the bowl?

No, do not operate the appliance without ingredients. This could damage the motor.

How to avoid splashes when blending?

Always start at low speed and increase gradually. Ensure that the food is well immersed.

What to do if the blades are blunt or damaged?

Contact an authorized service to replace the blades. Only use original Beko parts.

How to store the blender after use?

Unplug the appliance, clean and dry it. Store it in a cool and dry place, out of reach of children.

USER MANUAL HBS7600B BEKO

Line drawing of a laboratory brush with a beaker and a digital scale, no text or symbols present.

HBS7600B

EN DE FR TR ES PL IT RO

CONTENTS

ENGLISH 8-14

DEUTSCH 15-24

FRANÇAIS 25-33

TÜRKÇE 34-41

ESPAÑOL 42-52

POLSKI 53-65

ITALIANO 66-76

ROMÂNĂ 77-87

1 2 3 turbo 4 600 W 5 6 7 1000ml MAX 900ml 800ml 700ml 600ml 500ml 400ml 300ml 200ml 100ml

1

Illustration of a hand cleaning a cylindrical device with a brush (no text or symbols)

3

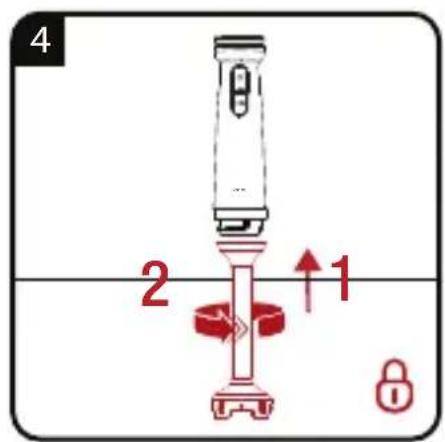

4 2 1 lock

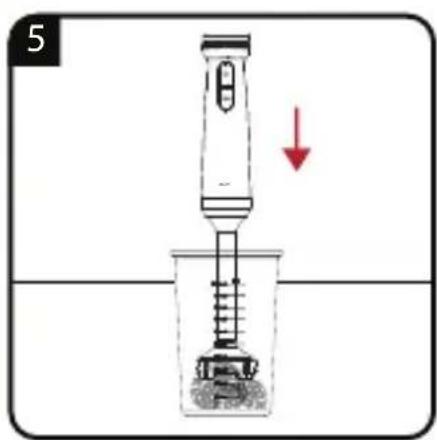

5

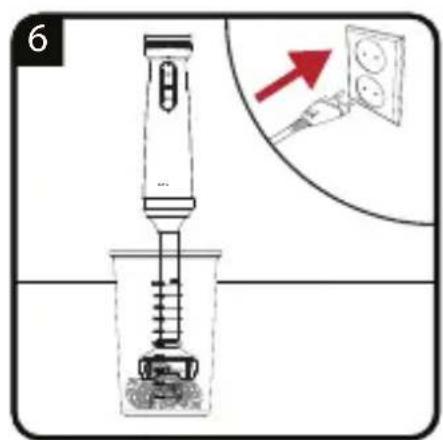

6

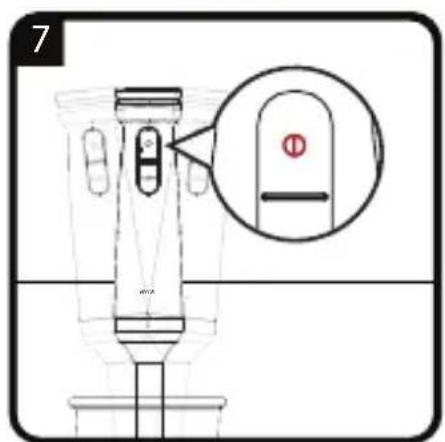

7 Φ

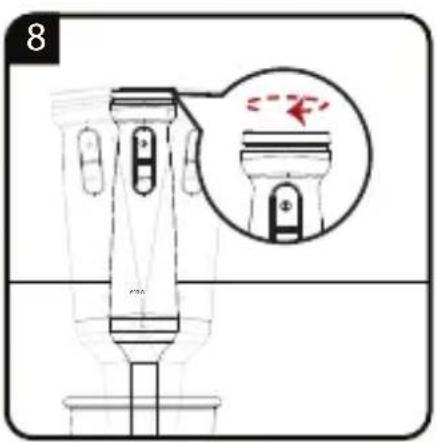

8

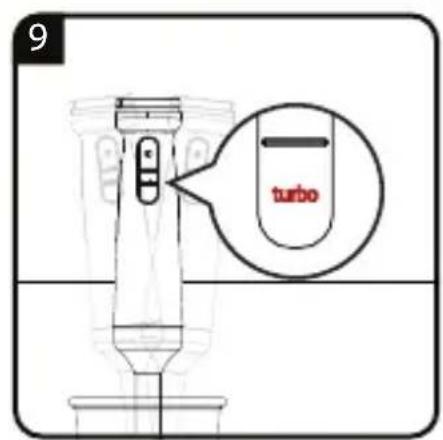

9 turbo

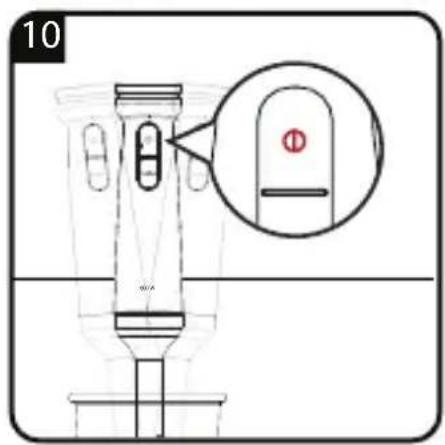

10 Φ

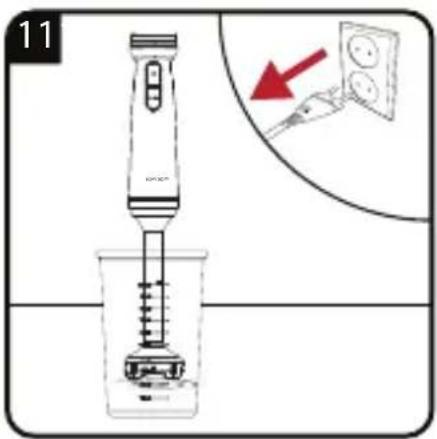

11

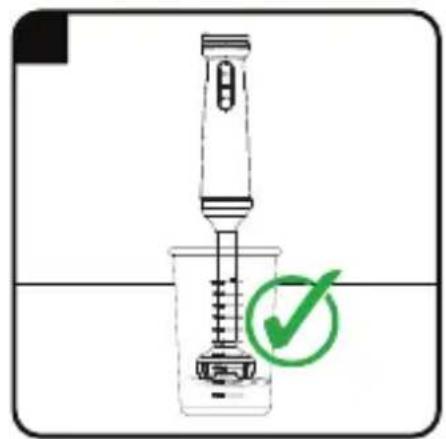

Illustration of a digital brush in a beaker with a green checkmark indicating inspection (no text or symbols present)

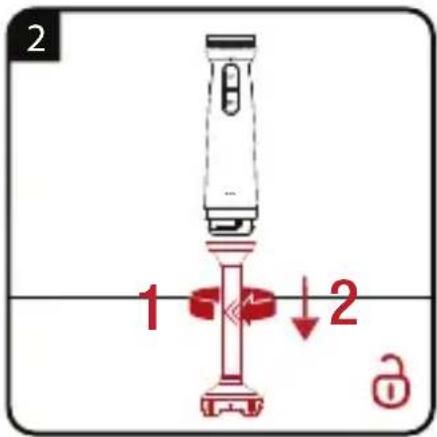

1 2 1 2

2 1 2

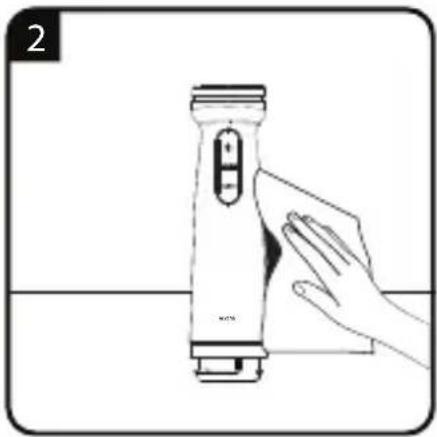

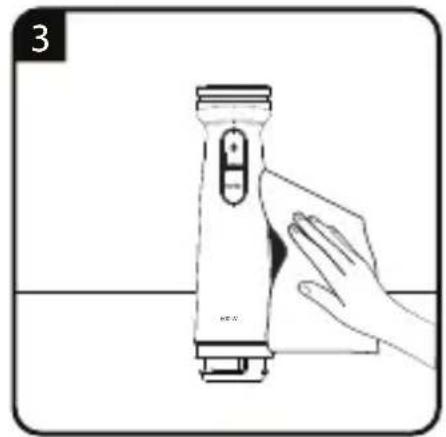

Illustration of a hand cleaning a handheld device (no text or symbols visible)

4

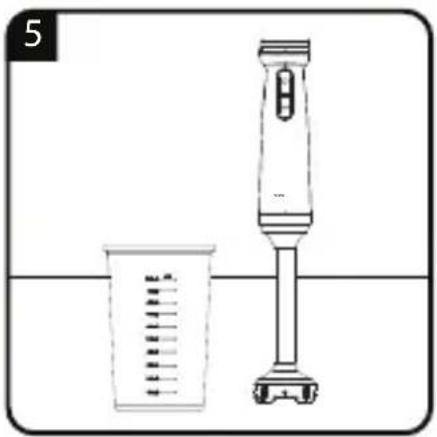

Illustration of a blender and a measuring cup on a stand (no text or symbols)

EN	OPERATION CLEANING AND CARE
DE	BETRIEB REINIGUNG UND PF LEGE
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
TR	KULLANIM TEMIZLEME VE BAKIM
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
IT	UTILIZZO PULIZIA E CURA
RO	UTILIZARE CURĂ AREA ȘI ÎNGRIJIREA
AR	الإستعمال الحرفية التظيف وعناية

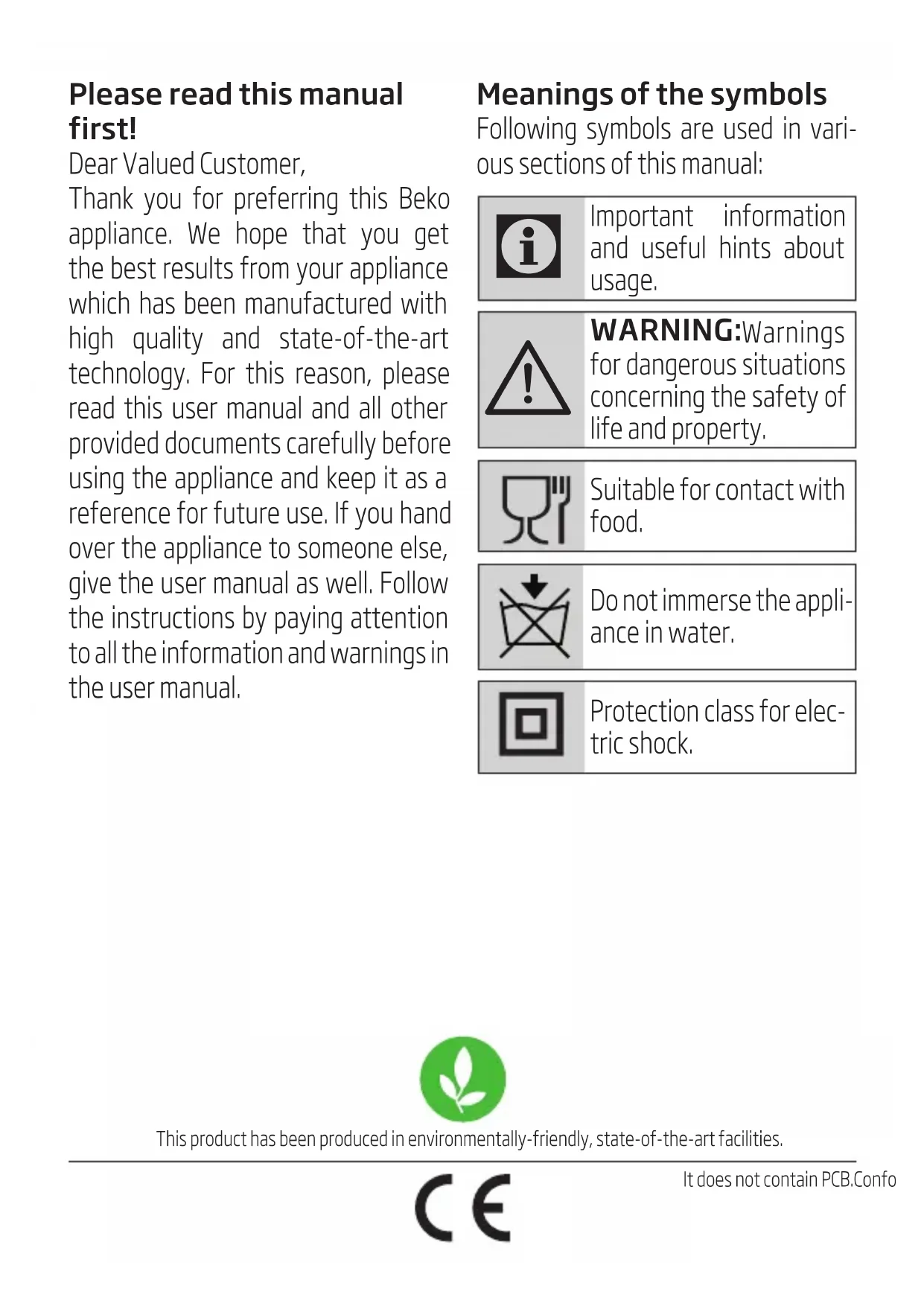

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING:Warnings for dangerous situations concerning the safety of life and property.

Suitable for contact with food.

Do not immerse the appli- ance in water.

Protection class for elec- tric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

1. Speed adjustment button
2. Operating switch
3. Turbo button
4. Motor unit
5. Non-slip rubber base (cover)
6. Measuring beaker
7. Blending shaft

Technical data

Power supply:

220-240 V \~, 50-60 Hz

Power: 600 W

Rights to make technical and design changes are reserved.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage. Failure to follow these instructions voids any granted warranty.

1.1 General safety

• This appliance complies with international safety standards.
• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers. Children should not play with the appliance. Cleaning and maintenance works should not be performed by children.

• This appliance cannot be used by children.

- Keep the appliance and the power cable out of the reach of children.

1 Important safety and environmental instructions

• Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.
• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cable.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance when left unattended and wait for it to stop completely while installing/removing accessories or before cleaning.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not use the device for hot food.
• Use the appliance only with the supplied base and container.

1 Important safety and environmental instructions

• Do not operate the appliance without the ingredients in the bowl.
• Remove bones and stones from food to prevent the blades and the appliance from getting damaged.
• This appliance is not suitable for dry or hard foods as this will quickly cause the blades to become dull.
• Follow all warnings to prevent injuries due to incorrect use.
• When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use. Use the plastic section trying to hold the chopping blade.
• After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
• Do not immerse the appliance, power cable, or power plug in water or any other liquids.
• Do not operate or place any part of this appliance or its parts on or near hot surfaces.
• If you keep the packaging materials, store them out of the reach of children.

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Prohibition sign with crossed-out machine and blank rectangular area below

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1 Important safety and environmental instructions

1.5 Things to do for energy saving

Follow the times recommended in the manual during use. Unplug the appliance after use.

2 Usage

2.1 Intended use

This appliance is intended only for household use; it is not suitable for professional use. It is designed for chopping and whisking small amounts of solid food only.

2.2 Maximum quantities

Ingredient Max. amount
Garlic/Onions (diced) 150-250 g
Soup 200-300 g
Parsley 40-50 g
Meat (diced) 100-150 g
Cheese (diced) 100-150 g
Hazelnut/Almond Kernels 100-200 g
Fruit (diced) 250-300 g
Infant formula 250-300 g

• Each press on the operating switch that lasts 1 to 2 seconds is a "PULSE".
• Pressing the operating switch for 1 second is enough for soft foods like onions and parsley.
• Turn speed adjustment button (1) to gradually increase speed.
• Start mixing in low speed while mixing ingredients. Ingredients may be spattered when you start with high speed.

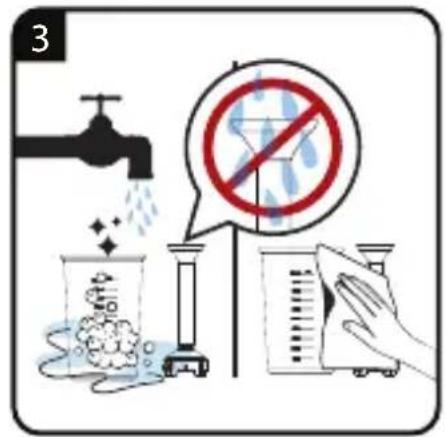

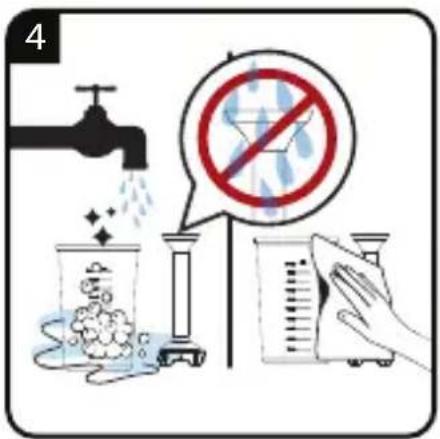

3 Cleaning and care

3.1 Cleaning and care

WARNINGS:

• Do not touch the blades with your bare hands.
• Do not wash the blending shaft in dishwasher.
• Never immerse inner part of blending shaft, the motor unit or power cable in water or in any other liquid.
• Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

3.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before lifting the appliance and its cable.
  • Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Symbol of a vehicle crossed out by a diagonal line, with no text or numbers present.

Prohibition sign with crossed-out machine and prohibition symbol, commonly used in safety or hazard prevention contexts

Symbol of a device crossed out by a diagonal line, indicating no change or prohibition (no text present)

Prohibition sign with crossed-out machine and prohibition symbol, commonly used in safety or hazard prevention.

Prohibition sign with crossed-out machine and blank rectangular area below

Prohibition sign with crossed-out trash bin and no text or symbols

Handwritten signature or scribble on a circular diagram with arrows and numbers, possibly indicating a signature or annotation.
