Product Type	3-in-1 Air Purifier
Brand	Guardian Technologies
Model	GermGuardian AC41001
Power	120 V AC, 60 Hz
Number of Speeds	3 (Modes 1, 2, 3)
Filtration	Pre-filter + Activated Carbon, 99.97% HEPA Filter, UVC Lamp
HEPA Filter Efficiency	Traps 99.97% of airborne particles
UVC Lamp	2W, destroys bacteria and viruses (rhinovirus, E. coli, strep)
Filter Life	6 to 8 months depending on use
UVC Tube Life	10 to 12 months depending on use
Filter Replacement Reminder	Rotatable dial at the back adjustable to 6 months
Ozone Emission	0.001 ppmv (8-hour average), compliant with standards
Care and Cleaning	Clean pre-filter/carbon filter once a month with a vacuum; do not wash. Wipe exterior with a dry cloth.
Safety	Polarized plug; unplug before cleaning; do not immerse; do not block grilles
Replacement Parts	Filter E (part FLT4100), UVC tube (part LB4100)
Warranty	1-year limited warranty
Customer Service	1-866-603-5900 (USA and Canada)
Website	www.guardiantechnologies.com

Frequently Asked Questions - GermGuardian AC41001 Guardian

How to install the GermGuardian AC41001 air purifier?

Place the unit on a hard, flat surface, at least 12 inches from walls and furniture. Remove the cardboard and bag, then attach the 4 felt pads under the base. Plug into a 120 V AC outlet, turn on, select speed (I to III), and activate the UVC lamp if desired.

How often should the filters be replaced?

It is recommended to replace the pre-filter/carbon filter combination and the HEPA filter every 6 to 8 months, depending on use. A reminder dial on the back helps you note the date.

How to clean the air purifier?

Unplug the unit. Clean the exterior with a soft, dry cloth. Once a month, remove the back cover, separate the pre-filter/carbon filter from the HEPA filter, and vacuum them with your vacuum's brush attachment. Never wash the filters.

What to do if the unit does not work?

Check that it is plugged into a working outlet. Ensure the HEPA filter and back cover are properly in place. If the problem persists, contact customer service.

How to replace the UVC tube?

Unplug the unit, remove the back cover and the filter combination. Unscrew the UVC tube protection, then pull horizontally on the tube using a cloth to release it. Insert the new tube (part LB4100) by sliding it into the slots.

Why is an unpleasant odor coming from the unit?

This may indicate that the filters are saturated. Clean the pre-filter and carbon filter, and replace the HEPA filter if necessary. Regular replacement eliminates odors.

The noise level has increased, what to do?

Make sure the filters are clean. If they are dirty, clean or replace them. Clogged filters force the fan to run faster, increasing noise.

Can I use the purifier with a speed controller?

No, the use of a solid-state speed control device is prohibited. Always plug directly into a 120 V AC outlet to avoid risk of fire or electric shock.

How to order replacement filters?

You can order the replacement filter (part FLT4100) and UVC tube (part LB4100) via www.guardiantechnologies.com or by calling customer service at 1-866-603-5900.

What to do if the UVC tube (mercury bulb) breaks?

Do not touch debris with bare hands. Follow EPA guidelines (www.epa.gov/cflcleanup) or call 1-866-284-4010 for cleanup. The tube contains mercury; follow disposal rules.

USER MANUAL GermGuardian AC41001 Guardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to GuardianTechnologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

©2016 Guardian Technologies LLC

guardian

technologies™

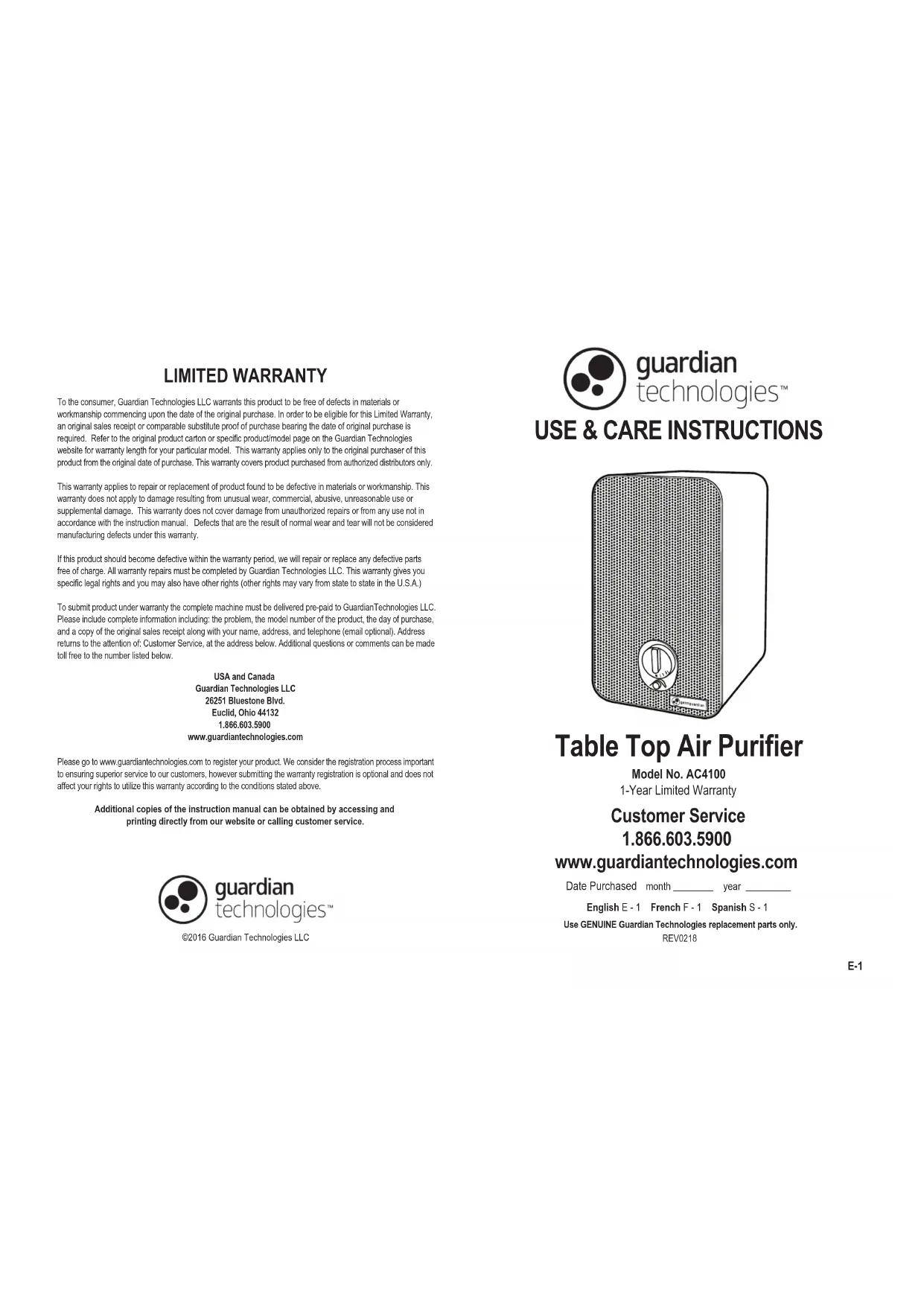

USE & CARE INSTRUCTIONS

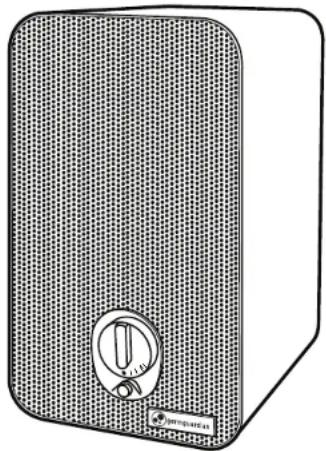

Illustration of a portable electronic device with a circular dial and textured top (no text or symbols)

Table Top Air Purifier

Model No. AC4100

1-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E-1 French F-1 Spanish S-1

Use GENUINE Guardian Technologies replacement parts only. REV0218

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: - Read all instructions before using appliance.

• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.

- To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.

- Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.

- Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.

- NEVER drop or insert any object into any openings.

• DO NOT run cord under carpeting.

- DO NOT cover cord with throw rugs, runners, or similar coverings.

- DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

- DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.

- Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

- DO NOT use outdoors.

• DO NOT place anything on top of unit.

- NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

- DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Manufactured by Guardian Technologies.
  • Always unplug the unit before before cleaning or servicing in any way.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m ^3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

WARNING: This product can expose you to chemicals including lead or lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

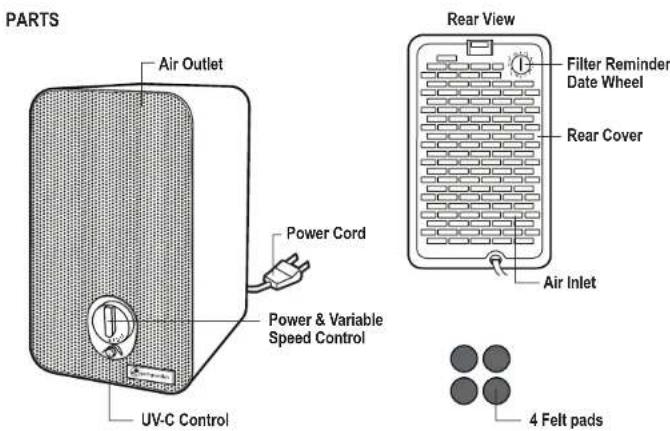

PRODUCT SPECIFICATIONS AND PARTS

PARTS Air Outlet Power Cord Power & Variable Speed Control UV-C Control Rear View Filter Reminder Date Wheel Rear Cover Air Inlet 4 Felt pads

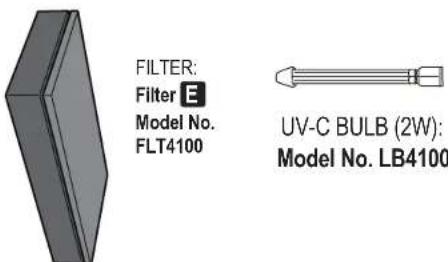

REPLACEMENT PARTS

FILTER: Filter E Model No. FLT4100 UV-C BULB (2W): Model No. LB4100

Check out our

AutoShip & Save

Filter Replacement Program

www.guardiantechnologies.com

IMPORTANT: Use Guardian Technologies GENUINE Replacement Parts only.

To Purchase Contact Customer Service

DIGITAL AIR CLEANING SYSTEM

Improve your indoor air quality with your new 3-in-1 Air Cleaning System. Multiple levels of cleaning work together to capture allergens, kill germs and remove odors.

COMBINATION FITER

Pre-Filter/Charcoal -This layer serves as a pre-filter for capturing large dust particles; lint and pet hair which helps extend the life of your filter. The activated carbon absorbs household and pet odors.

HEPA Filter- Captures 99.97% of dust and allergens.

UV-C LIGHT

The power of UV-C light kills bacteria and viruses, including: rhinovirus, E. coli and streptococcus..

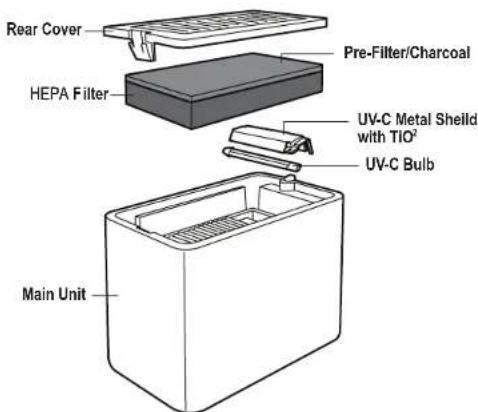

AIR CLEANING LAYERS

Rear Cover HEPA Filter Pre-Filter/Charcoal UV-C Metal Shield with TiO² UV-C Bulb Main Unit

COMBINATION FILTER:

1 Pre-Filter/Charcoal
1 HEPA Filter

Filters last approximately 6-8 months depending on use.

Pre-Filter/Charcoal 99.97% HEPA Filter

OPERATING INSTRUCTIONS

SET UP

1. Select a firm, level and flat location for the air purifier. For proper air flow, locate the unit at least 1 foot from any wall or furniture. Make sure none of the grills are blocked.
2. Carefully remove your air purifier from box and bag.
3. Determine preferred position of purifier based on space and preference.

IMPORTANT: When moving the air purifier, always lift unit by the carrying handle located on back.

Illustration of a rectangular electronic device with a textured top and circular button (no text or symbols)

Vertical Position

Simple line drawing of a folder with a circular button on the cover (no text or symbols)

Horizontal Position

1. Adhere 4 felt pads to unit base to protect table top surface. Remove adhesive backing and apply one pad to each corner of unit base depending on preferred position in Step 3 (Figure 1).

Simple rectangular frame with four corner dots, no text or symbols present

Figure 1

1. Plug the power cord into a 120V AC outlet.

2. Turn unit power ON.

(1 = lowest speed setting;

III = highest speed setting)

1. Select UV-C ON or OFF using

UV-C Power Button (Figure 2).

Power & Variable Speed Control UV-C Control

Figure 2

FILTER REPLACEMENT

To maintain the performance of the air cleaner, it is recommended that the filter be replaced about every 6 months. The replacement requirements will vary depending on usage and environmental conditions.

1. It's time to replace the filter when the white HEPA cartridge portion has changed from white to grey or black.

OR

1. A filter date wheel is also built into the rear of the unit to track your filter changes. Simply set the wheel 6 months ahead from when it is replaced as a reminder. The wheel is marked with the months of the year (Figure 3).

Figure 3

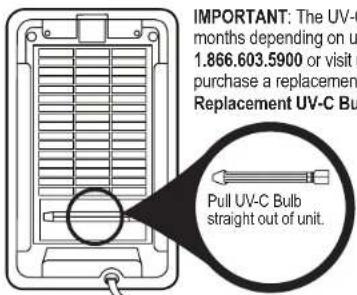

UV-C BULB REPLACEMENT

1. Lift and remove the Rear Cover from the unit.

2. After removing the Rear Cover from the unit, remove the Combination Filter.

3. After removing the Combination Filter, use a Philips head screwdriver to remove screw and detach the UV-C Shield.

1. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit (Figure 4).

IMPORTANT: The UV-C months depending on u 1.866.603.5900 or visit o purchase a replacement Replacement UV-C Bul Pull UV-C Bulb straight out of unit.

Figure 4

IMPORTANT: The UV-C Bulb should be replaced every 10-12 months depending on use. Please contact Customer Service at 1.866.603.5900 or visit us at www.guardiantechnologies.com to purchase a replacement bulb. Replacement UV-C Bulb: LB4100.

5. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots.

CLEANING & MAINTENANCE

GENERAL CLEANING

Always unplug the unit before cleaning or servicing in any way.

Caution: Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

Note: Do NOT stick any foreign objects or your fingers inside the unit.

1. Wipe the surface of the unit with a clean, dry soft cloth as needed.
2. Clean the Filter monthly with the brush of your vacuum cleaner.
3. Remove and Clean (or Replace) Filter.

Diagram of a container with a lid and an upward arrow, no text or symbols present

a. Lift and remove the Rear Cover from the unit.

Diagram of a device with a rectangular block on top and a grid base, showing upward motion (no text or symbols)

b. Remove Combination Filter from unit. Note: Pre-Filter/Charcoal is affixed to HEPA Filter with Velcro.

Illustration of a hand using a brush to clean or store items on a flat surface (no text or symbols visible)

c. Separate and clean both filter layers with the brush attachment of your vacuum cleaner to remove lint and dust. IMPORTANT: Do NOT try to wash and re-use the Combination Filter.

Diagram of a computer monitor with a screen and keyboard, showing an open lid (no text or symbols present)

d. Insert Combination Filter into the unit with the HEPA portion facing into the unit. Consult the arrow on the filter for correct installation direction.

Diagram of a container with a lid and an arrow indicating downward motion (no text or symbols)

e. Reattach the Rear Cover of the unit and securely latch into place.

IMPORTANT: Do NOT try to wash and re-use the Combination Filter. Please contact Customer Service at 1.866.603.5900 or visit us at www.guardiantechnologies.com to purchase a replacement filter. Replacement Combination Filter: E (FLT4100)

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit does not operate.	Check that the unit is plugged in.
Unit shuts off unexpectedly.	Check that the unit is plugged into a working electrical outlet.Check that the HEPA Filter is firmly in place.Check that the Front Cover is latched firmly in place.Call Customer Service.
No air circulating from unit.	Unplug unit. Check Pre-Filter/Charcoal and HEPA Filters.Clean Pre-Filter/Charcoal if necessary.Replace HEPA Filter if necessary.
Increase in noise level.	Make sure the filters are clean. Replace if necessary.
An unpleasant odor is emitted from the unit.	Make sure the filters are clean. Replace if necessary.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

866 603-5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET

INSTRUCTIONS D'ENTRETIEN

Illustration of a portable electronic device with a circular control knob (no text or symbols)

Illustration of a rectangular electronic device with a mesh grille and a circular button (no text or symbols)

Position verticale

Simple line drawing of a folder with a circular button on the cover (no text or symbols)

Position horizontale

Simple geometric diagram with a rectangle and four corner dots, no text or symbols present.

Figure 1

FONCTIONNEMENT DU SYSTÈME DE PURIFICATION D'AIR :

REPLACEMENT DU FILTRE

REPLACEMENT DU TUBE UVC

Simple line drawing of a container with a lid and an upward arrow, no text or symbols present.

Diagram of a device with a top panel and an upward arrow, no text or symbols present

Illustration of a hand using a brush to clean or mark a surface, with no visible text or symbols.

Diagram of a device with a rectangular block on top, showing a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram of a container with a lid and an arrow indicating downward motion (no text or symbols)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

Illustration of a portable electronic device with a circular control knob (no text or symbols)

IMPORTANT: When moving the air purifier, always lift unit by the carrying handle located on back.

Illustration of a portable electronic device with a textured back panel and circular button (no text or symbols)

Posición vertical

Simple line drawing of a folder with a circular button on the cover (no text or symbols)

Posición vertical

Simple geometric diagram of a rectangle with four corner dots, no text or symbols present.

Figura 1

FUNCIONAMIENTO DEL PURIFICADOR DE AIRE

Diagram of a container with a lid and an upward arrow, no text or symbols present

Diagram of a device with a rectangular block on top and a tray, showing an upward arrow (no text or symbols)

Illustration of a hand brushing a surface with a brush (no text or symbols)

Diagram of a mechanical device with a rectangular block and a downward arrow, no text or symbols present

Diagram of a container with a lid and an upward arrow indicating direction (no text or symbols)
