HL400 - Food Processor Hobart - Free user manual and instructions

Product type	Professional stand mixer (food processor)
Brand	Hobart
Model	HL400 (Legacy+® range)
Bowl capacity	60 quarts (56.8 L) to 140 quarts (132.5 L) depending on model
Motor power	2.7 HP to 5.0 HP depending on model
Electrical supply	Single-phase or three-phase, 60 Hz, depending on model
Mixing speeds	STIR (stir) + 4 mixing speeds, or pizza mixing (2 speeds) depending on model
Digital timer	SmartTimer™ with count-up and countdown
Bowl lift system	Motorized bowl lift with Shift-on-the-Fly™ control
Main functions	Mixing, kneading, whipping, aeration
Compatible agitators	Flat beater (B), wing beater (C), standard whip (D), dough hook (ED), heavy-duty whip (I), pastry knife (P)
Available accessories	Ingredient chute, splash guard cover, bowl cart, bowl scraper, smaller size bowls
Construction	Stainless steel bowl, metal guard
Cleaning	Daily hand washing of bowls and agitators; washable guard
Preventive maintenance	Lubrication of slides and agitator shaft twice a year; check transmission oil level
Safety	Safety switches on guard and bowl carriage; automatic stop if guard is open
Warranty	Manufacturer's warranty, repairs by authorized service required
Repairability	Spare parts available from Hobart service; parts manual provided
Country of manufacture	United States (Hobart brand)

Frequently Asked Questions - HL400 Hobart

What is the maximum bowl capacity for the Hobart HL400?

The Hobart HL400 is available with bowls from 60 to 140 quarts (approximately 57 to 133 liters). Check the nameplate for the exact capacity of your model.

How do I properly install the bowl on the mixer?

Lower the bowl carriage using the motorized control, position the bowl so that the alignment pins fit into the holes, then rotate it into the locked position. Make sure the locking lever is engaged.

Which agitators are compatible with the Hobart HL400?

Available agitators include the flat beater (B), wing beater (C), standard whip (D), dough hook (ED), heavy-duty whip (I), and pastry knife (P). Use only agitators suitable for your bowl size.

How do I use the SmartTimer™?

You can use count-up mode (continuous mixing) by turning the TIME selector to HOLD, then pressing START. For countdown, turn the TIME selector to set the desired time, then press START. The timer stops automatically at zero.

What should I do if the agitator hits the bowl during operation?

First check that the bowl is properly locked. If the problem persists, adjust the agitator clearance by adjusting the stop screw on the side of the bowl carriage (see Maintenance section of the manual). The recommended maximum clearance is 1/8 inch (3 mm) for the flat beater.

How do I clean the Hobart HL400 mixer?

Turn off the power and lock the machine. Wash the bowls and agitators with hot soapy water, rinse, and dry. The guard can be removed and hand washed. Never use a hose or pressure washer. Wipe the exterior with a damp cloth.

How often should the slides be lubricated?

The slides should be lubricated about twice a year with Lubriplate 630AA grease. Lower the bowl carriage, remove the apron, apply a thin layer to the supports and slides, then reinstall the apron.

What should I do if the mixer doesn't start?

Check that the guard is fully closed in the front center position, the bowl is locked, and the bowl carriage is fully raised. Also check the fuse or circuit breaker. If the problem persists, contact Hobart technical service.

Can I use a bowl smaller than the standard size?

Yes, smaller size bowls are available (for example, a 40-quart bowl for a 60-quart model). You must use the agitator suited to the reduced bowl size. Check the Hobart website for references.

How do I maintain the transmission of the Hobart HL400?

Check the transmission oil level monthly via the dipstick under the top cover. Add recommended Hobart transmission oil if low. A complete oil change must be performed by an authorized technician. The transmission belt should be inspected annually.

USER MANUAL HL400 Hobart

Exterior view of a modern K-150 mixing console with control panel and mesh chamber (no visible text or symbols)

FOOD EQUIPMENT GROUP

701 S. RIDGE AVENUE

TROY, OHIO 45374-0001

937 332-3000

www.hobartcorp.com

TABLE OF CONTENTS

GENERAL....3

Safety Guidelines....4

Operation Guidelines 4

Dust Hazard 5

Warning Symbol....5

Warranty Disclaimer....5

General Information 5

INSTALLATION 6

Unpacking 6

Location 6

Electrical Connections 7

OPERATION 8

Initial Checks....8

Mixer Components 9

Controls....12

Bowl Placement....13

Agitator....14

Power Bowl Lift 14

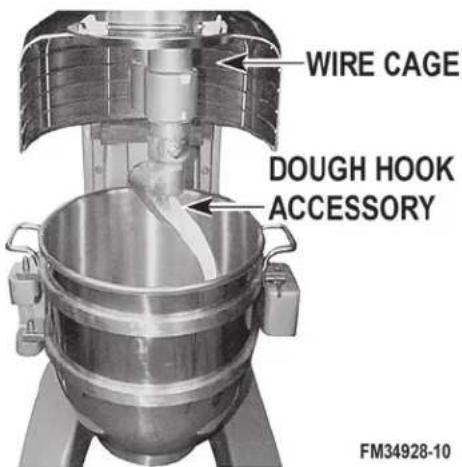

Prepare For Mixing 15

Timer Operation (SmartTimer™)....15

Operating Notes......16

Unloading....17

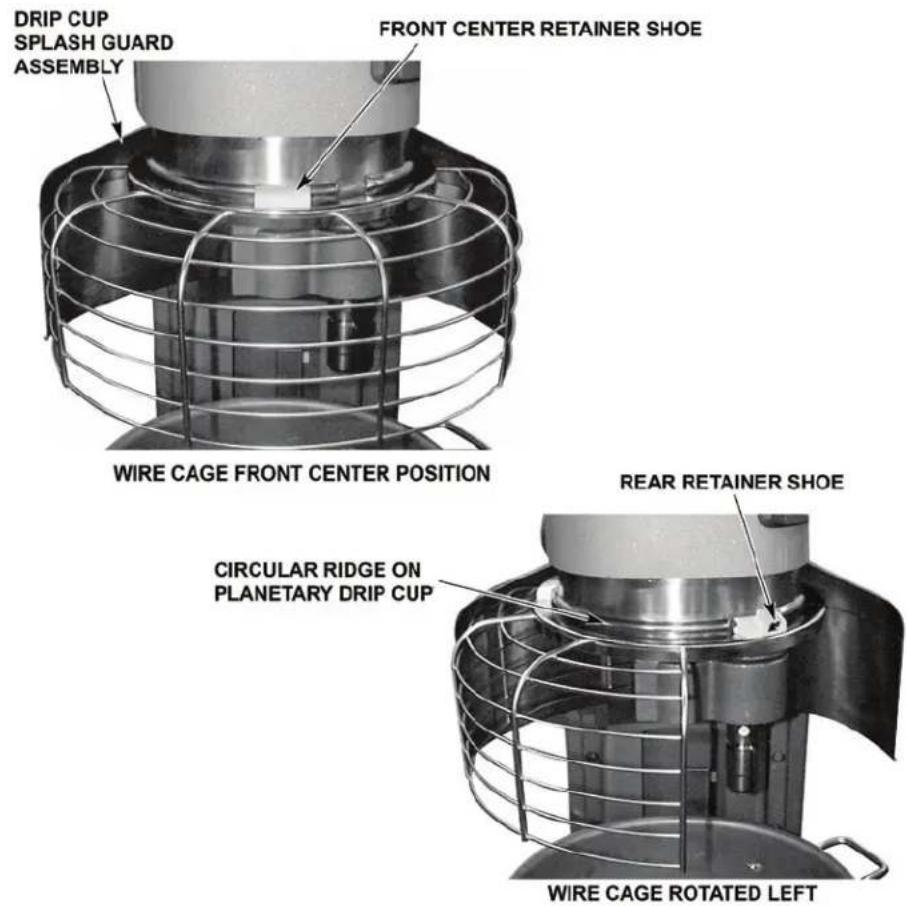

Wire Cage (Fig. 13)....17

CLEANING....19

MAINTENANCE....20

Interlock Safety System 20

Lubrication 20

Transmission Belt....21

Adjustments ......21

TROUBLESHOOTING 23

Troubleshooting Guide....23

Service 23

AGITATORS AND ATTACHMENTS....24

Available Agitators and Attachments....24

INSTALLATION, OPERATION AND CARE OF LEGACY+® MIXERS

60-QUART through 140-QUART

SAVE THESE INSTRUCTIONS

GENERAL

This Operation Manual is for the Hobart Legacy+® 60-Qt through 140-Qt Floor Mixers which are available in three different bowl sizes. Visit the website www.hobartcorp.com to see additional mixer sizes available from Hobart.

Device Bowl Size (Qt) Motor Horsepower Hub Mixing Speeds
HL600 60-	Qt 2.7 HP Motor #12 STIR, plus four mixing speeds
HL600C 60-	Qt 2.7 HP Motor #12			Correctional Mixer, STIR, plus four mixing speeds
HL662	60-Qt 2.7 HP Motor #12			Pizza Mixer, two mixing speeds
HL800 80-	Qt 3.0 HP Motor	N/A STIR, plus four mixing speeds
HL800C 80-	Qt 3.0 HP Motor	N/A		Correctional Mixer, STIR, plus four mixing speeds
HL1400	140-Qt	5.0 HP Motor	N/A	STIR, plus four mixing speeds
HL1400C	140-Qt	5.0 HP Motor	N/A	Correctional Mixer, STIR, plus four mixing speeds

All sizes of Hobart Maximum Heavy Duty Floor Mixers feature a digital SmartTimer™ with Shift-on-the-Fly™ Controls and a power bowl lift as standard equipment.

A variety of agitators and accessories are available. These are described in a separate Use and Applications Handbook available on our website at www.hobartcorp.com.

Step down bowl sizes and agitators are available for the 60-Qt through 140-Qt mixers (e.g. 40-Qt bowl for 60-Qt mixer). Please see the website or contact you authorized Hobart Distributor for more information.

SAFETY GUIDELINES

• All operators must be properly trained in the safe operation of the mixer and attachments.
• To avoid risk of serious injury follow all precautions and instructions in this manual when installing, operating, and servicing the mixer.
• To avoid risk of serious injury, keep hands, feet, clothing, and utensils away from the bowl, bowl support, slideways, and agitator when the mixer is in operation or any of the components are moving.
• Do not operate the mixer if it is not in proper operating condition.
• Disconnect power to the mixer and follow lockout-tagout procedures before moving or servicing the mixer.
• Do not operate the mixer if parts are disassembled.
• Do not override safety switches on the mixer.
• When moving the mixer make sure it is stable to avoid tipping and keep hands and feet clear of the bottom of the mixer to avoid pinching.
• Use the STOP button to stop the mixer. Never open the wire cage or use the power bowl lift to stop the mixer.
• Do not wear loose clothing around the mixer.
• Do not inhale dust particles from mixing ingredients. Exposure to dust (including flour) may be harmful to health. When mixing ingredients that develop dust use the STIR speed until the dust is eliminated and follow the instructions in the DUST HAZARD section below.
• Do not install or leave an agitator on the mixer without a bowl in place.
• Do not use excessive force when operating, which could affect the stability of the mixer.

• Use the correct sized bowl only with agitators for that sized bowl. Double check the sizes when using a reduced sized bowl, by consulting the mixer accessories chart available at www.hobartcorp.com.
• Ensure the bowl, agitator, and wire cage are correctly fitted to the mixer.
• Stop the mixer before adding more ingredients unless using a food chute.
• Have your mixer regularly serviced; at least twice a year for typical usage. Mixers may require more or less service depending on frequency of use.
• Use the mixer in a well-lit area.
• Ensure this manual is kept in an easily accessible place near the mixer for future reference.
• Do not clean the mixer with scouring powder or a scouring pad.
• Do not clean aluminum agitators in dishwashers.
• Do not hose or pressure clean the mixer. It is important to adhere to the cleaning instructions detailed in the CLEANING section of the manual.

DUST HAZARD

In order to minimize any dust hazard, follow the instructions detailed below.

When mixing ingredients care must be taken to avoid the inhalation of dust particles e.g. flour. Reference should be made to the product supplier's data sheets to ensure adequate precautions and protections are taken.

Ingredients such as flour must be added carefully to minimize air-borne dust particles.

Carefully slit the bag while holding it in the lower part of the bowl. When mixing dry ingredients use the lowest speed and a splash cover to minimize dust emission. Mix the ingredients in the bowl using the lowest speed until the risk of producing any dust is eliminated. Fit suitable dust extraction equipment.

WARNING SYMBOL

To identify the safety messages in this manual, the following symbol has been used.

WARNING The WARNING symbol is located in the manual before information corresponding to the safe use of the mixer.

WARRANTY DISCLAIMER

Installations and repairs carried out by non-authorized service technicians may affect the mixer warranty. Using other than original replacement parts may affect the mixer warranty. Technical alterations to the mixer may affect the mixer warranty.

For warranty information, please contact Hobart Customer Care.

GENERAL INFORMATION

Hobart reserves the right to alter the design of its products without prior notice. If you have questions regarding mixer details not included in this manual, contact your local Hobart Service Office.

INSTALLATION

UNPACKING

The mixer was inspected before leaving the factory. The carrier assumes full responsibility for the safe delivery of the mixer upon acceptance of the mixer for shipping. The customer must check for possible shipping damage immediately upon receipt before moving, installing, or modifying the mixer.

If damage is found, keep all original packaging materials for inspection purposes. The customer must complete the following steps to report the damage.

1. Carrier's local terminal must be notified within 5 business days of shipment receipt (note time, date, and who was spoken to), and follow up and confirm with written or electronic communication.
2. Notify Hobart customer care at [phone] within 5 business days of shipment receipt.

LOCATION

Prior to installation, test the electrical service to ensure that it matches the specifications on the mixer data plate.

Place the mixer in its operating location. There should be adequate space around the mixer for the user to operate the controls and to install and remove bowls. The area above and to the right side of the mixer should allow the top and side covers to be removed for routine maintenance and servicing.

Select a suitable flat and level surface that can support the weight of the mixer and contents of a full bowl.

Once in position, the mixer must be leveled:

• Remove the two top cover screws and the top cover.
• Place a level on the top rim of the large pulley (Fig. 1). Slide shims under the base contact surface of the mixer as required to level it front-to-back and side-to-side.
• Do not replace the top cover until installation is completed.

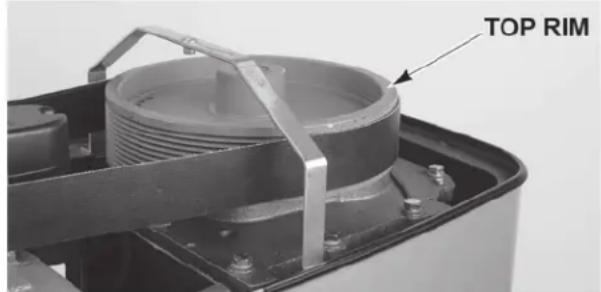

TOP RIM

Fig. 1

80-Qt and 140-Qt mixers may be bolted to the floor using studs. Floor anchoring hardware is included with some models.

1. Place the mixer in its operating location.
2. Mark the floor using the four holes in the base as a template.
3. Move the mixer for access to the floor.
4. Using a 5/8" diameter bit, drill four holes in floor to a depth of 2".
5. Drive floor anchors flush with the surface of the concrete.

6. Expand the anchor with the setting tool provided. Anchor is properly expanded when shoulder of setting tool is flush with the top of the anchor.

7. Place the mixer in its operating location over the drilled holes.

8. Install studs through the base and into the floor anchors.

9. Install flat washers, lock washers, and nuts onto the studs and tighten.

10. Saw off all threads flush with the top of the nut and remove any sharp edges.

ELECTRICAL CONNECTIONS

⚠ WARNING Electrical and grounding connections must comply with the applicable portion of the National Electrical Code and/or other local electrical codes.

WARNING Disconnect the electrical power to the mixer and follow lockout / tagout procedures.

A hole for 3/4"-trade-size conduit is located at the top of the pedestal. Make electrical connections per the wiring diagram located on the inside of the top cover.

Single-Phase Mixer:

• Connect field supply lead wires to L1 and L2.
• Connect ground wire to ground lug on the mixer.
• Cut off stripped portion of L3 on Legacy+® Mixer and wrap securely with electrical tape to insulate the exposed conductor.

Three-Phase Mixer:

• Connect field supply lead wires to L1, L2, and L3.
• Connect ground wire to ground lug on the mixer.

OPERATION

INITIAL CHECKS

⚠ WARNING To avoid risk of serious injury, keep hands, feet, clothing, and utensils away from the bowl, bowl support, slideways, and agitator when the mixer is in operation or when any of the components are moving.
WARNING This food mixer is only for professional use by properly trained persons.
⚠ WARNING Ensure operators have read and understood this manual and have received proper training.
⚠ WARNING Do not use the mixer without the interlocked wire cage in place.

The Legacy+® mixer is equipped with SmartTimer™ controls and a power bowl lift. Other operating parts (Fig. 3, Fig. 4, and Fig. 5) and their functions are described throughout the Operation section.

The wire cage must be in position or the mixer will not operate.

The bowl must stay in the locked position on the bowl support or the mixer will not operate.

If the bowl support is not all the way up (mix position), the mixer will not operate unless the START button is pressed and held.

If the bowl support is not in the mix position and the START button is pressed and held, the mixer will operate only in STIR speed.

Check Lubrication Before Use

This mixer is shipped with oil in the transmission. Check oil level before starting mixer (Fig. 2). Refer to the Lubrication section for applicable lubrication procedures.

Wiring Check

1. Turn the SPEED dial pointer to STIR.
2. Apply power to the mixer. With the bowl locked into place, the bowl support all the way up and wire cage closed, momentarily run the machine by pushing the START and then STOP buttons.
3. Verify that the bowl lift raises and lowers per the switch direction arrows. If not, proceed to step 3a below.

a. Refer to the Electrical Connections section and follow all warnings and instructions to correct the lead wires.

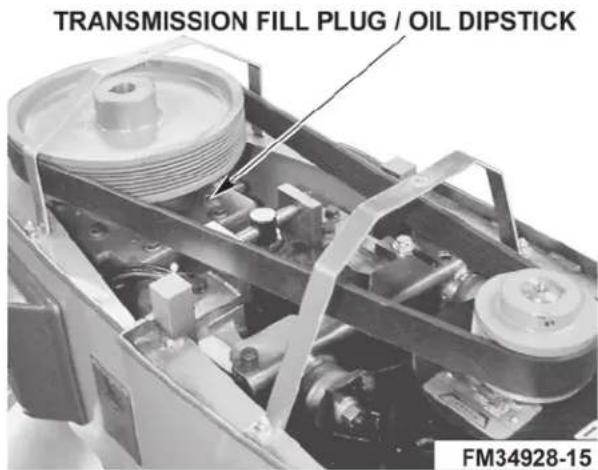

Transmission Fill Plug / Oil Dipstick

Mechanical assembly diagram showing internal components like pulley and gears (no text or labels visible)

Fig. 2

MIXER COMPONENTS

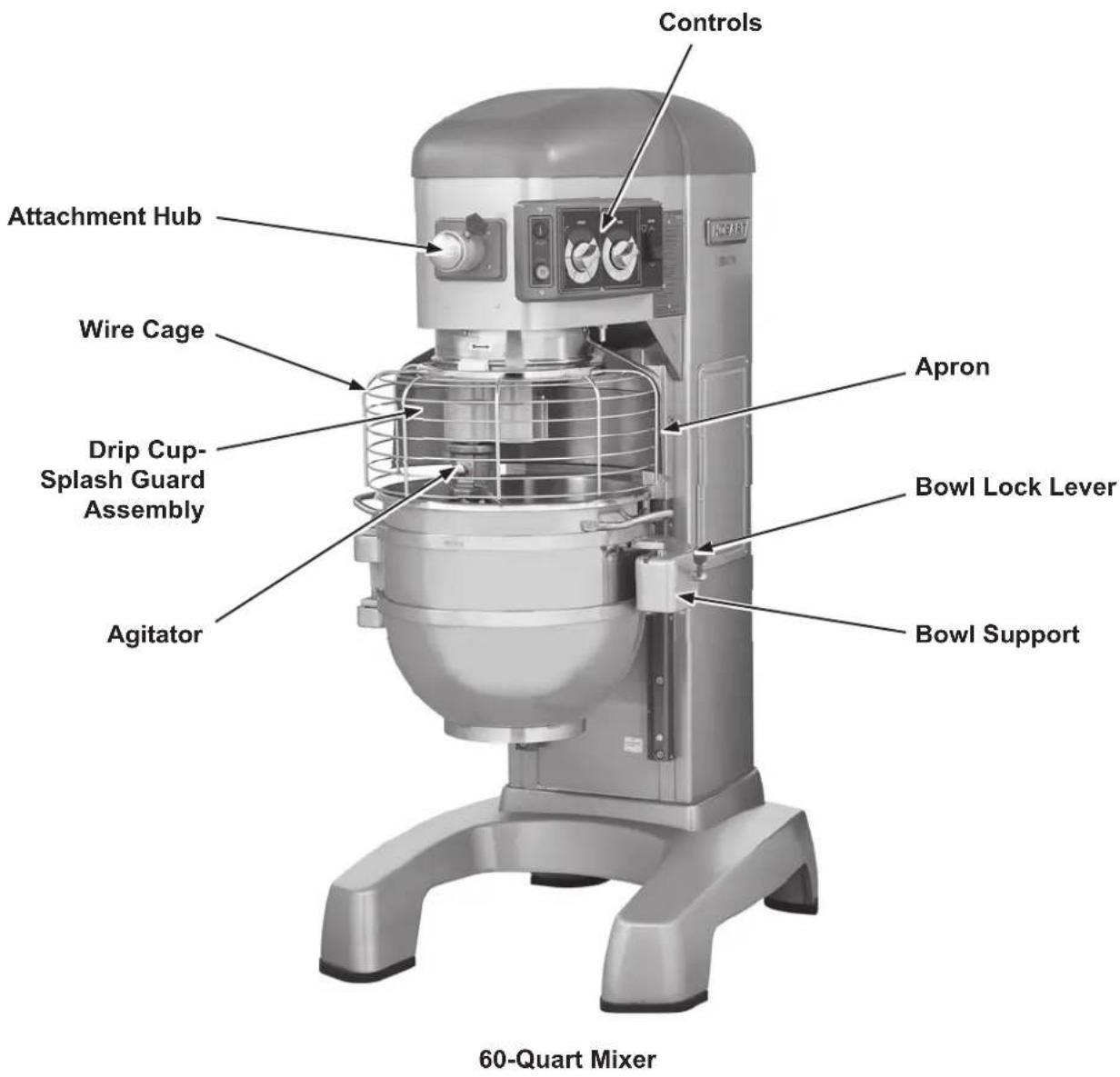

Controls Attachment Hub Wire Cage Drip Cup- Splash Guard Assembly Agitator Apron Bowl Lock Lever Bowl Support 60-Quart Mixer

Fig. 3

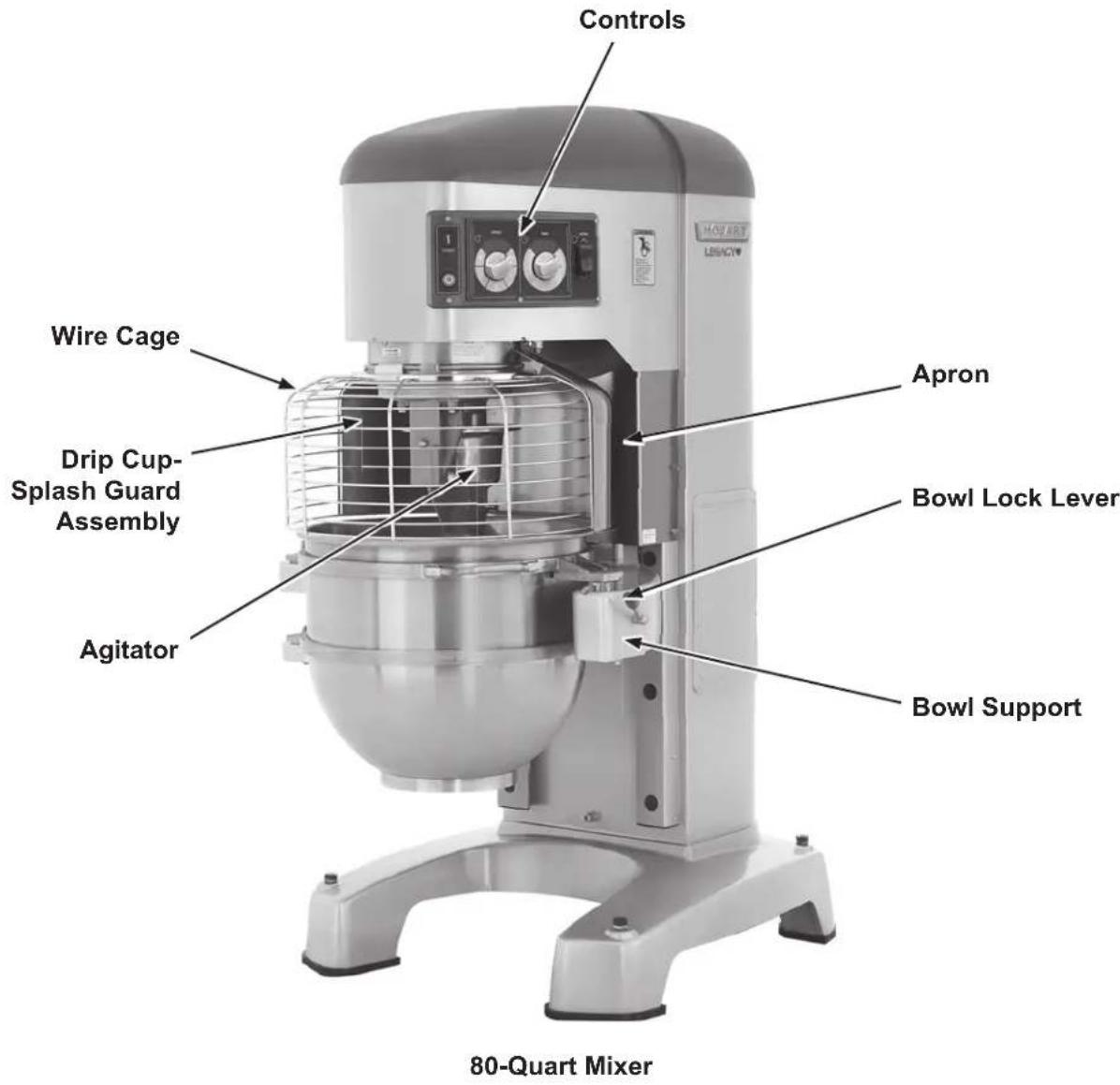

Controls Wire Cage Drip Cup- Splash Guard Assembly Agitator Apron Bowl Lock Lever Bowl Support 80-Quart Mixer

Fig. 4

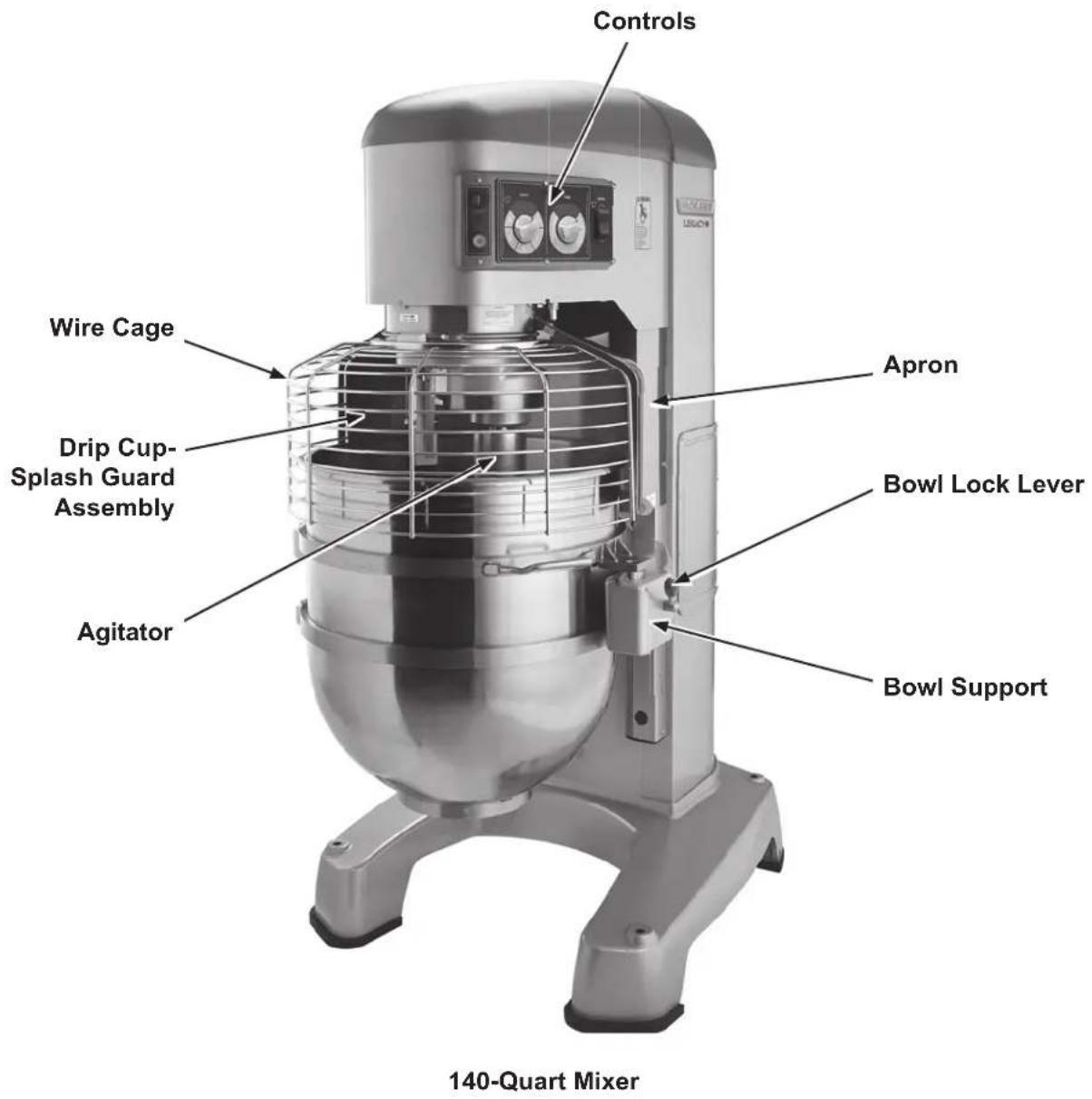

Controls Wire Cage Drip Cup- Splash Guard Assembly Agitator Apron Bowl Lock Lever Bowl Support 140-Quart Mixer

Fig. 5

CONTROLS

Models HL600 and HL600C

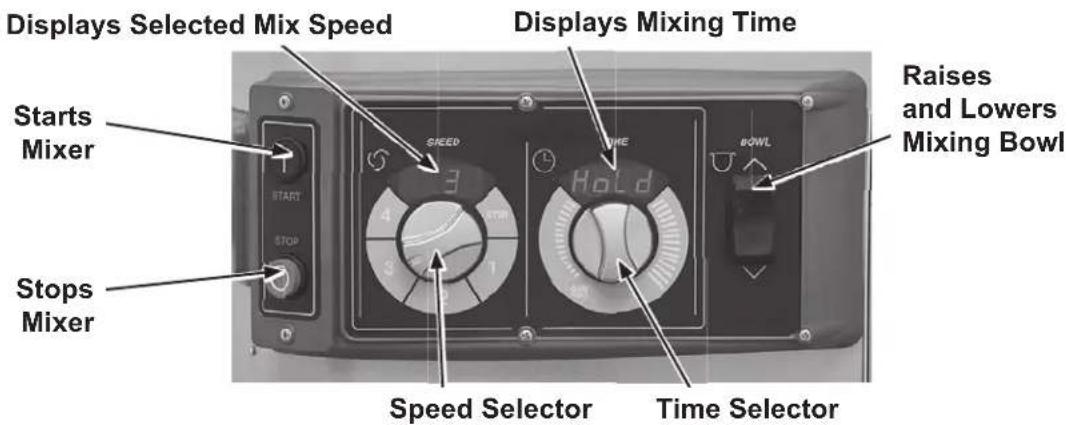

Displays Selected Mix Speed Starts Mixer Stops Mixer Displays Mixing Time Speed Selector Time Selector Raises and Lowers Mixing Bowl SPEED 3 4 5 6 7 8 9 10 HOLD BOWL

Fig. 6

HL600 and HL600C Mixer Speeds

STIR (Slow) For incorporating ingredients

SPEED 1 (Low) For heavy mixtures such as pizza dough, heavy batters, and potatoes

SPEED 2 (Medium-Low) For mixing cake batters, mashing potatoes, and developing bread dough

SPEED 3 (Medium-High) For incorporating air into batches, as well as finishing whipped items

SPEED 4 (High) For maximum, accelerated air incorporation into light batches

Model HL662

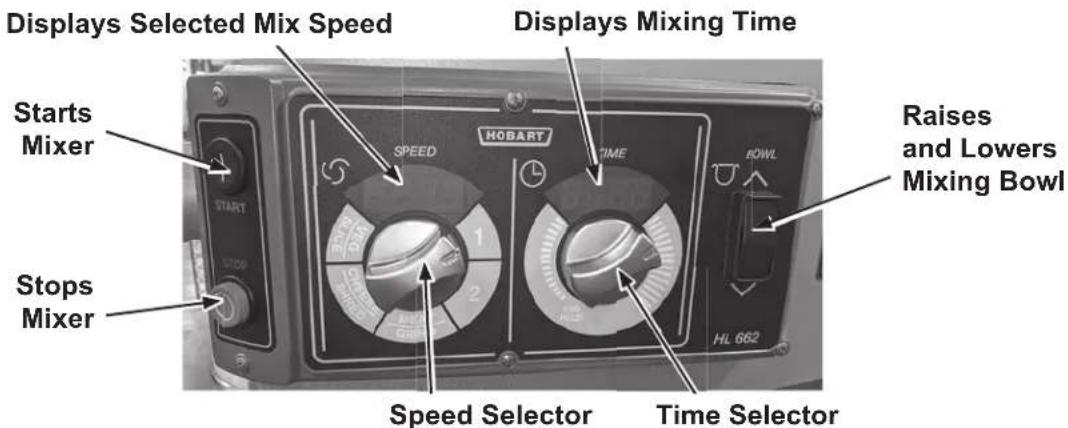

Displays Selected Mix Speed Displays Mixing Time Starts Mixer HOBART SPEED TIME ROWL Starts STOP 1 2 Stops Mixer HL 662 Speed Selector Time Selector Raises and Lowers Mixing Bowl

Fig. 7

HL662 Mixer Speeds

SPEED 1 (Slow) For heavy mixtures such as pizza dough, heavy batters, and potatoes

SPEED 2 (Low) For developing pizza dough

MEAT GRIND For grinding meat

CHEESE SHRED For shredding cheese

VEGETABLE SLICE For slicing vegetables

Models HL800, HL800C, HL1400, and HL1400C

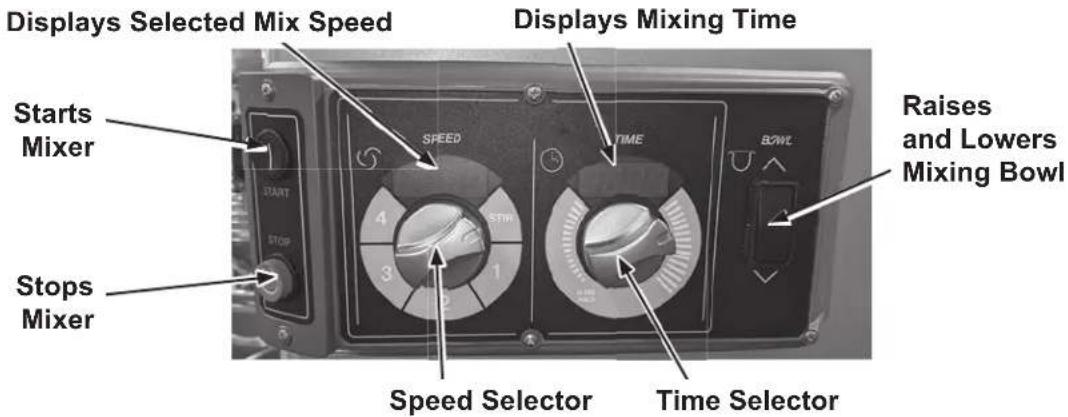

Displays Selected Mix Speed Displays Mixing Time Starts Mixer Starts STOP Stairs 4 3 1 Speed Selector Time Selector Raises and Lowers Mixing Bowl Stairs 4 3 1 Speed Selector Time Selector

Fig. 8

HL800, HL800C, HL1400, and HL1400C Mixer Speeds

STIR (Slow) For incorporating ingredients

SPEED 1 (Low) For heavy mixtures such as pizza dough, heavy batters, and potatoes

SPEED 2 (Medium-Low) For mixing cake batters, mashing potatoes, and developing bread dough

SPEED 3 (Medium-High) For incorporating air into batches, as well as finishing whipped items

SPEED 4 (High) For maximum, accelerated air incorporation into light batches

BOWL PLACEMENT

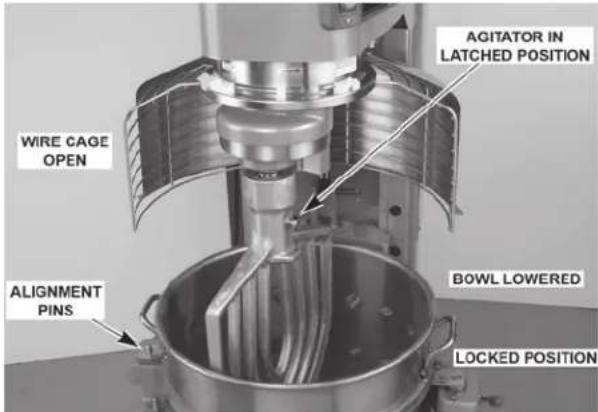

NOTICE The bowl must be installed onto the bowl support before the agitator is installed. The bowl is heavy and must be correctly handled and lifted to avoid personal injury.

To Install

1. Fully lower the bowl support by pressing and holding the down arrow on the bowl switch (Fig. 6, Fig. 7, and Fig. 8).
2. Position the bowl so the alignment pins on the left side of the bowl support (Fig. 9) fit in the holes in the bowl.
3. Swing the bowl into the locked position on bowl support (Fig. 9).

To Remove

NOTICE Before lowering the bowl onto a bowl truck, always unlock the bowl and swing the bowl out slightly.

WIRE CAGE OPEN ALIGNMENT PINS AGITATOR IN LATCHED POSITION BOWL LOWERED LOCKED POSITION

Fig. 9

1. Lower the bowl by pressing and holding the down arrow on the bowl switch (Fig. 6, Fig. 7, and Fig. 8).
2. Unlock bowl and swing out slightly from the locked position.
3. Open the wire cage and remove the agitator.

AGITATOR

To install an agitator, the bowl must be on the bowl support and fully lowered.

To Install

1. Open the wire cage. Refer to the Wire Cage section as needed.
2. Place the agitator inside the bowl and align the horizontal slot on the agitator with the agitator shaft pins.
3. Hold the agitator and pull the plunger pin of the agitator out (Fig. 10).
4. Slide the agitator up the agitator shaft until it stops and latches.

To Remove

1. Open the wire cage. Refer to the Wire Cage section as needed.
2. Lower the bowl by pressing and holding the down arrow on the bowl switch (Fig. 6, Fig. 7, and Fig. 8)
3. Hold the agitator and pull the plunger of the agitator out (Fig. 10). Slide the agitator down off the agitator shaft.

Fig. 10

POWER BOWL LIFT

Before lowering the bowl onto a bowl truck, always unlock bowl and swing bowl out slightly (Fig. 11).

To raise the bowl, the bowl must be in the locked position. Push and hold the up arrow on the bowl switch.

To lower the bowl, push and hold the down arrow on the bowl switch.

To Raise the Bowl While Mixing

To raise the bowl while the agitator is mixing the product (when required by recipe or when using the bowl scraper attachment):

1. Close the wire cage, then select a mixing speed on the SPEED dial.
2. Select a count-down time or HOLD for continuous count-up mixing. Refer to the Timer Operation section as needed.
3. While pressing and holding the up arrow on the bowl switch, press and hold the START button. The mixer runs only in stir speed while the bowl is rising.
4. When the bowl reaches the mix position, release the START button. The mixer automatically changes to the selected mixing speed.

Fig. 11

Mixing speed and time can be adjusted any time during the mixing operation without stopping the mixer.

PREPARE FOR MIXING

1. Open the wire cage. Refer to the Wire Cage section as needed.
2. Place the mixing bowl on the bowl support.
3. Pour ingredients into the bowl.
4. Swing the bowl to the locked position.
5. Place the agitator inside the bowl, then attach it to the agitator shaft (Fig. 12).
6. Return the wire cage to the front-center position (Fig. 13).
7. Push and hold the up arrow on the bowl switch until the bowl reaches the mix position and stops.
8. The mixer is now ready for mixing. Refer to the Timer Operation section.

WIRE CAGE DOUGH HOOK ACCESSORY FM34928-10

Fig. 12

TIMER OPERATION (SmartTimer™)

Using the Count-Up Mode (Continuous Mixing)

1. Turn the SPEED dial to select a mix speed (the SPEED setting can be changed at any time during mixing).

NOTICE Only use STIR for incorporating ingredients. Do not use to develop dough products.

1. Set the timer on hold by turning the TIME selector counterclockwise until "Hold" appears in the TIME window.
2. Press the START button to begin mixing. The timer starts to count up from 00:00.

NOTICE If the wire cage is opened at any time, mixing stops. To resume mixing, close the wire cage and press the START button.

1. Press the STOP button to stop the mixer; the mixing time is displayed in the TIME window.
2. Press the START button to resume mixing if needed.

NOTICE When the timer reaches 20:00 minutes, it rolls over to 00:01 and continues counting until the STOP button is pressed.

Using the Count-Down Mode (Timed Mixing)

1. Turn the SPEED dial to select a mix speed.

a. If the count-up mode was used for the previous batch, the desired time needs to be entered.
b. If the count-down mode was used for the previous batch, the previous time is displayed. If a different time is needed, turn the TIME selector to the desired time.

1. Press the START button to begin mixing; the timer starts counting down from the set time.

a. To stop the mixer at any time, press the STOP button. To resume mixing, press the START button. For example: The mixer is started at SPEED 1 for 30 seconds and is stopped after 10 seconds. Pressing the START button will resume mixing.
b. If the mixer is stopped and a new time setting is entered, pressing the START button saves the new time setting on the current speed selection. For example: The mixer is started at SPEED 1 for 30 seconds and is stopped after 10 seconds. A new time is entered by turning the TIME selector. The new time replaces the initial 30 seconds for SPEED 1 after the START button is pressed.
c. If the time is changed while mixing, the mixer operates until the new time expires. The adjustment to the time is not stored.
d. If the speed is changed while mixing, the time reverts to the previously set time for the selected speed and counts down.

WARNING The agitator does not stop immediately. To avoid risk of serious injury, keep hands, clothing, and utensils out of the mixing bowl and away from the agitator as the agitator winds down.

NOTICE If the wire cage is opened at any time, the mixing stops. To resume the mixing, close the wire cage and press the START button.

1. When the timer reaches 00:00, the mixer stops; a beeper sounds for 3 seconds. The count-down timer displays the last-entered time.

OPERATING NOTES

• Only use STIR for incorporating ingredients. Do not use it to develop dough products.
• If the mixer is stopped during mixing, the timer also stops. The timer starts again (with the time remaining) when the START button is pressed.
• The SPEED window displays the current SPEED selection.
• Turn the TIME selector clockwise to take the mixer out of the hold mode.

UNLOADING

1. After the mixer has stopped, and the agitator comes to rest, unlock the bowl and swing-out slightly. Press and hold the down arrow on the bowl switch to lower the bowl.
2. Open the wire cage assembly.
3. Remove the agitator from the agitator shaft.
4. Remove the bowl from the bowl support.

WIRE CAGE (Fig. 13)

The wire cage can be rotated out of the way to add ingredients or to access the bowl and agitator.

Note how the grooves on the retainer shoes allow the wire cage to ride around the circular ridge of the planetary drip cup.

• To open the wire cage: rotate it to your left.
• To close the wire cage: rotate it to your right until it stops in the front-center, closed position.

NOTICE The wire cage must be returned to the closed position for the mixer to operate.

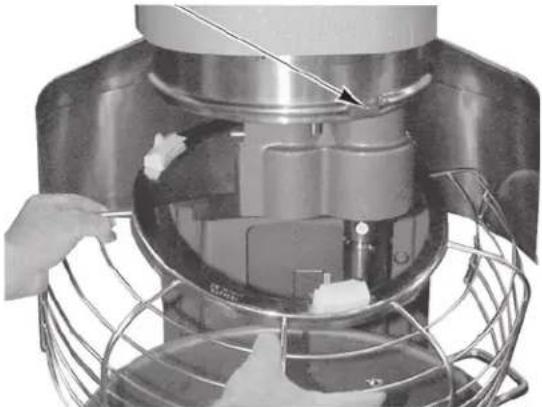

DRIP CUP SPLASH GUARD ASSEMBLY FRONT CENTER RETAINER SHOE WIRE CAGE FRONT CENTER POSITION CIRCULAR RIDGE ON PLANETARY DRIP CUP REAR RETAINER SHOE WIRE CAGE ROTATED LEFT

Fig. 13

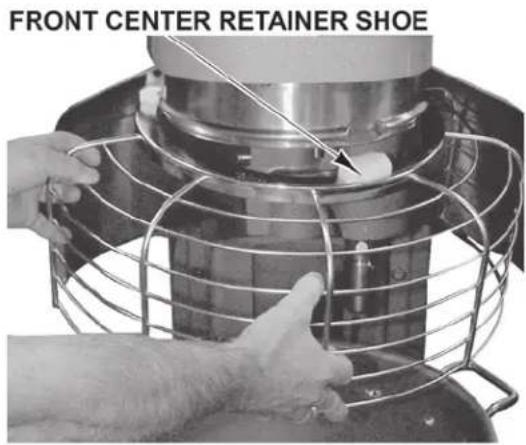

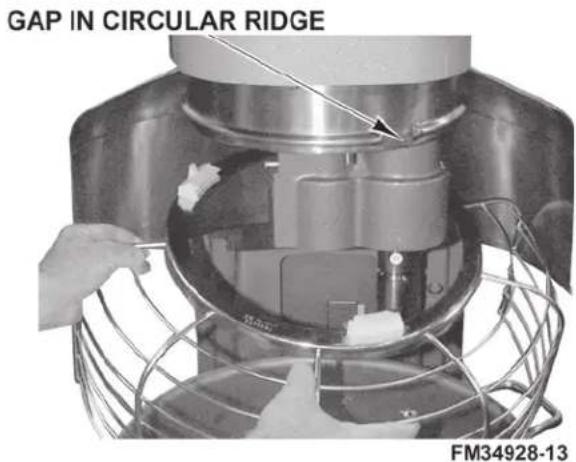

Remove and Clean Wire Cage (Fig. 14)

1. Lower the bowl. Remove the agitator and bowl.
2. While holding the wire cage securely with both hands, rotate it to your left until the front-center retainer shoe reaches the gap in the circular ridge of the planetary drip cup.
3. Lower the front of the wire cage and move the wire cage slightly to the rear so the rear retainer shoes clear the ridge of the drip cup. The wire cage can now be removed.

FRONT CENTER RETAINER SHOE

GAP IN CIRCULAR RIDGE FM34928-13

Fig. 14

1. Wash the wire cage in a sink, rinse with clear water, and dry with a clean cloth.
2. The stainless steel splash guard can be wiped off and/or washed with a cloth or sponge using warm, soapy water. Rinse with clear water and dry with a clean cloth.

Reinstall Wire Cage

1. Position the ring of the wire cage so the front-center retainer shoe is positioned below the gap in the circular ridge of the planetary drip cup.
2. Position the grooves so the rear retainer shoes straddle the circular ridge on the planetary drip cup.
3. Lift the front of the wire cage so the front-center retainer shoe passes up through the gap in the circular ridge on the planetary drip cup.
4. Rotate the wire cage to your right until all three retainer shoes straddle the ridge on the drip cup.

CLEANING

⚠ WARNING Disconnect the electrical power to the mixer and follow lockout / tagout procedures.

New mixer bowls and accessories (beaters, whips, and dough arms) should be thoroughly washed with hot water and a mild soap solution, rinsed with either a mild soda or vinegar solution and thoroughly rinsed with clear water before being used. This cleaning procedure should also be followed for bowls and agitators before whipping egg whites or whole eggs.

The mixer should be thoroughly cleaned daily. DO NOT use a hose to clean the mixer; it should be washed with a clean, damp cloth. The base allows ample room for cleaning under the mixer. The apron (Fig. 3, Fig. 4, and Fig. 5) may be removed for cleaning by loosening the thumb screws. DO NOT wipe down slideways (Fig. 15) when cleaning.

The drip cup-splash guard assembly (Fig. 3, Fig. 4, and Fig. 5) should be removed periodically and wiped clean.

For cleaning the wire cage refer to the Wire Cage section.

MAINTENANCE

⚠ WARNING Disconnect the electrical power to the mixer and follow lockout / tagout procedures.
⚠ WARNING Do not remove any covers or loosen any fittings while the mixer is operating. Ensure the electrical supply has been isolated before attempting to service or move the mixer.
⚠ WARNING The electronic drive control is fitted with high voltage capacitors. Isolate the mixer from the mains and allow the capacitors to discharge for 5 minutes before removing any covers.
⚠ WARNING Only Hobart trained service personnel or other properly trained and qualified personnel should carry out service.

INTERLOCK SAFETY SYSTEM

Regular inspection of the mixer's safety system is necessary to check the operation of the wire cage and bowl support interlock switches. Inspections must be performed no less than once a year.

A spare parts manual is available from Hobart Resource Center. For continued safe and reliable operation of this mixer, it is recommended that servicing is only carried out by Hobart trained service personnel.

LUBRICATION

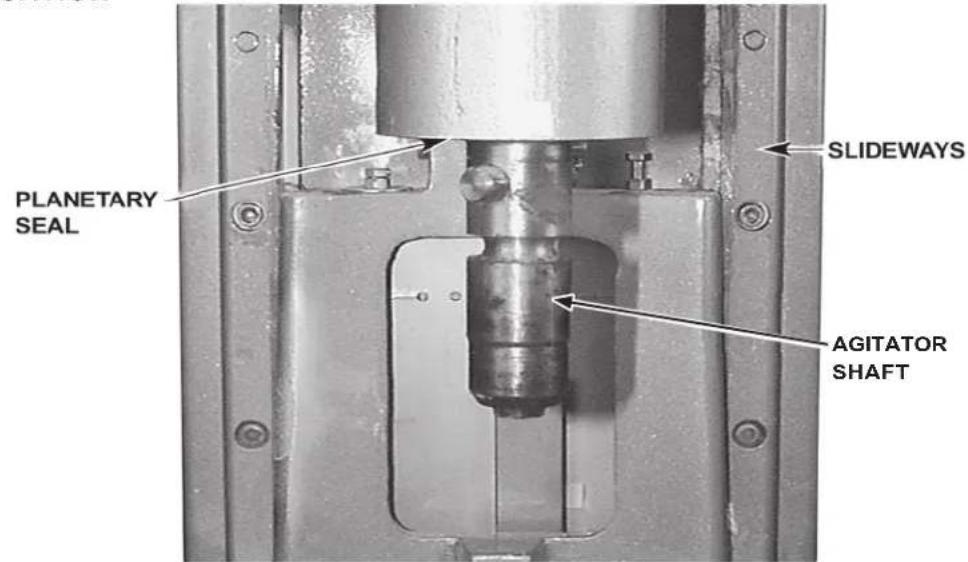

PLANETARY SEAL SLIDEWAYS AGITATOR SHAFT

Fig. 15

Slideways

The slideways (Fig. 15) should be lubricated approximately twice a year. To reach these areas, fully lower the bowl support and remove the apron (Fig. 3, Fig. 4, and Fig. 5), which is secured by thumb screws. Wipe a thin coat of Lubriplate 630AA on the bowl pad area of the bowl supports and on each slideway. Install the apron.

Planetary Seal

Occasionally, the planetary seal (Fig. 15) may become dry and begin to squeak. To correct this, work a little lubrication (mineral oil) under the lip of the seal.

Agitator Shaft

The agitator shaft (Fig. 15) should be lubricated twice a year with a thin coat of mineral oil.

Transmission

To check the oil level, remove the top cover, which is secured by two screws. Remove the Transmission Fill Plug (Fig. 16) and check the oil level. If the oil level is below the line on the oil dipstick, add a small amount of the recommended transmission oil until it returns to the proper level. Do not overfill the transmission, as leakage may result. Contact your local Hobart Service Office for the recommended transmission oil.

TRANSMISSION FILL PLUG / OIL DIPSTICK FM34928-15

Fig. 16

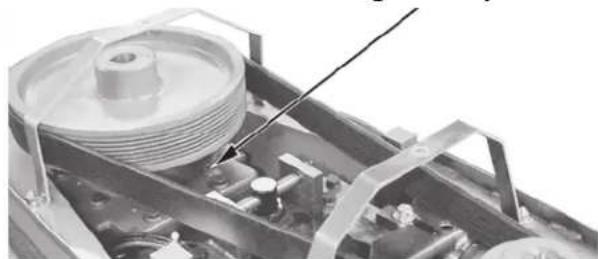

TRANSMISSION BELT

The transmission belt should be inspected yearly for wear and replace by a Hobart Service Technician if worn.

ADJUSTMENTS

Agitator Clearance

The agitator clearance should be checked periodically. The agitator must not touch the bowl, and the maximum clearance between the bottom of the bowl and an agitator is:

Agitator Models Max Clearance
B Flat Beater HL600, HL600C, HL800, HL800C, HL1400, HL1400C 1/8" (3 mm)
ED Dough Arm	HL600, HL600C, HL800, HL800C 5/16" (8 mm)
	HL1400, HL1400C 11/16" (17 mm)

Install a bowl and agitator (e.g., beater). If the bowl and beater come into contact before the bowl support reaches its stop, adjust the stop screw. Refer to the Adjust the Bowl/Agitator Clearance section.

Measure Clearance

Pour enough flour in the bowl to cover the bottom of the bowl where the beater travels. With the bowl fully raised (beater should not touch the bottom of the bowl), briefly run the mixer at the lowest speed.

Turn off the mixer, disconnect the electrical power supply, and measure the depth of flour where the beater has traced a path. This measurement should be taken at several points around the bowl to assure accuracy.

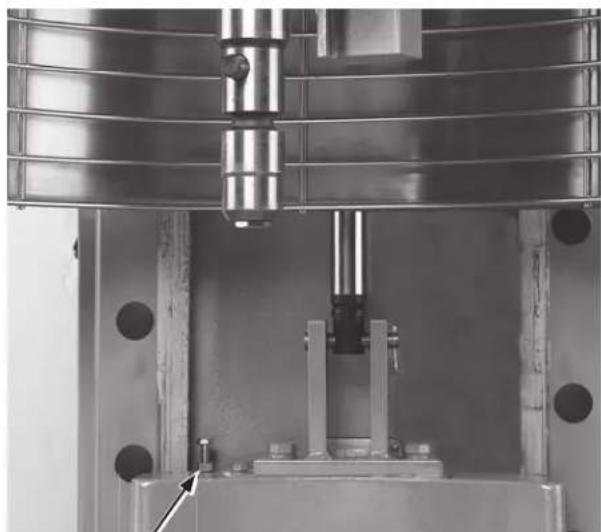

Adjust the Bowl/Agitator Clearance

• Remove the apron (Fig. 3, Fig. 4, and Fig. 5) (which is secured by thumbscrews).
• Adjust the stop screw on the left side (80-Qt and 140-Qt) and the right side (60-Qt).

- Loosen the bottom locking nut, (Fig. 17) and turn the stop screw counterclockwise to increase the clearance or clockwise to decrease the clearance.

- Tighten the locking nut while holding the stop screw.

• After the adjustments are made, replace the apron and secure it with the thumbscrews.
• Reconnect the electrical power supply.
- Carefully operate the bowl lift several times to check the adjustment.

Industrial machine with metallic components and a central vertical assembly (no visible text or symbols)

STOP SCREW AND STOP NUT
Fig. 17

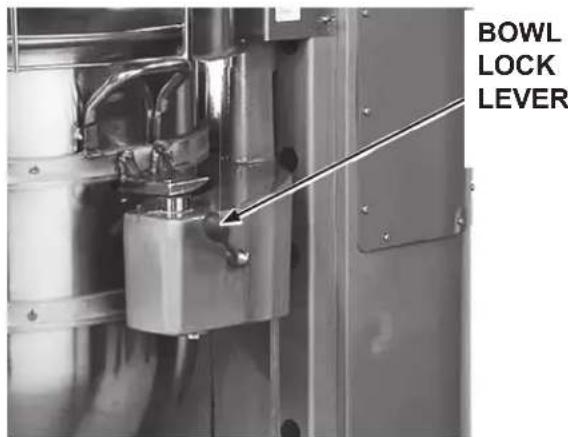

Bowl Lock Lever (Fig. 18)

• Occasionally debris may collect and cause the lever to move slowly.
- Pour very warm water around lock pin to flush out food particles that may have collected there. The water should flow through, around the pin. Be sure to have a cloth or dish under to bowl support to catch the water and food particles.
- Lubricate the pin with a thin coat of Lubriplate 630AA.

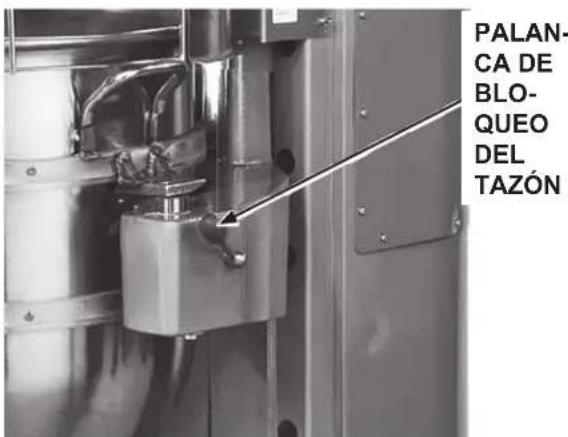

BOWL LOCK LEVER

Fig. 18

TROUBLESHOOTING

TROUBLESHOOTING GUIDE

Symptoms Possible Causes
Mixer will not start. • Circuit	protector is in open position - check fuse or disconnect switch.Mixer is overloaded.Wire cage is not in the closed, front-center position.Bowl is not in closed (locked) position.
Agitator touches bowl. • Bowl	is not in closed (locked) position.Improper agitator clearance - refer to the Maintenance section for adjustment procedure.Agitator is not installed properly.
Planetary seal squeaks. • Seal	seal requires occasional lubrication - refer to the Maintenance section.
Timer displays error code (ErXX).	• If the error code is flashing - disconnect electrical power from mixer for 1 minute, then reconnect. If symptoms still exist, contact your local Hobart Service office.

SERVICE

If service is needed on this equipment, contact your local Hobart Service office @ 1-888-4HOBART.

AGITATORS AND ATTACHMENTS

Attachments for attachment hub and agitators are covered in a separate Use and Application Handbook available on our website at www.hobartcorp.com Follow the instructions accordingly.

AVAILABLE AGITATORS AND ATTACHMENTS

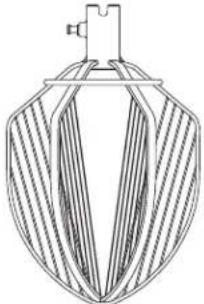

“B” Flat BeaterMulti-purpose agitatortypically used for mashedpotatoes, cakes, waffles,sugar cookies, pies,shortening, icings, and more.	“C” Wing WhipHeavy whipping suchas potatoes, butter,mayonnaise, and light icing.	“D” Wire WhipMaximum blending of airinto light products suchas egg whites,meringue,whipped cream, and more.	“ED” Dough ArmMixing, folding andstretching dough such asbread, pasta, pizza, donut,and more.

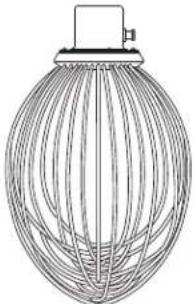

“I” Wire WhipHeavy whipping such assponge cages, and lightmarshmallow.	“P” Pastry KnifeCutting action for combiningingredients such as pastryand pie dough.	Ingredient ChuteAdd ingredients to mixingbowls during operationwithout interruption.	Splash CoverControls the splash of lightingredients during mixing.
Bowl TruckMinimize strain from movinglarge, heavy mixing bowls.	Stainless BowlReliably holds ingredients. Available in stepdown sizese.g. 40-Qt bowl on 140-Qt mixer.		Bowl ScraperContinuously scrapes thesides of the bowl.

HOBART

LEGACY

Exterior view of a modern K-150 mixing console with control panel and mesh chamber (no visible text or symbols)

FOOD EQUIPMENT GROUP

701 S. RIDGE AVENUE TROY, OHIO 45374-0001

937 332-3000

www.hobartcorp.com

TABLA DE CONTENIDO

GENERAL....26

Close-up of a mechanical assembly with visible gears and shafts (no text or symbols)

Fig. 2

Close-up of a hand operating a mechanical press or press device with a metallic component (no visible text or symbols)

Fig. 10

Close-up of a mechanical component with a wire mesh cage and a labeled 'FRONTAL' section (no readable text or symbols beyond label)

Industrial machine component with metallic frame and mounting base (no visible text or symbols)

TORNILLO Y TUERCA DE TOPE

Fig. 17

Exterior view of a modern K-150 mixing console with control panel and mesh chamber (no visible text or symbols)

FOOD EQUIPMENT GROUP

701 S. RIDGE AVENUE TROY, OHIO 45374-0001

937 332-3000

www.hobartcorp.com

TABLE DES MATIÈRES

RENSEIGNEMENTS GÉNÉRAUX....49

Close-up of a mechanical assembly with gears and a pulley (no visible text or symbols)

Fig. 2

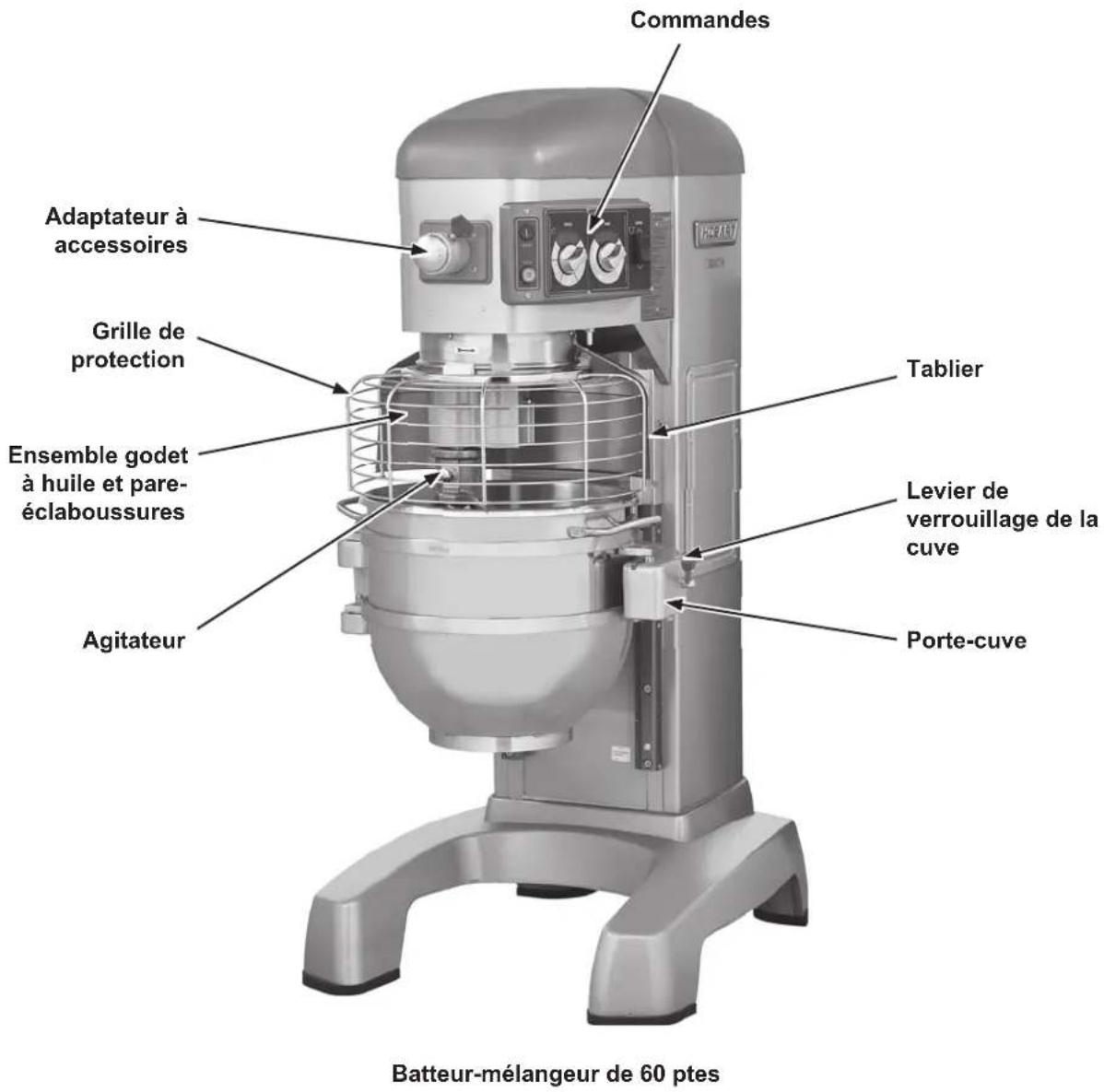

COMPOSANTS DU BATTEUR-MÉLANGEUR

Close-up of hands operating a mechanical press or press device with a cylindrical component (no visible text or symbols)

Fig. 10

MONTE-CUVE MOTORISÉ

Close-up of hands operating a metal mixing machine with a wire mesh cage (no visible text or symbols)

ÉCART DANS LA CRÊTE CIRCULAIRE

Close-up of a kitchen mixer with hand holding tool, no visible text or symbols

FM34928-13
Fig. 14

Industrial machine component with metallic frame and mounting base (no visible text or symbols)

VIS D'ARRÊT ET ÉCROU D'ARRÊT

Fig. 17

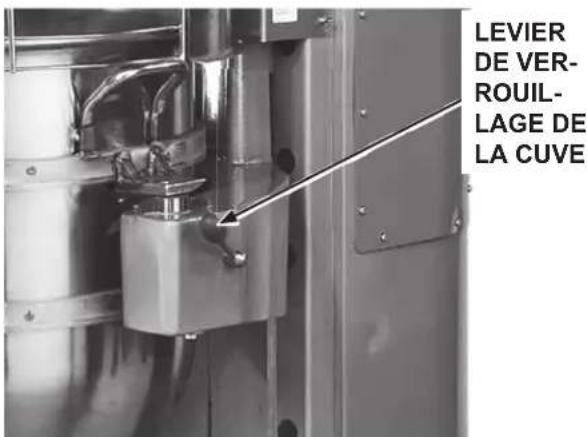

LEVIER DE VER- ROUIL- LAGE DE LA CUVE

Fig. 18

DÉPANNAGE

GUIDE DE DÉPANNAGE
