THTO92IX - Toaster THOMSON - Free user manual and instructions

Product Type	Toaster
Brand	Thomson
Model	THTO92IX
Number of Slots	2
Power	720-850 W
Supply Voltage	220-240 V~
Frequency	50-60 Hz
Adjustable Thermostat	Yes, from 1 to 7
Defrost Function	Yes, with indicator light
Reheat Function	Yes, with indicator light
Cancel Function	Yes, immediate stop
Control Lever	Yes, automatic locking
Crumb Tray	Yes, removable for cleaning
Automatic Shut-off	Yes, lever pops up at end of cycle
Safety	Do not immerse, hot surfaces, unplug before cleaning
Cleaning	Soft damp cloth, crumb tray
Use	Household and indoor use only
Grounded outlet required	Yes
Warranty	Does not cover wear parts or damage due to misuse
First Use	Heat empty to eliminate new smell

Frequently Asked Questions - THTO92IX THOMSON

How to use the defrost function?

Insert frozen bread, set the thermostat as desired, lower the lever then press the Defrost button. The indicator light turns on. Monitor cooking to prevent bread from burning.

How to clean the THTO92IX toaster?

Unplug the appliance and let it cool completely. Use a soft slightly damp cloth for the exterior surfaces. For crumbs, remove the crumb tray and empty it. Never use metal objects inside.

What to do if a slice of bread gets stuck in the slots?

Never attempt to remove it without unplugging the appliance and waiting for it to cool down. Use wooden or plastic tongs to gently remove the bread.

Which thermostat setting for golden toast?

The thermostat ranges from 1 (lightly toasted) to 7 (very dark). For classic golden toast, start with a setting between 3 and 4. Adjust according to your preference.

Can you toast pastries or rolls?

Yes, but ensure they fit easily into the slots without forcing. Avoid foods that are too thick or that might melt and stick to the heating elements.

The appliance gives off a burning smell during first use, is this normal?

Yes, it's normal. This is due to manufacturing residues burning off. Let the appliance heat empty for a full cycle, the smell will disappear.

How to empty the crumb tray?

Pull out the crumb tray located at the bottom of the toaster. Empty the crumbs into a trash bin. Clean it with a damp cloth if needed. Replace it before using the appliance again.

What type of electrical outlet is recommended?

The appliance must be plugged into a grounded outlet with a voltage of 220-240 V~. Do not use an extension cord. If in doubt, consult an electrician.

Can children use the toaster?

This appliance can be used by children aged 8 years and above under adult supervision. Children must not play with the appliance. Cleaning should not be done by children under 8 years.

How to reheat already cooled toast?

Place the toast in the slots, set the thermostat to a low setting (1-2), lower the lever then press the Reheat button. Monitor to avoid burning. The lever pops up automatically.

USER MANUAL THTO92IX THOMSON

Black THOMSON 500K toaster with silver and black casing, no visible text or symbols on device body

A LIRE AVANT UTILISATION

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical diagram of a toaster with numbered parts for identification

PREMIERE UTILISATION DE VOTRE APPAREIL

Black THOMSON 500K toaster with silver and black shades, no visible text or symbols on the device itself.

READ BEFORE USE

• Never immerse the appliance. By penetrating through cracks and openings, water may damage the unit.
• Ensure that the bread fits easily into the slots before toasting them. Slices which are broken or too thick may damage the mechanism.
• Avoid touching any metal parts during operation.
• Do not touch hot surfaces without gloves or protection.
• Do not let the appliance operate unattended or at the reach of children. This appliance should only be used by adults.
• The unit must be plugged into a grounded outlet. Notes: Please consult trained personnel if you have questions about the grounding or electrical connection.
• Do not use extension cord to

connect the appliance.

• Place the appliance on a stable surface and do not let the cord dangle.
• Check that the mains voltage corresponds to the unit's rating – AC only.
• Never use or plug in your appliance if:

- The power cord is defective or damaged;

- The appliance has been dropped; or

- It shows signs of damage or malfunction.

- Do not disassemble your appliance yourself.

- In case of malfunctioning of your appliance, do not try to repair it yourself. We urge you to contact your retailer, its after-sale service, a qualified electrician or similarly qualified person for repair in order to avoid a hazard.

- In case of fire, do not attempt to

extinguish the flames with water: - Smother the flames with a damp cloth.

• Do not operate the appliance near any flammable materials or heat source such as a hob or cooker.
• This appliance is designed for domestic use only. Any usage for commercial purpose, improper use or failure to comply with the operating instructions shall void the warranty.
• Unplug the appliance when not in use and before cleaning.
• Let the toaster cool before cleaning.
• Do not use the appliance outdoors.
• To avoid risk of fire, do not place the toaster near any textile or materials that may catch fire (cloth, towel, glove, etc).

• If the bread gets stuck in the slots, NEVER try to remove it without having first unplugged the power cord and allowed the toaster to cool.

• Bread may burn, so the toaster should not be used near or below curtains or other combustible materials.

• The temperature of accessible surfaces may be high while the appliance operates.
• This appliance is intended for domestic and indoor use only.
• This appliance is intended to be used in household.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
  Keep the appliance and its cord out

of reach of children less than 8 years.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is not designed to be operated by means of an external timer or remote control system.

- Disposal and environmental protection If you want to dispose of your electrical appliance as it needs to be replaced or is no longer used, think about protecting the environment. Consult local authorities for environmental friendly ways for waste disposal.

- The product must be installed in accordance with the national wiring rules.

- The electrical outlet should always be equipped with a grounding terminal. If the power supply is not grounded, you must not connect

the appliance.

For food contact Use

IMPORTANT

It is strictly forbidden to replace the power cord yourself. If it is damaged, it must be replaced by your retailer's after-sales service, the manufacturer, its service agent or a similarly qualified person to avoid a hazard.

If your appliance falls, bring it to a professional for inspection before switching it on again. Internal damage may represent a safety hazard.

For any problems or repair, please contact your retailer's after-sales service, the manufacturer, its service agent or a similarly qualified person to avoid a hazard.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This logo affixed to the product indicates that is an appliance of which the waste processing falls within the framework of the 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of the product.

Thus, at the end of the life of this appliance, it should not be disposed of with unsorted household waste.

As a consumer, your role is crucial in the cycle of reuse, recycling and other forms of recovery of electrical and electronic equipment. Waste reception center and collection facilities are implemented at your disposal by local communities (recycling facilities) and distributors.

You have the responsibility to use the selective waste collection systems at your disposal.

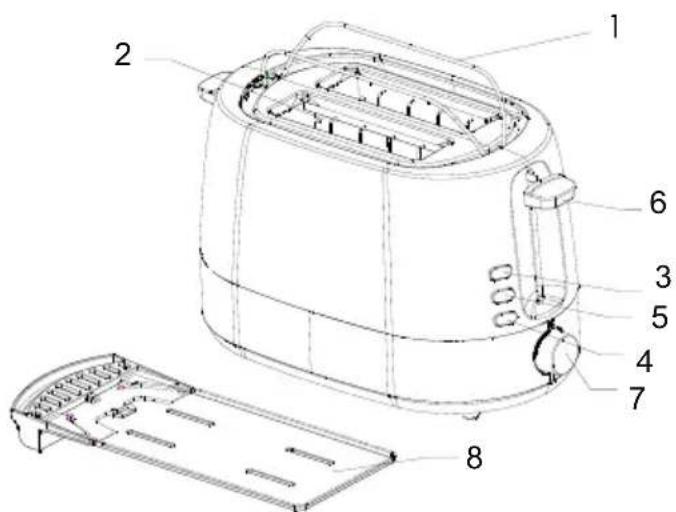

GETTING TO KNOW YOUR APPLIANCE

1- Bun warmer
2- Slots
3- Defrost Function
4- Cancel Button
5- Reheat Function
6- Lever
7- Adjustable Thermostat
8- Crumb Tray

Technical diagram of a toaster with numbered parts for identification

USING YOUR APPLIANCE FOR THE FIRST TIME

At first use, it is possible that you notice a slight burning smell while the toaster heats.

This is absolutely normal. Just let the toaster heat until the smell disappears.

We advise you to operate the toaster without inserting bread for first use.

1. Connect the toaster to the power outlet and turn the outlet on if necessary.
2. Set the thermostat to the lowest position.
3. Lower the lever and let the appliance heat.
4. Wait until the smell dissipates.
5. Press the 🔊 "button to raise the lever

OPERATING YOUR APPLIANCE

1. Make sure your toaster is plugged in and the outlet is switched on.
2. Insert one or two slices of bread into the slots and lower the lever until it locks.
3. The toaster automatically heats and the bread begins to toast.
4. Set the thermostat according to how brown you want your toasts to be.
5. You can stop the toaster at any time by pressing the 🔔 " button.
6. Lift the lever from time to time to check the browning of the bread.
7. When the cycle is finished, the lever will raise up automatically. You may withdraw your toasts safely.
8. If the bread is not sufficiently toasted you may restart again.
9. Set the thermostat to a lower position and put the bread into the slots. Make sure that your toasts will not burn during the second cycle.

- THERMOSTAT

The thermostat can be set from 1 to 7. The higher the setting, the longer the toast time.

• 1 - 2 : Lightly toasted
• 3 - 4 : Medium
• 5 - 7 : Very dark

REHEAT FUNCTION

Your toaster can be used to reheat toasts that cooled too quickly.

• Put the bread into the toaster.

• Set the thermostat to a lower position.

• Lower the lever.

• Press the 🎨 " button. The corresponding indicator lights up.
• Make sure the bread does not burn.
• The lever lifts back automatically when the bread is reheated.

DEFROST FUNCTION

If necessary, you can use this toaster to defrost frozen bread before toasting.

• Put the bread into the toaster.
• Set the thermostat as desired.
• Lower the lever.
• Press the "button. The corresponding indicator lights up.
• Make sure the bread does not burn.

- CANCEL FUNCTION

• Press the 🔔 "button if you notice there is smoke.
• You can press this button at any time during use.

CLEANING AND MAINTENANCE

Before cleaning, turn off the toaster, unplug it from the mains and let it cool. The appliance can be cleaned with a damp cloth. Never immerse the body of the toaster in water or any other liquid.

1. Unplug the toaster and let it cool completely before cleaning.
2. To clean the sides of the appliance, use a slightly moistened soft cloth.
3. Do not allow crumbs to accumulate inside the toaster.
4. Slide out the crumb tray and remove crumbs with a damp cloth.
5. The internal components of your appliance are fragile, never touch them with any object.

TECHNICAL SPECIFICATIONS

Voltage: 220-240V\~

Frequency: 50-60Hz

Power: 720-850W

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.

This product is imported by SCHNEIDER CONSUMER GROUP 12 rue Jules Ferry, 93110 ROSNY-SOUS-BOIS, FRANCE
