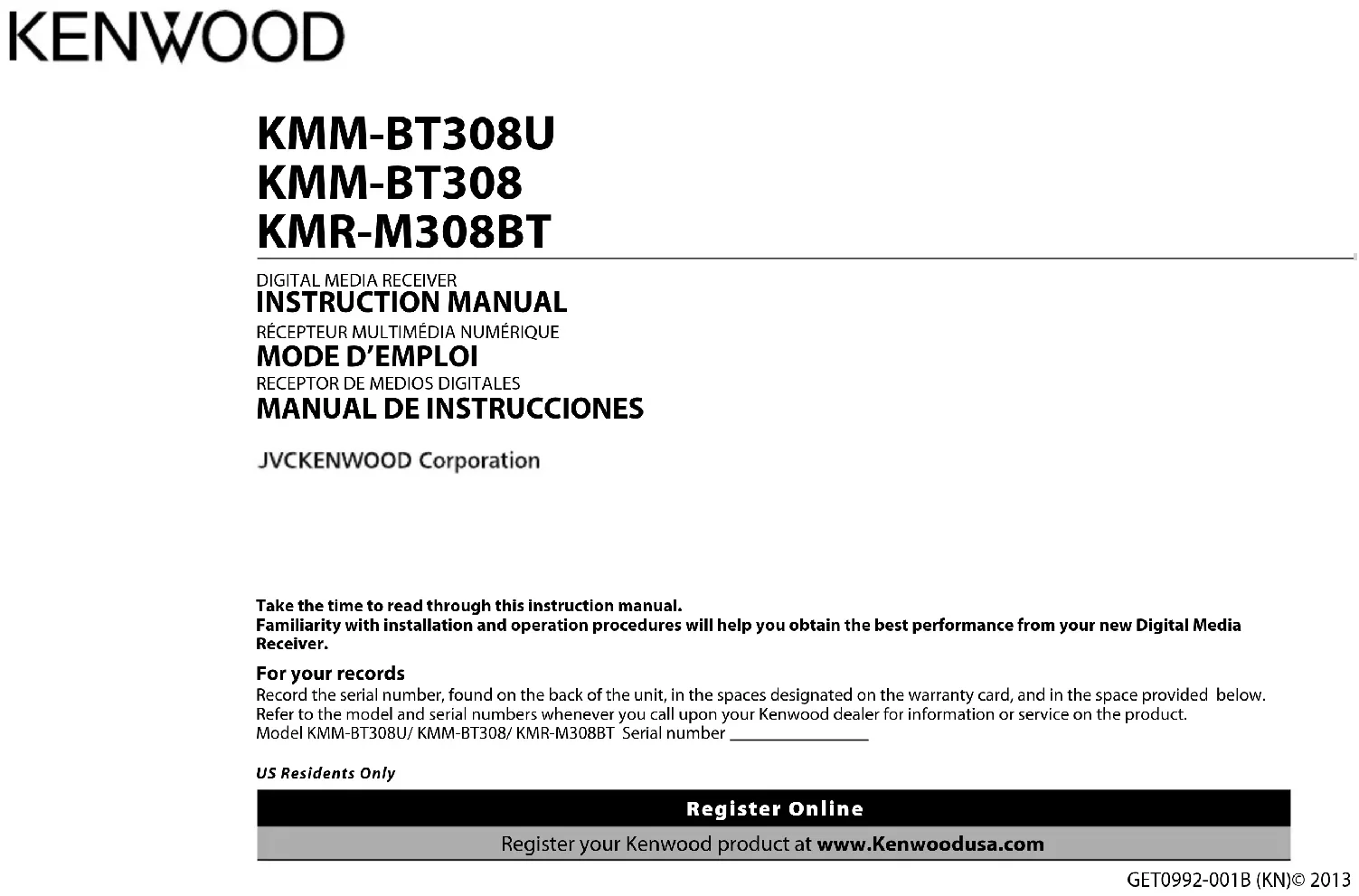

USER MANUAL KMR-M308BT KENWOOD

Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm)Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new Digital Media Receiver. For your records Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product. Model KMM-BT308U/ KMM-BT308/ KMR-M308BT Serial number US Residents Only Register Online Register your Kenwood product at www.Kenwoodusa.com GET0992-001B (KN)© 2013 JVC KENWOOD Corporation KMM-BT308U KMM-BT308 KMR-M308BT

Warning Do not operate any function that takes your attention away from safe driving. Caution Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the USB device or iPod/iPhone if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit. Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.

• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.

• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used batteries promptly. If swallowed, contact a physician immediately. BEFORE USE 2 BASICS 3 GETTING STARTED 4 RADIO 5 USB / iPod 6 AUX 8 Pandora® (for KMM-BT308U KMR-M308BT

iHeartRadio® (for KMM-BT308U KMR-M308BT

SiriusXM® Radio (for KMR-M308BT

• Operations are explained mainly using buttons on the faceplate.

[XX] indicates the selected items.

XX) indicates references are available on the stated page. Maintenance Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector: Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Connector (on the reverse side of the faceplate) EN_KMM_BT308U_KN_2.indd 2EN_KMM_BT308U_KN_2.indd 2 8/11/2013 3:46:53 PM8/11/2013 3:46:53 PM3 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) KMM-BT308 BASICS To Do this (on the faceplate) Do this (on the remote control) Turn on the power Press B SRC.

• Press and hold to turn off the power. Press and hold SRC to turn off the power. ( Pressing SRC does not turn on the power. ) Adjust the volume Turn the volume knob. Press VOL or VOL . Press ATT during playback to attenuate the sound.

• Press again to cancel. Select a source Press BSRC repeatedly. Press SRC repeatedly. Change the display information

Press DISPSCRL repeatedly.

• Press and hold to scroll the current display information. ( not available )

• For KMM-BT308 : You can also select to turn off the display information by pressing DISPSCRL repeatedly. Faceplate How to reset Attach Detach Remote control (RC-406) (for KMM-BT308U

Press BSRC to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

Turn the volume knob to make a selection (see the following table), then press the knob. 4 Press and hold to exit. To return to the previous setting item or hierarchy, press . Default:

SUB-W : Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier).

OEM : Selects according to the speaker size (5inches or 4inches, 6×9inches or 6inches) or OEM speakers for optimum performance. TUNER SETTING PRESET TYPE NORMAL : Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ AM). ; MIX : Memorizes one station for each preset button, regardless of the selected band. SYSTEM KEY BEEP

F/W UP xx.xx YES :Starts upgrading the firmware.;

:Cancels (upgrading is not activated). For details on how to update the firmware, see: www.kenwood.com/cs/ce/

Cancel the demonstration When you turn on the power (or after you reset the unit), the display shows: “CANCELDEMO” “PRESS” “VOLUMEKNOB” 1 Press the volume knob. [YES] is selected for the initial setup. 2 Press the volume knob again. “DEMOOFF” appears. For KMR-M308BT

[DEMO OFF] is selected initially. Set the clock

Press and hold to exit. To return to the previous setting item or hierarchy, press . While in clock display screen... Press and hold DISP SCRL to enter clock adjustment mode directly. Then, perform step 4 above to set the clock.

Press BSRC to select TUNER. 2 Press BAND repeatedly (or press

• To change the searching method for S / T : Press SEEK repeatedly. AUTO1: Automatically search for a station. AUTO2: Search for a preset station. MANUAL: Manually search for a station.

• To store a station: Press and hold one of the number buttons (1to6).

• To select a stored station: Press one of the number buttons (1to6) (or press one of the number buttons (1to6) on RC-406). Direct Access Tuning (using RC-406)

Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a frequency. 3 Press ENT IW to search for a station.

• To cancel, press or DIRECT.

• If no operation is done for 10seconds after step 2, Direct Access Tuning is automatically canceled. Other settings

2 Turn the volume knob to make a selection (see the following table), then press the knob. 3 Press and hold to exit. To return to the previous setting item or hierarchy, press . Default:

TUNER SETTING AUTO MEMORY YES :Automatically starts memorizing 6 stations with good reception.;

:Cancels. (Selectable only if [NORMAL] is selected for [PRESET

:Improves the FM reception, but the stereo effect may be lost.; OFF :Cancels. TI ON :Allows the unit to temporarily switch to Traffic Information.; OFF :Cancels. PTY SEARCH Selects the available Program Type (see below), then, press S / T to start. CLOCK TIME SYNC

:Synchronizes the unit’s time to the Radio Broadcast Data System station time.; OFF :Cancels.

[PTY SEARCH] is selectable only when the band is FM1/ FM2/ FM3.

REL TALK (religious talk), PERSNLTY (personality), PUBLIC

HABL ESP (spanish talk), WEATHER MUSIC

CLASSICL (classical), R & B (rhythm and blues),

(soft rhythm and blues), REL MUSC (religious music), MUSC ESP (spanish music), HIP HOP The unit will search for the Program Type categorized under [SPEECH]

• If the volume is adjusted during reception of traffic information or alarm, the adjusted volume is memorized automatically. It will be applied the next time traffic information or alarm function is turned on. EN_KMM_BT308U_KN_2.indd 5EN_KMM_BT308U_KN_2.indd 5 8/11/2013 3:46:54 PM8/11/2013 3:46:54 PM6 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) USB / iPod To Do this Pause or resume playback Press 6 IW (or press ENT IW on RC-406). Select a file Press S / T (or press S / T(+) on RC-406). Select a folder

Do not leave the cable inside the car when not using.

You can still play/pause, file skip, fast-forward or reverse files from the unit.

Only for MP3/WMA/AAC/WAV/FLAC files. This does not work for iPod.

For iPod: Applicable only when [MODE OFF] is selected. If you connect the iPod/iPhone to the USB input terminal of the unit (while listening to TuneIn Radio, TuneIn Radio Pro or Aupeo), the unit will output the sound from these apps. Start playback The source changes automatically and playback starts. USB iPod/iPhone Press 5 iPod to select the control mode while in iPod source. MODE ON: From the iPod

10% : Skip search ratio over the total files. 5 Press and hold to exit. Change the USB drive When a smartphone (Mass Storage Class) is connected to the USB input terminal, you can select its internal memory or external memory (such as an SD card) to playback the stored songs. You can also select the desired drive to playback when a multiple drives device is connected. Press 5 iPod repeatedly to select the desired drive. (or) 1 Press the volume knob to enter [FUNCTION]

The next drive is selected automatically. Repeat steps 1 to 4 to select the following drives. Selectable items: [DRIVE

Select a file from a list For iPod: Applicable only when [MODE OFF]

selected. ( 6) 1 Press . 2 Turn the volume knob to make a selection, then press the knob.

• MP3/WMA/AAC/WAV/FLAC file: Select the desired folder, then a file.

• iPod or KME Light/ KMC file: Select the desired file from the list (PLAYLISTS,

If you have many files.... You can search through them quickly (on step 2 above) at a preset skip search ratio by pressing S / T.

• See also “Set the skip search ratio.”

• Pressing and holding S / T skip songs at the maximum ratio (10

) regardless of the setting made.

• For USB: Only for files registered in the database created with KME Light/ KMC. USB / iPod Direct Music Search (using RC-406)

Press DIRECT. 2 Press the number buttons to enter a file number. 3 Press ENT IW to search for music.

• Not available if Random Play is selected.

• Not applicable for iPod, KME Light/ KMC file. Select a song by name While listening to iPod... 1 Press . 2 Turn the volume knob to select a category, then press the knob. 3 Turn the volume knob quickly to enter character search. 4 Turn the volume knob to select the character to be searched for. 5 Press S / T to move to the entry position. You can enter up to 3characters. 6 Press the volume knob to start searching. 7 Turn the volume knob to make a selection, then press the knob. Repeat step 7 until the desired item is selected.

• To search for a character other than A to Z and 0 to 9, enter only “

Preparation: Install the latest version of the Pandora application onto your device (iPhone/ iPod touch), then create an account and log in to Pandora.

• Select [ON] for [PANDORA SRC]

Open the Pandora application on your device. 2 Connect your device to the USB input terminal. The source changes to PANDORA and broadcast starts.

• Do not leave the cable inside the car when not using. To Do this Pause or resume playback Press 6 IW (or press ENT IW on RC-406). Thumbs up or thumbs down Press

• If thumbs down is selected, the current track is skipped. Skip a track Press T (or press T(+) on RC-406). Create a new station 1 Press and hold the volume knob. 2 Turn the volume knob to select [FROM TRACK]

[FROM ARTIST] , then press the knob. A new station is created based on the current song or artist. Save a station Press and hold one of the number buttons (1to5) to store.

• To select a stored station, press one of the number buttons (1to5). Search for a registered station 1 Press . 2 Turn the volume knob to make a selection, then press the knob (or press J / K on RC-406). [BY DATE]

According to the registered date. [A-Z]

Alphabetical order. 3 Turn the volume knob to the desired station, then press the knob. AUX Preparation: Select [ON] for [BUILT-IN AUX]

Connect a portable audio player (commercially available). 2 Press BSRC to select AUX. 3 Turn on the portable audio player and start playback. Set the AUX name While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]

5 Press and hold to exit. Auxiliary input jack Portable audio player 3.5mm (1/8") stereo mini plug with “L” shaped connector (commercially available) KCA-iP102 (optional accessory) or accessory cable of the iPod/iPhone

Preparation: Install the latest version of iHeart Link for KENWOOD application onto your device (iPhone/ iPod touch), then create an account and log in to iHeartRadio.

• Select [ON] for [IHEART SRC]

Open the iHeart Link application on your device. 2 Connect your device to the USB input terminal. 3 Press BSRC to select IHEARTRADIO. Broadcast starts automatically.

• Do not leave the cable inside the car when not using. To Do this Pause or resume playback Press 6 IW (or press ENT IW on RC-406). Thumbs up or thumbs down for custom station Press

• If thumbs down is selected, the current track is skipped. Skip a track for custom station Press T (or press T(+) on RC-406). Create a new/ custom station Press 1. Add to favorite stations for live station Press 2. Scan for live station Press 5. Search for a station

Press . 2 Turn the volume knob to select a category, then press the knob. 3 Turn the volume knob to the desired station, then press the knob. When a city list appears, you can skip cities in alphabetical order. (or using RC-406) Press J / K to search for a station. To cancel, press and hold

Skip cities by alphabetical order While a city list appears during search... 1 Turn the volume knob quickly to enter character search. 2 Turn the volume knob or press S / T to select the character to be searched for. 3 Press / to move to the previous/next page. 4 Press the volume knob to start searching. To cancel, press and hold . Delete a station While listening to IHEARTRADIO... 1 Press the volume knob to enter [FUNCTION]

KCA-iP102 (optional accessory) or accessory cable of the iPod/iPhone

If a locked channel or a mature channel ( [MATURE CH] is set to [ON] ) is selected, a pass code input screen appears. Enter the pass code to receive the channel.

• To change the tuning method for S / T: Press SEEK. Each time you press SEEK, the tuning method switches between “CHANNEL” (manually search for a channel) and “PRESET” (searches for a preset channel of the selected band).

• To store a channel of the current band: Press and hold one of the number buttons (1 to 6).

• To select a stored channel of the current band: Press one of the number buttons (1 to 6). SiriusXM Replay™ Press and hold SEEK. Replay starts from the live position and “ ” lights up. During Replay...

• To pause or resume playback, press 6 IW.

• To skip the current song backward/forward, press S / T.

• To rewind/fast-forward, press and hold S / T.

• To exit from Replay and go to live, press and hold SEEK. Smart Favorites User stored channels (1 to 6) of the current band are recognized as Smart Favorite channels. SiriusXM Vehicle Tuner automatically buffered their broadcasting content in the background.

• Smart Favorite channel is available with SXV200 or later SiriusXM tuner models. When you select a Smart Favorite channel, you can rewind and replay up to 30minutes of any of the missed news, talk, sports or music content. 1 Press one of the number buttons (1 to 6) to select a channel. 2 For operation ( SiriusXM Replay

Preparation: 1 Connect the optional SiriusXM Vehicle Tuner (commercially available). 2 Activate the subscription through www.siriusxm.com/activatenow or call 1-866-635-2349. The Radio ID is required to activate the SiriusXM Vehicle Tuner. The Radio ID is located on the label of the SiriusXM Vehicle Tuner and can also be shown on the unit’s display window when you select “Channel 0” after SiriusXM Vehicle Tuner is connected. For users in Canada: To activate SiriusXM Canada service go to www.xmradio.ca and click on “ACTIVATE RADIO” in the top right corner, or call 1-877-438-9677. 3 Press B SRC to select SIRIUSXM to start updating. Start listening

Press B SRC to select SIRIUSXM. 2 Press BAND repeatedly to select a band. 3 Press .

” lights up. 4 Turn the volume knob to select a category, then press the knob. If “ALL CHANNELS” is selected, all the available channels will be shown. 5 Turn the volume knob to select a channel, then press the knob. (or) Press S / T to search for a channel manually.

then press the knob. 3 Turn the volume knob to make a selection (see the following table), then press the knob. 4 Press and hold to exit. To return to the previous setting item or hierarchy, press

There are two types of lock functions available:

• SiriusXM-defined: When [MATURE CH] is set to [ON]

• User-defined: Using [CHANNEL EDIT] when [MATURE CH] is set to [OFF] CHANNEL LOCK To unlock settings:

Press S / T to move to the entry position.

to enter the current pass code. (Initial pass code is 0000.)

Press the volume knob to confirm. CODE SET

Press S / T to move to the entry position.

to enter a new 4-digit pass code.

Press the volume knob to confirm.

to reconfirm the pass code.

• Make a note of the new pass code to enter channel lock settings from next time. SiriusXM® Radio CHANNEL EDIT

Turn the volume knob to select a channel you want to lock, then press the knob. “L” appears in front of the channel number.

Press and hold to exit. CHANNEL CLEAR

YES :Clears all the locked channels.;

:Turns on the SiriusXM-defined lock setting (mature channel).; OFF :Turns off.

• If [ON] is selected, your setting [CHANNEL EDIT] is temporary ignored.

STRONG :Shows the strength of the current received signal. BUFFER USAGE 0%

):Shows the memory usage for Replay buffer.

:Resets stored channel, locked channel setting and Mature CH setting to default.;

• Displayed only when [MATURE CH] is set to [OFF]

BLUETOOTH® You can operate Bluetooth devices using this unit. Connect the microphone If you turn off the unit or detach the control panel during a phone call conversation, the Bluetooth connection is disconnected. Continue the conversation using your mobile phone. Supported Bluetooth profiles – Hands-Free Profile (HFP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) – Object Push Profile (OPP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. Microphone input jack Microphone (supplied) Rear panel EN_KMM_BT308U_KN_2.indd 11EN_KMM_BT308U_KN_2.indd 11 8/11/2013 3:46:55 PM8/11/2013 3:46:55 PM12 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Bluetooth test mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device connected. 1 Press and hold . “PLEASE PAIR YOUR PHONE” appears. 2 Search and select this unit model name (KMM-BT3**U/ KMM-BT3**/ KMR-M3**BT) on the Bluetooth device. 3 Operate the Bluetooth device to confirm pairing. “TESTING” flashes on the display. The connectivity result (OK or NG) appears after the test. PAIRING: Pairing status HF CNT: Hands-Free Profile (HFP) compatibility AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility PB DL: Phonebook Access profile (PBAP) compatibility

• To cancel check mode, press and hold B SRC to turn off the unit. Bluetooth mobile phone To Do this Receive a call Press or the volume knob or one of the number buttons (1 to 6) (or press

• All the button illumination flash when there is an incoming call.

• When [AUTO ANSWER] is set to the selected time, the unit answers incoming call automatically.

14) Reject an incoming call Press B SRC (or press on RC-406). End a call Press or B SRC (or press on RC-406). Pair a Bluetooth device When connecting a Bluetooth device to the unit for the first time, perform pairing between the unit and the device. Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit.

• Up to five devices can be registered (paired) in total.

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.

• This unit supports Secure Simple Pairing (SSP).

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. Refer to the instruction manual of the Bluetooth device for more information. 1 Press B SRC to turn on the unit. 2 Search and select this unit model name (KMM-BT3**U/ KMM-BT3**/ KMR-M3**BT) on the Bluetooth device. “PAIRING” “PASS XXXXXX” Device name “PRESS” “VOLUME KNOB” scrolls on the display. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed and “BT” will light up when the Bluetooth connection is established.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

• Pairing request (via Bluetooth) is automatically activated if an iPhone/ iPod touch is connected through the USB input terminal. (Applicable only if [AUTO PAIRING] is set to [ON]

( 15) Press the volume knob to pair once you have confirm the device name. BLUETOOTH® EN_KMM_BT308U_KN_2.indd 12EN_KMM_BT308U_KN_2.indd 12 8/11/2013 3:46:56 PM8/11/2013 3:46:56 PM13 ENGLISH | Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) To Do this Switch between hands-free and private talk modes Press 6IW during a call.

• Operations may vary according to the connected Bluetooth device. Adjust the phone volume Turn the volume knob during a call. Phone volume: [00]

• This adjustment will not affect the volume of the other sources. Switch between two connected phones Press repeatedly.

• Not applicable during a call. Improve the sound quality during a call While talking on the phone... 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to make a selection (see the following table), then press the knob. 3 Press and hold to exit. To return to the previous setting item or hierarchy, press

):The sensitivity of the microphone increases as the number increased. NR LEVEL –5

–10 ):Adjust the noise reduction level until the least noise is being heard during a phone conversation. ECHO CANCEL 1

):Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. Text message notification When the phone receives a text message, the unit rings and “SMS RECEIVED” appears.

• You cannot read, edit, or send a message through the unit.

Press and hold to activate Voice Recognition. The connected phone (which has been paired the earliest) is activated. However, if priority device is connected, pressing and holding activate the priority device.

15, DVC PRIORITY) 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

• This unit also supports the intelligent personal assistant function of iPhone. Bluetooth mode operations

Press to enter Bluetooth mode. 2 Turn the volume knob to make a selection (see the following table), then press the knob. 3 Press and hold to exit. To return to the previous setting item or hierarchy, press . To enter [PHONE BOOK] directly, press .

14, PHONE BOOK) Press again to switch between the phonebooks of the connected phones. CALL HISTORY

• “I” indicates call received, “O” indicates call made, “M” indicates call missed.

• Press DISP SCRL to change the display category (NUMBER or NAME).

• “NO DATA” appears if there is no recorded call history.

• If the phone supports PBAP, the phonebook of the connected phone is automatically transferred to the unit when pairing. If the phone does not support PBAP, “TRANSFER PB” appears. Transfer the phonebook manually.

• Contacts are categorized as: MO(mobile), HM(home), OF(office), OT(others), GE(general)

• This unit can display only non-accent letters. (Accent letters such as “Ú” is showns as “U”.)

• If the phonebook contains many contacts,

Select a contact by name). NUMBER DIAL

Turn the volume knob to select a number (0 to 9) or character (

Press S / T to move the entry position. Repeat steps

until you finish entering the phone number.

) to enter the phone number.

Press to call. VOICE Speak the name of the contact you want to call or the voice command to control the phone functions.

FULL :Shows the strength of the battery.

MAX :Shows the strength of the current received signal. BLUETOOTH® SETTINGS Default:

:The unit answer incoming call automatically in the selected time.; OFF :Cancels. RING MODE SYSTEM: The unit rings to notify you when a call/text message comes in. (Default ring tone is different according to the paired device.)

CALL: Selects your preferred ring tone ( TONE 1 — 5 ) for incoming calls.

MESSAGE: Selects your preferred ring tone ( TONE 1 — 5 ) for incoming text messages. PHONE: The unit uses the connected phones’ ring tone to notify you when a call/text message comes in. (The connected phone will ring if it does not support this feature.) SMS NOTIFY* ON: The unit rings and “SMS RECEIVED” appears to notify you of an incoming text message.; OFF :Cancels.

• Functionality depends on the type of the phone used. Select a contact by name

• You can search through the contacts quickly according to the first letter (A to Z), number (0 to 9), or symbol.

• The second alphabet of the contact will be searched if the first alphabet does not exist. 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [PHONE BOOK] , then press the knob. 3 Turn the volume knob quickly to enter alphabet search mode. The first menu (ABCDEFGHIJK) appears. To go to the other menu (LMNOPQRSTUV or WXYZ1 ), press / . 4 Turn the volume knob or press S / T to select the desired first letter, then press the knob.

• To search with numbers, select “1”.

[PHONE BOOK] , or [NUMBER DIAL] , then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “STORED” appears when the contact is stored. To erase a contact from the preset memory, select [NUMBER DIAL]

and store a blank number. Make a call from memory

Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call. “NO MEMORY” appears if there is no contacts stored. Delete a contact Not applicable for mobile phone that supports PBAP. 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [CALL HISTORY]

[PHONE BOOK] , then press the knob. 3 Turn the volume knob to select a contact. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold the volume knob to enter delete mode. 5 Turn the volume knob to select [DELETE ONE]

[DELETE ALL] , then press the knob. DELETE ONE : Selected name or phone number in step 3 is deleted. DELETE ALL : All names or phone numbers from the selected menu in step 2 is deleted. 6 Turn the volume knob to select [YES]

PHONE SELECT Selects the phone or audio device to connect or disconnect.

” appears in front of the device name. AUDIO SELECT DEVICE DELETE

Turn the volume knob to select a device to delete, then press the knob.

Turn the volume knob to select [YES]

[NO] , then press the knob. DVC PRIORITY Selects a device to be connected as priority device.

” appears in front of the device name set as priority. TRANSFER PB

“DL PB ” appear and transfer the phonebook of the connected phone to this unit manually.

• Selectable only when the connected phone supports OPP.

Press S / T to move the entry position. Repeat steps

until you finish entering the PIN code.

Press the volume knob to confirm. RECONNECT ON :The unit automatically reconnect when the Bluetooth device is within range.; OFF :Cancels.

:The unit automatically pair supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal.Depending on the iOS version of the connected iPhone/iPod touch, this function may not work. ; OFF :Cancels.

:Ouputs audio from the front left and right speakers.; ALL :Outputs audio from all the speakers. INITIALIZE YES :Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).;

:Cancels. EN_KMM_BT308U_KN_001B.indd 15EN_KMM_BT308U_KN_001B.indd 15 27/12/2013 12:17:58 PM27/12/2013 12:17:58 PM16 Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) Bluetooth audio player Operations and display indications may differ according to their availability on the connected device. To Do this Playback 1 Press B SRC (or press SRC on RC-406) to select BTAUDIO. 2 Operate the Bluetooth audio player to start playback. Pause or resume playback Press 6IW (or press ENTIW on RC-406). Select group or folder Press / (or press

AM–/ #FM+ on RC-406). Reverse/forward skip Press S / T (or press S / T (+) on RC-406). Reverse/fast- forward Press and hold S / T (or press and hold S / T (+) on RC-406). Repeat play Press 4 repeatedly to make a selection. ALLREPEAT, FILEREPEAT, REPEATOFF Random play Press 3 repeatedly to make a selection. FOLDERRANDOM, RANDOMOFF Press and hold 3 to select “ALLRANDOM.” Internet radio via Bluetooth (for KMM-BT308U KMR-M308BT

Listen to Pandora Preparation: Select [ON] for [PANDORA SRC]

( 4) You can listen to Pandora on your smart phone (Android OS) through Bluetooth on this unit. 1 Open the Pandora application on your device. 2 Connect to Bluetooth audio player. ( 11) 3 Press B SRC to select PANDORA. The source switches and broadcast starts automatically.

• You can operate Pandora in the same way as Pandora for iPod/iPhone. ( 8) Listen to iHeartRadio Preparation: Select [ON] for [IHEART SRC]

( 4) You can listen to iHeartRadio on your smart phone (Android OS) through Bluetooth on this unit. 1 Open the iHeart Link application on your smart phone. 2 Connect your smart phone via Bluetooth connection. ( 11) 3 Press B SRC to select IHEARTRADIO. The source switches and broadcast starts automatically.

• You can operate iHeartRadio in the same way as iHeartRadio for iPod/iPhone. ( 9)

2 Turn the volume knob to select [DISPLAY] , then press the knob. 3 Turn the volume knob to make a selection (see the following table), then press the knob. Repeat step 3 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item or hierarchy, press

Illuminates according to the [BRIGHTNESS] settings. BRIGHTNESS LVL 0

LVL 31 : Selects your preferred brightness level for display illumination.

2 Turn the volume knob to select [AUDIO CONTROL] , then press the knob. 3 Turn the volume knob to make a selection (see the following table), then press the knob. Repeat step 3 until the desired item is selected or activated. 4 Press and hold to exit. (or using RC-406) 1 Press AUD to enter [AUDIO CONTROL]

SUB-W LEVEL –15 to +15 (0): Adjusts the subwoofer output level. BASS LEVEL –8 to +8 (+6): Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) MID LEVEL –8 to +8 (+5): TRE LEVEL –8 to +8 (0): PRESET EQ DRIVE EQ

USER :Selects a preset equalizer suitable to the music genre. (Select [USER] to use the customized bass, middle, and treble settings.) [DRIVE EQ] is a preset equalizer that reduces noise from the road. BASS BOOST LV1

Selects your preferred bass boost level.

LV2 :Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level.; OFF :Cancels. SUBWOOFER

SET ON :Turns on the subwoofer output.; OFF :Cancels. LPF

SUBWOOFER THROUGH :All signals are sent to the subwoofer.; 85HZ

160HZ :Audio signals with frequencies lower than 85Hz/ 120Hz/ 160Hz are sent to the subwoofer. SUB-W

PHASE REVERSE (180°)/ NORMAL (0°):Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [LPF SUBWOOFER]

):Adjusts the rear and front speaker output balance. BALANCE L15

):Adjusts the left and right speaker output balance. VOLUME

(for other sources):Presets the volume adjustment level of each source. (Before adjustment, select the source you want to adjust.) SOUND

:Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression.; OFF :Cancels.

selectable only if [SWITCH PREOUT] is set to [SUB-W]

[SUB-W PHASE] is selectable only if [SUBWOOFER SET] is set to [ON]

• Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. About USB devices

• This unit can play MP3/WMA/AAC/WAV/FLAC files stored on a USB mass storage class device.

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5m may result in abnormal playback.

• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1A. About KENWOOD Music Editor Light and KENWOOD Music Control

• This unit supports the PC application KENWOOD Music Editor Light and Android™ application KENWOOD Music Control.

• When you play audio files with song data added using the KENWOOD Music Editor Light or KENWOOD Music Control, you can search for audio files by Genres, Artists, Albums, Playlists, and Songs.

• KENWOOD Music Editor Light and KENWOOD Music Control are available on the following web site: www.kenwood.com/cs/ce/ About iPod/iPhone Made for - iPod touch (1st, 2nd, 3rd, 4th, and 5th generation) - iPod classic - iPod nano (3rd, 4th, 5th, 6th, and 7th generation) - iPhone, iPhone 3G, 3GS, 4, 4S, 5

• For the latest compatible list and software versions of iPhone/iPod, see: www.kenwood.com/cs/ce/ipod

• You cannot operate iPod if “KENWOOD” or “ ” is displayed on iPod. About Pandora

• Pandora is available only in the U.S., Australia and New Zealand.

• Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.

• Some functions of Pandora cannot be operated from this unit.

• For issues using the application, please contact Pandora at [e-mail]. About iHeartRadio

• iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

• Some iHeartRadio® functionality cannot be operated from this unit. About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.

• This unit may not work with some Bluetooth devices.

• Signal conditions vary, depending on the surroundings.

• For more information about Bluetooth, visit the following website: www.kenwood.com/cs/ce/ EN_KMM_BT308U_KN_2.indd 18EN_KMM_BT308U_KN_2.indd 18 8/11/2013 3:46:56 PM8/11/2013 3:46:56 PM19 ENGLISH | Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) TROUBLESHOOTING Symptom Remedy Sound cannot be heard. • Adjust the volume to the optimum level.

• Check the cords and connections. “PROTECT” appears and no operations can be done. Check to be sure the terminals of the speaker wires are insulated properly, then reset the unit. If this does not solve the problem, consult your nearest service center.

• Sound cannot be heard.

• The unit does not turn on.

• Information shown on the display is incorrect. Clean the connectors. ( 2) The unit does not work at all. Reset the unit. ( 3) For KMR-M308BT

The Auto Power Off function (that turns the power off after 20minutes when in standby mode) does not work. Make sure [OFF] is selected for [DEMO MODE]. ( 4)

• Radio reception is poor.

• Static noise while listening to the radio.

• Connect the antenna firmly.

• Pull the antenna out all the way. “NA FILE” appears. Make sure the media contains supported audio files. ( 18) “READ ERROR” appears. Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device. “NO DEVICE” appears. Connect a USB device, and change the source to USB again. “COPY PRO” appears. A copy-protected file is played. “NA DEVICE” appears. Connect a supported USB device, and check the connections. “NO MUSIC” appears. Connect a USB device that contains playable audio files. “iPod ERROR” appears. • Reconnect the iPod.

• Reset the iPod. Symptom Remedy “READING” keeps flashing. Do not use too many hierarchical levels or folders. Elapsed playing time is not correct. This is caused by how the tracks are recorded. Correct characters are not displayed (e.g. album name). This unit can only display uppercase letters, numbers, and a limited number of symbols. Pandora “ADDERROR” “SEARCHERROR” New station creation is unsuccessful. “CHECKDEVICE” Check the Pandora application on your device. “NOSKIPS” The skip limit has been reached. “NOSTATIONS” No stations are found. “STATIONLIMIT” The number of registered stations has reached its limit. Retry after deleting unnecessary stations from your device. “UPGRADEAPP” Make sure you have installed the latest version of the Pandora application on your device. “CONNECT ERROR” Communication is unstable. “RATING ERROR” Registration of thumbs up/thumbs down has failed. “LICENSE ERROR” You try to access from a country which Pandora is not deliverable. iHeartRadio Station cannot be selected. If “Explicit Content” in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable. “CANNOT CREATE” Custom station name creation is unsuccessful. “CANNOT SAVE” Addition to the favorite category failed. “DISCONNECTED” Check the connection to the device. “NOSKIPS” The skip limit has been reached. Retry later. “NOSTATIONS” No stations are found. “NOT CONNECTED” Link to the application is impossible. “IHEARTLINK UP” Make sure you have installed the latest version of the iHeart Link for KENWOOD application on your device. EN_KMM_BT308U_KN_2.indd 19EN_KMM_BT308U_KN_2.indd 19 8/11/2013 3:46:56 PM8/11/2013 3:46:56 PM20 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy iHeartRadio “PLEASE LOGIN” You haven’t log in. Log in again. “STATION NOT AVAILABLE” Broadcast from the station is over. “STATION NOT SELECTED” No station is selected. “STREAM ERROR” Broadcast data is interrupted. “THUMB FAILED” Registration of Thumbs Up/Down has failed. “TIMED OUT” The request has resulted in time-out. SiriusXM® Radio “CHLOCKED” The selected channel is locked. Enter the correct pass code to unlock. ( 11) “CHANUNSUB” The selected channel is unsubscribed. Call 1-866-635-2349 or 1-877-438-9677 to subscribe. “CHUNAVAIL” The selected channel is unavailable. “CHECKANTENNA” Check the antenna and its connection are in good condition. “CHECKTUNER” Make sure the SiriusXM Vehicle Tuner is connected to the unit. “NOSIGNAL” Make sure the antenna is mounted outside the vehicle. “SUBSCRIPTION UPDATED –

CONTINUE.” Your subscription is updated. Press the volume knob to continue. “WRONGCODE” Make sure you have entered the correct pass code. ( 11) Bluetooth® No Bluetooth device is detected.

• Search from the Bluetooth device again.

• Reset the unit. ( 3) Pairing cannot be made.

• Make sure you have entered the same PIN code to both the unit and Bluetooth device.

• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. ( 12) “DEVICE FULL” appears. The number of registered devices has reached its limit. Retry after deleting an unnecessary device. ( 15, DEVICE DELETE) TROUBLESHOOTING Symptom Remedy Bluetooth® Echo or noise occurs. • Adjust the microphone unit’s position. ( 11)

• Check the [ECHO CANCEL] setting. ( 13) Phone sound quality is poor.

• Reduce the distance between the unit and the Bluetooth device.

• Move the car to a place where you can get a better signal reception.

• Voice calling method is not successful.

• “N/A VOICE TAG” appears.

• Use voice calling method in a more quiet environment.

• Reduce the distance from the microphone when you speak the name.

• Make sure the same voice as the registered voice tag is used. “NOT SUPPORT” appears. The connected phone does not support Voice Recognition feature.

• “NO PAIR” appears. There is no registered device connected/found via Bluetooth. “ERROR” appears. Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “NO INFO” appears. Bluetooth device cannot get the contact information. Sound is being interrupted or skipped during playback of a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player.

• Turn off, then turn on the unit and try to connect again.

• Other Bluetooth devices might be trying to connect to the unit. The connected Bluetooth audio player cannot be controlled.

• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

• Disconnect and connect the Bluetooth player again.

• “HF ERROR XX” appears.

• “BT ERROR” appears. Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center. EN_KMM_BT308U_KN_001B.indd 20EN_KMM_BT308U_KN_001B.indd 20 16/12/2013 12:28:42 PM16/12/2013 12:28:42 PM21 ENGLISH | Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) SPECIFICATIONS Tuner FM Frequency Range KMM-BT308U

• The unit can only be used with a 12V DC power supply, negative ground.

• Disconnect the battery’s negative terminal before wiring and mounting.

• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• Insulate unconnected wires with vinyl tape to prevent a short circuit.

• Be sure to ground this unit to the car’s chassis again after installation. Caution

• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

Mount the unit at an angle of less than 30º.

• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Basic procedure

Remove the key from the ignition switch, then disconnect the

terminal of the car battery. 2 Connect the wires properly. See Wiring connection. ( 23) 3 Install the unit to your car. See Installing the unit (in-dash mounting). 4 Connect the

terminal of the car battery. 5 Reset the unit. ( 3) Do the required wiring. ( 23) Dashboard of your car Bend the appropriate tabs to hold the mounting sleeve firmly in place. How to remove the unit

Detach the faceplate. 2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out. 3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the right. Installing the unit (in-dash mounting) When installing without the mounting sleeve

Remove the mounting sleeve and trim plate from the unit. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws. Using wrong screws might damage the unit. Hook on the top side Orientate the trim plate as illustrated before fitting. EN_KMM_BT308U_KN_2.indd 22EN_KMM_BT308U_KN_2.indd 22 8/11/2013 3:46:57 PM8/11/2013 3:46:57 PM23 ENGLISH | Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Part list for installation (A) Faceplate Wiring connection Fuse (10A) Rear/ subwoofer output Antenna terminal Car fuse box Car fuse box Battery Ignition switch Blue/White (Power control wire) Light blue/yellow (Steering remote control wire) Red (Ignition wire) Yellow (Battery wire) Black (Ground wire) To the metallic body or chassis of the car To the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle. Brown (Mute control wire) Blue (Antenna control wire) White Gray Green Purple White/Black Gray/Black Green/Black Purple/Black To connect the Kenwood navigation system, refer your navigations manual. To front speaker (left) To rear speaker (left) To front speaker (right) To rear speaker (right) (Not used) If no connections are made, do not let the wire come out from the tab. To the steering wheel remote control adapter (C) Mounting sleeve (B) Trim plate (D) Wiring harness (E) Extraction key For KMR-M308BT : To the optional SiriusXM Vehicle Tuner (commercially available) ( 10) Microphone input jack ( 11) Light blue/yellow (Marine remote control wire) For KMR-M308BT

A la unidad del mando a distancia Kenwood Wired Marine (accesorio opcional) Para obtener información más reciente sobre los accesorios de uso marino, visite: http://www.kenwoodusa.com/Car_Entertainment/ Marine/ SP_KMM_BT308U_KN_1.indd 23SP_KMM_BT308U_KN_1.indd 23 25/11/2013 2:36:23 PM25/11/2013 2:36:23 PMi Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. FCC NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.

• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

• iHeartRadio® is a registered mark of Clear Channel Broadcasting, Inc. in the United States and other countries. Such marks are used under license.

• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

• Android is trademark of Google Inc.

• The “AAC” logo is a trademark of Dolby Laboratories.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. EN_KMM_BT308U_KN_2.indd 2EN_KMM_BT308U_KN_2.indd 2 8/11/2013 3:46:57 PM8/11/2013 3:46:57 PM
