Reverso - Billiard table Cougar - Free user manual and instructions

Product type	Convertible billiard table
Brand	Cougar
Model	Reverso
Dimensions (L x W x H)	200 x 100 x 80 cm
Weight	About 100 kg
Power supply	None (manual game)
Main functions	Billiard, conversion to table tennis or other (depending on model)
Tabletop material	MDF with felt covering
Dominant color	Classic green
Accessories included	Balls, cue sticks, chalk, starting triangle
Maintenance and cleaning	Regularly dust the felt, avoid moisture
Safety	Stable and non-slip, adjustable feet
Spare parts and repairability	Elastic rails, felt, balls, cues available separately
Warranty	2 years for fittings and accessories (excluding normal wear)
Recommended use	Indoors, on a flat and stable floor

Frequently Asked Questions - Reverso Cougar

How to assemble the Cougar Reverso billiard table?

Follow the provided assembly manual. Generally, you need to mount the frame, attach the legs, place the tabletop and adjust the cushions. Make sure to level the table with the adjustable feet.

How to maintain the table felt?

Use a soft brush regularly to remove chalk and dust. Avoid liquids. In case of stains, consult customer service.

Can the table be used for other games?

The Reverso model is designed to be convertible. Check the instruction manual to learn how to convert it into a table tennis, hockey, or other table depending on your version.

What are the exact playing dimensions?

The interior dimensions are generally 180 x 90 cm for a standard billiard table. Check the provided technical sheet.

How to replace worn felt?

It is recommended to call a professional. If you do it yourself, disassemble the cushions and remove the old felt, then staple the new felt taut. The instruction manual details the operation.

Where to buy replacement balls?

Compatible balls are available from Cougar retailers or online. Use standard size balls (2 1/4 inches) and weight of about 170 g.

Does the warranty cover wear parts?

The 2-year warranty covers fittings and accessories. Normal wear of the felt or cushions is generally not included.

How to level the table?

Use a bubble level on the tabletop. Adjust the feet by screwing or unscrewing until the tabletop is perfectly horizontal.

Can the table be placed on a carpeted floor?

Yes, but make sure the feet rest on stable pads to prevent sinking and ensure balance.

How to contact Cougar customer service for parts?

Check the Cougar website or contact the retailer. Have the serial number and purchase date on hand.

USER MANUAL Reverso Cougar

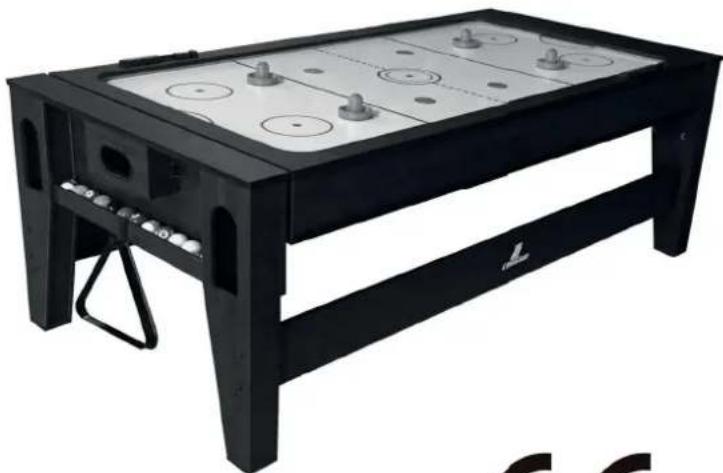

Black outdoor table with pool, balls, and a triangular support (no text or symbols visible)

Black and white photo of a small outdoor table with circular cutouts and a stand (no visible text or symbols)

CE

3+

USER MANUAL

Keep instructions for later use

GEBRAUCHSANWEISUNG

Line drawing of five different tools: a funnel, screwdriver, wrench, and pliers (no text or symbols)

WARNING

Simple line drawing of two people shaking hands around a table with a small object on the table (no text or symbols)

Read these instructions carefully before use.

WARNING

CHOKING HAZARD - SMALL PARTS

Not suitable for children under 36 months.

WARNING

THE TOY IS TO BE ASSEMBLED BY AN ADULT.

WARNING

Potential hazard description, e.g. in unassembled state contains potentially hazardous sharp points,

so please keep out of baby's reach.

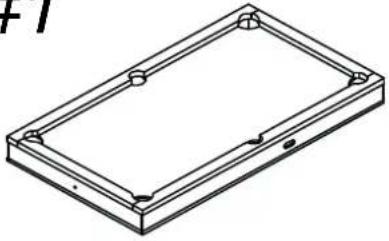

#1Table Cabinet1 pc	#2Leg A2 pcs	#3Leg B2 pcs
#4Legs patch2 pcs	#5Ball box A2 pcs	#6Ball box B2 pcs
#7Leg side panels2 pcs	#8Foot cover2 pcs	#9Counters2 pcs
#10Leg Levellers4 pcs	#11Axle of the table2 pcs	#12Rotate handles4 pcs

#13 #14 #15 #16D5x 1-1/222 pcs	swercS8 pcs	m9x 4 T swercS"16 pcs	-x 5 SwercS m16 pcs
#17 #18Bolts m m12 pcs	03x6" /54 pcs	#19Washers- x 4 SwercS m916 pcs	#20Washers 5/8"4 pcs
#22 #23Washers m m52 pcs	Washers26" /512 pcs	#24Barrel nutx6" /5 5 m16" /512 pcs	#256" /5 stu2 pcs
#266" /5 stu2 pcs	#27N18 pcs	#28-x 4 SwercS m12 pcs	m2x 4 T swercS

ABilliard Balls1 set	BChalks2 pcs	CTable Brush1 pc
DEFTriangle1 pc	2-pc Cues2 pcs	Strikers4 pcs
GPucks4 pcs	HWrench1 pc+1 pc	ICue hook2 pcs
JHook1 pc

REVERSO

A040.006.00

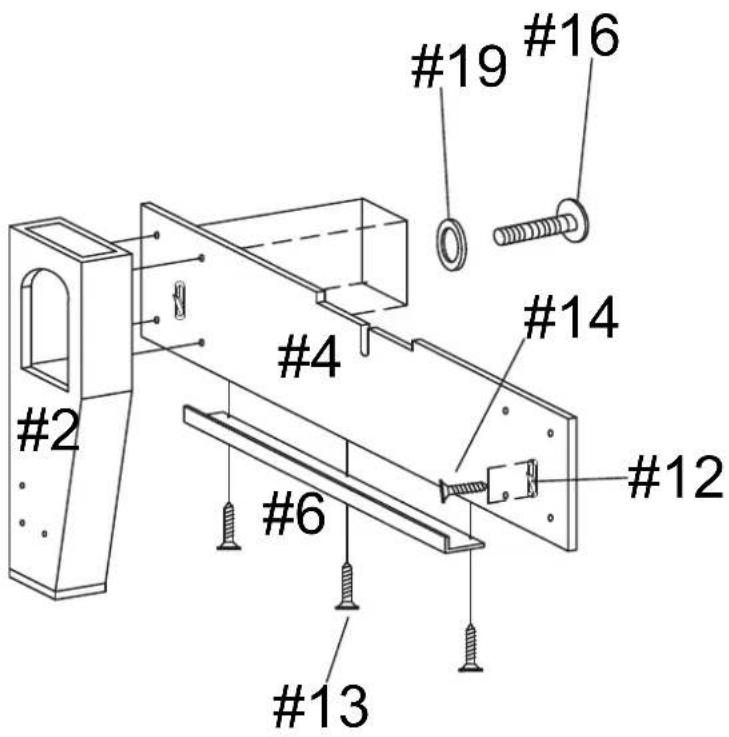

STEP 1

COUGAR

#2 #4 #6 #13 #12 #14 #16 #19

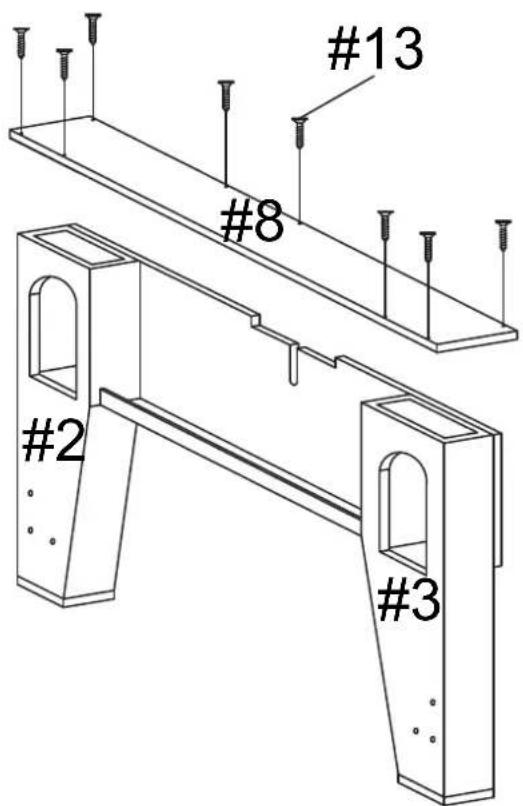

STEP 2

#2 #3 #8 #13

REVERSO

A040.006.00

COUGAR

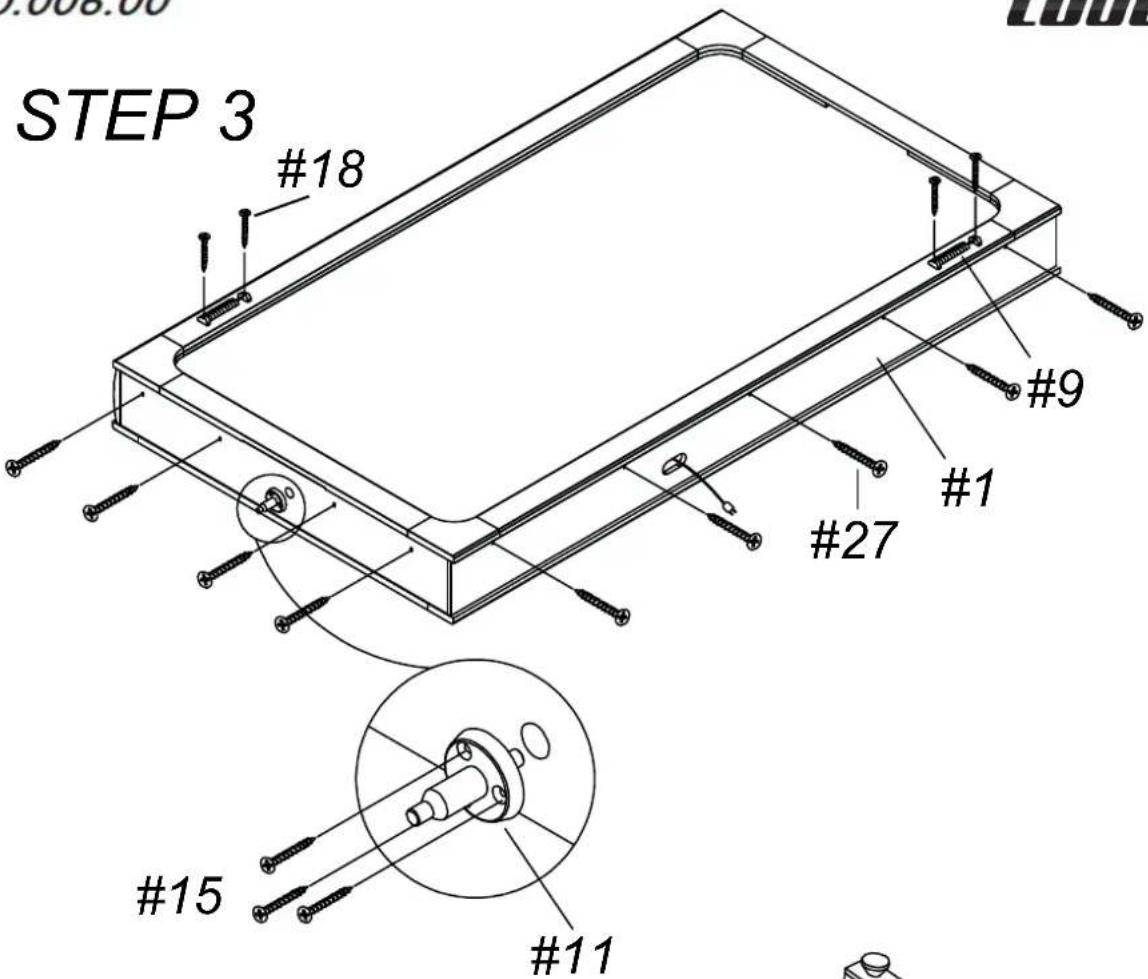

STEP 3 #18 #9 #1 #27 #15 #11 #1

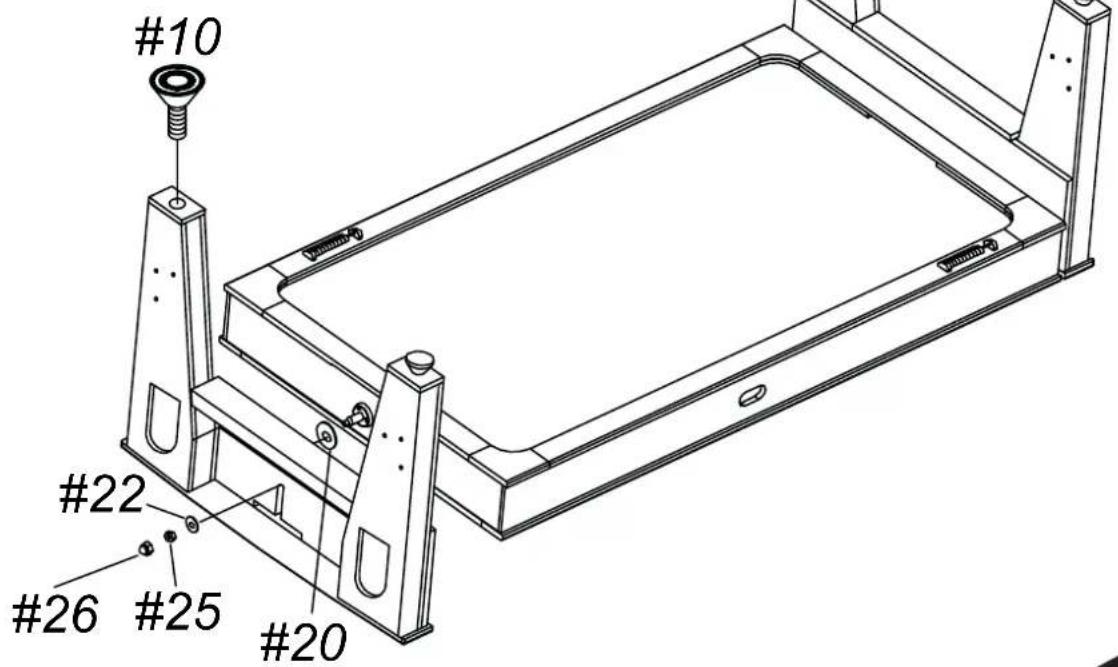

STEP 4

#10 #22 #26 #25 #20

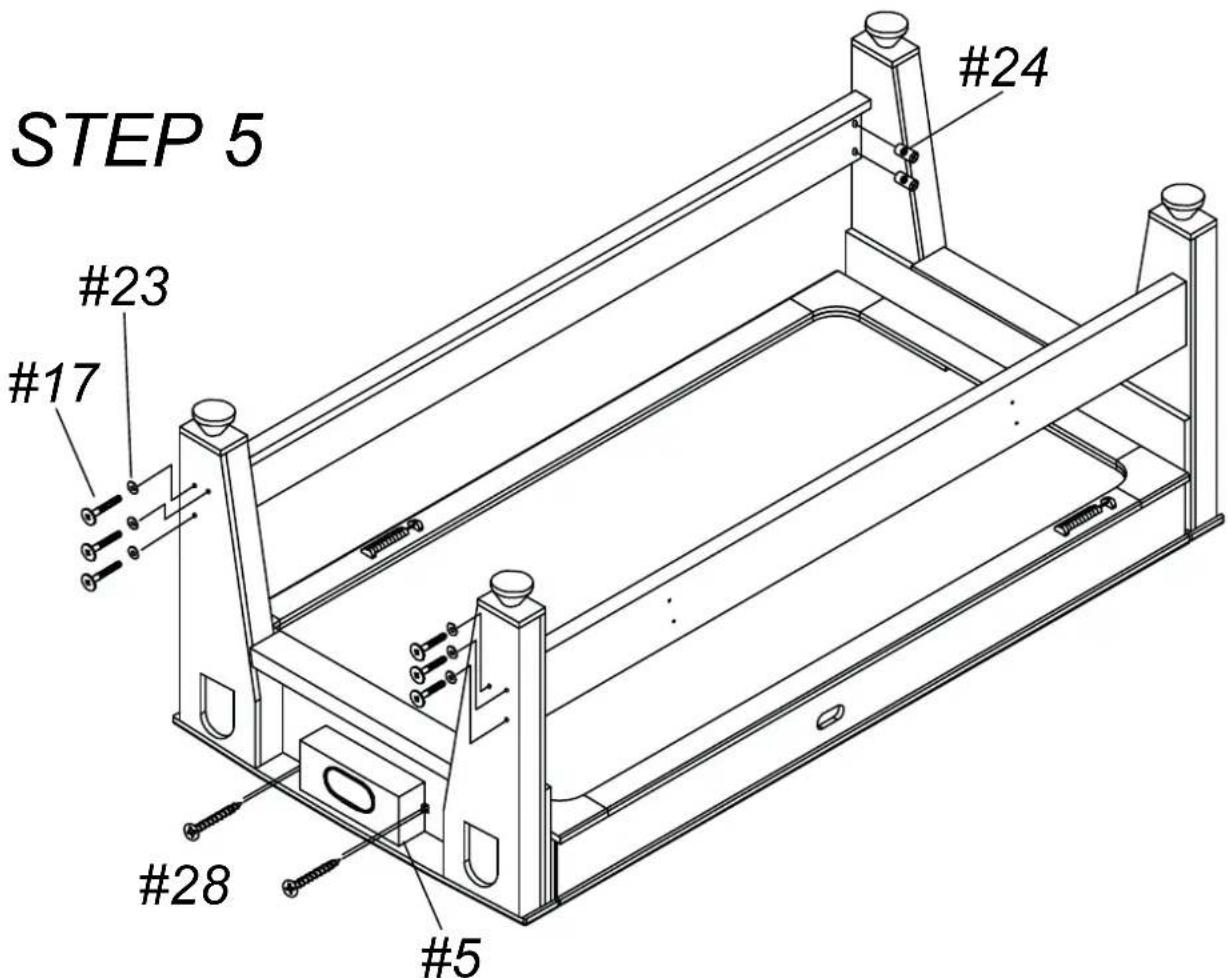

STEP 5 #23 #17 #24 #28 #5

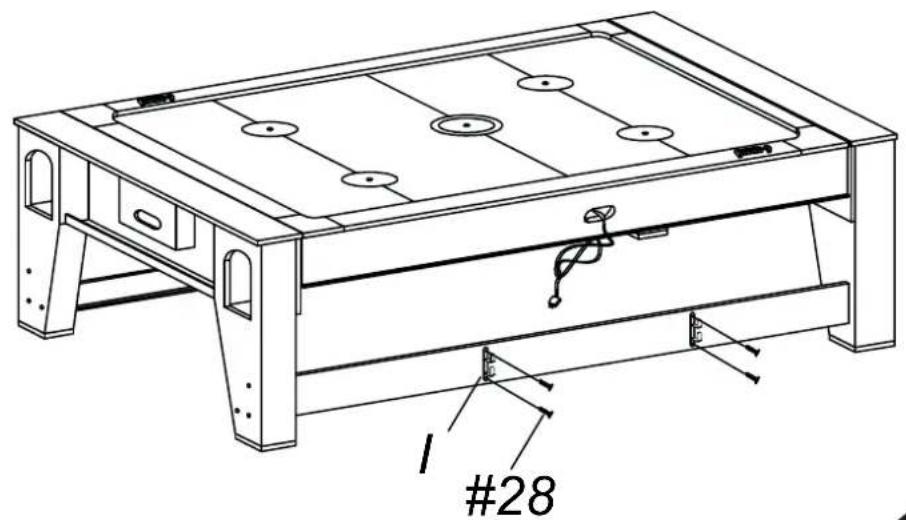

STEP 6

#28

3. GUARANTEE

Pragma / Cougar Games provides a 2-year guarantee on the Reverso when properly used in respect of the joints and accessories.

Cougar Games is one of our brands with fun table games of great quality that offer hours of social fun!

Pragma / Cougar Games

Kruisboog 40

3905 TG Veenendaal

The Netherlands

T: +31 (0)318 - 57 88 00

[e-mail]

www.pragma-trading.com
