Silk-épil 9-720 - Epilator BRAUN - Free user manual and instructions

USER MANUAL Silk-épil 9-720 BRAUN

White BLEUAR 800 Ultrasonic brush rester with a toothbrush and headband, shown from side profile (no text or symbols on device body)

Type 5378

Modèle 5378

Modelo 5378

www.braun.com

SES 9-985

English 6

Français 12

Español 18

Thank you for purchasing a Braun product. We hope you are completely satisfied with your new Braun shaver.

If you have any questions, please call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

Medical illustration showing four steps of a hand massage technique with blue arrows indicating direction and timing.

Diagram illustrating how to adjust a hairbrush with blue arrows indicating motion, labeled B and C.

Illustration showing four steps of hair cleaning: using a brush to clean, using a filter to clean, using a comb, and removing a hairbrush.

E 1. 2. 3.

Illustration showing a hand using a hairdryer to adjust the base of a device, with labeled steps 1 and 2 indicating step-by-step assembly.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

This appliance is provided with a special cord set with integrated

Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.

When disconnected, the hand-held part of this appliance may be used in a bath or shower.

DANGER

To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.
2. Do not reach for a charger that has fallen into water. Unplug immediately.
3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet.
5. Unplug this appliance before cleaning.
6. Do not use an extension cord with this appliance.

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or persons with disabilities.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur.
8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to «off», then remove plug from outlet.
9. When plugging to an electrical outlet outside the USA, use a plug adapter to match the outlet's pin configuration.
10. Caution: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C ( 212 °F ) or incinerate.
11. To recharge the battery, only use the detachable power supply provided with this appliance. If the appliance is marked ➡—□—C 492-XXXX, only use Braun power supplies coded 492-XXXX.

SAVE THESE INSTRUCTIONS

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun Silk-épil 9 SkinSpa.

Please read the use instructions carefully before using the appliance and keep them for future reference.

The appliance is suitable for dry and wet usage.

Important

• For hygienic reasons, do not share this appliance with other persons.
• This appliance is suitable for use in bathtub or shower. For safety reasons, it can only be operated cordless.
• When switched on, the appliance must never come in contact with the hair on your head, eyelashes, textile ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.

Description

1a High frequency massage cap
1b Skin contact cap
2 Extra wide epilation head
3 Smartlight
4 Switch with lock keys (4a)
5 Charging light
6 Release button
7 Special cord set
8 Brush/pad adapter
8a Exfoliation brush
8b Protective cap
8c Deep massage pad
9 Shaver head with trimmer cap
10 Charging stand
11 Cleaning brush

Charging

Using the special cord set (7) connect the appliance to an electrical outlet and charge it for 2 hours.

Charging light (5)

Flashing green: charging

Green: fully charged

Yellow: 15 minutes charge left

Flashing yellow: 5 minutes charge left

• Once fully charged, use the appliance cordless.
  Operation time is 50 minutes when it is used within 24 hours after charging. Recharge it when the yellow light comes on or when the motor has stopped completely. For best performance, always use a fully charged appliance.
• Wet usage might reduce the operation time.
  We recommend that you recharge the appliance after each use.
• The best temperature range for charging, using and storing the appliance is between 59 °F and 95 °F.

In case the temperature is far beyond this range, the charging time might be longer whereas the cordless operation time might be reduced.

At the end of its lifetime, the rechargeable battery can be replaced at an authorized Braun Service Center.

How to operate the appliance

Press one of the lock keys (4a) and turn the switch (4) clockwise to position «I» or «II». The SensoSmart™ light (3) shines as long as the appliance is switched on, thus providing good visibility of fine hairs. When you apply too much pressure, the SensoSmart™ light signals red. To remove the epilation head (2), press the release button (6). To change caps, press their lateral ribs and pull off.

I Epilation

Epilation tips:

If you have not used an epilator before, or if you have not epilated for a long period of time, it may take a short time for your skin to adapt to epilation. The discomfort experienced in the beginning will decrease considerably with repeated use as the skin adapts to the process.

When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisturizing cream after epilation.

Epilation is easier and more comfortable when the hair is between 0.5 - 5 mm (0.02 - 0.2 in) long. If hairs are longer, we recommend that you shave first and let the hair grow back to at least 0.5 mm length.

Dry usage: Your skin must be dry and free from grease or cream.

Wet usage: Make sure your skin is very moist in order to achieve optimum gliding conditions for the appliance.

How to epilate

Make sure that the epilation head (2) is clean and provided with a cap (1a or 1b).

A Select speed «I» for a gentle epilation, speed «II» for an efficient epilation.

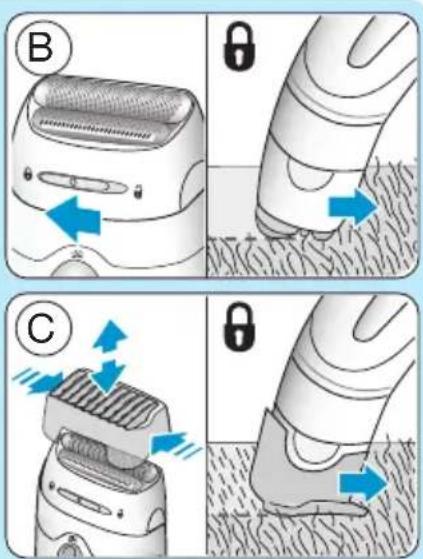

B Always stretch your skin when epilating. Make sure that the epilation area is in close contact with your skin.
Guide the appliance in a slow, continuous movement without pressure against the hair growth, in the direction of the switch. As hair can grow in different directions, it may also be helpful to guide the appliance in different directions to achieve optimal results. The massage cap (1a) ensures best skin comfort during epilation. If you are used to the sensation of epilation, you may

replace the massage cap with the skin contact cap (1b) which provides a closer skin contact and an improved adaptation to all body areas.

Whenever the SensoSmart™ light shines red, this is to remind you not to press too hard.

C Leg epilation

Epilate your legs from the lower leg in an upward direction. When epilating behind the knee, keep the leg stretched out straight.

D Underarm and bikini line epilation

In sensitive areas, we recommend using the skin contact cap (1b). Especially during the first applications these areas are particularly sensitive to pain. Therefore, we recommend that you select speed I for the first few times. With repeated usage the pain sensation will diminish.

Before epilating, thoroughly clean the respective area to remove residues (like deodorant). Then carefully dab dry with a towel. When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions.

As skin may be more sensitive directly after epilation, avoid using irritating substances such as deodorants with alcohol.

E Facial epilation

For the first few usages, we recommend that you select speed setting «l» in order to get used to epilation in those sensitive areas.

Prior to epilation, we recommend cleaning the skin with alcohol to promote good hygiene. When epilating the face, stretch the skin with one hand and slowly guide the epilator with your other hand the direction of the switch.

F Cleaning the epilation head

1 Cleaning with the cleaning brush (10):

Remove the cap and brush it out. Thoroughly clean the tweezers from the rear side of the epilator head with the brush dipped into alcohol. While doing so, turn the tweezer element manually. This cleaning method ensures best hygienic conditions for the epilation head.

2 Cleaning under running water:

After each wet usage, clean the appliance under running water. Remove the cap and hold the appliance with the epilation head under hot running water. Then press the release button (6) to remove the epilation head. Shake the appliance and the epilation head to remove excess water and leave both parts to thoroughly dry out before re-assembling.

General information on epilation

All methods of hair removal from the root can lead to irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair from the root for the first few times or if you have sensitive skin. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk-épil.

In some cases, inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head before each use will minimise the risk of infection.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles), varicose veins around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, haemophilia, candida or immune deficiency.

II Body treatment

The exfoliation brush (8a) helps avoid ingrown hairs by removing the dead skin cells. The deep massage pad (8c) provides a noticeable vibration and helps improve the skin appearance.

You may use the brush /pad alternatively on a weekly basis on wet skin during your shower routine with your preferred body scrub or shower gel. The deep massage pad may even be used more frequently with body lotion or massage oil.

When using the appliance in a bathtub, do not immerse it fully in water since this will not provide optimum results.

How to use

A Click the adapter (8) provided with brush or pad (8a / 8c) onto the appliance.
B Slowly guide the appliance in circular movements over your skin to gently refine it. Avoid holding it on the same skin area for prolonged time. Do not use it on your face. For best results, use the exfoliation brush at least 1–2 days before epilating.
C Cleaning

After use, rinse the brush/pad (8a/8c) under running water. If needed, you may use liquid soap to thoroughly clean them.

You may remove the silicone cap from the deep massage pad (8c) in order to make sure that there is no water left inside the cap.

Before storing the exfoliation brush, you may attach the protective cap (8b).

D Replacement

With weekly use, we recommend that you replace the brush/pad after 12 months. Refills (ref. no. 79 Spa) are available from your retailer or Braun Service Centers or via www.service.braun.com.

III How to use the shaver head

The shaver head (9) is designed for a fast and close shave of legs, underarms and bikini line, contour trimming and cutting hair to 5 mm length. With the shaver head attached, use the appliance only on dry skin and with speed setting «II».

a Shaving: select « ♂ ».
b Contour trimming: select «θ».
c Trimming hair to 5 mm length: select «θ» and put on the trimmer cap (I).

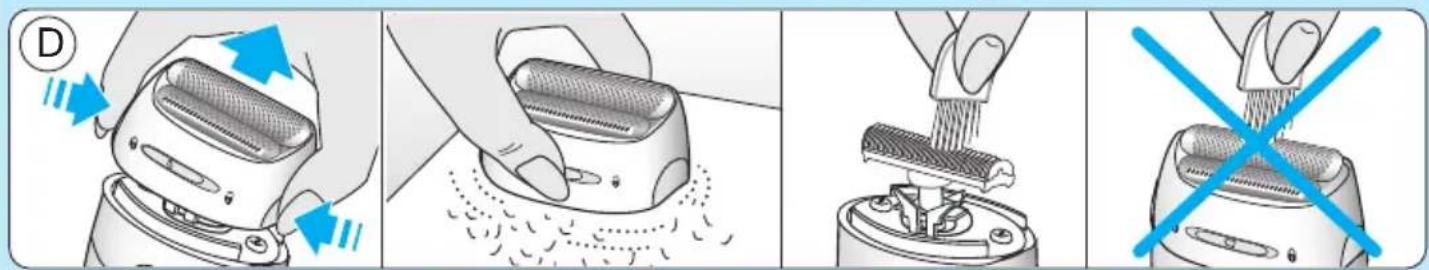

d Cleaning: Do not clean the shaver foil (II) with the brush as this may damage the foil.
e The shaving parts need to be lubricated regularly every 3 months.

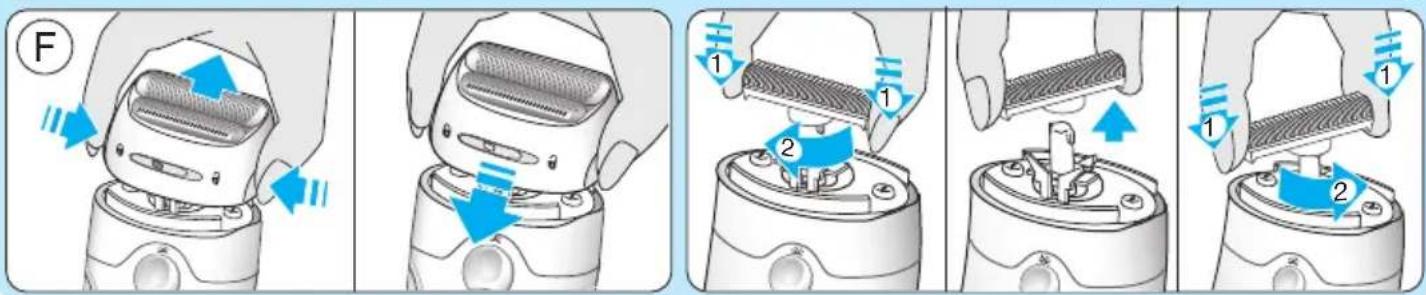

f Replace the foil frame (II) and cutter block (III) when you notice a reduced shaving performance. Replacements parts can be obtained from your retailer, Braun Customer Service Centers or via www.service.braun.com. Do not shave with a damaged foil.

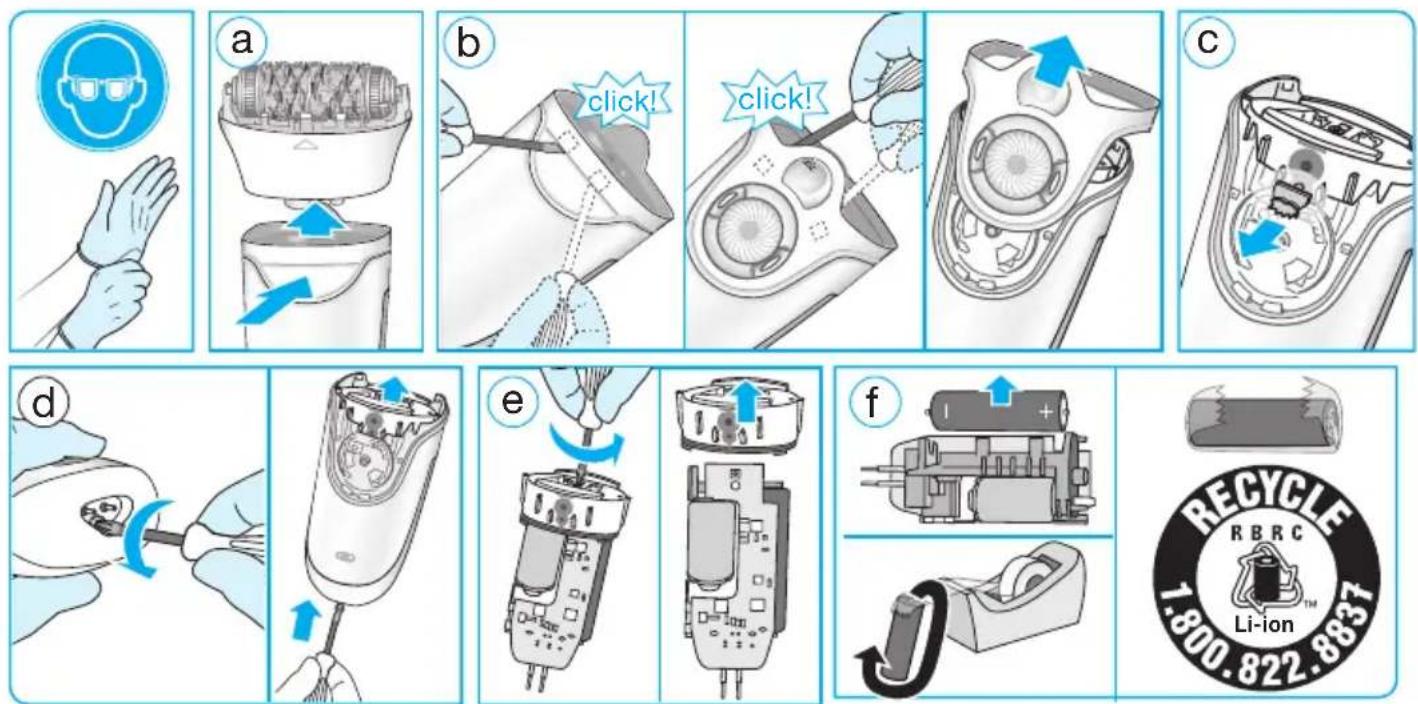

Battery removal at the end of the product's useful life

Disassemble the rechargeable battery for disposal/recycling reasons as shown below.

Remove the rechargeable battery and recycle or dispose of it properly, according to local guidelines.

Caution: Disassembling the appliance will destroy it and invalidate the warranty.

Subject to change without notice

FOR USA ONLY

1 year limited warranty

Braun warrants this product to be free of defects in material and workmanship for a period of one year from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you.

This warranty does not cover damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance.

ALL IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE ARE LIMITED IN DURATION TO 1 YEAR FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN INC. BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

Guarantee for all Braun Hair Removers

In the event a Braun Silk-épil fails to function within 1 year from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Medical procedure illustration showing steps to apply a dental tool to a patient's mouth, with labeled arrows and instructions.

Medical illustration showing a person applying facial hair to a brush, with close-ups of a shower bottle and a calendar for January 2023.

English

Before using the appliance, please read the use instructions carefully and completely and keep them for future reference.

Braun «Face» is a facial care system that combines two beauty treatments: The small, precise epilation head removes even the finest facial hairs from the roots. The cleansing brush attachment improves your skin's appearance through gentle, but deep-pore cleansing.

Important

• For hygienic reasons, do not share this appliance with other persons.
• Do not use the appliance on irritated skin.
• Do not use the epilation head on eyelashes. You may use the epilation head for removing individual hairs between or above the eyebrows, but not for shaping eyebrows.
• Never epilate with a damaged epilation head.
• When switched on, the appliance must never come in contact with the hair on your head, eyelashes, textile ribbons etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.
• This product is not a toy. Keep the device out of reach of children and pets.
• Keep batteries away from children and pets. If swallowed, consult a physician at once. For information on treatment call [phone].
• This appliance is suitable for use in bath or shower if it is used with the brush attachment.

Description

1 Battery compartment
2 On/off switch
3 Epilation head
4 Protective cap for epilation head
5 Cleansing brush
6 Brush adapter with release button (6a)

Batteries

Replace the batteries as needed: Open the battery compartment (1) by turning the lid towards using the brush provided. Replace the battery (AA alkaline, 1.5 V) observing correct polarity. Replace the lid by aligning the dot with (see fig. c) and turning turning towards to lock it. Make sure your hands and the appliance are dry when replacing the battery.

When the power decreases, replace the batteries promptly. Replace all used batteries at the same time. This reduces the chance for battery leakage conditions.

Batteries may explode or leak and cause burn injury if recharged, disposed of in fire, mixed with a different battery type, inserted backwards or

disassembled.

If a battery leaks, wipe the device with a damp cloth and wash hands. If any material gets in eyes, contact a physician immediately. Remove the batteries before storing your appliance for extended periods.

Facial epilation

• Before use, make sure your skin and the epilation head are thoroughly clean.
• Turn on the appliance by sliding the on/off switch (2) to the left or to the right. The rotating direction of the tweezers depends on the direction you move the switch when turning on. For best results, make sure that the tweezers rotate against the direction of hair growth.
• To become familiar with the appliance, we recommend trying it first on the chin or near the outer corners of the mouth.
• Hold the appliance with the tweezers against a section of skin that you keep stretched with your free hand. Carefully guide it with gentle pressure against the direction of hair growth.

Do not press too hard as this may lead to skin injury. To stretch the upper lip area, you may use your tongue to push from below.

• After use, slide the on/off switch to the «o» (= off position.
• Carefully clean the epilation head using the cleaning brush provided.

You may want to dip the brush into ethanol (70%). Make sure that it is completely dry before you re-attach it and close it with the protective cap.

• To relax the skin we recommend applying a moisturizing cream after epilation.
• When epilating for the first time, it is advisable to epilate in the evening, so that any reddening can disappear overnight.

General information on epilation

All methods of hair removal from the root can lead to irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, skin reactions and the sensation of pain tend to diminish considerably with the repeated use.

In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thoroughly cleaning the epilation head and your skin before each use will minimise the risk of infection.

If you have any doubts about using his appliance, please consult your physician. In the following cases, this appliance should only be used after prior

consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, koebner phenomenon, haemophilia or immune deficiency. When you begin taking hormones or if you change the type of hormone medication (e.g. contraceptive pill), the growth of your hairs may be influenced due to a change of your hormone level. This is caused by the change of hormonal conditions, but not by the appliance.

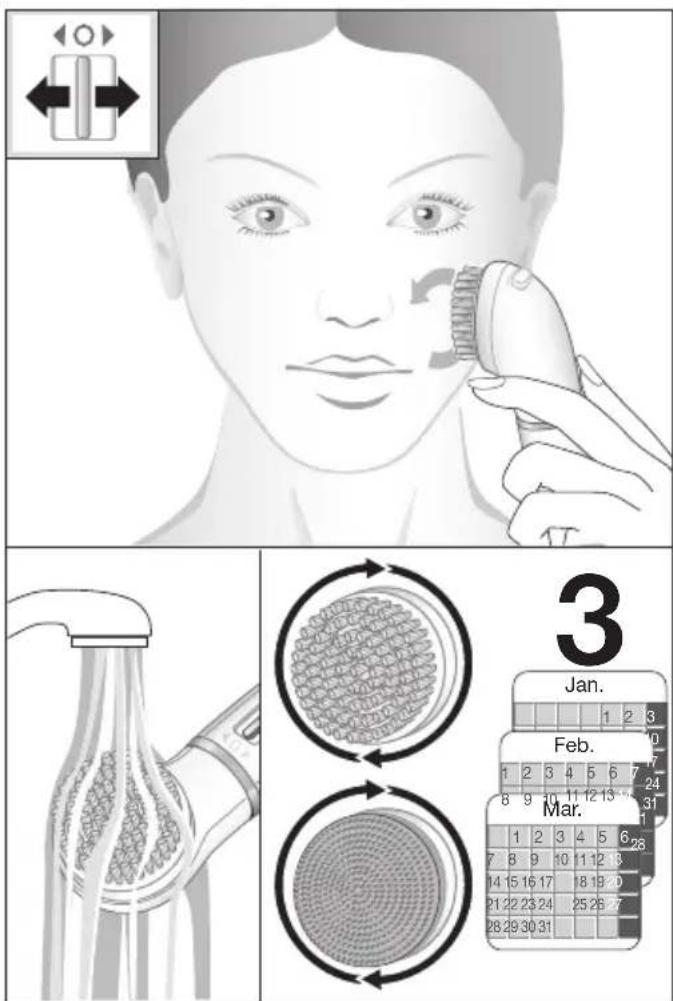

Facial cleansing

• Pull off the epilation head, attach the brush adapter (6) and click-in the cleansing brush (5).
• Moisten your skin and the brush head lightly with water. You may use the cleansing brush as part of your daily cleansing routine: with soap, cleanser, cleansing milk, gel or simply with water.
• Turn on the appliance by sliding the on/off switch (2) to any direction.

• Guide the brush with gentle pressure and circular motions for approximately one minute. Avoid the eye area and hairline.

• After use, slide the switch back to position «o».

• Rinse your face with water to remove residues of the cleaning product used.

- The brush can be rinsed with warm water. If you prefer cleaning it thoroughly with soap, you may detach the brush unit by pressing the release button (6a). After cleaning, leave all parts to dry completely before reattaching.

- For best results, replace the brush unit (5) every 3 months or sooner if bristles become deformed. Different types of refill brushes (Ref. no. 80 Face) are available from your retailer, Braun Service Centers or via www.braun.com.

Environmental notice

At the end of their life, empty batteries and the appliance should not be discarded with the household waste. Please dispose of them according to national or local regulations.

Subject to change without notice

Français
