USER MANUAL RB305GM3110 TCL

Two-Door Household Refrigerator Operating Instructions

RB305GM3110

受控文件

Contents

受控文件

EN

Thank you for buying TCL refrigerator. We hereby express our thanks.

Welcome to use TCL refrigerator. We will do our best to provide you with quality service.

Safety instructions P2

Product introduction P5

Handling and placement P6

Preparations prior to use P7

Operation notes P8

Illustration and operation of display panel P8

Food storage P11

Ice-making P11

Disassembly and assembly method of accessory P12

Maintenance P12

Failure analysis P13

Non-failure P13

Technical parameter P14

Packing list P15

Safe recovery instructions P16

Description of climate types P16

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
6. WARNING: Do not damage the refrigerant circuit.
7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
8. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

9. This appliance is intended to be used in household and similar applications such as
   — Staff kitchen areas in shops, offices and other working environments;
   — Farm houses and by clients in hotels, motels and other residential type environments;
   — Bed and breakfast type environments;
   — Catering and similar non-retail applications.

10. This product contains a light source of energy efficiency class F for light source ERP, test with (without) light cover.

1. Warning

Warning: No barrier is allowed around the appliance or in the embedded structure in order to ensure the free ventilation.

Warning: It is forbidden to speed up the defrosting process with any mechanical equipment or by other method except for the method recommended by the manufacturer.

Warning: Never damage the refrigerating circuit.

Warning: Never use any electric apparatus in the food chamber of the appliance except for the type recommended by the manufacturer.

Warning: Never place the liquid beverage or food contained with glass container in the freezing chamber for fear of cracking.

Warning: If powered off, the refrigerator shall be powered on 5min later for fear of damaging the compressor.

Warning: If any live part, abnormal noise, smell, smoke or other abnormality is found during use, it is necessary to power off the appliance immediately and contact the after-sales service department of the Company timely.

Warning: Never place your finger or hand under the refrigerator, especially rear bottom of refrigerator; otherwise, you may be hurt by the sharp matter.

Warning: The children must not play or climb the refrigerator. The operation by the children must be supervised by their parents for fear of danger.

Warning: Never place your hand between the doors to open or close door for fear of jamming your finger. The door handle shall be used to open or close the door.

Warning: Under the rated climate types SN, N and ST, the operating ambient range of the appliance is 10°C\~38°C; under the climate types SN, N, ST and T, the operating ambient range of the appliance is 10°C\~43°C. If the appliance operates outside the rated climate type (ambient temperature range), the appliance may not maintain the satisfying interior temperature.

Warning: Risk of fire / flammable materials

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems. Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

2. Cautions

Cautions: The power supply of this product must be uniform with the power supply mentioned on the nameplate, and the standard independent 3-hole socket shall be used (above 10A, and reliably grounded). One socket must not be shared by more than one appliance; otherwise, fire may be caused due to overheat.

Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the power connector from the socket to disconnect the power supply. The power wire or connector must not be touched by the wet hand for fear of electric shock.

Cautions: The power wire must not be squeezed by the refrigerator or any heavy load, and the power wire shall not be bent extremely. The damage or peeling of power wire may result in fire or electric shock. If the power wire is broken or cut, please contact the after-sales service department immediately.

Cautions: No flammable or explosive matter or corrosive acid or alkaline matter is allowed in the refrigerator.

Safety instructions

受控文件 must not be used in the rain

Cautions: The refrigerator must not be used in the rain or under the sunshine.

Cautions: It is forbidden to place the container with fluid on the refrigerator because the breakage or turnover of the container may affect the electrical insulation of refrigerator and result in electric shock or fire.

Cautions: The refrigerator must not be disassembled or modified without permission. The repair of refrigerator must be performed by the specialist.

Cautions: In case of leakage of any flammable gas such as coal gas, it is necessary to close the leaking valve first and then open the window for ventilation, and forbidden to unplug the refrigerator connector immediately for fear of fire or explosion due to electric spark.

Cautions: Refrigerating appliances – in particular a refrigerator-freezer Type I – might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed;

Cautions: The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold.

Cautions: The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food.

Cautions: The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.

Cautions: The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

Cautions: The care required with regard to frozen food in storage in the event of an extended non-running of the refrigerating appliance (interruption of power supply or failure of the refrigerating system).

Cautions: The action to be taken when the refrigerating appliance is switched off and taken out of service temporarily or for an extended period (e.g. emptied, cleaned and dried, and the door(s) or lid(s) propped ajar).

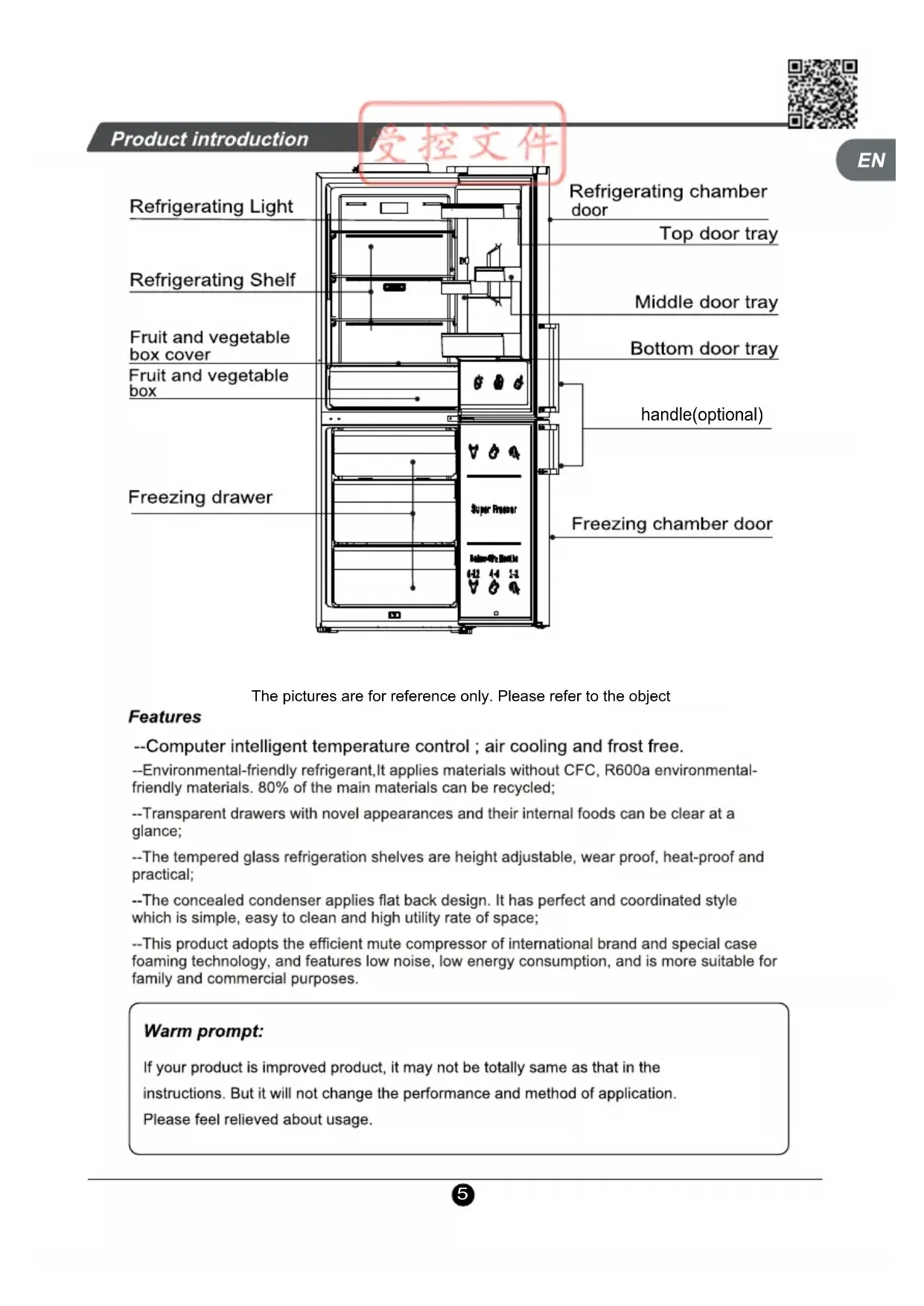

Product introduction

受控文件

EN

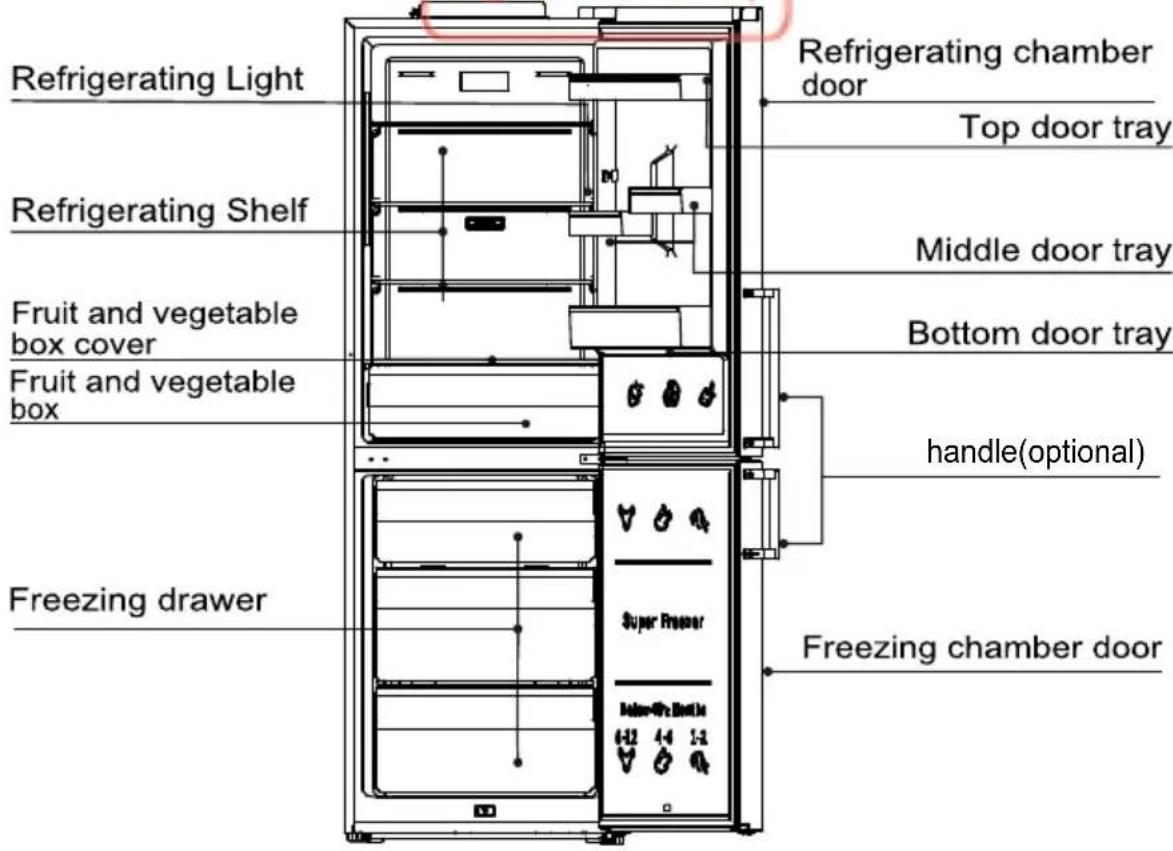

Refrigerating Light Refrigerating Shelf Fruit and vegetable box cover Fruit and vegetable box Freezing drawer Super Freezer Top door tray Middle door tray Bottom door tray handle(optional) Freezing chamber door

The pictures are for reference only. Please refer to the object

Features

--Computer intelligent temperature control ; air cooling and frost free.
--Environmental-friendly refrigerant, It applies materials without CFC, R600a environmental-friendly materials. 80% of the main materials can be recycled;
--Transparent drawers with novel appearances and their internal foods can be clear at a glance;
--The tempered glass refrigeration shelves are height adjustable, wear proof, heat-proof and practical;
--The concealed condenser applies flat back design. It has perfect and coordinated style which is simple, easy to clean and high utility rate of space;
--This product adopts the efficient mute compressor of international brand and special case foaming technology, and features low noise, low energy consumption, and is more suitable for family and commercial purposes.

Warm prompt:

If your product is improved product, it may not be totally same as that in the instructions. But it will not change the performance and method of application.

Please feel relieved about usage.

Handling and placement

受控文件

Certain space shall be left around the refrigerator, shown in the figure.

>30cm >10cm >10cm

During handling, the door side of the refrigerator shall not contact with the handling tools

<45°

The refrigerator shall be placed in an environment which is dry, has good ventilation, far from direct sunshine and heat source.

Illustration of a cartoon character standing beside a cardboard box with steam rising, under a sun and no text or symbols present.

The refrigerator shall be placed on the flat and firm surface. If the ground is not flat, adjust the adjusting leg to keep it level.

Cartoon illustration of a smiling refrigerator with arms and legs, standing on tiled floor (no text or symbols)

Never place the refrigerator into a too cold environment that may get frozen.

Cartoon illustration of a person with a frowning expression inside a box, surrounded by snowflakes and decorative elements (no text or symbols)

Removing the foam base is beneficial for bottom heat dissipation and can avoid fire.

Cartoon illustration of a smiling cube on a steaming platform (no text or symbols)

Warm prompt:

- When handling the refrigerator, at least two persons are required – one lifts the top of rear part, the other one handles the bottom (if one part is clamped, it is quite dangerous and may cause accident).

--When moving the refrigerator, the lower runner may damage and scratch the floor. If you need to move the refrigerator for a long distance, the internal accessories shall be fixed using adhesive tape. Otherwise, the accessories may get damaged due to crashing each other.

--Please place the refrigerator in the position with small vibration or little exposed to vibration. For users in the area where earthquake often occurs, please fix the refrigerator against the wall or pole. Otherwise, the falling of refrigerator will cause accident.

--Sufficient clearance shall be left around. If the clearance is too small or place goods on the top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be affected, and thus to cause unnecessary electric energy waste as well as burn out of the wall and other goods; the contact between the back and wall will cause vibration and noise;

--Adjust the front part and adjusting leg of the refrigerator to level it. Unlevel of the refrigerator will cause vibration and noise.

This refrigerating appliance is not intended to be used as a built-in appliance. The outline dimension of the product and the space needed by the use of product are shown in the following.

pictures:

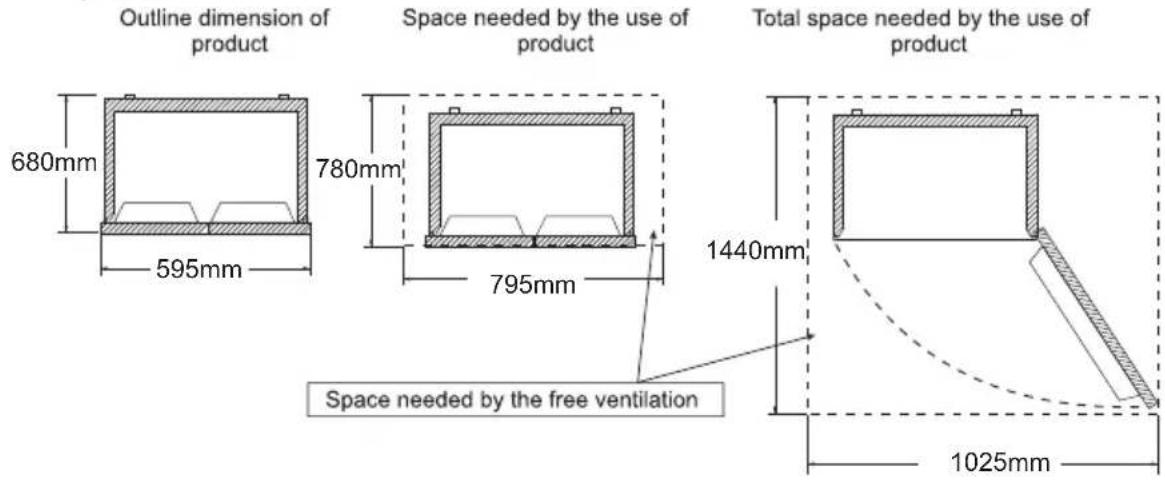

Outline dimension of product 680mm 595mm 780mm 795mm Space needed by the use of product Total space needed by the use of product 1440mm Space needed by the free ventilation 1025mm

Preparations prior to use

1. Remove all packing assemblies such as case fixing tape etc., especially the foam base.
2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added in warm water).
3. After leveling and cleaning the refrigerator, stand it for about 5 hours before plugging the power plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.

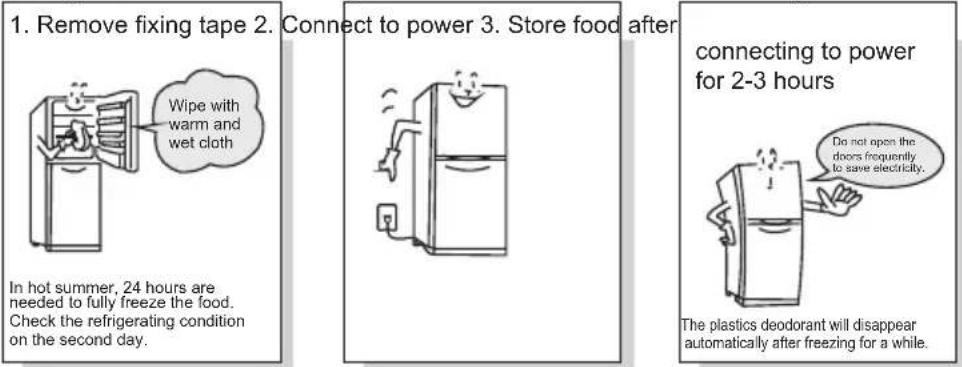

1. Remove fixing tape 2. Connect to power 3. Store food after Wipe with warm and wet cloth In hot summer, 24 hours are needed to fully freeze the food. Check the refrigerating condition on the second day. connecting to power for 2-3 hours Do not open the doors frequently to save electricity. The plastics deodorant will disappear automatically after freezing for a while.

The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Please refer to the product introduction picture on page 5 for the placement of accessories.

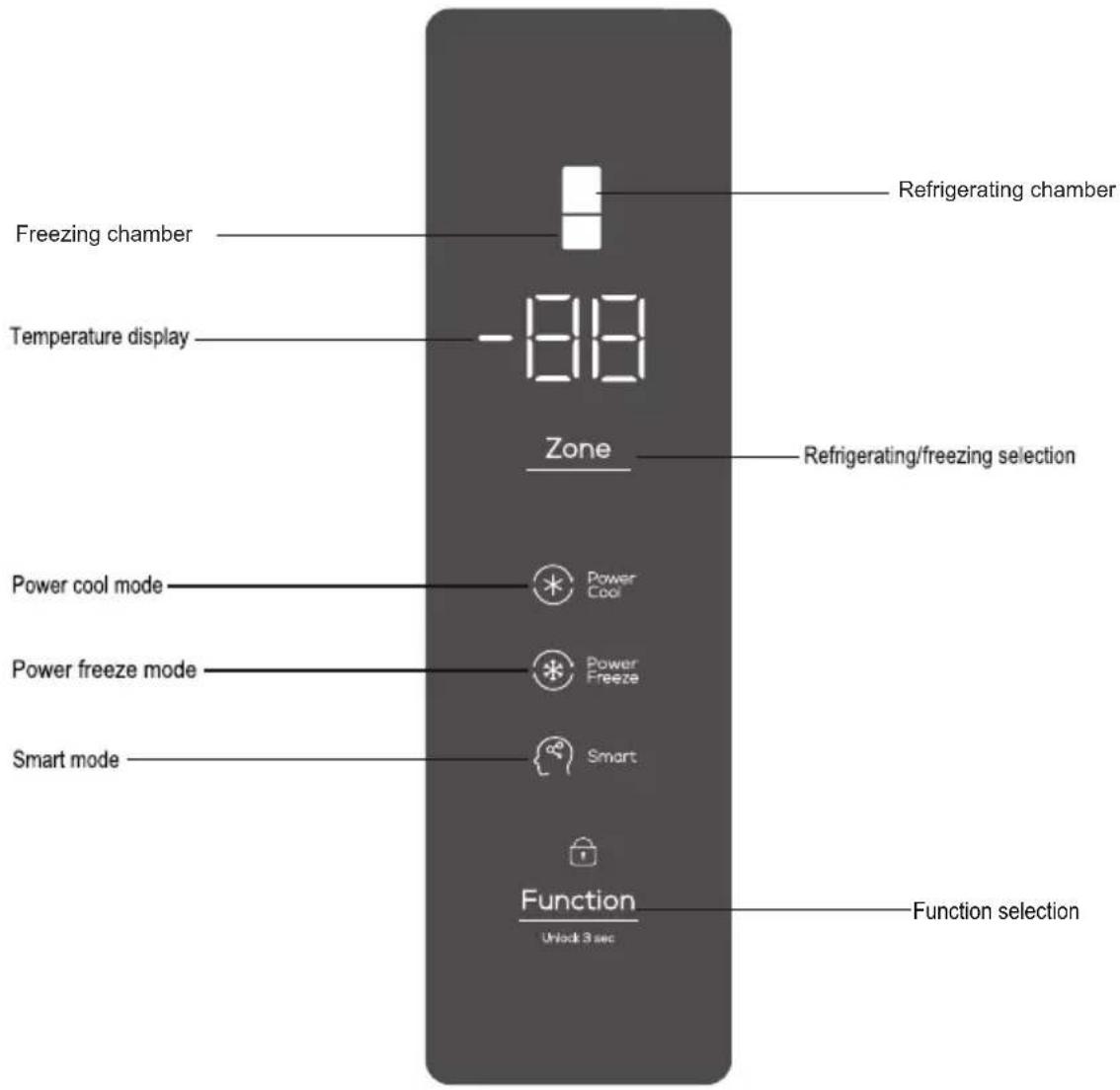

Freezing chamber Temperature display -88 Zone Refrigerating chamber Refrigerating/freezing selection Power cool mode Power freeze mode Smart mode Power Cool Power Freeze Smart Function United 3 sec Function selection

The above is the computer control board of the product

First time to electricity

The first time to electricity, the cooling room runs at the 5°C and the freezing room runs at the -18°C

The function of adjusting the temperature manually

Temperature adjustment in cooling room(2°C\~8°C)

Under unlock status, long press "Z" key for 3 seconds until the icon switches to refrigerator compartment. Press "Z" key to adjust temperature in refrigerator compartment. And then the temperature drops by 1^ every time press "Z" key. The shift of refrigerator compartment stalls recycles around "08" - "07" - "06" - "05" - "04" - "03" - "02" - "OF" - "08". Stop button operation and wait for 5 seconds after appropriate temperature is selected, and then set the temperature shift for confirmation.

Temperature adjustment of freezer compartment (-22°C\~-15°C)

Under unlock status, long press " Zore" key for 3 seconds until the icon switches to freezer compartment. Press " Zore" key to adjust temperature in freezer compartment. And then the temperature drops by 1^ C every time press " Zore" key. The shift of freezer compartment stalls recycles around "-15"- "-16"- "-17"- "-18"- "-19"- "-20"- "-21"- "-22"- "-15". Stop button operation and wait for 5 seconds after appropriate temperature is selected, and then set the temperature shift for confirmation.

Quick refrigerating function

Under unlock status, repeatedly press “Function” key until the “Power Cool” icon flashes. Stop key operation and wait for 5 seconds to enter quick refrigerating function of refrigerator compartment. Manually exit quick refrigerating function through the same operation. Automatically exit quick refrigerating function after two hours. When the “Power Cool” function is on, set temperature to 2^ C for refrigerator compartment, until the function exits. (Under quick refrigerating status, adjust set temperature of refrigerator compartment to automatically exit quick refrigerating function. Open refrigerator door over three minutes exit quick refrigerating function under quick refrigerating status.)

Quick freezing function

Under unlock status, repeatedly press "Function" key until the "Power Freeze" icon flashes. Stop key operation and wait for 5 seconds to enter quick freezing function of freezer compartment. Manually exit quick freezing function through the same operation. Automatically exit quick freezing function after four hours in high freezing status.

When the “Power Freeze” function is on, set temperature to -24^ for freezer compartment, until the function exits. (Under quick freezing status, adjust set temperature of freezer compartment to automatically exit quick freezing function. Open freezer door over three minutes exit quick freezing function under quick freezing status.)

Operation notes

受控文件

EN

Intelligent function

Under unlock status, repeatedly press “Function” key until the “Smart” icon flashes. Stop key operation and wait for 5 seconds to enter intelligent function. Manually exit intelligent function through the same operation. When the “Smart” function is on, the refrigerator will automatically monitor the status of all compartments and run efficiently. Under intelligent status, the refrigerator can automatically enter quick-refrigerating or quick freezing function according to the temperature in refrigerator and freezer compartments. (Setting other functions under intelligent status can automatically exit intelligent function.)

Child lock function

Under unlock status, enter " 🔍 " function:

Automatically on: the child lock function is automatically on after no key operation for 30 seconds, "icon is lit, and the key board is locked;

Exit child lock: when the " 🔍 " icon is lit, long press " Function " key for 3 second to unlock.

Refrigerating close function

Under unlock status, long press " ☐" key for 3 seconds until the temperature icon switches to refrigerator compartment, press " ☐" key to adjust temperature for refrigerator compartment. Stop key operation and wait for 5 seconds when the shift of refrigerator compartment is at "OF" to enter refrigerating close function. Refrigerating close function exits when the shift of refrigerator compartment is not at "OF". (Setting other functions under refrigerating close status can automatically exit refrigerating close function. Attention: take the food out of refrigerator compartment before the refrigerating close function is on.) The refrigerator compartment enters close status when the "Refrigerating close" function is on.

Power-off memory

When the power is cut off, the instantaneous working state of blackout will be locked and resume the state after power on.

Door alarm

When the refrigerator or freezer door is not well closed or open for over 1 minute, the buzzer siren will send off sound. Press down any key to stop alarming and the siren sounds "beep, beep, beep" again after 1 minute; close refrigerator or freezer door to stop alarming.

Freezer compartment temperature reminder

When the temperature of freezer compartment is higher than -12^ , the corresponding temperature area is lit, the digital area flashes. Press down any key to display temperature of freezer compartment when the power is on, press again or wait for 10 seconds to restore normal display state.

Display protection function

The refrigerator will enter display protection function without any key operation for 30 seconds, and the key board is locked automatically. Under display protection mode, press any key to exit display protection function.

Operation keys

受控文件

EN

Foods storage

Refrigerating chamber (2°C\~8°C)

--The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink.
--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.
--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing.

Freezing chamber (-22°C\~-15°C)

--The freezing chamber is used for the foods to be stored for long-term.
--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags separately and then put into the frozen drawer.
--The glass container or the sealed container filled with liquid shall not be stored in the freezing chamber, to prevent the risk of burst due to freezing.
--The fresh foods shall not be stored together with the frozen foods.
--Do not place food close to inside wall in freezer lest food and wall should be frozen together.

★★ Warm tips:

The stored food, if any, shall not block the air duct outlet and return port for fear of affecting the refrigerating effect.

Before being stored in the refrigerator, the overheated water and food shall be cooled to the room temperature.

Ice-making (If the appliance has it)

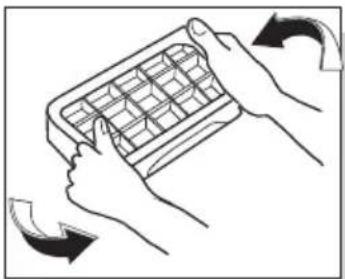

Fill the ice-making box with 4/5 water and put the box into the freezing chamber. After the water in the box turns into ice, twist the box slightly to separate the ice from the box. However, don't bend the box. When separating the ice, wrap the box with dry box to avoid finger frostbite.

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Disassembly and assembly method of accessory

--Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with different volumes. Pull the shelf outwardly and upwardly in a slight way to take out.

--Fruit and vegetable box: for storing vegetables and fruits. It can be taken out by pulling outwardly.

--Drawer in the freezing chamber: storing foods to be preserved for long-term, such as meat and fish. It can be taken out by pulling outwardly and lifting upwardly.

Kindly tips: It is recommended to put into the large piece of meat after being cut into small pieces, to avoid difficult cutting after being frozen. The quick-freezing foods shall be distributed uniformly and stored together after being frozen.

--Bottle pedestal at the refrigerating door: storing eggs, various bottled drinks and other sundries. It can be taken out by being lifted up slightly.

Note: Don't pull out the bottle pedestal at the refrigerating door forcibly during disassembly, to avoid damaging the refrigerator.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

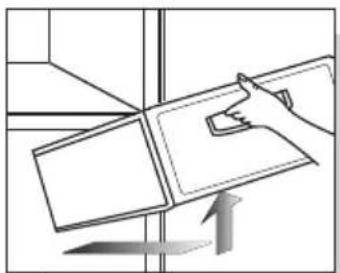

Take out by pulling upwardly and outwardly in a slight way

Diagram showing a hand holding a rectangular object with an upward arrow, no text or symbols present

Take out by pulling outwardly and upwardly in a slight way

Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Maintenance

It is suggested to maintain the refrigerator once per month;

--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence) to wipe off the oil contamination and other dirt. Then completely wipe off the detergent.
--Do not use alkaline detergent, soap powder, gasoline and alcohol, talcum powder etc.; otherwise the coats or plastics may be damaged;
--Regularly clean the refrigerator body and clear the ground dusts to keep the refrigerator clean.

Inspections after maintenance:

1. Whether there are damages to the power line and plug; 2. Whether there are dusts on the power plug; 3. Whether there is abnormal heat on the plug; 4. Whether the socket is loose; 5. Whether the plug is totally inserted.

Note:

If the power line and plug is damaged and there exist dusts, electric shock or fire may occur;

After unplugging the plug, 5 minutes must pass before re-plugging it;

Do not put your hands under the refrigerator to avoid getting hurt.

Simple line drawing of an electrical plug and a wall socket with a switch (no text or symbols)

Unplug the refrigerator plug before cleaning

Neutral detergent

Please use neutral detergent

Failure analysis

受控文件 before occurring failures which

EN

The following items shall be inspected before occurring failures which require maintenance:

Failures: Refrigerator does not work, The refrigeration effect is poor

Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator.

Remedies:1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight and heat source. 3. Leave sufficient space between refrigerator and wall.

Failures: Foods in refrigerating chamber are frozen

Causes:1. Check whether the setting temperature is too low. 2. Check whether foods with too much water are too close to the rear wall.

Remedies:1. Adequately increase the temperature. 2. Move the foods with too much water to the door side of glass shelf

Failures: There is abnormal sound in refrigerator

Causes:1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is too close to the wall. 3. Check whether the refrigerator touches other objects.

Remedies:1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space around refrigerator. 3. Remove the obstacles.

Failures: There is abnormal odor in refrigerator

Causes:1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is clean. 3. Check whether the foods are stored for too long time.

Remedies:1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3. Do not store foods for too long time.

Non-failures

Phenomenon:Fever or hot on two sides and spacing part surface between refrigerating chamber and freezing chamber.

Cause: Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator for heat dissipation and to prevent from condensation.

Phenomenon: The door is too tight and not easy to open

Cause: Reopening of the door immediately after closing it is hard because hot air enters the refrigerator and contracts to produce pressure difference. It is easy to open the door after a while.

Phenomenon: There is water ripple in refrigerator

Cause: When starting or stopping the compressor, the refrigerant will make such sound; Water produced after defrosting will also make such sound.

Phenomenon: There is "Click" sound or tick sound in refrigerator

Cause: Shrinkage and swelling of case will make such sound; When the case is cold or the door is opened, this sound will occur; Phenomenon: There is hum sound in refrigerator

Cause: Running of compressor will make such sound (if the refrigerator is not leveled, this sound will be louder)

Phenomenon: There is condensation or frosting freezing chamber door surface or food surface

Cause: Temperature or humidity around the refrigerator is high; The door is opened for too long time; The foods with too much water are not sealed or tightly wrapped

Phenomenon: There is condensation on the built-in light surface

Cause: Light will produce heat after being lit, and the door is opened for too long time. So there is temperature difference, and thus the light case will have condensation.

Phenomenon: There is condensation and water mist on body

Cause: Humidity around refrigerator is high, and the moisture in the air will gather in the case to form condensation

Model	RB305GM3110
Climate type	SN/N/ST/T
Electric shock resistance	I
Star sign
Total Volume	322L
Fresh food compartment	209 L
Volume of Freezer	113 L
Power type	220-240V~150Hz
Rated current	1.25A
Annual energy consumption AE	160 kWh/a
Lamp power	2W
Weight	76kg
Dimension	595x680x1855mm
Refrigerant and charge amount	R600a,46g
Noise Volume	40dB(A)
Energy consumption E16	0.256kWh/24h
Energy consumption E32	0.62kWh/24h

受控文件

Annex\Model	RB305GM3110
Refrigerating shelf	3
Fruit and vegetable box cover	1
Fruit and vegetable box	1
Ice-making box	/
Egg box	1
Refrigerating door bottle bracket	4
Freezing drawer	3
Operating instruction	1

EN

Safe recovery instructions

Disposal

Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled.

The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling. Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local municipal o ce.

Correct Disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Description of climate types

Table 1 Climate classes

Class	Symbol	Ambient temperature ranges°C
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Dear customer

if you need customer service, please check warranty card for further information.

TCL

The Creative Life

FR

Diagram of a refrigerator interior with labeled compartments and door, showing internal structure and measurement lines.

Illustration of a cartoon refrigerator with steam and a sun symbol (no text or symbols present)

Cartoon illustration of a smiling rectangular box with arms and legs, standing on tiled floor (no text or symbols)

Cartoon illustration of a surprised face inside a box surrounded by snowflakes (no text or symbols)

Cartoon illustration of a smiling cube on a base with steam lines, no text or symbols present

Remarques:

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand inserting a component into a panel, with an upward arrow indicating direction (no text or symbols present)

Simple line drawing of an electrical plug and a wall socket with a switch (no text or symbols)

Neutral detergent

Interior view of a refrigerator with open door and internal compartments (no visible text or symbols)

Gefrierkammertür

Illustration of a cartoon refrigerator with steam and heat symbols, no text or labels present

Cartoon illustration of a smiling rectangular box with arms pointing downward, standing on a tiled floor (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising from its base (no text or symbols)

Netter Hinweis:

Illustration of hands holding a grid-based object with curved arrows indicating rotation (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Simple line drawing of an electrical outlet with a plug and switch, showing a wall-mounted socket (no text or symbols)

Neutral detergent

Illustration of a cartoon refrigerator with steam rising, sun and fan in background (no text or symbols)

Cartoon illustration of a smiling character standing beside a rectangular block with arms and legs, placed on a tiled floor (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a cube with steam rising, placed on a base with wavy lines indicating motion (no text or symbols)

Warmte prompt:

Illustration of hands holding a grid-based tray with directional arrows indicating rotation (no text or symbols)

Verrichtingsnota's

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Simple line drawing of an electric plug and a wall socket with a switch (no text or symbols)

Neutral detergent

Diagram of a refrigerator interior with labeled compartments and internal structure, showing hand connections for cleaning or storage.

Illustration of a distressed refrigerator with steam rising, accompanied by a sun and microwave device (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs standing on a tiled floor, no text or symbols present.

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a steaming platform (no text or symbols)

Recordatorio:

Illustration of hands holding a grid-based container with directional arrows indicating rotation (no text or symbols)

Notas de Operación

受控文件

Simple line drawing of a mechanical assembly with no text or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Illustration of a plug and a wall socket with a switch, showing electrical connection (no text or symbols)

Neutral detergent

Diagram of an open refrigerator with labeled compartments and internal structure, showing internal components and measurement lines.

Illustration of a cartoon character standing beside a box with steam rising, under a sunny sky (no text or symbols)

Cartoon illustration of a smiling face inside a rectangular box with arms and legs (no text or symbols)

Cartoon illustration of a surprised face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a base with steam lines (no text or symbols)

Alerta morno:

780mm 795mm

1440mm 1025mm

Illustration of hands holding a grid-based container with directional arrows indicating rotation (no text or symbols)

Notas de utilização

受控文件 e montagem do

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand interacting with a document or folder, with an upward arrow indicating motion (no text or symbols present)

Line drawing of a plug and socket connected to an electrical outlet (no text or symbols)

Neutral detergent

Diagram of a refrigerator interior with labeled compartments and door, showing internal structure and measurement lines.

Illustration of a cartoon cardboard box with steam rising, accompanied by a sun and a digital timer (no text or symbols)

Cartoon illustration of a smiling rectangular character standing on a tiled floor with arrows indicating movement (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a base with steam lines (no text or symbols)

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Note operative

受控文件

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a hand inserting a component into a panel, with an upward arrow indicating direction (no text or symbols)

Line drawing of an electrical outlet with a plug and switch, showing a wall-mounted socket (no text or symbols)

Neutral detergent

Diagram of a refrigerator interior with labeled compartments and internal structure, showing hand connections for cleaning or storage.

Πόρτα χώρου ψύξης

Illustration of a cartoon refrigerator with steam rising, sun and window in background (no text or symbols)

Cartoon illustration of a smiling rectangular box with arms and legs, standing on a tiled floor with small arrows below (no text or symbols)

Cartoon illustration of a person with a frowning face standing beside a box, surrounded by snowflakes and motion lines (no text or symbols)

Cartoon illustration of a smiling cube on a textured base with steam lines (no text or symbols)

Προειδοποίηση:

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

GR

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand interacting with a panel, with an upward arrow indicating motion (no text or symbols present)

Simple line drawing of an electrical plug and a wall socket with a switch (no text or symbols)

Neutral detergent

Interior view of a refrigerator with open door, showing internal compartments and numbered compartments (no text or symbols)

Dveře mrazničky

Illustration of a cartoon character standing beside a box with steam rising, under a sunny sky (no text or symbols)

Cartoon illustration of a smiling rectangular character standing on a tiled floor with arrows indicating movement or direction (no text or symbols)

Cartoon illustration of a distressed face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising from its base (no text or symbols)

Vřelá výzva:

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

Pokyny k užívání

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Simple line drawing of an electrical outlet with a plug and socket, showing a right-hand switch (no text or symbols)

Neutral detergent

Diagram of a refrigerator interior with labeled compartments and door, showing internal structure and measurement lines.

Illustration of a cartoon box character reacting to heat and cooling, with a sun and microwave oven nearby (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs standing on a tiled floor, stepping down with arrows (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a cube with steam rising, placed on a surface with wavy lines indicating motion (no text or symbols)

Wpływ ciepła:

780mm 795mm

1440mm 1025mm

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

PL

Uwagi operacyjne

受控文件 zu akcesoriów

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Line drawing of an electrical outlet with a plug and switch, showing a right-hand rule to remove electrical socket (no text or symbols)

Neutral detergent

Illustration of a cartoon refrigerator with steam rising, next to a microwave and sun (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising from its base (no text or symbols)

Важно знать:

Illustration of hands holding a grid-based object with directional arrows indicating rotation (no text or symbols)

RU

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a rectangular object with an upward arrow, no text or symbols present

Illustration of a plug and socket connected to an electrical outlet (no text or symbols)

Neutral detergent
