USER MANUAL S453-Z30 GIGABYTE

© 2023 Giga Computing Technology CO., LTD. All rights reserved.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of Giga Computing. Changes to the specifications and features in this manual may be made by Giga Computing without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without Giga Computing's prior written permission.

Documentation Classifications

In order to assist in the use of this product, Giga Computing provides the following types of documentation:

■ User Manual: detailed information & steps about the installation, configuration and use of this product (e.g. motherboard, server barebones), covering hardware and BIOS.
■ User Guide: detailed information about the installation & use of an add-on hardware or software component (e.g. BMC firmware, rail-kit) compatible with this product.
■ Quick Installation Guide: a short guide with visual diagrams that you can reference easily for installation purposes of this product (e.g. motherboard, server barebones).

Please see the support section of the online product page to check the current availability of these documents.

For More Information

For related product specifications, the latest firmware and software, and other information please visit our website at http://www.gigabyte.com/Enterprise

For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our reseller portal: http://reseller.b2b.gigabyte.com

For further technical assistance, please contact your GIGABYTE representative or visit https://esupport.gigabyte.com/ to create a new support ticket

For any general sales or marketing enquiries, you may also message GIGABYTE server directly by email: [e-mail]

Conventions

The following conventions are used in this user's guide:

	NOTE!Gives bits and pieces of additional information related to the current topic.
	CAUTION!Gives precautionary measures to avoid possible hardware or software problems.
	WARNING!Alerts you to any damage that might result from doing or not doing specific actions.

Server Warnings and Cautions

Before installing a server, be sure that you understand the following warnings and cautions.

WARNING!

To reduce the risk of electric shock or damage to the equipment:

• Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.
• Unplug all the power cords from the power supplies to disconnect power to the equipment.

• Shock Hazard! Disconnect all power supply cords before servicing.
• Do not route the power cord where it can be walked on or pinched by items placed against it. Pay particular attention to the plug, electrical outlet, and the point where the cord extends from the server.

WARNING!

To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them.

WARNING!

This server is equipped with high speed fans. Keep away from hazardous moving fan blades during servicing.

WARNING!

This equipment is intended to be used in Restrict Access Location. The access can only be gained by Skilled person.

Only authorized by well trained professional person can access the restrict access location.

CAUTION!

• Do not operate the server for long periods with the access panel open or removed. Operating the server in this manner results in improper airflow and improper cooling that can lead to thermal damage.
• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type recommended by the manufacturer.
• Dispose of used batteries according to the manufacturer's instructions.

Electrostatic Discharge (ESD)

CAUTION!

ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP ATTACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.

Always handle boards carefully. They can be extremely sensitive to ESD. Hold boards only by their edges without any component and pin touching. After removing a board from its protective wrapper or from the system, place the board component side up on a grounded, static free surface. Use a conductive foam pad if available but not the board wrapper. Do not slide board over any surface.

System power on/off: To remove power from system, you must remove the system from rack. Make sure the system is removed from the rack before opening the chassis, adding, or removing any non hot-plug components.

Hazardous conditions, devices and cables: Hazardous electrical conditions may be present on power, telephone, and communication cables. Turn off the system and disconnect the cables attached to the system before servicing it. Otherwise, personal injury or equipment damage can result.

Electrostatic discharge (ESD) and ESD protection: ESD can damage drives, boards, and other parts. We recommend that you perform all procedures in this chapter only at an ESD workstation. If one is not available, provide some ESD protection by wearing an antistatic wrist strap attached to chassis ground (any unpainted metal surface on the server) when handling parts.

ESD and handling boards: Always handle boards carefully. They can be extremely sensitive to electrostatic discharge (ESD). Hold boards only by their edges. After removing a board from its protective wrapper or from the system, place the board component side up on a grounded, static free surface. Use a conductive foam pad if available but not the board wrapper. Do not slide board over any surface.

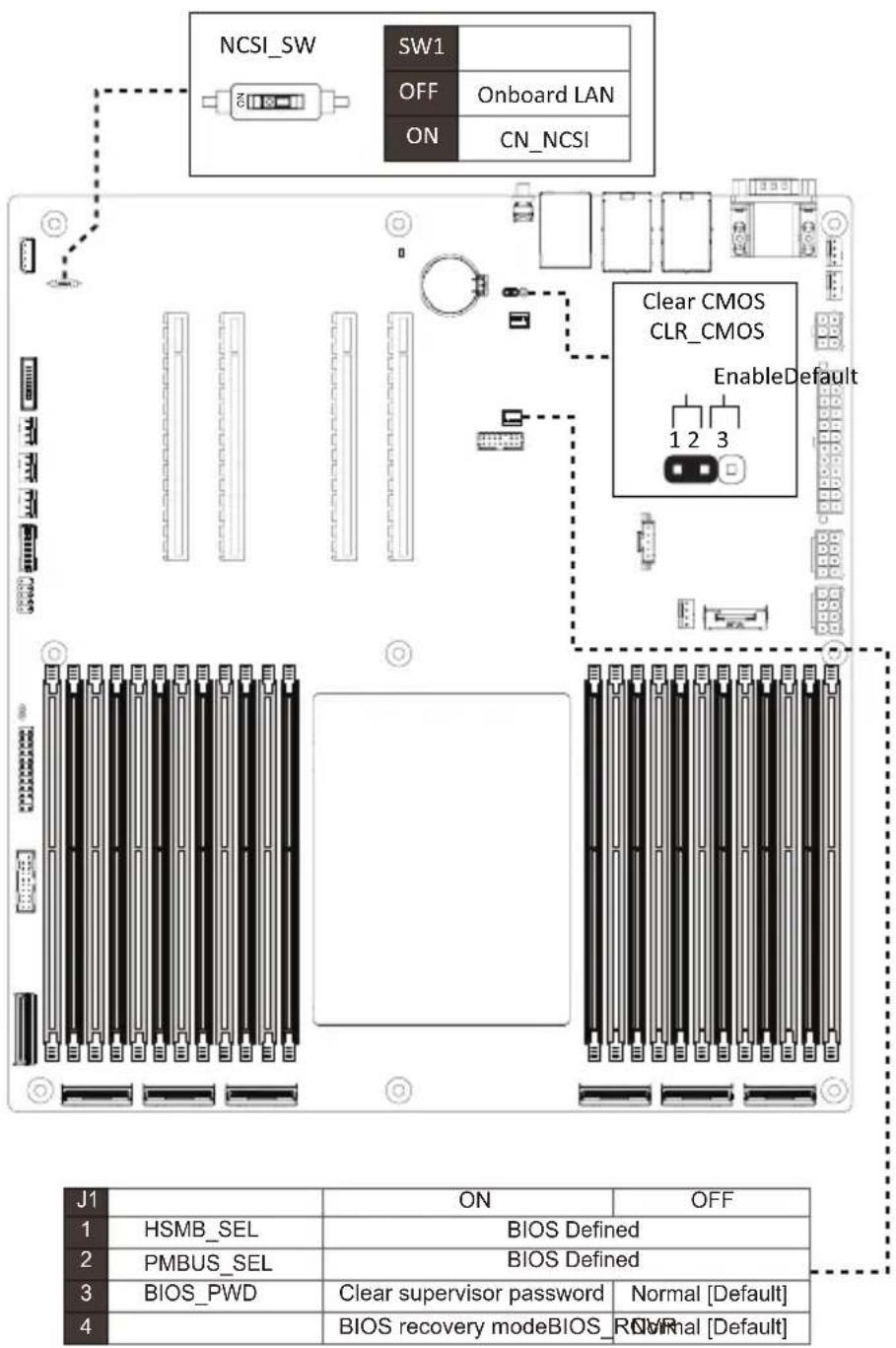

Installing or removing jumpers: A jumper is a small plastic encased conductor that slips over two jumper pins. Some jumpers have a small tab on top that can be gripped with fin-gertips or with a pair of fine needle nosed pliers. If the jumpers do not have such a tab, take care when using needle nosed pliers to remove or install a jumper; grip the narrow sides of the jumper with the pliers, never the wide sides. Gripping the wide sides can dam-age the contacts inside the jumper, causing intermittent problems with the function con-trolled by that jumper. Take care to grip with, but not squeeze, the pliers or other tool used to remove a jumper, or the pins on the board may bend or break.

CAUTION!

Risk of explosion if battery is replaced incorrectly or with an incorrect type. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Table of Contents

Chapter 1 Hardware Installation ....10

1-1 Installation Precautions.... 10
1-2 Product Specifications.... 11

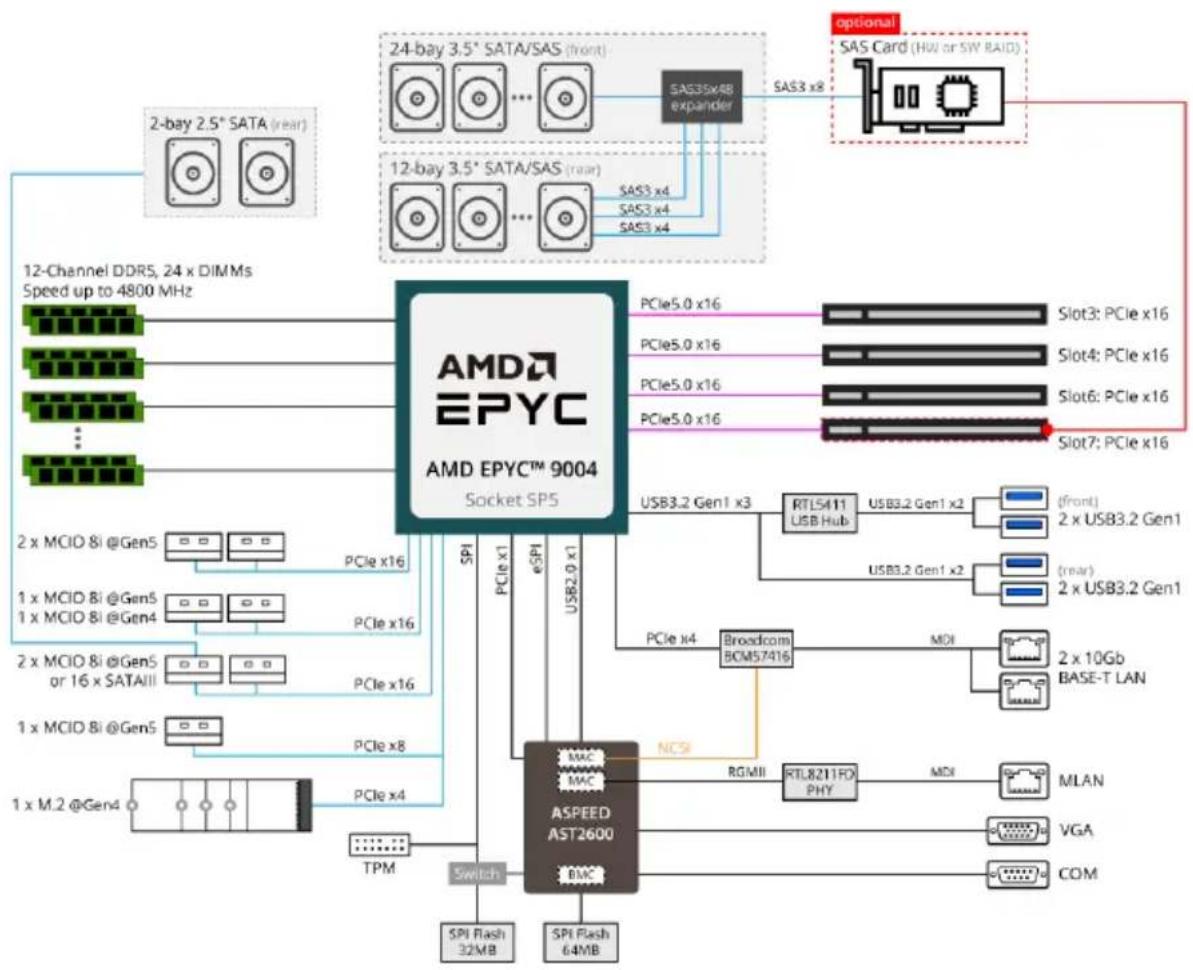

1-3 System Block Diagram.... 15

Chapter 2 System Appearance....16

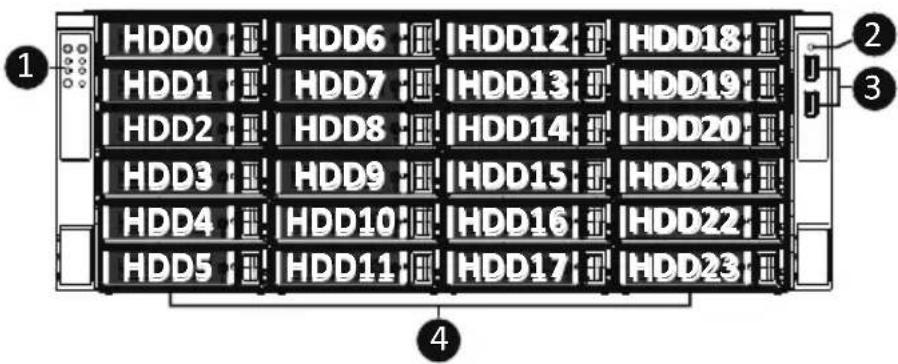

2-1 Front View 16
2-2 Rear View....17

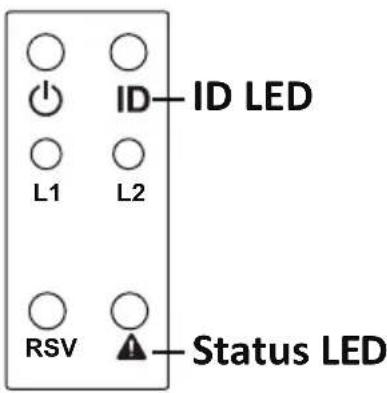

2-3 Front Panel LED and Buttons 18

2-3-1 RoT LEDs....19

2-4 Front Panel System LAN LEDs....21

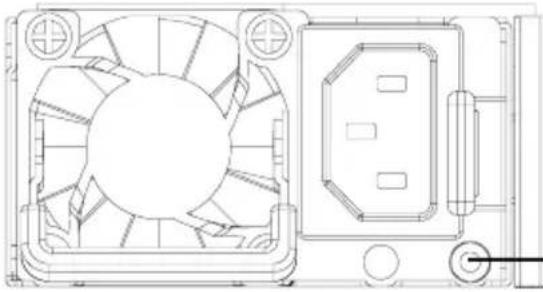

2-5 Power Supply Unit (PSU) LED 22
2-6 Hard Disk Drive LEDs 23

Chapter 3 System Hardware Installation ....24

3-1 Removing and Installing the Chassis Top Cover 25
3-2 Removing and Installing the Fan Duct 26
3-3 Removing and Installing the Heat Sink 27

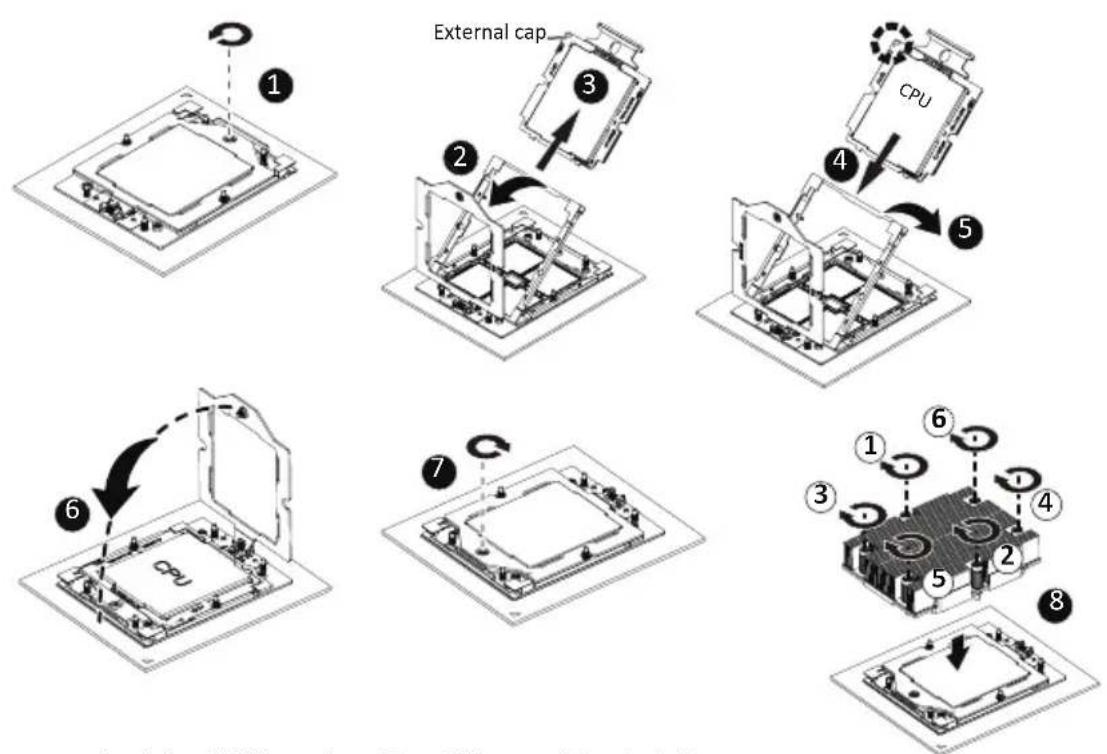

3-4 Installing the CPU 28
3-5 Installing the Memory 29

3-5-1 Twelve Channel Memory Configuration....29
3-5-2 Installing the Memory 30
3-5-3 Processor and Memory Module Matrix Table 30
3-5-4 Memory Population Table 31

3-6 Installing the M.2 Device and Heat Sink 32

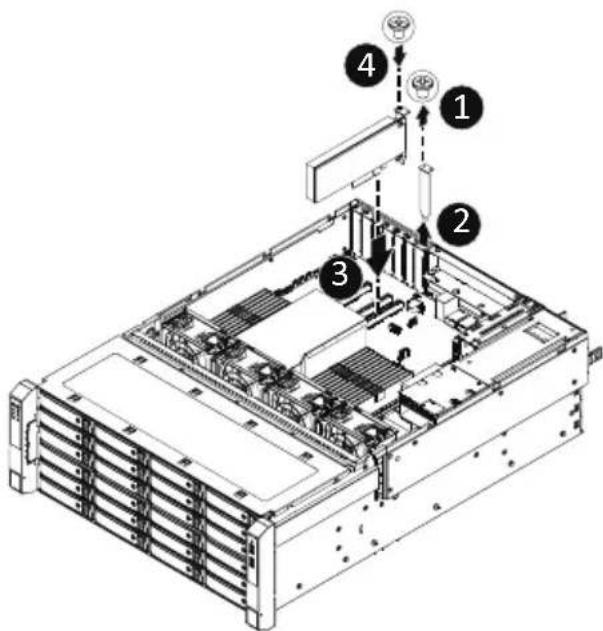

3-7 Installing the PCI Expansion Card 33

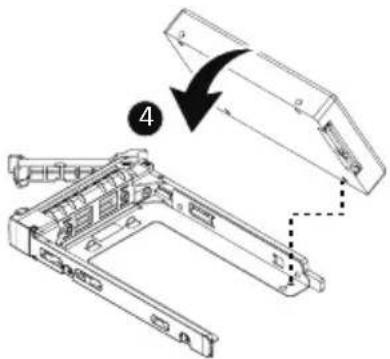

3-8 Installing the Hard Disk Drive.... 34

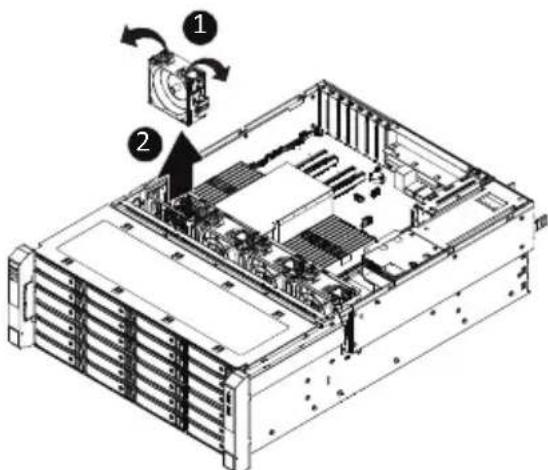

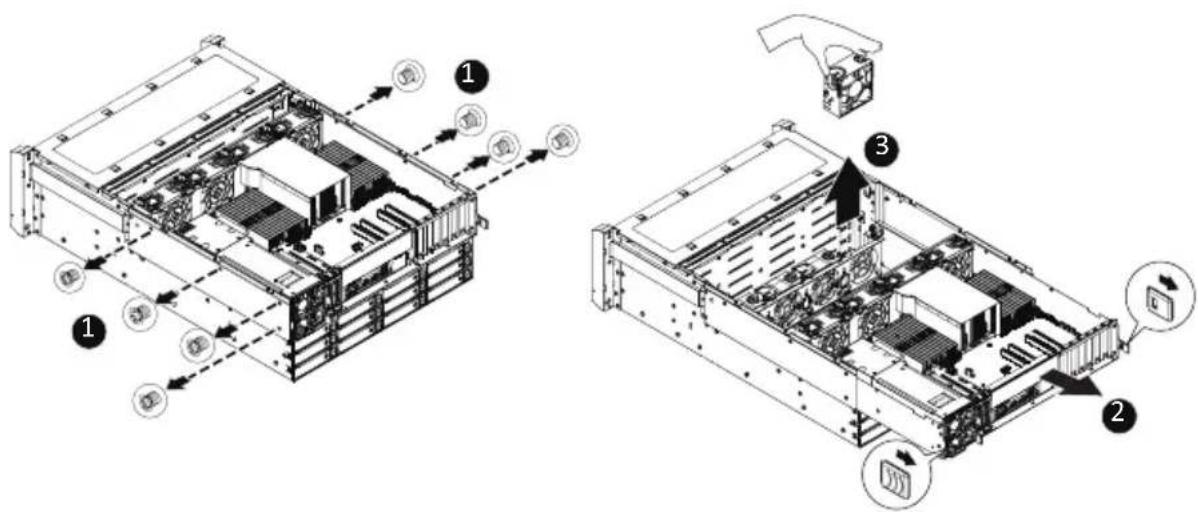

3-9 Replacing the System Fan Module 37
3-10 Removing and Installing the Power Supply.... 38
3-11 Cable Connection....39

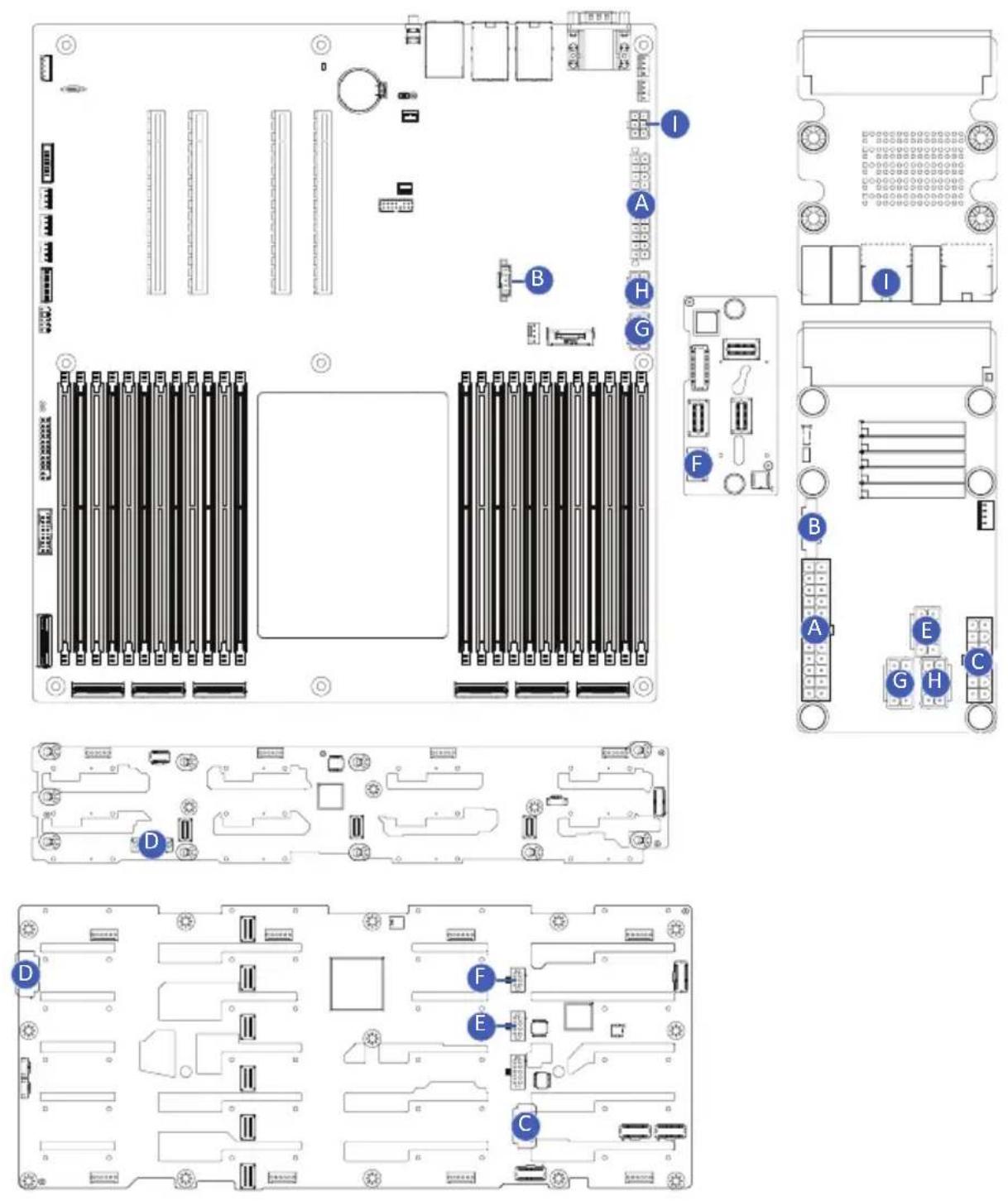

3-11-1 Front Panel and USB Cable Connection....39
3-11-2 Power Cable Connection....40
3-11-3 Motherboard to HDD Backplane Board 42

Chapter 4 Motherboard Components ....44

4-1 Motherboard Components 44

4-2 Jumper Setting 46

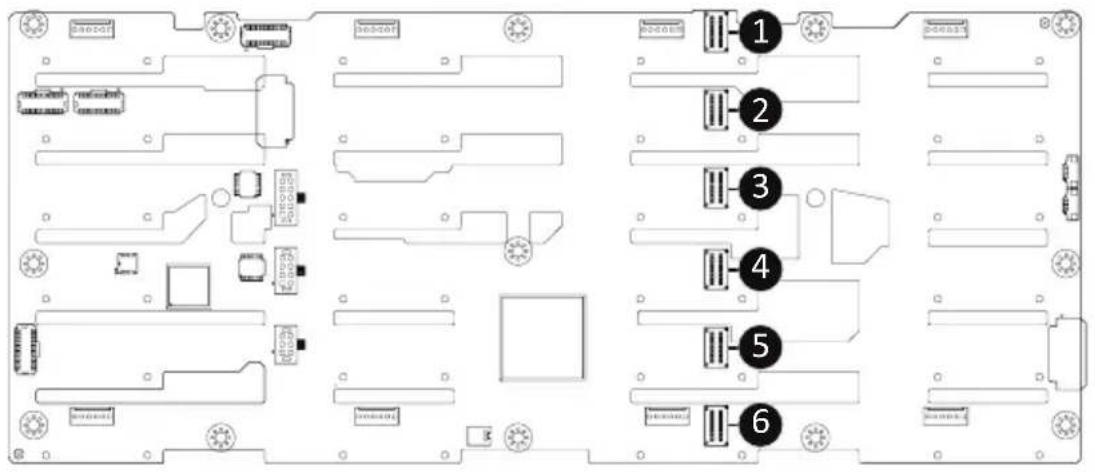

4-3 Backplane Board Storage Connector 47

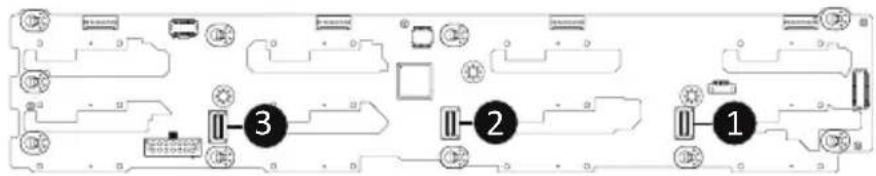

4-3-1 Front Side: CBPD400 47
4-3-2 Rear Side: CBP2021 47
4-3-3 Rear Side: CBPD0C0 48

Chapter 2 BIOS Setup ....49

2-1 The Main Menu 51

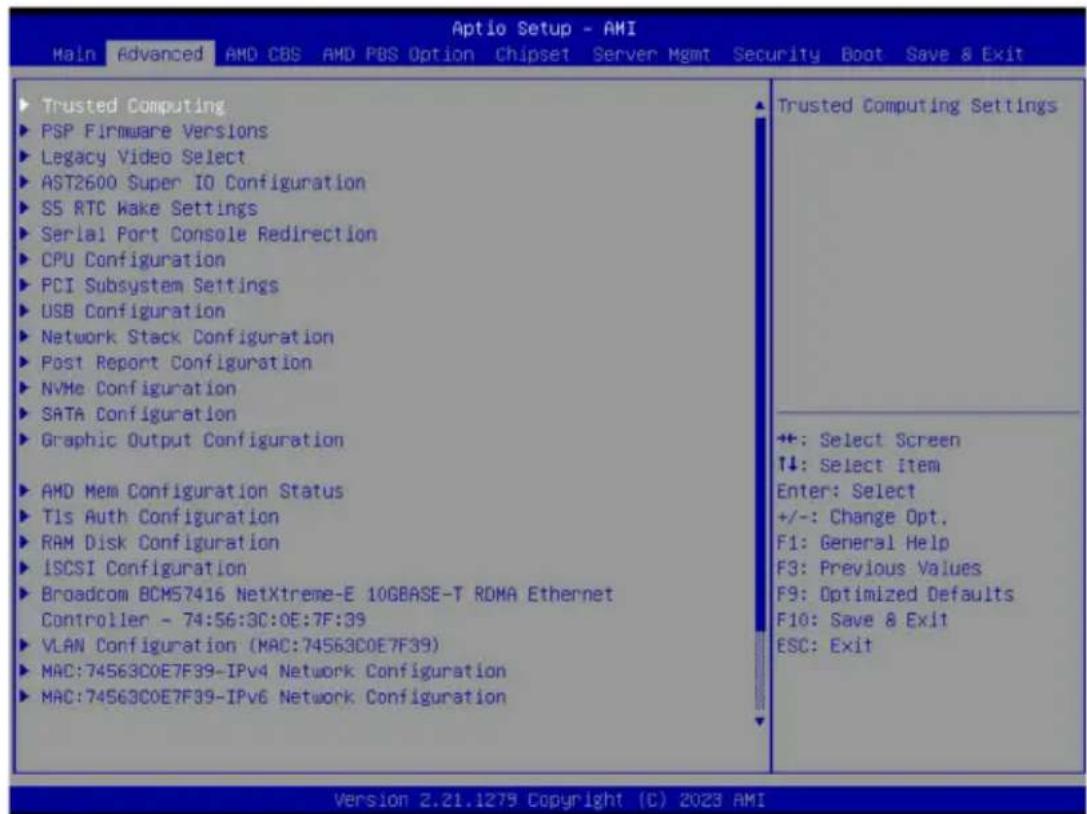

2-2 Advanced Menu 54

2-2-1 Trusted Computing 56
2-2-2 PSP Firmware Versions....57
2-2-3 Legacy Video Select....58

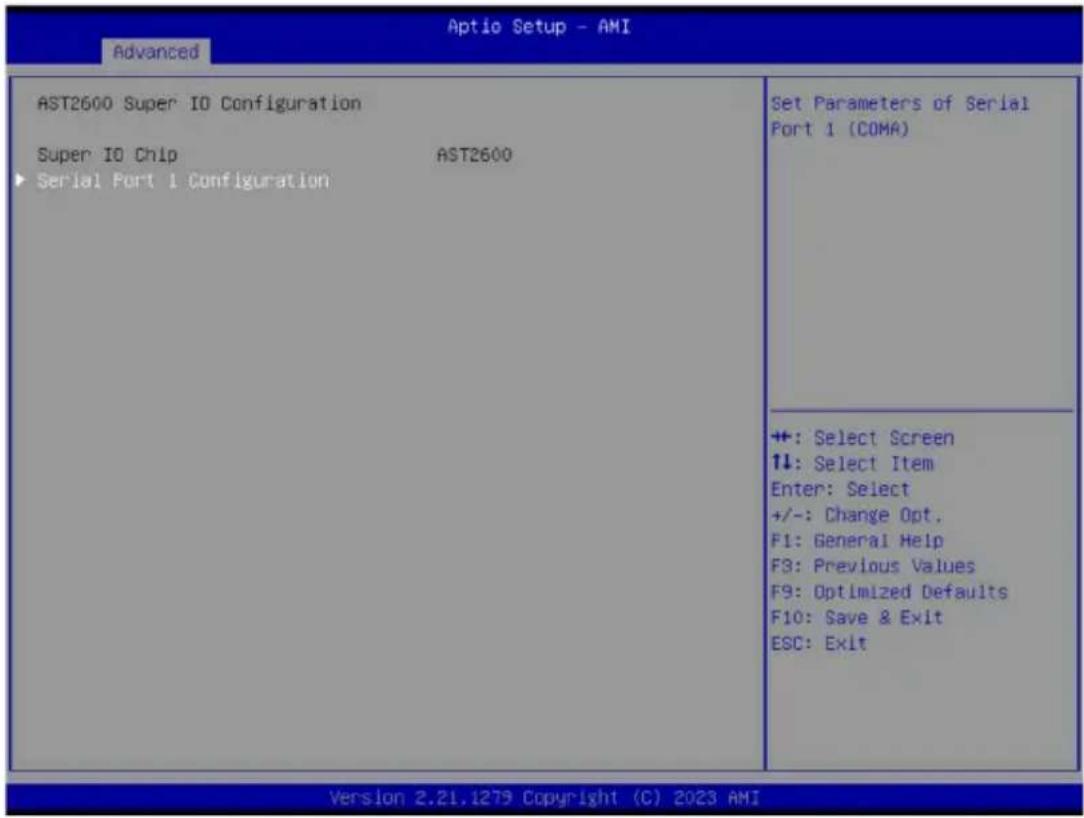

2-2-4 AST2600 Super IO Configuration....59
2-2-5 S5 RTC Wake Settings....61
2-2-6 Serial Port Console Redirection 62
2-2-7 CPU Configuration....66
2-2-8 PCI Subsystem Settings....67
2-2-9 USB Configuration....69

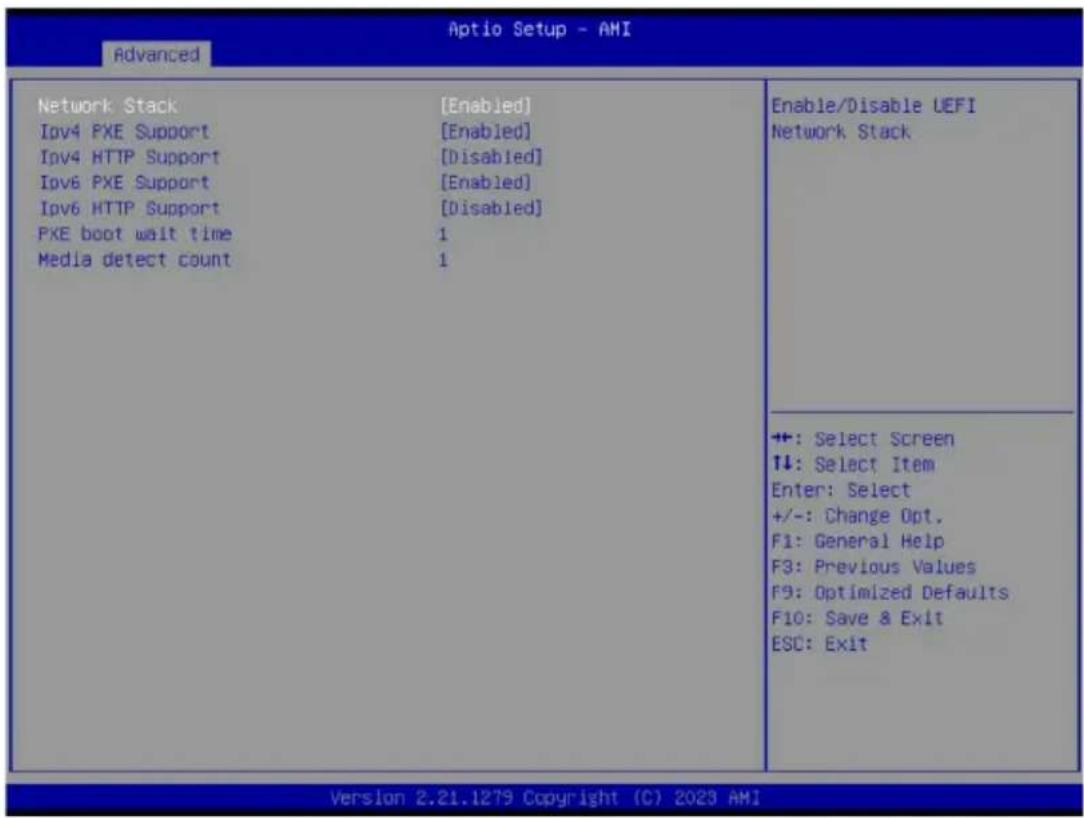

2-2-10 Network Stack Configuration....71

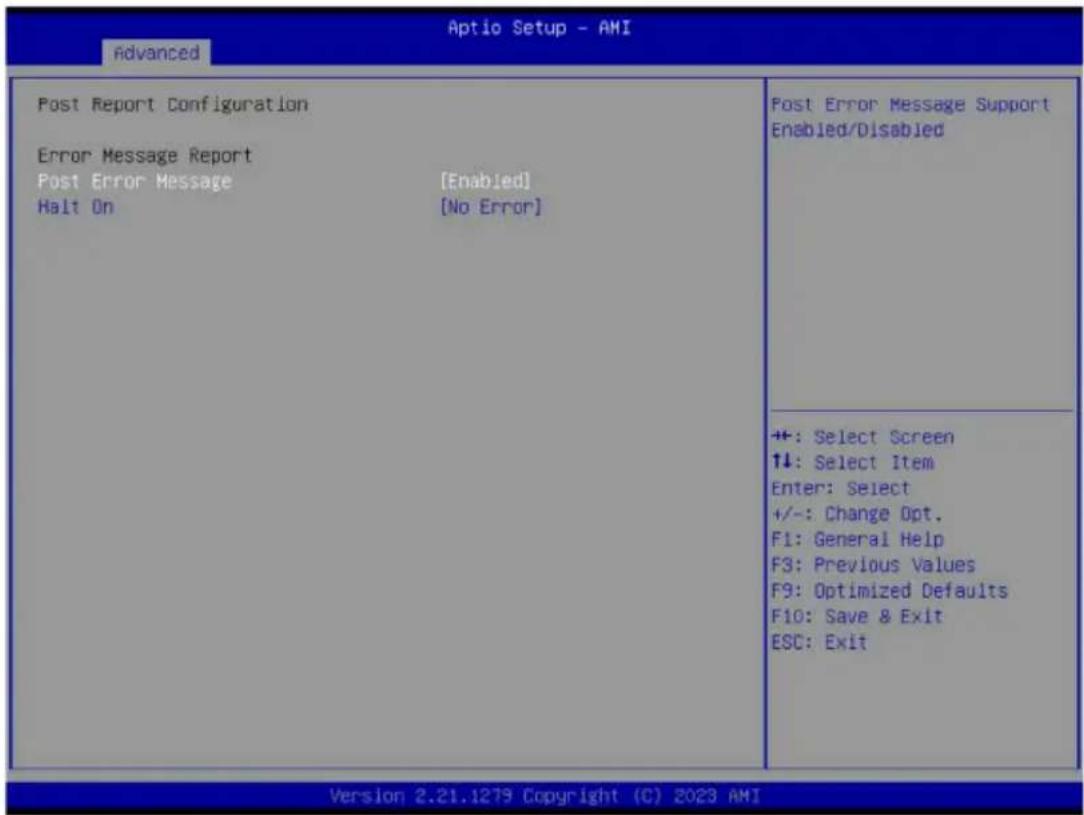

2-2-11 Post Report Configuration 72
2-2-12 NVMe Configuration....73

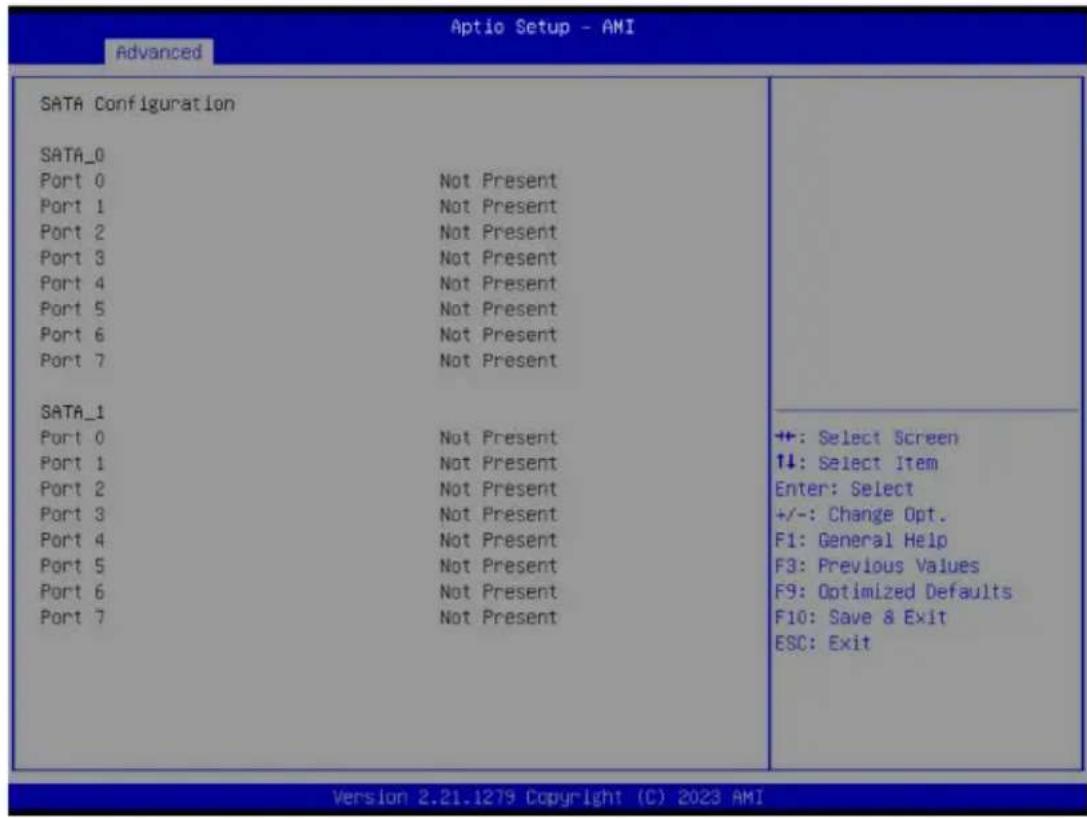

2-2-13 SATA Configuration....74
2-2-14 Graphic Output Configuration....75

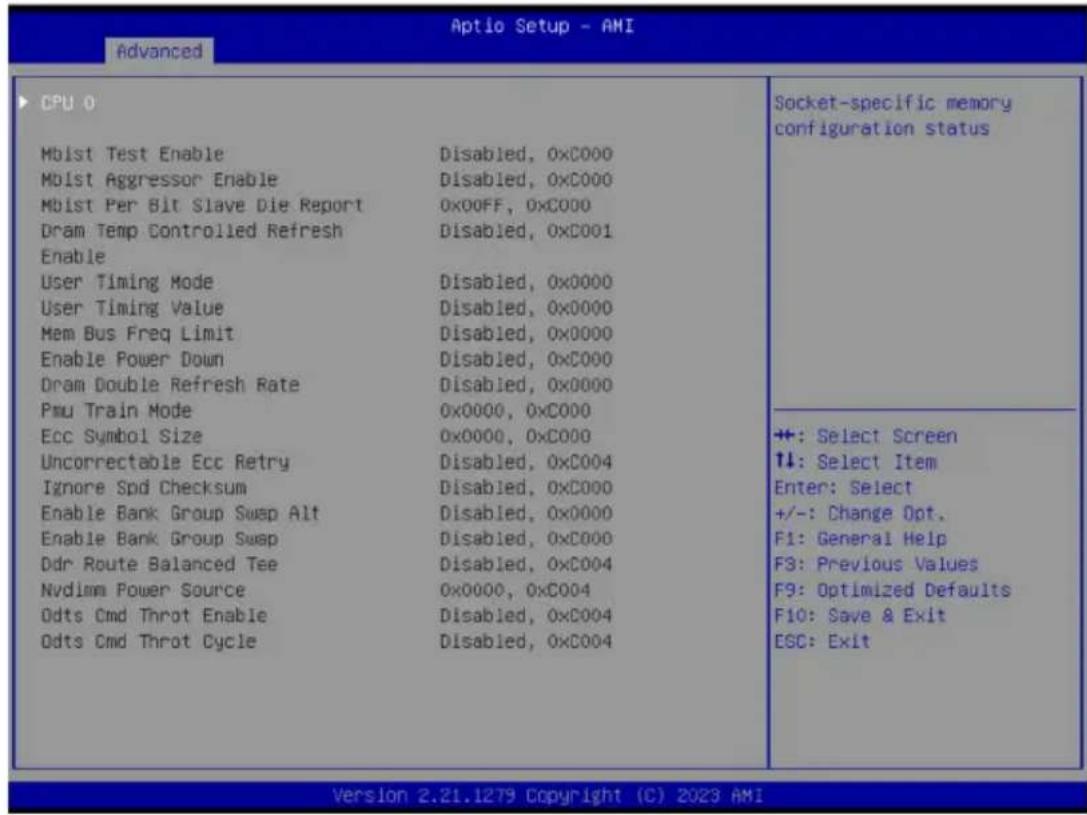

2-2-15 AMD Mem Configuration Status....76
2-2-16 Tls Auth Configuration....77

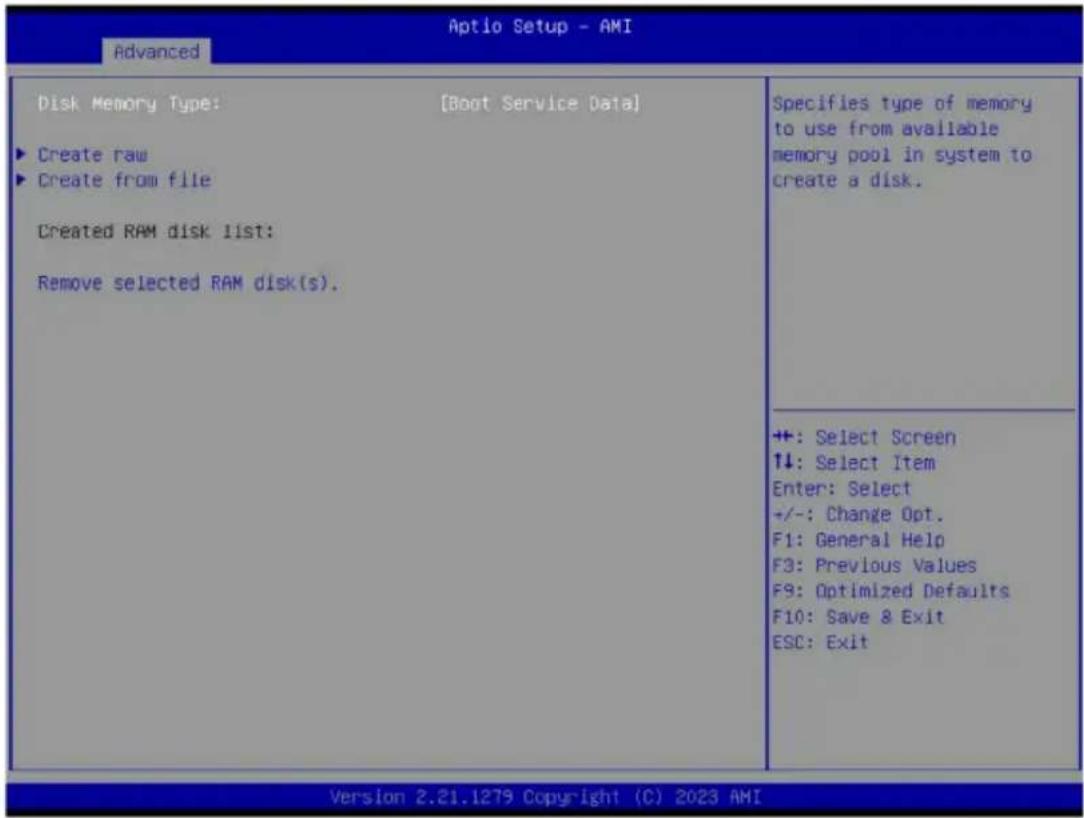

2-2-17 RAM Disk Configuration....78
2-2-18 iSCSI Configuration....79

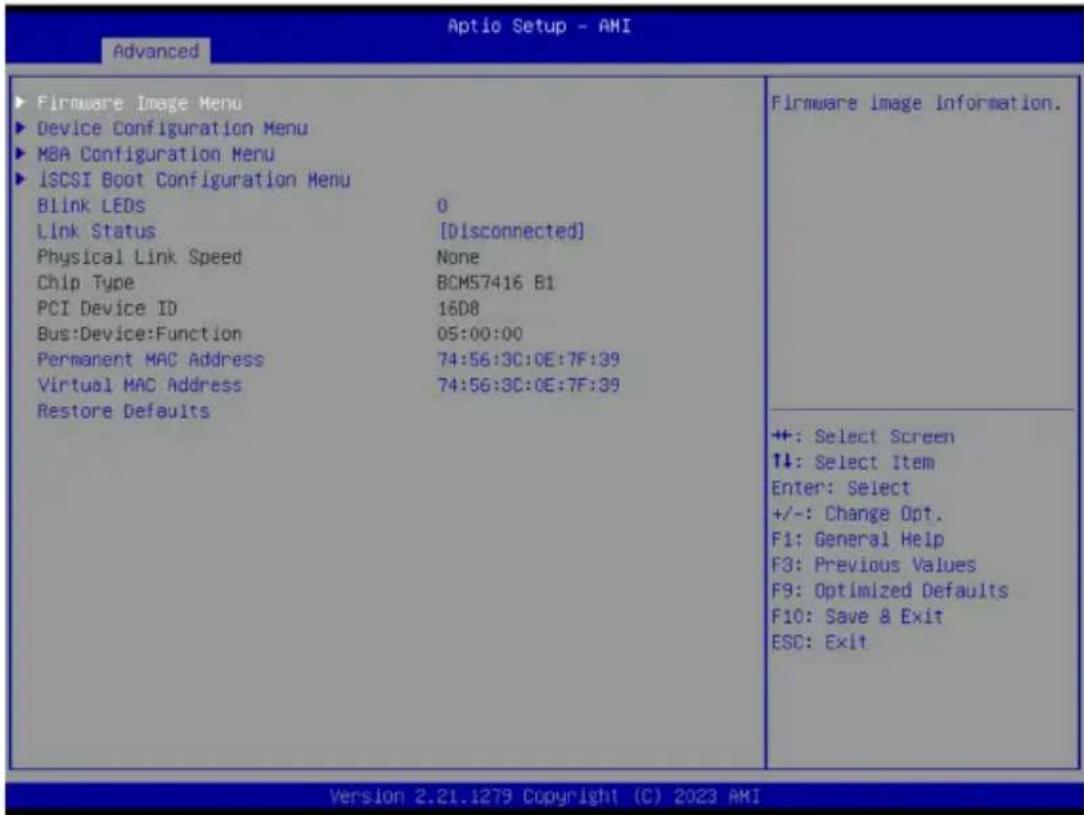

2-2-19 Broadcom BCM57416 10GBASE-T Network Connection....80
2-2-20 VLAN Configuration....86
2-2-21 MAC IPv4 Network Configuration....87
2-2-22 MAC IPv6 Network Configuration....88

2-3 AMD CBS Menu....89

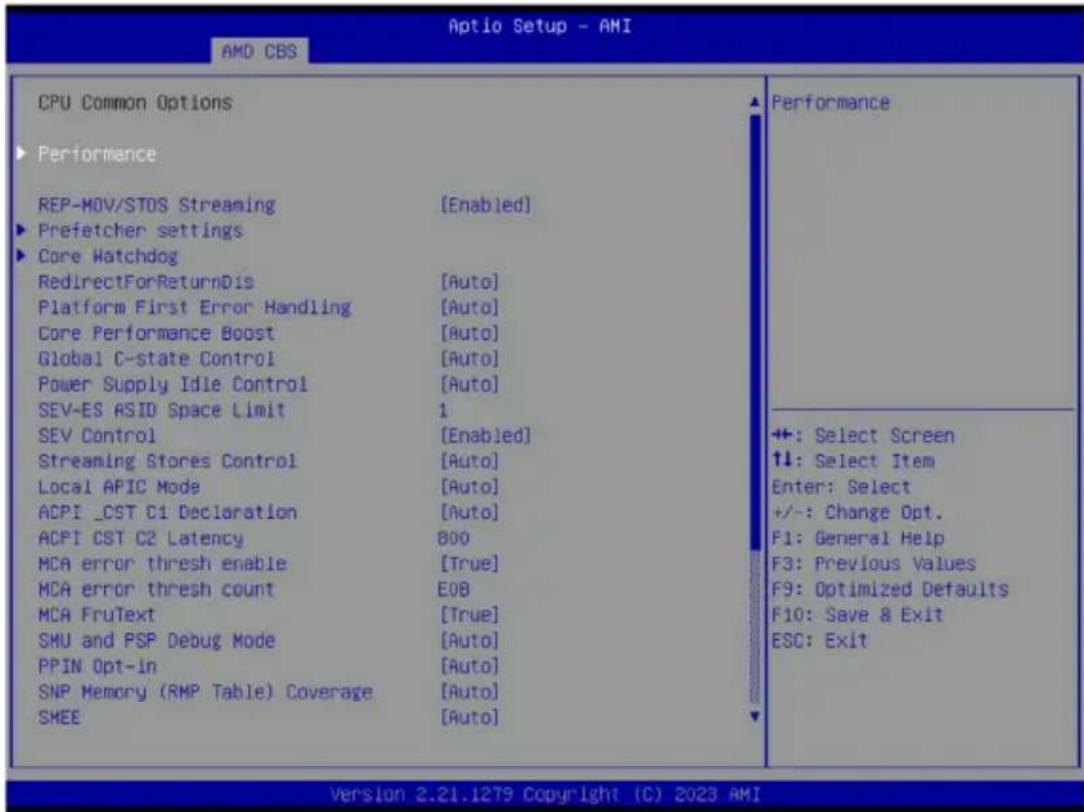

2-3-1 CPU Common Options....90

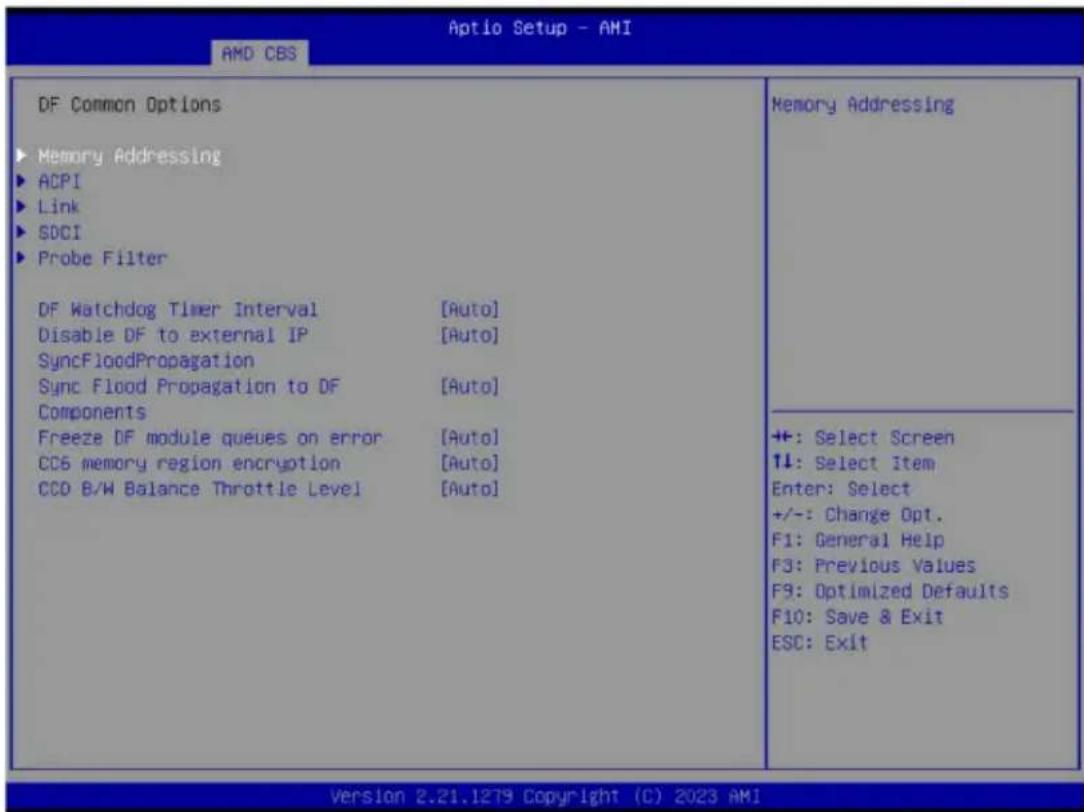

2-3-2 DF Common Options....96
2-3-3 UMC Common Options 103
2-3-4 NBIO Common Options....124
2-3-5 FCH Common Options 135
2-3-6 SOC Miscellaneous Control 144

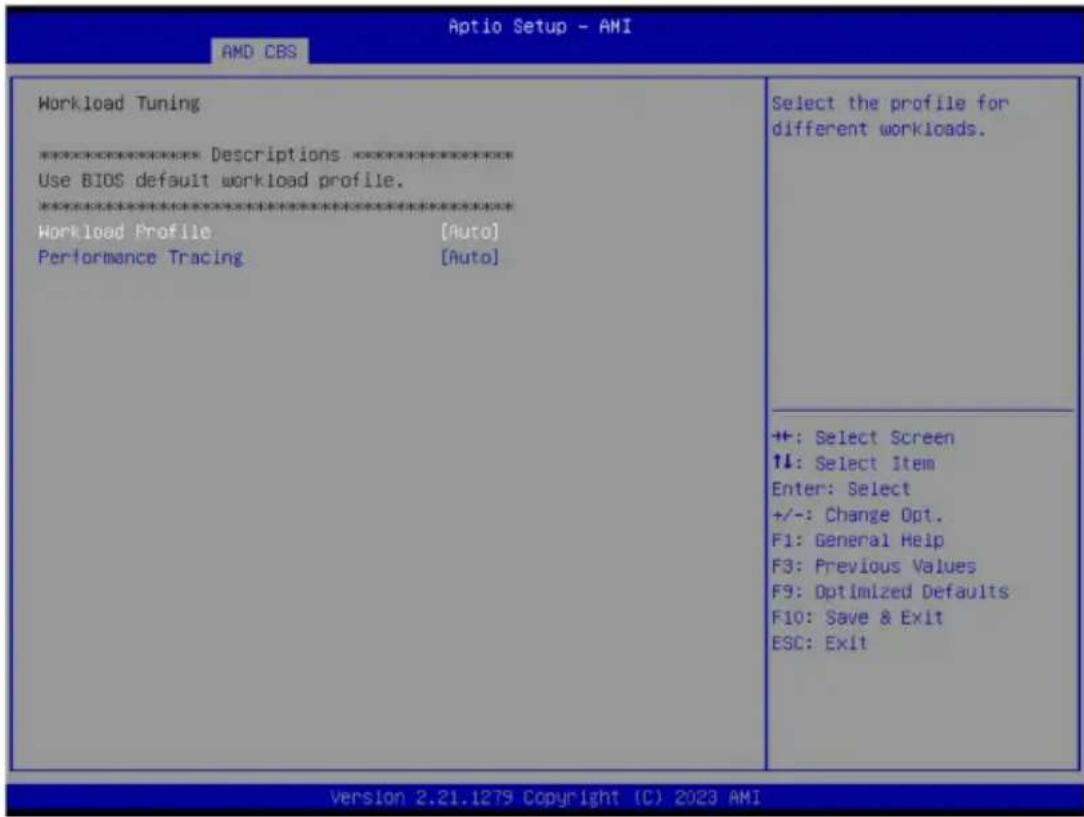

2-3-7 Workload Tuning....146
2-3-8 CXL Common Options....147

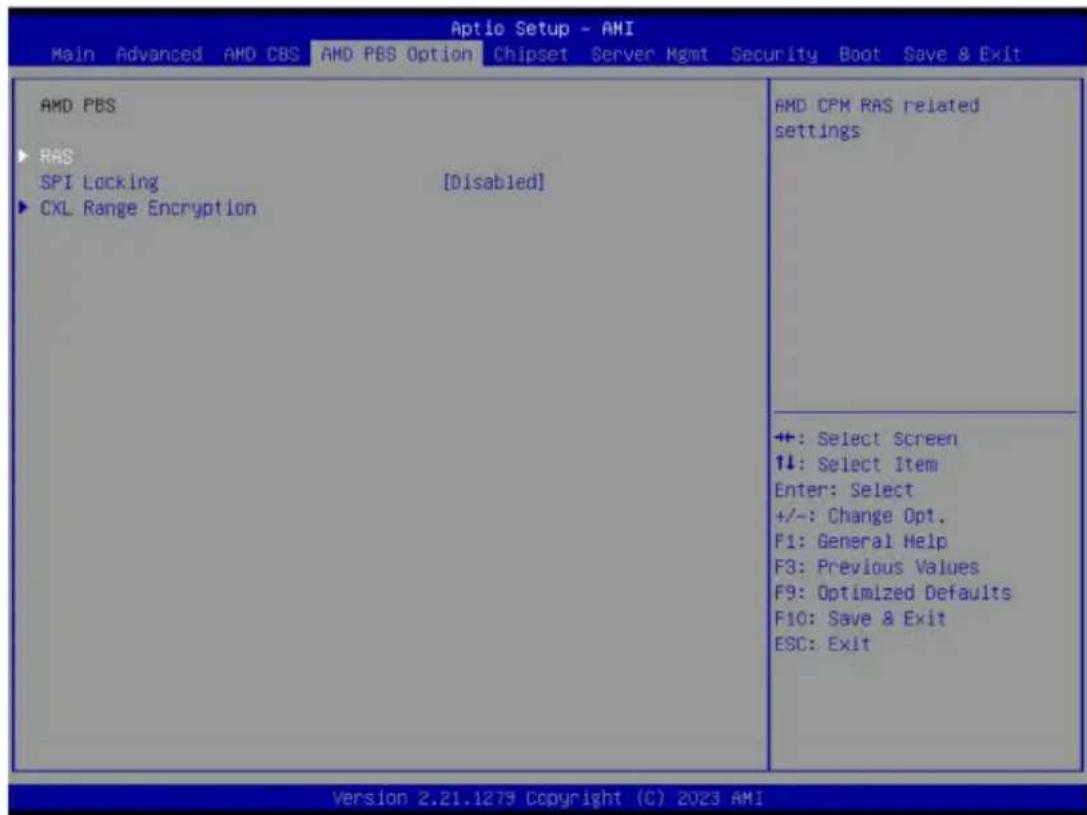

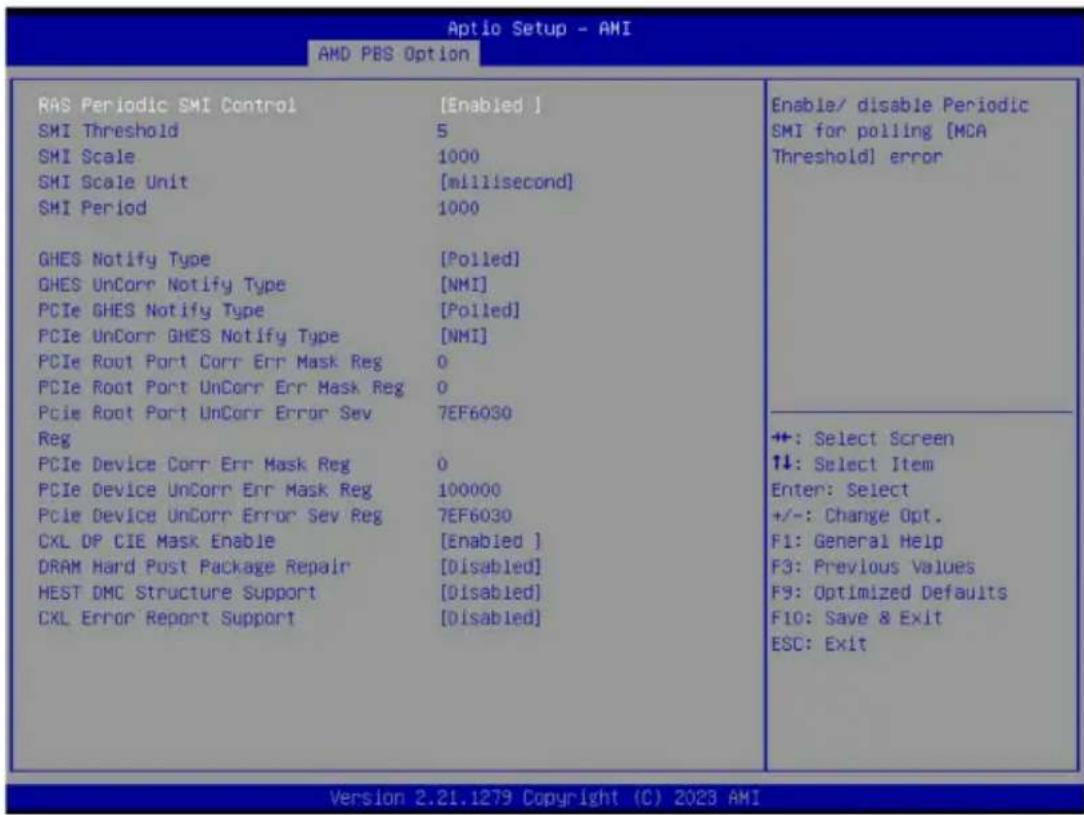

2-4 AMD PBS Menu....148

2-4-1 RAS 149

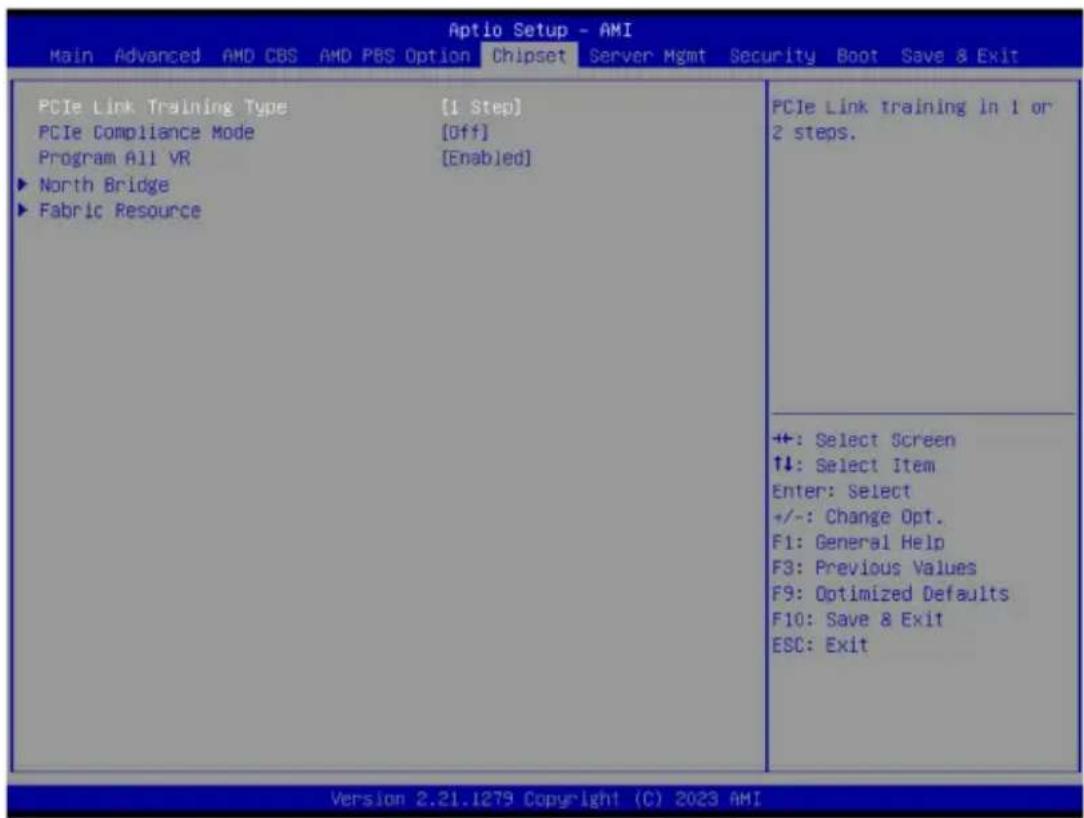

2-5 Chipset Setup Menu....151

2-5-1 North Bridge 152

2-5-2 Fabric Resource 153

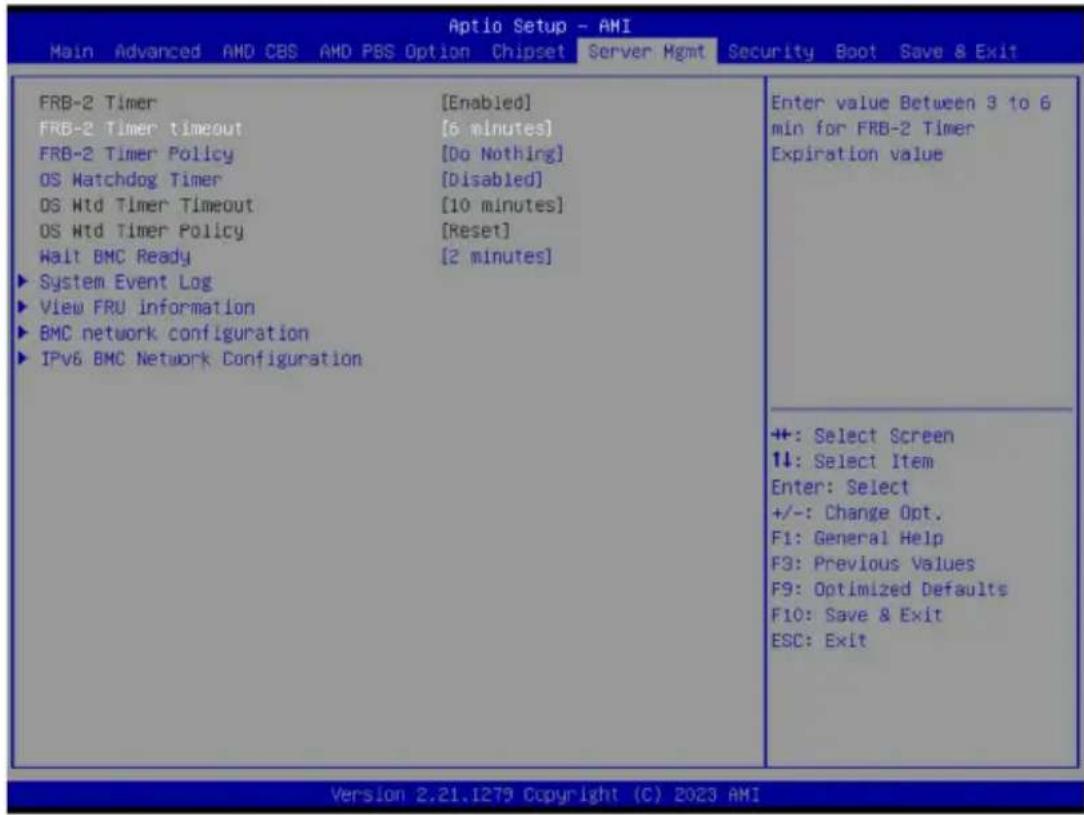

2-6 Server Management Menu.... 155

2-6-1 System Event Log 157

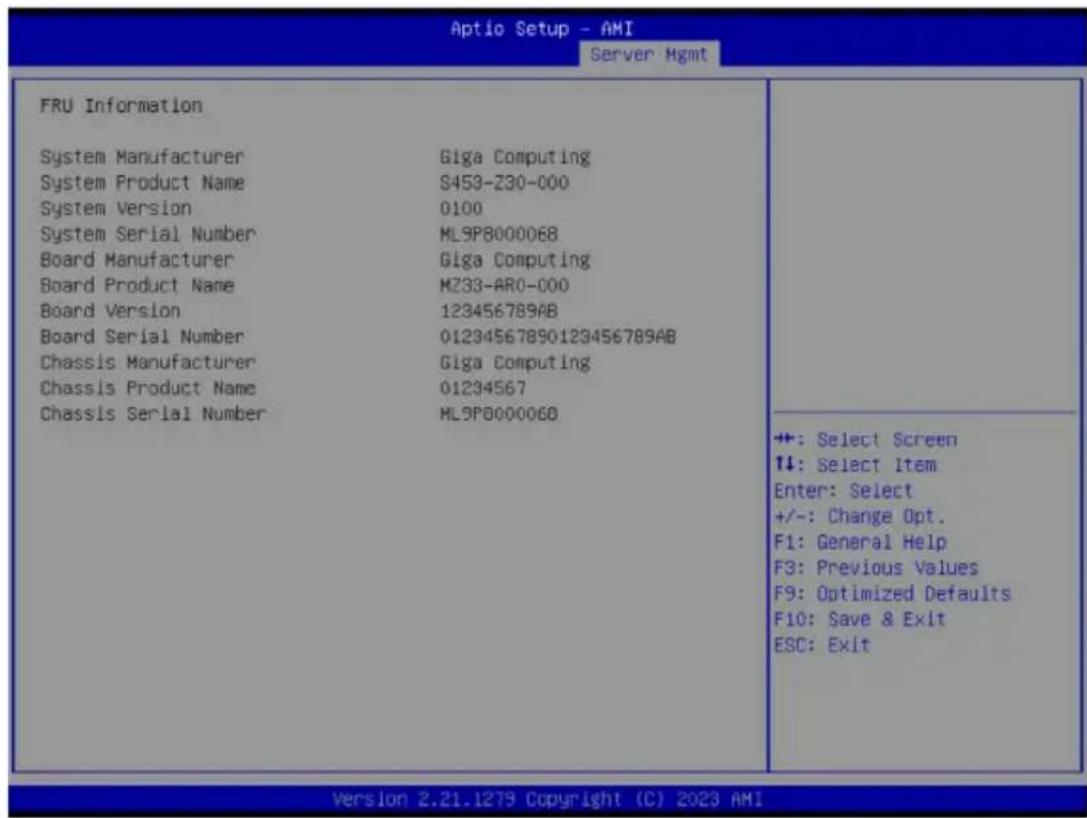

2-6-2 View FRU Information 158

2-6-3 BMC Network Configuration....159

2-6-4 IPv6 BMC Network Configuration....160

2-7 Security Menu 161

2-7-1 Secure Boot 162

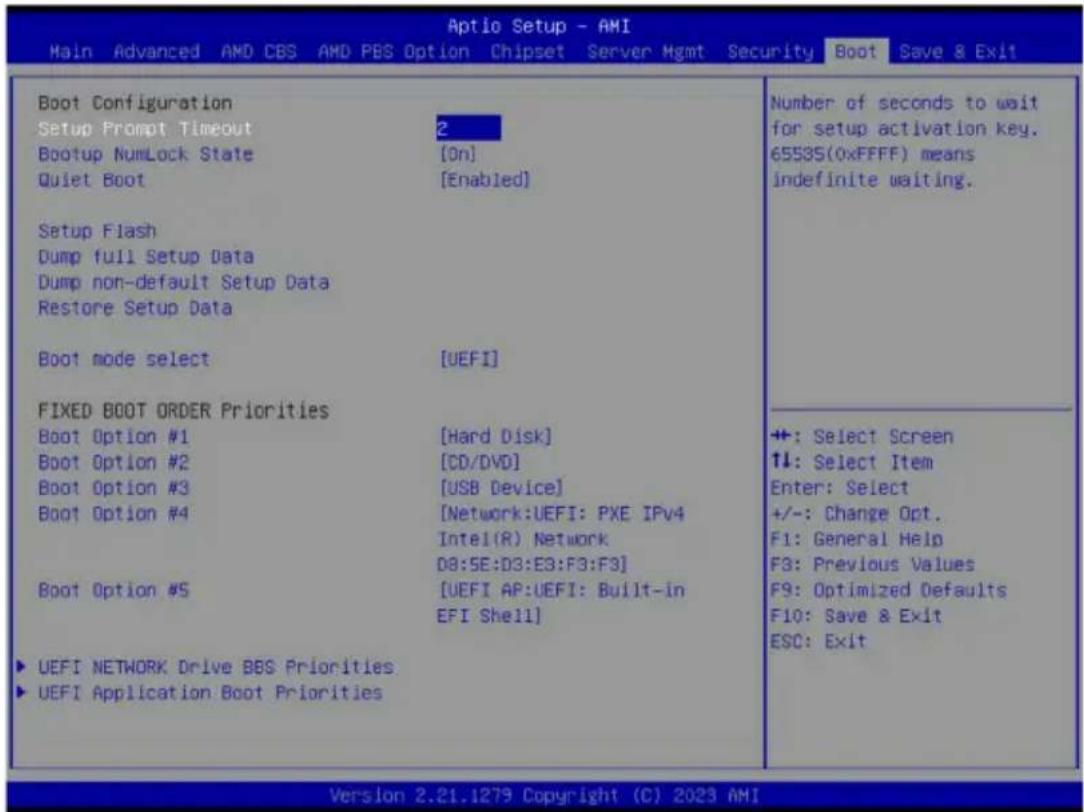

2-8 Boot Menu....164

2-9 Save & Exit Menu....166

2-10 BIOS Recovery 167

2-11 BIOS POST Beep code (AMI standard).... 168

2-11-1 PEI Beep Codes....168

2-11-2 DXE Beep Codes 168

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard, make sure they are connected tightly and securely.

- When handling the motherboard, avoid touching any metal leads or connectors.

- It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep your hands dry and first touch a metal object to eliminate static electricity.

- Prior to installing the motherboard, please have it on top of an antistatic pad or within an electrostatic shielding container.

- Before unplugging the power supply cable from the motherboard, make sure the power supply has been turned off.

- Before turning on the power, make sure the power supply voltage has been set according to the local voltage standard.

- Before using the product, please verify that all cables and power connectors of your hardware components are connected.

- To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components.

- Make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

- Do not place the computer system on an uneven surface.

- Do not place the computer system in a high-temperature environment.

- Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.

- If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

1-2 Product Specifications

NOTE:

We reserve the right to make any changes to the product specifications and product-related information without prior notice.

	System	◆ 4U
	Dimension	◆ 482.6 x 177 x 625 (W x H x D, mm)
	CPU ◆ AMD EPYCTM 9004 series processors

Storage ♦ 1 x Broadcom SAS35x48 expanders

Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port

SAS card is required to enable the drive bays

- Recommended SAS cards: CSA4710 CRA4760 CRA4761

SAS

- Supported

RAID

◆ Depends on SAS add-on Card

Expansion Slot ♦ 4 x PCIe x 16 (Gen5 x16) low-profile slots

◆ 1 x M.2 slot:: - M-key - PCIe Gen4 x4 - Supports NGFF-2280/22100 cards

Internal I/O

◆ 1 x M.2 slot ◆ 1 x TPM header

Front I/O ♦ 2 x USB 3.2 Gen1

- 1 x Power button with LED - 1 x ID button with LED - 1 x Reset button - 1 x HDD status LED - 1 x System status LED

Rear I/O ♦ 2 x USB 3.2 Gen1

- 1 x VGA - 1 x COM - 2 x RJ45 - 1 x MLAN - 1 x ID button with LED

Backplane I/O Speed and bandwidth:

- Front side - CBPD400: SATA 6Gb/s or SAS 12Gb/s - Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s - Rear side - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s

TPM ♦ 1 x TPM header with SPI interface

♦ Optional TPM2.0 kit: CTM010

Power Supply

◆ 2 x 1600W 80 PLUS Titanium redundant power supply

AC Input:

- 100-127V\~/ 12A, 50-60Hz

- 200-240V\~/ 10A, 50-60Hz

DC Input:

- 240Vdc/ 8A

- DC Output:

- Max 1000W/ 100-127V\~

+ 12.2V/82A

+ 12.2Vsb/3A

- Max 1600W/ 200-240V\~ or 240Vdc Input

+ 12.2V/ 132A

+ 12.2Vsb/ 3A

NOTE:

The power supply specifications provided herein is for the default server configuration. Different SKUs have different PSU specs, so please see the system rating label on the server for the accurate PSU specification.

System

Management

Aspeed® AST2600 management controller

GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

- Dashboard

HTML5 KVM

◆ Sensor Monitor (Voltage, RPM, Temperature, CPU Status ...etc.)

◆ Sensor Reading History Data

FRU Information

- SEL Log in Linear Storage / Circular Storage Policy

Hardware Inventory

Fan Profile

◆ System Firewall

Power Consumption

Power Control

◆ LDAP / AD / RADIUS Support

◆ Backup & Restore Configuration

◆ Remote BIOS/BMC/CPLD Update

Event Log Filter

- User Management

Media Redirection Settings

◆ PAM Order Settings

SSL Settings

- SMTP Settings

	System Fans	4 x 80x80x38mm (16,300rpm)
		4 x 80x80x38mm (9,000rpm)
	Operating Properties	Operating temperature: 10°C to 35°C
		Operating humidity: 8-80% (non-condensing)
		Non-operating temperature: -40°C to 60°C
		Non-operating humidity: 20%-95% (non-condensing)

1-3 System Block Diagram

Chapter 2 System Appearance

2-1 Front View

No.	Description
1.	Front Panel LEDs and Buttons
2.	Reset Switch
3.	USB 3.2 Gen1 Port x 2
4.	3.5" Storage Bays

- Go to the section 2-3 Front Panel Buttons and LEDs for detail description of function LEDs.

2-2 Rear View

No. Description

1. PCIe Slot x 7
2. ID Button with LED
3. Server Management LAN Port
4. USB 3.2 Gen1 Port x 2
5. 10GbE LAN Port x 2
6. Serial Port
7. VGA Port
8. 2.5" Storage Bays
9. 3.5" Storage Bays

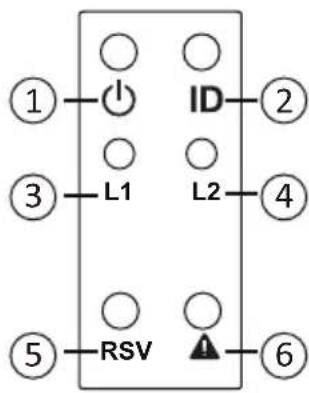

2-3 Front Panel LED and Buttons

No.	Name	Color	Status	Description
1.	Power Button with LED	Green On Indicates the system is powered on.
		Green Blink System is in ACPI S1 state (sleep mode).
		N/A Off	System is not powered on or in ACPI S5 state (power off)System is in ACPI S4 state (hibernate mode)
2.	ID Button(Note)		Press the button to activate system identification
3.	LAN1 Active/ Link LED	Green On Link between system and network or no access.
		Green Blink Data transmission or receiving is occurring
		N/A Off No data transmission or receiving is occurring
4.	LAN2 Active/ Link LED	Green On Link between system and network or no access.
		Green Blink Data transmission or receiving is occurring
		N/A Off No data transmission or receiving is occurring
5.	Reserved Button	N/A N/A The button is reserved for custom functions and behavior.
6.	System Status LED(Note)	Green Solid On System is operating normally.
		Amber	Critical condition, may indicate:
			Solid On	System fan failure
				System temperature
			Blink	Non-critical condition, may indicate:Redundant power module failureTemperature and voltage issueChassis intrusion
		N/A Off	System is not ready, may indicate:POST errorNMI errorProcessor or terminator missing

(Note) If your server features RoT function, please see the following section for detail LED behavior.

2-3-1 RoT LEDs

	LED on Front panel (Note5)
	ID LED Status LED
EC Firmware (FW) Authentication fail or not exit
EC FW is broken or not exit (Note1)	OFF OFF
Authenticating/Recovering BMC/BIOS Images
Authenticating Images	OFF OFF
Recovering BMC Active Flash	Blinks Blue4 times persecond	Blinks Green4 times persecond
Recovering BIOS Active Flash	Blinks Blue4 times persecond	Blinks Green4 times persecond
Authentication (AUTH) Pass
Recovering BIOS Active Flash	OFF OFF
BMC : AUTH pass after doing recoveryBIOS : AUTH pass after doing recovery	OFF OFF
BMC : AUTH pass after doing recoveryBIOS : AUTH pass	OFF OFF
BMC : AUTH passBIOS : AUTH pass after doing recovery	OFF OFF
Active Flash Authentication (AUTH) Fail
BMC : AUTH Fail (Note2)	Blinks Blue1 time persecond	Blinks Green1 time per second
BIOS : AUTH fail (Note2)	Blinks Blue1 time per second	Blinks Amber1 time per second
BMC : AUTH fail after doing recovery (Note3)	Blinks Blue2 times per second[ON OFF OFF]	Blinks Green2 times per second[ON OFF OFF]
BIOS : AUTH fail after doing recovery (Note3)	Blinks Blue2 times per second[ON OFF OFF]	Blinks Amber2 times per second[ON OFF OFF]
Backup Flash Authentication Fail(Note4)
BMC : AUTH fail	Blinks Blue2 times per second[ON OFF ON OFF]	Blinks Green2 times per second[ON OFF ON OFF]
BIOS : AUTH fail	Blinks Blue2 times per second[ON OFF ON OFF]	Blinks Amber2 times per second[ON OFF ON OFF]

NOTE!

1. EC FW is broken or not exited result in Microchip CEC1702 cannot load EC FW for authentication.
   2 (1) Authentication fail include below scenarios

Configuration table is missing or modified

Public key is missing or modified

Protected area or signature is modified

Flash empty

1. If active flash is still authentication failed after recovery sequence, Microchip CEC1702 stop the process and showing LED behavior.
2. If backup flash authentication is failed cause by configuration table, public key or protected area is broken. Microchip CEC1702 stop the process and showing LED behavior.
3. Front panel LED is controlled by BMC or Microchip CEC1702. Once Microchip CEC1702 is working(Auth or recovery), the front panel LED is controlled by Microchip CEC1702 and vice versa.

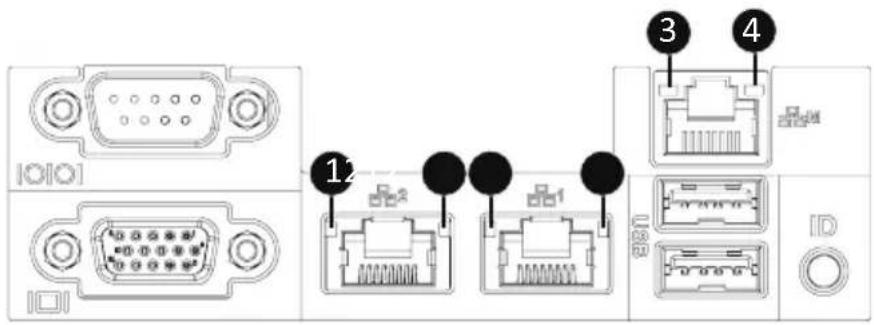

2-4 Front Panel System LAN LEDs

No.	Name	Color	Status	Description
1.	10GbE Speed LED	Green On 10 Gbps data rate
		Yellow On 5Gbps, 2.5Gbps, 1Gbps data rate
		N/A Off 100 Mbps data rate
2.	10GbE Link / Activity LED	Green	On Link between system and network or no access
			Blink Data transmission or reception is occurring.
		N/A Off No data transmission or reception is occurring.
3.	1GbE Speed LED	Yellow On 1 Gbps data rate
		Green On 100 Mbps data rate
		N/A Off 10 Mbps data rate
4.	1GbE Link / Activity LED	Green	On Link between system and network or no access
			Blink Data transmission or reception is occurring.
		N/A Off No data transmission or reception is occurring.

2-5 Power Supply Unit (PSU) LED

NOTE!

The power supply may be vary based on the system configuration.

Technical line drawing of a fan assembly with mounting holes and internal components (no text or symbols)

PSU LED

State	Description
OFF No AC power to all power supplies
1Hz Green Blinking AC present / only standby on / Cold redundant mode
2Hz Green Blinking Power supply firmware updating mode
Amber	AC cord unplugged or AC power lost; with a second power supply in parallel still with AC input power
	Power supply critical event causing shut down: failure, OCP, OVP, fan failure and UVP
1Hz Amber Blinking	Power supply warning events where the power supply continues to operate: high temp, high power, high current and slow fan

2-6 Hard Disk Drive LEDs

3.5" Drives

2.5" Drives

RAID SKU		LED1	Locate	HDD Fault	Rebuilding	HDD Access	HDD Present (No Access)
No RAID configuration (via HBA)	Disk LED (LED on Back Panel)	Green ON (*1)		OFF		BLINK (*2)	OFF
		Amber OFF		OFF		OFF	OFF
	Removed HDD Slot (LED on Back Panel)		ON(*1)Green OFF			--	--
			OFFAmber OFF			--	--
RAID configuration (via HW RAID Card or SW RAID Card)	Disk LED	Green	ON	OFF		BLINK (*2)	OFF
		Amber	OFF	ON	(Low Speed: 2 Hz)	OFF	OFF
	Removed HDD Slot	Green	ON(*1)	OFF	(*3)	--	--
		Amber	OFF	ON	(*3)	--	--

LED 2	HDD Present No	HDD
Green	ON	OFF

NOTE:

*1: Depends on HBA/Utility Spec.
*2: Blink cycle depends on HDD's activity signal.
*3: If HDD is pulled out during rebuilding, the disk status of this HDD is regarded as faulty.

Chapter 3 System Hardware Installation

Pre-installation Instructions

Computer components and electronic circuit boards can be damaged by electrostatic discharge. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself.

• Always disconnect the computer from the power outlet whenever you are working inside the computer case.
• If possible, wear a grounded wrist strap when you are working inside the computer case. Alternatively, discharge any static electricity by touching the bare metal system of the computer case, or the bare metal body of any other grounded appliance.
• Hold electronic circuit boards by the edges only. Do not touch the components on the board unless it is necessary to do so. Do not flex or stress the circuit board.
• Leave all components inside the static-proof packaging until you are ready to use the component for the installation.

3-1 Removing and Installing the Chassis Top Cover

Before you remove or install the system cover

- Make sure the system is not turned on or connected to AC power.

Follow these instructions to remove/install the chassis top cover:

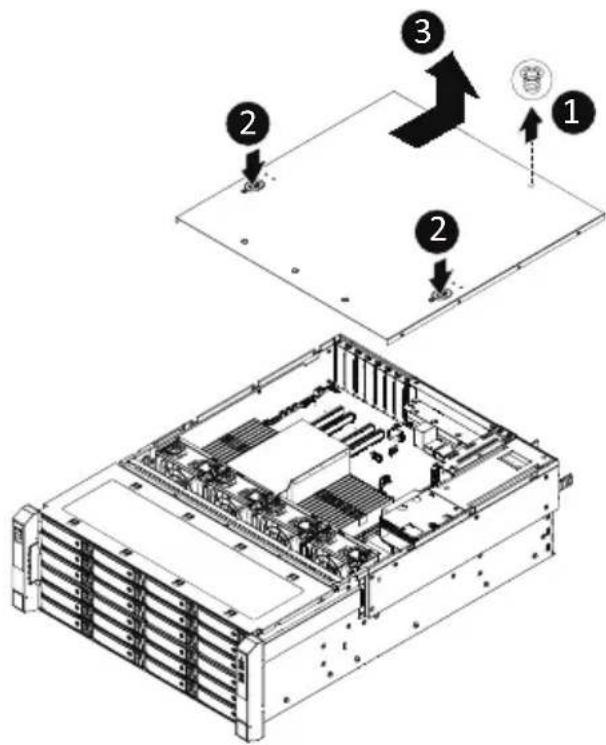

1. Remove the screw securing the chassis cover.
2. Push down on the indentations located on the side of the chassis cover.
3. Slide the cover towards the rear and remove the cover in the direction indicated.
4. Follow steps 1-3 in reverse order to re-install the top cover

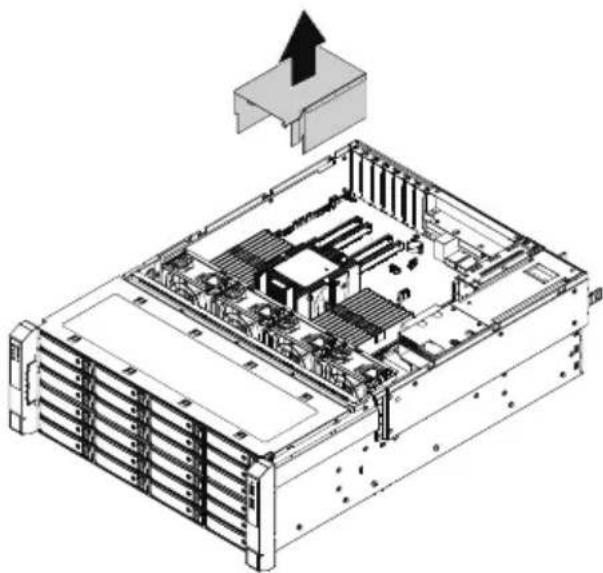

3-2 Removing and Installing the Fan Duct

Before you remove or install the fan duct

- Make sure the system is not turned on or connected to AC power.

Follow these instructions to remove/install the fan duct:

1. Remove the screws securing the fan duct.
2. Lift up to remove the fan duct
3. To install the fan duct, align the fan duct with the guiding groove. Push down the fan duct into the chassis until it is firmly seated. Then, secure the fan duct with two screws.

Isometric technical diagram of a server rack with internal components and an upward arrow indicating motion (no text or symbols present)

3-3 Removing and Installing the Heat Sink

Read the following guidelines before you begin to remove/install the heat sink:

• Always turn off the computer and unplug the power cord from the power outlet before installing the heat sink to prevent hardware damage.
• Unplug all cables from the power outlets.
• Disconnect all telecommunication cables from their ports.
• Place the system unit on a flat and stable surface.
• Open the system according to the instructions.

WARNING!

Failure to turn off the server before you start installing components may cause serious damage. Do not attempt the procedures described in the following sections unless you are a qualified service technician.

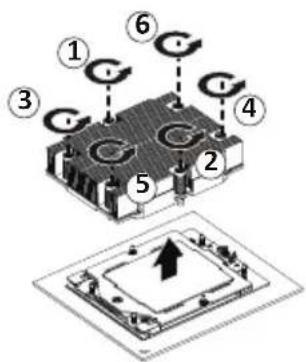

Follow these instructions to remove/install the heat sink:

1. Loosen the captive screws securing the heat sink in place in reverse order (6 →5→4→3→2→1).
2. Lift and remove the heat sink from the system.
3. To reinstall the heat sink reverse steps 1-2 while ensuring that you tighten the captive screws in sequential order (1→2→3→4→5→6) as seen in the image below.

• When installing the heat sink to CPU, use a Torx T20 screwdriver to tighten 6 captive nuts in sequence as 1-6. The screw tightening torque: 13.5 ± 0.5 kgf-cm.
  • To ensure the system operates properly, make sure the heatsink is seated on the processor firmly.

3-4 Installing the CPU

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU.
• Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
• Unplug all cables from the power outlets.
• Disconnect all telecommunication cables from their ports.
• Place the system unit on a flat and stable surface.
• Open the system according to the instructions.

WARNING!

Failure to properly turn off the server before you start installing components may cause serious damage. Do not attempt the procedures described in the following sections unless you are a qualified service technician.

Follow these instructions to install the CPU:

1. Loosen the captive screw securing the CPU cover.
2. Flip open the CPU cover.
3. Remove the CPU carrier from the CPU frame using the handle on the CPU carrier.
4. Using the handle on the CPU carrier insert the new CPU carrier with CPU installed into the CPU frame.
   NOTE: Ensure the CPU is installed in the CPU carrier in the correct orientation, with the triangle on the CPU aligned to the top left corner of the CPU carrier.
5. Flip the CPU frame with CPU installed into place in the CPU socket.
6. Flip the CPU cover into place over the CPU socket.
7. Tighten the CPU cover screw to secure the CPU cover in place.

• Lock the CPU by using a Torx T20 screwdriver to tighten screw.
  • The screw tightening torque: 13.5 ± 0.5 kgf-cm.

3-5 Installing the Memory

Read the following guidelines before you begin to install the memory:

• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used.
  • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction.

3-5-1 Twelve Channel Memory Configuration

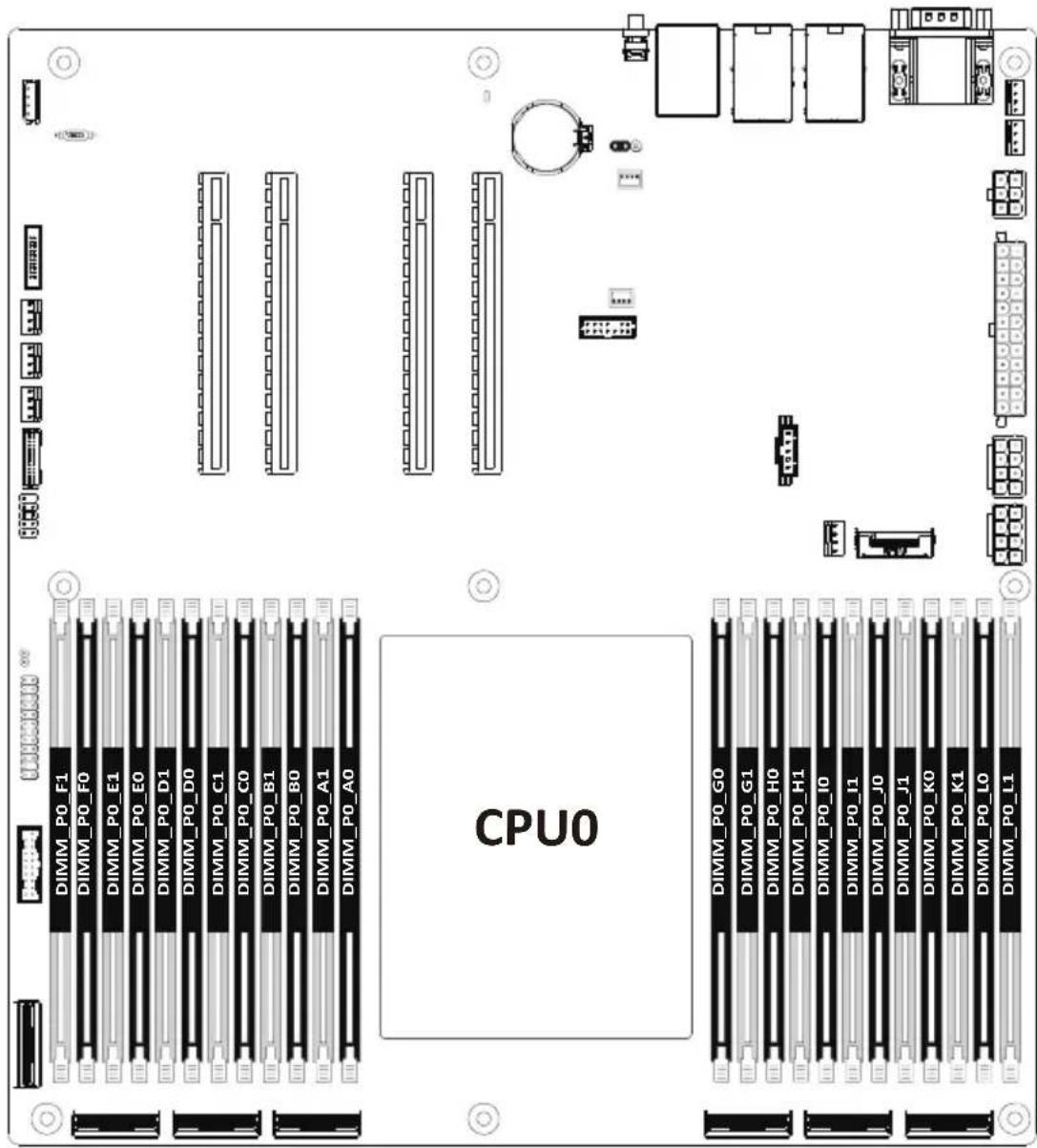

This motherboard provides 24 DDR5 memory slots and supports 12-Channel Technology. After the memory is installed, the BIOS will automatically detect the specifications and capacity of the memory.

3-5-2 Installing the Memory

Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module.

Be sure to install DDR5 DIMMs on this motherboard.

Follow these instructions to install the Memory:

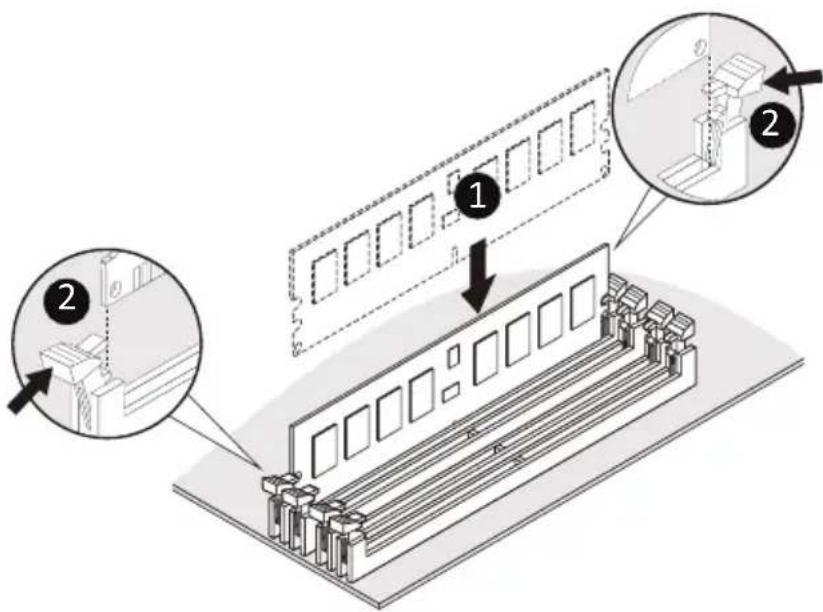

1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.

3-5-3 Processor and Memory Module Matrix Table

Memory Q'ty

CPU0

F1

D0

E1

E0

C1

C0

F0

B0

A1

A0

G0

KG

H0

H0

K0

J0

L0

J1

L1

1 DIMM

V

2 DIMM

V

V

V

V

4 DIMM

V

V

V

V

V

V

V

V

6 DIMM

V

V

V

V

V

V

8 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

10 DIMM

V

V

V

V

V

V

V

V

V

V

12 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

VV

V

VV

V

V

V

V

V

V

16 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

20 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

24 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

3-5-4 Memory Population Table

EPYC Memory Speed based on DIMM Population (Two DIMM per Channel)

Memory Q'ty

CPU0

F1

D0

E1

E0

C1

B0

F0

B0

A1

A0

G0

K1

H0

O0

K0

J0

L0

J1

L1

1 DIMM

V

2 DIMM

V

V

V

V

4 DIMM

V

V

V

V

V

V

V

V

6 DIMM

V

V

V

V

V

V

8 DIMM

V

V

V

V

V

V

V

V

V

VV

V

V

V

V

V

10 DIMM

V

V

V

V

V

V

V

V

V

V

12 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

VV

V

VV

V

V

V

V

V

V

16 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

20 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

24 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

3-6 Installing the M.2 Device and Heat Sink

CAUTION

The position of the stand-off screw will depend on the size of the M.2 device. The stand-off screw is pre-installed for 22110 cards as standard. Refer to the size of the M.2 device and change the position of the stand-off screw accordingly.

WARNING:

Please ensure a heatsink is attached to any M.2 device installed into the system. Installing an M.2 device without any heatsink may result in the system overheating or system performance being throttled.

- To install/remove the M.2 module and Heatsink use a No. 1 Phillips-head screwdriver with a screw torque of 1.5 ± 0.2 ~kgf^* cm

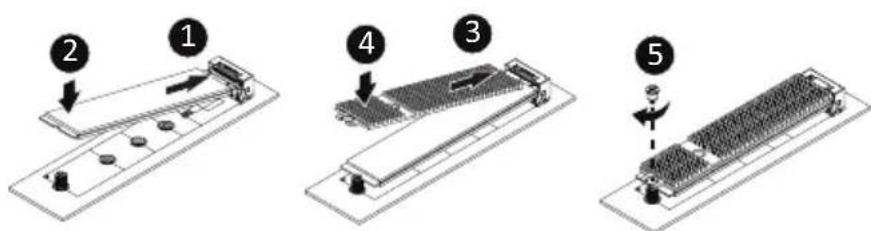

Follow these instructions to install the M.2 device and heat sink:

1. Insert the M.2 device into the M.2 connector.
2. Press down on the M.2 device.
3. Install the thermal pad of the M.2 device to the M.2 device.
4. Press down on the thermal pad.
5. Secure the M.2 device and its thermal pad to the motherboard with a single screw.
6. Reverse steps 1-2 to remove the M.2 device.

3-7 Installing the PCI Expansion Card

• Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered-down and all power sources have been disconnected from the server prior to installing a PCIe card.
• Failure to observe these warnings could result in personal injury or damage to equipment.

Follow these instructions to install PCI Expansion card:

1. Remove the screw securing the slot cover to the PCIe bracket.
2. Remove the slot cover from the PCIe bracket.
3. Orient the PCIe card with the riser guide slot and push in the direction of the arrow until the PCIe card sits in the PCIe card connector.
4. Secure the PCIe card with the screw.

3-8 Installing the Hard Disk Drive

Read the following guidelines before you begin to install the hard disk drive:

• Take note of the drive tray orientation before sliding it out.
• The tray will not fit back into the bay if inserted incorrectly.
- Make sure that the hard disk drive is connected to the hard disk drive connector on the backplane.

Follow these instructions to install a 2.5" Hard Disk Drive:

1. Press the release button.
2. Extend the locking lever.

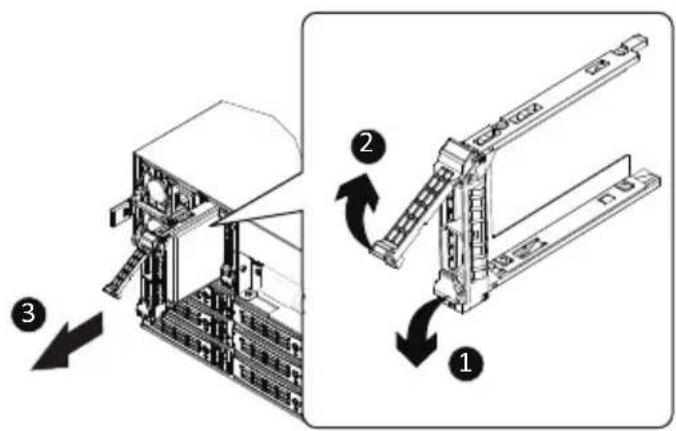

3. Pull the locking lever in the direction indicated to remove the HDD tray.
4. Align the hard disk drive with the positioning stud on the HDD tray.
5. Slide the hard disk drive into the HDD tray.
6. Reinsert the HDD tray into the slot and close the locking lever.

Technical line drawing of a rectangular electronic device with internal components and a handle (no text or symbols)

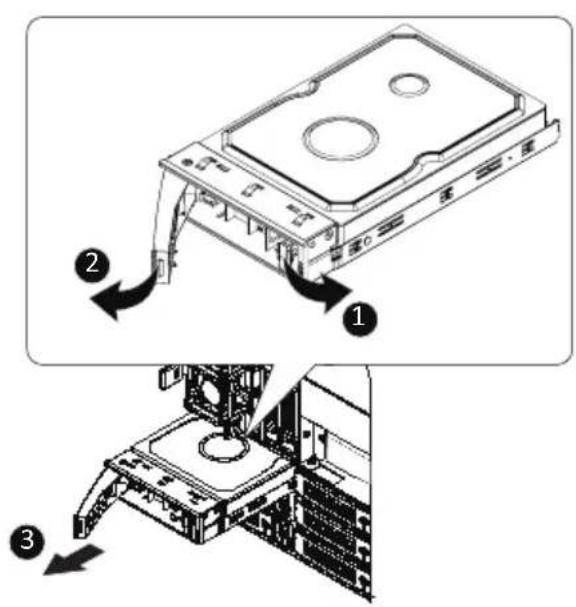

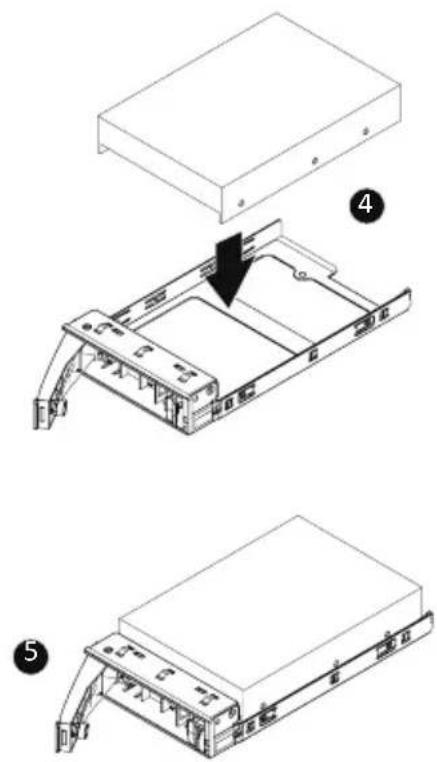

Follow these instructions to install a 3.5" Hard Disk Drive:

1. Press the release button.
2. Extend the locking lever.
3. Pull the locking lever in the direction indicated to remove the HDD tray.
4. Align the hard disk drive with the positioning stud on the HDD tray.
5. Slide the hard disk drive into the HDD tray.
6. Reinsert the HDD tray into the slot and close the locking lever.

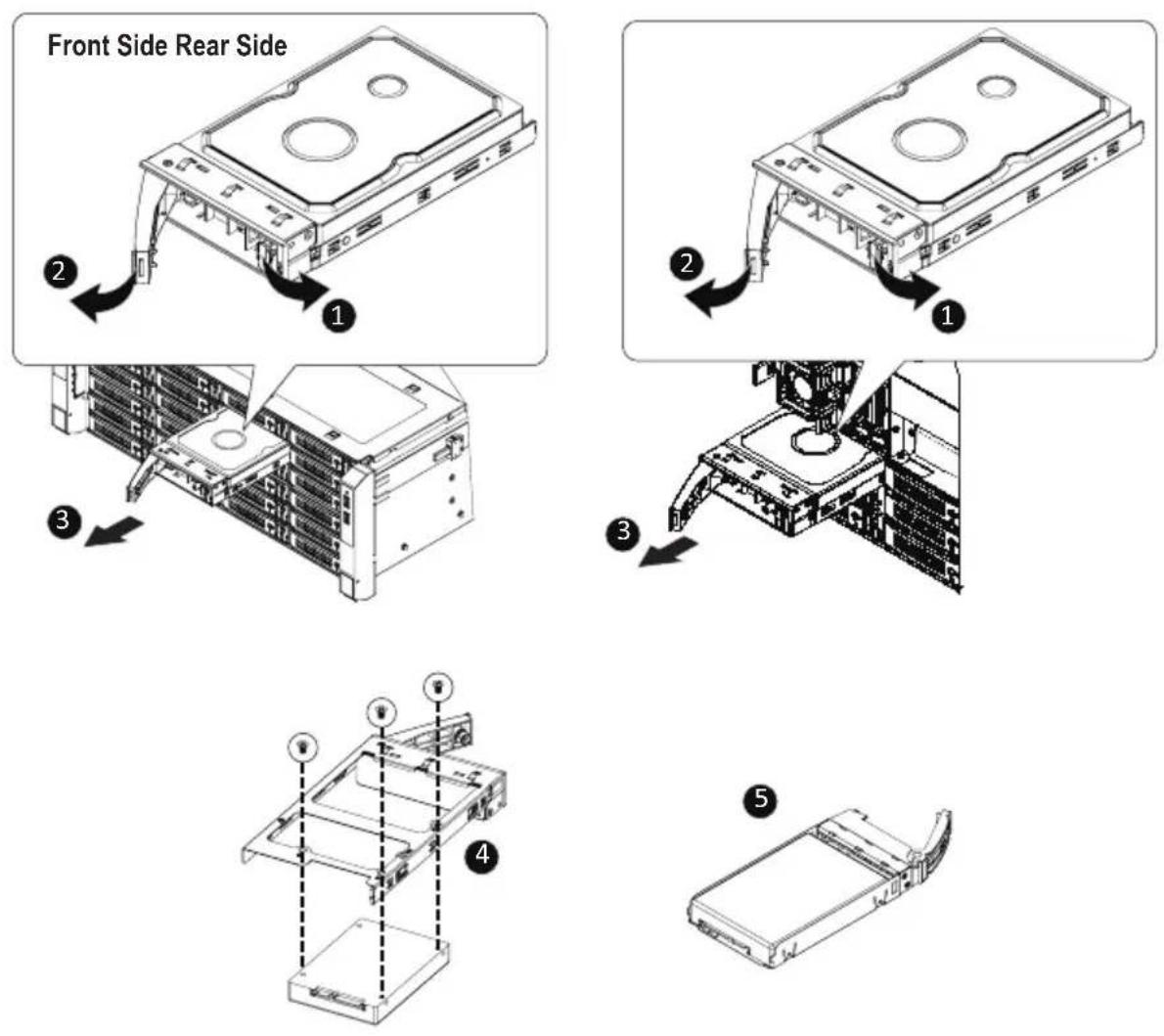

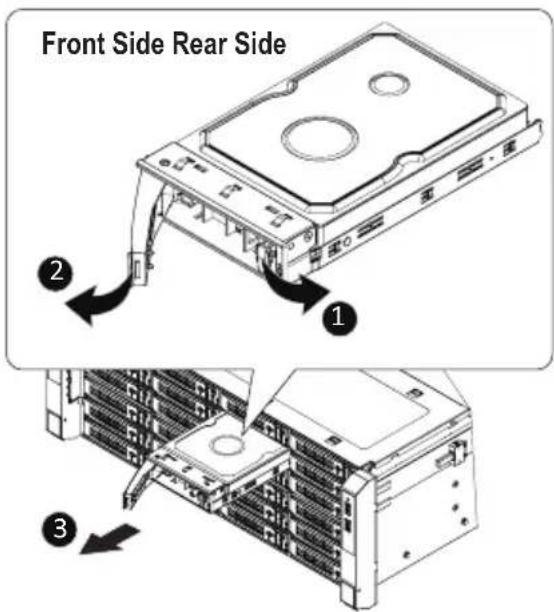

Follow these instructions to install a 2.5" hard disk drive into 3.5" HDD Tray:

1. Press the release button.
2. Extend the locking lever.
3. Pull the locking lever in the direction indicated to remove the HDD tray.
4. Align the hard disk drive with the positioning screw on the HDD tray.
5. Secure the hard disk drive with five screws.
6. Reinsert the HDD tray into the slot and close the locking lever.

3-9 Replacing the System Fan Module

CAUTION!

Before you remove or install the system fans follow these steps:

• Make sure the system is not turned on or connected to AC power.
• Disconnect all necessary cable connections. Failure to observe these warnings could result in personal injury or damage to the equipment.

Follow these instructions to replace the system fan module:

For Top Compartment Fans

1. Pull outward the fan ear.
2. Lift up the fan assembly from the chassis.
3. Reverse the previous steps to install the replacement fan module.

For Bottom Compartment Fans

1. Remove the screws on each side of the chassis.
2. Use the release levers on the left and right side of the top compartment to pull outwards.
3. Squeeze the fan latch and lift the fan assembly from the chassis.
4. Reverse the previous steps to install the replacement fan module.

3-10 Removing and Installing the Power Supply

CAUTION!

- In order to reduce the risk of injury from electric shock, disconnect AC power from the power supply before removing the power supply from the system.

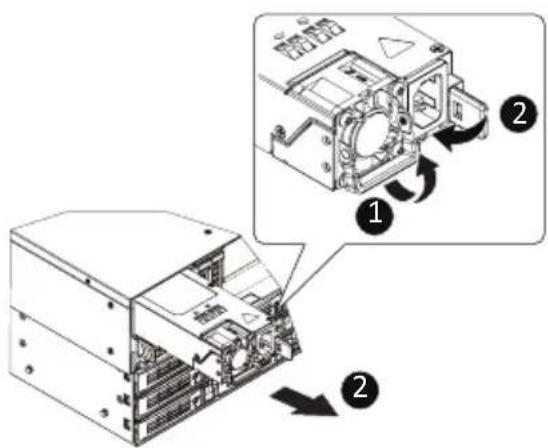

Follow these instructions to replace the power supply:

1. Flip and then grasp the power supply handle.
2. Press the retaining clip on the top side of the power supply in the direction indicated.
3. Pull out the power supply using the handle.
4. Insert the replacement power supply firmly into the chassis. Connect the AC power cord to the replacement power supply.

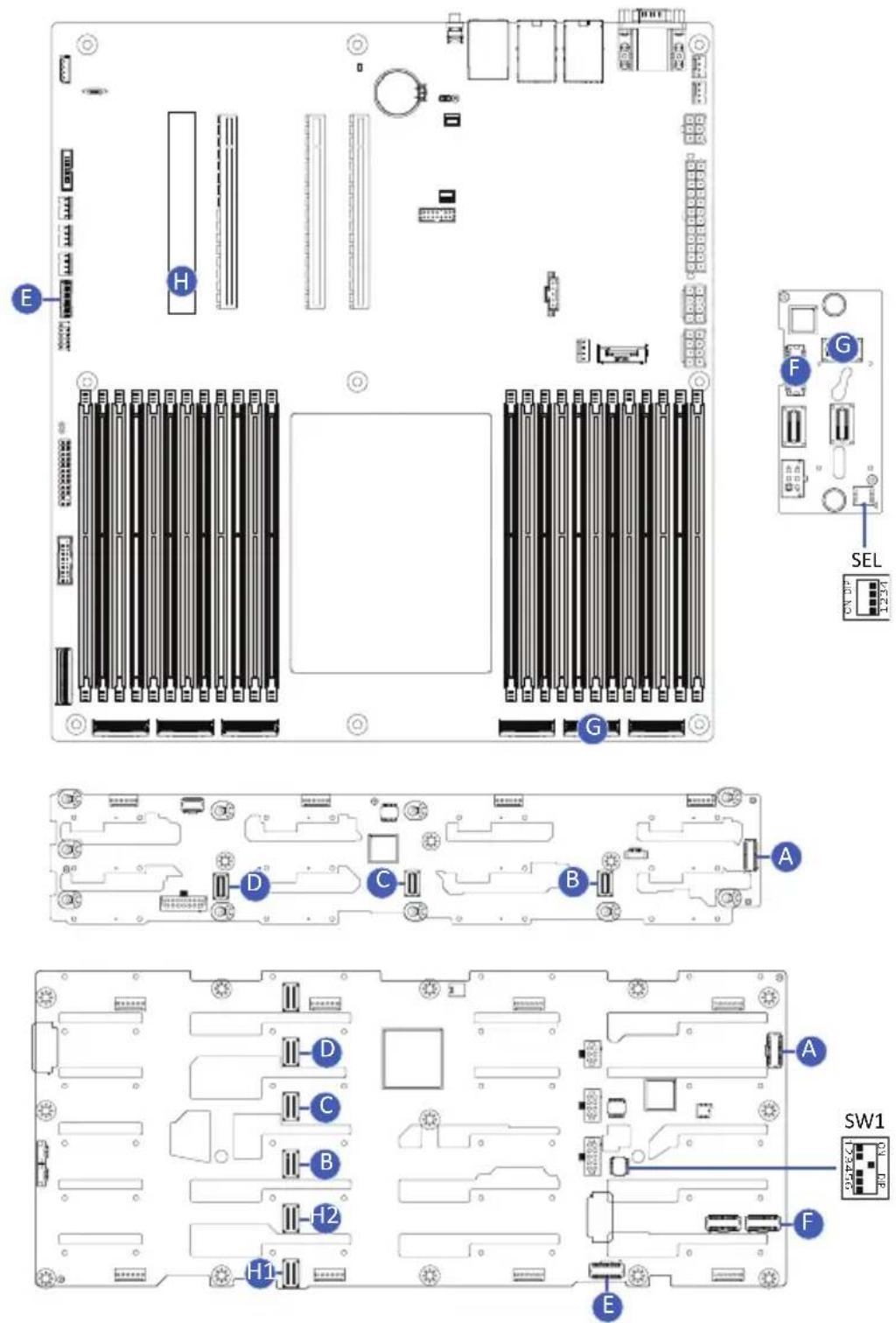

3-11 Cable Connection

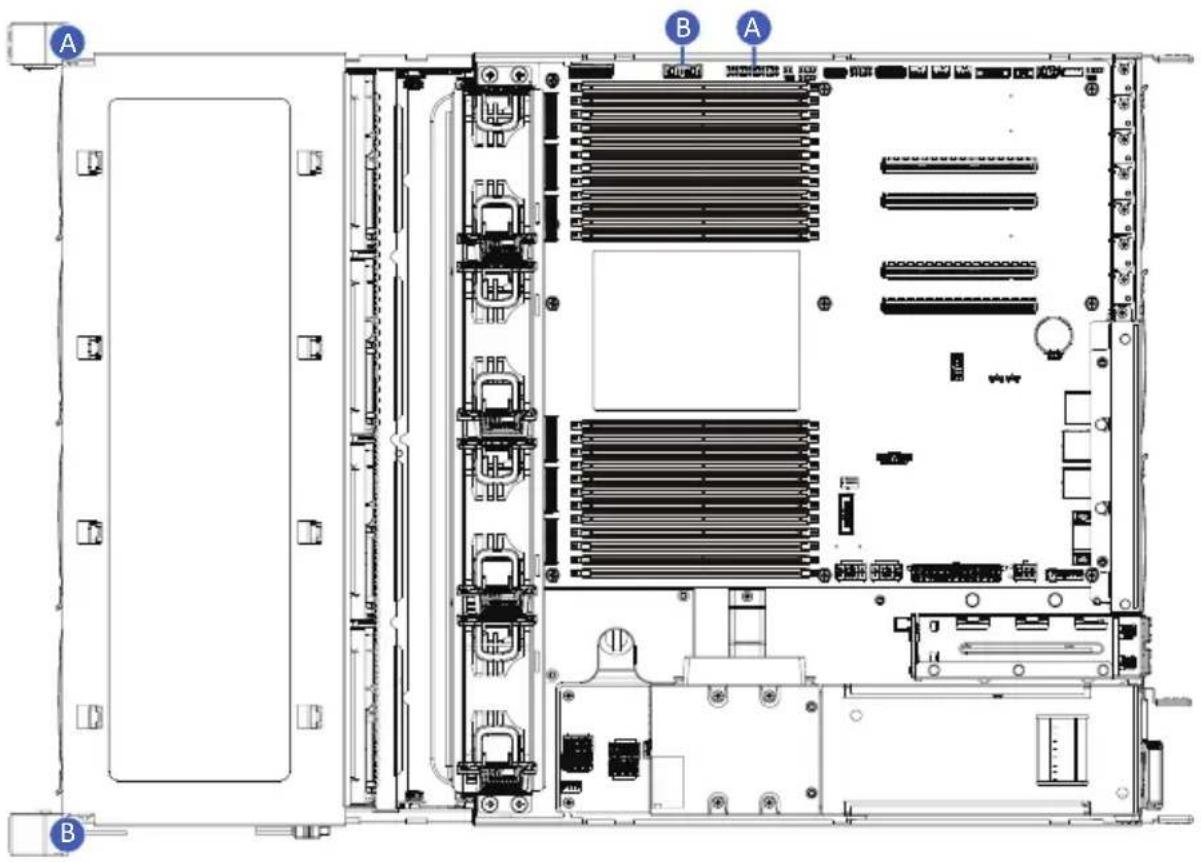

3-11-1 Front Panel and USB Cable Connection

A Front Switch/LED Cable	Motherboard: FP_1
	--
B Front USB 3 Cable	Motherboard: F_USB3
	--

3-11-2 Power Cable Connection

A Main Power Cable	Motherboard: ATX1
	Power Board (CPDGDS0): ATX
B PMBus Cable	Motherboard: PMBUS
	Power Board (CPDGDS0): PMBUS
C Backplane Board Power Cable	Backplane Board (CBPD4O0): ATX1
	Power Board (CPDGDS0): HDD_BP_PWR
D Backplane Board Power Cable	Backplane Board (CBPD4O0): BPB_PWR1
	Backplane Board (CBPD0C0): ATX1
E System Fan Power Cable	Backplane Board (CBPD4O0): P12V_FAN1
	Power Board (CPDGDS0): P12V_FAN
F Backplane Board Power Cable	Backplane Board (CBPD4O0): BPB_PWR2
	Backplane Board (CBP2021): BPB_PWR
G CPU Power Cable	Motherboard: P12V_AUX1
	Power Board (CPDGDS0): P12V_CPU1
H CPU Power Cable	Motherboard: P12V_AUX2
	Power Board (CPDGDS0): P12V_CPU2
I PCIE Power Cable	Motherboard: P12V_PCIE
	Power Board (CPDGDS1): 12V_GPU2_1

3-11-3 Motherboard to HDD Backplane Board

A Backplane Board Signal Cable	Backplane Board (CBPD4O0): BP_2
	Backplane Board (CBPD0C0): BP_1
B SATA Cable	Backplane Board (CBPD4O0): SL_OUT_CN1
	Backplane Board (CBPD0C0): SATA0
C SATA Cable	Backplane Board (CBPD4O0): SL_OUT_CN2
	Backplane Board (CBPD0C0): SATA1
D SATA Cable	Backplane Board (CBPD4O0): SL_OUT_CN3
	Backplane Board (CBPD0C0): SATA2
E Backplane Board Signal Cable	Motherboard: BP_1
	Backplane Board (CBPD4O0): BP_1
F Backplane Board Signal Cable	Backplane Board (CBPD4O0): BP_3
	Backplane Board (CBP2021): BP_1
G SATA Cable	Motherboard: U2_P0_G3A
	Backplane Board (CBP2021): SATA0
H RAID Card Cable	Backplane Board (CBPD4O0): SL_IN_CN1/SL_IN_CN2
	RAID Card

Chapter 4 Motherboard Components

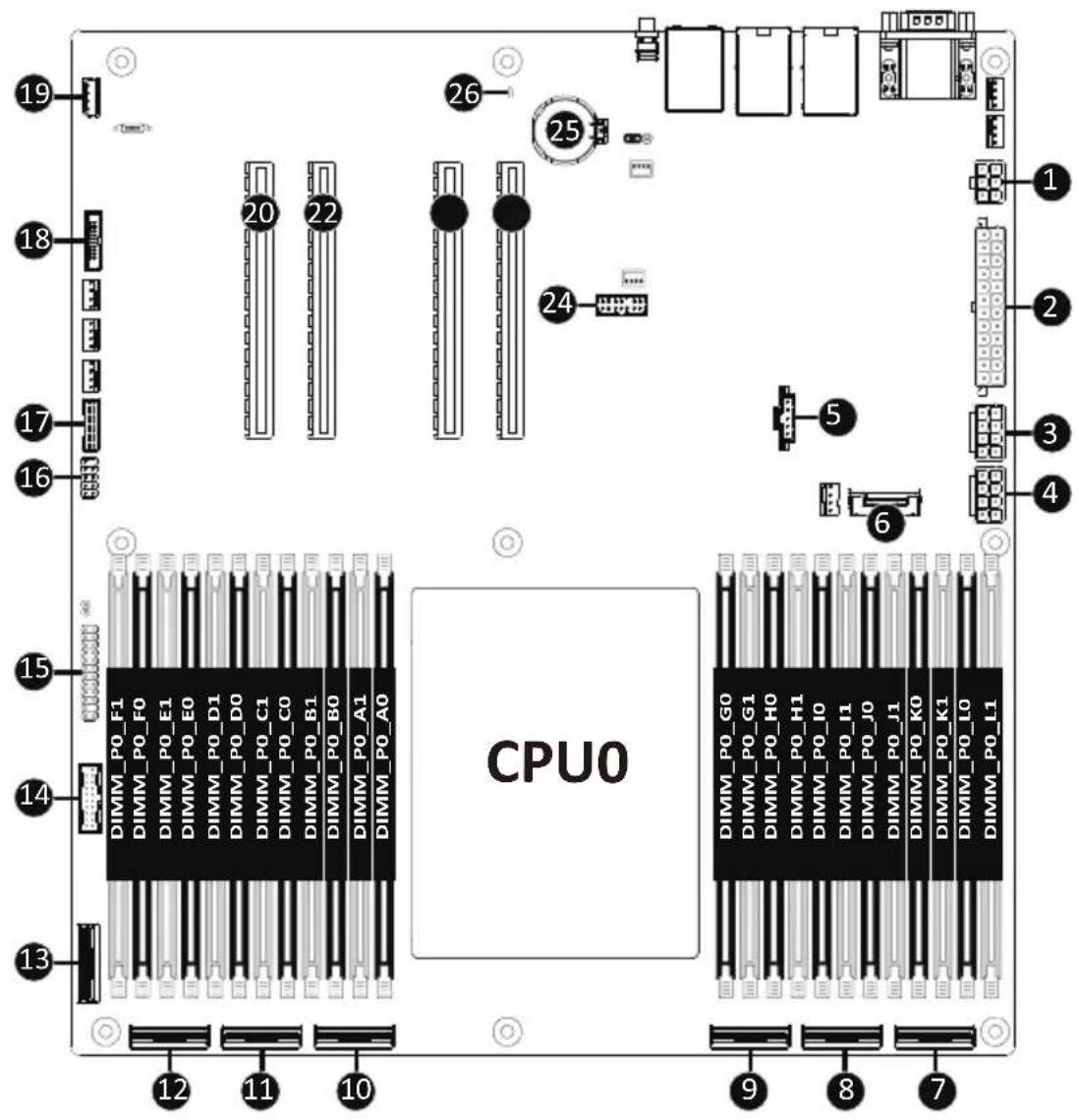

4-1 Motherboard Components

Item Description
1 2 x	3 Pin 12V Power Connector
2 2 x	12 Pin Main Power Connector
3 2 x	4 Pin 12V Power Connector
4 2 x	4 Pin 12V Power Connector
5 PMBus Connector
6 M.2	Slot (PCIe Gen4 x4, Support NGFF-2280/22110)
7 MCIO Connector (U2_P0_G2A/PCIe Gen4)
8 MCIO Connector (U2_P0_G3A/PCIe Gen5/SATA)
9 MCIO Connector (U2_P0_G3B/PCIe Gen4/SATA)
10 MCIO Connector (U2_P0_G0A/PCIe Gen5)
11 MCIO Connector (U2_P0_G1A/PCIe Gen4)
12 MCIO Connector (U2_P0_G0B/PCIe Gen4)
13 MCIO Connector (U2_P0_G1B/PCIe Gen4)
14 Front Panel USB 3.2 Gen1 Connector
15 Front Panel Header
16 Front Panel USB 2.0 Header
17 HDD Backplane Board Connector
18 NCSI Connector
19 IPMB Connector
20 PCIe x16 Slot (Gen5 x16)
21 PCIe x16 Slot (Gen5 x16)
22 PCIe x16 Slot (Gen5 x16)
23 PCIe x16 Slot (Gen5 x16)
24 TPM Connector
25 Battery Socket
26 BMC Firmware Readiness LED

4-2 Jumper Setting

4-3 Backplane Board Storage Connector

4-3-1 Front Side: CBPD400

Item Description

1. SlimLine Connector (SFF-8654 4i/SL_IN_CN1)

2. SlimLine Connector (SFF-8654 4i/SL_IN_CN2)

3. SlimLine Connector (SFF-8654 4i/SL_OUT_CN1)

4. SlimLine Connector (SFF-8654 4i/SL_OUT_CN2)

5. SlimLine Connector (SFF-8654 4i/SL_OUT_CN3)

6. SlimLine Connector (SFF-8654 4i/SL_IN_CN3)

4-3-2 Rear Side: CBP2021

Item Description

1. SlimLine Connector (SFF-8654 4i/U.2 0)

2. SlimLine Connector (SFF-8654 4i/U.2 1)

3. SlimLine Connector (SFF-8654 4i/SATA0)

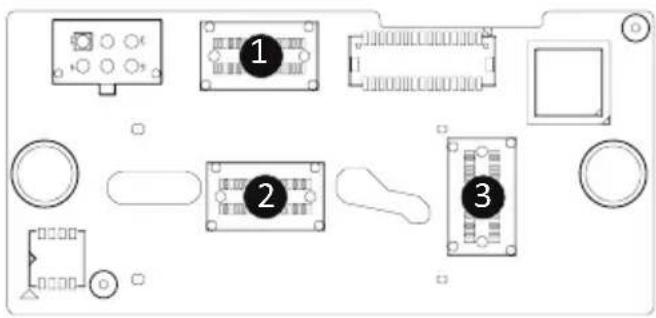

4-3-3 Rear Side: CBPD0C0

Item Description

1. SlimLine Connector (SFF-8654 4i/SATA0)

2. SlimLine Connector (SFF-8654 4i/SATA1)

3. SlimLine Connector (SFF-8654 4i/SATA3)

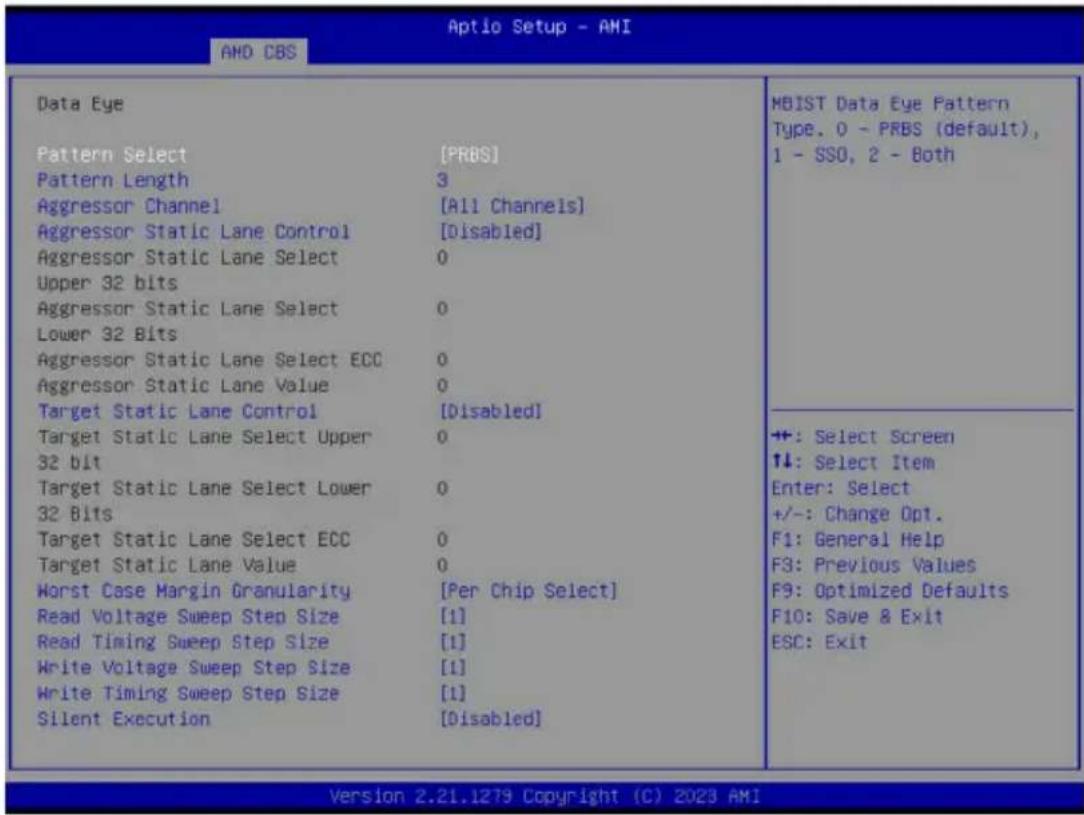

Chapter 2 BIOS Setup

BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to keep the configuration values in the CMOS.

To access the BIOS Setup program, press the key during the POST when the power is turned on.

• BIOS flashing is potentially risky, if you do not encounter any problems when using the current BIOS version, it is recommended that you don't flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
• It is recommended that you not alter the default settings (unless you need to) to prevent system instability or other unexpected results. Inadequately altering the settings may result in system's failure to boot. If this occurs, try to clear the CMOS values and reset the board to default values. (Refer to the Exit section in this chapter or introductions of the battery/clearing CMOS jumper in Chapter 1 for how to clear the CMOS values.)

BIOS Setup Program Function Keys

<←><→>	Move the selection bar to select the screen
<↑><↓>	Move the selection bar to select an item
<+>	Increase the numeric value or make changes
<->	Decrease the numeric value or make changes
	Execute command or enter the submenu
	Main Menu: Exit the BIOS Setup programSubmenus: Exit current submenu
	Show descriptions of general help
	Restore the previous BIOS settings for the current submenus
	Load the Optimized BIOS default settings for the current submenus
	Save all the changes and exit the BIOS Setup program

Main

This setup page includes all the items of the standard compatible BIOS.

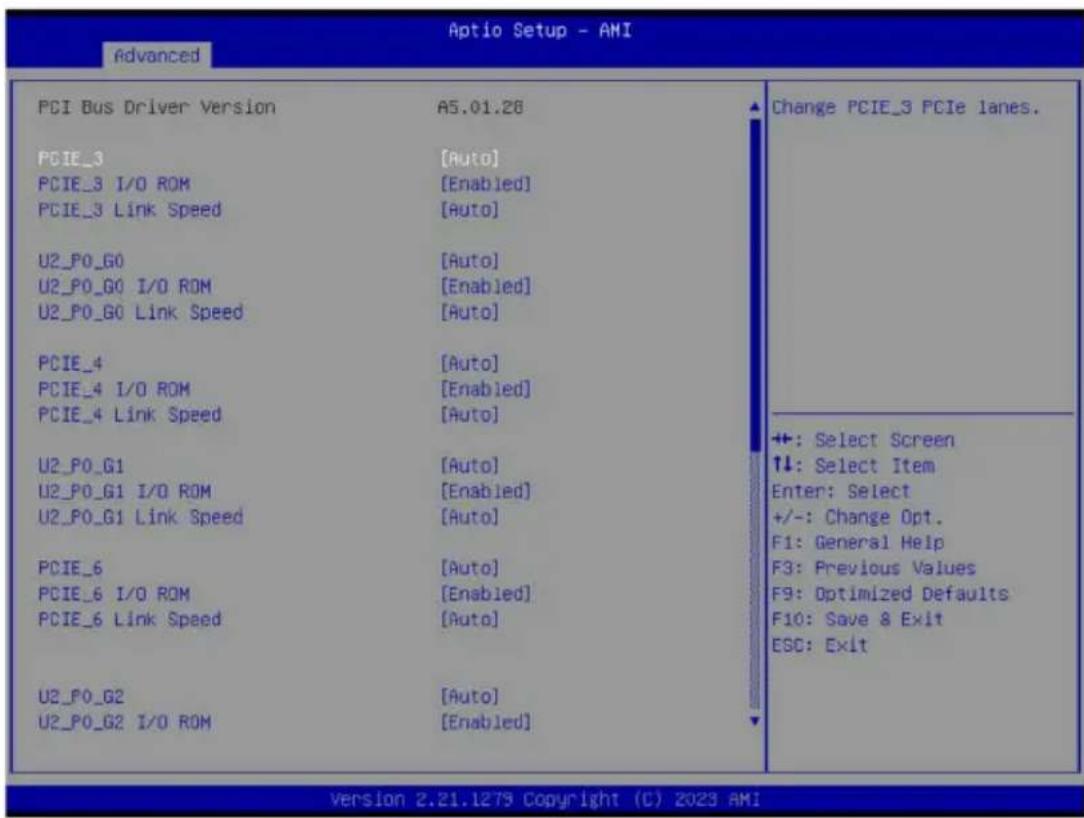

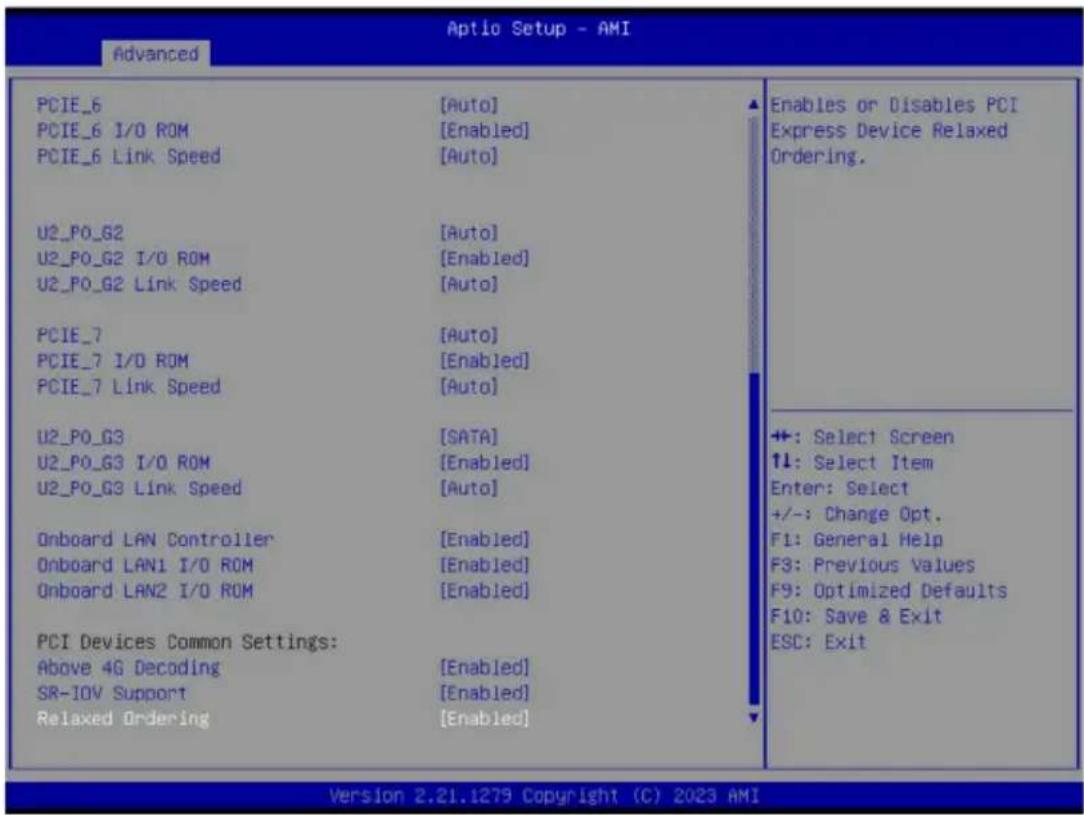

■ Advanced

This setup page includes all the items of AMI BIOS special enhanced features.

(ex: Auto detect fan and temperature status, automatically configure hard disk parameters.)

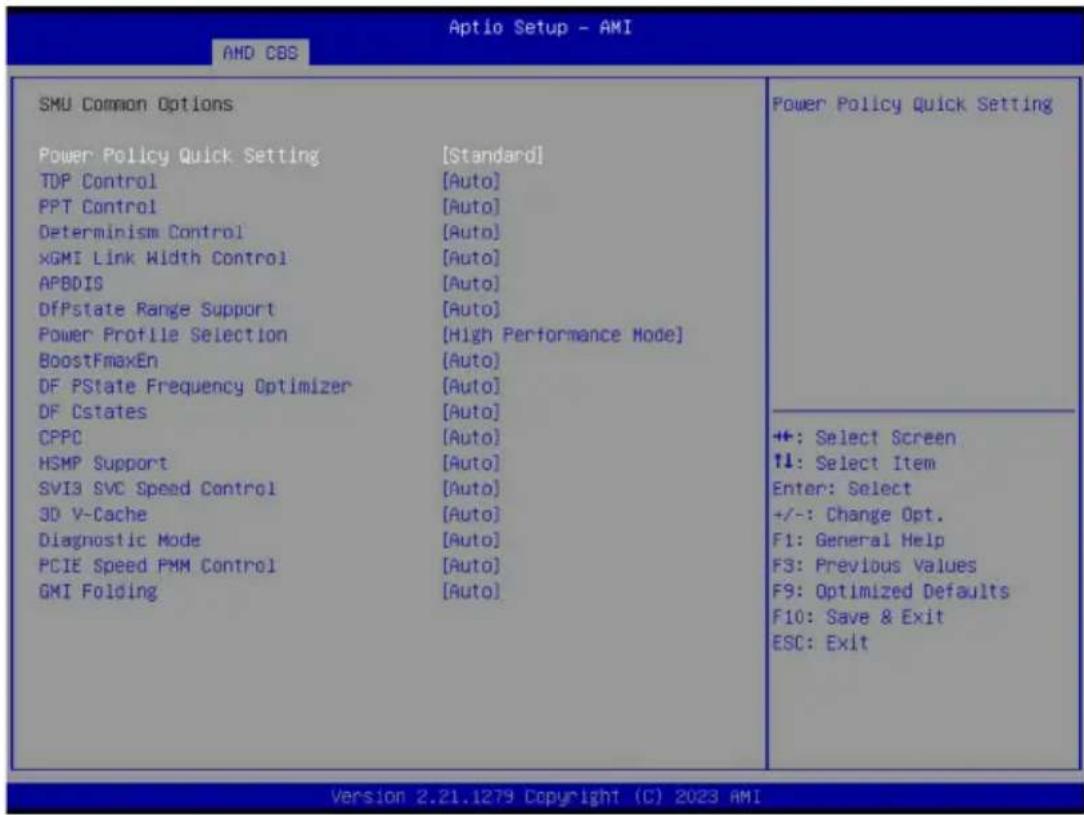

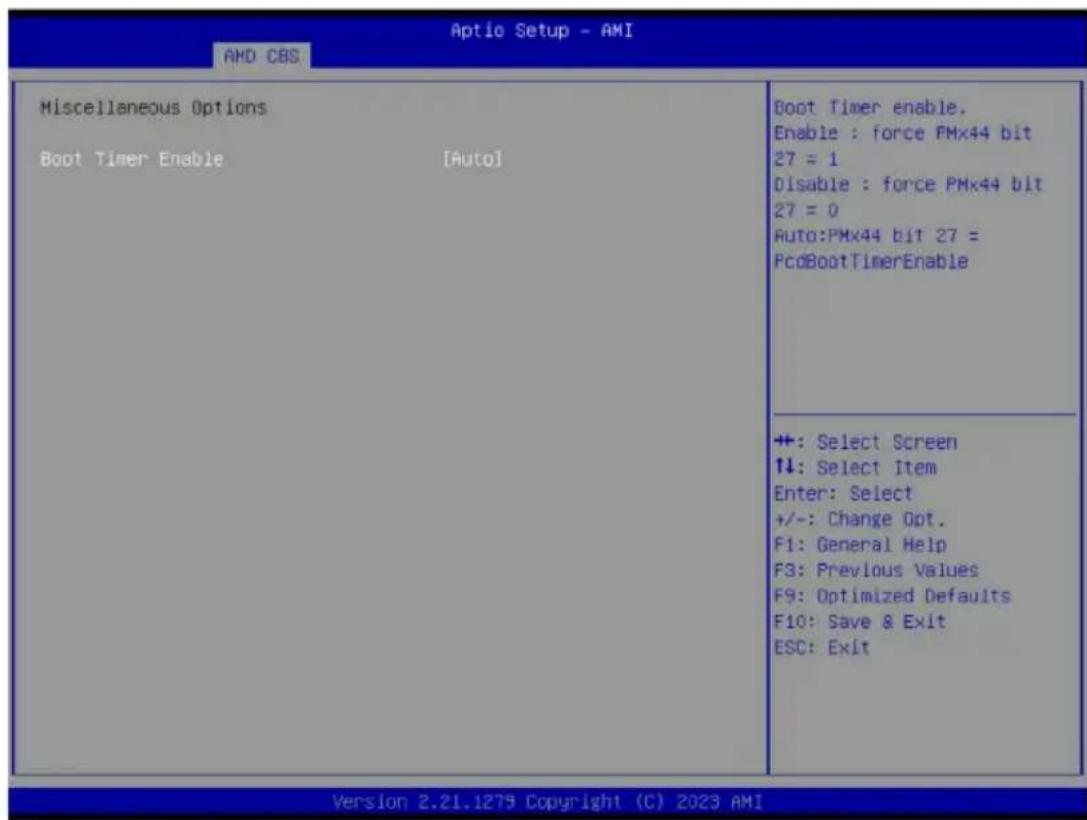

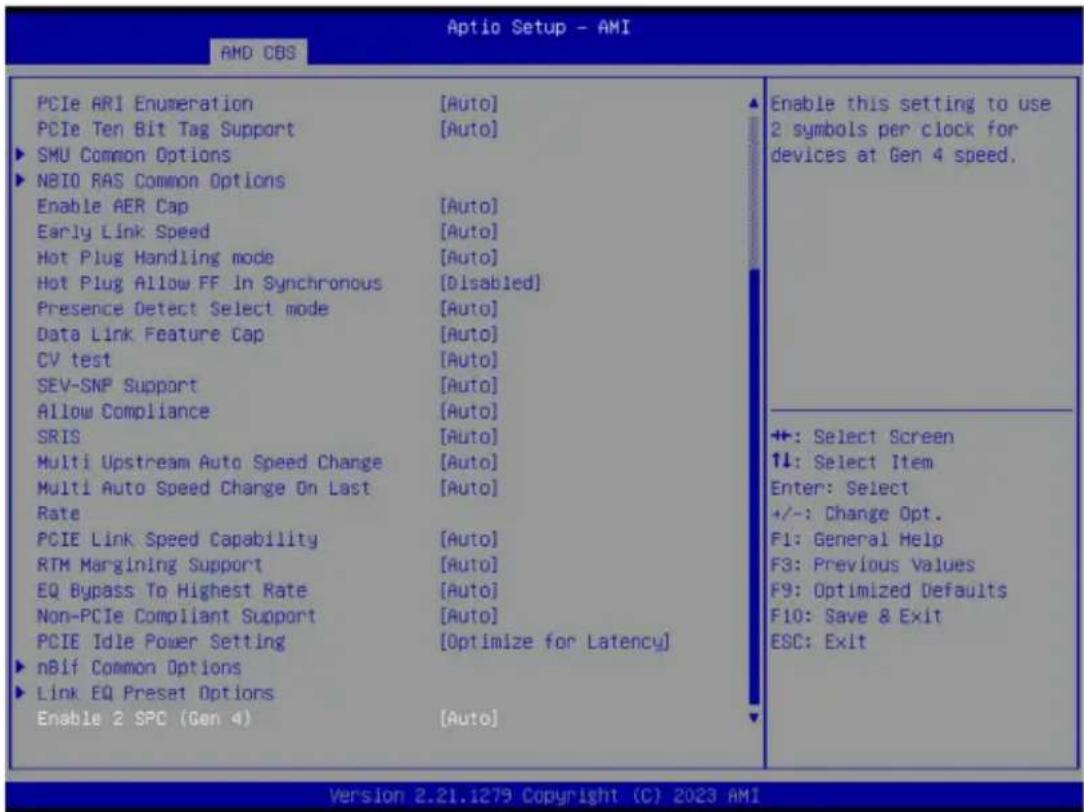

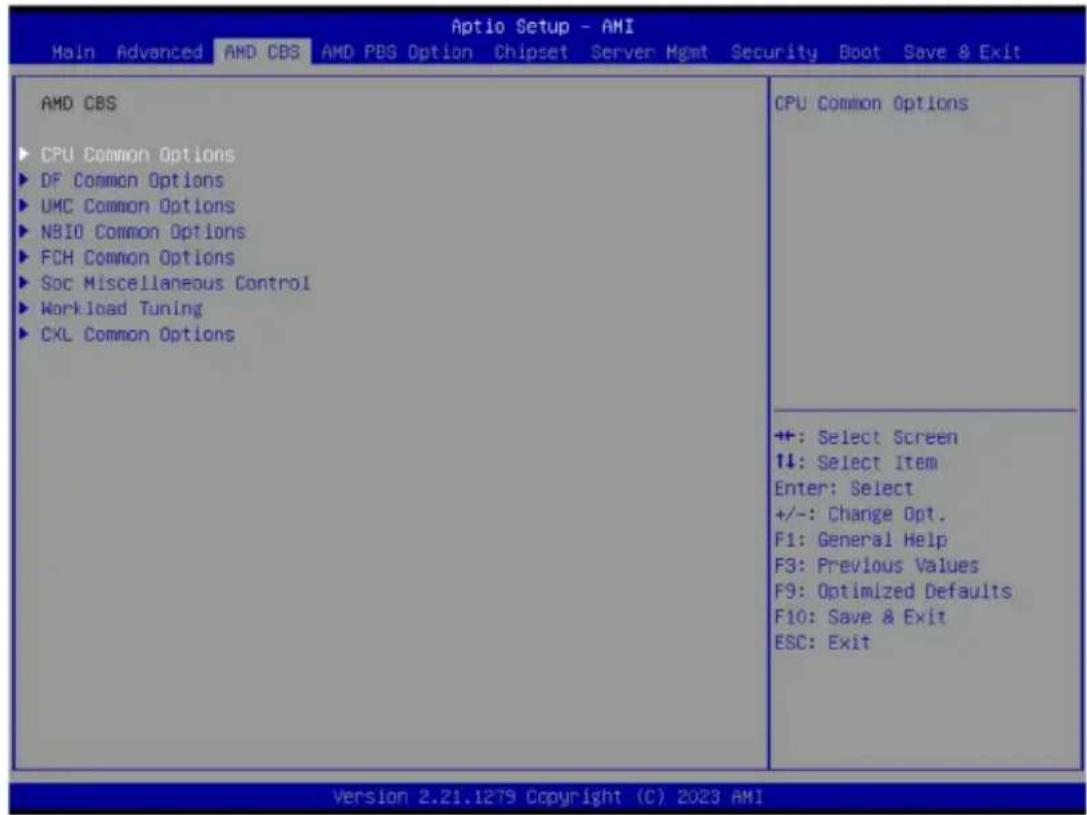

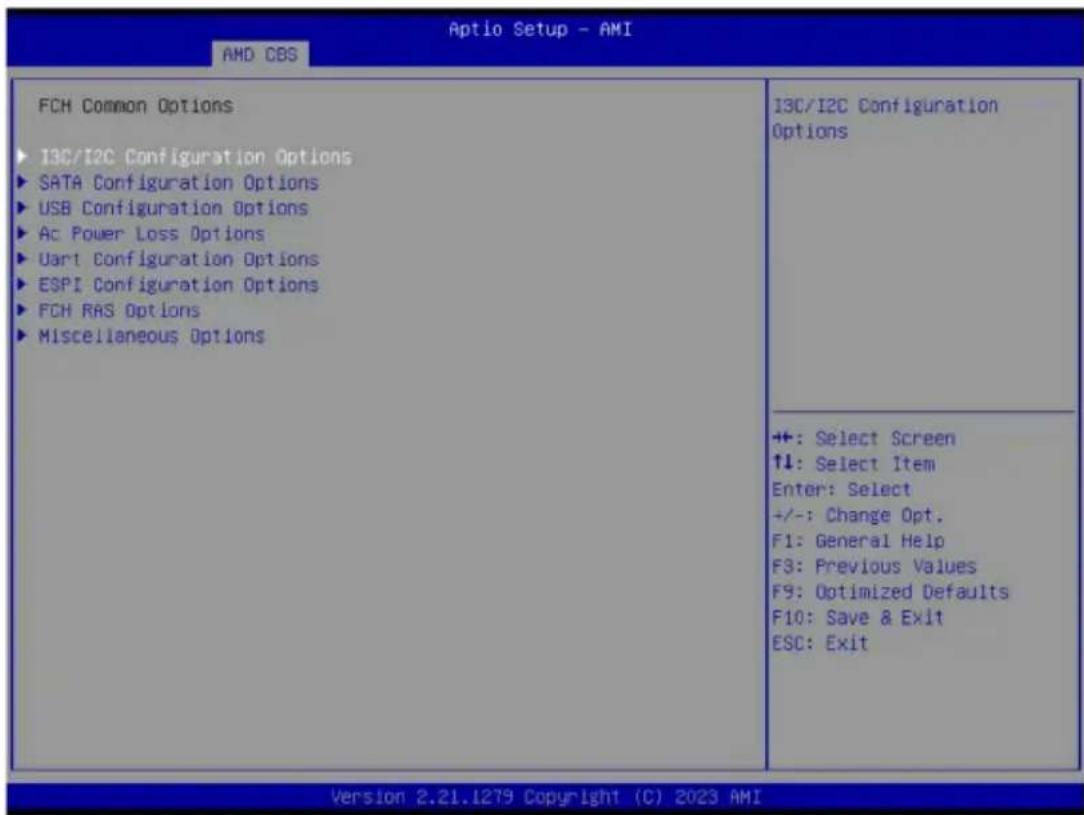

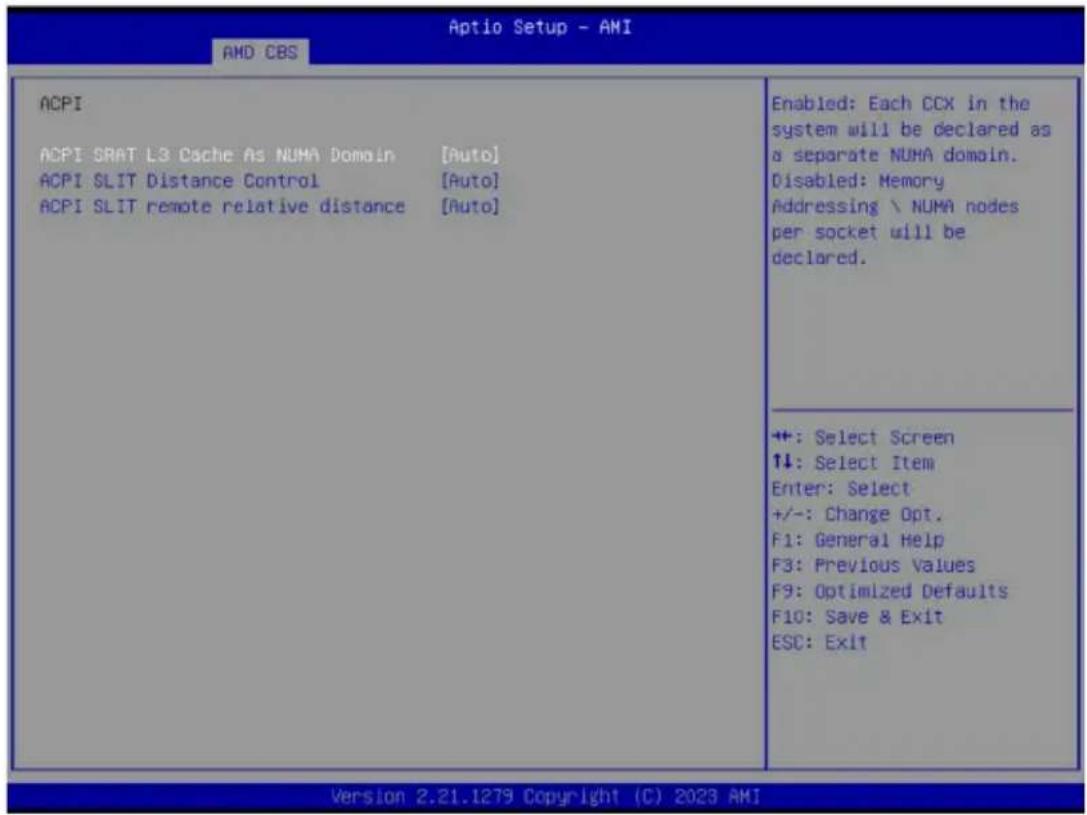

AMD CBS

This setup page includes the common items for configuration of AMD motherboard-related information.

AMD PBS Option

This setup page includes the common items for configuration of AMD CPM RAS related settings.

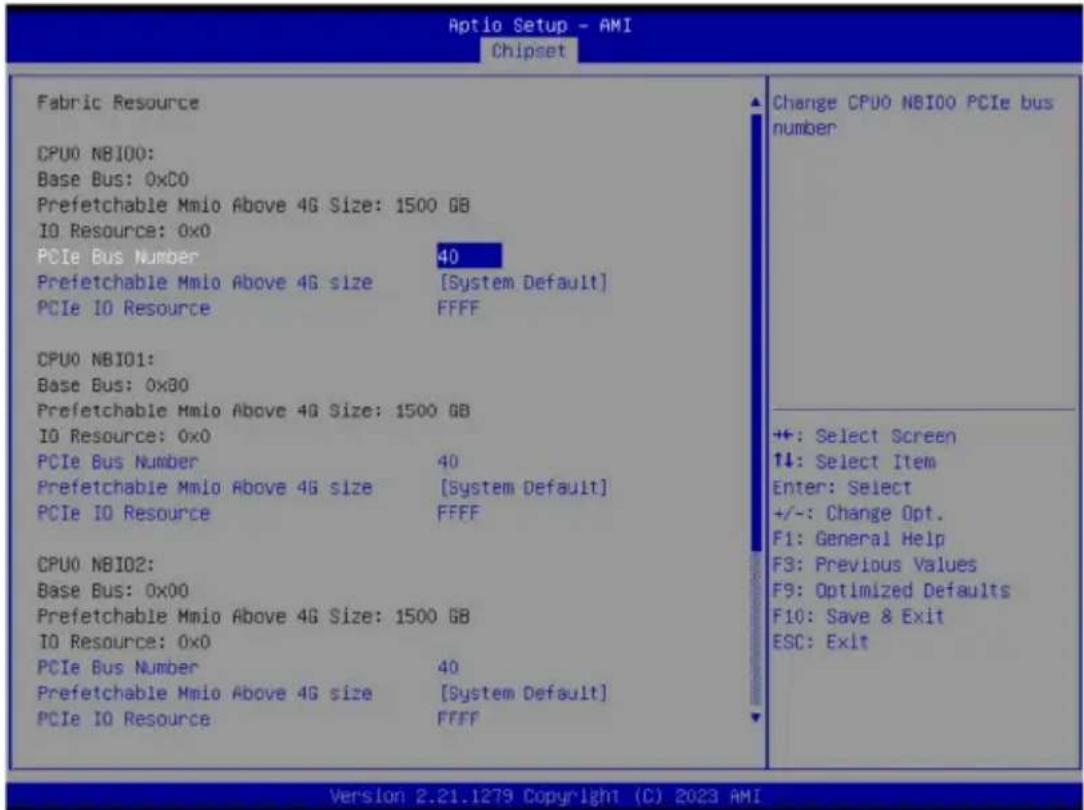

Chipset

This setup page includes all the submenu options for configuring the functions of the North Bridge.

■ Server Management

Server additional features enabled/disabled setup menus.

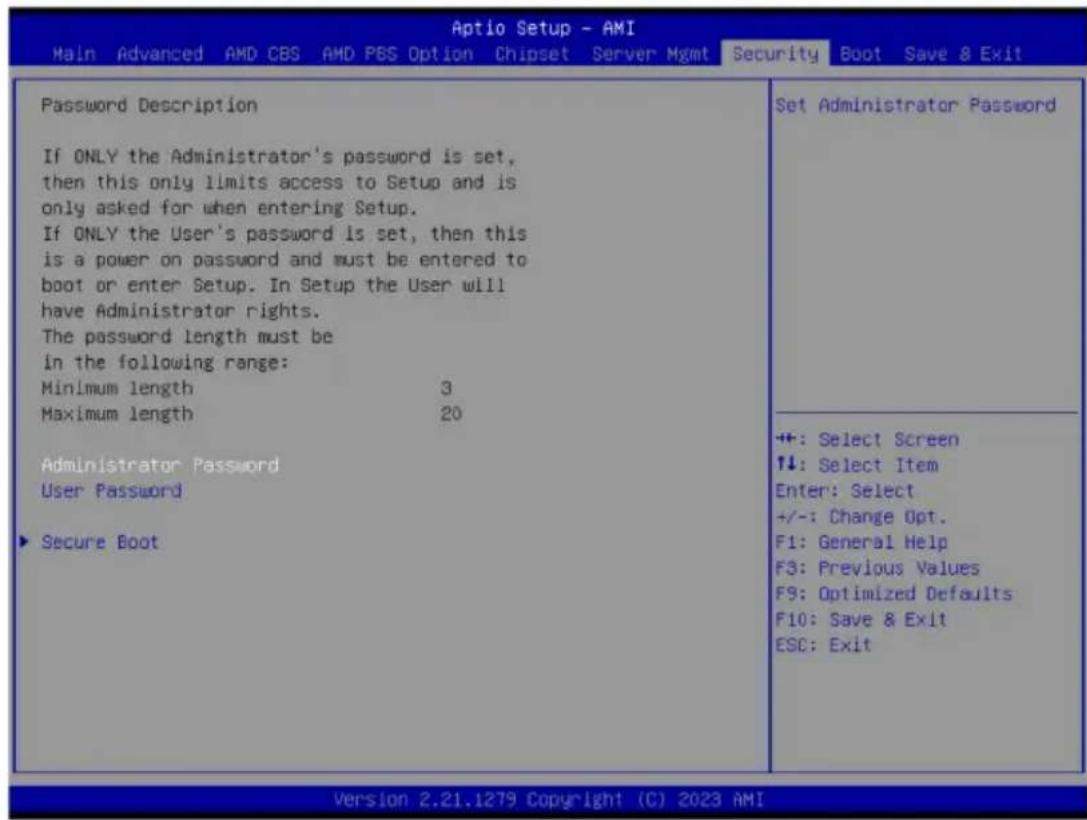

Security

Change, set, or disable supervisor and user password. Configuration supervisor password allows you to restrict access to the system and BIOS Setup.

A supervisor password allows you to make changes in BIOS Setup.

A user password only allows you to view the BIOS settings but not to make changes.

Boot

This setup page provides items for configuration of the boot sequence.

■ Save & Exit

Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup. (Pressing can also carry out this task.)

Abandon all changes and the previous settings remain in effect. Pressing to the confirmation message will exit BIOS Setup. (Pressing can also carry out this task.)

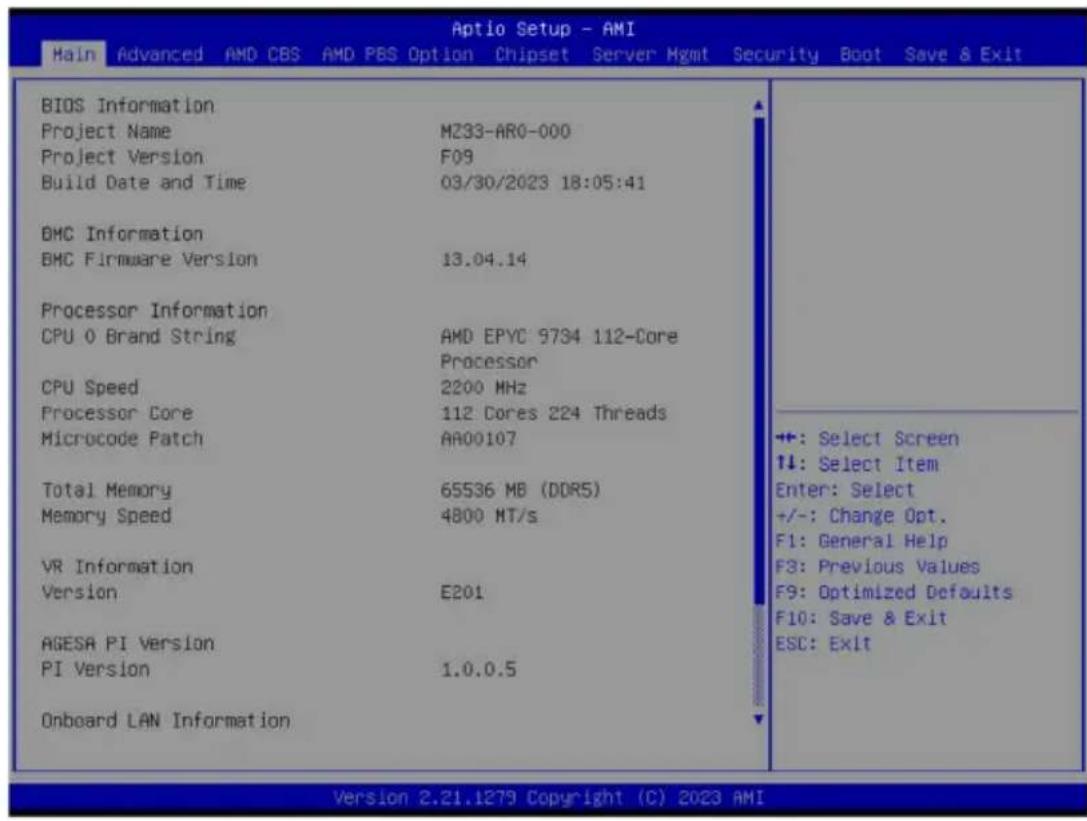

2-1 The Main Menu

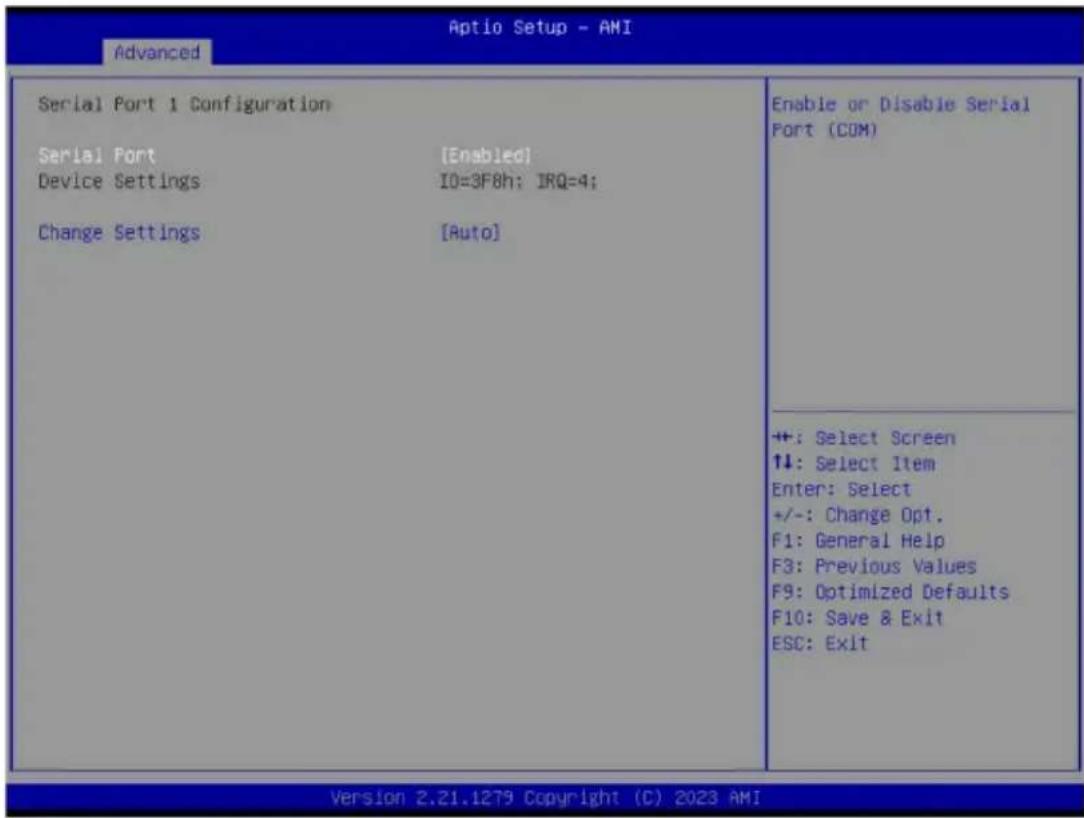

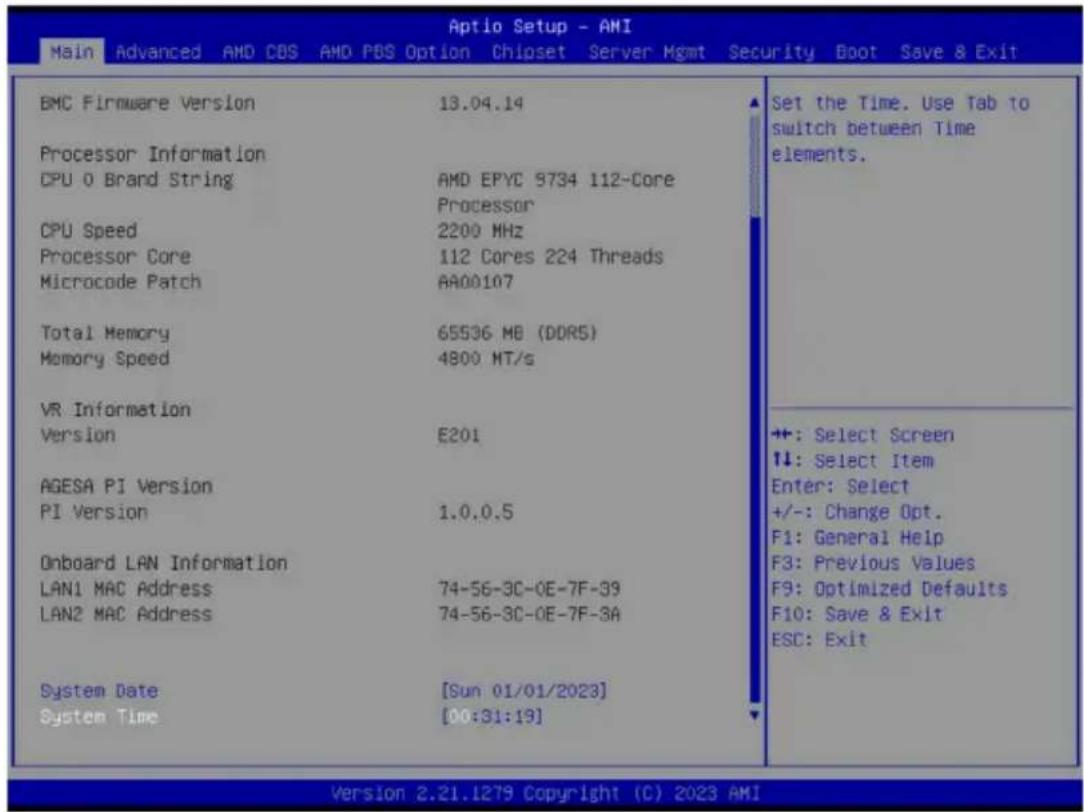

Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press to accept or enter other sub-menu.

Main Menu Help

The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.

Submenu Help

While in a submenu, press to display a help screen (General Help) of function keys available for the menu. Press to exit the help screen. Help for each item is in the Item Help block on the right side of the submenu.

• When the system is not stable as usual, select the Restore Defaults item to set your system to its defaults.
• The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version.

Parameter	Description
BIOS Information
Project Name	Displays the project name information.
Project Version	Displays version number of the BIOS setup utility.
Build Date and Time	Displays the date and time when the BIOS setup utility was created.
BMC Information^(Note1)
BMC Firmware Version^(Note1)	Displays BMC firmware version information.
Processor Information
CPU Brand String/ CPU Speed / Processor Core / Microcode Patch	Displays the technical specifications for the installed processor(s).
Total Memory^(Note2)	Displays the total memory size of the installed memory.
Memory Speed^(Note2)	Displays the frequency information of the installed memory.
VR Information Version Displays VR version information.
AGESA PI Version
PI Version Displays AGESA PI version information.

(Note1) Functions available on selected models.
(Note2) This section will display capacity and frequency information of the memory that the customer has installed.

Parameter	Description
Onboard LAN Information
LAN1 MAC Address ^(Note)	Displays LAN MAC address information.
LAN2 MAC Address ^(Note)	Displays LAN MAC address information.
System Date	Sets the date following the weekday-month-day-year format.
System Time	Sets the system time following the hour-minute-second format.

(Note) The number of LAN ports listed will depend on the motherboard / system model.

2-2 Advanced Menu

The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press to access the related submenu screen.

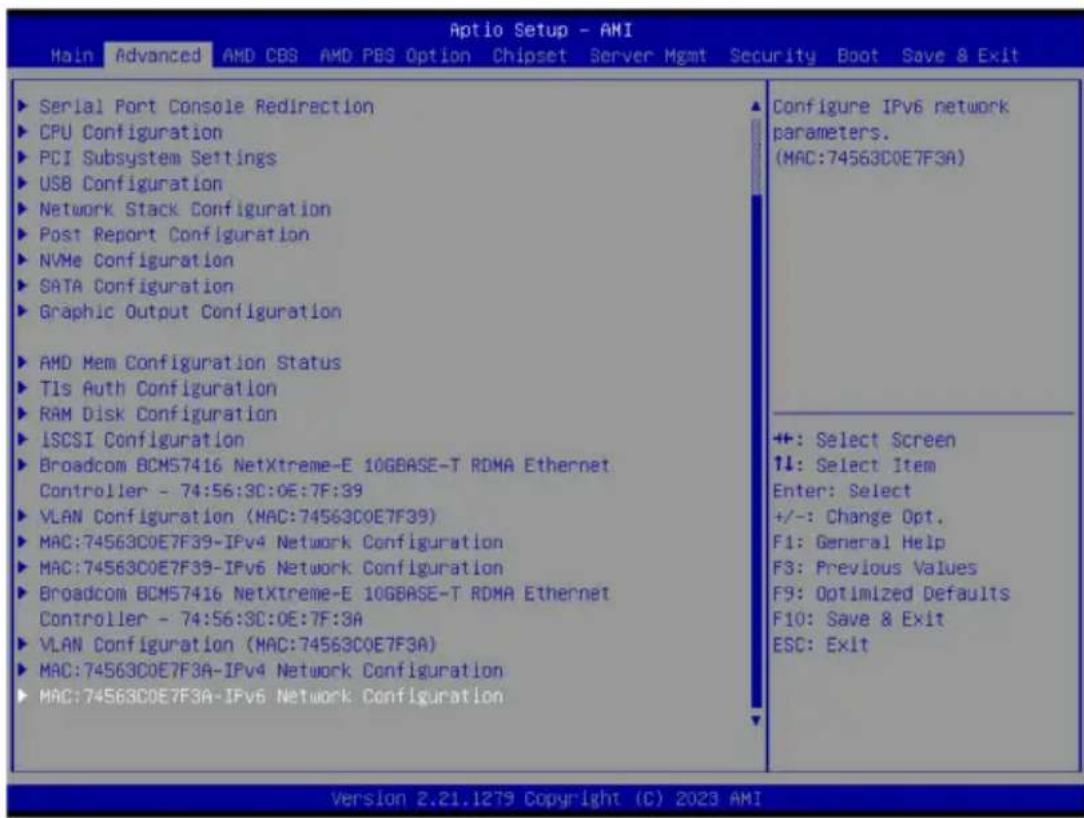

When Boot Mode Select is set to UEFI (Default)

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Mgmt Security Boot Save & Exit
Trusted Computing PSP Firmware Versions Legacy Video Select AST2600 Super IO Configuration S5 RTC Make Settings Serial Port Console Redirection CPU Configuration PCI Subsystem Settings USB Configuration Network Stack Configuration Post Report Configuration NVMe Configuration SATA Configuration AMD Mem Configuration Status Tls Auth Configuration RAM Disk Configuration iSCSI Configuration	Trusted Computing Settings +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit
Version 2.21.1279 Copyright (C) 2023 AMI

2-2-1 Trusted Computing

Parameter	Description
Configuration

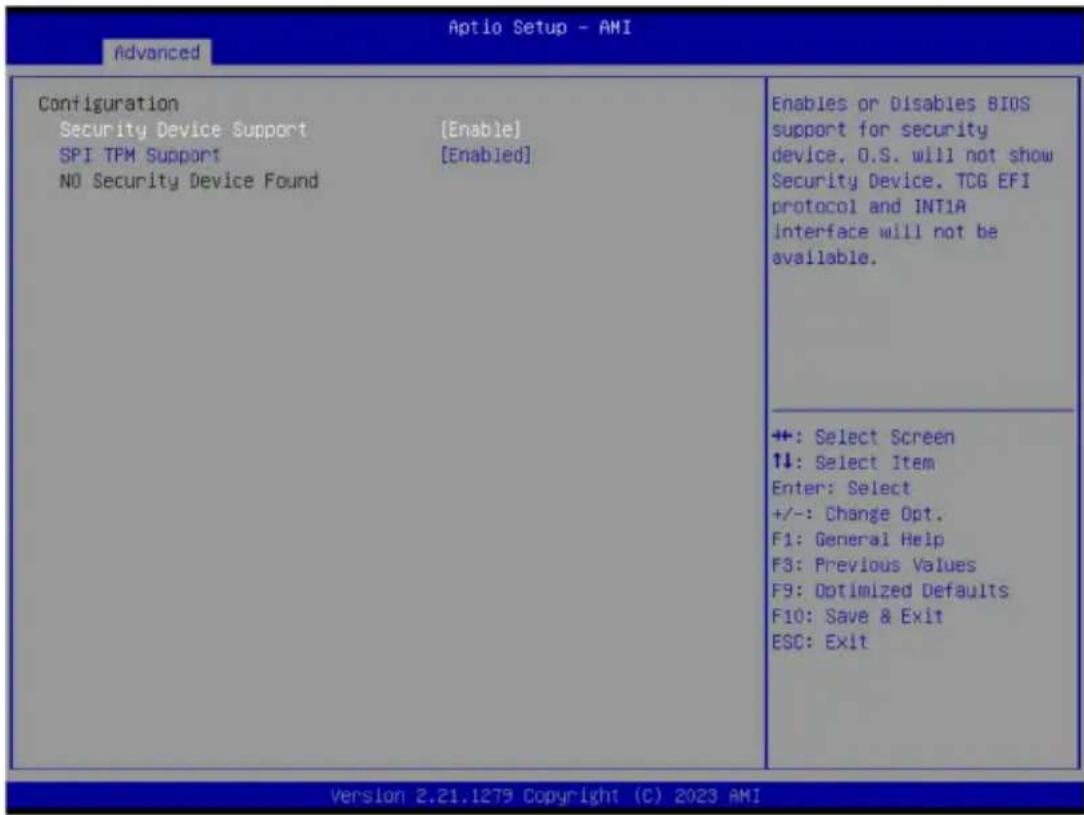

Security Device Support	Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be available.Options available: Disable, Enable. Default setting is Enable.
SPI TPM Support	Select Enable to activate TPM support feature.Options available: Disabled, Enabled. Default setting is Disabled.

2-2-2 PSP Firmware Versions

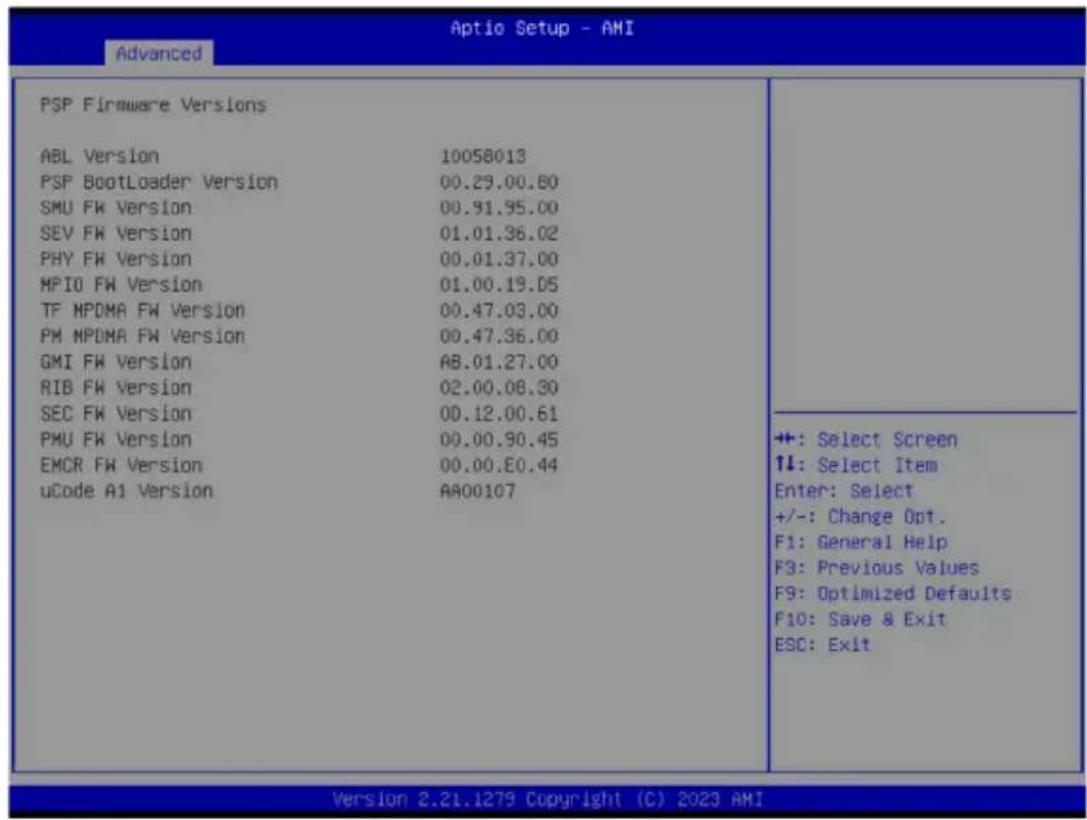

The PSP Firmware Versions page displays the basic PSP firmware version information. Items on this window are non-configurable.

2-2-3 Legacy Video Select

Parameter	Description

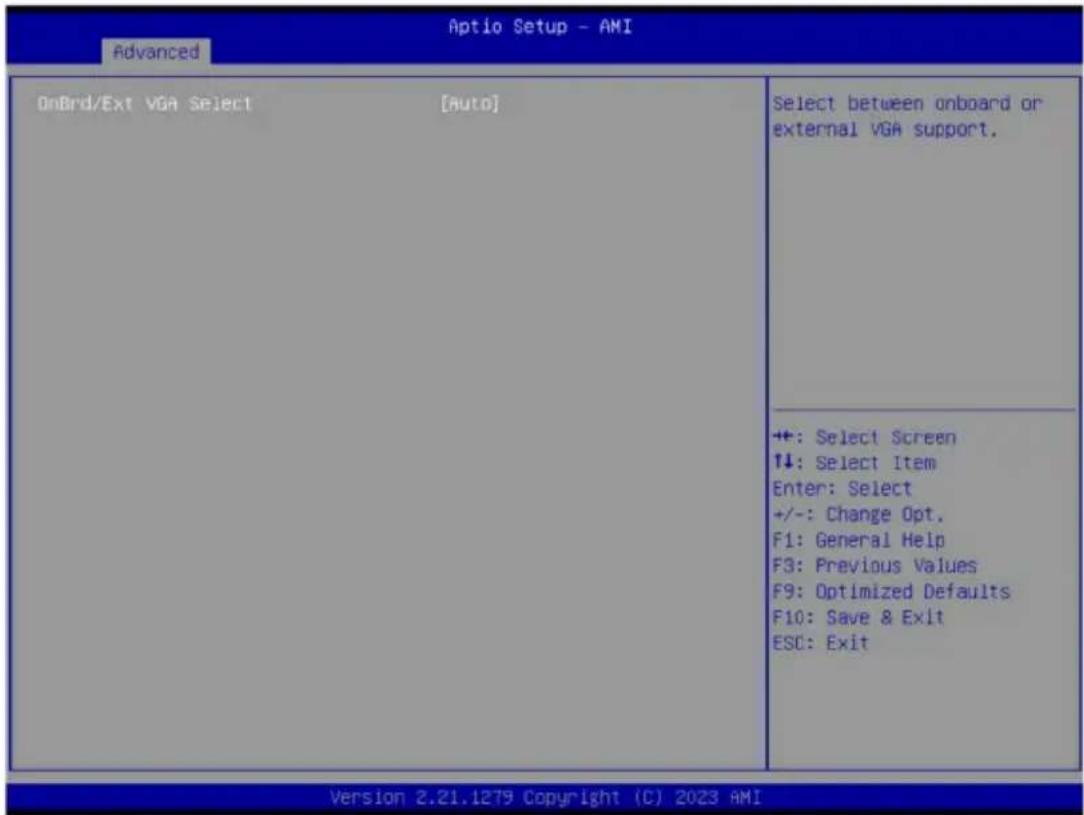

OnBrd/Ext VGA Select	Selects between onboard or external VGA support. Options available: Auto, Onboard, External. Default setting is Auto.

(Note) This configurable option will be displayed when "Boot Mode Select" is set to Legacy in the Boot > Boot Mode Select section.

2-2-4 AST2600 Super IO Configuration

Parameter	Description
AST2600 Super IO Configuration
Super IO Chip Displays the super IO chip information
Serial Port 1 Configuration	Press [Enter] for configuration of advanced items.

2-2-4-1 Serial Port 1 Configuration

Parameter	Description
Serial Port 1 Configuration
Serial Port ^(Note)	Enable/Disable the Serial Port (COM). When set to Enabled allows you to configure the Serial port 1 settings. When set to Disabled, displays no configuration for the serial port.Options available: Disabled, Enabled. Default setting isEnabled.
Devices Settings Displays the Serial Port 1 device settings.
Change Settings	Select an optimal settings for Super IO Device.Options available for Serial Port 1:AutoIO=3F8h; IRQ=4;IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;Default setting isAuto.

(Note) Advanced items prompt when this item is defined.

2-2-5 S5 RTC Wake Settings

Aptio Setup - AMI Advanced
Wake system from SS [Disabled]	Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr::min::sec specified. Select DynamicTime , System will wake on the current time + Increase minute(s)
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit
Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
Wake System from S5	Enable/Disable system wake on alarm event. Options available: Disabled, Fixed Time, Dynamic Time. When Fixed Time is selected, system will wake on the hr::min::sec specified. Default setting is Disabled.

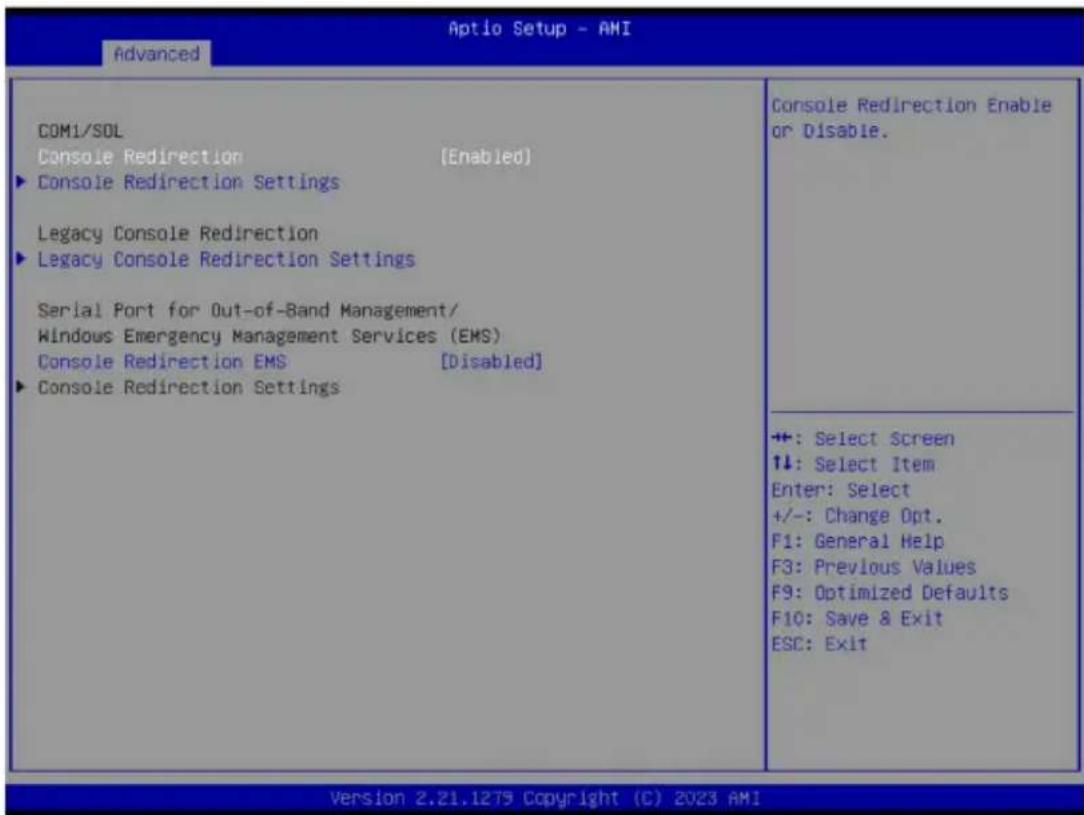

2-2-6 Serial Port Console Redirection

Parameter	Description
COM1/Serial Over LAN Console Redirection ^(Note)	Select whether to enable console redirection for specified device. Console redirection enables the users to manage the system from a remote location.Options available: Enabled, Disabled. Default setting isDisabled.
COM1/Serial Over LAN Console Redirection Settings	Press [Enter] to configure advanced items.Please note that this item is configurable when COM1/Serial Over LAN Console Redirection is set to Enabled.Terminal Type- Selects a terminal type to be used for console redirection.- Options available: VT100, VT100+, ANSI, VT-UTF8. Default setting isANSI.Bits per second- Selects the transfer rate for console redirection.- Options available: 9600, 19200, 38400, 57600, 115200. Default setting is115200.Data Bits- Selects the number of data bits used for console redirection.- Options available: 7, 8. Default setting is8.

(Note) Advanced items prompt when this item is defined.

Parameter	Description
COM1/Serial Over LAN Console Redirection Settings (continued)	Parity– A parity bit can be sent with the data bits to detect some transmission errors.– Even: parity bit is 0 if the num of 1's in the data bits is even.– Odd: parity bit is 0 if num of 1's in the data bits is odd.– Mark: parity bit is always 1. Space: Parity bit is always 0.– Mark and Space Parity do not allow for error detection.– Options available: None, Even, Odd, Mark, Space. Default setting is None.Stop Bits– Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit.Communication with slow devices may require more than 1 stop bit.– Options available: 1, 2. Default setting is 1.Flow Control– Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.– Options available: None, Hardware RTS/CTS. Default setting is None.VT-UTF8 Combo Key Support– Enable/Disable the VT-UTF8 Combo Key Support.– Options available: Enabled, Disabled. Default setting is Enabled.Recorder Mode– When this mode enabled, only texts will be send. This is to capture Terminal data.– Options available: Enabled, Disabled. Default setting is Disabled.Resolution 100x31– Enable/Disable extended terminal resolution.– Options available: Enabled, Disabled. Default setting is Enabled.Putty KeyPad– Selects Function Key and KeyPad on Putty.– Options available: VT100, LINUX, XTERMR6, SC0, ESCN, VT400. Default setting is VT100.
Legacy Console Redirection
Legacy Console Redirection Settings	Press [Enter] to configure advanced items.◆Redirection COM Port-Selects a COM port for Legacy serial redirection.-Default setting isCOM1/SOL.◆Resolution-Selects the number of rows and columns used in Console Redirection for legacy OS support.-Options available: 80x24, 80x25. Default setting is80x24.◆Redirect After POST-When Bootloader is selected, then Legacy Console Redirection is disabled before booting to legacy OS. When Always Enable is selected, then Legacy Console Redirection is enabled for legacy OS.-Options available: Always Enable, BootLoader. Default setting isAlways Enable.
Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS) Console Redirection ^(Note)	EMS console redirection allows the user to configure Console Redirection Settings to support Out-of-Band Serial Port management.Options available: Disabled, Enabled. Default setting isDisabled.
Serial Port for Out-of-Band EMS Console Redirection Settings	Press [Enter] to configure advanced items.Please note that this item is configurable when Serial Port for Out-of-Band Management EMS Console Redirection is set to Enabled.◆Out-of-Band Mgmt Port-Microsoft Windows Emergency Management Service (EMS) allows for remote management of a Windows Server OS through a serial port.-Default setting isCOM1/SOL.◆Terminal Type-Selects a terminal type to be used for console redirection.-Options available: VT100, VT100+, ANSI, VT-UTF8. Default setting isANSI.◆Bits per second-Selects the transfer rate for console redirection.-Options available: 9600, 19200, 57600, 115200. Default setting is115200.

(Note) Advanced items prompt when this item is defined.

Parameter

Description

Serial Port for Out-of-Band EMS Console Redirection Settings(continued)

Flow Control– Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.– Options available: None, Hardware RTS/CTS, Software Xon/Xoff. Default setting is None.

2-2-7 CPU Configuration

Parameter	Description

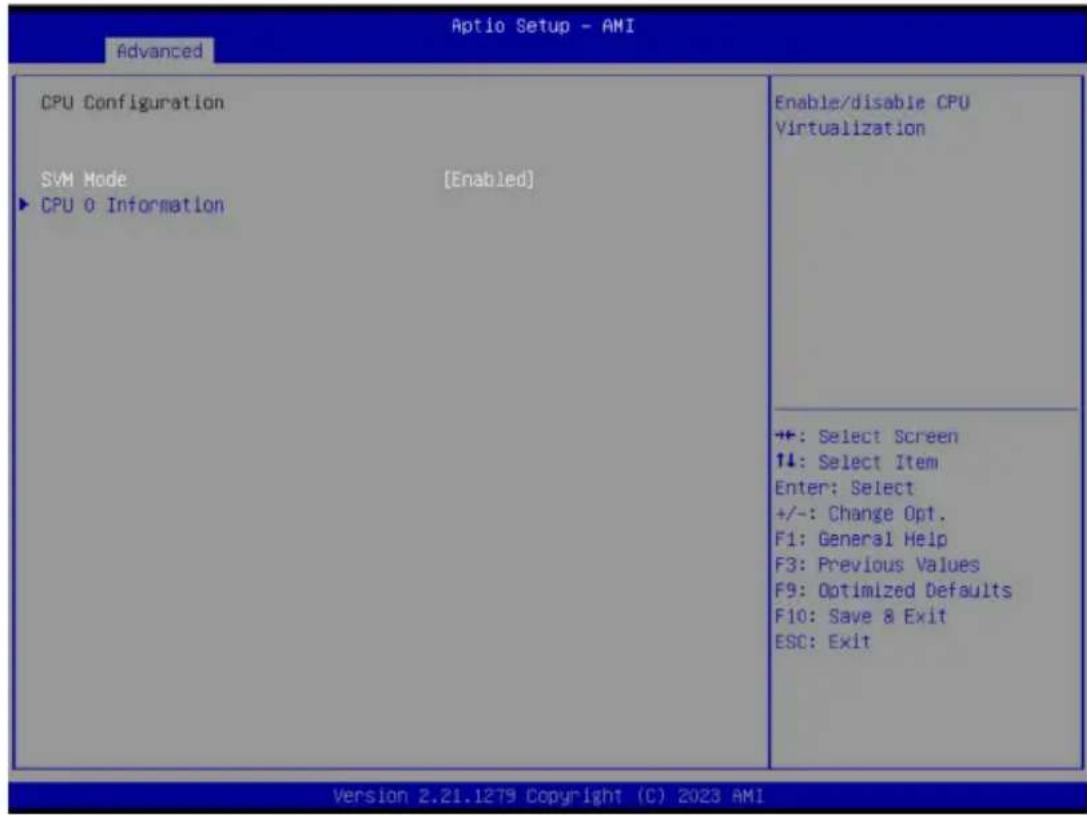

SVM Mode	Enable/Disable the CPU Virtualization.Options available: Disabled, Enabled. Default setting is Enabled.
CPU 0 Information	Press [Enter] to view the memory information related to CPU 0.

2-2-8 PCI Subsystem Settings

Parameter	Description
PCI Bus Driver Version	Displays the PCI Bus Driver version information.
PCIE_\#^(Note1)	Change the PCIe lanes.Options available: Disabled, Auto, x16, x8x8, x8x4x4, x4x4x8,x4x4x4x4. Default setting isAuto.
SLOT \#_I/O ROM^(Note1)	When enabled, this setting will initialize the device expansion ROM for the related PCI-E slot.Options available: Disabled, Enabled. Default setting isEnabled.
SLOT \#_Link Speed^(Note1)	Configure PCIe max link speed.Options available: Auto, Gen4, Gen3, Gen2, Gen1.Default setting isAuto.
U2_P0_G0/1/2 Lanes^(Note2)	Change MCIO PCIe lanes.Options available: Disabled, Auto, x8, x16, x4x4, x8x8, x8x4x4,x4x4x8, x4x4x4x4. Default setting isAuto.
U2_P0_G3 Lanes	Change MCIO U2_P0_G3 PCIe lanes.Options available: Disabled, SATA, x16, x8x8, x8x4x4, x4x4x8,x4x4x4x4. Default setting isSATA.
U2_P0_G0/1/2/3 I/O ROM^(Note2)	When enabled, this setting will initialize the device expansion ROM for the related devices.Options available: Disabled, Enabled. Default setting isEnabled.
U2_P0_G0/1/2/3 Link Speed^(Note2)	Configure MCIO PCIe max link speed.Options available: Auto, Gen4, Gen3, Gen2, Gen1.Default setting isAuto.
Onboard LAN Controller^(Note3)	Enable/Disable the onboard LAN devices.Options available: Disabled, Enabled. Default setting isEnabled.
Onboard LAN# I/O ROM ^(Note3)	Enable/Disable the onboard LAN devices, and initializes device expansion ROM.Options available: Disabled, Enabled. Default setting isEnabled.
PCI Devices Common Settings
Above 4G Decoding	Enable/Disable memory mapped I/O to 4GB or greater address space (Above 4G Decoding).Options available: Disabled, Enabled. Default setting isEnabled.
SR-IOV Support	If the system has SR-IOV capable PCIe devices, this item Enable/Disable Single Root IO Virtualization Support.Options available: Disabled, Enabled. Default setting isEnabled.
Relaxed Ordering	Enable/Disable PCI express device relaxed ordering.Options available: Disabled, Enabled. Default setting isEnabled.

(Note1) This section is dependent on the available PCIe Slot.

(Note2) This section is dependent on the available MCIO connector.

(Note3) This section is dependent on the available LAN controller.

2-2-9 USB Configuration

Advanced Aptio Setup - AMI
USB Configuration USB Module Version 23 USB Controllers: 2 XHCIs USB Devices: 1 Keyboard, 1 Mouse, 5 Hubs Legacy USB Support [Enabled] XHCI Hand-off [Enabled] USB Mass Storage Driver Support [Enabled]	Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
USB hardware delays and time-outs: USB transfer time-out [20 sec] Device reset time-out [20 sec] Device power-up delay [Auto]	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit
Version 2.21.1279 Copyright (C) 2023 AMI

Parameter	Description
USB Configuration
USB Module Version	Displays the USB module version information.
USB Controllers	Displays the supported USB controllers.
USB Devices:	Displays the USB devices connected to the system.
Legacy USB Support	Enable/Disable the Legacy USB support function. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.Options available: Enabled, Disabled, Auto. Default setting is Enabled.
XHCI Hand-off	Enable/Disable the XHCI Hand-off support.Options available: Enabled, Disabled. Default setting is Enabled.
USB Mass Storage Driver Support ^(Note)	Enable/Disable the USB Mass Storage Driver Support.Options available: Disabled, Enabled. Default setting is Enabled.
USB hardware delays and time-outs
USB transfer time-out	Selects the time-out value for USB Control/Bulk/Interrupt transfers.Options available: 1 sec, 5 sec, 10 sec, 20 sec.Default setting is 20 sec.

(Note) This item is present only if you attach USB devices.

Parameter	Description
Device reset time-out	Selects the time-out value during a USB mass storage device reset. Options available: 10 sec, 20 sec, 30 sec, 40 sec. Default setting is 20 sec.
Device power-up delay	Maximum time the device will take before it properly reports itself to the Host Controller. "Auto" uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Options available: Auto, Manual. Default setting is Auto.

2-2-10 Network Stack Configuration

Parameter	Description
Network Stack	Enable/Disable the UEFI network stack.Options available: Enabled, Disabled. Default setting is Enabled.
Ipv4 PXE Support^(Note)	Enable/Disable the lpv4 PXE feature.Options available: Enabled, Disabled. Default setting is Enabled.
Ipv4 HTTP Support^(Note)	Enable/Disable the lpv4 HTTP feature.Options available: Enabled, Disabled. Default setting is Disabled.
Ipv6 PXE Support^(Note)	Enable/Disable the lpv6 PXE feature.Options available: Enabled, Disabled. Default setting is Enabled.
Ipv6 HTTP Support^(Note)	Enable/Disable the lpv6 HTTP feature.Options available: Enabled, Disabled. Default setting is Disabled.
PXE boot wait time^(Note)	Wait time in seconds to press ESC key to abort the PXE boot.Press the <+> / <-> keys to increase or decrease the desired values.
Media detect count^(Note)	Number of times the presence of media will be checked.Press the <+> / <-> keys to increase or decrease the desired values.

(Note) This item appears when Network Stack is set to Enabled.

2-2-11 Post Report Configuration

Parameter	Description
Post Report Configuration
Error Message Report
Post Error Message	Enable/Disable the POST Error Message support. Options available: Enabled, Disabled. Default setting is Enabled.
Halt On	Options available: No Error, All Error. Default setting is No Error.

2-2-12 NVMe Configuration

Parameter	Description
NVMe Configuration	Displays the NVMe devices connected to the system.

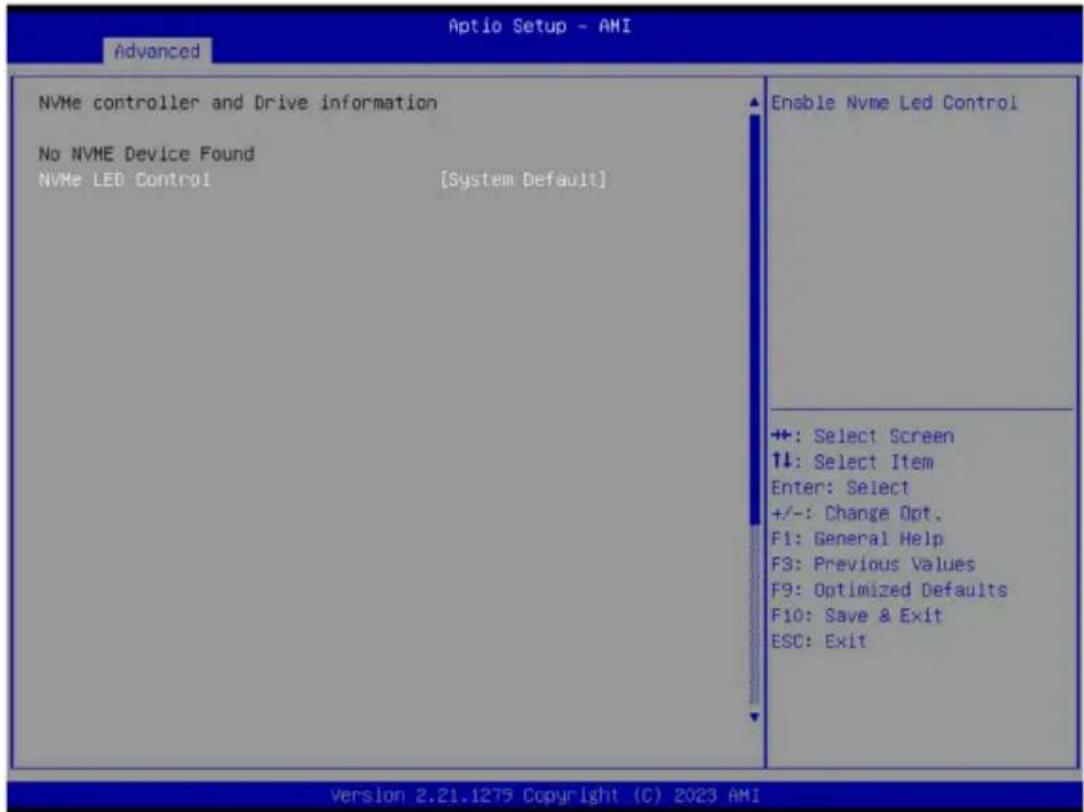

NVMe LED Control	Enable/Disable NVMe LED Control.Options available: System Default, Disabled, Enabled.Default setting is System Default.

2-2-13 SATA Configuration

Parameter	Description
SATA Configuration	Displays the installed HDD devices information. System will automatically detect HDD type.

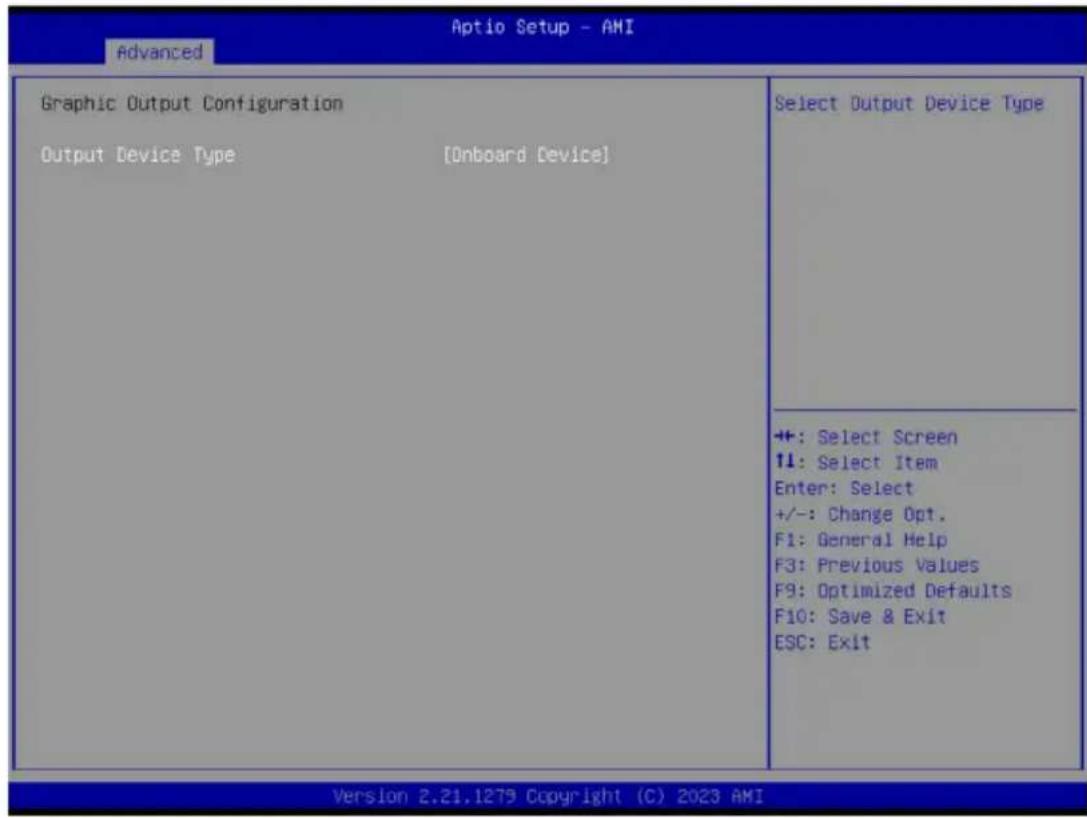

2-2-14 Graphic Output Configuration

Parameter	Description
Output Device Type	Selects output device type. Options available: First loaded Device, Onboard Device, External Device, Specific Device. Default setting is Onboard Device.

2-2-15 AMD Mem Configuration Status

Parameter	Description
CPU 0	Press [Enter] to view the memory configuration status related to CPU 0.

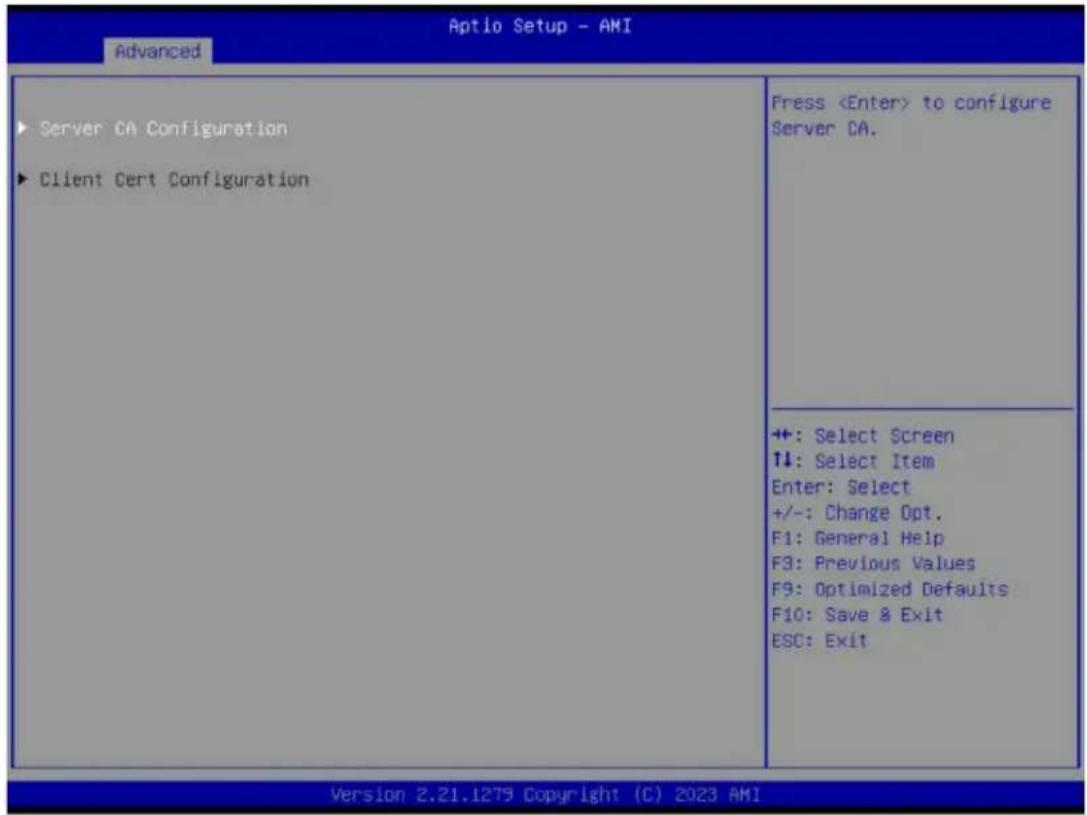

2-2-16 TIs Auth Configuration

Parameter Description
Server CA Configuration	Press [Enter] for configuration of advanced items.◆ Enroll Cert- Press [Enter] to enroll a certificate• Enroll Cert Using File• Cert GUIDInput digit character in 1111111-2222-3333-4444-1234567890ab format.- Commit Changes and Exit- Discard Changes and Exit◆ Delete Cert
Client Cert Configuration	Press [Enter] for configuration of advanced items.

2-2-17 RAM Disk Configuration

Parameter	Description
Disk Memory Type	Specifies the type of memory to use from available memory pool in system to create a disk.Options available: Boot Service Data, Reserved.Default setting isBoot Service Data.
Create Raw	Creates a raw RAM disk.◆ Size (Hex)– Input a valid RAM disk size that should be multiple of the RAM disk block size.◆ Create & Exit◆ Discard & Exit
Create from file	Creates a RAM disk from a given file.
Created RAM disk list
Remove selected RAM disk(s)	Selects the RAM disk(s) to remove.

2-2-18 iSCSI Configuration

Aptio Setup - AMI Advanced
ISCSI Initiator Name ► Add an Attempt ► Delete Attempts ► Change Attempt Order	The worldwide unique name of ISCSI Initiator. Only IQN format is accepted. Range is from 4 to 223
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter	Description
iSCSI Initiator Name	Press [Enter] and name iSCSI Initiator. Only IQN format is accepted. Range: from 4 to 223
Add an Attempt	Press [Enter] to configure advanced items.
Delete Attempts	Press [Enter] to configure advanced items.
Change Attempt Order	Press [Enter] to configure advanced items.

2-2-19 Broadcom BCM57416 10GBASE-T Network Connection

Parameter Description

Firmware Image Menu	Press [Enter] to view firmware image information.
Device Configuration Menu	Press [Enter] to configure advanced items.◆ Multi-Function Mode– Configures the NIC Hardware Mode.– Options available: SF, NPAR 1.0. Default setting isSF.◆ SR-IOV– Enable/Disable Single Root I/O Virtualization.– Options available: Disabled, Enabled. Default setting isDisabled.◆ Number of MSI-X Vectors per VF– Configures the number of MSI-X Vectors per VF (0-128).– Default setting is16.◆ Maximum Number of PF MSI-X Vectors– Configures the maximum number of PF MSI-X Vectors (0-512 per controller).– Default setting is74.◆ Energy Efficient Ethernet– Enable/Disable Energy Efficient Ethernet operation.– Options available: Disabled, Enabled. Default setting isDisabled.◆ Operational Link Speed– Configures the link speed setting to be used as the default link speed for the selected port.– Options available: AutoNeg. Default setting isAutoNeg.
Parameter	Description
Device Configuration Menu (continued)	Support RDMA- Enable/Disable RDMA support for this port.- Options available: Disabled, Enabled. Default setting is Disabled.DCB Protocol- Enable/Disable DCB protocol.- Options available: Disabled, Enabled (IEEE only), CEE (only), Both (IEEE preferred with fallback to CEE). Default setting is Disabled.LLDP nearest bridge- Enable/Disable LLDP nearest bridge state.- Options available: Disabled, Enabled. Default setting is Enabled.Default EVB Mode- Configures the default Edge Virtual Bridging mode.- Options available: VEB, VEPA, None. Default setting is VEB.Enable PME Capability- Enable/Disable PME Capability support.- Options available: Disabled, Enabled. Default setting is Enabled.Flow Offload- Options available: Enabled, Disabled. Default setting is Disabled.Live Firmware Upgrade- Options available: Enabled, Disabled. Default setting is Disabled.Adapter Error Recovery- Options available: Enabled, Disabled. Default setting is Disabled.
MBA Configuration Menu	Press [Enter] to configure advanced items.Option ROM- Enable/Disable Boot Option ROM.- Options available: Disabled, Enabled. Default setting is Enabled.Legacy Boot Protocol- Selects non-UEFI Boot Protocol: Preboot Execution Environment (PXE)/iSCSI.- Options available: PXE, iSCSI, NONE. Default setting is PXE.Bot Strap Type- Selects the boot strap type. Options available: Auto Detect, BBS, Int 18h, Int 19h. Default setting is Auto Detect.Hide Setup Prompt- Configures whether the Setup Prompt is displayed during ROM initialization.- Options available: Disabled, Enabled. Default setting is Disabled.Setup Key Stroke- Configures key strokes to invoke the configuration menu.- Options available: Ctrl-S, Ctrl-B. Default setting is Ctrl-S.banner Message Timeout- Selects the timeout value. (0 defaults to 4 seconds, 15 is no delay, 1-14 is timeout value in seconds)- Default setting is 5.
Parameter Description
MBA Configuration Menu (continued)	◆ Pre-boot Wake On LAN– Configures Pre-boot Wake on LAN (WOL).– Options available: Disabled, Enabled. Default setting is Enabled.◆ VLAN Mode– Configures the virtual LAN (VLAN) mode.– Options available: Disabled, Enabled. Default setting is Disabled.◆ VLAN ID– Configures the VLAN ID (1...4094).– This item is available only when VLAN Mode is Enabled.◆ Boot Retry Count– Selects the number of boot retries.– Options available: No Retry, 1 Retry, 2 Retries, 3 Retries, 4 Retries, 5 Retries, 6 Retries, Indefinite Retries. Default setting is No Retry.
iSCSI Boot Configuration Menu	Press [Enter] to configure advanced items.
Blink LEDs	Identifies the physical network port by blinking the associated LED.Press the numeric keys to adjust desired values.
Link Status	Specifies the link status of the port.
Physical Link Speed	Displays the technical specifications for the Network Interface Controller.
Chip Type	Displays the technical specifications for the Network Interface Controller.
PCI Device ID	Displays the technical specifications for the Network Interface Controller.
Bus:Device:Function	Displays the technical specifications for the Network Interface Controller.
Permanent MAC Address	Displays the MAC address of the Ethernet controller.
Virtual MAC Address	Displays the virtual MAC address of the Ethernet controller.
Restore Defaults	Resets the adapter to factory defaults.

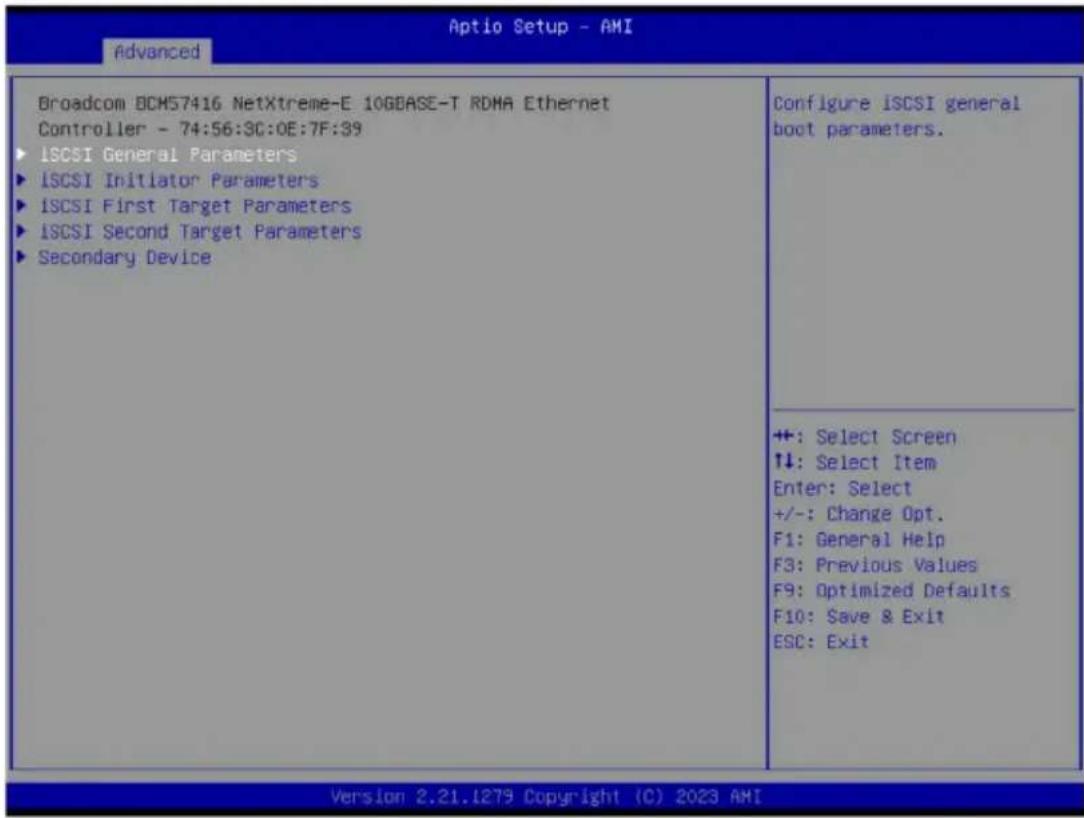

2-2-19-1 iSCSI Boot Configuration Menu

Parameter Description

iSCSI General Parameters	Press [Enter] to configure advanced items.◆ TCP/IP Parameters via DHCP- Acquires TCP/IP Parameters via DHCP.- Options available: Disabled, Enabled. Default setting is Enabled.◆ IP Autoconfiguration- Auto-configures the IP configuration.◆ iSCSI Parameters via DHCP- Acquires iSCSI Parameters via DHCP.- Options available: Disabled, Enabled. Default setting is Disabled.◆ CHAP Authentication- Enable/Disable the CHAP authentication.- Options available: Disabled, Enabled. Default setting is Disabled.◆ Boot to iSCSI Target- Enable/Disable booting to iSCSI target after log-on.- Options available: Disabled, Enabled, One Time Disabled. Default setting is Enabled.◆ DHCP Vendor ID- Configures the DHCP vendor ID (up to 32 characters long).◆ Link Up Delay Time- Configures the link up delay time in seconds (0-225).
Parameter	Description
iSCSI General Parameters (continued)	Use TCP Timestamp- Enable/Disable the TCP timestamp.- Options available: Disabled, Enabled. Default setting isDisabled.Target as First HDD- Enable/Disable target appears as first hard disk drive (HDD) in the system.- Options available: Disabled, Enabled. Default setting isDisabled.LUN Busy Retry Count- Configures the number of retries in 2 second intervals when LUN is busy (0-60).- Default setting is0.IP Version- Displays the IP version supported. Modifying this parameter will reset all IP-related fields.- Options available: IPv4, IPv6. Disabled. Default setting isIPv4.
iSCSI Initiator Parameters	Press [Enter] to configure advanced items.IP Address- Configures the initiator IP address.Subnet Mask- Configures the IP subnet mask.Default Gateway- Configures the default gateway IP address.Primary DNS- Configures the primary DNS IP address.Secondary DNS- Configures the secondary DNS IP address.iSCSI Name- Configures the iSCSI name.CHAP ID- Configures the Challenge-Handshake Authentication Protocol (CHAP) ID (up to 128 characters in length).CHAP Secret- Configure the Challenge-Handshake Authentication Protocol (CHAP) Secret (12 to 16 characters in length).
iSCSI First/Second Target Parameters	Press [Enter] to configure advanced items.Connect- Enable/Disable the target establishment.- Options available: Disabled, Enabled. Default setting isDisabled.IP Address- Configures the Target IP address.TCP Port- Configures the Target TCP port number (1-65535).
iSCSI First/Second Target Parameters (continued)	◆ Boot LUN– Configures the Target boot LUN number (0-255).◆ iSCSI Name– Configures the iSCSI name.◆ CHAP ID– Configures the Challenge-Handshake Authentication Protocol (CHAP) ID (up to 128 characters in length).◆ CHAP Secret– Configure the Challenge-Handshake Authentication Protocol (CHAP) Secret (12 to 16 characters in length).
Secondary Device	Press [Enter] to configure advanced items.◆ Secondary Device– Inputs the secondary device MAC address.◆ Use Independent Target Portal– Use Independent target portal when multipath I/O is enabled.– Options available: Disabled, Enabled. Default setting is Disabled.◆ Use Independent Target Name– Use Independent target name when multipath I/O is enabled.– Options available: Disabled, Enabled. Default setting is Disabled.

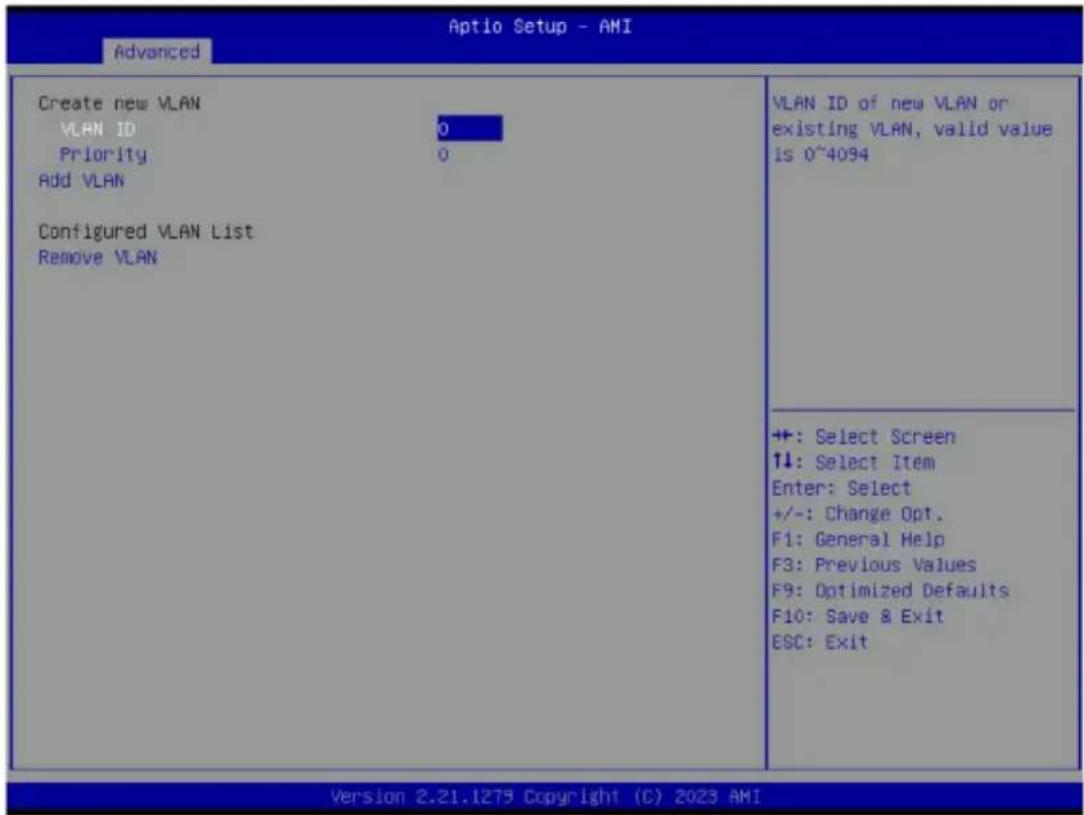

2-2-20 VLAN Configuration

Parameter

Description

Enter Configuration Menu

Press [Enter] to configure advanced items.◆ Create new VLAN◆ VLAN ID- Sets VLAN ID for a new VLAN or an existing VLAN.- Press the <+> / <-> keys to increase or decrease the desired values.- The valid range is from 0 to 4094.◆ Priority- Sets 802.1Q Priority for a new VLAN or an existing VLAN.- Press the <+> / <-> keys to increase or decrease the desired values.- The valid range is from 0 to 7.◆ Add VLAN- Press [Enter] to create a new VLAN or update an existing VLAN.◆ Configured VLAN List◆ Remove VLAN- Press [Enter] to remove an existing VLAN.

2-2-21 MAC IPv4 Network Configuration

Parameter Description

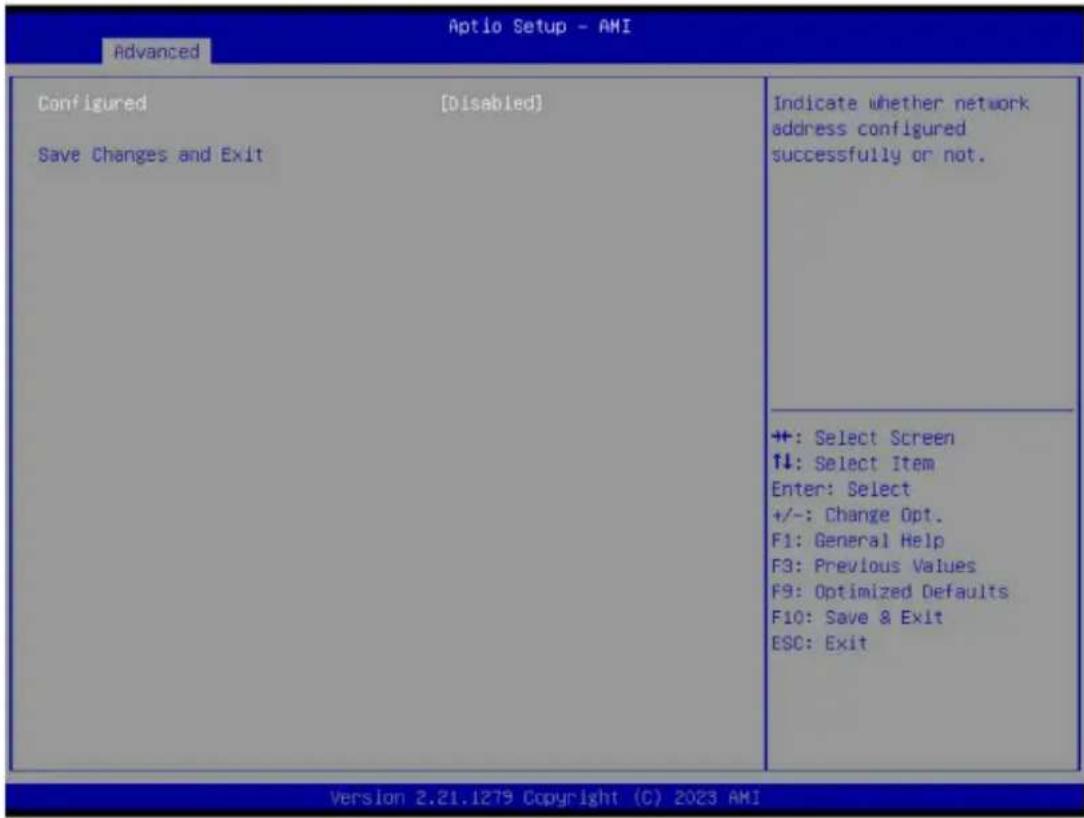

Configured	Indicates whether network address is configured successfully or not. Options available: Enabled, Disabled. Default setting is Disabled.
Enable DHCP ^(Note)	Options available: Enabled, Disabled. Default setting is Disabled.
Local IP Address ^(Note)	Press [Enter] to configure local IP address.
Local NetMask ^(Note)	Press [Enter] to configure local NetMask.
Local Gateway ^(Note)	Press [Enter] to configure local Gateway
Local DNS Servers ^(Note)	Press [Enter] to configure local DNS servers
Save Changes and Exit Press [Enter] to save all configurations.

(Note) This item appears when Configured is set to Enabled.

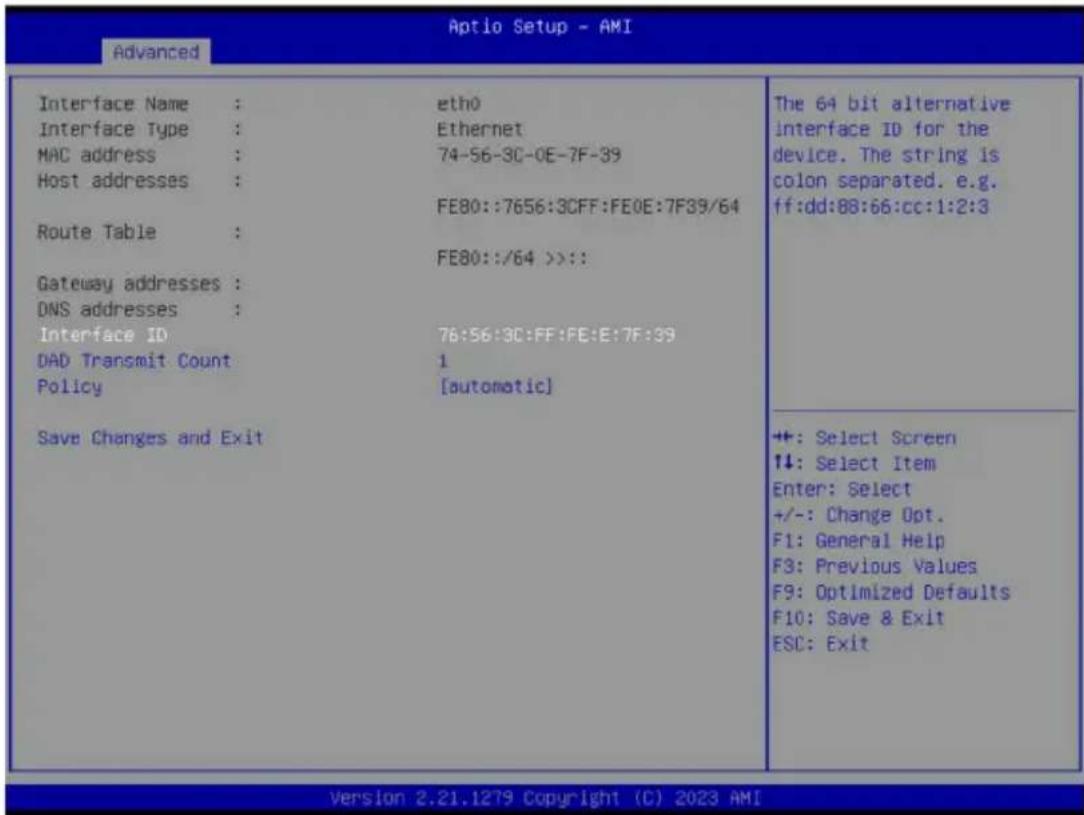

2-2-22 MAC IPv6 Network Configuration

Parameter

Description

Enter Configuration Menu

Press [Enter] to configure advanced items.◆ Displays the MAC Address information.◆ Interface ID- The 64 bit alternative interface ID for the device. The string is colon separated. e.g. ff:dd:88:66:cc:1:2:3.◆ DAD Transmit Count- The number of consecutive Neighbor solicitation messages sent while performing Duplicate Address Detection on a tentative address.A value of zero indicates that Duplicate Address Detection is not performed.◆ Policy- Options available: automatic, manual. Default setting is automatic.◆ Save Changes and Exit- Press [Enter] to save all configurations.

2-3 AMD CBS Menu

AMD CBS menu displays submenu options for configuring the CPU-related information that the BIOS automatically sets. Select a submenu item, then press [Enter] to access the related submenu screen.

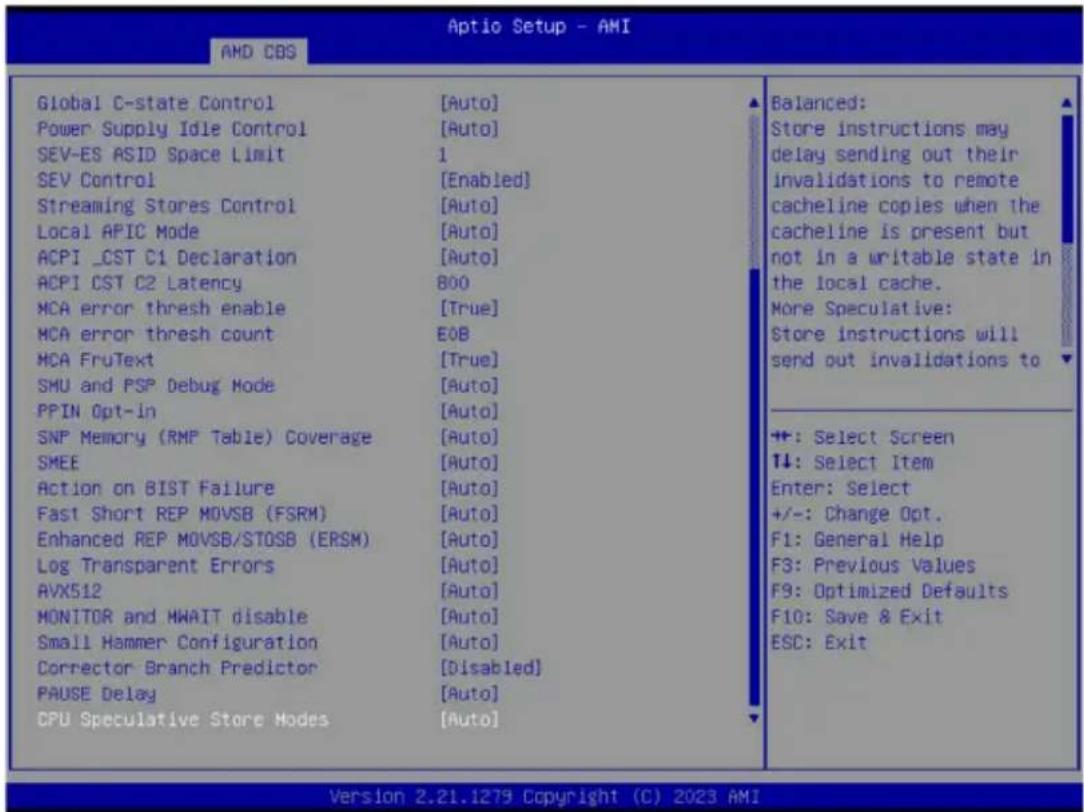

2-3-1 CPU Common Options

Parameter Description
CPU Common Options
Performance Press [Enter] for configuration of advanced items.
REP-MOV/STOS Streaming	Allow REP-MOV/STOS to use non-caching streaming stores for large sizes. Options available: Disabled, Enabled. Default setting is Enabled.
Prefetcher settings Press [Enter] for configuration of advanced items.
Core Watchdog Press [Enter] for configuration of advanced items.
RedirectForReturnDis	From a workaround for GCC/C000005 issue for XV Core on CZ A0, setting MSRC001_1029 Decode Configuration (DE_CFG) bit 14 [DecfgNoRdrctForReturns] to 1. Options available: Auto, 1, 0. Default setting is Auto.
Platform First Error Handling	Enable/Disable PFEH, cloak individual banks, and mask deferred error interrupts from each bank. Options available: Enabled, Disabled, Auto. Default setting is Auto.
Core Performance Boost	Enable/Disable the Core Performance Boost function. Options available: Disabled, Auto. Default setting is Auto.
Global C-state Control	Controls the IO based C-state generation and DF C-states. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Power Supply Idle Control	Configures the Power Supply Idle Control. Options available: Low Current Idle, Typical Current Idle, Auto. Default setting is Auto.
SEV-ES ASID Space Limit	Configures the Space limit for SEV-ES ASIDs. Default setting is 1.
SEV Control	Enable/Disable SEV control. Options available: Enable, Disable. Default setting is Enable.
Streaming Stores Control	Enable/Disable the Streaming Stores functionality. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Local APIC Mode	Sets the Local APIC Mode. Options available: Compatibility, xAPIC, x2APIC, Auto. Default setting is Auto.
ACPI_CST C1 Declaration	Determines whether or not to declare the C1 state to the OS.. Options available: Disabled, Enabled, Auto. Default setting is Auto.
MCA error thresh enable	Enable MCA error thresholding. Options available: False, True, Auto. Default setting is True.
MCA error thresh count	Effective error threshold count = 0xFFFF(4095) - <this value> (e.g. the default value of 0xFF5(4085) results in a threshold of 0xA (10)).
MCA FruText	Enable MCA FruText. Options available: False, True. Default setting is Auto.
SMU and PSP Debug Mode	When this option is enabled, specific uncorrected errors detected by the PSP FW or SMU FW will hand and not reset the system. Options available: Disabled, Enabled, Auto. Default setting is Auto.
PPIN Opt-in	Enable/Disable the PPIN feature. Options available: Disabled, Enabled, Auto. Default setting is Auto.
SNP Memory (RMP Table)Coverage	Enabled: Enter system memory is covered.Options available: Disabled, Enabled, Custom, Auto.Default setting isAuto.
SMEE	Controls the Secure Memory Encryption Enable (SMEE) function.Options available: Disable, Enable, Auto. Default setting isAuto.
Action on BIST Failure	Action to take when a CCD BIST failure is detected.Options available: Do nothing, Down-CCD, Auto. Default setting isAuto.
Fast Short REP MOVSB(FSRM)	Options available: Disabled, Enabled, Auto. Default setting isAuto.
Enhanced REP MOVSB/STOSB (ERMSB)	Options available: Disabled, Enabled, Auto. Default setting isAuto.
Log Transparent Errors	Enable/Disable the log Transparent errors function.Options available: Auto, Disabled, Enabled. Default setting isAuto.
AVX512	Enable/Disable AVX512.Options available: Disabled, Enabled, Auto. Default setting isAuto.
MONITOR and MWAIT disable	The MONITOR, MWAIT, MONITORX and MWAITX opcodes become invalid when enabled.Options available: Enabled, Disabled, Auto. Default setting isAuto
Small Hammer Configuration	Options available: Disabled, Enabled, Auto. Default setting isAuto.
Corrector Branch Predictor Options available: Disable, Enable. Default setting isDisable.
PAUSE Delay	Number a cycles thread will be idle after a PAUSE instruction.Options available: Auto, Disable, 16 cycles, 32 cycles, 64 cycles, 128 cycles. Default setting isAuto.
CPU Speculative Store Modes	Select the CPU speculative store modes.Options available: Balanced, More Speculative, Less Speculative, Auto.Default setting isAuto.

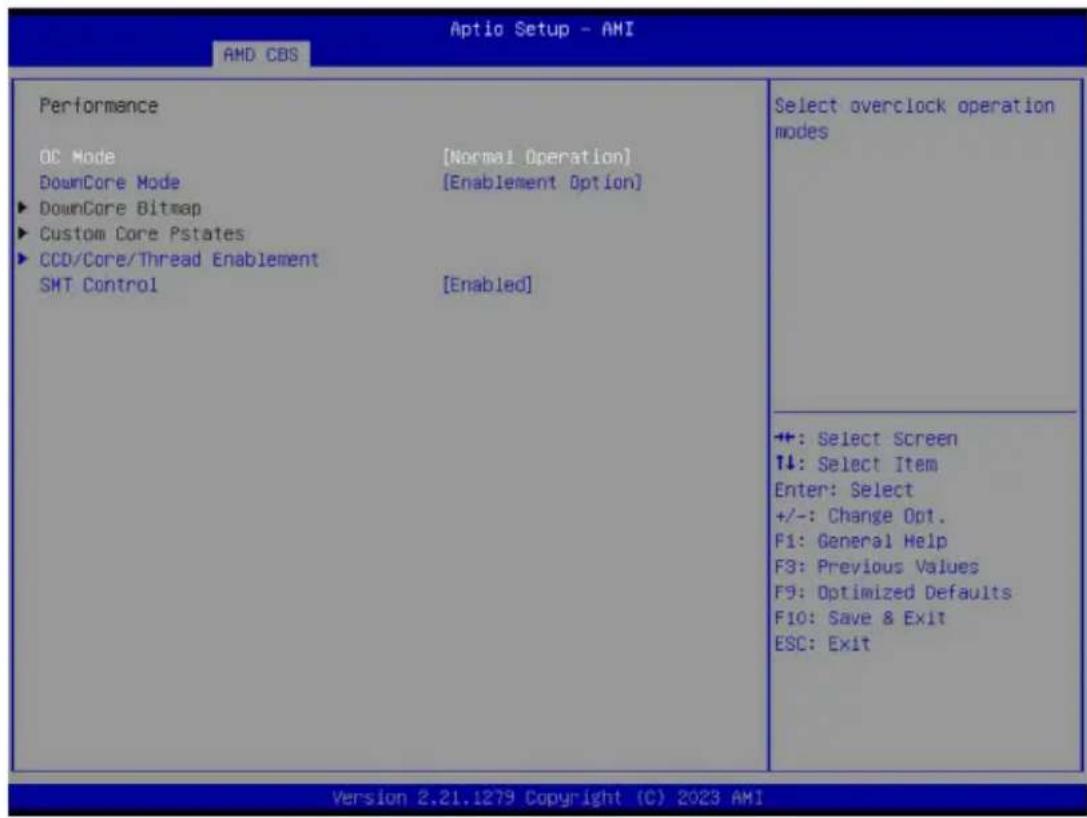

2-3-1-1 Performance

Parameter Description

Performance
OC Mode(Note)	Options available: Normal Operation, Customized. Default setting is Normal Operation.
DownCore Mode(Note)	Options available: Enablement Option, Bitmap.Default setting is Enablement Option.
DownCore Bitmap Bitmap to select which core in the CCD should be down.
Custom Core Pstates	Allows you to accept or decline enabling Custom Core Pstates. When accepted, you can disable or customize core pstates.
CCD/Core/Thread Enablement	Allows you to accept or decline enabling CCDs, processor cores and threads. When accepted, you can control the number of CCDs to be used, and the number of cores to be used.CCD Control- Options available: Auto, 2 CCDs, 4 CCDs, 6 CCDs. Default setting is Auto.Core Control- Options available: Auto, TWO(1+1), FOUR(2+2), SIX(3+3), EIGHT(4+4), TEN(5+5), TWELVE(6+6).- Default setting is Auto.
SMT Control	Can be used to disable symmetric multithreading. To re-enable SMT, a POWER CYCLE is needed after select the 'Enable' option. Select 'Auto' base on BIOS PCD. (PcdAmdSmtMode) default setting.Options available: Disable, Enable, Auto. Default setting is Enable.

(Note) Advanced items are configurable when this item is defined.

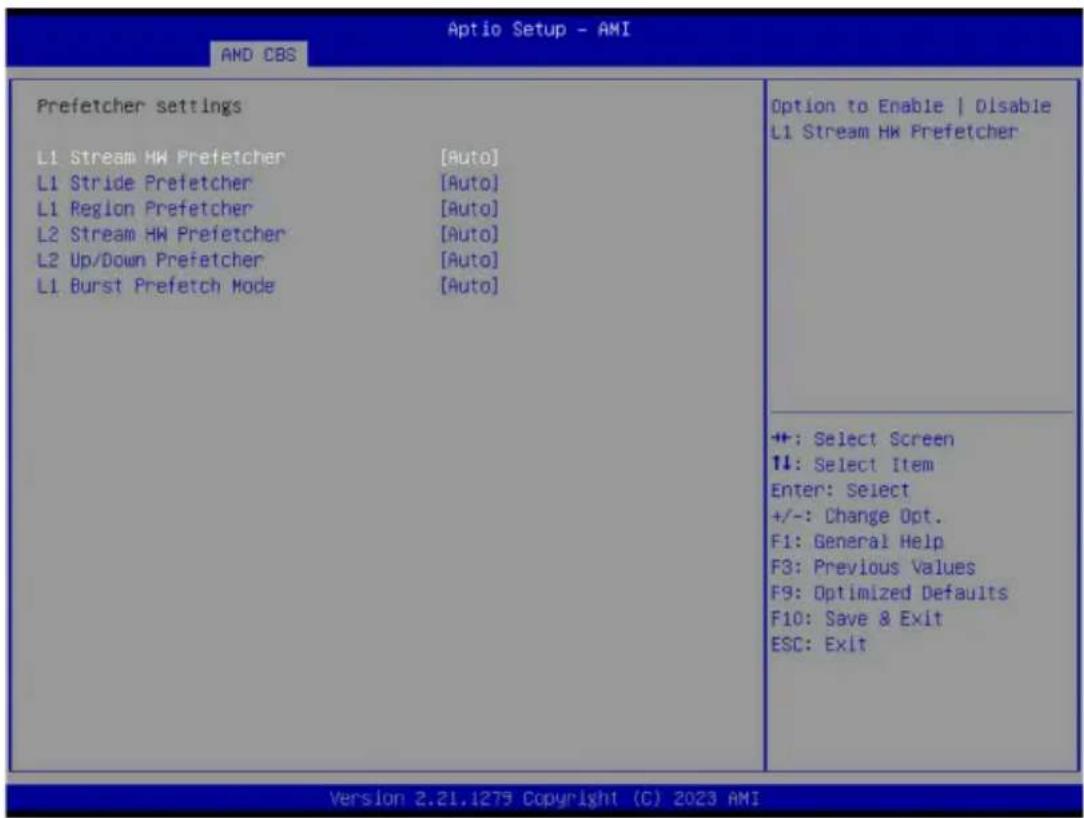

2-3-1-2 Prefetcher Settings

Parameter Description
Prefetcher settings
L1 Stream HW Prefetcher	Enable/Disable L1 Stream HW Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L1 Stride Prefetcher	Use memory access history of individual instructions to fetch additional lines when each access is a constant distance from the previous.Enable/Disable L1 Stride Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L1 Region Prefetcher	Use memory access history to fetch additional lines when the data access for a given instruction tends to be followed by other data accesses.Enable/Disable L1 Region Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L2 Stream HW Prefetcher	Enable/Disable L2 Stream HW Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L2 Up/Down Prefetcher	Use memory access history to determine whether to fetch the next or previous line for all memory accesses.Enable/Disable L2 Up/Down Prefetcher.Options available: Disable, Enable, Auto. Default setting isAuto.
L1 Burst Prefetch Mode	Enable/Disable L1 Burst Prefetch Mode.Options available: Disable, Enable, Auto. Default setting isAuto.

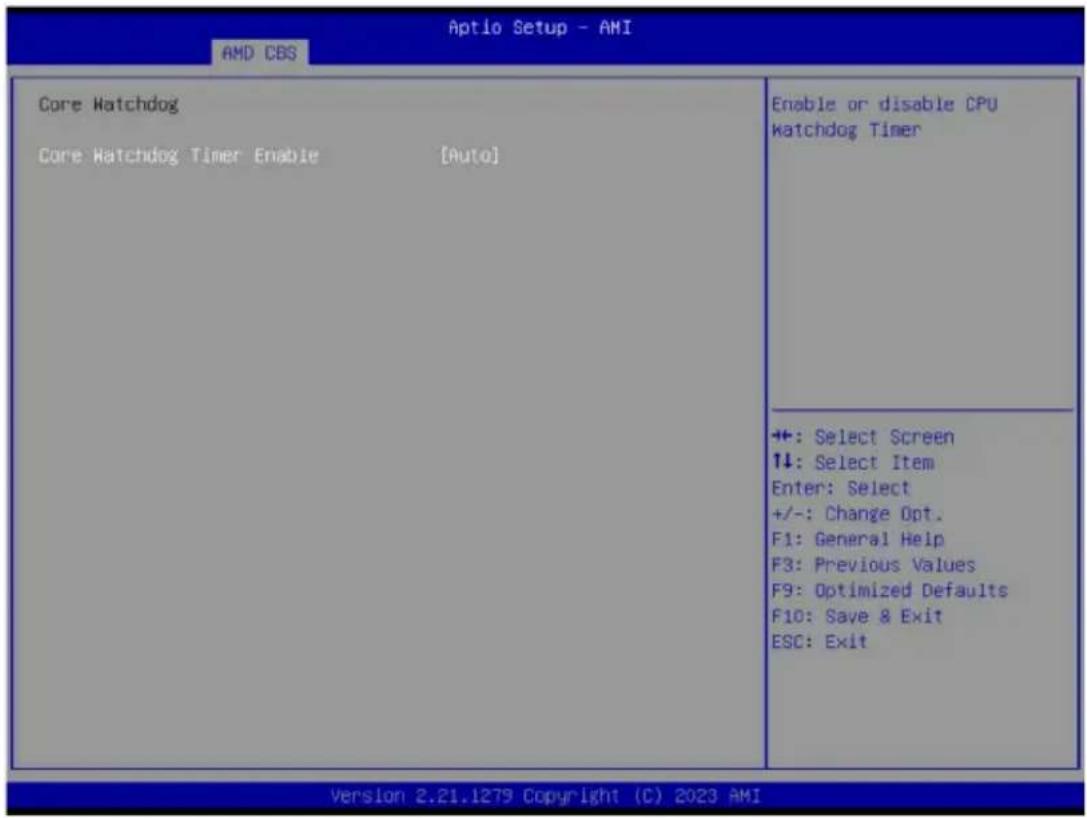

2-3-1-3 Core Watchdog

Parameter Description

Core Watchdog
Core Watchdog Timer Enable ^(Note)	Enable/Disable CPU Watchdog Timer.Options available: Disabled, Enabled, Auto. Default setting isAuto.
Core Watchdog Timer Interval	Select the CPU Watchdog Timer interval.Options available: 2.681s, 1.340s, 669.41ms, 334.05ms, 166.37ms, 82.53ms, 40.61ms, 20.970ms, 10.484ms,5.241ms, 2.620ms, 1.309ms, 654.08us, 326.4us, 162.56us, 80.64us, 39.68us, Auto.Default setting isAuto.

(Note) Advanced items prompt when this item is defined.

2-3-2 DF Common Options

Parameter Description
DF Common Options
Memory Addressing Press [Enter] for configuration of advanced items.
ACPI Press [Enter] for configuration of advanced items.
Link Press [Enter] for configuration of advanced items.
SDCI Press [Enter] for configuration of advanced items.
DF Watchdog Timer Interval	Configures the Data Fabric watchdog timer interval. Options available: Auto, 41ms, 166ms, 334ms, 669ms, 1.34 seconds, 2.68 seconds, 5.36 seconds. Default setting is Auto.
Disable DF to external IP sync flood propagation	Enable/Disable SyncFlood to UMC & downstream slaves. Options available: Sync flood disabled, Sync flood enabled, Auto. Default setting is Auto.
Sync flood propagation to DF Components	Enable/Disable DF Sync Flood propagation. Options available: Sync flood disabled, Sync flood enabled, Auto. Default setting is Auto.
Freeze DF module queues on error	Options available: Disabled, Enabled, Auto. Default setting is Auto.
CC6 memory region encryption	Controls whether or not the CC6 save/restor memory is encrypted. Options available: Disabled, Enabled, Auto. Default setting is Auto.
CCD B/W Balance Throttle Level	Options available: Auto, Level 0, Level 1, Level 2, Level 3, Level 4. Default setting is Auto.

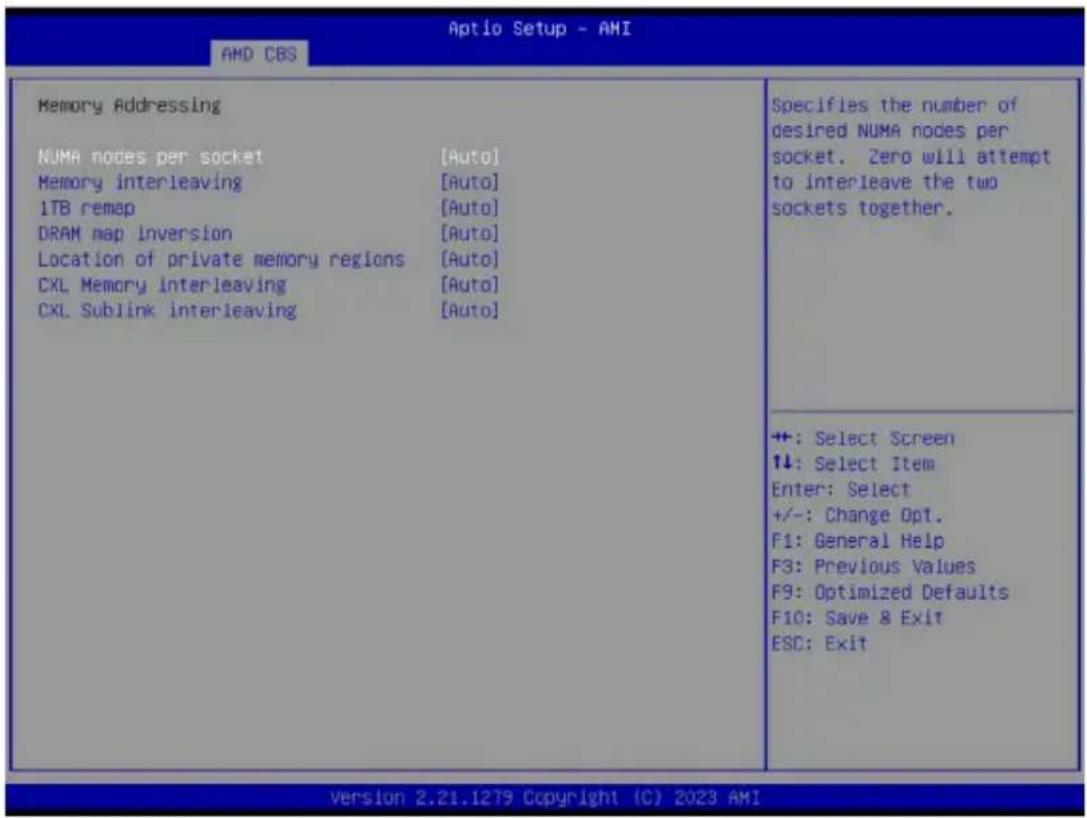

2-3-2-1 Memory Addressing

Parameter Description
Memory Addressing
NUMA nodes per socket	Specifies the number of desired NUMA nodes per socket. Options available: NPS0, NPS1, Auto. Default setting is Auto.
Memory interleaving	Enable/Disable the Memory interleaving feature. Options available: Disabled, Auto, Enabled. Default setting is Auto.
1TB remap	Enable/Disable to remap DRAM out of the space just below the 1TB boundary. The ability to remap depends on DRAM configuration, NPS, and interleaving selection, and may not always be possible. Options available: Do not remap, Attempt to remap, Auto. Default setting is Auto.
DRAM map inversion	Enable/Disable the DRAM map inversion function. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Location of private memory regions	Controls whether or not the private memory regions (PSP, SMU and CC6) are at the top of DRAM or distributed. Options available: Distributed, Consolidated, Auto. Default setting is Auto.
CXL Memory interleaving Options available: Disabled, Enabled, Auto. Default setting is Auto.
CXL Sublink interleaving Options available: Enable, Disable, Auto. Default setting is Auto.

2-3-2-2 ACPI

Parameter Description

ACPI
ACPI SRAT L3 Cache As NUMA Domain	Enable/Disable report each L3 cache as a NUMA Domain to the OS. Options available: Disabled, Enabled, Auto. Default setting is Auto.
ACPI SLIT Distance Control	Determines how the SLIT distances are declared. Options available: Manual, Auto. Default setting is Auto.
ACPI SLIT remote relative distance	Sets the remote socket distance for 2P systems as near (2.8) or far (3.2). Options available: Near, Far, Auto. Default setting is Auto.

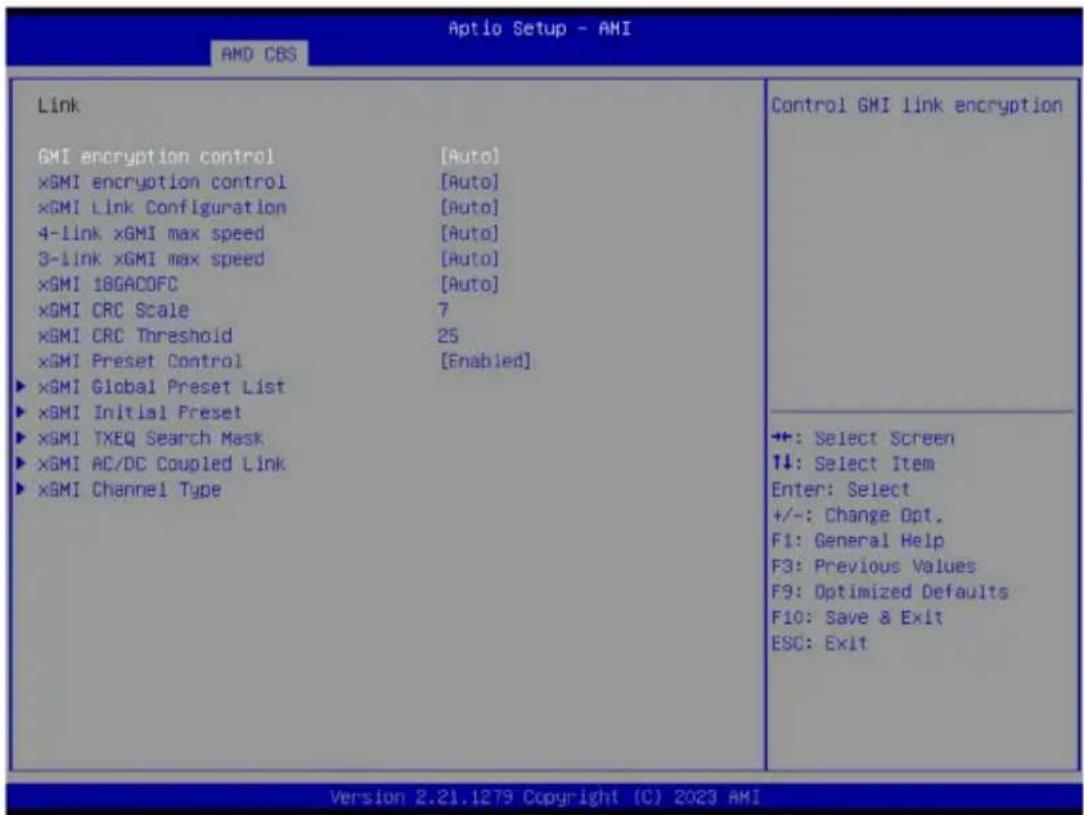

2-3-2-3 Link

Parameter Description
GMI encryption control	Enable/Disable GMI link encryption. Options available: Disabled, Enabled, Auto. Default setting is Auto.
xGMI encryption control	Enable/Disable xGMI link encryption. Options available: Disabled, Enabled, Auto. Default setting is Auto.
xGMI Link Configuration	Configures the number of xGMI2 links used on a multi-socket system. Options available: Auto, 3 xGMI Links, 4 xGMI Links. Default setting is Auto.
4-link xGMI max speed	Specifies the max speed of 4-link xGMI. Options available: 12Gbps, 16Gbps, 17Gbps, 18Gbps, 20Gbps, 22Gbps, 23Gbps, 24Gbps, 25Gbps, 26Gbps, 27Gbps, 30Gbps, 32Gbps, Auto. Default setting is Auto.
3-link xGMI max speed	Specifies the max speed of 3-link xGMI. Options available: 12Gbps, 16Gbps, 17Gbps, 18Gbps, 20Gbps, 22Gbps, 23Gbps, 24Gbps, 25Gbps, 26Gbps, 27Gbps, 30Gbps, 32Gbps, Auto. Default setting is Auto.
xGMI 18GACOFC	Configures xGMI 18GACOFC. Options available: Auto, Enable, Disable. Default setting is Auto.
xGMI CRC Scale	Configures leaky bucket scale for xGMI and WAFL CRC errors. Every scale milliseconds an error will leak from the CRC counter. Default setting is 7.
xGMI CRC Threshold	Configures leaky bucket threshold for xGMI and WAFL CRC errors. If link CRC counter exceeds this threshold, an error will be logged. Default setting is 25.
xGMI Preset Control	Enable/Disable xGMI Preset control. Options available: Disabled, Enabled, Auto. Default setting is Auto.
xGMI Global Preset List Press [Enter] to configure the xGMI Preset list.
xGMI Initial Preset Press [Enter] to configure the xGMI Initial Preset CPU0/1 link.
xGMI TXEQ Search Mask Press [Enter] to configure the xGMI TXEQ Search Mask CPU0/1 link.
xGMI AC/DC Coupled Link	Press [Enter] to configure the xGMI AC/DC Coupled link.♦ xGMI AC/DC Coupled Link Control ^(Note) – Options available: Manual, Auto. Default setting isAuto.
xGMI Channel Type	Press [Enter] to configure the xGMI Channel Type.♦ xGMI Channel Type Control ^(Note) – Options available: Manual, Auto. Default setting isAuto.

(Note) Advanced items prompt when this item is defined.

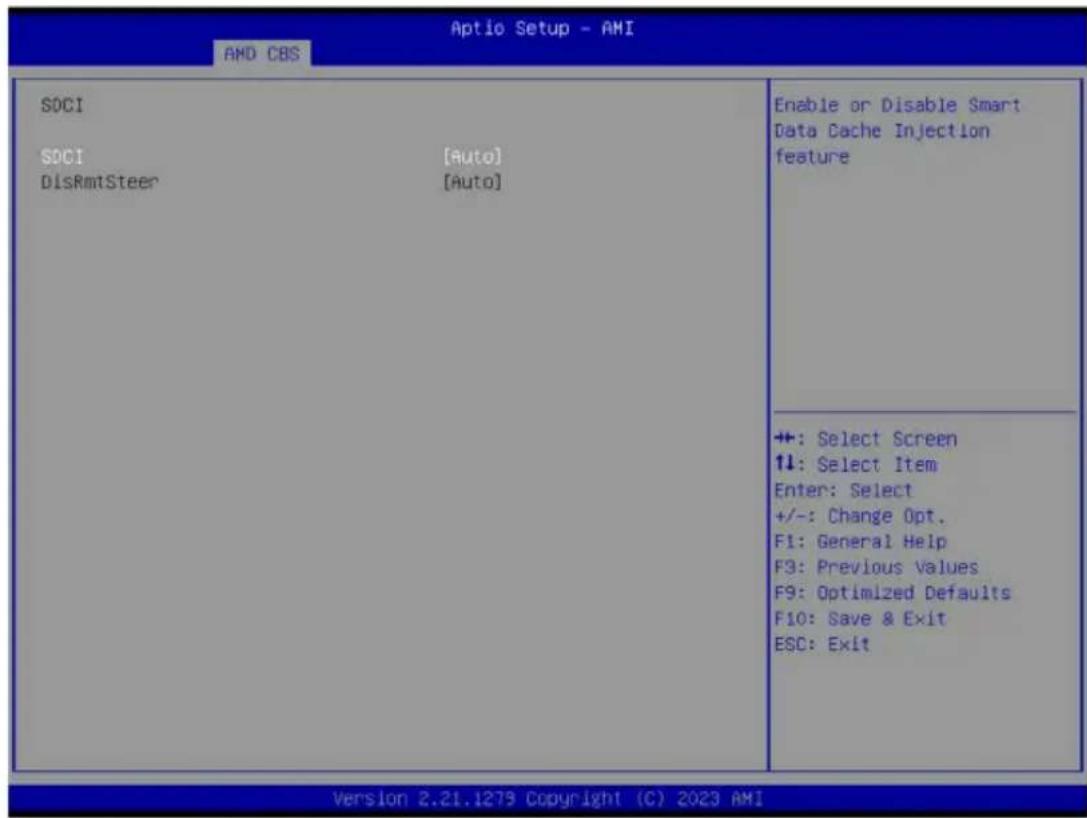

2-3-2-4 SDCI

Parameter Description

SDCI ^(Note)

Options available: Disabled, Enabled, Auto. Default setting is Auto.

DisRmSteer Options available: Disabled, Enabled, Auto. Default setting is Auto.

(Note) Advanced items prompt when this item is defined.

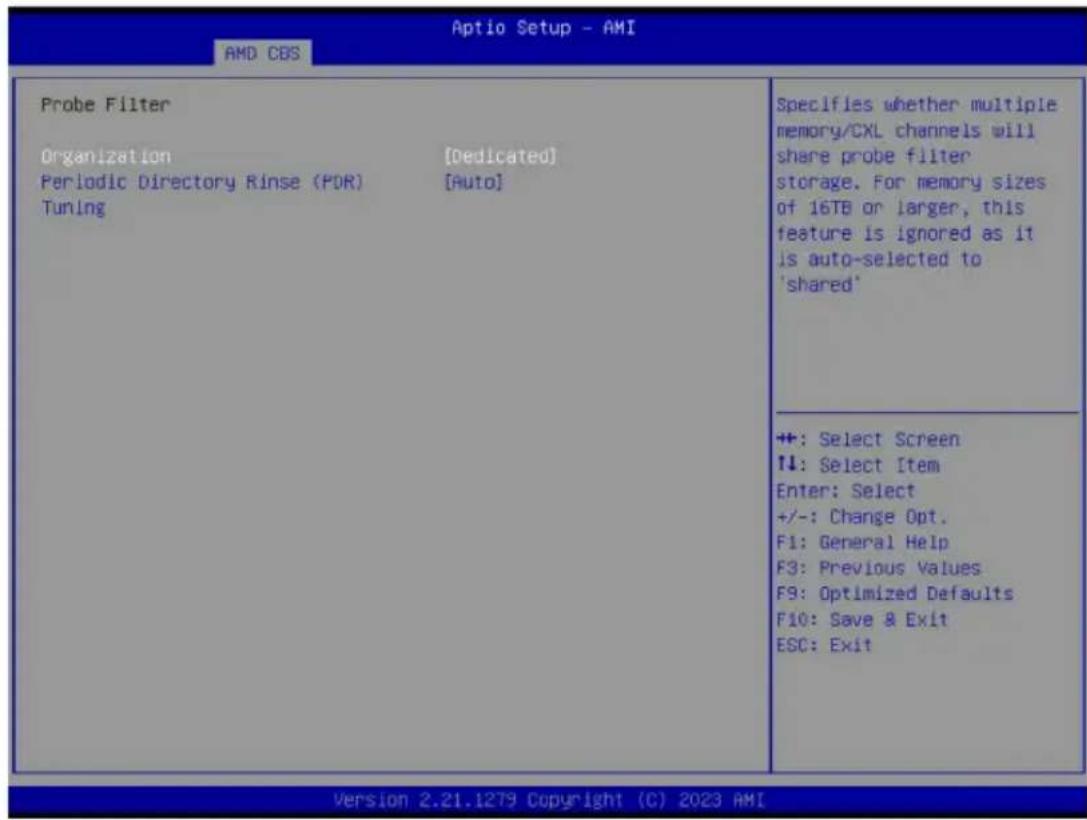

2-3-2-5 Probe Filter

Parameter Description
Organization	Specifies whether multiple memory/CXL channels will share probe filter storage. Options available: Auto, Dedicated, Shared. Default setting is Dedicated.
Periodic Directory Rinse (PDR) Tuning	Controls PDR settings that may impact performance by workload and/or processor. Options available: Memory-Sensitive, Cache-Bound, Neutral, Auto. Default setting is Auto.

2-3-3 UMC Common Options

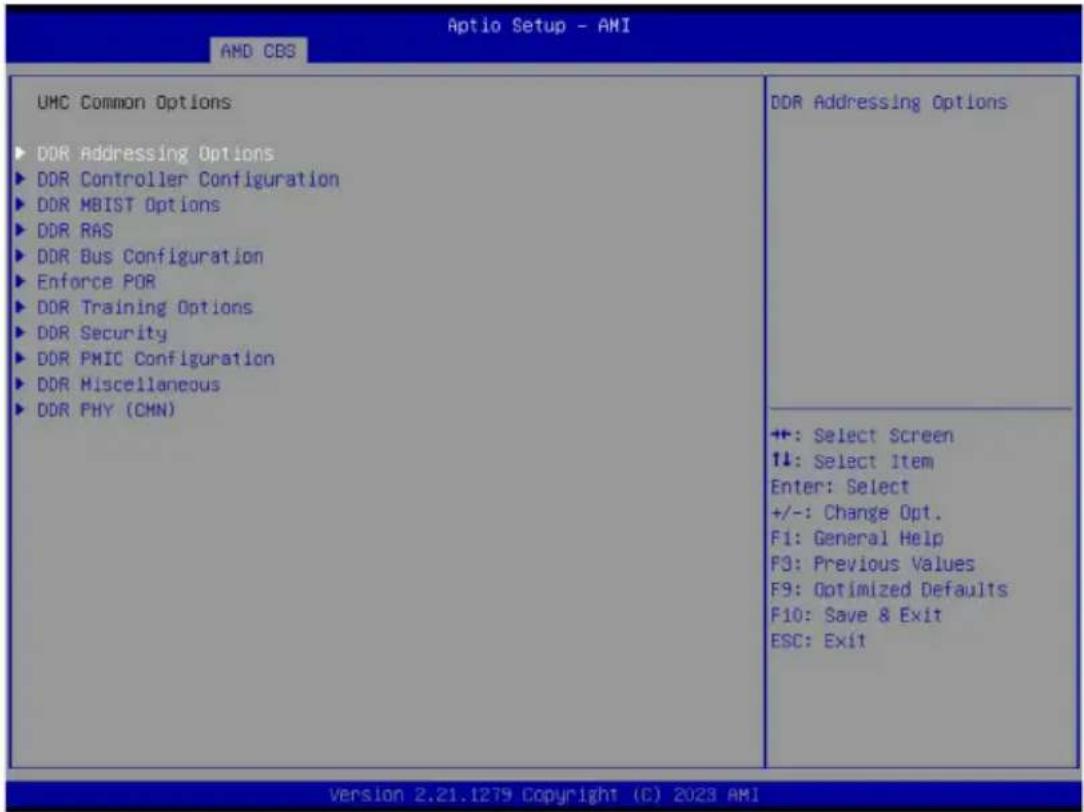

Parameter Description

UMC Common Options

DDR Addressing Options Press [Enter] for configuration of advanced items.

DDR Controller Configuration Press [Enter] for configuration of advanced items.

DDR MBIST Options Press [Enter] for configuration of advanced items.

DDR RAS Press [Enter] for configuration of advanced items.

DDR Bus Configuration Press [Enter] for configuration of advanced items.

Enforce POR Press [Enter] for configuration of advanced items.

DDR Training Options Press [Enter] for configuration of advanced items.

DDR Security Press [Enter] for configuration of advanced items.

DDR PMIC Configuration Press [Enter] for configuration of advanced items.

DDR Miscellaneous Press [Enter] for configuration of advanced items.

DDR PHY (CMN) Press [Enter] for configuration of advanced items.

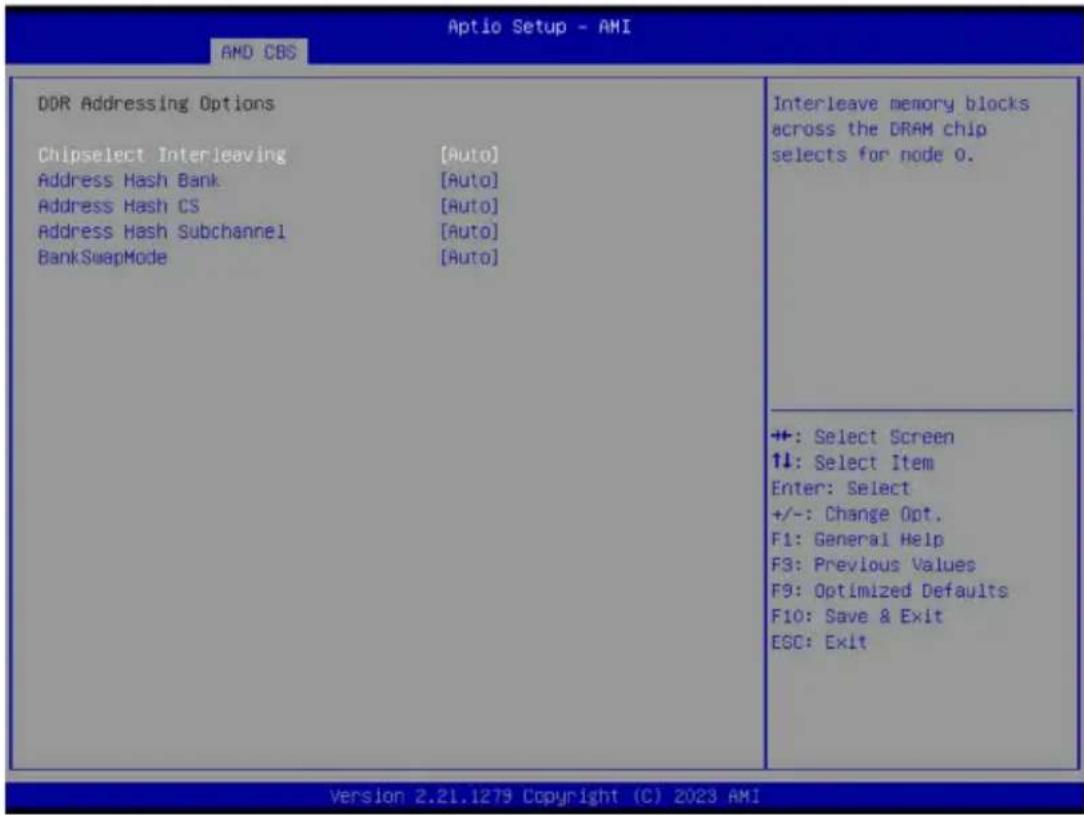

2-3-3-1 DDR Addressing Options

Parameter Description
DDR Addressing Options
Chipselect Interleaving	Interleaves memory blocks across the DRAM chip selects for node 0. Options available: Disabled, Auto. Default setting isAuto.
Address Hash Bank	Enable or disable bank addressing hashing. Options available: Disabled, Enabled, Auto. Default setting isAuto.
Address Hash CS	Enable or disable CS addressing hashing. Options available: Auto, Enabled, Disabled. Default setting isAuto.
Address Hash Rm	Enable or disable RM addressing hashing. Options available: Auto, Enabled, Disabled. Default setting isAuto.
Address Hash Subchannel	Enable or disable sub-channel addressing hashing. Options available: Auto, Enabled, Disabled. Default setting isAuto.
BankSwapMode Options available: Auto, Disabled, Swap CPU. Default setting isAuto.

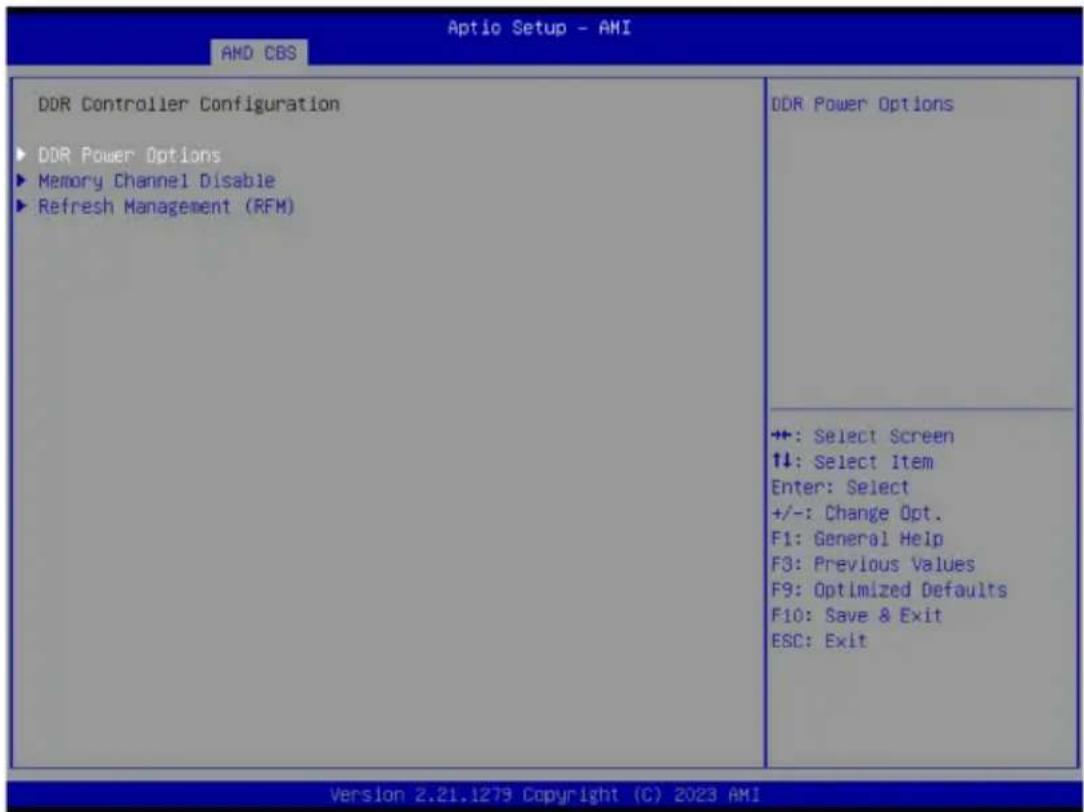

2-3-3-2 DDR Controller Configuration

Parameter Description

DDR Cotroller Configuration

DDR Power Options Press [Enter] for configuration of advanced items.

Memory Channel Disable Press [Enter] for configuration of advanced items.

Refresh Management (RFM) Press [Enter] for configuration of advanced items.

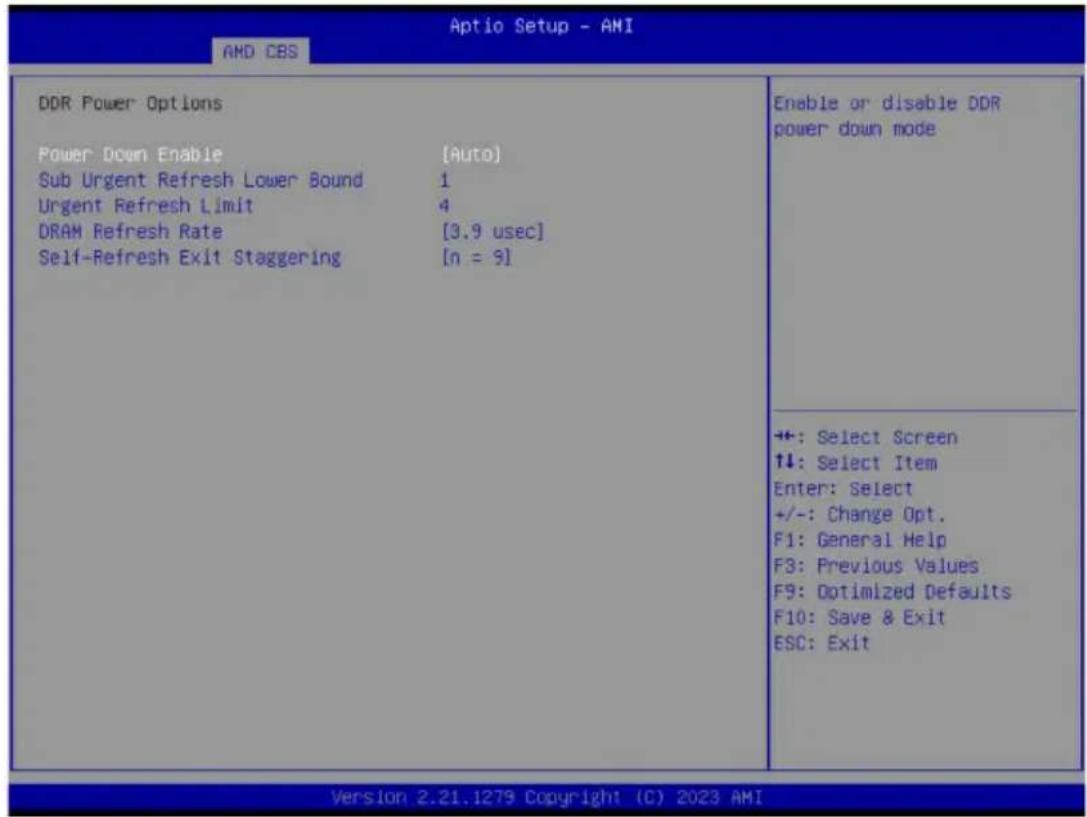

2-3-3-2-1 DDR Power Options

Parameter Description
DDR Power Options
Power Down Enable	Enable or disable DDR power down mode. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Sub Urgent Refresh Lower Bound	Specifies the stored refresh limit required to enter sub-urgent refresh mode.
Urgent Refresh Limit Specifies the stored refresh limit required to enter urgent refresh mode.
DRAM Refresh Rate	DRAM refresh rate: 1.95us or 3.9us. Options available: 3.9 usec, 1.95 usec. Default setting is 3.9 usec.
Self-Refresh Exit Staggering Options available: Disabled, n=1~9. Default setting is n=9.

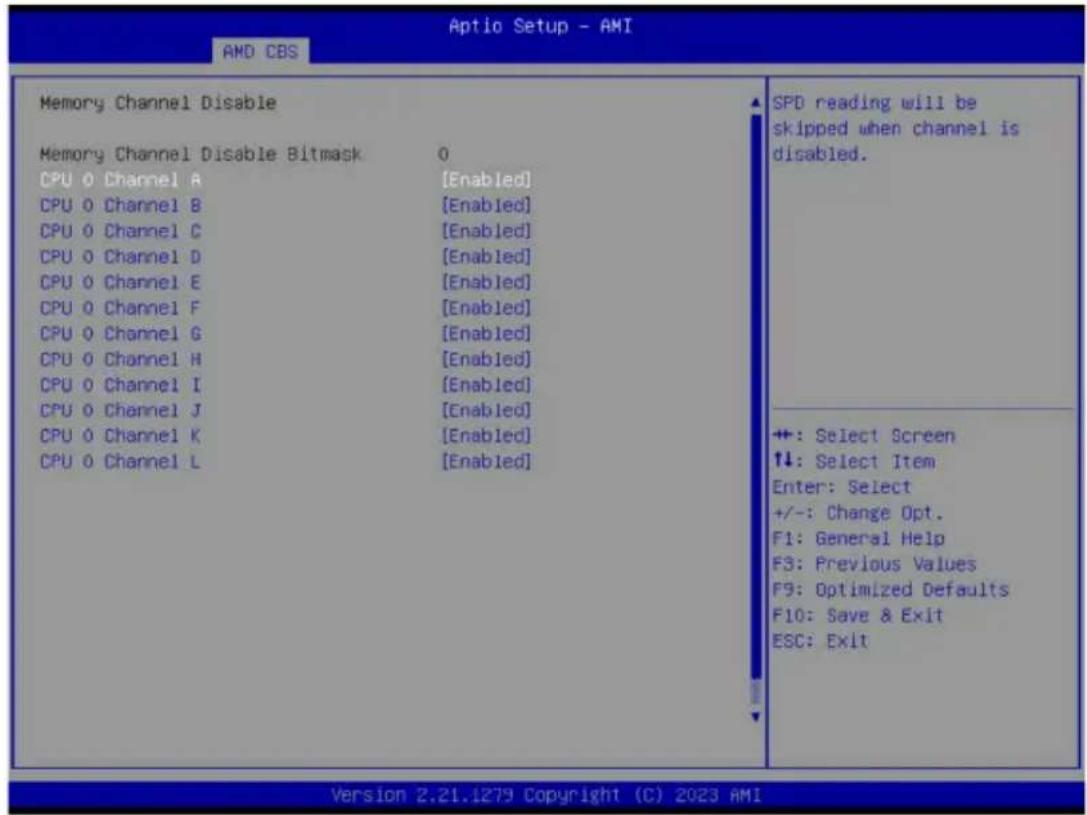

2-3-3-2-2 Memory Channel Disable

Parameter Description

Memory Channel Disable

Memory Channel Disable

Bitmask

CPU0 Channel_# Press [Enter] to enable/disable specific memory channel.

2-3-3-2-3 Refresh Management (RFM)

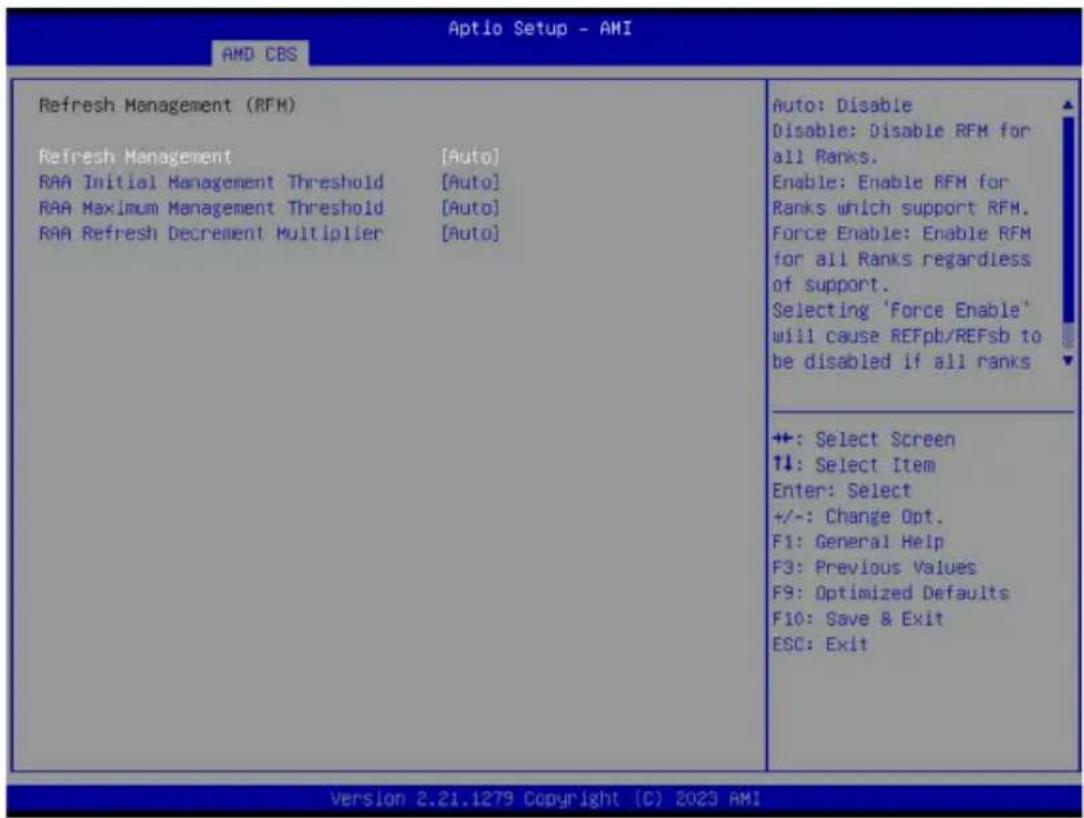

Parameter Description

Refresh Management (RFM)
Refresh Management	Configure Refresh Management. Options available: Enable, Disable, Auto, Force Enable. Default setting is Auto.
RAA Initial Management Threshold	Override Rolling Accumulated ACT Initial Management Threshold. Options available: 32, 40, 48, 56, 64, 72, 80, Auto. Default setting is Auto.
RAA Maximum Management Threshold	Override Rolling Accumulated ACT Maximum Management Threshold. Options available: 3X, 4X, 5X, 6X, Auto. Default setting is Auto.
RAA Refresh Decrement Multiplier	Override RAA Refresh Decrement Multiplier. Options available: 0.5, 1, Auto. Default setting is Auto.

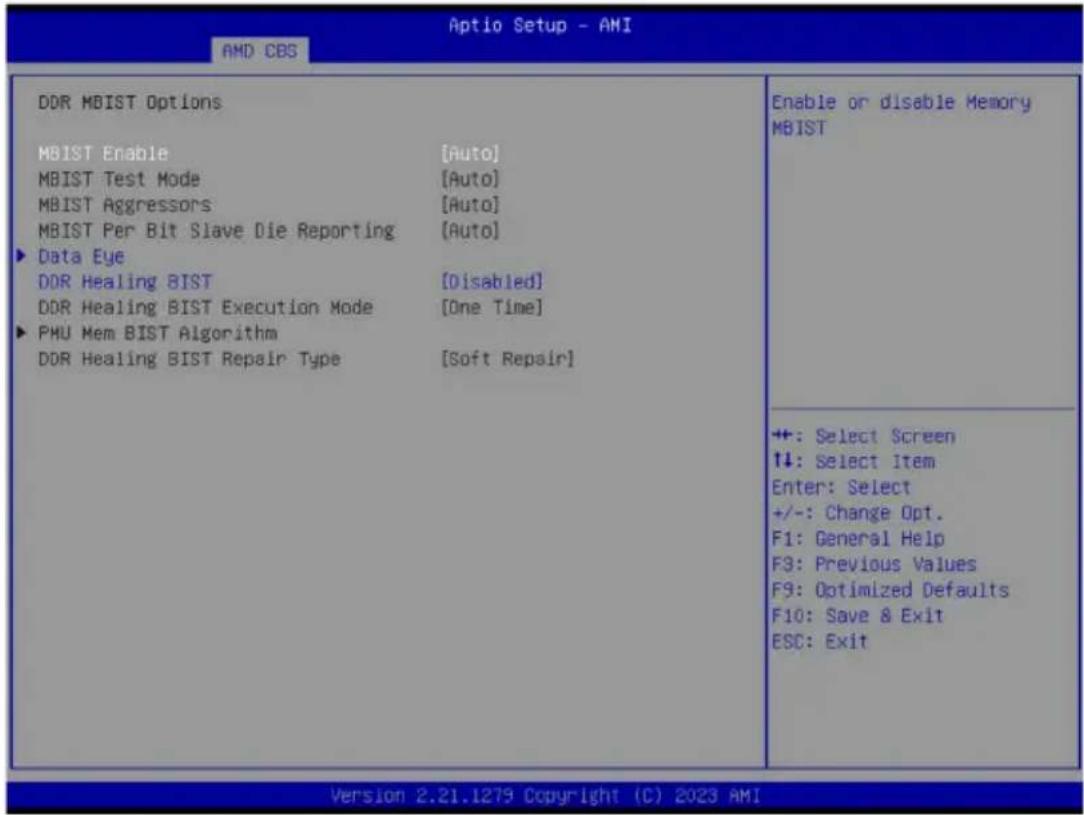

2-3-3-3 DDR MBIST Options

Parameter Description
DDR MBIST Options
MBIST Enable	Enable/Disable the Memory MBIST function.Options available: Disabled, Enabled, Auto. Default setting isAuto.
MBIST Test Mode ^(Note1)	Selects MBIST Test Mode.Interface Mode: Tests Single and Multiple CS transactions and Basic Connectivity.Data Eye Mode: Measures Voltage vs. Timing.Options available: Auto, Both, Interface Mode, Data Eye Mode. Default setting isAuto.
MBIST Aggressors ^(Note1)	Enable/Disable MBIST Aggressor test.Options available: Auto, Enabled, Disabled. Default setting isAuto.
MBIST Per Bit Slave Die Reporting ^(Note1)	Enable/Disable to report 2D data eye results in ABL log for each DQ, Chipselect, and Channel.Options available: Auto, Enabled, Disabled. Default setting isAuto.
Data Eye	Press [Enter] to configure advanced items.
Memory Healing BIST	Enable/Disable memory healing BIST.Options available: Disabled, PMU Mem BIST, Self-Healing Mem BIST, PMU and Self-Healing Mem BIST. Default setting isDisabled.

(Note1) This item appears when MBIST Enable is set to Enabled.

Parameter Description
DDR Healing BIST Execution Mode ^(Note2)	Options available: One Time, Every boot.Default setting isOne Time.
PMU Mem BIST Algorithm ^(Note2)	Press [Enter] to enable/disable PMU Mem BIST Algorithm.
DDR Healing BIST Repair Type ^(Note2)	For DRAM errors found in the BIOS memory BIST select the repair type.Options available: Soft Repair, Hard Repair, No Repairs -Test only. Default setting isSoft Repair.

(Note2) This item appears when DDR Healing BIST is defined.

2-3-3-3-1 Data Eye

Parameter	Description
Data Eye
Pattern Select	Options available: PRBS, SSO, Both. Default setting is PRBS.
Pattern Length	Determines the pattern length. The possible options are N=3....12.
Aggressor Channel	This item helps read the aggressors channels. Options available: One Sub-Channel, Half Channels, All Channels. Default setting is All Channels.
Aggressor Static Lane Control	Enable/Disable the Aggressor Static Lane Control function. Options available: Enabled, Disabled. Default setting is Disabled.
Aggressor Static Lane Select Upper 32 bits	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Aggressor Static Lane Select Lower 32 bits	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Aggressor Static Lane Select ECC	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Aggressor Static Lane Value	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Target Static Lane Control	Enable/Disable the Target Static Lane Control function. Options available: Enabled, Disabled. Default setting is Disabled.
Target Static Lane Select Upper 32 bits	This item is configurable when Target Static Lane Control is set to Enabled.
Target Static Lane Select Lower 32 bits	This item is configurable when Target Static Lane Control is set to Enabled.
Target Static Lane Select ECC	This item is configurable when Target Static Lane Control is set to Enabled.
Target Static Lane Value	This item is configurable when Target Static Lane Control is set to Enabled.
Worst Case Margin Granularity	Configures Worst Case Margin Granularity.Options available: Per Chip Select, Per Nibble.Default setting is Per Chip Select.
Read Voltage Sweep Step Size	Configures the step size for read Data Eye voltage sweep.Options available: 1, 2, 4. Default setting is 1.
Read Timing Sweep Step Size	Configures the step size for read Data Eye timing sweep.Options available: 1, 2, 4. Default setting is 1.
Write Voltage Sweep Step Size	Configures the step size for write Data Eye voltage sweep.Options available: 1, 2, 4. Default setting is 1.
Write Timing Sweep Step Size	Configures the step size for write Data Eye timing sweep.Options available: 1, 2, 4. Default setting is 1.
Silent Execution	Execute MBIST Data Eye silently without ABL log output.Options available: Enabled, Disabled. Default setting is Disabled.

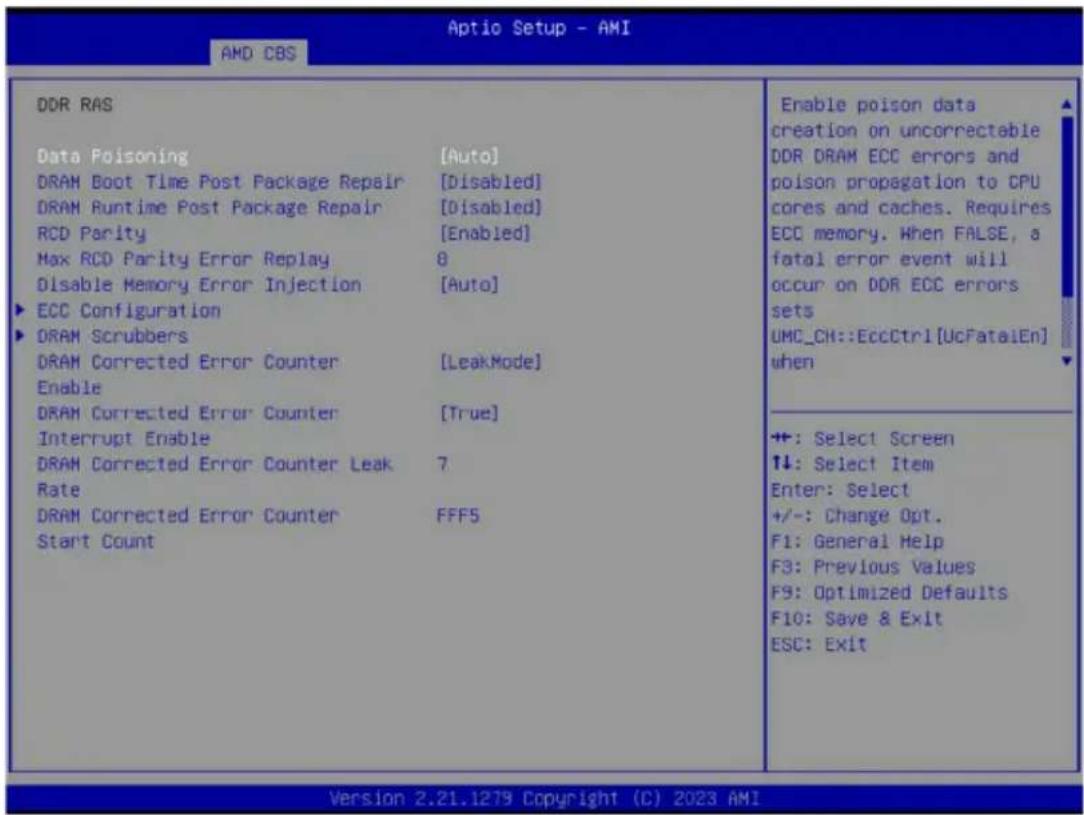

Parameter Description

DDR RAS
Data Poisoning	Enable/Disable the Data Poisoning function.Options available: Auto, Enabled, Disabled. Default setting isAuto.
DRAM Boot Time Post Package Repair	Enable/Disable the DRAM Boot Time Post Package Repair function.Options available: Enable, Disable. Default setting isDisable.
DRAM Runtime Post Package Repair	Enable/Disable the DRAM Runtime Post Package Repair function.Options available: Enable, Disable. Default setting isDisable.
RCD Parity	Enable/Disable the RCD Parity function.Options available: Auto, Enabled, Disabled. Default setting isEnabled.
Max RCD Parity Error Replay Default setting is 8.
Write CRC	Enable/Disable the Write CRC function.Options available: Auto, Enabled, Disabled. Default setting isEnabled.
Max Write CRC Error Replay Default setting is 8.
Read CRC	Enable/Disable the Read CRC function.Options available: Auto, Enabled, Disabled. Default setting isEnabled.
Max Read CRC Error Replay Default setting is 8.
Disable Memory Error Injection Options available: False, True, Auto. Default setting isAuto.
ECC Configuration	Press [Enter] to configure advanced items.DRAM ECC Symbol Size- Configures the DRAM ECC Symbol Size.- Options available: Auto, x4, x16. Default setting isAuto.

Parameter Description

ECC Configuration (continued)	DRAM ECC Enable- Enable/Disable DRAM ECC. When set to Auto, it will set ECC to enable.- Options available: Auto, Enabled, Disabled. Default setting is Auto.DRAM UECC Retry- Enable/Disable DRAM UECC Retry.- Options available: Auto, Enabled, Disabled. Default setting is Disabled.Max DRAM UECC Error Replay ^(Note) - Default setting is 8.Memory Clear- Options available: Auto, Enabled, Disabled. Default setting is Auto.Address XDR after ECC- Options available: Auto, Enabled, Disabled. Default setting is Disabled.
DRAM Scrubbers	Press [Enter] to configure advanced items.DRAM ECS Mode- Options available: Auto, AutoECS, ManualECS, DisableECS. Default setting is Auto.DRAM Redirect Scrubber Enable- Options available: Auto, Enabled, Disabled. Default setting is Auto.DRAM Scrub Redirection Limit- Options available: Auto, 8 Scrubs, 4 Scrubs, 2 Scrubs, 1 Scrub. Default setting is Auto.DRAM Scrub Time- Options available: Disabled, 1 hour, 4 hours, 6 hours, 8 hours, 12 hours, 16 hours, 24 hours, 48 hours. Default setting is 24 Hours.DRAM Error Threshold Count- Options available: Auto, ETC_4, ETC_16, ETC_64, ETC_256, ETC_1024, ETC_4096. Default setting is Auto.DRAM ECS Count Mode- Options available: Auto, Row Count Mode, Code Word Count Mode. Default setting is Auto.DRAM AutoEcs during Self Refresh- Options available: Auto, AutoEcs Disabled, AutoEcs Enabled. Default setting is Auto.DRAM ECS WriteBack Suppression- Options available: Auto, Enable, Disable. Default setting is Auto.
Parameter Description
DRAM Scrubbers(continued)	♦ DRAM X4 WriteBack Suppression– Options available: Auto, Enable, Disable. Default setting is Auto.
DRAM Corrected Error Counter Enable	Configure DRAM Corrected Error Counter function.Options available: Disable, NoLeakMode, Leak Mode. Default setting is Leak Mode.
DRAM Corrected Error Counter Interrupt Enable	Enable SMI when DRAM corrected Error Counter count exceeds the threshold value.Options available: False, True. Default setting is True.
DRAM Corrected Counter Leak Rate	Program Rate value for DRAM Corrected Error Counter function. Default setting is 7.
DRAM Corrected Error Counter Start Count	Program starting value for DRAM Corrected Error Counter function. Default setting is FFF5.

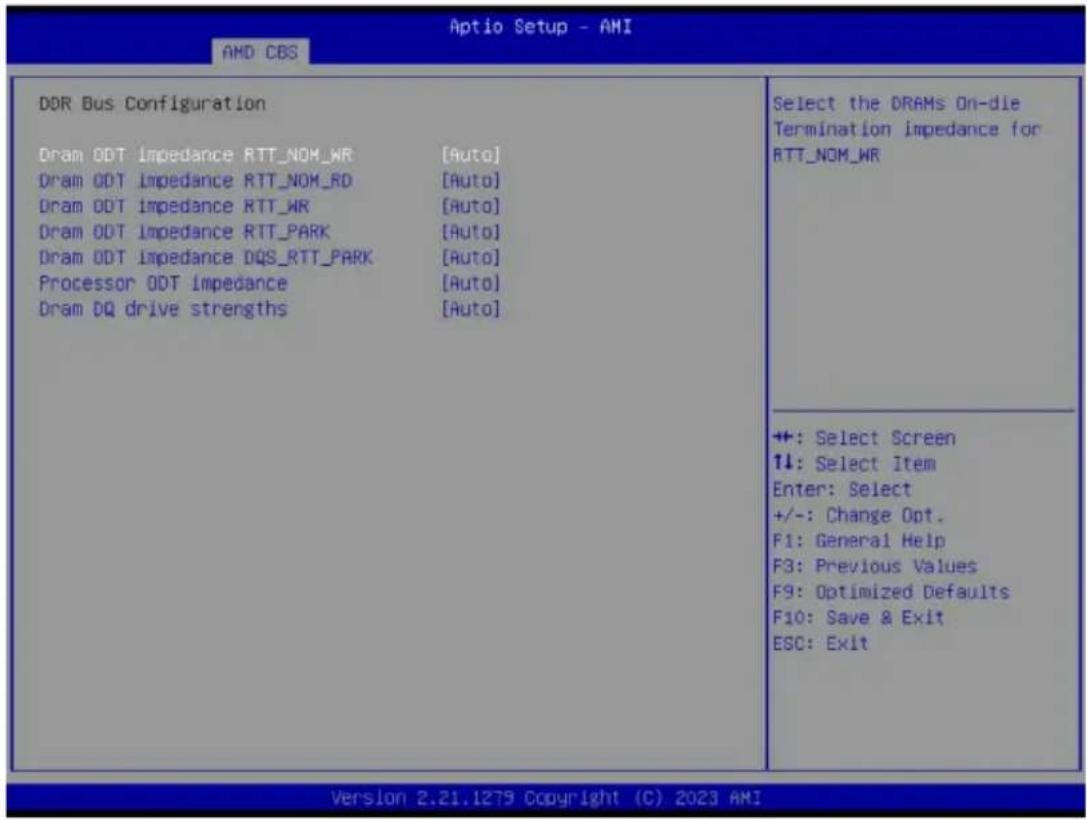

2-3-3-5 DDR Bus Configuration

Parameter Description
DDR Bus Configuration
Dram ODT impedance RTT_NOM_WR	Select the DRAMs On-die Termination impedance for RTT_NOM_WR. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting isAuto.
Dram ODT impedance RTT_NOM_RD	Select the DRAMs On-die Termination impedance for RTT_NOM_RD. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting isAuto.
Dram ODT impedance RTT_WR	Select the DRAMs On-die Termination impedance for RTT_WR. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting isAuto.
Dram ODT impedance RTT_PARK	Select the DRAMs On-die Termination impedance for RTT_PARK. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting isAuto.
Dram ODT impedance DQS_RTT_PARK	Select the DRAMs On-die Termination impedance for DQS_RTT_PARK. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting isAuto.

Parameter Description

Processor ODT impedance	Select the ODT impedance for all DBYTE IOs. Options available: Auto, High Impedance, 480 ohm, 240 ohm, 160 ohm, 120 ohm, 96 ohm, 80 ohm, 68.6 ohm, 60 ohm, 53.3 ohm,48 ohm, 43.6 ohm, 40 ohm, 36.9 ohm, 34.3 ohm, 32 ohm, 30 ohm, 28.2 ohm, 26.7 ohm, 25.3 ohm. Default setting isAuto.
Dram DQ drive strengths	Select the Dram Pull-up and Pull-Down Output Driver Impedance for all DQ and DMI IOs.. Options available: Auto, 48 ohm, 40 ohm, 34 ohm, Default setting isAuto.

2-3-3-6 Enforce POR

Enforce POR WARNING - DAMAGE CAUSED BY USE OF YOUR AMD PROCESSOR OUTSIDE OF SPECIFICATION OR IN EXCESS OF FACTORY SETTINGS ARE NOT COVERED UNDER YOUR AMD PRODUCT WARRANTY AND MAY NOT BE COVERED BY YOUR SYSTEM MANUFACTURER'S WARRANTY. Operating your AMD processor outside of specification or in excess of factory settings, including but not limited to overclocking, may damage or shorten the life of your processor or other system components, create system instabilities (e.g., data loss and corrupted images) and in extreme cases may result in total system failure. AMD does not provide support or service for issues or damages related to use of an AMD processor outside of processor specifications or in excess of factory settings. ►Decline ►Accept

Decline

+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter Description

Enforce POR Decline/Accept to configure the advanced items.

Accept
Active Memory Timing Settings ^(Note)	Active memory Timing Settings. Options available: Auto, Enabled. Default setting is Auto.
Memory Target Speed	Specifies the memory target speed in MT/s. Options available: Auto, DDR3200, DDR3600, DDR4000, DDR4400, DDR4800, DDR5200, DDR5600. Default setting is Auto.
SPD Timing Press [Enter] to configure advanced items.
Non-SPD Timing Press [Enter] to configure advanced items.

2-3-3-7 DDR Training Options

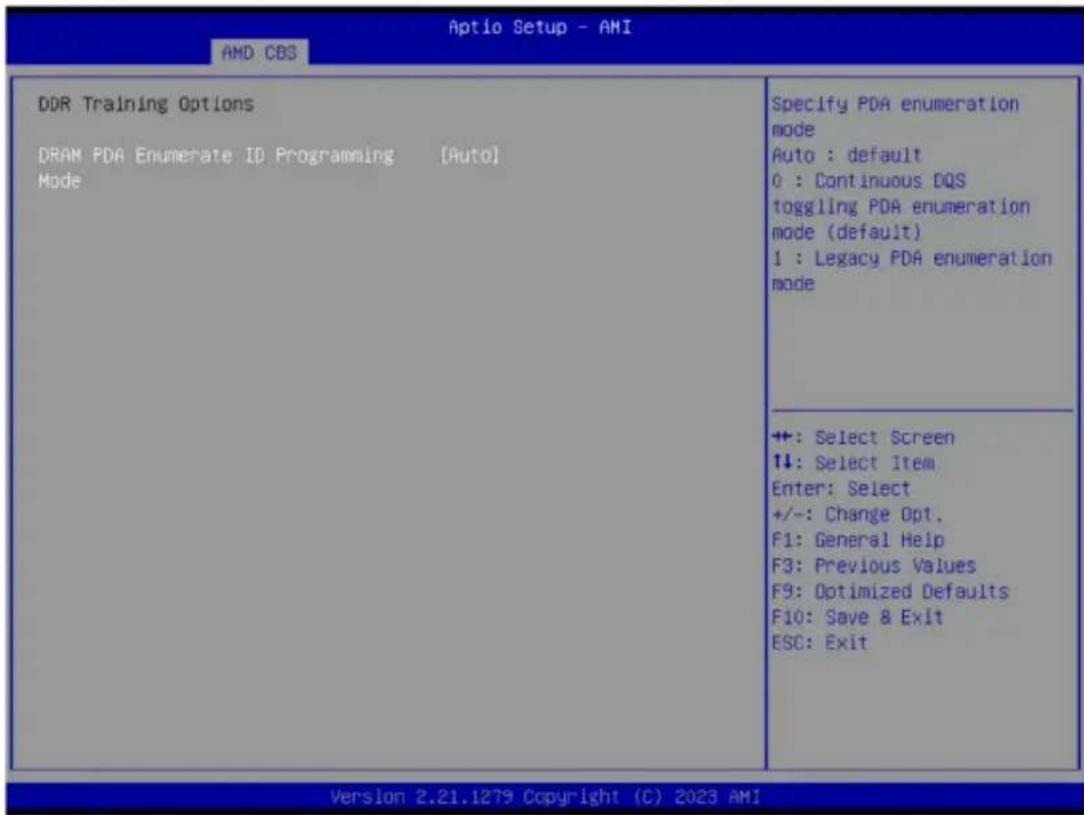

Parameter Description

DDR Training Options
DRAM PDA Enumerate ID Programming Mode	Specify PDA enumeration mode. Options available: Auto, Toggling PDA enumeration mode, Legacy PDA enumeration mode. Default setting isAuto.

2-3-3-8 DDR Security

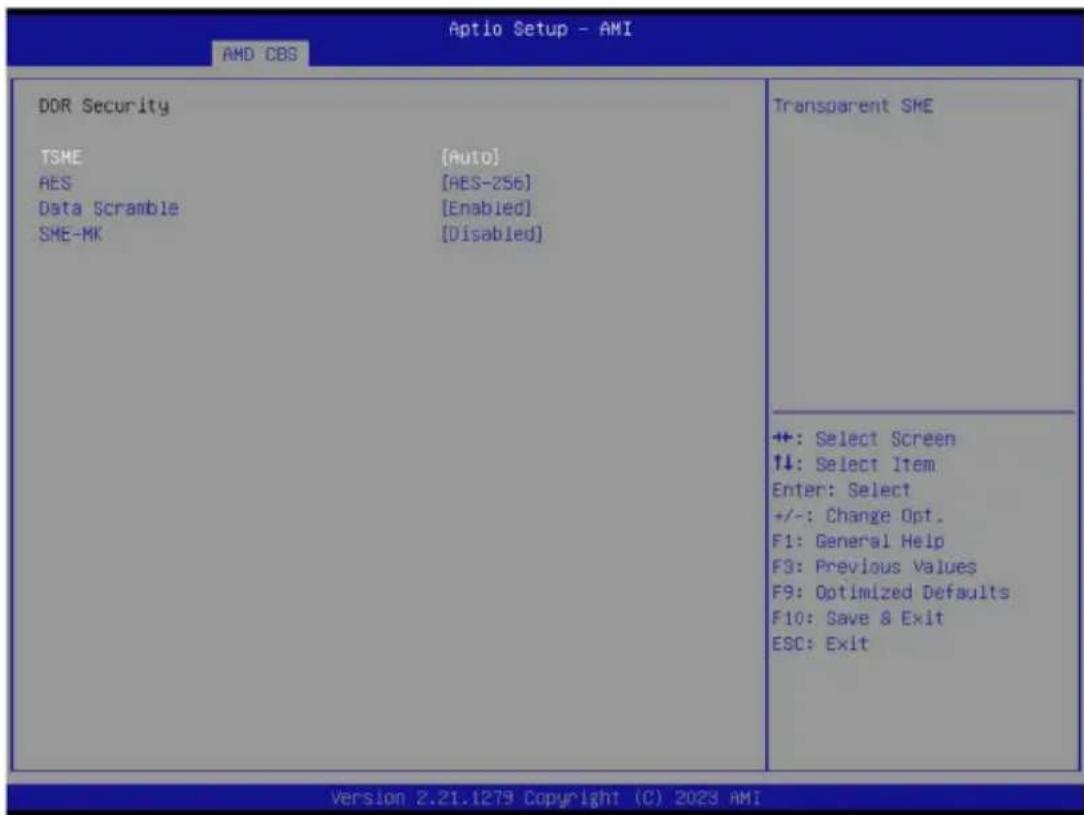

Parameter Description
Security
TSME	Enable/Disable Transparent SME. Options available: Auto, Enabled, Disabled. Default setting is Auto.
AES Options available: AES-128, AES-256. Default setting is AES-256.
Data Scramble	Enable/Disable Data Scrambling. Options available: Enabled, Disabled. Default setting is Enabled.
SME-MK Options available: Enabled, Disabled. Default setting is Disabled.

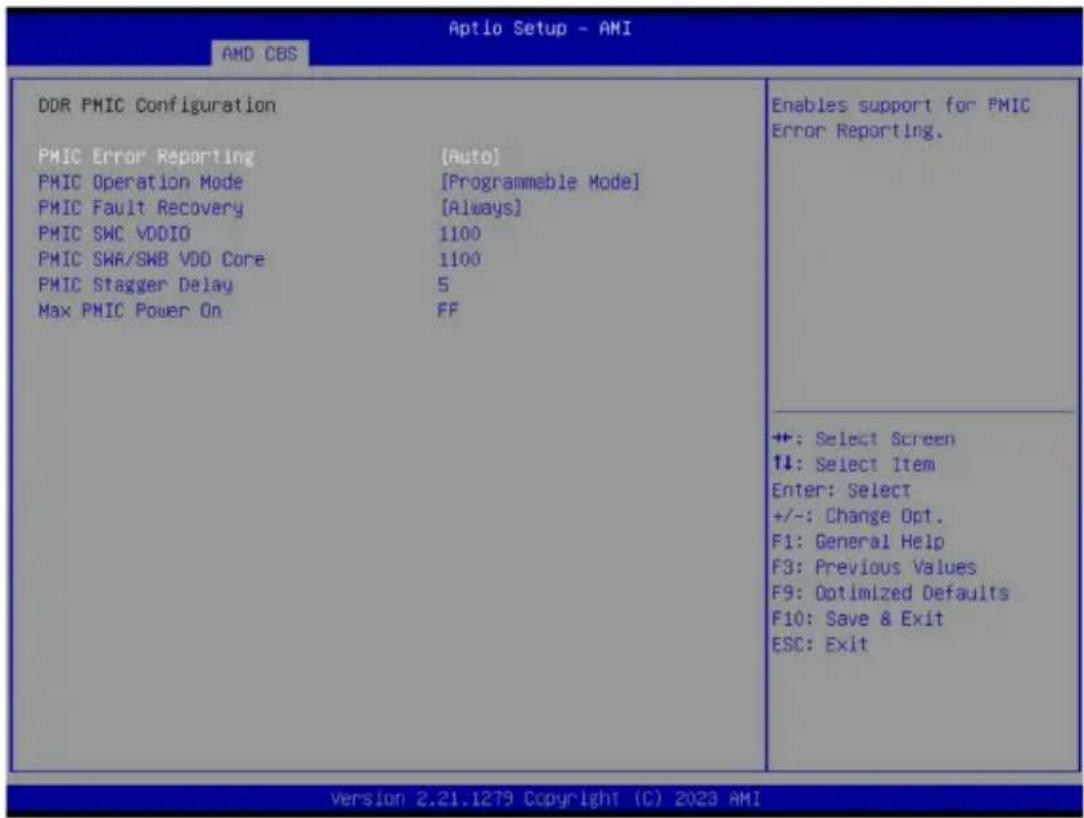

2-3-3-9 DDR PMIC Configuration

Parameter Description
DDR PMIC Configuration
PMIC Error Reporting	Enables support for PMIC Error Reporting. Options available: Auto, False, True. Default setting is Auto.
PMIC Operation Mode	Options available: Secure Mode, Programmable Mode. Default setting is Programmable Mode.
PMIC Fault Recovery Options available: Always, Never, Once. Default setting is Always.
PMIC SWC VDDIO Default setting is 1100.
PMIC SWA/SWB VDD Core Default setting is 1100.
PMIC Stagger Delay Default setting is 5.
Max PMIC Power On Default setting is FF.

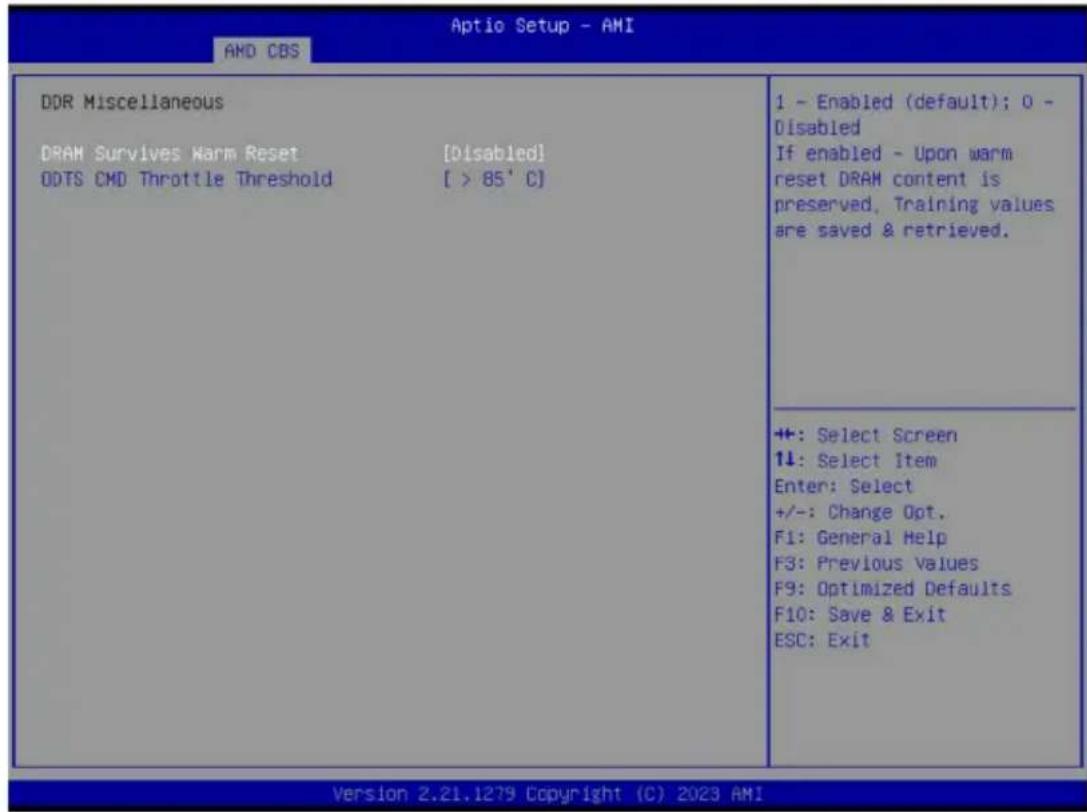

2-3-3-10 DDR Miscellaneous

Parameter Description

DDR Miscellaneous

DRAM Survives Warm Reset Options available: Enabled, Disabled. Default setting is Enabled.

ODTS CMD Throttle Threshold Options available: > 85'C, > 90'C, > 95'C. Default setting is > 85'C.

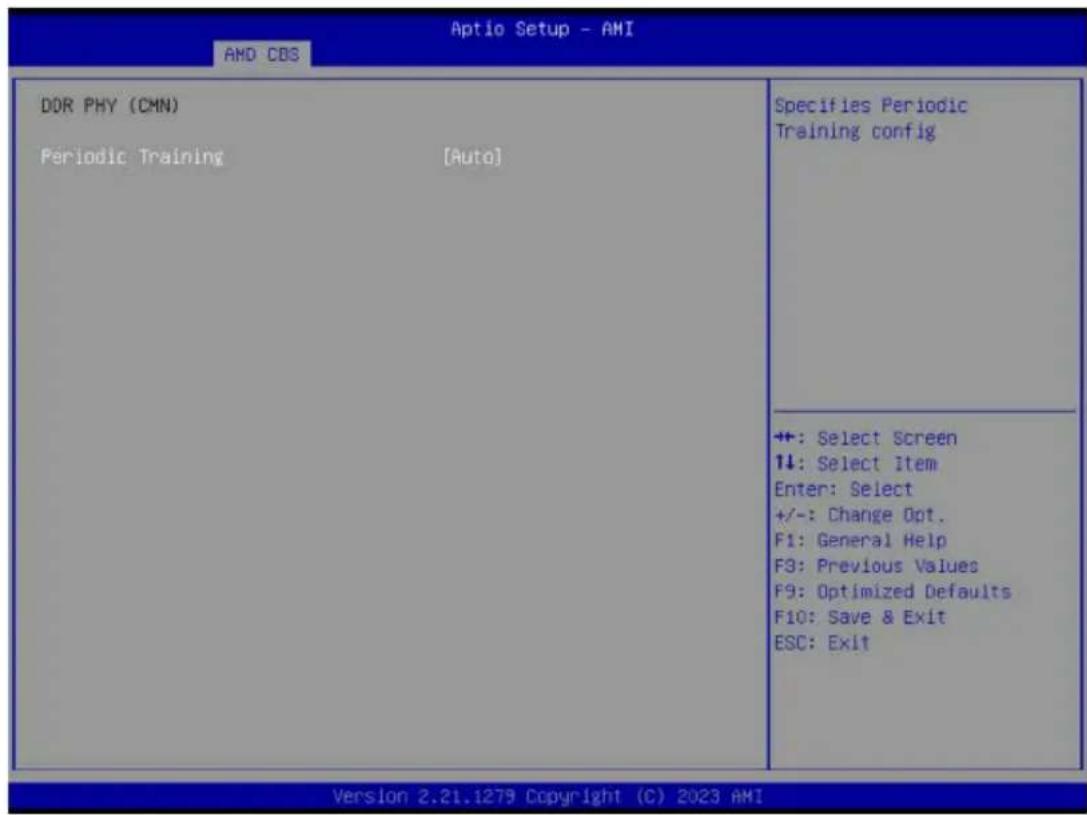

2-3-3-11 DDR PHY (CMN)

Parameter Description

DDR PHY (CMN)

Periodic Training ^(Note)

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Periodic Training Interval Specifies the Periodic Training interval in millisecond.

(Note) Advanced items prompt when this item is defined.

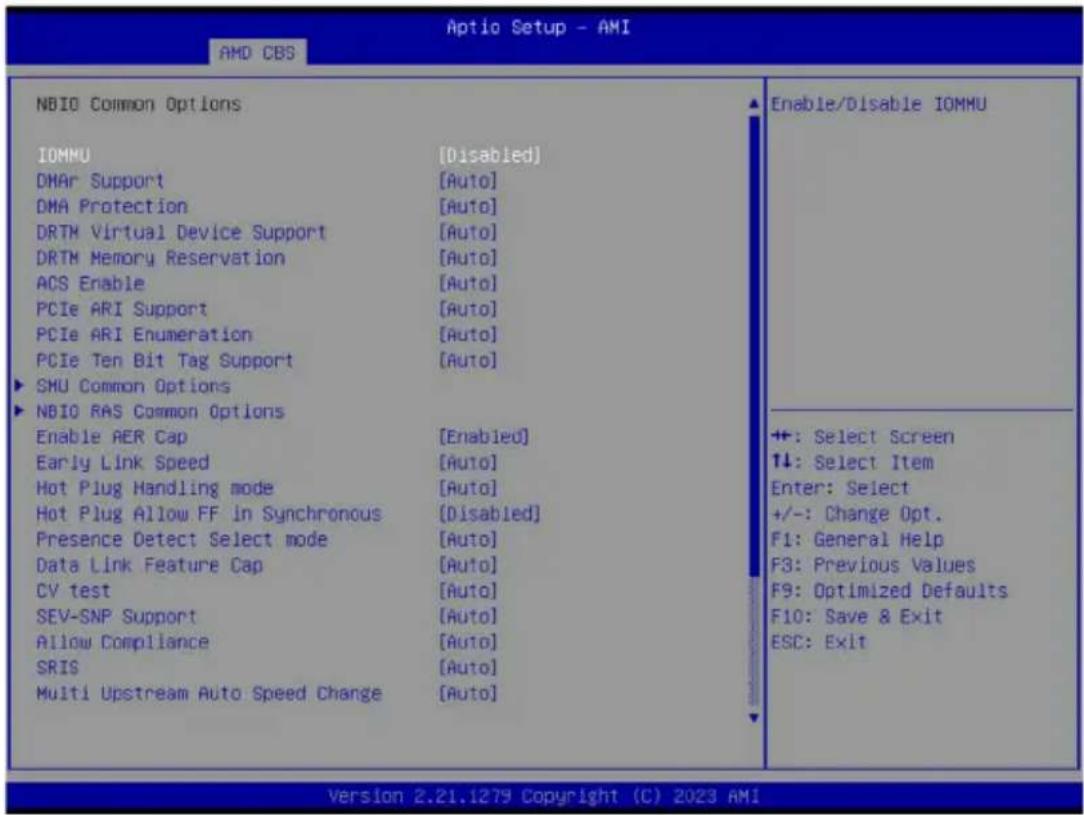

2-3-4 NBIO Common Options

Parameter	Description
NBIO Common Options
IOMMU	Enable/Disable the IOMMU function.Options available: Disabled, Enabled. Default setting is Disabled.
DMAr Support	Enable/Disable DMAr system protection during POST.Options available: Disabled, Enabled, Auto. Default setting is Auto.
DMA Protection	Enable/Disable DMA remap support in IVRS IVinfo Field.Options available: Auto, Enabled, Disabled. Default setting is Auto.
DRTM Virtual Device Support	Enable/Disable DRTM ACPI virtual device.Options available: Disabled, Enabled, Auto. Default setting is Auto.
DRTM Memory Reservation	Enable/Disable DRTM Memory reservation.Options available: Disabled, Enabled, Auto. Default setting is Auto.
ACS Enable	Enable/Disable ACS.Options available: Enable, Disabled, Auto. Default setting is Auto.
PCIe ARI Support	Enable/Disable Alternative Routing-ID Interpretation.Options available: Disable, Enable, Auto. Default setting is Auto.
PCIe ARI Enumeration	ARI Forwarding Enable for each downstream port.Options available: Disable, Enable, Auto. Default setting is Auto.
PCIe Ten Bit Tag Support	Enable/Disable PCIe ten bit tags for supported devices. (Auto=Disabled)Options available: Disable, Enable, Auto. Default setting is Auto.
SMU Common Options Press [Enter] for configuration of advanced items.
NBIO RAS Common Options	Press [Enter] for configuration of advanced items.
Enable AER Cap	Enable/Disable Advanced Error Reporting Capability.Options available: Enable, Disabled, Auto. Default setting is Auto.
Early Link Speed	Configures Early Link Speed.Options available: Auto, Gen1, Gen2. Default setting is Auto.
Hot Plug Handling mode	Controls the Hot Plug Handling mode.Options available: OS First, Firmware First/EDR if OS supports, Firmware First but allow OS First, System Firmware Intermediary, Auto. Default setting is Auto.
Hot Plug Allow FF in Synchronous	Allows firmware first hot plug handling mode to operate in mode A and mode B synchronous mappings.Options available: Disabled, Enabled. Default setting is Disabled.
Presence Detect Select mode	Controls the Presence Detect Select mode.Options available: OR, AND, Auto. Default setting is Auto.
Data Link Feature Cap	Enable/Disable the data link feature capability.Options available: Enabled, Disabled, Auto. Default setting isAuto.
CV test	Enable/Disable the running PCIE CV tool support.Options available: Auto, Enabled, Disabled. Default setting isAuto.
SEV-SNP Support	Enable/Disable the SEV-SNP support.Options available: Disable, Enable. Default setting isDisable.
Allow Compliance	When enabled, allows the PCIe RP to enter Polling.Compliance state.Options available: Auto, Disable, Enable. Default setting isAuto.
SRIS Options available: Auto, Disable, Enable. Default setting isAuto.
Multi Upstream Auto Speed Change	Defines the setting of this feature for all PCIe devices.Options available: Disabled, Enabled, Auto. Default setting isAuto.
Multi Auto Speed Change On Last Rate	Options available: Disable, Enable, Auto. Default setting isAuto.
PCIE Link Speed Capability	Options available: Maximum speed, Gen1, Gen2, Gen3, Gen4, Gen5, Auto.Default setting isAuto.
RTM Margining Support Options available: Disable, Enable, Auto. Default setting isAuto.
EQ Bypass To Highest Rate	Options available: Disable, Enable, Auto. Default setting isAuto.
Non-PCIe Compliant Support	Options available: Disable, Enable, Auto. Default setting isAuto.
PCIE Idle Power Setting	Modify PCIE Power Savings Features that can impact lightly loaded latency.Options available: Optimize for Latency, Optimize for Perf/Power.Default setting isOptimize for Latency.
nBif Common Options Press [Enter] for configuration of advanced items.
Link EQ Preset Options Press [Enter] for configuration of advanced items.
Enable 2 SPC (Gen4)	Enable this setting to use 2 symbols per clock for devices at Gen4 speed.Options available: Auto, Enabled. Default setting isAuto.

2-3-4-1 SMU Common Options

Parameter	Description
SMU Common Options
Power Policy Quick Setting	Options available: Standard, Best Performance, Energy Efficient.Default setting isStandard.
TDP Control	Options available: Manual, Auto. Default setting isAuto.
PPT Control	Options available: Manual, Auto. Default setting isAuto.
Determinism Control	Selects use the fused Determinism or set customized Determinism.Options available: Manual, Auto. Default setting isAuto.
xGMI Link Width Control Options available: Manual, Auto. Default setting isAuto.
APBDIS Options available: 0, 1, Auto. Default setting isAuto.
Power Profile Selection	Options available: High Performance Mode, Efficiency Mode, Maximum IO Performance Mode. Default setting isHigh Performance Mode.
BoostFmaxEn Options available: Manual, Auto. Default setting isAuto.
DF PState Frequency Optimizer	Options available: Auto, Enabled, Disabled. Default setting isAuto.
DF Cstates Options available: Disabled, Enabled, Auto. Default setting isDisabled.
CPPC	Enable/Disable the CPPC feature.Options available: Disabled, Enabled, Auto. Default setting isAuto.
HSMP Support	Enable/Disable the HSMP support.Options available: Disabled, Enabled, Auto. Default setting isAuto.
SVI3 SVC Speed Control	Options available: Auto, Manual. Default setting isAuto.
3D V-Cache	Options available: Auto, Disable, 1 stack, 2 stack, 4 stack.Default setting isAuto.
Diagnostic Mode Options available: Disabled, Enabled, Auto. Default setting isAuto.
PCIE Speed PMM Control	Options available: Dynamic link speed determined by Power Management functionality, Static Target Link Speed (GEN4),Static Target Link Speed (GEN5), Auto. Default setting isAuto.
GMI Folding Options available: Disabled, Enabled, Auto. Default setting isAuto.

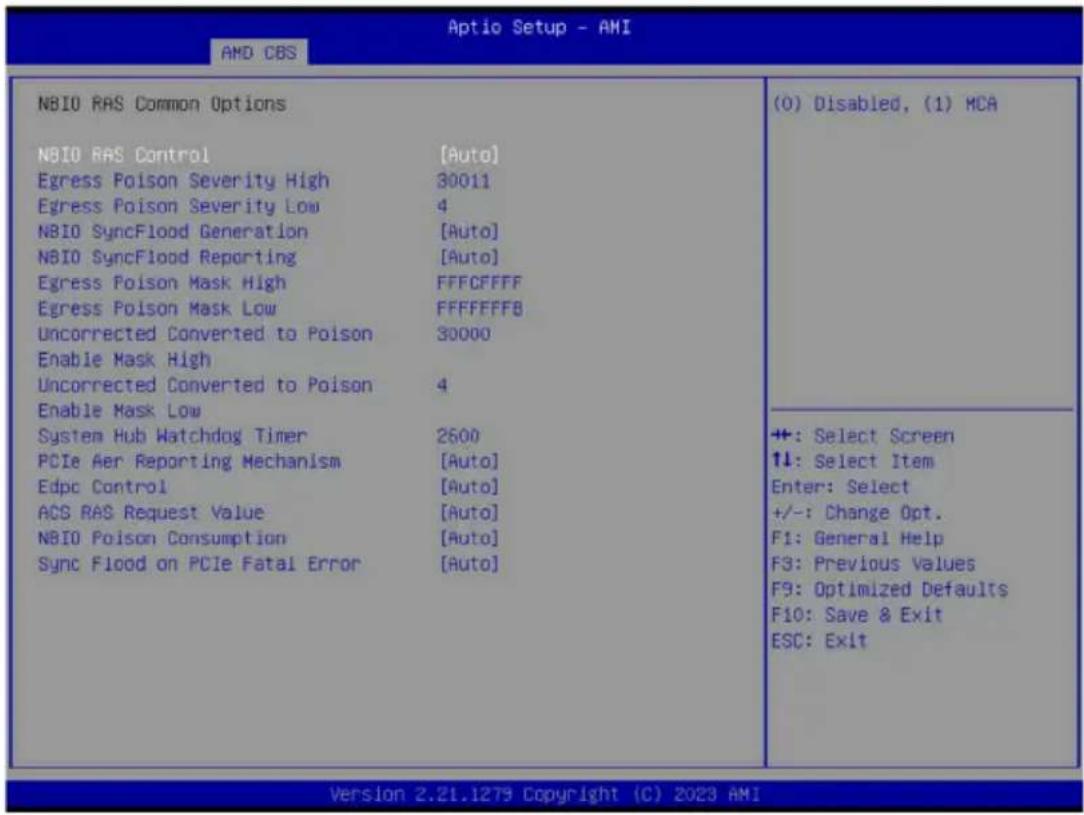

2-3-4-2 NBIO RAS Common Options

Parameter	Description
NBIO RAS Common Options
NBIO RAS Control Options available: Disabled, MCA, Auto. Default setting is Auto.
Egress Poison Severity High	Configures the Egress Poison High Severity. Each bit set to 1 enables High severity on the associated IOHC egress port. A bit of 0 indicates LOW severity.
Egress Poison Severity Low	Configures the Egress Poison Low Severity. Each bit set to 1 enables High severity on the associated IOHC egress port. A bit of 0 indicates LOW severity.
NBIO SyncFlood Generation	The value may be used to mask SyncFlood caused by NBIO RAS options. Options available: Enabled, Disabled, Auto. Default setting is Auto.
NBIO SyncFlood Reporting	The value may be used to enable SyncFlood reporting to APML. Options available: Enabled, Disabled, Auto. Default setting is Auto.
Egress Poison Mask High	Enables mask for masking of errors logged in EGRESS_POISON_STATUS. For each bit set to 1, errors are masked. For each bit set to 0, errors trigger response actions.
Egress Poison Mask Low	Enables mask for masking of errors logged in EGRESS_POISON_STATUS. For each bit set to 1, errors are masked. For each bit set to 0, errors trigger response actions.
Uncorrected Converted to Poison Enable Mask High	Enables mask for masking of uncorrectable parity errors on internal arrays.
Uncorrected Converted to Poison Enable Mask Low	Enables mask for masking of uncorrectable parity errors on internal arrays.
System Hub Watchdog Timer	Specifies the timer interval of the SYSHUB Watchdog timer in milliseconds.
PCIe Aer Reporting Mechanism	Selects the method of reporting AER errors from PCI Express. Options available: Firmware First, Firmware First but allow OS First, OS First, Auto. Default setting isAuto.
Edpc Control Options available: Disabled, Enabled, Auto. Default setting isAuto.
ACS RAS Request Value	Options available: Direct Request Access Enabled, Request Blocking Enabled, Request Redirect Enabled, Auto. Default setting isAuto.
NBIO Poison Consumption Options available: Auto, Enabled, Disabled. Default setting isAuto.
Sync Flood on PCIe Fatal Error	Options available: Auto, True, False. Default setting isAuto.

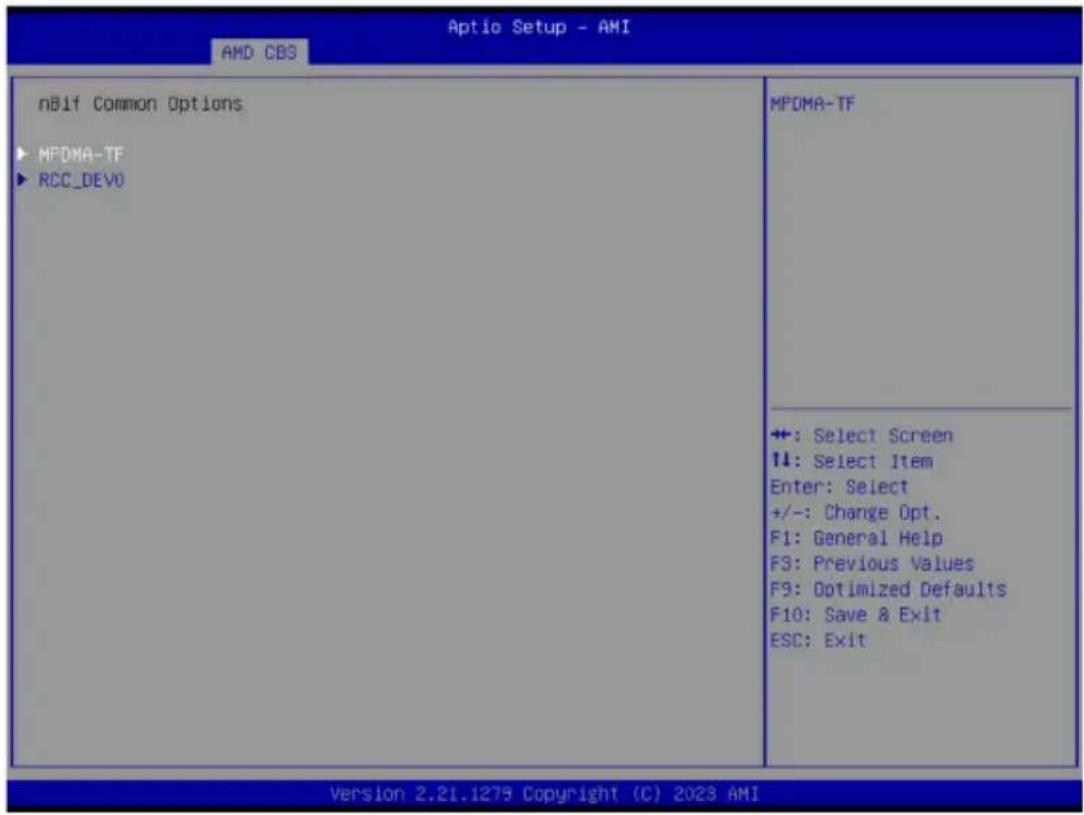

2-3-4-3 nBif Common Options

Parameter	Description
MPDMA-TF	SRIOV- Options available: Auto, Disabled, Enabled. Default setting isAuto.ARI- Options available: Auto/Default, Disabled, Enabled. Default setting isAuto/Default.AER- Options available: Auto, Disabled, Enabled. Default setting isAuto.ACS- Options available: Auto, Disabled, Enabled. Default setting isAuto.ATS- Options available: Auto, Disabled, Enabled. Default setting isAuto.PASID- Options available: Auto, Disabled, Enabled. Default setting isAuto.RTR- Options available: Auto, Disabled, Enabled. Default setting isAuto.PAGE_REQ- Options available: Auto, Disabled, Enabled. Default setting isAuto.PWR- Options available: Auto, Disabled, Enabled. Default setting isAuto.ATC_ENABLE- Options available: Auto, Disabled, Enabled. Default setting isAuto.
MPDMA-TF(continued)	SDXI Class CodeOptions available: Auto, Disabled, Enabled. Default setting isAuto.PASID ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.ATOMICOP_REQUESTOptions available: Auto, Disabled, Enabled. Default setting isAuto.
RCC_DEV0	ACS Rcc_Dev0Options available: Auto, Disabled, Enabled. Default setting isAuto.AER Rcc_Dev0Options available: Auto, Disabled, Enabled. Default setting isAuto.DlfEnableStrap1Options available: Auto, Disabled, Enabled. Default setting isAuto.Phy16GTStrap1Options available: Auto, Disabled, Enabled. Default setting isAuto.MarginEnStrap1Options available: Auto, Disabled, Enabled. Default setting isAuto.SourceValStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.TranslationalBlockingStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.P2pReq ACS ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.P2pCompStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.UpstreamFwdStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.P2PEgressStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.DirectTranslatedStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.SsidEnStrap5Options available: Auto, Disabled, Enabled. Default setting isAuto.PriEnPageReqOptions available: Auto, Disabled, Enabled. Default setting isAuto.PriResetPageReqOptions available: Auto, Disabled, Enabled. Default setting isAuto.SourceVal ACS cntlOptions available: Auto, Disabled, Enabled. Default setting isAuto.TranslationalBlocking ACS ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.P2pComp ACS ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.UpstreamFwd ACS ControlOptions available: Auto, Disabled, Enabled. Default setting isAuto.
RCC_DEV0(continued)	◆ P2PEgress ACS Control- Options available: Auto, Disabled, Enabled. Default setting isAuto.◆ P2pReqStrap5- Options available: Auto, Disabled, Enabled. Default setting isAuto.◆ E2E_PREFIX- Options available: Auto, Disabled, Enabled. Default setting isAuto.◆ EXTENDED_FMT- Options available: Auto, Disabled, Enabled. Default setting isAuto.◆ AtomicRoutingStrap5- Options available: Auto, Disabled, Enabled. Default setting isAuto.

2-3-4-4 Link EQ Preset Options

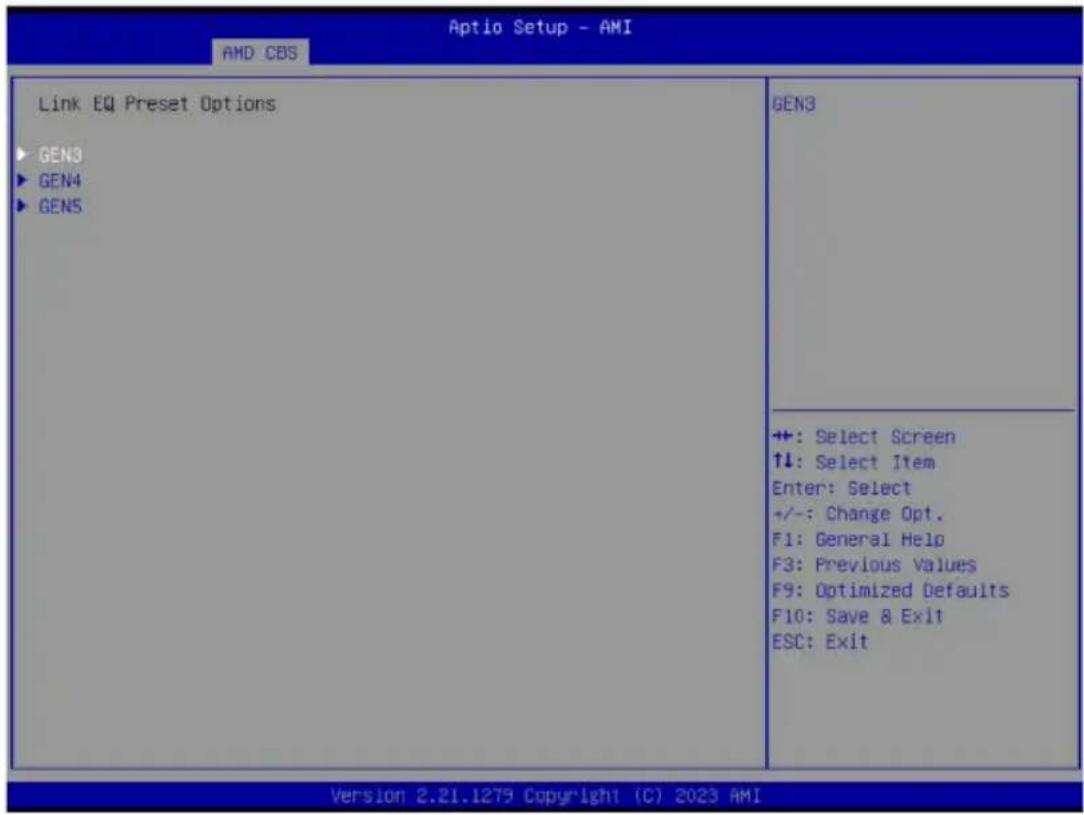

Parameter	Description
GEN3/4/5	Press [Enter] to configure advanced items.◆ Preset Search Mask Configuration- Options available: Custom, Auto. Default setting isAuto.

2-3-5 FCH Common Options

Parameter Description

FCH Common Options

I3C/I2C Configuration Options Press [Enter] for configuration of advanced items.

SATA Configuration Options Press [Enter] for configuration of advanced items.

USB Configuration Options Press [Enter] for configuration of advanced items.

AC Power Loss Options Press [Enter] for configuration of advanced items.

Uart Configuration Options Press [Enter] for configuration of advanced items.

ESPI Configuration Options Press [Enter] for configuration of advanced items.

FCH RAS Options Press [Enter] for configuration of advanced items.

Miscellaneous Options Press [Enter] for configuration of advanced items.

2-3-5-1 I3C/I2C Configuration Options

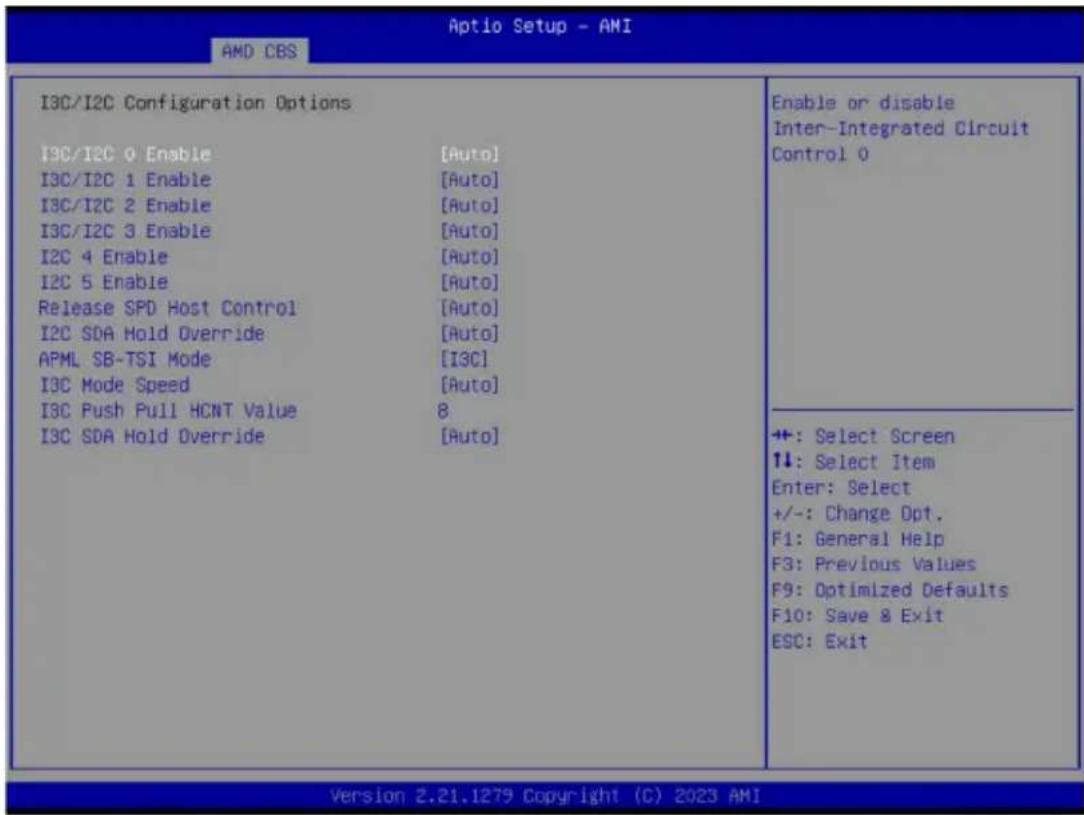

Parameter	Description
I3C/I2C Configuration Options
I3C/I2C 0/1/2/3 Enable	Options available: Both Disabled, I3C Enabled, I2C Enabled, Auto. Default setting is Auto.
I2C 4/5 Enable	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Release SPD Host Control	Options available: Disabled, Enabled, Auto. Default setting is Auto.
I2C SDA Hold Override	Options available: Disabled, Enabled, Auto. Default setting is Auto.
APML SB-TSI Mode	Options available: I3C, I2C. Default setting is I3C.
I3C Mode Speed	Options available: SDR2(6MHz), SDR0(12.5MHz), Auto. Default setting is Auto.
I3C Push Pull HCNT Value	SCL push-pull High count for I3C transfers targeted to I3C devices.
I3C SDA Hold Override	Override I3C SDA Hold value. Options available: Disabled, Enabled, Auto. Default setting is Auto.

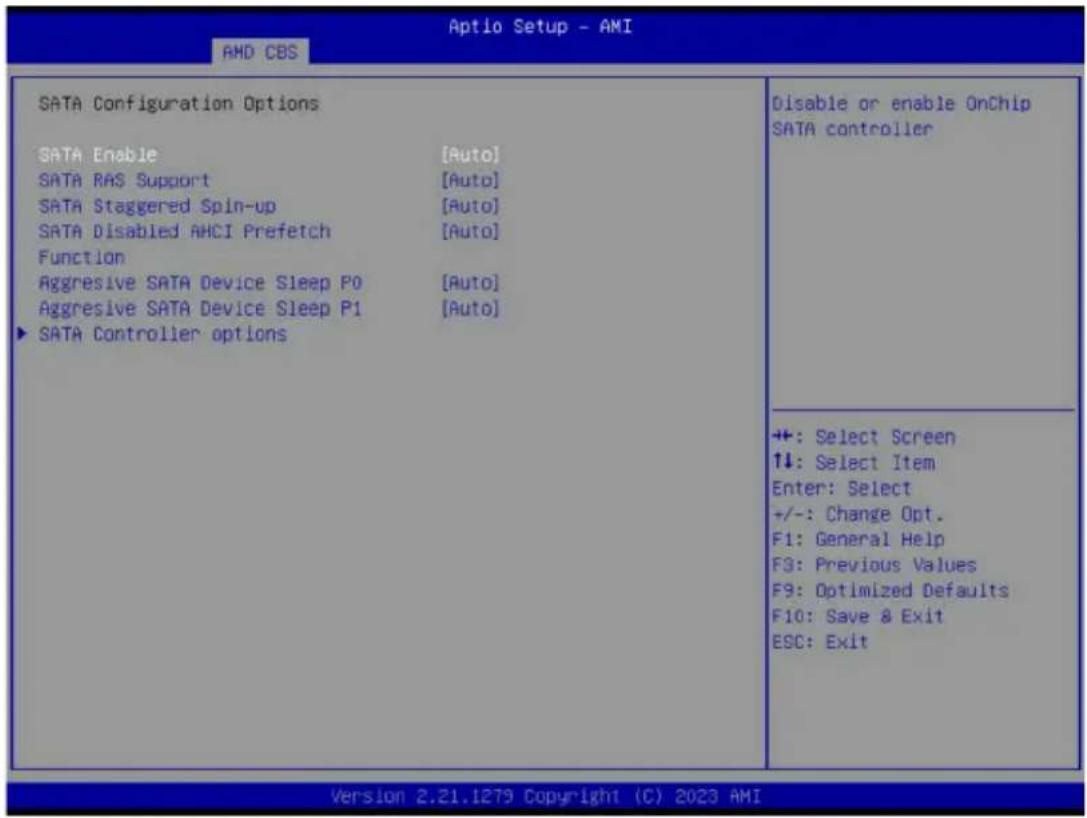

2-3-5-2 SATA Configuration Options

Parameter	Description
SATA Configuration Options
SATA Enable	Enable/Disable OnChip SATA controller. Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA RAS Support	Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Staggered Spin-up	Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Disabled AHCI Prefetch Function	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Aggressive SATA Device Sleep P0/P1	Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Controller options	Press [Enter] for configuration of advanced items. ◆ SATA Controller Enable ◆ SATA Controller eSATA ◆ SATA Controller DevSlp ◆ SATA Controller SGPIO

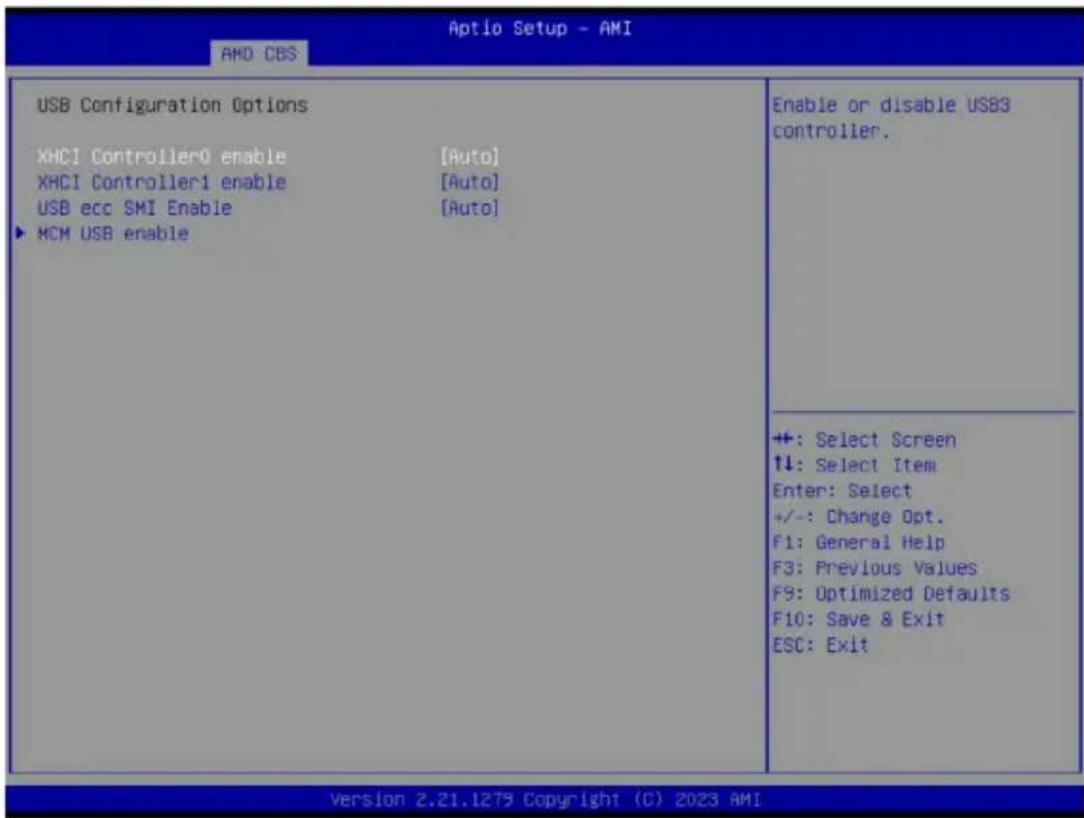

2-3-5-3 USB Configuration Options

Parameter	Description
USB Configuration Options
XHCI Controller0/1 enable	Enable/Disable USB controller.Options available: Enabled, Disabled, Auto. Default setting isAuto.
USB ecc SMI Enable	Options available: Enable, Off, Auto. Default setting isAuto.
MCM USB enable	Press [Enter] for configuration of advanced items.♦ XHCI2/ XHCI3 enable (Socket1)– Options available: Enabled, Disabled, Auto. Default setting isAuto.

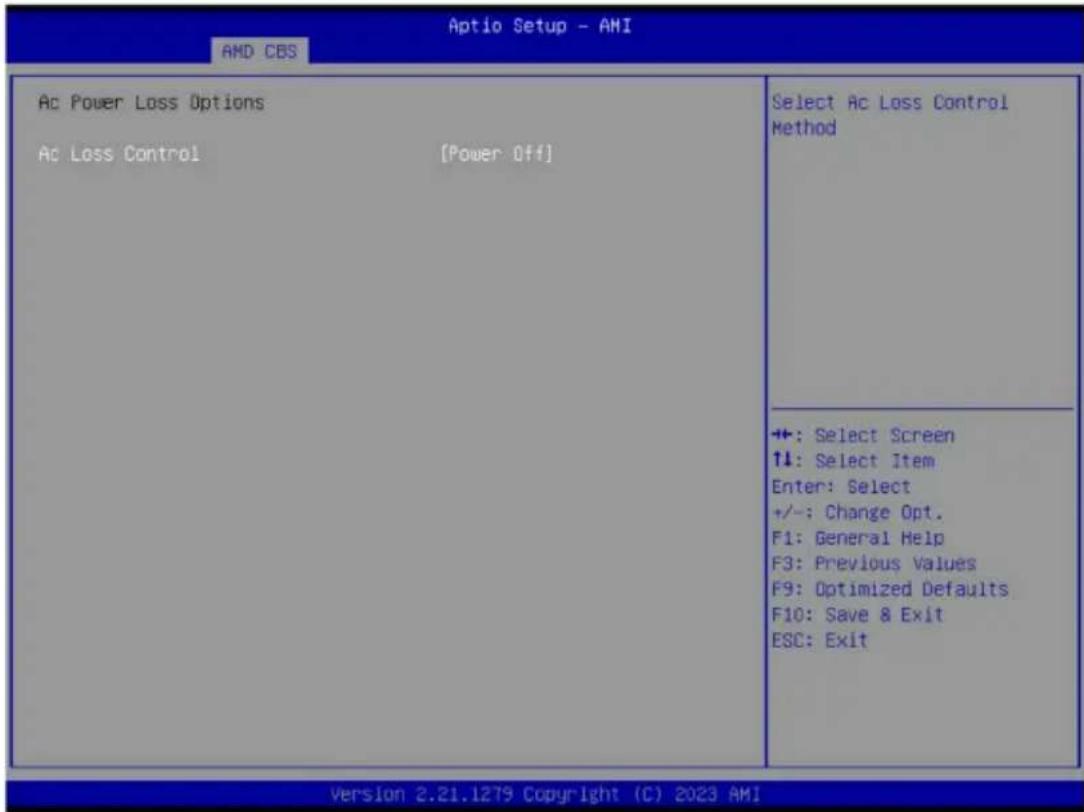

2-3-5-4 AC Power Loss Options

Parameter	Description
AC Power Loss Options
AC Loss Control	Selects the AC Loss Control Method. Options available: Power Off, Power On, Last State. Default setting is Power Off.

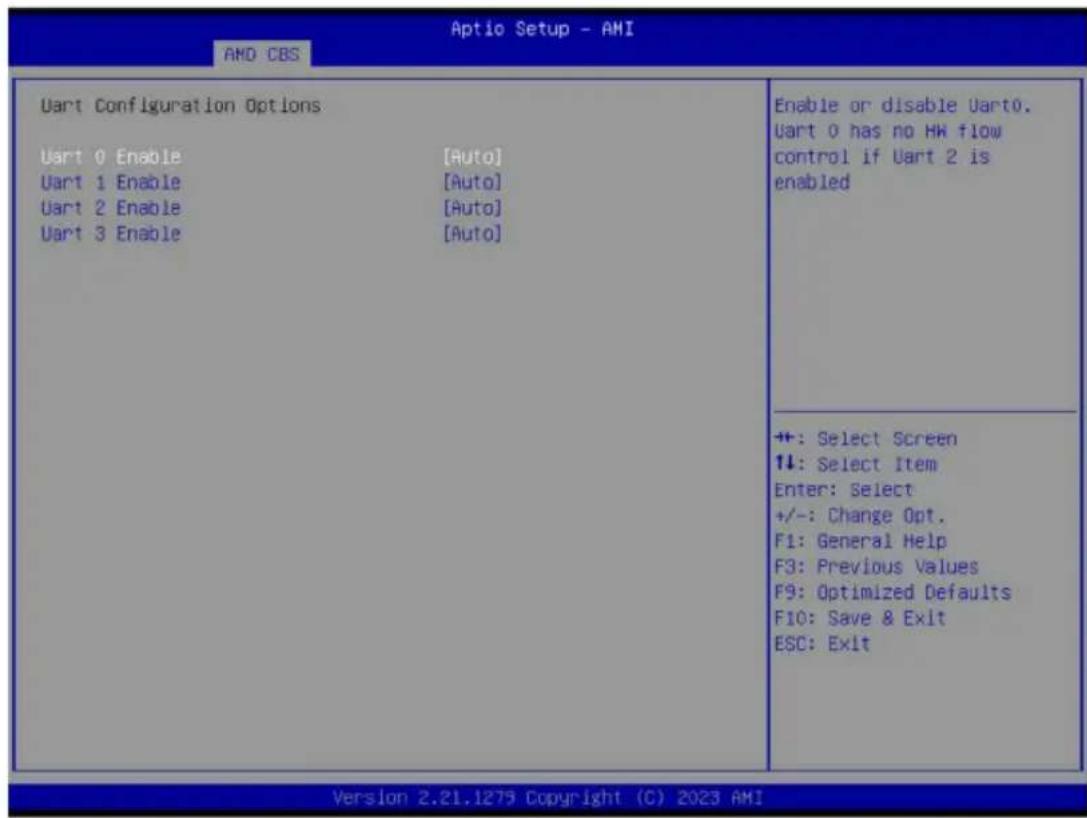

2-3-5-5 Uart Configuration Options

Parameter	Description
Uart Configuration Options
Uart 0/1/2/3 Enable	Options available: Disabled, Enabled, Auto. Default setting is Auto.

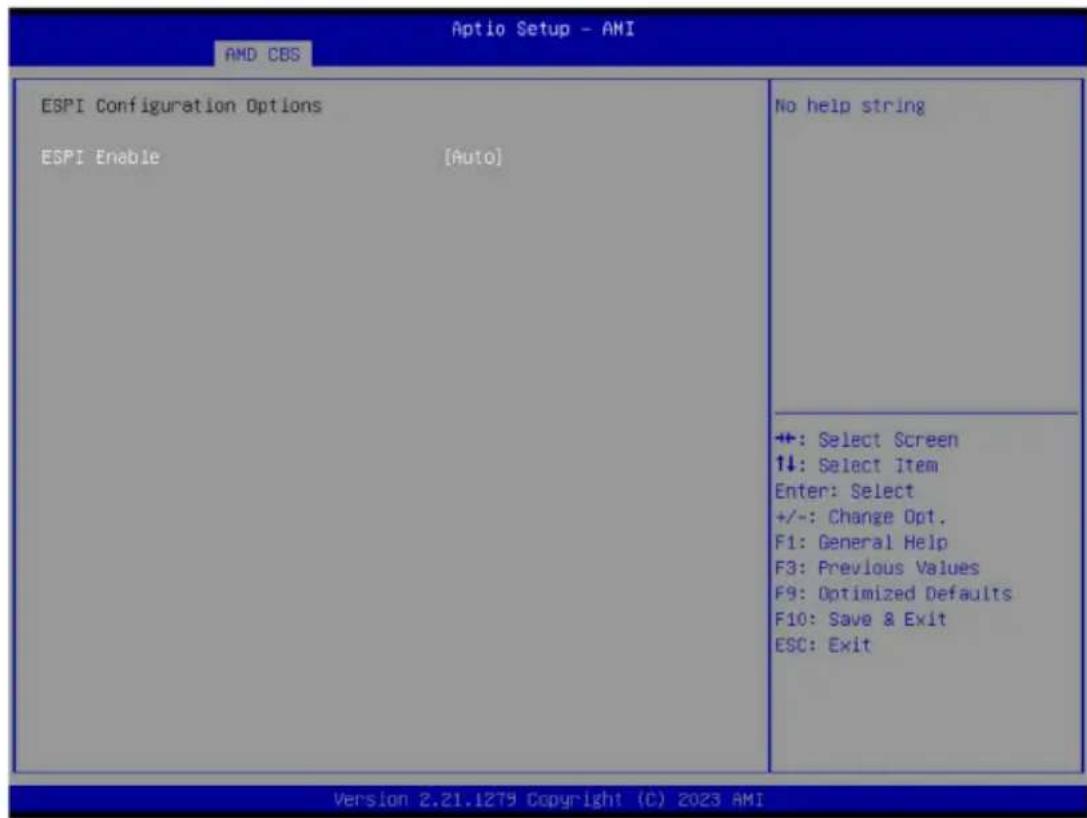

2-3-5-6 ESPI Configuration Options

Parameter	Description
ESPI Configuration Options
ESPI Enable	Options available: Disabled, Enabled, Auto. Default setting is Auto.

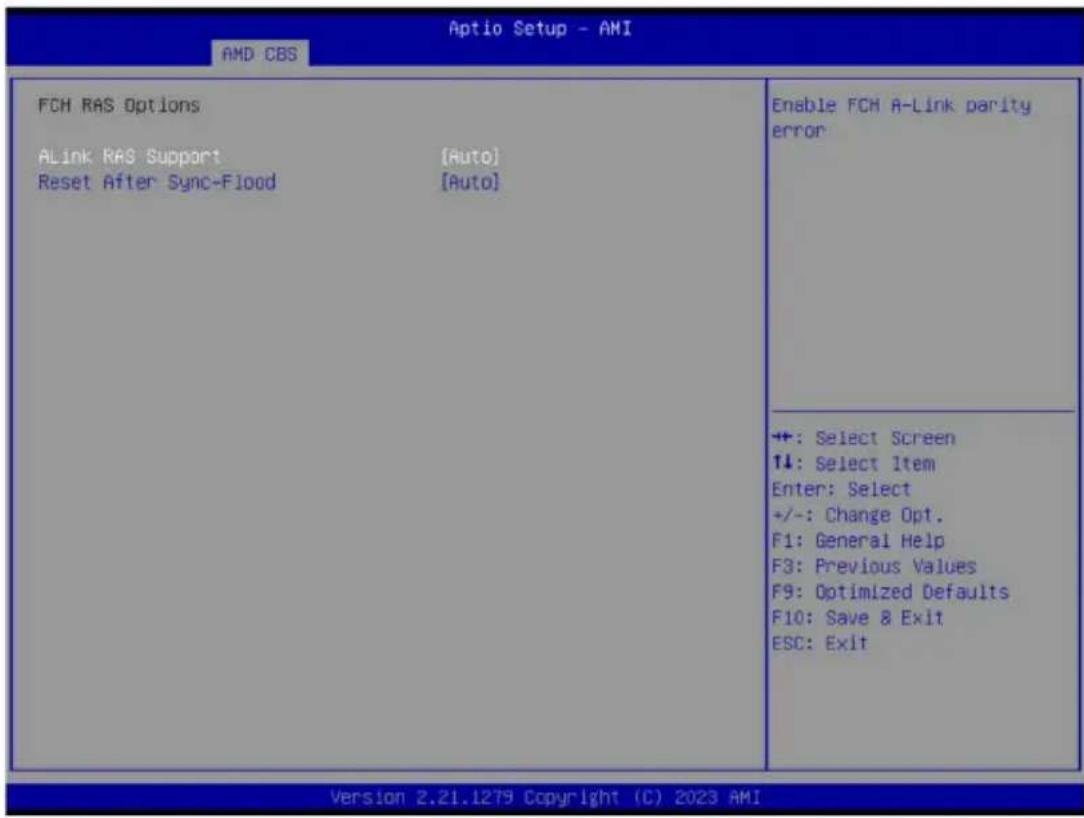

2-3-5-7 FCH RAS Options

Parameter	Description
FCH RAS Options
ALink RAS Support	Enable/Disable the ALink RAS Support.Options available: Disabled, Enabled, Auto. Default setting isAuto.
Reset After Sync-Flood	Enables AB to forward downstream sync-flood message to system controller.Options available: Enable, Disable, Auto. Default setting isAuto.

2-3-5-8 Miscellaneous Options

Parameter	Description
Miscellaneous Options
Boot Timer Enable	Enable/Disable Boot Timer.Options available: Disabled, Enabled, Auto. Default setting is Auto.

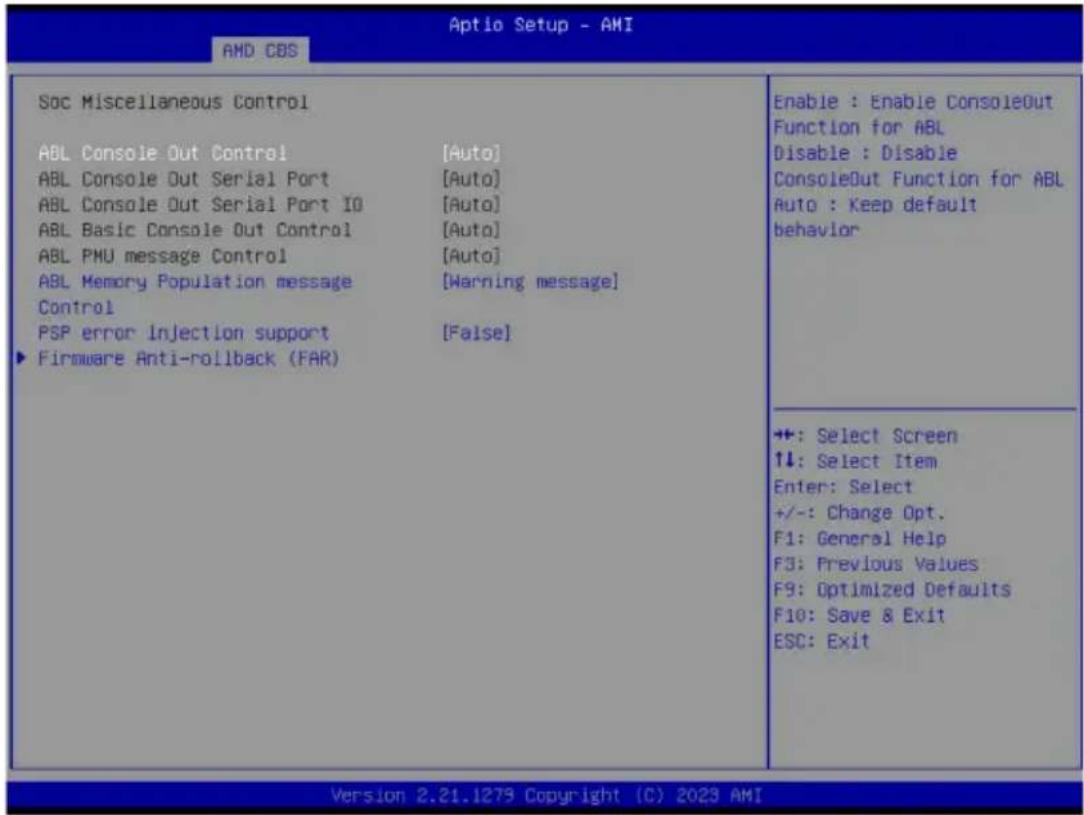

2-3-6 SOC Miscellaneous Control

Parameter	Description
SOC Miscellaneous Control
ABL Console Out Control ^(Note)	Enable/Disable the ConsoleOut function for ABL. Options available: Disable, Enable, Auto. Default setting isAuto.
ABL Console Out Serial Port ^(Note)	Options available: eSPI, SOC UART0, SOC UART1, Auto. Default setting isAuto.
ABL Console Out Serial Port IO	Options available: 0x3F8, 0x2F8, 0x3E8, 0x2E8, Auto. Default setting isAuto.
ABL Basic Console Out Control	Enable/Disable the Basic ConsoleOut function for ABL. Options available: Disable, Enable, Auto. Default setting isAuto.
ABL PMU message Control	To Control the total number of PMU debug messages. Options available: Auto, Detailed debug message, Coarse debug message, Stage completion, Assertion messages, Firmware completion message only. Default setting isAuto.
ABL Memory Population message Control	Options available: Warning message, Fatal error. Default setting isWarning message.
PSP error injection support Options available: False, True. Default setting isFalse.

(Note) Advanced items are configurable when this item is defined.

Firmware Anti-rollback (FAR)

Press [Enter] for configuration of advanced items.

◆ FAR enforcement state
- Default setting is Enabled.

◆ SPL value in the CPU Fuse

◆ SPL value in the SPL table

FAR Switch

- Options available: Disabled, Enabled, Auto. Default setting is Auto.

2-3-7 Workload Tuning

Parameter	Description
Workload Tuning
Workload Profile	Select the profile for different workloads.Options available: CPU Intensive, Java Throughput, Java Latency, Power Efficiency, Memory Throughput Intensive, Storage IO Intensive, NIC Throughput Intensive, NIC Latency Sensitive, Accelerator Throughput, VMware vSphere Optimized, Linux KVM Optimized, Container Optimized, RDBMS Optimized, Big Data Analytics Optimized, IOT Gateway, HPC Optimized, OpenStack NFV, OpenStack for ReakTime Kernel, Auto. Default setting isAuto.
Performance Tracing	Enable to allow capturing performance traces.Options available: Disabled, Enabled, Auto. Default setting isAuto.

2-3-8 CXL Common Options

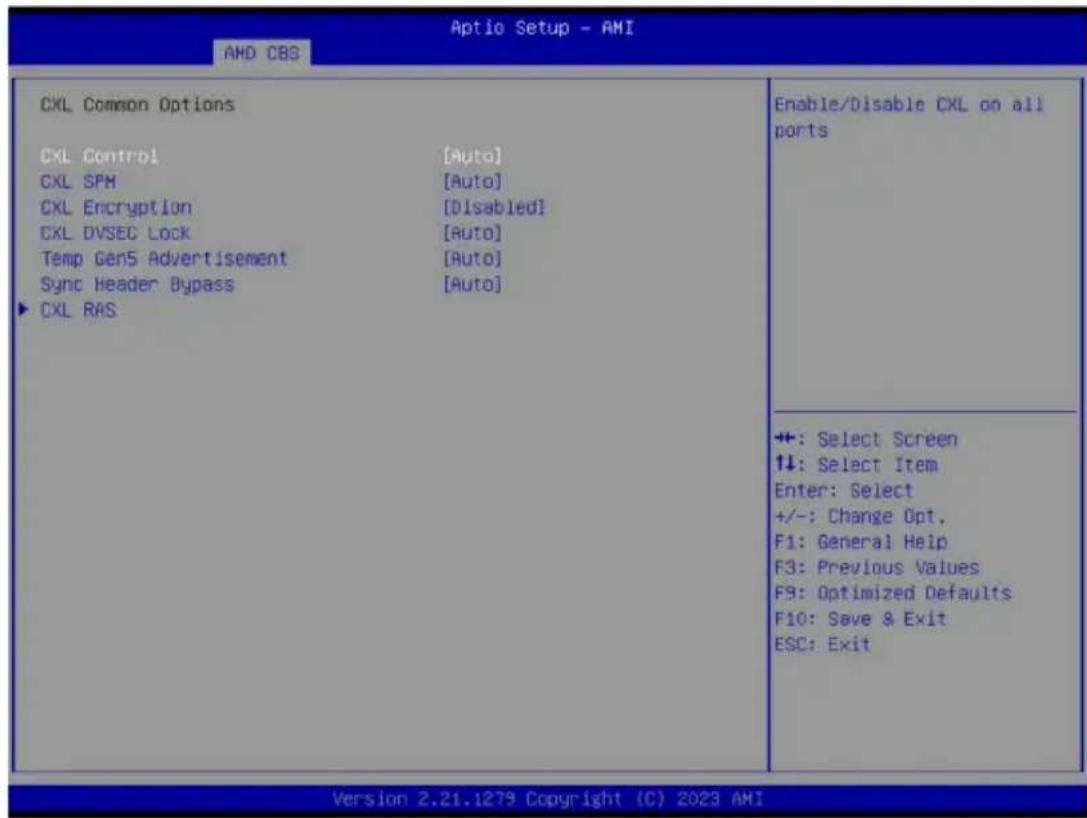

Parameter	Description
CXL Common Options
CXL Control Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL SPM Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL Encryption Options available: Enabled, Disabled. Default setting is Disabled.
CXL DVSEC Lock Options available: Auto, Enabled, Disabled. Default setting is Auto.
Temp Gen5 Advertisement	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Sync Header Bypass Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL RAS	Press [Enter] for configuration of advanced items.◆ CXL Protocol Error Reporting- Options available: Disabled, SameAsPcieAer,ForceAerFwFirstIfCxlPresent. Default setting is SameAsPcieAer.◆ CXL Component Error Reporting- Options available: OS First, FW-First. Default setting is FW-First.

2-4 AMD PBS Menu

AMD PBS Option menu displays submenu options for configuring the function of AMD PBS. Select a submenu item, then press [Enter] to access the related submenu screen.

Parameter Description

RAS Press [Enter] for configuration of advanced items.

SPI Locking	Enable/Disable SPI Locking for protect ROM part. Options available: Disabled, Enabled. Default setting is Disabled.
CXL Range Encryption	Press [Enter] for configuration of advanced items.◆ Range1/2/3/4/5/6/7– Configure the Range 1/2/3/4/5/6/7 Memory Base.– Configure the Range 1/2/3/4/5/6/7 Memory Limit/Size.◆ Start CXL Range Encryption

Parameter	Description
RAS Periodic SMI Control	Enable/Disable the Periodic SMI for polling [MCA Threshold] error. Options available: Disabled, Enabled. Default setting is Enabled.
SMI Threshold Configures the SMI Threshold value.
SMI Scale Configures the SMI Scale value.
SMI Scale Unit	Defines the unit of time scale. Options available: millisecond, second, minute. Default setting is millisecond.
SMI Period Configures the SMI Period.
GHES Notify Type	Selects the Notification type for deferred/ corrected errors. Options available: Polled, SCI. Default setting is Polled.
GHES UnCorr Notify Type	Selects the Notification type for uncorrected errors. Options available: Polled, NMI. Default setting is NMI.
PCIe GHES Notify Type	Selects the Notification type for PCIe corrected errors. Options available: Polled, SCI. Default setting is Polled.
PCIe UnCorr GHES Notify Type	Selects the Notification type for PCIe uncorrected errors. Options available: Polled, NMI. Default setting is NMI.
PCIe Root Port Corr Err Mask Reg	Initialize the PCIe AER Corrected Error Mask register of Root Port.
PCIe Root Port UnCorr Err Mask Reg	Initialize the PCIe AER Uncorrected Error Mask register of Root Port.
PCIe Root Port UnCorr Err Sev Reg	Initialize the PCIe AER Uncorrected Error Severity register of Root Port.
PCIe Device Corr Err Mask Reg	Initialize the PCIe AER Corrected Error Mask register of PCIe device.
PCIe Device UnCorr Err Mask Reg	Initialize the PCIe AER Uncorrected Error Mask register of PCIe device.
PCIe Device UnCorr Err Sev Reg	Initialize the PCIe AER Uncorrected Error Severity register of PCIe device.
DRAM Hard Post Package Repair	This feature allows spare DRAM rows to replace malfunctioning rows via an in-field repair mechanism.Options available: Disabled, Enabled. Default setting is Disabled.
HEST DMC Structure Support	HEST DMC (Deferred Machine Check) Structure Support.Options available: Disabled, Enabled. Default setting is Disabled.
CXL Error Report Support	Enable/Disable CXL Error Reporting.Options available: Disabled, Enabled. Default setting is Disabled.

2-5 Chipset Setup Menu

Chipset Setup menu displays submenu options for configuring the function of the North Bridge. Select a submenu item, then press to access the related submenu screen.

Parameter	Description
PCIe Link Training Type	Options available: 1 Step, 2 Step. Default setting is 1 Step.
PCIe Compliance Mode Options available: Off, On. Default setting is Off.
Program All VR	Enable/Disable program all VR on MB. Options available: Disabled, Enabled. Default setting is Enabled.
North Bridge Press [Enter] for configuration of advanced items.
Fabric Resource Press [Enter] for configuration of advanced items.

2-5-1 North Bridge

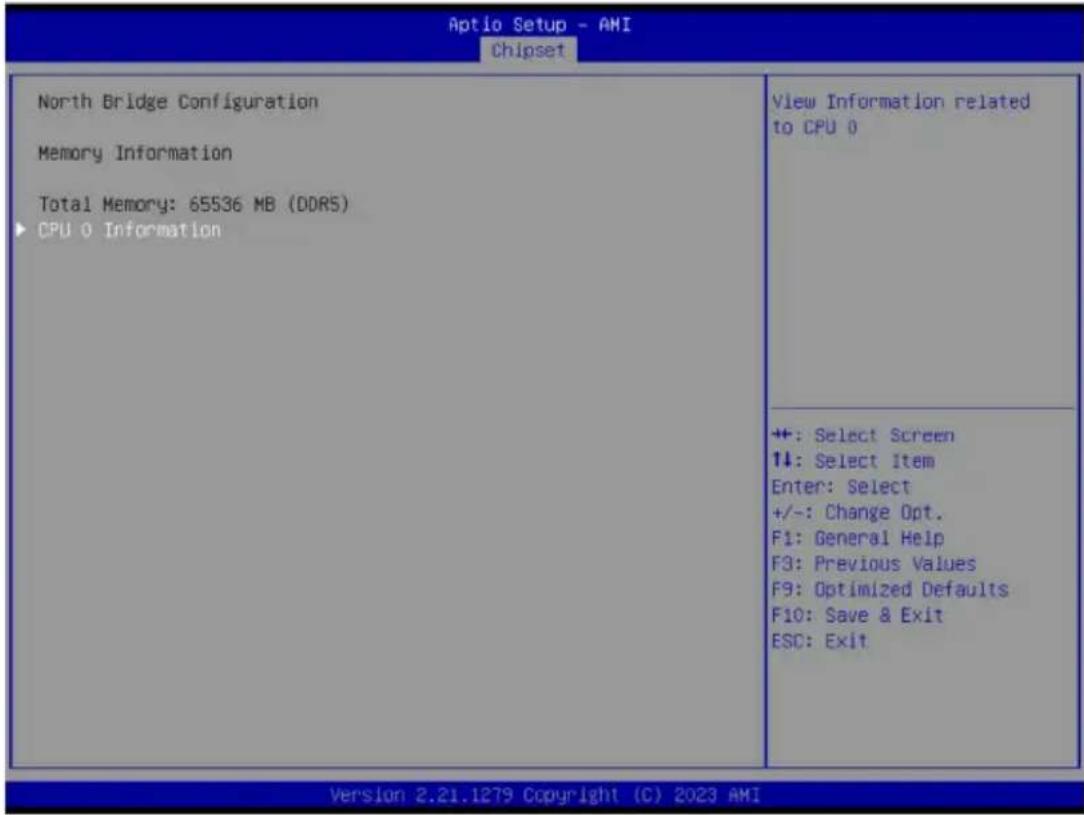

Parameter	Description
North Bridge ConfigurationMemory Information
Total Memory Displays the total memory information.
CPU 0 Information Press [Enter] to view information related to CPU 0.

2-5-2 Fabric Resource

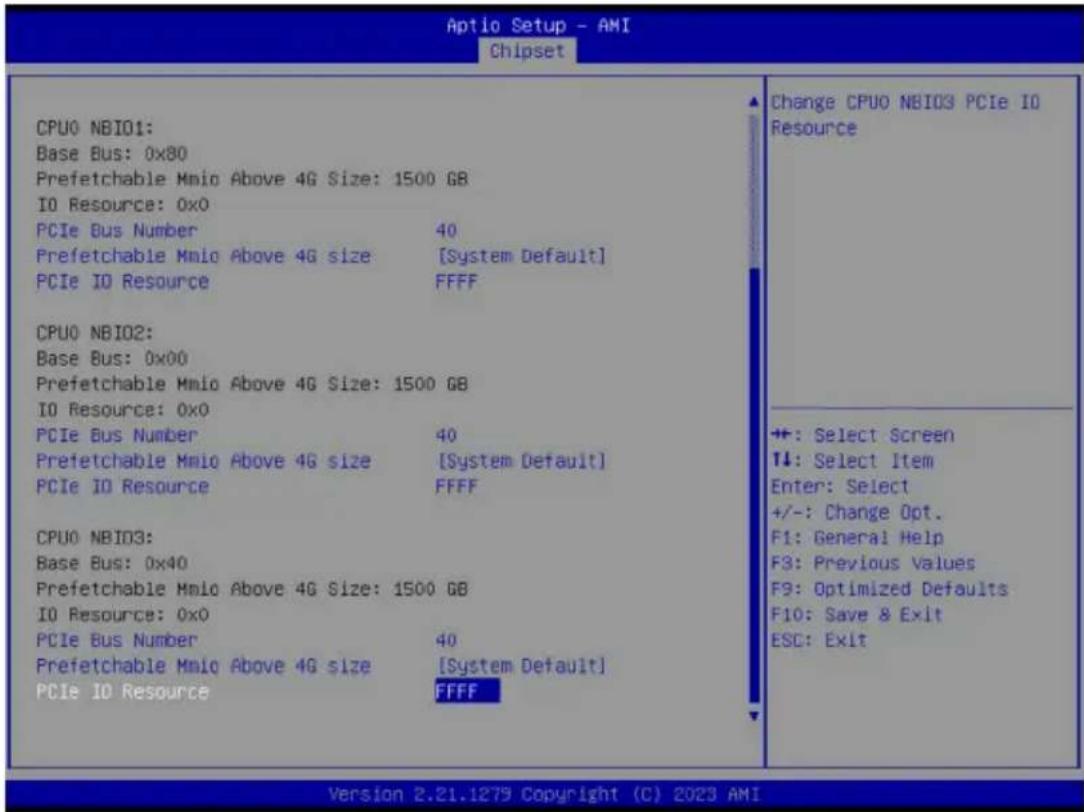

Parameter	Description
Fabric Resource
CPU 0 NBIO_# PCIe Bus Number	Change CPU 0 NBIO_# PCIe Bus Number.
Prefetchable Mmio Above 4G size	Change CPU 0 NBIO_# Prefetchable MMIO Above 4G Size.Options available: System Default, 0, 1G, 2G, 4G, 8G, 16G, 32G, 64G, 128G, 256G, 512G, 1T, 2T, 4T, 8T. Default setting isSystem Default.
PCIe IO Resource Change CPU 0 NBIO_# PCIe IO Resource.

2-6 Server Management Menu

Parameter	Description
FRB-2 Timer	Enable/Disable FRB-2 timer (POST timer).Default setting is Enabled.
FRB-2 Timer timeout	Configures the FRB2 Timer timeout.Options available: 3 minutes, 4 minutes, 5 minutes, 6 minutes. Default setting is 6 minutes.
FRB-2 Timer Policy	Configures the FRB2 Timer policy.Options available: Do Nothing, Reset, Power Down, Power Cycle.Default setting is Do Nothing.
OS Watchdog Timer	Enable/Disable OS Watchdog Timer function.Options available: Enabled, Disabled. Default setting is Disabled.
OS Wtd Timer Timeout ^(Note)	Configures OS Watchdog Timer.Options available: 5 minutes, 10 minutes, 15 minutes, 20 minutes.Default setting is 10 minutes.
OS Wtd Timer Policy ^(Note)	Configure OS Watchdog Timer Policy.Options available: Do Nothing, Reset, Power Down, Power Cycle.Default setting is Reset.
Wait BMC Ready	Post wait BMC ready and reboot system.Options available: Disabled, 2 minutes, 4 minutes, 6 minutes. Default setting is 2 minutes.

(Note) This item is configurable when OS Watchdog Timer is set to Enabled.

Parameter	Description
System Event Log	Press [Enter] to configure advanced items.
View FRU Information	Press [Enter] to view the FRU information.
BMC network configuration	Press [Enter] to configure advanced items.
IPv6 BMC Network Configuration	Press [Enter] to configure advanced items.

2-6-1 System Event Log

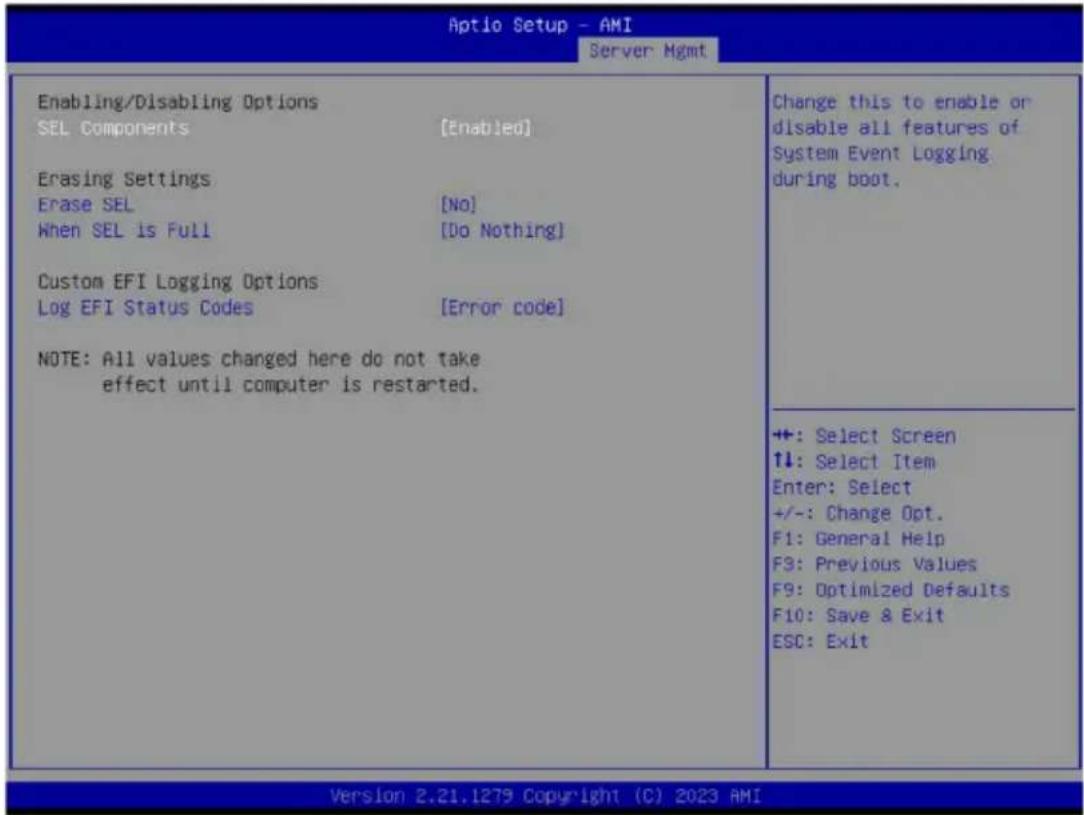

Parameter	Description
Enabling / Disabling Options
SEL Components	Change this item to enable or disable all features of System Event Logging during boot. Options available: Disabled, Enabled. Default setting is Enabled.
Erasing Settings
Erase SEL	Choose options for erasing SEL. Options available: No/Yes, On next reset/Yes, On every reset. Default setting is No.
When SEL is Full	Choose options for reactions to a full SEL. Options available: Do Nothing, Erase Immediately. Default setting is Do Nothing.
Custom EFI Logging Options
Log EFI Status Codes	Enable/Disable the logging of EFI Status Codes (if not already converted to legacy). Options available: Disabled, Both, Error code, Progress code. Default setting is Error code.

2-6-2 View FRU Information

The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable.

2-6-3 BMC Network Configuration

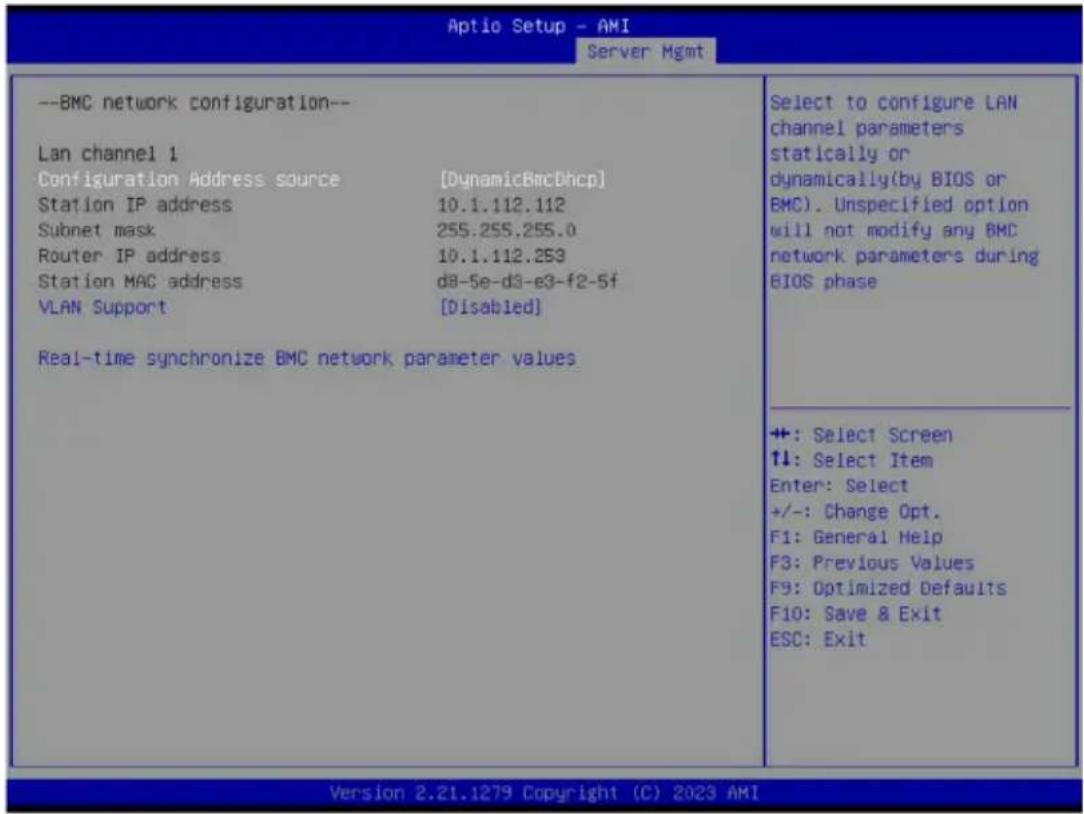

Parameter	Description
BMC network configuration
Lan Channel 1
Configuration Address source	Selects to configure LAN channel parameters statically or dynamically (DHCP). Do nothing option will not modify any BMC network parameters during BIOS phase. Options available: Unspecified, Static, DynamicBmcDhcp. Default setting is DynamicBmcDhcp.
Station IP address	Displays IP Address information.
Subnet mask	Displays Subnet Mask information. Please note that the IP address must be in three digitals, for example, 192.168.000.001.
Router IP address	Displays the Router IP Address information.
Station MAC address	Displays the MAC Address information.
VLAN Support	Set BMC to enable/disable VLAN support. Options available: Enabled, Disabled. Default setting is Disabled.
Real-time synchronize BMC network parameter values	Press [Enter] will set Address source(Static/DHCP) to BMC and then get Station IP address, Subnet mask and Router IP address from BMC.

2-6-4 IPv6 BMC Network Configuration

Aptio Setup - AMI Server Hgmt
IPv6 BMC Network Configuration IPv6 BMC Lan Channel 1: IPv6 BMC Lan Option [Enable] IPv6 BMC Lan IP Address Source [Dynamic-Obtained by BMC running DHCP] IPv6 BMC Lan IP Address/Prefix ::/0 Length → [::/0]	Enable/Disable IPv6 BMC LAN channel function. Disable option will not modify any BMC network during BIOS Phase
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter	Description
IPv6 BMC network configuration
IPv6 BMC Lan Channel 1
IPv6 BMC Lan Option	Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify any BMC network during BIOS phase.Options available: Unspecified, Disable, Enable. Default setting is Enable.
IPv6 BMC Lan IP Address Source	Selects to configure LAN channel parameters statically or dynamically (by BIOS or BMC).Options available: Unspecified, Static, Dynamic-Obtained by BMC running DHCP. Default setting is Dynamic-Obtained by BMC running DHCP.
IPv6 BMC Lan IP Address/ Prefix Length	Check if the IPv6 BMC LAN IP address matches those displayed on the screen.

2-7 Security Menu

The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords.

There are two types of passwords that you can set:

- Administrator Password

Entering this password will allow the user to access and change all settings in the Setup Utility.

- User Password

Entering this password will restrict a user's access to the Setup menus. To enable or disable this field, a Administrator Password must first be set. A user can only access and modify the System Time, System Date, and Set User Password fields.

Parameter	Description
Administrator Password	Press [Enter] to configure the administrator password.
User Password	Press [Enter] to configure the user password.
Secure Boot	Press [Enter] to configure advanced items.

2-7-1 Secure Boot

The Secure Boot submenu is applicable when your device is installed the Windows® 8 (or above) operating system.

System Mode	Setup	Secure Boot feature is Active if Secure Boot is Enabled, Platform Key(PK) is enrolled and the System is in User mode. The mode change requires platform reset
Secure Boot	[Disabled] Not Active
Secure Boot Mode	[Custom]
Restore Factory Keys
Reset To Setup Mode
Enter Audit Mode
Key Management
		+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter	Description
System Mode	Displays if the system is in User mode or Setup mode.
Secure Boot	Enable/ Disable the Secure Boot function.Options available: Enabled, Disabled. Default setting is Disabled.
Secure Boot Mode^(Note)	Secure Boot requires all the applications that are running during the booting process to be pre-signed with valid digital certificates. This way, the system knows all files being loaded before Windows loads to the login screen have not been tampered with.When set to Standard, it will automatically load the Secure Boot keys form the BIOS databases.When set to Custom, you can customize the Secure Boot settings and manually load its keys from the BIOS database.Options available: Standard, Custom. Default setting is Standard.
Restore Factory Keys	Forces the system to user mode and installs factory default Secure Boot key database.
Reset To Setup Mode	Press [Enter] to reset the system mode to Setup mode.
Enter Audit Mode	Press [Enter] to set the system mode to audit mode.

(Note) Advanced items prompt when this item is set to Custom.

Parameter

Description

Key Management

Press [Enter] to configure advanced items.Please note that this item is configurable when Secure Boot Mode is set to Custom.◆ Factory Key Provision- Allows to provision factory default Secure Boot keys when system is in Setup Mode.- Options available: Enabled, Disabled. Default setting is Disabled.◆ Restore Factory Keys- Installs all factory default keys. It will force the system in User Mode.- Options available: Yes, No.◆ Enroll Efi Image- Press [Enter] to enroll SHA256 hash of the binary into Authorized Signature Database (db).◆ Secure Boot variable- Displays the current status of the variables used for secure boot.◆ Platform Key (PK)- Displays the current status of the Platform Key (PK).- Press [Enter] to configure a new PK.- Options available: Update.◆ Key Exchange Keys (KEK)- Displays the current status of the Key Exchange Key Database (KEK).- Press [Enter] to configure a new KEK or load additional KEK from storage devices.- Options available: Update, Append.◆ Authorized Signatures (DB)- Displays the current status of the Authorized Signature Database.- Press [Enter] to configure a new DB or load additional DB from storage devices.- Options available: Update, Append.◆ Forbidden Signatures (DBX)- Displays the current status of the Forbidden Signature Database.- Press [Enter] to configure a new dbx or load additional dbx from storage devices.- Options available: Update, Append.◆ Authorized TimeStamps (DBT)- Displays the current status of the Authorized TimeStamps Database.- Press [Enter] to configure a new DBT or load additional DBT from storage devices.- Options available: Update, Append.◆ OsRecovery Signatures- Displays the current status of the OsRecovery Signature Database.- Press [Enter] to configure a new OsRecovery Signature or load additional OsRecovery Signature from storage devices.- Options available: Update, Append.

2-8 Boot Menu

The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable.

Parameter	Description
Boot Configuration
Setup Prompt Timeout	Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting.Press the numeric keys to input the desired values.
Bootup NumLock State	Enable/Disable the Bootup NumLock function.Options available: On, Off. Default setting is On.
Quiet Boot	Enable/Disable showing the logo during POST.Options available: Enabled, Disabled. Default setting is Enabled.
Setup Flash	Press [Enter] to run setup flash.
Dump full Setup Data	Press [Enter] to dump full setup data to file.
Dump non-default Setup Data	Press [Enter] to dump non-default setup data to file.
Restore Setup Data	Press [Enter] to restore setup data from file (cJson format).
Boot mode select	Selects the boot mode.Options available: LEGACY, UEFI. Default setting is UEFI.
FIXED BOOT ORDER Priorities
Boot Option #1 / #2 / #3 / #4 / #5	Press [Enter] to configure the boot priority.By default, the server searches for boot devices in the following sequence:1. Hard drive.2. CD-COM/DVD drive.3. USB device.4. Network.5. UEFI.
UEFI Network Drive BBS Priorities	Press [Enter] to configure the boot priority.
UEFI Application Boot Priorities	Press [Enter] to configure the boot priority.

2-9 Save & Exit Menu

The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press .

Aptio Setup - AMI Main Advanced AMD CBS AMD PBS Option Chipset Server Mgmt Security Boot Save & Exit
Save Options Save Changes and Exit Discard Changes and Exit Save Changes Default Options Restore Defaults Boot Override UEFI: PXE IPv4 Intel(R) Network D8:5E:D3:E3:F3:F3 UEFI: PXE IPv4 Intel(R) Network D8:5E:D3:E3:F3:F4 UEFI: PXE IPv6 Intel(R) Network D8:5E:D3:E3:F3:F3 UEFI: PXE IPv6 Intel(R) Network D8:5E:D3:E3:F3:F4 UEFI: Built-in EFI Shell Launch EFI Shell from filesystem device	Exit system setup after saving the changes. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit

Parameter	Description
Save Options
Save Changes and Exit	Saves changes made and closes the BIOS setup. Options available: Yes, No.
Discard Changes and Exit	Discards changes made and exits the BIOS setup. Options available: Yes, No.
Save Changes	Saves changes done so far to any of the setup options. Options available: Yes, No.
Default Options
Restore Defaults	Loads the default settings for all BIOS setup parameters. Setup Defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low-performance components and you choose to load these settings, the system might not function properly. Options available: Yes, No.
Boot Override	Press [Enter] to configure the device as the boot-up drive.
Launch EFI Shell from filesystem device	Attempts to Launch EFI Shell application (Shell.efi) from one of the available file system devices.

2-10 BIOS Recovery

The system has an embedded recovery technique. In the event that the BIOS becomes corrupt the boot block can be used to restore the BIOS to a working state. To restore your BIOS, please follow the instructions listed below:

Recovery Instruction:

1. Copy the XXX.rom to USB diskette.
2. Setting BIOS Recovery jump to enabled status.
3. Boot into BIOS recovery.

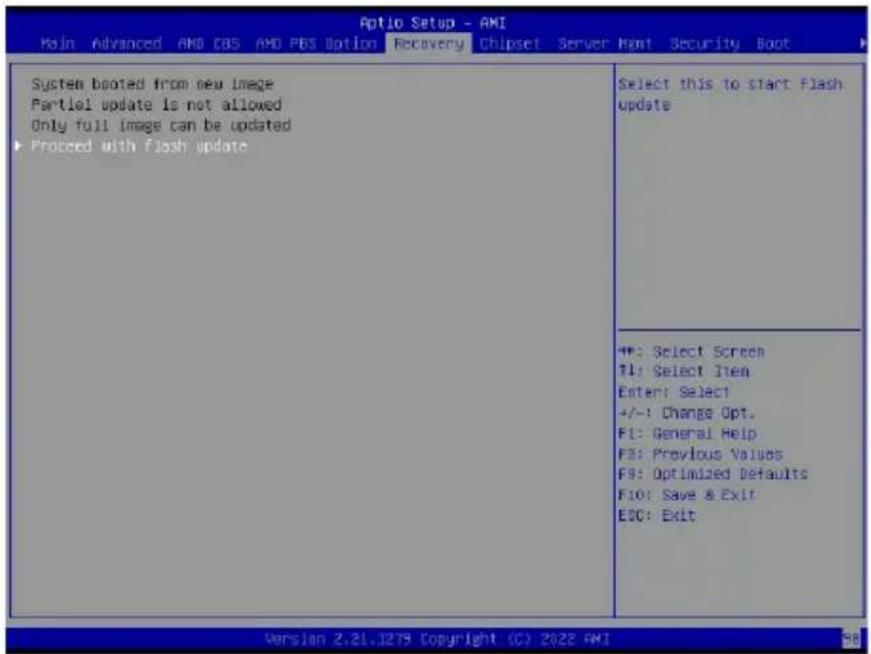

4. Run Proceed with flash update.

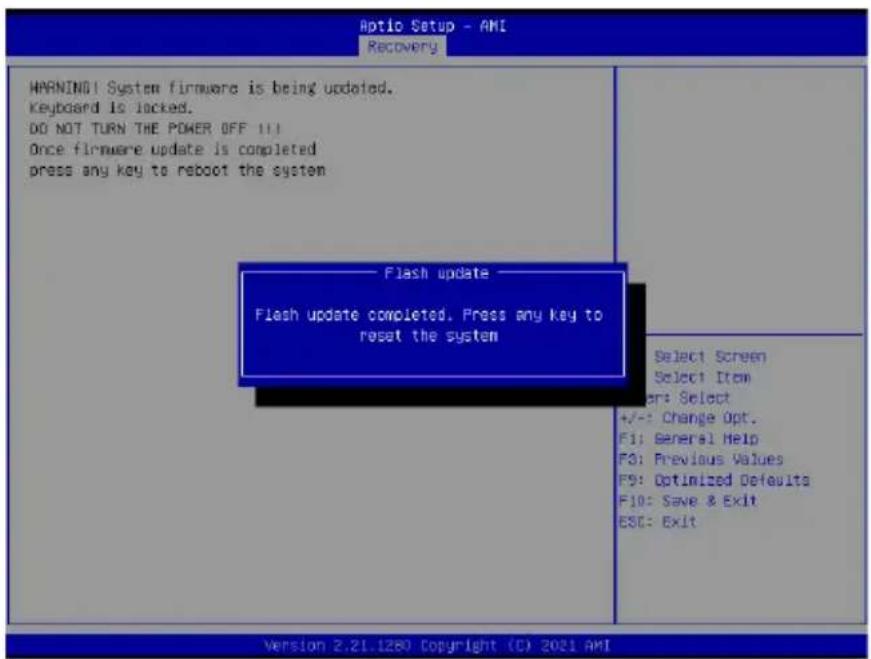

5. BIOS updated.

2-11 BIOS POST Beep code (AMI standard)

2-11-1 PEI Beep Codes

# of Beeps Description
1	Memory not Installed.
1	Memory was installed twice (InstallPeiMemory routine in PEI Core called twice)
2	Recovery started
3 DXEIPL was not found
3 DXE Core Firmware	ware Volume was not found
4 Recovery failed
4	S3 Resume failed
7	Reset PPI is not available

2-11-2 DXE Beep Codes

# of Beeps Description
1 Invalid password
4 Some of the Architectural Protocols are not available
5 No Console Output Devices are found
5 No Console Input Devices are found
6 Flash update is failed
7 Reset protocol is not available
8 Platform PCI resource requirements cannot be met
