USER MANUAL THFZ204NFWH THOMSON

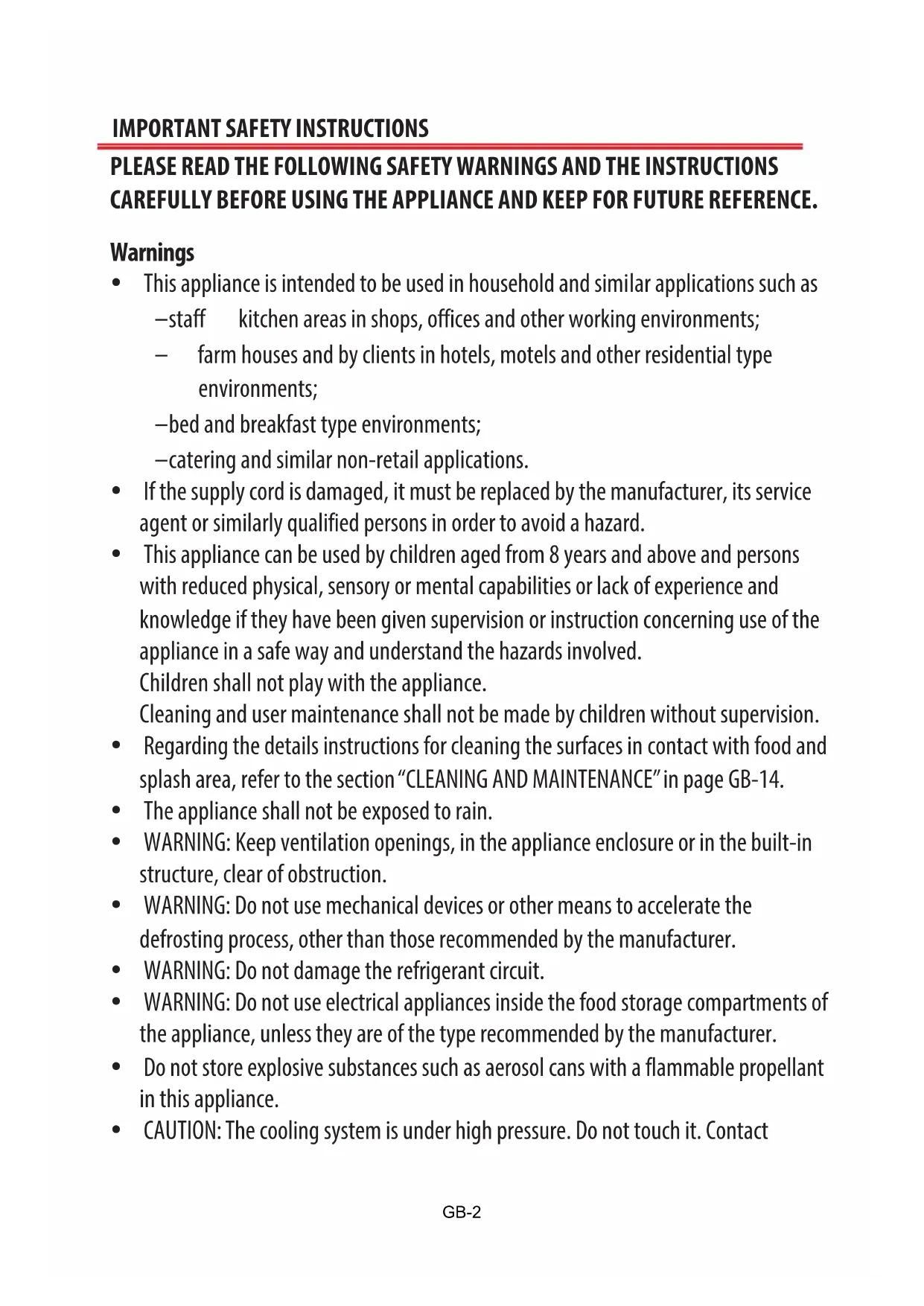

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE. Warnings y This appliance is intended to be used in household and simi lar applications such as ࢼ staff kitchen areas in shops, offices and other working environments; ࢼ farm houses and by clients in hotels, motels and other residential type environments; ࢼ bed and breakfast type environments; ࢼ catering and similar non-retail applications. y If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. y This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. y Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section “CLEANING AND MAINTENANCE” in page GB-14. y The appliance shall not be exposed to rain. y WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. y WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. y WARNING: Do not damage the refrigerant circuit. y WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. y Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. y CAUTION: The cooling system is under high pressure. Do not touch it. Contact GB-2qualified maintenance services before disposal. y INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS. y For disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal. y For installation, servicing: Appliance should be placed on a horizontal surface and keep the ventilation freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary. y For handling: Always handle the appliance to avoid any damage. y WARNING: For making ice (ice cubes), use potable water only. y Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted. y Warning; Risk of fire / flammable materials y WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. y WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. y Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. y To avoid contamination of food, please respect the following instructions: ࢼ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. GB-3ࢼ Clean regularly surfaces that can come in contact with food and accessible drainage systems. ࢼ Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. ࢼ Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. ࢼ One-, two- and three-star compartments are not suitable for the freezing of fresh food. ࢼ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Safety Precautions y The plug must be accessible when the freezer is in position. y Turn off and unplug the freezer from the mains socket when not in operation and before cleaning. Remove food and basket before cleaning. y Never unplug the freezer by pulling the cord. Grip the plug firmly and pull it out. y Place the freezer in a dry place – avoid areas of high moisture or humidity. y Keep the freezer out of direct sunlight. y Do not place the freezer near stoves, fires or heaters. y Do not use electrical appliances in the freezer. y Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. y Effervescent drinks should not be stored in the freezer. y Never use the base, doors etc. to stand on or as supports. y Frozen food must not be refrozen once it has been thawed out. y Do not consume ice popsicles or ice cubes straight from the freezer as this can cause ice burn to the mouth and lips. y The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. GB-4The refrigerant (R600a) is flammable. y WARNING — Refrigerators and freezers contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

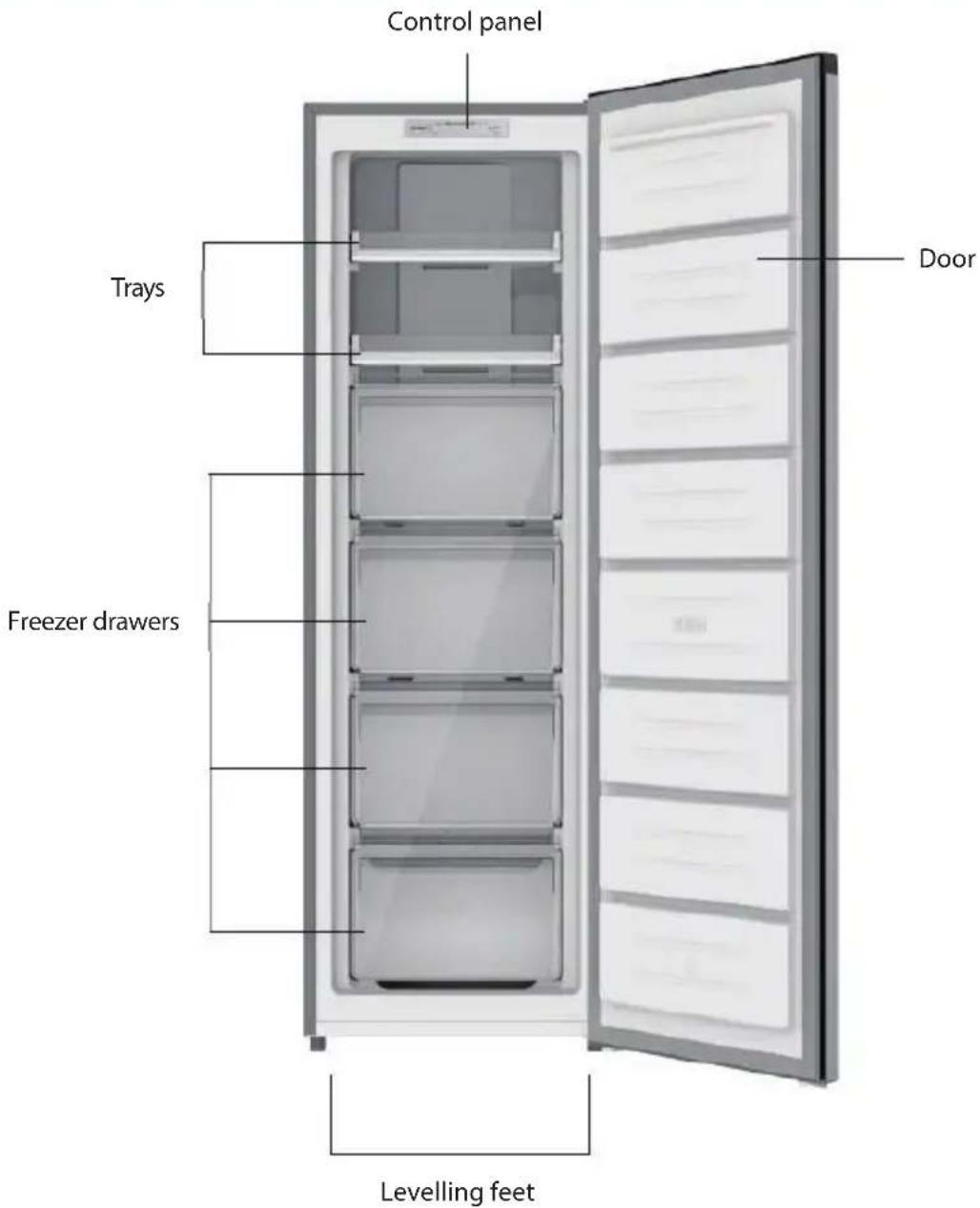

GB-5PRODUCT OVERVIEW

Recommended food arrangement Freezer compartment (-18°C): Top/middle section: Cakes and pastries Dairy products such as cheese and butter Bottom drawer : Cooked meat and fish Door Levelling feet Control panel Trays Freezer drawers

GB-6BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance. The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding. INSTALLATION Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet. Adjust the feet to keep the freezer level. AMBIENT TEMPERATUE This appliance is designed to operate in ambient temperature between 10°C and 38°C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer will rise above -18°C and food spoilage may occur. POWER FAILURE If there is a power failure during the storage of frozen foods, keep the door closed. Frozen food should not be affected if the power failure lasts for less than 10 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Before placing food in the appliance y Remove all packaging. y Allow the appliance to run empty for 2 – 3 hours so the compartment can cool to the appropriate temperature. y Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

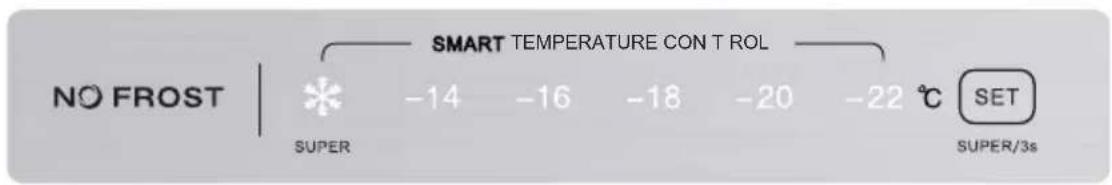

Temperature control The freezer is controlled with a control panel inside it. Repeatedly press to set the desired temperature in the freezer compartment in a cycle of -14°C, -16°C, -18°C, -20°C, -22°C. The temperature will be confirmed after flashing for 5 seconds. The runnning time and temperature are affected by where the freezer is located, how often the door is opened and the temperature of the room the freezer is located in. When you use the appliance for the first time, adjust the temperature to the coldest setting (-22°C) for at least 2 hours before introducing food to be stored, and then readjust to the middle setting (-18°C). Super freezing mode This mode will help food to freeze quickly and retain its nutrients, vitamins, flavours and appearance. To activate this mode, press and hold for about 3 seconds until the SUPER indicator light illuminates. y This mode will be automatically deactivated after 50 hours of operation and the appliance will restore to the original temperature setting. To manually deactivate this mode, press and hold for about 3 seconds until the SUPER indicator light goes out. Door opening alarm If the door is left open for approximately 90 seconds, the alarm will sound. To turn off the alarm, you can close the door. Temperature alarm If high internal temperature of the appliance is detected, high temperature alarm will sound. High GB-8 TEMPERATURE CON T ROLtemperature alarm will switch off automatically only when detected temperature goes back to normal. To stop the alarm, press .

Moving your appliance If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting. y Turn off the appliance and unplug it from the mains socket. Also remove all mobile parts or fix them into the appliance to avoid any shock. y Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

Freezing and storing food Using the freezer x To store deep-frozen food x To make ice cubes x To freeze food Note: Ensure that the freezer door has been closed properly. Purch asing frozen food x Packaging must not be damaged. x Use by the ‘use by/best before/best by/’ date. x If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer. Stori ng frozen food Store at -18°C or colder. Avoid opening the freezer door unnecessarily. Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen. x The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. x The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise. GB-9Packing frozen food To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.

4. Label packaging with contents and dates of freezing.

Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil. These products are available from specialist outlets. Recommended storage times of frozen food in the freezer These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months Non-oily fish, shellfish, pizza, scones and muffins 3 months Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw) 6 months Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes 12 months Never forget: x When you freeze fresh foods with a ‘use by/best before/best by/’ date, you must freeze them before this date expires. x Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen. x Once defrosted, food should be consumed quickly.

Making ice cubes Fill the ice cube tray (not supplied) with 3/4 full of drinking water and place in the freezer. If the ice cube tray is stuck to the compartment or drawer, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

Operating noises Normal noises y Motors are running. y Refrigerant is flowing through the tubing. GB-107

Energy saving tips For the most energy efficient use of your appliance: y Ensure your freezer has adequate ventilation as recommended in the installation instructions. y Allow warm food and drinks to cool down before placing in the appliance. y Keep door openings to a minimum. y Open the appliance as briefly as possible. y Regularly defrost the freezer to remove the layer of frost. y Ensure that the door is always closed properly. DOOR CONVERSION If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

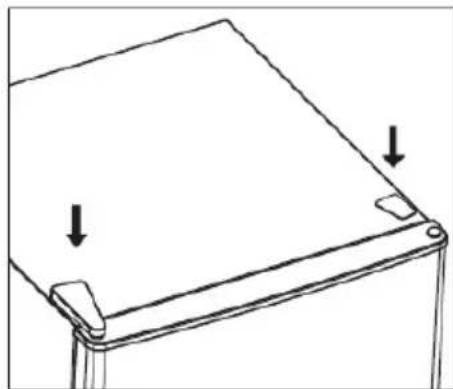

1. Remove the upper hinge cover.

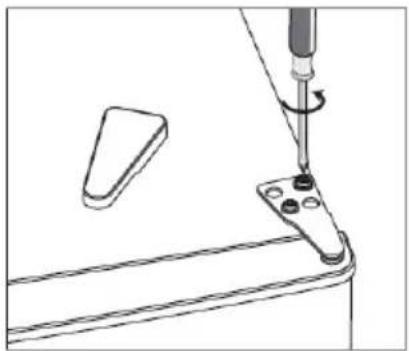

2. Remove the screws that fix the upper hinge. Remove the upper hinge.

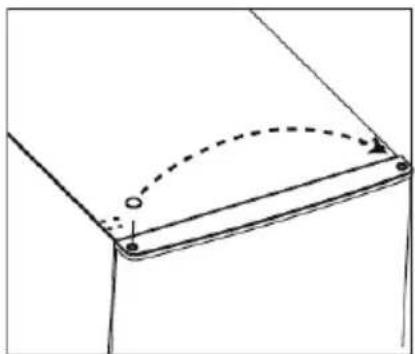

GB-11 3. Remove the top left screw cover.4. Move the core cover from left side to right side. And then lift the door and place it on a padded surface to prevent it from scratching.

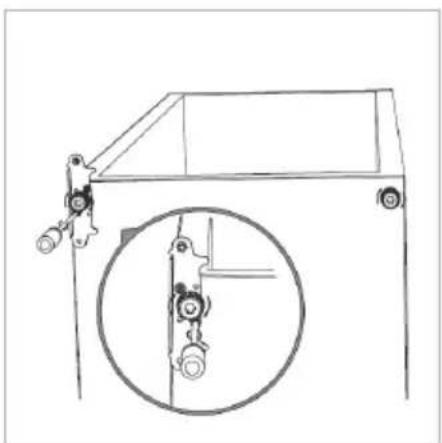

5. Unscrew bottom hinge. Then remove the adjustable feet from both sides.

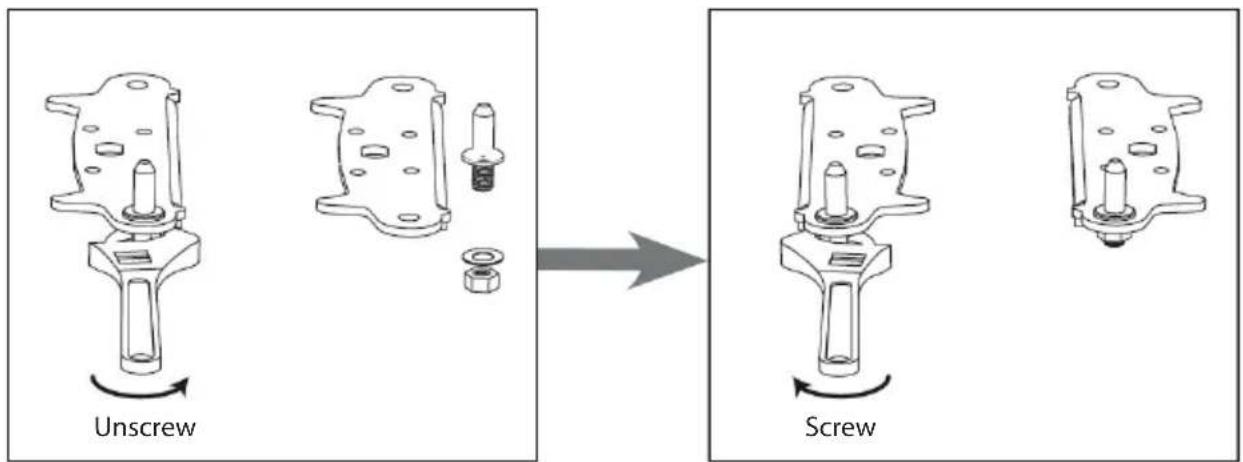

6. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

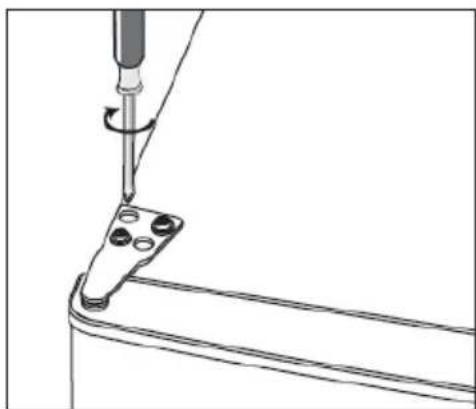

Unscrew Screw GB-12 7. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.8. Re-fit the upper hinge while refitting the door. Do not fully tighten the screws.

9. Check the door is aligned horizontally and vertically and that all seals make good contact with the

cavity all the way around the cavity opening before finally tightening the hinges. Re-fit the hinge cover and screw cover. Re-adjust the levelling feet, if necessary GB-13

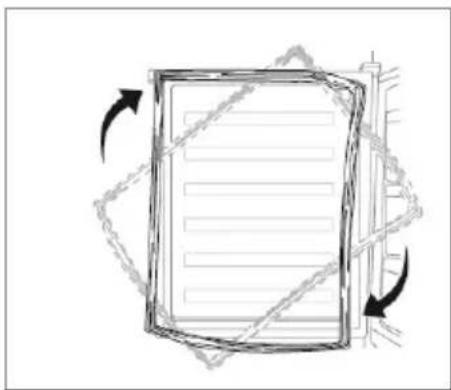

10. Detach the door gasket and then attach it after rotating.Do not use abrasive cleaning agents or solvents.

1. Disconnect the mains plug from the mains socket.

2. Take out the food and store in a cool location.

3. Clean the appliance with a soft cloth, warm water and detergent.

4. Wipe the door seal with clear water only and then wipe dry thoroughly.

5. Plug in the appliance. Adjust the temperature.

6. Put the food back into the appliance.

Cleaning tips y Remove the drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly. y Wipe the interior parts with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda. y Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wet sponge and soft brush (such as toothbrush) to remove any stuck-on food. GB-14 DEFROSTING This appliance is equipped with a frost free system. This system enables the freezer compartment to remain permanently ice-free, however, the food stored in the freezer drawers will not defrost.

CLEANING AND MAINTENANCE

y Upon installation of your new appliance, it is recommended to clean it thoroughly. y It is recommended to clean the freezer each time it is defrosted to help keep the freezer run efficiently.TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks according to below table before calling for service. Warning ! Do not try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the store where you purchased the product. Problem Solution Appliance does not operate. 7 Check that the freezer is plugged into the mains socket properly and that the outlet is switched on. 7 Check the fuse is not blown. 7 Check the circuit breaker is not tripped. Freezer is noisy. 7 Check that the freezer is placed on a level surface. 7 Check that the appliance is not touching the wall or other objects. Move the appliance slightly. 7 Check that a component, e.g. a pipe, on the rear of the appliance is not touching another part of the appliance or the wall. If necessary, carefully bend the component out of the way. Temperature inside the freezer is too high. 7 Set the temperature control to a lower temperature and allow several hours for the temperature to stabilize. 7 Door is kept open too long or is opened too frequently. Warm air enters the freezer every time the door is opened. Open the door less often. 7 Check that the door is closed completely. 7 Ensure that the door gasket does not seal properly. 7 A large amount of warm or hot food might have been stored recently. Wait until the freezer has reached its set temperature. Door seal fails to be tight. Remove foreign matters on the door seal. Heat the door seal and then cool it for restoration. (or blow it with an electrical drier or use a hot towel for heating) GB-15Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances Supplier’s name or trade mark: Etablissements Darty & fils © | THOMSON Supplier’s address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France Model identifier: THFZ204NFWH Type of refrigerating appliance: Low-noise appliance: no Design type: freestanding Wine storage appliance: no Other refrigerating appliance: yes General product parameters: Parameter Value Parameter Value Overall dimensions (millimeter) Height

Annual energy consumption (kWh/a) 277 Climate class: Extended temperate/ Temperate / Subtropical Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (°C), for which the refrigerating appliance is suitable

Winter setting no Compartment Parameters: Compartment type Compartment parameters and values Compartment Volume (dm

Type of light source — Energy efficiency class — Minimum duration of the guarantee offered by the manufacturer : 24 months Additional information: Weblink to the supplier’s website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015. Climate class: ࢼ Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’. ࢼ Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’. ࢼ Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’. This refrigerating appliance is not intended to be used as a built-in appliance. To find the model information in the product database: Click the link https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1280959 Rated voltage and frequency 220-240V~ 50Hz Refrigerant/Amount R600a / 38g Insulation blowing gas Cyclopentane Rated current 1,3A Electric shock protection class Class I Input power 140W Temperature rise time Power cut safe 10h Net weight 49kg

GB-17REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To a ccess to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for your appliances will be delivered within 15 working days after having received the order. Please Note ! All appliances have a 2-year warranty. Warranty does not cover damages caused due to improper installation, unauthorized modification, self- repair or non-professional repair. Contact us at : www.darty.com

• AM – 6 PM Mon to Sat Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium GB-18DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 20/07/2022 GB-19Inhoudsopgave BELANGRIJKE VEILIGHEIDSINSTRUCTIES p. 2
