Product Type	Interactive LCD Monitor
Brand	Sharp
Model	PN-LC862
Dimensions (W × D × H)	Approx. 1967.9 × 87.1 × 1170.2 mm
Weight	Approx. 65 kg
Power Supply	AC 100-240 V, 5.6 A, 50/60 Hz
Power Consumption (max)	260 W (max 500 W)
Operating Temperature	5°C to 35°C
Operating Humidity	20% to 80% (non-condensing)
Main Functions	Touch screen, stylus, HDMI/DisplayPort/USB-C connectivity, split screen, APPLICATION mode
Maintenance and Cleaning	Unplug before cleaning; use a dry cloth; do not use liquid or spray detergents
Safety	Class I (grounded); do not expose to rain/humidity; installation by qualified personnel
Spare Parts and Repairability	Contact an authorized reseller; do not open the housing; use manufacturer-specified parts
VESA Compatibility	VESA mounting bracket (M8 screws, length 10-15 mm longer than bracket thickness)
Intended Use	Indoor, up to 16 hours per day

Frequently Asked Questions - PN-LC862 SHARP

How to install the Sharp PN-LC862 monitor?

Installation must be carried out by a qualified technician. Use a VESA-compatible wall mount (M8 screws) and ensure the wall can support at least 4 times the monitor's weight. For safety reasons, at least two people are required to move it.

What types of connections are available?

The monitor has multiple inputs: HDMI (3 ports), DisplayPort, D-Sub, mini AV, USB (including USB-C), RS-232C, LAN, and touch screen ports (USB 3.0 Type B). A wireless adapter is supplied for APPLICATION mode.

How to use the remote control?

Insert two AAA batteries (R03/LR03) respecting polarities. To turn on/off, press the POWER button. If the remote does not work, check the batteries or the distance (max 7 m, angle ±30°).

What to do if the screen does not turn on?

Check that the power cord is plugged in and the main switch is in the ON position. Wait 5 seconds after turning off before turning on again. If the indicator remains orange, the monitor is in standby; press POWER.

How to clean the screen safely?

Unplug the power cord before cleaning. Use a soft, dry cloth. Never use liquid or spray detergents, or dirty cloths that could scratch the surface.

What is the recommended operating temperature?

The monitor operates correctly between 5°C and 35°C. If the ambient temperature exceeds this range, install a fan to prevent overheating.

How to attach the supplied tray?

Use the 4 supplied M3x8 screws to attach the tray to the back of the monitor. The tray is for placing accessories. Make sure not to block the ventilation slots.

Can I use the monitor wirelessly?

Yes, plug the supplied wireless adapter into the USB port (APPLICATION mode). Wireless LAN is limited to indoor use on the 5 GHz band (5.15-5.25 GHz).

How to activate the energy saving mode?

During first power-on, you can choose to enable 'Energy Saving Mode'. This mode reduces standby consumption but lengthens startup time. You can change this setting later in the menu.

Where can I find spare parts or get my monitor repaired?

Contact a Sharp authorized reseller or authorized service center. Do not attempt to repair the device yourself, as the housing contains high-voltage parts.

USER MANUAL PN-LC862 SHARP

To aid reporting in case of loss or theft, please record the product's model and serial numbers in the space provided. The numbers are located in the rear of the product.

Model No.:

Serial No.:

U.S.A. ONLY

Supplier's Declaration of Conformity

SHARP LCD MONITOR, PN-LC652/PN-LC752/PN-LC862

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

SHARP ELECTRONICS CORPORATION

100 Paragon Drive, Montvale, NJ 07645

TEL: 1-800-BE-SHARP www.sharpusa.com

U.S.A. ONLY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

U.S.A. ONLY

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles).

U.S.A. AND CANADA ONLY

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

CANADA ONLY

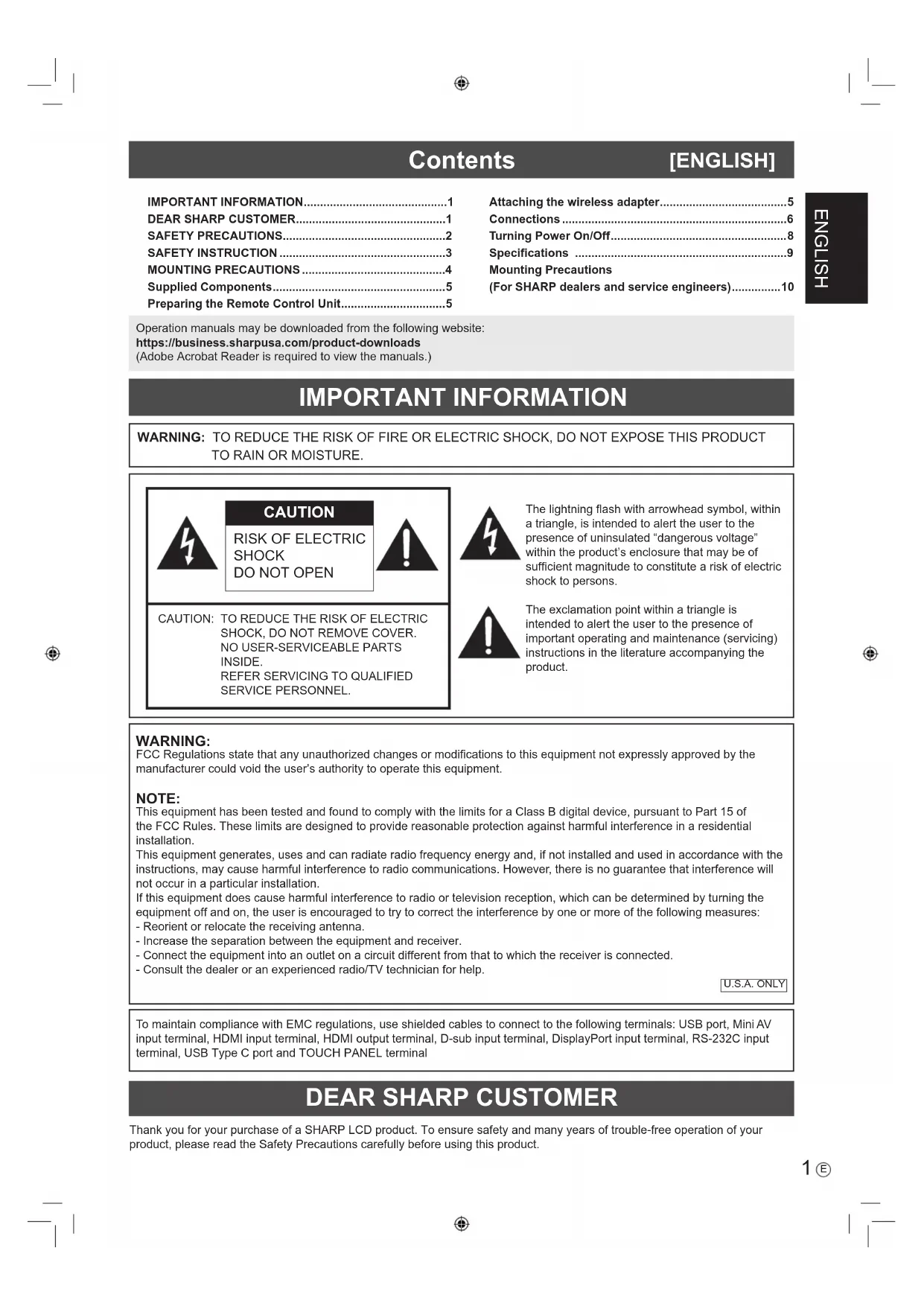

SAFETY PRECAUTIONS....2

SAFETY INSTRUCTION....3

MOUNTING PRECAUTIONS....4

Supplied Components....5

Preparing the Remote Control Unit....5

Attaching the wireless adapter....5

Connections....6

Turning Power On/Off....8

Specifications 9

Mounting Precautions

(For SHARP dealers and service engineers)....10

Operation manuals may be downloaded from the following website:

https://business.sharpusa.com/product-downloads

(Adobe Acrobat Reader is required to view the manuals.)

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.

U.S.A. ONLY

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: USB port, Mini AV input terminal, HDMI input terminal, HDMI output terminal, D-sub input terminal, DisplayPort input terminal, RS-232C input terminal, USB Type C port and TOUCH PANEL terminal

DEAR SHARP CUSTOMER

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings — All warnings on the product and in the instructions must be observed closely.
4. Follow instructions — All operating instructions must be followed.
5. Cleaning — Unplug the power cord from the power outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. Do not use dirty cloths. Doing so may damage the product.
6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.
8. Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.
9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.
10. The screen used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the screen breaks.
11. Overloading — Do not overload power outlets or extension cords. Overloading can cause fire or electric shock.
12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts.
    For the same reason, do not spill water or liquid on the product.
13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
14. Repair — If any of the following conditions occurs, unplug the power cord from the power outlet, and request a qualified service person to perform repairs.
    a. When the power cord or plug is damaged.
    b. When a liquid was spilled on the product or when objects have fallen into the product.
    c. When the product has been exposed to rain or water.
    d. When the product does not operate properly as described in the operating instructions.
    Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.
    e. When the product has been dropped or damaged.
    f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.
15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.
18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).
19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:
20. Use the specified batteries only.
21. Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment.
22. Do not mix old and new batteries.
23. Do not mix batteries of different types. Voltage specifications of batteries of the same shape may vary.
24. Replace an exhausted battery with a new one promptly.
25. If you will not use the remote control for a long time, remove the batteries.
26. If leaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.

27. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

28. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.

29. Do not modify this product.

WARNING:

An apparatus with CLASS I construction shall be connected to a MAIN socket outlet with a protective earthing connection.

STABILITY HAZARD

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using fixing devices like wall mount brackets recommended by the manufacturer.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.
• Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.
  • Educating children about the dangers of climbing on furniture to reach the monitor or its controls.
• This equipment is not suitable for use in locations where children are likely to be present unsupervised.

Especially for child safety

• Don't allow children to climb on or play with the monitor.
• Don't place the monitor on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that children can become excited while watching a program, especially on a "larger than life" monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.

SAFETY INSTRUCTION

• Do not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam. Do not use in an environment where there are corrosive gases (sulfur dioxide, hydrogen sulfide, nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this could lead to fire.
• Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.
• Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it.
• Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.
• Do not use the monitor in places where it may be exposed to direct sunlight. Risk of cabinet deformation and failure if the monitor is used in direct sunlight.
• Please be sure to constantly remove dust and garbage that has attached to the ventilation opening. If dust collects in the ventilation opening or the inside of the monitor, it may lead to excessive heat, outbreak of fire, or malfunction. Please request a cleaning of the inside of the monitor from an authorized servicing dealer or service center.
• The power outlet shall be installed near the equipment and shall be easily accessible.
• Continuous operating time and warranty. This product is designed for a maximum daily use of 16 hours. Continual use in excess of 16 hours per day is not covered by the warranty.
• Do not operate the screen with a hard or pointed object such as a fingernail or pencil.

The Power Cord

• Use only the power cord supplied with the monitor.
• Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.
• Do not use the power cord with a power tap. Adding an extension cord may lead to fire as a result of overheating.
• Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.
• Unplug the power cord if it is not used for a long time.
• Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

Wireless LAN

• This monitor cannot be used in other than the country or region where you purchased it.
• The channels and frequencies that can be used for wireless LAN vary by country and region.
• This device is restricted to indoor use due to its operation in the 5.15 GHz to 5.25 GHz frequency range.

MOUNTING PRECAUTIONS

• This product is for use indoors.

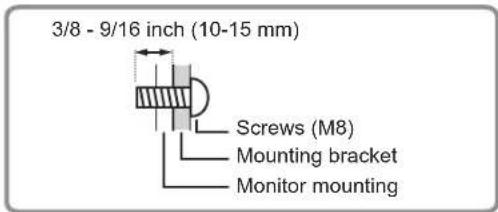

- A mounting bracket compliant with VESA specifications is required.
- Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor.
- Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling.
- Use the monitor with the surface perpendicular to a level surface.
- When moving the monitor, be sure to hold the handles or the parts marked by □ below. Do not grasp the screen or tray. This may cause product damage, failure, or injury.

Top-down schematic of a TV or desktop layout showing room layouts and seating (no text or labels)

- This monitor should be used at an ambient temperature between 41°F (5°C) and 95°F (35°C). Provide enough space around the monitor to prevent heat from accumulating inside.

• If it is difficult to provide sufficient space for any reason such as the installation of the monitor inside a housing or of several units side-by-side, or if the ambient temperature may be outside of the range of 41°F (5°C) to 95°F (35°C), install a fan or take other measures to keep the ambient temperature within the required range.

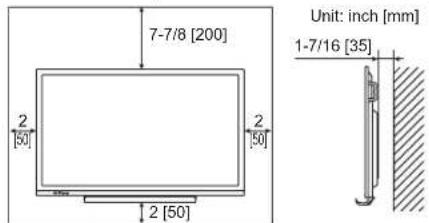

• When installing two or more monitor units side-by-side, provide space of at least 3/16 inch (5 mm) around them to prevent stress on the adjacent unit or structure due to thermal expansion.
• Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.
• Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction.
• Do not place the monitor on a device which generates heat.
• Do not use the product in locations where the unit is exposed to direct sunlight or other strong light. Since this product operates with infrared rays, such light may cause a malfunction.
• When using multiple monitors closely, be sure the infrared transmitter/receiver does not affect the other ones.

Supplied Components

If any component should be missing, please contact your dealer.

□ Liquid Crystal Display Monitor: 1
□ Remote control unit: 1
□ Cable clamp: 3

□ Power cord: 1
□ Remote control unit battery: 2
□ Setup Manual (this manual): 1
□ Touch pen: 2
□ Camera mount: 1
□ Camera mount screw (M3x6): 1
□ Camera screw (inch thread): 1

□ Tray: 1

□ Tray mounting screws (M3x8): 4
□ USB cable: 1
□ Wireless adapter: 1

□ Cover SHARP logo: 1

Place this sticker onto the SHARP logo to cover the logo.

* For environmental protection!

Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

Preparing the Remote Control Unit

1. Place your finger on the part marked with the ▲, and then pull the cover off.
2. See the instructions in the compartment and put in the batteries (R03 or LR03 ("AAA" size) x 2) with their plus (+) and minus (-) sides oriented correctly.
3. Close the cover.

Line drawing of a remote control device with a circular component and directional arrow (no text or symbols)

Attaching the wireless adapter

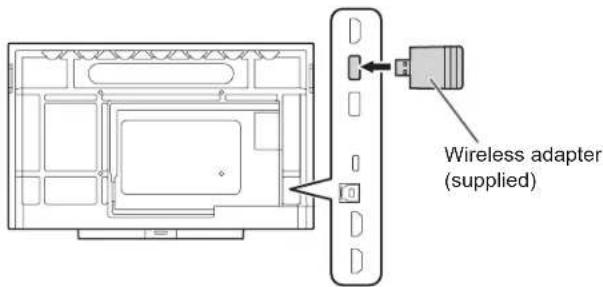

1. Connect the supplied wireless adapter to the USB port for APPLICATION mode.

Connections

!Caution

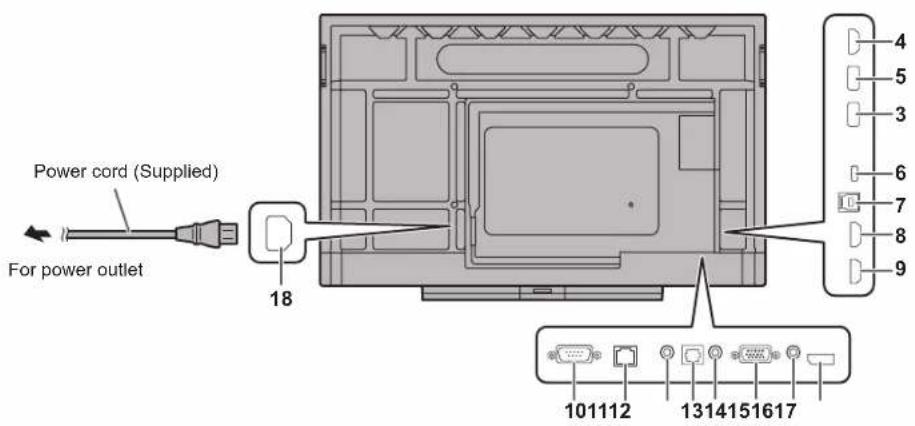

• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems.

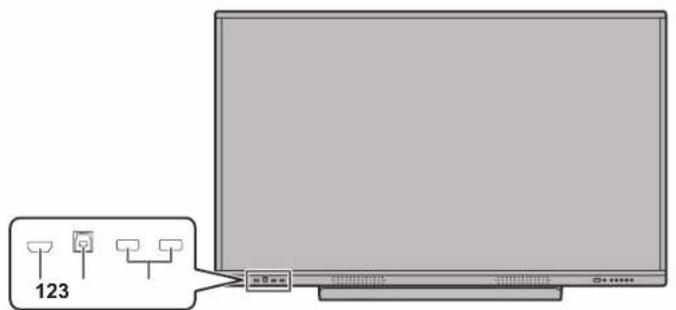

■ Front view

1. HDMI1 input terminal
2. TOUCH PANEL1 terminal (for HDMI1)
3. USB port (USB 3.0 compliant)

■Rear view

1. HDMI output terminal
2. USB port for APPLICATION mode (USB 3.0 compliant)
3. USB Type C port
4. TOUCH PANEL2 terminal (for HDMI2/HDMI3/DisplayPort/D-SUB)
5. HDMI2 input terminal
6. HDMI3 input terminal
7. RS-232C input terminal

11.LANterminal

1. Audio output terminal
2. Digital audio output (optical) terminal
3. Audio input terminal
4. D-sub input terminal
5. Mini AV input terminal
6. DisplayPort input terminal
7. AC input terminal

The TOUCH PANEL terminal is USB3.0 Type B.

Although the connector shape is different, the supplied USB cable (USB 2.0 Type B) can be connected to the TOUCH PANEL terminal.

TIPS

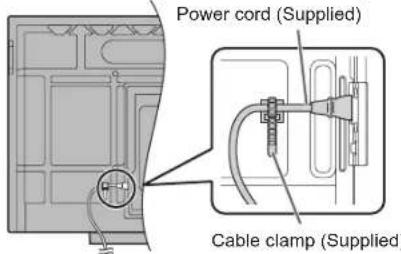

- Be sure to clamp the power cord (supplied) by using the supplied cable clamp. When clamping the power cord, take care not to stress the terminal of the power cord. Do not bend the power cord excessively.

- To use the touch panel with an HDMI / D-sub / DisplayPort connection, connect the supplied USB cable to the computer. The touch panel and touch pen operate with the standard driver of each operating system. On the Mac, operation is only possible in mouse mode.

- The Information Display Downloader can also be downloaded from the following website. https://business.sharpusa.com/product-downloads When the Information Display Downloader is installed, you can check and download the most recent versions of the software programs.

To install the software, see the manual for each.

Pen Software setup program and Touch Viewer setup program can be downloaded using Information Display Downloader.

• Apple and Mac are trademarks of Apple Inc., registered in the U.S. and other countries.

- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

- DisplayPort is a registered trademark of Video Electronics Standards Association.

- Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe in the United States and/or other countries.

• VESA is either registered trademark or trademark of Video Electronics Standards Association in the United States and/or other countries.

- All other brand and product names are trademarks or registered trademarks of their respective holders.

Turning Power On/Off

!Caution

• Turn on the monitor first before turning on the computer or playback device.
• When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. A short interval may result in a malfunction.

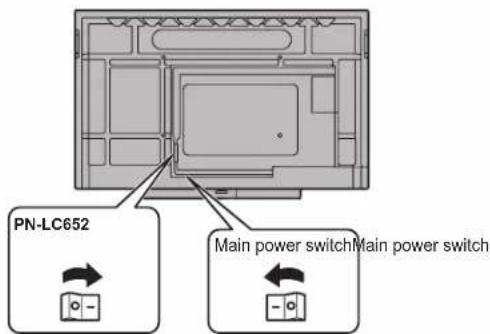

Turning on the main power

When you turn on the main power, the monitor enters standby state.

Off mode, when main power is off.

!Caution

• The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on.
• For a complete electrical disconnection, pull out the main plug.

Turning power on

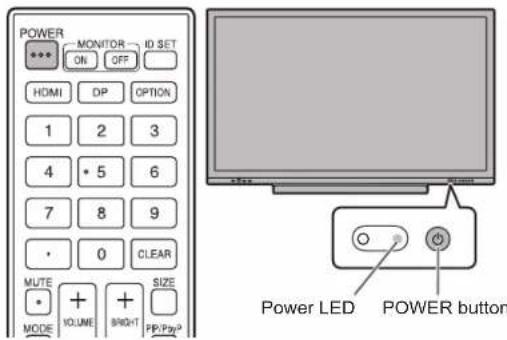

1. Press the POWER button.


Status Status of the monitor
Blue lit	Power onSleep state (Backlight off)
Orange lit Power off (Standby state*1)
Orange flashing (at approx. 2 seconds interval)	Power off (Standby state*2)
Orange flashing (at approx. 1 second interval)	Input signal waiting state

*1 When "Power save mode" is set to on. Standby mode when "Wake On LAN" is set to off. Networked standby mode when "Wake On LAN" is set to on. Networked standby mode allows the monitor to be turned on via network (LAN, RS-232C, and HDMI CEC).
*2 When "Power save mode" is set to off.

■ Operations after first power-on

When you turn on the power for the first time, the language settings screen appears. Be sure to set the date and time.

1. Select a language, and then touch "Next".

2. Select the time zone, and then touch "Next".

3. Set the date and time, and then touch "Next".

The power save mode settings screen appears.

1. Configure the settings according to the screen. YES:

2. "Power save mode" is set to on and "Wake On LAN" is set to off.

3. Current consumption is reduced while the monitor is in standby state. APPLICATION mode is also shut down. Note, however, that the startup time from standby state becomes longer.

NO

• "Power save mode" is set to off.

- Startup time from standby state is reduced. Note, however, that more power will be consumed in standby state. APPLICATION mode continues to run in standby state.

Even after being set, you can change the "Power save mode". (See OPERATION MANUAL.)

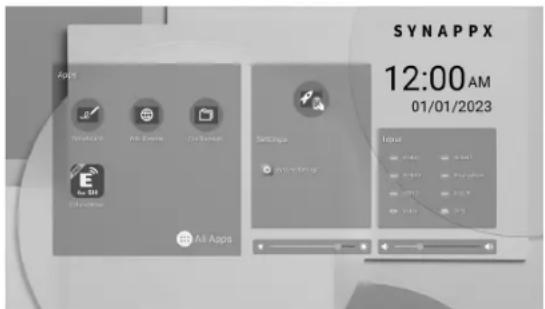

The home screen of APPLICATION mode appears.

Turning power off

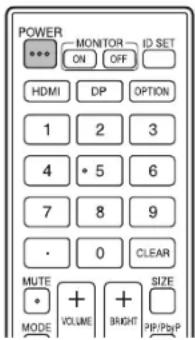

1. Press the POWER button on the remote control unit. Or, press and hold the POWER button on the monitor.

A confirmation screen appears.

1. Select "OK".

The power will turn off. (Standby state)

! Caution

• When the power is turned off, the application data that is not saved is lost.
• A message is displayed before the power turns off. Save any data you need.
• If the monitor will be turned off by schedule, "Off if no operation" or computer control, save any data you need in advance. The power will turn off even if there is unsaved data. (The data will be lost.)

Specifications

Model	PN-LC862 PN-LC752 PN-LC652
Power requirement	AC 100 - 240 V, 5.6 A, 50/60 Hz	AC 100 - 240 V, 4.7 A, 50/60 Hz	AC 100 - 240 V, 4.4 A, 50/60 Hz
Operating temperature *1	41°F to 95°F (5°C to 35°C)
Operating humidity 20% to	80% (no condensation)
Power consumption *2(Max)	260 W (500 W) 200 W (420 W)	180 W (390 W)
Dimensions inch (mm)(excluding protrusions)	Approx. 77-1/2 (W) x 3-7/16 (D) x 46-1/16 (H) (1967.9 x 87.1 x 1170.2)	Approx. 67-13/16 (W) x 3-7/16 (D) x 40-5/8 (H) (1722.5 x 87.1 x 1032.1)	Approx. 59-1/2 (W) x 3-3/8 (D) x 36-1/8 (H) (1511.6 x 85.9 x 917.9)
Weight lbs. (kg) Approx.	143.3 (65) Approx. 112.4 (51) Approx. 84.9 (38.5)

*1 Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.
*2 Factory setting. (When no optional part is attached.)
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Mounting Precautions (For SHARP dealers and service engineers)

• When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people. (PN-LC652: at least 2 people.)
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation.
• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor. Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M8 screws that are 3/8 inch (10 mm) to 9/16 inch (15 mm) longer than the thickness of the mounting bracket.

• Do not use an impact driver.

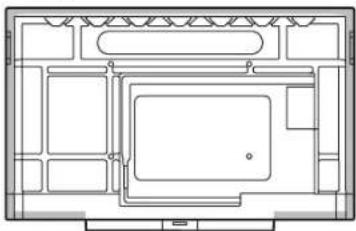

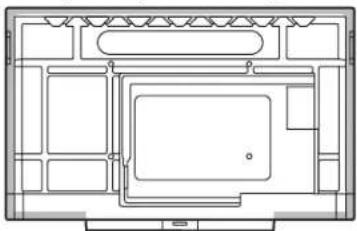

• When moving the monitor, be sure to hold the handles or the parts marked by ☐ below. Do not grasp the screen or tray. This may cause product damage, failure, or injury.

Top-down architectural floor plan of a modern office or living room (no text or symbols visible)

• If you need to temporarily place the monitor on a table or other surface during installation, spread a thick soft cloth on the table to prevent damage to the screen and table.
• Prior to repacking or removal, remove the tray.
  • After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than those for mounting brackets, located on the rear of the monitor, for installation.

■Attaching the Tray

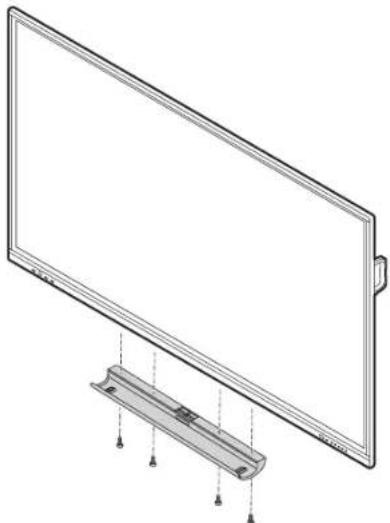

Secure the tray using 4 tray mounting screws (M3x8) (supplied).

Technical line drawing of a flat-screen monitor with a mounted rectangular base and mounting holes (no text or symbols)

Table des matières

[FRANÇAIS]

INFORMATIONS IMPORTANTES ....1

CHER CLIENT....1

PRÉCAUTIONS DE SÉCURITÉ ......2

MESURES DE SÉCURITÉ....3

PRÉCAUTIONS POUR LE MONTAGE....4

Composants fournis....5

https://business.sharpusa.com/product-downloads

Top-down architectural floor plan of a room with furniture layout (no text or labels)

Line drawing of a remote control device with a scroll wheel and directional arrow (no text or symbols)

Mise hors tension

Top-down architectural floor plan of a modern office or living room with furniture layout (no text or labels)

Technical line drawing of a flat-screen monitor with a mounted bracket and mounting holes (no text or symbols)

Índice

[ESPAÑOL]

https://business.sharpusa.com/product-downloads

Top-down architectural floor plan of a modern TV room showing layout and furniture (no text or labels)

□ Tapa logo SHARP: 1

Line drawing of a remote control device with a circular component and directional arrow (no text or symbols)

Top-down architectural floor plan of a modern office or library space with furniture layout (no text or labels)

Technical line drawing of a flat-screen monitor with a mounted bracket and mounting holes (no text or symbols)

SHARP

Printed in China

Imprimé en Chine

Impreso en China

(3)
