КОРИСТУВАЧАEG-EM1 - Electric meter EnerGenie - Free user manual and instructions

Product Type	Electric Energy Meter
Brand	EnerGenie
Model	EG-EM1
Power Supply	230 V AC, 50 Hz, 16 A max
Measurement Range	0 - 3680 W
Display	LCD Screen
Main Functions	Power, energy, voltage, current, frequency, power factor, estimated cost measurement
Accuracy	±1%
Dimensions (approx.)	120 x 60 x 70 mm
Weight (approx.)	150 g
Standards	CE, RoHS
Warranty	36 months
Maintenance and Cleaning	Clean with a dry, soft cloth. Do not use solvents or abrasive products.
Safety	Do not exceed the maximum load of 16 A. Use only indoors. Do not immerse in water.
Spare parts and repairability	Sealed product, no spare parts available. In case of defect, contact customer service.
General Information	Energy meter for electrical outlet, allows measuring the consumption of household appliances.

Frequently Asked Questions - КОРИСТУВАЧАEG-EM1 EnerGenie

How to connect the EnerGenie EG-EM1 meter?

Plug the meter directly into a wall socket, then connect the device to be measured to the meter's socket.

What to do if the screen shows nothing?

Check that the meter is properly plugged in and the wall socket is powered. If the problem persists, contact support.

How to set the kWh tariff?

Press the 'SET' or 'COST' button to access the tariff setting. Use the '+' and '-' keys to adjust the value.

What is the maximum supported load?

The maximum load is 16 A, i.e., 3680 W for a voltage of 230 V. Never exceed this limit.

Does the meter work with low-power devices?

Yes, the meter measures from a few watts. For very low powers (less than 2 W), the display may show 0 W.

How to reset energy data?

Press and hold the 'RESET' or 'MODE' button for 3 seconds until the display flashes. Confirm to clear the data.

Is the meter compatible with Schuko sockets?

Yes, the EG-EM1 model is equipped with a Schuko socket and a Schuko plug, compatible with standard European sockets.

What does the 'PF' symbol on the screen mean?

'PF' stands for 'Power Factor'. It indicates the electrical efficiency of your device (close to 1 is ideal).

How to interpret the measurement results?

The screen displays in turn the power (W), cumulative energy (kWh), voltage (V), current (A), frequency (Hz) and estimated cost according to the set tariff.

What to do in case of defect or malfunction?

First consult the full manual. If the problem persists, contact customer service at [e-mail] or call [phone].

USER MANUAL КОРИСТУВАЧАEG-EM1 EnerGenie

White energy meter device with a circular socket and digital display, labeled 'ENERGY METER' (no additional text or symbols visible)

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Image displaying a set of national flags including the European Union, Germany, Switzerland, Austria, Netherlands, Belgium, France, Russia, and Ukraine arranged in a cross pattern.

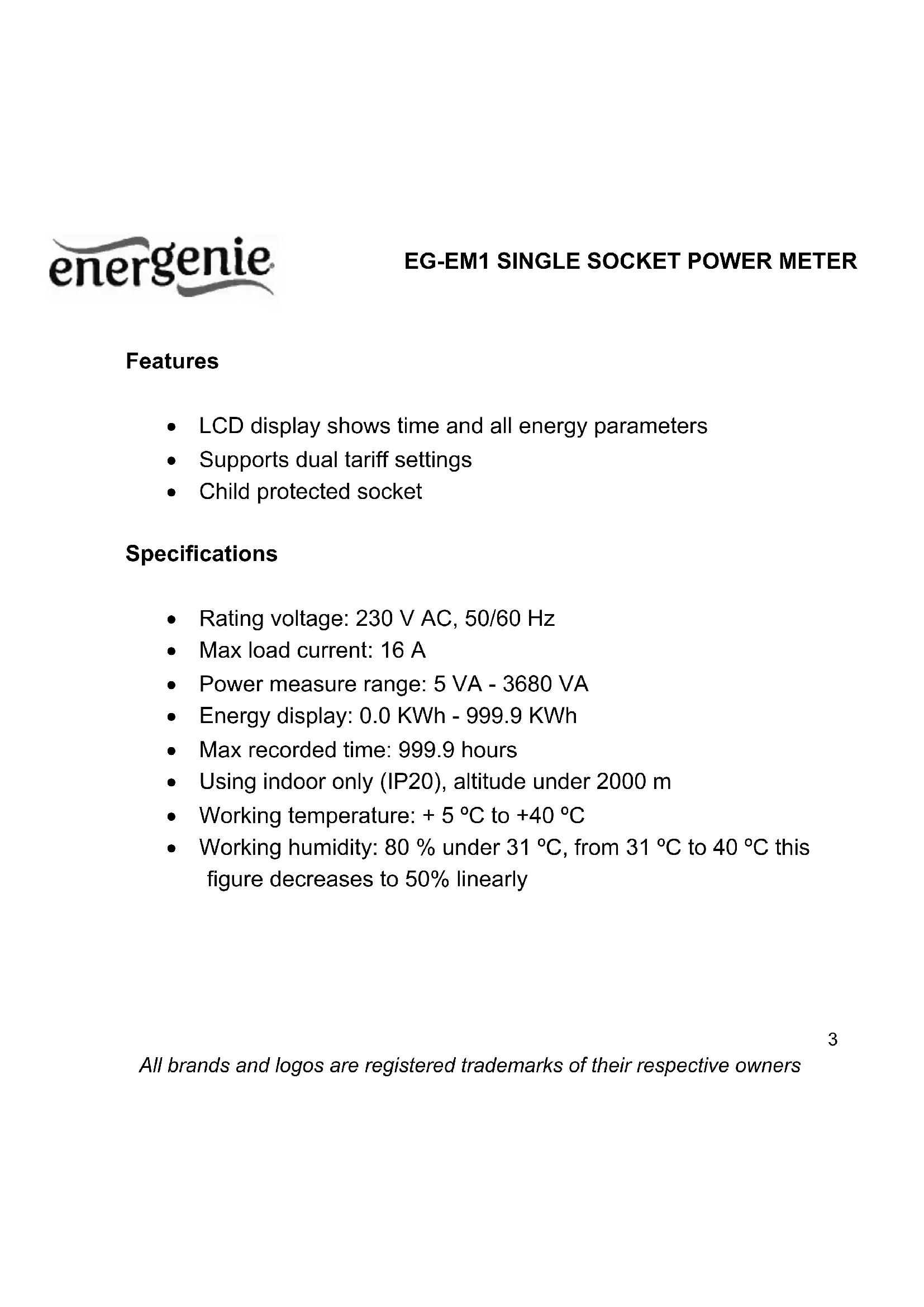

Features

• LCD display shows time and all energy parameters
• Supports dual tariff settings
• Child protected socket

Specifications

• Rating voltage: 230 V AC, 50/60 Hz
• Max load current: 16 A
• Power measure range: 5 VA - 3680 VA
• Energy display: 0.0 KWh - 999.9 KWh
• Max recorded time: 999.9 hours
• Using indoor only (IP20), altitude under 2000 m
• Working temperature: +5 °C to +40 °C
- Working humidity: 80 % under 31 °C, from 31 °C to 40 °C this figure decreases to 50% linearly

energenie

EG-EM1 SINGLE SOCKET POWER METER


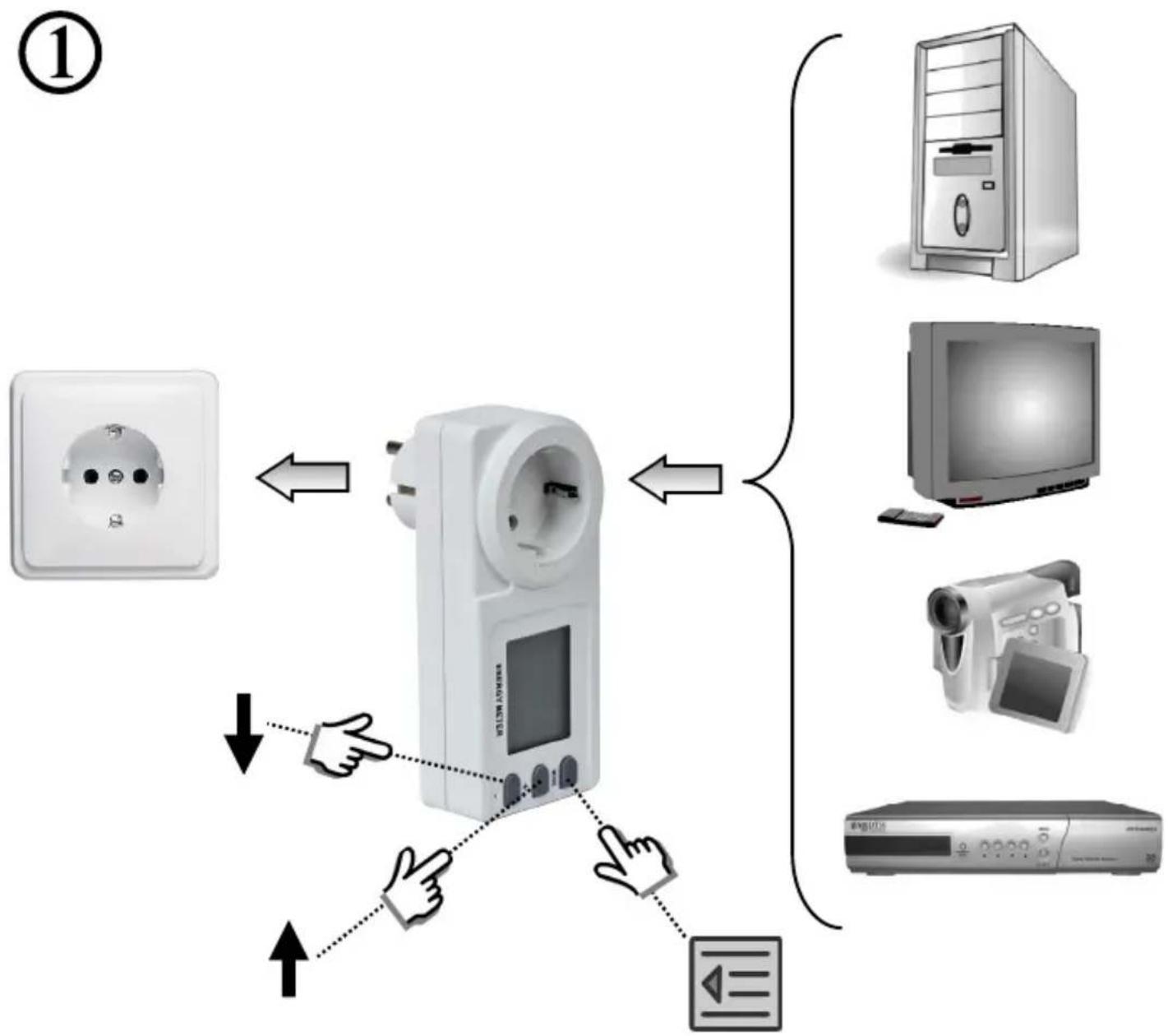

    A["Power Meter with socket"] --> B["Device with screen"]
    B --> C["Computer with monitor"]
    B --> D["Camera with monitor"]
    B --> E["Radio station"]

All brands and logos are registered trademarks of their respective owners

energenie

EG-EM1 SINGLE SOCKET POWER METER

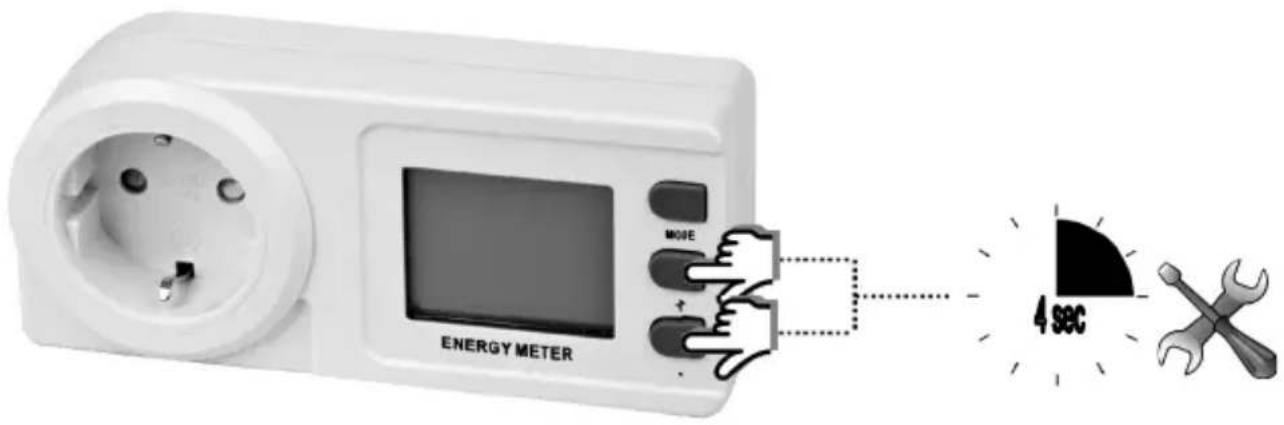

ENERGY METER MORE 4 sec

All brands and logos are registered trademarks of their respective owners

energenie

EG-EM1 SINGLE SOCKET POWER METER


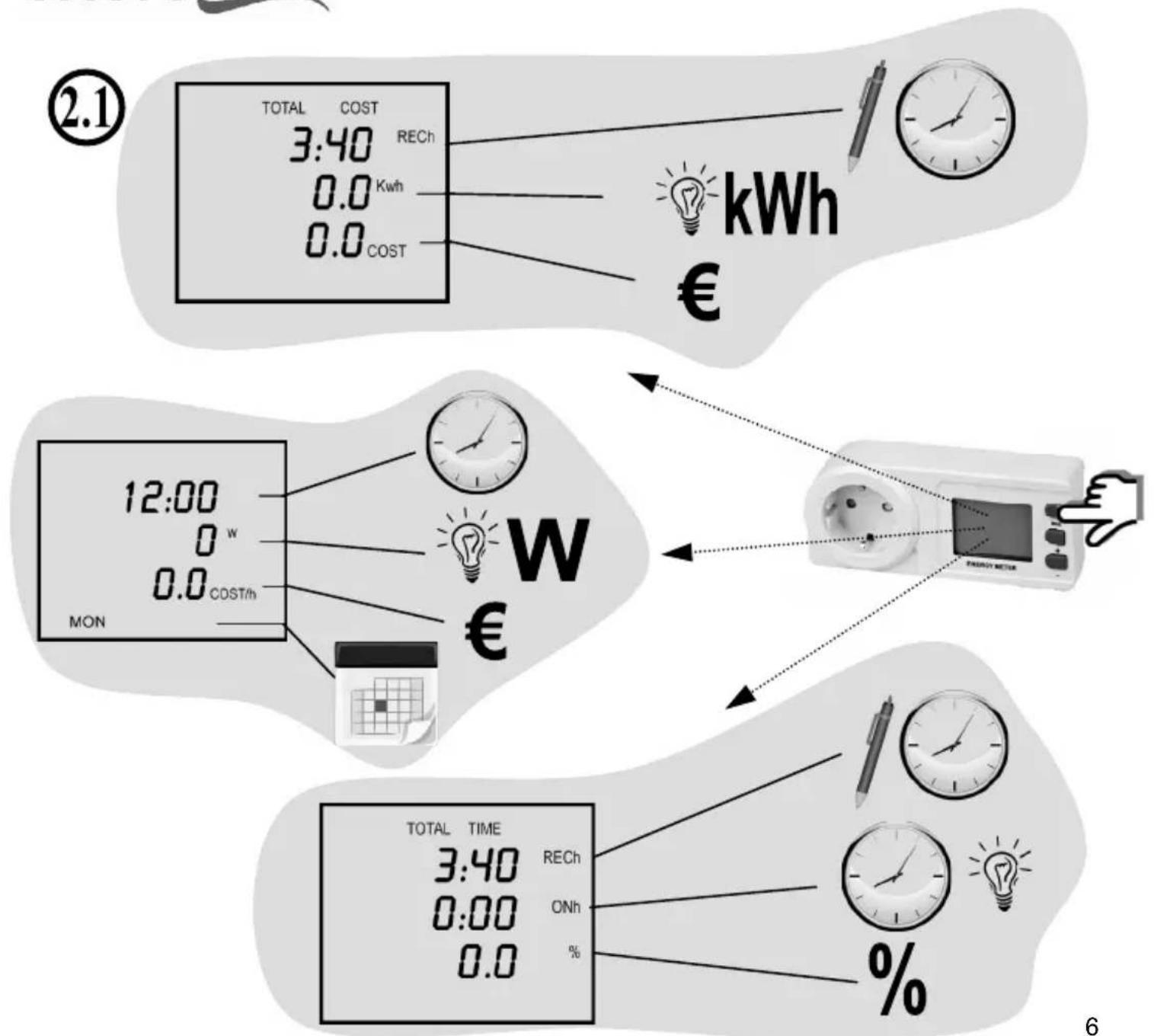

    A["2.1"] --> B["TOTAL COST 3:40 RECh"]
    A --> C["0.0 Kwh"]
    A --> D["0.0 COST"]
    A --> E["kWh €"]
    F["MON 12:00"] --> G["0 w"]
    F --> H["0.0 COST/h"]
    I["RECH"] --> J["W €"]
    K["ONh %"] --> L["TOTAL TIME 3:40 RECh"]
    K --> M["0:00"]
    K --> N["0.0"]
    O["Energy Meter"] --> P["Arrow to kWh & timer"]
    Q["%"] --> R["Arrow to ONh & timer"]

All brands and logos are registered trademarks of their respective owners

energenie

EG-EM1 SINGLE SOCKET POWER METER

③


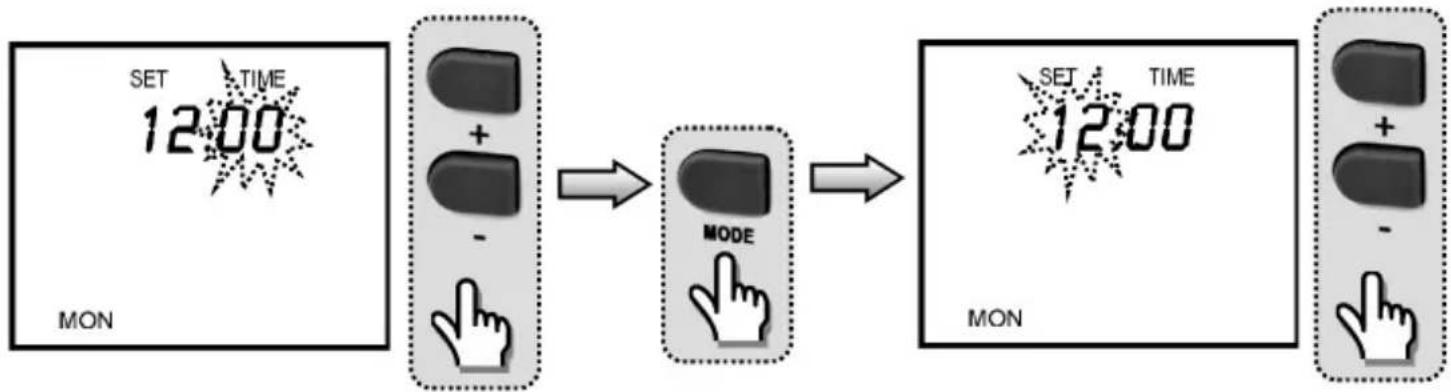

    A["SET 12:00 MON"] --> B["+ -"]
    B --> C["MODE"]
    C --> D["SET 12:00 MON"]
    D --> E["+ -"]

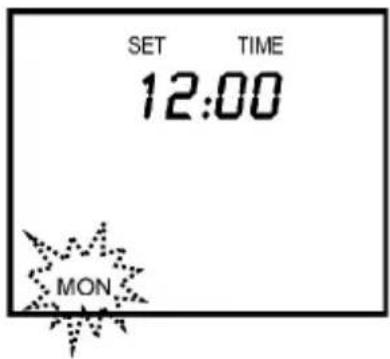

SET TIME 12:00 MON

Icon set with a computer mouse, plus/minus, minus sign, and hand pointing finger symbol

All brands and logos are registered trademarks of their respective owners

energenie

EG-EM1 SINGLE SOCKET POWER METER

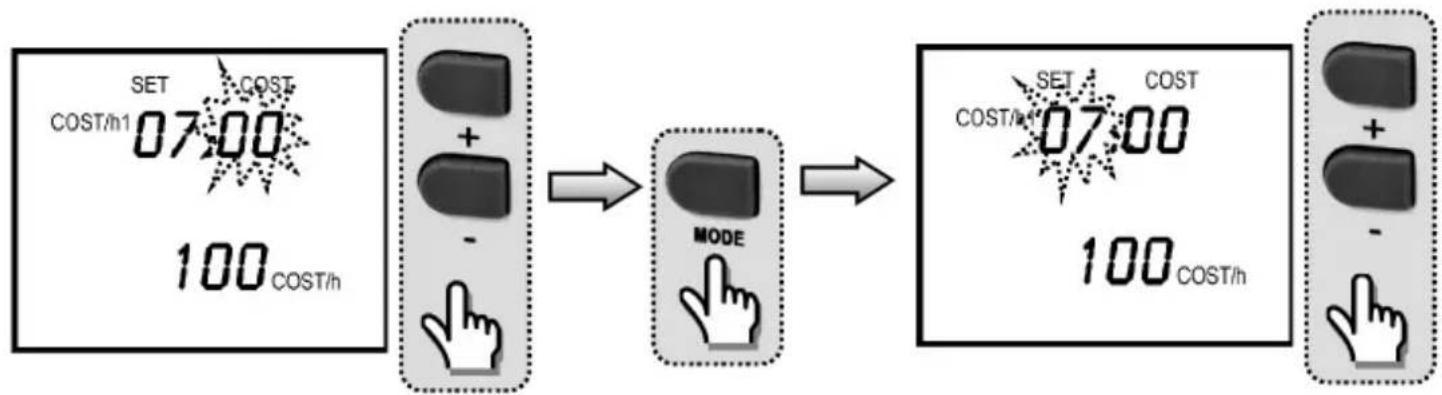

③.1 : 1& €


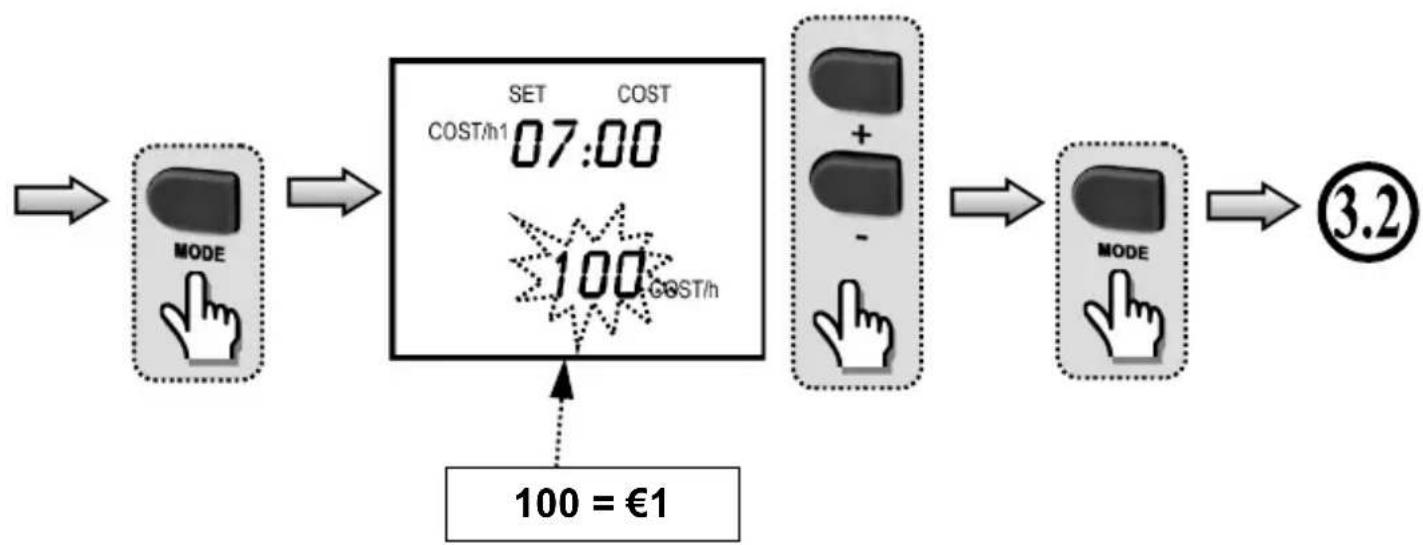


All brands and logos are registered trademarks of their respective owners

energenie

EG-EM1 SINGLE SOCKET POWER METER

③.2

: Clock & € 2


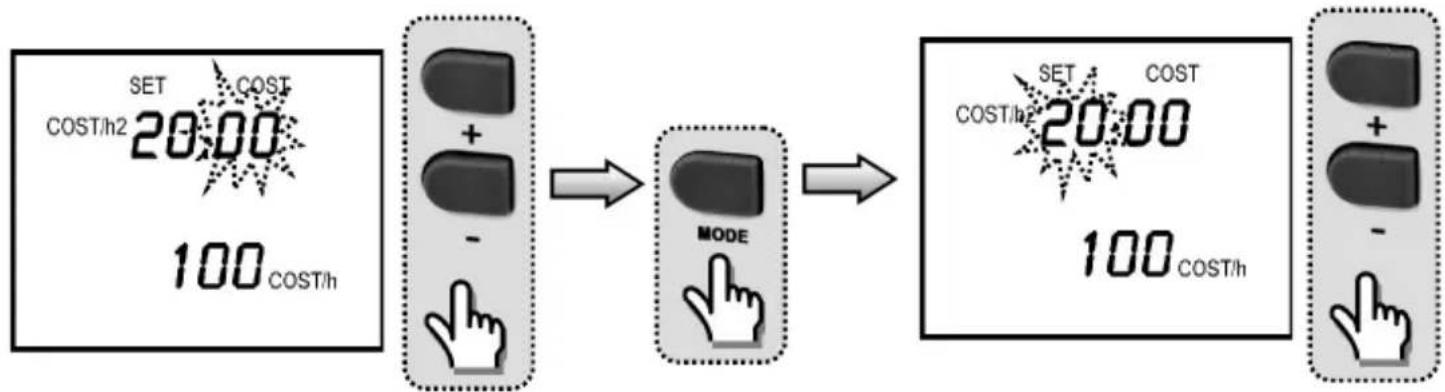


All brands and logos are registered trademarks of their respective owners

energenie

EG-EM1 SINGLE SOCKET POWER METER

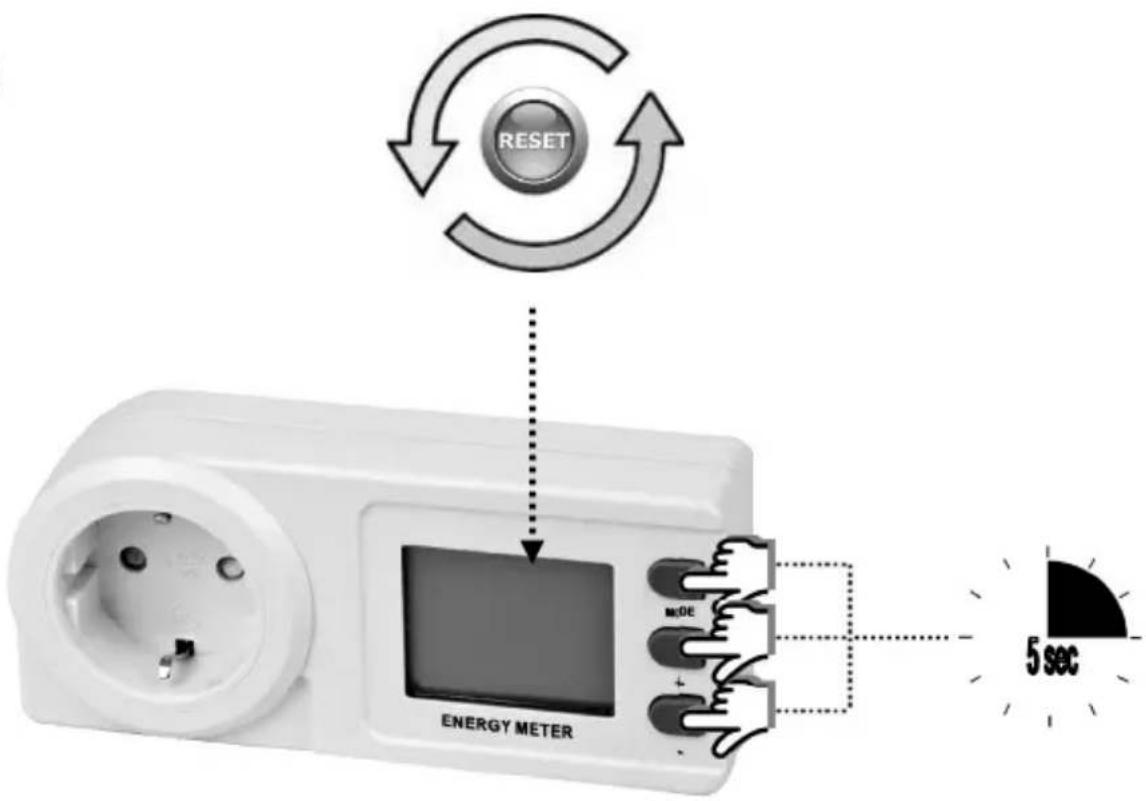

④

All brands and logos are registered trademarks of their respective owners

energenie

EG-EM1 SINGLE SOCKET POWER METER

Simple line drawing of a hand washing hands with water droplets falling (no text or symbols)

Simple line drawing of a sun and a person with fever, crossed by a diagonal line (no text or symbols)

Hand-drawn sketch of a hand using a tool to clean or repair a screwdriver, with no text or symbols present.

Simple line drawing of a device with a cross symbol crossed out, no text or symbols present.

All brands and logos are registered trademarks of their respective owners

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant Safety Requirements of § 4 EMVG and of the Directives 2006/95/EC, 93/68/EEC and 2004/108/EC.

Applicant :	Gembird Europe BV
	Wittevrouwen 56,
	1358CD, Almere, The Netherlands
Equipment :	Computer parts
Model Nos. :	EG-EM1
Product description :	EG-EM1 Single socket power mete

European standards:

EN61010-1:2001; EN61326-1:2006

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV Wittevrouwen 56, 1358CD, Almere, The Netherlands Tel: [phone]. Fax: [phone]

Director

The Netherlands / May. 13, 2011 Place and Date

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
