KFV 945 - Coffee machine Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	KFV 945
Product type	Italian coffee maker (moka)
Material	Aluminum
Capacity	Approximately 200 ml (6 cups)
Operation	On cooktop (gas, electric, ceramic glass)
Safety valve	Present
Removable filter	Filter plate with silicone gasket
Handle	Do not tighten by the handle, but by the body
Use	Preparation of ground coffee (coarsely), not instant coffee
Cleaning	Wash with hot water, no abrasive detergents
Safety	Do not leave unattended, do not use without water, beware of burns
Spare parts	Silicone gasket, filter plate, funnel
Warranty	Legal warranty, keep the receipt
After-sales service	https://orbegozo.com/asistencia-tecnica/

Frequently Asked Questions - KFV 945 Orbegozo

How to use my Orbegozo KFV 945 coffee maker for the first time?

Before first use, unscrew the top, remove the funnel and filter plate. Rinse all parts with hot water. Fill the base with water up to the safety valve, add ground coffee into the funnel without tamping, screw on the top (tighten by the body, not the handle) and place on low heat.

Can I use instant coffee in the coffee maker?

No, only use coarsely ground coffee. Instant coffee or extracts are not suitable and could clog the filter.

How to clean my coffee maker after each use?

Wait for it to cool down, then unscrew the parts. Wash with hot water without abrasive detergents. If necessary, use a water-vinegar mixture for stains. Dry all parts thoroughly before storing them separately.

Why does my coffee taste burnt or bitter?

You are using too high heat or leaving the coffee on the heat too long. Use a low and steady heat and remove the coffee maker as soon as the coffee rises. Do not reheat the coffee.

Can the coffee maker be used on an induction cooktop?

The aluminum material is generally not compatible with induction. Use on gas, electric or ceramic glass. Check the provided instructions.

What to do if the coffee maker leaks or does not screw properly?

Check that the silicone gasket is properly in place and in good condition. If the screw thread is worn, replace the coffee maker. Make sure not to overtighten and to screw by the body.

How to know when the coffee is ready?

The coffee rises through the central tube and comes out of the lid. When the coffee stops coming out or you hear a steam noise, remove from heat immediately.

Is there a risk of burns?

Yes, beware of steam and the hot body. Do not touch metal parts during use. Allow to cool before unscrewing.

Can I keep the coffee warm in the coffee maker?

It is not recommended. The coffee maker is not designed to keep coffee warm. Consume it quickly and clean it after use to prevent metal alteration.

Where can I find spare parts?

Go to your usual point of sale or contact technical service via the website https://orbegozo.com/contacto/ .

USER MANUAL KFV 945 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

APTO PARA:

VITRO

ELÉCTRICO

GAS

LAVAVAJILLAS

INSTRUCCIONES DE USO

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
• Do not use appliance for other than intended use and place it in a dry environment.
• Do not leave the coffee maker unattended while it is operating, the appliance cannot be operated by children.
• Children should be supervised to ensure that they do not play with the appliance.
• Be careful not to get burned by the steam.
• Never use your coffee maker without water in it.
• Stand the appliance on a table or flat surface.
• Do not use outdoors.
• Save these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliances by a person responsible for their safety.

• WARNING: Do not put the coffee maker on medium/high heat or without supervision. In this case the coffee maker may be damaged.
• WARNING: In case of misuse, there is a risk of possible injury.
• In case that you need a copy of the instruction manual, you can find it at www.orbegozo.com

SUITABLE FOR:

VITRO

ELECTRIC

GAS

DISHWASHER

INSTRUCTIONS FOR USE

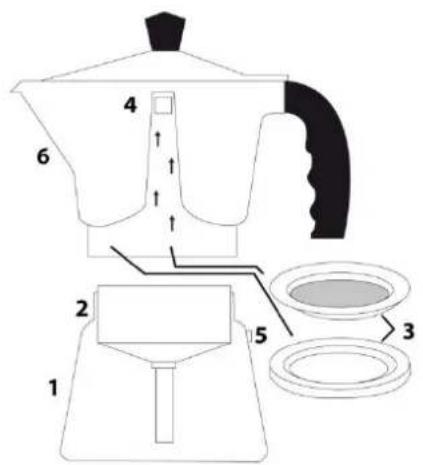

1. Before using the coffee maker for the first time, unscrew the top (6) from the base. (1) Remove the filter funnel (2) from the base; observe that the filter plate (3) is inserted in the top section, with the concave side showing and ensure it is held in position by the rubber washer (3) witch fits into the groove, and remove both these parts.
2. Wash all the parts in hot (but not boiling) water and correctly reassemble the top section.
3. Fill the base with cold, medium or hot water up to the level of the safety valve (5) and insert the filter funnel.
4. Fill the filter funnel with ground coffee, do not press the coffee.

5. Screw the top section firmly to the base from the body, not forcing the handle.

6. Put the coffee maker on a constant low heat, and if it is with a gas stove, let the flame not exceed the base of the coffee maker, and in a few minutes you will have your delicious coffee. It will boil up to the lid. The coffee maker is not suitable for keeping the coffee hot or for reheating as the base section will be empty and further heat will damage the base.

7. Cleaning and maintenance: We strongly recommend you to wash the coffee maker after each use. Only use coarsely ground coffee. Do not use instant coffee. Do not use other types of extracts. A) To wash, separate the top section and the base when cool; they will not unscrew easily wile hot. B) Do not use harsh scourers, soda or detergents witch could damage the polished surface. Use hot water. If the surface requires brightening up, liquid chrome polish may be used. C) After some time discoloration or depositis may form inside the base. This is unavoidable, especially in hard water areas; a mixture of water and vinegar may be used to remove stains. D) Always dry thoroughly and store all parts separately, to allow free access of air. E) Keep in mind that the coffee maker is not designed to hold coffee for long periods of time. Once you have finished using it, clean and dry it to avoid damaging it.

8. Important: Before using the coffee maker always make sure that no part is missing and that the parts are correctly assembled. Periodically check the condition of the filter funnel, filter plate and rubber washer. Share parts are readily available. Shoud the treads become worn, replace the coffee maker.

RECOMENDATIONS TO MAKE A GOOD CUP OF COFFEE

To give your coffee a better flavor and aroma, we recommend that you use recently ground coffee. The coffee should be medium ground and should not be too fine. Keep your coffee in a dry place. Once the coffee packet has been opened, keep it well closed in the refrigerator so as to maintain its aroma.

FRANÇAIS

ATTENTION

ADAPTÉ POUR:

VITRO

ÉLECTRIQUE

GAZ

LAVE-VAISSELLE

INSTRUCTIONS D'UTILISATION

APTO PARA:

VITRO

ELÉTRICO

GAS

MÁQUINA DE LAVAR LOUÇA

APTO PARA:

VITRO

ELÉTRICO

GAS

MÁQUINA DE LAVAR LOUÇA

INSTRUCCIONS D'ÚS

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
