Product Type	Wine Cellar / Cigar Humidor
Brand	NewAir
Model	NCH250SS01
Capacity	1.16 ft³ (32.8 L)
Dimensions (W × D × H)	19.3 × 13.6 × 18.5 inches (49 × 34.5 × 47 cm)
Weight	32 lb (14.5 kg)
Power Supply	110-120 V, 60 Hz, 70 W / 1.0 A
Adjustable Temperature Range	52 to 74 °F (11 to 23 °C)
Recommended Ambient Temperature	50 to 77 °F (10 to 25 °C)
Ideal Relative Humidity	65 to 75%
Display	Digital LED (temperature, °F/°C)
Control	Touch Panel
Interior Lighting	LED (on/off via button)
Shelf Material	Cedar Wood (3 shelves + drawer)
Cooling System	Thermoelectric (compressor and fans)
Memory Function	Retains settings after power outage
Number of Doors	1 solid door
Leveling Feet	Yes, adjustable front feet
Recommended Cleaning	Warm water and baking soda for interior; mild detergent for exterior
Maintenance	Regular cleaning of humidity reservoir
Safety	Do not use with flammable liquids; do not store food; do not use by children without supervision
Spare Parts / Repairability	Replaceable door gasket and fans; NewAir customer service
Warranty	1 year limited (parts and labor)

Frequently Asked Questions - NCH250SS01 NewAir

What is the temperature range of the NewAir NCH250SS01 wine cellar?

The adjustable temperature range is 52 to 74 °F (11 to 23 °C). The room ambient temperature should be between 50 and 77 °F for optimal operation.

How do I adjust the temperature on the unit?

Use the + and - touch buttons on the control panel to increase or decrease the temperature by 1 °F increments. The LED display shows the actual air temperature.

What should I do if the wine cellar has a plastic smell?

Wash the interior with mild detergent and warm water, without wetting the wood. Leave the door open to air out. If the smell persists, place a dish of baking soda or crumpled newspapers inside overnight, then let the unit run for a full day.

How do I season the cedar shelves before use?

Add distilled water to the humidity reservoir (or a wet sponge) and leave it in the closed cellar until the relative humidity reaches 5% higher than your target level. This may take up to 3 days. Do not open the door unnecessarily.

The unit makes gurgling or clicking noises, is that normal?

Yes, these noises are normal. The gurgling comes from refrigerant gas circulation, and the cracking/clicking are due to gas contraction/expansion. Fan noise is also normal.

How do I clean the interior of the wine cellar?

Unplug the unit, remove its contents and shelves. Clean the interior with a solution of warm water and baking soda (2 tablespoons per liter of water). The exterior can be cleaned with mild detergent. The water reservoir should be cleaned with warm water.

Can I store food in this wine cellar?

No, this unit is not intended for food storage. It is designed for storing cigars (humidor) or wine bottles under controlled conditions.

What should I do if the interior light does not work?

The control panel may be defective. Contact NewAir customer service at [e-mail] or 1-855-963-9247 for assistance.

The unit vibrates or is noisy, what should I check?

Make sure the unit is level (adjust the front feet). Check that the fans are not obstructed by debris. If the noise persists, contact NewAir customer service.

How do I contact NewAir customer service?

You can reach them Monday to Friday from 8 am to 4 pm HNP at 1-855-963-9247, by email at [e-mail], or via their website www.newair.com. A team member will respond within 24 hours.

USER MANUAL NCH250SS01 NewAir

250 Count Thermoelectric Cigar Humidor

Exterior view of a modern stainless steel ciger oven with open doors and digital display (no visible text or symbols on the cabinet itself)

OWNER'S MANUAL

A Name You Can Trust

Trust should be earned and we will earn yours. Customer happiness is the focus of our business.

From the factory to the warehouse, from the sales floor to your home, the whole Newair family promises to provide you with innovative products, exceptional service, and support when you need it the most.

Count on Newair

As a proud Newair owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.

Contact Us

Please reach out to our customer service team before making a return to your store of purchase. We are happy to help with any questions or concerns!

Mon-Fri from 8-4 PST at:

Call: 1-855-963-9247

Email: [e-mail]

Online: www.newair.com

A team member will respond to you within 24 hours.

Follow Us

Facebook.com/newairusa

Instagram.com/newairusa

YouTube.com/newairusa

Twitter.com/newairusa

READ AND SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS

Specifications....5

Register Your Product Online....6

Safety Information & Warnings 7

Parts List....8

Electrical Diagram 8

Assembly & installation 9

Installing Your Cigar Humidor 10

Factory Odor Removal....10

Drawer set-up 10

Operating Instructions....11

Seasoning Your Cigar Humidior.... 11

Turning On Your Cigar Humidor....12

How to set temperature: 12

Cigar Storage Guide....13

Cleaning & Maintenance....14

Cleaning your cigar cabinet....14

Transporting the cabinet 14

Disposal....14

Troubleshooting....15

Limited Manufacturer's Warranty 17

SPECIFICATIONS

MODEL NO.	NCH250SS01
CAPACITY:	1.16 Cu. Ft.
VOLTAGE:	110-120V
CURRENT:	70W / 1.0A
FREQUENCY:	60Hz
TEMPERATURE CONTROL RANGE:	52 - 74°F
WEIGHT:	32 lbs.
DIMENSIONS:	19.3” D x 13.6” W x 18.5” H

REGISTER YOUR PRODUCT ONLINE

Register Your Newair Product Online Today!

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for Newair promotions and offers

Registering your product information online is safe & secure and takes less than 2 minutes to complete:

newair.com/register

Alternatively, we recommend you attach a copy of your sales receipt below and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase: ____

Serial Number: ____

Model Number: ____

SAFETY INFORMATION & WARNINGS

To reduce the risk of electric shock or injury when using your appliance, follow these basic precautions:

• Read all instructions before using this cigar humidor cabinet.
• Never allow children to operate or play with this appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use any flammable vapors and liquids in the vicinity of this appliance. The fumes can create a fire hazard or explosion.
• This appliance is not intended for food storage.
• This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, lack of experience or knowledge of its operation, unless well instructed or under supervision of a person responsible for their safety.

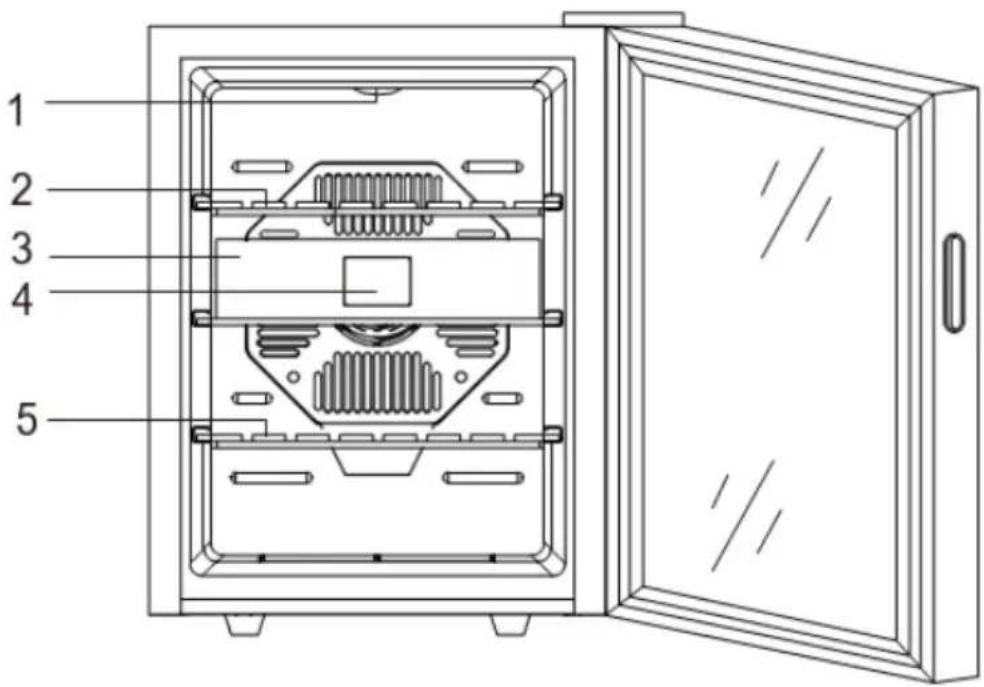

PARTS LIST

1 2 3 4 5

1. LED Light
2. Cedar Wood Tray
3. Cedar Wood Drawer
4. Hygrometer
5. Cedar Wood Tray

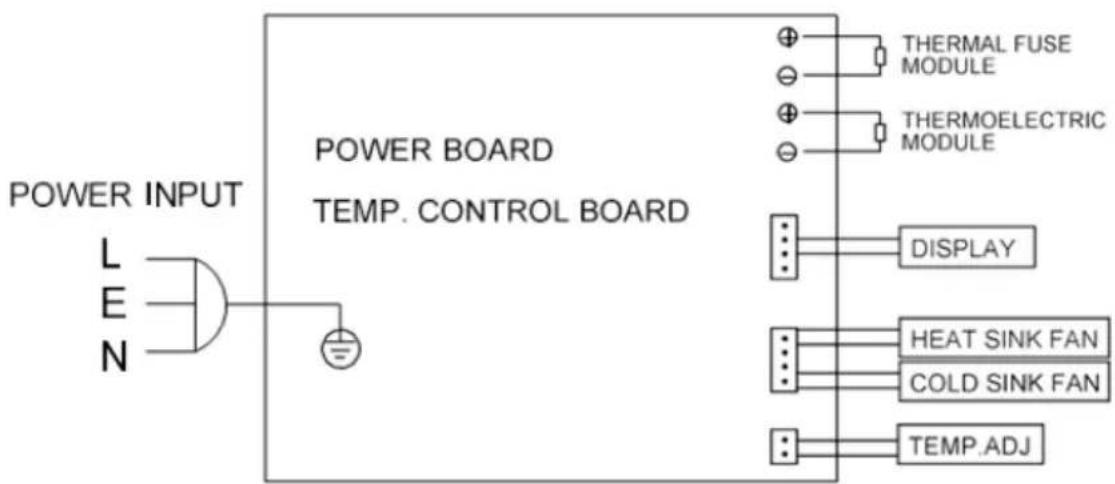

ELECTRICAL DIAGRAM


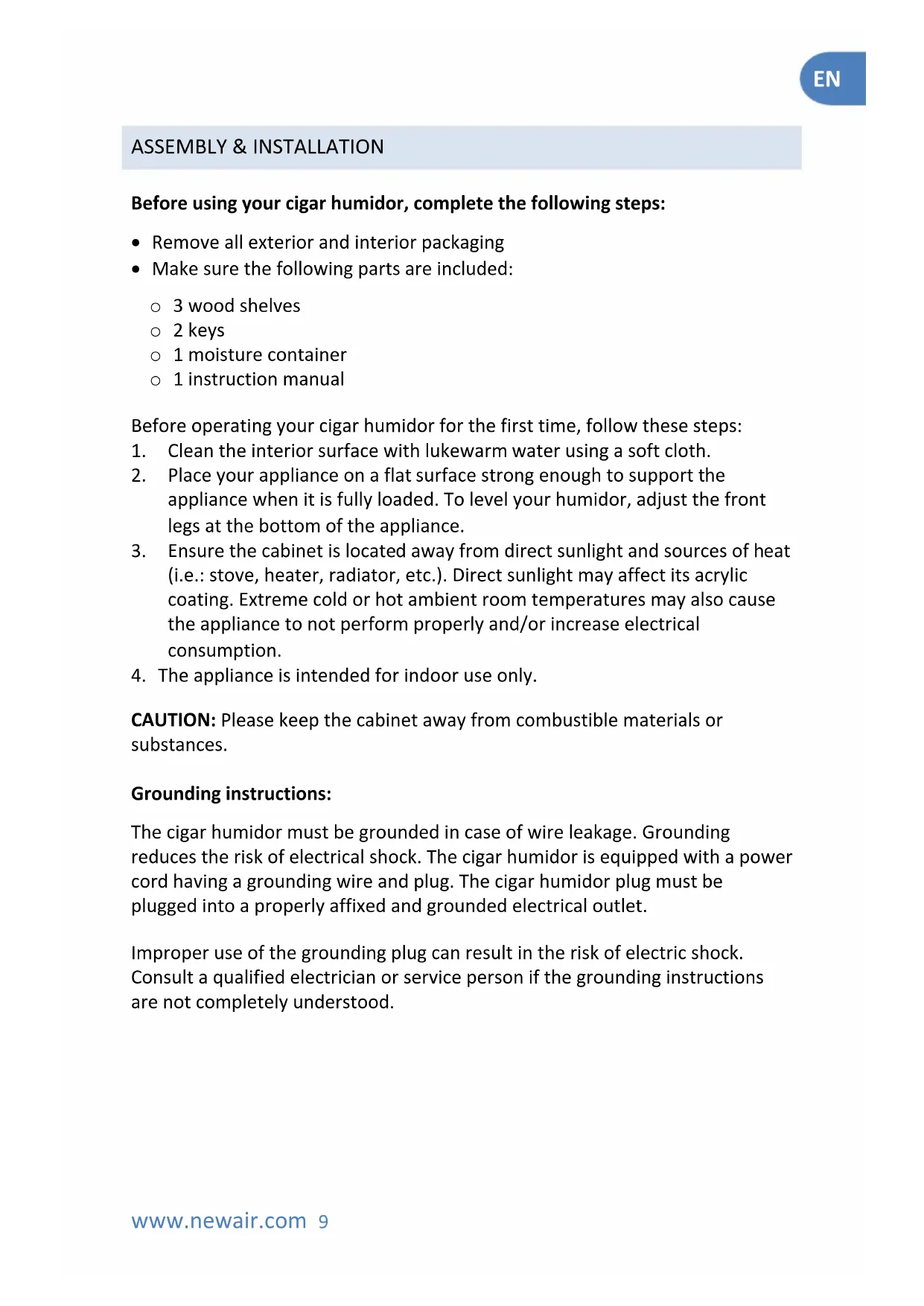

ASSEMBLY & INSTALLATION

Before using your cigar humidor, complete the following steps:

• Remove all exterior and interior packaging

• Make sure the following parts are included:

• 3 wood shelves
  ○ 2 keys

• 1 moisture container
• 1 instruction manual

Before operating your cigar humidor for the first time, follow these steps:

1. Clean the interior surface with lukewarm water using a soft cloth.
2. Place your appliance on a flat surface strong enough to support the appliance when it is fully loaded. To level your humidor, adjust the front legs at the bottom of the appliance.
3. Ensure the cabinet is located away from direct sunlight and sources of heat (i.e.: stove, heater, radiator, etc.). Direct sunlight may affect its acrylic coating. Extreme cold or hot ambient room temperatures may also cause the appliance to not perform properly and/or increase electrical consumption.
4. The appliance is intended for indoor use only.

CAUTION: Please keep the cabinet away from combustible materials or substances.

Grounding instructions:

The cigar humidor must be grounded in case of wire leakage. Grounding reduces the risk of electrical shock. The cigar humidor is equipped with a power cord having a grounding wire and plug. The cigar humidor plug must be plugged into a properly affixed and grounded electrical outlet.

Improper use of the grounding plug can result in the risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood.

INSTALLING YOUR CIGAR HUMIDOR

Unpack and remove all the protection and adhesive strips from the packaging around and inside the cigar humidor.

The cigar humidor must be positioned such that the plug is accessible. The cigar humidor should be installed in a suitable place where the compressor will not be subject to physical contact.

Leveling your cigar humidor: cigar humidor must be leveled BEFORE loading your cigar.

Your cigar humidor is equipped with 4 adjustable feet to facilitate easy leveling. It is recommended that you tighten the back feet to the maximum and adjust the front feet to level the cigar humidor.

FACTORY ODOR REMOVAL

Wash the interior of the humidor with a mild detergent and warm water. Make sure to not get the wood wet. Leave the door open and allow it to air dry thoroughly. If a “plastic” smell persists, place a dish of baking soda in the unit or stuff the humidor with newspapers overnight. When finished, let the unit run a full day to complete the airing out process.

If the supply cord is damaged, it must be replaced by a qualified person in order to avoid electrical hazard.

DRAWER SET-UP

The drawers and shelves included with this humidor are designed to sit flush with the front edge of the cabinet. This will allow air to circulate freely through the unit. When inserting the drawers and shelves, avoid pushing them all the way against the rear wall of the cabinet.

OPERATING INSTRUCTIONS

It is recommended that you setup the cigar cabinet in a place where the ambient temperature is between 50 - 77°F. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause the interior temperature to fluctuate or not reach the appliance's range.

The temperature may fluctuate depending on whether the interior light is on or off or how cigars are placed on the upper, middle, or lower section.

It is best to season your wood shelves and drawers before adding your cigars so that the wood is at an ideal relative humidity (RH) and does not absorb humidity from your cigars. To season your new cigar humidor:

1. Add distilled water to the included moisture container or add a sponge that is damp with distilled water. Make sure that the water is not touching the wood directly or this may damage the wood.
2. Allow the moisture container, or other humidity-adding device, to sit in the humidor until it reaches a relative humidity of 5% higher than your preferred level. This process may take as long as 3 days but is the best way to ensure your cigars stay optimal.
3. Once the humidor reaches this mark, you can begin to add cigars. You may add a few at a time in order to monitor the RH and make sure it stays at a level you want it at. If it drops too much, you can use the same seasoning method to bring it back up.

NOTE: During this entire process, it is recommended to not open the door unnecessarily, as this lets moisture escape and can delay the process.

Plug in and switch on the appliance by pressing on the power button for 3 seconds.

When you use the cigar humidor for the first time (or restart the cigar humidor after having it shut off for a long time), there will be a few degrees variance between the temperature you have selected and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the cigar humidor is running for a few hours everything will stabilize.

IMPORTANT: If the unit is unplugged, power is lost or turned off, wait 3 to 5 minutes before restarting the unit. The cigar humidor will not start if you attempt to restart before this time delay.

Operating Noises

To reach the desired temperature settings, our cigar humidor, like all cigar humidors operating with compressors and fans, may produce the following types of noises. These noises are normal and may occur as follows:

• Gurgling sound - caused by the refrigerant flowing through the appliance's coils.
• Cracking/popping sounds - resulting from the contraction and expansion of the refrigerant gas to produce cold.
• Fan operating sound - to circulate the air within the cigar humidor.

HOW TO SET TEMPERATURE:

There are four touch-buttons on the control panel:

increases or decreases the set temperature by 1 degree (temp range is 52 - 74°F).

button turns on or off the interior light.

selects temperature display setting Fahrenheit or Celsius.

Note: This product is designed to operate in rooms with an ambient temperature range of 50 - 77°F.

CIGAR STORAGE GUIDE

• The ideal temperature for storing cigars is between 65^ and 73^ .
• The ideal relative humidity (RH) for storing cigars is between 65% and 75% RH. To properly maintain RH in this unit, you will need to include a method of adding humidity. For your convenience, a moisture container is included.
• To add humidity to the unit using the included moisture container, simply fill the container with distilled water or a damp sponge wet with distilled water and place it back in the unit. Please note this water should be changed after reaching the desired humidity and refilled when used again.
• Keep cigars out of direct sunlight to avoid exposure to damaging UV rays.
• It is recommended to keep cigars in their original boxes and packaging as long as possible. Keep unwrapped cigars separate in your humidor to avoid unwanted mingling of flavors.
• Check cigars regularly for signs of tobacco beetles and mold, and take preventative measures if necessary.
• Properly stored cigars can improve with age for as long as 5-10 years, and can be kept even longer in ideal conditions.

CLEANING & MAINTENANCE

CLEANING YOUR CIGAR CABINET

To clean your cigar cabinet:

• Unplug the cigar humidor and remove its contents and trays.
• Clean the inside with a warm water and baking soda solution, about 2 tablespoons of baking soda to a quart of water.
• The outside of the cigar humidor should be cleaned with mild detergent and warm water.
  • Take out the water reservoir and clean with warm water.

TRANSPORTING THE CABINET

• Remove all contents and sliding shelves.
• Secure all loose items inside the unit.
• Adjust the leveling legs up to the base to avoid damage.
• Secure door shut.
• Be sure the cigar humidor stays in an upright position during transportation.

DISPOSAL

1. Please remove the door before disposal of this appliance.
2. Do not dispose of this product as unsorted municipal waste. Collection of such waste should be treated separately. Flammable insulation and or gases should be disposed appropriately. Take the cabinet to a recycling plant.

TROUBLESHOOTING

You can resolve most common usage problems easily by reviewing and following the troubleshooting information below.

Problem	Possible Causes	Solution
The humidor will not operate.	The unit may be plugged in using a different voltage.	Check if using the wrong voltage.
	The circuit breaker may be tripped or there is a blown fuse.	Reset the circuit breaker or check for a broken fuse.
The humidor is not cold enough.	The external environment may require a higher setting.	Lower the temperature of the humidor.
	The door may be opened too frequently.	Open the door less frequently.
	The door is not closed completely.	Make sure the door is closed securely.
	The door seal does not seal properly.	Replace the seal on the door. Replacements can be acquired from the NewAir customer support department.
	The humidor does not have sufficient clearance.	Make sure there is at least 5 inches clearance between the back of the unit and any adjacent walls.
The light does not work.	There may be a problem with the display board.	Contact the NewAir customer support department.
The humidor vibrates while operating.	The unit is not sitting on a level floor, or the unit's feet are not correctly installed.	Make sure the unit's feet are in the proper position and tightened securely.
The humidor produces a lot of noise.	The unit is not leveled.	See above.
	Check the fan.	Check the fan to make sure there is no debris or obstruction. If not, contact the NewAir Customer Support Department.

LIMITED MANUFACTURER'S WARRANTY

This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Warranty Terms:

During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.

Warranty Exclusions:

The warranty will not apply if damage is caused by any of the following:

• Power failure
• Damage in transit or when moving the appliance
• Improper power supply such as low voltage, defective household wiring or inadequate fuses
• Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)
• Use in commercial or industrial applications
• Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.
• Use of force or damage caused by external influences
• Partially or completely dismantled appliances
• Excess wear and tear by the user

Obtaining Service:

When making a warranty claim, please have the original bill of purchase with the purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion. For technical support and warranty service, please email [e-mail].

Un nom de confiance

Instagram.com/newairusa

Twitter.com/newairusa

LISEZ ET CONSERVEZ CES INSTRUCTIONS

TABLE DES MATIÈRES

Email: [e-mail]

Instagram.com/newairusa

YouTube.com/newairusa

Twitter.com/newairusa

LEA Y GUARDE ESTAS INSTRUCCIONES

INDICE
