Brand	Beko
Model	VRT 61225 VW
Product type	Bagless vacuum cleaner
Power supply	Rechargeable battery, mains charger 100-240 V~ 50/60 Hz
Rated power	150 W
Charger output voltage	32 V DC, 0.45 A
Charging time	4 to 6 hours
Maximum runtime (minimum speed)	45 minutes
Runtime at maximum power	17 minutes
Dust tank capacity	Approximately 0.5 L (estimate)
Filtration system	EPA E10 filter + plastic filter
Included accessories	Electric turbo brush, mini turbo brush, crevice tool, dusting brush, water tank with wipes (x2)
Wall charging station	Yes, with fixings (screws and wall plugs)
Main functions	Dry vacuuming and mopping of hard floors with wipe
Speed adjustment	2 speeds (min and max)
LED indicators	Charging (white) and battery level (white/red)
Usage	Domestic, for carpets and hard floors
Maintenance	Regular cleaning of dust tank and filters (do not wash filters with water)
Safety	Do not use without filter, do not vacuum liquids or flammable materials, unplug before cleaning
Compliance	WEEE directive, LdSD, international safety standards

Frequently Asked Questions - VRT 61225 VW BEKO

How long does it take to fully charge the vacuum cleaner?

Full charging takes approximately 4 to 6 hours. The white LED indicators flash during charging and become steady once complete.

What is the runtime of the Beko VRT 61225 VW vacuum cleaner?

The runtime depends on the selected speed: 45 minutes at minimum speed and 17 minutes at maximum speed.

Can I use the vacuum cleaner while it is charging?

No, the appliance should not be used during charging. It stops automatically when placed on the charging station.

How to use the water tank for floor mopping?

Fill the tank with filtered water (no detergent or bleach), attach the wipe, then place it under the main brush. Use only on hard floors and remove it after cleaning.

How to clean the EPA E10 filter?

Remove the plastic filter and the EPA E10 filter from the tank. Do not wash with water. Gently tap the EPA filter against a hard surface or use a brush to remove dust.

What to do if the turbo brush is clogged?

Press the roller release button, remove it, and clean it by tapping or cutting tangled hair with scissors.

Can the vacuum cleaner suck up liquids?

No, the appliance is not designed to vacuum water or other liquids. This could damage the motor.

How to install the wall charging station?

Fix the station at a height of 112-114 cm from the floor. Use the supplied wall plugs and screws to screw it into the wall, then plug in the mains charger.

Can I replace the battery myself?

Batteries can only be replaced by qualified persons. Contact an authorized service center for any replacement.

What to do if the vacuum cleaner does not start?

Check that the battery is charged (connect to the station). If the LED indicators do not light up, contact customer service. Ensure the dust tank is properly attached.

USER MANUAL VRT 61225 VW BEKO

Cordless Stick Vacuum Cleaner

User Manual

VRT 60221 VD - VRT 61225 VW

EN - FR - RO - IT - PL - SR

Please read this guide first!

Dear Customer,

Thank you for choosing a Beko product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electric shock protection rating

CONTENTS

ENGLISH	03-17
FRANÇAIS	18-32
ROMANIAN	33-51
ITALIANO	52-67
POLSKI	68-84
SRPSKI	85-97

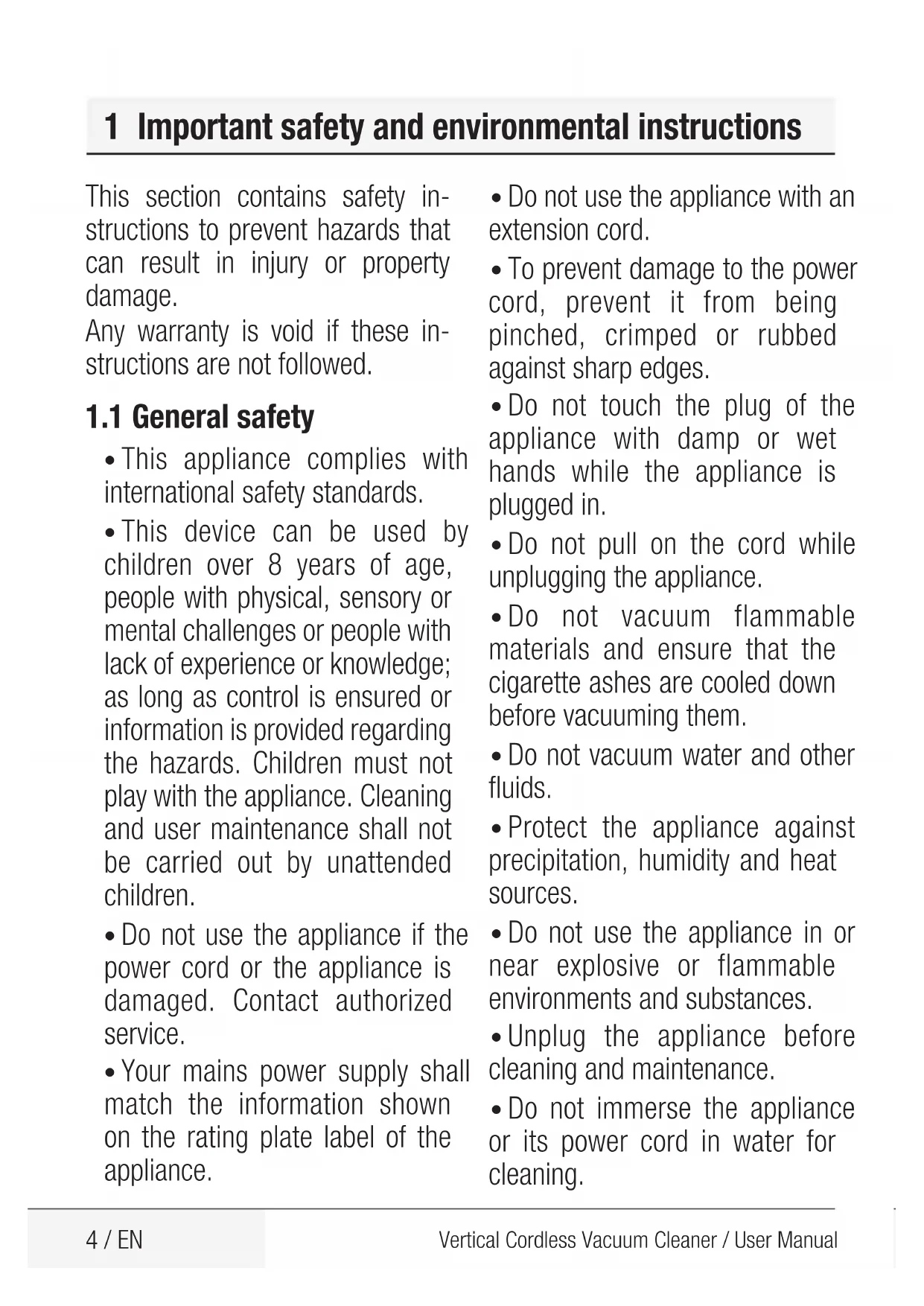

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards.
• This device can be used by children over 8 years of age, people with physical, sensory or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the hazards. Children must not play with the appliance. Cleaning and user maintenance shall not be carried out by unattended children.

- Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service.

- Your mains power supply shall match the information shown on the rating plate label of the appliance.

• Do not use the appliance with an extension cord.
• To prevent damage to the power cord, prevent it from being pinched, crimped or rubbed against sharp edges.

- Do not touch the plug of the appliance with damp or wet hands while the appliance is plugged in.

- Do not pull on the cord while unplugging the appliance.

- Do not vacuum flammable materials and ensure that the cigarette ashes are cooled down before vacuuming them.

- Do not vacuum water and other fluids.

- Protect the appliance against precipitation, humidity and heat sources.

- Do not use the appliance in or near explosive or flammable environments and substances.

- Unplug the appliance before cleaning and maintenance.

- Do not immerse the appliance or its power cord in water for cleaning.

1 Important safety and environmental instructions

- Do not disassemble the appliance.

- Use only original parts or parts recommended by the manufacturer.

- To prevent blockage of the filter or damage to the motor, do not vacuum cement, plaster or fragments of compressed paper.

- Use the appliance with the adapter delivered with the appliance only.

- Do not use the appliance without filters, it may get damaged.

- If you keep the packaging materials, keep them out of the reach of children.

- This appliance is not intended to be used by persons, including children, with physical, sensory and mental disabilities or those who have not adequate experience and knowledge regarding its use, unless they are under the supervision of a person responsible for their safety or they are informed about the operation of the appliance.

• Children shall be supervised to prevent them from playing with the appliance.

- Unplug the adaptor and remove the battery pack before any cleaning or maintenance procedure.

- To avoid any risk of hazard, a damaged adaptor shall be replaced by the manufacturer, the authorized representative of the manufacturer or a similarly qualified technician.

- Keep your fingers, hair and loose clothes away from moving parts or clearances while vacuuming.

- Batteries shall be removed from the appliance before discarding the appliance.

- Disconnect the appliance from power supply before removing the battery.

- Please discard used batteries in accordance with local laws and regulations.

- The batteries included in this appliance may only be replaced by qualified persons.

• This appliance is not intended for commercial use. It is not designed for commercial purposes; it is intended for home use and in applications as follows:

1 Important safety and environmental instructions

It is intended for home use and in applications as follows:

• In staff kitchens of stores, offices, and other working environments;
• In farm houses;
• By customers in hotels, motels, or other accommodation facilities;
• In hostels or similar environments.

- WARNING: Use the HCX1501-3200450E (VRT 61225 VW) or HCX1501-2700500E (VRT 60221 VD) removable supply unit delivered with the appliance to charge the battery.

- This appliance shall not be operated by children or people with limited physical, sensory, or cognitive skills, or people with lack of experience and knowledge, unless they are under supervision or have been provided with the relevant instructions.

• Children shall be supervised to prevent them from playing with the appliance.

1.2 Compliance with the WEEE Directive and disposal of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed of with other household wastes at the end of its service life. Used devices must be returned to an official collection point for recycling of electrical and electronic devices. To find these collection systems, please contact your local authorities or the retailer where the product was purchased. Each household plays an important role in recovering and recycling old appliances. Appropriate disposal of used appliances helps prevent potential negative consequences for the environment and human health.

1.3 Packaging information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.4 Information on waste batteries

This symbol on the packaging of the product or its packaging related to rechargeable batteries indicates that the rechargeable battery shall not be disposed of with domestic waste. A chemical symbol may accompany this symbol on some rechargeable batteries.

And mercury (Hg) and lead (Pb) symbols may also be added if the rechargeable batteries contain more than 0.0005% mercury and more than 0.004% lead content.

Rechargeable batteries shall not be disposed of with household waste even if they do not contain heavy metals. Always discard the used batteries as per local environmental legislation. Investigate the waste disposal regulations in effect in your area of residence.

1 Important safety and environmental instructions

1.5 What to do for energy saving

• When using your appliance, adjust the speed settings according to the surface, in order to save energy.
• Normally, lower speeds are used when cleaning hard surfaces, curtains and sofas, while high speeds are used for cleaning carpets.

1.6 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2 Overview

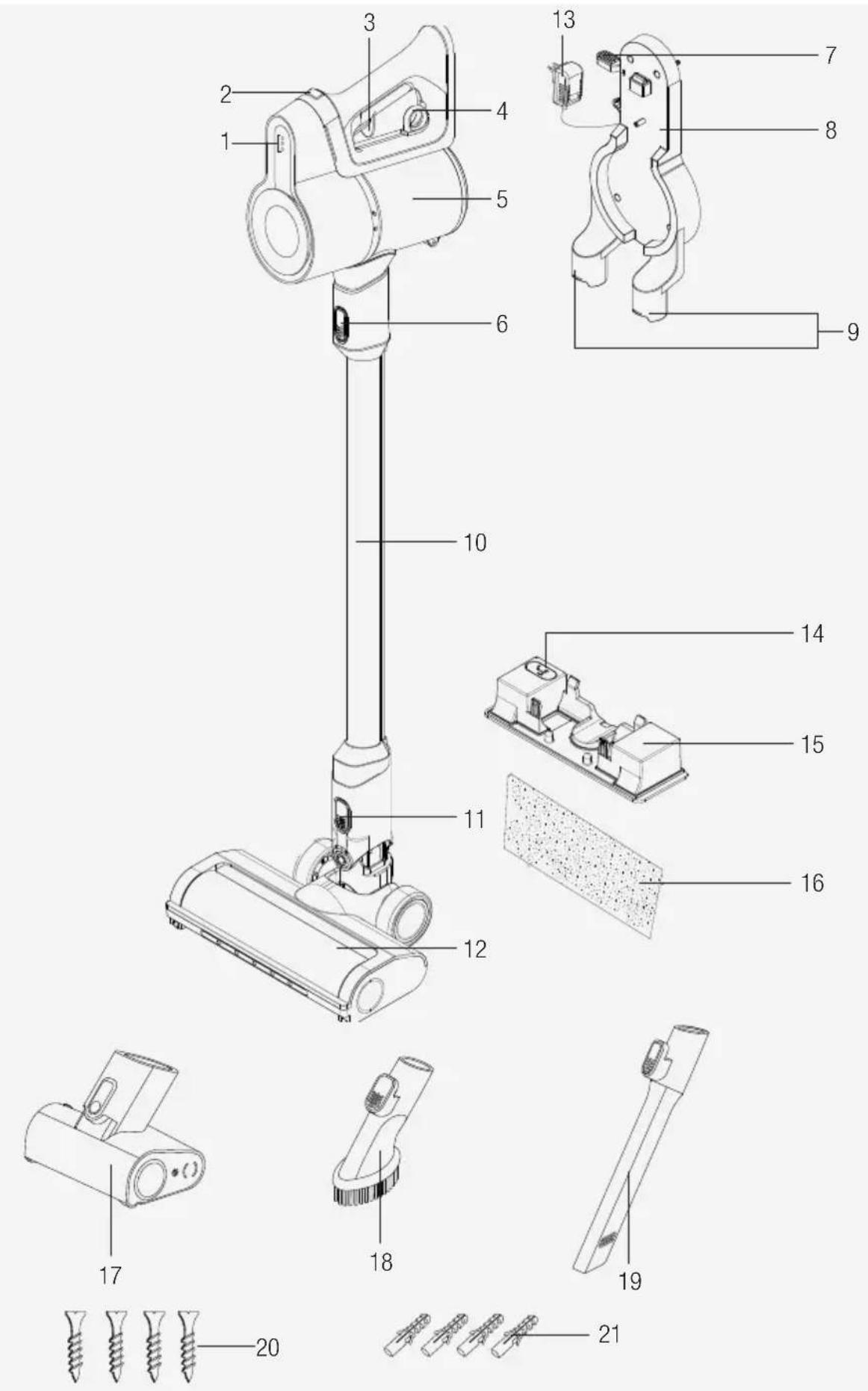

2.1 Controls and components

1. Charge indicator LED lights
2. Power Adjustment button
3. On/off button
4. Emptying dust container ring
5. Dust container
6. Tube release button
7. Appliance release button
8. Charging Dock
9. Accessory attachment parts
10. Tube
11. Brush release button
12. Electric turbo brush
13. Charging adaptor
14. Lid for filling the water tank
15. Mop attachment; Water Tank
16. Mopping cloth (x2 pcs)
17. Mini turbo brush (VRT 61225 VW)
18. Dust brush
19. Crevice attachment
20. Screw (4 pcs)
21. Dowel (4 pcs)

2.2 Technical data

	VRT 61225 VW VRT 60221 VD
Nominal input power 150 W	110 W
Input 100 - 240 V~ 50-60 Hz	0,5 A
Output	32 V =0.45 A 27 V	0.5 A=
Charging time 4-6 hours
Runtime at max. power 17 mins
Runtime at min. power 45 mins

The rights to make technical and design changes are reserved.

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

External Power Supply Parameter

	VRT 61225 VW VRT 60221 VD
Manufacturer: Guangdong Huachuangxing Power Supply Co.,Ltd
Model ID: HCX1501-3200450E HCX1501-2700500E
Input Voltage: 100-240V~
Input Frequency: 50-60Hz
Input Current: 0.5A
Output Voltage 32.0V 27.0V
Output Current 0.45A 0.5A
Output Power: 14.4W 13.5W
Average active efficiency:	85.5% 84.39%
Efficiency at low load (10%):	83.33%	70.65%
Power consumption under no load:	0.041W	0.071W

3 Installation

3.1 Intended use

This appliance is intended for household use and it is not suitable for industrial use.

3.2 Installation of the charging dock

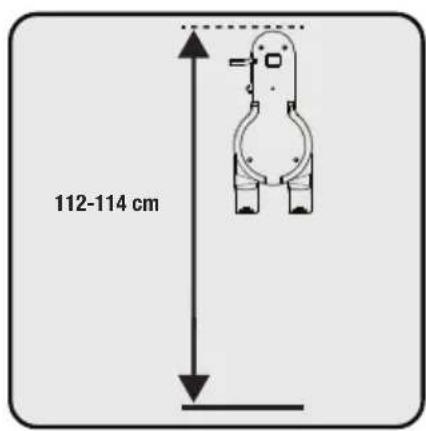

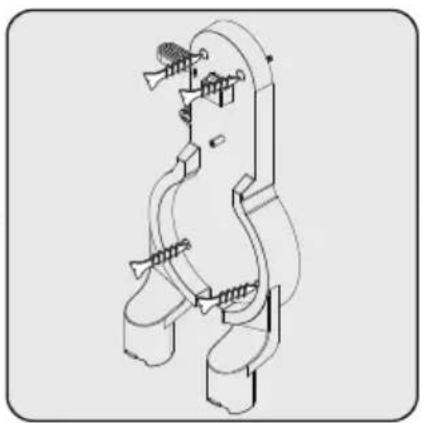

Position the charging dock at a height of 112-114 cm from the ground.

1- Fix four dowels on the wall 2- Place four screws into their locations on the charging dock and mount on the dowels on the wall.

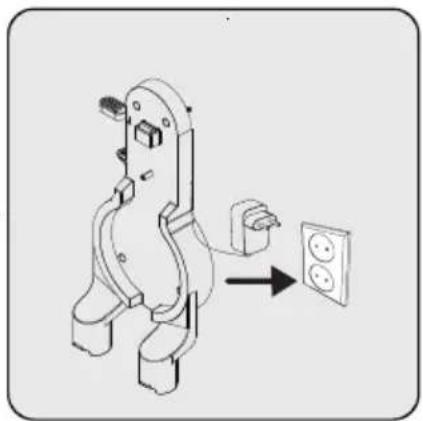

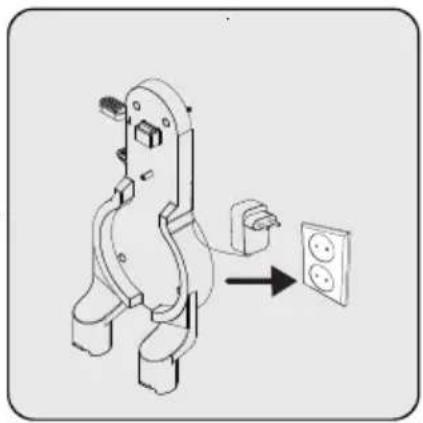

Plug the charging adaptor to the socket.

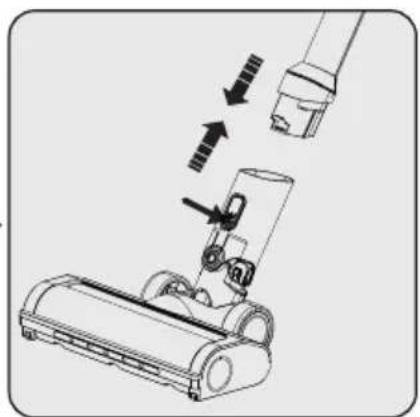

3.3 Installation of the body and the brush

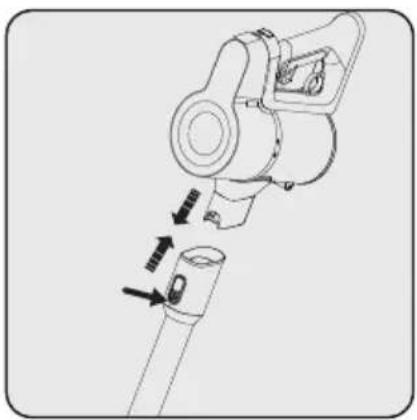

Push the tube in the direction of the arrow towards the body by pressing the tube release button.

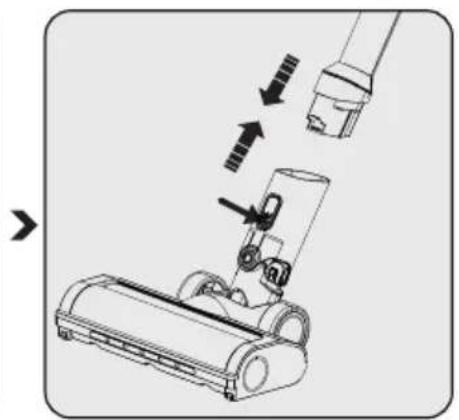

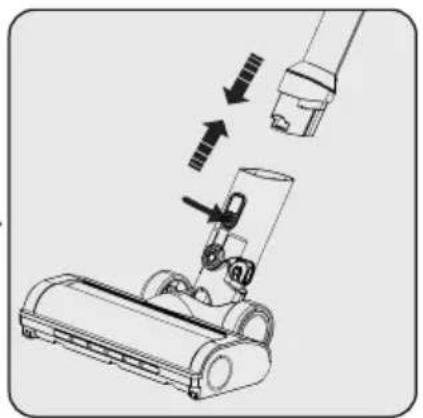

Press the electric turbo brush release button on the electric turbo brush and push it in the direction of the arrow towards the tube.

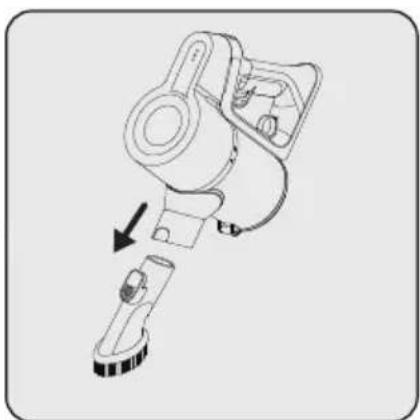

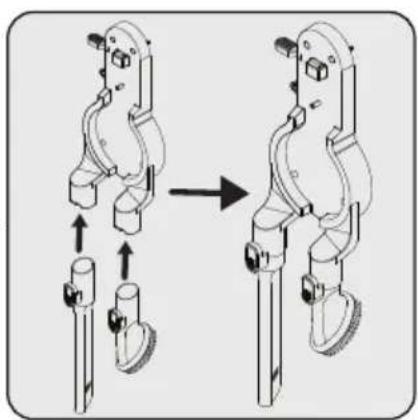

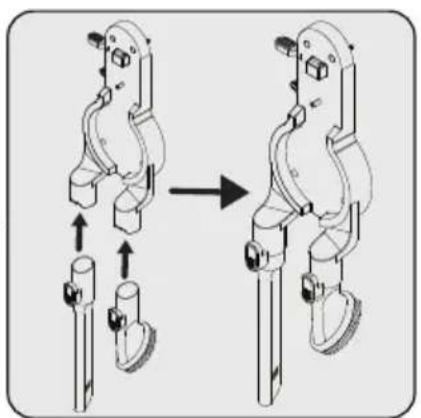

Attach the crevice attachment (16) and dust brush to the charging dock.

4 Operation

4.1 Charging the appliance

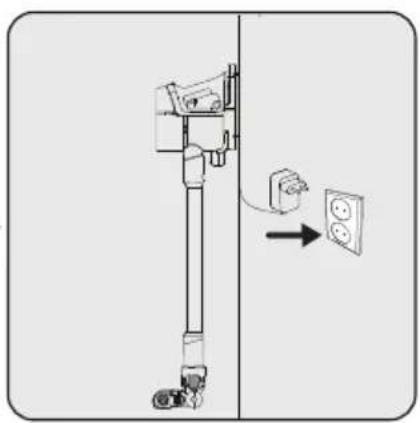

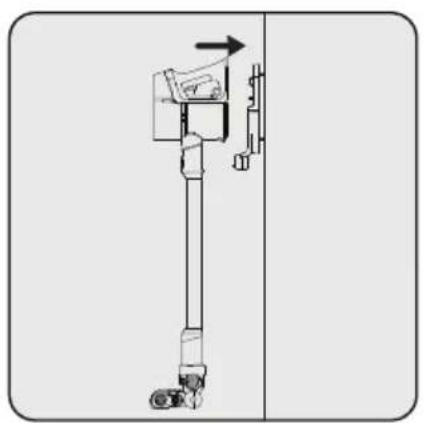

Place the appliance on the charging dock.

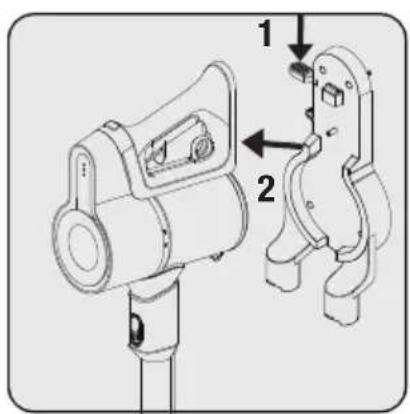

After placing the dust container on the charging dock, push the appliance towards the charging dock.

Plug the charging adapter into the socket.

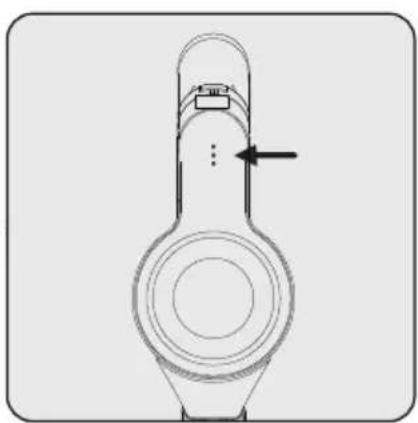

Flashing of the charge indicator LEDs in white indicates that the appliance is being charged.

- When all levels of the charge indicator LEDs are illuminated, this indicates that the charging of the appliance is completed.

It takes up to 4 to 6 hours to charge the appliance completely. The appliance shall not be operated while charging.

If the appliance is placed on the charging dock while it is being operated, it shall be stopped automatically.

4.2 Usage

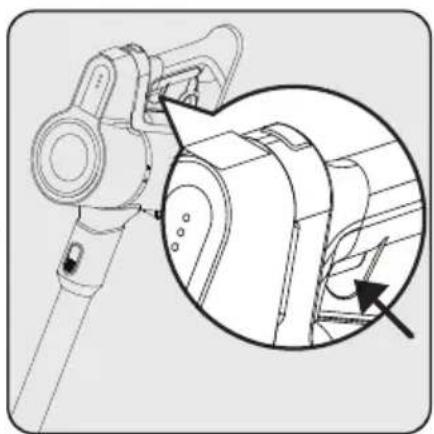

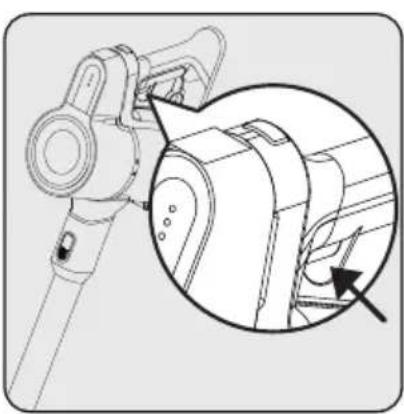

1- Push the appliance release button on the charging dock downward and pull the appliance towards yourself at the same time.

2- Remove the appliance from the charging dock.

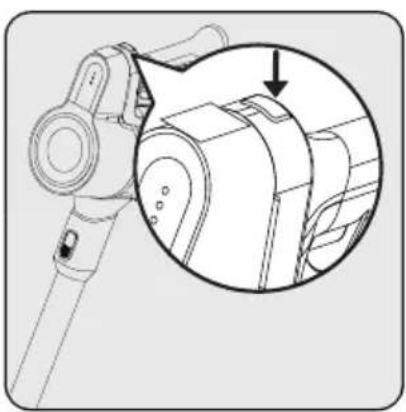

Press the on/off button to operate the appliance. The appliance starts operating with the minimum power when the on/off button is pressed.

To switch to the maximum power when operating in the minimum power, push the power adjustment button. To switch to the minimum power when operating in the maximum power, push the power adjustment button again.

4 Operation

The appliance may be placed for charging before the complete discharging of the battery. The appliance may be kept continuously as charging on the charging dock until the next operation.

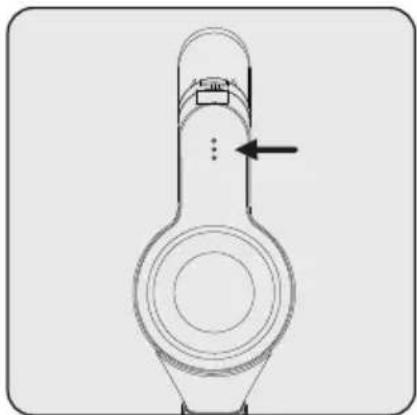

Pay attention to the power indicator LEDs (1) during operation. These indicators gradually turn off as the charge level is reduced, and when all indicators are turned off and only one indicator illuminates in red, then the charge of the appliance is about to run out. The appliance stops operating automatically after a short while when the red LED illuminates.

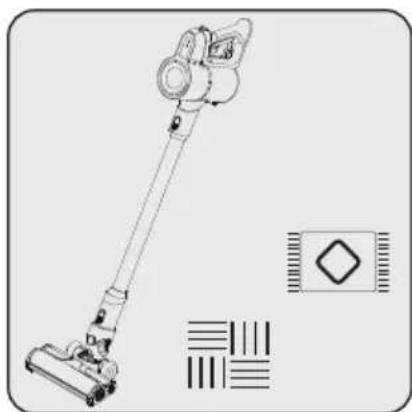

This appliance is suitable for use on carpets and hard floors.

4.3 Accessories

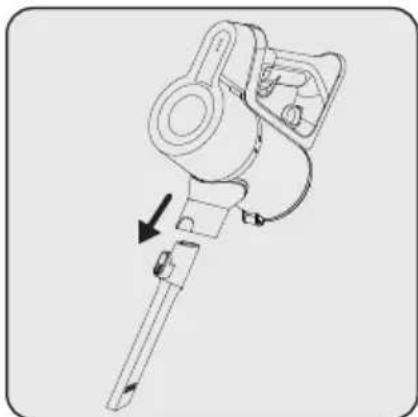

Crevice: Suitable for vacuuming the rear of the furniture, hard to reach areas and narrow areas.

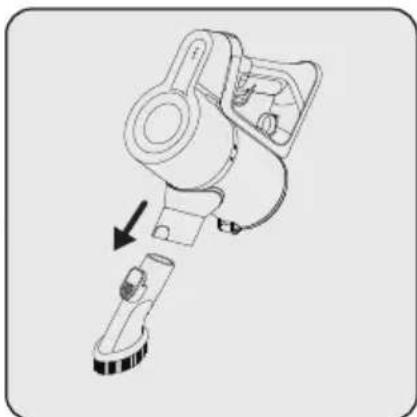

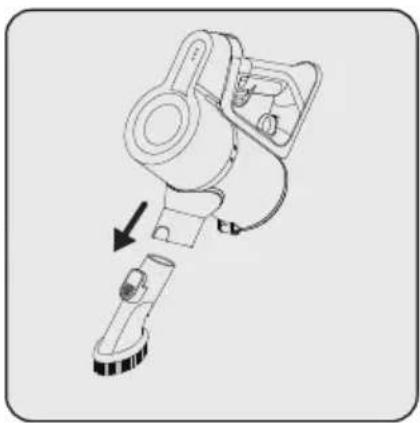

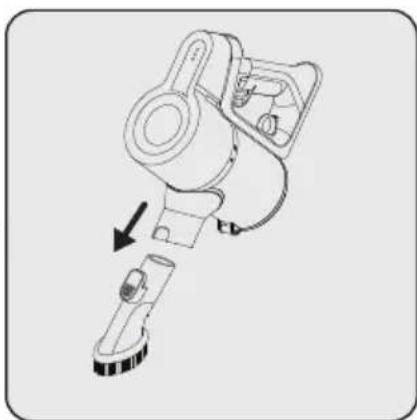

Dust brush: Suitable for vacuuming curtains, waxed furniture and delicate and fragile objects.

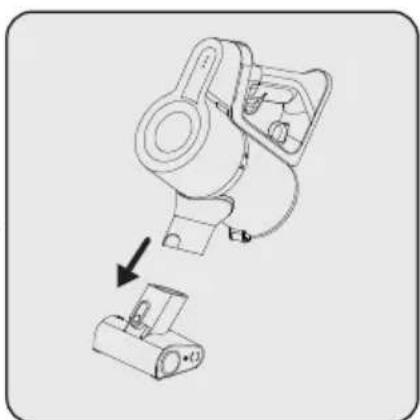

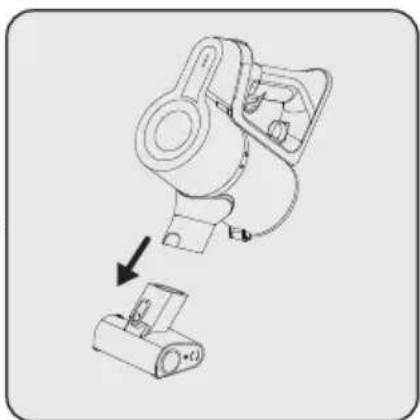

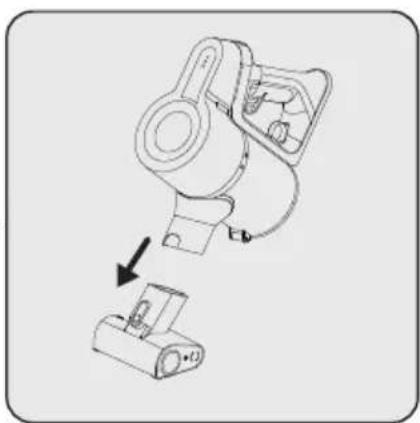

Mini turbo brush

(VRT 61225 VW): Suitable for vacuuming floorings, stair steps, car interiors, sofas and seat, etc. It is also used for vacuuming pet hair on such surfaces.

4 Operation

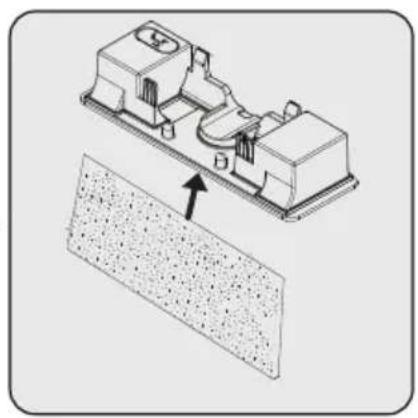

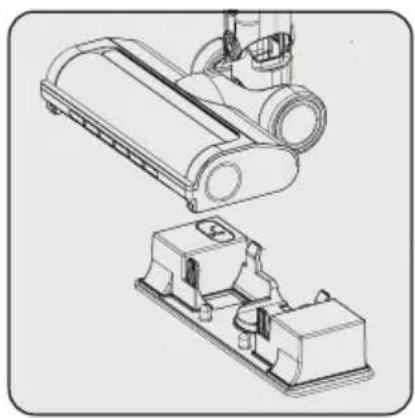

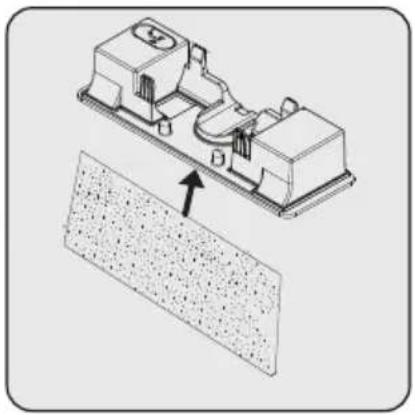

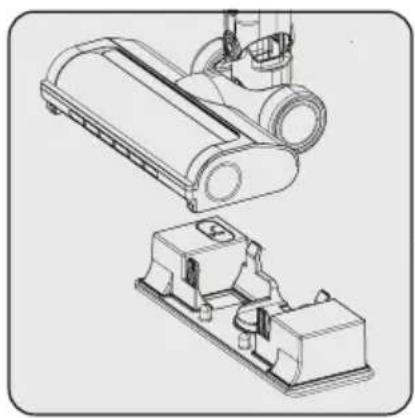

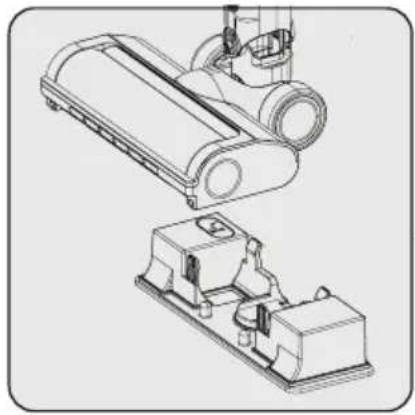

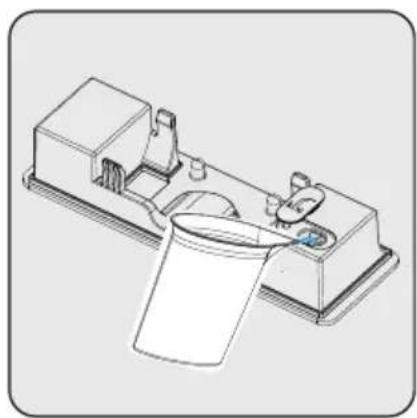

Mop Attachment: Suitable for hard floor mopping process. Fill the water tank with potable water. Attach mopping cloth to the bottom of water tank. Attach mop attachment to the bottom of electrical turbo brush.

	WARNING: Do not use the mop attachment on a carpet.
	WARNING: Do not put bleach or detergent in the water tank.
	WARNING: Remove the mop attachment after usage is completed.
	WARNING: Remove the mop attachment immediately after the mopping operation is completed to prevent damage to your wooden floors.
	WARNING: Clean the water tank after each use.
	Mopping cloths can be washed in washing machine.
	WARNING: Do not lift or tilt the nozzle, as water may spray out of the water tank.

5 Cleaning and maintenance

Turn off and unplug the appliance before cleaning.

WARNING: Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Deformation may occur on the filters within time as a result of usage. It shall be replaced with a new one to prevent loss of performance. Contact with the customer services to buy a new one.

5.1 Cleaning the Dust container and Filters

WARNING: Do not wash the filters.

We recommend you to clean the dustbin (5) after each operation.

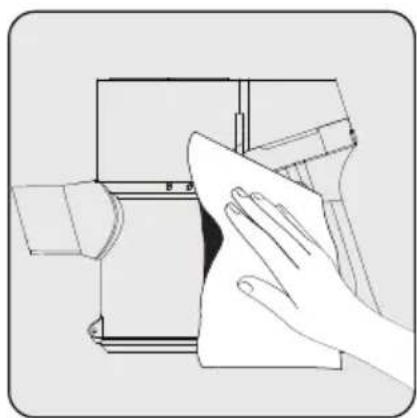

Wipe the surface of the body with a wet cloth.

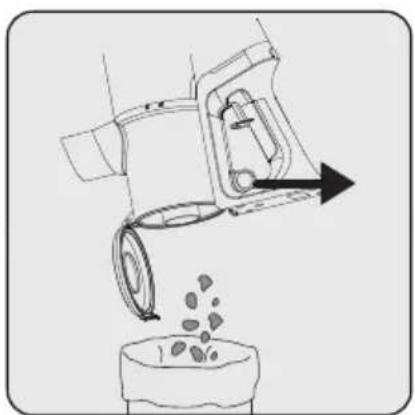

Pull the emptying dust container ring to the last point. Dust container lid will be opened. Empty all the dust it contains.

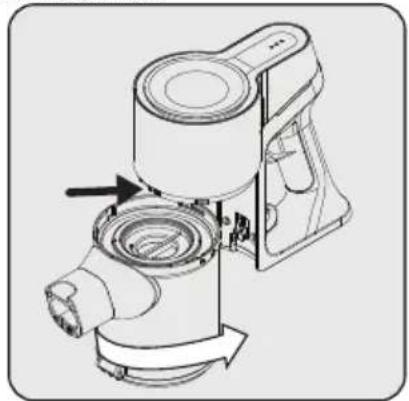

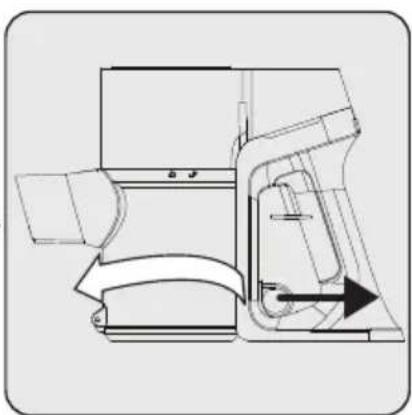

For a detailed cleaning of filters, remove the dust container by turning it clockwise while pulling dust container ring lightly.

5 Cleaning and maintenance

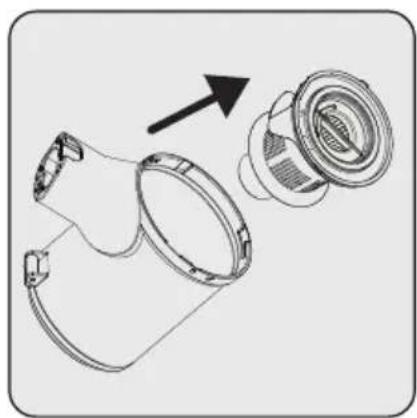

Pull EPA E10 and plastic filter holding from the EPA E10 handle.

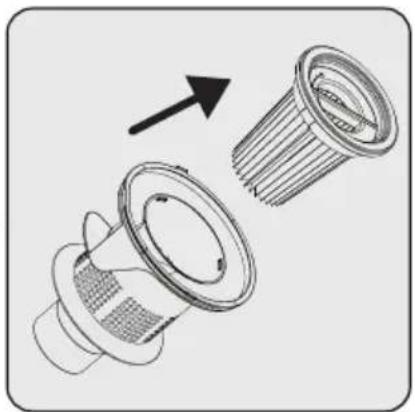

Seperate EPA E10 and plastic filter from each other.

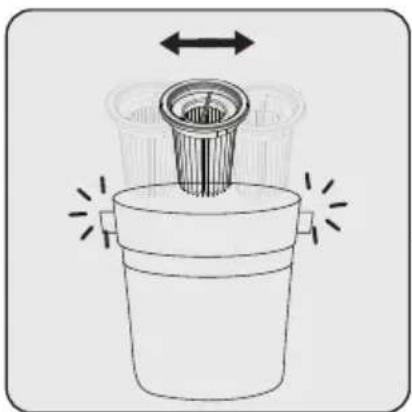

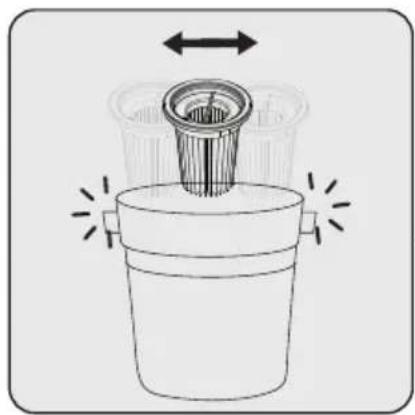

Remove the dust on the EPA E10 filter by tapping it on a hard surface such as a waste bin or by using a brush.

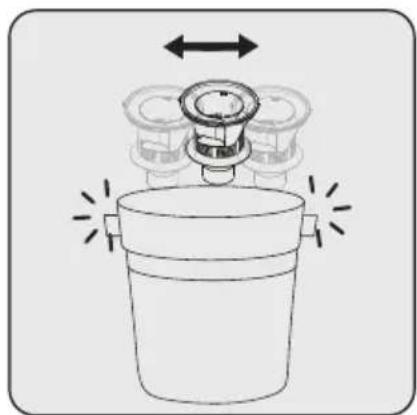

Remove the dust on the plastic filter by tapping it on a hard surface such as a waste bin or by using a brush.

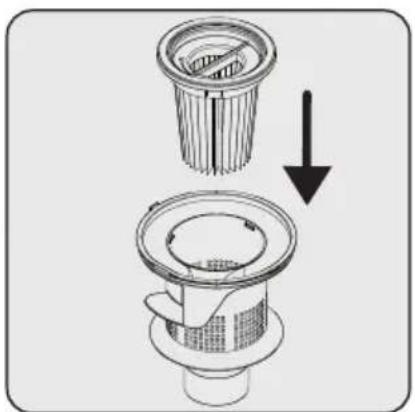

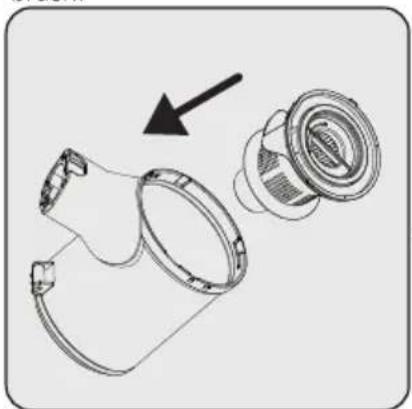

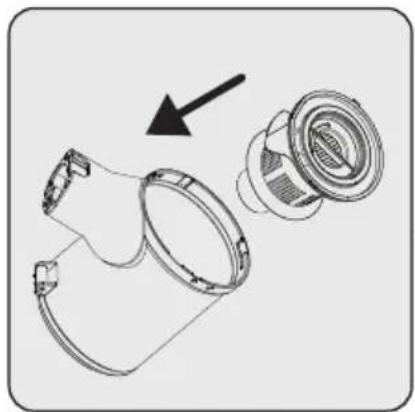

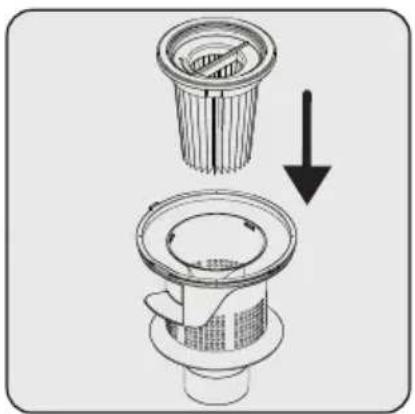

Attach EPA E10 filter to the plastic filter back.

Attach plastic filter on the dustbin ring.

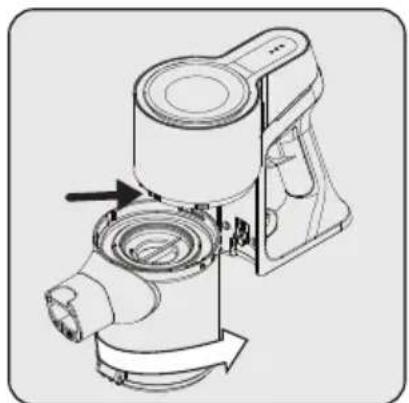

Fix the connector of dustbin to the holes on the body, then fix the dustbin by turning counter clockwise until you hear the click sound.

5 Cleaning and maintenance

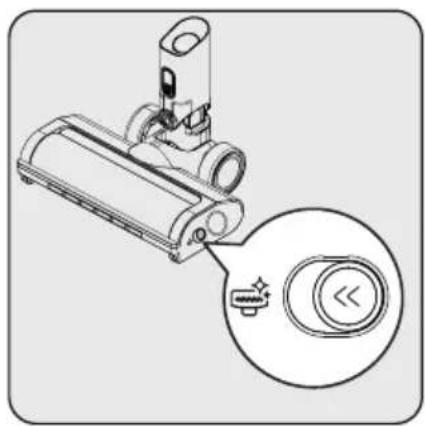

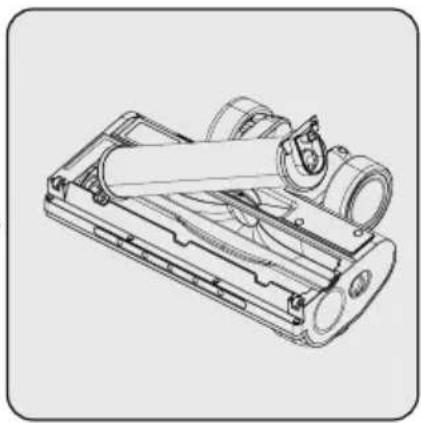

5.2 Cleaning of the brush

WARNING: Do not wash the turbo brush (8) and the main roller.

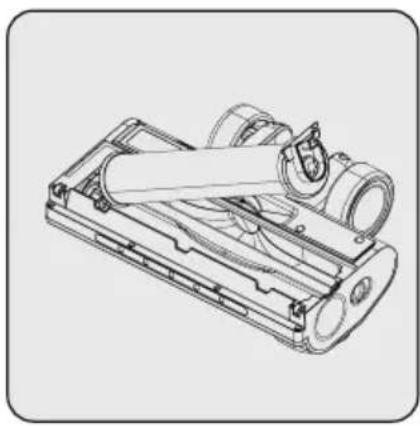

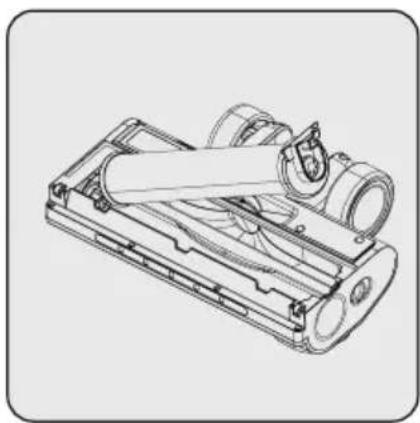

Press on the roller release button. Remove the dust on it by tapping it lightly to a hard surface or remove the dust with a brush. If any hair, etc. is tangled, remove it by cutting it off.

Fix the roller back to its place by pushing.

5.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Ensure that the appliance is kept out of reach of children.
• If you shall not be using the battery for a long period of time, please keep it in a cool and dry place at half charged condition. Do not charge or discharge completely.
• Store the battery on a non-conducting material, and do not allow the battery to contact metal directly. This shall damage the battery.

5.4 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Insert the tube in the direction indicated by the arrow by pressing the tube release button.

□ Electric radiator □ □ Electric convector

Model / Series:

SELLER

Invoice no.:.... Date:....

Clean the surface of the body with a damp cloth.

1- Attach the four dowels to the wall 2- Place the four screws in their positions on the charging station and mount them onto the dowels on the wall.

Push the stick in the direction of the arrow towards the body while pressing the stick release button.

Press the electric turbo brush release button located on the electric turbo brush and press it in the direction of the arrow towards the tube.

Attach the narrow nozzle and brush to the charging station.

Flashing of the white LED charge indicator lights indicates that the device is charging.

- When all LED charge indicator lights are on, it means that the device is fully charged.

1- Press the device release switch on the charging station downwards and simultaneously pull the device towards you.

2- Remove the appliance from the charging station.

To switch to maximum speed when operating at minimum speed, press the speed adjustment button.

To switch to minimum speed when operating at maximum speed, press the speed adjustment button again.

4 Operation

Mop attachment: Suitable for wiping hard floors. Fill the water tank with drinking water.

Wipe the inside of the device with a damp cloth.

To thoroughly clean the filters, remove the dust container body by turning it clockwise while gently pulling the dust container ring.

Separate the EPA E10 and plastic filter from each other.

Remove dust from the metal filter by tapping it against a hard surface such as a trash can, or do it with a brush.

Attach the EPA E10 filter back onto the plastic filter.

Attach the plastic filter to the dust container.

Insert the toothed part of the dust container into the holes on the body, then adjust the container by turning it counterclockwise until you hear a click.

Press the roller brush release button.

5.4 Transport and shipping

• During transport and shipping, carry the device in its original packaging. The device's packaging protects it from physical damage.
• Do not place heavy objects on the device or its packaging. Otherwise, the device may be damaged.
• If the device falls, it may not work or may suffer permanent damage.
