Vitacompact DO6248 - Food Processor TEFAL - Free user manual and instructions

Brand	Tefal
Model	Vitacompact DO6248
Product type	Food processor
Usage	Domestic culinary use only
Power	800 W
Supply voltage	220-240 V, 50/60 Hz
Main bowl capacity	2 L
Mixer bowl capacity	1 L
Speeds	Variable with pulse function
Included accessories	Main bowl, mixer bowl, metal blade, vegetable cutting discs, whisk, emulsifier disc, juicer, mini chopper, grinder, pushers
Bowl material	BPA-free plastic
Blades	Stainless steel
Safety	Safety lock, food pusher, automatic shut-off in case of overload
Cleaning	Dishwasher-safe accessories (except motor unit and whisk body)
Dimensions (L x W x H)	30 x 20 x 25 cm
Weight	3.5 kg
Cable length	1 m
Color	White/silver
Warranty	2 years
After-sales service	Authorized centers (see service booklet)
Repairability	Replacement parts available
Standards	CE, compliance with European directives
Prohibited use	Do not use empty, do not microwave, do not immerse motor unit in water

Frequently Asked Questions - Vitacompact DO6248 TEFAL

How to use the food processor safely?

Read the instruction manual carefully before first use. Always use the pushers to guide food, never fingers or utensils. Ensure the bowl is properly locked before starting. Unplug the appliance before changing accessories.

What to do if the appliance does not work?

First check the power connection and the locking of each accessory. If the problem persists, contact an authorized service center (see list in service booklet).

How to clean the accessories?

Rinse quickly after use. Most accessories are dishwasher safe or can be washed with soapy water. Wipe the motor unit and whisk body with a damp sponge only.

Are the blades removable?

Yes, the blades like the metal blade are removed via the drive. Handle them with care as they are extremely sharp.

Can I use the mixer bowl for hot liquids?

No, never pour boiling liquids into the mixer bowl. Let them cool down to avoid any risk of burns or damage to the appliance.

How to avoid overflowing during mixing?

Do not fill the bowl beyond the indicated maximum capacity. Use the pulse function to control the speed and stop if necessary to check.

What to do if the bowl does not lock?

Make sure the bowl is correctly positioned on the motor unit and that the locking clips are engaged. If the problem persists, contact an authorized center.

Can I mix dry ingredients only?

It is not recommended to operate the mixer bowl with dry products alone. Add a little liquid to facilitate mixing and avoid damaging the appliance.

How to use the juicer?

Mount the filter and base on the motor unit. Use the pusher to introduce fruits/vegetables. Check that the filter is not damaged before use.

Where to find spare parts?

Replacement parts are available from your usual retailer or an authorized service center. Check the list in the service booklet provided with the appliance.

USER MANUAL Vitacompact DO6248 TEFAL

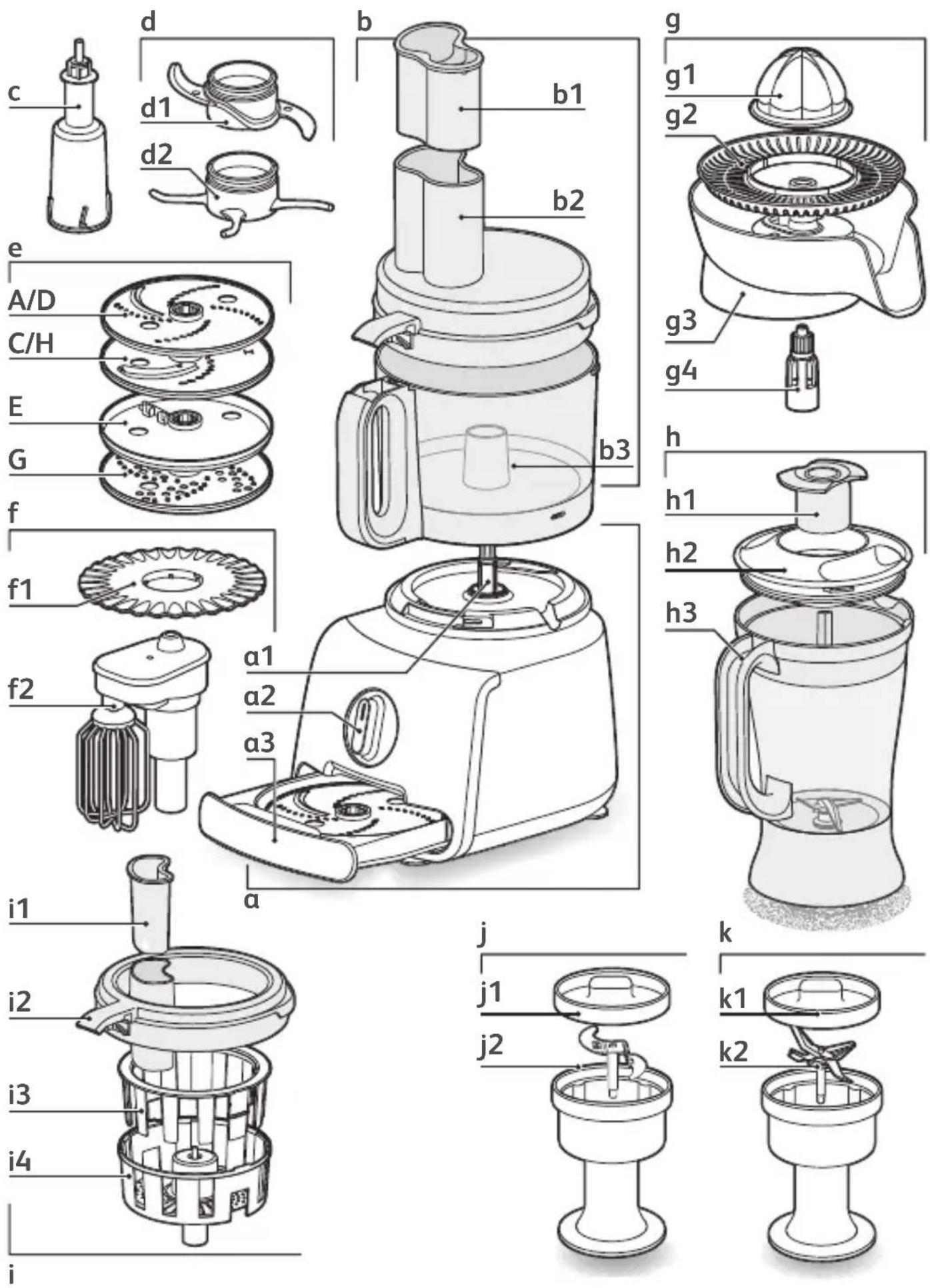

Line drawing of a kitchen appliance with handle and central blade (no text or symbols)

FRENNLDEESPTITDANOSVFIELTRRUUKPLLTLVETCSSKHUBGSLROHRSRBSARFA

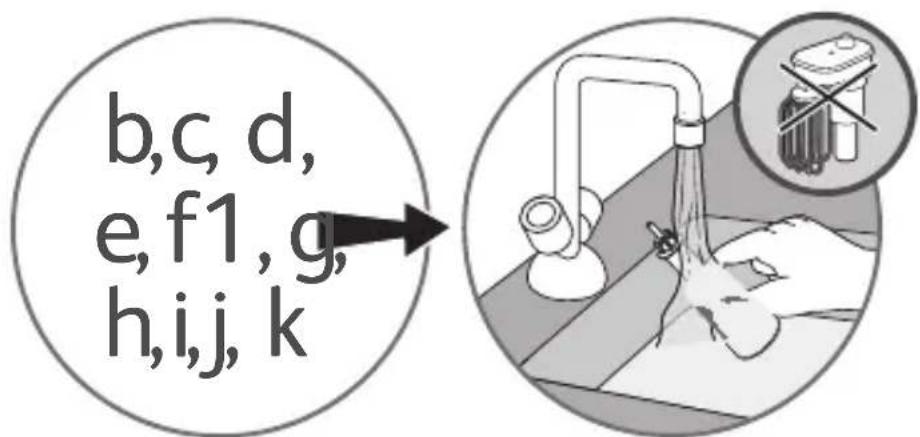

b,c,d, e,f1,g, h,i,j,k

fig.1a fig.1b

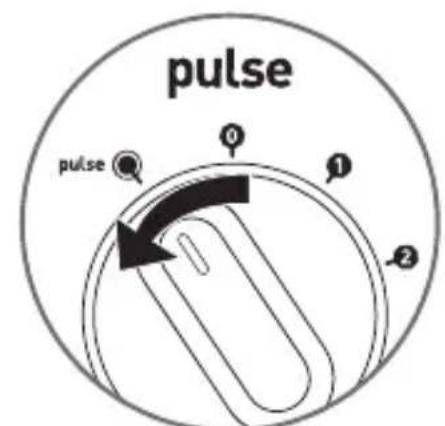

pulse pulse 0 1 2

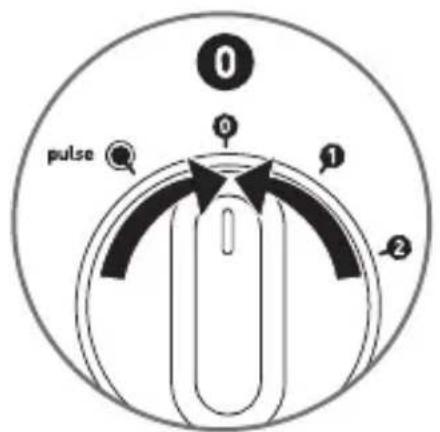

① ② pulse 0 ① ②

pulse 0 1 2

Diagram showing a kitchen blender with labeled parts and directional arrows indicating rotation or movement.

fig.3a fig.3b

3

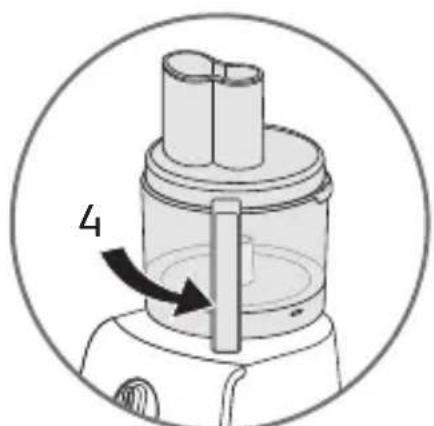

Diagram of a blender with a handle and label '4' indicating a step, enclosed in a circle (no text or symbols beyond the label)

fig.3c

Illustration of a kitchen blender with a magnified view showing the blade and handle (no text or symbols)

Diagram of a blender with directional arrows indicating process flow (no text or symbols)

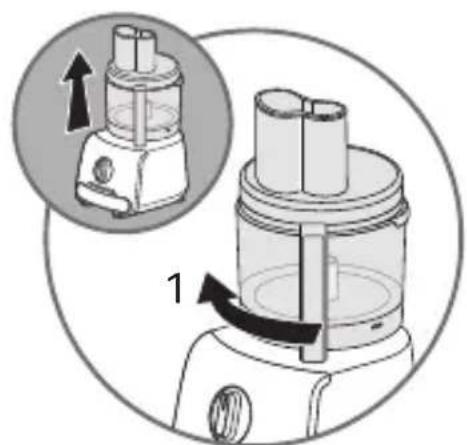

4 3 4

fig.4bfig.4a fig.4c

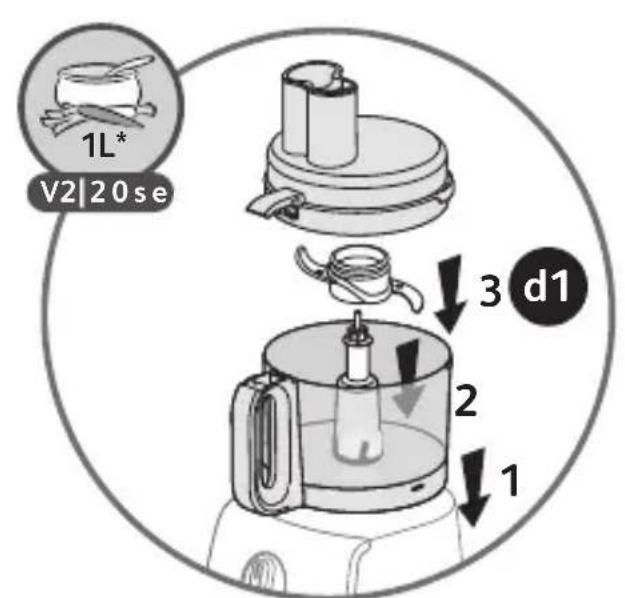

1L* V2|20se 3 d1 2 1

fig.5a fig.5b

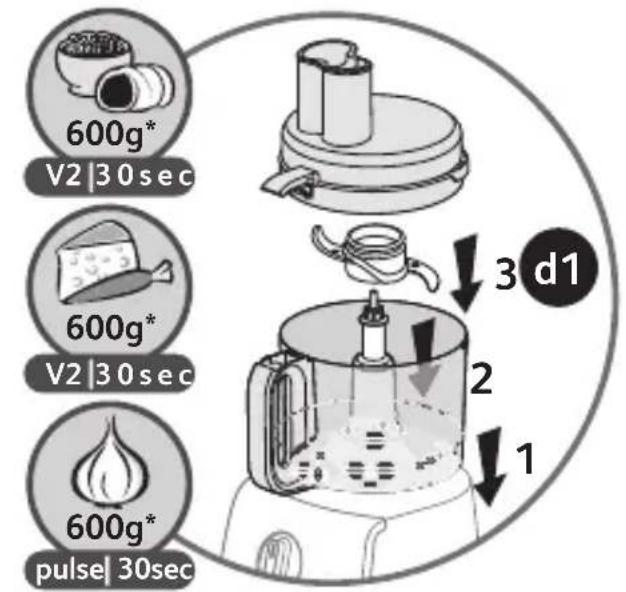

600g* V2|30 sec 600g* V2|30 sec 600g* pulse|30sec 3 d1 2 1

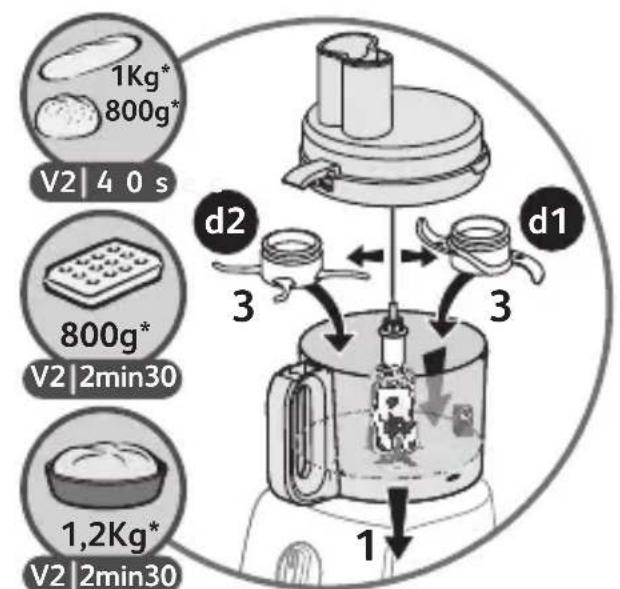

1Kg* 800g* V2|4 0 s 800g* V2|2min30 1,2Kg* V2|2min30 d2 d1 3 3 1

fig.5c

fig.6

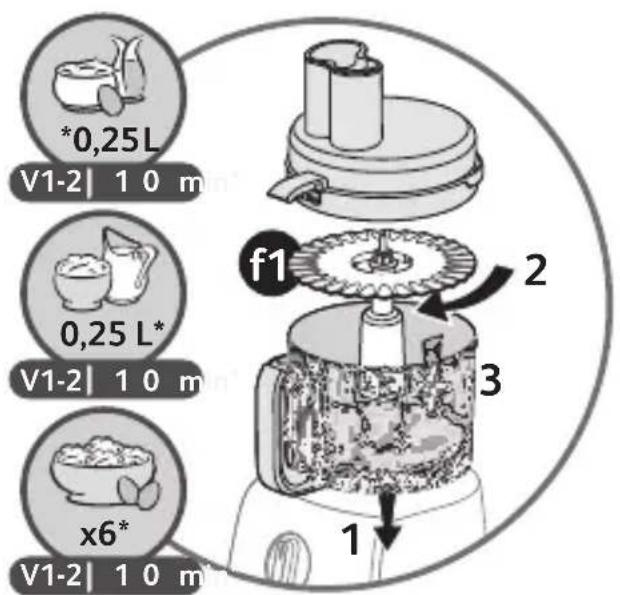

*0,25 L V1-2 | 10 m 0,25 L* V1-2 | 10 m x6* V1-2 | 10 m f1 2 3 1

^* =MAX

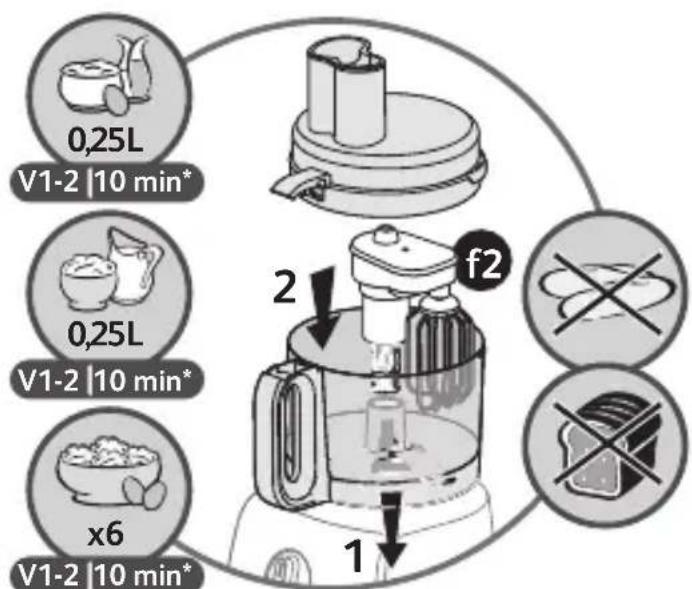

0,25L V1-2 |10 min* 0,25L V1-2 |10 min* x6 V1-2 |10 min* f2 2 1

fig.7bfig.7a

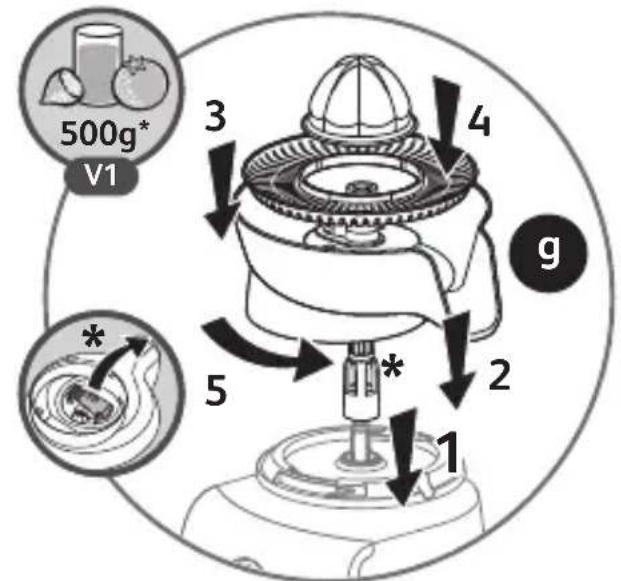

500g* V1 3 4 2 5 * * 1 g

fig.8 fig.9

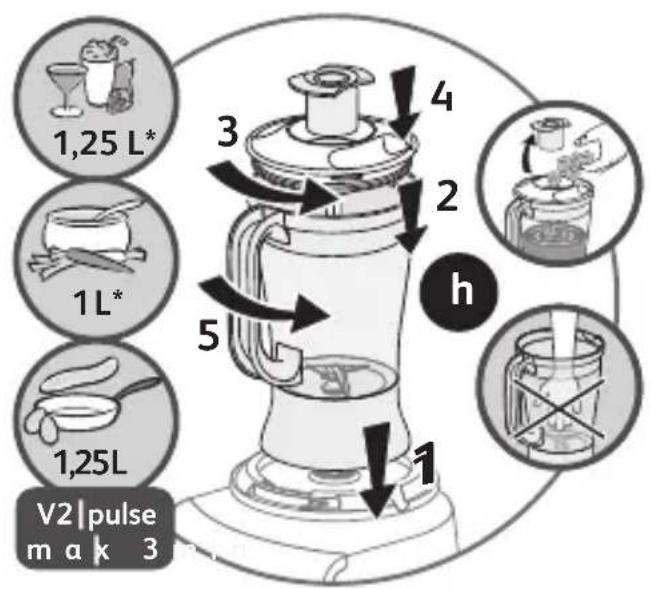

1,25 L* 1 L* 1,25L V2 pulse m a k 3 h 1 2 3 4 5

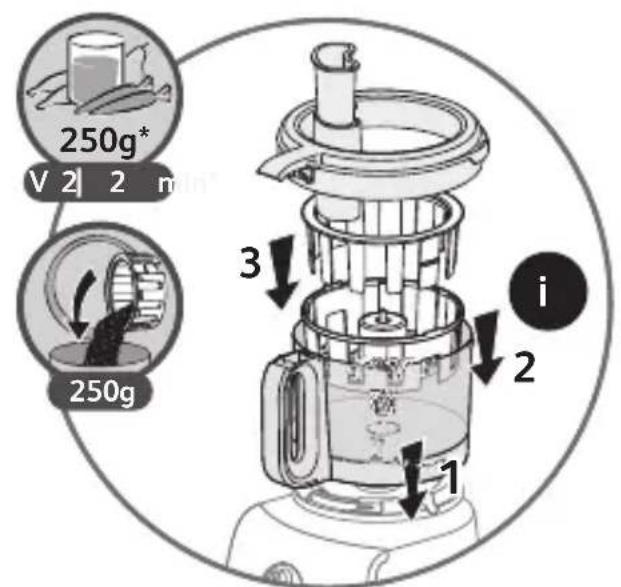

250g* V 2 | 2 m 250g 3 i 2 1

fig.10 fig.11

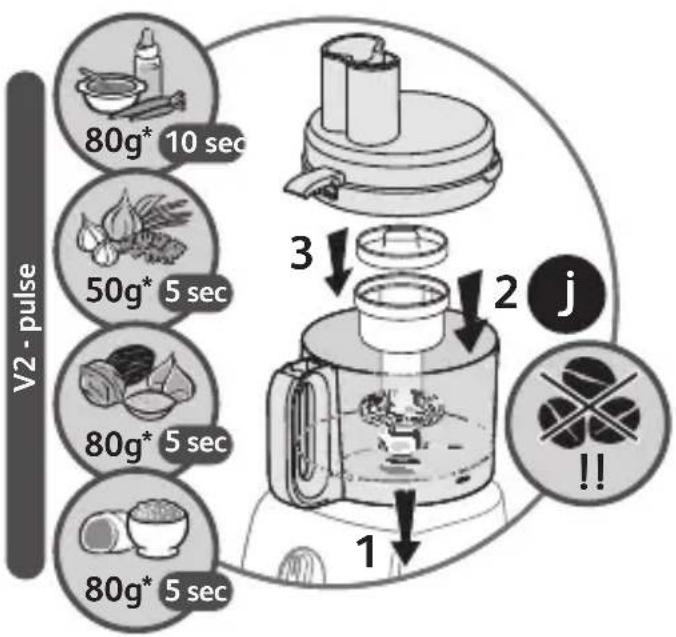

V2 - pulse 80g* 10 sec 50g* 5 sec 80g* 5 sec 80g* 5 sec 3 2 j 1 !!!

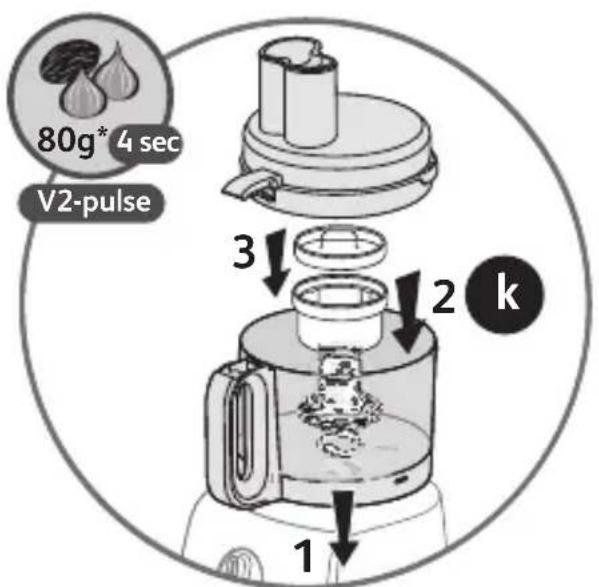

80g* 4 sec V2-pulse 3 2 k 1

fig.12 fig.13

1 2 3

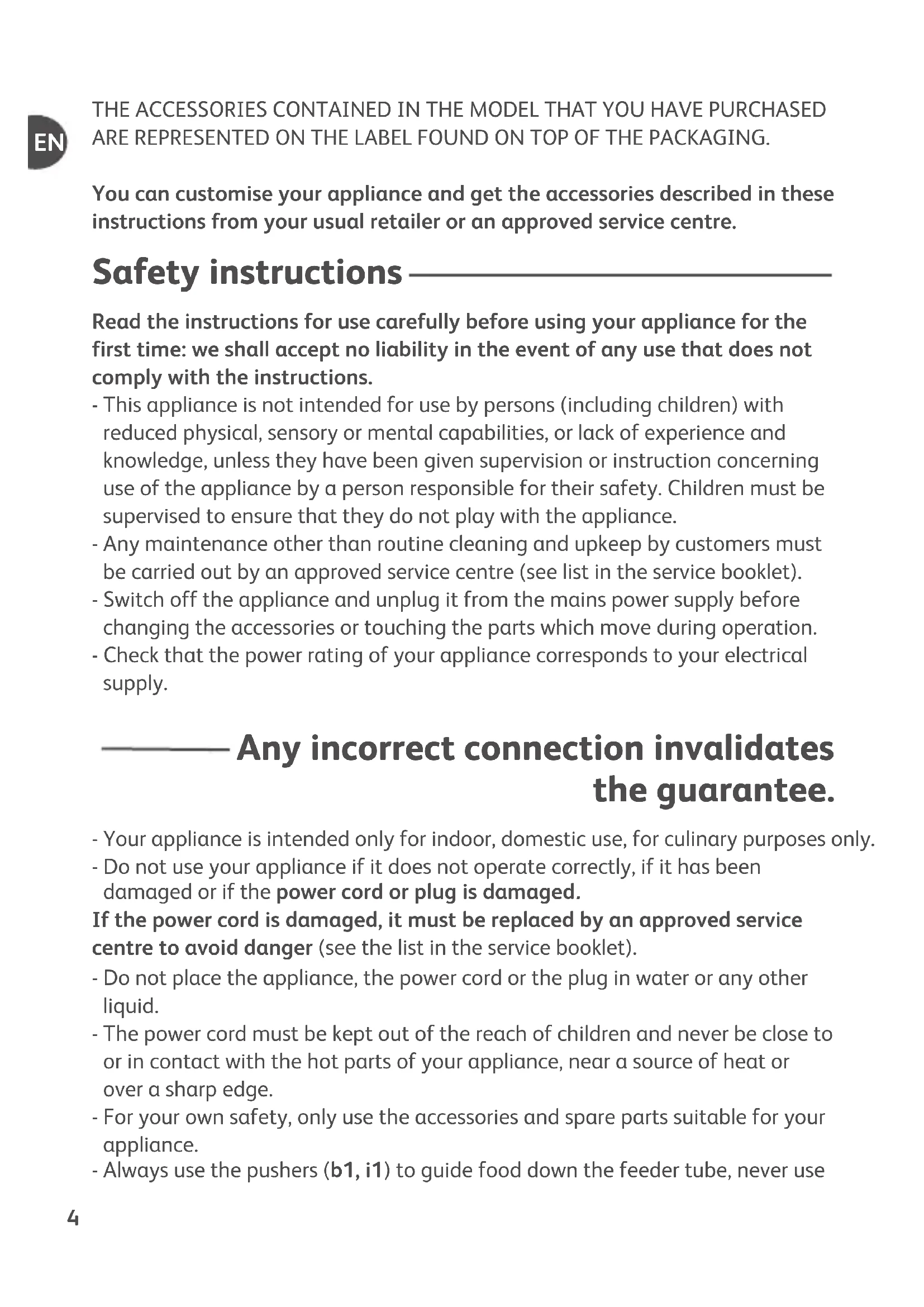

LES ACCESSOIRES, CONTENUS DANS LE MODELE QUE VOUS VENEZ D'ACHETER, SONT REPRESENTES SUR L'ETIQUETTE SITUEE SUR LE DESSUS DE L'EMBALLAGE

You can customise your appliance and get the accessories described in these instructions from your usual retailer or an approved service centre.

Safety instructions

Read the instructions for use carefully before using your appliance for the first time: we shall accept no liability in the event of any use that does not comply with the instructions.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.
• Any maintenance other than routine cleaning and upkeep by customers must be carried out by an approved service centre (see list in the service booklet).
• Switch off the appliance and unplug it from the mains power supply before changing the accessories or touching the parts which move during operation.
• Check that the power rating of your appliance corresponds to your electrical supply.

Any incorrect connection invalidates the guarantee.

• Your appliance is intended only for indoor, domestic use, for culinary purposes only.
• Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged.

If the power cord is damaged, it must be replaced by an approved service centre to avoid danger (see the list in the service booklet).

• Do not place the appliance, the power cord or the plug in water or any other liquid.
• The power cord must be kept out of the reach of children and never be close to or in contact with the hot parts of your appliance, near a source of heat or over a sharp edge.
• For your own safety, only use the accessories and spare parts suitable for your appliance.
• Always use the pushers (b1, i1) to guide food down the feeder tube, never use

your fingers, a fork, a spoon, a knife or any other object when the appliance is in operation.

• Never run your appliance empty.
• Never run the blender jug (h3) without ingredients, without lid (h2) or with dry products only and do not pour boiling liquids into it.
• Use your appliance on a flat, clean and dry surface.
• Do not put accessories into a microwave oven and do not sterilise them.
• Do not allow long hair, scarves, ties etc. to dangle over the accessories during operation.
• The appliance must be unplugged when no longer in use, during cleaning or in the event of a power cut.
• Handle the metal blade (d1), the blade of the blender (h), the mini chopper (j), the grinder (k) and the vegetable cutter (e) discs with care: they are extremely sharp. You must remove the metal blade (d1) from the spindle (c) before emptying the bowl of its content.
• Do not use the accessories as storage containers (for freezing - cooking - heat sterilization).
• Do not use the filter (i3) or the base (i4) of the juice extractor if they are damaged.
• Do not use the mixer (f2) or the emulsifying disc (f1) to prepare heavy dough.

Cleaning

• Unplug the appliance.
• For easier cleaning, rinse the accessories quickly after use.
• Wash and dry the accessories: they can be washed in the dishwasher, in water or under running water except for the body of the mixer (f2) and the motor unit (a).

Wipe these with a damp sponge.

- Pour hot water with a few drops of liquid soap into the blender jug (h3). Close the lid (h2), with its measuring cap (h1). Give a few pulses. Unplug the appliance. Rinse the jug. Wipe with a damp sponge.

- The blades of the accessories are very sharp. Handle with care.

Tip

If your accessories become stained by food (carrots, oranges, etc.), rub them with a cloth dipped in vegetable oil, then clean as usual.

What to do if your appliance does not work

If your appliance does not work, check:

• that it is plugged in correctly.
• that the accessories are correctly locked.

Your appliance still does not work? Contact an approved service centre (see list in service booklet).

End-of-life electronic products

Think of the environment!

Your appliance contains many materials that may be recycled or recovered. Leave it at a local civic waste collection point.

Disposal of packaging and the appliance

The packaging is comprised exclusively of materials that present no danger for the environment and which may therefore be disposed of in accordance with the recycling measures in force in your area.
For disposing of the appliance itself, please contact the appropriate service of your local authority.

Retailer name & address:

/ Nom et adresse du vendeur / Nombre y dirección del minorista / Nome e endereço do revendedor / Nome e indirizzo delnegozzio / Name und Anschrift des Händlers / Naam en adres van de dealer / Forhandler navn & adresse / Återförsäljarens namn och adress / Forhandler navn og adresse / Jälleenmyyjän nimi ja osoite / nazwa i adres sprzedawcy / Numele şi adresa vânzătorului / Parduotuvés pavadinimas ir adresas / Mūūja kauplus ja aadress / Naziv in naslov trgovine / Tipusszám / Názov a adresa predajcu / Veikala nosaukums un adrese / Naziv i adresa maloprodaje / Naziv i adresa prodavca / Naziv i adresa prodajnog mjesta / Nume și adresă vânzător / Název a adresa prodejce / Nama dan alamat peruncit / Nama Toko Penjual dan alamat / Tên và dja chi cửa hàng bán/ Satici firmanin adı ve adresi / Название и адрес продавца / Назва і адреса продавця / Търговки обект / Назив и адреса на продавницата / Сатушының аты және мекен-жайы / Епшвүμία και διεύθυνση καταστήματος / Чшіахштннħ wɪŋψιwnɪŋ ß hωugbû / ชื่อและที่อยู่ของห้าง/ร้านที่ชื่อ / 零售商的店名和地址/販売店の名前、住所/소매점 이름과 주소/ نام وأدرس خرده فروش / اسم بiałع التجزئة و عنوانه

Distributor stamp ....../Cachet distributeur /Sello del distribuidor / Carimbo do revendedor / Timbro del negozzio / Händlerstempel / Stempel van de dealer / Forhandler stempel / Återförsäljarens stämpel / Forhandler stempel / Jälleenmyyjän leima / pieczęć sprzedawcy / Štampila vânzătorului / Antspaudas / Tempel / Žig trgovine / Eladó neve, címe/ Razitko predajcu / Zîmogs / Pečat maloprodaje/ Pečat prodavca / Pečat prodajnog mjesta / Štampila vânzătorului/ Razitko prodejce/ Cap peruncit / Cap dari Toko Penjual / Cüra hàng bán đóng dấu/ Satıcı Firmanın Kaşesi / Печать продавца / Печатка продавця / Печат на търговския обект / Печат на продавницата / Сатушының мөрі / Σφραγίδα καταστήματος / Φωάωπηħ ɹ Whisper / ตราประทับของห้าง/ Grantনที่ชื่อ / 零售商的蓋印 / 販売店印/소매점 직인/ مهر خرده / ختم بانع التجزئة فروش

			[
ALGERIA	GROUPE SEB EXPORTChemin du Petit Bois, Les 4M69130 ECULLY - FRANCE	213-41 28 18 53	1 year
ARGENTINA	GROUPE SEB ARGENTINA S.A.Billinghurst 1833 3°C1425DTKCapital FederalBuenos Aires	0800-122-2732	2 años
ΣΙΔΙΣΙΣΙΣΙΣΑRMENIA	«Φρομφυρι Κεβ-Φανωπης»ΦΕς, 119180Unulpίου, ΔινιμμωπηςUnupρομίκτανιή Ιρρ., μ.14, 2.2	[phone]	2unuρή/years
AUSTRALIA	GROUPE SEB AUSTRALIAPO Box 7535,Silverwater NSW 2128	02 97487944	1 year
ÓSTERREICH	SEB ÖSTERREICH HmbHCampus 21 - Businesspark Wien Südliebermannstr. A02 7022345 Brunn am Gebirge	01 866 70 299 00	2 Jahre
BELGIQUE /BELGIE	GROUPE SEB BELGIUM SA NV25 avenue de l'Espérance - ZI6220 Fleurus	32 70 23 31 59	2 ans /years
БЕЛАРУСЬ /BELARUS	ЗАО «Группа СЕБ-Восток», 119180 Москва,РоссияСтаромометный пер. д.14 стр.2	017 2239290	2 года/years
BOSNA IHERCEGOVINA	SEB DéveloppementPredstavništvo u BiHVrazova 8/II71000 Sarajevo	Info-linija za potrošače033 551 220	2godine
BRASIL	GRUPO SEB DO BRASIL PRODUTOSDOMESTICOS LTDAAvenida Arno, 146 Mooca03108-900 São Paulo SP	0800-119933	1 ano
БЪЛГАРИЯ/BULGARIA	ГРУП СЕБ БЪЛГАРИЯ ЕООДУл. Борово 52 Г, ет. 1, офис 1,1680 София	0700 10 330	2години
CANADA	GROUPE SEB CANADA345 Passmore AvenueToronto, ON M1V 3N8	1-800-418-3325	1 year
CHILE	GROUPE SEB CHILE Comercial Ltda Avda.Nueva Los Leones 0252Providencia, Santiago	[phone]	2 años
COLOMBIA	GROUPE SEB COLOMBIAApartado Aereo 172, Kilometro 1Via Zipaquira Cajica Cundinamarca	18000919288	2 años
HRVATSKACroatia	SEB Développement S.A.S.Vodnjanska 2610000 Zagreb	01 30 15 294	2godine
ČESKÁ REPUBLIK/CZECH REPUBLIC	GROUPE SEB ČR spol. s r .o.Jankovcova 1569/2c170 00 Praha 7	731 010 111	2 roky
DANMARK	GROUPE SEB NORDIC ASTempovej 272750 Ballerup	44 663 155	2 år
DEUTSCHLAND	GROUPE SEB DEUTSCHLAND GmbH /KRUPS GmbHHerrmainweg 563067 Offenbach	0212 387 400	2 Jahre

EESTI/ ESTONIA		GROUPE SEB POLSKA SP Z O.O.ul. Ostrobramska 7904-175 Warszawa	5 800 3777	2 aastat
SUOMI / FINLAND		Groupe SEB FinlandKutojantie 702630 Espoo	09 622 94 20	2Vuotta
FRANCEInclus Martinique, Guadeloupe, Réunion & St. Martin		Place Ambroise Courtois69355 Lyon Cedex 08		1 an
GREECE / EΛΛΑΔΑ
HONG KONG			852 8130 8998	1 year
MAGYARORSZÄG/Hungary				2 év
				1 year
				2 anni
				1 year
				2 жыл / years
		110-790		1 year
				2 gadi
				2 metai
				1 year

MOLDOVA	TOB «Груп СЕБ Україна»Вул. Драгоманова 31 Б, офіс 102068 Київ, Україна	(22) 929249	2 ani / years
NEDERLAND	GROUPE SEB NEDERLAND BVGeneratorstraat 63903 LJ Veenendaal	0318 58 24 24	2 jaar
NEW ZEALAND	GROUPE SEB NEW ZEALANDUnit E, Building 3, 195 Main Highway, Ellerslie,Auckland	0800 700 711	1 year
NORGE	GROUPE SEB NORDIC ASTempovej 272750 Ballerup DANMARK	815 09 567	2 år
PERU	GROUPE SEB COLOMBIAAv. Camino Real N° 111 cf. 805 BSan Isidro - Lima - Perú	[phone]	1 años
POLSKA/ POLAND	GROUPE SEB POLSKA SP Z O.O.ul. Ostrobramska 7904-175 Warszawa	0801 300 422koszt jak za połączenielokalne	2 lata
PORTUGAL	GROUPE SEB IBÉRICA SAUrb. da MatinhaRua Projectada à Rua 3Bloco1 - 3° B/D 1900 - 796 Lisboa	808 284 735	2 anos
REPUBLIC OFIRELAND	GROUPE SEB IRELANDUnit B3 Aerodrome Business Park, CollegeRoad, Rathcoole, Co. Dublin	01 677 4003	1 year
ROMÂNIA/ROMANIA	GROUPE SEB ROMÂNIAStr. Daniel Constantin nr. 8010632 Bucureşti	0 21 316 87 84	2 ani
РОССИЯ/ RUSSIA	ЗАО «Группа СЕБ-Востск», 119180 Москва,РоссияСтаромонетный пер. д.14 стр.2	495 213 32 37	2 года/years
SRBIJASerbia	SEB DeveloppementAntifasisticke borbe 17/1311070 Novi Beograd	060 0 732 000	2godine
SINGAPORE	GROUPE SEB SINGAPORE Pty Ltd.59 Jalan Pemipin, #04-01/02 L&Y BuildingSingapore 577218	65 6550 8900	1 year
SLOVENSKO/SLOVAKIA	GROUPE SEB SLOVENSKO s.r.o.Rybničná 40831 07 Bratislava	233 595 224	2 roky
SLOVENIJA	SEB d.o.oGregorčičeva ulica 62000 MARIBOR	02 234 94 90	2 leti
ESPAÑA	GROUPE SEB IBÉRICA S.A.Almogàvers, 119-123, Complejo Ecourban08018 Barcelona	0902 31 25 00	2 años
SVERIGE	TEFAL SVERIGE SUBSIDIARY OF GROUPSEB NORDICTruckvägen 14 A, 194 52 Upplands Väsby	08 594 213 30	2 år
SUISSE SCHWEIZ	GROUPE SEB SCHWEIZ GmbHThurgauerstrasse 1058152 Glattbrugg	044 837 18 40	2 ans /Jarhre
TAIWAN	SEB ASIA Ltd.Taipei International Building, Suite B2, 6F-1,No. 216, Tun Hwa South Road, Sec. 2Da-an District Taipei 106, R.O.C.	886-2-27333716	1 year
THAILAND	GROUPE SEB THAILAND2034/66 Italthai Tower, 14th Floor, n° 14-02,New Phetchburi Road,Bangkapi, Huaykwang, Bangkok, 10320	02723 4488	2 years
TÍ
U.S.A.
Україна/ UKRAINE
UNITED KINGDOM
VENEZUELA
VIETNAM
