Product type Built-in oven
Brand Zanussi
Model ZOHEQ3K2
Capacity 65 L
Energy efficiency class A
Energy consumption (conventional mode) 0.89 kWh/cycle
Energy consumption (fan-assisted) 0.78 kWh/cycle
Height front/back 598 mm / 579 mm
Width front/back 594 mm / 558 mm
Depth 561 mm
Built-in depth 540 mm
Weight 29.0 kg
Power supply 220-240 V, cable 1100 mm
Cooking modes Fan Plus, Fan-assisted, Fan-assisted humid, Bottom heat, Turbo grill, Top/Bottom heat, Rapid grill
Clock functions Current time, Duration, Timer
Included accessories Wire shelf, Baking tray, Roasting dish
Safety Child safety device, Safety thermostat, Cooling fan
Maintenance Aqua Clean cleaning, Removable shelf supports, Removable door, Replaceable light
Bulb type Resistant to 300 °C, energy efficiency class G
Number of shelf positions 4

Frequently Asked Questions - ZOHEQ3K2 ZANUSSI

How to set the time on the oven?
Press the + or - key after connecting the appliance or after a power cut. The symbol Dj flashes. Set the time with + and -, then wait 5 seconds to confirm.
How to use the Fan Plus function?
Make sure the oven is cold. Fill the cavity tray with 250 ml of tap water. Select the Fan Plus mode and set the temperature. Preheat for 10 minutes to create moisture, then place the food in the oven. Do not open the door during cooking.
How to clean the oven with Aqua Clean?
Pour 200 ml of water into the cavity tray. Select the Aqua Clean function and set the temperature to 90 °C. Let it run for 30 minutes, then turn off. Once cooled, dry the cavity with a soft cloth.
What to do if the oven does not heat up?
Check if the fuse has tripped. If the door seal is damaged, do not use the oven and contact an authorized service center.
How to remove the oven door for cleaning?
Open the door fully, lift the hinge levers until they click. Close the door halfway, then lift and pull to remove it. Place it on a soft cloth. Unlock the system to remove the inner glass panel. Clean with soapy water and reassemble.
How to set the timer?
Press the - key several times until the Timer symbol flashes. Use + and - to set the time. The function starts automatically after 5 seconds. A sound signal sounds at the end.
What accessories are included with the oven?
The oven comes with a wire shelf, a baking tray, and a roasting dish.
How to replace the oven bulb?
Turn off the oven and unplug it. Place a cloth at the bottom of the cavity. Turn the glass diffuser to remove it, clean it, replace the bulb with a new one resistant to 300 °C, then put the diffuser back.
How to activate the child safety device?
The manual recommends activating the child safety device if equipped. However, the exact procedure is not detailed in this manual. Check the control panel for a dedicated symbol or key.
What is the energy consumption of the oven?
In conventional mode, consumption is 0.89 kWh/cycle. In fan-assisted mode, it is 0.78 kWh/cycle. The energy class is A.

User questions about ZOHEQ3K2 ZANUSSI

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Oven in PDF format for free! Find your manual ZOHEQ3K2 - ZANUSSI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZOHEQ3K2 by ZANUSSI.

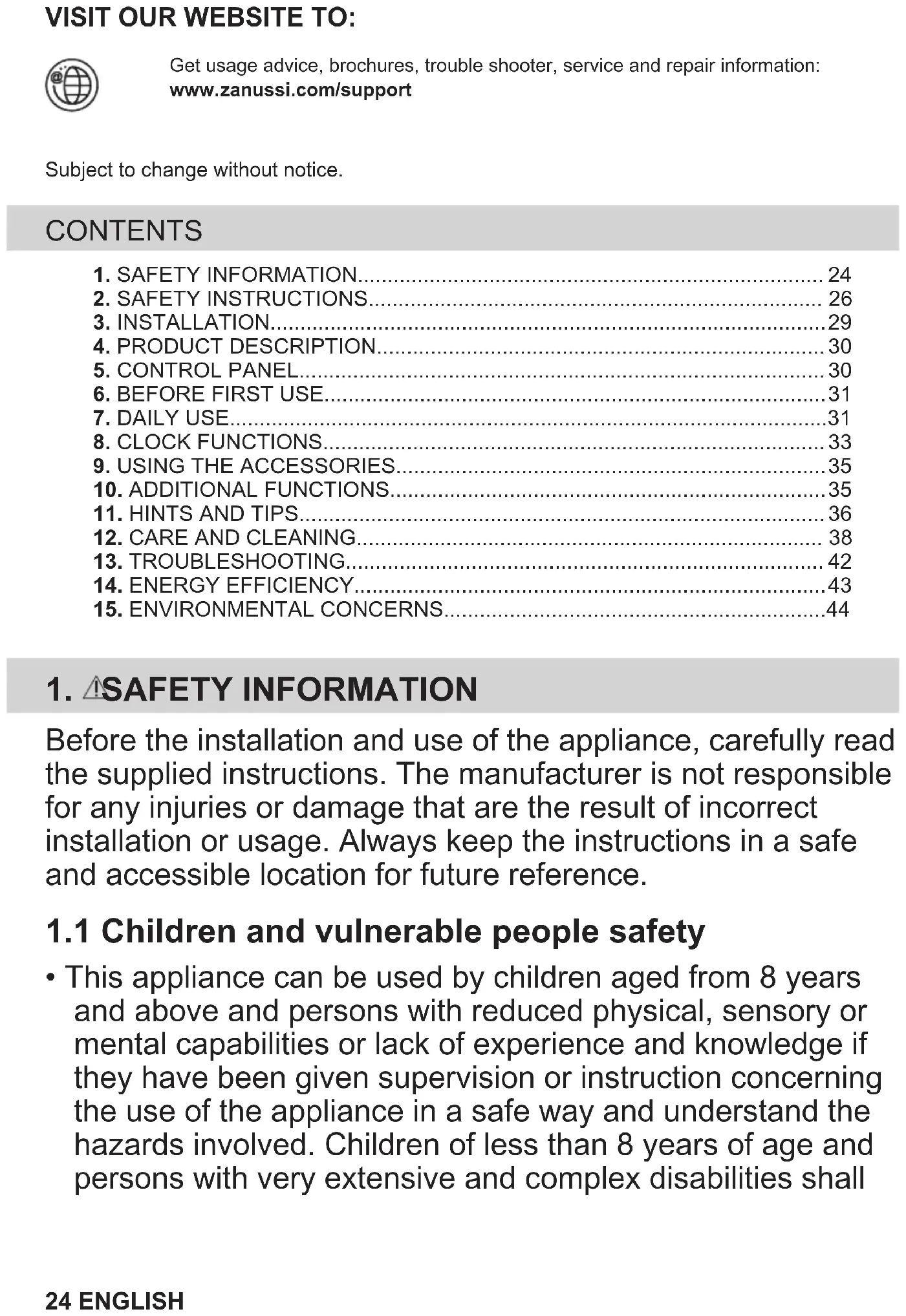

USER MANUAL ZOHEQ3K2 ZANUSSI
