USER MANUAL HBS6600W BEKO

White beko brand micrometer with black handle and green top (no visible text or symbols)

HBS6600W

EN DE FR TR ES PL IT RO

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING:Warnings for dangerous situations concerning the safety of life and property.

Suitable for contact with food.

Do not immerse the appliance in water

Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

CONTENTS

ENGLISH 4-12

DEUTSCH 13-25

FRANÇAIS 26-37

TÜRKÇE 38-45

ESPAÑOL 46-59

POLSKI 60-75

ITALIANO 76-87

ROMÂNĂ 88-99

1

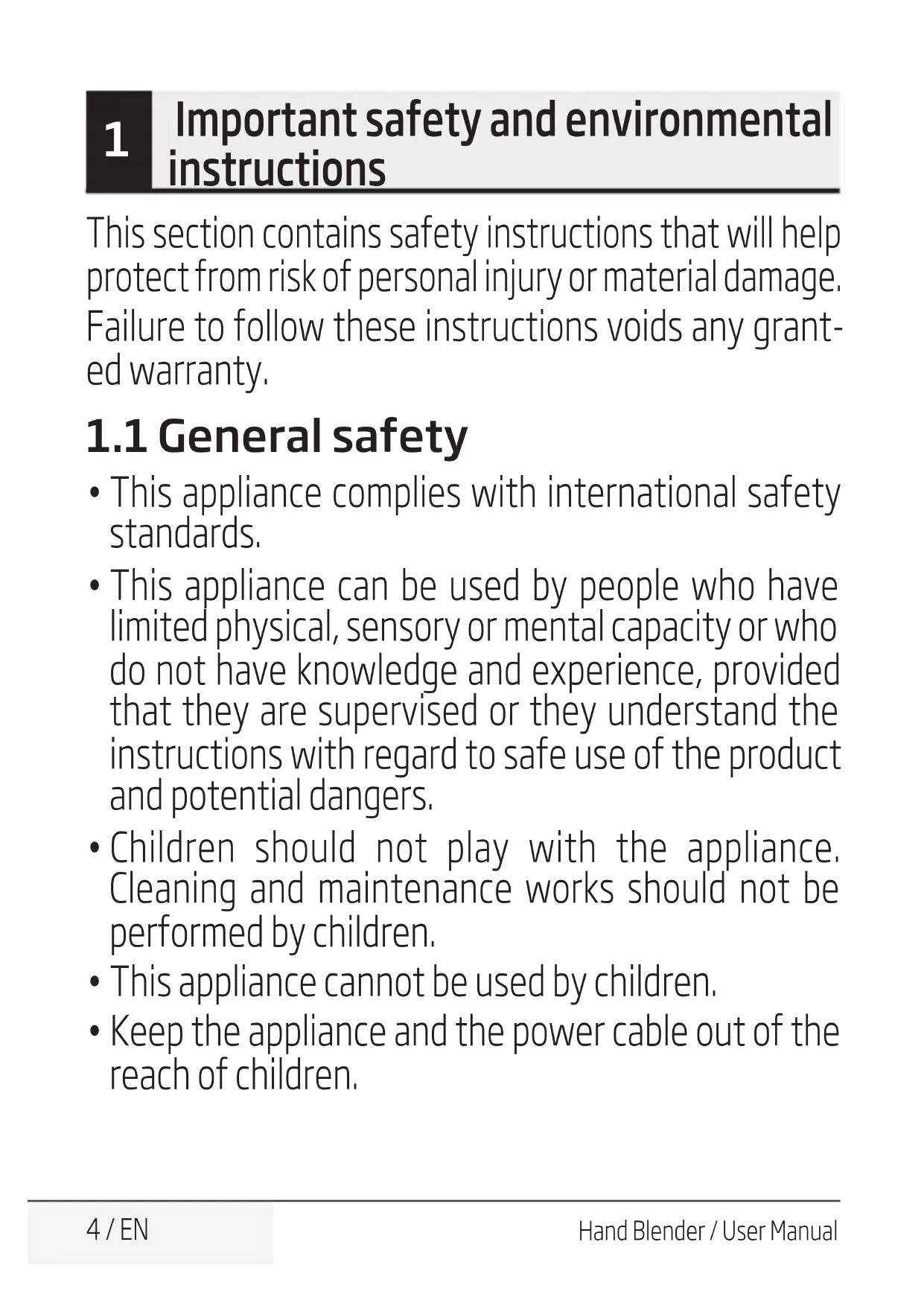

Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage. Failure to follow these instructions voids any granted warranty.

1.1 General safety

• This appliance complies with international safety standards.
• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers.
• Children should not play with the appliance. Cleaning and maintenance works should not be performed by children.
• This appliance cannot be used by children.
• Keep the appliance and the power cable out of the reach of children.

1

Important safety and environmental instructions

• Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.
• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cable.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance when left unattended and wait for it to stop completely while installing/removing accessories or before cleaning.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not use the device for hot food.
• To prevent overheating, do not use the appliance continuously for more than 10 seconds. Leave to cool for 1 minute in between each 10 seconds of operation.

1

Important safety and environmental instructions

• Use the appliance only with the supplied base and container.
• Do not operate the appliance without the ingredients in the bowl.
• Remove bones and stones from food to prevent the blades and the appliance from getting damaged.
• This appliance is not suitable for dry or hard foods as this will quickly cause the blades to become dull.
• Follow all warnings to prevent injuries due to incorrect use.
• When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use. Use the plastic section trying to hold the chopping blade.
  • After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
• Do not immerse the appliance, power cable, or power plug in water or any other liquids.
• Do not operate or place any part of this appliance or its parts on or near hot surfaces.

1

Important safety and environmental instructions

- If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Prohibition sign with crossed-out trash bin and no text or symbols

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1

Important safety and environmental instructions

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Things to do for energy saving

Follow the times recommended in the manual during use. Unplug the appliance after use.

2 Your Hand Blender

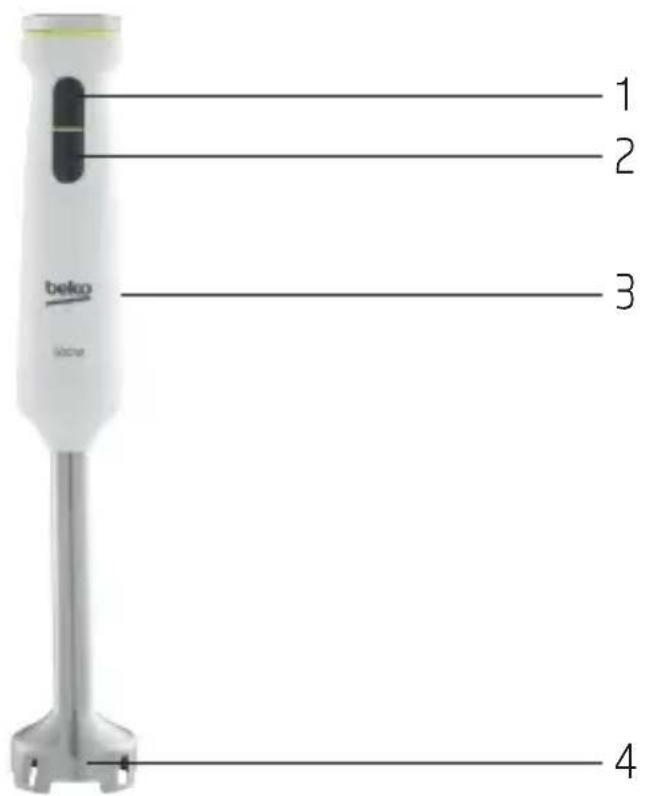

2.1 Overview

1 2 3 4

1. Operating switch
2. Turbo button
3. Motor unit
4. Blending shaft

2.2 Technical data

Power supply:

220-240 V \~, 50-60 Hz

Power: 600 W

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Usage

3.1 Intended use

This appliance is intended only for household use; it is not suitable for professional use. It is designed for chopping and whisking small amounts of solid food only.

3.2 Initial use

Clean the appliance parts before initial use (see 4.1).

3.3 Blending and chopping with the blending shaft

1. Attach the blending shaft (4) to the end of the motor unit (3) by turning it anti-clockwise "A
2. Fit it into its place, do not apply too much force.
3. Put the ingredients (in small pieces) to be processed into the mixing bowl.
4. Immerse it into the mixing bowl.
5. Plug in the appliance.
6. Press the operating switch to operate.

You can get better results if you make circular movements with the appliance during processing.

1. When you are done with the appliance, unplug it and wait for it to stop completely.
2. Remove the blending shaft (4) from the motor unit (3) by turning it clockwise "💡

3 Usage

3.4 Maximum quantities and durations

Ingredient Max. amount
Garlic/Onions (diced) 150-250 g
Soup 200-300 g
Parsley 40-50 g
Meat (diced) 100-150 g
Cheese (diced) 100-150 g
Hazelnut/Almond Kernels 100-200 g
Fruit (diced) 250-300 g
Infant formula 250-300 g

Each press on the operating switch that lasts 1 to 2 seconds is a "PULSE".

Pressing the operating switch for 1 second is enough for soft foods like onions and parsley.

4 Cleaning and care

4.1 Cleaning

1. Unplug the appliance before cleaning.
2. Wait for the relevant part of the appliance to stop.
3. Use a slightly damp cloth to clean the motor unit, operating head and outer parts of the appliance.
4. You can clean the blending shaft with lukewarm water and some dishwashing liquid.

WARNING: Inner part of the blending shaft should not get into contact with water.

1. Dry all parts of the appliance after cleaning.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the motor unit in water or in any other liquid.

4.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before lifting the appliance and its cable.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

4.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Prohibition sign with crossed-out trash bin and no text or symbols

Warning symbol for a waste bin with crossed and uncorrected lines indicating no waste or disposal

Symbol of a waste bin with no text or numbers present

Safety warning symbol with crossed and uncorrected lines and a battery icon

White beke-branded robotic brush with control knob and green handle (no visible text or symbols)

HBS6600W

AR

beko

01M-8839613200-0918-02
