DH129238 - Dehumidifier Emerio - Free user manual and instructions

Product type	Dehumidifier
Dehumidification capacity (30°C, 80% RH)	30 L/day
Dehumidification capacity (27°C, 60% RH)	16 L/day
Rated voltage	220-240 V ~
Rated frequency	50 Hz
Rated power	420 W
Rated current	1.9 A
Refrigerant	R290 (flammable)
Refrigerant charge	74 g
Operating modes	Dehumidification, Ventilation, Clothes drying
Adjustable humidity range	35-85% RH or continuous mode (CO)
Continuous drainage function	Yes (outlet for supplied hose)
Timer	0-24 h (on/off)
Child lock	Yes
Full tank indicator	Yes (indicator light and FL display)
Filter	Washable, clean every 2 weeks
Minimum room area	> 4 m²
Minimum distance around the appliance	30 cm
Operating temperature	5-32 °C
Operating humidity	10-95 % RH
Warranty	2 years

Frequently Asked Questions - DH129238 Emerio

How to clean the dehumidifier filter?

Remove the filter from the bottom, wash it with cold or lukewarm water (max 40°C) without chemical solvents, dry it in the open air before putting it back. It is recommended to clean it every two weeks of continuous use.

How to set the timer?

Press the TIMER button when the appliance is in standby to set the start time, or when running to set delayed stop. Use the ▲/▼ buttons to choose between 0 and 24 hours. The setting takes effect after 5 seconds.

What do the colors on the front display mean?

The front display changes color depending on ambient humidity: red if >65% RH, green between 45 and 65% RH, blue if <45% RH.

How to use continuous drainage?

Connect the provided plastic hose to the continuous drainage outlet at the back of the appliance. Make sure the hose is on a downward slope to allow continuous drainage.

What to do when the water tank is full?

The full tank indicator light turns on and "FL" flashes. The appliance stops automatically. Gently pull the tank, empty it through the drain hole, then put it back by pushing horizontally.

How to activate child lock?

Press the TIMER and fan speed buttons simultaneously for a few seconds. The LOCK indicator lights up and all buttons are locked. Repeat the operation to deactivate.

What is the purpose of the 'clothes drying' function?

In DRY mode, the compressor runs continuously and the fan speed is set to high to speed up clothes drying. Ambient humidity is displayed but cannot be adjusted.

Why is the blown air hot?

This is not a malfunction. The air passes through the heat recovery unit, so it is warmed. The dehumidifier does not have a cooling function.

What are the safety precautions with refrigerant R290?

R290 is flammable. The appliance must be used in a room larger than 4 m², at least 30 cm away from any obstacles. Do not puncture the refrigerant circuit, do not expose it to open flames, and entrust repairs to a certified professional.

What to do if the appliance is not working?

Check that the plug is connected, the water tank is not full or incorrectly placed, and the ambient temperature/humidity is not too low. If the filter is clogged, clean it. For any other problem, contact after-sales service.

USER MANUAL DH129238 Emerio

White portable air purifier with black lid and digital display showing '30' (no text or symbols on device body)

Dehumidifier (EN)

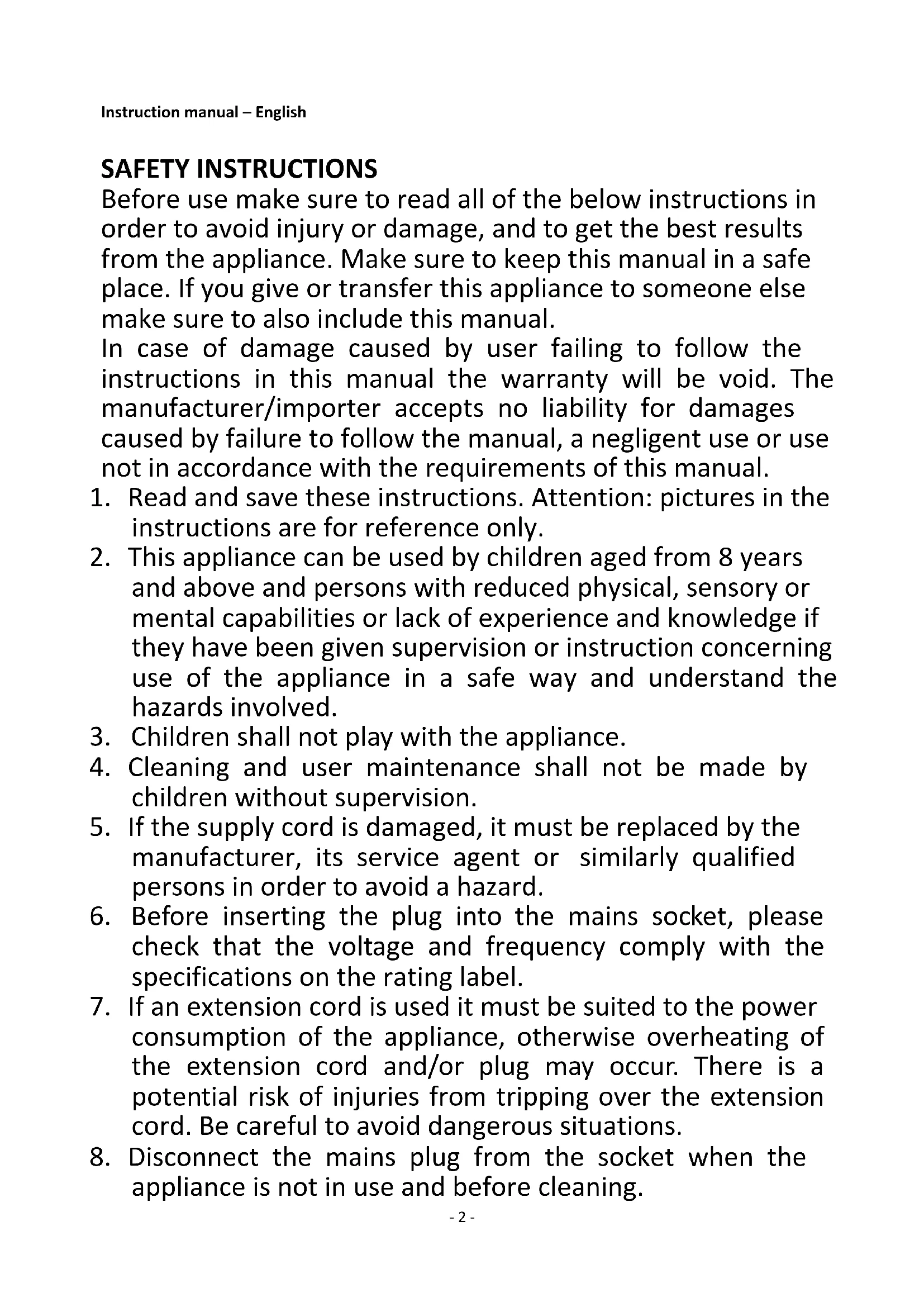

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Read and save these instructions. Attention: pictures in the instructions are for reference only.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children without supervision.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
7. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

8. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

9. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

10. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
11. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
12. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
13. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
14. This appliance is not designed for commercial use. Indoor use only.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Do not use the unit in an area: near to source of fire; where oil is likely to splash; exposed to direct sunlight; where water is likely to splash; near a bath, a laundry, a shower or a swimming pool.
18. Never insert your fingers, rods into the air outlet. Take special care to warn children of these dangers.
19. Keep the unit upward while transport and storage, for the compressor locates properly.
20. Before cleaning or moving the appliance, always turn off and disconnect the power supply.
21. To avoid the possibility of fire disaster, the appliance shall not be covered.
22. The appliance shall be installed in accordance with national wiring regulations.
23. Contact authorized service technician for repair or maintenance of this unit.

24. Do not pull, deform or modify the power supply cord, or immerse it in water. Pulling or misuse of the power supply cord can result in damage to the unit and cause electrical shock.

25. Compliance with national gas regulations shall be observed.

26. Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

27. Do not operate or stop the unit by inserting or pulling out power plug, it may cause electric shock or fire due to heat generation.

28. Unplug the unit if strange sounds, smell, or smoke comes from it.

29. Always plug the appliance into an earthed plug socket.

30. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

31. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.)

32. Do not pierce or burn.

33. Be aware that refrigerants may not contain an odour.

34. If the appliance is installed, operated or stored in an unventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks resulting in a risk of fire or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.

35. The appliance must be stored in such a way as to prevent mechanical failure.

36. This appliance contains R290 refrigerant gas. R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.

37. Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organization that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.

38. Regarding the instructions for repairing appliances containing R290, please kindly refer to below paragraphs.

39. To avoid any damage, place the appliance in an upright position for at least 2 hours before initiation.

Warning: Risk of fire / Flammable materials.

Read instruction manuals.

Operator's manual; operating instructions.

Service indicator; read technical manual.

Warning: Keep ventilation openings clear of obstruction.

Warning: The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.

All working procedure that affects safety means shall only be carried out by competent persons.

The required distance around the unit should be at least 30cm.

Appliance shall be installed, operated and stored in a room with a floor area larger than 4 m^2 .

PARTS DESCRIPTION

1 2 5 8 7

3 4 6

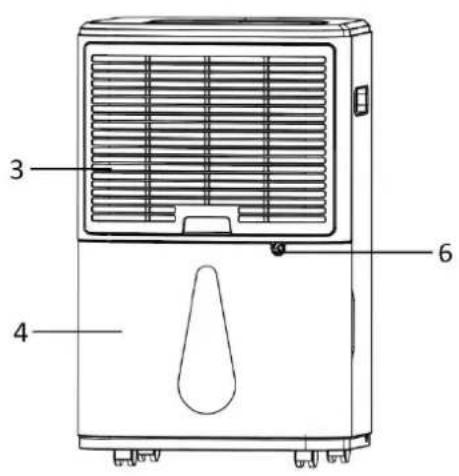

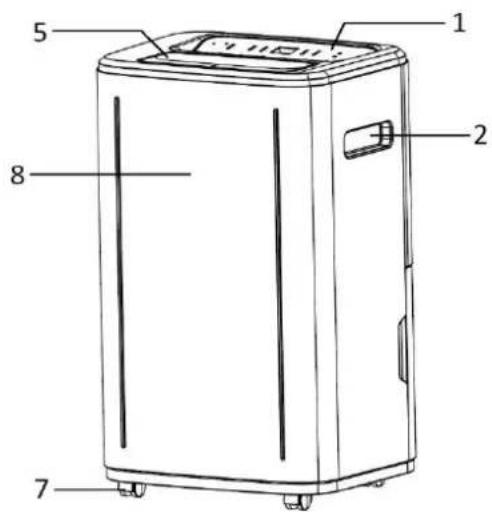

1. Control panel
2. Handle
3. Air inlet and filter
4. Water tank
5. Air outlet (with a cover)
6. Continuous drainage outlet
7. Wheels
8. Indication display

Important! The power cord is stored in the water tank to avoid damage during transport. Please follow the steps below to release the power cord before use.

1) Draw out the water tank a little to pull out some of the power cord.
2) Now completely draw out the water tank.
3) Open the tank cover at the right side to take the power cord out of the water tank.
4) Put the water tank back in its place.

White plastic appliance with black lid and plastic casing, no visible text or symbols

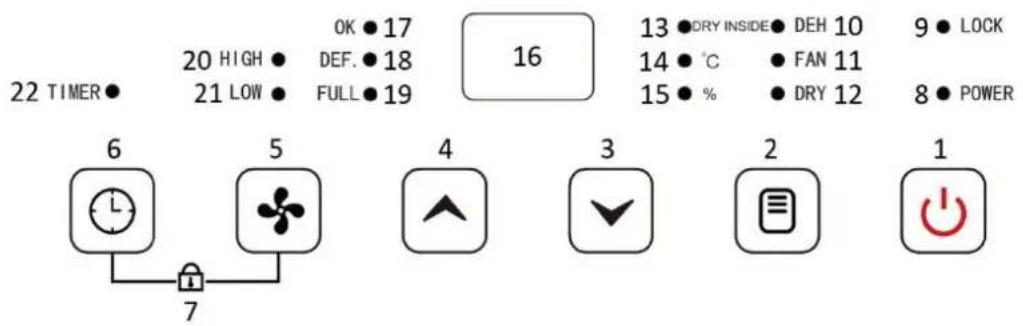

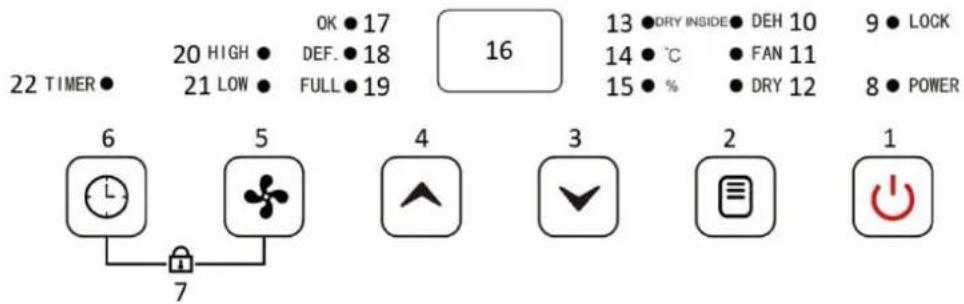

CONTROL PANEL

22 TIMER 20 HIGH 21 LOW OK ● 17 DEF. ● 18 FULL ● 19 16 13 ●DRY INSIDE ●DEH 10 14 ●℃ ●FAN 11 15 ● % ●DRY 12 9 ●LOCK 8 ●POWER 6 5 4 3 2 1

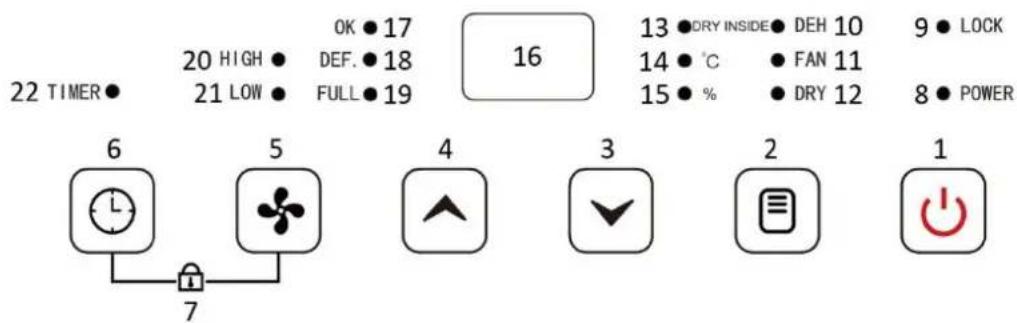

1. On/standby button

2. Mode button

3. Decreasing setting button

4. Increasing setting button

5. Fan speed button

6. Timer button

7. Child lock buttons indication

8. Power indicator light

9. Child lock indicator light

10. Dehumidification mode indicator light

11. Fan mode indicator light

12. Clothes drying mode indicator light

13. Dry inside function indicator light

14. Temperature display indicator light

15. Humidity display indicator light

16. Digital display

17. Target humidity reached indicator light

18. Defrosting function indicator light

19. Water tank full indicator light (It also lights up when the water tank is not properly placed.)

20. High fan speed indicator light

21. Low fan speed indicator light

22. Timer indicator light

BEFORE FIRST USE

• To avoid any damage, place the appliance in an upright position for at least 2 hours before initiation.
• After removing the packaging, make sure that the appliance is in good condition.
- Do not allow children to play with the packaging materials as there is risk of suffocation.

The appliance shall be installed on a flat surface where the air inlet/outlet would not be blocked. The required distance around the unit should be at least 30cm. To save energy, keep windows and door closed when the appliance is running.

Note: If the dehumidifier gets interference from the household appliances, such as television and radio cassette player, please keep the equipment away from the dehumidifier for over 70cm.

USE

Plug in the appliance. A "beep" sound will be heard. The appliance is on standby mode. The power indicator light is on.

On/standby button

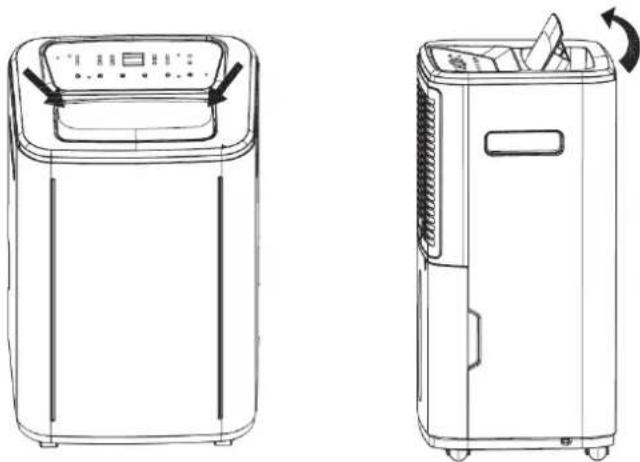

Press the on/standby button to turn on the appliance. Open the air outlet cover manually. The power indicator light will illuminate still. Press the button again, the appliance will enter into standby.

Line drawings of two different household air purifiers, one with control panel and arrow indicators, the other with a rotary button (no text or symbols)

Mode button

Press the mode button to select your desired mode: dehumidification mode, fan mode or clothes drying mode.

1. Dehumidification mode: the indicator light of "DEH" illuminates. The fan speed can be switched between low and high. The humidity can be set between 35-85%RH or set to "CO" (Continuous). Press the button "✗" to adjust the setting. The digital display shows the set humidity.

1) When the room humidity > set humidity + 3%, the compressor starts working and the fan keeps running at the set speed.

When the room humidity < set humidity - 3%, the compressor stops working and the fan automatically turns to low speed.

When the set humidity - 3% ≤ room humidity ≤ set humidity + 3%, the compressor keeps working and the fan keeps running at the set speed.

2) When the room humidity does not reach the set humidity, the indicator light of "OK" on the control panel is off. When the room humidity reaches the set humidity, the indicator light of "OK" will be on.
3) The indication display (A) on the front of the appliance will show 3 colors according to the room humidity. It shows red when the room humidity is higher than 65% RH , green when the room humidity is between 45% RH and 65% RH , and blue when the room humidity is below 45% RH .

A 88

4) When the set humidity is "CO", the compressor runs continuously without the limitation of the set humidity, and the fan speed is adjustable. The digital display shows "CO".

1. Fan mode: the indicator light of "FAN" illuminates. The compressor does not work; the fan speed can be switched between low and high. The humidity cannot be set and the room humidity (30\~90%RH) is shown on the digital display.

2. Clothes drying mode: the indicator light of "DRY" illuminates. The compressor keeps running continuously. The fan speed cannot be adjusted and the unit works at high fan speed by default. The humidity cannot be set and the room humidity (30\~90%RH) is shown on the digital display.

Note: To turn off the appliance under the dehumidification mode or clothes drying mode, the fan motor will be turned off after a delay of 1 minute.

Increasing/decreasing setting buttons

1. Press the button “▲” to increase the setting of humidity or timer. Press the button “▼” to decrease the setting of humidity or timer.

2. When the room humidity > 65%RH, users can press and hold the button “√” for 3 seconds to turn on the mold removal function (dry inside function). The indicator light of "DRY INSIDE" will be on. This function is only available for dehumidification mode and clothes drying mode. Press and hold this button for 3 seconds again to turn off the function.

Note: If this function has been selected and the appliance is turned off later, the fan motor will be turned off after a delay of 5 minutes.

1. Press the buttons "▲" and "▼" at the same time to check the room temperature on the digital display. The display will last for approx. 10 seconds.

Fan speed button

1. Press the fan speed button to select low or high fan speed. The corresponding indicator light will illuminate.

2. Press and hold the fan speed button for three seconds to turn off or turn on the indication display. When the indication display is turned off, the control panel will dim in 5 seconds if no further operations.

Timer button

Timer ON setting:

• When the appliance is standby, press the button "TIMER", the corresponding indicator light of "TIMER" will illuminate.
• Press the button “▲”/“▼” to select a desired ON time from 0-24 hours. The value will flash on the digital display and the setting will be in effect in approx. 5 seconds.
• The appliance will automatically turn on once the set time has passed.

Timer OFF setting:

• When the appliance is working, press the button "TIMER", the corresponding indicator light of "TIMER" will illuminate.
• Press the button “▲”/“▼” to select a desired OFF time from 0-24 hours. The value will flash on the digital display and the setting will be in effect in approx. 5 seconds. The digital display will turn back to show the humidity.
• The appliance will automatically turn off once the set time has passed.

Note: Press the button "TIMER" again to check the remaining time. Continue to press the button "TIMER", the timer function will be cancelled.

Child lock function

Press the timer button and the fan speed button at the same time to turn on the child lock function. The indicator light of "LOCK" will illuminate and all buttons on the control panel will be invalid. Press the timer button and the fan speed button at the same time again to turn off the child lock function.

Defrosting function

The appliance will enter the defrosting function automatically. The indicator light of "DEF." will be on and the compressor will stop working. Once the defrosting is finished, the indicator light of "DEF." will be off and the compressor will resume working.

Notice:

1. The room humidity display range is 30\~90%RH (room humidity ≤ 30%, display 30%; room humidity ≥ 90%, display 90%). The working environment temperature of this appliance is 5\~32 °C, and the working environment humidity is 10\~95%RH.
2. The compressor has a three-minute delay protection function. When the compressor is working and the power is cut off accidentally, the compressor will not restart immediately after turned on again. It will start to work in 3 minutes.

DRAIN THE COLLECTED WATER

When the water tank is full, the water tank full indicator light will illuminate. The digital display will flash "FL". The operation will stop automatically and the buzzer will beep 5 times to alert the user that the water needs to be emptied from the water tank.

Empty the water tank

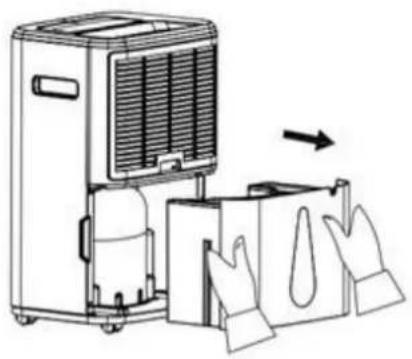

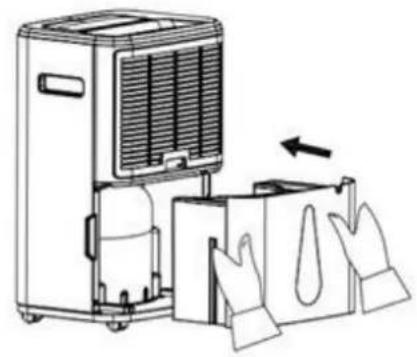

1. Draw out the water tank gently by holding the concave part at the both sides.
2. Discard the collected water, through the drain hole (B).

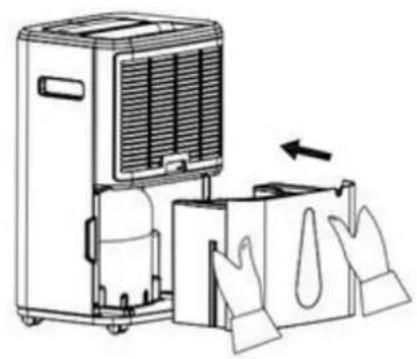

3. Install the water tank back by pushing it horizontally and gently. The handle of the water tank cover should lie down.

Line drawing of an air conditioner unit with cooling fan and hanging cloth (no text or symbols)

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Line drawing of an air purifier with cooling unit and handbags, showing airflow direction (no text or symbols)

Continuous water drainage

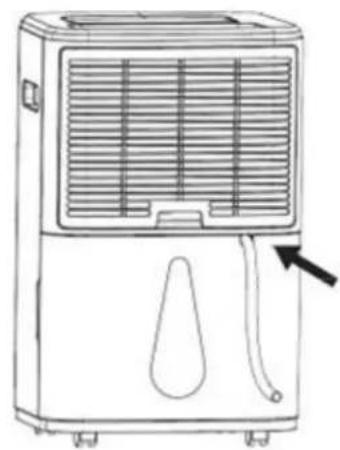

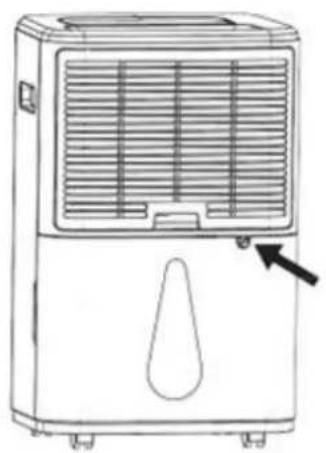

Plug the provided plastic pipe to the continuous drainage outlet, and the condensed water will be continuously drained out through this outlet instead of collection in the water tank. Make sure the pipe is installed at a downhill way to let the water continuously flow out.

Line drawing of a portable air purifier with ventilation grilles and a handle, showing no text or symbols.

Line drawing of a portable air purifier with ventilation grilles and a handle, showing no text or symbols.

CLEANING AND MAINTENANCE

The appliance must be regularly cleaned to prolong its life and keep it function properly.

Warning: Before performing any cleaning, turn off the unit and unplug it to avoid electrical shocks. Do not use hot water or chemical solvents for cleaning.

1. Regularly, clean the water tank with cold or warm water and dry with a soft cloth to avoid any mildew.
2. Clean the surface of the appliance using a moist cloth. Do not use detergents or abrasive sponges that can cause damage to the plastic surface.
3. Clean the filter as described in the following section.
4. When the unit will not be used for a long time:
   1) Empty and dry the water tank, and then install it back.
   2) Clean the filter.
   3) Place the appliance upright and avoid the direct sunlight.

Filter

There is a filter set at the back of the appliance that must be removed and cleaned regularly. The dehumidifying capacity may reduce when the filter set is clogged.

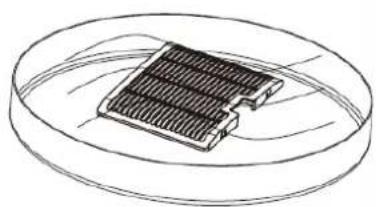

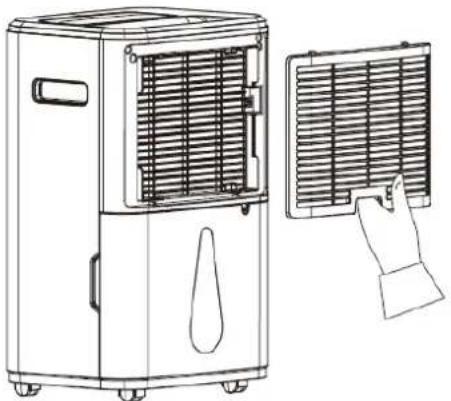

• Pull out the filter from the bottom to take it off the appliance and place it in the clean water.
• It is recommended to wash at least once every two weeks of continuous use.
• If the filter is not dirty, just vacuum the dust off it.

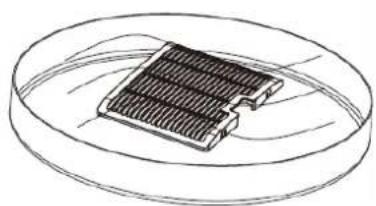

- If the filter is dirty, simply wash with cold water or warm water not exceeding 40 degrees; do not use chemical solvents or hot water.
• Dry the filter well before assembly.

Line drawing of a portable air purifier with ventilation grilles and a hand inserting a fan (no text or symbols)

Diagram of a microchip or integrated circuit mounted on a circular base, showing internal components (no text or symbols)

Notice:

In order to prevent the filter from being deformed, it needs to be air-dried naturally after cleaning. Never use a dryer or heater of any kind. Do not use alcohol, gasoline, benzene or other chemical solvents to clean the filter.

TROUBLE SHOOTING

Status	Possible reason	Solutions
Hot air	The air of the dehumidifier passes through the inside temperature recovery unit, so the hot air is discharged (no cooling function)	This is not a malfunction.
Dehumidifier is not working	Is the power plug unplugged?	Insert the power plug into the socket.
	Is the water tank full? Or is the water tank placed in the wrong position?	Drain the standing water in the tank and put the tank back in the correct position.
Dehumidification function does not work	Is the temperature or humidity in the room too low?	During the dry season, the dehumidifying capacity of the dehumidifier will be reduced.
	Are the air outlets or air inlets blocked?	Clean up any items that block the air outlet or air inlet.
No wind	Is the air filter blocked?	Clean the air filter.
Too much noise when the machine is running	Is it improperly placed so that the machine is tilted or unstable?	Please prevent the machine from being used on unstable ground.
	Is the air filter blocked?	Clean the air filter.

TECHNICAL DATA

Dehumidify Capacity(30°C, 80%RH)	30 L/day
Dehumidify Capacity(27°C, 60%RH)	16 L/day
Rated Voltage	AC 220-240 V
Rated Frequency	50 Hz
Rated power input	420 W
Rated Current	1.9 A
Refrigerant	R290 / 74 g

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service

Looking for spare parts? Have a look at www.spareparts.emerio.eu

INSTRUCTIONS FOR REPAIRING APPLIANCES CONTAINING R290

1. Servicing

1) Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2) Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

3) General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

4) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

5) Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO_2 fire extinguisher adjacent to the charging area.

6) No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed.

7) Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

- The charge size is in accordance with the room size within which the refrigerant containing parts are installed;

– The ventilation machinery and outlets are operating adequately and are not obstructed;

- If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;

- Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

- Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include:

• That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• That there no live electrical components and wiring are exposed while charging, recovering or purging the system;
• That there is continuity of earth bonding.

2. Repairs to sealed components

1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
2) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.

Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

3. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

4. Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

5. Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

6. Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and

the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

7. Removal and evacuation

When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

• Remove refrigerant;
• Purge the circuit with inert gas;
• Evacuate;
• Purge again with inert gas;
• Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

8. Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed.

- Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.

– Cylinders shall be kept upright.

- Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.

- Label the system when charging is complete (if not already).

– Extreme care shall be taken not to overfill the refrigeration system.

Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

9. Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:
- Mechanical handling equipment is available, if required for handling refrigerant cylinders;
- All personal protective equipment is available and being used correctly;
- The recovery process is supervised at all times by a competent person;
- Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

10. Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

11. Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Competence of service personnel

General

Special training additional to usual refrigerating equipment repair procedures is required when equipment with flammable refrigerants is affected.

In many countries, this training is carried out by national training organisations that are accredited to teach the relevant national competency standards that may be set in legislation.

The achieved competence should be documented by a certificate.

Training

The training should include the substance of the following:

Information about the explosion potential of flammable refrigerants to show that flammables may be dangerous when handled without care.

Information about potential ignition sources, especially those that are not obvious, such as lighters, light switches, vacuum cleaners, electric heaters.

Information about the different safety concepts:

Unventilated – Safety of the appliance does not depend on ventilation of the housing. Switching off the appliance or opening of the housing has no significant effect on the safety. Nevertheless, it is possible that leaking refrigerant may accumulate inside the enclosure and flammable atmosphere will be released when the enclosure is opened.

Ventilated enclosure – Safety of the appliance depends on ventilation of the housing. Switching off the appliance or opening of the enclosure has a significant effect on the safety. Care should be taken to ensure a sufficient ventilation before.

Ventilated room – Safety of the appliance depends on the ventilation of the room. Switching off the appliance or opening of the housing has no significant effect on the safety. The ventilation of the room shall not be switched off during repair procedures.

Information about the concept of sealed components and sealed enclosures according to IEC 60079-15:2010. Information about the correct working procedures:

a) Commissioning

• Ensure that the floor area is sufficient for the refrigerant charge or that the ventilation hose is assembled in a correct manner.
• Connect the pipes and carry out a leak test before charging with refrigerant.
• Check safety equipment before putting into service.
  b) Maintenance
• Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.
• Ensure sufficient ventilation at the repair place.
• Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
• Discharge capacitors in a way that won't cause any spark. The standard procedure to short circuit the capacitor terminals usually creates sparks.
• Reassemble sealed enclosures accurately. If seals are worn, replace them.
• Check safety equipment before putting into service.
  c) Repair
• Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.
• Ensure sufficient ventilation at the repair place.
• Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
• Discharge capacitors in a way that won't cause any spark.
• When brazing is required, the following procedures shall be carried out in the right order:

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

- Evacuate the refrigerant circuit.

- Purge the refrigerant circuit with nitrogen for 5 min.

- Evacuate again.

- Remove parts to be replaced by cutting, not by flame.

– Purge the braze point with nitrogen during the brazing procedure.

- Carry out a leak test before charging with refrigerant.

- Reassemble sealed enclosures accurately. If seals are worn, replace them.

- Check safety equipment before putting into service.

d) Decommissioning

- If the safety is affected when the equipment is put out of service, the refrigerant charge shall be removed before decommissioning.

- Ensure sufficient ventilation at the equipment location.

- Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.

- Discharge capacitors in a way that won't cause any spark.

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

• Evacuate the refrigerant circuit.

- Purge the refrigerant circuit with nitrogen for 5 min.

- Evacuate again.

- Fill with nitrogen up to atmospheric pressure.

- Put a label on the equipment that the refrigerant is removed.

e) Disposal

- Ensure sufficient ventilation at the working place.

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

• Evacuate the refrigerant circuit.

- Purge the refrigerant circuit with nitrogen for 5 min.

- Evacuate again.

- Cut out the compressor and drain the oil.

Transportation, marking and storage for units that employ flammable refrigerants

Transport of equipment containing flammable refrigerants

Attention is drawn to the fact that additional transportation regulations may exist with respect to equipment containing flammable gas. The maximum number of pieces of equipment or the configuration of the equipment, permitted to be transported together will be determined by the applicable transport regulations.

Marking of equipment using signs

Signs for similar appliances used in a work area generally are addressed by local regulations and give the minimum requirements for the provision of safety and/or health signs for a work location.

All required signs are to be maintained and employers should ensure that employees receive suitable and sufficient instruction and training on the meaning of appropriate safety signs and the actions that need to be taken in connection with these signs.

The effectiveness of signs should not be diminished by too many signs being placed together.

Any pictograms used should be as simple as possible and contain only essential details.

Disposal of equipment using flammable refrigerants

See national regulations.

Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions.

Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.

The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

SICHERHEITSHINWEISE

White plastic container with black lid and plastic bag, no visible text or symbols

BEDIENFELD

22 TIMER 20 HIGH ● 21 LOW ● OK ● 17 DEF. ● 18 FULL ● 19 16 13 ● DRY INSIDE ● DEH 10 14 ● °C ● FAN 11 15 ● % ● DRY 12 9 ● LOCK 8 ● POWER 6 5 4 3 2 1 7

Line drawings of two different household air purifiers, one front view and one side view with a circular arrow indicating rotation (no text or symbols)

Modus-Taste

Line drawing of a rectangular industrial or laboratory device with labeled component A and no visible text or symbols

Line drawing of an air conditioner unit with cooling fan and bag, showing airflow direction (no text or symbols)

Technical line drawing of a mechanical component with labeled part B (no text or symbols beyond label)

Line drawing of an air conditioner unit with cooling fan and hanging cloth (no text or symbols)

Line drawings of two identical portable air purifiers with ventilation grilles and cooling fins, shown from different angles (no text or symbols)

Line drawing of a portable air purifier with ventilation grilles and a hand inserting a fan (no text or symbols)

Diagram of a microelectronic component with three parallel leads inside an oval (no text or symbols)

Hinweis:

Looking for spare parts? Have a look at www.spareparts.emerio.eu

White plastic washing machine with black lid and plastic bag, no visible text or symbols

PANNEAU DE COMMANDE

22 TIMER 20 HIGH ● 21 LOW ● OK ● 17 DEF. ● 18 FULL ● 19 16 13 ● DRY INSIDE ● DEH 10 14 ● °C ● FAN 11 15 ● % ● DRY 12 9 ● LOCK 8 ● POWER 6 5 4 3 2 1 7

Line drawings of two different household air purifiers, one with control panel and arrow indicators, the other with a rotary button (no text or symbols)

Line drawing of a rectangular industrial or storage unit with vertical supports and labeled section A (no text or symbols beyond label)

Line drawing of an air conditioning unit with cooling fan and handbags, showing airflow direction (no text or symbols)

Technical line drawing of a mechanical component with labeled part B (no text or symbols beyond label)

Line drawing of an air purifier with cooling unit and handbags, showing airflow direction (no text or symbols)

Line drawings of two different air purifiers with ventilation grilles and cooling fins, shown from different angles (no text or symbols)

NETTOYAGE ET ENTRETIEN

Line drawings of a portable air conditioner unit, its internal panel, and its exterior plate (no text or symbols)

Remarque :

Looking for spare parts? Have a look at www.spareparts.emerio.eu

White plastic appliance with black lid and plastic casing, no visible text or symbols

KONTROLLPANEL

22 TIMER 20 HIGH ● 21 LOW ● OK ● 17 DEF. ● 18 FULL ● 19 16 13 ● DRY INSIDE ● DEH 10 14 ● °C ● FAN 11 15 ● % ● DRY 12 9 ● LOCK 8 ● POWER 6 5 4 3 2 1 7

Line drawings of two different household air purifiers, one with control panel and arrow indicators, the other with lid and side panel (no text or symbols)

Lägesknapp

Line drawing of an air conditioner unit with cooling fan and hanging cloth (no text or symbols)

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Line drawing of an air purifier with cooling unit and handbags, showing airflow direction (no text or symbols)

Line drawing of a portable air purifier with ventilation grilles and a handle, showing no text or symbols.

Line drawing of a portable air purifier with ventilation grilles and a handle, showing no text or symbols.

RENGÖRING OCH UNDERHÅLL

Line drawing of a portable air purifier with ventilation grilles and a hand inserting a fan (no text or symbols)

Diagram of a microchip or integrated circuit mounted on a petri dish (no text or symbols visible)

Notering:

Looking for spare parts? Have a look at www.spareparts.emerio.eu

White plastic appliance with black lid and plastic casing, no visible text or symbols

BEDIENINGSPANEEEL

22 TIMER 20 HIGH ● 21 LOW ● OK ● 17 DEF. ● 18 FULL ● 19 16 13 ● DRY INSIDE ● DEH 10 14 ● °C ● FAN 11 15 ● % ● DRY 12 9 ● LOCK 8 ● POWER 6 5 4 3 2 1 7

Line drawings of two different household air purifiers, one front view and one side view with a circular arrow indicating rotation (no text or symbols)

Modusknop

Line drawing of a rectangular industrial device with labeled component A and internal structure (no text or symbols beyond label)

HET OPGEVANGEN WATER AFVOEREN

Three-step diagram showing a device being adjusted for a door panel, with no visible text or symbols.

Continue waterafvoer

Line drawings of two identical air purifiers with ventilation grilles and cooling fins, shown from different angles (no text or symbols)

REINIGING EN ONDERHOUD

Line drawing of a portable air purifier with ventilation grilles and a hand inserting a fan (no text or symbols)

Diagram of a microchip or sensor array on a petri dish (no text or symbols)

Opmerking:

Looking for spare parts? Have a look at www.spareparts.emerio.eu

White plastic appliance with black lid and plastic casing, no visible text or symbols

PANEL STEROWANIA

22 TIMER 20 HIGH ● 21 LOW ● OK ● 17 DEF. ● 18 FULL ● 19 16 13 ● DRY INSIDE ● DEH 10 14 ● °C ● FAN 11 15 ● % ● DRY 12 9 ● LOCK 8 ● POWER 6 5 4 3 2 1 7

Line drawings of two different household air purifiers, one with a control panel and the other with a door handle (no text or symbols)

Przycisk trybu

Line drawing of a rectangular industrial or laboratory device with vertical supports and labeled section A (no text or symbols beyond label)

Line drawing of an air conditioning unit with cooling fan and handbags, showing airflow direction (no text or symbols)

Technical line drawing of a mechanical component with labeled part B (no text or symbols beyond label)

Line drawing of an air purifier with cooling unit and handbags, showing airflow direction (no text or symbols)

Line drawings of two different air purifiers with ventilation grilles and cooling fins, shown from different angles (no text or symbols present)

CZYSZCZENIE I KONSERWACJA

Line drawings of a portable air purifier, its internal panel, and its lid (no text or symbols)

Informacja:

Looking for spare parts? Have a look at www.spareparts.emerio.eu

White plastic appliance with black lid and plastic casing, no visible text or symbols

PANEL DE CONTROL

22 TIMER 20 HIGH ● 21 LOW ● OK ● 17 DEF. ● 18 FULL ● 19 16 13 ●DRY INSIDE ● DEH 10 14 ● ℃ ● FAN 11 15 ● % ● DRY 12 9 ● LOCK 8 ● POWER 6 5 4 3 2 1 7

Line drawings of two different household air purifiers, one with control panel and arrow indicators, the other with a rotary button (no text or symbols)

Botón de modo

Line drawing of a rectangular industrial or laboratory device with vertical supports and labeled section A (no text or symbols beyond label)

Line drawing of an air conditioning unit with cooling fan and handbags, showing airflow direction (no text or symbols)

Technical line drawing of a mechanical component with labeled part B (no text or symbols beyond label)

Line drawing of an air purifier with cooling unit and handbags, showing airflow direction (no text or symbols)

Line drawings of two identical portable air purifiers with ventilation grilles and cooling fins, shown from different angles (no text or symbols)

LIMPIEZA Y MANTENIMIENTO

Line drawing of a portable air conditioner unit with ventilation grilles and a hand inserting a fan (no text or symbols)

Diagram of a microchip or sensor component inside a petri dish (no text or symbols)

Nota:

Looking for spare parts? Have a look at www.spareparts.emerio.eu
