Brand	Faller
Model	120161
Product Type	Locomotive shed kit (HO scale)
Category	Model Making
Dimensions (approx.)	30 x 20 x 15 cm
Weight (approx.)	250 g
Material	Injected polystyrene
Number of pieces	Approximately 50 pieces
Difficulty level	Beginner to intermediate
Power supply	None (static model)
Main functions	Assembly, painting, decoration for railway diorama
Recommended tools	Liquid plastic glue, brush, craft knife
Care and cleaning	Dusting with a soft brush or dry cloth
Safety	Contains small parts, choking hazard. Keep out of reach of children under 3 years.
Spare parts and repairability	Parts available on request from Faller customer service ([e-mail])
Instruction manual	8 pages, free download in PDF format

Frequently Asked Questions - 120161 Faller

What type of glue should I use to assemble the Faller 120161 model?

We recommend a liquid plastic glue specially designed for model making, sold separately. Avoid cyanoacrylate glues which can whiten the plastic.

Does the kit include paint?

No, paint is not included. You need to purchase paints suitable for polystyrene, preferably acrylic.

What is the scale of this model?

The model is in HO scale (1:87), standard for miniature railway layouts.

How long does it take to assemble the model?

Assembly time is approximately 2 to 4 hours, depending on your experience and glue drying time.

Can I paint the model after assembly?

Yes, but it is easier to paint some parts before final assembly. Follow the instructions in the manual.

What should I do if a part is missing from the kit?

Contact Faller customer service by email at [e-mail] stating the part reference and your proof of purchase. They will send you the missing part.

Is this model suitable for children?

The kit contains small parts and is recommended for teenagers and adults aged 14 and up, under adult supervision.

Can I light the interior of the shed?

Yes, you can add LED lighting. The manual suggests only gluing the ridge to allow access to the interior.

Where can I find the assembly instructions?

The manual is available free in PDF format on notice-facile.com or on the Faller website.

What additional tools are needed?

In addition to glue, prepare a fine brush, a craft knife, tweezers, and fine sandpaper for removing burrs.

USER MANUAL 120161 Faller

Before building your model, please familiarize yourself with the contents of the kit and the instructions for use, also checking whether the set of parts is complete. In case of any complaint, the legal guarantee obligation shall apply. Should a part be missing, please send the designation of the port required and the receipt documenting your purchase to: Gebr. FALLER GmbH, Kundendienst, Kreuzstraße 9, D-78148 Gütenbach, [e-mail].

Should you require further spare parts one day, we shall be pleased to send you, with costs, the required sprue, if it is available. Please note that, on grounds of the production process, some single injection molded parts may be superfluous.

Liquid cement in plastic bottle with contents for very fine drapes.

Special aids enter for cutting off electroin modified parts without bars. Only suitable for phototrans.

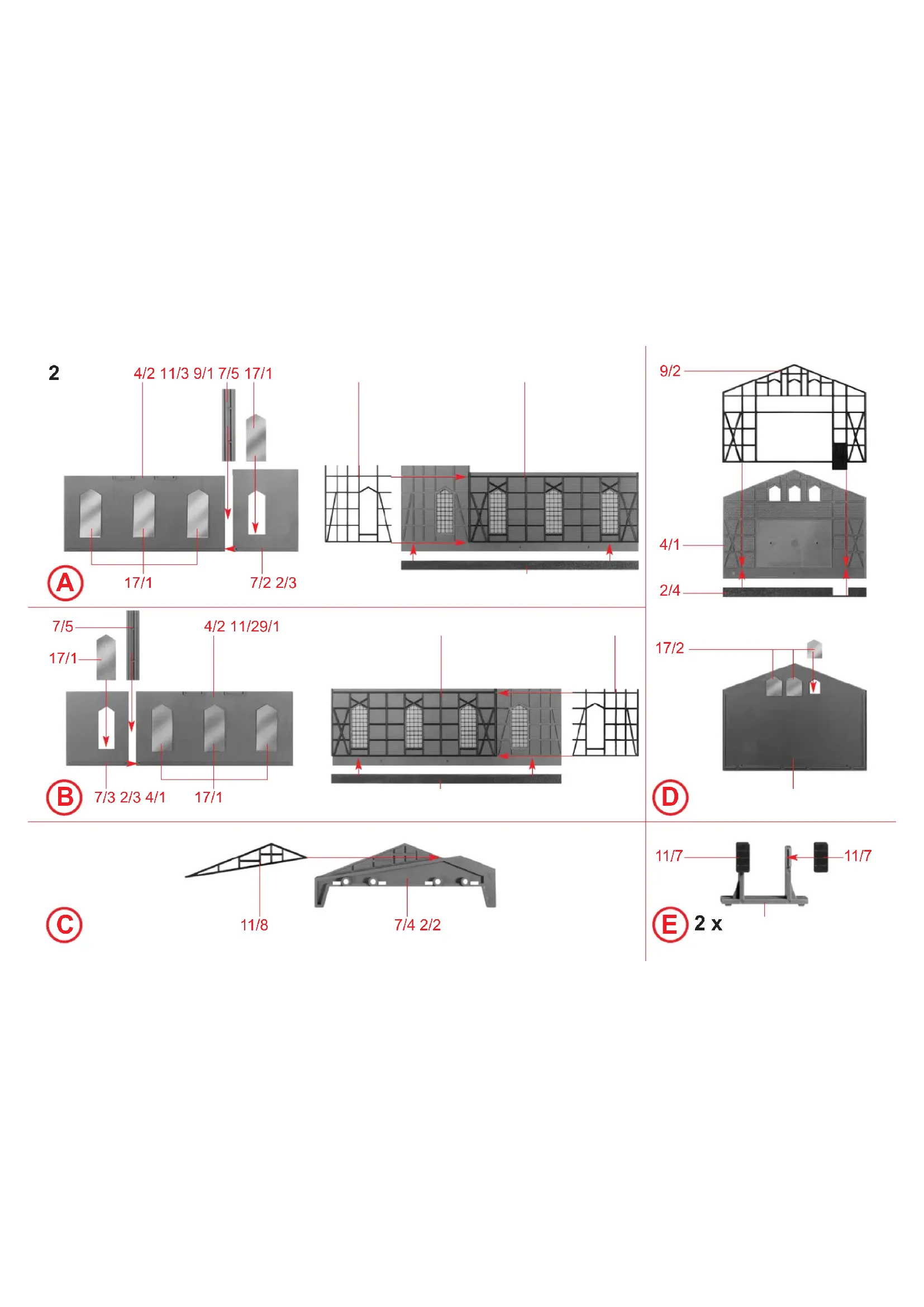

2 4/2 11/3 9/1 7/5 17/1 17/1 7/2 2/3 A

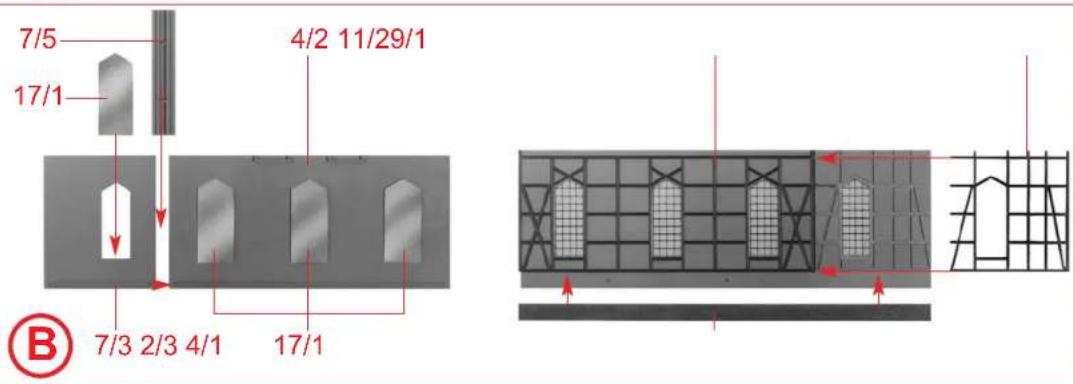

7/5 17/1 4/2 11/29/1 7/3 2/3 4/1 17/1 B

11/8 7/4 2/2 ©

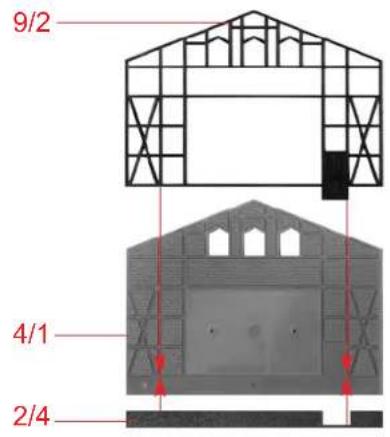

9/2 4/1 2/4

17/2 D

11/7 11/7 E 2 x

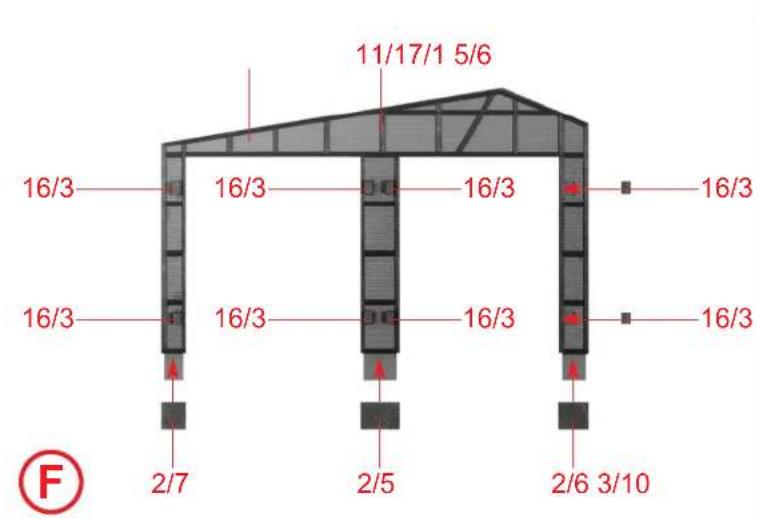

11/17/1 5/6 16/3 16/3 16/3 16/3 16/3 16/3 16/3 16/3 2/7 2/5 2/6 3/10 F

17/317/3 3 H

E D E A G B 2/1 F

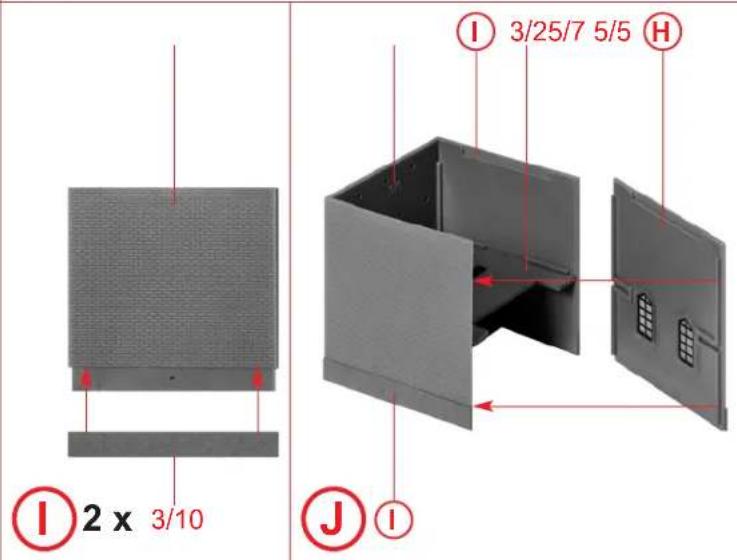

I 2 x 3/10 I 3/25/7 5/5 H J I

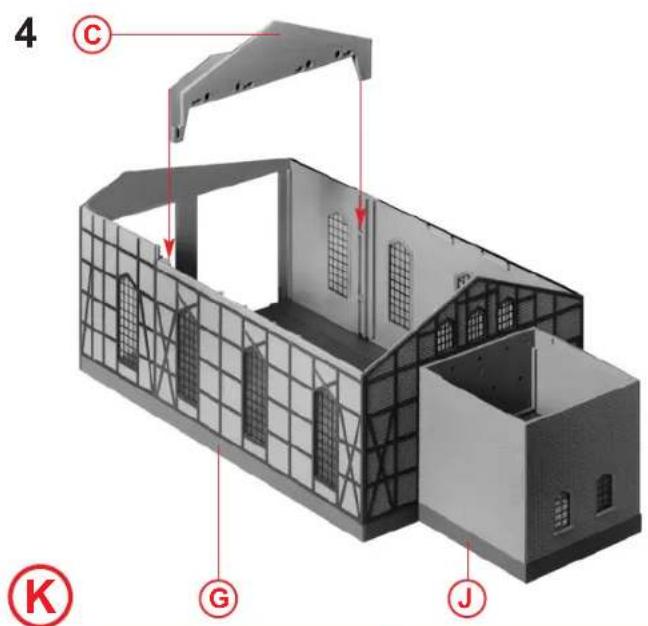

4 C G J K

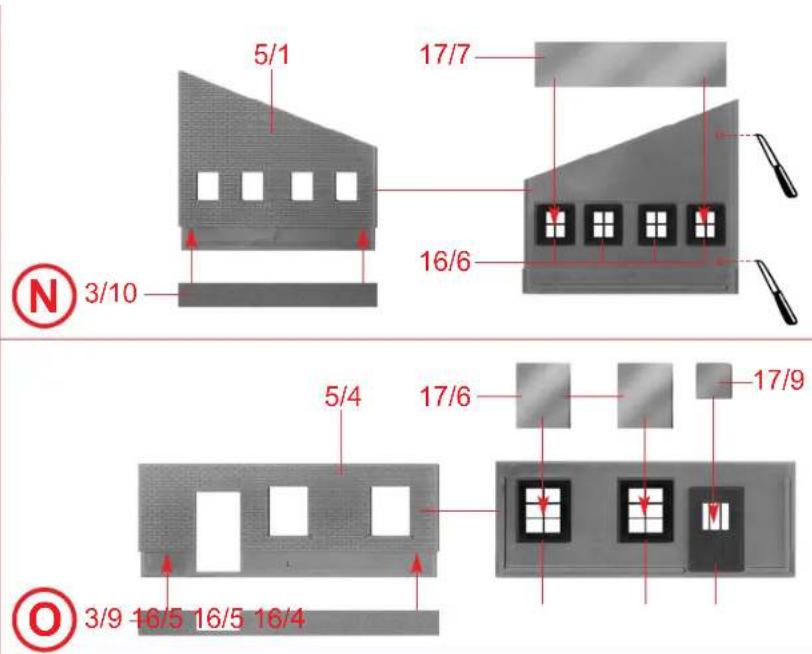

5/1 17/7 3/10 16/6 5/4 17/6 17/9 3/9 16/5 16/5 16/4

5/2 3/10 L 5/3 3/11 M

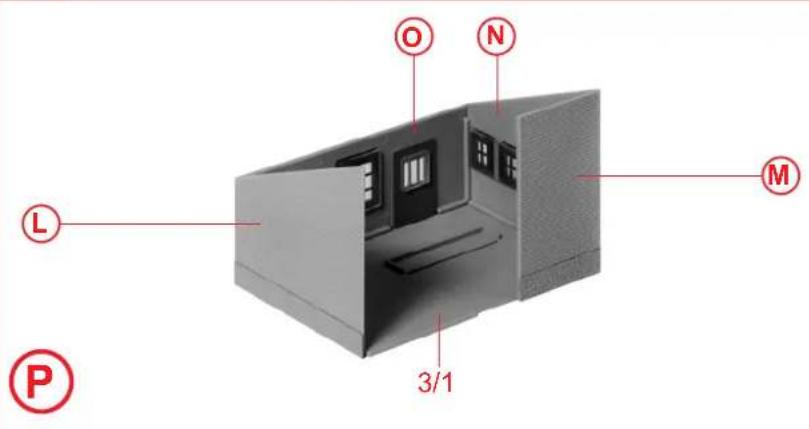

O N L M P 3/1

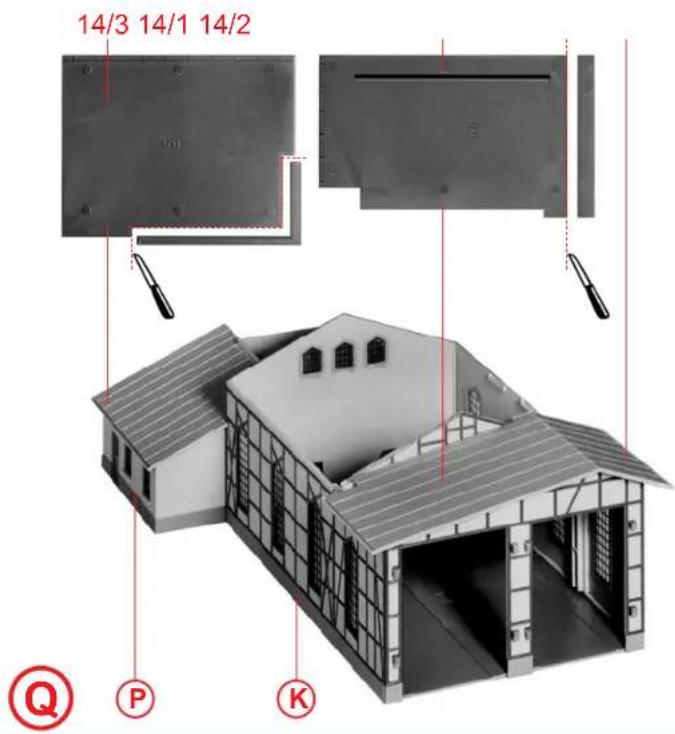

14/3 14/1 14/2 Q P K

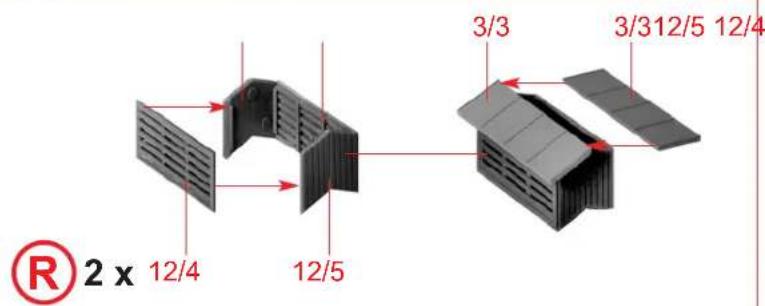

R 2 x 12/4 12/5 3/3 3/312/5 12/4

Achtung!

For installation of the tracks in the engine house, and then can be later controlled for running operation, there is no need to glue the roof down. Therefor only glue the pieces 13/1 and 13/2 on the gable together. And on top the pieces, already glued on (pos. R). Allow to try for approx. 20 minutes.

Attention!

13/2 R R 13/1 S Q

8 3/5 f 8/4 g e f 16/11

Beim Abnehmen des Daches zuerst die obere Hälfte des Turmes abheben, danach das Dach vom Hauptgebäude. When removing the roof, lift up the upper part of the tower and lift of the roof grom the main building. Lors du demontage du toit, ôter d'abord la partie haute de la tour, puis seulement le toit du bâtiment principal. Bij het afnemen van het dak eerst de bovenste helft van de toren afnemen en daarna het dak van het hoofdgebouw.

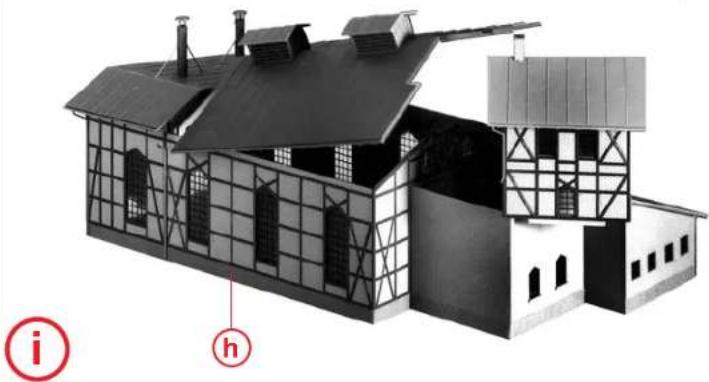

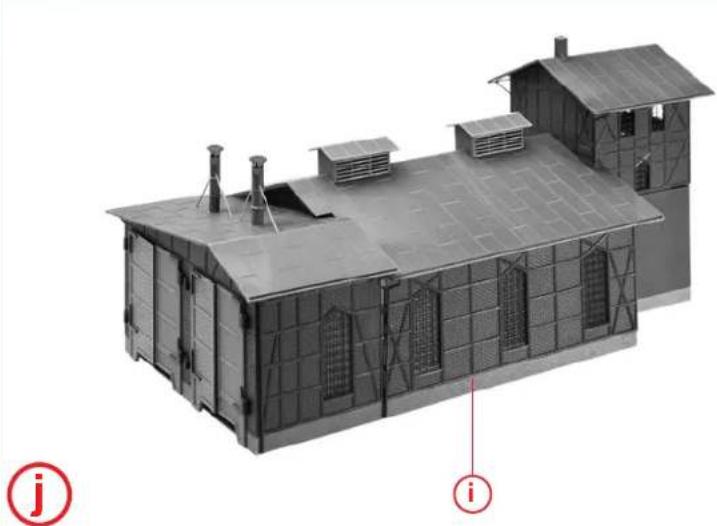

Architectural model of a two-story building with hatched facade and labeled components (i and h), no readable text or symbols beyond labels.

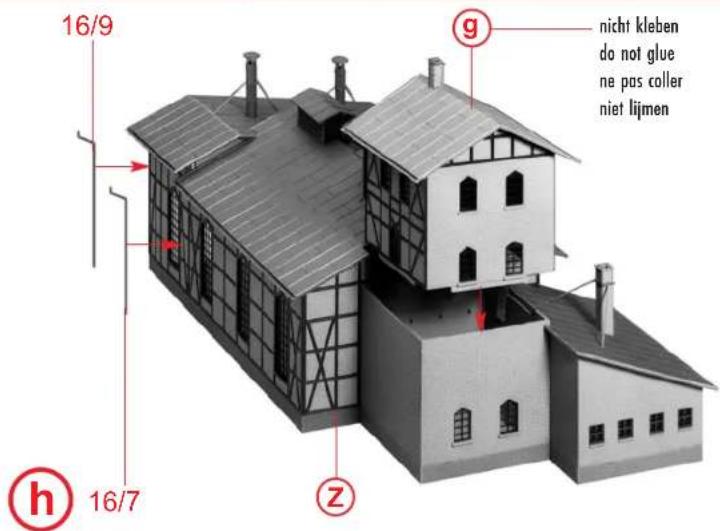

16/9 g nicht kleben do not glue ne pas coller niet lijmen 16/7 h z

3D architectural model of a two-story industrial building with roof, windows, and chimneys (no text or symbols visible)
