USER MANUAL SteamDryer DLGX2802R LG

Special Features p. 8
Key Parts and Components p. 9
OPTIONAL ACCESSORIES Optional Accessories p. 39
Pedestal Installation p. 40
, 41 Stacking Kit Installation p. 42
, 43 Key Dimensions and Speciﬁ cations p. 43

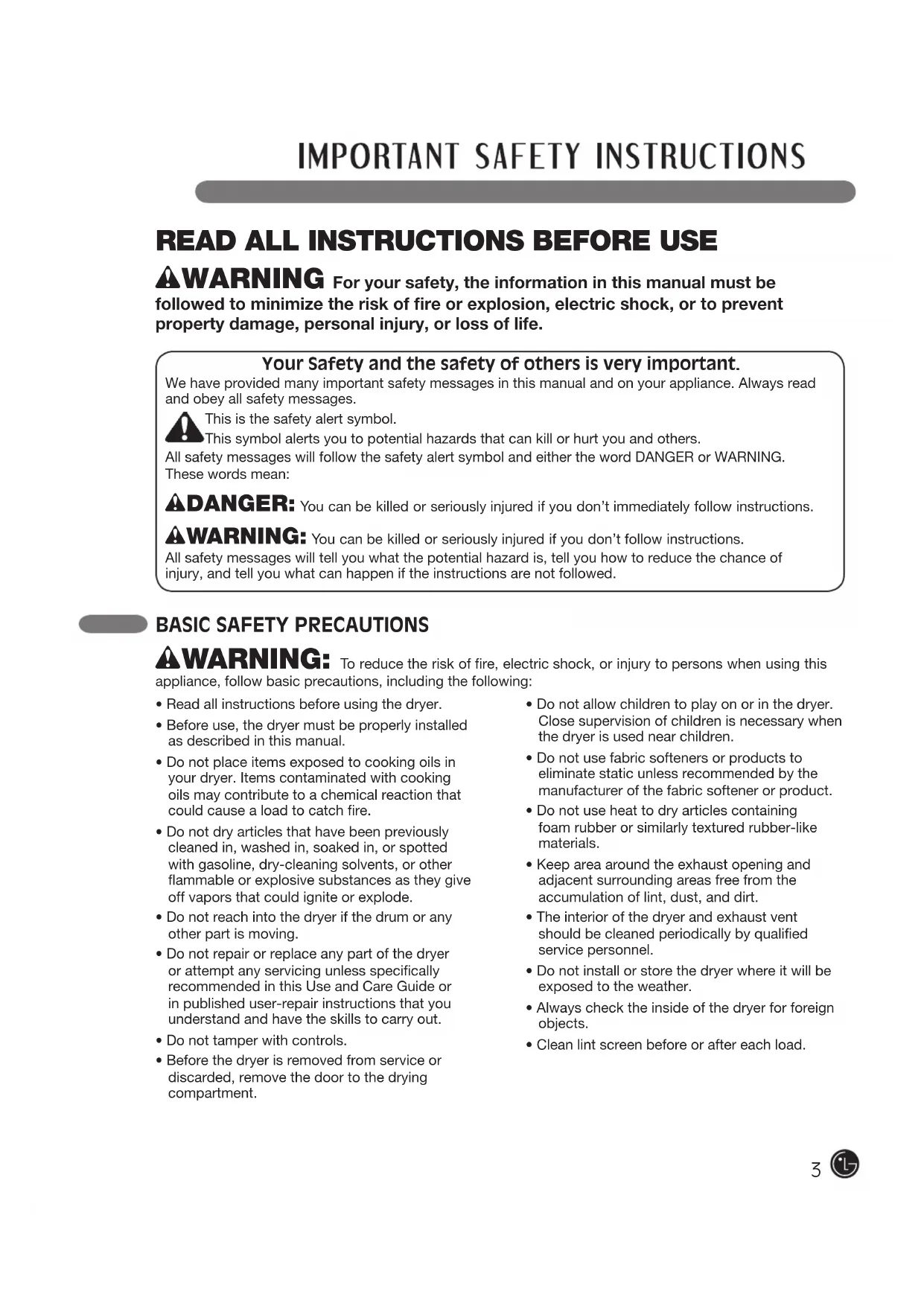

WARRANTY , 45 2Your Safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.These words mean: wDANGER: You can be killed or seriously injured if you don’t immediately follow instructions. wWARNING: You can be killed or seriously injured if you don’t follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. p. 44

BASIC SAFETY PRECAUTIONS

wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:•Readallinstructionsbeforeusingthedryer.•Beforeuse,thedryermustbeproperlyinstalledas described in this manual.•Donotplaceitemsexposedtocookingoilsinyour dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch ﬁre. •Donotdryarticlesthathavebeenpreviouslycleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other ﬂammable or explosive substances as they give off vapors that could ignite or explode.•Donotreachintothedryerifthedrumoranyother part is moving.•Donotrepairorreplaceanypartofthedryeror attempt any servicing unless speciﬁcally recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.•Donottamperwithcontrols.•Beforethedryerisremovedfromserviceordiscarded, remove the door to the drying compartment.•Donotallowchildrentoplayonorinthedryer.Close supervision of children is necessary when the dryer is used near children.•Donotusefabricsoftenersorproductstoeliminate static unless recommended by the manufacturer of the fabric softener or product.•Donotuseheattodryarticlescontainingfoam rubber or similarly textured rubber-like materials.•Keepareaaroundtheexhaustopeningandadjacent surrounding areas free from the accumulation of lint, dust, and dirt.•Theinteriorofthedryerandexhaustventshould be cleaned periodically by qualiﬁed service personnel.•Donotinstallorstorethedryerwhereitwillbeexposed to the weather.•Alwayschecktheinsideofthedryerforforeignobjects.•Cleanlintscreenbeforeoraftereachload.

wWARNING For your safety, the information in this manual must be followed to minimize the risk of ﬁre or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.• Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this appliance or any other appliances.

Installation and service must be performed by a qualiﬁ ed installer, service agency, or the gas supplier.

READ ALL INSTRUCTIONS BEFORE USE

wWARNING For your safety, the information in this manual must be followed to minimize the risk of ﬁ re or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

1. Do not try to light a match or cigarette,

or turn on any gas or electrical appliance.

2. Do not touch any electrical switches.

Do not use any phone in your building.

3. Clear the room, building, or area of all

4. Immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions carefully.

5. If you cannot reach your gas

supplier, call the ﬁ re department. WHAT TO DO IF YOU SMELL GAS: CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects, or other reproductive harm and requires businesses to warn customers of potential exposure to such substances. Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors. 4GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance must be equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. wWARNING — Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualiﬁed electrician or service person if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If it will not ﬁt the outlet, have a proper outlet installed by a qualiﬁed electrician. This appliance must be connected to a grounded metal, permanent wiring system or an equipment- grounding conductor must be run with the circuit conductors and connected to the equipment- grounding terminal or lead on the appliance. Electrical shock can result if the dryer is not properly grounded.

Properly ground dryer to conform with all governing codes and ordinances. Follow details in the installation instructions. Electrical shock can result if the dryer is not properly grounded.

Before use, the dryer must be properly installed as described in this manual. Electrical shock can result if the dryer is not properly grounded.

Install and store the dryer where it will not be exposed to temperatures below freezing or exposed to the weather.

All repairs and servicing must be performed by an authorized servicer unless speciﬁcally recommended in this Owner’s Guide. Use only authorized factory parts. Failure to follow this warning can cause serious injury, ﬁre, electrical shock, or death.

To reduce the risk of electric shock, do not install the dryer in humid spaces. Failure to follow this warning can cause serious injury, ﬁre, electrical shock, or death. wWARNING For your safety, the information in this manual must be followed to minimize the risk of ﬁre or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper power circuit can melt, creating electrical shock and/or ﬁre hazard.

Remove all packing items and dispose of all shipping materials properly. Failure to do so can result in death, explosion, ﬁre, or burns.

Place dryer at least 18 in. above the ﬂoor for a garage installation. Failure to do so can result in death, explosion, ﬁre, or burns.

Keep all packaging from children. Packaging material can be dangerous for children. There is a risk of suffocation.

Do not install nearby heat item. Such as stove, cooking oven. Failure to do so can cause deform, smoke and ﬁre.

Do not place candle and cigarettes on top of the product. Failure to do so can cause deform, smoke and ﬁre.

Remove all protective vinyl ﬁlm from the product. Failure to do so can cause deform, smoke and ﬁre.6

Gas dryers MUST be exhausted to the outside. Failure to follow these instructions can result in ﬁ re or death.

The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted outdoors, some ﬁ ne lint and large amounts of moisture will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and ﬁ re hazard.

Use only rigid metal or ﬂ exible metal 4-in. diameter ductwork inside the dryer cabinet or for exhausting to the outside. Use of plastic or other combustible ductwork can cause a ﬁ re. Punctured ductwork can cause a ﬁ re if it collapses or becomes otherwise restricted in use or during installation.

Ductwork is not provided with the dryer, and you should obtain the necessary ductwork locally. The end cap should have hinged dampers to prevent backdraft when the dryer is not in use. Failure to follow these instructions can result in ﬁ re or death.

The exhaust duct must be 4 in. (10.2 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer. Failure to follow these instructions can result in ﬁ re or death.

Rigid or semi rigid metal ducting is recommended for use between the dryer and the wall. In special installations when it is impossible to make a connection with the above recommendations, a UL- listed ﬂ exible metal transition duct may be used between the dryer and wall connection only. The use of this ducting will affect drying time. Failure to follow these instructions can result in ﬁ re or death.

DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efﬁ ciency of the exhaust system. Secure all joints with duct tape. For complete details, follow the Installation Instructions. Failure to follow these instructions can result in ﬁ re or death.

SAFETY INSTRUCTIONS FOR STEAM FUNCTIONS

Do not open the dryer door during steam cycles. Failure to follow these instructions can result in a burn hazard.

Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other ﬂ ammable or explosive substances as they give off vapors that could ignite or explode. Failure to follow these instructions can result in ﬁ re or death.

Do not ﬁ ll the steam feeder with gasoline, dry-cleaning solvents, or other ﬂ ammable or explosive substances. Failure to follow these instructions can result in ﬁ re or death.

Do not touch the steam nozzle in the drum during or after the steam cycle. Failure to follow these instructions can result in a burn hazard.

Do not ﬁ ll the steam feeder with hot water (over 86°F/30°C). Failure to follow these instructions can result in a burn hazard. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY

Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent personal injury or damage to the dryer, the electrical power cord must be plugged into a properly grounded outlet.

For personal safety, this dryer must be properly grounded. Failure to do so can result in electrical shock or injury.

Refer to the installation instructions in this manual for speciﬁc electrical requirements for your model. Failure to follow these instructions can create an electrical shock hazard and/or a ﬁre hazard.

This dryer must be plugged into a properly grounded outlet. Electrical shock can result if the dryer is not properly grounded. Have the wall outlet and circuit checked by a qualiﬁed electrician to make sure the outlet is properly grounded. Failure to follow these instructions can create an electrical shock hazard and/or a ﬁre hazard.

The dryer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a ﬁre hazard from overheated wires.

Never unplug your dryer by pulling on the power cord. Always grip plug ﬁrmly and pull straight out from the outlet. The power cord can be damaged, resulting in a risk of ﬁre and electrical shock.

Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. The power cord can melt, creating electrical shock and/or ﬁre hazard.

When installing or moving the dryer, be careful not to pinch, crush, or damage the power cord. This will prevent injury and prevent damage to the dryer from ﬁre and electrical shock.

SAVE THESE INSTRUCTIONS

wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

READ ALL INSTRUCTIONS BEFORE USE

Rotate the Cycle Selector Knob to select the desired dry cycle. Add cycle options or adjust settings with the touch of a button.

EASY-ACCESS REvERSIBLE DOOR Wide-opening door provides easy access for loading and unloading. Door swing can be reversed to adjust for installation location.

The ultra-large stainless steel drum offers superior durability. The drum is equipped with a yellow light that illuminates when the dryer door is open and turns off when the door is closed.

LG’s new steam technology allows you to inject fabrics with a swirling jet of hot steam to refresh clothes, reduce static, and make ironing easier. Simply select the STEAMFRESH

cycle, or you can add a Steam option to selected cycles.

FLOW SENSE™ DUCT BLOCKAGE SENSING

SYSTEM INDICATOR The FLOW SENSE™ duct blockage sensing system detects and alerts you to blockages in the ductwork that reduce exhaust flow from the dryer. This improve operating efficiency and help minimize service calls, saving you money.

LEvELING FEET Four leveling feet (two in the front, and two in the back) adjust to improve dryer stability on uneven floors.

Front-mounted lint filter allows for easy access and cleaning after every load. Terminal Block Access Panel (Electric Models) Rear of Dryer Power Cord Location (Gas Models) Gas Connection Location (Gas Models) Exhaust Duct Outlet

KEY PARTS AND COMPONENTS

In addition to the special features and components outlined in the Special Features section, there are several other important components that are referenced in this manual. DRYING RACK Use the drying rack with the RACK DRY cycle option. The drying rack allows items, such as sweaters, delicates, and gym shoes, to be placed in a flat position for drying.

Included Accessories Drying Rack

Storeandinstallthedryerwhereitwillnotbe exposed to temperatures below freezing or exposed to outdoor weather conditions.

Choosealocationwithasolid,levelﬂoor.

Ifthedryerisbeinginstalledinagarage, place the dryer at least 18 in. (46 cm) above the ﬂ oor. CLEARANCES (129.7mm) (56.8 mm)

Mostinstallationsrequireaminimum5½in. (14 cm) clearance behind the dryer for the exhaust ducting.

Allowminimumclearancesofatleast1in. (2.5 cm) on the sides and back to minimize vibration and noise.

Allowingadditionalclearanceforinstallationand servicing is recommended.

Besuretoallowforwall,door,orﬂoormoldings that may increase the required clearances.

Allowatleast24in.(61cm)infrontofthedryer to open the door. IMPORTANT: Read all installation instructions completely before installing and operating your dryer! It is important that you review this entire manual before installing and using your dryer. Detailed instructions concerning electrical connections, gas connections, and exhaust requirements are provided on the following pages.

Properlygrounddryertoconformwithall governing codes and ordinances.

Toreducetheriskofelectricshock,donot install the dryer in damp or wet locations.

Ifyouareinstallingyourdryerinamanufactured or mobile home, please refer to the section Special Requirements for Manufactured or Mobile Homes. Additional Instructions for closet installations:

Theclosetdoormustallowforsufcientairﬂow. Refer to the diagram above for minimum vent opening requirements. A louvered door is also acceptable.

Makesurethatthereisatleast18in.(46cm)of clearance above the dryer. Closet Door Vent Requirements

10INSTALLATION WITH OPTIONAL

PEDESTAL BASE OR STACKING KIT

IMPORTANT: If you are installing your dryer using an optional pedestal base or stacking kit, please refer to Optional Accessories in this manual or to the instructions for your pedestal or stacking kit before proceeding with the installation. Required Dimensions for Installation With Pedestal Required Dimensions for Installation With Stacking Kit OPTIONAL ACCESSORIES For these and other LG products, contact your local LG dealer, or visit our Web site at us.lge.com. Pedestal (sold separately) Stacking Kit (sold separately)

Hinge Screws Door Latch Latch Screws Hinge Screws Latch Screws LEvELING THE DRYER Use an adjustable wrench to turn the leveling feet. Turn clockwise to raise the dryer or counterclockwise to lower it. Raise or lower the leveling feet until dryer is level from side to side and front to back. Make sure that all 4 leveling feet are in firm contact with the floor. REvERSING THE DOOR SWING The swing of the dryer door can be reversed to fit your installation location. Open the dryer door. Using a Phillips screwdriver, remove the 4 screws that secure the door hinge to the dryer door opening. Remove the 6 screws from the latch side of the dryer door opening, and remove the door latch. Turn the door around so the hinge is reversed, and reattach the door using the 4 screws previously removed. Reinstall the door latch and the 6 screws. Test the door swing to make sure the door moves freely and latches securely.

Position the dryer in the final location. Place a level across the top of the dryer.

Allfourlevelingfeetmust rest solidlyonthe floor. Gently push on the top corners of the dryer to make sure that the dryer does not rock from corner to corner. If you are installing the dryer on the optional pedestal, you must use the leveling feet on the pedestal to level the dryer. The dryer leveling feet should be fully retracted. To ensure that the dryer provides optimal drying performance, it must be level. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface. NOTE: Adjust the leveling feet only as far as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate.

Wearglovesduringinstallation.

Failuretofollowtheseinstructionscanresultininjury. wCHANGING THE DRYER vENT LOCATION Your new dryer is shipped to vent to the rear. It can also be configured to vent to the bottom or side (right-side venting is not available on gas models). An adapter kit, part number 383EEL9001B, may be purchased from your LG retailer. This kit contains the necessary duct components to change the dryer vent location. Remove the rear exhaust duct retaining screw. Pull out the exhaust duct.

Rear Exhaust Duct Retaining Screw Preassemble a 4-in. (10.2 cm) elbow to the next 4-in. (10.2 cm) duct section, and secure all joints with duct tape. Be sure that the male end of the elbow faces AWAY from the dryer. Insert the elbow/duct assembly through the side opening and press it onto the adapter duct. Secure in place with duct tape. Besurethatthemaleendoftheductprotrudes1½in.(3.8 cm) to connect the remaining ductwork. Attach cover plate to the back of the dryer with included screw.

ElbowCover Plate Insert the 4-in. (10.2 cm) elbow through the rear opening and press it onto the adapter duct. Be sure that the male end of the elbow faces down through hole in the bottom of the dryer. Secure in place with duct tape. Attach the cover plate to the back of the dryer with included screw.

ElbowCover Plate Press the tabs on the knockout and carefully remove the knockout for the desired vent opening (right-side venting is not available on gas models). Press the adapter duct onto the blower housing and secure to the base of the dryer as shown.

KnockoutBracketAdapter Duct OPTION 1: Side venting Press the adapter duct onto the blower housing and secure to the base of the dryer as shown.

BracketAdapter Duct OPTION 2: Bottom venting

Wearglovesduringinstallation.

Failuretofollowtheseinstructionscanresultindeath or ﬁre.vENTING THE DRYER

Do not crush or collapse ductwork. Failure to follow these instructions can result in ﬁ re or death.

Do not allow ductwork to rest on or contact sharp objects. Failure to follow these instructions can result in ﬁ re or death.

If connecting to existing ductwork, make sure it is suitable and clean before installing the dryer. Failure to follow these instructions can result in ﬁ re or death.

Venting must conform to local building codes. Failure to follow these instructions can result in ﬁ re or death.

Gas dryers MUST exhaust to the outdoors. Failure to follow these instructions can result in ﬁ re or death.

Use only 4-in. (10.2 cm) rigid or ﬂ exible metal ductwork inside the dryer cabinet and for venting outside. Failure to follow these instructions can result in ﬁ re or death.

To reduce the risk of ﬁ re, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas vent, or concealed space of a building. Failure to follow these instructions can result in ﬁ re or death.

To reduce the risk of ﬁ re, DO NOT exhaust the dryer with plastic or thin foil ducting. Failure to follow these instructions can result in ﬁ re or death.

In Canada, that the exhaust duct shall be 4in.(10.2 cm) in diameter with no obstructions. In the United States. the required exhaust duct diameter; The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer. Failure to follow these instructions can result in ﬁ re or death.

Rigid or semirigid metal ducting is recommended for use between the dryer and the wall. In special installations when it is impossible to make a connection with the above recommendations, a UL-listed ﬂ exible metal transition duct may be used between the dryer and wall connection only. The use of this ducting will affect drying time. Failure to follow these instructions can result in ﬁ re or death.

In Canada. that only those foil-type ﬂ exible ducts, if any, speciﬁ cally identiﬁ ed for use with the appliance by the manufacturer shall be used. In the United States, that only those foil-type ﬂ exible ducts, if any, speciﬁ cally identiﬁ ed for use with the appliance by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct, Subject 2158A, shall be used

DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efﬁ ciency of the exhaust system. Secure all joints with duct tape. Failure to follow these instructions can result in ﬁ re or death.

To maximize operating results, please observe the duct length limitations noted in the chart on page 15. Failure to follow these instructions can result in ﬁ re or death.

Ductwork is not provided with the dryer. You should obtain the necessary ductwork locally. The end cap should have hinged dampers to prevent backdraft when the dryer is not in use. Failure to follow these instructions can result in ﬁ re or death.

The Total length of ﬂ exible metal duct shall not exceed 8 ft.(2.4m) wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following: 14Routing and Connecting Ductwork Follow the guidelines below to maximize drying performance and reduce lint buildup and condensation in the ductwork. NOTE: Ductwork and fittings are NOT included and must be purchased separately.

Themaleendofeachsectionofexhaustduct must point away from the dryer.

Useducttapeonallductjoints.

Insulateductworkthatrunsthroughunheated areas in order to reduce condensation and lint buildup on duct surfaces. IMPORTANT: Failure to exhaust the dryer correctly will void the dryer’s warranty. vENTING THE DRYER (cont.) Correct Venting Incorrect Venting Number of Max. Length of 4-In. Dia. Wall Cap Type 90° Elbows Rigid Metal Duct 0 65 ft. (19.8 m) 1 55 ft. (16.8 m) 2 47 ft. (13.7 m) 3 36 ft. (11.0 m) 4 28 ft. (8.5 m) 0 55 ft. (16.8 m)

1 47 ft. (13.7 m) 2 41 ft. (12.5 m) 3 30 ft. (9.1 m) 4 22 ft. (6.7 m) NOTE: Deduct 6 ft. (1.8 m) for each additional elbow. It is not recommended to use more than four 90° elbows. 4"(10.2 cm)

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Failure to follow this warning can result in ﬁ re, explosion, or death.

For personal safety, this dryer must be properly grounded. Failure to follow this warning can result in ﬁ re, explosion, or death.

The power cord of this dryer is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Failure to follow this warning can result in ﬁ re, explosion, or death.

This dryer must be plugged into a 120-VAC, 60-Hz. grounded outlet protected by a 15-ampere fuse or circuit breaker. Failure to follow this warning can result in ﬁ re, explosion, or death.

Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can result in ﬁ re, explosion, or death.

Gas supply requirements: As shipped from the factory, this dryer is con gured for use with natural gas. It can be converted for use with LP (Liqueﬁ ed Propane) gas. Gas pressure must not exceed 13 in. water column.

A qualiﬁ ed service or gas company technician must connect the dryer to the gas service. Failure to do so can result in ﬁ re, explosion, or death.

Isolate the dryer from the gas supply system by closing its individual manual shutoff valve during any pressure testing of the gas supply. Failure to do so can result in ﬁ re, explosion, or death.

Supply line requirements: Your laundry room must have a rigid gas supply line to your dryer. In the United States, an individual manual shutoff valve MUST be installed within at least 6 ft. (1.8 m) of the dryer, in accordance with the National Fuel Gas Code ANSI Z223.1 or Canadian gas installation code CSA B149.1. A 1/8-in. NPT pipe plug must be installed. Failure to do so can result in ﬁ re, explosion, or death.

If using a rigid pipe, the rigid pipe should be 1/2-in. IPS. If acceptable under local codes and ordinances and when acceptable to your gas supplier, 3/8-in. approved tubing may be used where lengths are less than 20 ft. (6.1 m). Larger tubing should be used for lengths in excess of 20 ft. (6.1 m). Failure to do so can result in ﬁ re, explosion, or death.

Connect the dryer to the type of gas shown on the nameplate. Failure to do so can result in ﬁ re, explosion, or death.

To prevent contamination of the gas valve, purge the gas supply of air and sediment before connecting the gas supply to the dryer. Before tightening the connection between the gas supply and the dryer, purge remaining air until the odor of gas is detected. Failure to do so can result in ﬁ re, explosion, or death.

DO NOT use an open ﬂ ame to inspect for gas leaks. Use a noncorrosive leak-detection ﬂ uid. Failure to do so can result in ﬁ re, explosion, or death.

Use only a new AGA- or CSA-certiﬁ ed gas supply line with ﬂ exible stainless steel connectors. Failure to do so can result in ﬁ re, explosion, or death.

Securely tighten all gas connections. Failure to do so can result in ﬁ re, explosion, or death.

tape or a pipe-joint compound that is insoluble in Liqueﬁ ed Petroleum (LP) gas on all pipe threads. Failure to do so can result in ﬁ re, explosion, or death.

DO NOT attempt any disassembly of the dryer; any disassembly requires the attention and tools of an authorized and qualiﬁ ed service person or company. Failure to do so can result in ﬁ re, explosion, or death. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following: wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:•Installation and service must be performed by a qualiﬁed installer, service agency, or the gas supplier. Failure to do so can result in ﬁre, explosion, or death.

Use only a new stainless steel ﬂexible connector and a new AGA-certiﬁed connector. Failure to do so can result in ﬁre, explosion, or death.

A gas shutoff valve must be installed within 6 ft. (1.8 m) of the dryer. Failure to do so can result in ﬁre, explosion, or death.

The dryer is conﬁgured for Natural Gas when shipped from the factory. Make sure that the dryer is equipped with the correct burner nozzle for the type of gas being used (Natural Gas or Liqueﬁed Petroleum). Failure to do so can result in ﬁre, explosion, or death.

If necessary, the correct nozzle (for the LP nozzle kit order part number 4948EL4002B) should be installed by a qualiﬁed technician and the change should be noted on the dryer. Failure to do so can result in ﬁre, explosion, or death.

All connections must be in accordance with local codes and regulations. Failure to do so can result in ﬁre, explosion, or death.

Gas dryers MUST exhaust to the outdoors. Failure to do so can result in ﬁre, explosion, or death. 3/8" NPT Gas ConnectionGas Supply Shutoff Valve Connecting the Gas Supply Make sure that the gas supply to the laundry room is turned OFF. Confirm that the type of gas available in your laundry room is appropriate for the dryer. The dryer is prepared for Natural Gas with a 3/8-in. NPT gas connection. Remove the shipping cap from the gas connection at the back of the dryer. Be careful not to damage the threads of the gas connector when removing the shipping cap. Connect the dryer to your laundry room’s gas supply using a new flexible stainless steel connector with a 3/8-in. NPT fitting. Securely tighten all connections between the dryer and your laundry room’s gas supply. Turn on your laundry room’s gas supply and check all pipe connections (both internal and external) for gas leaks with a noncorrosive leak-detection fluid.

High-Altitude Installations The BTU rating of this dryer is AGA-certified for elevations below 10,000 feet. If your gas dryer is being installed at an elevation above 10,000 feet, it must be derated by a qualified technician or gas supplier. Electrical Connection Plug dryer into a 120-VAC, 60-Hz. grounded 3-prong outlet. CONNECTING GAS DRYERS (cont.) 1/8" NPT Pipe Plug AGA/CSA-Certified Stainless Steel Flexible Connector wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

Electrical Requirements for Electric Models Only

This dryer must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dryer. Failure to do so can result in ﬁ re, explosion, or death.

The dryer has its own terminal block that must be connected to a separate 240 VAC, 60-Hertz, single-phase circuit, fused at 30 amperes (the circuit must be fused on both sides of the line). ELECTRICAL SERVICE FOR THE DRYER SHOULD BE OF THE

MAXIMUM RATE VOLTAGE LISTED ON THE

NAMEPLATE. DO NOT CONNECT DRYER TO

110-, 115-, OR 120-VOLT CIRCUIT. Heating elements are available for ﬁ eld installation in dryers which are to be connected to an electrical service of a different voltage than that listed on the rating plate. Failure to follow these instructions can result in ﬁ re, explosion, or death.

If branch circuit to dryer is 15 ft. (4.5 m) or less in length, use UL (Underwriters Laboratories) listed No.-10 AWG wire (copper wire only), or as required by local codes. If over 15 ft. (4.50 m), use UL-listed No.-8 AWG wire (copper wire only), or as required by local codes. Allow sufﬁ cient slack in wiring so dryer can be moved from its normal location when necessary. Failure to do so can result in ﬁ re, explosion, or death.

The power cord (pigtail) connection between wall receptacle and dryer terminal block IS NOT supplied with dryer. Type of pigtail and gauge of wire must conform to local codes and with instructions on the following pages. Failure to follow these instructions can result in ﬁ re, explosion, or death.

A 4-wire connection is required for all mobile and manufactured home installations, as well as all new construction after January 1, 1996. A 4-wire connection must be used where local codes do not permit grounding through the neutral wire. Failure to do so can result in ﬁ re, explosion, or death. Special Electrical Requirements for Mobile or Manufactured Homes

Any installation in a manufactured or mobile home must comply with the Manufactured Home Construction and Safety Standards Title 24 CFR, Part 32-80 or Standard CAN/ CSA0Z240 MH and local codes and ordinances.

A 4-wire connection is required for all mobile and manufactured home installations, as well as all new construction after January 1, 1996. Failure to do so can result in ﬁ re, explosion, or death.

CONNECTING ELECTRIC DRYERS

wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following: wWARNING: To help prevent fire, electric shock, serious injury, or death, the wiring and grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local regulations. Please contact a qualified electrician to check your home’s wiring and fuses to ensure that your home has adequate electrical power to operate the dryer. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following: wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

Donotmodifytheplugandinternalwire provided with the dryer.

Thedryershouldbeconnectedto4-holeoutlet.

Ifitdoesnotttheoutlet,aproperoutletwill need to be installed by a qualiﬁ ed electrician.19 Remove the terminal block access cover on the upper back of the dryer. Install a UL-listed strain relief into the power cord through-hole; then thread a UL-listed, 30A, 240V, 4-wire, #10 AWG-minimum copper conductor power cord through the strain relief.

Transfer the dryer’s ground wire from behind the green ground screw to the center screw of the terminal block. Attach the two hot leads of the power cord to the outer terminal block screws. Attach the white neutral wire to the center terminal block screw. Attach the power cord ground wire to the green ground screw. TIGHTEN ALL SCREWS SECURELY. Reinstall the terminal block access cover.

UL-Listed Strain ReliefUL-Listed 4-Wire Power CordTerminal BlockGround ScrewNeutral (White) Hot (Black)Power Cord Ground Wire Hot (Red) CONNECTING ELECTRIC DRYERS (cont.) Four-Wire Connection for Electric Dryers: Power Cord

A4-wireconnectionisrequiredforallmobile and manufactured home installations, as well as all new construction after January 1, 1996.

AUL-listedstrainreliefisrequired.

Usea30-amp, 240V, UL-listed power cord with #10 AWG-minimum copper conductor and closed loop or forked terminals with upturned ends. wWARNING:

Connect the power cord to the terminal block. Each colored wire should be connected to same color screw. Wire color indicated on manual is connected to the same color screw in block. Failure to follow these instructions may result in a short or overload.

Grounding through the neutral conductor is prohibited for: (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. USA ONLYCONNECTING ELECTRIC DRYERS (cont.) Remove 5 inches (12.7 cm) of the outer covering from the wire. Remove 5 inches of insulation from the ground wire. Cut off approximately 1

inches (3.8 cm) from the other three wires and strip 1 inch (2.5 cm) insulation from each wire. Bend the ends of the three shorter wires into a hook shape.

Transfer the dryer’s ground wire from behind the green ground screw to the center screw of the terminal block. Attach the two hot leads of the power cable to the outer terminal block screws. Attach the white neutral wire to the center terminal block screw. Attach the power cable ground wire to the green ground screw. TIGHTEN ALL SCREWS SECURELY. Reinstall the terminal block access cover.

Ground WireGround ScrewNeutral (White) Hot (Black)Ground Wire Hot (Red) Remove the terminal block access cover on the upper back of the dryer. Install a UL-listed strain relief into the power cord through-hole; then thread the power cable prepared in Step 1 through the strain relief.

UL-Listed Strain ReliefUL-Listed 4-Wire Power CordTerminal Block5" (12.7 cm)1" (2.5 cm)

Four-Wire Connection for Electric Dryers: Direct Wire

A4-wireconnectionisrequiredforallmobile and manufactured home installations, as well as all new construction after January 1, 1996.

Allowatleast5ft(1.5m)lengthtoallowfor removal and reinstallation of the dryer. wWARNING:

Connect the power cord to the terminal block. Each colored wire should be connected to same color screw. Wire color indicated on manual is connected to the same color screw in block. Failure to follow these instructions may result in a short or overload.

Grounding through the neutral conductor is prohibited for: (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. USA ONLY21 Remove the terminal block access cover on the upper back of the dryer. Install a UL-listed strain relief into the power cord through-hole; then thread a UL-listed, 30A, 240V, 3-wire, #10 AWG-minimum copper conductor power cord through the strain relief.

Attach the two hot leads of the power cord to the outer terminal block screws. Attach the neutral wire to the center terminal block screw. Connect the external ground (if required by local codes) to the green ground screw. TIGHTEN ALL SCREWS SECURELY. Reinstall the terminal block access cover.

Three-Wire Connection for Electric Dryers: Power Cord

A3-wireconnectionisNOTpermittedonnew construction after January 1, 1996.

AUL-listedstrainreliefisrequired.

Usea 30-amp, 240V, UL-listed power cord with #10 AWG-minimum copper conductor and closed loop or forked terminals with upturned ends. CONNECTING ELECTRIC DRYERS (cont.) Ground ScrewUL-Listed Strain ReliefTerminal BlockGround Wire Hot (Black) Hot (Red)Neutral (White) wWARNING:

Connect the power cord to the terminal block. Each colored wire should be connected to same color screw. Wire color indicated on manual is connected to the same color screw in block. Failure to follow these instructions may result in a short or overload.

Grounding through the neutral conductor is prohibited for: (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. UL-Listed 3-Wire Power Cord USA ONLY22 CONNECTING ELECTRIC DRYERS (cont.) Remove 3

inches (8.9 cm) of the outer covering from the wire. Strip 1 inch (2.5 cm) insulation from each wire. Bend the ends of the three wires into a hook shape.

Ground ScrewNeutral (White) Hot Black)Ground Wire Hot (Red) Remove the terminal block access cover on the upper back of the dryer. Install a UL-listed strain relief into the power cord through-hole; then thread the power cable prepared in Step 1 through the strain relief.

UL-Listed Strain ReliefUL-Listed 3-Wire Power CordTerminal Block1" (2.5 cm) Three-Wire Connection for Electric Dryers: Direct Wire

A3-wireconnectionisNOTpermittedonnew construction after January 1, 1996.

AUL-listedstrainreliefisrequired.

UseUL-listed3-wire #10 AWG-minimum copper conductor cable.

Allowatleast5ft(1.5m)lengthtoallowfor removal and reinstallation of the dryer. wWARNING:

Connect the power cord to the terminal block. Each colored wire should be connected to same color screw. Wire color indicated on manual is connected to the same color screw in block. Failure to follow these instructions may result in a short or overload.

Grounding through the neutral conductor is prohibited for: (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. USA ONLYTesting Dryer Heating GAS MODELS Close the dryer door, press the ON/OFF switch to turn the dryer on, and start the dryer on a heat setting. When the dryer starts, the igniter should ignite the main burner. NOTE: If all air is not purged from the gas line, the gas igniter may turn off before the main burner ignites. If this happens, the igniter will reattempt gas ignition after approximately two minutes. ELECTRIC MODELS Close the dryer door, press the ON/OFF switch to turn the dryer on, and start the dryer on a heat setting. The exhaust air should be warm after the dryer has been operating for 3 minutes. Checking Airflow Effective dryer operation requires proper airflow. The adequacy of the airflow can be measured by evaluating the static pressure. Static pressure in the exhaust duct can be measured with a manometer, placed on the exhaust duct approximately 2 ft. (60.9 cm) from the dryer. Static pressure in the exhaust duct should not exceed 0.6 in. (1.5 cm). The dryer should be checked while the dryer is running with no load. Checking Levelness Once the dryer is in its final location, recheck the dryer to be sure it is level. Make sure it is level front to back and side to side, and that all 4 leveling feet are firmly on the floor.

FINAL INSTALLATION CHECK

Once you have completed the installation of the dryer and it is in its final location, confirm proper operation with the following tests and Duct Condition Testing on the following page. Any installation in a manufactured or mobile home must comply with the Manufactured Home Construction and Safety Standards Title 24 CFR,

Part 32-80 or Standard CAN/CSA0Z240 MH and

local codes and ordinances. If you are uncertain whether your proposed installation will comply with these standards, please contact a service and installation professional for assistance.

Agasdryermustbepermanentlyattachedto the ﬂoor.

Theelectricalconnectionforanelectricdryer must be a 4-wire connection. More detailed information concerning the electrical connection is provided in the section Connecting Electric Dryers.

Toreducetheriskofcombustionandre,the dryer must be vented to the outside.

DONOTventthedryerunderamanufactured home or mobile home.

Electricdryersmaybeventedtotheoutside using the back, left, right, or bottom panel.

Gasdryersmaybeventedtotheoutsideusing the back, left, or bottom panel. Gas dryers may not be vented to the outside using the right side panel because of the burner housing.

Thedryerexhaustductmustbeafxedsecurely to the manufactured or mobile home structure, and the exhaust duct must be made of a material that will resist ﬁre and combustion. It is recommended that you use a rigid or ﬂexible metal duct.

DONOTconnectthedryerexhaustduct to any other duct, vent, chimney, or other exhaust duct.

Makesurethedryerhasadequateaccessto outside fresh air to ensure proper operation. The opening for outside fresh air must be at least 25 in

Itisimportantthattheclearanceoftheduct from any combustible construction be at least 2 in. (5 cm), and when venting the dryer to the outdoors, the dryer can be installed with a clearance of 1 in. (2.5 cm) at the sides and back of the dryer.

Pleasebeawarethatventingmaterialsare not supplied with the dryer. You should obtain the venting materials necessary for proper installation. SPECIAL REQUIREMENTS FOR MANUFACTURED OR MOBILE HOMES 23Your dryer features FlowSense

, an innovative sensing system that automatically detects blockages and restrictions in dryer ductwork. Keeping ductwork clean of lint buildup and free of restrictions allows clothes to dry faster and reduces energy use. NOTE: When the dryer is first installed, this test should be performed to alert you to any existing problems with the exhaust duct in your home. However, since the test performed during normal operation provides more accurate information on the condition of the exhaust duct than does the installation test, the number of bars displayed during the two tests may not be the same. To activate the ﬂ ow check (Duct condition test) : NOTE: Dryer heating test must be performed before proceeding. Then perform the duct condition test below: Press and hold the DAMP DRY BEEP and TEMP. CONTROL buttons at the same time. While holding these buttons, press POWER ON/OFF. The dryer will show lnS in the number display to indicate that it is in duct condition testing mode. FLOW CHECK (DUCT CONDITION TEST) Correct Venting Restricted or Blocked Airflow Avoid long runs or runs with multiple elbows or bends. Check for blockages and lint buildup. Make sure the ductwork is not crushed or restricted.

Press START/PAUSE. The dryer will run for approximately 2 minutes to test for blockages or restrictions to air ﬂ ow in the ductwork. If “YES” is shown in the display, the ductwork is free from blockages or restrictions. If “no” is shown in the display, the dryer ductwork has a blockage that needs to be removed immediately. IMPORTANT: Do NOT interrrupt the test cycle! 24•Check all pockets to make sure that they are empty. Items such as clips, pens, coins, and keys can damage both your dryer and your clothes. Flammable objects such as lighters or matches could ignite, causing a ﬁre. Failure to do so can result in ﬁre, explosion, or death.

Never dry clothes that have been exposed to oil, gasoline, or other ﬂammable substances. Washing clothes will not completely remove oil residues. Failure to obey this warning can result in ﬁre, explosion, or death.

Combinelargeandsmallitemsinaload.

Dampclotheswillexpandastheydry.Donot overload the dryer; clothes require room to tumble dry properly.

Closezippers,hooks,anddrawstringsto prevent these items from snagging or tangling on other clothes. Tumble dry Dry NormalPermanent Press

wrinkle resistantGentle/delicateDo not tumble dryDo not dry(used withdo not wash) SORTING LOADS Fabric Care Labels Most articles of clothing feature fabric care labels that include instructions for proper care. Grouping Similar Items For best results, sort clothes into loads that can be dried with the same drying cycle. Different fabrics have different care requirements, and some fabrics will dry more quickly than others. Fabric Care Labels Heat setting High Medium Low No heat/air CHECK THE LINT FILTER BEFORE EvERY LOAD Always make sure the lint filter is clean before starting a new load; a clogged lint filter will increase drying times. To clean, pull the lint filter straight up and roll any lint off the filter with your fingers. Do not rinse or wash the filter to remove lint. Push the lint filter firmly back into place. See “Care and Cleaning” for more information. Always ensure the lint filter is properly installed before running the dryer. Running the dryer with a loose or missing lint filter may damage the dryer and articles in the dryer. Lint Filter

Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual for more detailed information. Important Warning: To reduce the risk of fire, electric shock, or injury to persons, read this entire manual, including the Important Safety Instructions, before operating this dryer. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

25CONTROL PANEL FEATURES

CYCLE SETTING BUTTONS

Use these buttons to select the desired cycle settings for the selected cycle. The current settings are shown in the display. Press the button for that option to view and select other settings.

Press to turn the dryer ON. Press again to turn the dryer OFF. NOTE: Pressing the ON/OFF button during a cycle will cancel that cycle and any load settings will be lost.

Turn this knob to select the desired cycle. Once the desired cycle has been selected, the standard presets will be shown in the display. On MANUAL DRY cycles, these settings can be adjusted using the cycle settings buttons anytime before starting the cycle.

Press this button to START the selected cycle. If the dryer is running, use this button to PAUSE the cycle without losing the current settings. NOTE: If you do not press the START/PAUSE button to resume a cycle within 4 minutes, the dryer automatically turns off.

To adjust the drying time, use these buttons with MANUAL DRY, TIME DRY, and STEAMFRESH

cycles, as well as the REDUCE STATIC and EASY IRON options. Press the MORE TIME button to increase the selected manual cycle time by a minute; press LESS TIME to decrease the cycle time by a minute.

The display shows the settings, estimated time remaining, options, and status messages for your dryer.

LG’s new steam technology allows you to inject fabrics with a swirling jet of hot steam to refresh clothes, reduce static, and make ironing easier. Simply select the STEAMFRESH

cycle, or you can add a STEAM option to selected cycles. For detailed information about the individual options, please see the following pages.

OPTION BUTTONS The OPTION buttons allow you to select additional cycle options. Certain buttons feature a special function (see the following pages for details) that can be activated by pressing and holding that option button.

26CYCLE GUIDE The cycle guide below shows the options and recommended fabric types for each cycle. NOTE: To protect your garments, not every dry level, temperature, or option is available with every cycle. Sensor Dry Cycles Sensor Dry cycles utilize LG’s unique dual sensor system to detect and compare the moisture level in clothes and in the air and adjust the drying time as needed to ensure superior results. The dryer automatically sets the dryness level and temperature at the recommended setting for each cycle. The estimated time remaining will be shown in the display. Manual Dry Cycles Use Manual Dry cycles to select a specific amount of drying time and a drying temperature. When a Manual Dry cycle is selected, the ESTIMATED TIME REMAINING display shows the actual time remaining in your cycle. You can change the actual time in the cycle by pressing MORE TIME or LESS TIME. Damp Dry Wrinkle Care More Time/ Less Time Time in Min. Dry Level Type Cycle Fabric Type Temperature COTTON/ TOWELS NORMAL PERM. PRESS DELICATES Denims, towels, heavy cottons Work clothes, corduroys, etc. Permanent press, synthetic items Lingerie, sheets, blouses Normal Adjustable Normal MID HIGH MEDIUM Adjustable Normal Adjustable Normal Adjustable LOW LOW

TIME DRY AIR DRY RACK DRY For small loads with short drying times Wool sweaters, silk, lingerie For irems that require heat-free drying such as plastics or rubber For general drying; time, temperature, and options can be set manually Off Off Off Off HIGH Adjustable HIGH Adjustable No Heat Off ULTRA LOW LOW

HEAVY DUTY SPEED DRY Anti- Bacterial Reduce Static Easy Iron Jeans, heavyweight items Comforter, Shirts, Trousers

except especially delicate fabrics) Off Normal Adjustable MID HIGH HIGH

Comforter, Bedding, children’s clothing HIGH

When the START/PAUSE button is pressed, the dryer will display the estimated (SENSOR DRY) or set time (TIME DRY) remaining, and begin tumbling. NOTE: The cycle time on SENSOR DRY cycles may fluctuate as the dryer recalculates drying time for optimal results. THE DISPLAY The display shows the settings, estimated time remaining, options, and status messages for your dryer. When the dryer is turned on, the light in the display will illuminate.

When CHILD LOCK is set, the Child Lock indicator will appear and all buttons are disabled except the ON/OFF button. This prevents children from changing settings while the dryer is operating.

If the steam feeder is lack for water, this error may be displayed. Fill the feeder and restart the cycle.

The display will show CHECK FILTER when the dryer is turned on as a reminder to check the filter. It turns off when the START/PAUSE button is pressed.

This portion of the display shows which stage of the drying cycle is currently underway (CHECK FILTER, DRYING, COOLING, or WRINKLE CARE).

The FLOW SENSE™ duct blockage sensing system detects and alerts you to blockages in the ductwork that reduce exhaust flow from the dryer. This improve operating efficiency and help minimize service calls, saving you money.

CUSTOM PROGRAM If you have a special combination of settings that you use frequently, you can save these settings as a CUSTOM PROGRAM.

TEMP. CONTROL Adjusts the temperature setting from ULTRA LOW to HIGH. This allows precise care of your fabrics and garments. Press the TEMP. CONTROL button repeatedly to scroll through available settings. TIME DRY Allows you to manually select the drying time, from 20 to 60 minutes, in 10-minute increments. Use this for small loads or to remove wrinkles. Use the MORE TIME/LESS TIME buttons to add or reduce the drying time in 1- minute increments. BEEPER Adjusts the volume of the end- of-cycle beeper, or turns off the beeper. DRY LEvEL Selects the level of dryness for the cycle. Press the DRY LEVEL button repeatedly to scroll through available settings.

ThisoptionisonlyavailablewithSENSOR DRY cycles.

Thedryerwillautomaticallyadjustthecycle time. Selecting VERY DRY or MORE DRY will increase the cycle time, while LESS DRY or DAMP DRY will decrease the cycle time.

UseaLESSDRYorDAMPDRYsettingfor items that you wish to iron. SENSOR DRY cycles have preset settings that are selected automatically. MANUAL DRY cycles have default settings, but you may also customize the settings using the cycle setting buttons. Press the button for that option to view and select other settings. NOTE: To protect your garments, not every dryness level, temperature, or option is available with every cycle. See the Cycle Guide for details.

Press the ON/OFF button to turn on the dryer. The lights around the cycle selector knob will illuminate. Turn the cycle selector knob to the desired cycle. The display will show the preset Dry Level, Temperature, Time, and Option settings for that cycle. If you would like to change the settings for that cycle, press the option button(s) to display additional settings for that option. Press the button again to cycle through the settings until the desired setting is highlighted. NOTE: To protect your garments, not every dry level, temperature, or option is available with every cycle.

Select any additional cycle options, such as ANTI BACTERIAL,

DAMP DRY BEEP, WRINKLE

CARE or RACK DRY by pressing the button for that option.

Once you have loaded the dryer: Press the START/PAUSE button to begin the cycle. The display will change, and the dryer will display the estimated (SENSOR DRY) or set time (MANUAL DRY) remaining and start tumbling. To pause the cycle at any time, press PAUSE. To resume the cycle where it was stopped, press START/PAUSE again. NOTE: If the dryer has been stopped for more than 8 minutes, the dryer will turn off automatically.

When the load is finished, the beeper (if set) will sound. If you have set the WRINKLE CARE option, the dryer will tumble the load periodically for up to 3 hours. To prevent wrinkling, remove items from the dryer immediately after the end of the cycle.

Always clean the lint filter after every cycle. To clean, pull the lint filter straight up and roll any lint off the filter with your fingers. Do not rinse or wash the filter to remove lint. Push the lint filter firmly back into place.

Your dryer features several additional cycle options to customize cycles to meet your individual needs. Certain option buttons also feature a special function (see the following page for details) that can be activated by pressing and holding that option button for 3 seconds. To Add Cycle Options to a Cycle: Turn on the dryer and turn the cycle selector knob to select the desired cycle. Use the cycle settings buttons to adjust the settings for that cycle. Press the cycle option button(s) for the option you would like to add. A confirmation message will be shown in the display. Press the START/PAUSE button to start the cycle. The dryer will start automatically.

With this option, the dryer will beep when the load is approximately 80% dry. This allows you to remove faster-drying lightweight items or items that you would like to iron or hang while still slightly damp. WRINKLE CARE Selecting this option will tumble the load periodically for up to 3 hours after the selected cycle, or until the door is opened. This is helpful in preventing wrinkles when you are unable to immediately remove items from the dryer. Certiﬁ ed by NSF NSF International (formerly the National Sanitation Foundation), certiﬁ es that ANTI BACTERIAL Option reduces 99.9% of bacteria on laundry, and none of bacteria will carry over onto the next laundry load. ANTI BACTERIAL This option will add a high heat setting to reduce bacteria. It can only be used with the HEAVY DUTY, COTTON/ TOWELS, and NORMAL cycles. NOTE: Do not use this cycle with delicate fabrics. 30SPECIAL FUNCTIONS The option buttons also activate special functions, including CHILD LOCK, RACK DRY and LANGUAGE. Press and hold the option button marked with the special function for 3 seconds to activate.

CHILD LOCK Use this option to prevent unwanted use of the dryer or to keep cycle settings from being changed while the dryer is operating. Press and hold the ANTI BACTERIAL button for 3 seconds to activate or deactivate the CHILD LOCK function. The lock icon will be shown in the display, and all controls are disabled except the ON/OFF button.

RACK DRY Use RACK DRY with items, such as wool sweaters, silk, and lingerie, that should dry flat. RACK DRY can also be used with items that should not be tumbled dry, such as gym shoes or stuffed animals. Press and hold the WRINKLE CARE button for 3 seconds to activate or deactivate the RACK DRY function. NOTE: NEVER use the rack with a tumble dry cycle.

Make sure it is seated evenly on the edge of the inner door rim and resting flat on the inside of the dryer. NOTE: Be sure to remove the drying rack after using the RACK DRY cycle.

To Install the Drying Rack With the dryer door open, slide the rack into the dryer drum. 31CUSTOM PROGRAM If you have a special combination of settings that you use frequently, you can save these settings as a CUSTOM PROGRAM.

To Save a Custom Program: Turn on the dryer and turn the cycle selector knob to select the desired cycle. Use the cycle setting buttons to adjust the settings for that cycle. Press the cycle option button(s) for the option you would like to add. A confirmation message will be shown in the display. Press and hold the CUSTOM PROGRAM button for 3 seconds.

NOTE: You may only save one custom program at a time. Pressing and holding the CUSTOM PROGRAM button will overwrite any previously saved custom program. MAX STEAM FUNCTIONS

To Fill the Steam Feeder Pull out the drawer.Lift out the steam feeder.Fill the steam feeder to MAX with water.Place the steam feeder in the drawer; then push in the drawer until it clicks into place.Water ONLY Steam FeederDrawer wWARNING:

Donotfillthesteamfeederwithliquidssuchasgasoline,dry-cleaningsolvents,orotherflammableorexplosivesubstances. They give off vapors that could explode.•Donotfillthesteamfeederwithhotwater(over86°F/30°C).•Donotdrinkwaterfromthesteamfeeder.IMPORTANT NOTES ABOUT STEAM CYCLES Before using a Steam Cycle, the steam feeder must be filled with water up to the MAX line. If not, the ADD WATER light will blink. Make sure that the steam feeder is filled with water and the drawer is completely closed. Turn the dryer off then restart the Steam Cycle. •Onlyusewater.Donotfillthesteamfeederwithforeignsubstances,rinseagents,ordetergents.•Beforemovingthedryer,makesurethesteamfeeder is empty.•Donotusedistilledwater;thewaterlevelsensorinthesteamgeneratorwillnotwork.•Be careful to put the Steam Feeder otherwise water will be overflow.•WipeupanyspilledwateraroundtheSteamFeederandthedrawerbeforestartingthedryer. 32STEAM FUNCTIONS (cont.) Using the Steam Options: This option injects steam late in the drying cycle to reduce the static electricity caused by dry fabrics rubbing together. Change the amount of time for the cycle by pressing the MORE TIME or LESS TIME button, depending on the load (quantity of items). The display will show the recommended number of items, such as 7, 9, 11, 14, 16, or 18. The EASY IRON option provides uniform, properly dampened fabrics for ironing, which can save time and make ironing easier. Change the amount of time for the cycle by pressing the MORE TIME or LESS TIME button, depending on the load (quantity of items). The display will show the recommended number of items, such as 1, 2, 3, 4, or 5. The REDUCE STATIC and EASY IRON options can only be used with the HEAVY DUTY, COTTON/TOWELS, NORMAL and PERM. PRESS, DELICATES and TIME DRY cycles. NOTES:

WhenSENSOR DRY is selected with the REDUCE STATIC option, a DRY LEVEL of LESS or DAMP cannot be selected.

TheREDUCESTATICorEASYIRONoption may also be selected during TIME DRY cycles.

cycle New STEAMSANITARY

cycle is ideal for sanitizing non washable items quickly and easily using the power of steam alone. Recommend to use this cycle for cotton and polyester material. (Do NOT use for urethane foam, Down feathers or delicates items) LG’s new steam technology allows you to inject fabrics with a swirling jet of hot steam to refresh clothes, reduce static, and make ironing easier. Simply select the STEAMFRESH

cycle, or you can add a Steam option to selected cycles. Using the STEAMFRESH

uses the power of steam alone to quickly reduce wrinkles and odor in fabrics. It brings new life to wrinkled clothes that have been stored for an extended time and makes heavily wrinkled clothes easier to iron. STEAMFRESH

can also be used to help reduce odors in fabrics. NOTES:

REDUCESTATICorEASYIRONoptionscan also be used during the STEAMFRESH

Dependingontheload(quantityofitems),you may change the amount of time for the cycle by pressing the MORE TIME or LESS TIME button. The display will show 3, 5, or . 3 means 3 or fewer items, 5 is for 4 or 5 items, and indicates a large load such as a comforter. To Add STEAM to a Standard Cycle: Turn on the dryer and turn the cycle selector knob to select the desired cycle. Use the cycle setting buttons to adjust the settings for that cycle. Press the Steam option button for the Steam option you would like to add. Then adjust for the load size using the MORE TIME or LESS TIME buttons. Press START/PAUSE button to start the cycle.

Cycle: Turn on the dryer and turn the cycle selector knob to select the STEAMFRESH

cycle. To add an option function, select REDUCE STATIC, EASY IRON, or WRINKLE CARE. Depending on the load (quantity of items), steam time can be changed by pressing the MORE TIME or LESS TIME buttons. Press START/PAUSE button to start the cycle.

EASY IRON 10 minutes Only reduce static 12 minutes Follow selected cycle 45 minutes 47 minutes Dry Dry Dry Dry Wet Wet Wet Comforter Bedding Children’s clothing Single (1 each) 3 lbs.

Steammaynotbeclearlyvisibleduringthe Steam Cycles. This is normal.

with items such as wool, wool balnket, leather jackets, silk, wet clothes, lingerie, foam products, or electric blankets.

Forbestresults,loadarticlesofsimilarsizeand fabric type. Do not overload.

Whenthefilter/ductisclogged,theSteam option may not have optimal results.

WhentheSteamfunctionisoperating, the drum will stop to allow steam to stay in the drum.

Thesteamfeedermustbefilledwithwaterup to the MAX line. Otherwise, an Error message will be displayed. STEAM FUNCTIONS (cont.) wWARNING:

DonotopenthedryerdoorduringSteam Cycles. Steam can cause severe burns.

Donotllthesteamfeederwithgasoline, dry-cleaning solvents, or other ﬂ ammable or explosive substances. They give off vapors vapors that could explode.

Donottouchthesteamnozzleinthedrum during or after the STEAM cycle. *Shirt: 70% cotton/30% poly blend. Except especially delicate fabrics.

Whenthelintfilterorexhaustductisclogged,steamoptionswillnotgiveproperresults.

Forbestresults,loadarticlesofsimilarsizeandfabrictype.Donotoverload. STEAMSANITARY STEAMFRESH HEAvY DUTY COTTON/TOWELS NORMAL PERM.PRESS DELICATES TIME DRY CYCLE 34Cleaning the Exterior Proper care of your dryer can extend its life. The outside of the machine can be cleaned with warm water and a mild, nonabrasive household detergent. Immediately wipe off any spills with a soft, damp cloth. IMPORTANT: Do not use methylated spirits, solvents, or similar products. Never use steel wool or abrasive cleansers; they can damage the surface. REGULAR CLEANING Cleaning the Interior Wipe around the door opening and seal with a soft, damp cloth to prevent lint and dust buildup that could damage the door seal. Clean the window with a soft cloth dampened with warm water and a mild, nonabrasive household detergent; then wipe dry. The stainless steel drum can be cleaned with a conventional stainless steel cleaner, used according to the manufacturer’s specifications. Never use steel wool or abrasive cleansers; they can scratch or damage the surface. Cleaning Around and Under the Dryer Vacuum lint and dust from around the dryer and underneath it regularly. Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages. Maintaining Ductwork Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages. Contact a qualified technician or service provider. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

Unplug the dryer before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, ﬁre, electrical shock, or death.

Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish. Cleaning the Lint Filter Lint Filter Always clean the lint filter after every cycle. To clean, open the dryer door and pull the lint filter straight up. Then: Roll any lint off the filter with your fingers, or Vacuum the lint filter, or

Wash the lint filter in warm, soapy water and allow to dry thoroughly before reinstalling. NOTE: NEVER operate the dryer without the lint filter in place.

35Problem Possible Causes Solutions Dryer does not heat

Housefuseisblown,circuit breaker has tripped, or power outage has occurred.

Gassupplyorserviceturned off (gas models only).

Resetcircuitbreakerorreplacefuse.Donot increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualiﬁ ed electrician.

Conrmthatthehousegasshutoffandthedryer gas shutoff are both fully open. BEFORE CALLING FOR SERvICE Your dryer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your dryer does not function properly or does not function at all, check the following before you call for service. Dryer will not turn on

Powercordisnotproperly plugged in.

Housefuseisblown,circuit breaker has tripped, or power outage has occurred.

Makesurethattheplugispluggedsecurelyintoa grounded outlet matching the dryer’s rating plate.

Resetcircuitbreakerorreplacefuse.Donotincrease fuse capacity. If the problem is a circuit overload, have it corrected by a qualiﬁ ed electrician. Greasy or dirty spots on clothes

Fabricsoftenerused incorrectly.

Cleananddirtyclothesbeing dried together.

Cleananddirtyclothesbeing dried together.

Conrmandfollowtheinstructionsprovidedwith your fabric softener.

Makesuretouseyourdryertodryonlyclean items, because dirty items can soil clean clothes placed in the same or subsequent loads.

Stainsondriedclothesareactuallystainsthat weren’t removed during the washing process. Make sure that clothes are being completely cleaned according to the instructions for your washer and detergent. Display shows error code tE1 or tE2

Thermistorismalfunctioning.

Turnoffthedryerandcallforservice. Lint on clothes

Lintlternotcleaned properly.

Tissue,paper,etc.,left in pockets.

Makesurethelintlteriscleanedbeforeevery load. With some loads that produce high amounts of lint, it may be necessary to clean the ﬁ lter during the cycle.

Somefabricsarelintproducers(i.e.,afuzzywhite cotton towel) and should be dried separately from clothes that are lint trappers (i.e., a pair of black linen pants).

SeetheExcess static in clothes after drying section below.

Dividelargerloadsintosmallerloadsfordrying.

Checkpocketsthoroughlybeforewashingand drying clothes. Excess static in clothes after drying

Dryingsynthetics,permanent press, or synthetic blends.

Useafabricsoftenertoreducestaticelectricity correctly. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

Overdryingaloadoflaundrycancauseabuildup of static electricity. Adjust settings and use a shorter drying time, or use SENSOR DRY cycles.

Thesematerialscancausestaticbuildup.Try using a fabric softener. 36BEFORE CALLING FOR SERvICE (cont.) Problem Possible Causes Solutions Drying time is not consistent

Heatsettings,loadsize,or dampness of clothing is not consistent.

Thedryingtimeforaloadwillvarydependingonthe heat setting, the type of heat used (electric, natural, or LP gas), the size of the load, the type of fabrics, the wetness of the clothes, and the condition of the exhaust ducts and lint ﬁlter. Clothes take too long to dry

Lintlterneedstobe cleaned.

Exhaustductsblocked,dirty, or duct run is too long.

Housefuseisblown,circuit breaker has tripped, or power outage has occurred.

Separateheavyitemsfromlightweightitems.Larger and heavier items take longer to dry.

Heavyfabricstakelongertodrybecausetheytend to retain more moisture. To help reduce and maintain more consistent drying times for large and heavy fabrics, separate these items into smaller loads of a consistent size.

Usetheappropriatecontrolsettingsforthetypeof load you are drying.

Makesurethelintlteriscleanedbeforeeveryload. With some loads that produce high amounts of lint, it may be necessary to clean the ﬁlter during the cycle.

Conrmthattheexhaustductworkisproperly conﬁgured and free of debris, lint, and obstructions. Make sure that outside wall dampers can open properly and are not blocked, jammed, or damaged.

Resetcircuitbreakerorreplacefuse.Donotincrease fuse capacity. If the problem is a circuit overload, have it corrected by a qualiﬁed electrician.

Dividelargerloadsintosmallerloadsfordrying.

Ifyouaredryingaverysmallload,addafewextra items to ensure proper tumbling action. Clothes are wrinkled

Clothesdriedtoolong (overdried).

Clothesleftindryertoolong after cycle ends.

Overdryingaloadoflaundrycanleadtowrinkled clothes. Try a shorter drying time, and remove items while they still retain a slight amount of moisture.

Removeitemsfromthedryerimmediatelyattheendof the cycle. Use the WRINKLE CARE option to continue tumbling clothes at the end of the cycle, for up to 3 hours. Clothes are shrinking

Garmentcareinstructions are not being followed.

Toavoidshrinkage,pleasecarefullyfollowthefabric care instructions for your garment, because some fabrics will naturally shrink when washed. Other fabrics can be washed but will shrink when dried in a dryer. Use a low or no heat setting and/or the RACK DRY option. ADD WATER indicator light is on during the drying cycle

Watersupplyerror. Water drips from nozzle when Steam Cycle starts.

Thisissteamcondensation.Thedrippingwater will stop after a short time.

Checksteamfeeder drawer: (1) Make sure steam feeder is ﬁlled with water to MAX line. (2) Make sure steam feeder is seated properly and drawer is fully closed. (3) Turn the dryer off then restart the Steam cycle.

Donotusedistilledwater;thewaterlevelsensor in steam generator will not work.

Pumpnotworking.Unplugdryerandcallforservice. 37FLOW SENSE indicator light is on during the drying cycle

Ductworkistoolongorhas too many turns/restrictions.

Signicantblockageofthe ductwork due to lint buildup or debris.

Installashorterorstraighterductrun.Seethe Installation Instructions.

Ductworkshouldbechecked/cleanedsoon. Dryer can be used in this condition, but drying times may be longer. BEFORE CALLING FOR SERvICE (cont.) Problem Possible Causes Solutions Steam doesn’t generate but no error code is shown.

Unplugdryerandcallforservice. Garments still wrinkled after STEAMFRESH

Toomanyortoodifferent types of garments in dryer.

Thefunctionofthiscycle is to remove wrinkles from fabric.

Useanirontomakecreases. Garments have static after REDUCE STATIC.

Dependsonindividualmoisturelevelinskin. Garments are too damp or too dry after REDUCE STATIC.

Correctdryingoptionsnot selected.

Selectloadweightmanuallybeforestarting REDUCE STATIC option. Garments are not uniformly damp after EASY IRON.

Dependsontheamountortypeofgarments. Water drips from door during Steam Cycle.

Thisissteamcondensationondoorsurface. Steam is not visible during Steam Cycle.

Steamvaporisdifculttoseewhenthedooris closed. Drum does not turn during Steam Cycle.

Thedrumisturnedoffsothatthesteamvapor remains in the drum. Cannot see steam vapor at the beginning of cycle.

MORETIMEbuttonpressed. Odors remain in clothing after STEAMFRESH

did not remove odor completely.

PressingtheMORETIMEbuttonseveraltimeswill set the cycle for a large load such as a comforter. 38OPTIONAL ACCESSORIES For these and other LG products, contact your local LG dealer, or visit our Web site at us.lge.com. Pedestal Give your LG washer and dryer a boost with matching 14-inch high pedestals. They feature a storage drawer for added convenience. 14" Pedestal Color WDP3W White WDP3R Wild Cherry Red WDP3N Riviera Blue Stacking Kit If space is at a premium, use this kit to securely stack your LG front-load washer and dryer. Stacking Kit Color WSTK1 White RSTK1 Wild Cherry Red NSTK1 Riviera Blue 39wWARNING To ensure safe and secure installation, please thoroughly follow the instructions below. PEDESTAL INSTALLATION Tools Needed for Installation:

Phillips-headscrewdriver

Incorrect installation can cause serious accidents.

The appliances are heavy. Two or more people are required when installing the pedestal. There is a risk of serious back injury or other injuries.

Do not allow children to play in or on the drawer. There is a risk of suffocation or injury.

Do not step on the handle. There is a risk of serious injury.

If appliances are already installed, disconnect them from all power, water, or gas lines and from draining or venting connections. Failure to do so can result in electrical shock, ﬁ re, explosion, or death.

When installing, gloves must be put on. The pedestal accessory includes:

Drawerdivider(1) •Wrench(1)

Screws(18)† •Retainers(4)††

Insert the T-clip of the 4 retainers into the dryer base as shown. Press up on the back of the clip and pull outward to lock into place. Retainer T-clip †Dryerinstallationonlyuses8screws ††Fordryeronly

Make sure the leveling feet of the dryer are fully retracted. NOTE: The appliance and pedestal assembly must be placed on a solid, sturdy, level floor for proper operation. Retract fully

Loosen the locknuts on all 4 leveling feet of the pedestal until you can turn them with the wrench. Turn clockwise to raise or counterclockwise to lower until the pedestal is level and all 4 feet are solidly against the floor. Raise Lower PEDESTAL INSTALLATION (cont.)

Make sure the screws on the pedestal align with the holes in the retainers, then install 4 screws on each side to securely attach the appliance to the pedestal. NOTE: If the screws are not installed properly, noise and vibration may result. Move the appliance to the desired location.

Securely tighten all locknuts by hand. NOTE: Noise and vibration may result if locknuts are not tightened. Be sure to connect the appliances to all water, power, or gas lines and draining or venting connections before operation. If there is excessive vibration during the first operation after installation, slightly adjust the leveling feet. Locknut

Place the dryer on the pedestal. Make sure the front and back feet are in the correct positions. The dryer feet will ﬁt into the innermost positions as shown. For washer/combo For dryer 41This stacking kit includes:

Four(4)screws To ensure safe and secure installation, please observe the following instructions.

Make sure the surface of the washer is clean and dry. Remove paper backing from the tape on one of the stacking kit side brackets.

Fit the side bracket to the side of the washer top as shown in the above illustration. Firmly press the adhesive area of the bracket to the washer surface. Secure the side bracket to the washer with a screw on the back side of the bracket. Repeat steps 1 and 2 to attach the other side bracket.

STACKING KIT INSTALLATION

Tools Needed for Installation:

Phillips-headscrewdriver wWARNING

Incorrect installation can cause serious accidents.

The weight of the dryer and the height of installation make this stacking procedure too risky for one person. Two or more people are required when installing the stacking kit. There is a risk of serious back injury or other injuries.

Do not use the stacking kit with a gas dryer in potentially unstable conditions such as a mobile home. Failure to follow this warning can result in serious injury.

Place the washer on a solid, stable, level ﬂ oor capable of supporting the weight of both appliances. Failure to follow this warning can result in serious injury.

Do NOT stack the washer on top of the dryer. Failure to follow this warning can result in serious injury.

If appliances are already installed, disconnect them from all power, water, or gas lines and from draining or venting connections. Failure to do so can result in electrical shock, fire, explosion, or death. 42Description Steam Dryer Electrical Requirements* Please refer to the rating label regarding detailed information. Gas Requirements* NG: 4–10.5 inches WC LP: 8–13 inches WC (Gas Models only) Dimensions 27" (W) X 30" (D) X 38

/16" (H), 51" (D with door open)

68.6 cm (W) X 76.1 cm (D) X 98.3 cm (H), 129.7 cm (D with door open)

Net Weight 136.6 lbs. (62 kg) Drying Capacity - Normal Cycle IEC 7.4 cu.ft. (22.5 lbs./10.2 kg) - Steam Cycle IEC 7.4 cu.ft. (8 lbs./3.6 kg) *Refer to the rating plate on your dryer. The appearance and speciﬁcations listed in this guide may vary due to constant product improvements. Steam Dryer™ Models DLEX2801W, DLEX2801R, DLEX2801L, DLGX2802W, DLGX2802R, and DLGX2802L

Place the dryer on top of the washer by ﬁtting the dryer feet into the side brackets as illustrated. Avoid ﬁnger injuries; do not allow ﬁngers to be pinched between the washer and dryer. Slowly slide the dryer toward the back of the washer until the side bracket stoppers catch the dryer feet.

Insert the front rail between the bottom of the dryer and the top of the washer. Push the front rail toward the back of the washer until it comes in contact with the side rail stoppers. Install the two remaining screws to secure the front rail to the side rails. Washer Dryer 43Your LG Dryer will be will repaired or replaced, at LG’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period (“Warranty Period”) set forth below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories. THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you speciﬁ c legal rights and you may also have other rights that vary from state to state.THIS LIMITED WARRANTY DOES NOT APPLY TO:

Servicetripstoyourhometodeliver,pickup,and/orinstalltheproduct,instruct,orreplacehousefusesorcorrectwiring,or correction of unauthorized repairs.
Damagesoroperatingproblemsthatresultfrommisuse,abuse,operationoutsideenvironmentalspecicationsorcontrarytothe requirements of precautions in the Operating Guide, accident, vermin, ﬁ re, ﬂ ood, improper installation, acts of God, unauthorized modiﬁ cation or alteration, incorrect electrical current or voltage, or commercial use, or use for other than intended purpose. The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.CUSTOMER INTERACTIVE CENTER NUMBERS

TO CONTACT LG ELECTRONICS

BY MAIL: LG Customer Interactive Center P. O. Box 240007 201 James Record Road Huntsville, Alabama 35824 ATTN: CIC WARRANTY PERIOD: LABOR: One Year from the Date of Purchase. PARTS: One Year from the Date of Purchase. Replacement Units and Repair Parts may be new or remanufactured. Replacement Units and Repair Parts are warranted for the remaining portion of the original unit’s warranty period. Dryer drum 10 years limited warranty Parts only. Customer will be responsible for any labor or in-home service to replace defective parts. LG ELECTRONICS, INC.

LG DRYER LIMITED WARRANTY - USA

HOW SERVICE IS HANDLED: In-Home Service: Please retain dealer’s dated bill of sale or delivery ticket as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the service person at the time warranty service is provided. Please call 1-800-243-0000 and choose the appropriate option to locate your nearest LG Authorized Service Center. Or visit our Web site at: http://www.lgservice.com. Call 1-800-243-0000 (24 hours a day, 365 days per year), and select the appropriate option from the menu. Or visit our Web site at: http://www.lgservice.com. To obtain Customer Assistance, Product Information, or Dealer or Authorized Service Center location: Product Registration Information Model: Serial Number: Date of Purchase: The model and serial number can be located on the rating plate inside the front door. 44•Replacementproductsandpartsarewarrantedfortheremainingportionoftheoriginalwarrantyperiodorninety(90)days,whicheverisgreater.

Replacementproductsandpartsmaybeneworremanufactured.•LGAuthorizedServiceCenterwarrantiestheirrepairworkforthirty(30)days.LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE. This warranty gives you speciﬁc legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conﬂicts with provincial law without affecting the remainder of this warranty’s terms. LG ELECTRONICS CANADA, INC. LG DRYER LIMITED WARRANTY - Canada For complete warranty details and customer assistance, please call or visit our website: Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the menu, or visit our website at http://www.lg.ca All costs associated with the above excluded circumstances shall be borne by the consumer. Write your warranty information below: Product Registration Information:Model:Serial Number:Date of Purchase: WARRANTY: Should your LG Dryer (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail pur- chase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada. THIS LIMITED WARRANTY DOES NOT COVER: 1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or correction of wiring , or correction of unauthorized repairs/installation.2. Failure of the product to perform during power failures and interruptions or inadequate electrical service. 3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air. 4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner’s manual.

5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, ﬁre, ﬂoods, or acts of God.

6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or speciﬁed by LG Canada. 7. Damage or product failure caused by unauthorized modiﬁcation or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation. 8. Damage or Product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada. 9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the ﬁnish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.10. Damage or missing items to any display, open box, discounted, or refurbished Product. 11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation. 12. Increases in utility costs and additional utility expenses. Replacement of light bulbs, ﬁlters, or any consumable parts. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in ofﬁces or recreational facilities) or contrary to the instructions outlined in the Product owner’s manual.15. Costs associated with removal of the Product from your home for repairs. 16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner’s and installation manuals. 17. Accessories to the Product such as door bins, drawers, handles, shelves, etc
Also excluded are parts besides those that were originally included with the Product. WARRANTY PERIOD: (Note: If the original date of purchase can not be veried, the warranty will begin sixty (60) days from the date of manufacture).DryerOne (1) year from the date of original retail purchaseParts and Labor (internal/functional parts only)Dryer drum 10 years limited warrantyParts only. Customer will be responsible for any labor or in-home service to replace defective parts. 45inSTruccioneS Para la inSTalaciÓn IMPORTANTE: ¡Lea todas las instrucciones de in- stalacion completamente antes de instalar y hacer funcionar su secadora! p. 54
Escoja el lugar adecuado p. 54
Espacios de instalación p. 54
Instalaciones con la base pedestal o kit de apilado opcionales p. 55
Accesorios Opcionales p. 55
Nivelación de la secadora p. 56
Cómo invertir el sentido de la puerta p. 56
Cómo cambiar la ubicación del conducto de ventilación de la secadora p. 57
Conexión del conducto de ventilación de la secadora p. 58
, 59 Conexión de secadoras a gas p. 60
, 61 Cómo conectar las secadoras eléctricas p. 62
-66 Requisitos especiales para viviendas móviles o prefabricadas p. 67
Revisión de instalación ﬁ nal p. 67
Revison de ﬂ ujo (Sistema de evaluacion del estado del conducto) p. 68
Felicitaciones por su compra y bienvenido a la familia LG. Su nueva Secadora LG combina la tecnología de sensor de secado más avanzada con un funcionamiento sencillo y muy eﬁ ciente. Al seguir las instrucciones de funcionamiento y mantenimiento de este manual, su secadora le brindará muchos años de servicio ﬁ able. ¡GRACIAS! cÓmo uSar Clasiﬁ cación de cargas p. 6
9 Cómo cargar la secadora p. 69
Revise el ﬁ ltro de pelusa antes de cada uso p. 69
Características del panel de control p. 70
Guía de ciclos p. 71
La pantalla p. 72
Funcionamiento de la secadora p. 73
Botones de ajuste de ciclos p. 73
Botones de opción de ciclo p. 74
Funciones especiales p. 75
Programa personalizado p. 76
Funciones de vapor p. 76
-79 Guía de ciclo de vapor p. 79
inSTruccioneS del manTenimenTo Para el uSario Limpieza regular p. 80
reSoluciÓn de ProblemaS Antes de llamar a mantenimiento p. 81
–84 acceSoriS oPcionaleS/ eSPeciFicacioneS Accesorios opcionales p. 85
Instalación del pedestal p. 86
, 87 Instalación del kit de apilado p. 88
, 89 Dimensiones y especiﬁ caciones clave p. 89
inSTruccioneS imPorTanTe de Seguridad Precauciones básicas de seguridad p. 47
Qué hacer si huele gas p. 48
Ley ejecutiva para la seguridad del agua potable y los toxicos de California (California Safe Drinking Water and Toxic Enforcement Act) p. 48
Instrucciones de conexión a tierra p. 49
Instrucciones importante para la instalación p. 49
,50 Instrucciones de seguridad para funciones de vapor p. 50
Instrucciones importante para conectar la electricidad p. 51
PieZaS Y caracTerÍSTicaS Características especiales p. 52
Piezas y componentes clave p. 53
garanTÍa 46Su Seguridad y la de los demás son de suma importancia. En este manual y en su electrodoméstico figuran muchos mensajes importantes de seguridad. Lea y cumpla siempre con todos los mensajes de seguridad.Éste es el símbolo de alerta de seguridad.El mismo alerta sobre potenciales riesgos de muerte o heridas tanto para usted como para otras personas.Todos los mensajes de seguridad estarán a continuación del símbolo de alerta de seguridad y con la palabra PELIGRO o ADVERTENCIA. Estas palabras significan: wPELIGRO: Corre riesgo de muerte o de sufrir heridas serias si no sigue las instrucciones inmediatamente. wADVERTENCIA: Corre riesgo de muerte o de sufrir heridas serias si no sigue las instrucciones.Todos los mensajes de seguridad le indicarán cuál es el riesgo potencial, le dirán cómo reducir las posibilidades de sufrir heridas y qué puede suceder si no se siguen las instrucciones. wADVERTENCIA Por su seguridad, debe seguir la información indicada en este manual para minimizar el riesgo de incendio o explosión, descarga eléctrica, o para prevenir daños a la propiedad, lesiones personales o muerte. LEA TODAS LA INSTRUCCIONES ANTES DE USAR p. 90

Manual assistant

Waiting for your message

Product information

Brand : LG

Model : SteamDryer DLGX2802R

Category : Tumble drier
