USER MANUAL SyncroPro 7790 BRAUN

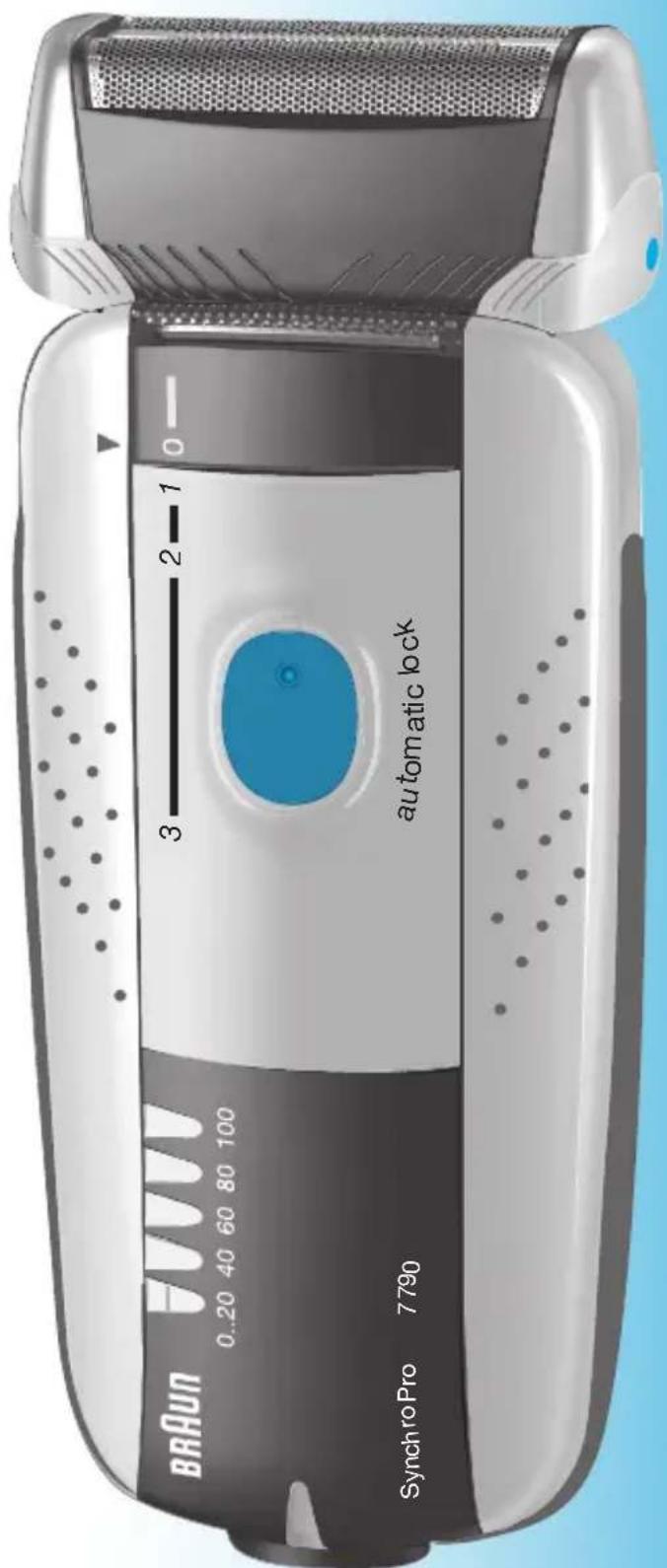

7790_S 4-62 Seite 7 Freitag, 28. April 2006 8:35 088 Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun shaver. Braun Syncro 7790 and 7785 are supplied with a Braun Clean&Renew™ (please see separate use instructions). «Smart Logic» The « «Smart Logic» » electronics inside your shaver analyzes your personal shaving patterns, and then adapts the battery care to ensure optimal performance. Warning Keep the appliance dry. Your shaver is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock. Description 1 Foil protection cap 7 Charging lights (green) 2 Shaver foil 8 Low-charge light (red) 3 Cutter block 9 Pilot light 4 Foil release button 10 Shaver socket 5 Long hair trimmer 11 Special cord set 6 Switch Charging the shaver

First charging: Using the special cord set, connect the shaver to an electrical outlet with the switch on position «0» and charge it for at least 4 hours (plug might get warm). The «Smart Logic» inside your shaver automatically monitors the condition of the batteries as well as the charging/dis- charging processes and adapts them to your personal shaving patterns.

From now on, the «Smart Logic» inside your shaver will ensure optimal care of the battery. If, for instance, it is your habit to never let the batteries get low, the «Smart Logic» will recognize this, look for a pause when you are likely to not use the shaver and completely discharge and then recharge your shaver to recondition the batteries (every six months at the most, and only when necessary).

A full charge will give up to 50 minutes of cordless shaving time depending on your beard growth. However, the maximum battery capacity will only be reached after several charging/discharging cycles.

Best environmental temperature range for charging is 15°C to 35°C.

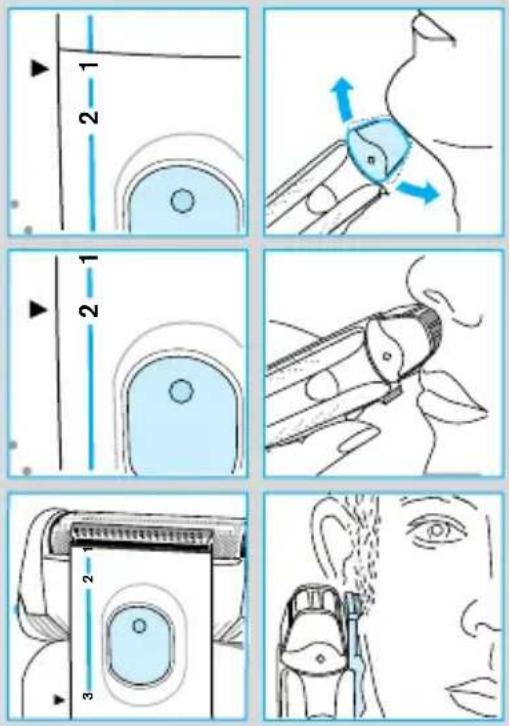

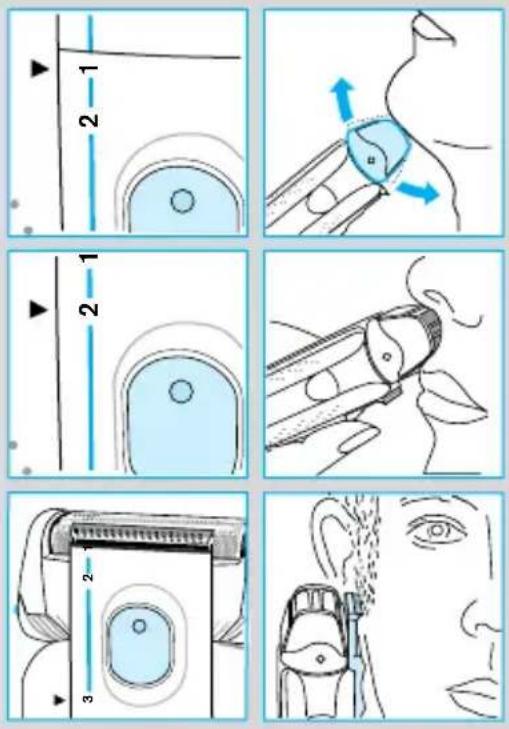

Do not expose the shaver to temperatures of more than 50°C for longer periods of time. Indicator lights The pilot light shows that the shaver is connected to the mains. 7790: When the rechargeable battery is fully charged, all five charging lights illuminate (20% per light), provided the shaver is connected to the mains or switched on. 7785/7765: The green charging light shows that the shaver is being charged. When the rechargeable battery is fully charged, the charging light flashes or goes off. If later on, the charging light comes on again, this indicates that the shaver is being recharged to maintain its full capacity. 7790/7785/7765: The red low-charge light flashes when the battery capacity has dropped below 20%, provided the shaver is switched on. The remaining capacity will then be sufficient for 2 to 3 shaves. Shaving Switch positions 0 = Off (switch is locked) Press and push up the switch to operate the shaver: 1 = Shaving with the pivoting head The pivoting cutting system automatically adjusts to every contour of your face 2 = Shaving with the pivoting head locked at an angle (to permit shaving in difficult areas, e.g. under the nose) 3 = The long hair trimmer is activated (for trimming sideburns, moustache and beard). Shaving with the cord If the rechargeable batteries are discharged, you may also shave with the shaver connected to an electrical outlets via the special cord set. (If the shaver does not run immediately, charge it with the switch on position «0» for approx. 1 minute.)

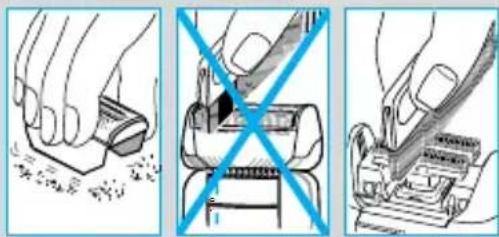

7790_S 4-62 Seite 9 Freitag, 28. April 2006 8:35 0810 Keeping your shaver in top shape Automated cleaning The Braun Clean&Renew™ (with 7790 and 7785 models only) automatically takes care of all cleaning and lubrication needs of your shaver. Please refer to separate use instructions. Manual cleaning For easy cleaning after each shave, switch the shaver off. Press the release buttons to lift the shaver foil (do not remove the foil completely). Switch on the shaver for approx. 5-10 seconds so that the shaved stubbles can fall out. For a thorough cleaning (weekly), remove the shaver foil and tap it out on a flat surface. Using the brush, clean the cutter block and the inner area of the pivoting head. About every four weeks, clean the cutter block with Braun cleaning agents. If your skin is very dry and you notice a reduced operation time of the shaver, apply a drop of light machine oil onto the shaver foil. Tips for the perfect shave

We recommend that you shave before washing, as the skin tends to be slightly swollen after washing.

Hold the shaver at right angles (90°) to the skin.

Stretch your skin and shave against the direction of beard growth.

• To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn. oil

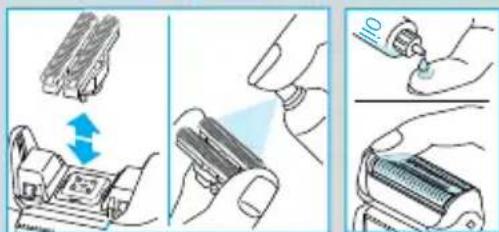

7790_S 4-62 Seite 10 Freitag, 28. April 2006 8:35 0811 Replacing the shaving parts To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation. (Shaver foil and cutter block: 7000 series) Environmental notice This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Subject to change without notice. This product conforms to the European Directives EMC 89/336/EEC and Low Voltage 73/23/EEC. For electric specifications, see printing on the special cord set.
