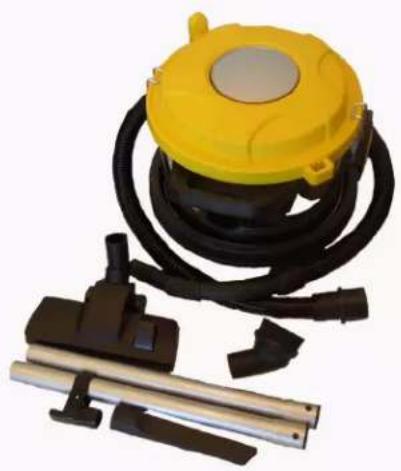

93282 - Vacuum Cleaner TORNADO - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Tornado
Model	93282 (TV2 SS 93282)
Usage	Commercial only
Motor power	1200 W / 10 A
Voltage / Frequency	120 V / 60 Hz
Dimensions (L x W x H)	415 x 373 x 320 mm
Net weight	7.1 kg
Dust bag capacity	7.5 liters
Hose length	2.5 m
Power cord length	12.2 m
Airflow	30-33 l/s (63-70 cfm)
Maximum suction	1829-2040 mm H₂O
Sound pressure level	69 dB(A)
Included accessories	Hose, extension tube, floor tool, crevice tool, dusting brush
Filter	HEPA 12 filter (optional)
Plastic tank warranty	10 years
Parts warranty	2 years
Labor warranty	1 year
Grounding instructions	Yes - grounded plug and outlet
Routine maintenance	Regular bag replacement and filter cleaning
Repairability	Repairs only by a Tornado authorized technician

Frequently Asked Questions - 93282 TORNADO

How to assemble the Tornado 93282 vacuum cleaner?

Insert the hose into the front inlet and turn clockwise until it locks. Adjust the handle onto the extension tube, then the extension tube onto the floor tool. Make sure the appliance is unplugged before assembly.

How to replace the dust bag?

Lift the top latches to open the lid. Remove the full bag and discard it. Install a new bag and close the lid, locking the latches. Use only genuine Tornado bags.

Why is suction weak?

Possible causes are: full dust bag, clogged hose or tube, or dirty filter. Check these items and clean or replace if necessary. If the problem persists, contact an authorized service agent.

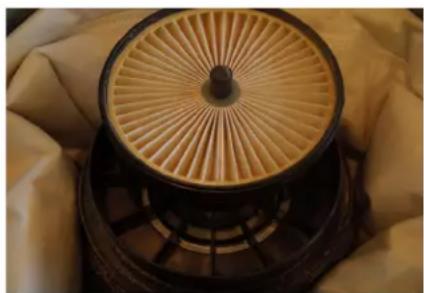

How to clean or replace the filter?

Unplug the appliance and open the lid. Remove the filter and install a new filter. A clean filter is essential to maintain performance and prevent overheating. Use genuine Tornado filters.

Can I use the vacuum on hard floors?

Yes. The floor tool has a pedal: press it down for hard floors, lift it up for carpets. The vacuum is designed for both hard surfaces and carpets.

The vacuum does not start, what should I do?

Check that the appliance is plugged in and the outlet works. Inspect the fuse, circuit breaker, power cord, and plug. If everything seems correct but the motor does not run, contact an authorized technician.

Can I use an extension cord?

Yes, but the total length (cord + extension) must not exceed 30 m and the gauge must be at least 2.5 mm² (13 AWG). Do not use a coiled extension cord to avoid overheating.

What is the warranty for the Tornado 93282 vacuum cleaner?

The warranty is limited: 10 years on the plastic tank, 2 years on parts, 1 year on labor. Batteries (if applicable) are warranted for 1 year pro rata. The warranty does not cover normal wear, abuse, or modifications.

Can I vacuum liquids with this vacuum?

No. This vacuum is designed only for dry use (dust, dirt). Never vacuum liquids, flammable materials, or hot ashes. This could damage the appliance and create a risk of electric shock.

How to maintain the power cord?

Inspect the cord regularly for damage. Do not pull on the cord to unplug, grasp the plug. Do not close a door on the cord and avoid sharp edges. If the cord is damaged, have it replaced by an authorized technician.

USER MANUAL 93282 TORNADO

Operations & Maintenance Manual

For Commercial Use Only

Yellow and black vacuum cleaner with attached circuit board (no text or symbols visible)

TV2 SS DRY CANISTER VACUUM

MODEL NO: 93282/98283

Long Term Buyer Protection Limited Warranty

Tornado Industries, LLC. (Tornado) warrants to the end/user customer that the Tornado product(s) will be free from defects in material and workmanship for the duration(s) described below. This limited warranty DOES NOT cover machines and/or components subject to normal wear and tear, damage that occurs in shipping, failures resulting from modification, accident, unsuitable operating environment, misuse, abuse, neglect, or improper maintenance by you. For full details, contact your Authorized Tornado Distributor, Service Center, or the Tornado Technical Service Department. Tornado sales and service representatives are not authorized to waive or alter the terms of this warranty, or to increase the obligations of Tornado under the warranty.

10 Years\* Plastic water tanks and Rotationally-molded bodies

2 Years\* Parts on all Tornado cleaning equipment

1 Year\* Labor on all Tornado cleaning equipment

1 Year\* Warranty on batteries, one year prorated

All battery warranties are handled directly by the battery manufacturer, on a one year prorated basis

Terms subject to change without notice

1. Except all Windshears™ Blowers, Storm, TV 2, TV2SS, Side and Downdraft, Insulation Blowers, CV 30, CV 38, CK14/1 PRO, CK 14/2 PRO, SWM 31/9, CK LW13/1, CV 38/48 Dual, PV6, PV10, PV6 ROAM, Wall Mount Vacuum and all chargers are warranted for 1 (one) year for both parts and labor.
2. All non-wear item parts purchased after warranty expiration are warranted for 90 days.
3. Warranty starts from the date of sale to the consumer or, at Tornado's discretion, 6 months after the dealer purchased the unit from Tornado, whichever comes first.
4. The EB 30 is warranted for a period of 90 days for both parts and labor.
5. The warranty on engines used on propane powered equipment is limited to motor manufacturer's warranty.
6. Ride-on Scrubbers are warranted for 24 months, parts, 6 months labor or 1,000 hours, whichever occurs first.

Note: Tornado, The Latest Dirt, Floorkeeper, Carpetkeeper, Carpetrinser, Carpetrinser/Dryer, Headmaster, Taskforce, PAC-VAC, T-Lite, Glazer, Windshear, Max-Vac and Trot-Mop are trademarks of Tornado Industries

Website: www.tornadovac.com

Phone 1-800-VACUUMS

Fax [phone]

Address 3101 WICHITA COURT

FORT WORTH, TX 76140

1-800-VACUUMS 89 Years of Cleaning Innovation A Tacony Company

Form F2662.©2016. All rights reserved

TIONY

NOTES

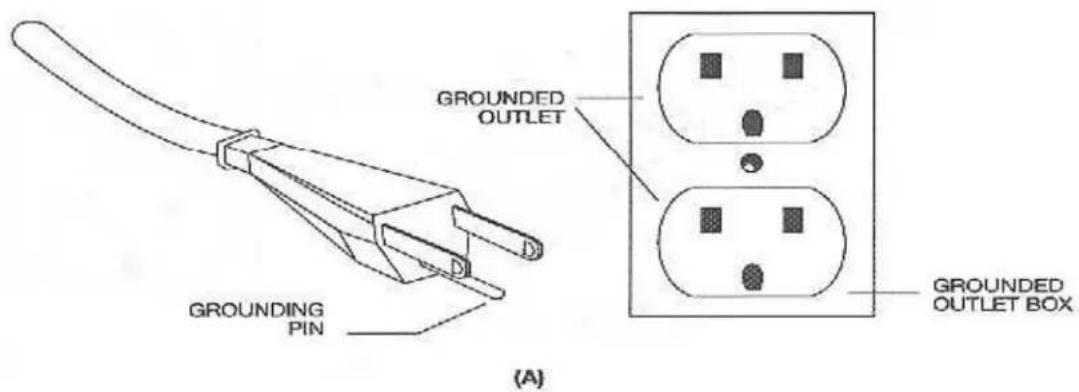

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in sketch A.

Your new Tornado unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt / invoice. If you experience any problems with your unit during the warranty period, the original receipt / invoice will act as proof of purchase. Contact Tornado for any warranty inquiries.

IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT

Read and understand this owner's manual and all labels on the unit before operating. Safety is a combination of common sense, staying alert and knowing how your unit works. Use this unit only as described in this manual. Use only manufacturer's recommended attachments. To reduce the risk of personal injury or damage to your unit use only Tornado recommended accessories.

This machine is intended for commercial use only. It is designed exclusively to pick up dirt, dry debris and dust in an indoor environment and is not constructed for any other use. The pick up of any type of fluid or dangerous / toxic materials is prohibited. Use only recommended accessories.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

When using an electrical appliance, basic precautions should always be followed, including the following:

SAVE THESE INSTRUCTIONS.

- WARNING! To reduce the risk of fire, electric shock, or injury:

- Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.

- WARNING: ELECTRIC SHOCK COULD OCCUR IF USED OUTDOORS OR ON WET SURFACES.

- Do not allow to be used as a toy. Close attention is necessary when used by or near children.

- Use only as described in this manual. Use only manufacturer's recommended attachments.

- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

- Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

- Do not handle plug or appliance with wet hands.

- Turn off all controls before unplugging.

- Do not put any object into openings. Do not use with any opening blocked, keep free of dust, lint, hair, and anything that may reduce air flow.

- Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

- Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

- Do not use without vacuum bag and / or filters in place.

- Use extra care when cleaning stairs.

- Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.

- Do not attempt to service the unit while appliance is plugged in.

- For grounded models, connect to a properly grounded outlet only. See Grounding Instructions.

- This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.

- Keep children and unauthorized persons away from the machine when in use.

General information

When using electrical equipment basic safety precautions should be followed including the following.

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS CAREFULLY BEFORE USE.

• This appliance is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops, offices, rental businesses and other than normal housekeeping purposes.
• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
• Keep children and unauthorized persons away from the machine when in use.
  • Children should be supervised to ensure that they do not play with the appliance.
• Before using the appliance, check that the mains power voltage corresponds with the voltage shown on the rating plate.
• All parts are to be positioned as indicated in the instructions before using the machine.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without vacuum bags and/or filters in place.
• Do not operate the machine if it malfunctions or is damaged in any way. Contact an authorised service agent for repair or adjustment.
• Do not operate switches or touch the mains plug with wet hands as this may cause electric shock.
• When unplugging pull the plug, not the supply cord.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull around sharp edges or corners.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
• Keep cord away from heated surfaces.
• Do not use where hazardous dust is present.
• Do not use in an explosive atmosphere.
• Do not pick up oil or other flammable material.
• Do not use to pick up moisture or any liquids.

• Do not leave the machine connected to the electricity supply when not in use; always remove the plug from the socket-outlet.

• Switch off the machine before removing the plug.

• Keep the power supply cord clear of moving parts. During operation hazard may occur when running the machine over the power supply cord.
• The power supply cord must be regularly inspected for signs of damage. If the power supply cord is damaged, it shall only be replaced by the manufacturer, its service agent or a similar qualified person in order to avoid a hazard.
• Only replace the supply cord with the type specified in the instruction manual.
• Do not operate the machine with a damaged supply cord or plug, or after the machine malfunctions or is damaged in any way. Contact an authorised Service Agent for repair or adjustment.
• The plug of the power supply cord must be removed from the socket-outlet before commencing cleaning of the machine or undertaking maintenance operations.
• Do not kink or twist the power cord.
• Take care when using a machine near the top of stairs to avoid overbalancing.

Guidelines for the operator

WARNING

Operators must be fully trained in the use of the machine in accordance with these instructions, able to perform user maintenance and the correct selection of accessories.

• Operators should be physically capable to manoeuvre, transport and operate the machine.
• Operators should be able to recognise unusual operation of the machine and report any problems.
• Only use the machine on firm level surfaces.
• Wear suitable footwear to avoid slipping.
• Wear suitable clothing to keep dry and warm.
• Where possible implement job rotation and adequate rest periods to avoid continuous use of the same muscles.
• Do not leave machine running unattended
• Do not smoke when using the machine.
• Do not put any objects into openings. Do not use with any opening blocked: keep free of dust, debris, hair, or anything that may reduce air flow.

CAUTION - This machine is for indoor dry use only and should not be used or stored outdoors or in wet conditions.

CAUTION - If it is suspected that there is hazardous dust or flammable materials stop cleaning the area immediately and consult your superior.

WARNING Only use accessories and spare parts provided with the machine or those approved by the manufacturer. The use of other accessories may impair the safety of the machine.

- Ensure the machine is switched off before adding or changing accessories.

Transporting the machine

CAUTION – Incorrect lifting techniques may result in personal injury, where applicable do not lift large and heavy machines without assistance. We advise that the manual handling regulations are followed.

Please refer to the technical table for details on weight of machine.

When transporting the machine ensure that all components, tanks and removable parts are securely fastened, and that the supply cord and plug are not trailing. Detach hose and wand from machine where applicable.

Take extreme care when moving the machine up or down steps or stairs.

Preparing for use

Electrical connection

Before connecting the machine to the power supply, check that your supply voltage corresponds with that marked on the rating label.

The power supply cord plus any extension leads should not exceed 100 ft. (30 m) in total, otherwise you may experience problems starting up the machine. The cross-section of any extension cable wiring must be at least AWG 13 (2,5 mm ^4 ).

Should an extension cord be used, ensure cord rating is adequate for the equipment. Do not use extension cord in coiled condition as this could result in overheating of the cord.

IMPORTANT - If the supply cord is damaged, it must only be replaced by a special cord available from the manufacturer or an authorised service agent.

Symbols & Markings

WARNING

How to assemble the vacuum

WARNING - Before undertaking assembly or changing of accessories/tools switch off machine and unplug from the electricity supply.

• Insert the hose into the socket on the front of the vacuum cleaner (Fig 1).
• Twist in a clockwise direction until locked into position.

Close-up of a yellow industrial machine component with black and white tubing (no visible text or symbols)

Fig 1

Fitting the handle, wand and floor tool

- Fit the handle to the wand connection (Fig 2).

Close-up of a curved black and silver object with a small dot on the side (no text or symbols visible)

Fig 2

• Fit the wand to the floor tool (Fig 3)

Close-up of a black mechanical lever handle with a metallic blade (no text or symbols visible)

Fig 3

Controls

- The on off switch is positioned at the rear of the machine (Fig 4).

Close-up of a black ergonomic device with yellow buttons and a yellow handle, no visible text or symbols.

Fig 4

• To turn the machine on press the button.
• To switch off the machine press the button again
  * When operating the unit in a noise sensitive area, the unit may be adjusted with the knob on the right rear of the unit (Fig 4). This will also decrease the suction power.

Operation

Starting the machine

• Ensure cable is fully extended before use.
• Ensure a dust bag is fitted before use.
• Press the on/off button to turn the vacuum cleaner on.
• Suction can be adjusted by sliding the airflow adjuster located on the hose handle (Fig 5).

Close-up of a hand holding a black cable with a connector (no text or symbols visible)

Fig 5

• For maximum suction keep the adjuster closed.
• After you finish cleaning, turn the vacuum cleaner off by pressing the ON/OFF button.
• Only then unplug from the power socket.

Using the floor tool

- The floor tool can be used for cleaning carpets and hard floors. The floor heads pedal should be down when cleaning hard floors (Fig 6) and in the up position when cleaning carpets (Fig 7).

Black plastic electronic device with a cylindrical port and handle, isolated on a plain background (no text or symbols visible)

Fig 6

Black plastic electronic component with a cylindrical top and two protruding pins (no visible text or symbols)

Fig 7

Storage

• Always unplug the machine after use.
• After use check the bag. If full, replace the bag.
- Wind the supply cord ensuring that the plug is not trailing on the floor.
- Store the machine in a dry indoor area only.

Maintenance

WARNING - Before undertaking maintenance operations or adjustments switch off machine and unplug from the electricity supply.

The machine requires minimum maintenance apart from the following checks by the operator.

• Supply cord - Regularly inspect sheath, plug and cord anchorage for damage or loose connection.
• Body of the vacuum – Clean with a damp cloth.
• Vacuum filter – Check the vacuum filters, clean and replace as appropriate.
• Hose, wand and vacuum accessories – Check and remove any debris or lint build-up from the head.

IMPORTANT – All other servicing and repairs should only be performed by a Tornado Industries engineer or Authorised Service Agent.

IMPORTANT – Should the machine fail to operate please refer to the fault diagnosis section in the back of the instruction manual. If the problem / remedy are not listed please contact Tornado Industries Customer Service Department.

Replacing the dust bag

• Lift the top latches on the top of the machine to release and open the top cover.
  • Take out the dust bag and dispose of the full bag.
• Position new dust bag.
• Replace the top cover by fixing in position and securing the latches.
• The vacuum is now ready for operation.

Maintaining and replacing the filter

• After removing the top of the unit, remove the filter (Fig 8). Install new filter.

Close-up of a circular mechanical component with radial grooves, placed on a textured surface (no text or symbols visible)

Fig 8

- It is very important to keep the filters clean to receive maximum performance from the vacuum. Not cleaning and replacing your filters regularly can reduce the suction power and cause overheating.

After Sales Service

Tornado machines are high quality machines that have been tested for safety by authorised technicians. It is always apparent that after longer working periods, electrical and mechanical components will show signs of wear and tear or ageing.

Under extreme or specialised conditions and/or insufficient maintenance, shorter maintenance intervals are necessary. Use only original Tornado spare parts. Use of other spare parts will invalidate all warranty and liability claims.

Should you require after sales service please contact the supplier from whom you purchased the machine, who will arrange service. Repairs and servicing of Tornado products should only be performed by trained staff. Improper repairs can cause considerable dangers to the user.

Waste Electrical & Electronic Equipment (WEEE)

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a solid black rectangle below (no readable text or symbols)

Do not dispose of this device with unsorted waste. Improper disposal may be harmful to the environment and human health. Please refer to your local waste authority for information on return and collection systems in your area.

Technical specification

ModelCode		TV2 SS93282	TV2 SS93283
Voltage AC(~) / Frequency	V / Hz 120/60 230/50/60
Vac motor rating W/A 1200/10 1200/5.2
Airflow l/sec/cfm 30-33/63-70 30-33/63-70
Vacuum mm/wg/in water lift 1829-2040/72-80 1829-2040/72-80
Dust bag capacity litres/gallons 7.5/2 7.5/2
Hose length	m/ft	2.5/8 2.5/8
Cable length	m/ft	12.2/40	12.2/40
Specification of power cord		18/3	18/3
Size (L x W x H)	mm/in 415x373x320/16x15x13 415x373x320/16x15x13
Sound pressure level	dB(A)	69	69
Weight empty	kg/lbs.	7.1/21	7.1/21

Accessories

Accessory	Part No.	Description
CleanBreeze Filter Bag	90025	Pack of 10 bags
Hose	90028	Hose
Two Piece Wand	90027	Wand
Floor Tool	90029	For use on hard and carpeted floors
Crevice Tool	90030	For use in corners, cracks, etc.
Dusting Brush	90031	For use on upholstery
HEPA 12 Filter	90030	HEPA 12 Filter
Cloth Bag	90035	Reusable Bag

IMPORTANT: Genuine accessories are only available from authorised Service Agents or the Tornado Customer Service Department.

Fault Diagnosis

The following simple checks may be performed by the operator.

Problem Reason Remedy
Machine not working Lack of voltage/electrical supply. Check fuse *		, supply cord, plug and socket outlet.
Loss of suction Bag full	Blocked hose or wandMotor not working	Replace bagRemove obstructionContact Service Agent
Motor is not running Broken switch	Defective power cordDefective motor	Contact Service AgentContact Service AgentContact Service Agent

- If the fuse blows several times, the machine should be checked by an authorised Service Agent.

Warranty Registration Form

Please provide additional information on

Tornado equipment: (Check choices below)

Automatic Scrubbers Sweepers
__Propane Floor Machines __Rotary Floor Machine
High Speed Burnishers Carpet Vacuums
_Carpet Extractors & Spotters _Wet/Dry Vacs
_ Steam Cleaners _Jumbo Vacs
__Ride-On Equipment __Pressure Washers

See complete product info at www.tornadovac.com

Selling Dealer:(Required)

Please Print Clearly

Company/Institution
Contact Name	Title
Address	City/State/Zip Code
Phone	Fax
Date of Purchase	Email

See white metal plate or sticker on unit for this information.

MACHINE TYPE/MODEL NUMBER: MACHINE SERIAL NUMBER:
1. 1.
2. 2.
3. 3.
4. 4.

Facility Description (please circle all that apply)

1. School 9. Hospital 17. U.S. Govt.
2. Retail Store 10. Nursing Home 18. Other Govt.
3. Restaurant 11. Religious Institution 19. Auto Service
4. Office Building 12. Airport 20. Airport
5. Contract Cleaning 13. Warehouse 21. Non-Profit
6. Light Manufacturing 14. Apartment/Condo 22. Other (specify)
7. Heavy Manufacturing 15. Warehouse
8. College/University 16. Supermarket

How did you first learn about Tornado cleaning and maintenance equipment?		In square feet (meters)
		Total Hard Floor Area	Total Carpeted Area Square feet (square meters)
○ Contacted by local dealer○ Previous experience with Tornado products○ Reputation/ Recommendation○ Advertising○ Direct mail○ Internet○ Other	○ 0-10,000 (0-930)○ 10-50,000 (930-4,650)○ 50-250,000 (4,650-23,250)○ Over 250,000 (over 23,260)	○ 0-10,000 (0-930)○ 10-50,000 (930-4,650)○ 50-250,000 (4,650-23,250)○ Over 250,000 (over 23,260)

Damage or defect arising from abuse, neglect or other misuse is excluded from this warranty. Other items may or may not apply based on your specific machine. If any defect occurs, the warranty is voided if service is attempted by non-Authorized Tornado Service Centers.

Yellow and black vacuum cleaner with attached circuit board (no text or symbols visible)

ASPIRATEUR TRAINEAU POUR DÉTRITUS SECS TV2 SS NUMÉRO DE MODÈLE : 93282/98283

Close-up of a yellow and black mechanical component with a coiled pipe (no visible text or symbols)

Fig 1

Close-up of a curved black object with a metallic edge, possibly a tool or device (no visible text or symbols)

Fig 2

Close-up of a black mechanical lever handle with a metallic blade (no text or symbols visible)

Fig 3

Commandes

Close-up of a black VR headset with yellow buttons and a yellow cable, no visible text or symbols

Fig 4

Close-up of a hand holding a black cable with a small connector (no visible text or symbols)

Fig 5

Black plastic object with a small protrusion on top, placed on a plain surface (no text or symbols visible)

Fig 6

Black plastic electronic component with a small protrusion on top, placed on a plain surface (no text or symbols visible)

Fig 7

Rangement

Close-up of a circular mechanical component with radial grooves, resting on fabric (no visible text or symbols)

Fig
8

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Yellow and black vacuum cleaner with attached circuit board (no text or symbols visible)

ASPIRADORA EN SECO CON DEPÓSITO TV2 SS

MODELO N.°: 93282/98283

Nota: Tornado, The Latest Dirt, Floorkeeper,

Carpetkeeper, Carpetrinser, Carpetrinser/Dryer,

Headmaster, Taskforce, PAC-VAC, T-Lite, Glazer,

Windshear, Max-Vac y Trot-Mop son marcas registradas de Tornado Industries.

Sitio web: www.tornadovac.com

Close-up of a yellow industrial water purifier with black components and a black pipe fitting (no visible text or symbols)

Fig. 1

Close-up of a curved black object with metallic bands, possibly a tool or device (no visible text or symbols)

Fig. 2

Close-up of a black mechanical lever handle with a metallic blade (no text or symbols visible)

Fig. 3

Controles

Close-up of a black VR headset with yellow buttons and a yellow cable, no visible text or symbols

Fig. 4

Close-up of a hand holding a black cable with a small connector (no text or symbols visible)

Fig. 5

Black plastic electronic component with a small protrusion on top, placed on a plain surface (no text or symbols visible)

Fig. 6

Black plastic electronic component with two ports, no visible text or symbols

Fig. 7

Almacenamiento

Close-up of a metallic fan or vent with radial blades, placed on fabric (no text or symbols visible)

Fig. 8
