ARTK75 - Food Warmers ARDES - Free user manual and instructions

Product Type	Hot plate (heating cushion)
Brand	Ardes
Model	ARTK75
Power supply	220-240 V ~ 50 Hz
Charge indicator	Indicator light (on some models)
Outer material	Removable cover
Maximum temperature	Reached approximately 20 minutes after unplugging
Safety	Do not use without cover; supervise during charging
Cleaning the device	Slightly damp cloth, no abrasive products
Cleaning the cover	Follow instructions on the internal label
Immersion	Never immerse in water
Intended use	Household use only
Charging time	Variable depending on desired temperature
Warranty	2 years from date of purchase
After-sales service	Contact the retailer or an approved service center
Disposal	Do not dispose of with household waste; selective collection for WEEE

Frequently Asked Questions - ARTK75 ARDES

How to use the Ardes ARTK75 hot plate?

Plug the connector into the device, then plug into the outlet. Allow sufficient heating time. Unplug and use with the provided cover. The maximum temperature is reached approximately 20 minutes after unplugging.

Can I use the device without the cover?

No, it is mandatory to use the device with the provided cover to avoid risk of burns. The manual clearly states DO NOT USE WITHOUT COVER.

Can I fall asleep with the hot plate?

It is not recommended to fall asleep with the device on, as heat perception decreases during sleep, which may lead to burns. Avoid using it in bed if you are likely to fall asleep.

How to clean the hot plate?

Unplug the device and let it cool. Clean with a slightly damp cloth, without abrasive products or solvents. Never immerse the device in water. The cover can be washed according to the instructions on its label.

What should I do if the power cord is damaged?

Contact an after-sales service authorized by the manufacturer. Do not use the device until the cord is replaced.

The device emits an unusual odor during first use, is this normal?

Yes, a slight odor may occur during initial uses due to the insulating material heating up. It disappears after a few heating cycles. Ventilate the room.

What is the warranty period?

The warranty is 2 years from the date of purchase, upon presentation of the receipt. It covers manufacturing defects.

Can I use the device on a flammable surface?

No, during charging, place the device on a flat and stable surface resistant to over 60°C. Avoid beds, sofas, pillows, carpets, or any other combustible material.

Is the device suitable for children or sensitive persons?

Children over 8 years can use it under supervision. Persons with reduced capabilities or insensitive to heat must be supervised. Do not use for infants or vulnerable persons.

How to dispose of the device at the end of its life?

Do not throw the device into household waste. In accordance with the WEEE directive, take it to a selective collection center for electrical and electronic waste.

USER MANUAL ARTK75 ARDES

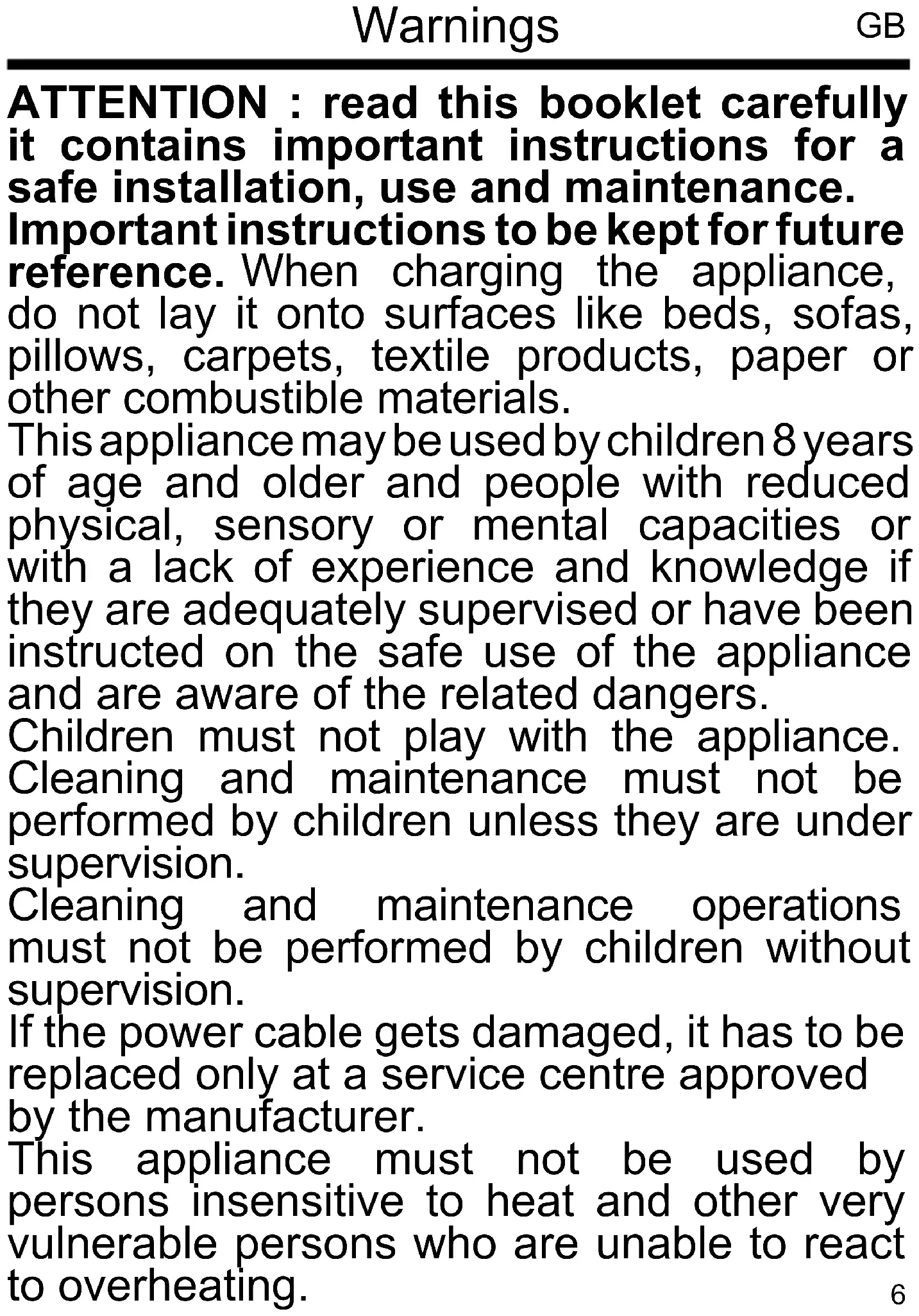

ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.

Important instructions to be kept for future reference. When charging the appliance, do not lay it onto surfaces like beds, sofas, pillows, carpets, textile products, paper or other combustible materials.

This appliance may be used by children 8 years of age and older and people with reduced physical, sensory or mental capacities or with a lack of experience and knowledge if they are adequately supervised or have been instructed on the safe use of the appliance and are aware of the related dangers.

Children must not play with the appliance. Cleaning and maintenance must not be performed by children unless they are under supervision.

Cleaning and maintenance operations must not be performed by children without supervision.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.

This appliance must not be used by persons insensitive to heat and other very vulnerable persons who are unable to react to overheating.

Do not falling asleep while the appliance is working.

DO NOT USE WITHOUT COVER.

Keep handy the guarantee, receipt of payment and these instructions for future use and reference.

After removing the packaging, check the appliance for any signs of damage.

In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging with in the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.

Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons.

Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

After charging, disconnect the power cord from both the power outlet and the unit.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

- Never touch the appliance with wet or humid hands.

- Do not leave the appliance exposed to weathering (rain, sunlight).

- Do not subject it to rough handling.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

The power cable should be extended to its full lenght to avoid over heating.

For safety reasons, the appliance should never be opened.

The appliance has been designed and manufactured to operate in the home. Any other use is considered inappropriate and dangerous.

When charging the appliance, do not lay it onto surfaces that do not resist temperatures higher than 60^ C.

Place the appliance on a flat and stable surface when charging it.

Do not use the appliance on ill persons, infants or persons who are insensitive to heat.

Do not use the appliance when it is connected to its power source.

Do not use it to warm animals.

Do not use this appliance near to a bathtub, a shower stall, or a swimming pool.

Do not use the appliance in presence of flammable substances (petrol, paints, etc.).

Do not exert pressure on the appliance, do not squeeze it, do not place it underneath the weight of your body or underneath part of it.

This appliance is meant to be used for medical purposes in hospitals.

During the first use you can smell a slight odor, due to the first reaction of the warmed insulating material, which dissipates when it gets hot.

Electrical safety of this appliance is assured only if it has been connected to an effective earthing system.

IMPORTANT NOTE: the perception of heat varies from person to person. If the temperature is too high for you after the charge period, do not use the appliance and allow it to cool; for successive use, lower the charging temperature by disconnecting the power cable from the socket before the LED turns off: the shorter the charging time, the lower the temperature.

DO NOT USE WITHOUT COVER

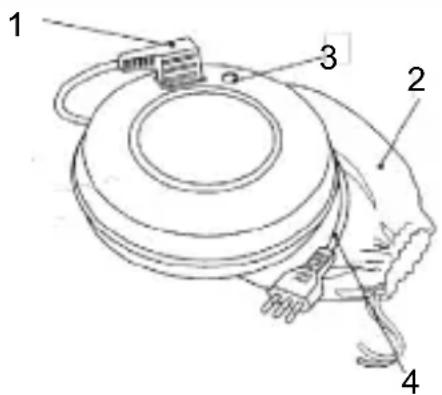

Technical informations

GB

1 - Connector socket
2 - Bag
3 - Signal lamp
(only on articles AR071 - AR073)
4 - Power cable

Technical data indicated on the appliance.

Technical diagram of a device with numbered components, likely a sensor or sensor assembly

Instructions for use

GB

Before using the device for the first time, operate it 1-2 times (following the below instructions) and place it in a well-ventilated area to eliminate any odours and fumes due to possible residual traces from production on the internal parts of the device.

Plug the connector into the appliance, plug the cable into the wall socket and leave the appliance connected only for few minutes to charge it (see data plate).

Use only the cable supplied with the appliance.

During charging, the appliance must be placed flat with the connector on top.

Monitor the device during the charging period.

Disconnect the warmer from the wall socket and place it in the bag supplied with it.

The highest temperature will be reached about 20 minutes after the appliance has been disconnected from the wall socket.

In order to recharge the appliance, just plug it into the wall socket again after it has cooled down completely.

The heat perception may decrease if the user falls asleep.

For this reason, to avoid burns:

- do not use the appliance if the user might fall asleep

- do not lie down with the appliance in the bed

Maintenance

GB

Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

Frequently examine the appliance to make sure there are no signs of wear or deterioration.

If there are such signs or if the appliance has been used improperly, bring it to an authorized service center before using it.

This appliance does not require any special maintenance.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

Do not use very wet substances, liquids or cloths to prevent water from entering into the appliance and irreparably damaging it.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

Clean the bag following the indications given on the special label applied to the inner part of the appliance.

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

PACKAGING

To respect the environment, the packaging material must be disposed of correctly, respecting separate collection.

Check the provisions of your municipality.

“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal.

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.

Diagram of a device with labeled parts, showing a circular component connected to a cable with wires.

Mode d'Emploi

FR

Technical diagram of a device with numbered parts labeled 1 to 4, showing a hand holding a cable or wire.

Diagram of a device with labeled components including a sensor and wiring, numbered 1 to 4.
