Milton CR3043A - Radio Crosley - Free user manual and instructions

Product Type	Portable radio with Bluetooth and USB/TF player
Brand	Crosley
Model	Milton CR3043A
Power supply	Micro USB 5V 1A (1500 mAh rechargeable battery included)
Power consumption	5 W
Speaker	3 Ω, 5 W
FM frequency range	87.5 – 108 MHz
Bluetooth	Version 5.3
Battery life	Up to 20 hours at 50% volume
Charging time	2.5 hours
Auxiliary input	3.5 mm jack
Playback ports	USB (up to 64 GB), TF card slot (up to 64 GB)
Main functions	FM radio, Bluetooth, USB/TF playback, aux input, hands-free calls, TWS
Safety	Polarized plug, do not expose to water, do not open
Maintenance	Clean with a soft dry cloth, avoid solvents
Customer service	1-888-CROSLEY, www.crosleyradio.com
Compliance	FCC Part 15, CE

Frequently Asked Questions - Milton CR3043A Crosley

How to turn on the device?

Press and hold the Power/TWS button to turn on the device.

How to connect Bluetooth?

Press and hold the Multifunction button to select Bluetooth mode (blue LED). Turn on Bluetooth on your device, search for "CROSLEY CR3043A" and pair.

How to listen to FM radio?

Press and hold the Multifunction button to select radio mode (yellow LED). Turn the tuning knob to choose a station. If reception is poor, extend the FM antenna on the back.

How to use TWS function for two speakers?

Turn on both speakers by pressing and holding Power/TWS. Double-click this button quickly on each speaker. A confirmation signal indicates pairing. Then connect a Bluetooth device to the main speaker.

How to play music from a USB drive or TF card?

Press and hold the Multifunction button to select USB/TF card mode (purple LED). Insert the USB drive or TF card. Use the Next track and Previous track buttons to navigate, and Pause to pause.

Why won't the device turn on?

Check the power outlet and USB cable. The battery may be discharged; charge it for 2.5 hours. If the device turns off automatically, turn it off and on again (power saving function after 15 minutes of no audio).

How to make a hands-free call?

When your phone is connected via Bluetooth, an incoming call will ring on the speaker. Press the Multifunction button to answer. Press and hold to reject. Speak through your phone.

How to adjust volume?

Press and hold the Volume + button to increase volume or Volume - to decrease it.

What is the battery life?

The 1500 mAh battery provides up to 20 hours of playback at 50% volume. Charging time is about 2.5 hours.

What to do if Bluetooth connection fails?

Remove the device from your phone's Bluetooth list, get closer, turn both devices on and retry the pairing procedure.

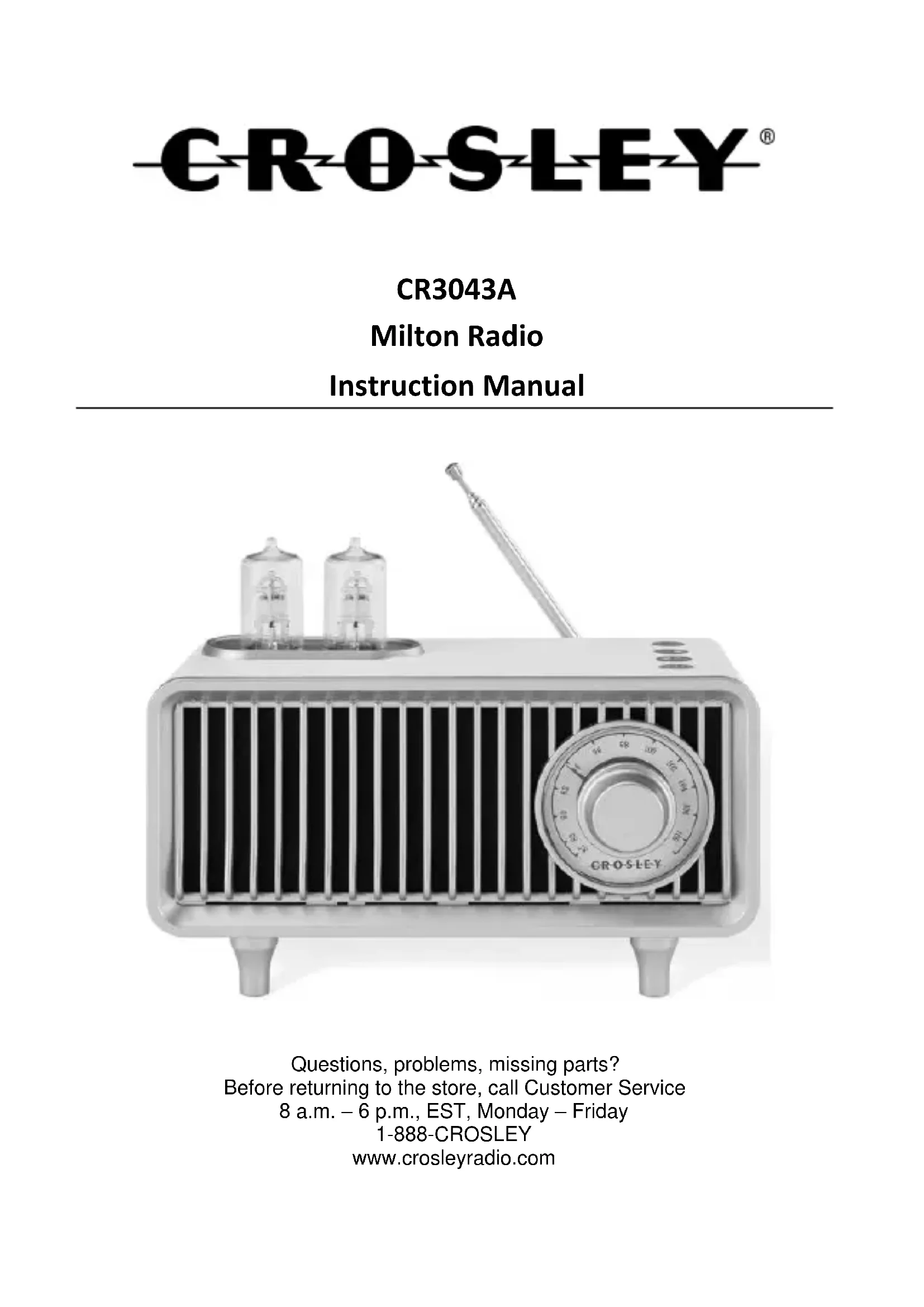

USER MANUAL Milton CR3043A Crosley

Vintage portable radio with two cylindrical domes and a visible scroll wheel (no text or symbols on the device itself)

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Radio
• Micro USB cable
• 3.5mm aux in cable

Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power Source Micro USB, DC Output 5V 1A

Power consumption 5 W

Speaker 3Ω, 5W

Frequency Range FM 87.5 – 108 MHz

Battery Capacity 1500 mAh

Playing Time Up to 20 hours (50% volume)

Charging Time 2.5 hours

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 15 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

Product Description

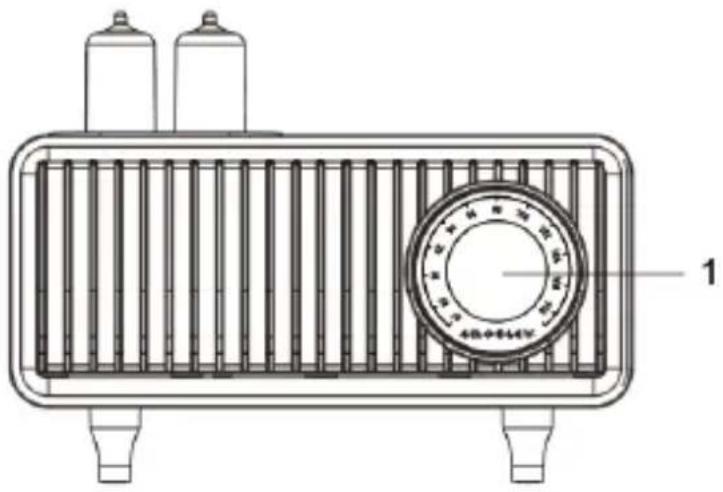

1. Tuning Knob

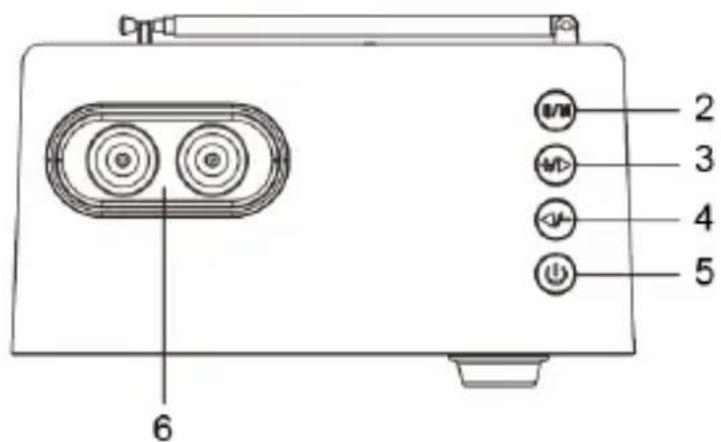

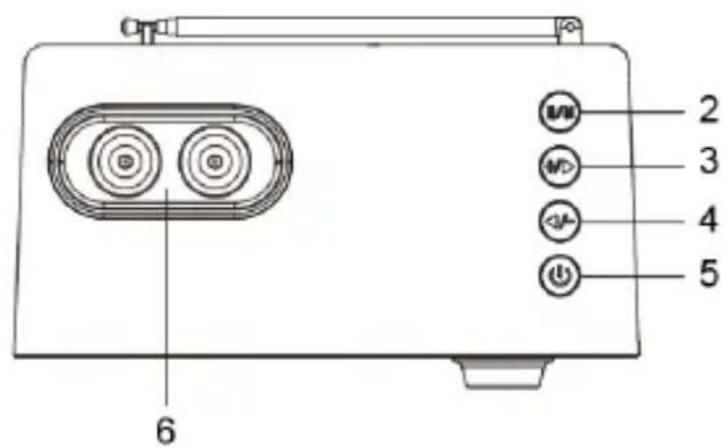

2. Pause/Multifunction Button

3. Volume Up/Forward Skip Button
4. Volume Down/Backward Skip Button
5. Power/TWS Button

6. Function Indicator

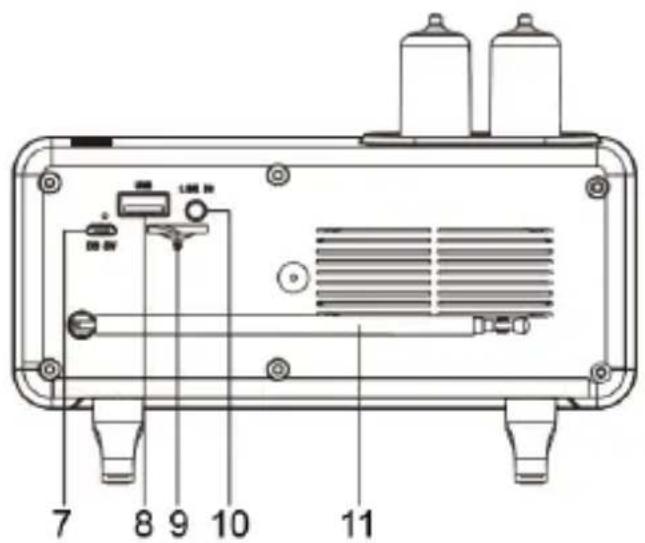

7. Power Jack

8. USB Jack
9. TF Card Jack
10. Aux In Jack
11. FM Antenna

Technical line drawing of a heat exchanger or radiator unit with cooling fins and a central circular component (no text or symbols)

2 3 4 5 6

7 8 9 10 11

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Connect the USB Cable to the Power Jack of the unit.
3. Long press the Power/TWS button to turn on the unit.

Function Indicator Lights

Bluetooth	Blue
USB / TF Card	Purple
Aux In	Green
FM Radio	Yellow

Volume Control

Long press the Volume Up button or Volume Down button to raise and lower the volume.

Aux Input Connection

You can connect an audio device to this unit and play your music through its speaker. To do this, connect the 3.5mm auxiliary cable between your audio device and the Aux In Jack, long press the Multifunction button until the unit is in Aux Mode.

1. To forward skip, press the Forward Skip Button in and release.
2. To backward skip, press the Backward Skip Button in and release.
3. To pause the playback, short press the Pause button.

Note: The function indicator will be green.

Bluetooth Operation

1. Long press the multifunction button repeatedly to select Bluetooth mode Note: The function indicator will be blue.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR3043A" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit.
4. Play and stream music from your device to the unit.
5. To forward skip, press the Forward Skip Button in and release.
6. To backward skip, press the Backward Skip Button in and release.
7. To pause the playback, short press the Pause button.
   Note: Bluetooth version - 5.3

Bluetooth Calling

When your smartphone is paired with speaker, the speaker will ring when an incoming call is received. Press the Multifunction button to answer the call and speak through your smartphone. Press and hold the Multifunction button to reject incoming call.

Radio Operation

1. Long press the Multifunction button repeatedly to select the Radio Mode.
2. Rotate the Tuning Knob for desired radio station.

Note:

If the FM reception is poor, extend the FM Antenna on the back of the unit for better reception.

The function indicator will be yellow.

Twin Connected Mode

To Connect

1. Turn on both speakers by long pressing the Power/TWS button.
2. Quickly double-click the Power/TWS button on each speaker separately.
3. You will hear a confirmation notification showing they are paired.
4. Connect your Bluetooth.
   Note: The function indicator will be blue.
5. There will be a confirmation notification from one speaker showing they are paired with your Bluetooth device.

Note:

This speaker will be the Primary and the other will be secondary.

This connection only works on Bluetooth mode.

To Disconnect

To disconnect the speakers from the Twins Connected Mode, double-click the Power/TWS button quickly on one of twins-connected speakers. You will hear a confirmation notification showing they are disconnected.

USB/TF Playback

1. Long press the multifunction knob repeatedly to select USB/TF Card mode
2. Insert a USB device into the USB port or a TF card into the TF card slot.
3. To forward skip, press the Forward Skip Button in and release.
4. To backward skip, press the Backward Skip Button in and release.
5. To pause the playback, short press the Pause button.

Note:

Only use 64 GB or smaller USB or TF card.

The function indicator will be purple.

Troubleshooting

There is no power

• No power at the power outlet.
• The battery needs to be charged.
• Ensure power plug is properly inserted.

- To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 10 minutes, their powers will automatically cut-off. To turn power back on and resume playing, turn off the power and turn it on again.

Bluetooth not connecting

• Forget the device then try connecting again.
• Ensure you are not too far away from unit when connecting.
• Power cycle both devices and try steps to connect again.

FCC Statements

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Modern Marketing Concepts Inc. dba Crosley Brands, declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://crosleybrands.com/euDoC

CRO SLEY®

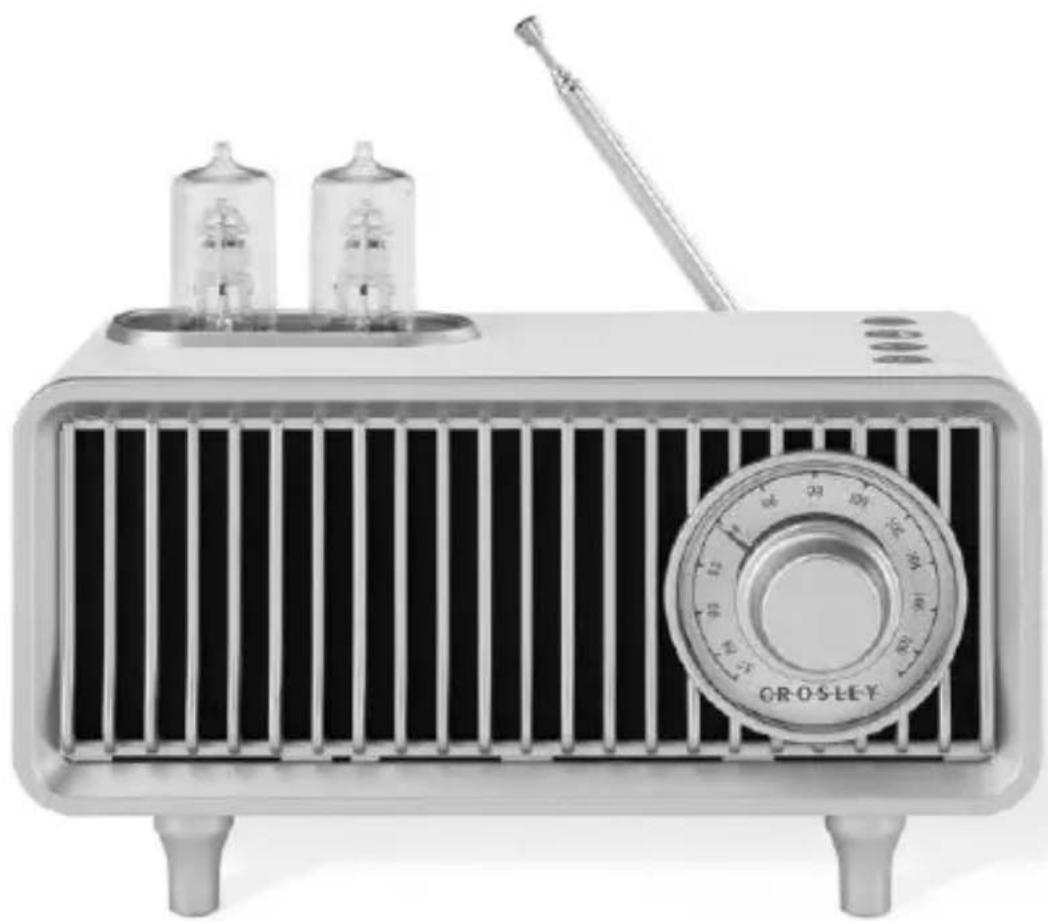

CR3043A Milton Radio Manual de instrucciones

Vintage portable radio with a metal grille, two water bottles, and a scroll wheel (no visible text or symbols)

Technical line drawing of a heat exchanger or radiator unit with cooling fins and a central dial (no text or symbols)

2 3 4 5 6

http://crosleybrands.com/euDoC
