Product Type	Mobile phone charger
Brand	Gembird
Model	NPAPD6001
Input	100-240 V AC, 50/60 Hz
Output	5 V DC, 2 A (max)
Rated Power	10 W
Number of Ports	1 USB-A port
Cable Length	1 m (approx.)
Dimensions (L x W x H)	5.5 x 4.0 x 2.5 cm (estimated)
Weight	50 g (estimated)
Material	Flame-retardant ABS plastic
Built-in Protections	Overcurrent, overvoltage, short-circuit, overheating
Main Features	Standard fast charging, compatible with most smartphones and tablets
Care and Cleaning	Unplug before cleaning; use a soft dry cloth
Safety Instructions	Do not expose to moisture, do not use if damaged, unplug during storms
Spare Parts and Repairability	Not user serviceable; contact after-sales service in case of failure
Warranty	2 years (according to manufacturer's conditions)
General Information	Compact travel charger, standard USB compatible

Frequently Asked Questions - NPAPD6001 Gembird

Which devices can I charge with this charger?

This Gembird NPAPD6001 charger is designed to charge any device compatible with a 5V USB input, such as smartphones, tablets, Bluetooth earphones, etc.

What is the output power of the charger?

The output is 5V / 2A, with a maximum power of 10W. Ideal for standard charging.

Is the charger compatible with fast charging?

This model does not support fast charging protocols like Quick Charge or USB PD. It delivers a standard 5V/2A charge.

Can I use this charger abroad?

Yes, because it accepts an input voltage of 100-240V, making it compatible with most electrical grids worldwide. You may need a plug adapter.

Is the charger supplied with a USB cable?

Yes, the Gembird NPAPD6001 charger is usually supplied with a USB-A to micro USB or USB-C cable depending on the version. Check the packaging for the type of cable provided.

How can I clean the charger?

Unplug the charger and wipe it with a soft dry cloth. Do not use liquids or abrasive products.

What should I do if the charger does not work?

First check the wall outlet and the cable. If the problem persists, contact Gembird after-sales service. Do not attempt to repair it yourself.

Can the charger be left plugged in permanently?

It is advisable to unplug it when not in use to save energy and reduce risks. However, it is designed to withstand continuous use.

Is this charger guaranteed?

Yes, the warranty is 2 years for manufacturing defects. Keep your purchase receipt for any claims.

Where can I find after-sales service?

After-sales service is provided by Gembird Europe B.V. You can contact them via their website: www.gembird.nl/service.

USER MANUAL NPAPD6001 Gembird

Black rectangular electronic device with a small internal component, no visible text or symbols

NPA-PD60-01

UNIVERSAL 60W USB TYPE-C PD LAPTOP CHARGER

60W NOTEBOOK-WECHSELSTROMADAPTER

UNIVERSELE NOTEBOOKADAPTER, 60 W

60 W ADAPTATEUR UNIVERSEL À COURANT ALTERNATIF POUR ORDINATEUR PORTABLE

• Provides power supply to a wide range of notebooks
• Type-C port for charging all notebooks that support 60W Power Delivery charging
• Also suitable for many other notebook brands/models with included DC power tips
• Sets the output voltage automatically: just select a proper connector for your laptop
  • USB Type-A port for charging smartphone and tablets
  • Overload, overvoltage, temperature, short circuit protection

Specifications

• Input voltage range: 100...240 V AC, 50-60 Hz up to 90 W
• USB Type-C output: 5 ... 20 VDC up to 4.5 A; Type-C PD mode 5 ... 20 VDC up to 3 A
  • USB-A port output: 5 V DC up to 2.5 A
  • Supported technologies (fast charging): USB-C PD2.0/3.0; QC2.0/3.0; MTK FCP BC1.2
  • USB Type-C power cord: 1.5 m
  • Laptop DC power cord: 1.5 m
• Laptop DC connectors: M4, M5, M6, M7, M8, M12, M19, M20, M21, M28
  • Dimensions: 68 x 68 x 31 mm (charger body)
  • Net weight: 0.35 kg

gembird®

NPA-PD60-01

UNIVERSAL 60W USB TYPE-C PD LAPTOP CHARGER

1

gembird®

NPA-PD60-01

UNIVERSAL 60W USB TYPE-C PD LAPTOP CHARGER

2

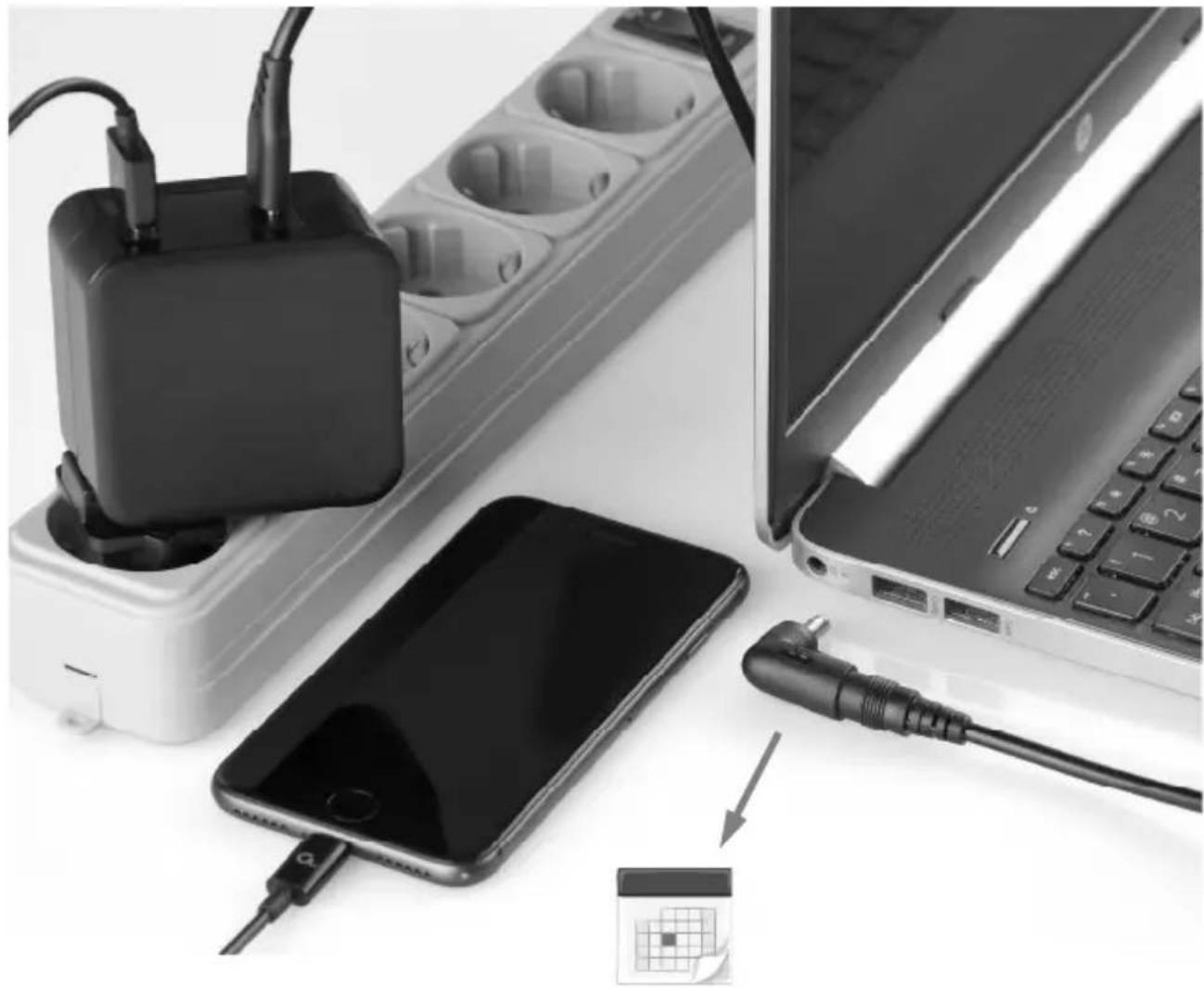

Black-and-white photo of electronic devices including a charging plug, smartphone, laptop, and plug charger (no visible text or symbols)

gembird®

NPA-PD60-01

UNIVERSAL 60W USB TYPE-C PD LAPTOP CHARGER

3

Close-up of a black right-angle pipe fitting with metallic end caps (no text or symbols visible)

Close-up of a black L-shaped USB connector (no text or symbols visible)

18.5V
4.8 mm x 1.7 mm
Compaq, HP
19 V
5.5 mm x 2.5 mm
Acer, Compaq,
Delta, HP,
Fujitsu, Gateway,
Toshiba Liteon
19 V
5 mm x 3 mm
Samsung

18.5 V
7.4 mm×5 mm
HP,
Compaq
20 V
11 mm x 5 mm
Levono

Close-up of a black right-angle electrical plug with metallic pins (no text or symbols visible)

Close-up of a black right-angle electrical plug connector (no text or symbols visible)

Close-up of a black right-angle electrical plug with a metallic shaft (no text or symbols visible)

Close-up of a black right-angle electrical connector with a metallic shaft (no text or symbols visible)

Close-up of a black right-angle electrical connector with a metallic shaft (no text or symbols visible)

19 V
5.5 mm × 2.1 mm
Acer, Compaq.
Delta, HP,
Fujitsu, Gateway,
Toshiba, Liteon
19.5 V
6.5 mm × 4.4 mm
Sony
19 V
4 mm × 1.35 mm
Asus
19 V
5.5 mm × 1.7 mm
Acer Aspire,
Gateway
19.5 V
4.5 mm × 3 mm
HP Envy 14K.
Pavilion 14\15-exxxx
series,
Split X2 13 series

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu

(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.

(ES) Declaración de conformidadEste producto está probado y cumple con los requisitos esenciales de las leyes de los estados miembros con respecto a LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). La declaración CE se puede encontrar enwww.gembird.eu

(CZ) Prohlášení o shoděTento produkt je testován a splňuje základní požadavky právních předpisů členských států týkajících se LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Prohlášení CE naleznete nawww.gembird.eu

(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu

(HR) Izjava o sukladnostiOvaj je proizvod testiran i udovoljava osnovnim zahtjevima zakona država članica u vezi LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE se može naci podwww.gembird.eu

(IT) Dichiarazione di conformitàQuesto prodotto è testato ed è conforme ai requisiti essenziali delle leggi degli stati membri in materia di LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). La dichiarazione CE è disponibile all'indirizzowww.gembird.eu

(PT) Declaração de conformidadeEste produto foi testado e está em conformidade com os requisitos essenciais das leis dos estados membros sobre LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). A declaração CE pode ser encontrada emwww.gembird.eu

(PL) Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami prawnymi państw członkowskich dotyczącymi LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się na stroniewww.gembird.eu

(RO) Declaratie de conformitateAcest produs este testat și respectă cerintele esentiale ale legislațiilor statelor membre privind LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Declarația CE se găsește pewww.gembird.eu

(SK) Vyhlásenie o zhodeTento produkt je testovaný a spíňa základné požiadavky právnych predpisov členských štátov týkajúcich sa LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Vyhlásenie CE nájdete na stránkewww.gembird.eu

(SL) Izjava o skladnostiTa izdelek je preizkušen in ustreza bistvenim zahtevam zakonov držav članic o LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE je na voljo podwww.gembird.eu

(GR) Δήλωση συμμόρφωσηςΑυτό το προϊόν έχει ελεγχθεί και συμμορφώνεται με τις βασικές απαιτήσεις των νομοθεσιών των κρατών μελών όσον αφορά την Ευρωπαϊκή οδηγία g LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU).Η δήλωση CE μπορεί να βρεθεί στην διεύθυνσηwww.gembird.eu

gembird®

NPA-PD60-01

UNIVERSAL 60W USB TYPE-C PD LAPTOP CHARGER

Simple line drawing of a hand washing a container with water droplets falling (no text or symbols)

Hand-drawn sketch of a hand using a tool to adjust or repair a screwdriver, with no text or symbols present.

Simple line drawing of a hand holding a plant with a crossed-out arrow (no text or symbols)

(ENG) Waste disposal:Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

(DE) Entsorgungshinweise:Werfen Sie dieses Gerät nicht in den Hausmüll. Unsachgemäße Entsorgung kann sowohl der Umwelt als auch der menschlichen Gesundheit schaden.Informationen zu Sammelstellen für Altgeräte erhalten Sie bei Ihrer Stadtverwaltung oder einer autorisierten Stelle für die Entsorgung von Elektro-und Elektronikgeräten.

(ES) Deposito de basura:No deposite este equipo con la basura doméstica. La eliminación inadecuada puede dañar tanto el medio ambiente como la salud humana. Para obtener información sobre las instalaciones de recolección de desechos para dispositivos eléctricos y electrónicos usados, comuníquese con su ayuntamiento o una empresa autorizada para la eliminación de equipos eléctricos y electrónicos.

(CZ) Nakládání s odpady:Toto zařízení nevkládejte do domovního odpadu. Nesprávná likvidace může poškodit životní prostředí i lidské zdravl. Informace o zařízení pro sběr odpadu použitých elektrických zařízení získáte u městské rady nebo autorizované společnosti o likvidaci elektrických zařízení.

(FR/BE) Traitement des déchets:Ne jetez pas cet appareil dans les déchets domestiques. Un traitement inapproprié peut être dommageable à l'environnement et à la santé humain. Vous trouvez des informations sur les centres de rassemblement des appareils vieux chez l'administration municipale ou chez un centre autorisé pour le traitement des appareils électriques ou électroniques.

(HR) Odlaganje smeća:Ovu opremu ne odlažite zajedno s kućnim otpadom. Nepravilno odlaganje može naštetiti okolišu i ljudskom zdravlju. Za informacije o objektima za prikupljanje otpada za rabljene električne i elektroničke uređaje obratite se gradskom vijeću ili ovlaštenom društvu za odlaganje električne i elektroničke opreme.

(IT) Smaltimento dei rifiuti:Non depositare questa apparecchiatura con i rifiuti domestici. Lo smaltimento improprio può danneggiare sia l'ambiente che la salute umana. Per informazioni sulle strutture di raccolta dei rifiuti per i dispositivi elettrici ed elettronici usati, contattare il comune o una società autorizzata per lo smaltimento delle apparecchiature elettriche ed elettroniche.

(PT) Depósito de lixo:Não deposite este equipamento no lixo doméstico. O descarte inadequado pode prejudicar o meio ambiente e a saúde humana. Para obter informações sobre instalações de coleta de lixo para dispositivos elétricos e eletrônicos usados, entre em contato com o conselho da cidade ou uma empresa autorizada para o descarte de equipamentos elétricos e eletrônicos.

(PL) Utylizacja odpadów:Nie należy deponować tego sprzętu razem z odpadami domowymi. Niewłaściwa utylizacja może zaszkodzić zarówno środowisku, jak i zdrowiu ludzkiemu. Aby uzyskać informacje na temat urządzeń do zbierania zużytych urządzeń elektrycznych i elektronicznych, należy skontaktować się z radą miasta lub upoważnioną firmą w celu usunięcia sprzętu elektrycznego i elektronicznego.

(RO) Eliminarea deșeurilor:Nu depuneti acest echipament cu deșeurile menajere. Eliminarea necorespunzátoare poate dăuna atât mediului, cât și sănătății umane. Pentru informații despre instalațiile de colectare a deșeurilor pentru dispositivee electrice și electronice folosite, vă rugăm să contactați consiliul municipal sau o companie autorizată pentru eliminarea echipamentelor electrice și electronice.

(SK) Likvidácia odpadu:Toto zariadenie nevkladajte do domového odpadu. Nesprávna likvidácia može poškodit životné prostredie a ľudské zdravie. Informácie o zariadeniach na zber použitého odpadu z elektrických a elektronických zariadení získate od mestského zastupitel'stva alebo od autorizovanej spoločnosti o likvidácii elektrických a elektronických zariadení.

(SL) Odlaganje odpadkov:Te opreme ne odlagajte skupaj z gospodinjskimi odpadki. Nepravilno odstranjevanje lahko škoduje okolju in zdravju ljudi. Za informacije o napravah za zbiranje odpadnih električnih in elektronskih naprav se obrnite na mestni svet ali pooblaščeno podjetje za odstranjevanje električne in elektronske opreme.

(GR) Διαχείριση απορριμάτων:Μην καταθέτετε autóv τον εξοπλισμό στα οικιακά απορρίμματα. Η ακατάλληλη απόρριψη μπορεί να βλάψει τόσο το περιβάλλον όσο και την ανθρώπινη υγεία. Για πληροφορίες σχετικά με τις εγκαταστάσεις συλλογής απορριμμάτων για χρησιμοποιημένες ηλεκτρικές και ηλεκτρονικές συσκευές, επικοινωνήστε με το δημοτικό συμβούλιο ή μια εξουσιοδοτημένη εταιρεία για τη διάθεση ηλεκτρικών και

gembird®

NPA-PD60-01

UNIVERSAL 60W USB TYPE-C PD LAPTOP CHARGER

(ENG) WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products.

Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands

www.gembird.nl/service [e-mail]
