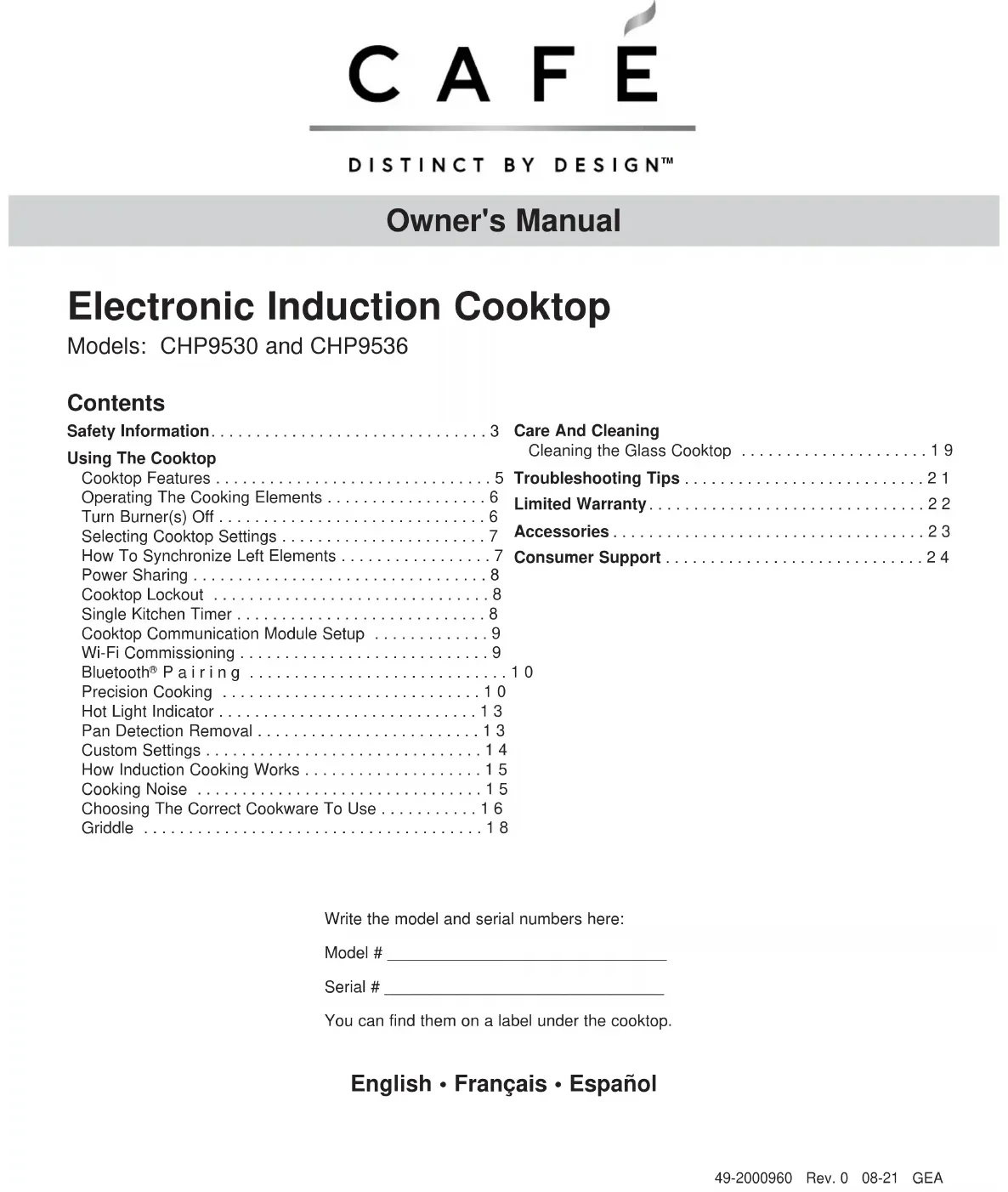

USER MANUAL Café CHP90362TSS GE

• Pairing p. 10
• Precision Cooking p. 10
• Hot Light Indicator p. 13
• Pan Detection Removal p. 13
• Custom Settings p. 14
• How Induction Cooking Works p. 15
• Cooking Noise p. 15
• Choosing The Correct Cookware To Use p. 16
• Griddle p. 18
• Care And Cleaning Cleaning the Glass Cooktop p. 19
• Troubleshooting Tips p. 21
• Limited Warranty p. 22
• Accessories p. 23
• Consumer Support TM2 49-2000960 Rev. 0 THANK YOU FOR MAKING CAFÉ A PART OF YOUR HOME. We take pride in the craftsmanship, innovation and design that goes into every Café product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them. Register your Café appliance now online. Helpful websites are available in the Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration card included in the packing material. TM49-2000960 Rev. 0 3 p. 24

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE SAFETY INFORMATION WARNING Read all safety instructions before using the product. Failure to follow these instructions may result in fire, electrical shock, serious injury or death.WARNING

GENERAL SAFETY INSTRUCTIONS

Ŷ 8VHWKLVFRRNWRSRQO\IRULWVLQWHQGHGSXUSRVHDVdescribed in this Owner’s Manual.Ŷ %HVXUH\RXUFRRNWRSLVSURSHUO\LQVWDOOHGDQGgrounded by a qualified installer in accordance with the provided installation instructions.Ŷ 'RQRWDWWHPSWWRUHSDLURUUHSODFHDQ\SDUWRI\RXUcooktop unless it is specifically recommended in this manual. All other servicing should be performed by a qualified technician.Ŷ %HIRUHSHUIRUPLQJDQ\VHUYLFHXQSOXJWKHFRRNWRSor disconnect the power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.Ŷ 'RQRWOHDYHFKLOGUHQDORQH²FKLOGUHQVKRXOGQRWbe left alone or unattended in an area where the cooktop is in use. They should never be allowed to climb, sit or stand on any part of the cooktop.

CAUTION Do not store items of interest to FKLOGUHQDERYHWKHFRRNWRS²FKLOGUHQFOLPELQJRQWKHcooktop to reach items could be seriously injured.Ŷ 8VHRQO\GU\SRWKROGHUV²PRLVWRUGDPSSRWholders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units or heating elements. Do not use a towel or other bulky cloth in place of pot holders.Ŷ 1HYHUXVH\RXUFRRNWRSIRUZDUPLQJRUKHDWLQJWKHURRPŶ 'RQRWWRXFKVXUIDFHHOHPHQWV7KHVHVXUIDFHVmay be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact the surface elements or areas nearby the surface elements; allow sufficient time for cooling first. Ŷ 3RWHQWLDOO\KRWVXUIDFHVLQFOXGHWKHFRRNWRSDQGareas facing the cooktop.Ŷ 'RQRWKHDWXQRSHQHGIRRGFRQWDLQHUV3UHVVXUHcould build up and the container could burst, causing an injury.Ŷ &RRNPHDWDQGSRXOWU\WKRURXJKO\²PHDWWRDWOHDVWan internal temperature of 160°F and poultry to at least an internal temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.WARNING KEEP FLAMMABLE MATERIALS AWAY FROM THE COOKTOP Failure to do so may result in fire or personal injury.Ŷ 'RQRWVWRUHRUXVHIODPPDEOHPDWHULDOVQHDUthe cooktop, including paper, plastic, pot holders, linens, wall coverings, curtains, drapes and gasoline or other flammable vapors and liquids.Ŷ 1HYHUZHDUORRVHILWWLQJRUKDQJLQJJDUPHQWVZKLOHusing the cooktop. These garments may ignite if they contact hot surfaces causing severe burns.Ŷ 'RQRWOHWFRRNLQJJUHDVHRURWKHUIODPPDEOHmaterials accumulate in or near the cooktop. Grease on the cooktop may ignite. WARNING

COOKTOP SAFETY INSTRUCTIONS

Ŷ ,QWKHHYHQWRIDILUHGRQRWXVHZDWHURUJUHDVHRQfires. Never pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitted lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or a foam-type fire extinguisher.Ŷ 1HYHUOHDYHWKHVXUIDFHXQLWVXQDWWHQGHGDWPHGLXPor high heat settings. Boilovers cause smoking and greasy spillovers that may catch on fire. Ŷ 1HYHUOHDYHRLOXQDWWHQGHGZKLOHIU\LQJ,IDOORZHGto heat beyond its smoking point, oil may ignite resulting in fire that may spread to surrounding cabinets. Use a deep fat thermometer whenever possible to monitor oil temperature.Ŷ 7RDYRLGVSLOORYHUDQGILUHXVHDPLQLPXPDPRXQWof oil when shallow pan-frying and avoid cooking frozen foods with excessive amounts of ice.Ŷ 8VHWKHSURSHUSDQVL]HVHOHFWFRRNZDUHKDYLQJflat bottoms large enough to cover the surface heating element. The use of undersized cookware will expose a portion of the surface unit to direct contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also improve efficiency.Ŷ 7RPLQLPL]HWKHSRVVLELOLW\RIEXUQVLJQLWLRQRIflammable materials and spillage, the handle of a container should be turned toward the center of the range without extending over nearby surface units.4 49-2000960 Rev. 0 SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE How to Remove Protective Shipping Film and Packaging Tape Carefully grasp a corner of the protective shipping film with your fingers and slowly peel it from the appliance surface. Do not use any sharp items to remove the film. Remove all of the film before using the appliance for the first time.To assure no damage is done to the finish of the product, the safest way to remove the adhesive from packaging tape on new appliances is an application of a household liquid dishwashing detergent. Apply with a soft cloth and allow to soak.NOTE: The adhesive must be removed from all parts. It cannot be removed if it is baked on.Consider recycling options for your appliance packaging material.WARNING

INDUCTION COOKTOP SAFETY INSTRUCTIONS

Ŷ 8VHFDUHZKHQWRXFKLQJWKHFRRNWRS7KHJODVVsurface of the cooktop will retain heat after the controls have been turned off.Ŷ 'RQRWFRRNRQDEURNHQFRRNWRS,IWKHJODVVcooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.Ŷ $YRLGVFUDWFKLQJWKHJODVVFRRNWRS7KHFRRNWRScan be scratched with items such as knives, sharp instruments, rings or other jewelry, and rivets on clothing.Ŷ 'RQRWSODFHRUVWRUHLWHPVWKDWFDQPHOWRUFDWFKfire on the glass cooktop, even when it is not being used. If the cooktop is inadvertently turned on, they may ignite. Heat from the cooktop or oven vent after it is turned off may cause them to ignite also.Ŷ 'RQRWSODFHPHWDOOLFREMHFWVVXFKDVNQLYHVIRUNVspoons, and lids on the cooktop surface as they can get hot.Ŷ 8VHDFHUDPLFFRRNWRSFOHDQHUDQGDQRQVFUDWFKcleaning pad to clean the cooktop. Wait until the cooktop cools and the indicator light goes out before cleaning. A wet sponge or cloth on a hot surface can cause steam burns. Some cleaners can produce noxious fumes if applied to a hot surface. Read and follow all instructions and warnings on the cleaning cream label. NOTE: Sugary spills are an exception. They should be scraped off while still hot using an oven mitt and a scraper. See the Cleaning the glass cooktop section for detailed instructions.

CAUTION Persons with a pacemaker or similar medical device should exercise caution when using or standing near an induction cooktop while it is in operation. The electromagnetic field may affect the working of the pacemaker or similar medical device. It is advisable to consult your doctor or the pacemaker manufacturer about your particular situation.WARNING

RADIO FREQUENCY INTERFERENCE

This unit has been tested and found to comply with the limits for a class B digital device, pursuant to Part 18 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Ŷ 5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQDHŶ ,QFUHDVHWKHGLVWDQFHEHWZHHQWKHXQLWDQGreceiver.Ŷ &RQQHFWWKHXQLWLQWRDQRXWOHWRUDFLUFXLWGLIIHUHQWfrom that to which the receiver is connected.

PROPER DISPOSAL OF YOUR APPLIANCE

Dispose of or recycle your appliance in accordance with Federal and Local Regulations. Contact your local authorities for the environmentally safe disposal or recycling of your appliance.49-2000960 Rev. 0 5 Throughout this manual, features and appearance may vary from your model. Cooktop Features USING THE COOKTOP: Cooktop Features

1. Cooking Element(s): See page 6.

16 49-2000960 Rev. 0 Operating the Cooking Elements Turn Burner(s) Off USING THE COOKTOP: Operating the Cooking Elements / Turn Burner(s) Off Touch On/Off pad for an individual burner. Turn Burner(s) On: Touch and hold On/Off pad about half a second. A chime can be heard with each touch to any pad. Power level can be selected in any of the following ways:

1. Swipe the gray arc (on the graphics) to the desired

power level. There is no sensor on the LEDs, or;

2. Touch Anywhere along the gray arc, or;

3. Touch + or - pads to adjust power level, or;

4. Shortcut to Hi: Immediately after turning unit on, touch

5. Shortcut to Low: Immediately after turning unit on,

touch the - pad. Gray Arc Swipe Area LED Lights Gray Arc Swipe Area49-2000960 Rev. 0 7 Selecting Cooktop Settings USING THE COOKTOP: Selecting Cooktop Settings / How To Synchronize Left Elements Choose the element/burner that is best fit to the cookware size. Each element/burner on your new cooktop has its own power levels ranging from low to high. Power level settings necessary for cooking will vary depending on the cookware being used, the type and quantity of food, and the desired outcome. In general use lower settings for melting, holding and simmering and use higher settings for heating quickly, searing and frying. When keeping foods warm confirm selected setting is sufficient to maintain food temperature above 140°F. Larger elements and elements marked “Keep Warm” are not recommended for melting.Hi is the highest power level, designed for large quantity rapid cooking and boiling. Hi will operate for a maximum of 10 minutes. Hi may be repeated after the initial 10 minute cycle by pressing the + pad. CAUTION Do not place any cookware, utensils or leave excess water spills on control key pads. This may result in unresponsive touch pads and turning off the cooktop if present for several seconds. How To Synchronize Left Elements NOTE: Sync Burners is only intended for cookware that spans both burners. To Turn On Touch the Sync Burners pad to connect the two burners. Operate either element as previously described to adjust power level. To Turn Off

1. Touch the On/Off pad on either burner to turn off the

2. Touch the Sync Burners to turn both burners off.

boiling quicklyfryingsearingreducingsimmeringholdingmelting Low8 49-2000960 Rev. 0 USING THE COOKTOP: Power Sharing / Cooktop Lockout / Single Kitchen Timer Power Sharing Cooktop Lockout Single Kitchen Timer A 36” cooktop has 3 cooking zones and a 30” cooktop has 2 cooking zones. If two elements in the same zone are in use and at least one element is at the maximum power level (Hi), the Hi setting will operate at a reduced power level. Note that the display will not change. This is how power is shared between two elements in the same cooking zone. Lock Touch Control Lock pad for 3 seconds. Unlock Touch Control Lock pad again for 3 seconds. See Custom Settings section to activate Auto Lock feature. To Turn On Touch the Timer pad. Touch the ೸ or V arrows to choose the desired number of minutes. Timer automatically starts 3 seconds after pad is touched. The “ON” LED will appear automatically when timer is set. To Turn Off Hold Timer pad for 3 seconds to cancel timer. Alarm will sound continuously when time is up until user turns timer off. NOTE: Use the kitchen timer to measure cooking time or as a reminder. The kitchen timer does not control the cooking elements. Timer turns off if there is no activity for 30 seconds. 30” Wide cooktop. 36” Wide cooktop. Left Zone Right ZoneCenter ZoneLeft Zone Right Zone Cooktop Lockout: locks operation of the controls Control Lock Indicator/Symbol49-2000960 Rev. 0 9 USING THE COOKTOP: Cooktop Communication Module Setup / Wi-Fi Commissioning Wi-Fi Commissioning Cooktop Communication Module Setup (If Applicable) Turning On the Wi-Fi Download the SmartHQ App onto your mobile device and create an account. Use the + button on the SmartHQ App homepage to add the cooktop, follow the steps in the SmartHQ App to connect Wi-Fi. Press and hold the Precision Cooking button for 3 seconds until display reads “Add”. Tap the twice until the display reads “Off”. Tap the to turn Wi-Fi On. The will start blinking. The will turn solid when complete steps in the SmartHQ App. To exit Commissioning and Pairing, press Precision Cooking button one time, or menu will automatically exit after 60 seconds of no user input. Look at the underside of the cooktop in the front/left corner to see if there is an input connector jack. If the connector jack looks like this then no further action is required, proceed to Wi-Fi Commissioning. If the connector jack looks like this then refer to the instruction insert included in the literature packet titled “Important Installation Instruction Cooktop Communication Module” for setting up this device. Turning Off the Wi-Fi Hold the Precision Cooking pad for 3 seconds until display reads “Add” and Bluetooth symbol is blinking. Tap twice until the display reads “On” and the and the is blinking. Tap to turn Wi-Fi Off. The icon will turn off when complete.10 49-2000960 Rev. 0 Bluetooth

Pairing Precision Cooking Pairing a Bluetooth

Device Refer to the literature for the supported device to make sure it is ready to be paired. NOTE: The Hestan Cue

Quick Guide can be found in the literature packet. Hold the Precision Cooking pad for 3 seconds until display reads “Add”. Tap to initiate pairing mode on the unit and will blink, then activate your device to initiate the device’s pairing mode. Refer to the table below for device specific instructions. When stops blinking, device has been added. Repeat this step for each additional device. Up to 5 devices will be stored in memory. To exit Pairing, touch Precision Cooking pad one time, or menu will automatically exit after 60 seconds of no user input. The Precision Cooking feature allows precise temperature control of certain cooking devices for improved results. Initiating a Precision Cooking Mode

1. Touch the Precision Cooking pad.

2. Any burner available for Precision Cooking will flash.

This excludes any burner on in standard mode. If no Precision Cooking devices are paired, no burners will flash as available. NOTE: Only one burner may run a Precision Cooking mode at a time. If another precision mode is attempted, the burner in use for Precision Cooking will flash.

3. The display will read “SEL”, instructing you to select a

4. Touch the On/Off pad for the desired burner, or press

Sync Burners to use Precision Cooking across the two left burners. Removing Bluetooth

Devices Hold the Precision Cooking pad for 3 seconds until display reads “Add”. Tap so that display shows “dEL”, then tap to delete all paired devices. The icon will turn off when complete. NOTE: Your unit cannot delete a single, or specific device. All of your paired device will be deleted simultaneously. After all devices are cleared, devices you wish to use must be paired again. USING THE COOKTOP: Bluetooth

Pairing / Precision Cooking Supported Devices How to Initiate Pairing Hestan Cue

1. The unit must identify which device you intend to use

to adjust control parameters appropriately.

2. The display will read “Act”, instructing you to activate

a device to use on the previously selected burner.

3. Activation instructions for approved devices are listed

cookware can also be controlled through the (SmartHQ App), but functionality is limited to temperature control only. Precision Cooking Control Modes There are two control modes available: Ŷ App Control – the user interacts with an application on a smart phone. Ŷ Local Control – the user interacts with the burner to set a target temperature and no App use is required. App Control After activating your device on your selected burner, open the App designed to control the selected device. Depending on the device and application, the set temperature may be shown in the unit display, in the App, or hidden from view. Local Control After activating your device on your selected burner, tap on the burner ring to set the approximate temperature. Small adjustments can be made by tapping the + or – pads. The set temperature will be shown in the display. NOTE: Use of App Control mode is blocked upon entering Local Control mode. USING THE COOKTOP: Precision Cooking Supported Devices How to Activate Control with this App Hestan Cue

(by Hestan Smart Cooking) Precision Probe Press side button once SmartHQ App12 49-2000960 Rev. 0 Precision Cooking (Cont.) Display Priority To toggle the display, touch the Precision Cooking pad to display set temperature, and touch the Timer pad to display the kitchen timer. The kitchen timer remains editable by using and within the display, but a set temperature is not editable here. Go to App if in App Control, or burner in Local Control, to adjust temperature. NOTE: Timer is in hours and minutes, H:MM. USING THE COOKTOP: Precision Cooking Precision Cooking – Sync Burners NOTE: Sync Burners is only intended for cookware that spans both burners. To start a Precision Cooking mode using the sync burners feature, touch the Precision Cooking pad, then touch the Sync Burners pad. When the display reads “APP”, you can now use either App Control or Local Control. For App Control, open the App designed to control the selected device. For Local Control, tap either burner ring to set the approximate temperature, which will be reflected on left front and left rear elements. Small adjustments can be made by tapping the + or – pads. The set temperature will be shown in the display.49-2000960 Rev. 0 13 USING THE COOKTOP: Hot Light Indicator / Pan Detection Removal Hot Light Indicator Pan Detection Removal A hot surface indicator light (one for each cooking element) will glow when the glass surface is hot and will remain on until the surface has cooled to a temperature that is safe to touch. When a pan is removed from the cooktop surface, Burner level turns off; Power arc starts to blink. If a pan is not detected for 25 seconds, the control turns off automatically, lights turn off. Power Arc Hot Surface Indicator Light14 49-2000960 Rev. 0 USING THE COOKTOP: Custom Settings Custom Settings

1. Press and hold Sync Burners pad for 3 seconds,

then immediately press and hold the Timer pad for 3 seconds to enter custom settings. Those two pads must be pressed within 30 seconds. Any other pad will cancel mode.

2. “C - -” appears on display. To navigate through the

Custom Settings, use the (up) or (down) pads. If (up) is selected the display cycle starts at “C01”. If (down) is selected, the display cycle starts at “C54”.

3. To activate a new Custom Setting the user will touch

and hold the Timer pad for 3 sec. Only ONE of the Custom Setting Choices can be activated for each Custom Setting. The red “On” LED will turn on and a sound will go off once a new custom setting is activated.

4. The cooktop will exit Custom Settings if it is inactive

5. To exit Custom Settings and save any changes, touch

and hold the Sync Burners pad for 3 seconds.

• Options in grey are default settings Custom Settings Chart Custom Settings Custom Setting Choices C0 (Factory Settings) C01 - Factory Reset (Clears customized settings and restores defaults) C02 - Custom settings activated (Not visible unless any other custom setting is selected. And automatically on when any other custom setting is selected. Not selectable by user.) C1 (Control Lock) C11 - Standard Lock (ie; Only on when lock button pressed for 3 seconds.) If using a timer, Control Lock is unavailable. C12 - Auto Lock (ie; Engages after cooktop has been in standby mode for 10 minutes.) The unit should be completely off to go into Auto Lock.C2 (LED light level) C21 - Full illuminationC22 - Medium illuminationC23 - Lowest illumination C3 (Button Loudness) C31 - All sounds activated at 100% (For alarm sounds, 100% = Whatever level is set in c4.) C32 - Button sound level reduced by 50%, Alarm sounds at 100%C33 - Button sounds deactivated, Alarm sounds activated at 100%C4 (Timer Alarm Loudness) C41 - HighC42 - LowC5 (Timer Alarm Duration) C51 - Indefinite (ie; alarm continues until cancelled by user).C52 - Alarm sounds for 60 seconds.C53 - Alarm sounds for 30 seconds.C54 - Alarm sounds for 15 seconds.49-2000960 Rev. 0 15 How Induction Cooking Works USING THE COOKTOP: How Induction Cooking Works / Cooking Noise Cooking Noise The magnetic fields induce a small current in the pan. The pan acts as a resistor, which produces heat, much like a radiant coil. The cooking surface itself does not heat. Heat is produced in the cooking pan, and cannot be generated until a pan is placed on the cooking surface. When the element is activated, the pan begins to heat immediately and in turn heats the contents of the pan. Magnetic induction cooking requires the use of cookware PDGHRIIHUURXVPHWDOV²PHWDOVWRZKLFKPDJQHWVZLOO stick, such as iron or steel. Use pans that fit the element size. The pan must be large enough for the safety sensor to activate an element. The cooktop will not operate if a very small steel or iron utensil (less than the minimum size across the bottom) is placed on the cooking surface when the unit is turned RQ²LWHPVVXFKDVVWHHOVSDWXODVFRRNLQJVSRRQV knives and other small utensils. Cookware “noise” Slight sounds may be produced by different types of cookware. Heavier pans such as enameled cast iron produce less sound than a lighter weight multi-ply stainless steel pan. The size of the pan, and the amount of contents, can also contribute to the sound level. When using adjacent elements that are set at higher power level settings, magnetic fields may interact and produce a high pitch whistle. The sound will change pitch as you change the power level of one burner. These sounds can be reduced or eliminated by lowering or raising the power level settings of one or both of the elements. Pans that completely cover the element ring will produce less sound. A low “humming” sound is normal particularly on high settings. Sounds you may hear: You may hear a slight “Buzz” when cooking with Hi mode. This is normal. The sound depends on the type of pot being used. Some pots will “Buzz” louder depending on the material. A “Buzz” sound may be heard if the pan contents are cold. As the pan heats, the sound will decrease. If the power level is reduced, the sound level will go down. Pans that do not meet the minimum size requirements for the burner can produce louder sounds. They can cause the controller to "search" for the pot and produce a clicking and "zipping" sound. This can happen when one burner is running or only when an adjacent burner is also running. See User Manual for the minimum sized pots for each burner. Only measure the flat, magnetic bottom of the pot. Use the minimum size pan for the element. The pan material is correct if a magnet sticks to the bottom. Min. SizeMin. Size16 49-2000960 Rev. 0 Using the correct size cookware The induction coils require a minimum pan size to function properly. If the pan is removed from the element for more than 25 seconds or not detected the ON indicator for that element will flash and then turn off. Cookware larger than the element ring may be used; however, heat will only occur above the element. For best results, the cookware must make FULL contact with the glass surface. Do not allow the bottom of the pan or cookware to touch the surrounding metal cooktop trim or to overlap the cooktop controls. For best performance, match the pan size to the element size. Using a smaller pot on a larger burner will generate less power at any given setting. Suitable Cookware Use quality cookware with heavier bottoms for better heat distribution and even cooking results. Choose cookware made of magnetic stainless steel, enamel coated cast iron, enameled steel and combinations of these materials. Some cookware is specifically identified by the manufacturer for use with induction cooktops. Use a magnet to test if the cookware will work. Flat-bottomed pans give best results. Pans with rims or slight ridges can be used. Round pans give best results. Pans with warped or curved bottoms will not heat evenly. For wok cooking, use a flat-bottomed wok. Do not use a wok with a support ring. Use a flat-bottomed wok. Use a griddle. Use flat-bottomed pans. 30” wide cooktop. Use the minimum recommended size pan shown for each cooking element. 36” wide cooktop. Use the minimum recommended size pan shown for each cooking element. 5” Min. Dia. Pan Size5” Min. Dia. Pan Size4-1/2” Min. Dia. Pan Size7” Min. Dia. Pan Size5-1/4” Min. Dia. Pan Size5” Min. Dia. Pan Size5” Min. Dia. Pan Size4-1/2” Min. Dia. Pan Size 7” Min. Dia. Pan Size USING THE COOKTOP: Choosing the Correct Cookware to Use Choosing the Correct Cookware to Use49-2000960 Rev. 0 17 USING THE COOKTOP: Choosing the Correct Cookware to Use Cookware Recommendations Cookware must fully contact the surface of the cooking element. Use flat-bottomed pans sized to fit the cooking element and also to the amount of food being prepared. Induction interface disks are NOT recommended. Precision Device Minimum Temperatures Device temperature ranges are dependent on burner size: Using the Precision Probe at low temperatures If you are experiencing trouble maintaining lower set temperatures with a precision probe, try changing your set-up by: Ŷ 5HPRYHWKHOLGIURPWKHSRW Ŷ 8VHDODUJHUGLDPHWHUSRW Ŷ 8VHDVPDOOHUEXUQHUZLWKDSRWODUJHUWKDQWKHEXUQHU Cookware not centered on cooking element surface.Curved or warped pan bottoms or sides.Pan does not meet the minimum size required for the cooking element used.Cookware centered correctly on cooking element surface.Flat pan bottom.Pan size meets or exceeds the recommended minimum size for the cooking element used. INCORRECT CORRECT Pan bottom rests on cooktop trim or does not rest completely on the cooktop surface.Heavy handle tilts pan.Pan is partially magnetic on the bottom.Pan is completely magnetic on the bottom.Pan bottom rests completely on the cooktop surface.Pan is properly balanced. Choosing the Correct Cookware to Use (Cont.) DeviceSmall to Medium Burners (A) Large Burners (B)Hestan Cue

B18 49-2000960 Rev. 0 Using the Griddle CAUTION Burn Hazard Ŷ Griddle surfaces may be hot enough to cause burns during and after use. Place and remove the griddle when it is cool and all surface units are off. Use oven mitts if you will touch the griddle while hot. Failure to do so can result in burns. Ŷ Place and remove the griddle only when griddle is cool and all surface burners are turned OFF. Before using this cookware for the first time, wash it to make sure it is clean. Then season it lightly, rubbing cooking oil onto the cooking surface. How To Place The Griddle IMPORTANT: Always place and use your griddle at the designated location on the cooktop. IMPORTANT NOTES: Ŷ Clean the griddle with a sponge and mild detergent in warm water. DO NOT use blue or green scrubbing pads or steel wool. Ŷ Avoid cooking extremely greasy foods and be careful of grease spillover while cooking. Ŷ Never place or store any items on the griddle, even when it is not in use. The griddle can become heated when using the surrounding surface units. Ŷ Avoid using metal utensils with sharp points or rough edges, which might damage the griddle. Do not cut foods on the griddle. Ŷ Do not use cookware as a storage container for food or oil. Permanent staining and/or craze lines could result. Ŷ Your griddle will discolor over time with use. Ŷ Do not clean the griddle in a self-cleaning oven. Ŷ Always allow the cookware to cool before immersing in water. Ŷ Do not overheat the griddle. Griddle Operation To turn on the surface units for the entire griddle, use the Sync Burners control feature. Touch the Sync Burners pad and then adjust power level to desired setting as described on page 7. USING THE COOKTOP: Griddle Griddle Griddle settings are intended to be a guideline and may need to be adjusted based on individual cooking preferences. Type of Food Cook Setting Warming Tortillas Med-LoPancakes Med-LoHamburgers Med Fried EggsMed-LoBreakfast Sausage Links MedHot Sandwiches (such as Grilled Cheese) Med-Lo49-2000960 Rev. 0 19 CARE AND CLEANING: Cleaning the Glass Cooktop Cleaning the Glass Cooktop To maintain and protect the surface of your glass cooktop, follow these steps:

1. Before using the cooktop for the first time, clean it

with a ceramic cooktop cleaner. This helps protect the top and makes cleanup easier.

2. Regular use of a ceramic cooktop cleaner will help

keep the cooktop looking new.

3. Shake the cleaning cream well. Apply a few drops of

a ceramic cooktop cleaner directly to the cooktop.

4. Use a paper towel or a non-scratch cleaning pad for

ceramic cooktops to clean the entire cooktop surface.

5. Use a dry cloth or paper towel to remove all cleaning

residue. No need to rinse. NOTE: It is very important that you DO NOT heat the cooktop until it has been cleaned thoroughly. Burned-On Residue NOTE: DAMAGE to your glass surface may occur if you use scrub pads other than those recommended.

1. Allow the cooktop to cool.

2. Spread a few drops of a ceramic cooktop cleaner on

the entire burned residue area.

3. Using a non-scratch cleaning pad for ceramic

cooktops, rub the residue area, applying pressure as needed.

4. If any residue remains, repeat the steps listed above

5. For additional protection, after all residue has been

removed, polish the entire surface with a ceramic cooktop cleaner and a paper towel. Heavy, Burned-On Residue

1. Allow the cooktop to cool.

2. Use a single-edge razor blade scraper at approximately

a 45° angle against the glass surface and scrape the soil. It will be necessary to apply pressure to the razor scraper in order to remove the residue.

3. After scraping with the razor scraper, spread a few

drops of a ceramic cooktop cleaner on the entire burned residue area. Use a non-scratch cleaning pad to remove any remaining residue.

4. For additional protection, after all residue has been

removed, polish the entire surface with a ceramic cooktop cleaner and a paper towel. Clean your cooktop after each spill. Use a ceramic cooktop cleaner.CeramicCooktopCleaner The ceramic cooktop scraper and all recommended supplies are available through our Parts Center. See instructions under “Assistance / Accessories” section. NOTE: Do not use a dull or nicked blade. Use a non-scratch cleaning pad for ceramic cooktops.20 49-2000960 Rev. 0 Metal Marks and Scratches

1. Be careful not to slide pots and pans across your

cooktop. It will leave metal markings on the cooktop surface. These marks are removable using a ceramic cooktop cleaner with a non-scratch cleaning pad for ceramic cooktops.

2. If pots with a thin overlay of aluminum or copper

are allowed to boil dry, the overlay may leave black discoloration on the cooktop. This should be removed immediately before heating again or the discoloration may be permanent. NOTE: Carefully check the bottom of pans for roughness that would scratch the cooktop. Damage from Sugary Spills and Melted Plastic Special care should be taken when removing hot substances to avoid permanent damage of the glass surface. Sugary spillovers (such as jellies, fudge, candy, syrups) or melted plastics can cause pitting of the surface of your cooktop (not covered by the warranty) unless the spill is removed while still hot. Special care should be taken when removing hot substances. Be sure to use a new, sharp razor scraper. Do not use a dull or nicked blade.

1. Turn off all surface units. Remove hot pans.

2. Wearing an oven mitt:

a. Use a single-edge razor blade scraper to move the spill to a cool area on the cooktop. b. Remove the spill with paper towels.

3. Any remaining spillover should be left until the surface

of the cooktop has cooled.

4. Don’t use the surface units again until all of the

residue has been completely removed. NOTE: If pitting or indentation in the glass surface has already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary. Cleaning the Glass Cooktop (Cont.) CARE AND CLEANING: Cleaning the Glass Cooktop49-2000960 Rev. 0 21 TROUBLESHOOTING TIPS Troubleshooting Tips ... Before you schedule service Save time and money! Review the charts on the following pages first and you may not need to schedule service. If an error occurs in the control operation, a fault code will flash in the display. Record the error code and schedule service. Problem Possible Cause What To Do Surface elements will not maintain a rolling boil or cooking is slow Improper cookware being used. Use pans that are recommended for induction, have flat bottoms and match the size of the surface element. Surface elements do not work properly Cooktop controls improperly set. Check to be sure the correct control is set for the surface element you are using. Power arc ON indicator blinking Wrong pan type. Use a magnet to check that cookware is induction compatible. Pan is too small. %OLQNLQJ³21´LQGLFDWRU²SDQVL]HLVEHORZWKHPLQLPXPVL]HIRUWKH element. See the Using the correct size cookware section. Pan not positioned correctly. Center the pan in the cooking ring. +, -, or control lock pads have been touched before an element is turned on. See the Operating the Cooking Elements section. Scratches on cooktop glass surface Incorrect cleaning methods being used. Use recommended cleaning procedures. See the Cleaning the glass cooktop section. Cookware with rough bottoms being used or coarse particles (salt or sand) were between the cookware and the surface of the cooktop. Cookware has been slid across the cooktop surface. To avoid scratches, use the recommended cleaning procedures. Make sure bottoms of cookware are clean before use, and use cookware with smooth bottoms. Areas of discoloration on the cooktop Food spillovers not cleaned before next use. See the Cleaning the glass cooktop section. Hot surface on a model with a light-colored glass cooktop. This is normal. The surface may appear discolored when it is hot. This is temporary and will disappear as the glass cools. Plastic melted to the surface Hot cooktop came into contact with plastic placed on the hot cooktop. See the Glass surface – potential for permanent damage section in the Cleaning the glass cooktop section. Pitting (or indentation) of the cooktop Hot sugar mixture spilled on the cooktop. Call a qualified technician for replacement. Unresponsive keypad Keypad is dirty. Clean the keypad. A fuse in your home may be blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker. Pan detection/sizing not working properly Improper cookware being used. Use a flat induction capable pan that meets the minimum size for the element being used. See the Using The Correct Size Cookware section. Pan is improperly placed. Make sure the pan is centered on the corresponding surface element. Cooktop control improperly set. Check to see that the control is set properly. Noise Sounds you may hear: Buzzing, whistling and humming. These sounds are normal. See Cooking Noise section. Precision Cooking button beeps error tone when pressed one time There is no precision cooking device paired, so you are unable to start a precision cooking mode. Connect a precision cooking device. Probe actual temperature is not stable while charger is inserted Electrical noise is impacting the signal. Probe should be charged before cooking. Do not leave probe plugged in while cooking. My sous vide probe JXSOUSV1 won't pair Existing precision probes are not compatible with new precision features. Connect a model compatible precision probe. My precision probe is not accurately maintaining low temperatures The pot size, pot set-up, and/or burner size you are using may be unsuitable to hold low temperatures. Remove the lid, use a larger diameter pot, or use a smaller burner. Please keep your unit connected and install upcoming updates to improve performance. Pan won't pair or activate when tapping handle Tapping force is too light. Double tap the pan with firm taps (or knock) on the black plastic endcap. Battery in pan is low or dead. Replace AAA battery, installing with positive end out of handle. Using different pan hardware. Check that your pan has a black endcap that unscrews from the end of the handle. Pans with an oval module reading "Hestan Cue

" will not work with Café appliances. Experiencing performance or minor technical issues including seeing 20F or 100F as set temperature Old unit or pan software. Connect your unit to the SmartHQ app and update unit software. Connect your unit and pan to the Hestan Smart Cooking app and update pan software. The unit cancelled my precision cooking mode Battery in device is low or dead. Replace AAA battery in pan, or charge probe. Old unit or pan software. Connect your unit to the SmartHQ app and update unit software. Connect your unit and pan to the Hestan Smart Cooking app and update pan software. Your precision cooking device has gone out of range. This could indicate a problem with the device. If the problem persists, please contact the device manufacturer. Your precision cooking device had a computation malfunction. The unit lost communication with your precision cooking device. This could indicate a problem with the device or the unit. If the problem persists, please contact the device or unit manufacturer. Some cooking techniques and set temperatures in combination may trigger a fault in the temperature sensing algorithm. Re-start the precision cooking mode and if problem persists under the same conditions but is not consistent in other use cases, contact the unit manufacturer.22 49-2000960 Rev. 0 Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. LIMITED WARRANTY cafeappliances.com All warranty service is provided by our Factory Service Centers, or an authorized service technician. To schedule service online, visit us at cafeappliances.com/service. Please have your serial number and your model number available when scheduling service. Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a Café factory service technician the ability to quickly diagnose any issues with your appliance and helps Café improve its products by providing Café with information on your appliance. If you do not want your appliance data to be sent to Café, please advise your technician not to submit the data to Café at the time of service. What Café will not cover: Ŷ Service trips to your home to teach you how to use the product. Ŷ ,PSURSHULQVWDOODWLRQGHOLYHU\RUPDLQWHQDQFH Ŷ )DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHG modified or used for other than the intended purpose or used commercially. Ŷ 5HSODFHPHQWRIKRXVHIXVHVRUUHVHWWLQJRIFLUFXLW breakers. Ŷ 'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUH floods or acts of God. Ŷ ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\ possible defects with this appliance. Ŷ 'DPDJHFDXVHGDIWHUGHOLYHU\ Ŷ 3URGXFWQRWDFFHVVLEOHWRSURYLGHUHTXLUHGVHUYLFH Ŷ 6HUYLFHWRUHSDLURUUHSODFHOLJKWEXOEVH[FHSWIRU LED lamps. Café Electric Cooktop Limited Warranty

EXCLUSION OF IMPLIED WARRANTIES

• Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. For the period of Café will replace One year From the date of the original purchase Any part of the cooktop which fails due to a defect in materials or workmanship. During this limited one-year warranty, Café will provide, free of charge, all labor and in-home service to replace the defective part. This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a Café Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Café Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: GE Appliances, a Haier company Louisville, KY 40225 Warrantor in Canada: MC Commercial Burlington, ON, L7R 5B6 Extended Warranties: Purchase a Café extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it online anytime at cafeappliances.com/extended-warranty Café Service will still be there after your warranty expires.49-2000960 Rev. 0 23 ACCESSORIES Looking For Something More? Café offers a variety of accessories to improve your cooking and maintenance experiences! Refer to the Consumer Support page for website information. The following products and more are available: Accessories Parts Griddle Sous Vide Kit Stainless Steel Cleaner and Polisher24 49-2000960 Rev. 0 Printed in the United States Consumer Support CONSUMER SUPPORT Café Website Have a question or need assistance with your appliance? Try the Café website 24 hours a day, any day of the year! You can also shop for more great Café products and take advantage of all our on-line support services designed for your convenience. In the US: cafeappliances.com In Canada: cafeappliances.ca Register Your Appliance Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In the US: cafeappliances.com/register In Canada: cafeappliances.ca/registration Schedule Service Expert Café repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year. In the US: cafeappliances.com/service In Canada: cafeappliances.ca/service Extended Warranties Purchase a Café extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. Café Service will still be there after your warranty expires. In the US: cafeappliances.com/extended-warranty In Canada: cafeappliances.ca/extended-warranty Remote Connectivity For assistance with wireless network connectivity (for models with remote enable), visit our website at cafeappliances.com/connect In Canada: cafeappliances.ca/connect Parts and Accessories Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day. In the US: cafeappliances.com/parts Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Customers in Canada should consult the yellow pages for the nearest Mabe service center, visit our website at cafeappliances.com/parts Contact Us If you are not satisfied with the service you receive from Café, contact us on our website with all the details including your phone number, or write to: In the US: General Manager, Customer Relations | Café Appliances, Appliance Park | Louisville, KY 40225 cafeappliances.com/contact In Canada: Director, Consumer Relations, Mabe Canada Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3 cafeappliances.ca/contactInscrivez ci-dessous les numéros de modèle et de série N° de modèle___________________________ N° de série_____________________________ Ils se trouvent sur une étiquette sous la table de cuisson. 49-2000960 Rev. 0 08-21 GEA Manuel du propriétaire À induction électronique table de cuisson Modèles : CHP9530 et CHP9536 Table des matières Consignes de sécurité p. 3
