Product Type	Waste Compactor
Brand	GE
Model	UCG1500NBB (UCG1500 and UCG1600 series)
Power Supply	120 V, 60 Hz, AC, 15-20 A, dedicated circuit recommended
Waste Volume Reduction	Up to 1/4 of original volume
Compaction Cycle Duration	Less than 30 seconds
Start	Removable ON/OFF button + foot pedal
Emergency Stop	Drawer opening during cycle
Child Safety	Removable button to lock controls
Safety Switches	Two drawer safety switches
Installation Type	Built-in only (not portable)
Intended Use	Residential only
Compatible Bags	Special heavy-duty bags (ref. WC60X5017)
Exterior Cleaning	Damp cloth, appliance polish
Interior Cleaning	Protective gloves, vacuum, manual stain removal
Motor Thermal Protection	Automatic reset
Limited Warranty	1 year parts and labor (Canada)
Customer Service (Canada)	800.561.3344
Parts and Accessories (Canada)	800.661.1616

Frequently Asked Questions - UCG1500NBB GE

How to start the GE UCG1500NBB compactor?

Turn the button to ON, make sure the drawer is fully closed, then lift the foot pedal until you hear the cycle start. Release the pedal: the cycle ends automatically in less than 30 seconds.

What waste can I compact with this appliance?

You can compact most household waste: paper, cans, bottles, jars, plastic containers, envelopes, sweepings, and some food waste. Do not compact raw meat, fish, personal hygiene items, diapers, flammable, explosive, or toxic materials.

What to do if the compactor does not work?

Check that the power cord is plugged in, the fuse or circuit breaker hasn't tripped, the button is ON, the drawer is fully closed, and the foot pedal was lifted long enough. If the motor is hot, wait a few minutes for the thermal protection to reset.

How to lock the compactor for child safety?

Turn the button to OFF and remove it. Store the key or button out of children's reach. The compactor cannot operate without the button.

Can I use regular trash bags?

No, you must use the special heavy-duty bags designed for compactors, part number WC60X5017. They are available from GE Appliances.

How to remove a full bag without injuring myself?

Open the drawer by depressing the foot pedal. Remove bag edges from the retaining buttons, push the side door latch down and open the side drawer by tilting it. Remove the bag with the cart. Keep the bag away from your body as sharp objects may have punctured the bag.

Is it normal for glass bottles to make noise?

Yes, it's normal. Glass bottles may break during compaction and produce a loud noise. This can occur several cycles after loading.

How to clean the inside of the compactor?

Wear protective gloves. Remove the bag, then tilt the drawer by depressing the side door latch. Wipe with a damp cloth. For the cabinet, remove the drawer, vacuum, and clean spills by hand.

What to do if the drawer does not open?

If the ram is not in the up position, lift the foot pedal and release it to complete its cycle. Then open the drawer and turn the button to OFF.

Where to find the serial and model numbers?

They are on the label on the front part of the appliance frame. Write them down in the manual for any service requests.

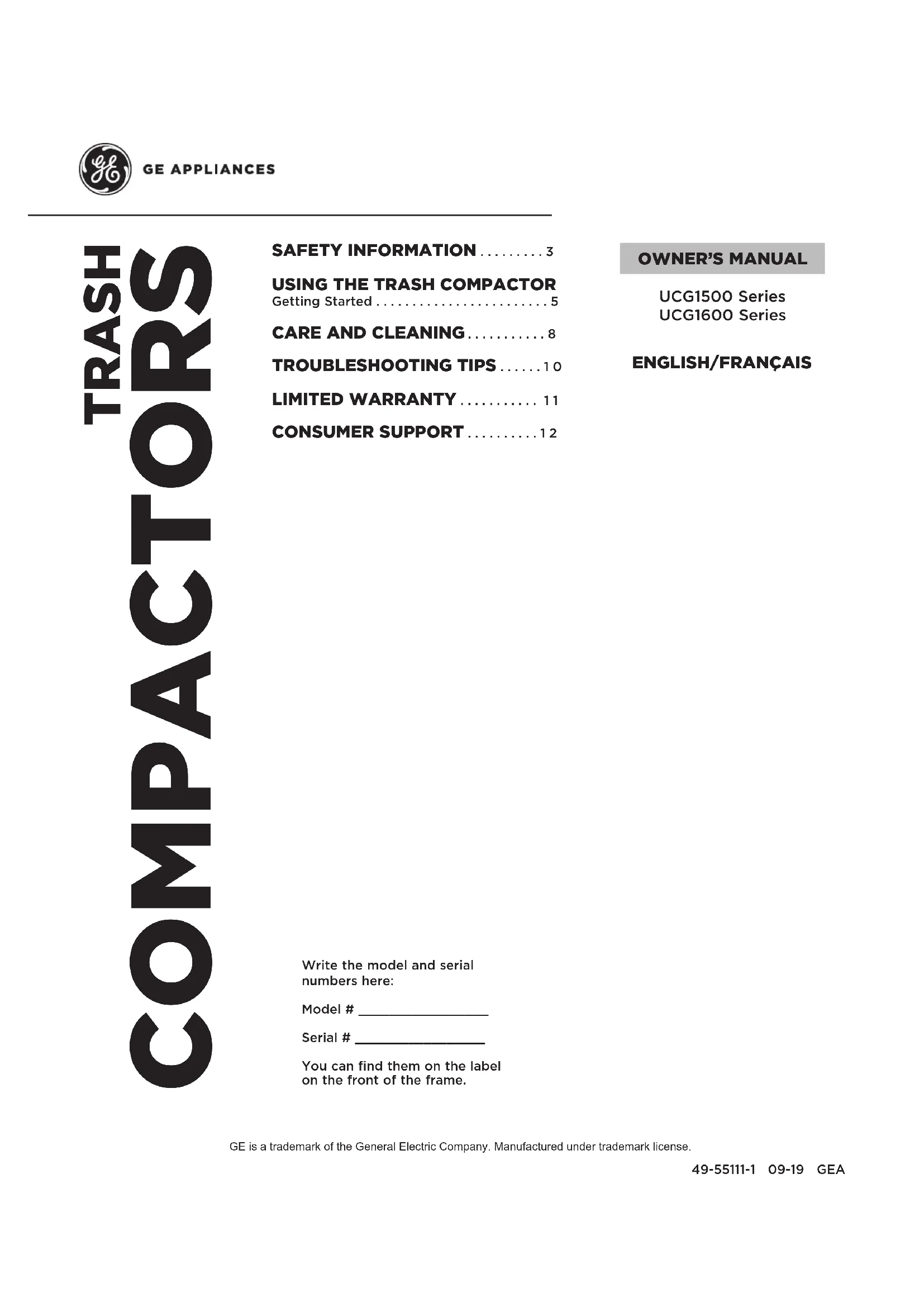

USER MANUAL UCG1500NBB GE

SAFETY INFORMATION .... 3

USING THE TRASH COMPACTOR

Getting Started .... 5

CARE AND CLEANING....8

TROUBLESHOOTING TIPS .....10

LIMITED WARRANTY....11

CONSUMER SUPPORT ....12

OWNER'S MANUAL

UCG1500 Series

UCG1600 Series

ENGLISH/FRANÇAIS

Write the model and serial numbers here:

Model # ____

Serial # ____

You can find them on the label on the front of the frame.

THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.

Whether you grew up with GE Appliances, or this is your first, we're happy to have you in the family.

We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.

Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner's Manual. You may also mail in the pre-printed registration card included in the packing material.

GE APPLIANCES

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

For your safety, the information in this manual must be followed to minimize, explosion, electric shock, and to prevent property damage, personal injury,

WARNING

WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD BE FOLLOWED, INCLUDING THE FOLLOWING:

This compactor is for household use only. Use this appliance only for its intended purpose as described in this Owner's Manual. Do not use other than manufacturer's attachments.
■ Close supervision is necessary when any appliance is operated near children. Do not allow the compactor to be used as a toy, or to run unattended at any time. Lock key switch when not in use and store key out of reach of children.
■ CHILD LOCK-OUT INSTRUCTIONS: Turn the knob to OFF and remove it when not compacting trash. This will help prevent anyone from tampering with the compactor or children from operating it.
■ Do not push trash into the drawer with hands or feet. Trash might contain broken glass, sharp pieces of metal, or other sharp objects that might cause injury.
■ When removing or carrying the trash bag, keep the bag away from your body. Sharp objects may have pierced it.
■ Be careful when cleaning the inside of the cabinet or trash drawer. Glass fragments may be stuck to the ram, imbedded in the drawer surface or lying in the bottom of the cabinet.
■ Do not install or store compactor where it will be exposed to outside conditions.
■ Make sure the compactor is properly installed and leveled on a floor that can support its weight.
■ Do not touch moving parts.
■ Do not compact food waste such as raw meat and fish, rinds, personal hygiene items and disposable diapers. These items create very strong odors and should not go into the compactor.

■ Do not use as a freestanding unit. Use only as a built-in unit.
■ Never compact shotgun shells, cartridges for firearms, fireworks, etc., which are highly explosive.
■ Never compact flammable materials such as paint, oil- or gasoline-saturated rags, engine starting fluid cans, paint thinner cans, etc.—spontaneous combustion or explosive vapor concentrations could occur.
■ Never compact containers of toxic chemicals such as strong insecticides or other poisonous materials—compaction could release hazardous fumes.
■ Never compact aerosol cans containing explosive or highly toxic chemicals. (If you are sure the aerosol cans contain non-hazardous materials such as shaving cream, cheese spread and whipped cream, they may be compacted.)
■ Do not compact lit cigarettes, cigars, or other hot or burning items.
■ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
■ Do not overload your appliance.
■ Handle a loaded trash bag with care. Sharp objects can pierce the bag and cause injury. Do not overload trash bag with heavy material such as glass.

PRECAUTIONS AGAINST UNREASONABLE USE OF YOUR COMPACTOR:

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD BE FOLLOWED, INCLUDING THE FOLLOWING:

■ To prevent hazard of electrical shock, this compactor must be properly installed and grounded in accordance with the Installation Instructions before it is used.
- Do not operate with a damaged cord set, plug, motor, or after damage in any manner. Have the appliance examined, repaired, or adjusted by an authorized service technician.
- Do not take apart this appliance. Incorrect reassembly can cause electric shock when subsequently used.
■ Unplug the compactor before making any repairs. NOTE: We strongly recommend that any servicing be performed by a qualified person.
- Do not use an adapter plug or an extension cord with this appliance.
■ Follow the latest edition of National Electric Codes and prevailing local codes and ordinances. This appliance must have a fused electrical supply of 120V, 60Hz, AC only, properly grounded 15 or 20 amp circuit.
■ If the electric supply provided does not meet the above requirements, call a licensed electrician.

■ We recommend that a separate circuit serving only this appliance be provided.
■ Do not, under any circumstances, cut or remove the third grounding prong from the power cord.
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
- Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded.
- Do not modify the plug with this appliance. If it will not fit the outlet installed, have a proper outlet installed by a qualified electrician.

WARNING

PROPER INSTALLATION AND MAINTENANCE

This compactor must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions with your compactor, you can receive one by visiting our Website at GEAppliances.com. In Canada, visit www.GEAppliances.ca.

READ AND SAVE THESE INSTRUCTIONS

Features and appearance will vary throughout this manual

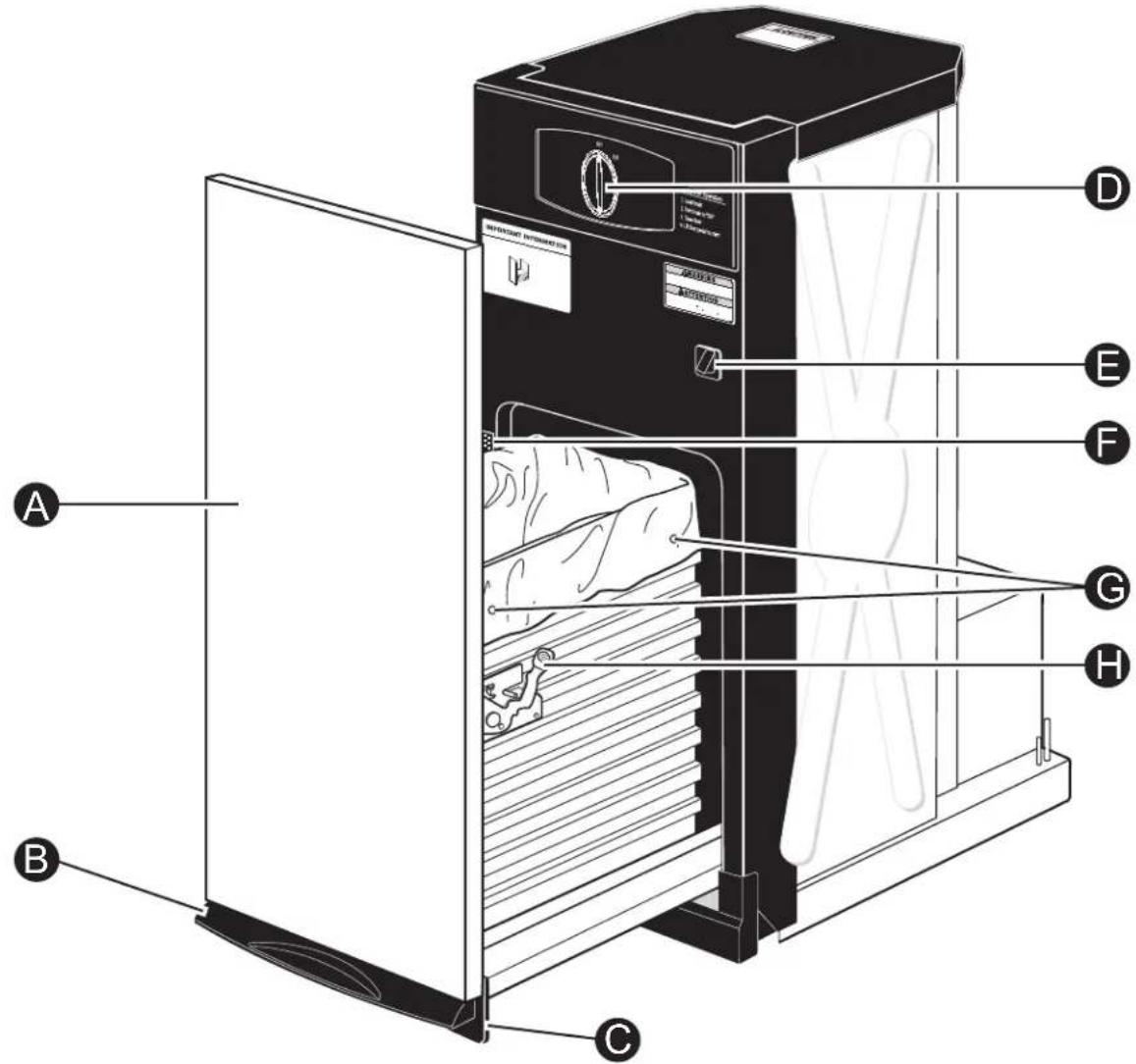

A B C D E F G H

Features

A DOOR PANEL
B FOOT PEDAL DRAWER OPENER AND COMPACTOR ACTIVATION
© TOE KICK
ON/OFF KNOB

E DRAWER SAFETY SWITCH
F MODEL AND SERIAL NUMBER LABEL
G BAG RETAINER BUTTONS
MOVEABLE SIDE DOOR LATCH

Getting started

What It Does and How It Works

Your compactor reduces household trash to as little as one-fourth of its original volume.

It compacts most refuse, including paper, cans, bottles, jars, plastic containers, wrappings, sweepings and some food wastes.

Drop trash into the disposable bag (designed for compactor use) that lines the compactor trash drawer and close the drawer. When you start the compactor, an electrically-operated ram moves down into the drawer, compacts trash, moves back up again—and the compactor shuts off automatically.

NOTE: The trash drawer must be at least 1/2 full before you will notice compaction because the ram does not travel all the way down into the drawer. By adding trash, compaction is transferred to the items below until all trash is compacted. Damage may occur if door is opened during cycle.

ON/OFF Knob

The removable knob is provided for your protection as a safety measure. When the knob switch is in the OFF position, the compactor will not operate.

Child Lockout Instructions:

Lock the compactor when it is not in use, by removing the knob. This will keep children from operating the compactor and prevent anyone from tampering with it.

Drawer Safety Switch

The compactor has two safety switches to ensure that the drawer is in its fully closed position for operation. The compactor will not cycle without the drawer being fully closed.

Trash Bag Installation

Before installing a new bag, be sure that:

1 The side door latch is securely locked. If the side door is open, push to close it.
2 The container is clean and free of sharp debris that may puncture the bag.

Reinforced plastic bags came with your compactor and are ready to be installed.

You must use the specially designed heavy-duty trash bags included with your compactor. These bags are available from your dealer or Factory Service Center. Ask for catalog number WC60X5017.

To order bags, call toll-free:

US: 877.959.8688 or GEApplianceparts.com

Canada: 800.661.1616 or www.GEAppliances.ca

To install a new bag:

1 Place the bag into the drawer. Open the bag and pull the top edges over the drawer top.
2 Lock the bag in place by pulling the four prepunched holes over the bag retainer buttons. Holes will expand over the buttons without harming the bag.

Loading

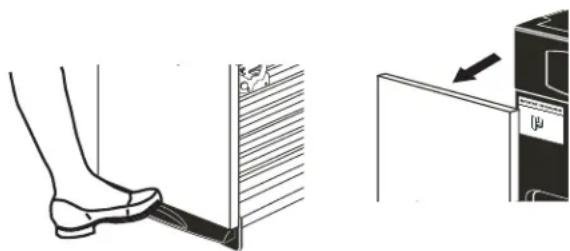

Press the foot pedal and pull the drawer out. Remember:

Illustration showing a foot pressing down on a wall and a door with an arrow pointing to the door (no text or symbols present)

■ To help keep the ram clean when compacting messy food waste, place a couple of folded sheets of newspaper on top of the load to be compacted.
■ Items too bulky to go into the drawer can be folded to fit. If it cannot be folded to fit into the drawer, do not attempt to force it.
- Folded newspaper is also helpful when compacting a large glass bottle, or several bottles or jars, or any other items that might shatter.
Although it is not necessary to compact until the drawer is full or nearly full, we suggest that, for maximum compaction, you start the compactor each time a significant amount of trash is added.

Compacting

To start the compactor:

1 Turn the knob to ON.
2 Make sure the drawer is fully closed.
3 Lift the foot pedal up until you hear the cycle start. Release the foot pedal and the compactor will complete the cycle automatically.

The ram travels downward into the drawer, compacting the trash. At the bottom of the stroke, the ram automatically reverses direction, retracts out of the drawer, returns to its starting position, and the compactor shuts off automatically.

The cycle takes less than 30 seconds. As the trash drawer fills with trash, cycle time gets progressively shorter.

NOTES:

• You will not see compacting of trash the first few times you load. The compactor drawer should be about 1/2 full before the compactor can begin to compress the load.
  ■ Glass bottles can make a loud noise when they break during compaction. This is normal. Also, bottles in the trash drawer will not always break during the first cycle. Breaking glass and associated noise may occur several cycles later, depending on the type and volume of the trash.

■ When bottles and cans are compacted, small tears in the bag may occur. This is normal and in no way affects the performance of the compactor. Keep the bag away from your body to prevent injury from sharp objects that may have pierced the bag.

IMPORTANT:

• Do not apply too much force when turning the knob. The knob should always rotate easily. Forcing may break the knob and damage the switch.
• When emptying waste baskets into the trash drawer, some items may spill into the compactor behind the drawer. Items behind the drawer could prevent it from closing completely and prevent the compactor from operating. To remove such items from behind the drawer, open the drawer and remove it to clean them out. See the Care and Cleaning section.

To stop the compactor:

The compactor may be stopped at any time.

1 Attempting to open the drawer while the ram is moving will stop the ram. The safety switch will activate.
2 Close the drawer completely and the ram will travel back to the UP position.
3 Open the drawer fully and turn the knob to OFF.

Removing a Full Trash Bag

1 Open the drawer by depressing the foot pedal.
2 Remove the top of the bag from the bag retainer buttons. Pull up all four bag cuffs.

Illustration of a person pressing down on a wooden plank (no text or symbols)

3 Push the side door latch down and tilt the drawer side open.

Illustration of a person lying down with a magnified circular diagram showing a globe (no text or symbols)

4 Lift the bag out.

Simple line drawing of a hand cleaning or cleaning a surface with debris (no text or symbols)

Care and cleaning

Cleaning the Unit

As is true of most appliances, proper care is needed to give you continued satisfaction. Before cleaning the compactor, turn the knob to the OFF position and remove it. If you will be away for more than a couple of days, remove the compactor bag. Lock the compactor by removing the knob and store it in a safe place.

To clean the outside:

Wipe with a clean damp cloth.

Painted panels:

Apply a coat of kitchen/appliance wax when the compactor is new, and then several times a year.

Stainless steel panels:

Stainless steel panels can be cleaned with Cerama Bryte® or a similar product using a clean, soft cloth.

Cerama Bryte is available from GE Appliances by calling 877.959.8688 (US) or 800.661.1616 (Canada).

To clean the drawer interior:

1 Remove the bag. See the Removing a Full Trash Bag section.
② Wear protective gloves. There may be bits of glass in the drawer. Press the side door latch down.

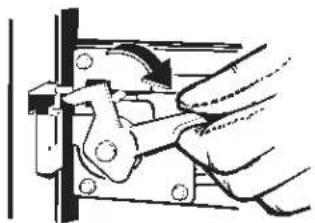

Hand operating a mechanical switch mechanism (no text or symbols visible)

3 Hold the side door latch down and tilt the side of the drawer until the latch clears the drawer front.

Line drawing of a hand opening a rectangular box (no text or symbols)

4 Wipe with a damp cloth.
5 Press the side door latch down while pressing the side to the upright position. Lock the side door latch.

To clean the cabinet interior:

1 Pull the drawer out until it stops. Note the tracks in which the drawer rollers move.
② Wear protective gloves. Lift the front to clear the drawer stops. Grab the drawer on both sides. Pull it out the rest of the way and set it aside.

Line drawing of a vertical cabinet with internal cooling unit and ventilation slots (no text or symbols)

3 Vacuum inside of the cabinet. Liquid spills or wet trash should be cleaned up by hand, or use a vacuum designed to pick up liquid.

Illustration of a hand using a tool to lift a small object inside a metal frame (no text or symbols)

4 Wash, rinse and dry the inside.

Troubleshooting Tips... Before you call for service

Problem Possible Causes What To Do
Compactor won't operate	Compactor is unplugged Make sure the cord is plugged securely into a working outlet.
	Circuit breaker/fuse is tripped/blown	Check house circuit breakers /fuses. Replace fuses or reset breaker.
	Knob switch may not be in the ON position	Make sure the switch is in the ON position.
	Foot pedal may not be lifted up long enough to start cycle	Lift foot pedal up momentarily until compaction cycle starts.
	Drawer may not be closed Check to make sure the drawer is firmly closed.
	Compactor has an automatic thermal motor reset	If you have just compacted repeatedly, this protector may have opened the motor circuit. Wait a few minutes and the motor reset will reclose automatically.
Drawer is hard to close	Trash may have fallen behind the drawer	Remove any trash.
Drawer will not open	The ram is not all the way up	Lift up on the foot pedal and release to allow ram to complete a cycle.
Little or no apparent compaction	Drawer is not full enough The drawer must be at least 1/2 full of trash before you will see any amount of compacting. The ram does not travel all the way to the bottom. Trash in the bottom of the drawer will be crushed during later cycles.
	Trash is stuck between ram and basket	Remove any trash.

GE Appliances Compactor Limited Warranty

GEAppliances.com

All warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service online, visit us at GEAppliances.com/service, or call GE Appliances at 800.GE.CARES (800.432.2737). Please have your serial number and your model number available when calling for service.

Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be sent to GE Appliances, please advise your technician not to submit the data to GE Appliances at the time of service.

For the period of: We will replace:
One yearFrom the date of the original purchase	Any part of the com[actor which fails due to a defect in materials or workmanship. During this limited one-year warranty, we will also provide, free of charge, all labor and related service to replace the defective part.

What is not covered:

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Products which are not defective or broken, or which are working as described in the Owner's Manual.

■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Defects or damage due to operation in freezing temperatures.
■ Damage caused after delivery.
■ Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

In the United States:

This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier Company Louisville, KY 40225

In Canada:

This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location.

Some provinces do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are, consult your local or provincial consumer affairs office.

Warrantor: MC Commercial Inc., Burlington, ON, L7R 5B6

Extended Warranties: Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it online anytime at

GEAppliances.com/extended-warranty

or call 800.626.2224 during normal business hours. GE Appliances Service will still be there after your warranty expires.

Consumer Support

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience. In the US: GEAppliances.com.

In Canada: GEAppliances.ca.

Register Your Appliance

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In the US: GEAppliances.com/register.

In Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx.

Schedule Service

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year. In the US: GEAppliances.com/service or call 800.432.2737 during normal business hours.

In Canada: GEAppliances.ca/en/support/service-request or call 800.561.3344.

Extended Warranties

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your warranty expires. In the US: GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours.

In Canada: GEAppliances.ca/en/support/purchase-extended-warranty or call 866.277.9842.

Parts and Accessories

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.

In the US: GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.

In Canada: GEAppliances.ca/en/products/parts-filters-accessories or call 800.661.1616.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to:

In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225 GEAppliances.com/contact.

In Canada: Director, Consumer Relations, MC COMMERCIAL INC. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3 GEAppliances.ca/en/contact-us.

COMPACTEURS

de déchets

CONSIGNES DE SÉCURITÉ ..... 3

UTILISATION DU COMPACTEUR

A B C D E F G H

Caractéristiques

A PANNEAU DE PORTE
B OUVRE TIROIR À PÉDALE ET ACTIVATION DU COMPACTEUR
© PLINTHE
D BOUTON ON/OFF (MARCHE/ARRÊT)

E INTERRUPTEUR DE SÉCURITÉ DU TIROIR
F EMPLACEMENT DES NUMÉROS DE MODÈLE ET DE SÉRIE
G BOUTONS DE RETENUE DU SAC
VERROU DE PORTE LATÉRALE AMOVIBLE

Comment démarrer

Illustration showing a foot pressing down on a wall and a door opening with an arrow (no text or symbols)

Rappel :

Illustration of a person pressing down on a wooden plank (no text or symbols)

Illustration of a person holding a large object, possibly a pig or mouse, with no visible text or symbols.

Simple line drawing of a hand holding a cloth above a textured surface (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand inserting a rectangular object into a cabinet (no text or symbols)

Line drawing of a refrigerator interior showing front and rear panels with no text or symbols

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Garant : MC Commercial Inc., Burlington, ON, L7R 5B6

Au Canada : Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx.
