CAF-1409R - Coffee maker BRANDT - Free user manual and instructions

Type of product	Drip coffee maker
Brand	BRANDT
Model	CAF-1409R
Dimensions (W x D x H)	268 x 191 x 348 mm
Net weight	1.93 kg
Power supply	220-240 V, 50/60 Hz
Power	1000 W
Maximum capacity	15 cups
Carafe type	Glass carafe with lid
Anti-drip system	Yes (anti-drip valve)
Warming plate	Yes, keeps warm for up to 2 hours
Permanent filter	Included, compatible with paper filters
On/off switch	Yes, with indicator light
Cleaning of removable parts	Dishwasher safe or wash with soapy water
Maintenance	Regular descaling recommended
Safety	Anti-drip valve, stops if carafe is missing
Warranty	2 years
Manual	13 pages, PDF format available online

Frequently Asked Questions - CAF-1409R BRANDT

How to prepare coffee with the BRANDT CAF-1409R coffee maker?

Fill the water reservoir with fresh water to the desired level. Place a filter (permanent or paper) in the filter holder. Add one level tablespoon of ground coffee per cup. Close the lid, place the carafe on the warming plate, plug in and turn on the appliance. The coffee will drip through in a few minutes.

What type of coffee to use?

Use freshly ground coffee with a medium grind. Avoid too fine a grind. Store coffee in a dry place or in the refrigerator after opening to preserve aroma.

How to clean the coffee maker?

Turn off and unplug the appliance, let it cool. Clean the warming plate with a damp cloth. Wash the filter holder, carafe and its lid with soapy water or in the dishwasher. Never immerse the appliance body.

How to descale the machine?

Use a descaling product suitable for coffee makers. Follow the product instructions, then rinse thoroughly with clean water. Perform this operation regularly to prevent limescale buildup.

What to do if coffee does not flow or overflows?

Check that the carafe is correctly positioned to open the anti-drip valve. If overflowing, the carafe is improperly placed or there is too much ground coffee. Adjust the quantity and reposition the carafe.

How long does the warming plate stay on?

The warming plate keeps the coffee hot for a maximum of 2 hours. Turn off the appliance after use to save energy.

Can I use paper filters?

Yes, the coffee maker accepts paper filters in the filter holder, in addition to or instead of the supplied permanent filter.

Is the carafe compatible with other appliances?

No, the carafe is designed only for this coffee maker. Do not place it on hot surfaces (stove, microwave, etc.) to avoid any risk of breakage.

What to do if the carafe breaks?

Do not use a cracked or damaged carafe. Replace it with an original carafe from customer service or an authorized dealer.

How to contact BRANDT customer service?

Check the manual for contact details or visit the website www.brandt.com. You will find information for customer service and spare parts.

USER MANUAL CAF-1409R BRANDT

FR MANUEL D'INSTRUCTION

EN INSTRUCTION MANUAL

Cafetière

Coffee Maker

CAF-1409

Chere Clienr, Cher Client

Vousexzadacquérir unecafetiereBRANDT etnousyouen remercions.

ENGLISH INSTRUCTION MANUAL 8

ressources significatives.

You have just purchased a BRANDT coffee maker and we would like to thank you.

We have placed in this appliance all our passion and know-how so that it best meets your needs. Innovation and performance: we designed it so that it is always easy to use.

In the line of Brandt products, you will also find a wide range of small domestic appliances, compact ovens, microwave ovens, hobs, ventilation hoods, electronic cookers, dishwashers, refrigerators and freezers that can be coordinated with your new BRANDT coffee maker.

Of course, in an ongoing effort to satisfy your demands with regard to our products as best as possible, our after-sales service department is at your disposal and ready to listen in order to respond to all of your questions and suggestions.

You can also log on to our web site at www.brandt.com where you will find all our products, as well as additional, useful information.

BRANDT

As part of our commitment to constantly improving our products, we reserve the right to make changes to their technical, functional and/or esthetical properties in line with their technological development.

Attention: Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

www.brandt.com

1/ INFORMATION FOR THE USER 10

A. Safety recommendations 10
B. Technical data 10
C. Protecting the environment 11

2/ PREPARING YOUR APPLIANCE 11

A.Description of the coffee maker 11
B.Before using your coffee maker 11

3/ USING YOUR APPLIANCE 12

A. Making coffee 12
B. Tips for a good coffee 12

4/ CARING FOR AND CLEANING YOUR APPLIANCE 13

A. Cleaning the coffee maker 13
B. Descalng the coffee maker 13
D. Warranty and after-sale service 13

A. Safety recommendations

Before using this appliance for the first time, read the following instructions carefully and keep them for future reference.
- Make sure that the mains voltage in your home corresponds to that indicated on the appliance.
- In the event of incompatibility between the mains socket and the appliance plug, replace the socket with a suitable one, using a qualified professional.
- The users of adaptors, multiple sockets and or extension cable is not recommended. Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.
After removing the packaging, check that the appliance is in perfect condition, if in doubt; contact the nearest Technical Support Service.
The appliance is for domestic use only. Any other use is considered unsuitable or dangerous.
- The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use, or for repairs conducted by nonqualified personnel.
- Do not touch the appliance with wet or damp hands.
- Keep the appliance separate from water or other liquids, to avoid electric shock; do not connect the appliance to the mains if it is on a damp surface.
- Do not allow children and informs person without supervision.
Children should be watched to ensure they do not play with the appliance.
- Do not leave the appliance unattended when it is turned on because it can be dangerous.
- When removing the plug never pull on the cable.
- Unplug the appliance before cleaning or maintenance.
- In the event of fault or malfunction where the appliance is not to be used, turn off the appliance and do not attempt to repair. If a repair is required, contact a Technical Assistance Service authorised by the manufacturer and requests the use of original spare parts.
- If the cable for this appliance is damaged, contact an authorised Technical Assistance Service for it to be replaced.
- Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).
- Do not use or let any part of the appliance come into contact or near hot surfaces (kitchen gas or electric hobs or ovens).
- Do not use detergents or abrasive sponges to clean the appliance.
- Do not touch the hot surfaces. Use the handles.
- Do not let the cable come into contact with the hot parts of the appliance.
- Do not allow all the liquid to evaporate. Do not heat the jug when empty.
- Do not use a jug which is broken or has a loose or weakened handle. Replace it at any sign of damage. A crack or a chip in the glass may cause the jug to break or to contaminate the liquid it contains with glass particles.
- The jug is designed for use with this appliance only. Do not place the jug on or near to a hot surface (heater, stove, cooking surface, hot oven, microwave oven, etc.)
- Avoid handling it carelessly and knocking it.
To fill the water tank use fresh cold water only.

B. Technical data

Modèle	CAF-1409
Alimentation	220-240 V 50/60Hz
Consummation	1000W
Dimensions	268x191x348 mm
Poids net	1.93 kg

C. Protecting the environment

At the end of its working life, the product must not be disposed with household waste. It must be taken to a special local authority waste collection centre or to a company providing this service. Disposing household appliances separately avoids possible negative effects on the environment and health and enables the constituent materials to be recycled which saves energy and resources.

To remind you that you must dispose of this appliance correctly the symbol shown above appears on the product warning you not to dispose of it with household waste.

For further information, contact your local authority or the shop where you bought the product.

2/ PREPARED YOUR APPLIANCE

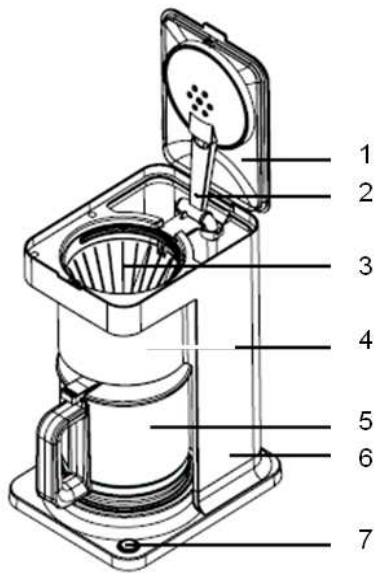

A. Description of the coffee maker

1. Filter holder lid
2. Shower
3. Permanent filter
4. Water tank
5. Jug (15 cups)
6. Base
7. On/Off Switch

B. Before using your coffee maker

1. Place the appliance on a dry, firm and stable surface.
2. Lift opens the filter holder lid, take out the filter holder and clean them together with the jug and the jug lid in warm, soapy water. Rinse well, dry them and reassemble.
3. To clean the inside, operate the coffee maker twice running without coffee. To do this, follow the instructions in the next section.
4. For a perfect taste, carry out 2 or 3 boil-processes with fresh water (without coffee). Once all the water has passed through, switch off the appliance and let it cool down during 5 minutes. Then repeat the process with fresh water.

3/ USING YOUR APPLIANCE

A. Making coffee

• Open the reservoir lid and fill the reservoir with fresh, cold water up to the level corresponding to the desired number of cups of coffee.
• Do not exceed the maximum level of the reservoir.
• Open the filter holder lid and place the paper filter into the filter holder.
• Fill the paper filter with the required amount of ground coffee and close the filter holder lid. We suggest one level tablespoonful of coffee per cup of coffee. Once you have used the coffee maker several times, you will be able to adjust the amount of coffee according to your taste.
• Place the jug with its lid duly in place, onto the hot plate. The jug will open the anti-drip valve when placed correctly onto the plate; otherwise the filtered coffee will not pass into the jug and the filter may overflow.
• Plug the appliance in and turn the coffee maker on by pressing the on/off switch. The indicator light will come on. The water will begin to filter through the coffee maker, pouring the coffee into the jug.
• Once the coffee is ready, the hot plate will keep the coffee hot for two hours. If there is no need to preserve heat, press ON/OFF button and the unit will stop working.
  Unplug the coffee maker.

The coffee maker is fitted with an anti-drip system; this prevents the coffee from dripping onto the plate when the jug is not properly in place.

B. Tips for good coffee

To give the coffee a better flavour and aroma, we advise you to use freshly ground coffee. Medium-ground coffee should be used; it should not be too finely ground. Store the coffee in a dry place. Once the packet of coffee has been opened, it can be kept well-sealed in the

refrigerator in order to maintain its aroma. This coffee maker will keep the coffee hot by means of the hot plate, but for best results, drink the coffee as soon as it has been made.

A. Cleaning the coffee maker

• Before cleaning the coffee maker, turn it off, unplug the coffee maker and wait for it to cool down.
• Clean the hot plate with a cloth which has been moistened with soapy water.
• To remove the lid from the jug, push the hinge part of the lid to one side.
• Turn and lift the other side, the pin will spring out of the hinge and you will be able to remove the lid.
• Wash the filter holder, the jug and the jug lid in soapy water or in the dishwasher, rinse well and dry the parts before reassembling them.

To remove stains from the jug, rub with bicarbonate of soda or a soft cloth. For stubborn stains, fill the jug with hot water; add 2 spoonfuls of dishwasher detergent and leave to soak for several hours.

• Wash and rinse the jug well.
• Clean the outside of the coffee maker with a damp cloth.

• Do not use detergents or abrasive products to clean the coffee maker.
• Do not immerse the appliance in water or in any other liquid.

B. Warranty and after-sale service

This product is covered by a 2-year warranty by your retailer. For more details, please refer to the warranty conditions supplied by your distributor.
