UM1010 - Freezer BRANDT - Free user manual and instructions

Product type	Freezer
Brand	BRANDT
Model	UM1010
Dimensions (HxWxD)	845 x 545 x 570 mm
Freezing capacity	4 kg/24h
Electrical supply	220-230 V, mandatory earth connection
Refrigerant	Isobutane (R600a)
Defrosting	Manual (at least once a year)
Functions	Storage of frozen foods, freezing of fresh foods, ice cube production
Recommended cleaning	Warm water and baking soda
Door opening direction	Reversible (left/right)
Operating noises	Normal: gurgling, humming, cracking
After-sales service	Contact BRANDT consumer service
Spare parts	Use only certified genuine parts
Number of drawers	Several drawers

Frequently Asked Questions - UM1010 BRANDT

How to defrost my BRANDT UM1010 freezer?

To defrost, unplug the appliance and remove the ice using a plastic scraper. You can speed up the process by placing bowls of hot water inside and closing the door. Never use a metal tool or electrical appliance. Perform this operation at least once a year or when the ice layer exceeds 4 mm.

What to do if my freezer does not work?

Check that the plug is properly connected, that the fuse has not blown and that the circuit breaker has not tripped. If the problem persists, contact after-sales service.

Why is my freezer not cooling enough?

Make sure the thermostat is set correctly and that the door is left open for as little time as possible. Also check that the door seals properly. If the problem persists, consult the manual.

My freezer motor runs continuously, what should I do?

Check that the appliance is well ventilated (observe the minimum distances indicated in the manual) and that it is not exposed to a heat source. Too many fresh foods or a poorly closed door can also cause this phenomenon.

Can I reverse the door opening direction?

Yes, the opening direction is reversible. To do this, unplug the appliance, remove the top, unscrew the hinges and reverse the lower pivot. Follow the steps described in the manual. Keep the screws for reassembly.

How to clean the inside of my freezer?

Unplug the appliance and clean the inside with warm water mixed with baking soda using a sponge. Rinse and dry thoroughly. Do not use abrasive cleaners, solvents or steam cleaners. Do not put accessories in the dishwasher.

What type of refrigerant does this appliance use?

The refrigeration circuit contains isobutane (R600a), a natural gas that is low in pollution but flammable. Be careful not to damage the circuit during transport or installation.

Can I freeze carbonated drinks?

No, never place bottles or cans of carbonated drinks in the freezer as they may explode under the effect of freezing. Drinks with a high carbonate content can even explode. Also avoid wine, beer or champagne.

What is the maximum freezing capacity per 24 hours?

The maximum freezing capacity is 4 kg of fresh food per 24 hours. For better preservation, freeze smaller quantities.

Where to find original spare parts for my BRANDT freezer?

For any intervention, request the exclusive use of certified genuine spare parts. Contact BRANDT consumer service at the address indicated in the manual or an approved repairer.

USER MANUAL UM1010 BRANDT

White brandt refrigerator with lid and side panel, no visible text or symbols on the device itself.

Brandt

Chère Cliente, Cher Client,

Technical line drawing of a mechanical assembly with no visible text or symbols

Dear Customer,

You have just purchased a BRANDT freezer, for which we thank you.

Our research teams have designed a new generation of appliances to make your life easier.

With its dedicated areas for optimum, flexible storage, clean and fluid lines allied with appreciable performance, the new Brandt fridges have everything you need to conserve your food and provide the answers to your everyday consumption needs.

The Brandt range of products also includes a wide choice of dishwashers, washing machines and clothes driers, fridges, cookers and ovens, hot-plates and extractor hoods, that you can combine with your new BRANDT freezer.

At the innovative cutting edge, BRANDT thus helps to improve the quality of life on a daily basis, by offering you simple but high-performance products that are respectful of the environment, good-looking and reliable.

BRANDT

INDEX

Page

Safety standards / Recommendations 4

Installation....5

Reversing the door opening direction 6

General description....6

Using the freezer 7

De-icing 7

Cleaning and maintenance 7

Operating problems / Specifications....8

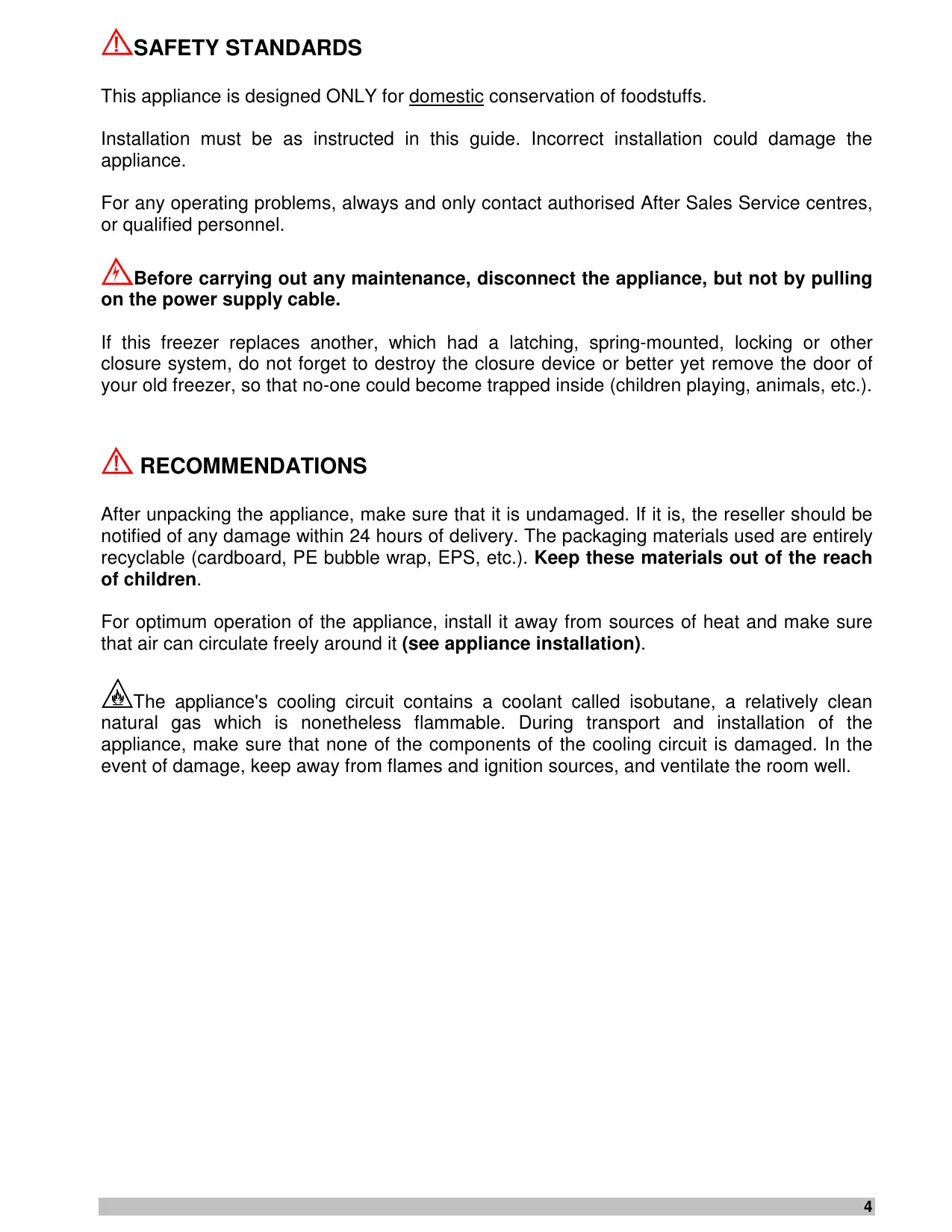

This appliance is designed ONLY for domestic conservation of foodstuffs.

Installation must be as instructed in this guide. Incorrect installation could damage the appliance.

For any operating problems, always and only contact authorised After Sales Service centres, or qualified personnel.

Before carrying out any maintenance, disconnect the appliance, but not by pulling the power supply cable.

If this freezer replaces another, which had a latching, spring-mounted, locking or other closure system, do not forget to destroy the closure device or better yet remove the door of your old freezer, so that no-one could become trapped inside (children playing, animals, etc.).

RECOMMENDATIONS

After unpacking the appliance, make sure that it is undamaged. If it is, the reseller should be notified of any damage within 24 hours of delivery. The packaging materials used are entirely recyclable (cardboard, PE bubble wrap, EPS, etc.). Keep these materials out of the reach of children.

For optimum operation of the appliance, install it away from sources of heat and make sure that air can circulate freely around it (see appliance installation).

The appliance's cooling circuit contains a coolant called isobutane, a relatively cleanural gas which is nonetheless flammable. During transport and installation of the liance, make sure that none of the components of the cooling circuit is damaged. In the nt of damage, keep away from flames and ignition sources, and ventilate the room well.

INSTALLATION

⚠️ Before installing, carefully read the Recommendations and Safety standards in order to avoid a certain number of problems.

If you want to move your freezer, hold it by the sides or by the base. You should never lift it by its top.

Install the appliance in a dry, well-ventilated room, away from all sources of heat. Leave a minimum gap of 10 cm between the top of the freezer and any wall-mounted kitchen units. If this is impossible, leave 5 cm above the appliance and 2.5 cm on each side of the appliance.

Make sure that the air vents on your freezer are not covered or blocked.

The climate class of your freezer is marked on its ID plate. It determines the range of ambient temperatures for which the cooling unit is designed, and within which correct operation of the appliance is guaranteed.

Class	Ambient temperatures
N	16° to 32°
ST	18° to 38°
T	18° to 43°

Electrical connection

• Connector characteristics: 220-230V with earth.
• Avoid using adapters or extension leads.
• Avoid the cable coming into contact with the compressor.
• Avoid trapping the cable under the appliance.

The appliance's electrical installation is earthed. For your safety, connect the appliance to a power outlet with effective earthing (in conformity with current electrical installation safety standards).

The manufacture declines all liability for damage caused by the absence of an earth connection.

CAUTION – BEFORE CONNECTING

1. Clean the inside of the freezer with warm water containing bicarbonate of soda. Rinse and dry thoroughly.
2. Wait for 2 hours before switching on, to ensure that the lubricants in the motor compressor have stabilised.

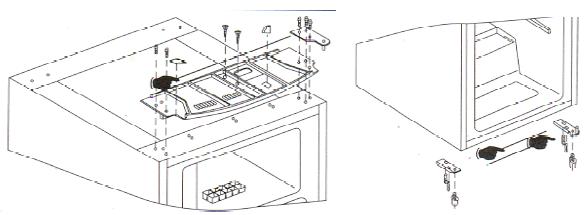

REVERSING THE DOOR OPENING DIRECTION

You can reverse the direction of opening of the door (left instead of right):

The appliance must always be disconnected when you change the door opening direction.

1. Remove the top of the fridge: remove the 2 screw covers on the top, remove the 2 screws and slide the top forwards.
2. Slightly tilt the appliance towards the rear and wedge it in this position.
3. Unscrew the screws from the door upper hinge and remove the hinge support and pin.

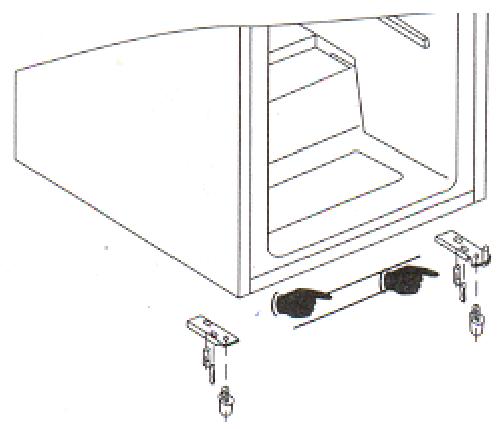

4. Slightly open the door and extract it from its lower hinge.

5. Unscrew the lower pin and screw it in on the opposite side. Insert the door in the pin and close it.

6. Firmly screw the upper hinge to the opposite side and the door pin. Fit the fridge top (carry out point 1 in reverse).

Technical line drawing of a mechanical assembly with exploded view and side view (no text or symbols)

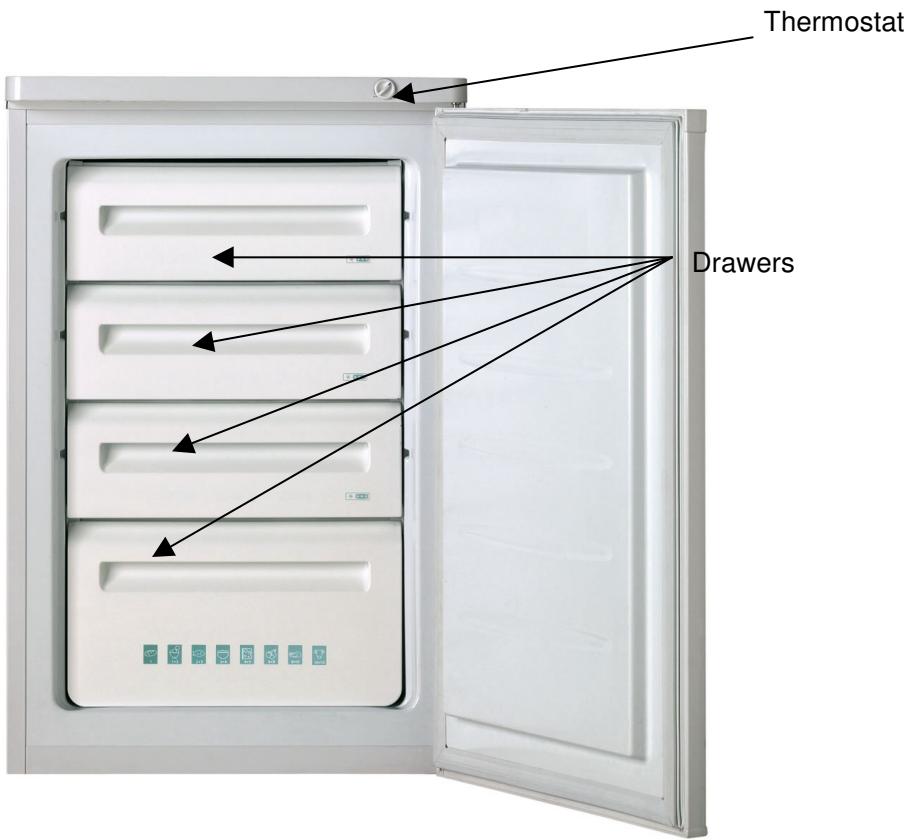

GENERAL DESCRIPTION

Thermostat Drawers

Note: your freezer may differ slightly from this picture.

USING THE FREEZER

This appliance is designed to conserve frozen foods, to freeze fresh food and to make ice-cubes.

Do not freeze a large quantity of food at any one time (maximum of 4 kg/24h), as the faster an item is frozen, the more it will keep its qualities. Similarly, make sure that you wrap your foodstuffs before freezing, so that they retain their full flavour and do not spoil the other products.

The conservation time for frozen foods depends on the type of food. Refer to the instructions on the packaging.

Never place hot foods in your freezer. Never place bottles or drinks cans in it either, as they can burst when their contents freeze.

Highly carbonated drinks can even explode! NEVER keep lemonade, fruit juice, beer, wine, champagne, etc... in the freezer compartment.

DE-ICING

The freezer de-icing system is manual. You can from time to time remove the layer of ice that forms, using a scraper or other plastic instrument.

NEVER USE A METAL INSTRUMENT OR ELECTRICAL DEVICE TO DE-ICE THE FREEZER.

The freezer must always be de-iced when the layer of frost reaches a thickness of about 4 mm. In any case, this compartment should be de-iced at least once a year:

1. Switch off and disconnect the freezer.
2. Remove the ice with a plastic scraper. De-icing can be made quicker by placing bowls of hot water in the freezer and closing the door.
3. Once de-icing is completed, you can then clean your appliance.

CLEANING AND MAINTENANCE

Disconnect the freezer before cleaning it.

Clean the inside with water plus bicarbonate of soda, using a sponge or cloth. This will prevent the build-up of unpleasant odours.

Never use a steam cleaner, solvent or abrasive detergent, as they could damage the interior of your appliance. Never wash the interior accessories in the dishwasher.

We recommend that you wipe the back of the appliance once a year with a cloth over the back of the appliance once a year, as if it is dirty, its efficiency drops and its energy consumption rises.

OPERATING PROBLEMS

The freezer creates a number of noises that are perfectly normal:

• The coolant gas can create a gurgling sound as it circulates through the system.
• The compressor can rumble, a sound which can be more intense when it starts up.
• Sharp cracking sounds produced by expansion and contraction of the materials used.

PROBLEM	SOLUTION
The freezer does not operate	Check that it is properly plugged in, that the fuse has not blown or that the circuit-breaker has not tripped.
The freezer is too warm	Check the thermostat and make sure that the door stays open as little as possible. Also check that the door closes properly.
The motor runs continuously	Make sure that the freezer is well ventilated, leaving gaps as mentioned in the "Installation" chapter. Also check that your appliance is not exposed to a direct source of heat.You may also have placed too much food inside or the door may not close properly.

TECHNICAL ASSISTANCE SERVICE

If you have carried out the above checks, and your problem persists, ATTEMPT NO REPAIRS YOURSELF. Contact the nearest Technical Assistance Service.

SPECIFICATIONS

Dimensions in mm (HxWxD) 845x545x570

THIS APPLIANCE IS IN CONFORMITY WITH EC DIRECTIVES 73/23, 93/68, 89/336, 96/57, 92/31, 94/62

Technical line drawing of a device casing with internal components and mounting hardware (no text or symbols)

73/23, 93/68, 89/336, 96/57, 92/31, 94/62

Beste Klant,

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cabinet or enclosure with internal components and mounting hardware (no text or symbols)

PROBLEMEN TIJDENS DE WERKING

DIT TOESTEL IS CONFORM DE EEG RICHTLIJNEN 73/23, 93/68, 89/336, 96/57, 92/31, 94/62

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a refrigerator interior with door, seats, and accessories (no text or labels)

FUNKTIONSPROBLEME

73/23, 93/68, 89/336, 96/57, 92/31, 94/62

Technical line drawing of a mechanical device with exploded view and assembled views (no text or symbols)

ΧΡΗΣΗ ΤΟΥ ΚΑΤΑΨΥΚΤΗ

Technical line drawing of a mechanical assembly with exploded view and side view (no text or symbols)

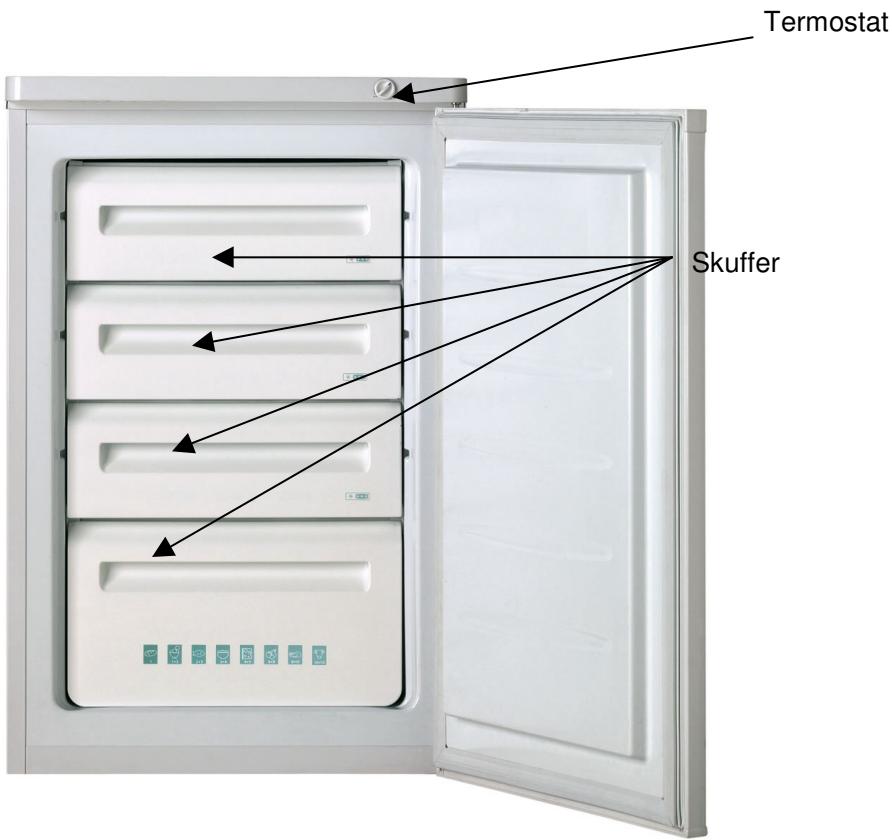

OVERSIGT OVER FRYSESKABET
