USER MANUAL UM1000H BRANDT

CET APPAREIL RESPECTE LES DIRECTIVES CEE 73/23, 93/68, 89/336, 96/57, 92/31, 94/62

Service après vente

You have just purchased a BRANDT freezer, for which we thank you.

Our research teams have designed a new generation of appliances to make your life easier.

With its dedicated areas for optimum, flexible storage, clean and fluid lines allied with appreciable performance, the new Brandt fridges have everything you need to conserve your food and provide the answers to your everyday consumption needs.

The Brandt range of products also includes a wide choice of dishwashers, washing machines and clothes driers, fridges, cookers and ovens, hot-plates and extractor hoods, that you can combine with your new BRANDT freezer.

At the innovative cutting edge, BRANDT thus helps to improve the quality of life on a daily basis, by offering you simple but high-performance products that are respectful of the environment, good-looking and reliable.

BRANDT

INDEX

Page

Safety standards / Recommendations 11
Installation 12
Reversing the door opening direction 13
General description 13
Using the freezer 14
Defrosting 14
Cleaning and maintenance 14
Operating problems 15

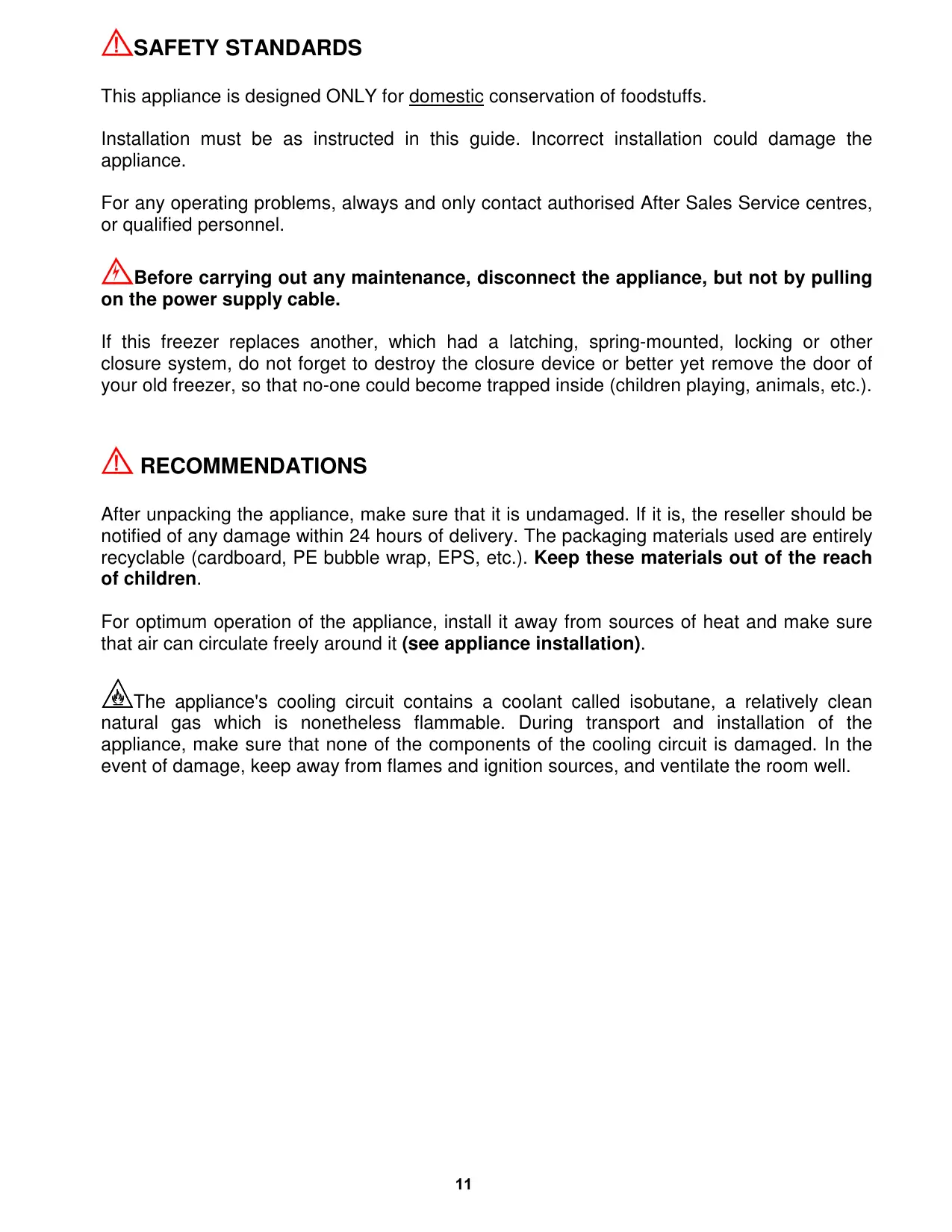

This appliance is designed ONLY for domestic conservation of foodstuffs.

Installation must be as instructed in this guide. Incorrect installation could damage the appliance.

For any operating problems, always and only contact authorised After Sales Service centres, or qualified personnel.

Before carrying out any maintenance, disconnect the appliance, but not by pulling on the power supply cable.

If this freezer replaces another, which had a latching, spring-mounted, locking or other closure system, do not forget to destroy the closure device or better yet remove the door of your old freezer, so that no-one could become trapped inside (children playing, animals, etc.).

RECOMMENDATIONS

After unpacking the appliance, make sure that it is undamaged. If it is, the reseller should be notified of any damage within 24 hours of delivery. The packaging materials used are entirely recyclable (cardboard, PE bubble wrap, EPS, etc.). Keep these materials out of the reach of children.

For optimum operation of the appliance, install it away from sources of heat and make sure that air can circulate freely around it (see appliance installation).

The appliance's cooling circuit contains a coolant called isobutane, a relatively clean natural gas which is nonetheless flammable. During transport and installation of the appliance, make sure that none of the components of the cooling circuit is damaged. In the event of damage, keep away from flames and ignition sources, and ventilate the room well.

INSTALLATION

Before installing, carefully read the Recommendations and Safety standards in order to avoid a certain number of problems.

If you want to move your freezer, hold it by the sides or by the base. You should never lift it by its top.

Install the appliance in a dry, well-ventilated room, away from all sources of heat. Leave a minimum gap of 10 cm between the top of the freezer and any wall-mounted kitchen units. If this is impossible, leave 5 cm above the appliance and 2.5 cm on each side of the appliance.

Make sure that the air vents on your freezer are not covered or blocked.

The climate class of your freezer is marked on its ID plate. It determines the range of ambient temperatures for which the cooling unit is designed, and within which correct operation of the appliance is guaranteed.

Class	Ambient temperatures
N	16° to 32°
ST	18° to 38°
T	18° to 43°

Electrical connection

• Connector characteristics: 220-230V with earth.
• Avoid using adapters or extension leads.
• Avoid the cable coming into contact with the compressor.
• Avoid trapping the cable under the appliance.

The appliance's electrical installation is earthed. For your safety, connect the appliance to a power outlet with effective earthing (in conformity with current electrical installation safety standards).

The manufacture declines all liability for damage caused by the absence of an earth connection.

CAUTION - BEFORE CONNECTING

1. Clean the inside of the freezer with warm water containing bicarbonate of soda. Rinse and dry thoroughly.
2. Wait for 2 hours before switching on, to ensure that the lubricants in the motor compressor have stabilised.

REVERSING THE DOOR OPENING DIRECTION

You can reverse the direction of opening of the door (left instead of right):

The appliance must always be disconnected when you change the door opening direction.

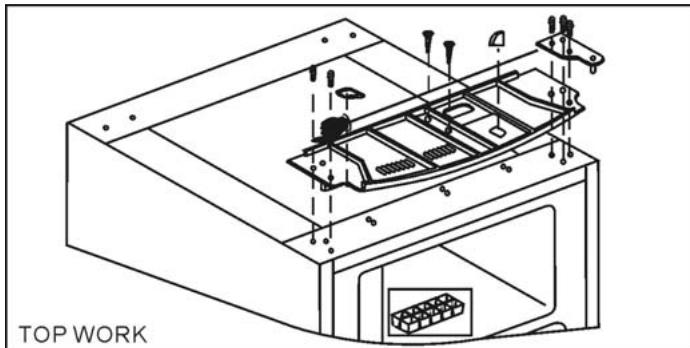

1. Remove the top of the fridge: remove the 2 screw covers on the top, remove the 2 screws and slide the top forwards.
2. Slightly tilt the appliance towards the rear and wedge it in this position.

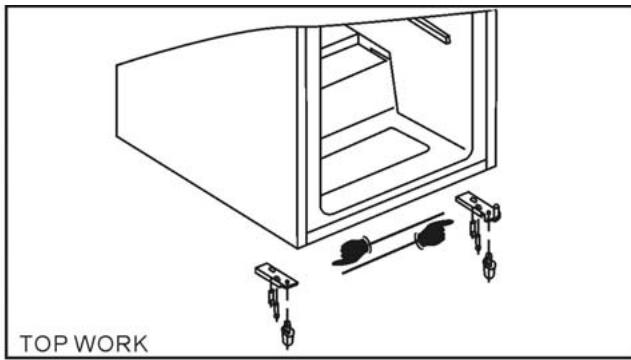

3. Unscrew the screws from the door upper hinge and remove the hinge support and pin.

4. Slightly open the door and extract it from its lower hinge.

5. Unscrew the lower pin and screw it in on the opposite side. Insert the door in the pin and close it.

6. Firmly screw the upper hinge to the opposite side and the door pin. Fit the fridge top (carry out point 1 in reverse).

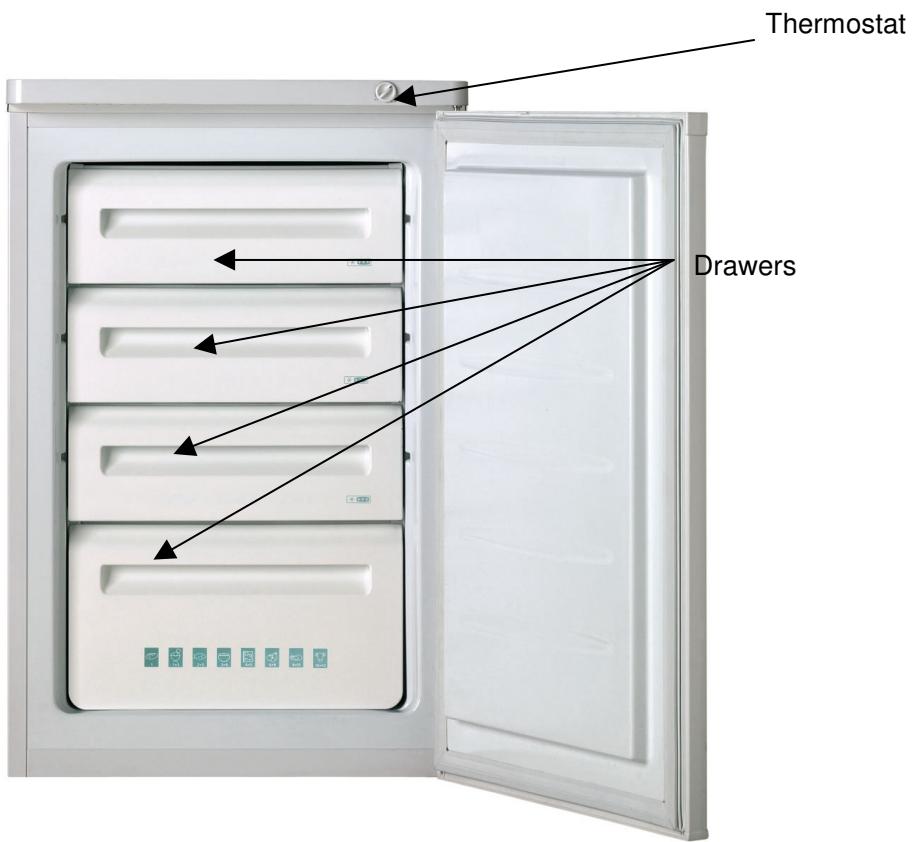

GENERAL DESCRIPTION

Note: your freezer may differ slightly from this picture.

USING THE FREEZER

This appliance is designed to conserve frozen foods, to freeze fresh food and to make ice-cubes.

Do not freeze a large quantity of food at any one time (maximum of 4kg / 24h ), as the faster an item is frozen, the more it will keep its qualities. Similarly, make sure that you wrap your foodstuffs before freezing, so that they retain their full flavour and do not spoil the other products.

The conservation time for frozen foods depends on the type of food. Refer to the instructions on the packaging.

Never place hot foods in your freezer. Never place bottles or drinks cans in it either, as they can burst when their contents freeze.

Highly carbonated drinks can even explode! NEVER keep lemonade, fruit juice, beer, wine, champagne, etc... in the freezer compartment.

DEFROSTING

The freezer defrosting system is manual. You can from time to time remove the layer of ice that forms, using a scraper or other plastic instrument.

NEVER USE A METAL INSTRUMENT OR ELECTRICAL DEVICE TO DEFROST THE APPLIANCE.

The freezer must always be de-iced when the layer of frost reaches a thickness of about 4 mm. In any case, this compartment should be de-iced at least once a year:

1. Switch off and disconnect the freezer.
2. Remove the ice with a plastic scraper. Defrosting can be made quicker by placing bowls of hot water in the freezer and closing the door.
3. Once defrosting is completed, you can then clean your appliance.

CLEANING AND MAINTENANCE

Disconnect the freezer before cleaning it.

Clean the inside with water plus bicarbonate of soda, using a sponge or cloth. This will prevent the build-up of unpleasant odours.

Never use a steam cleaner, solvent or abrasive detergent, as they could damage the interior of your appliance. Never wash the interior accessories in the dishwasher.

We recommend that you wipe the back of the appliance once a year with a cloth over the back of the appliance once a year, as if it is dirty, its efficiency drops and its energy consumption rises.

OPERATING PROBLEMS

The freezer creates a number of noises that are perfectly normal:

• The coolant gas can create a gurgling sound as it circulates through the system.
  The compressor can rumble, a sound which can be more intense when it starts up.
• Sharp cracking sounds produced by expansion and contraction of the materials used.

PROBLEM	SOLUTION
The freezer does not operate	Check that it is properly plugged in, that the fuse has not blown or that the circuit-breaker has not tripped.
The freezer is too warm	Check the thermostat and make sure that the door stays open as little as possible. Also check that the door closes properly.
The motor runs continuously	Make sure that the freezer is well ventilated, leaving gaps as mentioned in the "Installation" chapter. Also check that your appliance is not exposed to a direct source of heat. You may also have placed too much food inside or the door may not close properly.

TECHNICAL ASSISTANCE SERVICE

If you have carried out the above checks, and your problem persists, ATTEMPT NO REPAIRS YOURSELF. Contact the nearest Technical Assistance Service.

C∈

THIS APPLIANCE IS IN CONFORMITY WITH EC DIRECTIVES 73/23, 93/68, 89/336, 96/57, 92/31, 94/62

Karekunde,

DIT TOESTEL IS CONFORM DE EEG RICHTLIJNEN 73/23, 93/68, 89/336, 96/57, 92/31, 94/62

Y BaxaembI NOKyNaTeJb!

！PABUNA TEXHNI B3OPACHOCTN

3TOT annapat pa3pa60tah dIyXpaHEnI npOdyKTOB nITaHn B 6bITOBbIX cIeJx. IcnoIb3OBAHne annapata B IIO6bIx dpYnx ceJx He DOnyCKaETcJ.

YcTaHOBka aannapaTa DOJXHa BbIIOJIHrTbCra B COOTBeTCTBn C IHCTpyKzIyMaN HaCTOJIeRo pyKOBOdCTBa; HEnpaBnIbHaJ yCTaHOBka MoKeT NOBpeDntb aannapat.

При ВОЗнКовенп роблем, CBЯЗньс с paбтой appapata, BCERda obpaцайтесь TOЛьКВ AВТОПИЗОВAHьIE ZEHTpbI NOСЛЕПраджНOrO OБСЛУЖИВАня JINБО K KBАЛNФИЦРОВАньIM CпeциалICTam.

Прилобов paбOTE, CBЯЗанно C yхODOM 3a annapaTOM, Chачала Bыньт Кабелпптугяи 3 сети.

Ecnn MOpO3nIbHnK 6ydeT nCNoJb3ObA TbCB BMeCTO DpyrOTo annapata, mMeIoUeTo yCTPOiCTBO 3aInpAHHN C 3aueJIkoN, npjxHoiN, 3aMKOM nIi T.I., He 3a6bIbAitpe pa3o6paTb TaKoe yCTPOiCTBO, nIi eIe IyuIe, ChrTb DBePb CTapORo MOpO3nIbHnKa, YTO6bl KTO-JIN60 He 6bl 3akpbIT n3HyTpN (IrpaHOuNE DeTI, XNBOTHbIe, n T.D.).

PEKOMEHДAUIN

Посл сяглиураиь упakовки annapада убдntecь, чTo OH He NOВржден.В зTom сныаe о NOВржденях HeobхODIMO COOBHTb ПpoDABuy B TeueHne cyTOK nocJIe DOCTaBKN. MaTePnaIbI ynpKOBKn YBJIOTcnoJHOCTbU OYTNIN3NpyEmbIMN (KAPTOH, PnactNK C BO3dUshbIMN shapikam N3 noJIn3TnJIeHa, peHOnOJInCTnIpOJa, nДр.).ДETn He DoJxHbI NMeTb DoCTyN K 3TmMaTePnaIaM.

Для обесенья ONТIMально pa60ы yctaHaBnBaIte annapa T bdaIи NTocTuHkoB TeIIa B MeTe, rIe B6Iu3n annapaT a Meetc Xopo7a YnpKyJzua BO3duXa (cM. UCTahOBka annapaT).

KoHTyp OxJaXdeHnAannapata CoedePxt XlaIaIaReHr N3O6yTah - npnpOndh ra3, KOTOpBn IpaKTtueckn He 3aIrp3HreT OkpyKaIOUyO CpeDy, TeM He MeHee 3TO BocPnaMeHnIOuNcra Ra3. Bo Bpemr TpaHcNoptnPoBKn u yCTaHOBKn aannapata y6eINTeCb, UTO HN ODNH KOMNoHENT KOHTypa OxJaXdeHnR He NOBpeXdEHN. B cLyuae NOBpeXdEHN HxJHo paCNOJoxHTb aannapat Ha 6e3OpanChom pacCToHnN OT PnIaMeHn N OuaRoB BO3rOpAHnR, a TaKke XopoOo IpoBeTpNBaTb NOMeUeHne, rDe OH HaxOJNTcR.

YCTAHOBKA

Ipeed hauaIOM yCTaHOBKn BHNMaTeJbHO npOuHTaIe PeKomeHaacn I IpaBnla TexHnKn 6e30NaChOCTn, YTO6bl n36ExKaTb HeKeJaTeNbHbIX NocJeDcTBn.

CyujectByet BO3MOXHOCTb N3MeHNTb HApPaBJIeHne OTKpbITnA DBepn (JeBOCTOPOHHe BMECTO npaBOCTOPOHHe):

Annapat Bcerda HxKHO OTKIouaTb OT 3JIeKTPocetN npeD N3MeHeHnem HappaBJeHnra DObITn yDbepn.

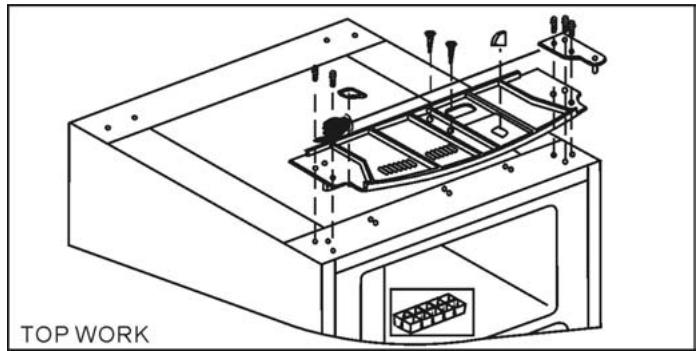

1. ChIMnTe Bepx MOp03nIbHnka: cHaayaJa BO3bMnTEcB 3a 2 K3u-BnHTa, paCNoJIOXeHHbIe CBepxY, BblTaunTe HX, 3aTeM NotAHnTe Bepx MOp03nIbHnKa, YTO6bl OH BblJeBnpeEd.
2. HakoHHe aannapat HeMHoro Ha3aI 3aΦnKcnpyTe B 3TOM NOJIOKeHH, NOkJIINHB erO.

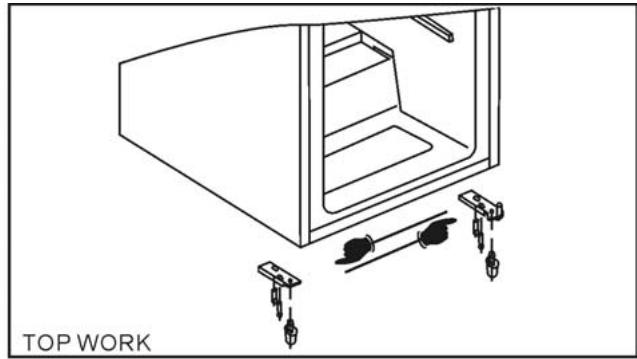

3. OTBnHTte BnHTbI BepxHero ⅡapHnpa DBepr n CHmMTe C Hero ONopy n Ocb.
4. ПпnotкpoInte Девь; Нжно, Утоби Oна ВьшлЯ ИЗ Нжнero Шарнира.
5. OTBnHTnte HIXHIO OcB n 3aBnHTnte ee c npOTNBONOJXHOCTOPHOI. NocTaBbTe DBepb Ha Ocb n 3aKpOte ee.
6. Hadejxho 3aBHTte BepxHn IapHnp Ha npOTIBOIOJXHO CTOpOHe DBePn. NocTaBbTe Ha MeCTo Bepx (pepeBepHnTE B TOUke 1 o6paTHoCtOpHO).

ИСПОЛьЗОВAHNE MOPOЗИЛьнКА

3TOT aannapat npedHa3NaueH dIy XpaHEny 3aMOpOKeHHbIX npOdyKTOB, 3aMopaxnBaHnCBexnx npOdyKTOB, a TAKKe pnpiroTOBJIeHnY IbDa B Ky6nKaX.

He 3amopaxnBaIte OndHOBpeMeHNO CnIshKOM 6OJIbIOe KOJInuEcTBO npOdyKTob (MaKcIMyM 4 Kr / cyTKn). Yem 6bICTpee 3amopaxnBaETcra npOdyKT, TeM DOJIbSe OH COxpaHReT CBOI KaueCTBa. CtapaNTecb TAKKe Ipeed 3amopaxnBaHneM XopoIo ynaKOBaTb npOdyKTbl, UTO6bl OHI NOJIHOCTbIO COxpaHnIJN CBOI BKUC N He NCNOPTNJIN Dpyrnx npOdyKTob.

CpOK xpaHEnn 6bICTpo3aMOpOxeHHbIX npOdyKTOB 3aBNCNT OT Tnna npOdykTa. YnaKOBka npOdyKTOB OncsHa B INCTpyKcIyX.

Hnkorga He nomeuTe B MOpO3nIbHnK ropayne npOdykTbI. He nomeaTe 6yTbIkn NnNnNBhie 6aHKn, pRn 3aMopaxnBaHn INx CoedePXMoe MoKeT pa3pyuHTb EMKoCTb.

Moryt B3OpBaTbCЯДже HabNTKICn C cnIbHbIM COepeXaHneM yJIeKNCIoTb! HNKOΓDA He xpaHnte JIMMOHaD, ΦpyKTOBbI COK, INBO, BNHO, ShAMNaHcKoe, I T.D. B XOJIoNJIbHOM MOpO3nJIbHnke Kamepe.

PA3MOPAXINBAHNE

CnCTema pa3MopaxuBaHnma MOpO3nIbHnka pyuHa. Bpemr OTo BpeMeHn Bbl MoKeTe ydaTb obpa3OBaBmNcra cNoi PbDa C NOMoUbO CKpe6Ka IJIN dpyrO rNactIKOBOROHCTpyMeHtA.

HINKOTDA HE POJIb3YITECb METAJINUeCKIM INHCTPYMEHTOM IJI NJ EKTPNUeCKM PIPBOPOM PPI PA3MOPAXIBAHNI.

ДляТOrO，чTo6blMOP03nIbHnK npaBnIbHo pa6oTaJ, Heo6xOdmo BblOpNHaTb pa3MopaxKINBaHne He pexe 1 pa3aВ roD,Пибо когдТолшинСLOЯ Лда пpeBbICHT 4 MM：

1. OTKJIHOUHTe MOpO3NJbHNK.
2. Chmnte lec nomoubno nlaactNKOBoro ckpe6ka. Jny yckopeHn pa3MopaxNbHn Bbl MOxTe NOMECTNTB MOpO3nIbHnK YaShky C TeNIOB BOOn I 3aKpbITb DBepb.
3. После размороживаши пистуни Кочистк морозильниka.

OuNTKA I yXoI 3A MOpO3 nJIbHnKOM

Ipejde yem npncTyntb K ounctke MOpO3nIbHnka, OTKJIouHTe erO.

OuHCTIte BHyTpeHHIO IOBepxHOCTb BOIO C Do6aBHeHem 6nKap6oHaTa, NOJb3yAcB r6koI IIN MoaALKO. 3TO NOMOKeT n36ExaTb 6pa30BaHnA 3anaxOB.

HnkoM o6pa3OM He nCnoIb3yIte ropnyn nap, paCTBOpNTeIb IIN a6pa3NBHOe MOUoee cpeDcTBO, NockoJIbky OHI MOrY TIOBpeDITb BHyTpeHHIO IOBepXHOCTb annapaTa. He MoTe TaKke BHyTpeHHne pInHaIdIeJxHOCTN B NOCyDOMoeuHOm MaUNHe.

Pekomehdyetcra Odn Hpa3 B rOd Ounuatab TpIKNo OBpaTHyO CTOpOHy aannapaTa, TaK KaK npHnHaKoJIeHn Ipr3N erO npOn3BOIDNTeJbHOCTb yMeHbShaETcra, a Notpe6JIeHne 3JIeKTPo3Heprn yBelenuBaETcra.

YCTPAHEHNE HENCINPABHOCTE

I Bo Bpempaobtbl MOp03nIbHnke cyuectbyot yMbbl, TTO YBnEeTcH HopMaJIbHbIM:

XoIOnIbHbI aReHT npu cIpyJauCIN B KOHTypax MOKeT BCKnPaTb
Komnpceccop MOKeT Bbl3bBaTb ryeHne, ycJIINBaUoIeecr npn nycke
Moxet Bo3nkaTb "NtpecknBaHne", Bbl3bIbAeMOe paCUnpeHnMaN i COKpaUeHnMaN INcNoJIb3yEmbIX MaTePnaJIOB

73/23. 93/68. 89/336. 96/57. 92/31. 94/62

EN After Sales Service:

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.
