Brand	Midea
Model	NTY1519CAE
Product Type	Electric Fan Heater
Power Supply	220-240 V ~ 50 Hz
Maximum Power	1500 W
Minimum Power	1000 W
Operating Modes	4: Low (1000W), High (1500W), Low Oscillation (1000W), High Oscillation (1500W)
Oscillation	Yes, built-in
Temperature Control	Mechanical, rotary knob with thermostat
Overheat Protection	Yes, automatic shut-off
Tip-over Protection	Yes, automatic shut-off
Recommended Use	Well-insulated spaces or occasional use
Cleaning	Soft cloth and mild detergents, no immersion
Lubrication	Motor lubricated at factory, no maintenance required
Child Safety	Not suitable for children under 3 years without supervision
Seasonal Energy Efficiency	36%
Manufacturer	Midea Italia S.r.l., Milan, Italy

Frequently Asked Questions - NTY1519CAE MIDEA

How to use the different power modes?

What to do if the unit suddenly stops?

How to clean the heater?

Can I use an extension cord with this unit?

Is the unit safe for a child's room?

Why is there an odor during first use?

How to adjust the temperature?

What to do if the power cord is damaged?

Can I leave the unit on all night?

How to store the unit after use?

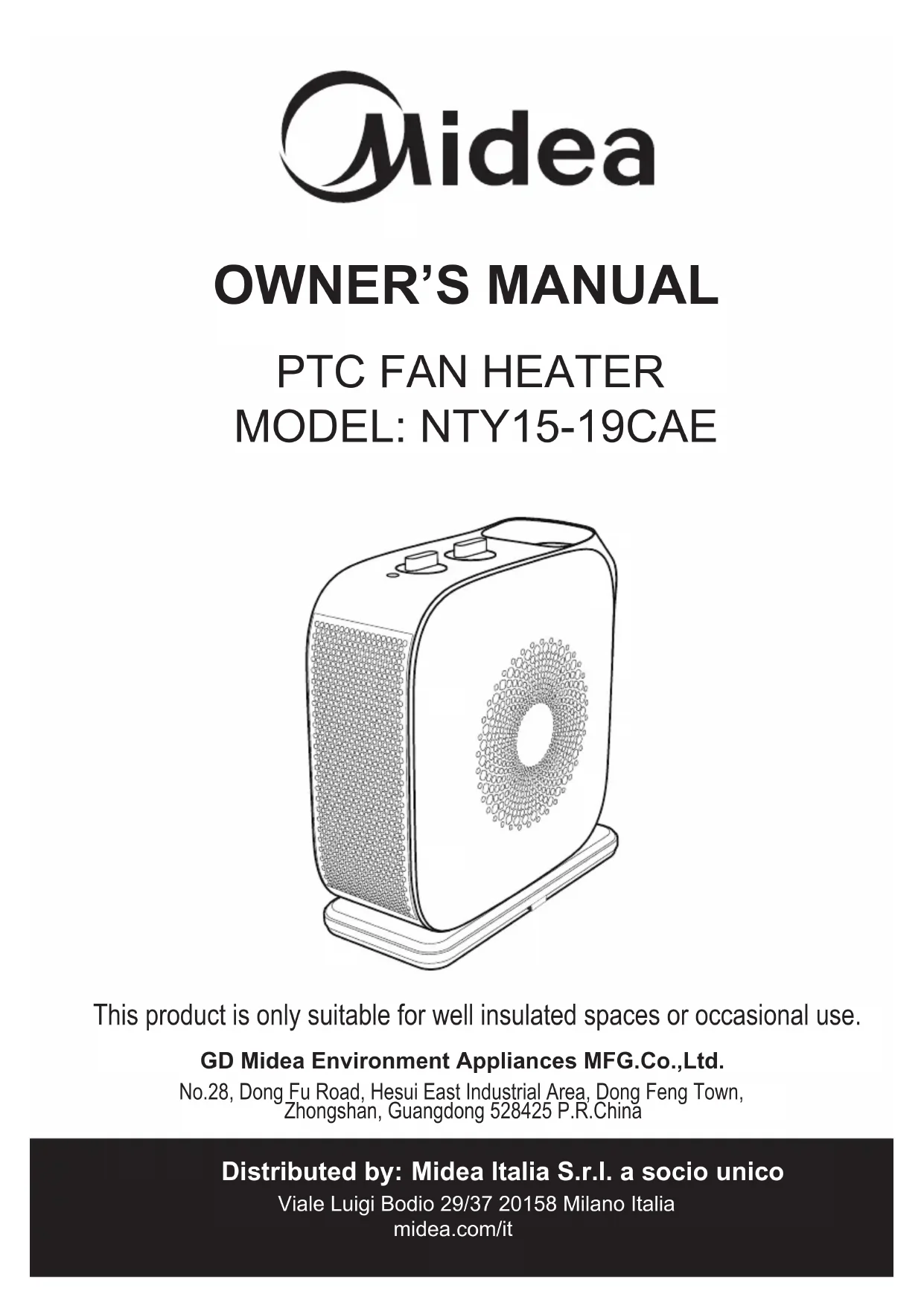

USER MANUAL NTY1519CAE MIDEA

Line drawing of a portable electric heater with mesh grille and circular vent (no text or symbols)

GD Midea Environment Appliances MFG.Co.,Ltd.

No.28, Dong Fu Road, Hesui East Industrial Area, Dong Feng Town, Zhongshan, Guangdong 528425 P.R.China

ISTRUZIONI PER LA SICUREZZA

Line drawing of a portable electric heater with mesh grille and two ports (no text or symbols)

This product is only suitable for well insulated spaces or occasional use.

GD Midea Environment Appliances MFG.Co.,Ltd.

No.28, Dong Fu Road, Hesui East Industrial Area, Dong Feng Town, Zhongshan, Guangdong 528425 P.R.China

SAFETY INSTRUCTION

1. Warning: In order to avoid overheating, do not cover the heater.

2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4. The heater must not be located immediately below a socket-outlet.
5. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
6. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

2. Correct Disposal of this product

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

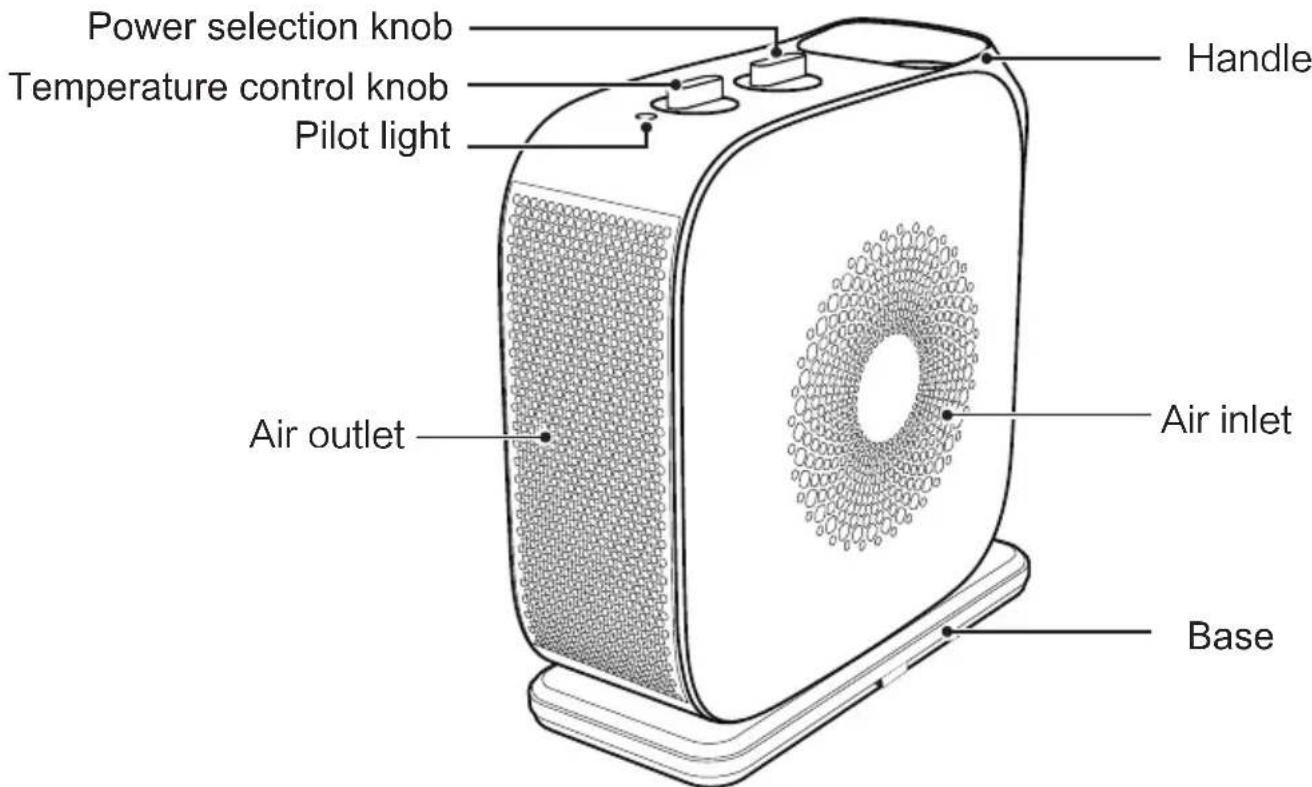

PART FIGURE

Power selection knob Temperature control knob Pilot light Handle Air outlet Air inlet Base

Check before turning on the machine

1. Check if the power wire is under good condition.
2. The product adopts 220-240V AC power supply, before use, please confirm if the rated current of the power socket meets the local requirements with safe grounding device, otherwise, please replace it with the qualified socket.

Temperature Control Knob

Insert the plug into the power socket, then turn the Temperature Control knob clockwise, when hearing the “poop” sound (it means the temperature controller is on), adjust the Temperature Control knob to the desired temperature level.

Power Selection Knob

Turn the Power selection knob to select between 4 functions: Low “  ”1000W, High “”1500W ,Low swing 1000W(LOW OSC),High swing 1500W(HIGH OSC)

Turn off the Heater

A. Turn the Power selection knob to OFF position.
B. Turn the Temperature Control knob anticlockwise to the initial position.
C. Remove the power plug, store the heater after the entire machine has become cool.

Safety Protection

1. Overheat protection: When the temperature in the heater is too high due to abnormality in the use environment or improper use, the thermostat device can automatically cut off the power and the heater stops working. After the whole heater is cooling, the heater can return to the normal use after removing the abnormality.
2. Inversion protection: When the whole heater is inverted, the safety system will automatically cut off the power, and return to the work state before inversion after the body is placed upright.

MAIN TECHNOLOGY SPECIFICATIONS

Power supply: AC 220-240V \~ 50Hz

MODEL	POWER REGULATION RANGE (W)
	LOW		LOW OSC HIGH	HIGH OSCHIGH
NTY15-19CAE	1000	1500	1000	1500

Troubleshooting

If the product does not operate or does not operate properly, first check according to the following list. If the reason the product does not operate or does not operate properly is not included in the following list, the product may have failed. At this time, it is recommended to send the product to the dealer for treatment.

Problem Possible	Cause Solu on	ti
After the power is engaged, the power indicator light does not illuminate and the machine does not work.	The plug may not be plugged well.	Check whether the plug is properly inserted into the receptacle.
	The temperature control knob is not turned in place.	Check whether the temperature control knob is turned to the ON position.
The machine suddenly stops during heating.	The temperature exceeds the threshold of the thermal cut-off.	Cool the machine before use.

READ AND SAVE THESE INSTRUCTIONS

Table for information requirements for electric local space heaters					P
Model identifier(s): NTY15-19CAE
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric local space heaters only (select one)
Nominal heat output	Pnom	1.5	kW	Manual heat charge control with integrated thermostat	[no]
Minimum heat output (indicative)	Pmin	1.0	kW	Manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	Pmax	1.5	kW	Electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				Fan assisted heat output	[no]
At nominal heat output	elmax	1.5	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	1.0	kW	Single stage heat output and no room temperature control	[no]
In standby mode	eISB	N/A	kW	Two or more manual stages, no room temperature control	[no]
				With mechanic thermostat room temperature control	[yes]
				With electronic room temperature control	[no]
				Electronic room temperature control plus day timer	[no]
				Electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	[no]
				Room temperature control, with open window detection	[no]
				With distance control option	[no]
				With adaptive start control	[no]
				With working time limitation	[no]
				With black bulb sensor	[no]
Contact details:	Midea Italia S.r.l. a socio unicoViale Luigi Bodio 29/37 20158 Milano Italia
Remark:For electric local space heaters, the measured seasonal space heating energy efficiency ηs cannot be worse than the declared value at the nominal heat output of the unit.
The seasonal space heating energy efficiency of all local space heaters except commercial local space heaters, ηs (%)				36

CLEANING AND MAINTENANCE INSTRUCTION

1. Light accumulated dust may be removed from the heater with a soft cloth. Wipe the exterior surfaces of the heater occasionally with a cloth moistened (not dripping wet) with a solution of mild detergent and water. Dry the case thoroughly with a soft dry cloth before operating the heater.
2. The fan motor is lubricated by the factory, and will require no further lubrication.
3. No other user maintenance is required or recommended. If service is required, send your heater to the nearest authorized servicedepot.
4. Store heater in a clean and dry place when not in use.

REMEMBER - Portable electric heaters are designed for spot heating, or as a supplementary heat source. They are not intended to be main sources of heat during the normal heating season.

Note: There may be trace of smoke or odour when unit is first operated. Do not be on the heating coil during the manufacturing process. It will quickly evaporate, and should not reoccur.

Midea

MANUEL DE L'UTILISATEUR

PTC CHAUFFE MODÈLE: NTY15-19CAE

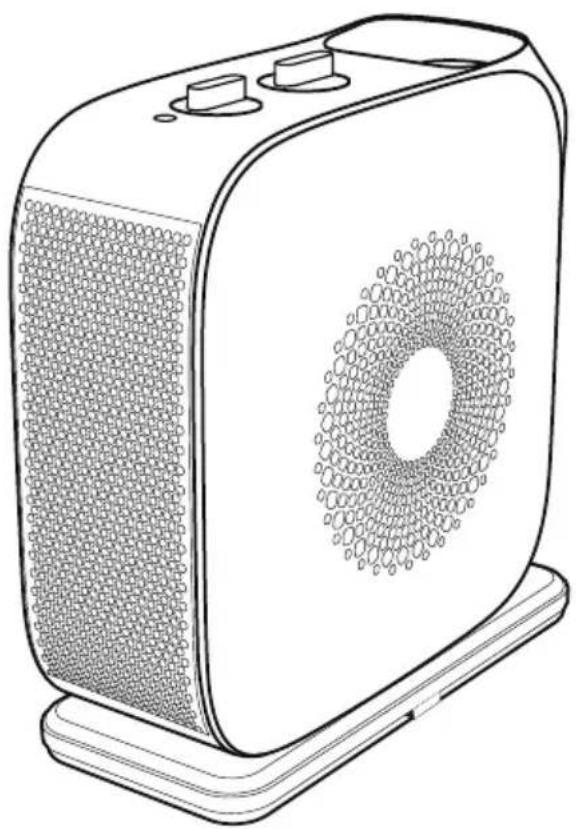

Line drawing of a portable electric heater with mesh grille and circular vent (no text or symbols)

GD Midea Environment Appliances MFG.Co.,Ltd.

No.28, Dong Fu Road, Hesui East Industrial Area, Dong Feng Town, Zhongshan, Guangdong 528425 P.R.China

CONSIGNES DE SECURITE

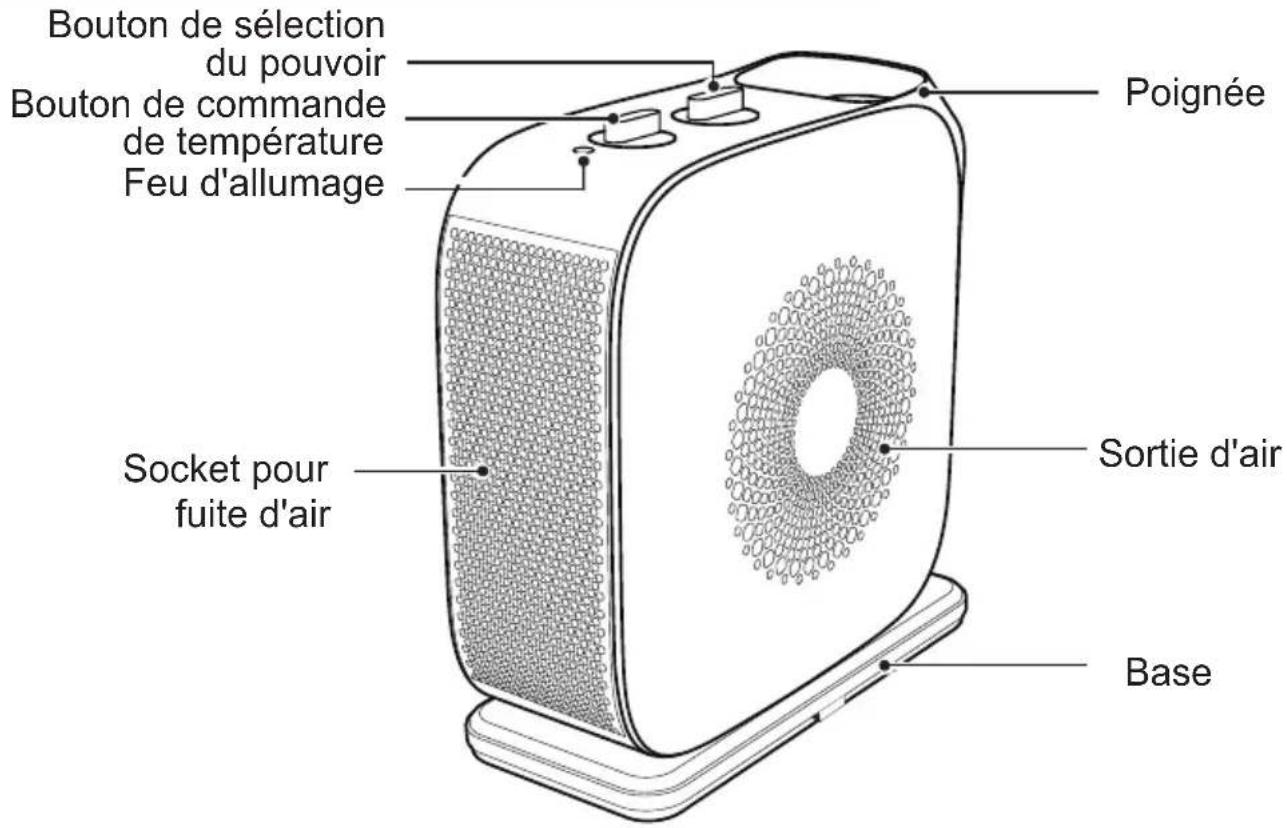

SECTIONS DU PRODUIT ILLUSTRATION
