ACB09W22 - Air Conditioning Fuave - Free user manual and instructions

Product Type	Monoblock portable air conditioner
Brand	Fuave
Model	ACB09W22
Cooling Power	2600 W
Power Supply	220-240 V ~ 50 Hz
Maximum Power Consumption	950 W / 4.3 A
Refrigerant	R290 (120 g)
Suction Side Pressure	1.2 MPa
Discharge Side Pressure	2.5 MPa
Noise Level	54 dB(A) (LpA) / 65 dB(A) (LwA)
Weight	20 kg
Electrical Protection Class	Class I
Operating Modes	Cooling, ventilation, dehumidification, automatic
Fan Speed	High (HIGH) and low (LOW)
Temperature Range	15 °C to 31 °C (adjustable in 1 °C increments)
Remote Control	Yes, with batteries (max. range 5 m)
Special Functions	Timer (auto-off), night mode, oscillation (Swing), child lock
Display	LED (temperature and error codes)
Water Tank Capacity	Not specified (manual or continuous drain)
Maintenance	Clean air filter every 15 days; clean housing with a damp cloth
Safety	Overheat protection, auto shut-off when tank is full (E4), child safety
Included Accessories	Exhaust hose, window adapter, remote control, deflector plate
Storage Instructions	Drain water, clean filter, store in a dry place, remove batteries from remote

Frequently Asked Questions - ACB09W22 Fuave

What to do if error code E4 appears?

Code E4 means the water tank is full. Turn off the air conditioner, unplug it, then remove the drain plug to drain the water. After draining, replace the plug and restart the unit. If the error persists, contact a professional.

How to clean the air filter?

The air filter should be cleaned every 15 days. Remove the filter from the back of the unit, tap it or use a vacuum cleaner, then wash it with warm water (max. 40 °C) and a mild detergent. Let it dry completely in the shade before reinstalling. Never run the unit without the filter.

What is the maximum area the ACB09W22 can cool?

The manual indicates a minimum area of 10 m² for the ACB09W22 model. The actual area depends on factors such as outdoor temperature, insulation, number of windows and people. Under ideal conditions, it can cool up to approximately 25-30 m², but it is recommended not to exceed this area for good performance.

How to install the exhaust hose?

Attach the hose connector to the hose, then screw the window adapter. Extend the hose by pulling on the ends. Connect the hose to the rear unit. Place the adapter in a slightly open window. Avoid bends and keep the hose as short as possible for optimal efficiency.

Why is my air conditioner not cooling enough?

Check that the set temperature is lower than the ambient temperature. Ensure windows and doors are closed, curtains drawn. Clean the air filter. Check that the exhaust hose is not bent or blocked. Move the unit away from heat sources and direct sunlight.

How to use night mode?

Press the Sleep button. Night mode activates a low fan speed and automatically increases the temperature by 1 °C after one hour, then by 2 °C after two hours. The unit turns off after six hours. Fan speed is not adjustable in this mode.

What to do in case of overheating?

The air conditioner has overheat protection. If it turns off, unplug it and let it cool for at least 30 minutes. Remove the cause (obstruction, covering). If the problem persists, contact a qualified electrician.

How to drain water in dehumidification mode?

In dehumidification mode, remove the drain plug and connect a drain hose to the fitting. Direct the hose to a lower drain. Ensure there are no kinks. After use, replace the plug to prevent leaks.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, use a cord with a minimum section of 3 x 1.5 mm² and place it away from walkways. Always plug the unit directly into a fixed grounded wall outlet.

How to activate the child lock?

Press and hold the Sleep button for 3 seconds. The display shows a lock symbol. All other buttons are disabled. To deactivate, repeat the same operation.

USER MANUAL ACB09W22 Fuave

Local Air Conditioner

Climatiseur locale

Lokale Klimageräte

VEILIGHEIDSWAARSCHUWINGEN

Waterreservoir is vol

VEILIGHEID EN ONDERHOUD

Waterafvoer

INDEX

Safety Warnings 21

Technical Specifications 26

Description 28

Control Panel 29

Remote Controller 32

Installation 33

Install exhaust hose and adapter 35

Safety and maintenance 36

Removal 39

SAFETY WARNINGS

Read all safety instructions and other instructions. Non-compliance with all the instructions can result in injuries or material damage.

General safety warnings

• This appliance is suitable only for household use.
• A mobile air conditioner needs air to be able to discharge heat to the outside!
• Therefore, never use a mobile air conditioner in an airproof room. Always make sure there is sufficient ventilation. Without sufficient ventilation, a vacuum is created in an airproof room, while a mobile air conditioner is operating, and this vacuum can disrupt the safe operation of geysers, extractors, mechanical ventilation systems, ovens, fireplaces and gas heaters. The vacuum can cause the exhaust gases, which these appliances usually discharge to the outside, to wind up either partially or entirely in the room.
• Install the appliance according to the installation instructions. Incorrect installation can cause water leakage, electric shocks, fire or damage to your possessions.
• Use only the accessories delivered with the appliance and the specific tools for installation.
• Make sure that at all times (also during transport) the entire appliance stands upright. If nevertheless, the entire appliance has been lying horizontally (partly), wait 2 hours before you use it. This is the time span needed by the compressor to do its job correctly.
• Make sure that the appliance stands on an even, horizontal and firm surface.
• When operating the appliance, make sure that it has at least 50 cm of free space on all sides.
• Make sure that the plug and socket are visible and accessible at all times.
• Do not place any objects on the appliance.

- Do not leave an operating appliance unsupervised, also not for a few seconds!

- Do not use the appliance near fuels, lightly flammable materials or materials that could easily explode (keep a distance of minimum 1 metre). Furthermore, do not use paint, cleaning sprays, insect repellent sprays, etc. on or near the appliance; this can warp the plastic or damage the electric parts.

- Do not touch the appliance with wet or moist hands. Do not use the appliance when standing barefoot.

- Do not use the appliance:

• near a source of fire;
• near splattering oil;
• in direct sunlight;
• near splattering water;
• in a bathroom or near a swimming pool.

- The appliance has wheels for moving it easily. Do not place the appliance on a high pile carpet and do not roll it over objects that might cause it to topple over.

- Do not block the grids from incoming or outgoing airflows: also not partially.

- Do not cover the appliance: this can cause a fire!

- Do not stick fingers or objects, such as pens, etc. through the grids. Warn children in particular about this danger.

- Make sure that the fan is not blocked.

• Children, unauthorised persons and house pets must be supervised.

- This appliance is not a toy; therefore children must not play with it.

- The appliance can be operated by children over the age of 8 and by people with physical, sensory or mental disabilities or who lack knowledge and experience, only if they are supervised or are given instructions on how to use it safely and if they understand the risks involved.

- Unsupervised children may not carry out cleaning and maintenance tasks.

• If you hear a strange sound, smell a strange odour or see smoke, take the plug out of the socket.
• If the appliance topples over during use, switch it off and take the plug out of the socket. Inspect the appliance meticulously to be certain that there is no damage.
• If you suspect damage, contact your supplier or a certified electrician.
• Do not operate the appliance if you notice damage to the appliance, electric cable, plug or cooling pipe or if it is functioning poorly, if it has fallen over or malfunctions in any way. Return the entire appliance to your supplier or a certified electrician for checking and/or repair. Always demand original parts.
• The appliance (including the electricity cable and plug) may be opened and/or repaired only by a person qualified to do so.
• When the water drainage points are not used, make sure that the top and bottom rubber sealing plugs are plugged in firmly in their place to prevent water damage and danger of suffocation.
• Warning! Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• Appliance shall be installed, operated and stored in a room with a floor area larger than X m2. (ACB07W22 X = 5, ACB09W22 X = 10)
• The appliance shall be stored so as to prevent mechanical damage from occurring.

Electrical safety

• This appliance is suitable only for indoor use.
• Use only a plug mounted on the appliance by the manufacturer and no other means of connection!
• This appliance must be connected according to national wiring codes.

- Before use, check whether the socket that you want to use is earthed, shows no faults and whether the voltage on the socket matches the voltage shown on the type plate of the appliance. Damage caused by faulty voltage is not covered by the warranty!

- If the appliance is not being used or if you are cleaning it or carrying out maintenance or if you want to move it, first switch it off and then take out the plug from the socket. Always move and/or transport the appliance gently!

- In addition, when you start using the appliance, the following applies: First insert the plug into the socket, then switch the appliance to the ON position and only thereafter use the operating button!

- Do not use the appliance in a damp or wet environment, such as a bathroom or laundry area, not in the area of a bath, shower or swimming pool and do not splash water, oil or any other liquid on the appliance.

- Wind the appliance's electric cable completely before you put the plug into the socket and make sure that the electric cable never comes in contact with any hot parts of the appliance or that it becomes hot in any other way. Never route the electric cable under a carpet, do not cover it with mats, runners, etc. and keep the cable away from walking paths. Make sure that the electric cable is not stepped on and that no furniture is placed on it. Do not route the electric cable along sharp corners and after use, do not wind it too tightly!

- Prevent the electric cable from coming in contact with oil, solvent and sharp objects. Check the electric cable and plug regularly for damage. Do not twist or bend the electric cable around the appliance; this can damage the insulation!

- Try as best as possible to avoid using extension cords. If this is unavoidable, then use a cord with sufficient capacity (minimum 3x1.5 mm ² ) and don't put it close to walking paths!

- Connect the appliance only to a fixed socket. Do not use a junction box / power strip, etc.

- Do not move the appliance by pulling the electric cable and hold the plug in your hand when you unplug it.

- Do not pull, warp or change the electric cable or submerge it under water. Pulling or incorrect use of the electric cable will damage the appliance and can result in an electric shock.

• Do not use the appliance or switch it off immediately and remove the plug from the socket, if the electric cable, plug or the appliance itself is damaged, broken or malfunctions. The appliance, plug and/or cable must be repaired/replaced by an electrician or a similarly qualified person. Repairs by unqualified individuals are not covered by the warranty and could result in dangerous situations!
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Maximum effect

- The maximum surface area, which this air conditioner can cool, depends on various conditions. Conditions that cause the air conditioner to cool smaller spaces are, for example:

• Higher outdoor temperature
• Many and/or large windows
• Flat roof
• Many people in the room

• Many electrical appliances in the room

• If these conditions are present to a lesser extent (i.e. lower heat loads), the air conditioner can cool a larger surface area better than if more of these conditions are present (i.e. higher heat loads).

• Do not place the unit in the vicinity of a heat source or in direct sunlight. Close windows and doors and keep curtains or hatches closed during the sunniest hours in the day.
• Keep filters clean.
• Modify temperature and ventilation settings once the area has reached the required condition.

Caution, risk of fire! Read the instructions before use.

You can also find this manual online, at www.coolblue.nl/en.

TECHNICAL SPECIFICATIONS

Model Fuave ACB07W22
Cooling Capacity 2000W
Rated Voltage / Frequency 2	20-240V~/50Hz
Cooling Input Power/Current	750W/3,4A
Suction Side Pressure 1.2MPa
Discharge Side Pressure 2.5MPa
Sound Pressure Level LpA: 54dB(A)LwA: 65dB(A)
Refrigerant Charge R290/135g
Net Weight 19,5kg
Electrical Protection Class I

Model Fuave ACB09W22
Cooling Capacity 2600W
Rated Voltage / Frequency 2	20-240V~/50Hz
Cooling Input Power/Current	950W/4,3A
Suction Side Pressure 1.2MPa
Discharge Side Pressure 2.5MPa
Sound Pressure Level LpA: 54dB(A)LwA: 65dB(A)
Refrigerant Charge R290/120g
Net Weight 20kg
Electrical Protection Class I

DESCRIPTION

1. Control panel
2. Signal receptor
3. Cold air outlet
4. Remote controller

5. Transport handle

6. Air outlet hose

7. Evaporator air intake
8. Primary drain port

The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you selected.

CONTROL PANEL

This section explains proper mobile airco conditioner operation.

Power

Plug in, the unit will beep once. Press the power button. The unit is now turned on.

Timer

This allows you to set a scheduled shutdown. Press the + and - button to set the time per hour.

Sleeping

This allows you to enter sleep mode. In sleep mode, the fan is set to the low speed and isn't adjustable. The set temperature will increase by 1°C after one hour and by 2°C after two hours. The portable air conditioner will switch off automatically after six hours.

Swing

Press swing to turn on or off the swing function.

Child lock

Long press the sleep button for three seconds to setting the child lock. All other buttons are now no longer operable.

Speed

This allows you to set the desired speed. Press the button to select low or high speed. This function isn't available in sleep mode and dehumidify mode.

Mode

With this you select a particular function: automatic, cooling, dehumidifying or fanning. Every time you press the button, you change the function; the light on the control panel shows which function is active.

Cooling

Press the Mode button until the function light 'Cool' comes on, press the + and – buttons to set the desired room temperature (15°C – 31°C). Using the FAN SPEED button on the remote control, you can set the fan speed to HIGH or to LOW.

Fanning

Press on the Mode button until the 'Fan' function light comes on. Using the FAN SPEED button on the remote control, you can set the fan speed to HIGH or to LOW. The temperature cannot be set.

Dehumidifying

Press on the Mode button until the "Dry" function light comes on. The fan speed and temperature cannot be set. The fan starts automatically on LOW speed.

Timer/Temperature

With this, you set the desired room temperature in steps of 1° C (from 15° C to 31° C). The control system can show temperatures in ° C and in ° F. If the temperature is shown is ° F, then press both + and – buttons at the same time for 3 seconds and the temperature will show ° C again.

The LED display shows the set temperature of the cooling function. The room temperature is shown at the dehumidifying and fanning functions. The LED display also shows the following error and safety codes.

Error codes

• E2 Temperature sensor error
• E3 Condenser temperature sensor error
• E4 Water reservoir is full

Water reservoir is full

Connect the drain hose to the bottom water drainage point and let the collected water run off (also see the section on water drainage). If this safety code recurs, contact your supplier.

REMARK

- When one of the aforementioned faults occurs, switch off the airco and check for possible obstacles. Restart the airco. If the fault persists, switch off the airco and take the plug out of the socket. Contact your supplier.

REMOTE CONTROLLER

Placing the batteries

Open the back cover and take off the isolating film on the batteries. Put the batteries inside the slot, in the right direction. Put on the back cover.

To operate the air conditioner, aim the remote controller at the signal receptor. The remote control will operate the air conditioner at a distance of up to 5m (16,4 feet) when pointing at the signal receptor.

1. On / Off 5. Temperature down
2. Operation mode 6. Sleep mode on / off
3. Fan speed 7. Timer on / off
4. Temperature up 8. Swing on / off

Keep batteries away from children. Insert batteries (+) (−) correctly.

Erroneous insertion may result in battery shortcircuiting. Leakage, heating, explosion or ignition of batteries may result. In case of eye contact with battery fluid, immediately flush eyes thoroughly with water, do not rub the eyes, and consult a doctor. In case battery fluid comes into contact with the mouth, gargle and rinse thoroughly and consult a doctor immediately.

INSTALLATION

Installation accessories

12345

1. Air exhaust duct
2. Connector of air exhaust duct
3. Window exhaust adapter
4. Remote Control

5. Baffle Plate

6. Remove the packaging material, keep it out of children's reach and make sure that the appliance remains standing upright.

7. Before use, check whether all the accessories are present and whether the appliance and the accessories do not show any damage. Do not start using a damaged appliance, but return it to your supplier!
8. Place the appliance on a firm, even, dry and horizontal surface close to a socket and drainage possibility for warm air, for example, by a window that can be slightly opened. Make sure that the appliance has at least 50 cm free space on all sides and observe all the directions stated in the safety instructions.
   • To cool, you have to discharge the warm air to the outside.
9. Avoid bends or curves in the drain hose. This causes a built-up of exhausted humid air, which can result in leakage, overheating or switching off the airco.

NOTE

- You can also hang the drain hose out of an open window without a window seal; however, this method is less effective.

WARNING

• Do not use your airco before you have followed all the installation instructions described above!
  • Make sure that no water enters the interior of the appliance!
• The length of the drain pipe has been adapted specifically to the technology of this airco. Do not replace or extend it using your own hose. This could have an adverse effect on the functioning of your airco. The hose can be extended, but the length should be as short as possible for optimal effect.

Do remember to prevent break-in! After all, the window is open when using the portable air-conditioner.

Before using your airco, check:

• Whether it is installed according to the regulations and safety instructions.
• Whether it shows no damage or faults.
• Whether the socket that you want to use has the same voltage as shown on the type plate of the appliance (220-240V / 50Hz).
• Whether there is no other appliance connected to the same socket.

If the above is fully in order, then you can insert the plug into the socket.

You can operate the airco via the control panel or the remote control.

INSTALL EXHAUST HOSE AND ADAPTER

How to connect the connectors to the return air duct:

1. Extend the air exhaust duct by drawing out the two ends of the duct.

1. Screw the connector of the window into the plastic connector.

2. Screw the air exhaust duct into the connector of the air exhaust duct.

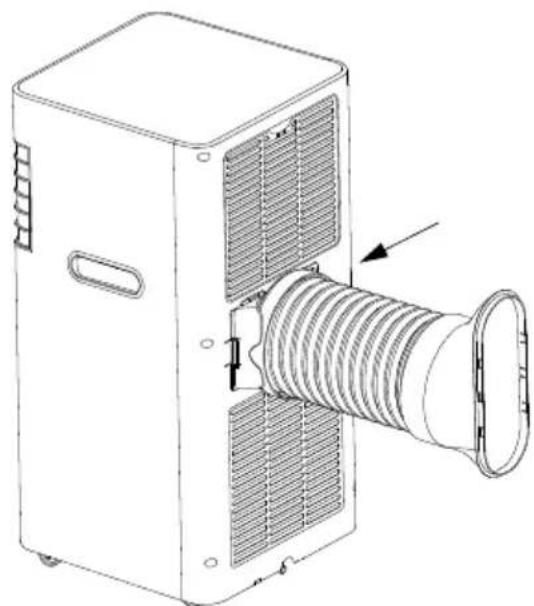

1. Connect the connector of the air exhaust duct to the unit.

SAFETY AND MAINTENANCE

Water drainage

1. During dehumidifying

During dehumidifying, additional water is extracted from the air. Therefore, remove the drain plug, connect a drain hose to the water drain connection during the dehumidifying process and route this hose to a lower positioned water drain.

Make sure that the hose is attached firmly and does not leak. Direct the hose to the drain and make sure that it does not bend, which would stop the flow of water. Once you finish using the hose, then put the drain plug and knob back to prevent leakage.

2. During the cooling process

During this process, water is extracted from the air. This largely evaporates, but any excess water accumulates at the bottom water reservoir. When the water reservoir is full, the display will show E4. The motor and the compressor will stop working, but not the fan.

Switch off the airco and remove the plug from the socket.

Move the airco to a drain location and empty the water reservoir by removing the drain plug and connecting a hose. Make sure that as soon as the water reservoir is empty, the drain plug is securely re-inserted to prevent leakage. The symbol E4 disappears. If the error recurs, contact your supplier.

Safety

The Fuave portable airco is equipped with overheating protection, which switches off the airco when it overheats. When this happens, you must remove the plug from the socket and let the appliance cool down for at least 30 minutes. Eliminate the cause of the overheating: Was the appliance covered or partly covered? Does it stand too close to a wall or another obstacle, resulting in insufficient air sucked in or blown out?

Afterwards, you can use your appliance again in the usual manner, but first keep on eye on it for the first 30 minutes to see whether no problems recur. If the appliance shows deviations or it overheats again without any explainable reasons, then contact your supplier or a certified electrician for checking and/or repairing.

Cleaning

ATTENTION

- Before you clean the airco or carry out any maintenance tasks, you must always switch off the airco and remove the plug from the socket! To keep the airco in good condition, regular cleaning is a must!

Cleaning the housing case

Use a soft, moist cloth to wipe the case. Never spray it and make sure that no water penetrates the interior of the appliance! Never use aggressive cleaning agents, benzene, detergents, cloths impregnated with chemicals or other cleaning solutions. This could damage the case. Dry the appliance afterwards with a soft cloth.

Cleaning the air filter

Clean the air filter every two weeks; an airco with a dirty air filter does not operate well. The air filter is located at the rear of the airco and can easily be removed. Use a vacuum cleaner or tap lightly on the air filter to remove loose dust and dirt. Afterwards, rinse clean the air filter in lukewarm water (not higher than 40 °C.) and perhaps use a mild and neutral cleaning agent. Let the air filter dry completely in the shade before remounting it. Watch out! Never operate the airco without the air filter!

End-of-season cleaning

If the appliance is stored for a long period, you must take the following measures!

• Completely remove the condense water. Let the airco fan run for 12 hours so that the airco is totally dry on the inside.
• Switch off the airco and remove the plug from the socket.
• Clean the air filter and return it to its place or replace the air filter.
• Rotate the drain hose of the appliance to prevent damage.
• Remove the batteries from the remote control.
• If possible, pack the airco in its original packaging or in a plastic bag and store it in a dry spot. Do not place any heavy objects on the appliance.

Troubleshooting

The appliance does not start when I press the ON/OFF button

• Is the plug inserted into the socket?
• Is the residual-current circuit breaker switched on? No power cut?
• Is the water reservoir full (E4)? Then empty it out.
• The room temperature is lower than the set temperature; adjust the set temperature.

The appliance does not seem to cool much

• Measure the temperature of the air blown out. This should be around 10° cooler than the room temperature.
• Is there direct sunlight? Close the curtains.
• Are there windows or doors open? Close these.
• Are there too many people in the room? They produce heat!
• Is the room too big?
• Is there something in the room that produces heat (or too much heat)? Switch it off or remove it.
• Is the filter dusty or covered with dirt? Clean the filter.
• Is the air inlet or outlet (the hose) blocked? Make sure the airflow is unobstructed.

The appliance makes noise

• Is the surface on which the appliance rests firm, even and horizontal?
• The refrigerant flowing into the appliance also makes some noise. This is normal.

! Never attempt to repair the airco yourself!

REMOVAL

Within the EU, this symbol means that this product cannot be disposed of together with the usual household refuse. Disused appliances contain valuable materials that can and must be reused in order not to harm health and the environment by unregulated refuse collection. Bring the disused appliance to the collection point designated for that purpose or turn to the company where you bought the appliance. They can make sure that as many components of this appliance as possible will be reused. Dismantling and recycling of air conditioners must be carried out by a certified technician.

Batteries should NOT go in household garbage or recycling bins

TABLE DES MATIÈRES

CARACTÉRISTIQUES TECHNIQUES

SÉCURITÉ ET MAINTENANCE

Évacuation d'eau

INHALT
