Safety and Important Information

2. Turning on the Printer

Connect the power cord. Back

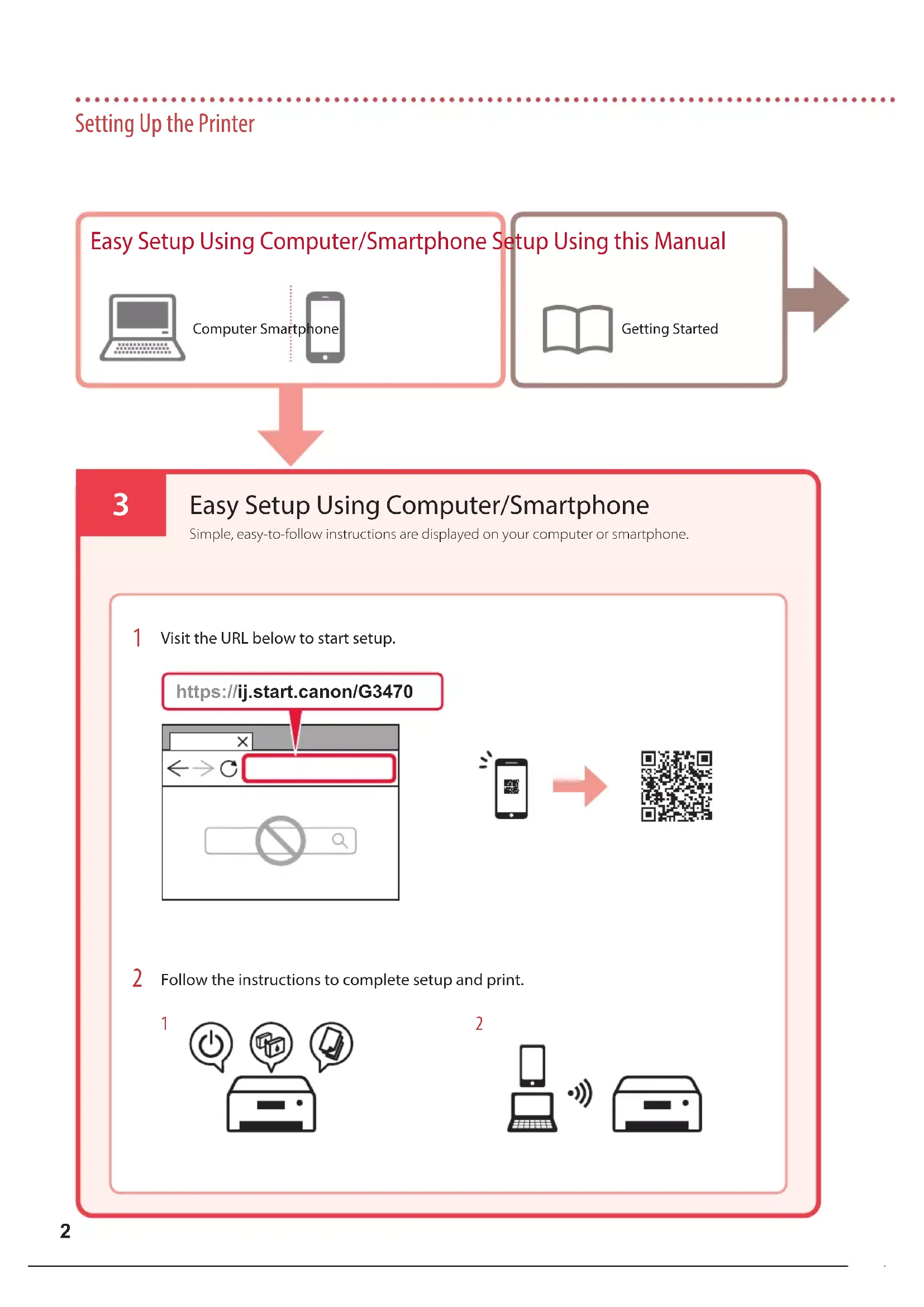

Computer Smartphone Easy Setup Using Computer/Smartphone Simple, easy-to-follow instructions are displayed on your computer or smartphone. Visit the URL below to start setup.https://ij.start.canon/G3470 Follow the instructions to complete setup and print.

Use the { and } buttons to select a language, and then press the OK button.

Select ON, and then press the OK button.

Open the scanning unit / cover. Caution Do not touch the print head holder until it stops moving.

Open the print head locking cover.

Take out each print head from the package and remove the label.

Insert the C )color( print head on the left and the B )black( print head on the right.

Close the print head locking cover and press down until it clicks.

Important This product requires careful handling of ink. Ink may splatter when the ink tanks are filled with ink. If ink gets on your clothes or belongings, it may not come off.

Open the tank cap on the left of the printer.

Hold the ink bottle upright and gently twist the bottle cap to remove. Check! PGBK

Align the nozzle of the ink bottle with the inlet.5 ENGLISH

Slowly stand the ink bottle upside down and push down to pour the ink.

If the ink does not pour, gently remove the ink bottle and try again.

Gently remove the ink bottle from the inlet.

Be careful not to spill the ink.

Replace the tank cap securely.

Repeat steps 1 through 6 to pour all ink into the corresponding ink tanks on the right. Check! C M Y

Close the scanning unit / cover.

If you lift the scanning unit / cover slightly and release it, it will close by itself.

When the following screen appears, press the OK button.6 Setting Up the Printer

Check that the following screen appears. Select the connection method that best matches how you will use the printer.

To use the printer without connecting to any other devices Setup is now complete.

To use the printer connecting to a computer or smartphone Proceed to the next page.7 ENGLISH

7. Connecting to a Computer or Smartphone

If you are using multiple computers/smartphones, perform these steps on each device.

Access the Canon website directly. No need to search. https://ij.start.canon/connect

Enter your printer's model name and click Go.

Follow the on-screen instructions. Using the Setup CD-ROM

1. Double click EasySetup.exe on the screen that appears.

2. If the printer selection screen appears, select G3470.

If the installation screen appears, click Next.

3. Follow the on-screen instructions.

If nothing appears, start Explorer and then run EasySetup.exe in the CD-ROM.8

Open the paper support.

Slide the right-hand side paper guide to the far right.

Load several sheets of paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

Extend the paper output tray. Transporting Your Printer When relocating the printer, check the following. Refer to the Online Manual for details.Check if the tank caps are completely closed.If the print head holder is in the center of the printer, check that the cover is closed.Pack the printer in a plastic bag in case ink leaks. Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport. Do not tilt the printer. Ink may leak. Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak. When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE". Loading Paper1 ESPAÑOL Instalación de la impresora
