Brand Pyle
Model PT8050CH
Product Type 8-channel mixing amplifier receiver
Output Power 4000 Watts MAX (8 x 500 W @ 4 ohms) / 2000 Watts RMS (8 x 250 W @ 8 ohms)
Number of Channels 8 channels
Frequency Response 20 Hz - 20 kHz
Signal-to-Noise Ratio >81 dB
Total Harmonic Distortion (THD) <0.1%
Bluetooth Version 2.1
Bluetooth Range Up to 9 m (30 ft)
Supported Digital Audio Formats MP3, WMA, WAV, FLAC
Maximum USB/SD Capacity 64 GB
Microphone Inputs 3 x 6.35 mm (1 front, 2 rear)
Audio Inputs 8 x RCA (separate channels), 3 x stereo RCA (AUX), 1 x 3.5 mm (AUX)
Audio Outputs 8 x RCA (separate channels), 1 x stereo RCA, speaker terminals
Key Features Bluetooth streaming, Talk-Over function (microphone priority), independent tone and volume controls, BT/USB/SD/AUX/FM mode, FM radio, rack mountable
Power Supply 115/230 V AC switchable, 50/60 Hz
Dimensions (W x D x H) 42.9 x 27.9 x 9.9 cm
Care and Cleaning Wipe with a soft, dry cloth. Do not use solvents.
Safety Built-in protection against overload and short circuits
Spare Parts and Reparability Contact the dealer or Pyle customer service

Frequently Asked Questions - PT8050CH Pyle

How do I pair my smartphone with the PT8050CH receiver?
Make sure the Bluetooth antenna is installed. Turn on the device, press the BT/Line button. Enable Bluetooth on your smartphone and search for devices. Select "BT-AUDIO" from the list. The password is "0000". You will hear "Your device is connected".
What should I do if the receiver does not turn on?
Check that the power cord is properly plugged in and the outlet works. Test with another device. If the problem persists, check the fuse.
Why is there no sound?
Make sure the correct input source is selected (BT, USB, SD, AUX). Check that the master volume is not at minimum. Check the speaker and cable connections. Test with another source.
How do I use the Talk-Over function (microphone priority)?
Connect a microphone to the MIC1 input. Activate the "Voice Priority" function on the front panel. When you speak into the microphone, the music volume automatically decreases.
The microphone produces no sound, what should I do?
Check that the microphone is turned on and the cable is properly connected. Increase the microphone volume for the corresponding channel. Test the microphone on another device to verify it works.
How do I adjust the levels of each channel?
Use the individual volume control knobs for each channel (1 to 8). The potentiometers are located on the front panel. You can also adjust the tone separately.
Can I connect a USB drive larger than 64 GB?
The maximum supported capacity is 64 GB. Files must be in MP3, WMA, WAV or FLAC format. Format the drive as FAT32.
How do I switch between audio sources (BT, USB, SD, AUX, FM)?
Press the MODE button on the front panel to cycle through sources: Bluetooth, USB, SD, AUX, FM. The selection is displayed on the LED screen.
The amplifier produces a humming sound, what should I do?
Check that all cables are properly connected. Try plugging in a different source to isolate the problem. Reduce the volume if the speakers produce distortion.
What type of rack mounting is compatible?
The PT8050CH is compatible with a standard 19-inch rack. Detachable mounting brackets are included. The height is 2U (3.9 inches).

User questions about PT8050CH Pyle

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Receiver in PDF format for free! Find your manual PT8050CH - Pyle and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PT8050CH by Pyle.

USER MANUAL PT8050CH Pyle

text_image Visit Our Website SCAN ME PyleUSA.com

Pyle PT8050CH - 1

PYLE® PyleUSA.com

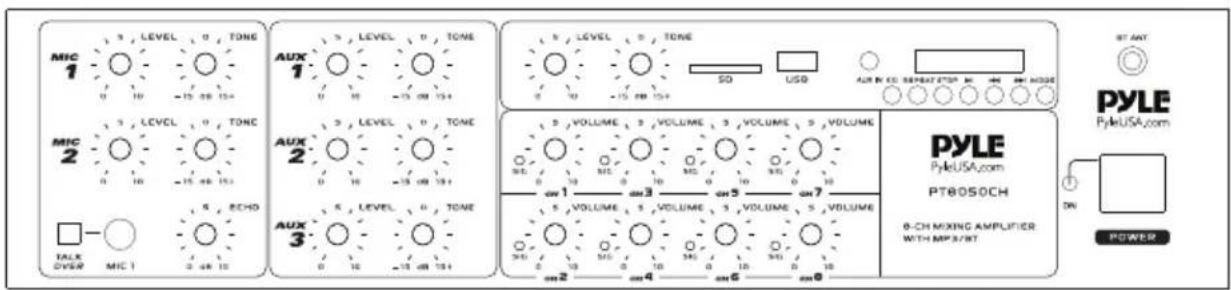

Pyle PT8050CH - PYLE® PyleUSA.com - 1

text_image MIC 1 3 LEVEL 0 TONE 0 10 -15 dB 154 AUX 1 3 LEVEL 0 TONE 0 10 -15 dB 154 MIC 2 3 LEVEL 0 TONE 0 10 -15 dB 154 AUX 2 3 LEVEL 0 TONE 0 10 -15 dB 154 AUX 3 6 LEVEL 0 TONE 0 10 -15 dB 154 AUX 5 VOLUME 3 VOLUME 3 VOLUME 3 VOLUME 0 10 0 10 0 10 on 1 on 3 on 5 on 7 5 VOLUME 3 VOLUME 3 VOLUME 3 VOLUME on 2 on 4 on 6 on 8 PYLE PyleUSA.com PT8050CH 8-CH MIXING AMPLIFIER WITH MPB/RT DT ANT PYLE PYLEUSA.com DN POWER

PT8050CH

8 Channel
Pyle PT8050CH - PYLE® PyleUSA.com - 2

text_image MIC 1 0 10 -15 48 15+ MIC 2 0 10 -15 48 15+ TALK DVER MIC I 0 48 10 AUX 1 0 10 -15 48 15+ AUX 2 0 10 -15 48 15+ AUX 3 0 10 -15 48 15+ S LEVEL S TONE S LEVEL S TONE S LEVEL S TONE S VOLUME S VOLUME S VOLUME S VOLUME S VOLUME S VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VVolume VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VTERM/ANAT PYLE USA.com PT12050CH ON POWER

PT12050CH
12 Channel

PT8050CHEU - PT12050CHUK Audio Karaoke Wireless BT Amplifier

Stage & Studio Sound Mixer Receiver System with Microphone Talk-Over, MP3/USB/SD/AUX, Rack Mount

USER GUIDE

About PyleUSA

Pyle, founded in the 1960s, has evolved into a renowned manufacturer of high-quality advanced woofers. Our journey started with the iconic Pyle Driver, becoming a household name in original speakers. In the late 20th century, we expanded into replacement speakers, car audio, home audio, marine audio, and professional audio & musical instruments with our Pyle Pro line.

Pyle Car:

Transform your car into a perfect listening environment with our competitively priced speakers, amplifiers, and head units. Upgrade from factory speakers to enhance your music experience. Explore accessories like navigation systems, DVD players, iPod interfaces, and safety-focused cameras.

Pyle Home:

Discover a range of home entertainment products, including projectors, TVs, mounts, stands, and HD technology. Pyle Home offers bass-expanding mini speakers, headphones, vintage turntables, power amplifiers, horn speakers, and more for an enriched media experience at home and on the go.

Pyle Pro:

As the leading source of audio equipment worldwide, Pyle Pro caters to musicians, studio engineers, and amateurs. Our PA Systems, featuring wireless microphones, rechargeable batteries, and iPod/iPhone docks, are ideal for various events. Explore our emerging guitar line, effects pedals, and USB-to-analog converters without compromising on quality.

Pyle's Wireless BT 8/12CH Amplifier is the perfect solution for all of your audio needs. Using the latest sound amplification technology and an impressive 8000 /12000 Watt power output, this receiver is designed to deliver pure 8/12CH sounds from a wide range of connected music sources. Built-in Wireless BT audio receiver ability allows you to stream your music wirelessly and it works with all of your favorite devices (like Smartphones, Tablets, Laptops, Computers, etc.) Enjoy full range 8/12CH sound reproduction when streaming audio with a wireless range of up to 30' feet. Additional system features include FM Radio with LED display, USB Flash Drive Reader, SD Card Reader, (2) 1/4" Microphone Inputs, Binding Post Speaker Terminal connectors, (3) RCA Stereo Inputs, Line Stereo RCA Output, and along with an Aux (3.5mm) jack to connect even more external devices. Take control of your sound with the Pyle PT8050CH & PT12050CH Wireless BT Stereo Amp Receiver.

High Performance Features:

PT8050CH & PT12050CH is a power amplifier to deliver clean power to your speakers. PT8050CH & PT12050CH with best design and best components can give you a profoundly positive effect on sound quality for your home theater, media room, or whole-house audio system. Design and customize a home theater that fits seamlessly into your home usage, and Multi-channel amps like the PT8050CH & PT12050CH incorporate high-efficiency, space-saving digital technology. Or go big with complete, whole-house audio solutions. Whether you want to maximize your home theater experience or transform your living space, PYLE Audio has total solutions to help you get the most out of your movies and music from clean power amplifiers to in-wall and outdoor speakers, subwoofers, custom controls, and more. Rated at 50 watts per channel RMS at 8 ohms, the PT8050CH & PT12050CH from PYLE Audio is driving complex audio systems and will distribute sound to 6 different locations without the risk of overload. Equipped with rack-mountable high current amp includes 8/12 channels (speakers), so owning this amp is like having three Stereo channel amps in one efficient location.

Make PYLE Audio as a Part of Your Total Audio Solution

PYLE Audio offers everything you need to design and build a complete home theater solution, customized to your home. In-wall speakers, amplifiers, custom control products, and more are all available to give you the perfect home audio experience, indoors or outdoors.

Available For Wall/Ceiling Speakers

Large cone areas pivoting drivers, ease of installation and exceptional sound quality make PYLE Audio's line of in-wall and in-ceiling speakers an excellent choice for those who don't want to give up precious floor or shelf space. PYLE Audio offers models with varying features, materials, and cone sizes to fit any application and budget.

Available For Outdoor Speakers

Make your next backyard BBQ or swim party special by installing an outdoor speaker system. PYLE Audio offers a huge selection of affordable models, from weather-resistant patio speakers to heavy-duty rock speakers that blend into any landscape. PYLE Audio outdoor speakers are built tough and tested under extreme weather conditions to ensure a long and happy life.

Available For Audio Control

A whole-house audio system lets you enjoy great sound in every room of your house. Pyle Audio has everything you need for a whole-house system, including volume controls, speaker selectors and IR repeater systems that let you hide your electronics neatly inside a cabinet.

So choose the PYLE Audio Amplifier that's right for you.

Wireless BT Streaming Operation Instruction

External devices which have a built-in Wireless BT feature can be connected to this amplifier wirelessly to play through the amplifier's speakers.

  1. At first be sure that the amplifier is powered ON, and turn the volume to the MINI position. And it's better to pull the Wireless BT Antenna on at the back panel for better receiving.
  2. Press the BT/Line button switch in ON the front panel, you will hear the voice "POWER ON" and also "PAIRING", and then the unit is automatically ready to pair with your external device.
  3. Turn ON the Wireless BT of your external devices like Smartphone, Computer, and others, etc.
  4. Search for available Wireless BT devices within range of your external device and wait for your device to select "BT-RY" on the pairing devices lists.
  5. And seconds later when you heard a voice "Your Device is Connected", then the Wireless BT pairing is success.
  6. You can now play music on your external device through the amplifier.

Features and Controls:

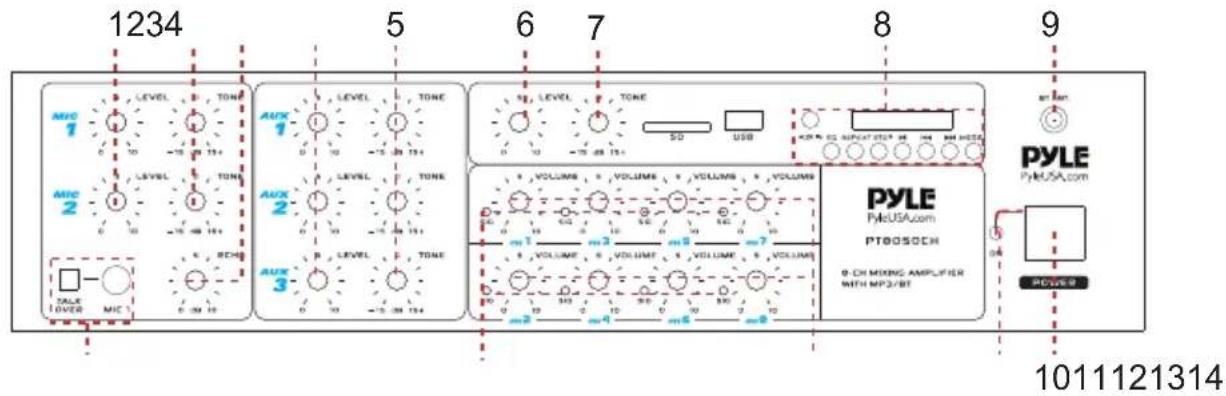

FRONT PANEL

PT8050CH
Pyle PT8050CH - FRONT PANEL - 1

text_image 1234 5 6 7 8 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME

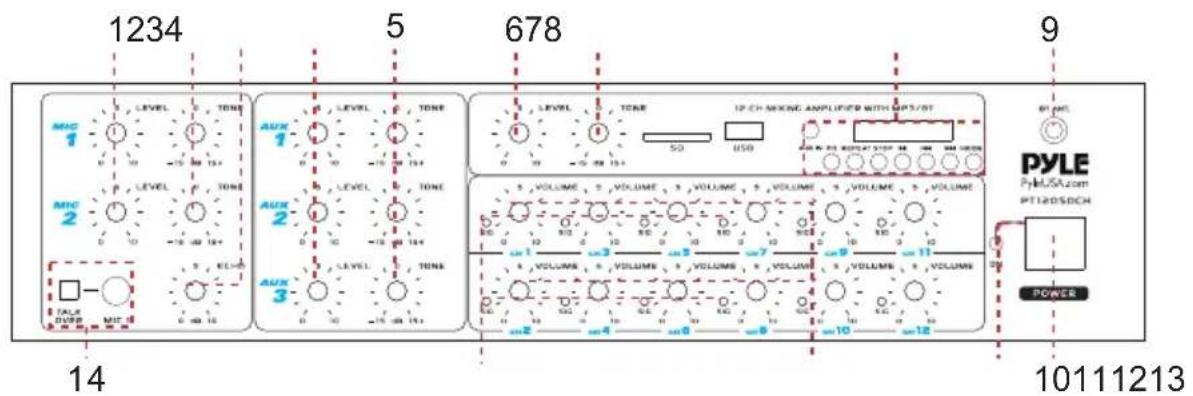

PT12050CH
Pyle PT8050CH - FRONT PANEL - 2

Front Panel & Back Panel

  1. Separate MIC 1 and MIC2 Volume Control
  2. Separate MIC 1 and MIC2 Tone Control
  3. Microphone Voice Priority Level Control
  4. Separate AUX 1, AUX2, and AUX3 Input Level Control
  5. Separate AUX 1, AUX2, and AUX3 Tone Control
  6. AUX/MP3 (USB & SD) Input Level Control
  7. AUX/MP3 (USB & SD) Input Tone Control
  8. BT/USB/SD/AUX Function Control USB/SD Ports

AUX IN: 3.5mm AUX Input

MODE: BT/USB/SD/AUX/FM Switch

◀◀: Button Doubles as Previous Song
▶II: Button Doubles as Play/Pause
▶▶: Button Doubles as Next Song

VOL+/VOL- : Button for Volume + and Volume -

  1. BT Antenna

  2. Power ON/OFF Switch

  3. Power On/Off LED

  4. Separate Channel 1-8 or 1-12 Channel Output Volume Control

  5. Separate Channel 1-8 or 1-12 Channel Output LED Signal The Indicator Lights when the Output is working.

  6. MIC 1 INPUT JACK & MIC1 Priority Function On/Off Button Allows you to connect up to 6.35 type microphone, and can be used as the normal dynamic MIC input.

  7. Power Input

  8. Power Selector (110V/60Hz or 230V/50Hz)

  9. Speaker Stereo Output Binding Posts

  10. (8) Separate RCA Audio Inputs with Separate Level Control
    (8) Separate RCA Audio Output with Separate Level Control

  11. Separate MIC1 & MIC2 TRS Inputs

  12. Separate Stereo AUX 1, AUX2, & AUX 3 RCA Inputs

  13. Line Stereo RCA Outputsz

Help & Troubleshooting

If you experience any of the following difficulties while using the unit, use this troubleshooting guide to help you remedy the problem, should any problem persist, consult your nearest dealer.

Problem Possible Cause & Solution
No Power*Ensure the power cord is securely connected.*Plug a different device into the electrical outlet to verify that the outlet is working correctly
No Sound*The wrong input was selected on the amplifier*Music master volume control is set to minimum* Fuse defective*Speakers and speaker cables are either not connected, loose or malfunctioning.
Microphone No Sound*The microphone is not turned on*The microphone cable is either loose or not functioning*The microphone volume for that channel is set to minimum*The microphone is not functioning correctly
Severe Hum or Noise*Ensure all cables and wires are securely connected*Connect a different source device to see if the buzzing persists. If does not, the problem may be with the original device.* Connect your device to a different input to the amplifier* The volume is set too high and the loudspeakers distort

Wireless BT Connectivity:

  • Works with All of Today's Latest Devices
  • Smartphones, Tablets, Laptops, Computers, etc.
    • Wireless BT Version: 2.1
  • Wireless BT Network Name: 'BT-AUDIO'
  • Wireless BT Network Password: '0000' (4 Zeroes)
  • Wireless Range: Up to 30'+ ft.

What's in the Box:

  • Amplifier Mixer System
  • Wireless BT Antenna
  • Detachable Rack Mount Brackets
  • Power Cable
PT8050CH PT12050CH
Amplifier Type8-Channel12-Channel
Power Output4000 Watt MAX6000 Watt MAX
MAX Power8-CH x 500 Watt @ 4 Ohm12-CH x 500 Watt @ 4 Ohm
RMS Power8-CH x 250 Watt @ 8 Ohm12-CH x 250 Watt @ 8 Ohm

Features:

• High-Powered Audio Amplifier
- Multi-Zone Audio Source Mixing Receiver
• Home Theater Pro Audio Sound Control
• Lab Tested Stage & Studio Performance
• Built-in BT for Wireless Audio Streaming Ability
- Microphone Talk-Over / Voice Priority Function
• Digital LCD Display Screen
- Front Panel Button & Rotary Control Center
• Audio Input Mode Selectable (BT/USB/SD/AUX)
- Independent Channel & Microphone Audio Configuration
- Connect & Stream Audio from External Devices
• MP3 Digital Audio File Support
• USB Flash & SD Memory Card Readers
• USB Port Doubles as Device Charge Port
• Aux (3.5mm) Audio Jack
• (3) 1/4" Microphone Jacks (2 Rear, 1 Front)
• RCA (L/R) Audio Input / Output Jacks
- Speaker Binding Post Output Connectors
- Power ON/OFF Switch
• LED Audio Signal Indicator Lights
• Universal Rack Mount Compatible
• Built-in Safety, Overload and Short Circuit Protection
• Used for Stage, Studio, Home, Office & Business Audio Applications

Technical Specs:

• Frequency Response: 20Hz-20kHz
• Signal to Noise Ratio: >81dB
• T.H.D.: <0.1%
• Digital File-Type Compatibility: MP3, WMA, WAV, FLAC
• Maximum USB/SD Flash Support: 64GB
- Battery Operated Remote, Requires (1) x 'CR-2032', Included
• Power Cable Length: 4.9 ft./1.49 m
- USB Power: 5V/1A
• Power Supply: 115/230V, Switchable
- Dimensions (L x W x H): 16.9" x 11.0" x 3.9" - inches (42.9 x 27.9 x 9.90 -cm)

California Prop 65 Warning

! WARNING:

This product may expose you to chemicals, which is known to the state of California to cause cancer, birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

Register Product

Thank you for choosing PyleUSA. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support. Complete the form to access expert support and to keep your PyleUSA purchase in perfect condition.

Start Here
Pyle PT8050CH - Register Product - 1

text_image QR code image containing encoded data, no visible human-readable text

Model Number: PT8050CH-PT12050CH
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

Pyle PT8050CH - PyleUSA.com - 1

text_image QR code image containing encoded data, no visible human-readable text

Questions? Comments?

We are here to help!

Phone: (1) 718-535-1800

PyleUSA.com/ContactUs

Pyle PT8050CH - PyleUSA.com - 2

text_image 1234 5 6 7 8 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME PYLE Pyle USA.com PT8050CH 0-CH MIXING AMPLIFIER WITH MP3/BE PCVEE 9 1011121314

PT12050CH

Pyle PT8050CH - PyleUSA.com - 3

text_image 1234 5 678 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE LEVEL TONE IP-CH-MIXIC AMPLIFIER WITH GPS/DT 50 USD 5 VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VTERM PYLE PyLUSA.com PT120SDCH POWER 10111213

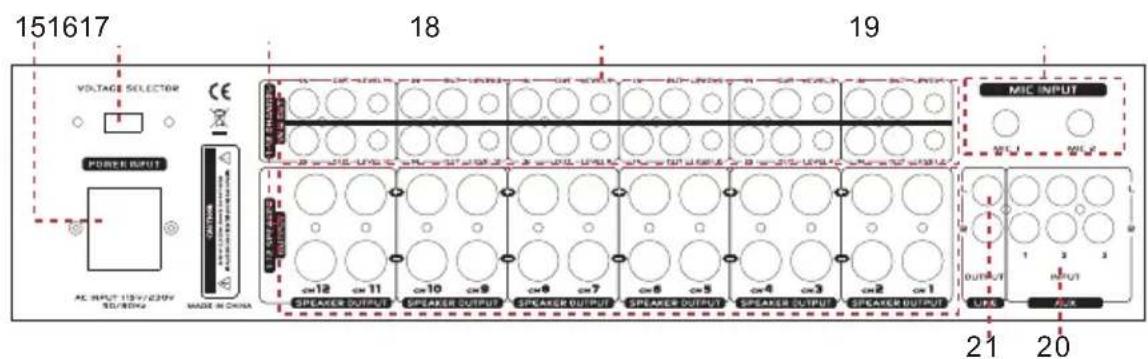

PANEL TRASERO

PT8050CH
Pyle PT8050CH - PANEL TRASERO - 1

text_image 1516171819 VOLTAGE SELECTOR POWER INPUT AC INPUT 115x/230V 30/10Hz CE CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (Polarized) PLUG WITH AN EXTENSION COLD RECEPTACLE OR OTHER OUTPUT UNLESS THE BLADES CAN BE FULL INSERTED TO PREVENT SLADE REFERENCE. CAUTION: FOR CONTINUING PROTECTION AGAINST RISK OF THE REPLACE ONLY WITH SAME TYPE FUSE. WARNING: TO REPLACE THE SHOX OF PART OR ELECTRIC SHOCK DO NOT EXPOSED THIS EQUIPMENT TO MAKE COMBINATION. HIND IN CHINA. MIX INPUT MIC 1 MIC 2 MIX INPUT LIRE MIX 21 20 SPREAD OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT

PT12050CH

Pyle PT8050CH - PANEL TRASERO - 2

text_image 151617 18 19 VOLTAGE SELECTOR POWER INPUT AC INPUT 135V/230V 50V/80Hz MADE IN CHINA MIC INPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT 21 20

Panel frontal y panel trasero

text_image QR code image containing encoded data, no visible human-readable text

Model Number: PT8050CH-PT12050CH
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

Pyle PT8050CH - PyleUSA.com - 1

text_image QR code image containing encoded data, no visible human-readable text
text_image MIC 1 3 LEVEL 0 TONE 0 10 -15 dB 154 AUX 1 3 LEVEL 0 TONE 0 10 -15 dB 154 MIC 2 3 LEVEL 0 TONE 0 10 -15 dB 154 AUX 2 3 LEVEL 0 TONE 0 10 -15 dB 154 AUX 3 6 LEVEL 0 TONE 0 10 -15 dB 154 AUX 6 LEVEL 0 TONE 0 10 -15 dB 154 8 VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME VOLUME 3 VOLUME 3 VOLUME 3 VOLUME

PT8050CH

8 Channel
Pyle PT8050CH - PyleUSA.com - 2

text_image MIC 1 0 10 -15 48 15+ MIC 2 0 10 -15 48 15+ TALK OYSR MIC 1 AUX 1 0 10 -15 48 15+ AUX 2 0 10 -15 48 15+ AUX 3 0 10 -15 48 15+ 12-CH MIXING AMPLIF/RR WITH MPX/RT AU IN: CC SEPEAT OCEAN IN: CC IN: MDDR ON PYLE PyleUSA.com PT12050CH POWER

PT12050CH
12 Channel

text_image 1234 5 6 7 8 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME PYLE Pyle USA.com PT8050CH 0-CH MIXING AMPLIFIER WITH MP3/BE PCVEE 9 1011121314

PT12050CH
Pyle PT8050CH - PyleUSA.com - 3

text_image 1234 5 678 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE LEVEL TONE IP-CH-MIXIC AMPLIFIER WITH GPS/DT 50 USD 5 VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VTERM PYLE PyleUSA.com PT120SDCH POWER 10111213

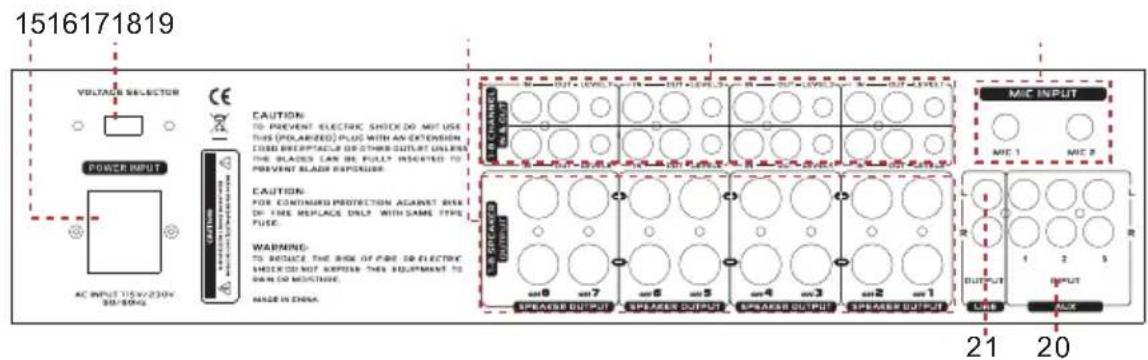

PANNEAU ARRIÈRE

PT8050CH
Pyle PT8050CH - PANNEAU ARRIÈRE - 1

text_image 1516171819 VOLTAGE SELECTOR POWER INPUT AC INPUT 115x/230V 30/10Hz CE CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (Polarized) PLUG WITH AN EXTENSION COLD RECEPTACLE OR OTHER OUTPUT UNLESS THE BLADES CAN BE FULL INSERTED TO PREVENT SLADE REFERENCE. CAUTION: FOR CONTINUING PROTECTION AGAINST RISK OF THE REPLACE ONLY WITH SAME TYPE FUSE. WARNING: TO REPLACE THE SHOX OF PART OR ELECTRIC SHOCK DO NOT EXPOSED THIS EQUIPMENT TO MAKE COMBINATION. HIND IN CHINA. MIX INPUT MIC 1 MIC 2 MIX INPUT LIRE MIX 21 20 SPREAD OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT

PT12050CH

Pyle PT8050CH - PANNEAU ARRIÈRE - 2

text_image 151617 18 19 VOLTAGE SELECTOR POWER INPUT AC INPUT 135V/230V 50V/80Hz MADE IN CHINA MIC INPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT 21 20
text_image QR code image containing encoded data, no visible human-readable text

Model Number: PT8050CH-PT12050CH
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

Pyle PT8050CH - PyleUSA.com - 1

text_image QR code image containing encoded data, no visible human-readable text
text_image MIC 1 0 10 -15 48 15+ MIC 2 0 10 -15 48 15+ TALK DYSR MIC I AUX 1 0 10 -15 48 15+ AUX 2 0 10 -15 48 15+ AUX 3 0 10 -15 48 15+ 12-CH MIOONG AMPLIF/RR WITH MPX/RT AU R: CC, REPEAT C: CC, CC, CC, CC: CC VOLI VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME

PT12050CH
12 Channel

PT8050CHEU - PT12050CHUK

text_image 1234 5 6 7 8 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME 1011121314

PT12050CH
Pyle PT8050CH - PT8050CHEU - PT12050CHUK - 1

text_image QR code image containing encoded data, no visible human-readable text

Model Number: PT8050CH-PT12050CH
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

Pyle PT8050CH - PyleUSA.com - 1

text_image QR code image containing encoded data, no visible human-readable text

Domande o Commenti?

text_image MIC 1 0 10 -15 48 15+ MIC 2 0 10 -15 48 15+ TALK OVS# MIC 1 AUX 1 0 10 -15 48 15+ AUX 2 0 10 -15 48 15+ AUX 3 0 10 -15 48 15+ S LEVEL S TONE S LEVEL S TONE S LEVEL S TONE S VOLUME S VOLUME S VOLUME S VOLUME S VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VURE VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME V批量 VOLUME VOLUME V批量 VOLUME VOLUME V批量 VOLUME V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 V批量 VVolume ON PYLE USA.com PT12050CH POWER

PT12050CH
12 Channel

PT8050CHEU - PT12050CHUK

text_image 1234 5 6 7 8 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME PYLE Pyle USA.com PT8050CH 0-CH MIXING AMPLIFIER WITH MP3/BE PCVEE 9 1011121314

PT12050CH
Pyle PT8050CH - PT8050CHEU - PT12050CHUK - 1

text_image 1234 5 678 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE LEVEL TONE IP-CH-MIXIC AMPLIFIER WITH GPS/DT 50 USD 5 VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VTERM PYLE PyLUSA.com PT120SDCH POWER 10111213

RÜCKPLATTE

PT8050CH
Pyle PT8050CH - RÜCKPLATTE - 1

text_image 1516171819 VOLTAGE SELECTOR POWER INPUT AC INPUT 115W/230V 35/80Hz CE CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (PELARIZED) PLUG WITH AN EXTENSION COLD (RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULL INSERTED TO PREVENT SLAIR SUPPENSER. CAUTION: FOR CONTINUING PROTECTION AGAINST RISK ON TIME REPLACE ONLY WITH SAME TYPE FUSE. WARNING: TO REPLACE THE BOX OF PARE OR ELECTRIC SHOCK DO NOT EXPOSED THIS EQUIPMENT TO WHIP CO MOUNTING. MADE IN CHINA. SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT MIC INPUT MIC 1 MIC 2 SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT Output INPUT LINE ALX 21 20

PT12050CH

Pyle PT8050CH - RÜCKPLATTE - 2

text_image 151617 18 19 VOLTAGE SELECTOR POWER INPUT AC INPUT 135V/230V 50V/80Hz MADE IN CHINA MIC INPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT 21 20
text_image QR code image containing encoded data, no visible human-readable text

Model Number: PT8050CH-PT12050CH
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

Pyle PT8050CH - PyleUSA.com - 1

text_image QR code image containing encoded data, no visible human-readable text
text_image 1234 5 6 7 8 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME PYLE Pyle USA.com PT8050CH 0-CH MIXING AMPLIFIER WITH MP3/BE PCVEE 9 1011121314

PT12050CH

Pyle PT8050CH - PyleUSA.com - 2

text_image 1234 5 678 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE LEVEL TONE IP-CH-MIXIC AMPLIFIER WITH GPS/DT 50 USD 5 VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VTERM PYLE PyLUSA.com PT120SDCH POWER 10111213

PANEL TYLNY

PT8050CH
Pyle PT8050CH - PANEL TYLNY - 1

text_image 1516171819 VOLTAGE SELECTOR POWER INPUT AC INPUT 115W/230V 35/30Hz CE CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (PELARIZED) PLUG WITH AN EXTENSION COLD (RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULL INSERTED TO PREVENT SLAIR SUPPENSER. CAUTION: FOR CONTINUING PROTECTION AGAINST RISK ON TIME REPLACE ONLY WITH SAME TYPE FUSE. WARNING: TO REPLACE THE BOX OF PARE OR ELECTRIC SHOCK DO NOT EXPOSED THIS EQUIPMENT TO WHIP CO MOUNTING. MADE IN CHINA. SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT MIC INPUT MIC 1 MIC 2 SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT Output INPUT LINE ALX 21 20

PT12050CH

Pyle PT8050CH - PANEL TYLNY - 2

text_image 151617 18 19 VOLTAGE SELECTOR POWER INPUT AC INPUT 135V/230V 50V/80Hz MADE IN CHINA MIC INPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT 21 20

If you experience any of the following difficulties while using the unit, use this troubleshooting guide to help you remedy the problem, should any problem persist, consult your nearest dealer.

text_image QR code image containing encoded data, no visible human-readable text

Model Number: PT8050CH-PT12050CH
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

Pyle PT8050CH - PyleUSA.com - 1

text_image QR code image containing encoded data, no visible human-readable text
text_image MIC 1 0 10 -15 48 15+ MIC 2 0 10 -15 48 15+ TALK DVER MIC I AUX 1 0 10 -15 48 15+ AUX 2 0 10 -15 48 15+ AUX 3 0 10 -15 48 15+ 12-CH MIXING AMPLIF/RR WITH MPX/RT AU R: CC, REPEAT C: CC, CC, CC, CC: CC VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME

PT12050CH
12 Kanal

PT8050CHEU - PT12050CHUK Audio Karaoke Kablosuz BT Amplifikatör

text_image 1234 5 6 7 8 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME PYLE Pyle USA.com PT8050CH 0-CH MIXING AMPLIFIER WITH MP3/BE PCVEE 9 1011121314

PT12050CH

Pyle PT8050CH - PT12050CH - 1

text_image 1234 5 678 9 MIC 1 LEVEL TONE AUX 1 LEVEL TONE AUX 2 LEVEL TONE AUX 3 LEVEL TONE LEVEL TONE IP-CH-MIXIC AMPLIFIER WITH GPS/DT 50 USD 5 VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VTERM PYLE PyLUSA.com PT120SDCH POWER 10111213

ARKA PANEL

PT8050CH

Pyle PT8050CH - PT8050CH - 1

text_image 1516171819 VOLTAGE SELECTOR POWER INPUT AC INPUT 115W/230V 35/80Hz CE CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (PELARIZED) PLUG WITH AN EXTENSION COLD (RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULL INSERTED TO PREVENT SLAIR SUPPENSER. CAUTION: FOR CONTINUING PROTECTION AGAINST RISK ON TIME REPLACE ONLY WITH SAME TYPE FUSE. WARNING: TO REPLACE THE BOX OF PARE OR ELECTRIC SHOCK DO NOT EXPOSED THIS EQUIPMENT TO WHIP CO MOUNTURE. MADE IN CHINA. SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT MIC INPUT MIC 1 MIC 2 SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT SPEEDS OUTPUT Output INPUT LINE ALX 21 20

PT12050CH

Pyle PT8050CH - PT12050CH - 1

text_image 151617 18 19 VOLTAGE SELECTOR POWER INPUT AC INPUT 135V/230V 50V/80Hz MADE IN CHINA MIC INPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUTPUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER OUT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEAKER UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT SPEEK UNT 21 20

Ön Panel ve Arka Panel

text_image QR code image containing encoded data, no visible human-readable text

Model Number: PT8050CH-PT12050CH
PyleUSA.com/pages/register

Pyle PT8050CH - Ön Panel ve Arka Panel - 1

text_image For user guides in multiple languages, SCAN THE QR CODE and enter your model number

User Manuals available in Italian | German | Polish | Turkish

PYLE®

PyleUSA.com

Pyle PT8050CH - PyleUSA.com - 1

text_image QR code image containing encoded data, no visible human-readable text
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Pyle

Model : PT8050CH

Category : Receiver
