USER MANUAL LD2131WH LG

Key Parts and Components ................................... 8 WARRANTY ................................................... 33 Product Registration Information Model:Serial Number:Date of Purchase:The model and serial number can be located on the rating plate inside the front door. 2Your Safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.These words mean: wDANGER: You can be killed or seriously injured if you don’t immediately follow instructions. wWARNING: You can be killed or seriously injured if you don’t follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

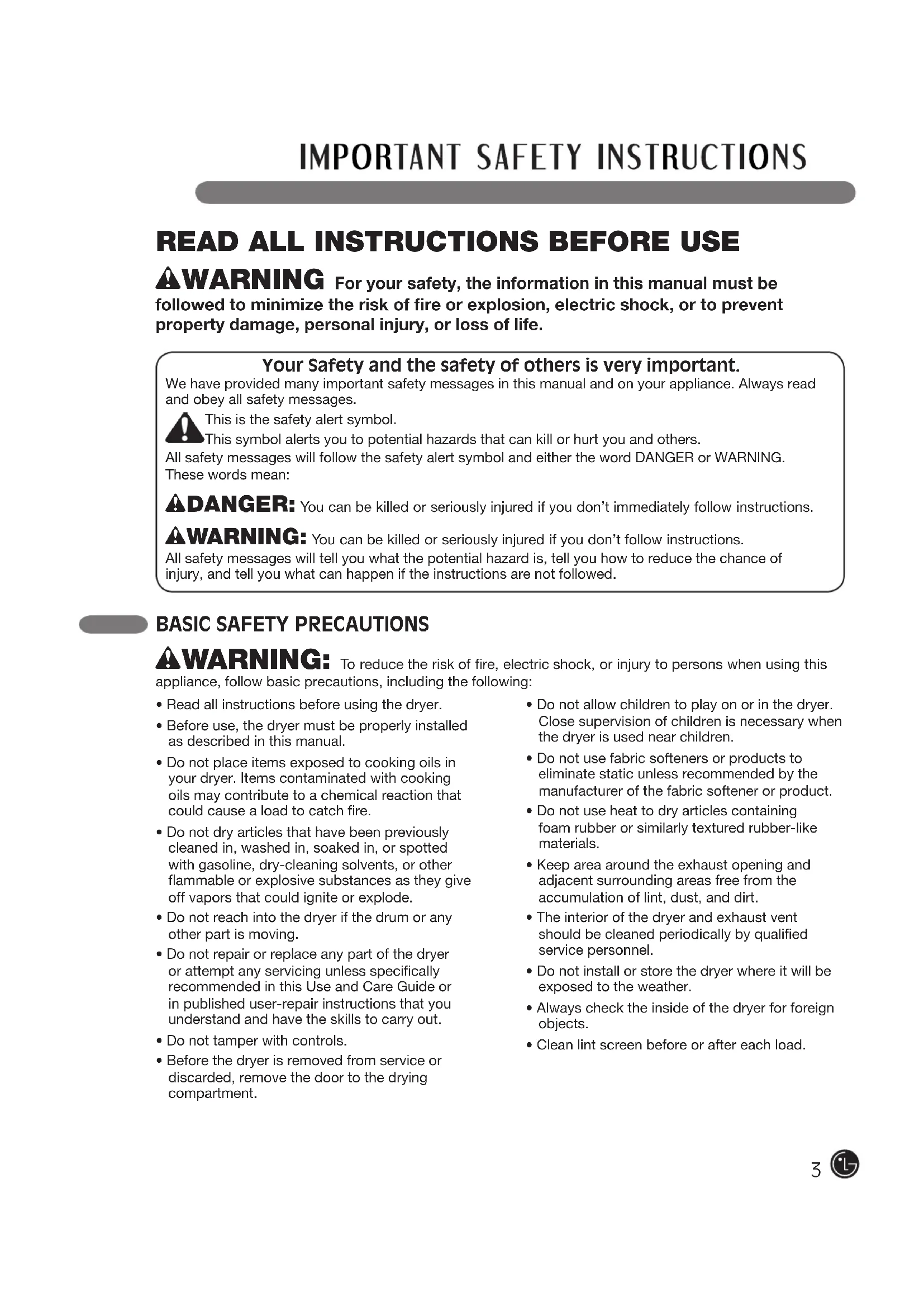

BASIC SAFETY PRECAUTIONS

wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:• Read all instructions before using the dryer.• Before use, the dryer must be properly installed as described in this manual.• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. • Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.• Do not reach into the dryer if the drum or any other part is moving.• Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.• Do not tamper with controls.• Before the dryer is removed from service or discarded, remove the door to the drying compartment.• Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.• Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.• The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.• Do not install or store the dryer where it will be exposed to the weather.• Always check the inside of the dryer for foreign objects.• Clean lint screen before or after each load.

wWARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance or any other appliances.

• Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

READ ALL INSTRUCTIONS BEFORE USE

wWARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

1. Do not try to light a match or cigarette,

or turn on any gas or electrical appliance.

2. Do not touch any electrical switches.

Do not use any phone in your building.

3. Clear the room, building, or area of all

4. Immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions carefully.

5. If you cannot reach your gas

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance must be equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. wWARNING Improper connection of the equipment- grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance must be connected to a grounded metal, permanent wiring system or an equipment- grounding conductor must be run with the circuit conductors and connected to the equipment- grounding terminal or lead on the appliance. Electrical shock can result if the dryer is not properly grounded.

• Properly ground dryer to conform with all governing codes and ordinances. Follow details in the installation instructions. Electrical shock can result if the dryer is not properly grounded.

• Before use, the dryer must be properly installed as described in this manual. Electrical shock can result if the dryer is not properly grounded.

• Install and store the dryer where it will not be exposed to temperatures below freezing or exposed to the weather.

• All repairs and servicing must be performed by an authorized servicer unless specifically recommended in this Owner’s Guide. Use only authorized factory parts. Failure to follow this warning can cause serious injury, fire, electrical shock or death. wWARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• To reduce the risk of electric shock, do not install the dryer in humid spaces. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.

• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper power circuit can melt, creating electrical shock and/or fire hazard.

• Remove all packing items and dispose of all shipping materials properly. Failure to do so can result in death, explosion, fire, or burns.

• Place dryer at least 18 in. above the floor for a garage installation. Failure to do so can result in death, explosion, fire, or burns.

• Keep all packaging from children. Packaging material can be dangerous for children. There is a risk of suffocation.6

wWARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. Exhaust/Ducting:

• Gas dryers MUST be exhausted to the outside. Failure to follow these instructions can result in fire or death.

• The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted outdoors, some fine lint and large amounts of moisture will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and fire hazard.

• Use only rigid metal or flexible metal 4-in. diameter ductwork inside the dryer cabinet or for exhausting to the outside. Use of plastic or other combustible ductwork can cause a fire. Punctured ductwork can cause a fire if it collapses or becomes otherwise restricted in use or during installation.

• Ductwork is not provided with the dryer, and you should obtain the necessary ductwork locally. The end cap should have hinged dampers to prevent backdraft when the dryer is not in use. Failure to follow these instructions can result in fire or death.

• The exhaust duct must be 4 in. (10 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer. Failure to follow these instructions can result in fire or death.

• Rigid or semi rigid metal ducting is recommended for use between the dryer and the wall. In special installations when it is impossible to make a connection with the above recommendations, a UL- listed flexible metal transition duct may be used between the dryer and wall connection only. The use of this ducting will affect drying time. Failure to follow these instructions can result in fire or death.

• DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape. For complete details, follow the Installation Instructions. Failure to follow these instructions can result in fire or death.SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY

• Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent personal injury or damage to the dryer, the electrical power cord must be plugged into a properly grounded outlet.

• For personal safety, this dryer must be properly grounded. Failure to do so can result in electrical shock or injury.

• Refer to the installation instructions in this manual for specific electrical requirements for your model. Failure to follow these instructions can create an electrical shock hazard and/or a fire hazard.

• This dryer must be plugged into a properly grounded outlet. Electrical shock can result if the dryer is not properly grounded. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow these instructions can create an electrical shock hazard and/or a fire hazard.

• The dryer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

• Never unplug your dryer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. The power cord can be damaged, resulting in a risk of fire and electrical shock.

• Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. The power cord can melt, creating electrical shock and/or fire hazard.

• When installing or moving the dryer, be careful not to pinch, crush, or damage the power cord. This will prevent injury and prevent damage to the dryer from fire and electrical shock.

SAVE THESE INSTRUCTIONS

wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

READ ALL INSTRUCTIONS BEFORE USE

wWARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.4

LEvELING FEET Four leveling feet (two in the front, and two in the back) adjust to improve dryer stability on uneven floors.

Front-mounted lint filter allows for easy access and cleaning after every load. Terminal Block Access Panel (Electric Models) Rear of Dryer Power Cord Location (Gas Models) Gas Connection Location (Gas Models) Exhaust Duct Outlet

Rotate the Cycle Selector Knob to select the desired dry cycle. Add cycle options or adjust settings with the touch of a button.

LED DISPLAY The easy-to-read LED display shows cycle options and information and provides status messages during operation.

EASY-ACCESS REvERSIBLE DOOR Wide-opening door provides easy access for loading and unloading. Door swing can be reversed to adjust for installation location.

8CHOOSE THE PROPER LOCATION

• Store and install the dryer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.

• Choose a location with a solid, level floor.

• If the dryer is being installed in a garage, place the dryer at least 18 in. (46 cm) above the floor. CLEARANCES

• Most installations require a minimum 5½ in. (14 cm) clearance behind the dryer for the exhaust ducting.

• Allow minimum clearances of at least 1 in. (2.5 cm) on the sides and back to minimize vibration and noise.

• Allowing additional clearance for installation and servicing is recommended.

• Be sure to allow for wall, door, or floor moldings that may increase the required clearances.

• Allow at least 24 in. (61 cm) in front of the dryer to open the door. IMPORTANT: Read all installation instructions completely before installing and operating your dryer! It is important that you review this entire manual before installing and using your dryer. Detailed instructions concerning electrical connections, gas connections, and exhaust requirements are provided on the following pages.

• Properly ground dryer to conform with all governing codes and ordinances.

• To reduce the risk of electric shock, do not install the dryer in damp or wet locations.

• If you are installing your dryer in a manufactured or mobile home, please refer to the section Special Requirements for Manufactured or Mobile Homes. Additional Instructions for closet installations:

• The closet door must allow for sufficient airflow. Refer to the diagram above for minimum vent opening requirements. A louvered door is also acceptable.

• Make sure that there is at least 18 in. (46 cm) of clearance above the dryer. 24 in.

PEDESTAL BASE OR STACKING KIT

IMPORTANT: If you are installing your dryer using an optional pedestal base or stacking kit, please refer to Optional Accessories in this manual or to the instructions for your pedestal or stacking kit before proceeding with the installation. 27" (68.6 cm)

/2" (190.5 cm) Required Dimensions for Installation With Pedestal Required Dimensions for Installation With Stacking Kit OPTIONAL ACCESSORIES For these and other LG products, contact your local LG dealer, or visit our Web site at ca.lge.com Pedestal (sold separately) Stacking Kit (sold separately)

• All four leveling feet must rest solidly on the floor. Gently push on the top corners of the dryer to make sure that the dryer does not rock from corner to corner. If you are installing the dryer on the optional pedestal, you must use the leveling feet on the pedestal to level the dryer. The dryer leveling feet should be fully retracted. Use an adjustable wrench to turn the leveling feet. Turn clockwise to raise the dryer or counterclockwise to lower it. Raise or lower the leveling feet until dryer is level from side to side and front to back. Make sure that all 4 leveling feet are in firm contact with the floor. REvERSING THE DOOR SWING The swing of the dryer door can be reversed to fit your installation location. Open the dryer door. Using a Phillips screwdriver, remove the 2 screws that secure the door hinge to the dryer door opening. Remove the 4 screws from the latch side of the dryer door opening, and remove the door latch. Turn the door around so the hinge is reversed, and reattach the door using the 2 screws previously removed. Reinstall the door latch and the 4 screws. Test the door swing to make sure the door moves freely and latches securely.

Position the dryer in the final location. Place a level across the top of the dryer.

Level Leveling Feet LEvELING THE DRYER To ensure that the dryer provides optimal drying performance, it must be level. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface. NOTE: Adjust the leveling feet only as far as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate. wWARNING

• Wear gloves during installation.

Failure to follow these instructions can result in injury. 11CHANGING THE DRYER vENT LOCATION Your new dryer is shipped to vent to the rear. It can also be configured to vent to the bottom or side (right-side venting is not available on gas models). An adapter kit, part number 383EEL9001B, may be purchased from your LG retailer. This kit contains the necessary duct components to change the dryer vent location. Remove the rear exhaust duct retaining screw. Pull out the exhaust duct.

Press the tabs on the knockout and carefully remove the knockout for the desired vent opening (right-side venting is not available on gas models). Press the adapter duct onto the blower housing and secure to the base of the dryer as shown.

Knockout Bracket Adapter duct Preassemble a 4-in. (10 cm) elbow to the next 4-in. (10 cm) duct section, and secure all joints with duct tape. Be sure that the male end of the elbow faces AWAY from the dryer. Insert the elbow/duct assembly through the side opening and press it onto the adapter duct. Secure in place with duct tape. Be sure that the male end of the duct protrudes 1½ in. (3.8 cm) to connect the remaining ductwork. Attach cover plate to the back of the dryer with included screw.

Rear Exhaust Duct Retaining Screw OPTION 1: Side venting Press the adapter duct onto the blower housing and secure to the base of the dryer as shown.

Bracket Adapter Duct Insert the 4-in. (10 cm) elbow through the rear opening and press it onto the adapter duct. Be sure that the male end of the elbow faces down through hole in the bottom of the dryer. Secure in place with duct tape. Attach the cover plate to the back of the dryer with included screw.

• Do not use plastic or thin foil duct.

• Clean old ducts before installing this dryer.

• Wear gloves during installation.

• Failure to follow these instructions can result in death or fire. 12vENTING THE DRYER

• Do not crush or collapse ductwork. Failure to follow these instructions can result in fire or death.

• Do not allow ductwork to rest on or contact sharp objects. Failure to follow these instructions can result in fire or death.

• If connecting to existing ductwork, make sure it is suitable and clean before installing the dryer. Failure to follow these instructions can result in fire or death.

• Venting must conform to local building codes. Failure to follow these instructions can result in fire or death.

• Gas dryers MUST exhaust to the outdoors. Failure to follow these instructions can result in fire or death.

• Use only 4-in. (10 cm) rigid or flexible metal ductwork inside the dryer cabinet and for venting outside. Failure to follow these instructions can result in fire or death.

• To reduce the risk of fire, combustion, or accumulation of combustible gases, DO NOT exhaust dryer air into an enclosed and unventilated area, such as an attic, wall, ceiling, crawl space, chimney, gas vent, or concealed space of a building. Failure to follow these instructions can result in fire or death.

• To reduce the risk of fire, DO NOT exhaust the dryer with plastic or thin foil ducting. Failure to follow these instructions can result in fire or death.

• The exhaust duct must be 4 in. (10 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer. Failure to follow these instructions can result in fire or death.

• Rigid or semirigid metal ducting is recommended for use between the dryer and the wall. In special installations when it is impossible to make a connection with the above recommendations, a UL-listed flexible metal transition duct may be used between the dryer and wall connection only. The use of this ducting will affect drying time. Failure to follow these instructions can result in fire or death.

• DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape. Failure to follow these instructions can result in fire or death.

• To maximize operating results, please observe the duct length limitations noted in the chart on page 14. Failure to follow these instructions can result in fire or death.

• Ductwork is not provided with the dryer. You should obtain the necessary ductwork locally. The end cap should have hinged dampers to prevent backdraft when the dryer is not in use. Failure to follow these instructions can result in fire or death. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following: 13Routing and Connecting Ductwork Follow the guidelines below to maximize drying performance and reduce lint buildup and condensation in the ductwork. NOTE: Ductwork and fittings are NOT included and must be purchased separately.

• Use 4-in. (10 cm) diameter rigid or semirigid metal ductwork.

• The exhaust duct run should be as short as possible.

• Use as few elbow joints as possible.

• The male end of each section of exhaust duct must point away from the dryer.

• Use duct tape on all duct joints.

• Insulate ductwork that runs through unheated areas in order to reduce condensation and lint buildup on duct surfaces. IMPORTANT: Failure to exhaust the dryer correctly will void the dryer’s warranty. vENTING THE DRYER (cont.) Correct Venting Incorrect Venting Number of Max. Length of 4-In. Dia. Max. Length of 4-In. Dia. Wall Cap Type 90° Elbows Rigid Metal Duct Flexible Metal Duct 0 65 ft. (19.8 m) 45 ft. (13.7 m) 1 55 ft. (16.8 m) 35 ft. (10.7 m) 2 47 ft. (13.7 m) 30 ft. (9.1 m) 3 36 ft. (11.0 m) 25 ft. (7.6 m) 4 28 ft. (8.5 m) 20 ft. (6.1 m) 0 55 ft. (16.8 m) 35 ft. (10.7 m)

1 47 ft. (13.7 m) 27 ft. (8.1 m) 2 41 ft. (12.5 m) 21 ft. (6.4 m) 3 30 ft. (9.1 m) 17 ft. (5.2 m) 4 22 ft. (6.7 m) 15 ft. (4.5 m) NOTE: Deduct 6 ft. (1.8 m) for each additional elbow. It is not recommended to use more than four 90° elbows. 4"(10.2 cm)

• Gas supply requirements: As shipped from the factory, this dryer is configured for use with natural gas. It can be converted for use with LP (Liquefied Propane) gas. Gas pressure must not exceed 13 in. water column.

• A qualified service or gas company technician must connect the dryer to the gas service. Failure to do so can result in fire, explosion, or death.

• Isolate the dryer from the gas supply system by closing its individual manual shutoff valve during any pressure testing of the gas supply. Failure to do so can result in fire, explosion, or death.

• Supply line requirements: Your laundry room must have a rigid gas supply line to your dryer. In the United States, an individual manual shutoff valve MUST be installed within at least 6 ft. (1.8 m) of the dryer, in accordance with the National Fuel Gas Code ANSI Z223.1. A 1/8-in. NPT pipe plug must be installed. Failure to do so can result in fire, explosion, or death.

• If using a rigid pipe, the rigid pipe should be 1/2-in. IPS. If acceptable under local codes and ordinances and when acceptable to your gas supplier, 3/8-in. approved tubing may be used where lengths are less than 20 ft. (6.1 m). Larger tubing should be used for lengths in excess of 20 ft. (6.1 m). Failure to do so can result in fire, explosion, or death.

• Connect the dryer to the type of gas shown on the nameplate. Failure to do so can result in fire, explosion, or death.

• To prevent contamination of the gas valve, purge the gas supply of air and sediment before connecting the gas supply to the dryer. Before tightening the connection between the gas supply and the dryer, purge remaining air until the odor of gas is detected. Failure to do so can result in fire, explosion, or death.

• DO NOT use an open flame to inspect for gas leaks. Use a noncorrosive leak- detection fluid. Failure to do so can result in fire, explosion, or death.

• Use only a new AGA- or CSA-certified gas supply line with flexible stainless steel connectors. Failure to do so can result in fire, explosion, or death.

• Securely tighten all gas connections. Failure to do so can result in fire, explosion, or death.

tape or a pipe-joint compound that is insoluble in Liquefied Petroleum (LP) gas on all pipe threads. Failure to do so can result in fire, explosion, or death.

• DO NOT attempt any disassembly of the dryer; any disassembly requires the attention and tools of an authorized and qualified service person or company. Failure to do so can result in fire, explosion, or death. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following: Electrical Requirements for Gas Models Only

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Failure to follow this warning can result in fire, explosion, or death.

• For personal safety, this dryer must be properly grounded. Failure to follow this warning can result in fire, explosion, or death.

• The power cord of this dryer is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Failure to follow this warning can result in fire, explosion, or death.

• This dryer must be plugged into a 120-VAC, 60-Hz. grounded outlet protected by a 15-ampere fuse or circuit breaker. Failure to follow this warning can result in fire, explosion, or death.

• Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can result in fire, explosion, or death. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:• Installation and service must be performed by a qualified installer, service agency, or the gas supplier. Failure to do so can result in fire, explosion, or death.

• Use only a new stainless steel flexible connector and a new AGA-certified connector. Failure to do so can result in fire, explosion, or death.

• A gas shutoff valve must be installed within 6 ft. (1.8 m) of the dryer. Failure to do so can result in fire, explosion, or death.

• The dryer is configured for Natural Gas when shipped from the factory. Make sure that the dryer is equipped with the correct burner nozzle for the type of gas being used (Natural Gas or Liquefied Petroleum). Failure to do so can result in fire, explosion, or death.

• If necessary, the correct nozzle (for the LP nozzle kit order part number 4948EL4002B) should be installed by a qualified technician and the change should be noted on the dryer. Failure to do so can result in fire, explosion, or death.

• All connections must be in accordance with local codes and regulations. Failure to do so can result in fire, explosion, or death.

• Gas dryers MUST exhaust to the outdoors. Failure to do so can result in fire, explosion, or death. 3/8" NPT Gas ConnectionGas Supply Shutoff Valve Connecting the Gas Supply Make sure that the gas supply to the laundry room is turned OFF. Confirm that the type of gas available in your laundry room is appropriate for the dryer. The dryer is prepared for Natural Gas with a 3/8-in. NPT gas connection. Remove the shipping cap from the gas connection at the back of the dryer. Be careful not to damage the threads of the gas connector when removing the shipping cap. Connect the dryer to your laundry room’s gas supply using a new flexible stainless steel connector with a 3/8-in. NPT fitting. Securely tighten all connections between the dryer and your laundry room’s gas supply. Turn on your laundry room’s gas supply and check all pipe connections (both internal and external) for gas leaks with a noncorrosive leak-detection fluid.

High-Altitude Installations The BTU rating of this dryer is AGA-certified for elevations below 10,000 feet. If your gas dryer is being installed at an elevation above 10,000 feet, it must be derated by a qualified technician or gas supplier. Electrical Connection Plug dryer into a 120-VAC, 60-Hz. grounded 3-prong outlet. CONNECTING GAS DRYERS (cont.) 1/8" NPT Pipe Plug AGA/CSA-Certified Stainless Steel Flexible Connector

wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:17 Electrical Requirements for Electric Models Only

• This dryer must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dryer. Failure to do so can result in fire, explosion, or death.

• The dryer has its own terminal block that must be connected to a separate 240 VAC, 60-Hertz, single-phase circuit, fused at 30 amperes (the circuit must be fused on both sides of the line). ELECTRICAL SERVICE FOR THE DRYER SHOULD BE OF THE

MAXIMUM RATE VOLTAGE LISTED ON THE

NAMEPLATE. DO NOT CONNECT DRYER TO

110-, 115-, OR 120-VOLT CIRCUIT. Heating elements are available for field installation in dryers which are to be connected to an electrical service of a different voltage than that listed on the rating plate. Failure to follow these instructions can result in fire, explosion, or death.

• If branch circuit to dryer is 15 ft. (4.5 m) or less in length, use UL (Underwriters Laboratories) listed No.-10 AWG wire (copper wire only), or as required by local codes. If over 15 ft. (4.50 m), use UL-listed No.-8 AWG wire (copper wire only), or as required by local codes. Allow sufficient slack in wiring so dryer can be moved from its normal location when necessary. Failure to do so can result in fire, explosion, or death.

• The power cord (pigtail) connection between wall receptacle and dryer terminal block IS NOT supplied with dryer. Type of pigtail and gauge of wire must conform to local codes and with instructions on the following pages. Failure to follow these instructions can result in fire, explosion, or death.

• A 4-wire connection is required for all mobile and manufactured home installations, as well as all new construction after January 1, 1996. A 4-wire connection must be used where local codes do not permit grounding through the neutral wire. Failure to do so can result in fire, explosion, or death. Special Electrical Requirements for Mobile or Manufactured Homes

• Any installation in a manufactured or mobile home must comply with the Manufactured Home Construction and Safety Standards Title 24 CFR, Part 32-80 or Standard CAN/ CSA0Z240 MH and local codes and ordinances.

• A 4-wire connection is required for all mobile and manufactured home installations, as well as all new construction after January 1, 1996. Failure to do so can result in fire, explosion, or death.

CONNECTING ELECTRIC DRYERS

wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following: wWARNING: To help prevent fire, electric shock, serious injury, or death, the wiring and grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local regulations. Please contact a qualified electrician to check your home’s wiring and fuses to ensure that your home has adequate electrical power to operate the dryer. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:Testing Dryer Heating GAS MODELS Close the dryer door, press the ON/OFF switch to turn the dryer on, and start the dryer on a heat setting. When the dryer starts, the igniter should ignite the main burner. NOTE: If all air is not purged from the gas line, the gas igniter may turn off before the main burner ignites. If this happens, the igniter will reattempt gas ignition after approximately two minutes. ELECTRIC MODELS Close the dryer door, press the ON/OFF switch to turn the dryer on, and start the dryer on a heat setting. The exhaust air should be warm after the dryer has been operating for 3 minutes. Checking Airflow Effective dryer operation requires proper airflow. The adequacy of the airflow can be measured by evaluating the static pressure. Static pressure in the exhaust duct can be measured with a manometer, placed on the exhaust duct approximately 2 ft. (60.9 cm) from the dryer. Static pressure in the exhaust duct should not exceed 0.6 in. (1.5 cm). The dryer should be checked while the dryer is running with no load. Checking Levelness Once the dryer is in its final location, recheck the dryer to be sure it is level. Make sure it is level front to back and side to side, and that all 4 leveling feet are firmly on the floor.

FINAL INSTALLATION CHECK

Once you have completed the installation of the dryer and it is in its final location, confirm proper operation with the following tests. Any installation in a manufactured or mobile home must comply with the Manufactured Home Construction and Safety Standards Title 24 CFR,

Part 32-80 or Standard CAN/CSA0Z240 MH and

local codes and ordinances. If you are uncertain whether your proposed installation will comply with these standards, please contact a service and installation professional for assistance.

• A gas dryer must be permanently attached to the floor.

• The electrical connection for an electric dryer must be a 4-wire connection. More detailed information concerning the electrical connection is provided in the section Connecting Electric Dryers.

• To reduce the risk of combustion and fire, the dryer must be vented to the outside.

• DO NOT vent the dryer under a manufactured home or mobile home.

• Electric dryers may be vented to the outside using the back, left, right, or bottom panel.

• Gas dryers may be vented to the outside using the back, left, or bottom panel. Gas dryers may not be vented to the outside using the right side panel because of the burner housing.

• The dryer exhaust duct must be affixed securely to the manufactured or mobile home structure, and the exhaust duct must be made of a material that will resist fire and combustion. It is recommended that you use a rigid or flexible metal duct.

• DO NOT connect the dryer exhaust duct to any other duct, vent, chimney, or other exhaust duct.

• Make sure the dryer has adequate access to outside fresh air to ensure proper operation. The opening for outside fresh air must be at least 25 in

• It is important that the clearance of the duct from any combustible construction be at least 2 in. (5 cm), and when venting the dryer to the outdoors, the dryer can be installed with a clearance of 1 in. (2.5 cm) at the sides and back of the dryer.

• Please be aware that venting materials are not supplied with the dryer. You should obtain the venting materials necessary for proper installation. SPECIAL REQUIREMENTS FOR MANUFACTURED OR MOBILE HOMES 18• Check all pockets to make sure that they are empty. Items such as clips, pens, coins, and keys can damage both your dryer and your clothes. Flammable objects such as lighters or matches could ignite, causing a fire. Failure to do so can result in fire, explosion, or death.

• Never dry clothes that have been exposed to oil, gasoline, or other flammable substances. Washing clothes will not completely remove oil residues. Failure to obey this warning can result in fire, explosion, or death.

• Combine large and small items in a load.

• Damp clothes will expand as they dry. Do not overload the dryer; clothes require room to tumble dry properly.

• Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes. Tumble dry Dry NormalPermanent Press

wrinkle resistantGentle/delicateDo not tumble dryDo not dry(used withdo not wash) SORTING LOADS Fabric Care Labels Most articles of clothing feature fabric care labels that include instructions for proper care. Grouping Similar Items For best results, sort clothes into loads that can be dried with the same drying cycle. Different fabrics have different care requirements, and some fabrics will dry more quickly than others. Fabric Care Labels Heat setting High Medium Low No heat/air CHECK THE LINT FILTER BEFORE EvERY LOAD Always make sure the lint filter is clean before starting a new load; a clogged lint filter will increase drying times. To clean, pull the lint filter straight up and roll any lint off the filter with your fingers. Do not rinse or wash the filter to remove lint. Push the lint filter firmly back into place. See “Care and Cleaning” for more information. Always ensure the lint filter is properly installed before running the dryer. Running the dryer with a loose or missing lint filter may damage the dryer and articles in the dryer. Lint Filter

Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual for more detailed information. Important Warning: To reduce the risk of fire, electric shock, or injury to persons, read this entire manual, including the Important Safety Instructions, before operating this dryer.

wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:CONTROL PANEL FEATURES

Press to turn the dryer ON. Press again to turn the dryer OFF. NOTE: Pressing the ON/OFF button during a cycle will cancel that cycle and any load settings will be lost.

Turn this knob to select the desired cycle. Once the desired cycle has been selected, the standard presets will be shown in the display. On MANUAL DRY cycles, these settings can be adjusted using the cycle settings buttons anytime before starting the cycle.

Use these buttons to select the desired cycle settings for the selected cycle. The current settings are shown in the display. Press the button for that option to view and select other settings.

Press this button to START the selected cycle. If the dryer is running, use this button to PAUSE the cycle without losing the current settings. NOTE: If you do not press the START/PAUSE button to resume a cycle within 4 minutes, the dryer automatically turns off.

Use these buttons with MANUAL DRY and TIME DRY cycles to adjust the drying time. Press the MORE TIME button to increase the selected manual cycle time by a minute; press LESS TIME to decrease the cycle time by a minute.

OPTION BUTTONS The option buttons allow you to select additional cycle options. For detailed information about the individual options, please see the following pages. Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual for more detailed information. Important Warning: To reduce the risk of fire, electric shock, or injury to persons, read this entire manual, including the Important Safety Instructions, before operating this dryer.

CHECK FILTER REMINDER

The display will show CHECK FILTER when the dryer is turned on as a reminder to check the filter. It turns off when the START/PAUSE button is pressed.

When the START/PAUSE button is pressed, the dryer will display the estimated (SENSOR DRY) or set time (TIME DRY) remaining, and begin tumbling. NOTE: The cycle time on SENSOR DRY cycles may fluctuate as the dryer recalculates drying time for optimal results.

20CYCLE GUIDE The cycle guide below shows the options and recommended fabric types for each cycle. NOTE: To protect your garments, not every dry level, temperature, or option is available with every cycle. Sensor Dry Cycles Sensor Dry cycles utilize LG’s unique dual sensor system to detect and compare the moisture level in clothes and in the air and adjust the drying time as needed to ensure superior results. The dryer automatically sets the dryness level and temperature at the recommended setting for each cycle. The estimated time remaining will be shown in the display. Manual Dry Cycles Use Manual Dry cycles to select a specific amount of drying time and a drying temperature. When a Manual Dry cycle is selected, the ESTIMATED TIME REMAINING display shows the actual time remaining in your cycle. You can change the actual time in the cycle by pressing MORE TIME or LESS TIME. Wrinkle Care More Time/ Less Time Time in Min. Dry Level Type Cycle Fabric Type Temperature COTTON/ TOWELS NORMAL DELICATES Denims, towels, heavy cottons Work clothes, corduroys, etc. Lingerie, sheets, blouses Normal Adjustable Normal MID HIGH MEDIUM Adjustable Normal Adjustable LOW

SPEED DRY AIR DRY TIME DRY For small loads with short drying times For irems that require heat-free drying such as plastics or rubber For general drying; time, temperature, and options can be set manually off off off HIGH Adjustable No Heat HIGH Adjustable

Press the ON/OFF button to turn on the dryer. The lights around the cycle selector knob will illuminate. Turn the cycle selector knob to the desired cycle. The display will show the preset Dry Level, Temperature, Time, and Option settings for that cycle. If you would like to change the settings for that cycle, press the option button(s) to display additional settings for that option. Press the button again to cycle through the settings until the desired setting is highlighted. NOTE: To protect your garments, not every dry level, temperature, or option is available with every cycle.

Select any additional cycle options, such as CHILD LOCK, WRINKLE CARE, by pressing the button for that option. NOTE: To protect your garments, not every dry level, temperature, or option is available with every cycle.

Press the START/PAUSE button to begin the cycle. The display will change, and the dryer will display the estimated (SENSOR DRY) or set time (MANUAL DRY) remaining and start tumbling. To pause the cycle at any time, open the dryer door or press PAUSE. To resume the cycle where it was stopped, press START/PAUSE again. NOTE: If the dryer has been stopped for more than 8 minutes, the dryer will turn off automatically.

Once you have loaded the dryer: When the load is finished, the beeper (if set) will sound. If you have set the Wrinkle Care option, the dryer will tumble the load periodically for up to 3 hours. To prevent wrinkling, remove items from the dryer immediately after the end of the cycle.

Always clean the lint filter after every cycle. To clean, pull the lint filter straight up and roll any lint off the filter with your fingers. Do not rinse or wash the filter to remove lint. Push the lint filter firmly back into place.

TEMP. CONTROL Adjusts the temperature setting from ULTRA LOW to HIGH. This allows precise care of your fabrics and garments. Press the TEMP. CONTROL button repeatedly to scroll through available settings. TIME DRY Allows you to manually select the drying time, from 20 to 60 minutes, in 10- minute increments. Use this for small loads or to remove wrinkles. Use the MORE TIME/LESS TIME buttons to add or reduce the drying time in 1-minute increments. TEMP. CONTROL TIME DRY SENSOR DRY cycles have preset settings that are selected automatically and cannot be changed. MANUAL DRY cycles have default settings, but you may also customize the settings using the cycle setting buttons. Press the button for that option to view and select other settings. NOTE: To protect your garments, not every dryness level, temperature, or option is available with every cycle. See the Cycle Guide for details. DRY LEvEL Selects the level of dryness for the cycle. Press the DRY LEVEL button repeatedly to scroll through available settings.

• This option is only available with SENSOR DRY cycles.

• The dryer will automatically adjust the cycle time. Selecting VERY DRY or MORE DRY will increase the cycle time, while LESS DRY or DAMP DRY will decrease the cycle time.

• Use a LESS DRY or DAMP DRY setting for items that you wish to iron. DRY LEVEL BEEPER BEEPER Adjusts the volume of the end-of-cycle beeper, or turns off the beeper.

23CYCLE OPTION BUTTONS

Your dryer features several additional cycle options to customize cycles to meet your individual needs. Certain option buttons also feature a special function (see the following page for details) that can be activated by pressing and holding that option button for 3 seconds. CHILD LOCK Use this option to prevent unwanted use of the dryer or to keep cycle settings from being changed while the dryer is operating. Press and hold the CHILD LOCK button for 3 seconds to activate or deactivate the CHILD LOCK function. The lock icon will be shown in the display, and all controls are disabled. WRINKLE CARE Selecting this option will tumble the load periodically for up to 3 hours after the selected cycle, or until the door is opened. This is helpful in preventing wrinkles when you are unable to immediately remove items from the dryer. CHILD LOCK WRINKLE CARE To Add Cycle Options to a Cycle: Turn on the dryer and turn the cycle selector knob to select the desired cycle. Use the cycle settings buttons to adjust the settings for that cycle. Press the cycle option button(s) for the option you would like to add. A confirmation message will be shown in the display. Press the START/PAUSE button to start the cycle. The dryer will start automatically.

24Cleaning the Exterior Proper care of your dryer can extend its life. The outside of the machine can be cleaned with warm water and a mild, nonabrasive household detergent. Immediately wipe off any spills with a soft, damp cloth. IMPORTANT: Do not use methylated spirits, solvents, or similar products. Never use steel wool or abrasive cleansers; they can damage the surface. REGULAR CLEANING Cleaning the Interior Wipe around the door opening and seal with a soft, damp cloth to prevent lint and dust buildup that could damage the door seal. Clean the window with a soft cloth dampened with warm water and a mild, nonabrasive household detergent; then wipe dry. The stainless steel drum can be cleaned with a conventional stainless steel cleaner, used according to the manufacturer’s specifications. Never use steel wool or abrasive cleansers; they can scratch or damage the surface. Cleaning Around and Under the Dryer Vacuum lint and dust from around the dryer and underneath it regularly. Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages. Maintaining Ductwork Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages. Contact a qualified technician or service provider. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Unplug the dryer before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electrical shock, or death.

• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish. Cleaning the Lint Filter Lint Filter Always clean the lint filter after every cycle. To clean, open the dryer door and pull the lint filter straight up. Then: Roll any lint off the filter with your fingers, or Vacuum the lint filter, or

Wash the lint filter in warm, soapy water and allow to dry thoroughly before reinstalling. NOTE: NEVER operate the dryer without the lint filter in place.

25Problem Possible Causes Solutions Dryer does not heat

• House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Gas supply or service turned off (gas models only).

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.

• Confirm that the house gas shutoff and the dryer gas shutoff are both fully open. BEFORE CALLING FOR SERvICE Your dryer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your dryer does not function properly or does not function at all, check the following before you call for service. Dryer will not turn on

• Power cord is not properly plugged in.

• House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Make sure that the plug is plugged securely into a grounded outlet matching the dryer’s rating plate.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician. Greasy or dirty spots on clothes

• Fabric softener used incorrectly.

• Clean and dirty clothes being dried together.

• Clean and dirty clothes being dried together.

• Confirm and follow the instructions provided with your fabric softener.

• Make sure to use your dryer to dry only clean items, because dirty items can soil clean clothes placed in the same or subsequent loads.

• Stains on dried clothes are actually stains that weren’t removed during the washing process. Make sure that clothes are being completely cleaned according to the instructions for your washer and detergent. Display shows error code tE1 or tE2

• Thermistor is malfunctioning.

• Turn off the dryer and call for service. Lint on clothes

• Lint filter not cleaned properly.

• Laundry not sorted properly.

• Excess static in clothes.

• Dryer is overloaded.

• Tissue, paper, etc., left in pockets.

• Make sure the lint filter is cleaned before every load. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle.

• Some fabrics are lint producers (i.e., a fuzzy white cotton towel) and should be dried separately from clothes that are lint trappers (i.e., a pair of black linen pants).

• See the Excess static in clothes after drying section below.

• Divide larger loads into smaller loads for drying.

• Check pockets thoroughly before washing and drying clothes. Excess static in clothes after drying

• Fabric softener not used or used incorrectly.

• Clothes dried too long (overdried).

• Drying synthetics, permanent press, or synthetic blends.

• Use a fabric softener to reduce static electricity. Be sure to follow the manufacturer’s instructions.

• Overdrying a load of laundry can cause a buildup of static electricity. Adjust settings and use a shorter drying time, or use SENSOR DRY cycles.

• These materials can cause static buildup. Try using a fabric softener. 26BEFORE CALLING FOR SERvICE (cont.) Problem Possible Causes Solutions Drying time is not consistent

• Heat settings, load size, or dampness of clothing is not consistent.

• The drying time for a load will vary depending on the heat setting, the type of heat used (electric, natural, or LP gas), the size of the load, the type of fabrics, the wetness of the clothes, and the condition of the exhaust ducts and lint filter. Clothes take too long to dry

• Load is not properly sorted.

• Large load of heavy fabrics.

• Dryer controls are not set properly.

• Lint filter needs to be cleaned.

• Exhaust ducts blocked, dirty, or duct run is too long.

• House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• Dryer is overloaded.

• Dryer is underloaded.

• Separate heavy items from lightweight items. Larger and heavier items take longer to dry.

• Heavy fabrics take longer to dry because they tend to retain more moisture. To help reduce and maintain more consistent drying times for large and heavy fabrics, separate these items into smaller loads of a consistent size.

• Use the appropriate control settings for the type of load you are drying.

• Make sure the lint filter is cleaned before every load. With some loads that produce high amounts of lint, it may be necessary to clean the filter during the cycle.

• Confirm that the exhaust ductwork is properly configured and free of debris, lint, and obstructions. Make sure that outside wall dampers can open properly and are not blocked, jammed, or damaged.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.

• Divide larger loads into smaller loads for drying.

• If you are drying a very small load, add a few extra items to ensure proper tumbling action. Clothes are wrinkled

• Clothes dried too long (overdried).

• Clothes left in dryer too long after cycle ends.

• Overdrying a load of laundry can lead to wrinkled clothes. Try a shorter drying time, and remove items while they still retain a slight amount of moisture.

• Remove items from the dryer immediately at the end of the cycle. Use the WRINKLE CARE option to continue tumbling clothes at the end of the cycle, for up to 3 hours. Clothes are shrinking

• Garment care instructions are not being followed.

• To avoid shrinkage, please carefully follow the fabric care instructions for your garment, because some fabrics will naturally shrink when washed. Other fabrics can be washed but will shrink when dried in a dryer. Use a low or no heat setting and/or the RACK DRY option. 27Dryer Models DLE1310W, DLG1320W Description Dryer Electrical Requirements* Please refer to the rating label regarding detailed information. Gas Requirements* NG: 10–13 in. WC/LP: 10–13 in. WC (Gas Models only) Dimensions 27"(W) X 30"(D) X 38

68.6 cm (W) X 76.1 cm (D) X 98.3 cm (H),127 cm (D with door open)

Net Weight 120 lb. (54.6 kg) Drying Capacity IEC 7.0 cu. ft. (22.5 lbs./10.2 kg)

KEY DIMENSIONS AND SPECIFICATIONS

The appearance and specifications listed in this guide may vary due to constant product improvements. *Refer to the rating plate on your dryer. OPTIONAL ACCESSORIES For these and other LG products, contact your local LG dealer, or visit our Web site at ca.lge.com Pedestal Give your LG washer and dryer a boost with matching 14-inch high pedestals. They feature a storage drawer for added convenience. 14" Pedestal Color WDP3W White WDP3B Black WDP3S Titanium WDP3N Navy Blue WDP3R Wild Cherry Red Stacking Kit If space is at a premium, use this kit to securely stack your LG front-load washer and dryer. Bracket Kit Color WSTK1 White BSTK1 Black SSTK1 Titanium NSTK1 Navy Blue RSTK1 Wild Cherry Red

PEDESTAL INSTALLATION To set the dryer to the same height as the washer, fully retract the leveling feet of the dryer by turning them counterclockwise, then turn them clockwise 1-1/2 turns. NOTE: The appliance and pedestal assembly must be placed on a solid, sturdy, level floor for proper operation. Insert the T-clip of the 4 retainers into the dryer base as shown. Press up on the back of the clip and pull outward to lock into place. Then loosen 1-1/2 turns Retract fully The pedestal accessory includes:

• Incorrect installation can cause serious accidents.

• The appliances are heavy. Two or more people are required when installing the pedestal. There is a risk of serious back injury or other injuries.

• Do not allow children to play in or on the drawer. There is a risk of suffocation or injury.

• Do not step on the handle. There is a risk of serious injury.

• If appliances are already installed, disconnect them from all power, water, or gas lines and from draining or venting connections. Failure to do so can result in electrical shock, fire, explosion, or death.

• When installing, gloves must be put on. To ensure safe and secure installation, please thoroughly follow the instructions below. Tools Needed for Installation:

• Phillips-head screwdriver

• Wrench (supplied) Retainer T-clip † Dryer installation only uses 8 screws †† For dryer only

PEDESTAL INSTALLATION (cont.) Loosen the locknuts on all 4 leveling feet of the pedestal until you can turn them with the wrench. Turn clockwise to raise or counterclockwise to lower until the pedestal is level and all 4 feet are solidly against the floor.

Place the dryer on the pedestal. Make sure the front and back feet are in the correct positions. The dryer feet will fi t into the innermost positions as shown.

Make sure the screws on the pedestal align with the holes in the retainers, then install 4 screws at each corner to securely attach the appliance to the pedestal. NOTE: If the screws are not installed properly, noise and vibration may result. Move the appliance to the desired location. Securely tighten all locknuts by hand. NOTE: Noise and vibration may result if locknuts are not tightened. Be sure to connect the appliances to all water, power, or gas lines and draining or venting connections before operation. If there is excessive vibration during the first operation after installation, slightly adjust the leveling feet. Raise Lower Locknut For dryer For washer/combo

Make sure the surface of the washer is clean and dry. Remove paper backing from the tape on one of the stacking kit side brackets.

Fit the side bracket to the side of the washer top as shown in the above illustration. Firmly press the adhesive area of the bracket to the washer surface. Secure the side bracket to the washer with a screw on the back side of the bracket. Repeat steps 1 and 2 to attach the other side bracket.

STACKING KIT INSTALLATION

This stacking kit includes:

• Four (4) screws To ensure safe and secure installation, please observe the following instructions. Tools Needed for Installation:

• Phillips-head screwdriver wWARNING

• Incorrect installation can cause serious accidents.

• The weight of the dryer and the height of installation make this stacking procedure too risky for one person. Two or more people are required when installing the stacking kit. There is a risk of serious back injury or other injuries.

• Do not use the stacking kit with a gas dryer in potentially unstable conditions such as a mobile home. Failure to follow this warning can result in serious injury.

• Place the washer on a solid, stable, level floor capable of supporting the weight of both appliances. Failure to follow this warning can result in serious injury.

• If appliances are already installed, disconnect them from all power, water, or gas lines and from draining or venting connections. Failure to do so can result in electrical shock, fire, explosion, or death. 31STACKING KIT INSTALLATION (cont.)

Place the dryer on top of the washer by fitting the dryer feet into the side brackets as illustrated. Avoid finger injuries; do not allow fingers to be pinched between the washer and dryer. Slowly slide the dryer toward the back of the washer until the side bracket stoppers catch the dryer feet.

Insert the front rail between the bottom of the dryer and the top of the washer. Push the front rail toward the back of the washer until it comes in contact with the side rail stoppers. Install the two remaining screws to secure the front rail to the side rails.
