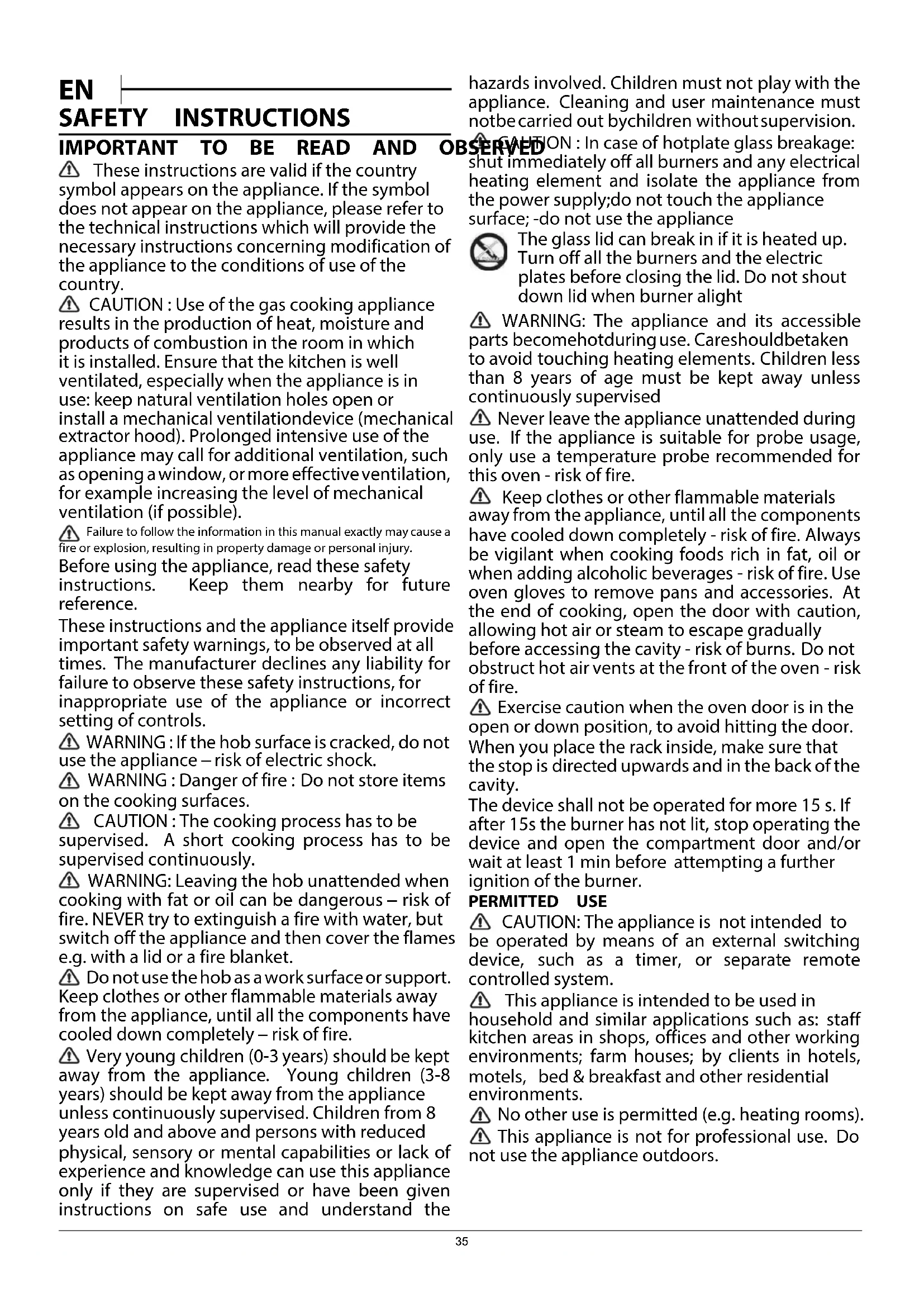

USER MANUAL HS68G8PHX HOTPOINT

These instructions are valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, please refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country. CAUTION : Use of the gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated, especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilationdevice (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, such asopeningawindow,ormoreeffectiveventilation, for example increasing the level of mechanical ventilation (if possible). Failure to follow the information in this manual exactly may cause a fire or explosion, resulting in property damage or personal injury. Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

WARNING : If the hob surface is cracked, do not

use the appliance – risk of electric shock.

WARNING : Danger of fire : Do not store items

on the cooking surfaces. CAUTION : The cooking process has to be supervised. A short cooking process has to be supervised continuously.

WARNING: Leaving the hob unattended when

cooking with fat or oil can be dangerous – risk of fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover the flames e.g. with a lid or a fire blanket. Donotuse thehob asawork surfaceor support. Keep clothes or other flammable materials away from the appliance, until all the components have cooled down completely – risk of fire. Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must notbecarried out bychildren withoutsupervision. CAUTION : In case of hotplate glass breakage: shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply;do not touch the appliance surface; -do not use the appliance The glass lid can break in if it is heated up. Turn off all the burners and the electric plates before closing the lid. Do not shout down lid when burner alight

WARNING: The appliance and its accessible

parts becomehotduringuse. Careshouldbetaken to avoid touching heating elements. Children less than 8 years of age must be kept away unless continuously supervised Never leave the appliance unattended during use. If the appliance is suitable for probe usage, only use a temperature probe recommended for this oven - risk of fire. Keep clothes or other flammable materials away from the appliance, until all the components have cooled down completely - risk of fire. Always be vigilant when cooking foods rich in fat, oil or when adding alcoholic beverages - risk of fire. Use oven gloves to remove pans and accessories. At the end of cooking, open the door with caution, allowing hot air or steam to escape gradually before accessing the cavity - risk of burns. Do not obstruct hot air vents at the front of the oven - risk of fire. Exercise caution when the oven door is in the open or down position, to avoid hitting the door. When you place the rack inside, make sure that the stop is directed upwards and in the back of the cavity. The device shall not be operated for more 15 s. If after 15s the burner has not lit, stop operating the device and open the compartment door and/or wait at least 1 min before attempting a further ignition of the burner. PERMITTED USE CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments. No other use is permitted (e.g. heating rooms). This appliance is not for professional use. Do not use the appliance outdoors. 35Do not store explosive or flammable substances (e.g. gasoline or aerosol cans) inside or near the appliance - risk of fire. Use pots and pans with bottoms the same width as that of the burners or slightly larger (see specific table). Make sure pots on the grates do not protrude beyond the edge of the hob. Improper use of the grids can result in damage to the hob: do not position the grids upside down or slide them across the hob. Do not let the burner flame extend beyond the edge of the pan. Do not use : Cast iron griddles, ollar stones, terracotta pots and pans. Heat diffusers such as metal mesh, or any other types. Two burners simultaneously for one receptacle (e.g. Fish kettle). Should particular local conditions of the delivered gas make the ignition of burner difficult, it is advisable to repeat the operation with the knob turned to small flame setting. In case of installation of a hood above the cooktop, please refer to the hood instructions for the correct distance. The protective rubber feet on the grids represent a chocking hazard for young children. After removing the grids, please ensure that all the feet are correctly fitted. INSTALLATION The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. The electrical and gas connections must comply with local regulations. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Do not repair or replaceanypart of the appliance unless specifically statedintheuser manual. Keep children away from the installation site. Afterunpackingthe appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest Aftersales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.

WARNING : Modification of the appliance and

its method of installation are essential in order to use the appliance safely and correctly in all the additional countries. Use pressure regulators suitable for the gas pressure indicated in the instructions. The room must be equipped with an air extraction system that expels any combustion fumes. The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2 m³/h per kW of installed power. The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100 cm²; the opening must not be susceptible to blockages. The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard. Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents to allow gas to escape in the event of a leak. This means LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level (cellars, etc.). It is advisable to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc. ) which could raise the temperature of the cylinder above 50°C. Should you find it difficult to turn the knobs for the burner, please contact the After-sales Service, who can replace of the burner tap if found to be faulty. The openings use for the ventilation and dispersion of heat must never be covered. Do not remove the appliance from its polystyrene foam base until the time of installation. Connection with rigid pipe (copper or steel). If the gas pressure is different from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe in accordance with the current National Regulations. Donotinstalltheappliancebehindadecorative door - risk of fire. if the range is placed on a base, it must be leveled and fixed to the wall by the retention chain provided, to prevent the appliance slipping from the base.

WARNING: In order to prevent the

appliance from tipping, the retention chain must be installed. Refer to the instructions for installation. GAS CONNECTION

WARNING : Prior to installation, ensure that the

local distribution conditions (type of gas and gas pressure) and the configuration of the appliance are compatible. Check that the pressure of the gas supply is consistent with the values indicated in Table 1 (“Burner and nozzle specifications”).

WARNING : The configuration conditions of

this appliance are stated on the label (or data plate).

WARNING : This appliance is not connected

to a combustion products evacuation device. It 36must be installed and connected in accordance with current installation regulations. Particular attention must be paid to the relevant requirements regarding ventilation. If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible. IMPORTANT : When the gas cylinder or gas container is installed, it must be properly settled (vertical orientation).

WARNING : This operation must be perfomed

by a qualified technician Use only flexible or rigid metal hose for gas connection. Connection with a rigid pipe (copper or steel) Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance. There is an adjustable L-shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (the seal is provided with the appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment. Connecting a flexible jointless stainless steel pipe to a threaded attachment The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment. These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been made, make sure that the flexible metal pipe does not touch any moving parts and is not compressed. Only use pipes and seals that comply with current national regulations. IMPORTANT : If a stainless steel hose is used, it must be installed so as not touch any moving part of the furniture (e.g.drawer). It must pass thorugh an area where there are no obstructions and where it is possible to inspect it across its entire length. Theapplianceshouldbeconnectedtothemain gas supply or to a gas cylinder in compliance with the current national regulations. Before making the connection, make sure that the appliance is compatible with the gas supply you wish to use. If it is not, follow the instructions indicated in the paragraph "Adapting to different types of gas". After connection to the gas supply, check for leaks with soapy water. Light up the burners and turn the knobs from max position 1* to minimum position 2* to check flame stability. Connection to the gas network or the gas cylinder may be carried or steel hose, in accordance with current national legislation.

ADAPTING TO DIFFERENT TYPES OF GAS

(This operation needs to be carried out by a qualified technician.) In order to adapt the appliance to a type of gas other than the type for which it was manufactured (indicatedontheratinglabel), followthededicated steps provided after installation drawings. ELECTRICAL WARNINGS IMPORTANT: Information about current and voltage consumption is provided on the rating plate. The rating plate is on the front edge of the oven (visible when the door is open). It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards. The power cable must be long enough to connect the appliance, once fitted in its housing, to the main power supply. Do not pull the power supply cable. Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock. If the power cable needs to be replaced, contact an authorised service centre.

WARNING: Ensure that the appliance is

switched off before replacing the lamp to avoid the possibility of electric shock.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is

switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock. Do not use harsh abrasive cleaners or metal scrapers to clean the door glass since they can scratch the surface, which may result in shattering of the glass. Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers. Make sure the appliance has cooled down before cleaning or performing maintenance. - risk of burns.

WARNING: Switch off the appliance before

replacing the lamp - risk of electric shock. To avoid damaging the electric ignition device, do not use it when the burners are not in their housing. Wear protective gloves for cleaning and maintenance. out using a flexible rubber

37DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol . The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

Only preheat the oven if specified in the cooking table or your recipe. Use dark lacquered or enamelled baking trays as they absorb heat better. Use a pressure cooker to save even more energy and time.

DECLARATION OF CONFORMITY

This appliance meets Ecodesign requirements of European Regulation 66/2014 This appliance meets Ecodesign requirements of European Regulation 66/2014 and with the Waste Electrical and Electronic Equipment regulations 2013 (as amended). ;Energy Labelling Regulation 65/2014; Ecodesign for Energy- Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019, in compliance with the European standard EN 60350-1. and The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019 in compliance with the European standard EN 30-2-1. 38PRODUCT DESCRIPTION

Timer Left rear hob burner Left front hob burner Selector Right front hob burner Right rear hob burner Thermostat Thermostat lamp 39Before operating your new appliance please readthis instruction booklet carefully. It containsimportant information concerning the safe installationand operation of the appliance.Please keep these operating instructions for futurereference. Make sure that the instructions are keptwith the appliance if it is sold, given away or moved. The appliance must be installed by a qualifiedprofessional according to the instructions provided. Any necessary adjustment or maintenance must beperformed after the appliance has beendisconnected from the electricity supply. Positioning and levelling It is possible to install the appliance alongsidecupboards whose height does not exceed that of thehob surface.This cooker should be installed directly on. Do not install this cooker on anartificial base of any kind. Make sure that the wall in contact with the back ofthe appliance is made from a non-flammable, heat-resistant material (T 90°C). Important: Do not install this applianceadjacent to the door or other means ofadjacent to the door or other means ofaccess to minimise the likelihood of personsaccess to minimise the likelihood of personsusing the door making contact with pans onthe hob surface.the hob surface.

WARNING : This operation must be perfomed

by a qualified technician Important: Do not install this appliance INSTALLATIONINSTALLATIONINSTALLATIONINSTALLATIONINSTALLATION

This appliance must not be fitted on a platform.The cooker is designed to fit between kitchen cabinets spaced 600mm apart. The space either side need only be sufficient to allow withdrawal of the cooker for servicing. It can be used with cabinets one side or both as well as in a corner setting. It can also be used free-standing.Adjacent side walls which project above hob level, must not be nearer to the cooker than 150mm or 65mm and should be protected by heat resistant material. Any overhanging surface or cooker hood should not be nearer than 750mm. The cooker may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a bathroom orshower room.b. The hoods must be installed according to therequirements in the hood handbook.c. The wall in contact with the back of the cooker mustbe of flameproof material.d. The cooker is fitted with a safety chain that must beattached to a hook, secured to the wall behind theappliance. The appliance must not be installed behind

a decorative door in order to avoid overheating Open the grill door sufficiently to allow a comfortablegrip on the underside front edge of the oven roof,avoiding any grill elements. (FIG.A)The following instructions should be read by aqualified technician to ensure that the appliance isinstalled, regulated and technically servicedcorrectly in compliance with current regulations.Open the grill door sufficiently to allow a comfortablegrip on the underside front edge of the oven roof,avoiding any grill elements. (FIG.A)The following instructions should be read by aqualified technician to ensure that the appliance isinstalled, regulated and technically servicedcorrectly in compliance with current regulations. Important: Do not install this applianceadjacent to the door or other means ofadjacent to the door or other means ofaccess to minimise the likelihood of personsaccess to minimise the likelihood of personsusing the door making contact with pans onthe hob surface.the hob surface. Important: Do not install this appliance Important: Do not install this applianceadjacent to the door or other means ofadjacent to the door or other means ofaccess to minimise the likelihood of personsaccess to minimise the likelihood of personsusing the door making contact with pans onthe hob surface.the hob surface. Important: Do not install this appliance Important: Do not install this applianceadjacent to the door or other means ofadjacent to the door or other means ofaccess to minimise the likelihood of personsaccess to minimise the likelihood of personsusing the door making contact with pans onthe hob surface.the hob surface. Important: Do not install this appliance. Do not install this cooker on an. Do not install this cooker on an. Do not install this cooker on an the floor artificial base of any kind.artificial base of any kind.artificial base of any kind.. Do not install this cooker on anMoving the Cooker Fig. A Moving the Cooker Fig. A Before moving your cooker check that it is cool, and switched off at the cooker control unit. Movement of your cooker is most easily achieved by lifting the front as follows: Take care in moving the cooker as it is heavy. Take care to ensure that any floor covering is not damaged. Electrical connection Power supply voltage and frequency: 230-240V a.c. 50/60 Hz.! The supply cable must be positioned so that it neverreaches at any point a temperature 50°C higher thanthe room temperature. The cable must be routed awayfrom the rear vents. Should you require it, you mayuse a longer cable, however, you must ensure that thecable supplied with the appliance is replaced by oneof the same specifications in accordance with currentstandards and legislation.LevellingIf it is necessary to level theappliance, screw theadjustable feet* into the placesprovided on each corner of thebase of the cooker (see figure The legs* provided with theappliance fit into the slots onthe underside of the base ofthe cooker. 40Safety Chain In order to prevent accidental tipping of the appliance, for example by a child climbing onto the oven door, the supplied safety chain MUST be installed! Adapting to different types of gas Adapting the hob It is possible to adapt the appliance to a type of gas other than the default type (this is indicated on the rating label on the cover). Replacing the nozzles for the hob burners:

1. Remove the hob grids and slide the burners

spanner (see figure), and replace them with nozzles suited to the new type of gas (see Burner and nozzle specifications table).

3. Replace all the components by following the above instructions

in reverse. Adjusting the hob burners’ minimum setting:

1. Turn the tap to the minimum position.

2. Remove the knob and adjust the regulatory screw, which is

positioned inside or next to the tap pin, until the flame is small but steady. If the appliance is connected to a liquid gas supply, the bypass screw must be set to a minimum.

3. While the burner is alight, quickly change the position of the

knob from minimum to maximum and vice versa several times, checking that the flame is not extinguished. Upon completion of adjustment, reseal using sealingwax or an equivalent material. The hob burners do not require primary air adjustment. After adjusting the appliance so it may be used with a different type of gas, replace the old rating label with anew one which corresponds to the new type of gas (these labels are available from Authorised Technical Assistance Centres). Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet hose in accordance with current standards EN 88-1 and EN 88-2 relating to “regulators for channelled gas”. The cooker is fitted with a safety chain to be fixed by means of a screw (not supplied with the cooker) to the wall behind the appliance, at the same height as the chain is attached to the appliance. Choose the screw and the screw anchor according to the type of material of the wall behind the appliance. If the head of the screw has a diameter smaller than 9mm, a washer should be used. Concrete wall requires the screw of at least 8mm of diameter, and 60mm of length. Ensure that the chain is fixed to the rear wall of the cooker and to the wall, as shown in figure, so that after installation it is tensioned and parallel to the ground level. Gas connection The cooker should be connected to the gas-supply by a gas safe registered installer. During installation of this product it is essential to fit an approved gas tap to isolate the supply from the appliance for the convenience of any subsequent removal or servicing. Connection of the appliance to the gas mains or liquid gas must be carried out according to the prescribed regulation in force, and only after it is ascertained that it is adaptable to the type of gas to be used. If not, follow the instructions indicated in the paragraph headed “Adaptation to different gas types”. On some models the gas supply can be connected on the left or on the right, as necessary; to change the connection, reverse the position of the hose holder with that of the cap and replace the gasket (supplied with the appliance). In the case of connection to liquid gas, by tank, use pressure regulators that conform to the regulation in force. The gas supply must be connected to the left of the appliance. Be sure that the hose does not pass through the rear of the WARNINGS: THIS APPLIANCE MUST BEWARNINGS: THIS APPLIANCE MUST BE WARNINGS: THIS APPLIANCE MUST BEWARNINGS: THIS APPLIANCE MUST BE

WARNINGS: THIS APPLIANCE MUST BE

EARTHED.EARTHED. EARTHED.EARTHED. EARTHED. The cooker must be connected to the mains by a switched (double pole) cooker outlet correctly fused with a capacity appropriate to that shown on the cooker Rating Plate. All electrical wiring from the consumer unit to the cooker, via the switched double pole cooker outlet, must be of an acceptable type and current rating as above. 41*with dry gas 15°C 1013 mbar ** Propane P .C.S=50,37 MJ/Kg *** Butane P.C.S=49,47MJ/kg Natural G20 P.C.S=37,78Mj/m³ Table of burner and nozzle specifications Replacing the Triple ring burner nozzles

1. Remove the pan supports and lift the burners out of

their housing. The burner consists of two separate parts (see pictures).

2. Unscrew the nozzles using a 7 mm socket spanner.

Replace the nozzles with models that are configured for use with the new type of gas (see Table 1). The two nozzles have the same hole diameter.

3. Replace all the components by completing the

above operations in reverse order.

Adjusting the burners’ primary air : Does not require adjusting.

• Setting the burners to minimum:

1. Turn the tap to the low flame position.

2. Remove the knob and adjust the adjustment screw,

which is positioned in or next to the tap pin, until the flame is small but steady.

3. Having adjusted the flame to the required low

setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out. Liquid Gas Natural Gas Thermal Power kW (p.c.s*) By-Pass 1/100 (mm) Nozzle 1/100 (mm) Flow g/h Nozzle 1/100 (mm) Flow g/h Burner Diameter (mm) Nominal Reduced *** **

Auxiliary (Small) (A)

methane nozzles are available on request but not as an accessory 42Using the hob Lighting the burnersFor each BURNER knob there is a complete ring showing the strength of the flame for the relevant burner. To light one of the burners on the hob:1. Press the BURNER knob and turn it in ananticlockwise direction so that it is pointing to themaximum flame setting .2. Adjust the intensity of the flame to the desired levelby turning the BURNER knob in an anticlockwisedirection. This may be the minimum setting , themaximum setting or any position in between the two.If the appliance is fitted with an electronic lightingdevice* (C), press the ignition button, marked with thesymbol , then hold theBURNER knob down and turn it in an anticlockwise direction, towards the maximum flame setting, until the burner is lit.The burner may be extinguished when the knob is released. If this occurs, repeat t he operation, holding the knob down for a longer period of time.! If the flame is accidentally extinguished, switch off theburner and wait for at least 1 minute before attemptingto relight it.If the appliance is equipped with a flame failure safety device (X)*, press and hold the BURNER knob for approximately 2-3 seconds to keep the flame alight and to activate the device.To switch the burner off, turn the knob until it reaches the stop position

Flame adjustment according to levelsthe burner flame intensity can be adjusted with the knob according to 10 power levels, from maximumto minimum with 5 intermediate positions:a click will indicate the change from one level to another when turning the knob. The system guarantees a more precise adjustment, allows to replicate the flame intensity and to identify easily the preferred level for different cooking operations.Practical advice on using the burnersFor the burners to work in the most efficient way possible and to save on the amount of gas consumed, it is recommended that only pans that have a lid and a flat base are used. They should also be suited to the To identify the type of burner, please refer to the diagrams contained in the “Burner and nozzle specifications”.size of the burner.

LEVEL COOKING METHOD

Ideal for softening butter, gently melting chocolate in bagnemarie, thawing small portions, creaming risotto, keeping warm small portions of just-cooked preparation

Ideal for slow-cook recipes (rice, sauces, roast, fish)using liquids (water, wine, broth), and for creaming pasta, maintaining a gentle boiling

Ideal for sautéing, stewing vegetables, cooking for longer period, preheating accessories, cooking until creamy

Ideal for browning, starting to cook, bringing liquids to the boil quickly, frying deep-frozen products, grilling meat and fish, maintaining a lively boil 10 Ideal for rapidly increasing the temperature of food or for heating up liquids ( water) 43EN

1. SELECT A FUNCTION

To select a function, turn the selection knob to the symbol for the function you require. TimerTo activate the Timer proceed as follows:1. Turn the TIMER knob in a clockwise direction 4for almost one complete revolution to set the buzzer.2. Turn the TIMER knob in an anticlockwise direction5 to set the desired length of time. USING THE OVEN FIRST TIME DAILY USE Using the oven ! The first time you use your appliance, heat the empty oven with its door closed at its maximumtemperature for at least half an hour. Ensure that theroom is well ventilated before switching the oven offand opening the oven door. The appliance may emita slightly unpleasant odour caused by protectivesubstances used during the manufacturing processburning away.1. Select the desired cooking mode by turning theSELECTOR knob.2. Select the recommended temperature for thecooking mode or the desired temperature by turningthe THERMOSTAT knob.A list detailing cooking modes and suggestedcooking temperatures can be found in the relevanttable (see Oven cooking advice table).During cooking it is always possible to: Change the cooking mode by turning the SELECTOR knob.• Change the temperature by turning the THERMOSTAT knob.• Set the total cooking time and the cooking end time.• Stop cooking by turning the SELECTOR knob to thethe “0” position.

THERMOSTAT INDICATOR LIGHT

OVEN LIGHT This is switched on by turning the SELECTOR knob to any position other that "0". It remains lit as long as the oven is operating. By selecting with the knob, the light is switched on without any of the heating elements being activated. When this is illuminated, the oven is generating heat. It switches off when the inside of the oven reaches the selected temperature. At this point the light illuminates and switches off alternately, indicating that the thermostat is working and is maintaining the temperature at constant level. ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away.

1. Select the desired cooking mode by turning the

2. Select the recommended temperature for the

cooking mode or the desired temperature by turning the THERMOSTAT knob. A list detailing cooking modes and suggested cooking temperatures can be found in the relevant table (see COOKING TABLE). ! Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged. ! Always place cookware on the rack(s) provided.

For switching one the oven light. For preheating the oven quickly. CONVENTIONAL For cooking any kind of dish one one shelf only. CONVENTIONAL BAKE To cook on a maximum of two shelves at the same time. It is a good idea to swap the position of the baking trays halfway through cooking. This function enables you to cook different foods (such as fish and vegetables) on different shelves at the same time. GRILL For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 200 ml of drinking water. TURBO GRILL For roasting large joints of meat (legs, roast beef, chicken). We recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 200ml of drinking water. BOTTOM This function can be used to finish cooking filled pies or to thicken soups. Use this function for the last 10/15 minutes of cooking. DEFROST For accelerating the defrosting of food. STEAM The functions provide excellent results thanks to the addition of steam in cooking cycles. Only when the oven is cold, pour drinking water on the bottom of the oven and select the specific function for your preparation. The optimal water quantities and temperatures for each food category are listed in the relative cooking table. Do not preheat the oven before inserting food.

To finish cooking food with a very liquid consistency and to obtain crisp, golden bases. Also useful for thickening sauces. Place food on the 2nd shelf. The oven does not have to be preheated. FORCED AIR For cooking different foods on multiple shelves (maximum of three) at the same time. This function can be used to cook different foods without odors being transferred from one food to another. The functions provide excellent results thanks to the addition of steam in cooking cycles. Only when the oven is cold, pour drinking water on the bottom of the oven and select the specific function for your preparation. The optimal water quantities and temperatures for each food category are listed in the relative cooking table. Do not preheat the oven before inserting food. SteamSteamSteamSteam

44INSERTING WIRE SHELVES

AND OTHER ACCESSORIES INTO THE OVEN

1. Insert the wire shelf horizontally, with the

raised part “A” upwards

2. Other accessories, such as the drip tray and

baking tray, are inserted in the same way as the wire shelf (Fig. 2). Fig. 1A Fig. 2 Fig. 1B (Fig. 1A, Fig. 1B) The number and type of accessories may vary depending on which model is purchased. Other accessories that are not supplied can be purchased separately from the After-sales Service. The number and type of accessories may vary depending on which model is purchased. Other accessories that are not supplied can be purchased separately from the After-sales Service.

45The table lists the best function, accessories and level to use to cook various types of food. Cooking times start from the moment food is placed in the oven, excluding preheating (where required). Cooking temperatures and times are approximate and depend on the amount of food and type of accessory used. Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings. Use the accessories supplied and preferably dark-coloured metal cake tins and baking trays. You can also use Pyrex or stoneware pans and accessories, but bear in mind that cooking times will be slightly longer. Leavened cakes / Sponge cakes CONVENTIONAL YES 170 30 - 50 Leavened cakes / Sponge cakes FORCED

AIR YES 150 - 160 40 - 60

Leavened cakes / Sponge cakes FORCED AIR YES 160 40 - 70 Filled cake (cheese cake, strudel, fruit pie)

CONVENTIONAL YES 160 - 180 40 - 60

Filled cake (cheese cake, strudel, fruit pie)

Baking dish or cake tin on the wire shelf Baking tray/Drip tray or Baking dish on the wire shelf Drip tray / Baking tray Drip tray / Baking tray with 200 ml of water

RECIPE FUNCTION PREHEAT TEMPERA

TURE (°C) DURATION (Min) LEVEL (L-number) AND ACCESSORIES 47TURN OFF THE MAIN SWITCH AND ENSURETHE COOKER IS COLD BEFORE CLEANING.BEFORE SWITCHING ON AGAIN, ENSURE THATALL CONTROLS ARE IN THE OFF POSITION. Do not use steam cleaning equipment. Use protective gloves during all operations. Carry out the required operations when the oven is cold. Disconnect the appliance from the power supply. Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

CLEANING AND MAINTENANCE

Disconnect the appliance from the power supply. ACCESSORIES Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge. EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Dry them with a dry cloth.

• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth. INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues To dry any condensation that has formed as a result of cooking foods with a high water content, let the oven to cool completely and then wipe it with a cloth or sponge.

• Clean the glass in the door with a suitable liquid detergent.

Unscrew the cover from the light, and screw the cover back on the light.

Reconnect the oven to the power supply. Note: Use 40 W/230 V type The bulb used in the product is specically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

Note: Use 40 W/230 V type Light bulbs are available from our After-sales Service. - Do not handle bulbs with your bare hands as your ngerprints could damage them. Do not use the oven until the light cover has been retted. The bulb used in the product is specically designed for The bulb used in the product is specically designed for The bulb used in the product is specically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). Light bulbs are available from our After-sales Service. - Do not handle bulbs with your bare hands as your ngerprints could damage them. Do not use the oven until the light cover has been retted. domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). Light bulbs are available from our After-sales Service. - Do not handle bulbs with your bare hands as your ngerprints could damage them. Do not use the oven until the light cover has been retted. domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). Light bulbs are available from our After-sales Service. - Do not handle bulbs with your bare hands as your ngerprints could damage them. Do not use the oven until the light cover has been retted.

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it.The coverIf the cooker is fitted with a glass cover, this cover should be cleaned using lukewarm water. Do not use abrasive products. It is possible to remove the cover in order to make cleaning the area behind the hob easier. Open the cover fully and pull it upwards (see figure).! Do not close the coverwhen the burners are alight or when they are still hot.• Cook your food in closed pots or pans with well-fittinglids and use as little water as possible. Cooking withthe lid off will greatly increase energy consumption• Use purely flat pots and pans• If you are cooking something that takes a long time,it's worth using a pressure cooker, which is twice asfast and saves a third of the energy. Respecting and conserving the environment

• Whenever possible, avoid pre-heating the ovenand always try to fill it. Open the oven door as littleas possible because heat is lost every time it isopened. To save a substantial amount of energy,simply switch off the oven 5 to 10 minutes before theend of your planned cooking time and use the heatthe oven continues to generate.• Keep gaskets clean and tidy to prevent any doorenergy losses• If you have a timed tariff electricity contract, the “delaycooking” option will make it easier to save money bymoving operation to cheaper time periods.• The base of your pot or pan should cover the hot plate.If it is smaller, precious energy will be wasted andpots that boil over leave encrusted remains that canbe difficult to remove.

Gas tap maintenance Over time, the taps may become jammed or difficult to turn. If this occurs, the tap must be replaced. from the power supply replace the bulb MOVING THE TOP HEATING ELEMENT 1. R emove the side accessory holder grills.

2. P ull the heating element out a little ( Fig. 1) and

lower it ( Fig. 2 ).3. To reposition the heating element, lift it up, pulling it slightly towards you, making sure it comes to rest on the lateral support. Fig. 1 Fig. 2 *Only available in certain models 48EN

CLEANING AND MAINTENANCE

CONVENTIONAL pour 250ml of drinking water into the baking tray in the oven, grill at the bottom shelf: 49~60°

Steam100170-18030-60L-2 Steam100170160-30-55L-3 Steam150200-22020-40L-3 Steam10021025-40L-3 Steam150180170-70-100L-3 Steam2002006035-L-3 2Steam2502007040-L-3 Steam200200180-65-75L-3 1Steam20020060-90L-3 1Steam200220200-50-70L-3 Steam15018015-35L-3 Steam150180-20025-40L-3 Steam200200-22050-70L-3 Steam25020050-80L-3
