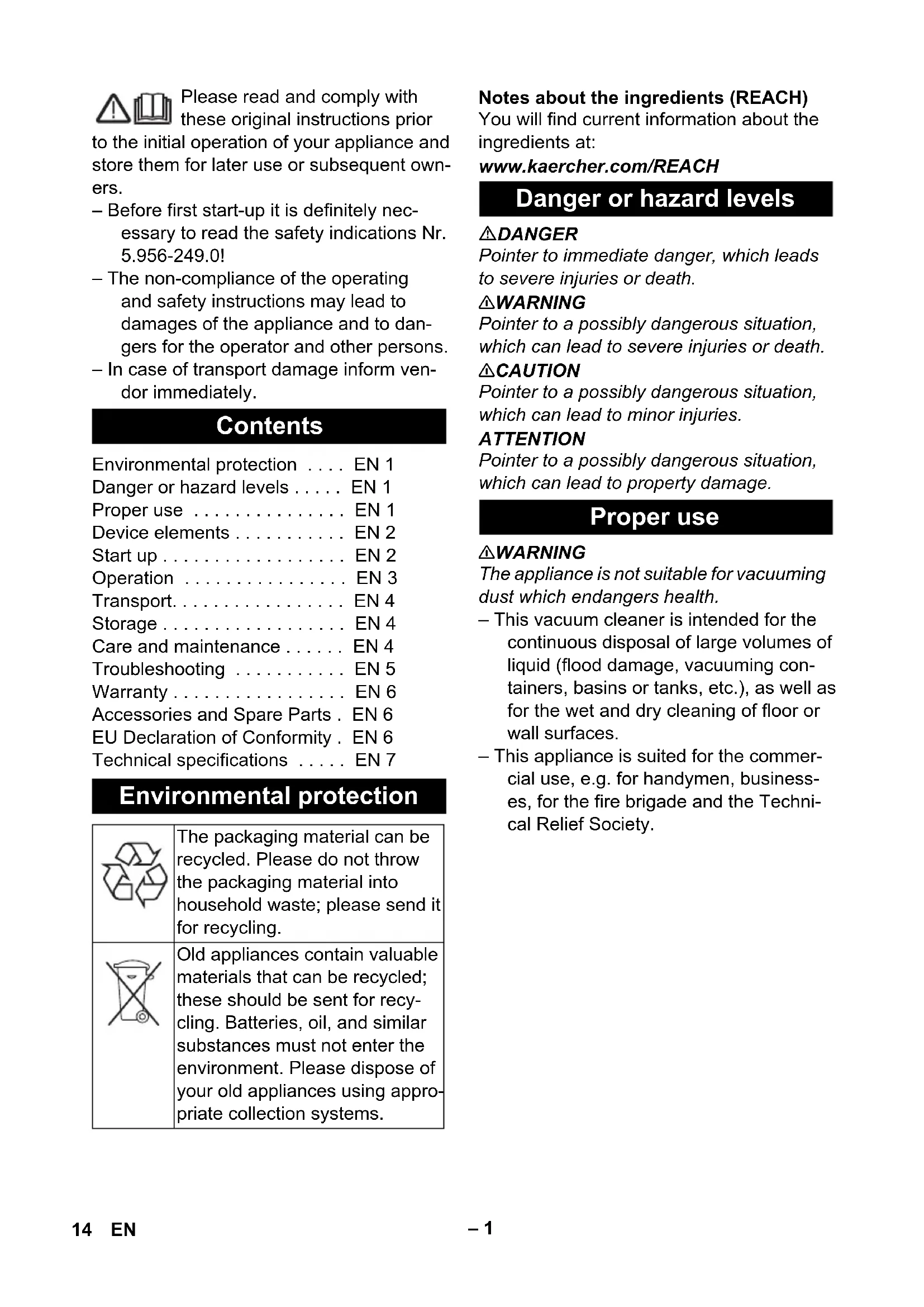

Teile-Nr. Kabellänge EU 6.649-875.0 10 m 13DE– 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- ers. – Before first start-up it is definitely nec- essary to read the safety indications Nr. 5.956-249.0! – The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dan- gers for the operator and other persons. – In case of transport damage inform ven- dor immediately. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH DANGER Pointer to immediate danger, which leads to severe injuries or death. 몇 WARNING Pointer to a possibly dangerous situation, which can lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. 몇 WARNING The appliance is not suitable for vacuuming dust which endangers health. – This vacuum cleaner is intended for the continuous disposal of large volumes of liquid (flood damage, vacuuming con- tainers, basins or tanks, etc.), as well as for the wet and dry cleaning of floor or wall surfaces. – This appliance is suited for the commer- cial use, e.g. for handymen, business- es, for the fire brigade and the Techni- cal Relief Society. Contents Environmental protection ... EN 1 Danger or hazard levels ... EN 1 Proper use ... EN 1 Device elements ... EN 2 Start up ... EN 2 Operation ... EN 3 Transport... EN 4 Storage ... EN 4 Care and maintenance ... EN 4 Troubleshooting ... EN 5 Warranty ... EN 6 Accessories and Spare Parts . EN 6 EU Declaration of Conformity . EN 6 Technical specifications ... EN 7 Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. Old appliances contain valuable materials that can be recycled; these should be sent for recy- cling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appro- priate collection systems. Danger or hazard levels Proper use 14 EN– 2 1Float 2 Power cord 3 Mains plug of the appliance 4 Suction hose 5 Suction head lock 6 Dirt receptacle 7 Cable holder of the disposal pump 8 Lock plate 9 Steering roller bow 10 Steering roller 11 Floor nozzle 12 Height adjustment of the floor nozzle 13 Suction tube 14 Suction support 15 Suction head 16 Disposal pump 17 Acorn nut of the disposal pump 18 Carrying handle 19 Filter cover 20 Push handle 21 Bender 22 Float switch of the disposal pump 23 Pre-filter 24 Mains plug of the disposal pump 25 Switch "Disposal pump OFF" 26 Socket 27 Switch "Disposal pump ON" 28 Main switch 29 Exhaust filter 30 Coarse dirt filter/flat fold filter 31 Drain hose 32 Locking cap (GEKA-C coupling) 33 Cable hook 34 Nameplate The appliance allows 3 operating modes: 1 Wet vacuuming with disposal pump 2 Wet vacuuming without disposal pump 3 Dry vacuum cleaning Note: You can wet vacuum if the disposal pump is turned off or has been removed. Removal of disposal pump, see dry vacu- uming. Illustration Remove the brush strips. Install the rubber lips. Note: The structured side of the rubber lips must point outwards. Illustration Release and remove the suction head. Pull the paper filter bag/fleece filter bag towards the rear. Insert and lock the suction head. – To vacuum wet dirt, first remove the pa- per or fleece filter bag. Illustration Release and remove the suction head. Remove the membrane filter. Insert and lock the suction head. – To suck wet dirt, always remove the membrane filter. Open filter door. Take out the flat folded filter. Install the coarse dirt filter. Close the filter door, it must lock into place. Illustration Remove the locking cap (GEKA-C cou- pling). Connect the disposal hose (nominal width 3/4" or larger). Illustration Drain off dirty water through the drain- age hose. ATTENTION The coarse dirt filter must never be re- moved during vacuuming. – Wet vacuuming without disposal pump: It is recommended to use a special filter bag (wet) (see Filter systems). Device elements Start up Wet vacuum cleaning Inserting the rubber lips Remove the paper filter bag/fleece filter bag Remove the membrane filter Coarse dirt filter installation Connection of disposal pump Drain off dirt water General 15EN– 3 – If the maximum liquid level is reached the appliance will turn off automatically. – After the wet vacuuming: Clean the floater, container and the disposal pump if necessary, using a damp rag and dry them. ATTENTION Prior to dry vacuuming: Remove the dis- posal pump and install the flat fold filter. Note: You must use a flat fold filter during dry vacuuming. ATTENTION The flat pleated filter must always be in place while vacuuming. – To vacuum fine dust, you can also use an additional paper filter bag, a fleece filter bag or a membrane filter. Unplug the mains plug of the disposal pump. Release and remove the suction head. Illustration Remove the cable holder of the dispos- al pump and replace it with a locking cap. Pull the pre-filter over the suction hose port and remove it. Unscrew the acorn nut of the disposal pump. Remove the disposal pump and the plastic insert from the container. Illustration Install the locking cap instead of the dis- posal hose. Insert and lock the suction head. Note: The flat fold filter is not included in the delivery. Open filter door. Take out the coarse dirt filter. Install the flat fold filter. Close the filter door, it must lock into place. Illustration Remove the rubber lips. Install the brush strip. Note: A paper filter bag or a fleece filter bag is not included in the delivery. Illustration Release and remove the suction head. Place the paper or fleece filter bag. Insert and lock the suction head. Note: A membrane filter is not included in the delivery. Note: If you work without the paper filter bag or fleece filter bag, you must use a membrane filter to protect the suction head. Illustration Release and remove the suction head. Pull the membrane filter over the con- tainer edge. Insert and lock the suction head. Turn the adjustment screw in a clock- wise direction: High position of the floor nozzle Turn the adjustment screw in an anti- clockwise direction: Low position of the floor nozzle Illustration The suction hose is equipped with a clip system. All C-40/C-DN-40 accessories can be connected. DANGER Risk of injury and damage! The socket out- let is intended only for the direct connection of the disposal pump. Any other use of the socket outlet is not permitted. Dry vacuum cleaning General Removal of the disposal pump Installation of flat fold filter Install the brush strip Installing the paper filter bag/fleece filter bag Install membrane filter Height adjustment of the floor nozzle Clip connection Operation 16 EN– 4 Plug in the mains plug of the appliance. A Switch on button B Switch off button/test key C Circuit breaker D Red indicator lamp Press the on switch; the red indicator light illuminates. The circuit breaker is on standby. Press the off switch/test button of the circuit breaker; the red indicator light goes out. The circuit breaker switches off. Press the on switch; the red indicator light illuminates. The circuit breaker is on standby. Switch on the appliance at the main switch. Continuously dispose of large volumes of liquid: Switch on the disposal pump. Continuously dispose of liquids or clean. Release and remove the suction head. Remove the cable clip of the disposal pump. Pull the pre-filter over the suction hose port and remove it. Empty the pre-filter. When inserting the pre-filter, push it over the suction hose port until it touch- es the container wall. Insert the cable clip of the disposal pump. Insert and lock the suction head. Shut off the disposal pump if necessary. Switch off the appliance at the main switch. Press the off switch/test button of the circuit breaker; the red indicator light goes out. The circuit breaker switches off. Unplug the mains plug of the appliance. Empty the container. Vacuum and wipe the appliance inside and outside with a damp cloth. Wrap the mains connection cable around the hooks on the slider. Wind the suction hose around the slid- ing bow. Place the appliance in a dry room and secure it from unauthorized use. 몇 CAUTION Risk of injury and damage! Observe the weight of the appliance when you transport it. Hold the appliance at the handle and at the suction pipe to transport it. When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. 몇 CAUTION Risk of injury and damage! Note the weight of the appliance in case of storage. This appliance must only be stored in inte- rior rooms. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Turning on the Appliance Disposal or cleaning operation Emptying the pre-filter

Turn off the appliance After each operation Storing the Appliance Transport Storage Care and maintenance 17EN– 5 Open filter door. Replace the coarse dirt filter/flat-fold fil- ter or the exhaust filter. Close the filter door, it must lock into place. Release and remove the suction head. Remove the cable clip of the disposal pump. Pull the pre-filter over the suction hose port and remove it. Clean pre-filter. When inserting the pre-filter, push it over the suction hose port until it touch- es the container wall. Insert the cable clip of the disposal pump. Insert and lock the suction head. Release and remove the suction head. Clean the floater with a moist cloth. Insert and lock the suction head. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Push the pre-filter over the suction hose port until it touches the container wall. Have the socket of the power supply checked by an electrician. Connect the mains plug of the appli- ance to another socket of a different cir- cuit. Inform Customer Service. Inform Customer Service. Check the receptacle and the fuse of the power supply. Check the power cable and the power plug of the device. Press the switch on button of the pro- tection switch. Turn on the appliance. Check the swimmer. Switch on the disposal pump. Remove obstructions from the suction nozzle, suction tube, suction hose, or coarse dirt filter/flat-fold filter. Replace the paper or fleece filter bag. Ensure the filter cover properly locks into place. Clean or replace the membrane filter under running water. Replace the flat pleated filter. Check drain pipe for leaks. Empty/clean the pre-filter. Check for proper installation of the flat pleated filter. Check the proper installation of the coarse dirt filter. Install the flat fold filter. Check for proper installation of the flat pleated filter. Replace the flat pleated filter. Check the socket of the appliance. Free the stuck floater switch in the con- tainer. Release the stuck pump impeller in the pump. Replacing the coarse dirt filter/flat- fold filter or the exhaust filter Cleaning the pre-filter Cleaning the floater Troubleshooting The suction head cannot be positioned properly Protection switch cannot be switched on Protection switch shuts off repeatedly when the vacuum cleaner is turned on Suction turbine does not run Suction turbine turns off Suction capacity decreases Dust escapes during dry vacuuming Disposal pump is not running 18 EN– 6 Route the disposal hose without kinks. Check the disposal hose for obstructions. If malfunction can not be fixed, the de- vice must be checked by customer ser- vice. The warranty terms published by the rele- vant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in man- ufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com. We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. 5.957-602 The undersigned act on behalf and under the power of attorney of the company man- agement. Authorised Documentation Representative S. Reiser Alfred Kärcher GmbH Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Phone: [phone] Fax: [phone] Winnenden, 2017/01/01 Disposal pump does not produce much volume Customer Service Warranty Accessories and Spare Parts EU Declaration of Conformity Product: Wet and dry vacuum cleaner Type: 1.146-xxx Relevant EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2011/65/EU Applied harmonized standards EN 55014–1: 2006+A1: 2009+A2: 2011 EN 55014–2: 2015 EN 60335–1 EN 60335–2–69 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 62233: 2008 EN 50581 Applied national standards
