Product type	Immersion blender (hand blender)
Brand	Midea
Model	MJBH1001W (MJ-BH1001W)
Rated voltage	220-240 V~
Rated frequency	50-60 Hz
Rated power	1000 W
Dimensions (approx.)	Height 40 cm, diameter 7 cm (shaft)
Weight (approx.)	0.8 kg
Shaft material	Stainless steel SUS304
Variable speed	Yes, continuous speed and turbo button
Included accessories	Whisk, chopper bowl (500 ml), potato masher, beaker (600 ml)
Maximum capacity (chopper)	500 ml (solid food)
Maximum capacity (beaker)	600 ml (liquids)
Continuous operation time	1 minute maximum per cycle
Intended use	Mixing, chopping, whisking, mashing (domestic)
Safety	Sharp blades, do not immerse motor unit, unplug before cleaning
Care and cleaning	Clean shaft and whisk with water (max height plastic part), wipe motor unit with a damp cloth
Reparability	Contact an approved service center for cable replacement or any repair
Warranty	Standard warranty (refer to manual)
Country of origin	Not specified (usually China)

Frequently Asked Questions - MJBH1001W MIDEA

How to start the immersion blender?

Assemble the body and shaft until locked. Plug in the appliance, place the shaft into the food, then press the speed button. Release to stop.

What is the maximum capacity of the beaker?

Do not pour more than 600 ml of food or mixture into the beaker to avoid overflow.

Can I blend hot liquids?

No, do not blend hot liquids. Make sure the temperature of ingredients does not exceed 60 °C to avoid steam splashes.

How to clean the shaft and whisk?

Unplug the appliance. Wash the shaft and whisk with water, ensuring water does not exceed the plastic part. Remove the whisk from its body before soaking. The whisk body is only cleaned with a damp cloth.

What to do if the blender stops during use?

This may be due to excessive food quantity. Reduce the quantity or remove ingredients stuck to the blade after unplugging the appliance.

The blender emits an abnormal smell or smoke, what to do?

Stop use immediately. Possible causes are excessive food quantity, too long working time, or ingredients too hot. Reduce quantity, respect the one-minute cycle time, and do not exceed 60 °C.

Can I use the chopper for hard foods like ice cubes?

No, the chopper is not designed for hard foods such as ice cubes, coffee beans, spices, or chocolate. This could damage the blade.

How to use the potato masher?

Mount the propeller on the adapter, lock the masher by turning clockwise. Use it only on cooked vegetables (potatoes, carrots, etc.). Do not process raw or hard ingredients.

Can the whisk be used for heavy mixtures?

No, the whisk is reserved for light ingredients such as egg whites, cream, or instant desserts. For heavy mixtures (margarine, sugar), use another accessory.

How can I get a translation of the manual?

You can request a free translation on the notice-facile.com website by choosing your language and providing your email address. The translated manual will be sent to you.

USER MANUAL MJBH1001W MIDEA

Line drawings of kitchen utensils including a blender, blender, and cup (no text or symbols)

MANUALE D'USO

MJ-BH1001W SERIES

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or flow.

Illustration of hands pouring liquid into a glass with food items (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with two socket plugs, no text or symbols present

Illustration of a hand using a pipette to lift liquid into a cup, with an upward arrow indicating motion (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with a magnified inset (no text or symbols)

Simple line drawing of a bucket with a lid and arrow indicating downward motion (no text or symbols)

Diagram showing a lid being compressed into a glass jar with granular contents, no text or symbols present

Diagram showing a container with granular material being compressed by a bottle, with an arrow indicating compression or drying process (no text or symbols present)

Line drawing of a plug inserted into an electrical outlet, showing power cord and socket (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the direction (no text or symbols present)

ISTRUZIONI PER L'USO

Technical line drawing of a mechanical component with a central gear-like structure and a separate tool (no text or symbols)

Diagram of a mechanical press or valve assembly with a rotating shaft and base (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

ISTRUZIONI PER L'USO

Line drawing of a plug inserted into an electrical outlet, showing a black arrow pointing to the socket (no text or symbols present)

Diagram of a laboratory pipette dispensing liquid into a bowl, with a downward arrow indicating the process (no text or symbols present)

Illustration of a plug inserted into an electrical outlet, showing the plug being inserted (no text or symbols present)

SCHIACCIA PATATE - UTILIZZARE SOLO L'IMPOSTAZIONE DEL PULSANTE DI POTENZA

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

Illustration of hands using a handheld device to interact with a small object (no text or symbols visible)

Line drawings of kitchen utensils including a hand mixer, blender, and beaker (no text or symbols)

USER MANUAL

MJ-BH1001W SERIES

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference.

CONTENT

IMPORTANT SAFETY INSTRUCTIONS.... 1

TECHNICAL DATA OF THE PRODUCT 2

PART NAME 3

INSTRUCTIONS FOR USE 4

RECIPES....8

ABNORMALITY ANALYSIS AND HANDLING.... 8

CLEANING AND MAINTENANCE 9

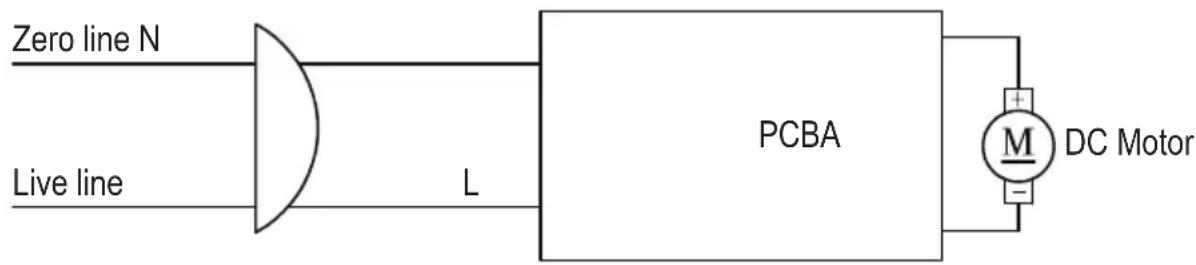

CIRCUIT PRINCIPLE DIAGRAM....10

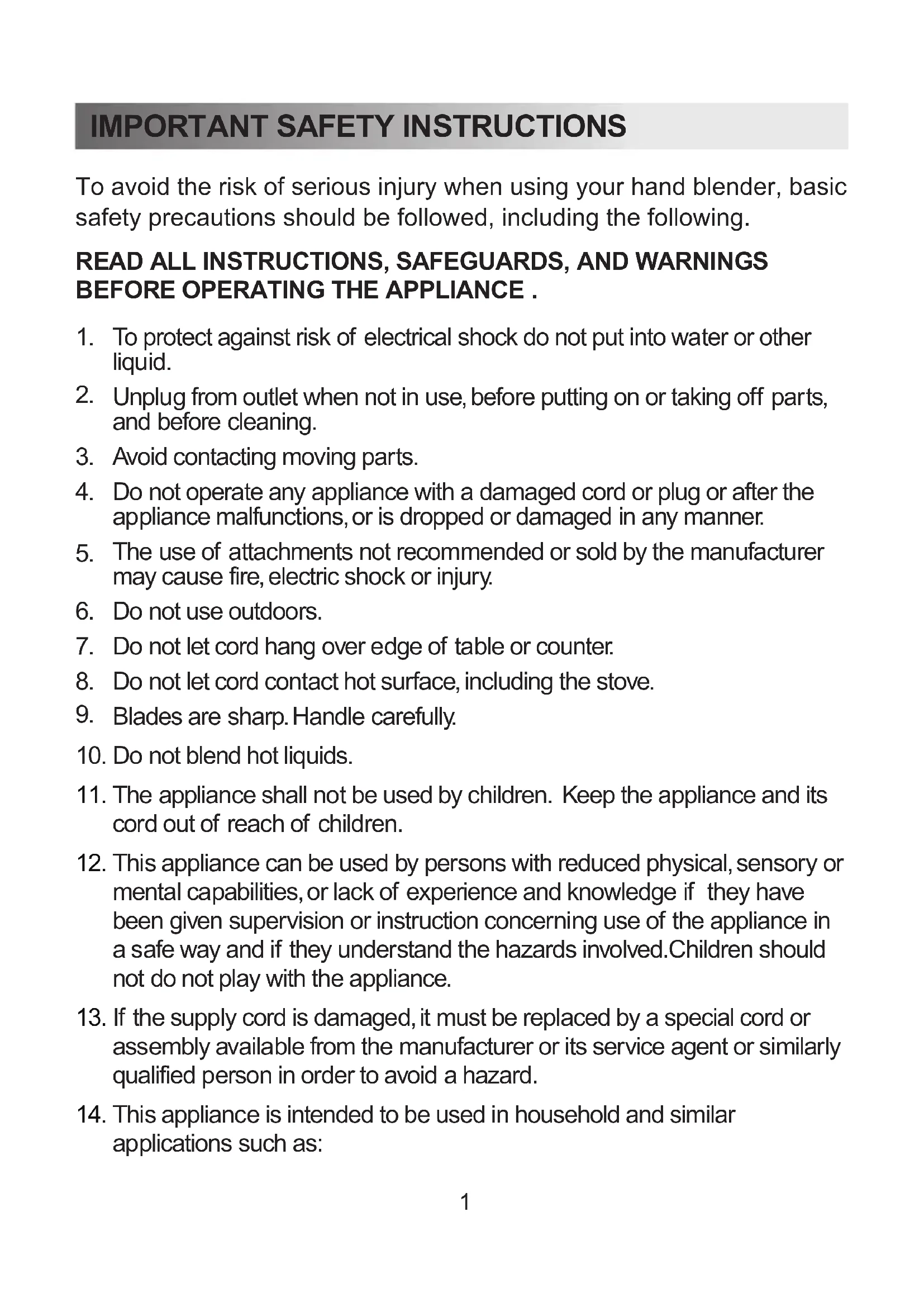

IMPORTANT SAFETY INSTRUCTIONS

To avoid the risk of serious injury when using your hand blender, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS, SAFEGUARDS, AND WARNINGS BEFORE OPERATING THE APPLIANCE.

1. To protect against risk of electrical shock do not put into water or other liquid.
2. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
3. Avoid contacting moving parts.
4. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner.
5. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
6. Do not use outdoors.
7. Do not let cord hang over edge of table or counter.
8. Do not let cord contact hot surface, including the stove.
9. Blades are sharp. Handle carefully.
10. Do not blend hot liquids.
11. The appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
12. This appliance can be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children should not do not play with the appliance.
13. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.
14. This appliance is intended to be used in household and similar applications such as:

IMPORTANT SAFETY INSTRUCTIONS

– Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
– By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.

1. Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
2. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning;
3. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
4. Warning: Risks of injuries if you don't use the appliance correctly.
5. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
6. If the instruction has lost, you can download it from our website or contact local importer to send you the instruction or CD disc.

SAVE THESE INSTRUCTION.

THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY.

Caution:

The failure to follow any of the important safeguards and the important instructions for safe use is a misuse of your hand blender that can void your warranty and create the risk of serious injury.

TECHNICAL DATA OF THE PRODUCT

Product name Model No. Rated voltage Rated frequency Rated power
HAND BLENDER	MJ-BH1001W	220-240V~ 50-60Hz 1000W

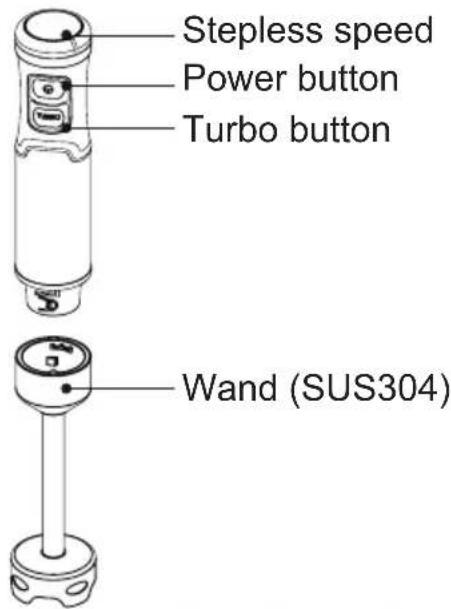

PART NAME

Stepless speed Power button Turbo button Wand (SUS304)

ACCESSORIES (optional)

Whisk Attachment

Beaker

Chopper Cover

Chopper Blade

Chopping Bowl

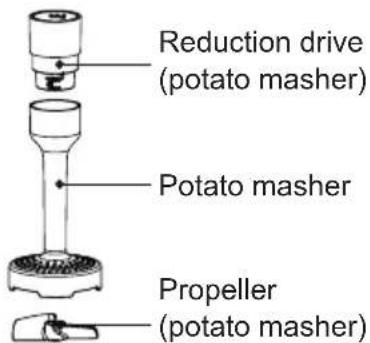

Reduction drive (potato masher) Potato masher Propeller (potato masher)

Potato masher AttachmentChoppe

Note:

• The hand blender is not designed for use over a heat source.
  • This appliance is not intended to chop ice.
  • To use the hand blender in a saucepan, be sure to remove the pan from the stove.
• To puree foods, liquid is needed. Add cooking liquid, broth, juice, milk, or cream until desired consistency is reached.
• For thorough blending, move hand blender up and down in mixture until smooth.
• To achieve best blending results and to reduce splattering (especially hot foods or liquids), use deep, tall containers.
  • We recommend chopping only 5oz. (142g) of meat at a time in the food chopper. Meat should be cut into 2-inch (5.1-cm) pieces before processing.
• Don't allow to use hand blender on long time.

INSTRUCTIONS FOR USE

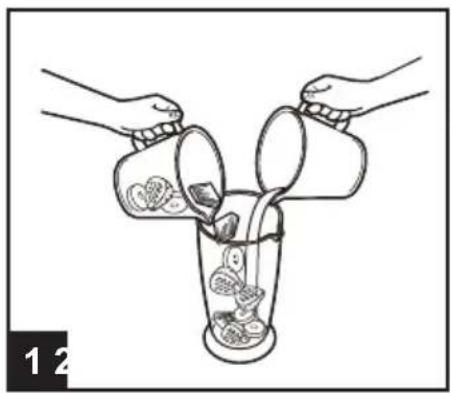

Hand blender/whisk attachment

Illustration of hands pouring liquid into a glass with food items (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with two socket plugs, no text or symbols present

Illustration of a hand using a pipette to lift liquid into a cup, with an upward arrow indicating motion (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with a magnified inset (no text or symbols)

According to require assembled appliance body and attachment, let every attachment be locked completely. Assembled way be showed on picture.

Wand use

- You can blend baby food, soups, sauces, milk shakes and Mayonnaise

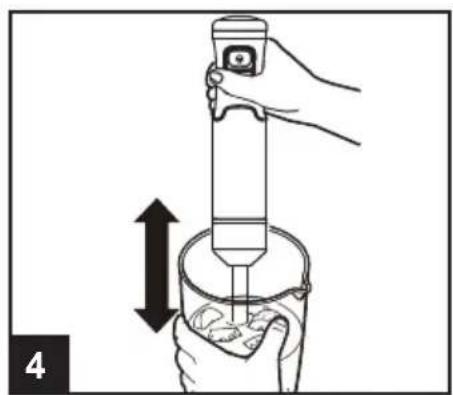

Wand used on beaker

• Please check over accessory is run good before use appliance for blend food.
• Put the beaker on a worktop, and pour not over 600mL food or mixture into it

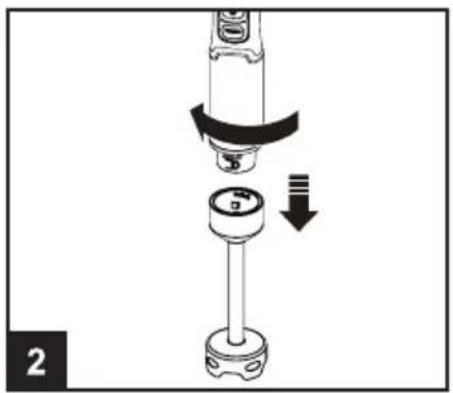

• Assembled appliance body and wand completely (wand be locked on appliance body)

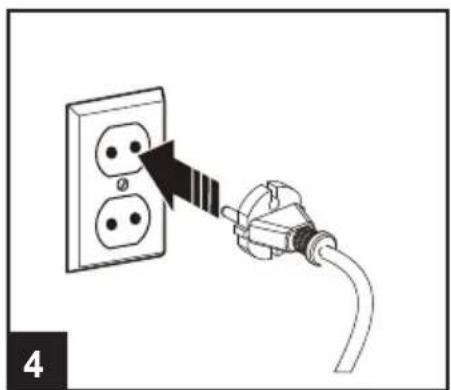

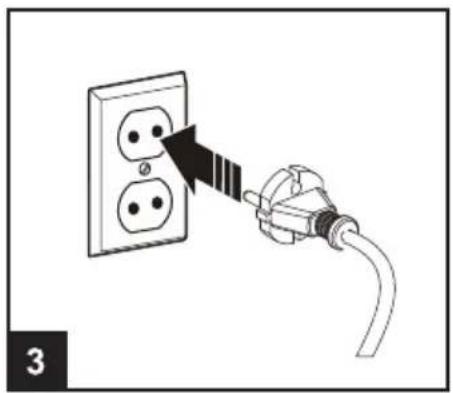

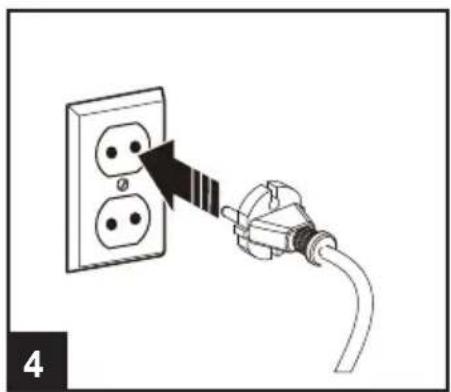

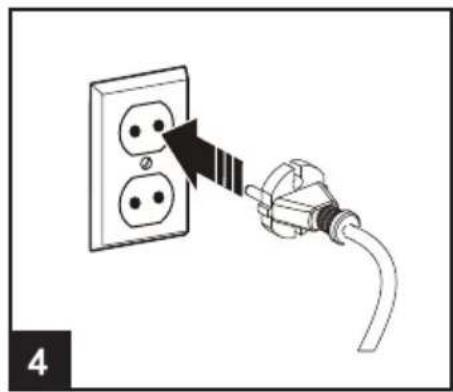

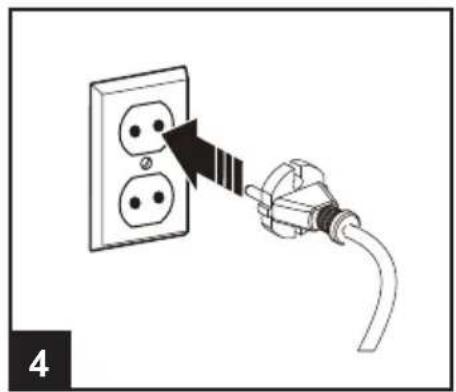

• Put appliance plug into socket of supply power.
• Hold appliance body tightly and let finger can easy operate speed button.
• Put wand into beaker, then press speed button(according you need choose speed)

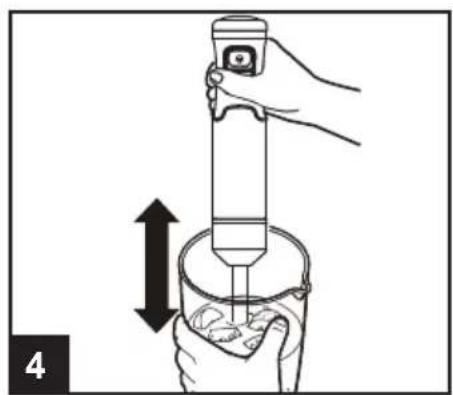

• Move appliance up-down, right-left slowly, until food be blended good

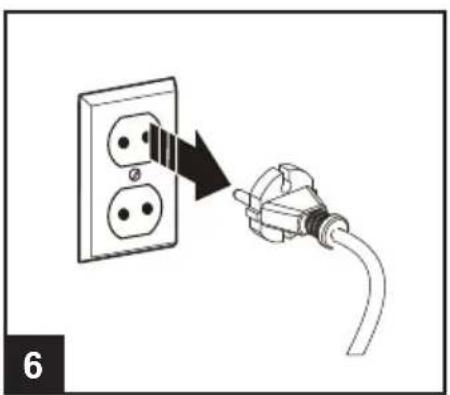

• Release speed button, let blade be stop, and put out appliance, Pull out power cord from socket or shut off appliance power if need blend another food.

INSTRUCTIONS FOR USE

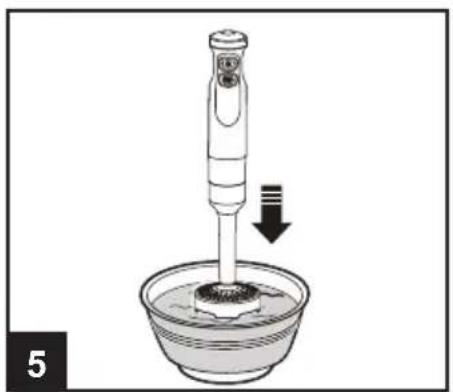

• Take a cool pan and put it on worktable, assemble blender body and wand tightly
- Plug in. To avoid splashing, place the blade in food before switching on Hold the beaker steady, then press either speed button

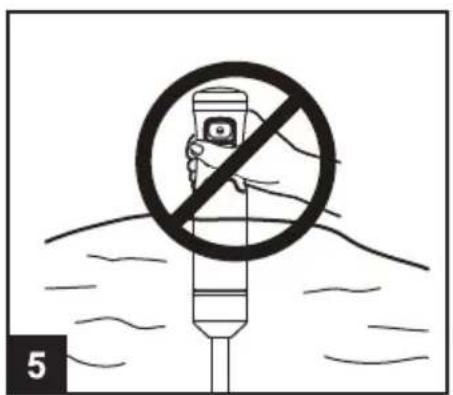

- Don't let liquid get above the join between the power handle and blender shaft
- Move the blade through the food and use a stabling action.
- If you blender gets blocked, unplug before clearing.

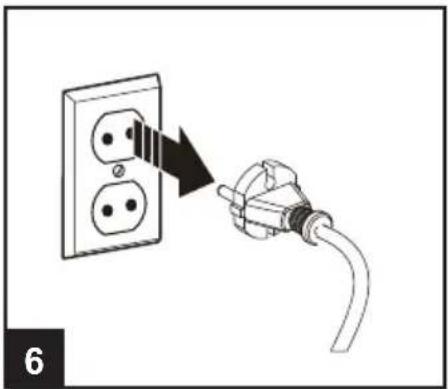

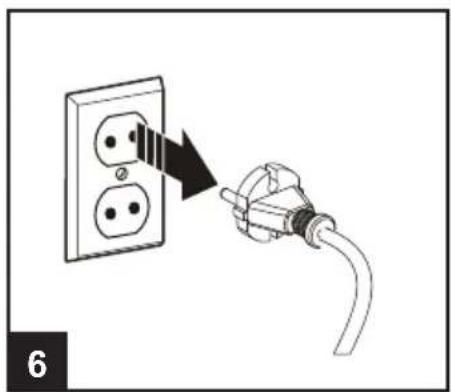

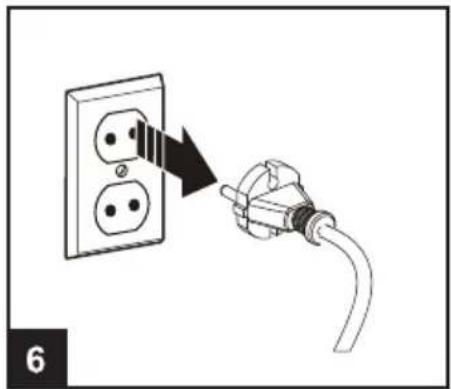

• After use, unplug and dismantle

Caution:

Do not use nonfood items in this hand blender. This product is not meant for soap making.

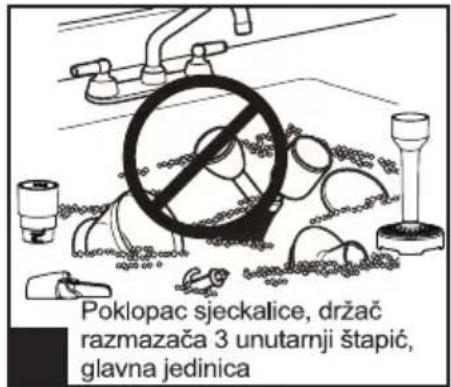

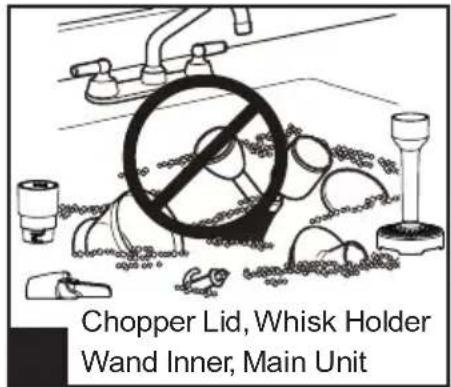

Do not immerse the motor unit in water.
▶ Always inspect attachments before each use. Do not use cracked, bent, or damaged attachments.
▶ Working time is not recommended to over one minute at a cycle

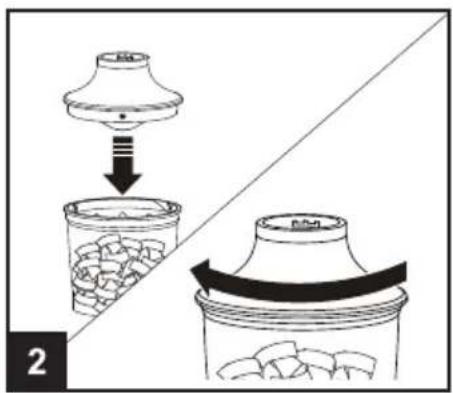

Chopper

Simple line drawing of a bucket with a lid and arrow indicating downward motion (no text or symbols)

Diagram showing a lid being compressed into a glass jar, with no text or symbols present.

Diagram showing a container with granular material being compressed by a bottle, with arrows indicating process direction (no text or symbols)

Line drawing of a plug inserted into an electrical outlet, showing power cord and socket (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

INSTRUCTIONS FOR USE

• Remove bones and cut food into 1-2cm cubes

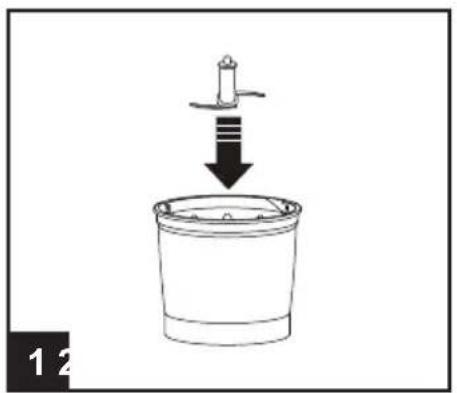

• Open chopper lid and fit chopper blade right
• Add you food and not let food volume over 500mL
  • Fit chopper lid and locked it on bowl
  • Fit stick blender body on chopper tightly

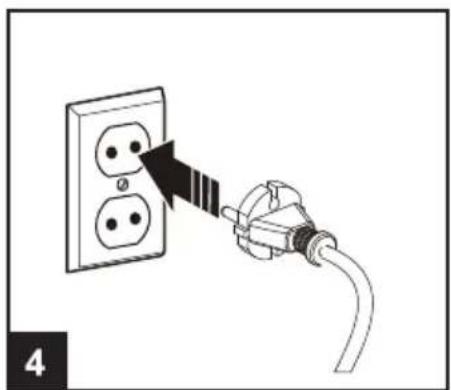

• Plug in. Hold the bowl and blender body tightly, then press speed button

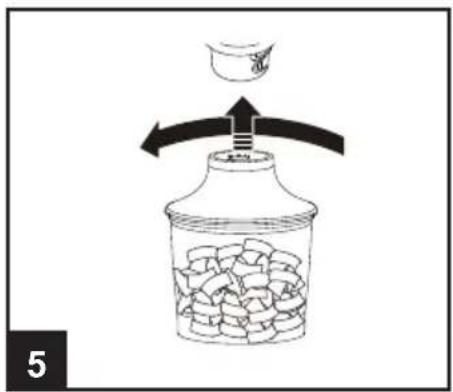

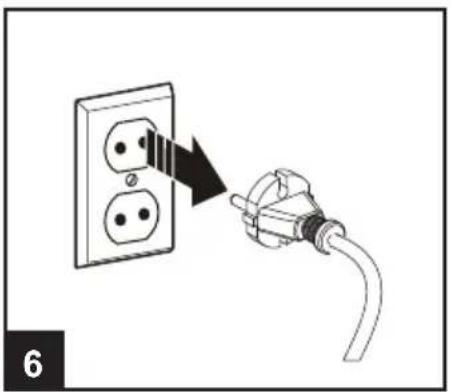

  • After use, unplug and dismantle

Note:

You can chop meat, cheese, vegetable, herbs, bread, biscuits and nuts, but not permit use it to chop hard food such as coffee bean, ice cubes, spices or chocolate, otherwise will damage the blade.

Whisk use

Whisk used to make light ingredients such as egg whites, cream, instant dessert, eggs and sugar for whisked sponges.

• Push the wire whisk into the whisk body and fit this whisk-ASM to stick blender body and turn & lock it
• Place you food in a bowl
• Plug in. Tot avoid splashing, start on speed L, move the whisk clockwise.
  • After use, unplug in and dismantle it
• Don't whisk more than four eggs whites or 400mL(3/4 Pt) cream
• Don't let liquid get above the whisk wires

Note:

Please not use it whisk heavier mixtures such as margarine and sugar, you will damage the whisk

Potato masher

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Diagram of a mechanical press or valve mechanism with a rotating shaft and base (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

INSTRUCTIONS FOR USE

Line drawing of a plug inserted into an electrical outlet, showing a black arrow pointing to the socket (no text or symbols present)

Illustration of a pipette dispensing liquid into a bowl with a downward arrow indicating flow (no text or symbols)

Diagram showing a plug inserted into an electrical socket, with a black arrow indicating the insertion direction (no text or symbols present)

POTATO MASHER ONLY USE THE POWER BUTTON SETTING IN

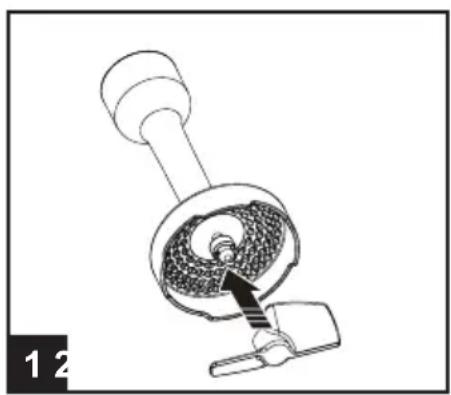

1. Assembled the propeller on the bayonet adapter and lock the propeller into position by turning it counter
2. Lock the potato masher into place by turning it clockwise until it will not go any further. Lock the reduction drive into place by turning it clockwise until it will not go any further.
3. Note: To make sure that the axis of the hand mixer does not turn along with the propeller, attach the propeller last. While disassembling, remove the propeller first.
4. Press the power button to start the Blender Stick. While adjust the Stepless speed to get right speed.
5. To stop the blending process, let go of the switch before you pull the blending stick out of the food.
6. After use, unplug the device from mains immediately.

TIPS FOR OPTIMUM USE

• The potato masher is a great tool for processing cooked vegetables, such as potatoes, beets and carrots.
• Never process hard or raw ingredients. This can cause damage to the device.
  • Cook all vegetables through and drain the water prior to blending.
• Do not hit the potato masher against the sides of the pot to remove any food mass after mashing. Use a spatula to scrape down the pot or bowl. However, before you do this, unplug the Blender Stick.

Recipe: Potatoes

• 1.25kg boiled potatoes (washed potatoes: medium-large size)
- 1 / 2 cup pure cream
• 30g (1 ½ Tbsp) butter
- The potatoes are peeled and cut into 3cm cubes prior to boiling. Cooked until tender
- Temperature has a huge impact on the quality and duration of mashing before it is considered processed.

The warmer the potatoes, the better the results are. Try to conduct the tests as soon as the potatoes are done (operating time is less than 1 minutes and rest 1 minutes.) to ensure that it remains warm.

RECIPES

Food type	Maximum amount	Approx. time(S)
Meat	300g (10.5Oz)	5
Herbs	20g (0.75Oz)	20
Nuts	200g (7.0 Oz)	30
Cheese	150g (5.0Oz)	30
Bread	1 slice	50
Hardboiled egg	2	5
Onions	100g (3.5 Oz)	10

ABNORMALITY ANALYSIS AND HANDLING

Abnormality Handling

1. In case of abnormalities such as abnormal noises, smell, smoke, etc., you should immediately cut off power and stop use.
2. If the product cannot work, please check if the power supply is connected, if the switch is put to the ON position and if fittings are installed in place.
3. If the product still cannot work after checks mentioned above, please consult the designated repair centre for maintenance.

Fault Analysis and Elimination

Symptom	Analysis of Possible Causes	Countermeasure
Product does not work	Did not press the inching switch	Keep the point switch in the pressed state
Mixing sword master	Excessive amount of food processing	Reduce the quantity of ingredients
	Ingredients stick to blade Cut off the power supply, clean up the blade on the ingredients
The abnormal odor products, hot, the phenomenon such as smoking	Excessive amount of food processing	Reduce the quantity of ingredients
	Product continuous working time is too long	Shorten the product continuous working time
	Processing the ingredients of temperature is too high	The temperature of the ingredients do not exceed 60 °C

CLEANING AND MAINTENANCE

Cleaning

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

Line drawing of two hands holding a handheld device with a screen (no text or symbols)

Chopper Lid, Whisk Holder Wand Inner, Main Unit

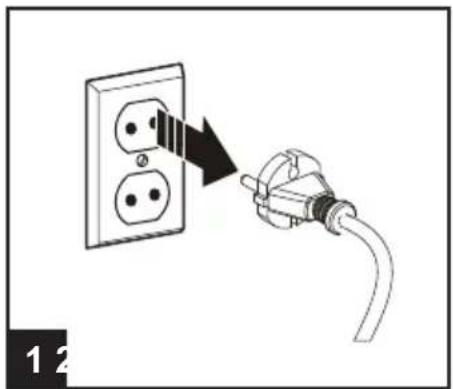

Always switch off and unplug when cleaning appliance.

Don't touch the sharp blades and keep special care when clearing blades avoid to be injured

Some food easy discolor plastic part, please rub with a cloth dipped in vegetable oil help remove discoloring.

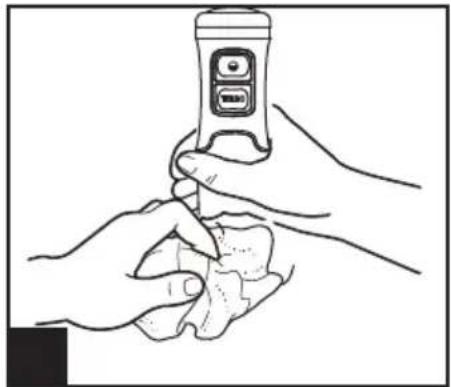

Cleaning appliance body、chopper lid、whisk body

Wipe with a damp cloth, then dry

Never immerse in water or use abrasives.

Cleaning Wand、wire whisk

Unplug the power line, then take down the wand and whisk.

Wash the wand and whisk by water.

Use cloth to dry the water of wand and whisk.

Caution:

Never hold motor unit portion of hand blender under running water. Simply wipe clean with a damp cloth.

If you put the wand and whisk into the water to clean, you must pay attention to the following two aspects:

1. Height of water can't over the plastic part at top of wand.
2. Whisk must take out from the whisk body. Whisk can immerse in water for cleaning, but the whisk body only allows cloth to wipe.
   Don't permit water or liquid be flow into chopper lid, stick blender body,
   wand、whisk body. If water get inside, drain and dry it before use it.

CLEANING AND MAINTENANCE

Maintaining

• If the power cord be damaged, for safety reasons, it must be send to our company authorized shop repair and changed.
• If the appliance have un-normal state, please contact with shop where purchase this appliance and make it clear or change it.
• When not use the appliance, please coil the cord, and lay it on somewhere children cannot get it.
• Keep appliance on a dry condition when not use appliance
• Don't plug in when not use appliance

CIRCUIT PRINCIPLE DIAGRAM

Zero line N Live line L PCBA M DC Motor

Environmental protection

The appliance must not be disposed of with regular household waste. At the end of its service life, the appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old appliances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.

Line drawings of kitchen utensils including a hand mixer, blender, and cup (no text or symbols)

BEDIENUNGSANLEITUNG

MJ-BH1001W SERIES

Technical diagram of a mechanical device with labeled parts, showing a cylindrical component and a base with a knob.

Illustration of hands pouring liquid into a glass with food items (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with two socket plugs, no text or symbols present

Illustration of a hand using a pipette to lift liquid into a cup, with an upward arrow indicating motion (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with two socket plugs, connected to a cable (no text or symbols present)

Simple line drawing of a bucket with a downward arrow indicating force or movement (no text or symbols)

Diagram showing a lid being inserted into a container with granular material, separated by a diagonal line (no text or symbols)

Diagram showing a bottle being compressed with a container filled with granular material, no text or symbols present.

Line drawing of a plug inserted into an electrical outlet with two socket plugs, showing a black arrow indicating the insertion direction (no text or symbols present)

5

Diagram showing a plug inserted into an electrical outlet with a magnified cable (no text or symbols)

GEBRAUCHSANLEITUNG

Technical line drawing of a mechanical component with a central gear-like structure and a separate tool (no text or symbols)

Diagram of a mechanical press or valve mechanism with a rotating shaft and base (no text or symbols)

Diagram of a dental tool with a downward arrow indicating a process or movement (no text or symbols present)

GEBRAUCHSANLEITUNG

Line drawing of a plug inserted into an electrical outlet, showing a black arrow pointing to the socket (no text or symbols present)

Illustration of a pipette dispensing liquid into a bowl with a downward arrow indicating flow (no text or symbols)

Illustration of a plug being inserted into an electrical outlet (no text or symbols)

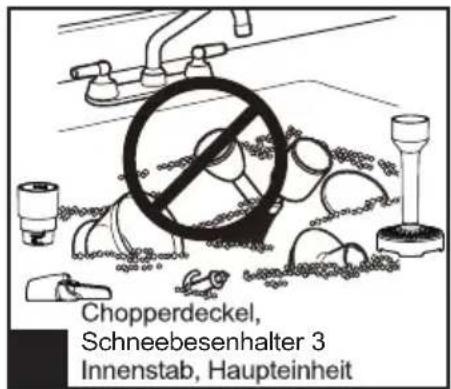

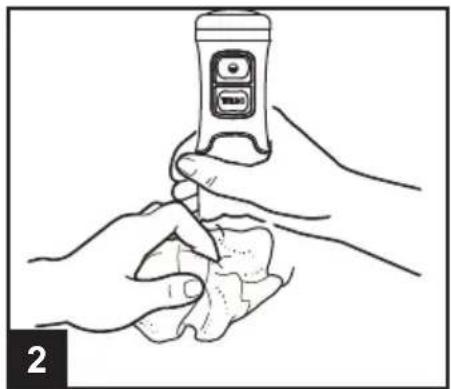

POTATO CRUSH - VERWENDEN SIE NUR DIE EINSTELLUNG DER STROMKNÖPFE

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

Line drawing of two hands holding a device with a handheld device (no text or symbols visible)

Line drawings of kitchen utensils including a blender, whisk, blender, and cup (no text or symbols)

MANUAL DE USUARIO

MJ-BH1001W SERIES

Illustration of hands pouring liquid into a glass with food items (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a plug inserted into an electrical socket with two outlets, connected to a cable (no text or symbols present)

Illustration of a hand using a pipette to lift liquid into a cup, with an upward arrow indicating motion (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with a magnified inset (no text or symbols)

Simple line drawing of a bucket with a lid and arrow indicating downward motion (no text or symbols)

Diagram showing a lid being filled with granular material, with no text or symbols present

3

Line drawing of a plug inserted into an electrical outlet, showing power cord and socket (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

INSTRUCCIONES DE USO

Technical line drawing of a mechanical device with internal components and a tool (no text or symbols)

Diagram of a mechanical press or valve mechanism with directional arrows indicating motion (no text or symbols)

Diagram of a dental tool with a curved arrow indicating rotation or adjustment, showing a base and tip (no text or symbols)

INSTRUCCIONES DE USO

Diagram showing a plug inserted into an electrical outlet with two socket outlets, connected to a cable (no text or symbols present)

Illustration of a pipette dispensing liquid into a bowl with a downward arrow indicating flow (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

Illustration of hands using a handheld device to apply a product (no text or symbols visible)

Line drawings of kitchen utensils including a hand mixer, blender, and cup (no text or symbols)

MANUEL UTILISATEUR

MJ-BH1001W SERIES

DONNÉES TECHNIQUES DU PRODUIT 2

NOM DE LA PARTIE 3

MODE D'EMPLOI 4

RECIPIES....8

ANALYSE ET MOUVEMENT DE L'ANORMALITÉ 8

NETTOYAGE ET ENTRETIEN 9

DIAGRAMME DU PRINCIPE DE CIRCUIT....10

INSTRUCTIONS IMPORTANTES DE SÉCURITÉ

DONNÉES TECHNIQUES DU PRODUIT

Illustration of hands pouring liquid into a glass with food items (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with two socket plugs, no text or symbols present

Illustration of a hand using a pipette to lift liquid into a cup, with an upward arrow indicating motion (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with a magnified inset (no text or symbols)

Simple line drawing of a bucket with a lid and arrow indicating downward motion (no text or symbols)

Diagram showing a lid being compressed into a jar with granular contents, no text or symbols present

Diagram showing a bottle being compressed into a container with granular material, no text or symbols present

Diagram showing a plug inserted into an electrical outlet with two socket plugs, connected to a cable (no text or symbols present)

5

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

MODE D'EMPLOI

Technical line drawing of a mechanical component with a central gear and a separate tool (no text or symbols)

Diagram of a mechanical press or valve mechanism with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

MODE D'EMPLOI

Illustration of a plug inserted into an electrical outlet with a black arrow indicating the insertion point (no text or symbols present)

Illustration of a pipette dispensing liquid into a bowl with a downward arrow indicating flow (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

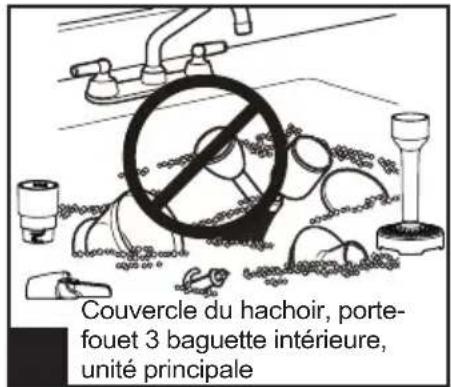

ÉCRASEMENT DE POMMES DE TERRE - UTILISEZ UNIQUEMENT LE RÉGLAGE DU BOUTON DE PUISSANCE

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

Illustration of hands using a handheld device to apply a product (no text or symbols visible)

Line drawings of kitchen utensils including a blender, spatula, and cup (no text or symbols)

UPUTSTVO ZA KORISNIKA

MJ-BH1001W SERIES

VAŽNE SIGURNOSNE UPUTE 1

TEHNIČKI PODACI PROIZVODA 2

NAZIV DIO 3

UPUTE ZA UPOTREBU 4

RECEPTI 8

ANALIZA I KRETANJE ANORMALNOSTI 8

ČIŠĆENJE | ODRŽAVANJE 9

DIJAGRAM PRINCIPA OKOLIŠA 10

VAŽNE SIGURNOSNE UPUTE

VAŽNE SIGURNOSNE UPUTE

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or flow.

Smanjenje (pire krumpir)
Nasjeckajte krumpir
propeler (Masher)
Struktura pire krumpira

Bilješke:

Illustration of hands pouring liquid into a glass with food items, no text or symbols present

Diagram of a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with two socket outlets, no text or symbols present

Illustration of a hand using a pipette to lift liquid into a cup, with an upward arrow indicating motion (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with a magnified inset (no text or symbols)

Simple line drawing of a bucket with a lid and arrow indicating downward motion (no text or symbols)

Diagram showing a lid being filled with granular material, with no text or symbols present

Diagram showing a bottle being compressed into a jar with granular material, no text or symbols present

Line drawing of a plug inserted into an electrical outlet, showing power cord and socket (no text or symbols)

5

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

UPUTE ZA UPOTREBU

• Izvadite kosti i izrezujte hranu na kocke od 1-2 cm
• Otvorite poklopac helikoptera i postavite nož sjeckalice na desno
• Dodajte hranu i ne dopustite da količina hrane pređe 500 mL. Montirajte poklopac helikoptera i zaključajte je na posudi
• Čvrsto montirajte tijelo miješalice za štap na helikopter Connect.
• Čvrsto držite zdjelu i tijelo miksera, a zatim pritisnite gumb za brzinu
• Nakon uporabe, iskopčajte utikač i rastavite

Imajte na umu:

Možete rezati meso, sir, povrće, bilje, kruh, kekse i orahe, ali nemojte dopustiti da se režu na tvrdu hranu poput zrna kave, kockice leda, začina ili čokolade, jer ćete u suprotnom oštetiti oštricu.

Koristite šlagom

Umutiti ga za pripremu laganih sastojaka poput bjelanjaka, vrhnja aneo instant desert, jaja i e ćera za montirane spuve.

• Gurnite vilicu u tijelo maha i prilagodite ovaj vijak-ASM za pričvršćivanje tijela blendera i okrenite ga i zaključajte
  • Stavite hranu u zdjelu
• Connect. Tot izbjegava prskanje, počinje brzinom L, pomiče bič u smjeru kazaljke na satu. Nakon uporabe, iskopčajte utikač i rastavite
• Ne tukujte više od četiri bjelanjka ili 400 mL vrhnja
• Ne dopustite da tekućina prijeđe preko žica šlag

Imajte na umu:

Technical line drawing of a mechanical component with a central gear and a separate tool (no text or symbols)

Diagram of a mechanical press or valve mechanism with directional arrows indicating motion (no text or symbols)

Diagram of a dental implant or screwdriver with a downward arrow indicating compression or disassembly (no text or symbols present)

UPUTE ZA UPOTREBU

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion point (no text or symbols present)

Illustration of a pipette dispensing liquid into a bowl with a downward arrow indicating flow (no text or symbols)

Illustration of a plug inserted into an electrical outlet, showing the plug being inserted (no text or symbols present)

POKRIVANJE POTATI - KORISTITE SAMO POSTAVKE GLAVNOG NAPONA

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the insertion direction (no text or symbols present)

Line drawing of two hands holding a small object, one with a device and the other on top (no text or symbols)

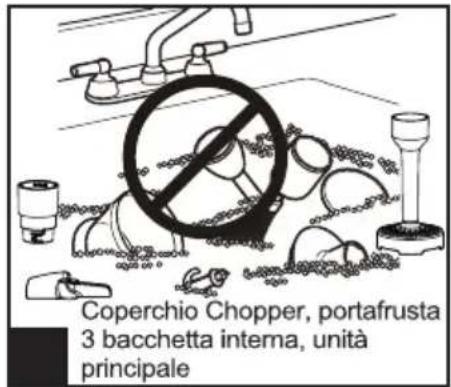

Poklopac sjeckalice, držač razmazača 3 unutarnji štapić, glavna jedinica
