PC10595 - Saucepan WestBend - Free user manual and instructions

USER MANUAL PC10595 WestBend

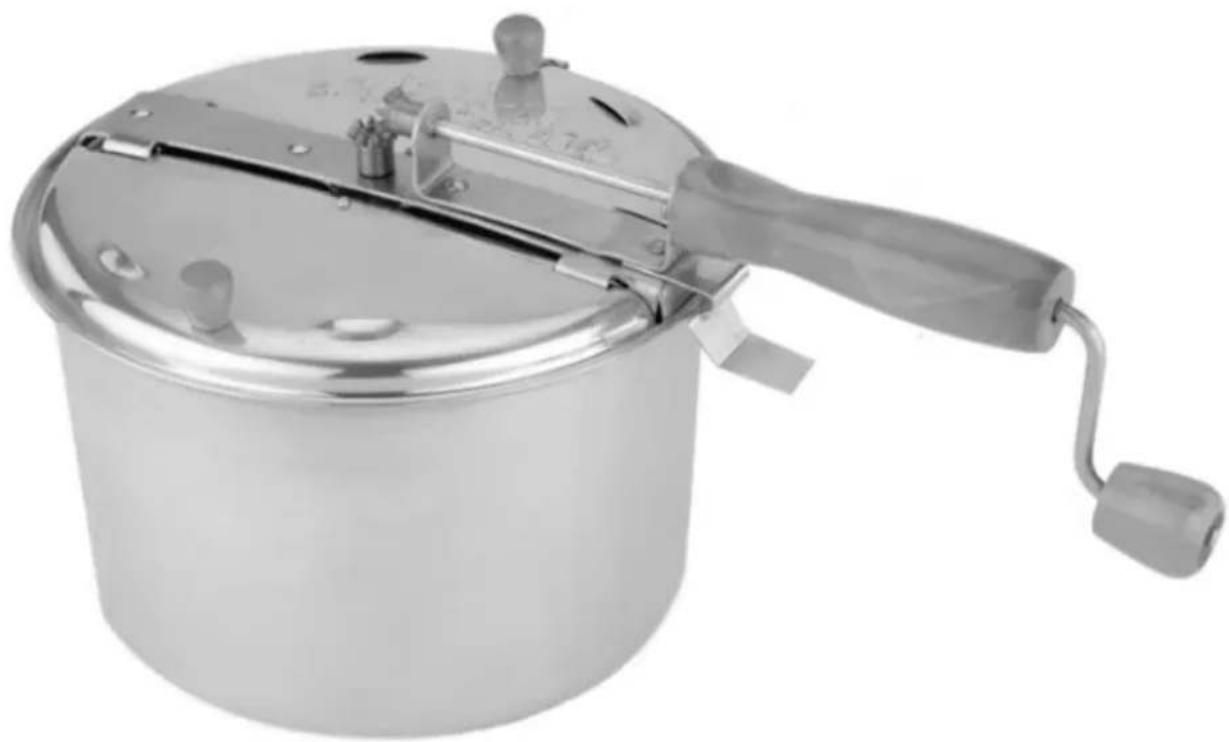

Metal kitchen pot with a handle and lid, no visible text or symbols

Register this and other Focus Electrics products through our website:

www.registerfocus.com

Important Safeguards 2

Assembling Your Stove-Top Popper 3

Using Your Stove-Top Popper 3

Warranty 4

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

OPERATING PRECAUTIONS

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not place an empty popper on a heated stove top. The pan may melt or pit if heat cannot be transferred to oil and popcorn.
• Do not leave popper unattended while popping. Popcorn should be stirred continually throughout the popping process.
• Hot oil can burn or catch fire if left too long on a heated stove top. Always attend heating oil and do not heat it without adding other ingredients.
• Do not allow bare skin near a pan that contains hot oil. Hot oil may occasionally pop out of the pan while heating.
• Never use water or liquid to extinguish an oil fire. For best results, use an approved fire extinguisher.
• Close supervision is necessary when used by or near children.
• Do not use for other than its intended use.
  • For household use only.

SAVE THESE INSTRUCTIONS

ASSEMBLING YOUR STOVE-TOP POPPER

Before using your stove-top popper and after each use, wash all parts in warm,

soapy water, rinse thoroughly and dry. To prolong the life of your stove-top popper, do not wash parts in the dishwasher.

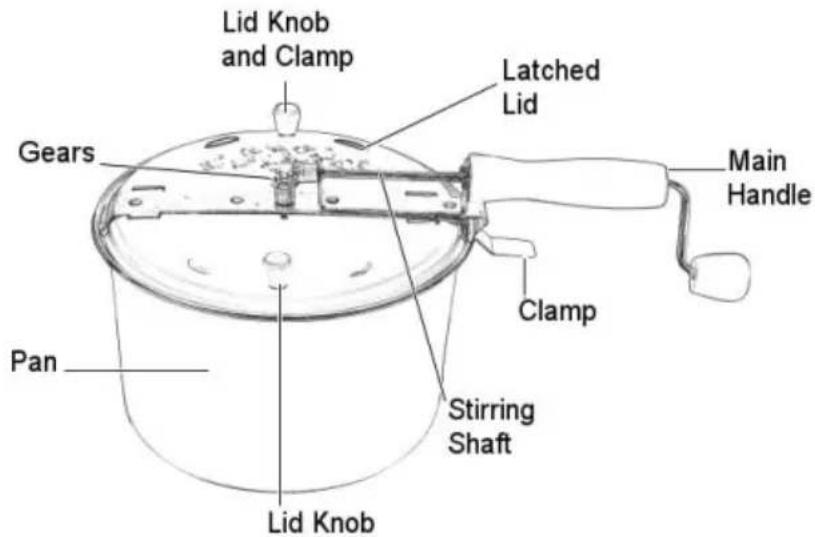

Lid Knob and Clamp Latched Lid Gears Main Handle Clamp Stirring Shaft Pan Lid Knob

1. Hold the lid by the main handle and place the lid peg in the hole of the popper pan.
2. Line up the clamp under the main handle between the two dimples on the pan rim.
3. Press down on the main handle until the lid locks in place.
4. Attach the lid clamp to the pan by pressing down on the wood lid knob.

USING YOUR STOVE-TOP POPPER

Heat The Stove:

• For an electric range, set the burner to medium high.
• For a gas range, set the burner to medium.
• For flat-top ranges, set the burner to medium low.

Note: Because stove top heat output varies, adjust the temperature as needed so popping is completed about three minutes after the popcorn is added to the pan. Flat-top ranges cook hotter than standard ranges, pay close attention to the popping. Like most pans, the Stove-Top popper will rock when used on a flat-top range.

Popping Popcorn:

Tip: Use fresh popcorn. Old popcorn loses its moisture and won't pop well.

1. Place 1-3 tablespoons of oil and 12 cup popcorn in the popper and place on the stove top. Note: Don't use butter, margarine, shortening or lard in place of oil, as these will burn or smoke excessively.
2. Slowly and continuously, turn the handle clockwise.
3. The popping cycle will be complete in approximately three minutes. When you no longer hear vigorous popping and stirring becomes difficult, remove from heat. Carefully empty the popcorn into a serving bowl from the left side lid. Use a hot pad if you find it necessary to open the lid when emptying.

PRODUCT WARRANTY

Appliance 90-Day Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for ninety (90) days from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics’ discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electrics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC several ways. Order online at www.focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the unit, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electrics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product):
