Product Type	LED Television
Brand and Model	Panasonic TX-24LS500E
Dimensions (with stand)	551.4 × 365.3 × 131 mm
Dimensions (without stand)	551.4 × 328 × 84 mm
Weight (with stand)	2.6 kg
Weight (without stand)	2.5 kg
Power Supply	220-240 V~, 50/60 Hz
Screen Resolution	1366 × 768 pixels (HD)
Operating System	Android TV
Wi-Fi Connectivity	Built-in Wi-Fi (IEEE 802.11 a/b/g/n/ac)
Bluetooth Connectivity	Bluetooth v5.0
HDMI Ports	2 HDMI ports (1 with ARC)
USB Ports	2 USB 2.0 ports
Audio Output	6 W (3 W + 3 W)
Audio Technologies	Dolby Audio
Common Interface	CI+ slot (Common Interface)
Media Player	USB (photo, music, video, documents)
Main Features	Smart TV, Google Assistant, Chromecast built-in, Netflix, Prime Video, YouTube, Filmmaker Mode
Maintenance and Cleaning	Use a soft, dry cloth; do not use solvents or abrasive products.
Safety	Built-in safety instructions: do not expose to moisture, do not block ventilation slots, use an approved wall mount.
Spare Parts and Repairability	Stand, remote control, batteries, audio-video adapter. Parts are available from authorized dealers.
Warranty	Pan-European warranty included (see warranty card)

Frequently Asked Questions - TX24LS500E PANASONIC

How to pair the Bluetooth remote control with the TV?

Press the Home button on the remote, then select Remote Control Pairing. Follow the on-screen instructions and simultaneously press the OK and Back buttons for 3 seconds. The screen will display Successful! once pairing is complete.

What to do if the screen remains black?

Check that the TV is turned on (green indicator). If the indicator is red, press the Power button on the remote. Make sure the input source is correct (press INPUT). If the problem persists, unplug the TV for 1 minute, then plug it back in.

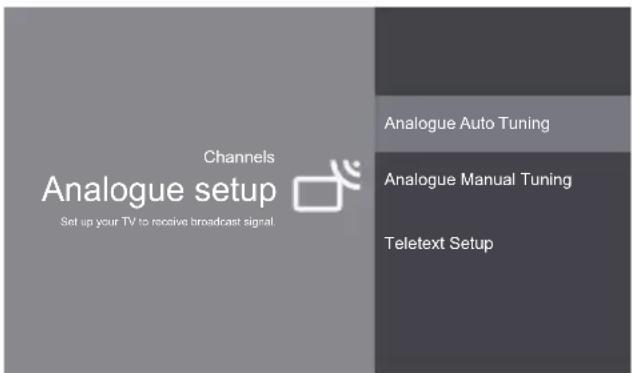

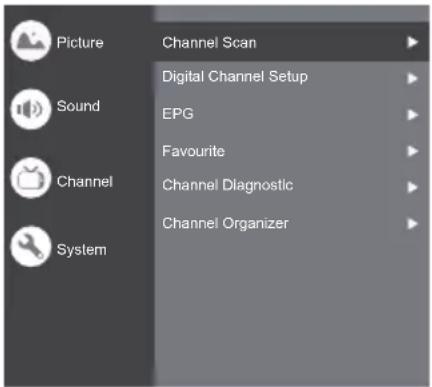

How to search for channels?

Press the MENU button, go to Channel then Channel Search. Select Auto Search for analog or digital channels, or Manual Search for a frequency search. Follow the on-screen instructions.

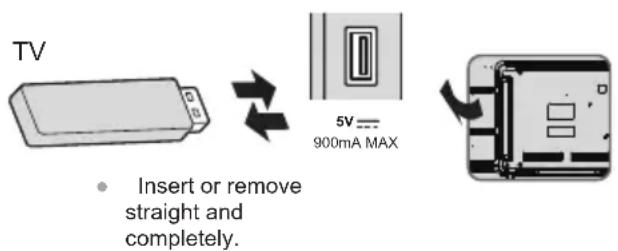

How to connect a USB device?

Insert the USB drive into one of the USB ports on the back of the TV. Press the Home button, select Media Player, then choose the file type (photo, music, video, document). Use the directional buttons to navigate and OK to play.

How to adjust the volume or mute the sound?

Use the + and - volume buttons on the remote. To mute the sound, press the MUTE button. To restore sound, press MUTE again or any volume button.

How to update the TV software?

Make sure the TV is connected to the Internet. Go to Settings > Device Preferences > About > System Update. Follow the on-screen instructions. Do not unplug the TV during the update.

How to activate Filmmaker Mode?

Press the OPTION button on the remote, select Picture, then Picture Mode. Choose Filmmaker for a cinematic experience that respects the director's intentions.

How to lock the TV (parental control)?

Go to Settings > System > Settings > Lock. Set a PIN code (default 0000). You can then block access to certain channels or inputs.

How to clean the screen without damaging it?

Turn off the TV and unplug it. Use a soft, dry cloth to gently wipe the screen. For stubborn stains, lightly dampen the cloth with clean water or a diluted neutral detergent (1:100), wring it well, then wipe. Never spray liquid directly onto the screen.

What to do if there is no sound?

Check that the volume is not muted (MUTE button). Make sure the audio source is correct in Settings > Sound > Output Device. If using an HDMI device, check that the cable is properly connected. Try restarting the TV.

USER MANUAL TX24LS500E PANASONIC

Operating Instructions

LED TV

Model No.

TX-24LS500E

TX-32LS500E

TX-43LS500E

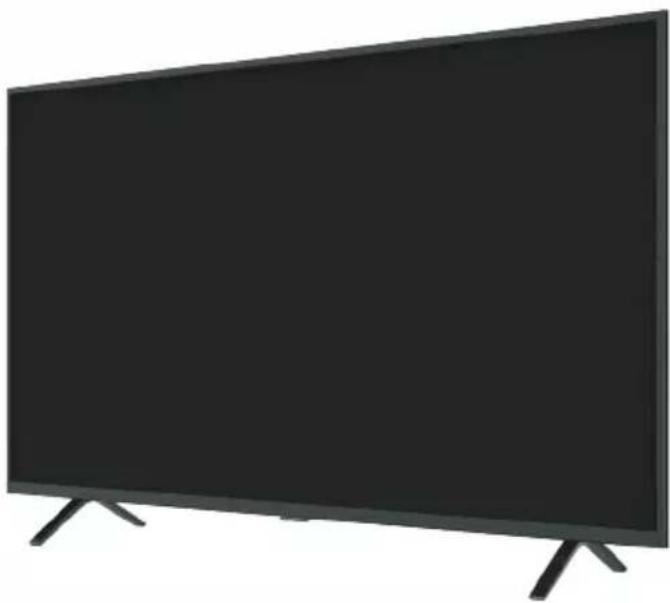

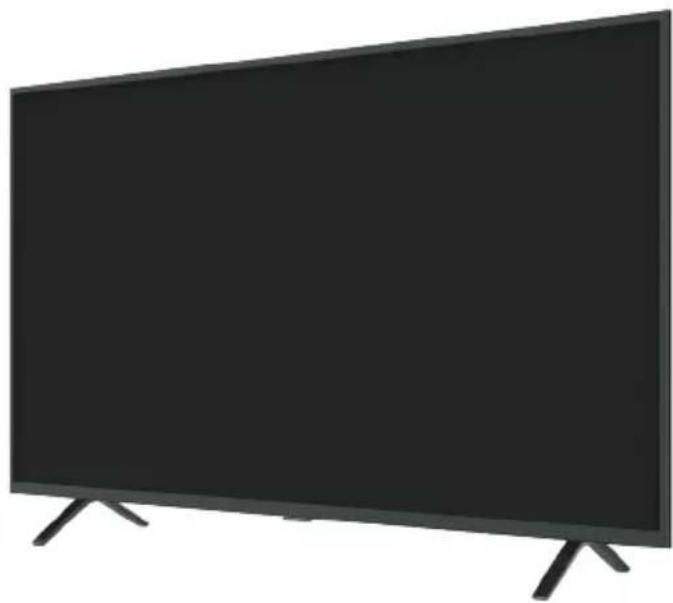

Front view of a modern black flat-screen TV with visible screen edges and legs (no text or symbols)

(image: TX-43LS500E)

English

Eesti

Български

Polski

Dansk

Deutsch

Français

Suomi

Nederlands

Čeština

Hrvatski

Latviski

Lietuvių

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before operating this product and retain them for future reference.

Please carefully read the "Safety Precautions" of this manual before use.

The images shown in this manual are for illustrative purposes only.

Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.

Contents

Be Sure to Read

Important Notice ....3

Safety Precautions ....5

Setting Up the TV 9

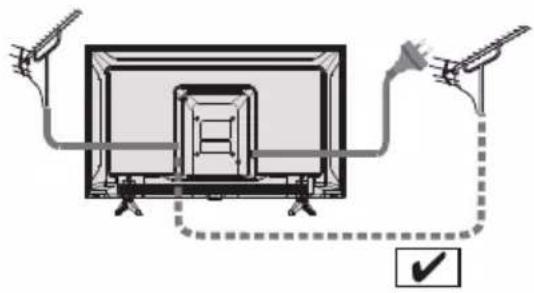

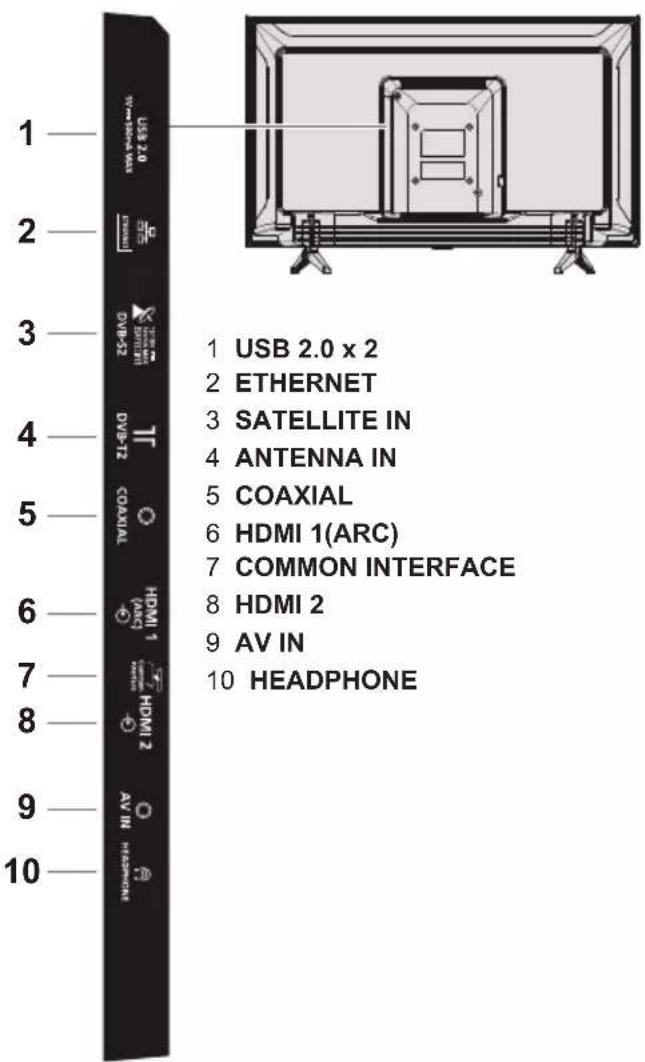

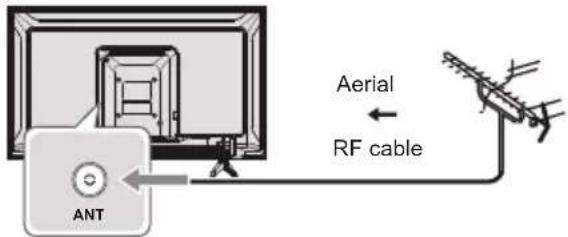

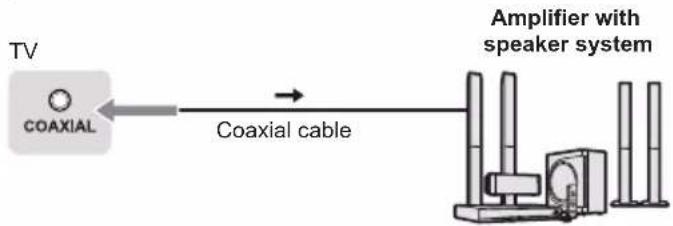

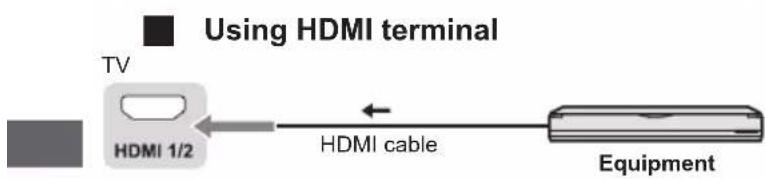

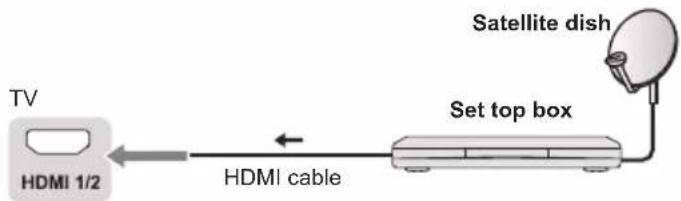

Connecting the TV 11

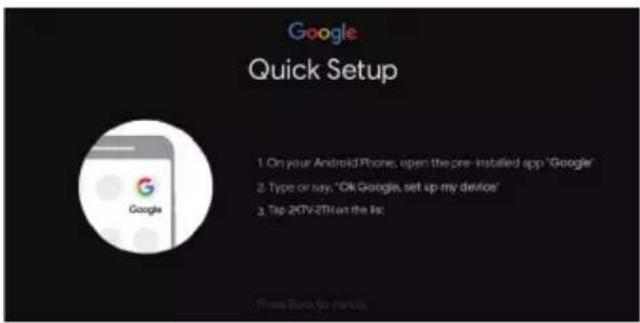

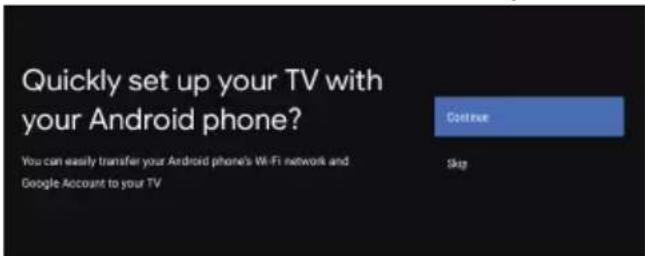

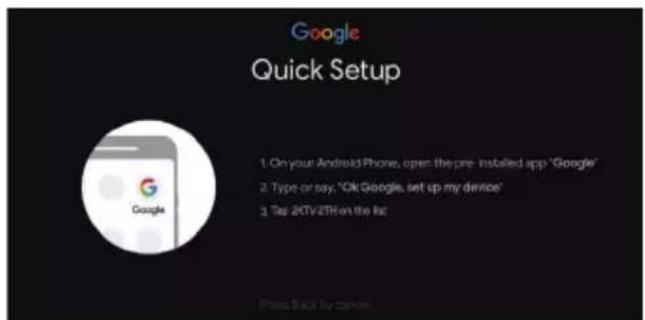

Initial Setup....13

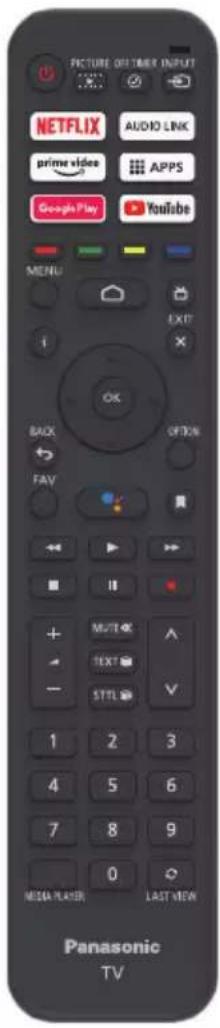

Operating the TV 14

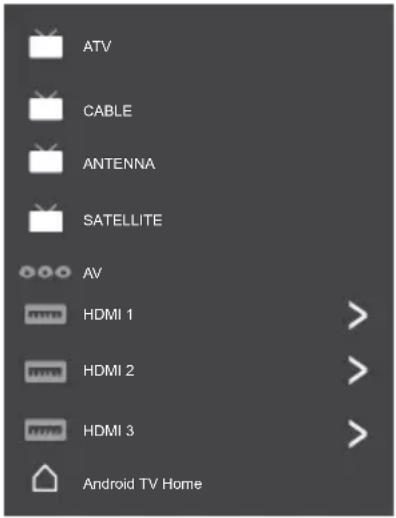

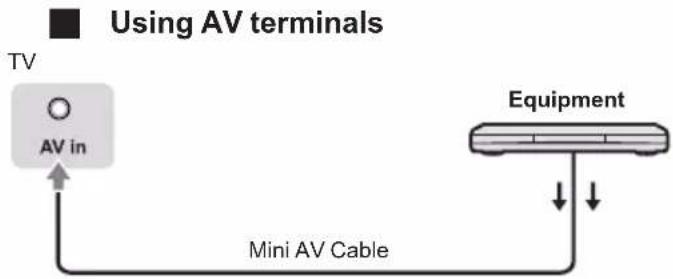

Watching External Inputs....16

Using Homepage - Apps....17

Using the Menu Functions....18

Using Media Player 21

Additional Information....22

Troubleshooting....23

Maintenance 24

Specifications 25

Oss License 27

HE NC Advance™ Covered by patents at patentlist accessadvance.com

Dolby Audio

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2015 Dolby Laboratories. All rights reserved.

Wi-Fi ^ is a registered trademark of Wi-Fi Alliance ^ . WPA2 ^TM , WPA ^TM are trademarks of Wi-Fi Alliance ^ .

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Entertainment & Communication Co., Ltd. is under license.

DVB and the DVB logos are trademarks of the DVB Project.

x.v.Colour ^TM is a trademark.

DiSEqC ^TM is a trademark of EUTELSAT.

Google is a trademark of Google LLC.

Amazon, Prime Video and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

This product complies with the UHD Alliance Technical Specification: UHDA Specified Reference Mode, Version 1.0. FILMMAKER MODE™ logo is a trademark of the UHD Alliance, Inc. in the United States and other countries.

The illustration for TX-43LS500E is used in this manual unless otherwise mentioned. Illustrations shown may be different depending on the model.

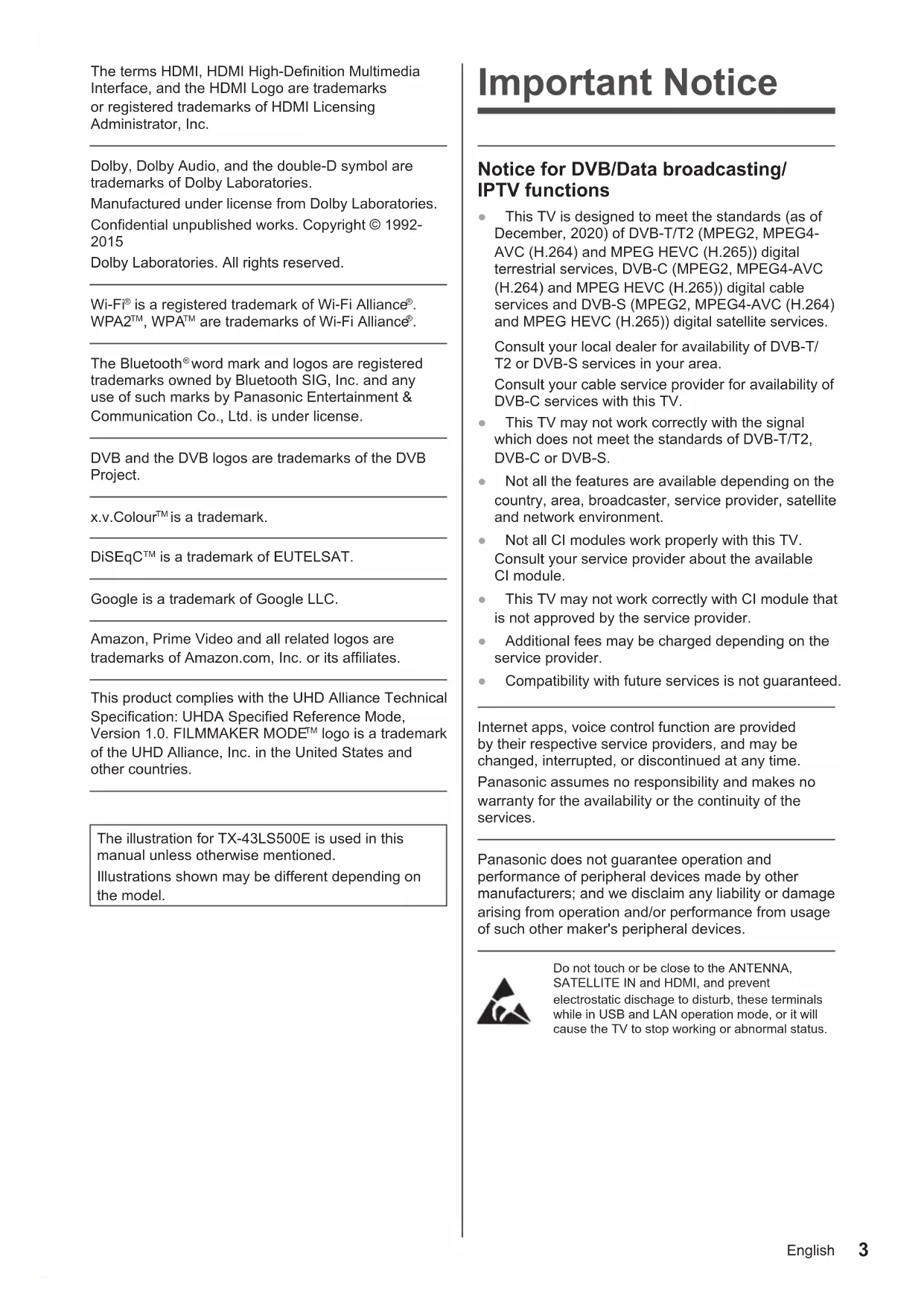

Important Notice

Notice for DVB/Data broadcasting/ IPTV functions

- This TV is designed to meet the standards (as of December, 2020) of DVB-T/T2 (MPEG2, MPEG4-AVC (H.264) and MPEG HEVC (H.265)) digital terrestrial services, DVB-C (MPEG2, MPEG4-AVC (H.264) and MPEG HEVC (H.265)) digital cable services and DVB-S (MPEG2, MPEG4-AVC (H.264) and MPEG HEVC (H.265)) digital satellite services.

Consult your local dealer for availability of DVB-T/T2 or DVB-S services in your area.

Consult your cable service provider for availability of DVB-C services with this TV.

• This TV may not work correctly with the signal which does not meet the standards of DVB-T/T2, DVB-C or DVB-S.
• Not all the features are available depending on the country, area, broadcaster, service provider, satellite and network environment.
• Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
• This TV may not work correctly with CI module that is not approved by the service provider.
• Additional fees may be charged depending on the service provider.
• Compatibility with future services is not guaranteed.

Internet apps, voice control function are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time.

Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services.

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker's peripheral devices.

Do not touch or be close to the ANTENNA, SATELLITE IN and HDMI, and prevent electrostatic discharge to disturb, these terminals while in USB and LAN operation mode, or it will cause the TV to stop working or abnormal status.

Handling of customer information

Certain customer information such as IP address of your device (this TV)'s network interface will be collected as soon as you connect your Panasonic-branded smart television (this TV) or other devices to the internet (excerpted from our privacy policy). We do this to protect our customers and the integrity of our Service as well as to protect the rights or property of Panasonic.

When using Internet connecting function of this TV, after agreeing (in the jurisdictions where customer's consent is required to collect personal information under applicable privacy laws) to or reviewing Panasonic's terms of service/privacy policy (hereinafter referred to as terms and conditions etc.), customer information on the use of this unit may be collected and used according to terms and conditions etc.

• Panasonic will not be held responsible for collecting or using customer information via application provided by third party on this TV or website.
• When entering your credit card number, name, etc., pay special attention to the trustworthiness of the provider.
• Registered information may be registered in the server etc. of provider. Before repairing, transferring or discarding this TV, be sure to erase the information according to the terms and conditions etc. of provider.

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio license for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC Standard ("AVC Video") and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, L.L.C.

See http://www.mpegla.com.

This mark indicates the product operates on AC voltage.

This mark indicates a Class II or double insulated electrical appliance wherein the product does not require a safety connection to electrical earth (ground).

Transport only in upright position.

Safety Precautions

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings and cautions below:

Mains plug and lead

Warning

If you detect anything unusual, immediately remove the mains plug.

• Mains plug types vary between countries.

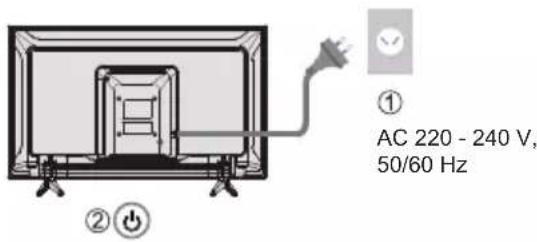

• This TV is designed to operate on AC \~ 220-240 V, 50/60 Hz.
• Insert the mains plug fully into the mains socket.
• To turn off the apparatus completely, you must pull the mains plug out of the mains socket.

Consequently, the mains plug should be easily accessible at all times.

- Disconnect the mains plug when cleaning the TV.

- Do not touch the mains plug with wet hands.

• Do not damage the mains lead.

• Do not place a heavy object on the lead.
• Do not place the lead near a high temperature object.
• Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.
• Do not move the TV with the lead plugged into a mains socket.
• Do not twist the lead, bend it excessively or stretch it.
• Do not use a damaged mains plug or mains socket.
• Ensure the TV does not crush the mains lead.

Take care

Warning

- Do not remove covers and never modify the TV yourself as live parts are accessible and risk of electric shock when they are removed. There are no user serviceable parts inside.

- Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

• Do not insert foreign objects into the TV through the air vents.
• If the TV is used in an area where insects may easily enter the TV.

It is possible for insects to enter the TV, such as small flies, spiders, ants, etc. which may cause damage to the TV or become trapped in an area visible on the TV, e.g. within the screen.

- If the TV is used in an environment where there is dust or smoke.

It is possible for dust/smoke particles to enter the TV through the air vents during normal operation which can become trapped inside the unit. This may cause overheating, malfunction, deterioration in picture quality, etc.

• Do not use an unapproved pedestal/mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.
• Do not apply any strong force or impact to the display panel.
  • Ensure that children do not climb on the TV.
• Do not place the TV on sloping or unstable surfaces, and ensure that the TV does not hang over the edge of the base.

Warning Stability Hazard

A TV may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the TV.
• ALWAYS use furniture that can safely support the TV.
• ALWAYS ensure the TV is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the TV or its controls.

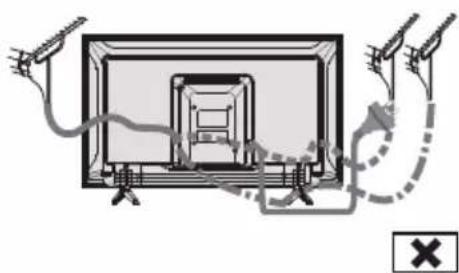

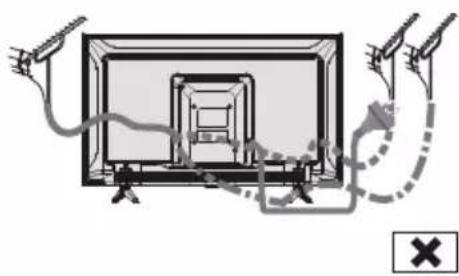

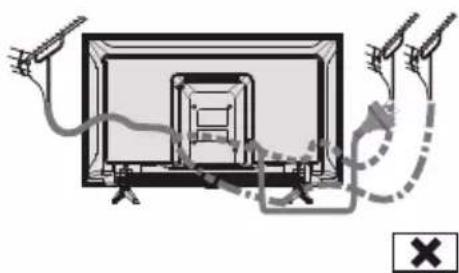

• ALWAYS route cords and cables connected to your TV so they cannot be tripped over, pulled or grabbed.
• NEVER place a TV in an unstable location.
• NEVER place the TV on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the TV to a suitable support.
• NEVER place the TV on cloth or other materials that may be located between the TV and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the TV or furniture on which the TV is placed.

If the existing TV is going to be retained and relocated, the same considerations as above should be applied.

• This TV is designed for table-top use.
- Do not expose the TV to direct sunlight and other sources of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

■ Suffocation/Choking Hazard

Warning

- The packaging of this product may cause suffocation, and some of the parts are small and may present a choking hazard to young children. Keep these parts out of reach of young children.

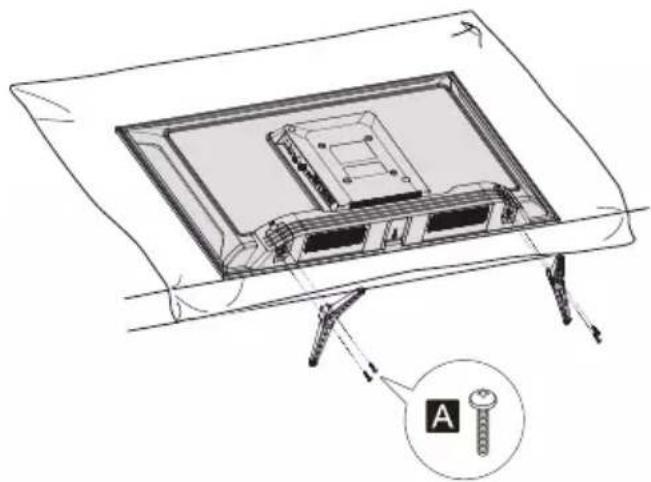

Pedestal

Warning

- Do not disassemble or modify the pedestal.

English

Caution

• Do not use any pedestal other than the one provided with this TV.
• Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.
• During setup, make sure that all screws are securely tightened.
• Ensure that the TV does not suffer any impact during installation of the pedestal.
• Ensure that children do not climb onto the pedestal.
• Install or remove the TV from the pedestal with at least two people.
• Install or remove the TV according to the specified procedure.

Radio waves

Warning

• Do not use the TV and the remote control in any medical institutions or locations with medical equipment. Radio waves may interfere with the medical equipment and may cause accidents due to malfunction.
• Do not use the TV and the remote control near any automatic control equipment such as automatic doors or fire alarms. Radio waves may interfere with the automatic control equipment and may cause accidents due to malfunction.
• Keep at least 15 cm away from the TV and the remote control if you have a cardiac pacemaker. Radio waves may interfere with the operation of the pacemaker.
• Do not disassemble or alter the TV and the remote control in any way.

Common Interface

• Turn the TV off with Mains power On/Off switch whenever inserting or removing the CI module.
• If a smart card and a CI module come as a set, first insert the CI module, then insert the smart card into the CI module.
• Insert or remove the CI module completely in the correct direction as shown.
• Normally encrypted channels will appear. (Viewable channels and their features depend on the CI module.)

If encrypted channels do not appear

→ [Common Interface] ([Setup] menu)

• There might be some CI modules in the market with older firmware versions that do not work fully interoperable with this new CI+ v1.4 TV. In this case, please contact your content provider.
• Be sure to remove the CI module card, etc. before repairing, transferring or discarding.

TV

Diagram showing a device with a label pointing to a screen, likely illustrating a process or system.

CI module

Built-in wireless LAN

Caution

• Do not use the built-in wireless LAN to connect to any wireless network (SSID*) for which you do not have usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.
  * SSID is a name for identifying a particular wireless network for transmission.
• Do not subject the built-in wireless LAN to high temperatures, direct sunlight or moisture.
  • Data transmitted and received over radio waves may be intercepted and monitored.
• The built-in wireless LAN uses 2.4 GHz and 5 GHz frequency bands. To avoid malfunctions or slow response caused by radio wave interference when using the built-in wireless LAN, keep the TV away from other devices that use 2.4 GHz and 5 GHz signals such as other wireless LAN devices, microwave ovens, and mobile phones.
• When problems occur due to static electricity, etc., the TV might stop operating to protect itself. In this case, turn the TV off at the Mains power On/Off switch, then turn it back on.

Bluetooth® wireless technology

Caution

- The TV and the remote control use the 2.4 GHz radio frequency ISM band (Bluetooth®). To avoid malfunctions or slow response caused by radio wave interference, keep the TV and the remote control away from the devices such as other wireless LAN devices, other Bluetooth® devices, microwaves, mobile phones and the devices that use 2.4 GHz signal.

Ventilation

Caution

Allow sufficient space (at least 10 cm) around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

10 10 10 10

(cm)

- Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

- Whether you are using a pedestal or not, always ensure the vents at the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

Moving the TV

Caution

Before moving the TV, disconnect all cables.

• At least two people are required to move the TV to prevent injury that may be caused by the tipping or falling of TV.
• Do not hold the screen part as shown below when moving the TV. This may cause malfunction or damage.

Diagram showing a monitor with a device and a prohibition symbol pointing to it, indicating no prohibition.

When not in use for a long time

Caution

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live mains socket.

- Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

Excessive volume

Caution

- Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

- If you hear a drumming noise in your ears, turn down the volume or temporarily stop using the headphones.

Battery for the Remote Control

Warning

- Keep the batteries out of reach of children to prevent swallowing. Adverse physical effects can result if accidentally swallowed. If you suspect a child has swallowed one, seek medical attention immediately.

Caution

• Incorrect installation may cause battery leakage, corrosion and explosion.
• Replace only with the same or equivalent type.
  • Do not mix old and new batteries.
• Do not mix different battery types (such as alkaline and manganese batteries).
  • Do not use rechargeable batteries (Ni-Cd, etc.).
  • Do not bum or break up batteries.
• Do not expose batteries to excessive heat such as sunshine, fire or the like.
  • Make sure you dispose of batteries correctly.
• Remove the battery from the unit when not using for a prolonged period of time to prevent battery leakage, corrosion and explosion.

LED TV

Declaration of Conformity (DoC)

"Hereby, Panasonic Entertainment & Communication Co., Ltd. declares that this TV is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU."

If you want to get a copy of the original DoC of this TV, please visit the following website:

https://www.ptc.panasonic.eu/compliance-documents

Authorized Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, D-22525 Hamburg, Germany

5.15 — 5.35 GHz band of wireless LAN is restricted to indoor operation only in the following countries.

Austria, Belgium, Bulgaria, Czech Republic, Denmark, Estonia, France, Germany, Iceland, Italy, Greece, Spain, Cyprus, Latvia, Liechtenstein, Lithuania, Luxembourg, Hungary, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovenia, Slovakia, Turkey, Finland, Sweden, Switzerland, Croatia Maximum radio-frequency power transmitted in the frequency bands

Type of wireless	Frequency band	Maximum EIRP
Wireless LAN	2412-2472 MHz	18 dBm
	5150-5250 MHz	18 dBm
	5725-5850 MHz	13.7 dBm
Bluetooth®	2402-2480 MHz	7 dBm

Moving the TV

Caution

Before moving the TV, disconnect all cables.

- Move the TV with at least two people. Support as shown to avoid injury by the TV tipping or falling.

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Use conditions

Caution

- This appliance is intended for use in tropical climates.

Setting Up the TV

Supplied accessories

Accessories may not be placed all together. Take care not to throw them away unintentionally.

Operating Instructions

Remote Control

- RC700E or RC730E

(p.14)

Batteries (AAA) × 2

(p.10)

Mini Jack Adapter

- Adapter AV

Pedestal

24-inch model

Assembly screws

(ST3 × 12) × 4

Base

32-inch model

Assembly screws

(ST4 × 15) × 4

Base

43-inch model

Assembly screws

(ST4 × 20) × 4

Base

Attaching the pedestal

1 Assemble the pedestal

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Lay the TV on a foam mat or thick soft cloth on a table.
2 Remove the assembly screws A from the TV.

Inserting remote's batteries

Push down the cover Note the correct polarity (+ or -)

Wall mounting the TV (optional)

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.

Rear of the TV (View from the side)

a b Depth of screw

Screw for fixing the TV onto the wall-hanging bracket (not supplied)

■ Holes for wall-hanging bracket installation

Model a b

24-inch 200 mm 100 mm

32-inch 100 mm 100 mm

43-inch 200 mm 100 mm

Screw specification

Model Type	Depth of screw
	Minimum	Maximum
24-inch M4 11 mm 12 mm
32-inch M4 8 mm	9 mm
43-inch M6 10 mm 12 mm

Warning

• When optional accessories such as wall brackets etc. are used, always read and follow the manufacturer installation and usage instructions.
• Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.
• When installing wall brackets you must ensure the wall bracket is not electrically grounded to metal wall studs. Always ensure that there are no electrical cables, pipes etc. in the wall before you begin the wall bracket installation.
• To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

Connecting the TV

• Please ensure the TV is disconnected from the mains socket/power point before attaching or disconnecting any RF/AV leads.
• External equipment and cables are for illustrative purposes only and not supplied with this TV.
• Check the type of terminals and cable plugs are correct when connecting.
• When using an HDMI cable, use the fully wired one.
• Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise, distortion of image/sound may occur or operation of other equipment may be interfered.
• Also read the manual of the equipment being connected.

Terminals

Rear of the TV

1 2 3 4 5 6 7 8 9 10 USB 2.0 x 2 USB 2.0 x 1.5 USB 2.0 x 1.5 USB 2.0 x 1.5 USB 2.0 x 1.5 USB 2.0 x 1.5 USB 2.0 x 1.5 USB 2.0 x 1.5 USB 2.0 x 1.5 USB 2.0 x 1.5 USB 2.0 x 1.5 1 USB 2.0 x 2 2 ETHERNET 3 SATELLITE IN 4 ANTENNA IN 5 COAXIAL 6 HDMI 1(ARC) 7 COMMON INTERFACE 8 HDMI 2 9 AV IN 10 HEADPHONE

Connections

Aerial

Aerial RF cable ANT

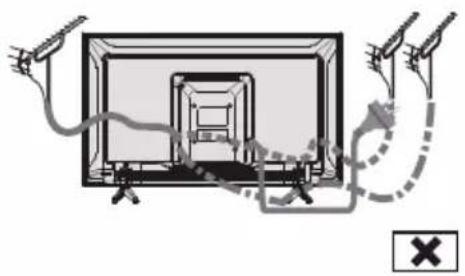

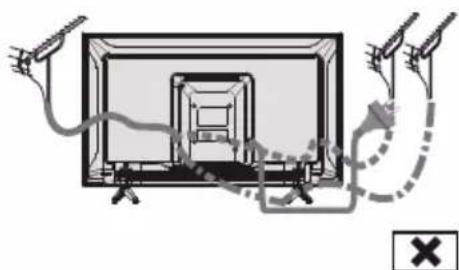

• Keep RF (aerial) cable away from the mains lead to avoid and minimise mains interference pickup.
  • Do not place the RF cable under the TV.
• An aerial, correct cable (75 Ω coaxial) and correct terminating plug are required to obtain optimum quality picture and sound.
• If a communal aerial system is used, you may require the correct connection cable and plug between the wall aerial socket and the TV.
• Your local Television Service Centre or dealer may be able to assist you in obtaining the correct aerial system for your particular area and the accessories required.
• Any matters regarding aerial installation, upgrading of existing systems or accessories required, and the costs incurred, are the responsibility of you, the customer.
• If the aerial is placed in the wrong location, interference might happen.

Diagram showing two hands connecting a TV screen to a plug, with a checkmark indicating approval (no text or symbols present)

Diagram of a TV setup with cable and antenna connections, no text or symbols present

Blu-Ray Player


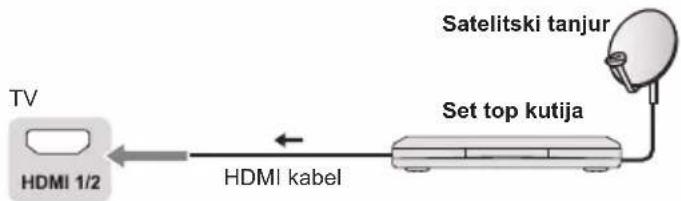

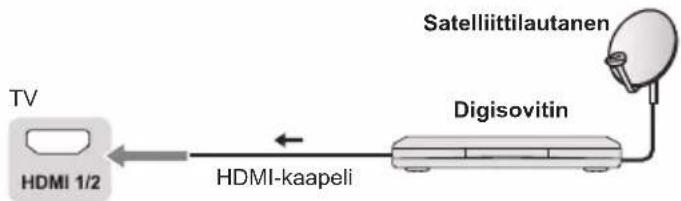

Set top box


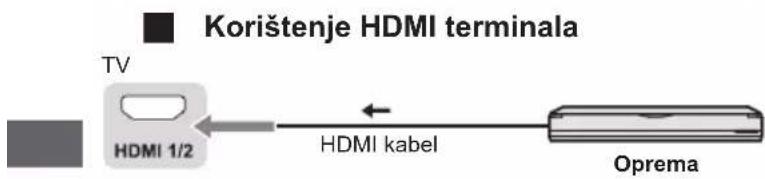

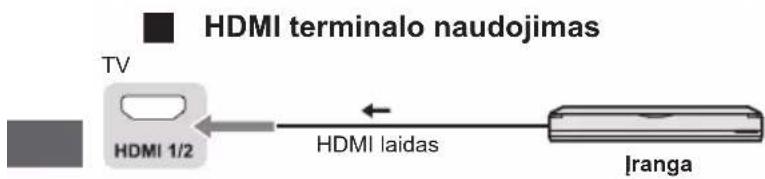

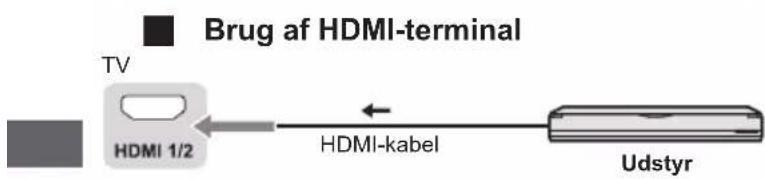

AV / Game equipment


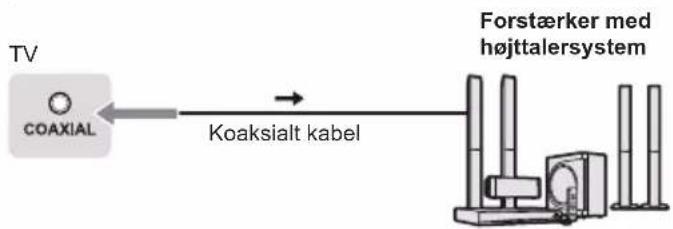

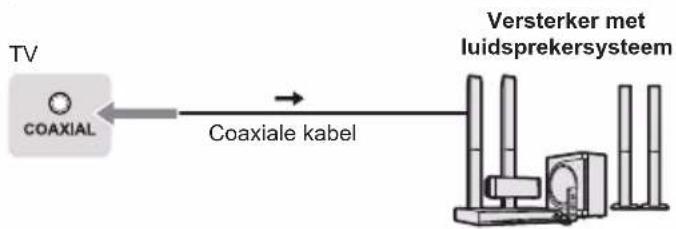

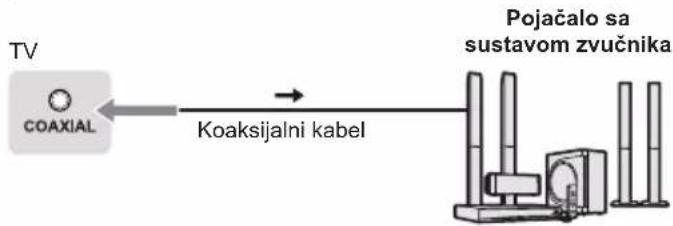

Speaker system


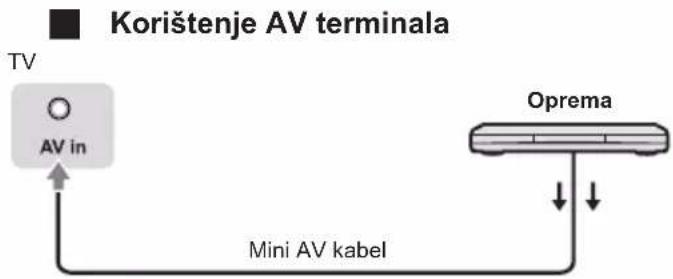

Connecting the TV

• To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier.

DVD Recorder / VCR

TV HDMI 1/2 HDMI cable DVD Recorder/ VCR

Amplifier

• Use HDMI1 to connect the TV to an amplifier which has ARC (Audio Return Channel) function.

Initial Setup

Plug the mains plug into the socket outlet and turn on the TV.

It may take a few seconds before the screen is displayed.

① AC 220 - 240 V, 50/60 Hz ② ⏻

Google - Initial Setup

When you turn on the TV for the first time, there will show a wizard to guide you to finish the following initial settings:

Step 1: Select the menu language as you need.

Note: English (United States) is recommended. Illustrations within this publication are provided for reference only.

Welcome English(United States) Azerbaijan Rosaraki Cebina Dansk Deutsch

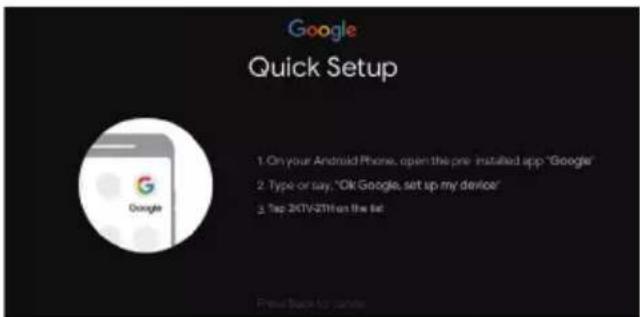

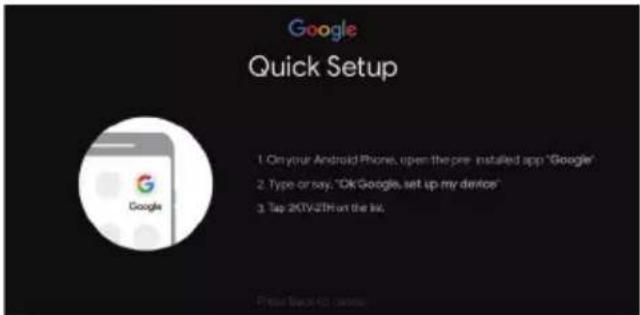

Step 2: (Only for some countries) Select whether or not to use and Android device to setup the TV.

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre-installed app "Google" 2. Type or say, "Ok Google, set up my device" 3. Sep 2014/2015 on the list

Note: If you don't want to use your Android device to setup the TV, you will skip to Step 3. If you want to use your Android device to setup the TV, please turn on the Bluetooth functions of your Android phone, then find and open "Google" application on your phone. Follow the instruction tips to set device.

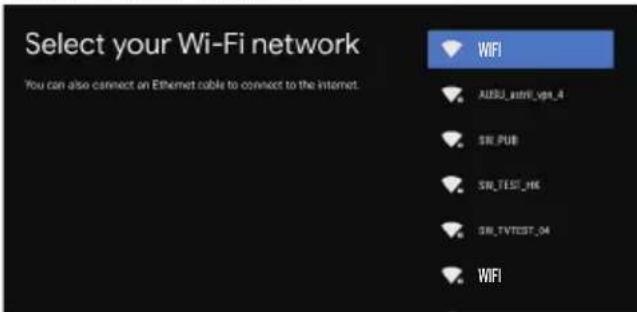

Step 3: Select whether or not to connect your TV set to the Wi-Fi network.

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. WIFI AUDU_juniV_ypa_4 SR_PUB SR_TEST_HK SR_TVTEST_04 WIFI

Note: If you have connected the TV to the WI-FI network, it will check for updates like Google service updates and so on. Then please select whether or not to sign in to your Google account.

Step 4: Read to accept the Google terms of service and privacy policy.

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

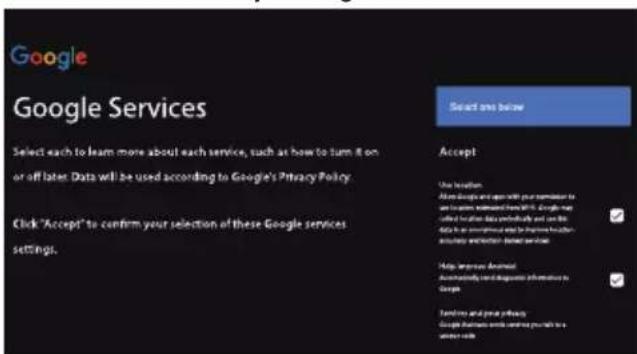

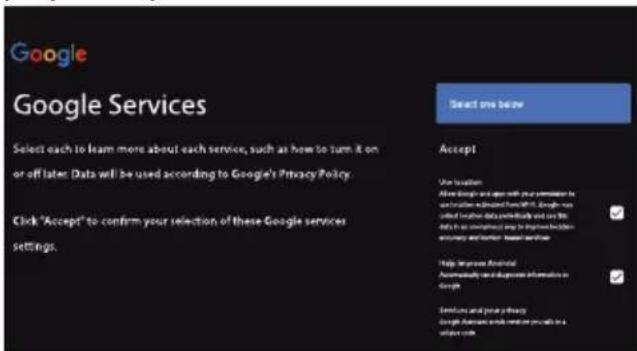

Step 5: Select whether or not to let Google or third party to use your TV location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use Location All things and you will you permission in and provide information about this Google's called location data statistically and use the data in the environment only to improve health security and better health services Help Improve Available Automatically use a diagnosis information to check Sendome and your privacy Google Available and remove privacy in a unique code

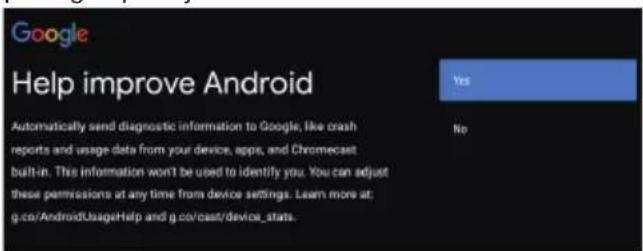

Step 6: Select whether or not to allow Google to help improve your Android TV.

Google Help improve Android Yes No Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

PICTURE OUTPUT INPUT NETFLIX AUDIO LINK prime video APPS Google Play YouTube MENU EXIT BACK OFFX FAV Multi TEXT STL 1 2 3 4 5 6 7 8 9 0 MEDIA PLAYER LAST VIEW Panasonic TV

Remote Control Functions

Most of your television's functions are available via the menus that appear on the screen. The remote control supplied with your set can be used to navigate through the menus and to configure all the general settings.

POWER ⏻ (On/Off button) Turns the TV on or off

PICTURE ▶ To enter the picture mode.

OFF TIMER ⏻ To enter the sleep timer.

INPUT → To enter source selection interface

NETFLIX Goes to the NETFLIX homepage

AUDIO LINK Goes to the AUDIO LINK homepage

prime video Goes to the prime video homepage

■■ APPS To select the apps

Google Play Goes to the Google Play homepage

YouTube Goes to the YouTube homepage

Colour buttons Performs multiple operations which correspond to the operation guide displayed on the menu screen

MENU To open the settings menu

Goes to the smart TV homepage

Press to display the electronic programme guide

i Display to the information

OK Confirms your selection.

(up, down, left and right direction buttons) Highlights different items in the menu system and adjusts the menu controls.

EXIT ✗ To exit the program

BACK ← Exit the menu and return to the previous menu

OPTION Displays the options menu of selected functions

FAV To enter the channel list

(Mic) (Available only when the network connection is normal.)

To open the apps, move the apps or remove from favorites

← To fast backward

▶ To play

To fast forward

To end the running program

To pause

Start recording

+ - - Increases or decreases the volume MUTE 🎧 To mute and un-mute the sound TEXT 📊 To show the picture and text STTL 🔒 To show the subtitles ^ Channel up/down 0~9 Select the digital key number MEDIA PLAYER To enter the media player LAST VIEW 🔔 Return to the last program

MENU EXIT i OK BACK FAV OPTION

Please press OK and HOLD at the same time

How to Pair Remote Control with the TV

This is a Bluetooth remote control, and before using it, please pair it with the TV firstly. The following steps are for your reference:

Step 1: Press button to enter the home page.

Step 2: Press button to enter the "RC pairing".

Step 3: Follow the "Settings tips" page, press OK and together.

Step 4: The screen will display "Pairing..." and the screen will display "Success!" after pairing is complete.

NOTE: If you wait more than 2 minutes and it can't pair, please repeat the above steps for pairing again.

If you want to unpair the Bluetooth remote, follow these steps:

Step 1: Press button to enter the home page.

Step 2: Press ▲/▼/◄/► to choose ⚙, and then press OK to enter.

Step 3: Press ▼ to select "Remotes & accessories" and then to choose the Bluetooth remote name to enter next steps.

Step 4: Press unpair and then choose OK button.

■ When remote control does not respond

1. Press and hold the button as shown below for 3 seconds to reset remote control.

1. Aim remote control reception and unpair by following below. Home > Setting > Remotes & accessories > RCU03 > Unpair

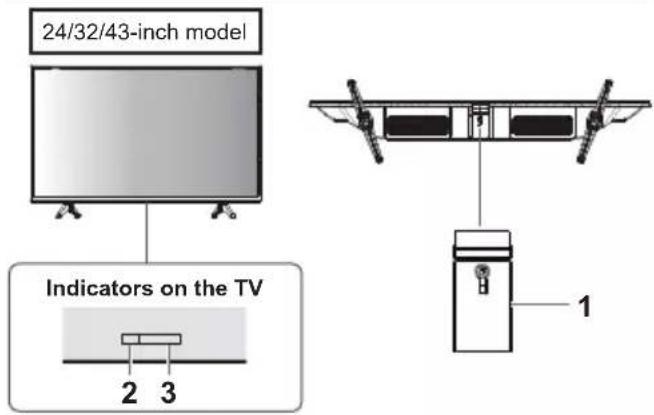

Using the TV controls

24/32/43-inch model Indicators on the TV 2 3 1

1 Power On/Power Off
2 Power LED

Red: Standby
- Green: On

3 Remote control signal receiver

Watching External Inputs

1 Connect the external equipment.

(p.12)

2 Display the [Input] menu, then select the input of the connected equipment.

ATV CABLE ANTENNA SATELLITE AV HDMI 1 HDMI 2 Android TV Home

Press OK key only can access.

Note

- If the external equipment has an aspect adjustment function, set it to "16:9".

Note: This manual is for common use. Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. And for some models, certain options are not available.

You can select all the features from homepage.

Press to display homepage.

Press ▲/▼/◄/► to select icons from the screen list.

Press OK to enter each option.

To exit the APP, press ← or .

Google Assistant: Click to interact with Google Assistant of the TV.

Notifications: Remind you of system-critical information, such as low disk space, Google sign in or account errors, network connectivity issues, etc.

Input: Select the input source.

Settings: Access the system setting.

Apps: Show the list of favorite applications, or access the application center.

CUSTOMISE CHANNELS: Add and remove channels from your Home screen.

Note:

1) The functions and contents of "Home Page" may vary by different countries or models.
2) Before using network functions in home page like network applications and so on, please connect the TV to the network firstly.
3) Icon copyrights are owned by the application providers.

Using the Menu Functions

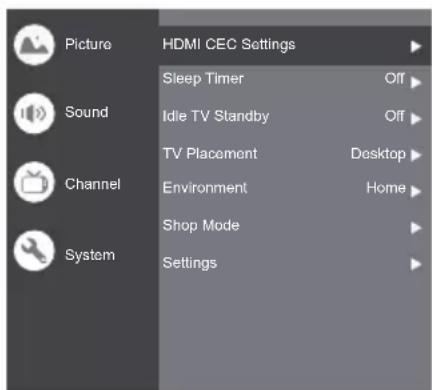

Using Quick Access Menu

Note: Some of the functions might be unavailable in certain sources. And for some models, certain options are not available.

This section explores the menus and settings of your TV. Each menu is outlined and detailed to help you get the most from your TV. To access the menu system:

1. In TV mode, press OPTION remote control to display the quick access list.
2. Press ▲/▼ to select the desired item, then press OK to open the corresponding submenu.
3. In submenu, use ◀/▶ and OK buttons to make the adjustments, or use ▲/▼ to select an item, use OK to enter and operate according to the on-screen display or guide.
4. Press to return to the previous menu.

Option

Picture: Enter to adjust picture mode or advanced settings.
Sound: Select this option to set the sound adjustments.
Channel: Select this option to adjust the channel.
System: Select this option to adjust the settings.


Sound

Channel

System


Picture Sound Channel System Picture Mode Normal Backlight 100 ECO Setting High Aspect Ratio 16:9 Advanced Settings

Picture Mode: To select the mode of Normal, Dynamic, Filmmaker, Sport, Game and Custom.

Backlight: Select the level of 1-100.

ECO Setting: To select the Off, Low and High.

Aspect Ratio:

Displays the [Aspect Ratio] screen. Follow the operation guide to select the mode. [4:3] / [16:9] / Auto / Original.

Advanced Settings:

Color Temperature: To select the Normal, Warm, Cool.

Dynamic Contrast: To select ON or OFF.

HDMI PC/AV Mode: Auto

Overscan: To select ON or OFF

Noise Reduction: To select Off, Low, Medium, High and Auto.

Picture Reset: To reset the picture.

Gamma: Select 2.2 or 2.4.

Motion Estimate and Motion Compensation (MEMC): To select Off, Low, Middle, and High.

Sound

Picture Sound Mode Normal Surround Mode Sound Night Mode Sound Only Channel Output Device Speaker Digital Output PCM System Advanced Settings

Sound Mode: To select the mode of Standard, Speech, Music, Stadium and User.

Surround Mode: Select OFF/ Pure Sound/ Surround.

Night Mode: Select ON or OFF.

Sound Only: Select it and the TV screen will turn off in 10 seconds.

Output Device: To select the Speaker, SPDIF and HDMI-ARC.

Digital Output: Select the PCM/ByPass/Auto.

Advanced Settings:

1. DAC-4 Dialogue Enhanced
2. DAC-4 Dialogue Enhanced Level
3. Balance
4. Digital Audio Delay (ms)
5. Digital Audio Volume
6. eARC
7. Sound Reset

Channel

Picture Sound Channel System Channel Scan Digital Channel Setup EPG Favourite Channel Diagnostic Channel Organizer

Note: This function is only available in TV mode.

Channel Scan: Allows you to scan for all available analog and digital channels.

Digital Channel Setup:

To select the option to adjust the Subtitle Setup, Teletext Setup, Audio Setup, LCN, Auto Service Update, Update Scan.

EPG:

Press OK/▶ to enter the Program Guide menu.

Favourite:

Setup favourite channel list.

Channel Diagnostic:

Press OK/▶ to display some signal information on the current digital channel, such as signal strength, frequency, etc.

Channel Organizer:

This option allows you to organize channels.

System

Picture Sound Channel System HDMI CEC Settings Sleep Timer Idle TV Standby TV Placement Environment Shop Mode Settings Off Off Desktop Home

HDMI CEC Settings:

CEC control: To select On or Off.

Device Auto Power Off: To select On or Off.

Tv Auto Power On: To select On or Off.

CEC Device List: Turn devices on and select [Enable] to enable control of HDMI devices.

Idle TV Standby: To select After 1 hour of inactivity, After 2 hour of inactivity, After 4 hour of inactivity, After 24 hour of inactivity or Off.

TV Placement: To select Desktop and Wallmount.

Environment: To select Home and Shop.

Shop Mode: To select E-Sticker.

Settings:

1. Lock: Click and lock the TV.
2. Power: Turn the Wake On Network and Network Standby on or off.
3. Recording Storage: Put the storage device and record the storage.
4. Privacy Notice: The content about privacy notice.
5. OSS License: The content about oss license.

The input

Press → then press ▲/▼ to select your desired source, and then press OK to confirm.

ATV CABLE ANTENNA SATELLITE AV HDMI 1 HDMI 2 HDMI 3 Android TV Home

Channels setup (ATV and CABLE)

Channels Analogue setup Set up your TV to receive broadcast signal. Analogue Auto Tuning Analogue Manual Tuning Teletext Setup

Analogue setup: Select ATV and enter.

• Analogue Auto Tuning: Press OK to start the automatic search process. The search may take a few minutes.
• Analogue Manual Tuning: Press OK to enter the interface.

Press ▲/▼ to set program, TV system or color system item, then Press ▲/▼ select frequency and press OK to search channel.

- Teletext Setup: Press OK and then use ▲/▼ to select preferred teletext.

Digital Cable Tuning Country or Region Auto Tune Total Scanned: 0 Manual Tune LCN On Auto service Update On

Digital Cable Tuning: Select Cable and enter.

Auto Tune: Press OK to start the automatic search process. The search may take a few minutes. During the process, you can press BACK and choose YES to exit.

Manual Tune: Select the channel number and start to scan

LCN: Select On or Off.

Auto service Update: Select On or Off.

TV Settings

Press 🏠 then press ▲/▼ to select your desired settings, and then press OK to confirm.

Settings

General Settings

Network & Internet No network connected

Accounts & sign-in No accounts

Apps

Device Preferences

Remotes & accessories

General Settings:

Network & Internet: Connect the network.

See all

Other options

Add new network

Scanning always available

Let Google's location service and other apps scan for networks, even when Wi-Fi is off.

Ethernet

Ethernet

Connected

Proxy settings: HTTP proxy is used by the browser but may not be used by other apps.

IP settings: To use DHCP or Static

Accounts & sign-in: To sign in the accounts.

Apps:

See all apps

App permissions

Special app access

Security & restrictions

Device Preferences

About

Date & time

Language

Keyboard

Display & Sound

Storage

Home screen

Google Assistant

Chromecast built-in

Screen saver

Energy saver

Location

Usage & diagnostics

Accessibility

Reboot

About: The information of this TV.

Date & time: Adjust date and time.

Language: Select the language.

Keyboard: Select and adjust keyboard

Display & Sound: Adjust display and sound.

Storage: Check the device storage.

Home screen: Customize channels, reorder apps and open source licenses

Google Assistant: To use the Google Assistant.

Chromecast built-in: To use the Chromecast built-in.

Screen saver: Select the mode of Screen saver.

Energy saver: To turn off display.

Location: To estimate location.

Usage & diagnostics: Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in.

Accessibility:

Captions

High contrast text

(Experimental)

Text to speech

Accessibility shortcut

Services

TalkBack

Off

Switch Access

Off

TVserviceManager

On

Reboot: To reboot the TV.

Remotes & accessories

To searching for accessories...

(Before pairing your Bluetooth devices, make sure they're in pairing mode)

Using Media Player

Media Player allows you to enjoy photo, music or video recorded on a USB Flash Memory.

• The picture may not appear correctly on this TV depending on the digital cameras used.
• Display may take some time when there are many files and folders in the USB Flash Memory.
• Partly degraded files might be displayed at a reduced resolution.
• The folder and file names may be different depending on the digital camera used.

Inserting / Removing the USB Flash Memory

TV 5V —— 900mA MAX • Insert or remove straight and completely.

Starting Media Player

1 Insert the USB Flash Memory.
2 Select the mode.

Select Access

[Document]: Displays the thumbnail of all documents in the USB Flash Memory.

[Photo]: Displays the thumbnail of all photos in the USB Flash Memory.

[Music]: Displays the thumbnail of music folders in the USB Flash Memory.

[Video]: Displays the thumbnail of video titles in the USB Flash Memory.

[Disk]: Displays the thumbnail of all documents in the USB Flash Memory.

[Contents Display]

Follow the operation guide to perform available operations.

When the cursor stays on the icon, it displays the information of the highlighted content.

Document Video Photo Music Disk

Six empty white rectangular boxes arranged in a 2x2 grid on a dark background (no text or symbols)

Document:

1. Select Document icon.
2. Press up, down, left or right direction button to select your desired file and press OK to play.
3. Use OK key to see more option: ZOOM+, ZOOM-.
4. Press return key of remote to stop playing.

Video:

1. Select Video icon, then press OK button to view movie file.
2. Press up, down, left or right direction button to select your desired file and press OK to play.
3. While playing a Video, press the OPTION to display the play console. For the Play console, Press OK key of remote to play and pause the video file. Left key of remote to fast backward. Right key of remote to fast forward.
4. Use OPTION see more option: Photo scale, Looping mode, Subtitle, Subtitle code, Audio track, information and video list.
5. Press return key of remote to stop playing and press return again to exit.

Photo:

1. Select Picture icon, then press OK button to view the picture.
2. Press up, down, left or right direction button to select your desired picture file and press OK to show.
3. While showing picture, press OK to display the play console. For previous and next use remote left and right key.
4. Use OK key to see more option: Left rotation, Right rotation, ZOOM+, ZOOM-, Manual play/Auto play, Information, Play mode, Play interval, BGM: On or Off.

Music:

1. Select Music icon, then press OK button to listen to music.
2. Press up, down, left or right direction button to select your desired file and press OK to play.

3. The Play console includes Previous, Play/Pause, Fast backward/Fast forward, Next.
   Press KEY to see play list and video list.

4. Press return key of remote to stop playing.

Disk:

1. Select Disk icon, then press OK button to choose folder.
2. Press up, down, left or right direction button to select your desired file and press OK to play.
3. Press return key of remote to stop playing.

Additional Information

Auto power standby function

The TV will automatically go into Standby mode in the following conditions:

• No signal is received for 15 minutes.
• [Sleep timer] is active in the [System] menu (p.19).

Input signal that can be displayed

Signal name HDMI
525 (480)/60i, 60p	○
625 (576)/50i, 50p	○
750 (720)/60p, 50p	○
1,125 (1,080)/60i, 50i	○
1,125 (1,080)/60p, 50p, 24p	○
2,250 (2,160)/60p, 50p, 24p	○

○ Mark: Applicable input signal

• Signals other than above may not be displayed properly.
• The above signals are reformatted for optimal viewing on your display.

HDMI connection

This TV incorporates HDMI ^™ technology. HDMI (high-definition multimedia interface) is the world's first complete digital consumer AV interface complying with a non-compression standard.

HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment.

■ Applicable HDMI features

• Input audio signal:
2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)

• Input video signal:

→ "Input signal that can be displayed" (p.16)

Match the output setting of the digital equipment.

USB Flash Memory

For playing back in Media Player

Format: FAT32

Compliance:

Supports only USB1.1 or USB2.0 standard. Maximum USB capacity supported is 1TB.

Note

• Data modified with a PC may not be displayed.
- Do not remove the device while the TV is accessing data. Otherwise this can damage the device or TV.
- Do not touch the pins on the device.
- Insert the device in the correct direction. Otherwise this can damage device or TV.
- Electrical interference, static electricity, or erroneous operation may damage the data or device. Panasonic is not liable for any deterioration or damage of data or device during operations with the TV.
- It is recommended to connect the USB Flash Memory directly to the TV's USB port.
- Some USB devices or USB HUB may not be used with this TV.
- You cannot connect any devices by using the USB port.
- Additional information for USB devices may be on the following website. (English only) http://panasonic.jp/support/global/cs/tv/

Troubleshooting

Before requesting service or assistance, please follow these simple guides to resolve the problem. If an error message appears, follow the message's instructions. If the problem still persists, please contact your local Panasonic dealer for assistance.

Screen

Red, blue, green or black spots on the screen.

This is the characteristic of liquid crystal panels. The liquid crystal panel is built with very high precision technology. Occasionally, a few non-active pixels may appear on the screen as points of red, green, blue or black. This does not affect the performance of your TV and it is not a quality problem.

Chaotic image, noisy.

→ Set [Noise reduction] in the [Picture] menu to remove noise (p.18).
→ Check nearby electrical products (car, motorcycle, fluorescent lamp).

No image is displayed.

→ Check the settings of [Contrast] or [Brightness] in the [Picture] menu (p.18).
→ Check the TV is in AV mode. If the TV is in AV mode, check the selected input mode match the output of the external equipment (p.19).

Unusual image is displayed.

Turn the TV off with Mains power On/Off switch (p.16), then turn it on again.

Pictures from equipment connected via HDMI are unusual.

• Check the HDMI cable is connected properly.
  →Turn the TV and equipment off, then turn them on again.
  → Check an input signal from the equipment (p.12).
  → Use equipment compliant with EIA/CEA-861/861D.

Sound

No sound is produced.

- Check the sound mute setting (p.18) and volume.

Low level or distorted sound.

→ Sound signal reception may be deteriorated.

Sound output via HDMI connection is unusual.

→ Set the sound setting of the connected equipment to "2ch L.PCM".

General

The TV goes into Standby mode.

This TV is equipped with auto power standby function (p.22).

The remote control does not work or is intermittent.

→ Replace the batteries (p.10).
-Point the remote control directly at the remote control signal receiver of the TV (within about 7 m and 30 degree angle).
→ Situate the TV away from sunshine or block sources of bright light from shining on the remote control signal receiver of the TV.

Parts of the TV become hot.

Even if the temperature of parts of the front, top and rear panels has risen, these temperature rises do not cause any problems in terms of performance or quality.

The TV panel moves slightly when it is pushed with a finger.

Clattered sound might be heard.

→ There is some flexibility around the panel to prevent damage. This is not a malfunction.

Overcurrent error message appears.

The connected USB device might cause this error. Remove the device and turn the TV off with Mains power On/Off switch, then turn it on again.

- Check foreign objects are not inside the USB port.

Maintenance

First, remove the mains plug from the socket outlet.

Regular care

• Gently wipe the surface of the display panel, cabinet and pedestal by using a soft cloth.
- Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

For stubborn dirt

First clean the dust on the surface. Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Wring the cloth and wipe the surface. Finally, wipe away all the moisture.

Caution

• Do not use a hard cloth or rub the surface too hard as this could scratch the surface.
• Do not subject the TV's surfaces to water or detergent. Liquid inside the TV could lead to product failure.
• Do not subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.
• The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
• Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.

Specifications

Model no.

24-inch model

TX-24LS500E

32-inch model

TX-32LS500E

43-inch model

TX-43LS500E

Dimensions (W x H x D)

24-inch model

551.4 × 365.3 × 131 mm (With Pedestal)

551.4 × 328 × 84 mm (TV only)

32-inch model

725.9 × 475.4 × 178.5 mm (With Pedestal)

725.9 × 430.8 × 81.7 mm (TV only)

43-inch model

966.8 × 611.1 × 214.5 mm (With Pedestal)

966.8 × 566.4 × 88.5 mm (TV only)

Mass

24-inch model

2.6 kg (With Pedestal)

2.5 kg (TV only)

32-inch model

3.6 kg (With Pedestal)

3.5 kg (TV only)

43-inch model

6.4 kg (With Pedestal)

6.3 kg (TV only)

Connection terminals

AV in

Mini, 1.0 V[p-p] (75 Ω)

EARPHONE

Mini, 130mV rms\~ 150mV rms

HDMI 1 / 2 input

TYPE A Connectors

USB

USB2.0 DC 5V, Max.500 mA

Speaker Output

24-inch model

Audio output

6 W (3 W + 3 W)

32-inch model

Audio output

10 W (5 W + 5 W)

43-inch model

Audio output

16 W (8 W + 8 W)

9 Systems

Systems Function
1 PAL B, G
2 PAL I
3 PAL D, K Reception of broadcast
4 NTSC 4.43
5 NTSC 3.58	Playback from special VCR's or DVD
6 PAL
7 PAL 60 Hz/5.5 MHz	Playback from special disc players and special VCR's or DVD
8 PAL 60 Hz/6.0 MHz
9 PAL 60 Hz/6.5 MHz

Receiving channels (Analogue TV)

VHF BAND

2-12 (PAL)

0-12 (PAL B AUST.)

1-9 (PAL B N.Z.)

1-12 (PAL)

UHF BAND

21-69 (PAL G, H, I)

28-69 (PAL B AUST.)

13-57 (PAL D, K)

Digital TV

DVB-T/T2 Standard

Aerial input

VHF / UHF

Operating conditions
Temperature

0 °C - 45 °C

Humidity

20 % - 80 % RH (non-condensing)

Note

- Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Built-in wireless LAN
Standard compliance and Frequency range

IEEE 802.11 a/b/g/n/ac

2.4~2.5GHz and 5.15~5.825GHz

Security

Support for WPA/WPA2

Built-in Bluetooth

Bluetooth V5.02.4~2.485GHz

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
• For more product information, please visit EPREL: https://eprel.ec.europa.eu.
  EPREL registration number is available on https://eprel.panasonic.eu/product.

Oss License

This product incorporates the following software:

(1) The software developed independently by or for Panasonic Entertainment & Communication Co., Ltd.
(2) The software owned by third party and licensed to Panasonic Entertainment & Communication Co., Ltd.
(3) The software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) The software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or
(5) Open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof [System > Settings > Oss License]

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.

Contact Information: [e-mail]

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Customer's Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number

Serial Number

Panasonic®

Kasutusjuhend

LED TELER

Mudeli nr.

TX-24LS500E

TX-32LS500E

TX-43LS500E

Eesti

Front view of a modern black flat-screen TV with visible screen and legs (no text or symbols)

(kujutis: TX-43LS500E)

Täname, et otsite selle Panasonicu toote.

HE NC Advance™ Covered by patents at patentlist accessadvance.com

Dolby Audio

Diagram showing a device with an arrow pointing to a screen, indicating direction or movement.

CI-moodul

Diagram showing a TV with a prohibition symbol pointing to the right side of the screen, indicating no prohibition.

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Kasutustingimused

Ettevaatust

Patareid (AAA), 2 tk

→(Ik 10)

Minipistikuga adapter

AV-adapter

Tugialus

24-tolline mude

• Montaažikruvid

A (ST3 × 12) × 4

32-tolline mudel

• Montaažikruvid

A (ST4 × 15) × 4

43-tolline mude

Montaažikruvid

A (ST4 × 20) × 4

Alus

Alus

Alus

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Diagram showing two hands connecting a TV screen to a cable, with a checkmark icon below (no text or symbols)

Diagram of a TV setup with cable and connectors, showing internal components and wiring (no text or symbols)

Blu-Ray pleier

Digiboks

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre - installed app 'Google' 2. Type or say, "Ok Google, set up my device" 3. Tap 24TV/2ETH on the list

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. WIFI AUSB2_autR_Vps_4 SIR_PUB SIR_TEST_HK SIR_TVTEST_04 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Select one below Accept Use options An open dialog can go with your permission to create a new server based on the Google map and/or location data periodically and let the data in an open session map to improve local security and other based services Help to remove Android Automatically use diagnostic information to Google Services and privacy security Google database search can you help to a unique help

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

PICTURE OFFSET INPUT NETFLIX AUDIO LINK prime video APPS Google Play Youtube MENU EXIT BACK FAV OK NEXT OPTION Multi OK TEXT STL 1 2 3 4 5 6 7 8 9 0 MEDIA PLAYER LAST VIEW Panasonic TV

Please press OK and HOLD at the same time.

Mini, 1,0 V [p-p] (75 Ω)

KUULARID

Mini, 130 mV rms, vahelduvvool, 150 mV rms

HDMI 1 / 2 sisend

A tüüpi pistmikud

USB

USB 2.0, alalisvool 5 V, max 500 mA

Kõlari väljund

24-tolline mudel

Heliväljund

6 W (3 W + 3 W)

32-tolline mudel

Heliväljund

10 W (5 W + 5 W)

43-tolline mudel

Heliväljund

16 W (8 W + 8 W)

9 süsteemi

Front view of a black rectangular TV with two legs and a blank screen (no text or symbols visible)

HE NC Advance™ Covered by patents at patentlist accessadvance.com

Dolby Audio

Diagram showing a TV screen with a prohibition symbol indicating no restrictions

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Условия за употреба

Внимание

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Diagram showing two hands connecting a TV screen to a cable, with a checkmark indicating approval (no text or symbols present)

Diagram showing a TV screen with cable routing and external cables, no text or symbols present

Blu-Ray плейър

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre installed app "Google" 2. Type or say, "Ok Google, set up my device" 3. Tap 2KTV/2TT on the list

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the Internet. WIFI AUSB_USB_VGT_4 SR_PUB SR_TEST_HK SR_TVTEST_04 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location: After language and app with your permission by service, it is also available for all Google's user, or the other. You can use this data in an application app to create a version of application, which is better than a version of service. Help to improve Android Automatically reduce privacy information in designs. Service and your privacy through Android and email requests you call for unique calls.

Google Help improve Android Yes No Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_state.

Работа с телевизора

The image is too blurry to recognize any text content.

Please press OK and HOME at the same time.

Front view of a modern black flat-screen TV with visible screen and legs (no text or symbols)

HE NC Advance™ Covered by patents at patentlist.accessadvance.com

Dolby Audio

Copyright © 1992–2015

Diagram showing a device with an arrow pointing to a screen, no text or symbols present

Modul CI

Diagram showing a TV screen with a prohibition symbol pointing to it, indicating no prohibition.

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Warunki użytkowania

Przestroga

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Diagram showing two hands connecting a TV screen to a charger, with a checkmark indicating approval (no text or symbols present)

Diagram showing a TV setup with cable and antenna connections, no text or symbols present

Odtwarzacz Blu-ray

Welcome English(United States) Azerbaijan Bosunski Cebina Denak Deutsch

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, upon the pre- installed app "Google" 2. Type or say, "Ok Google, set up my device" 3. Step 2KTV-2TH on the list

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the Internet. WIFI AUSU_ASFE, vpi_4 SR_PUB SR_TEST_HK SR_TVTEST_04 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings: Accept View location: After being able to use and participate in service, or to perform better than it, Google has collectively set data periodically and use the data in an application app to implement local accessory and deliver targeted services Help Improve Android Automatically use diagnostic information to Google Service and your privacy Google Android helps us you call for a unique code

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

PICTURE OUTPUT INPUT NETFLIX AUDIO LINK prime video APPS Google Play YouTube MENU EXIT BACK OFFX FAV Multi TEXT STL 1 2 3 4 5 6 7 8 9 0 MEDIA PLAYER LAST VIEW Panasonic TV

Funkcje pilota

Please press OK and HOME at the same time

Mini, 1,0 V[p-p] (75 Ω)

EARPHONE

Mini, 130 mV–150 mV rms

Wejście HDMI 1/2

Gniazda TYP A

USB

USB2.0 5 V DC, maks. 500 mA

Wyjście głośników

Model 24-calowy

Wyjście audio

6 W (3 W + 3 W)

Model 32-calowy

Wyjście audio

10 W (5 W + 5 W)

Model 43-calowy

Wyjście audio

16 W (8 W + 8 W)

9 systemów

Systemy Funkcja

2–12 (PAL)

0–12 (PAL B AUST.)

1–9 (PAL B N.Z.)

1–12 (PAL)

PASMO UHF

21–69 (PAL G, H, I)

28–69 (PAL B AUST.)

13–57 (PAL D, K)

Telewizja cyfrowa

Standard DVB-T/T2

Wejście antenowe

VHF/UHF

Warunki użytkowania

Temperatura

0–45°C

Wilgotność

Front view of a modern black flat-screen TV with visible screen and legs (no text or symbols)

HE NC Advance™ Covered by patents at patentlist accessadvance.com

Dolby Audio

Copyright © 1992-2015

Dolby Laboratories. Alle rettigheder forbeholdes.

Diagram showing a device with a label and directional arrow pointing to a screen, likely illustrating a process or system.

Cl-modul

Diagram showing a device with a prohibition symbol pointing to it, indicating no prohibition.

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Tyskland

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Brugsforhold

Forsigtig

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Diagram showing two hands connecting a TV screen to a plug, with a checkmark indicating approval (no text or symbols present)

Diagram of a TV setup with cable and antenna connections, no text or symbols present

BluRay-afspiller

Set top-boks

AV-/Spiludstyr

Højttalersystem

Welcome English Limited Status Azerbaijan Russia Cebina Denak Deutsch

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre-installed app "Google" 2. Type or say, "Ok Google, set up my device" 3. Tap 24TV-2ETH on the list: Press Back to scan

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the Internet. WIFI AUDU, admin, obs_4 SW_PUB SRLTEST_HK SRLTVTEST_04 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Seed one below Accept Use location: After Google and again with your permission to on location selected from Google, Google may Collected where data is periodically and use the data in an automatic tool to improve location accessivity and further access to the service Help prepare Android. Automatically find diagnostic information in Google Internet and privacy Google Applications should continue you call for a service link

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

PICTURE OFFSET INPUT NETFLIX AUDIO LINK prime video APPS Google Play Youtube MENU EXIT BACK FAV OK NEXT OPTION Multi OK TEXT STL 1 2 3 4 5 6 7 8 9 0 MEDIA PLAYER LAST VIEW Panasonic TV

PICTURE ▶ Åbner billedtilstand.

OFF TIMER ⏻ Åbner autosluk-timeren.

Please press OK and HOLD at the same time

Six white outlined squares arranged in two rows on a dark background (no text or symbols)

Dokument:

Mini, 1,0 V[p-p] (75 Ω)

HOVEDTELEFONER

Mini, 130 mV rms-150 mV rms

HDMI-indgang 1 / 2

TYPE A-stik

USB

2-12 (PAL)

0-12 (PAL B AUST.)

1-9 (PAL B N.Z.)

1-12 (PAL)

UHF-BÄND

21-69 (PAL G, H, I)

28-69 (PAL B AUST.)

13-57 (PAL D, K)

Digital TV

DVB-T/T2-standard

Antenneindgang

VHF / UHF

Driftsforhold

Temperatur

0 °C - 45 °C

Luftfugtighed

20 % - 80 % RH (ikke-kondenserende)

Bemærk

Front view of a black rectangular TV with stand legs (no visible text or symbols)

Covered by patents at patentist accessadvance.com

Dolby Audio

Diagram showing a TV with a prohibition symbol indicating no prohibition for use or application.

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, D-22525 Hamburg, Deutschland

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Einsatzbedingungen

Vorsicht

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Diagram showing two hands connecting a TV screen to a device, with a checkmark indicating approval (no text or symbols present)

Diagram of a TV setup with cable and antenna connections, no text or symbols present

Blu-Ray-Player

AV / Gaming-Gerät

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV

Google Quick Setup 1. On your Android Phone, open the pre installed app 'Google' 2. Type or say, "Ok Google, set up my device" 3. Tap 20TV/2TH on the list.

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. WIFI AUSB2_uHIFI_vpt_4 SR_PUB SR_TEST_HK SR_TVTEST_04 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location Show Google's help with your website for use location allowed by Google's Privacy Policy. Google's click another help particularly use the data in an open account or in connection to the accessible website based service Help Improve Android Automotive use to choose to access to Google Install and your privacy Google Applications need you to get a open account

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats. Yes No

Please press OIE and HOMB at the same time.

Six empty white rectangular boxes arranged in a 2x2 grid on a dark background (no text or symbols)

Dokument:

Front view of a modern black flat-screen TV with visible screen and legs (no text or symbols)

(illustration : TX-43LS500E)

HE NC Advance™ Covered by patents at patentlist.accessadvance.com

Dolby Audio

Diagram showing a TV with a prohibition symbol indicating no restrictions on the screen.

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, D-22525 Hamburg, Allemagne

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Diagram showing two hands connecting a TV screen to a device, with a checkmark indicating approval (no text or symbols present)

Diagram showing cable routing around a TV screen with connectors and a warning symbol (no text or labels)

Lecteur Blu-Ray

Welcome English(United Sizes) Azerbaycom Rosaraki Cebina Dansk Deutsch

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre- installed app 'Google' 2. Type or say, 'Ok Google, set up my device' 3. Tap 2GTVETH on the list Press Back to scan

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the Internet WIFI AUSB, subN, vps_4 SN_PUB SN_TEST_HK SN_TVTEST_04 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Select one below Accept Use location: After Google and you will provide the service information available from Google, you created another data pointally and use the data in an application tool to improve localization, access and better website settings. Help improve Android Automatically find diagnosis information to Google Textiles and your privacy Google Award and helps continue your life for a unique visit.

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Please press OK and HOLD at the same time.

Technical diagram showing a mechanical assembly with labeled component 1

Gestion des services TV

Activé

Six white outlined squares arranged in two rows on a black background (no text or symbols)

Document :

Dimensions (L x H x P)

Modèles 24 pouces

2-12 (PAL)

0-12 (PAL B AUST.)

1-9 (PAL B N.Z.)

1-12 (PAL)

BANDE UHF

21-69 (PAL G, H, I)

28-69 (PAL B AUST.)

13-57 (PAL D, K)

TV numérique

Norme DVB-T/T2

VHF/UHF

Front view of a black rectangular TV with two legs and a blank screen (no text or symbols visible)

(kuva: TX-43LS500E)

HE NC Advance™ Covered by patents at patentlist accessadvance.com

Dolby Audio

Diagram showing a device with a label pointing to a screen, likely illustrating a process or system.

CI-moduuli

Diagram showing a device with a prohibition symbol pointing to it, indicating no prohibition.

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, D-22525 Hampuri, Saksa

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Käyttöehdot

Varoitus

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Jalustan irrottaminen televisiosta

Diagram showing two hands connecting a TV screen to a cable, with a checkmark indicating approval (no text or symbols present)

Diagram of a TV setup with cable and connectors, no text or symbols present

Blu-ray-soitin

Digisovitin

AV-/pelilaitteisto

Welcome English(United States) Azerbaijan Bosanaki Cebina Dansk Deutsch

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre-installed app "Google" 2. Type or say, "Ok Google, set up my device" 3. Tap 20TV20Tr on the list

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. WIFI AUTO\_auth_Vga_4 SR_PUB SR_TEST_HK SR_FVTEST_O4 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? View more How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Select one below Accept Use information: Able Google and app with your permission to and download instructions from Google's Privacy Policy (IP) used in location data periodically and can file data in all terms that may be required but not otherwise for download data. Help access Android. Automatically find disposal information in Google Services and your privacy Google Database will serve you will be a unique work

Google Help improve Android Yes No Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

PICTURE OUT TIME INPUT NETFLIX AUDIO LINK prime video APPS Google Play YouTube MENU EXIT BACK OFFX FAV Multi OK TEXT ✓ STTL 1 2 3 4 5 6 7 8 9 0 MEDIA PLAYER LAST VIEW Panasonic TV

水 Please press OK and HOME at the same time.

Six white rectangular outlines arranged in two rows on a black background (no text or symbols)

Asiakirja:

Mini, 1,0 V[p-p] (75 Ω)

KUULOKKEET

Mini, 130 mV rms\~ 150 mV rms

2-12 (PAL)

0-12 (PAL B AUST.)

1-9 (PAL B N.Z.)

1-12 (PAL)

UHF-KAISTA

21-69 (PAL G, H, I)

28-69 (PAL B AUST.)

13-57 (PAL D, K)

Digitaali-TV

DVB-T/T2 vakio

Antennitulo

VHF / UHF

Käyttöolosuhteet

Lämpötila

0 °C - 45 °C

Kosteus

Front view of a black rectangular TV with stand legs (no visible text or symbols)

HE NC Advance™ Covered by patents at patentlist.accessadvance.com

Dolby Audio

Diagram showing a TV with a prohibition symbol indicating no restrictions on the screen.

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Diagram showing two hands connecting a TV screen to a cable, with a checkmark indicating approval (no text or symbols present)

Diagram of a TV setup with cable and connectors, showing internal components and wiring (no text or symbols)

Blu-Ray speler

Set-top box

AV-/game-apparatuur
    note right of TV: De HDMI-aansluiting gebruiken
    note right of Apparatuur

Luidsprekersysteem

De tv aansluiten

Welcome English(United States) Azerbaijan Bosanaki Cebina Denak Deutsch

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre-installed app "Google" 2. Type or say, "Ok Google, set up my device" 3. Step 2KTV-2TH on the list

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the Internet. WiFi AUSU_astRI_vox_4 SR_PUB SR_TEST_HK SR_TVTEST_04 WiFi

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept View location: Aire Bangli and Go with and participate by service provider, www Bangladesh Pay #1. Google, the collection of service providers and use this data in an emergency app to Program the system accessory and deliver a service. Help Improve Android Automatically use of Diagnostic Information for download Service and your privacy Google Android and help you call to a unique code.

Google Help improve Android Yes No Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

PICTURE OFFTRIM INPUT NETFLIX AUDIO LINK prime video APPS Google Play YouTube MENU EXIT BACK ACCESS FAV OK Multi OK TEXT STTL 1 2 3 4 5 6 7 8 9 0 NEGA PLAYER LAST VIEW Panasonic TV

prime video De Prime Video-homepagina openen

APPS Apps selecteren

Google Play De Google Play-homepagina openen

YouTube De YouTube-homepagina openen

Please press OK and HOME at the same time

Overscan: Selecteer AAN of UIT

CEC-bediening: Selecteer Aan of Uit.

LCN: Selecteer Aan of Uit.

Automatische service-update: Selecteer Aan of Uit.

Tv-instellingen

Six white outlined squares arranged in two rows on a black background (no text or symbols)

Document:

Mini, 1,0 V[p-p] (75 Ω)

HOOFDTELEFOON

Mini, 130mV rms\~ 150mV rms

HDMI-ingangen 1 / 2

TYPE A connectoren

USB

USB2.0 DC 5V, Max.500 mA

Luidsprekeruitgang

24-inch model

Audio-uitgang

6 W (3 W + 3 W)

32-inch model

Audio-uitgang

10 W (5 W + 5 W)

43-inch model

Audio-uitgang

16 W (8 W + 8 W)

9 systemen

Front view of a modern black flat-screen TV with visible screen and legs (no text or symbols)

(ilustrace: TX-43LS500E)

Covered by patents at patentist accessadvance.com

Dolby Audio

TV CI modu

Diagram showing a TV with a prohibition symbol indicating no protection or prohibition in the display area.

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Podmínky použití

Varování

Technical line drawing of a monitor mounted on a stand, showing internal components and a labeled component 'A' (no text or symbols beyond label)

Diagram showing two hands connecting a TV screen to a device, with a checkmark indicating approval (no text or symbols present)

Diagram of a TV setup with cable and antenna connections, no text or symbols present

Blu-Ray přehrávač

Welcome English(United States) Azerbaijan Rosaraki Cebina Dansk Deutsch

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre- installed app 'Google' 2. Type or say: "Ok Google, set up my device" 3. Tap 24TVETH on the list Press Back to cancel

Select your Wi-Fi network You can also connect on Ethernet cable to connect to the internet. WIFI AEDU_ustV_vgs_4 SR_PUB SR_TEST_HK SR_TVTEST_04 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? View more How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy Click "Accept" to confirm your selection of these Google services settings. Select one serve Accept Use location: Are available and also with your permission to use location allowed how it is Google may used in location data periodically and can file data in any way to improve local accessibility and access information. Help Improve Android Automatically and diagnostic information in Google Textiles and privacy privacy Google Database works here you're to a service tool

Google Help improve Android Yes No Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

PICTURE OFFSET INPUT NETFLIX AUDIO LINK prime video APPS Google Play Youtube MENU EXIT BACK OFFON FAV Multi OK TEXT ✓ STIL ✓ 1 2 3 4 5 6 7 8 9 0 MEDIA PLAYER LAST VIEW Panasonic TV

Please press OK and HOME at the same time

Six identical empty white rectangular boxes arranged in a 2x2 grid on a black background (no text or symbols)

Dokumenty:

Mini, 1,0 V[p-p] (75 Ω)

SLUCHÁTKA

Mini, 130 mV rms \~ 150 mV rms

Vstup HDMI 1 / 2

Konektory typu A

USB

USB 2.0 DC 5 V, max. 500 mA

Výstup reproduktoru

2–12 (PAL)

0–12 (PAL B AUST.)

1–9 (PAL B N.Z.)

1–12 (PAL)

PÁSMO UHF

21–69 (PAL G, H, I)

28–69 (PAL B AUST.)

13–57 (PAL D, K)

Digitální TV

Standard DVB-T/T2

Anténový vstup

VHF / UHF

Provozní podmínky

Teplota

0 °C - 45 °C

Vlhkost

Front view of a black rectangular TV with stand legs (no visible text or symbols)

(slika: TX-43LS500E)

Hvala vam što ste kupili ovaj Panasonic proizvod.

HE NC Advance™ Covered by patents at patentlist.accessadvance.com

Dolby Audio

Izrazi HDMI, HDMI High-Definition Multimedia Interface i HDMI logotip zaštitni su znakovi ili registrirani zaštitni znakovi tvrtke HDMI Licensing Administrator, Inc.

Dolby, Dolby Audio i simbol dvostrukog D su zaštitni znakovi Dolby Laboratories.

Proizvedeno prema licenci Dolby Laboratories.

Diagram showing a device with an arrow pointing to a screen, likely illustrating a process or operation.

Cl modul

Diagram showing a monitor with a stop sign and prohibition symbol, indicating no stop or allowed.

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Uvjeti korištenja

Oprez

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Uklanjanje postolja s TV-a

Diagram showing two hands connecting a TV screen to a power plug, with a checkmark indicating approval (no text or symbols present)

Diagram of a TV setup with cable and connectors, showing internal layout and connection points (no text or symbols)

Blu-Ray player

Set top kutija

AV / Oprema za igre

Sustav zvučnika

Spajanje TV-a

• Za uživanje u zvuku s vanjske opreme u višekanalnom zvuku (npr. Dolby Digital 5.1ch), spojite opremu na pojačalo. Za priključke pročitajte priručnike opreme i pojačala.

DVD snimač / VCR

Pojačalo

• Koristite HDMI1 za povezivanje TV-a na pojačalo koje ima funkciju ARC (povratni audio kanal).

Početno postavljanje

Utaknite mrežni utikač u utičnicu i uključite TV.

Welcome English(Umbel State) Azerbaijan Rosambique Cebina Denali Deutsch

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre installed app 'Google' 2. Type or say, "Ok Google, set up my device" 3. Tap 20TV-2DH on the list.

Napomena: Ako ne želite koristiti svoj Android uređaj za postavljanje TV-a, preskočit ćete na korak 3. Ako želite koristiti svoj Android uređaj za postavljanje TV-a, uključite Bluetooth funkcije na svom Android telefonu, zatim pronadite i otvorite aplikaciju "Google" na svom telefonu. Slijedite upute za postavljanje uređaja.

Korak 3: Odaberite želite li ili ne povezati svoj TV prijemnik na Wi-Fi mrežu.

Select your Wi-Fi network You can also connect on Ethernet cable to connect to the internet. WIFI AUSB_cshf_vps_4 SR_PUB SR_TEST_HK SR_TVTEST_04 WIFI

Napomena: Ako ste televizor spojili na WI-FI mrežu, on će provjeriti ima li ažuriranja poput ažuriranja Googleovih usluga i tako dalje. Zatim odaberite hoćete li se prijaviti na svoj Google račun ili ne.

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Korak 5: Odaberite želite li dopustiti Googleu ili trećoj strani da koristi lokaciju vašeg TV-a.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Select one below Accept Use location After Google and you will provide a permission to and location, interested in Google's Privacy Policy. Called from other data statistically and use the data for an important role in improving local accuracy and protection - protected services Help us improve Android Automatically find diagnosis information to Google Send you and your privacy Google delivers some content you talk to a user who is

Korak 6: Odaberite želite li dopustiti Googleu da vam pomogne poboljšati vaš Android TV.

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

PICTURE OUTPUT INPUT NETFLIX AUDIO LINK prime video APPS Google Play YouTube MENU EXIT BACK OFFX FAV Multi TEXT STL 1 2 3 4 5 6 7 8 9 0 MEDIA PLAYER LAST VIEW Panasonic TV

Funkcije daljinskog upravljača

Please press OK and HOME at the same time

Kako upariti daljinski upravljač s televizorom

Ovo je Bluetooth daljinski upravljač i prije upotrebe ga najprije uparite s TV-om. Sljedeći su koraci za vašu referencu:

Six white rectangular outlines arranged in two rows on a dark background (no text or symbols)

Dokument:

2-12 (PAL)

0-12 (PAL B AUST.)

1-9 (PAL B N.Z.)

1-12 (PAL)

UHF POJAS

21-69 (PAL G, H, I)

28-69 (PAL B AUST.)

13-57 (PAL D, K)

Digitalna TV

DVB-T/T2 Standard

Zračni ulaz

VHF / UHF

Front view of a black rectangular TV with stand legs (no visible text or symbols)

HE NC Advance™ Covered by patents at patentlist accessadvance.com

Dolby Audio

Termini HDMI, HDMI High-Definition Multimedia Interface un HDMI logotips ir HDMI Licensing Administrator, Inc. prečzīmes vai registrētas prečzīmes.

Diagram showing a TV screen with a prohibition symbol indicating no restrictions

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, D-22525 Hamburg, Germany

Illustration of two workers exchanging a package with a magnified inset showing hand gesture (no text or symbols)

Lietošanas apstākļi

Uzmanību!

Technical line drawing of a monitor mounted on a stand, showing internal components and mounting bracket (no text or symbols)

Diagram showing two hands connecting a TV screen to a cable, with a checkmark indicating approval (no text or symbols present)

Diagram of a TV setup with cable and antenna connections, no text or symbols present

Blu-Ray atskanotājs

TV HDMI 1/2 HDMI kabelis Blu-Ray atskanotājs

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre installed app "Google" 2. Type or say, "Ok Google, set up my device" 3. Step 24TV27H on the list

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the Internet. WIFI AUS2_ustE_vgs_4 SR_PUB SR_TEST_HK SR_TVTEST_04 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy Click "Accept" to confirm your selection of these Google services settings. Select one below Accept Use location, More Google and more with your connection to set location submitted here in 10% degree map colored in order data periodically and use the data in any particular way to ensure that all accessories and connections are listed services Help to access Account Automatically and diagnose information to Google Services and your privacy Google Database needs sensitive you like to a service tool

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

PICTURE OUTPUT INPUT NETFLIX AUDIO LINK prime video APPS Google Play YouTube MENU EXIT BACK OFFX FAV Multi TEXT STL 1 2 3 4 5 6 7 8 9 0 MEDIA PLAYER LAST VIEW Panasonic TV

Please press OK and HOME at the same time

Front view of a modern black flat-screen TV with visible screen and legs (no text or symbols)

HE NC Advance™ Covered by patents at patentist accessadvance.com

Dolby Audio

Diagram showing a TV with a prohibition symbol pointing to the right side of the screen, indicating no prohibition.

Illustration of two workers exchanging a package with hands, no text or symbols present

Naudojimo sąlygos

Ispėjimas

Technical line drawing of a flat-screen monitor with screw base and labeled component A (no text or symbols beyond labels)

Diagram showing two hands connecting a TV screen to a cable, with a checkmark indicating approval (no text or symbols present)

Diagram of a TV setup with cable and connectors, showing internal layout and connection points (no text or symbols)

„Blu-Ray“ grotuvas

AV / žaidimų įranga

HDMI terminalo naudojimas TV HDMI 1/2 HDMI laidas Iranga

Diagram of a TV cable with an attached power outlet, showing internal structure and wiring (no text or symbols)

②

①

Kint. sr. 220 - 240 V, 50/60 Hz

Welcome English/United States Azarbaycan Bosaniki Cebina Darak Deutsch

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's Wi-Fi network and Google Account to your TV Continue Skip

Google Quick Setup 1. On your Android Phone, open the pre-installed app "Google" 2. Type or say, "Ok Google, set up my device" 3. Step 24/14/20 on the list

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. WIFI AUSB_iUSB_vps_4 SR_PUB SR_TEST_HK SR_TVTEST_04 WIFI

Did you know? Did you know that your TV has settings and that you can change them now, or later in Setting? How your TV uses location. You can allow apps and services to use your TV's location. Google may also collect and use location date to help provide and improve services that use location.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location All things and you will use permission in and include a related link from Google's called information data, which is also only the other important way to improve the business security and security based services. Help Improve Amazonia Automatically and improves information in Google Send you and press privacy Google Amazonian email requests via this in a online code.

Google Help improve Android Yes No Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Please press OK and HDMI at the same time

Six empty white rectangular boxes arranged in a 2x2 grid on a dark background (no text or symbols)

Dokumentas:

Mini, 1,0 V[p-p] (75 Ω)

AUSINÈS

Mini, 130 mV vkv\~ 150 mV vkv

HDMI 1 / 2 jvestis

TYPE A jungtys

USB

USB2.0 nuol. sr. 5 V, maks. 500 mA

VHF JUOSTA

2-12 (PAL)

0-12 (PAL B AUST.)

1-9 (PAL B N.Z.)

1-12 (PAL)

UHF JUOSTA

21-69 (PAL G, H, I)

28-69 (PAL B AUST.)

13-57 (PAL D, K)
