24VMDTCR1CT - Detector Sun Joe - Free user manual and instructions

Product Type	Wireless Metal Detector
Brand	Sun Joe
Model	24VMDTCR1CT
Power Source	24V lithium-ion battery (iON+ series), sold separately
Rated Voltage	21.6 V (under load), 24 V no load
Max. Operating Current	60 mA
Search Coil	Concentric, waterproof, 25 cm
Coil Frequency	6.6 kHz ± 0.5 kHz
Detection Modes	All Metal, DISC (discrimination), Pinpoint
Sensitivity Adjustment	Yes, by levels (bar display)
Detection Depth	0 – 20 cm (depending on size and type of metal)
Depth Indicator	Bars on LCD screen

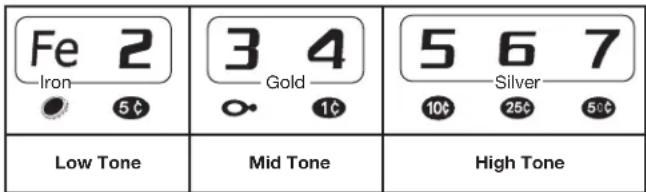

Target Identification	Icons and category bar (iron, gold, silver)
Shaft Length	Telescopic: 105 – 132 cm
Net Weight	2 kg
Headphone Jack	Yes, 3.5 mm
Included Accessories	Folding shovel-pick, pouch, storage bag, manual
Compatible Batteries (optional)	24VBAT-LTW, 24VBAT-LTX, 24VBAT-LTE, 24VBAT-LT, 24VBAT, 24VBAT-XR
Recommended Charger (optional)	24VCHRG-QC (fast) or 24VCHRG-DPC (dual)
Maintenance and Cleaning	Wipe with a damp cloth; do not use solvents; store indoors in a dry place
Safety	Use only with iON+ 24V battery; do not immerse the control box; do not modify the device
Spare Parts and Repairability	Contact Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563)

Frequently Asked Questions - 24VMDTCR1CT Sun Joe

What types of batteries can I use with this detector?

This detector works only with Sun Joe's iON+ 24V series lithium-ion batteries (models: 24VBAT-LTW, 24VBAT-LTX, 24VBAT-LTE, 24VBAT-LT, 24VBAT, 24VBAT-XR). The battery and charger are sold separately.

How do I adjust the sensitivity of the detector?

Press the Setting button once. The sensitivity level indicator blinks. Use the + and – buttons to increase or decrease sensitivity, then press the Confirm button to confirm.

What should I do if the detector emits false signals?

Possible causes include: electromagnetic interference, extreme humidity, too high sensitivity, or sweeping too fast. Solutions: move to another area, reduce sensitivity, sweep slowly keeping the coil parallel to the ground at 2.5–5 cm height.

How to use DISC (discrimination) mode?

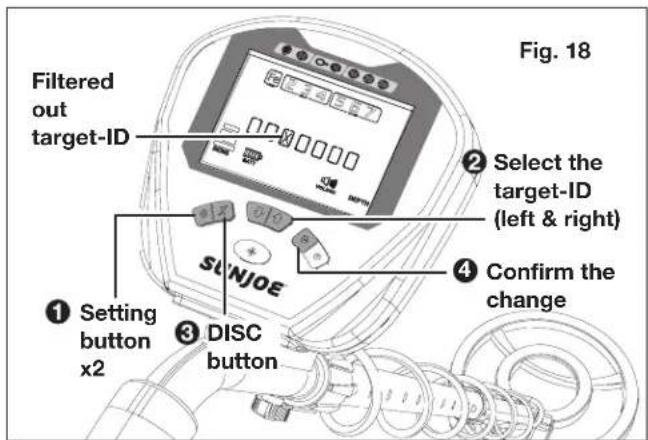

Press the Setting button twice. The first box of the DISC bar blinks. Use the + and – buttons to select the target identifier to filter, then press DISC to mark it with a cross. Confirm with Confirm.

The detector detects nothing, what should I check?

Check that the sensitivity is not too low, no identifier is filtered in DISC mode, the coil is parallel to the ground, and the battery is charged. Also ensure the coil cable is properly plugged into the DIN connector.

Can I use headphones with this detector?

Yes, a 3.5 mm headphone jack is located under the control box. Plugging in headphones cuts off the built-in speaker, which can improve battery life and reduce noise disturbance. However, avoid using it near dangerous areas or traffic.

How to maintain the detector?

Turn off the device and remove the battery before any maintenance. Clean with a damp cloth; do not use solvents or chemicals. Store it in a dry, cool place away from dust and dirt.

Is the detector waterproof?

The search coil and lower part of the shaft can be submerged in water, but the control box, battery, and cable plug must never be exposed to water. The waterproofing is designed for use in wet weather, not for prolonged immersion.

How to adjust the volume?

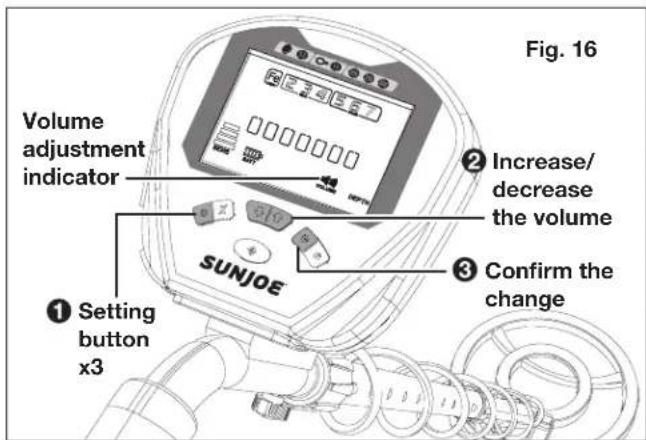

Press the Setting button three times. The volume indicator blinks. Use the + and – buttons to adjust, then confirm with Confirm.

What should I do if the battery does not charge?

Check that the charger is properly plugged in and the ambient temperature is between 5 °C and 40.5 °C. Use only a compatible iON+ 24V charger (24VCHRG-QC or 24VCHRG-DPC). If the problem persists, contact Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE.

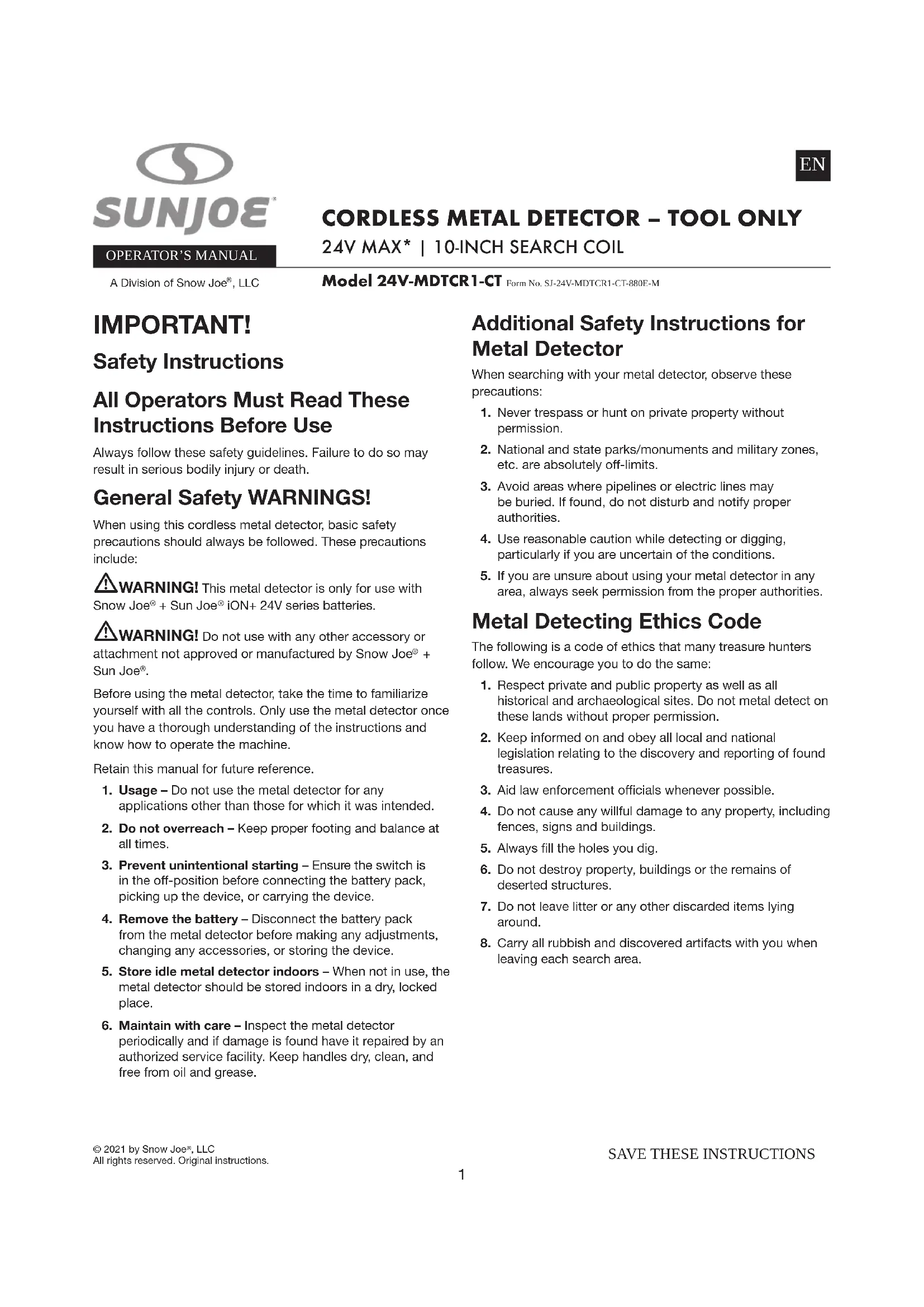

USER MANUAL 24VMDTCR1CT Sun Joe

All Operators Must Read These Instructions Before Use

Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.

General Safety WARNINGS!

When using this cordless metal detector, basic safety precautions should always be followed. These precautions include:

⚠ WARNING! This metal detector is only for use with Snow Joe® + Sun Joe® iON+ 24V series batteries.

⚠ WARNING! Do not use with any other accessory or attachment not approved or manufactured by Snow Joe® + Sun Joe®.

Before using the metal detector, take the time to familiarize yourself with all the controls. Only use the metal detector once you have a thorough understanding of the instructions and know how to operate the machine.

Retain this manual for future reference.

1. Usage – Do not use the metal detector for any applications other than those for which it was intended.
2. Do not overreach – Keep proper footing and balance at all times.
3. Prevent unintentional starting – Ensure the switch is in the off-position before connecting the battery pack, picking up the device, or carrying the device.
4. Remove the battery – Disconnect the battery pack from the metal detector before making any adjustments, changing any accessories, or storing the device.
5. Store idle metal detector indoors – When not in use, the metal detector should be stored indoors in a dry, locked place.
6. Maintain with care – Inspect the metal detector periodically and if damage is found have it repaired by an authorized service facility. Keep handles dry, clean, and free from oil and grease.

Additional Safety Instructions for Metal Detector

When searching with your metal detector, observe these precautions:

1. Never trespass or hunt on private property without permission.
2. National and state parks/monuments and military zones, etc. are absolutely off-limits.
3. Avoid areas where pipelines or electric lines may be buried. If found, do not disturb and notify proper authorities.
4. Use reasonable caution while detecting or digging, particularly if you are uncertain of the conditions.
5. If you are unsure about using your metal detector in any area, always seek permission from the proper authorities.

Metal Detecting Ethics Code

The following is a code of ethics that many treasure hunters follow. We encourage you to do the same:

1. Respect private and public property as well as all historical and archaeological sites. Do not metal detect on these lands without proper permission.
2. Keep informed on and obey all local and national legislation relating to the discovery and reporting of found treasures.
3. Aid law enforcement officials whenever possible.
4. Do not cause any willful damage to any property, including fences, signs and buildings.
5. Always fill the holes you dig.
6. Do not destroy property, buildings or the remains of deserted structures.
7. Do not leave litter or any other discarded items lying around.
8. Carry all rubbish and discovered artifacts with you when leaving each search area.

Electric Safety

⚠ WARNING! Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may carry a risk of fire if used with another battery pack.
2. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
3. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek additional medical help. Liquid ejected from the battery may cause irritation or burns.
4. Do not expose the battery pack or device to fire or excessive temperature. Exposure to fire or temperatures above 265^ F ( 130^ C) may cause explosion.
5. Follow all charging instructions and do not charge the battery pack or device outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

Battery & Charger Safety Instructions

NOTE: This unit is the tool only. The battery and the charger are not included. They must be purchased separately. Model 24V-MDTCR1-CT is compatible with the 24V iON+ System batteries and chargers. See page 17 for more information.

We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs.

Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery pack may cause cell damage.

IMPORTANT! Analyses show that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage.

⚠ WARNING! Use only approved replacement batteries; other batteries may damage the metal detector and cause it to malfunction, which can lead to fire or serious personal injury.

⚠ WARNING! Do not use the battery pack or device if damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
⚠ WARNING! Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
⚠ WARNING! Have your battery pack serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the battery pack is maintained.
⚠CAUTION! To reduce the risk of injury, charge the Sun Joe® 24V lithium-ion battery pack only with the provided charger or the chargers shown in the optional accessories panel. Other types of chargers present risk of fire, personal injury and damage. Do not connect the battery pack to an unspecified power supply or 12V DC car charger. Such misuse may permanently disable or damage the battery pack.

• Avoid dangerous environments – Do not charge the battery pack in rain, snow or in damp or wet locations. Do not use or charge the battery pack in the presence of explosive gases, fumes, dust or flammable materials. Sparks may be generated when inserting or removing the battery pack, which could lead to a fire.
• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open flames near a charging battery pack. Vented gases may explode.

NOTE: The safe temperature range for the battery is 41^ F – 105^ F ( 5^ C – 40.5^ C). Do not charge the battery outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull the plug, and not the cord from the AC power outlet to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord or yank it by the cord to disconnect it from the AC power outlet. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged charger immediately.
• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of fire and electric shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.

- Use only recommended attachments – Use of any attachments not recommended or sold by the manufacturer may result in a risk of fire, electric shock or personal injury.

- Unplug charger when not in use.

⚠ WARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to flow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Do not burn or incinerate battery pack – Battery packs may explode, causing personal injury or damage. Toxic fumes and materials are created when battery packs are burned.
• Do not crush, drop or damage battery pack – Do not use the battery pack or charger if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (i.e. pierced with a nail, hit with a hammer, stepped on, etc.).
• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, fire or exposure to toxic battery fluid. If the battery or charger are damaged, contact an authorized Snow Joe ^ + Sun Joe ^ dealer or call the Snow Joe ^ + Sun Joe ^ customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.
• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery fluid, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery fluids, wash the affected area with soap and water. If eyes are exposed to battery chemicals, immediately flush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.
• Do not short circuit – When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Store your battery pack and charger in a cool, dry place – Do not store the battery pack or charger where temperatures may exceed 105°F (40.5°C), such as in direct sunlight or inside a vehicle or metal building during the summer.

Information about the battery

1. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently.
2. Store the battery pack in a cool place, ideally at 77^ F ( 25^ C) and charged to at least 40%.

3. Lithium-ion batteries are subject to a natural aging process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements needed for the proper operation of your metal detector.

4. Do not completely discharge batteries. Exhaustive discharges will damage the battery cells. The most common cause of a complete discharge is lengthy storage of partially discharged batteries. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack in storage only after it has been fully charged.

5. Protect the battery pack and the tool from overloads. Overloads will quickly result in overheating and cell damage inside the battery housing even if this overheating is not apparent externally.
6. Avoid damage and shocks. Immediately replace batteries that have been dropped from a height of more than 3 feet (1 meter) or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be undamaged. The battery cells inside the battery may have suffered serious damage. In such instances, please read the waste disposal information for proper battery disposal.
7. If the battery pack suffers from overloading and overheating, the integrated protective cutoff will switch off the equipment for safety reasons.
   IMPORTANT! Do not press the power supply button any more if the protective cut-off has been activated. This may damage the battery pack.

Information about the charger and the charging process

1. Please check the data marked on the rating plate of the battery charger. Be sure to connect the battery charger to a outlet matching voltage specified on the rating plate. Never connect it to a different mains voltage.
2. Protect the battery charger and its cord from damage. Keep the charger and its cord away from heat, oil and sharp edges. Have damaged cords repaired without delay by a qualified technician at an authorized Snow Joe ^® + Sun Joe ^® dealer or call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).
3. Electrical plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.
4. Keep the battery charger, battery pack and the appliance out of the reach of children.
5. During periods of heavy use, the battery pack will become warm. Allow the battery pack to cool to room temperature before connecting with the charger to recharge.

6. Do not overcharge batteries. Do not exceed the maximum charging times. These charging times only apply to discharged batteries. Frequent insertion of a charged or partially charged battery pack will result in overcharging and cell damage. Do not leave batteries in the charger for days on end.

7. Never use or charge the battery if you suspect that it has been more than 12 months since the last time they were charged. There is a high probability that the battery pack has already suffered damage (exhaustive discharge).

8. Charging batteries at a temperature below 41^ F ( 5^ C) will cause chemical damage to the cells and may cause a fire.
9. Do not use batteries that have been exposed to heat during the charging process, as the battery cells may have suffered dangerous damage.
10. Do not use batteries that have suffered deformation during the charging process or those that exhibit other atypical symptoms (gassing, hissing, cracking, etc.).
11. Never fully discharge the battery pack (maximum recommended depth of discharge is 80%). A complete discharge of the battery pack will lead to premature degradation of the battery cells.

Protection from environmental influences

1. Protect the battery charger from moisture and rain. Moisture and rain can cause dangerous cell damage.
2. Do not use the appliance or the battery charger near vapors and flammable liquids.
3. Use the battery charger and the appliance only in dry conditions and at an ambient temperature of 41^ F – 105^ F ( 5^ C – 40.5^ C). Particularly, do not leave the battery or charger in a hot car.
4. Protect batteries from overheating. Overloads, overcharging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries that have been overheated – replace them immediately, if possible.
5. Store the charger and your appliance only in dry locations with an ambient temperature of 41^ F – 105^ F ( 5^ C – 40.5^ C). Store your lithium-ion battery pack in a cool, dry place at a temperature of 77^ F ( 25^ C). Protect the battery pack, charger and appliance from humidity and direct sunlight. Only place fully charged batteries in storage (charged to at least 40%).
6. Prevent the lithium-ion battery pack from freezing. Battery packs that were stored below 32^ F ( 0^ C) for more than 60 minutes must be discarded.
7. When handling batteries, be wary of electrostatic charge. Electrostatic discharges can damage the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery terminals.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Symbols SymbolsDescriptions Descriptions
	READ THE OPERATOR'S MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate.		SAFETY ALERT – Indicates a precaution, a warning, or a danger.
	WARNING! Do not expose the unit to rain or wet conditions. Keep dry.

Know Your Cordless Metal Detector

Read the owner's manual and safety instructions carefully before operating this cordless metal detector. Compare the illustration below to the cordless metal detector in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

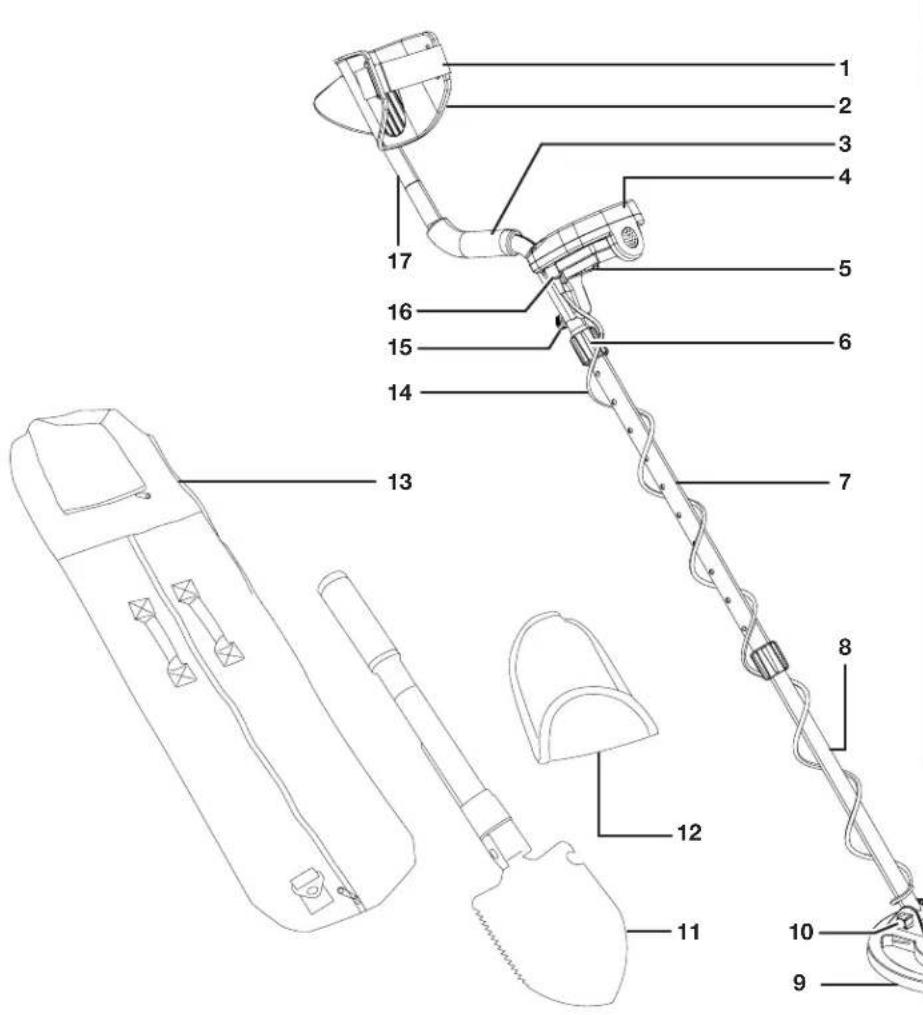

Technical diagram of a handheld metal detector with numbered components for identification

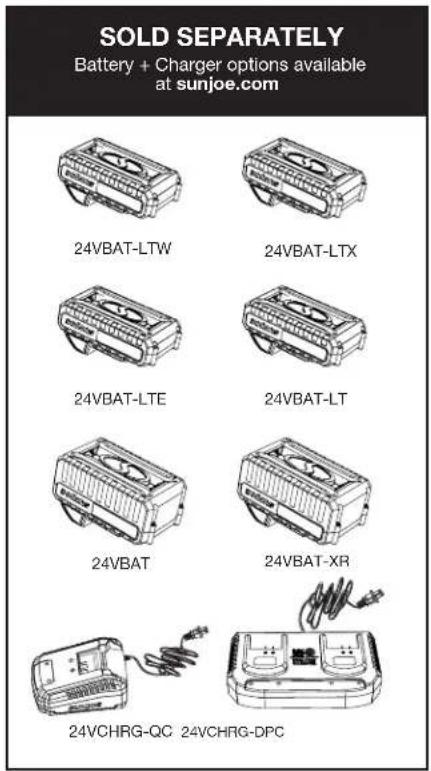

SOLD SEPARATELY Battery + Charger options available at sunjoe.com 24VBAT-LTW 24VBAT-LTX 24VBAT-LTE 24VBAT-LT 24VBAT 24VBAT-XR 24VCHRG-QC 24VCHRG-DPC

1. Velcro strap
2. Arm rest
3. Foam grip
4. Control panel

5. Battery compartment

6. Locking collar (2)

7. Middle pole
8. Lower pole

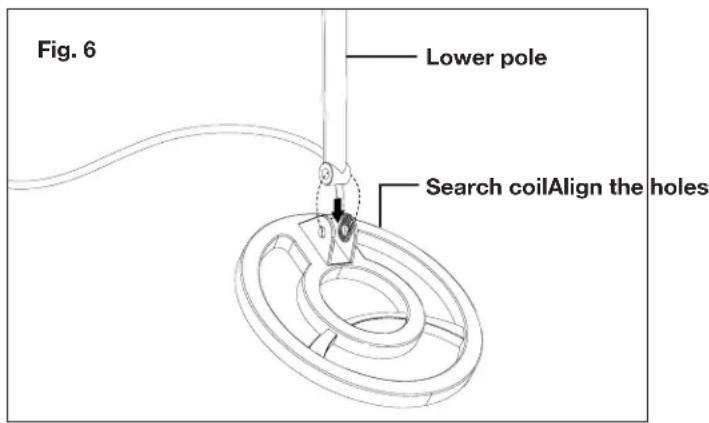

9. Search coil

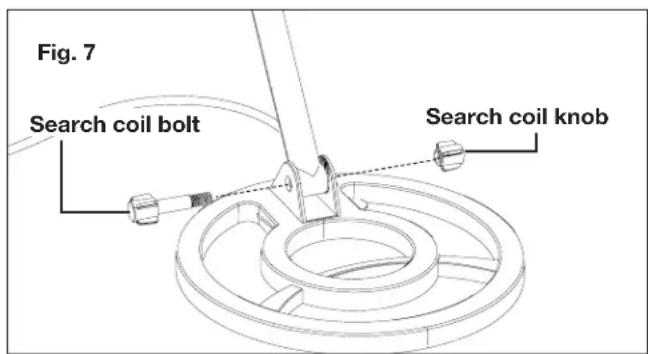

10. Search coil knob + bolt

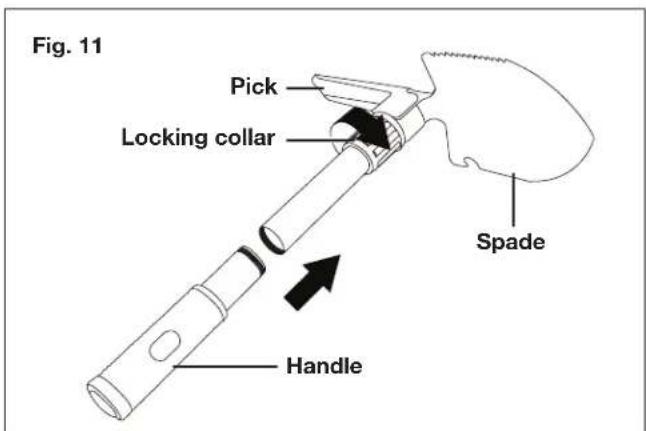

11. Folding shovel

12. Folding shovel pouch

13. Storage bag
14. Search coil cable
15. Control panel bolt
16. Cable plug
17. Upper pole

Technical Data

Operating Current Max 60 mA

Battery Voltage Max ^* .....24V DC

Search Coil......Waterproof 10 in. (25 cm) Concentric

Coil Frequency 6.6 kHz ± 0.5 kHz

Search Modes ...... All Metals | DISC | Pinpoint

Detection Depth 0 - 7.8 in. (0 - 20 cm)

Sensitivity 7.1 in. (18 cm)

Telescoping Pole 41.3 in. - 52 in. (105 cm - 132 cm)

Net Weight 4.4 lbs (2 kg)

* Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage under typical load is 21.6 volts.

Unpacking

Carton Contents

• Upper pole assembly
• Middle pole
• Lower pole
• Search coil
• Control panel
• Folding shovel + pouch
• Storage bag
• Manual with registration card

NOTE: In order to operate this cordless metal detector you will need 24V iON+ System batteries and chargers. See page 17 for battery options and specifications, or visit sunjoe.com.

1. Carefully remove the cordless metal detector and check to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new cordless metal detector. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. These items can be swallowed and pose a suffocation risk!

Battery Pack Operation

The equipment is powered by lithium-ion battery. The battery pack is completely sealed and maintenance free.

TOOL ONLY

BATTERY + CHARGER SOLD SEPARATELY

In order to operate this cordless metal detector you will need an 24V iON+ System battery and charger. See page 17 for battery and charger options and specifications, or for more information visit sunjoe.com.

Battery Charge Level Indicator

The battery pack is equipped with a push button for checking the charge level. Simply press the push button to read off the battery charge level from the LEDs of the battery indicator:

	Light IndicatorsLights
	Charge level button
	The battery is at 30% capacity
	The battery is at 60% capacity
	The battery is at full capacity

NOTE: Charge the battery when low as soon as possible to avoid degrading the battery life.

NOTE: If the charge level button does not appear to be working, charge the battery.

NOTE: Immediately after discharging, the charge level button of the battery may display a lower charge than if checked a few minutes later. The battery cells “recover” some of their charge after resting.

Charger Operation

WARNING! Only charge Sun Joe® 24V lithium-ion battery pack with its compatible Sun Joe® 24V lithium-ion charger. Other types of batteries may cause personal injury and damage.

To reduce the risk of electric shock, do not allow water to flow into the charger's AC/DC plug.

TOOL ONLY BATTERY + CHARGER SOLD SEPARATELY

In order to operate this cordless metal detector you will need an 24V iON+ System battery and charger. See page 17 for battery and charger options and specifications, or for more information visit sunjoe.com.

Charging the Battery

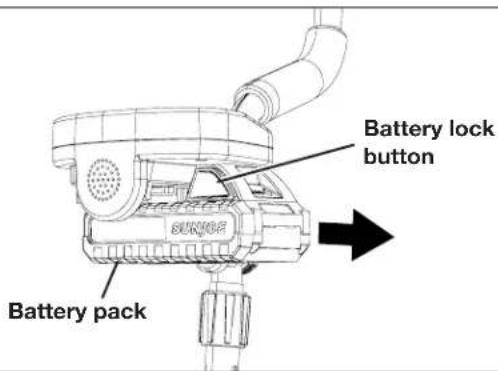

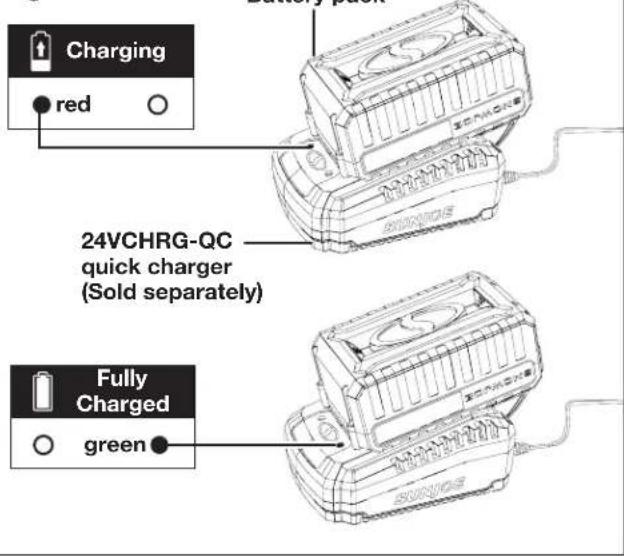

1. Push the push lock buttons on the battery to pull the battery pack out from the battery compartment (Fig. 1).

Fig. 1

Battery lock button Battery pack

1. Depending on your Snow Joe ^® + Sun Joe ^® charger model, how to recharge your lithium-ion battery will vary. You may either insert your 24-volt battery into the 24VCHRG-QC Quick Charger (sold separately) or the 24VCHRG-DPC Dual Port Charger (sold separately) (Figs. 2 – 3).

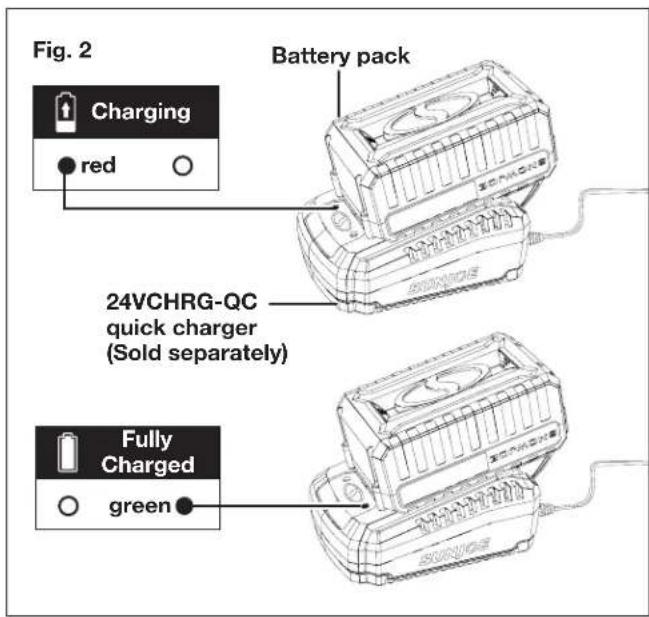

Fig. 2 Battery pack Charging red 24VCHRG-QC quick charger (Sold separately) Fully Charged green

Charging red Battery pack 24VCHRG-QC quick charger (Sold separately) Fully Charged green

Fig. 3

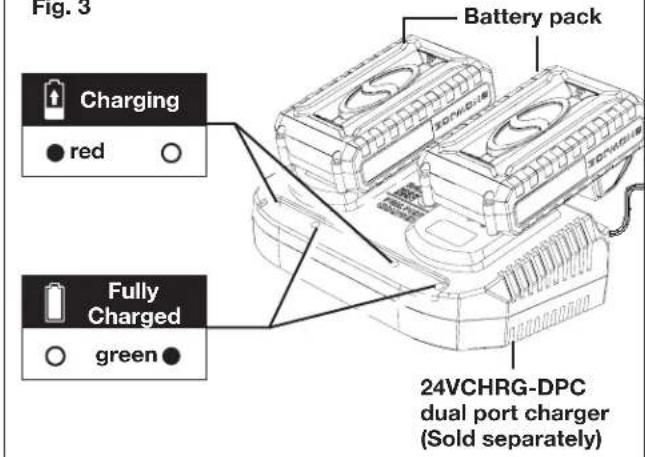

Fig. 3 Battery pack Charging ● red ○ Fully Charged ○ green ● 24VCHRG-DPC dual port charger (Sold separately)

1. The battery indicator LEDs will illuminate one by one during the charging process. Unplug the charger immediately when the 3 LEDs are all illuminated.
2. The 24VCHRG-QC Quick Charger (sold separately) and the 24VCHRG-DPC Dual Port Charger (sold separately) are also equipped with additional charging indicating lights which will indicate the charging status (Figs. 2–3).

⚠️CAUTION! FIRE HAZARD. When disconnecting the charger from the battery, be sure to unplug the charger from the outlet first, then disconnect the charger from the battery.

WARNING! This charger does not automatically turn off when the battery is fully charged. Please take care not to leave the battery plugged into the charger. Switch off or unplug the charger at the mains when charging is complete.

1. Timely recharging of the battery will help prolong the battery's life. You must recharge the battery pack when you notice a drop in the equipment's power.
   IMPORTANT! Never allow the battery pack to become fully discharged as this will cause irreversible damage to the battery.
2. When charging is complete, remove the battery from the charger by pulling the push lock button and sliding the battery backward to unlock it from the charger.

Assembly

The product must be fully assembled before operation. Do not use the device when only partially assembled or assembled with damaged parts. Follow these instructions to assemble the metal detector.

Pole Assembly

1. Insert the lower pole into either end of the middle pole until the locking button clicks into one of the holes. (Fig. 4).

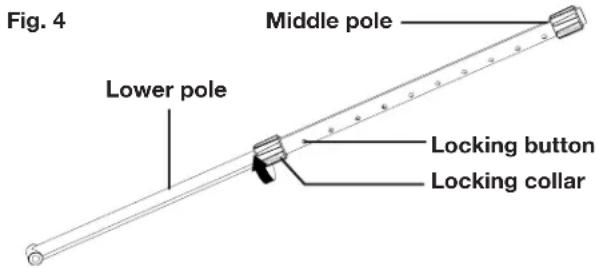

Fig. 4 Middle pole Lower pole Locking button Locking collar

1. Insert the upper pole into the other end of the middle pole until the locking button clicks in one of the holes.
2. Adjust the length by pressing the locking buttons and moving them into different holes along the shaft of the middle pole. Tighten both locking collars once you have set the desired pole length (Fig. 5).

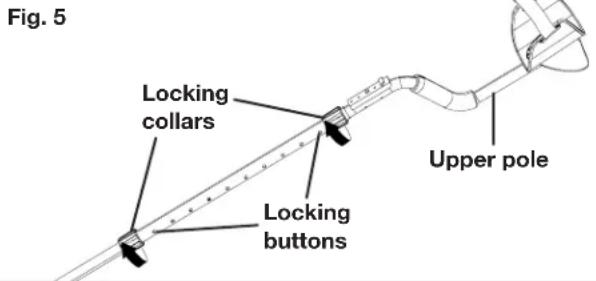

Fig. 5 Locking collars Locking buttons Upper pole

Search Coil Assembly

1. Fit the end of the lower pole between the 2 tabs of the search coil and align the holes (Fig. 6).

Fig. 6 Lower pole Search coilAlign the holes

1. Secure them together with the search coil bolt and knob. Then tilt the search coil to your desired angle and tighten the search coil knob and bolt to secure it in place (Fig. 7).

Fig. 7 Search coil bolt Search coil knob

Control Panel Assembly

1. Fit the control panel by hooking it on the small hook on the back of the control panel plate (Fig. 8).

Fig. 8 Control panel Hook

1. Secure it using the control panel bolt. Screw securely to lock (Fig. 9).

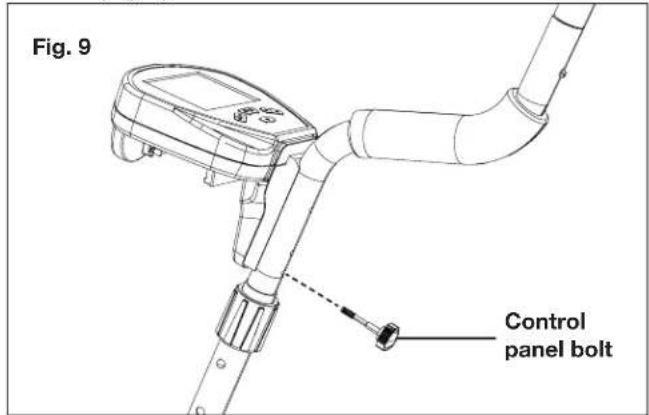

Fig. 9 Control panel bolt

1. Curl the search coil cable along the pole, and insert the plug into the DIN connector located on the bottom of the control panel (Fig. 10).

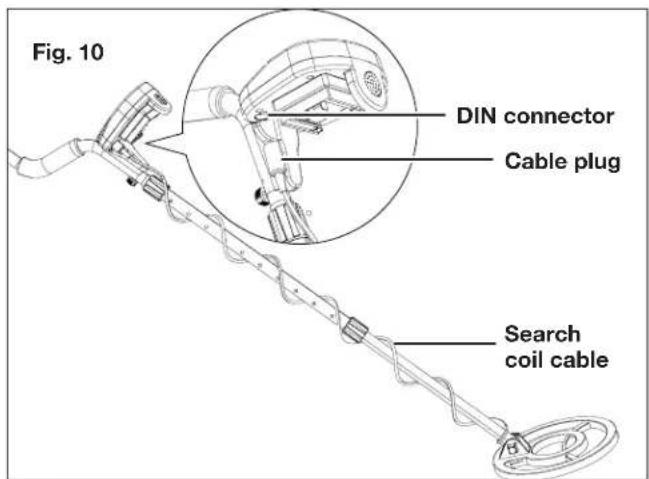

Fig. 10 DIN connector Cable plug Search coil cable

Folding Shovel Assembly

1. Remove the contents from the folding shovel pouch, and unfold the spade and pick. Twist the locking collar to secure the pick and spade at your desired position.
2. Screw the handle into the shaft of the shovel (Fig. 11).

Fig. 11 Pick Locking collar Spade Handle

Operation

⚠ WARNING! Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in product damage.

⚠ WARNING! Do not modify or attempt to repair the metal detector except indicated in the instructions for use and care.

Intended Use

This metal detector is intended for locating buried metal objects. When searching for metals underground or on the surface, this device helps you to:

1. Rule out signals caused by ground minerals.
2. Rule out signals caused by metal objects that are not of the selected DISC mode.
3. Identifying buried metal objects.
4. Estimating the depth of objects.

⚠ WARNING! This device is not intended for use in commercial or industrial applications.

Control Panel and LCD Screen (Fig. 12)

The display shows the PROBABLE identification of the metal detected, as well as its PROBABLE depth.

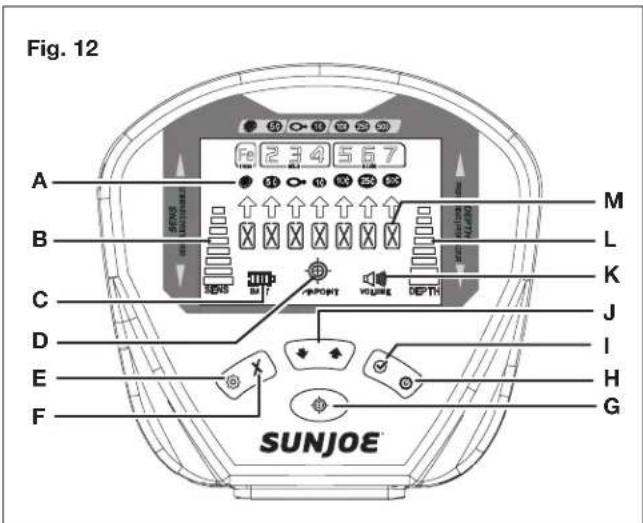

Fig. 12 A B C D E F M L K J I H G SUNJOE

A. Target Identification – The target identification system consists of the target category bar, the target-ID icons, the arrows and the frames below. When metal objects are detected, a Target-ID icon will illuminate with an arrow below pointing to it.

Target category bar

Iron range Gold range Silver Fe 2 3 4 5 6 7 range

Target-ID icons

Icon Metals US Coin
	Iron and ferrous metals
	Aluminum and other alloys	Nickel (5 cents)
	Gold and bronze
	Zinc and copper (some gold and bronze)	Penny (1 cent)
	Silver and copper	Dime (10 cent)
	Silver and copper	Quarter (25 cents)
	Silver and copper	Half dollar (50 cents)

NOTE: Due to a variety of environmental factors the induced electromagnetic field of metallic objects may vary greatly affecting the accuracy of the readings. These include but are not limited to:

• Soil depth
• Ground minerals
• Soil composition
• Object size and angle
• Object oxidation and purity
• Object surface texture
  • Electromagnetic Interference

B. Sensitivity Level Indicator – Indicates the detection sensitivity. The more bars, the higher the sensitivity.
C. Battery Level Indicator – Indicate remaining battery power. Refer to the table below for the battery percentage for each interface.

25% 50%	75% 100%

NOTE: The battery must be recharged when the power drops to 25% or less.

D. Pinpoint Indicator – Indicates the metal detector is in pinpoint detection mode.
E. Setting Button – Configures sensitivity, discrimination and volume.
F. DISC Button – Filters out one or more target-IDs from your detection readings. It can also turn on the LCD backlight for use in the dark.
G. Pinpoint Button – Enters the pinpoint mode.
H. Power Button – Turns the device ON/OFF.

I. Enter Button – Confirms the adjustment of each setting.
J. Adjustment Buttons – Changes sensitivity, discrimination and volume settings up or down.
K. Volume Adjustment Indicator – Flashes to indicate volume setting mode.
L. Depth Indicator – Shows the relative depth of the buried target. The more bars shown, the further the coil is from the target.
M. DISC Bar – Shows frames that are crossed off, to indicate that those target-IDs have been filtered out from the metal detector's readings.

Tones

The metal detector emits three audible tones to identify the metal being detected. See the table below for details.

Fe 2 Iron 5¢ 3 4 Gold 1¢ 5 6 7 Silver 10¢ 25¢ 50¢ Low Tone Mid Tone High Tone

It's recommended to test the metal detector and get familiar with each tone before operation.

Starting + Stopping

1. Insert the battery in the battery compartment until it clicks into place (Fig. 13).

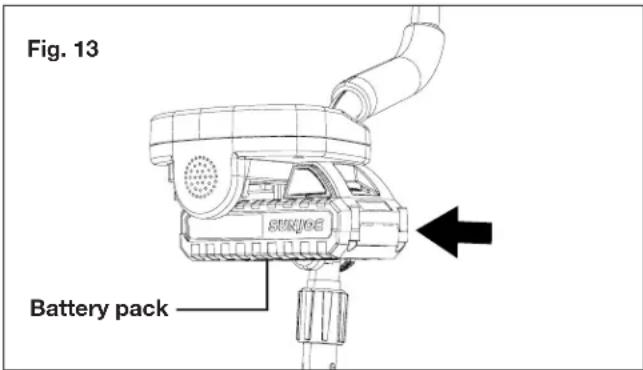

Fig. 13 Battery pack

1. Press the power button to turn on the metal detector. The detector will beep three times and the LCD will illuminate in standby mode (Fig. 14).

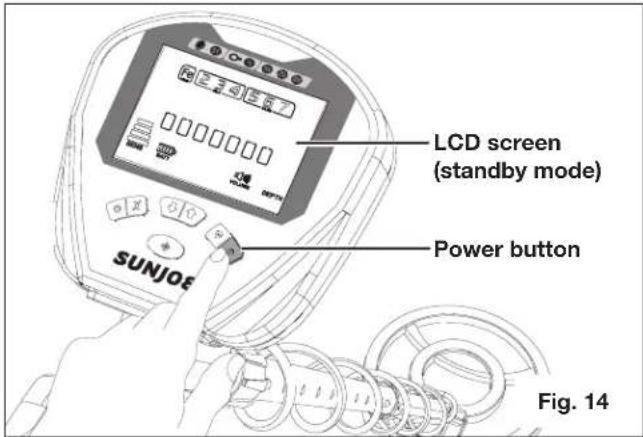

LCD screen (standby mode) Power button SUNJOE Fig. 14

1. To turn off the device, press the power button again. Remove the battery before storing it away.

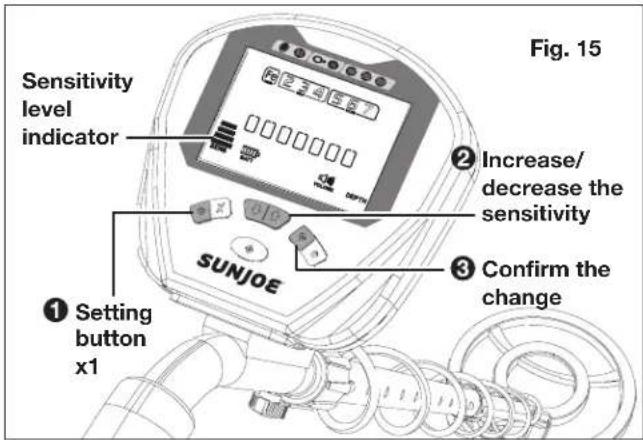

Sensitivity Adjustment (Fig. 15)

Sensitivity level indicator ① Setting button x1 ② Increase/ decrease the sensitivity ③ Confirm the change Fig. 15

1. Press the setting button once to enter the sensitivity settings mode. The sensitivity level indicator will start flashing.

2. Use the adjustment buttons to set the sensitivity level. Press to increase the sensitivity, and to decrease the sensitivity.

3. Once you have set the desired sensitivity level, press the enter button to confirm the change.

NOTE: The metal detector works by inducing a magnetic field in nearby metallic objects. This magnetic field is then detected by the search coil and analyzed by the control panel. However, this magnetic field is also susceptible to electromagnetic interference produced by other electronic or environmental sources. EMI can interfere with the detector and cause it to beep erratically.

Lowering the metal detector's sensitivity will help reduce its susceptibility to EMI. If the metal detector experiences erratic behavior or false signals, reduce the sensitivity.

Volume Adjustment (Fig. 16)

Volume adjustment indicator ① Setting button x3 ② Increase/ decrease the volume ③ Confirm the change SUNJOE Fig. 16

1. Press the setting button three times to enter the volume setting mode. The volume adjustment indicator will start flashing.

2. Use the adjusting buttons to adjust the volume. Press ↑ to increase the volume, and ↓ to decrease the volume.

3. Once you have set the desired volume, press the enter button to confirm the change.

NOTE: This detector has a 3.5mm headphone jack located on the bottom of the control panel (Fig. 17). Allowing use of wired headphones with a 3.5mm plug. When the headphone jack is connected; speaker volume is disabled. Headphones can help extend battery life and reduce noise pollution.

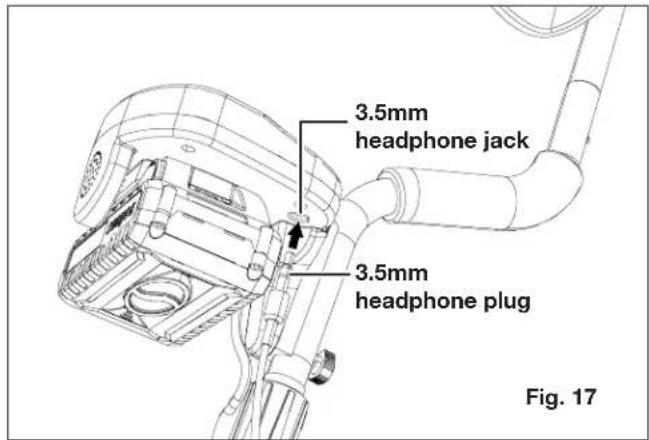

3.5mm headphone jack 3.5mm headphone plug Fig. 17

⚠ WARNING! For safety reasons, do not use headphones near traffic or dangerous area.

Detection Modes

The metal detector has three detection modes: All Metals, DISC and Pinpoint.

ALL METALS – All target categories are enabled. Use this mode to find all metal items. This is on by default.

DISC – Stands for discrimination. Users can filter out one or more target-IDs from the detection readings (Fig. 18).

Filtered out target-ID ② Select the target-ID (left & right) ④ Confirm the change ① Setting button x2 ③ DISC button Fig. 18

1. Press the setting button twice to enter DISC mode. The first frame should start flashing.
2. Use the adjustment buttons to select the target-ID. Press ↑ to go right, and ↓ go left.
3. Press the DISC button, the frame will be crossed off to show that the target-ID has been filtered out. Do the same for any other target-ID you do not wish to detect.
4. Once you have configured your DISC mode, press the enter button to confirm the change.
5. To re-enable a target-ID that has been filtered out, reselect it using steps 1 & 2 then press the DISC button. The frame will no longer be crossed off, and detection will resume for that target-ID.

PINPOINT - Used to pinpoint the location and depth of buried objects.

1. After locating a possible buried item, press the pinpoint button. The pinpoint indicator will appear on screen.
2. Slowly move the search coil above the search area using the audible tones and depth indicator to pinpoint the location of the buried object.
3. Press the pinpoint button again to disable pinpoint mode.

Metal Detecting

1. Adjust the metal detector as needed. Set your desired sensitivity, volume and detection mode.
2. Grasp the foam grip on the upper pole and rest your arm on the arm rest. Use the velcro strap to secure your arm to the detector. Hold the metal detector with the search coil parallel with and 1–2 inches (2.5–5 cm) from the ground (Fig. 19).

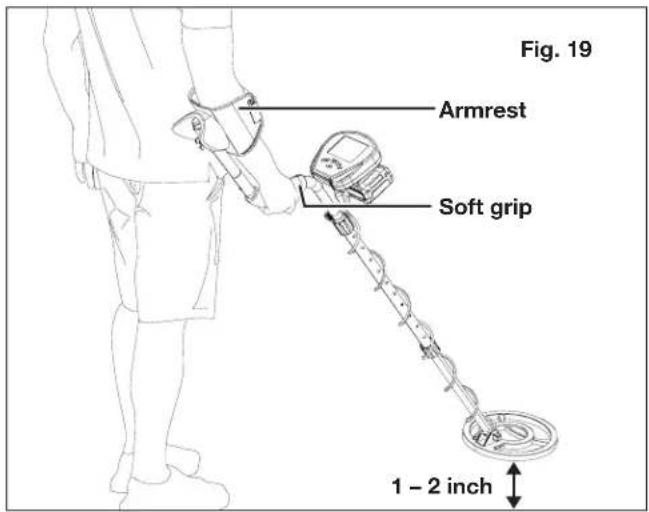

Fig. 19 Armrest Soft grip 1 - 2 inch

1. Walk slowly. Sweep the detector side-to-side over the ground. Keep the search coil parallel to the ground as you sweep; do not lift the search coil at the end of each sweep (Fig. 20).

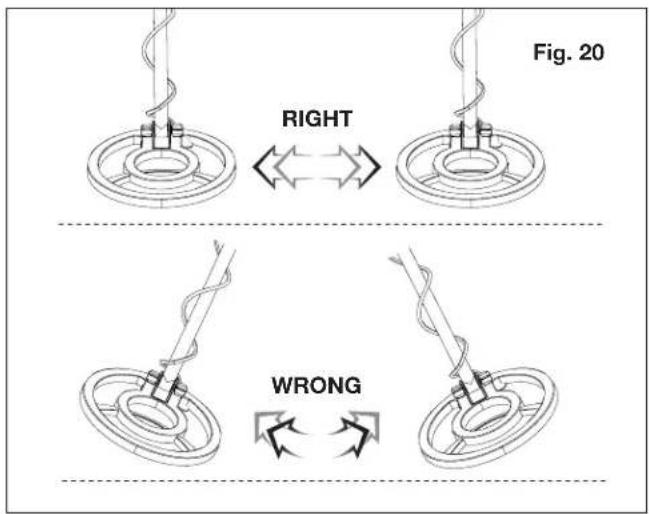

FIG. 20 RIGHT WRONG

1. Sweep the search coil in a slow arcing motion as shown below (Fig. 21).

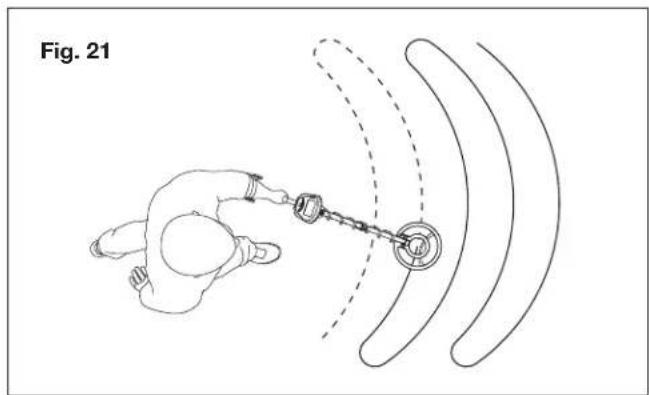

Fig. 21

NOTE: The search coil and the bottom portion of the pole assembly can be fully submerged in water. However, never expose the control panel, battery and the cable plug to water. The weatherproofing feature on this metal detector was designed to allow hunting in inclement weather but not for prolonged submersion in water.

1. Upon detecting a metallic object, the control panel will display an arrow under the corresponding target-ID and emit an audible tone. The depth indicator will also display the relative depth of the target.
   NOTE: If the detector does not detect anything, make sure that the DISC mode and sensitivity is set correctly for the intended type of metal. Also make sure that you are moving the search coil correctly.
2. Once the detector has detected a buried target, continue sweeping the search coil over the target in a narrowing range. Make a mental note of the exact spot on the ground where the detector beeps.
3. Enter pinpoint mode as instructed before. Then move the search coil over that spot in a front and back and side to side motion a couple of times to hone in on the exact location and depth of the object (Fig. 22).

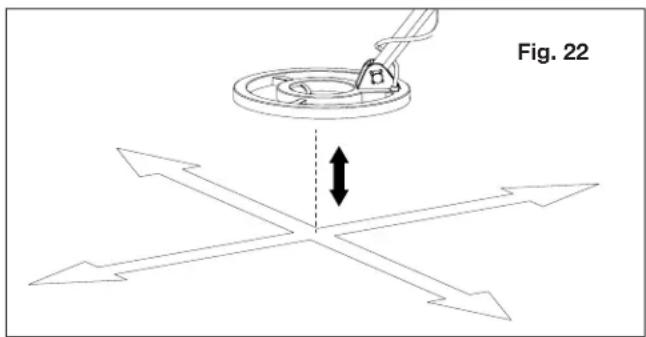

Fig. 22

1. Use the included folding shovel to dig up the object. While digging, use the pinpoint searching mode of the detector to periodically estimate the depth and position of the target. Repeat this until the target is found.

Maintenance

⚠ WARNING! To avoid damage, always turn the metal detector off and remove battery pack from the battery compartment before cleaning or performing any maintenance.
⚠ WARNING! When servicing, use only identical replacement parts. Use of any other parts may cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician.

General Maintenance

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

⚠ WARNING! Do not at any time allow brake fluids, gasoline, petroleum-based products, penetrating oils, etc., to come into contact with plastic parts. Chemicals can damage, weaken or destroy plastic parts, which may result in personal injury.

• Handle the detector gently and carefully. Dropping it can damage circuit boards and can cause the detector to malfunction.
• Use the detector only in non-extreme environments. Temperature extremes can shorten the life of electronic devices and batteries.
• Wipe the detector with a damp cloth occasionally to keep it clean. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the detector.
• Keep the detector away from dust and droppo, which can cause premature wear of parts.

Storage

1. Turn off the metal detector and remove the battery pack. Wipe clean with a damp cloth.
2. Use the included pouch and storage bag to store the metal detector and all accessories.
3. Store the device indoors in a dry, well-ventilated area. Do not store the device on or adjacent to fertilizers, gasoline, or other chemicals.

Disposal

Recycling + Disposal

Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations.

• Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities.
• Contact your local government agency for information regarding the collection systems available.
• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leach into the groundwater and get into the food chain, damaging your health and well-being.

The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is functioning properly. Recycle the package afterwards or keep it for long-term storage.

WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling regulations.

Battery Caution + Disposal

⚠️CAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a fire or explosion.

⚠ WARNING! To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding atmosphere.

1. Batteries vary according to device. Consult your manual for specific information.
2. Install only new batteries of the same type in your product (where applicable).
3. Failure to insert the battery in the correct polarity, as indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.
4. Do not mix old and new batteries.
5. Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or Lithium-Ion) batteries.
6. Do not dispose of batteries in fire.
7. Batteries should be recycled or disposed of as per state and local guidelines.

Service + Support

If your Sun Joe ^® 24V-MDTCR1-CT cordless metal detector needs service or maintenance, please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Model + Serial Numbers

When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal affixed to the housing of your metal detector. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product:

Model #: 2 | 4 | V | - | M | D | T | C | R | 1 | - | C | T | Serial #:

Troubleshooting

Problem Possible Causes Solutions
False signals	Electromagnetic interference (EMI)Extreme humidity	Move to a different search area
	Sensitivity set too highSweeping too fast or wrong angleMultiple metal detectors used in close proximity	Reduce sensitivitySweep slowly, keeping the coil level and 1–2 inches (2.5–5 cm) from the groundKeep metal detectors at least 20 ft. (6 m) apart
Erratic/multiple signals	Multiple targetsHighly mineralized soil	Reduce sensitivityMove to a different search area
Detector fails to detect anything	Sensitivity set too lowTarget-ID is filtered outSearch coil at wrong angle	Increase sensitivityRe-enable that target-ID in DISC modeAdjust search coil to be parallel with the ground
Detector does not function at all	Flat batteryDisconnected search coil cable	Charge the batteryReconnect the search coil cable plug into the DIN connector

NOTE: If problem persists after trying the above solutions, please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Optional Accessories

⚠ WARNING! ALWAYS use only authorized Snow Joe ^® + Sun Joe ^® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this cordless metal detector. Contact Snow Joe ^® + Sun Joe ^® if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless metal detector. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

			ModelAccessor
1		24V iON+ 1.3 Ah Lithium-Ion Battery	24VBAT-LTW
2		24V iON+ 1.5 Ah Lithium-Ion Battery 24VBAT-LTX
3		24V iON+ 2.0 Ah Lithium-Ion Battery	24VBAT-LTE
4		24V iON+ 2.5 Ah Lithium-Ion Battery	24VBAT-LT
5		24V iON+ 4.0 Ah Lithium-Ion Battery	24VBAT
6		24V iON+ 5.0 Ah Lithium-Ion Battery	24VBAT-XR
7		iON+ 24V lithium-ion Battery Quick Charger	24VCHRG-QC
8		iON+ 24V lithium-ion Dual-port Battery Charger	24VCHRG-DPC

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe ^® + Sun Joe ^® to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

¡IMPORTANTE!

Technical diagram of a handheld metal detector with numbered components for identification

DE VENTA POR SEPARADO Opciones de baterías y cargadores disponibles en snowjoe.com 24VBAT-LTW 24VBAT-LTX 24VBAT-LTE 24VBAT-LT 24VBAT 24VBAT-XR 24VCHRG-QC 24VCHRG-DPC

Fig. 12 A B C D E F M L K J I H G SUNJOE

Illustration of a person using a handheld device to interact with curved lines, no text or symbols present

Line drawing of a portable electronic device with ventilation slots and a labeled base (no text or symbols on the device itself)

Fig. 3

●rouge

Fig. 12 A B C D E F M L K J I H G SUNJOE

Fig. 20 APPROPRIÉ INAPPROPRIÉ
