USER MANUAL CMM201KC COMFEE

INSTRUCTION MANUAL CM-M201K(BK) / CM-M201K(WH) MICROWAVE OVENDIRECTORY Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

10 inch Approx. 2 . lbs Model: Rated voltage : Rated Input Power(Microwave) : Rated Output Power(Microwave) : Oven Capacity : Turntable Diameter : External Dimensions: Net Weight : ParameterContent 17.3*13.1*10.2 inch (a) Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particular important that the oven door close properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened)

(3) DOOR SEALS AND SEALING SURFACES

(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. 0 2EN-3

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

1. Read all instructions before using the appliance.

2. Read and follow the specific: "PRECAUTIONS TO

AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY " found on page 2.

3. This appliance must be grounded. Connect only

to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page .

4. Install or locate this appliance only in accordance

with the provided installation instructions.

5. Some products such as whole eggs and sealed

containers - for example, closed glass jars - are able to explode and should not be heated in this oven.

6. Use this appliance only for its intended use as

described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

7. As with any appliance, close supervision is

necessary when used by children.

8. Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly, or if it has been damaged or dropped. WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 6EN-4

9. This appliance should be serviced only by qualified

service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.

10. Do not cover or block any openings on the

11. Do not store this appliance outdoors. Do not use

this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surface.

14. Do not let cord hang over edge of table or counter.

15. When cleaning surfaces of door and oven that

comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.

16. To reduce the risk of fire in the oven cavity:

(1). Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. (2). Remove wire twist-ties from paper or plastic bag before placing bag in oven. (3). If material inside of the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. (4). Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.EN-5

17. Liquids, such as water, coffee, or tea are able to be

overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: (1) Do not overheat the liquid. (2) Stir the liquid both before and halfway through heating it. (3) Do not use straight-sided containers with narrow necks. (4) After heating, allow the container to stand in the microwave oven for a short time before removing the container. (5) Use extreme care when inserting a spoon or other utensil into the container.

18. As with any appliance, close supervision is

necessary when the microwave oven is used by children.

19. If material inside of the oven should ignite, the oven

door should be kept closed, the appliance turned off, the power cord disconnected, or the power shut off at the fuse or circuit breaker panel.

SA E THESE INSTRUCTIONS

VEN-6 This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. GROUNDING INSTRUCTIONS WARNING Improper use of the grounding can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance. DANGER Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. Electric Shock HazardEN-7 WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

1. A short power supply cord is provided to reduce the

risks resulting from becoming entangled in or tripping over a longer cord.

2. Longer cord sets or extension cords are available and

may be used if care is exercised in their use.

3. If a long cord or extension cord is used:

(1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. (2) The extension cord must be a grounding-type 3-wire cord. (3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.EN-8 RADIO INTERFERENCE

1. Operation of the microwave oven may cause

interference to your radio, TV or similar equipment.

2. When there is interference, it may be reduced or

eliminated by taking the following measures: (1) Clean door and sealing surface of the oven (2) Reorient the receiving antenna of radio or television. (3) Relocate the microwave oven with respect to the receiver. (4) Move the microwave oven away from the receiver. (5) Plug the microwave oven into a different outlet so that microwave ovenand receiver are on different branch circuits.EN-9 UTENSILS CAUTION Utensil Test: Personal Injury Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with

the utensil in question.

2. Cook on maximum power for 1 minute.

4. Do not exceed 1 minute cooking time.EN-10

Utensils Remarks MATERIALS YOU CAN USE IN MICROWAVE OVEN Browning dish Dinnerware Glass jars Glassware Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic

Plastic wrap Thermometers Wax paper Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Use as a cover to prevent splattering or a wrap for steaming. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Microwave-safe only (meat and candy thermometers). Use as a cover to prevent splattering and retain moisture.EN-11 MATERIALS TO BE AVOIDED IN MICROWAVE OVEN Utensils Remarks Aluminum tray Food carton with metal handle Metal twist ties Paper bags Plastic foam Wood Metal or metaltrimmed utensils May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack.EN-12 Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:: Glass tray x1 Turntable ring assembly x1 Instruction Manual x1

SETTING UP YOUR OVEN

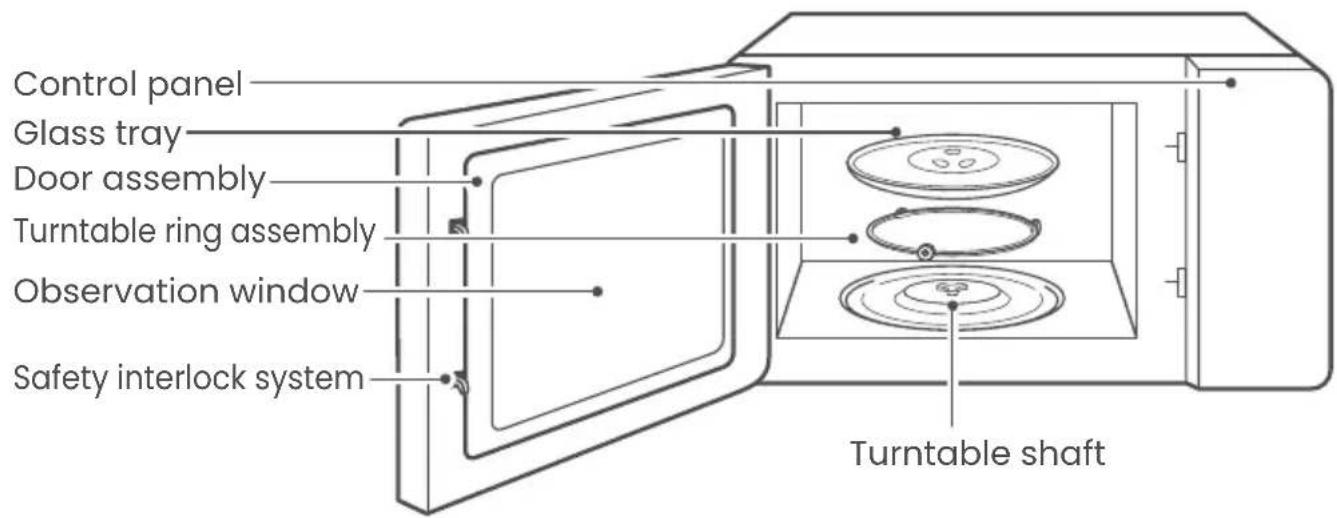

Names of Oven Parts and Accessories Turntable installation Hub (underside) Glass tray Turntable ring assembly Turntable shaft Control panel Turntable shaft Turntable ring assembly Glass tray Observation window Door assembly Safety interlock system a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.EN-13 COUNTERTOP INSTALLATION INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

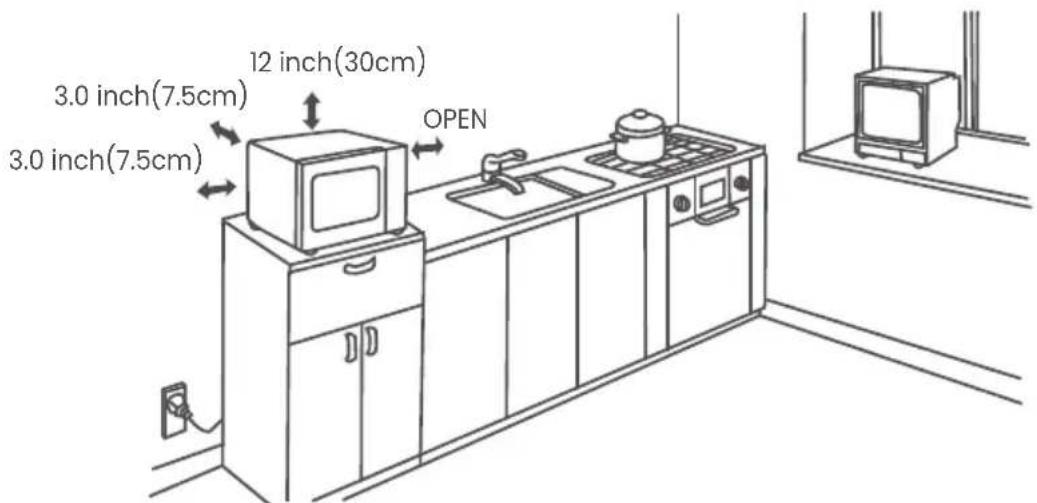

1. Select a level surface that provide enough open space for the intake and/or

outlet vents. A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open. (1) Leave a minimum clearance of 12 inches (30cm) above the oven. (2) Do not remove the legs from the bottom of the oven. (3) Blocking the intake and/or outlet openings can damage the oven. (4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household outlet. Be sure the voltage and the

frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing

appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

11 power levels are available.

• The kitchen time is differ from 12-hour system,Kitchen Timer is a timer.

• During kitchen timer, any program cannot be set. NOTE

1. Press " CLOCK ", "00:00" will display.

2. Press the number keys and enter the current time. For example, time is 12:10

now, please press "1,2,1,0" in turn.

3. Press " CLOCK " to finish clock setting. ":" will flash and the clock will be lighted.

4. If the numbers input are not within the range of 1:00--12:59, the setting will be

invalid until valid numbers are input.

• In the process of clock setting, if the " STOP/CANCEL " button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically.

• If the clock need to be reset, please repeat step 1 to step 3.

1. Press "KITCHEN TIMER ", screen will display 00:00, the first hour figure flash.

2. Press the number keys and enter the timer time.(the maximum cooking

time is 99 minutes and 99 seconds).

3. Press " START/+30SEC. " to confirm setting.

4. When the timer time arrives, the buzzer will ring 5 times. If the clock be set

(12-hour system), screen will display the current time.EN-15

2. Press number keys to input the cooking time; the maximum cooking time is 99

minutes and 99 seconds.

3. Press " POWER " once, screen will display "PL10". The default power is 100% power.

Now you can press number keys to adjust the power level.

4. Press " START/+30SEC." to start cooking.

Example: to cook the food with 50% microwave power for 15 minutes. a. Press "TIME COOK" once."00:00" displays. b.Press "1","5","0","0" in order. c.Press "POWER"once,then press "5" to select 50% microwave power. d.Press "START/+30SEC." to start cooking.

• In the process of setting, if the " STOP/CANCEL" button is pressed or if there isno operation within 1 minute, the oven will go back to the former setting automatically.

• If "PL0" selected, the oven will work with fan for no power.

• During microwave cooking, “POWER" can be pressed to change the power you need. After pressing "POWER", the current power flash for 3 seconds, now you can press number button to change the power. The oven will work with the selected power for the rest time.

1. In waiting state, instant cooking at 100% power level can be started by select a

cooking time from 1 to 6 minutes by pressing number pads 1 to 6. Press " START/+30SEC." to increase the cooking time; the maximum cooking

2. In waiting state, instant cooking at 100% power level with 30 seconds' cooking

time can be started by pressing " START/+30SEC ". Each press on the same button will increase cooking time by 30 seconds. the maximum cooking time is 99 minutes and 99 seconds.

• during microwave cooking and time defrost, time can be added by pressing "START/+30SEC." button. time is 99 minutes and 99 seconds.EN-16

ranged between 4~100 Oz.

3. If the weight input is not within 4~100 Oz, the input will be invalid.

4. Press " START/+30SEC. " to start defrosting and the cooking time remained will

2. Press number pads to input defrosting time. The effective time range is

3. The default microwave power is power level 3. If you want to change the

power level, press " POWER " once, and the screen will display "PL 3", then press the number pad of the power level you wanted.

4. Press " START/+30SEC. " to start defrosting. The remained cooking time will be

1. Press "POPCORN "repeatedly until the number you wish appears in the display,

"1.75", "3.0", "3.5" Oz will display in order. For example, press "POPCORN" once,

2. Press " START/+30 SEC. " to cook, buzzer sounds once.When cooking

finishes, \buzzer sounds five times and then turn back to waiting state. "1.75" appears.EN-17 9.POTATO 10.FROZEN VEGETABLE 11.BEVERAGE 12.DINNER PLATE

1. Press "POTATO " repeatedly until the number you wish appears in the display,

"1","2","3" will display in order. "1"SET : 1 potato (approximate 230 gram) "2"SETS: 2 potatoes (approximate 460 gram) "3"SETS: 3 potatoes (approximate 690 gram) For example, press "POTATO" once , "1" appears.

2. Press" START/+30 SEC. " to cook, buzzer sounds once. When cooking

finishes, buzzer sounds five times and then turn back to waiting state.

1. Press" FROZEN VEGETABLE " repeatedly until the number you wish appears in

the display, "4.0", "8.0", "16.0" Oz will display in order. For example, press "FROZEN VEGETABLE" once , "4.0" appears.

2. Press " START/+30 SEC. " to cook, buzzer sounds once.When cooking

finishes, buzzer sounds five times and then turn back to waiting state.

1. Press "BEVERAGE " repeatedly until the number you wish appears in the

display, "1", "2","3" cup will display in order. One cup is about 120ml. For example, press "BEVERAGE" once , "1" appears.

2. Press "START/+30 SEC. " to cook, buzzer sounds once.When cooking

finishes, buzzer sounds five times and then turn back to waiting state.

1. Press ”DINNER PLATE " repeatedly until the number you wish appears in the

display, "9.0", "12.0", "18.0" Oz will display in order. For example, press "DINNER PLATE" once , "9.0" appears.

2. Press ”START/+30 SEC. " to cook, buzzer sounds once. When cooking finishes,

buzzer sounds five times and then turn back to waiting state.EN-18 13.PIZZA

The steps are as follow:

• Auto cooking cannot work in the multi-stage cooking. NOTE

1. Press "PIZZA " repeatedly until the number you wish appears in the display,

"4.0", "8.0", "14.0" Oz will display in order. For example, press "PIZZA" once , "4.0" appears.

2. Press “ START/+30 SEC. " to cook, buzzer sounds once. When cooking

finishes, buzzer sounds five times and then turn back to waiting state. At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then defrosting shall be placed at the first stage automatically.

1. Press "0/MEMORY" to choose memory 1-3 procedure. The screen will display 1,2,3.

2. If the procedure has been set, press " START/ +30 SEC." to use it. If not, continue

to set the procedure. Only one or two stages can be set.

3. After finishing the setting, press "START/ +30 SEC." once to save the procedure

and turn back to the waiting states. If press " START/ +30 SEC." again, it will start cooking. Example: to set the following procedure as the second memory, that is memory

2. To cook the food with 80% microwave power for 3 minutes and 20 seconds.

a. In waiting states, press "0/MEMORY" twice, stop pressing until the screen displays "2". b. Press "TIME COOK" once, then press "3","2","0" in order. c. Press "POWER" once , "PL10" display, then press "8" and "PL8" displays. d. Press "START/ +30 SEC." to save the setting. Buzzer sounds once then turn back to waiting states. If you press "START/+30SEC." twice after step c, the procedure will be saved as the memory 2 and operated. e. If the electricity is not cut off, the procedure will be saved all the time. If it is, the procedure need to reset. f. If you want to run the saved procedure, in waiting states, press "0/MEMORY" twice, screen displays "2", then press "START/+30SEC." to run.EN-19

Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave power for 10 minutes. The cooking steps are as following:

1. Press "TIME COOK" once, then press "5","0","0" to set the cooking time;

2. Press "POWER" once, then press "8" to select 80% microwave power.

3. Press "TIME COOK" once, then press "1", "0", "0", "0" to set the cooking time;

4. Press "POWER" once, then press "6" to select 60% microwave power.

5. Press "START/ +30 SEC." to start cooking.

Lock: In waiting state, press " STOP/CANCEL " for 3 seconds, there will be a long "beep" denoting the entering into the children-lock state; meanwhile, screen will display " " Lock quitting: In locked state, press " STOP/CANCEL " for 3 a long "beep" denoting that lock is released. When the cooking is over, the buzzer will sound 5 "beep" to alert user the cooking is finished.

1. In cooking state, press " CLOCK ", the screen will display clock for three seconds.

2. In the microwave cooking state, press " POWER " to inquire microwave power

level, and the current microwave power will be displayed. After three seconds, the oven will turn back to the previous state. In multi-stage state, the inquiring way can be done by the same way as above.

1. In standby state, if the set clock digital tube displays current time, the icon " : "

would flash; otherwise, it shows " 0:00 ".

2. In setting function state, screen displays corresponding setting.

3. In working or pause state, screen displays surplus cooking time.

seconds, there will beEN-20 MAINTENANCE Troubleshooting Check your problem by using the chart below and try the solutions for each authorized service center. problem. If the microwave oven still does not work properly, contact the nearest TROUBLE Oven will not start

POSSIBLE CAUSE POSSIBLE REMEDY

a. Electrical cord for oven is not plugged in.b. Door is open.c. Wrong operation is set.a. Plug into the outlet.b. Close the door and try again.c. Check instructions.Arcing or sparkinga. Materials to be avoided in microwave oven were used.b. The oven is operated when empty.c. Spilled food remains in the cavity.a. Use microwave-safe cookware only.b. Do not operate with oven empty.c. Clean cavity with wet towel.Unevenly cooked foodsa. Materials to be avoided in microwave oven were used.b. Food is not defrosted completely.c. Cooking time, power level d. Food is not turned or stirred.a. Use microwave-safe cookware only.b. Completely defrost food.c. Use correct cooking time, power level.d. Turn or stir food.Overcooked foodsCooking time, power level isnot suitable.Use correct cooking time,power level.Undercookeda. Materials to be avoided in microwave oven were used.b. Food is not defrosted completely.c. Oven ventilation ports are restricted.d. Cooking time, power level is not suitable.a. Use microwave-safe cookware only.b. Completely defrost food.c. Check to see that oven venti- lation ports are not restricted.d. Use correct cooking time, power level.is not suitable.foodsTROUBLE POSSIBLE CAUSE POSSIBLE REMEDY Improper a. Materials to be avoided in microwave oven were used. b. Cooking time, power level is not suitable. c. Food is not turned or stirred. a. Use microwave-safe cookware only. b. Use correct cooking time, power level. c. Turn or stir food. defrosting EN-21Midea America (Canada) Corp. 1-866-646-4332 Markham, ON L3R 8V2MANUEL D'UTILISATION FOUR À MICRO-ONDES CM-M201K(BK) / CM-M201K(WH)RÉPERTOIRE Lire attentivement ces instructions avant d'utiliser votre four à micro-ondes et conservez-les soigneuse-ment. Si vous suivez les instructions, votre four vous fournira de nombreuses années de loyaux services.
