RC150W - Steam cleaner PROLINE - Free user manual and instructions

Brand	PROLINE
Model	RC150W
Product Type	Rice Cooker
Power Supply	220-240V~ 50Hz
Power	500 W
Bowl Capacity	1.2 L (estimated)
Lid	Glass
Included Accessories	Measuring cup, serving spatula
Main Function	Rice cooking
Additional Function	Automatic keep warm
Indicator Lights	COOK and WARM indicators
Control Type	On/off switch, cooking button
Safety - Automatic shut-off	Yes, at end of cooking (cooking button pops up)
Safety - Do not immerse	The base must not be immersed in water
Cleaning - Bowl and accessories	Washable in warm soapy water
Cleaning - Exterior surface	Wipe with a damp cloth
Recommended Use	Rice cooking only
Not Recommended For	Soup or other dishes

Frequently Asked Questions - RC150W PROLINE

How to use the RC150W rice cooker?

Measure the rice with the measuring cup, rinse it, place it in the bowl, add the corresponding amount of water (level marks), close the lid, plug in the appliance, turn it on with the on/off switch, then lower the cooking button. The COOK indicator lights up. Cooking stops automatically and keep warm starts (WARM indicator).

How much water should I add for the rice?

Use the provided measuring cup: one cup of raw rice requires about two cups of water. You can also refer to the water level lines inside the bowl. Never exceed the MAXIMUM level.

How to clean the rice cooker?

Unplug the appliance and let it cool. Wash the bowl, lid, spatula, and measuring cup in warm soapy water, rinse and dry. Wipe the main body with a damp cloth. Never immerse the base in water.

Why doesn't the COOK indicator light up?

Check that the appliance is plugged in and the on/off switch is set to 'I'. Ensure the cooking button is pressed down. If the problem persists, contact customer service.

Can I use the cooker for foods other than rice?

No, this appliance is designed only for rice cooking. Do not use it for soup or other dishes, as this could damage the appliance.

What if the rice burns?

Check the water-to-rice ratio: too little water or unrinsed rice can cause burning. Ensure the bottom of the bowl is clean before use. If the problem persists, reduce the amount of rice.

How to prevent steam overflow?

Do not exceed the MAXIMUM water level. Do not cover the steam vents during cooking. Keep the lid closed.

Does the cooker turn off automatically?

Yes, once cooking is finished, the cooking button pops up and the appliance switches to keep warm mode (WARM indicator). To turn off completely, set the on/off switch to 'O'.

Can I wash the cooker base with water?

No, the main body (containing electrical components) must never be immersed in water or any other liquid. Simply wipe it with a damp cloth.

What if the power cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the appliance with a damaged cord.

USER MANUAL RC150W PROLINE

White rice cooker with black lid and digital display (no visible text or symbols)

Catalogue

Downloaded from www.vandenborre.be

Language of introduction Page

English EN1-EN5

French FR6-FR10

Dutch ---- NL11-NL15

Spanish ES16-ES20

Portuguese PT21-PT25

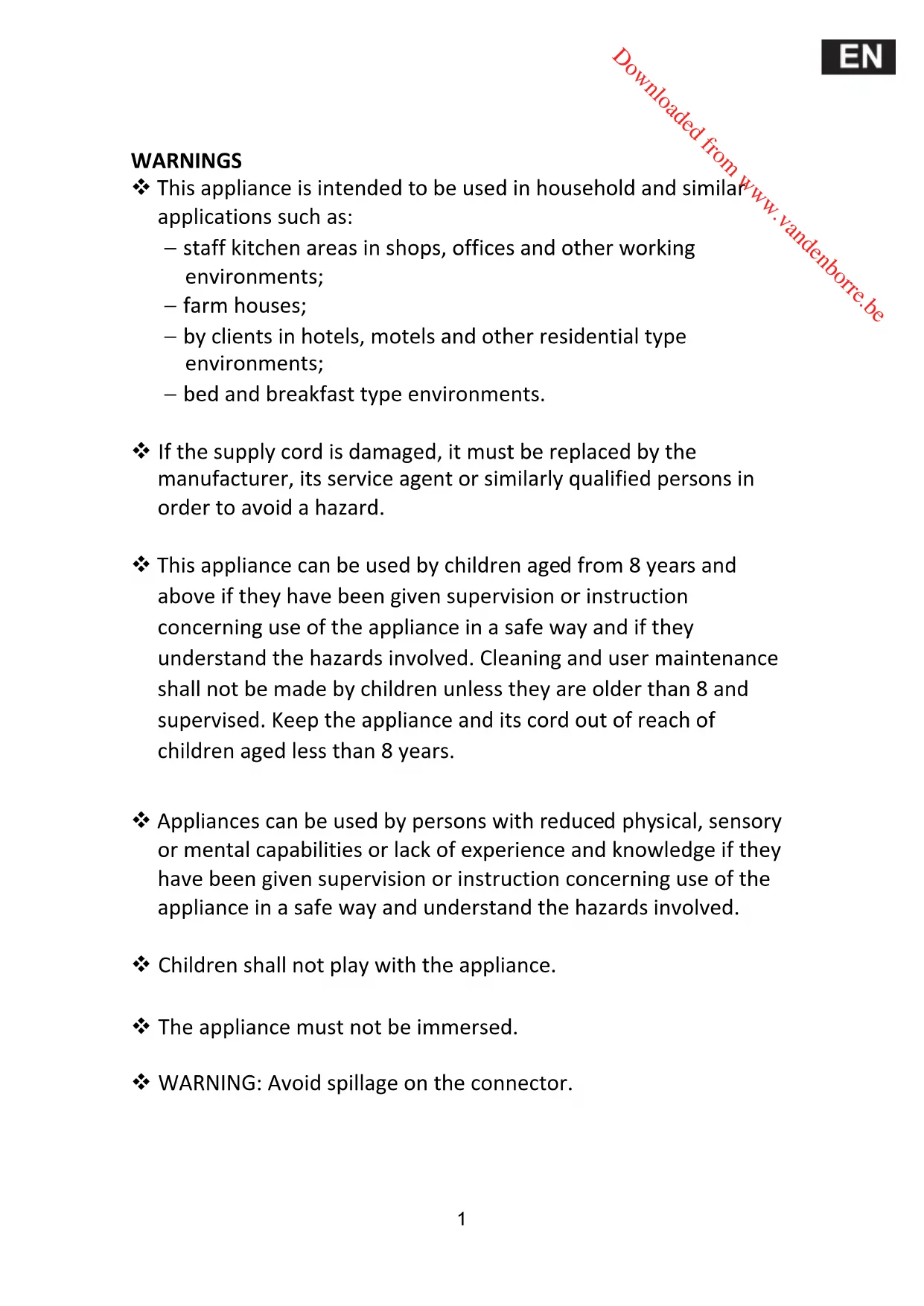

WARNINGS

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
  – by clients in hotels, motels and other residential type environments;
  – bed and breakfast type environments.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
◆ Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
◆ Children shall not play with the appliance.
◆ The appliance must not be immersed.
◆ WARNING: Avoid spillage on the connector.

• Regarding the instructions for cleaning surfaces in contact with food, refer to the section “Cleaning and Maintenance” on page 4 of the manual.
• WARNING: Risks of injuries if you don't use this appliance correctly.
  The heating element surface is subject to residual heat after use.

The surfaces are liable to get hot during use.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before operating the appliance and keep them for future reference.

• Do not place the appliance near the edge of a bench or table during operation. Ensure that place the appliance in a level, clean and dry surface.
• Switch off the cooker and remove the plug from the mains supply when the appliance is not in use or before cleaning.
• Do not let the cord hang over the edge of a table or counter, touch hot surfaces, or become knotted.
• Do not place the inner pot directly over any other heat source for cooking.
• Before use, ensure that the heating plate and the outer surfaces of the inner pot are clean and dry.
• Do not cook without water. Do not overfill the inner pot.
• Cook only in the inner pot.
• Do not open the lid during cooking.
• Do not approach the steam vent during cooking, there could be a scalding hazard.
• Under no circumstances must the cooker come into contact with curtains, clothing, dish towels or other flammable materials during use.
• Do not use the appliance outdoors.
• Do not leave the cooker unattended when in use.
• Extreme caution must be used when the cooker contains hot food and liquids. Do not move it during cooking.
• Do not touch hot surfaces, use the handle.
• Always allow the cooker to cool down before storage or cleaning.
• Do not immerse the cooker, power plug and cord in water or any other liquids.
• Always wear oven gloves (not supplied) when removing lid and inner pot.
• Make sure the supplied spatula or the measuring cup is not in the inner pot when the appliance is in use.

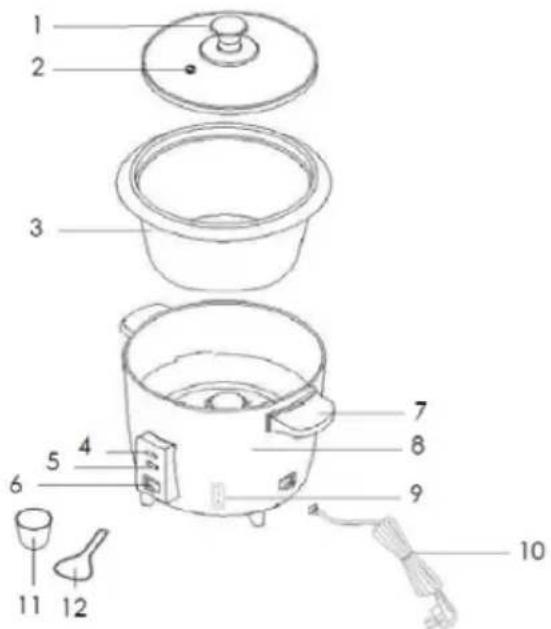

PARTS

1 2 3 4 5 6 7 8 9 10 11 12

1. Glass lid
2. Steam vent
3. Inner pot
4. WARM indicator light
5. COOK indicator light
6. Cook switch
7. Rice cooker handle
8. Rice cooker body
9. Power switch
10. Power cord
11. Measuring cup
12. Serving spatula

BEFORE FIRST USE

• Remove all packaging materials and make sure items are received in good condition.
• Wash the lid, inner pot, measuring cup and spatula in warm soapy water. Rinse and dry thoroughly. Do not use abrasive or chemical cleaners.
• Wipe the body with a damp cloth. Do not immerse the rice cooker body, cord or plug in water or any other liquid.

OPERATION

Use the appliance for cooking rice and keeping it warm after cooking. Do not use the appliance to cook soups or other dishes.

1. Measure the amount of raw rice to be cooked using the supplied measuring cup.

- One full, level cup of uncooked rice will yield 2 cups of cooked rice.

1. Rinse rice in a separate container until the water becomes relatively clear.

2. Remove the inner pot from the cooker and place the rinsed rice in the inner pot.

3. Fill the inner pot with appropriate amount of water, using the supplied measuring cup or the water measurement lines located inside the inner pot.

- NEVER ADD IN WATER OVER THE MAXIMUM LEVEL.

1. Make sure that the exterior of the inner pot is clean, dry and free of debris, set the inner pot in the rice cooker. Place the lid over the top and plug the power cord into the mains socket.

Hand pouring granular substance into a bowl (no text or symbols)

- CAUTION: Do not operate the cooker without closing the lid. Steam will be generated during use.

1. Switch on the rice cooker by setting the power switch to the 1 position.
2. Press down on the cook switch. The COOK indicator light will illuminate.

- The cooking process will start as soon as the COOK indicator light illuminates.

- ATTENTION! During the cooking process, hot steam will escape from the steam vent. Danger of scalding! Do not cover the appliance during use with a cloth or other objects.

1. When cooking is completed, the cook switch will jump and the cooker will automatically switch to the warm mode.

- The WARM indicator light will illuminate.

1. When the cooker is not used, switch off and unplug it from the mains socket.

CLEANING AND MAINTENANCE

Clean the cooker after each use.

Always switch off and unplug the appliance and allow it to cool to room temperature before cleaning.

• Clean the outside of the appliance using a damp cloth.
• Do not immerse the body of the rice cooker in water or any other liquid.
• Clean the inner pot, lid, measuring cup and spatula in warm soapy water. Rinse and dry thoroughly.
• Never use any chemical or abrasive cleaner.

SPECIFICATIONS

Ratings: 220-240V\~ 50Hz

500W

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Holdings SAS © 14 route d'Aulnay 93140 Bondy, France 10 / 03 / 2017
