Product type	Air fryer with rotisserie function
Brand	Emerio
Model	AF126624.1
Power supply	220-240 V ~ 50/60 Hz
Power	1800 W
Temperature range	80 °C to 200 °C (cooking), 30 °C to 80 °C (drying)
Timer	1 to 90 minutes (cooking), 2 to 24 hours (drying)
Preset programs	Fries, Steaks, Fish, Shrimp, Pizza, Chicken, Pastries, Rotisserie grill, Drying, Reheating, Preheating, Frozen foods
Functions	Air frying, rotisserie (spit), grilling, baking, drying, reheating, preheating
Included accessories	Cooking racks (×3), rotisserie spit with forks, rotisserie basket, skewers, wheel disks, oil drip tray, handle
Display	Digital screen with touch keys
Interior lighting	Yes, cooking chamber lamp
Automatic rotation	Yes, for rotisserie spit and basket
Safety	Overheat protection, automatic shut-off in case of overload, secure door
Maintenance and cleaning	Dishwasher-safe accessories; housing cleaned with a damp cloth
Warranty	2 years

Frequently Asked Questions - AF126624.1 Emerio

How to preheat the Emerio AF126624.1 air fryer?

Select the PREHEAT program from the menu list. The default temperature is 80°C and the time is 5 minutes. You can adjust if necessary, then press the start/stop button to start.

Can I cook frozen foods in this fryer?

Yes, use the Frozen foods program which sets the temperature to 200°C and the time to 20 minutes. You can also adjust manually according to your needs.

How to clean the rotisserie basket and accessories?

All accessories (basket, racks, skewers, oil tray, etc.) can be washed in the dishwasher or by hand with warm soapy water. The main housing must not be immersed; clean it with a damp cloth.

What to do if black smoke comes out of the appliance?

Unplug the appliance immediately. Wait for the smoke to stop, then remove the basket. This may be due to excess oil or grease or burnt food residue. Clean the appliance according to the instructions.

Can I use aluminum foil or parchment paper in the fryer?

Avoid using aluminum foil or unsuitable parchment paper, as they could block hot air circulation. Instead use a baking dish or recommended oven-safe dish.

How to install the rotisserie spit?

Thread the meat onto the rotisserie spit, secure it with the forks. Insert the left end into the round holder on the left of the chamber, then place the right end into the holder on the right. Activate the rotation function with the ☐ button.

Why are my fries not crispy?

Fresh potatoes contain a lot of water. Cut them into thinner pieces, dry them with paper towel, then add a drizzle of cooking oil before cooking. Use the Fries program at 200°C for 15 minutes.

What do error codes E1 or E2 mean?

The codes E1 or E2 indicate a temperature sensor defect. Please contact customer service for repair.

Can I open the door during cooking?

Yes, you can open the door to check the food. The appliance stops automatically and resumes cooking when you close the door. Avoid touching hot surfaces inside.

How to recycle the appliance at the end of its life?

Do not throw the appliance with household waste. Take it to a collection point or contact the retailer for recycling in accordance with European directive 2012/19/EU.

USER MANUAL AF126624.1 Emerio

Black and silver air fryer with digital display showing 185°F, no visible text or symbols on device body

Smart Fryer Multi Oven (EN)

Smart Fryer Multiofen (DE)

Multi-friteuse intelligente (FR)

Smart Fryer Multi Oven (NL)

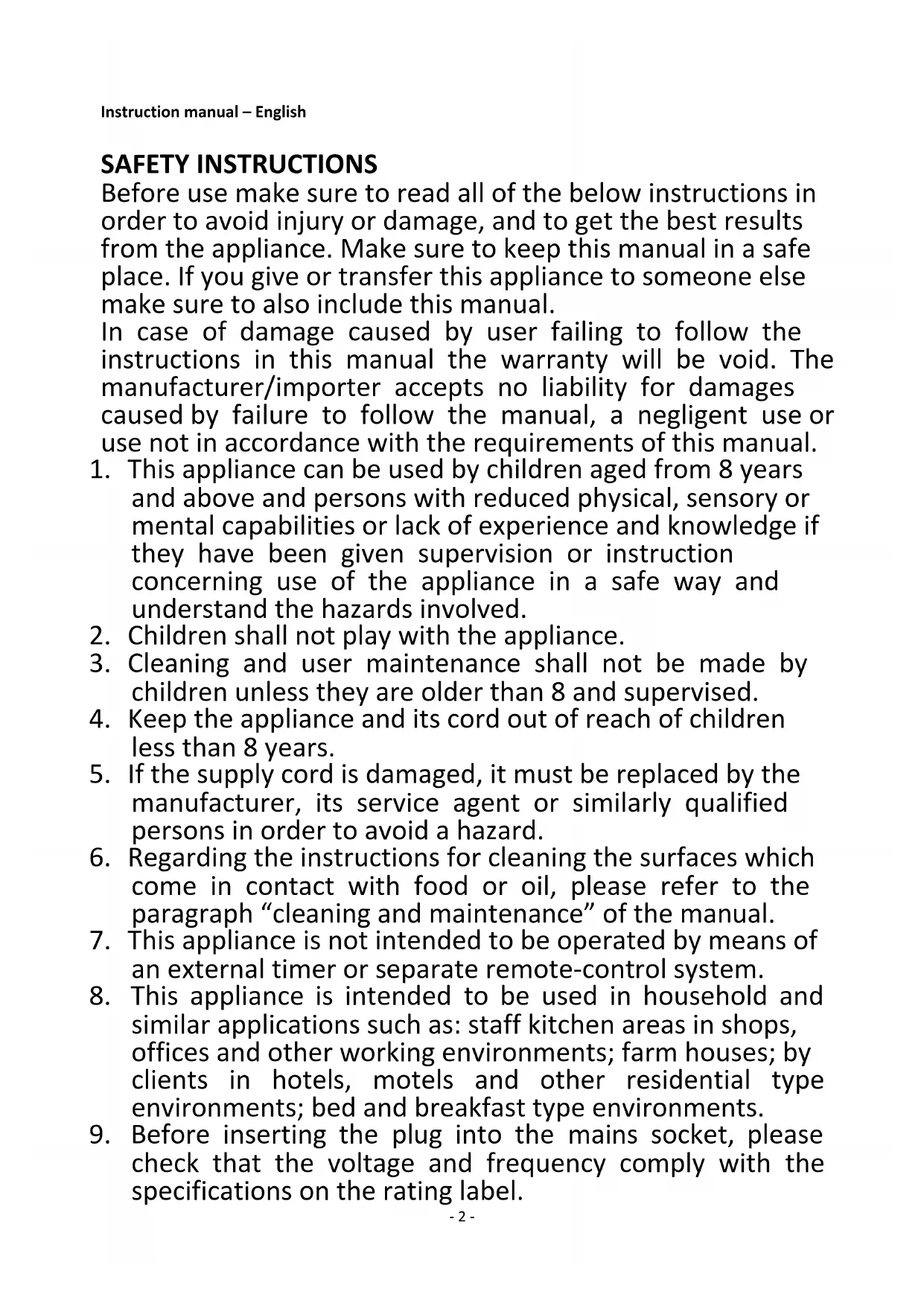

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.

7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

11. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. This appliance is not designed for commercial use.

20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not bend it.

22. Place the appliance on a stable, level surface from which it cannot fall off.

23. Please prevent the product to be exposed to excessive dirt and humidity.

24. Do not operate the machine without supervision, if you should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug itself, not the lead).

25. Do not place the appliance against a wall or against other appliance. Leave at least 12cm free space on the back and sides and above the appliance. Do not place anything on top of the appliance.

26. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.
27. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
28. Make sure before each use of the appliance that the heating element and surroundings are clean and clear from any food remainders in order to ensure a flawless function.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.
2. Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
3. Do not insert anything into the ventilation openings of the device and make sure that these do not become clogged.
4. Make sure that foodstuffs containing oil and fats are not overheated. Do not place any vessels filled with oil or other liquids into the device.
5. Do not cover the device during operation in order to prevent it from catching fire.

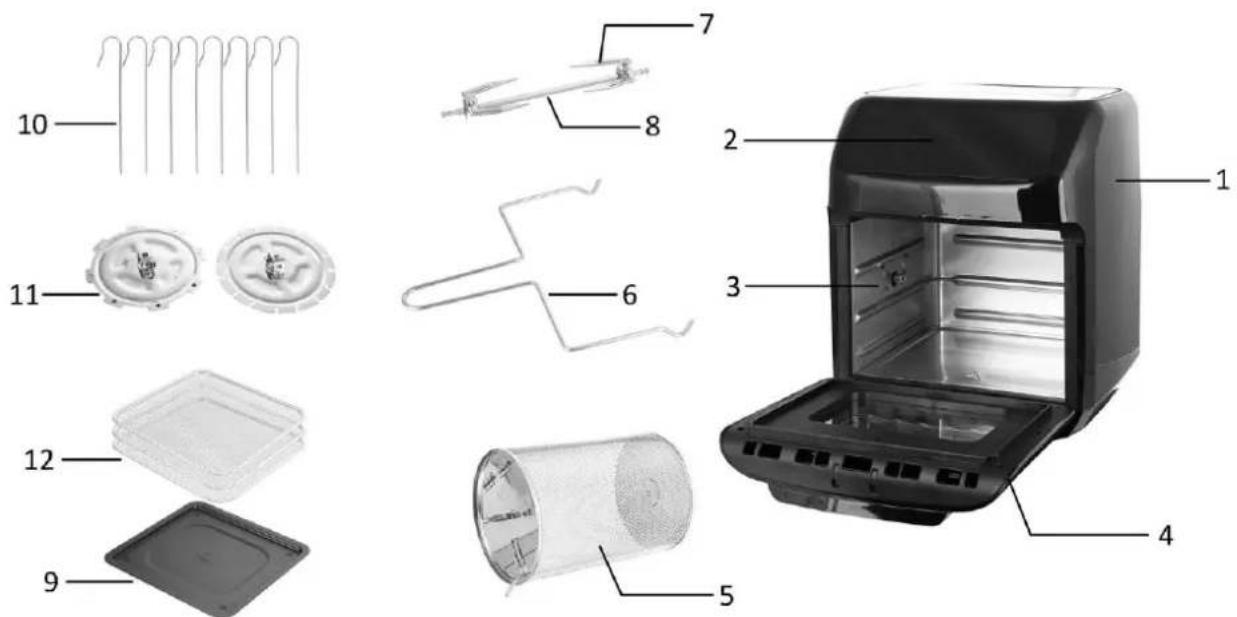

PARTS DESCRIPTION

1. Main unit
2. Control panel
3. Cooking chamber
4. Door
5. Rotating basket

6. Handle for rotisserie spit rod and rotating basket

7. Rotisserie fork

8. Rotisserie spit rod
9. Oil tray
10. Skewers
11. Wheel discs
12. Baking rack (3 pieces)

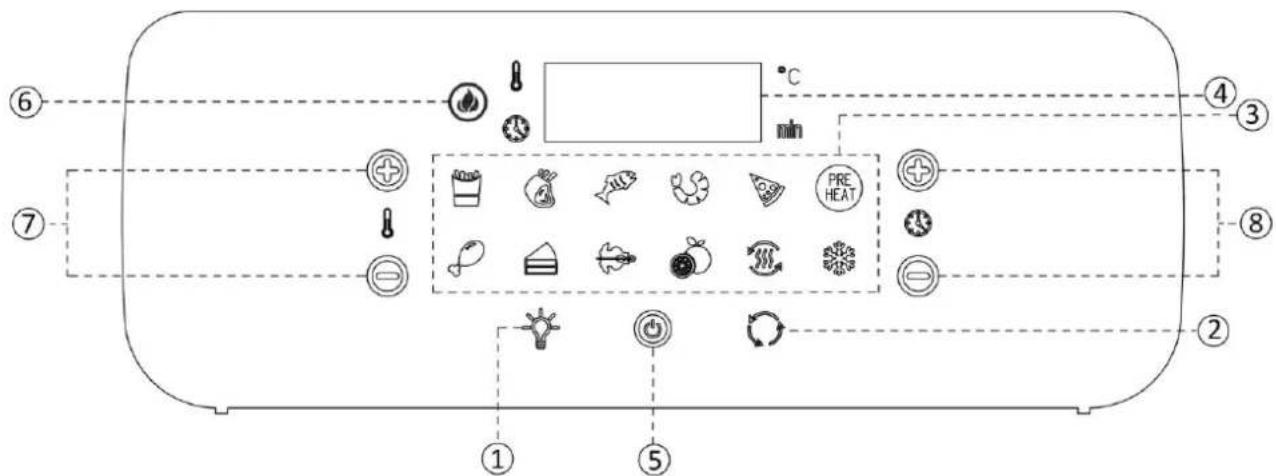

Control panel

1. Cooking chamber lamp
2. Rotating function
3. Menu list
4. Digital display
5. On/Off switch button
6. Heating icon
7. Temperature increasing "+" / decreasing "-" buttons
8. Cooking time increasing "+" / decreasing "-" buttons

BEFORE USE

First read all instructions before use and retain the manual for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the appliance according to the section "cleaning and maintenance". Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry.

Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

USE

1. Place the appliance on a dry, stable and heat-resistant surface. Since the appliance becomes hot during use, make sure that it is not too close to other objects.

2. Open the cooking chamber by the door handle and put in the food to be cooked. Choose your desired accessories:

	Baking rack: The baking racks are intended for drying. However, they can also be used for crisping, warming up etc. The heating element is located at the top. In the upper position, the food will be cooked faster and crispy. The middle position can be selected to achieve uniform heating from all sides. The bottom position is suitable for gentle cooking. Insert the rack into the cooking chamber. Choose your desired cooking position.
	Rotisserie spit rod with forks: to cook large pieces of meat. Have the rotisserie spit rod across the centre of the food you are going to prepare. Fix the food with the forks; secure with screws. Do not secure over the notches which mark the outermost positions for the locking screws. Plug one end of the rotisserie spit rod into the round holder on the left-hand side of the cooking chamber, and then hang the other end of the rotisserie spit rod into the support on the right-hand side of the cooking chamber.
	Rotisserie spit rod with skewers and wheel discs: Insert the rotisserie spit rod into the wheel discs. Secure with the locking screws. Insert the skewers with meat into the wheel discs. Make sure the skewers are locked in position. Plug one end of the rotisserie spit rod into the round holder on the left-hand side of the cooking chamber, and then hang the other end of the rotisserie spit rod into the support on the right-hand side of the cooking chamber.
	Rotating basket: to cook chips or other potato products, pieces of vegetables, meat and frozen products like chicken nuggets or squid rings. Open the rotating basket by the flap. Fill the rotating basket no more than 3/4 full with food. Do not overfill the basket with ingredients. Otherwise, the food will not be cooked evenly. Close the basket and make sure it is shut correctly so that it cannot open during cooking process. Insert the basket into the cooking chamber according to the direction marks on two sides of the basket: L= Left; R= Right.

1. Place the oil tray on the bottom to collect the dripping oils.

2. Close the cooking chamber and plug in. The buzzer sends out a beep sound. The digital display and control panel flash once while the indicator light of the key “💡” keeps on. The appliance enters into standby mode. Under standby mode, only the key “💡” is operable; others are not.

3. Press the key “💡” under standby mode, the buzzer sends out a beep sound. The appliance enters into setting mode. All the indicator lights (except for the heating icon) on the control panel illuminate. The digital display shows the default working temperature (185°C) and the default working time (15 minutes) alternately. Under setting mode, all the keys are operable.

4. Press the keys on the menu list to choose your desired food type to be cooked. The working temperature and working time are in default. You can also press the keys “+” / “-” to set your own working temperature (adjusted from 80 - 200°C) and working time (adjusted from 1 - 90 minutes) manually. Note: If no operation of the keys over 4 seconds, the appliance will begin to work automatically.

Two more functions:

• “💡”: If you would like to check the food condition during cooking process, press the key to turn on the lamp inside the cooking chamber. Press the key again, the lamp will be turned off.

• “☐”: Press the key to turn on the rotating function when rotisserie spit rod or rotating basket is used. Press the key again, the rotating will stop.

• After the setting is finished, press the key “💡” to start the appliance. The appliance enters into working mode. The digital display shows the set working temperature and the remaining working time.

• During working, the digital display shows the countdown time till "OFF" and then the appliance turns into shutdown mode. For example: 08→07→...→01→OFF (shutdown mode). When the appliance enters into shutdown mode, the heating element stops working immediately and the fan keeps on running for approx. 26 seconds. With 5 long beep sounds, the appliance enters into standby mode. You can also press the key "to shut down the appliance manually.

• Open the cooking chamber to take out the food. Check if the ingredients are ready. If not, set the working time to a few extra minutes. Then press the key “💡” to start the appliance again. You can also open the cooking chamber to check the ingredients during cooking process. The appliance will stop working immediately. Close the cooking chamber and the unit will continue to work with the setting. Press the keys “+” / “-” to adjust the working temperature/time as needed.

• After use, remove the mains plug from the wall socket. Always use the oven gloves and the handle (for rotisserie spit rod and rotating basket) to take the food out of the appliance.

Note: The device has overheating protection. It switches off if it is overloaded. In this case, pull the mains plug out of the plug socket and allow the device to cool down completely.

Tips:

• Flipping or turning smaller sized foods halfway through the cooking process ensures that all the pieces are evenly fried.
• Place a baking tin or oven dish in the appliance when baking a cake or quiche. A tin or dish is also suggested when cooking fragile foods.

Warning

1. During the cooking process, the accessories will become very hot. When you remove it to check on the progress, make sure you have a trivet or a heat-resistant surface nearby to set it down on. NEVER place accessories directly on a counter top or table.
2. Cooking accessories will get hot during the air frying process. Wear oven mitts and handle with care to AVOID INJURY.
3. Never cook or reheat liquids in the appliance.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.
2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
3. Do not cover the air inlet and the outlet when the appliance is working.
4. Do not touch the inside of the appliance when it is in operation.
5. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
6. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes.

Menu list for reference

Symbol	Programme	Temperature	Cooking time
	Chips	200 °C	15 min
	Steaks / cutlets	175 °C	25 min
	Fish	165 °C	15 min
	Shrimps	160 °C	12 min
	Pizza	180 °C	15 min
[ZYWX]	Chicken	185 °C	40 min
	Baking	160 °C	30 min
[BTXH]	Rotary grilling(with automatic rotating function)	190 °C	30 min
	Drying	30 °C	2 h
	Heat up	115 °C	12 min
	Preheat	80 °C	5 min
	Frozen food	200 °C	20 min

Note: The default working temperature and time for drying is 30^ C and 2h, the set temperature range is 30-80^ C, and the time range is 2-24h.

CLEANING AND MAINTENANCE

1. Remove the mains plug from the wall socket and let the appliance cool down completely.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft, clean cloth.

3. Never use abrasive cleaners or sponges.

4. Rinse all the used accessories with dish soap and warm water. Clean thoroughly and dry well before use. In the case of stubborn dirt, we recommend soaking the accessories in warm water and detergent beforehand. All the accessories are dishwasher safe.

5. Do not immerse the main unit in water or other liquids! Do not place it in the dishwasher!
6. Clean the main unit and the used accessories after each use to prevent germ formation and burning of food residues. Do not allow food residues to dry on.

TROUBLESHOOTING

If the device does not work properly, first check whether you are able to rectify the problem yourself. If the problem cannot be solved with the following steps, contact the customer service department.

Do not attempt to repair an electrical device yourself!

Problem	Possible cause	Solution
The device does not work.	The door is not closed properly.	Close the door.
	The mains plug is not inserted correctly in the plug socket.	Push the mains plug into the plug socket as far as it will go.
	The plug socket is defective.	Try another plug socket.
The food has not been cooked evenly.	Different items of food with different cooking times have been prepared at the same time.	Place food with a longer cooking time in the device first, and then add ingredients with a shorter cooking time later.
	Items of food which require different cooking temperatures have been prepared at the same time.	Prepare items of food with defferent cooking temperatures one after another.
	The set cooking time was too short or the temperature was too low.	Increase the cooking time or temperature.
	The rotating basket or baking rack is overfilled.	Reduce the amount of food.
	The items of food are piled on top of one after another.	Spread the food and mix it around from time to time.
The food is slightly burnt.	The selected temperature is too high or the cooking time is too long.	Reduce the temperature or cooking time.
Chips made from fresh potatoes are not crispy.	The potatoes contain too much water.	Cut the potatoes into narrow pieces. Dab the potato pieces dry with some kitchen towel and then trickle a little cooking oil over them.
During use, an unpleasant smell or smoke is detected.	The device is dirty.	Follow the instructions in the section “cleaning and maintenance”.
	Too much oil or grease.	Remove excessive oil or grease.
Error messages E1 or E2	The sensor is defective.	Contact the customer service department.

TECHNICAL DATA

Operating voltage: 220-240V\~ 50/60Hz

Power: 1800W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Manufactured by: Emerio Deutschland GmbH
