Product type	Air fryer
Model	AF115668.5
Brand	Emerio
Power supply	220-240 V ~ 50/60 Hz
Power	1400 W
Temperature range	60 °C to 200 °C
Timer	1 to 60 minutes
Basket capacity	Approximately 800 g of food (depending on type)
Dimensions (L × W × H)	Approximately 30 × 30 × 35 cm
Weight	Approximately 3.5 kg
Included accessories	Cooking rack with silicone supports
Basket material	Metal with non-stick coating
Safety	Automatic shut-off at end of cooking; unplug immediately if black smoke appears
Cleaning	Basket and rack dishwasher safe; exterior surfaces with damp cloth
Maintenance	Clean the heating element with a brush after use
Warranty	2 years
Customer service	Emerio Deutschland GmbH, email: [e-mail]
Recycling	Compliant with directive 2012/19/EU

Frequently Asked Questions - AF115668.5 Emerio

How to clean the air fryer after use?

Let the appliance cool down for 30 minutes. Clean the internal and external surfaces with a damp cloth, then dry. The basket and rack can be washed in the dishwasher or with hot water and dish soap. Clean the heating element with a brush to remove residues.

What to do if the appliance does not turn on?

Check that the appliance is properly plugged into a grounded wall outlet. Press the on/off button to turn it on. Make sure the basket is correctly inserted, otherwise the appliance will not activate.

Why are my fries not crispy?

Use firm potatoes, rinse them to remove starch and dry them well. Add a little oil for a crispier result. Cut the fries thinner and avoid overfilling the basket. Follow the times and temperatures indicated in the cooking chart.

Can I use oil in the air fryer?

Yes, you can add a small amount of oil (e.g., 1/2 teaspoon) for homemade fries or breaded foods. Never fill the basket with oil or other liquid. The appliance works with very little oil or even without.

How to set the temperature and cooking time?

Press the on/off button, then use the '+' or '-' keys to adjust the temperature (5°C increments) and the duration (1 minute increments). You can hold the key for quick adjustment. Press on/off again to start.

The air fryer emits white smoke, is this normal?

Yes, this can happen if you cook fatty foods: the oil drips onto the collection plate and heats up. This does not affect cooking. Clean the plate after each use to avoid residues.

Can I wash the basket in the dishwasher?

Yes, the basket and cooking rack are dishwasher safe. Dry them completely before reuse. For the external surfaces of the appliance, use a damp cloth.

What types of food can I cook in this air fryer?

You can cook fries, meats (steak, chicken, pork), vegetables, frozen snacks (nuggets, fish sticks), pastries (cakes, muffins, quiches) and many others. Consult the cooking chart in the manual for recommended quantities, temperatures and times.

How to know if the food is cooked?

You can pull out the basket during cooking to check the food. Use tongs for fatty foods. If necessary, put the basket back and extend cooking by a few minutes. The appliance automatically resumes with the same settings.

What to do if the appliance emits black smoke?

Unplug the appliance immediately. Wait until the smoke stops before removing the basket. This may indicate overcooking of food or a malfunction. Check that the heating element is clean and that the basket is not too full.

USER MANUAL AF115668.5 Emerio

Black and white photo of a modern air fryer with digital display showing 200°C, no visible text or symbols on the device itself.

Abstract black logo design with three curved shapes and a registered trademark symbol (no text or numbers present)

Smart Fryer

(EN)

(DE)

(FR)

(SE)

(NL)

(PL)

(RU)

EACCE

Content – Inhalt – Teneur - Innehåll – Inhoud – Treść – Содержание

Instruction manual – English ...... - 2 -

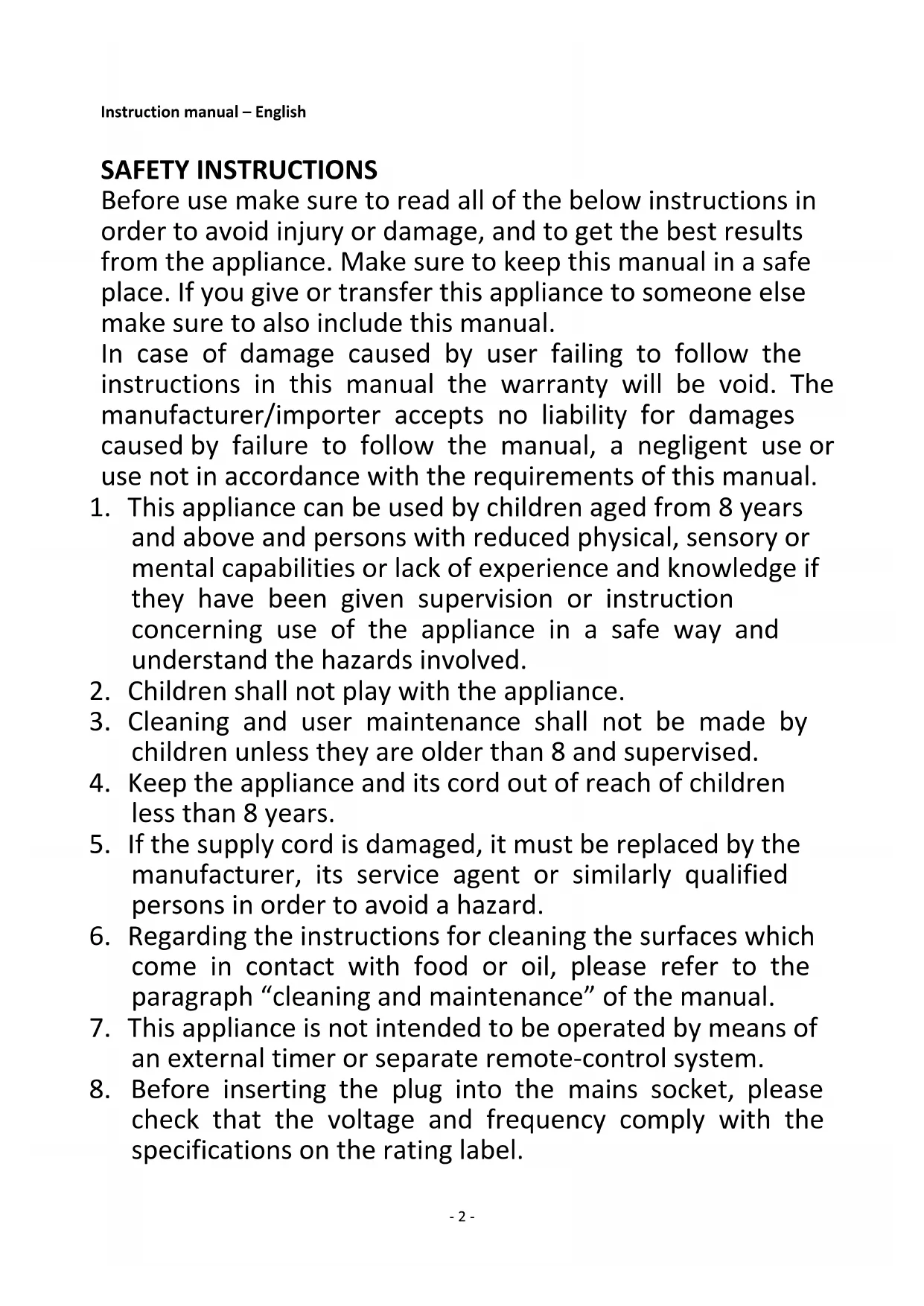

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

9. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

10. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
11. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
12. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
13. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
14. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
15. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
16. Never leave the appliance unattended during use.
17. This appliance is not designed for commercial use.
18. Do not use the appliance for other than intended use.
19. Do not wind the cord around the appliance and do not bend it.
20. Place the appliance on a stable, level surface from which it cannot fall off.
21. Please prevent the product to be exposed to excessive dirt and humidity.
22. Clean the product itself with a slightly damp cloth.
23. Do not operate the machine without supervision, if you should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug itself, not the lead).
24. Do not place the appliance against a wall or against other appliance. Leave at least 10cm free space on the back and sides and above the appliance.
25. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe

distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

1. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
2. Make sure before each use of the appliance that the heating element and surroundings are clean and clear from any food remainders in order to ensure a flawless function.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.
2. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

PARTS DESCRIPTION

1. Air inlet
2. Digital display
3. Basket
4. Basket handle
5. Frying grill
6. Air outlet

5 4 3

Line drawing of an air fryer with handle and lid (no text or symbols)

1 2 6

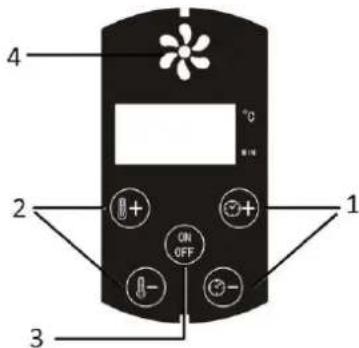

Digital display

1. Timer control (Press "+" or "-" to adjust the time from 1 to 60 minutes)
2. Temperature control (Press "+" or "-" to adjust the temperature from 60°C to 200°C)
3. ON/off button
4. Blower icon

4 2 1 3 ON OFF -

BEFORE USE

First read all instructions before use and retain the manual for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the basket and oil catch pan. (See "cleaning and maintenance") Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry. This appliance heats food at all directions and most of the ingredients do not need any oil.

Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

Note: Always use the frying grill with the silicone cases attached. They will help to stabilize the frying grill in the basket during cooking.

USE

1. Place the appliance on a dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.
3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.
4. Place the ingredients into the basket. (Do not exceed the MAX level indicated inside the basket.) Slide the basket into the appliance. Make sure they are placed correctly and closed completely. Otherwise the appliance will not work.

Caution: Do not fill the basket with oil or any other liquid. Do not touch the basket during use or after use in short time as it gets very hot. Only hold the basket by the handle.

1. Connect the power plug to a suitable outlet. The machine is standby.
2. Press the on/off button once. Then press "+" or "-" to set your desired temperature (5 degrees / press) and time (1 minute / press) for the ingredients. You can also long press "+" or "-" for rapid adjustment.
3. Press the on/off button again; the machine starts working. When the appliance is heating up, the small indicator light in the center of the blower will be in red. When the set temperature is reached, the red indicator light will go off.

4. When the whole cooking process is finished the blower will stop working and the timer will ring 5 times. You can also manually turn off the machine by pressing the on/off button. The blower will stop in a few seconds, and then the timer will ring 5 times.

5. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not, simply slide the basket back into the appliance. Set the temperature and the timer to a few extra minutes. Then press the on/off button to run the machine again. NOTE: You can also pull out the basket to check the ingredients during cooking process. When you slide back the basket, the machine will continue to work with the setting.

6. To remove ingredients (e.g. beef, chicken, meat) with original oil and will have excess oil collected on the bottom of the basket during frying, please use tongs to pick ingredients one by one;

To remove ingredients (e.g. chips, vegetable) with no excess oil collected on the bottom of the basket during frying, please pull out the basket, and pour ingredients to tableware.

Note: The basket and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance, steam may escape from the pan.

1. After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

FRYING TIPS

1. The optimal amount for crispy fries is 500 grams.
2. Add 3 more minutes to the preparation time when the appliance is cold, or you can also let the appliance preheat approx. 4 minutes without any ingredients inside.
3. Some ingredients require shaking halfway through the reparation time. To shake or turn over the ingredients, pull the basket out of the appliance by the handle and shake it or turn over the ingredients by fork (or tongs). Then slide the basket back into the appliance.
4. You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ C for up to 10 minutes.
5. Products with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.
6. Place a baking tin or an oven dish in the appliance if you want to bake a cake or quiche or other fragile ingredients.
7. Do not prepare extremely greasy ingredients such as sausages in the appliance.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.
2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
3. Keep all ingredients in the basket to prevent any contact with heating elements.
4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm free space around and above the appliance.
5. Filling the oil catch pan with oil may cause a fire hazard!
6. Do not touch the inside of the appliance when it is in operation.
7. Be careful of the hot steam and air when you remove the basket from the appliance.
8. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the appliance, which means the food is overcooked or the appliance broke down.

FRYING TABLE

This table shows the food product quantities and required temperature and frying times. If the instructions on the product pack should deviate from the values shown in this table, the instructions on the pack should be followed.

Food	Min-max Amount (g)	Time (min)	Temperature (°C)	Shake	Notes
Thin frozen fries	300-700	9-16	200	shake
Thick frozen fries	300-700	11-20	200	shake
Home-made fries (8×8mm)	300-800	10-16	200	shake	Add 1/2 tbsp of oil
Home-made potato wedges	300-800	18-22	180	shake	Add 1/2 tbsp of oil
Home-made potato cubes	300-750	12-18	180	shake	Add 1/2 tbsp of oil
Rosti	250	15-18	180	shake
Potato gratin	500	15-18	200	shake
Steak	100-500	8-12	180	-
Pork chops	100-500	10-14	180	-
Hamburger	100-500	7-14	180	-
Sausage roll	100-500	13-15	200	-
Drumsticks	100-500	18-22	180	-
Chicken breast	100-500	10-15	180	-
Spring rolls	100-400	8-10	200	shake	Use oven-ready
Frozen chicken nuggets	100-500	6-10	200	shake	Use oven-ready
Frozen fish fingers	100-400	6-10	200	-	Use oven-ready
Frozen bread crumbed cheese snacks	100-400	8-10	180	-	Use oven-ready
Stuffed vegetables	100-400	10	160	-
Cake	300	20-25	160	-	Use baking tin
Quiche	400	20-22	180	-	Use baking tin/oven dish
Muffins	300	15-18	200	-	Use baking tin
Sweet snacks	400	20	160	-	Use baking tin/oven dish

CLEANING AND MAINTENANCE

1. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes. Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft, clean cloth.
3. Never use abrasive cleaners or sponges.
4. Remove the basket to let the appliance cool down more quickly. Clean the basket and frying grill in hot water with a washing liquid and a non-abrasive sponge. Dry well before use.
5. Clean the heating element inside of the housing (You can see it after pull out the basket) with a cleaning brush to remove any food residues.

Note: The basket and frying grill are dishwasher safe.

TROUBLE SHOOTING

Problem	Possible cause	Solution
The appliance does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not pressed the on/off button to turn on the machine.	Press the on/off button to turn on the appliance.
The ingredients are not fried completely.	The amount of the food in the basket is over.	Put smaller batches of ingredients in the basket. Smaller batches are fired more evenly.
	The temperature is too low or the time is not enough.	Press “+” to adjust the temperature to the requied temperature or cook extra time.
The ingredients are fried unevenly.	Different types of food may need to be shaken halfway during cooking.	Shake food halfway during the cooking time.
Fried snacks are not crispy	You used a type of snaks which shall be cooked in a traditional deep fryer.	Use oven snakes or lightly brush some oil onto the snacks for a crisper result.
White smoke comes out from the appliance.	You are preparing greasy ingredients.The pan still contains grease residues from previous use.	When you fry greasy ingredients, oil will leak into the pan. The oil preduces white smoke and the pan may heat up. This does not affect the cooking result or hurt the appliance.Clean the pan properly after each use.
Fresh fries are fried unevenly.	Haven’t use the right potato type.	Use fresh potatoes and make sure that they stay firm during frying
	Haven’t rinse the potato sticks properly before frying.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispy	The criespiness of the fries depends on the amount of oil and water in the fries	Make sure the potato sticks have been dried properly before adding the oil.
		Cut the potato sticks smaller for a crispier result
		Add slightly more oil for a crisper result

TECHNICAL DATA

Operating voltage: 220-240V\~ 50-60Hz

Power: 1400W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

SICHERHEITSHINWEISE

Technical diagram of a cooking air fryer with labeled parts including fan, pan, and air filter

Digitales Display

Warning sign depicting steam rising inside a yellow triangle, indicating caution or hazard level

1. Attention, surface chaude.

Technical diagram of an air fryer with labeled parts including fan, air filter, and air conditioner unit

Affichage numérique

Line drawing of an air fryer with handle and lid (no text or symbols)

1 2 6

Digitaldisplay

Line drawing of an air fryer with handle and lid (no text or symbols)

1 2 6

Digitaal scherm

Technical diagram of a container with labeled parts 3, 4, and 5, showing internal structure and top view.

Line drawing of an air fryer with handle and lid (no text or symbols)

1 2 6

Wyświetlacz cyfrowy

ROZWIĄZYWANIE PROBLEMÓ W

Line drawing of an air fryer with handle and side panel (no text or symbols)

1 2 6

Цифровой дисплей
