HP108922.2 - Electric stove Emerio - Free user manual and instructions

Product type	1-plate electric hot plate
Brand	Emerio
Model	HP108922.2
Power supply	220-240 V ~ 50/60 Hz
Power	1500 W
Approximate dimensions (L x W x H)	28 x 23 x 8 cm
Approximate weight	1.5 kg
Control type	Temperature control knob
Indicator light	Yes, heating indicator
Plate material	Metal (stainless steel or similar)
Keep warm function	Yes, position 2
Automatic shut-off	No, manual shut-off
Cooking surface	Metal plate, suitable for flat-bottomed pans
Usage	Household use only
Care and cleaning	Clean with a soft, damp cloth, do not immerse
Safety	Do not touch hot surfaces, keep away from children, unplug after use
Cable length	Short (approx. 0.8 m) to reduce risks
Warranty	2 years, subject to proper use
Recycling	European Directive 2012/19/EU

Frequently Asked Questions - HP108922.2 Emerio

What type of utensils to use on the plate?

Use pans with a flat bottom to ensure good thermal contact. Avoid glass containers and unstable pans.

How to clean the electric hot plate?

Always unplug the appliance and let it cool down. Clean the plate with a soft, damp cloth or a non-abrasive cleaner. Never immerse in water.

Can I use an extension cord?

Yes, but it must have a power rating at least equal to that of the appliance (1500 W). Make sure it does not hang over the counter.

What if the appliance smokes during first use?

This is normal. Heat the plate at full power (position 5) for 3 to 5 minutes without utensils. This removes manufacturing residues.

How to adjust the temperature?

Turn the temperature control knob: from 1 (low) to 5 (maximum). The indicator light turns off when the set temperature is reached.

Can the appliance be used by children?

Yes, from 8 years old under supervision. Children must not play with the appliance or perform cleaning without supervision.

What to do in case of breakdown or damage?

Do not attempt to repair yourself. Contact customer service or return the appliance to an authorized repair center.

Can I leave the appliance unattended?

No, never leave the appliance unattended while it is operating.

How to use the keep warm function?

Turn the knob to position 2 to keep food at constant temperature. For a gradual stop, turn to '●●●' (off): residual heat keeps food warm for up to 30 minutes.

What is the noise level of the appliance?

The appliance produces no noticeable noise during operation, only the indicator light turns on and off during heating cycles.

USER MANUAL HP108922.2 Emerio

Exterior view of a modern electric stove with a black top and control knob (no visible text or symbols)

Hot plate single (EN)

Instruction manual – English ...... - 2 -

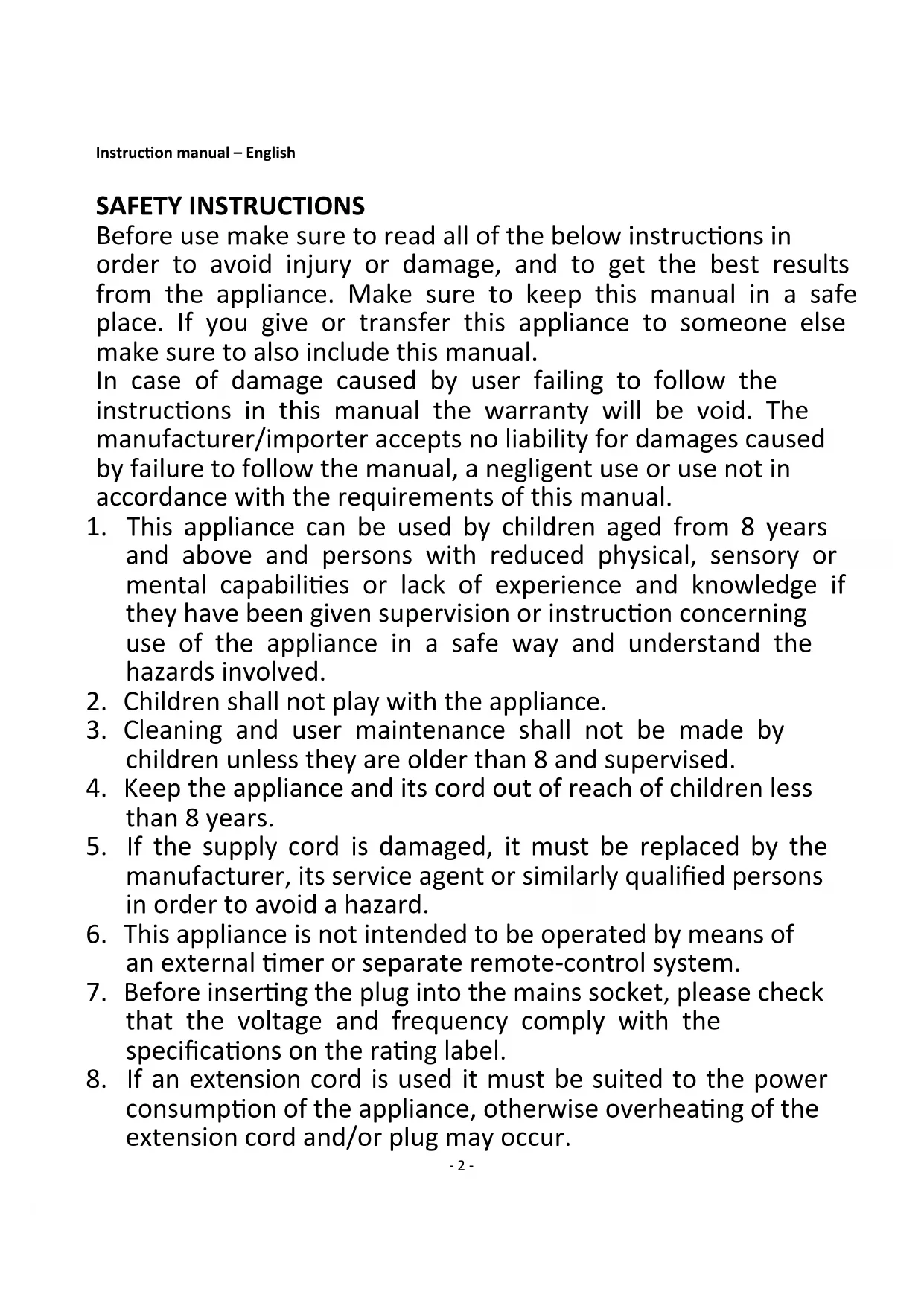

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
7. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

8. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur.

9. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

10. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
11. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
12. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
13. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
14. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
15. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
16. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.
17. Never leave the appliance unattended during use.
18. This appliance is not designed for commercial use.
19. Do not use the appliance for other than intended use.
20. Do not wind the cord around the appliance and do not bend it.
21. Place the appliance on a stable, level surface from which it cannot fall off.
22. Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they can get hot.
23. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Regarding the instructions for cleaning, please refer to the below paragraph of the manual.

1 2 3

1. Hotplate
2. Indicator light
3. Adjustable temperature control dial

HOW TO USE YOUR HOT PLATE

Before using your hot plate for the first time, turn the hot plate to the highest setting (position 5) for 3 to 5 minutes. This should be done when there is no cooking utensil on the hot plate.

1. Put the hotplate on a flat, dry and heat resistant surface.
2. Turn temperature control dial to "●●●" (off).
3. Put the plug into a suitable power outlet.
4. Turn the control dial to the desired setting. The unit will cycle on and off to maintain the selected temperature.
5. The indication light at the front of the appliance will turn off when the hot plate reaches the selected temperature, and the procedure of the heating will stop and recycle to maintain the temperature.
6. The heating element will begin to heat immediately. Do not touch the metal surfaces while in use, these parts will become hot.
7. After use, unplug the power cord from wall outlet and allow it to cool down completely.

To keep food warm:

• Turn the knob to "2" to maintain food at a constant warm temperature.
• Turn the knob to “●●●” (off) and food will stay warm for up to 30 minutes as the hotplate gradually cools down.

CAUTION

Do not use pans that are unstable and easily tipped. Use flat-bottom pans to insure full contact with the hotplate for maximum heat efficiency.

For long-life performance, avoid dropping any items onto the hotplate.

When use this hotplate for the first time, there are some smoke, it is normal and safe.

Do not use glass containers!

HOW TO CARE FOR YOUR HOTPLATE

Always unplug the unit and allow to cool before cleaning. Never immerse in water.

Clean hotplate with a soft, damp cloth or a non-abrasive cleaner. Wipe dry.

SAVE THESE INSTRUCTIONS

1. This appliance is for household use only.

2. A short power-supply cord is provided to reduce the hazard resulting from entanglement or tripping over a longer cord. An extension cord may be used with care; however, the marked electrical rating should be at least as great as the electrical rating of this appliance. The extension cord should not be allowed to hang over the counter or tabletop where it can be pulled on by children or tripped over.

TECHNICAL DATA

Operating voltage: 220-240V\~50/60Hz

Power: 1500W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.
