Brand	KitchenAid
Model	UXT4036AYW
Product Type	Range Hood
Width	91.4 cm (36 in)
Power Supply	120 V, 60 Hz, 15 A, fuse-protected circuit
Bulb Type	Incandescent (standard base)
Maximum Light Power	75 W
Fan Speeds	2 (low, high)
Controls Type	Toggle switches (light and fan)
Hood Material	Stainless steel
Grease Filter	Metal, washable
Charcoal Filter (Recirculation)	Optional, non-washable, 6-month lifespan (part W10355450)
Venting Mode	Ducted or recirculation (with charcoal filter)
Warranty	1-year limited
Customer Service	Whirlpool Canada: 1-800-807-6777
Surface Cleaning	Use mild cleaner, avoid abrasives. Rub in direction of grain.
Safety	Disconnect power before service. Use metal ductwork.
Installation	Under-cabinet, minimum 24 in (61 cm) above cooktop
Weight (approx.)	15 kg
Included Accessories	T-10 Torx adapter, mounting screws

Frequently Asked Questions - UXT4036AYW KITCHENAID

How to clean the grease filters of the KitchenAid UXT4036AYW hood?

The grease filters are metal and washable. Remove them and wash in hot soapy water or dishwasher. Dry thoroughly before reinstalling. Clean them frequently to avoid fire hazards.

How to replace the hood light bulb?

Turn off the hood and let the bulb cool. Disconnect power. Press on the plastic lens to remove it. Replace with a 75 W max incandescent bulb. Reinstall lens by pressing until it snaps into place.

How to install the charcoal filter for air recirculation?

The charcoal filter is optional for recirculation. Remove the screw from the retaining tab, rotate the tab, place the rear edge of the filter into the groove, then push the filter in. Replace the tab and screw. The filter is not washable and must be replaced every 6 months (part W10355450).

Can the KitchenAid UXT4036AYW hood operate without external venting?

Yes, this hood can be installed in recirculation mode (no external discharge). It then requires a charcoal filter, sold separately (part W10355450). The installation includes an original charcoal filter.

What are the exact dimensions of the UXT4036AYW hood?

Width is 91.4 cm (36 in). Exact depth and height are not specified in the manual, but for under-cabinet installation, the hood fits standard dimensions. Consult the installation guide for clearances.

How to adjust the fan speed?

Controls are on top of the hood. Push the fan switch left for low speed, right for high speed. Center position stops the fan.

What to do if the hood does not turn on or ventilate?

First check the circuit breaker or fuse in the home. If power is normal, inspect electrical connections after unplugging the unit. Ensure the bulb is properly inserted. If problem persists, contact Whirlpool customer service at 1-800-807-6777.

Can I use a speed control with this hood?

No, the manual states not to use a solid-state speed control device with this fan. Only use the built-in switches.

How to maintain the stainless steel surface?

Clean with a mild cleaner or stainless steel cleaner. Rub in direction of grain to avoid scratches. Do not use abrasive pads, steel wool, or chlorine-based products. Rinse with water and dry with a soft cloth.

Where to find the serial number of my KitchenAid hood?

The serial number and model number are on the rating plate located inside the hood, on the left wall or behind the filter. Keep this information for any service requests.

USER MANUAL UXT4036AYW KITCHENAID

30" (76.2 CM) AND 36" (91.4 CM) RANGE HOOD

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-253-1301

or visit our website at www.whirlpool.com

In Canada, call 1-800-807-6777 or visit our website at www.whirlpool.ca

HOTTE D'ASPIRATION DE

30" (76,2 CM) ET 36" (91,4 CM)

Au Canada, pour assistance, installation ou service, composer

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT:LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUÉMENT.

TABLE OF CONTENTS

RANGE HOOD SAFETY 2

INSTALLATION REQUIREMENTS. 4

Tools and Parts 4
Location Requirements. 4
Venting Requirements. 5
Electrical Requirements 5

INSTALLATION INSTRUCTIONS. 6

Prepare Location. 6
Install Range Hood. 6
Make Electrical Connection 7
Complete Installation 8

RANGE HOOD USE. 8

Range Hood Controls 8

RANGE HOOD CARE. 8

Cleaning. 8

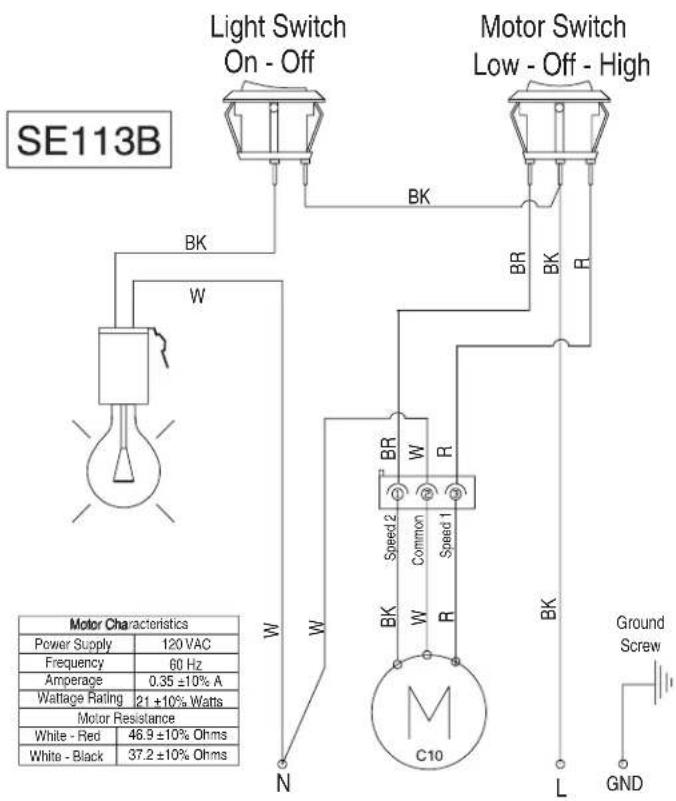

WIRING DIAGRAM 9

ASSISTANCE OR SERVICE. 10

In the U.S.A. 10
In Canada 10
Accessories. 10

WARRANTY 11

TABLE DES MATIÈRES

SECURITE DE LA HOTTE DE CUISINIÈRE 12

EXIGENCES D'INSTALLATION 14

Outils et pieces. 14
Exigences d'emplacement. 14
Exigences concernant I'evacuation 15
1. Specifications electrodes 15

INSTRUCTIONS D'INSTALLATION 16

ASSISTANCE OU SERVICE. 20

Au Canada. 20
Accessoires 20

GARANTIE 21

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

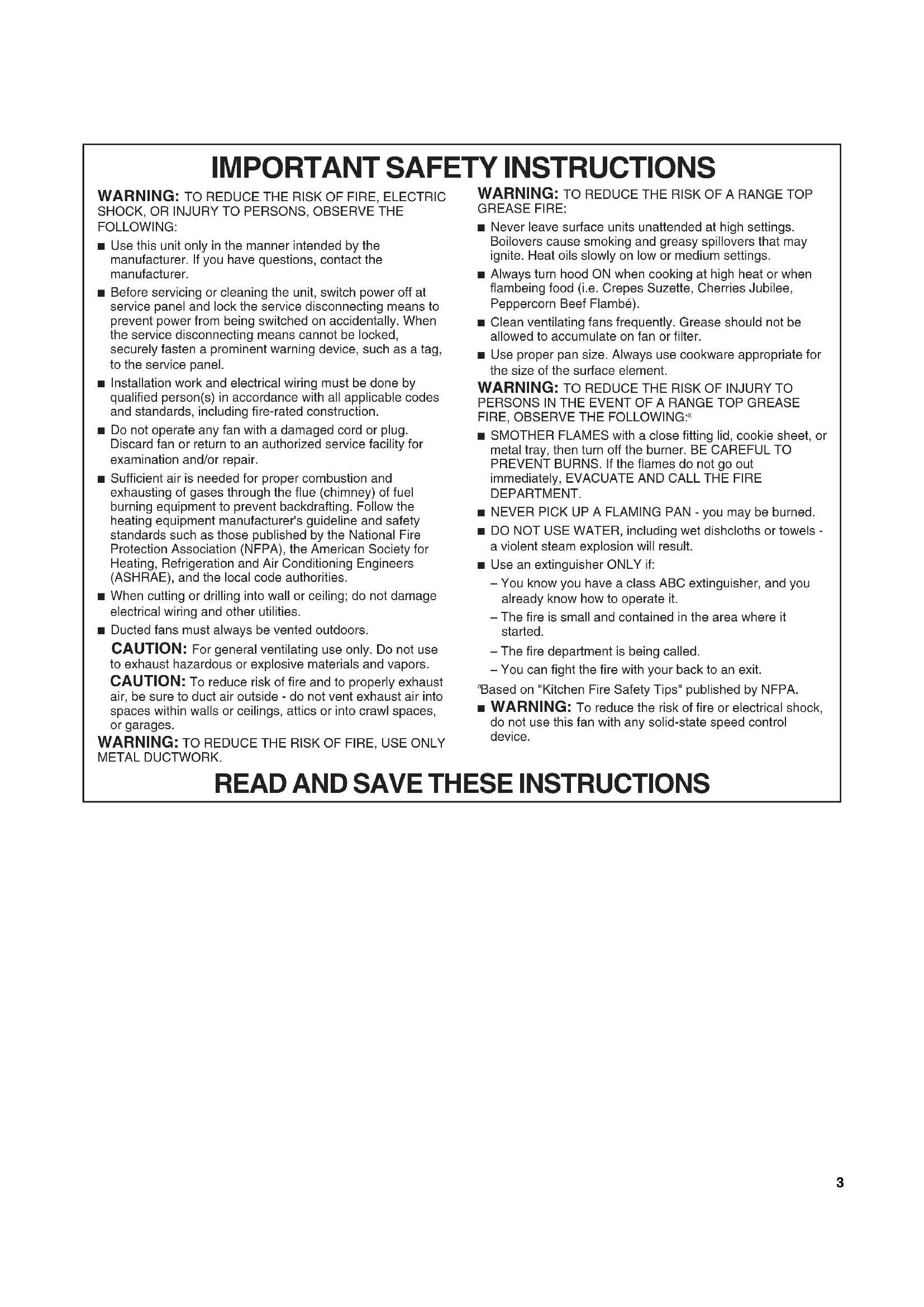

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.
Ducted fans must always be vented outdoors.

CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
  Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
  Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
  Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:a

SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may be burned.
DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
Use an extinguisher ONLY if:

• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

Based on "Kitchen Fire Safety Tips" published by NFPA.

WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

■ Drill
1 14 (3.0 cm) drill bit
18" (3.0 mm) drill bit for pilot holes
■ Pencil
Wire stripper or utility knife
Tape measure or ruler
Caulking gun and weatherproof caulking compound
Flat-blade screwdriver
Phillips screwdriver
Saber or keyhole saw

Parts Supplied

T-10 Torx 器 adapter
4-4.5 x 13 mm mounting screws

Parts Needed

3-UL listed wire connectors
1-75W max, 120V incandescent light bulb

For cabinets with recessed bottoms:

Two 2^ (5.1 cm) wide filler strips. Length and thickness determined by recess dimensions.
Four flat head wood screws or machine screws with washers and nuts (to attach filler strips).

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located inside the range hood on the left wall.
- Range hood location should be away from strong draft areas, such as windows, doors and strong heating vents.
Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Consult the cooktop/range manufacturer installation instructions before making any cutouts.
This range hood is recommended for use with cooktops with a maximum total rating of 40,000 BTUs or less.
Grounded electrical outlet is required. See "Electrical Requirements" section.
All openings in ceiling and wall where range hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

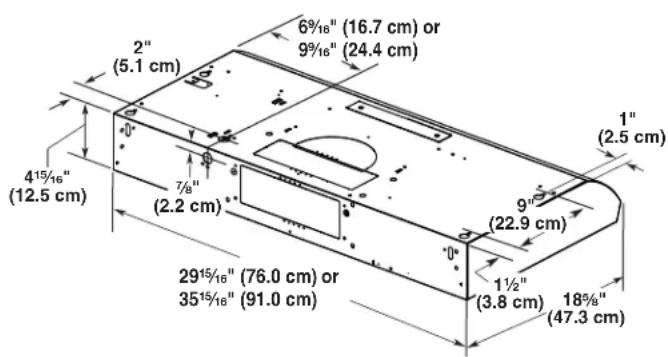

Product Dimensions

†©TORX is a registered trademark of Saturn Fasteners, Inc.

Installation Clearances

A. 18^ (45.7cm) min. clearance - upper cabinet to countertop
B. 24" (61.0 cm) minimum - bottom of range hood to cooking surface
C. 30^ (76.2cm) min.cabinet opening width for 30^ (76.2cm) models and 36^ (91.4cm) min.cabinet width for 36^ (91.4cm) models
D. 12'' (30.5 cm) minimum cabinet depth
E. 36" (91.4 cm) base cabinet height

Venting Requirements

These range hoods are factory set for non-vented (recirculating) installations and come with a charcoal filter. See the "Accessories" section to order charcoal filter kit.

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

A 120 volt, 60Hz AC only, 15-amp, fused electrical circuit is required.
If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the range hood.
Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

NOTE: Before making cutouts, make sure there is proper clearance within the ceiling or wall.

1. Disconnect power.
2. Select a flat surface for assembling the range hood. Place covering over that surface.
3. Lift the range hood and set it upside down onto covered surface.

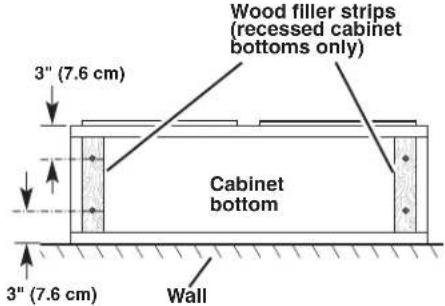

4. If cabinet has recessed bottom, add wood filler strips on each side. Install screws to attach filler strips in locations shown.

Determine Wiring Hole Location

Cut only one 114 (3.2 cm) diameter wiring access hole.

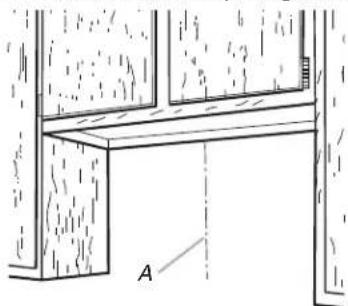

1. Determine and clearly mark a vertical centerline on the wall and cabinet in the area the vent opening will be made.

A. Centerline

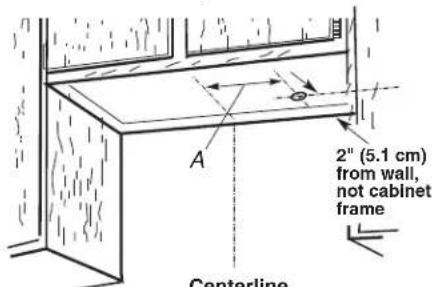

To wire through top:

1. Mark a line distance "A" from the right of the centerline on the underside of the cabinet. Mark the point on this line that is 2'' (5.1 cm) from back wall. Drill a 114 (3.2 cm) diameter hole through the cabinet at this point.

A. 8% (21.3 cm)

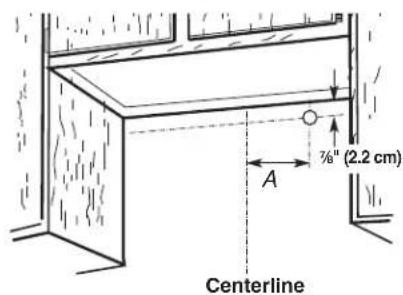

To wire through wall:

1. Mark a line distance "A" from the right of the centerline on the underside of the wall. Mark the point on this line that is 7/8 (2.2 cm) from the underside of the cabinet. Drill a 1/4 (3.2 cm) diameter hole through the rear wall at this point.

A. 8% (21.3 cm)

Install Range Hood

1. Lift the range hood up under cabinet and determine final location by centering beneath cabinet. Mark on the underside of cabinet the location of the 4 keyhole mounting slots on the range hood. Set range hood aside on a covered surface.

A. Keyhole slot

1. Use 18 (3 mm) drill bit and drill 4 pilot holes as shown.

A. Drill pilot hole

1. Install the 4 - 4.5 mm x 13 mm mounting screws in pilot holes. Leave about 14 (6.4 mm) space between screw heads and cabinet to slide range hood into place.

Non-vent (recirculating) installations - Do not remove any knockouts.

Power Supply Cable Installation

1. For direct wire installations, run the home power supply cable according to the National Electric Code or CSA standards and local codes and ordinances. There must be enough wiring from the fused disconnect (or circuit breaker) box to make the connection in the hood electrical terminal box. For optional power supply cord kit installations, follow the instructions in the "Make Electrical Connections" section.

NOTES:

• Do not reconnect power until the installation is complete.
  Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood.

• Remove the screw from the terminal box cover. Remove terminal box cover and set aside.

A. Terminal box cover B. Screw

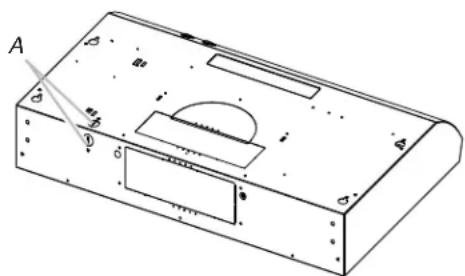

1. Remove the power supply knockout from the top or rear of the vent hood (depending on the incoming location of your home power supply cable) and install a UL listed or CSA approved 1/2 strain relief.

A. Power supply knockout

1. Using 2 or more people, lift the hood into final position. Feed enough electrical wire through the 12 UL listed or CSA approved strain relief to make connections in the terminal box. Tighten the strain relief screws.
2. Position the range hood so that the large end of the keyhole slots are over the mounting screws. Then push the hood toward the wall so that the screws are in the neck of the slots. Tighten the mounting screws, making sure the screws are in the narrow neck of slots.

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

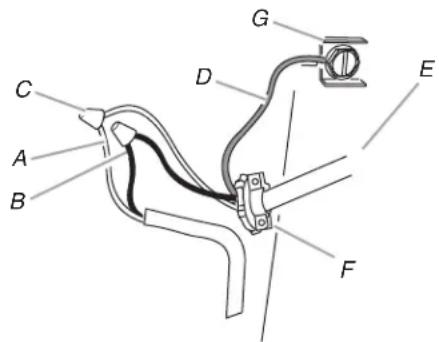

A. White wires
B. Black wires
C. UL listed wire connector
D. Green (or bare) ground wire

E. Home power supply cable or power cord accessory kit
F. UL listed or CSA approved 1 / 2 strain relief
G. Green ground screw

1. Use UL listed wire connectors and connect white wires (A) together.
2. Use UL listed wire connectors and connect black wires (B) together.

AWARNING

Fire Hazard

Electrically ground the blower.

Use copper wire.

Connect ground wire to green ground screw in terminal box.

Failure to do so can result in death, fire, or electrical shock.

1. Connect green (or bare) ground wire from power supply to green ground screw in terminal box and securely tighten.
2. Install terminal box cover.
3. Reconnect power.

Complete Installation

1. Install the 75W (max.) Incandescent light bulb. See "Replacing the Incandescent Light Bulb" in the "Range Hood Care" section.

2. Replace grease filter if removed. See the "Range Hood Care" section.

3. Check the operation of the range hood fan and light. See "Range Hood Use" section.

If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect power and check wiring connections.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The hood controls are located on the top of the range hood.

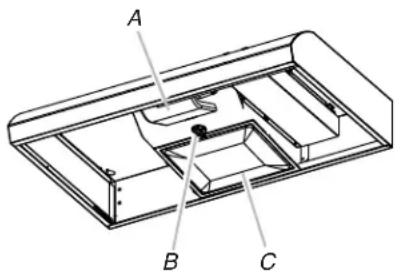

A. Incandescent light housing and cover
B. Charcoal filter retainer
C. Grease filter

Range Hood Controls

A. On/Off light switch
B. Fan speed switch

Operating the light

Push the light switch to the right to turn the light Off. Push the light switch to the left to the turn the light On.

Operating the fan

Push the fan switch to the left for Low speed. Push the fan switch to the right for High speed. Push the fan switch to the middle for Off.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filter before operating hood.

Exterior Surfaces:

IMPORTANT: Do not use soap-filled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel wool, gritty washcloths or paper towels.

To avoid damage to the stainless steel, do not use cleaners that contain chlorine.

Cleaning Method:

• Rub in direction of grain to avoid scratching or damaging the surface.
  For stainless steel models, Stainless Steel Cleaner and Polish Part Number 31462A (not included): See "Assistance or Service" section to order.
  Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth.
  Glass cleaner to remove fingerprints.

Charcoal Filter

The charcoal filter is not washable. It should last up to 6 months with normal use.
Replace the old charcoal filter with a new charcoal filter. For information on ordering, see the "Accessories" section.

To replace filter:

1. Remove screw from the filter retainer.
2. Turn the filter retainer to release filter.

A. Filter retainer

1. Reinstall the filter by placing the back edge in the channel at rear of hood. Push filter into place, turn the filter retainer to secure filter to range hood.
2. Replace screw in the filter retainer.

Replacing the Incandescent Light Bulb

Turn off the range hood and allow the light bulb to cool.

1. Disconnect power.
2. Squeeze the plastic lens cover and remove it from the hood.

A. Light bulb socket
B. Lens cover

1. Screw light bulb into socket.
2. Replace lens cover by squeezing cover and inserting tabs into slots.
3. Reconnect power.

If new light does not operate, make sure the lamp is inserted correctly before calling service.

WIRING DIAGRAM

ASSISTANCE OR SERVICE

If you need service

Please refer to the warranty page in this manual.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll free:

1-800-253-1301 or visit our website at www.whirlpool.com.

Our consultants provide assistance with:

• Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.
  Features and specifications on our full line of appliances.
  Referrals to local dealers.
  ■ Installation information.
  Use and maintenance procedures.
  ■ Accessory and repair parts sales.
  Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For further assistance

If you need further assistance, you can write to Whirlpool

Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free: 1-800-807-6777 or visit our webpage www.whirlpool.ca.

Our consultants provide assistance with:

• Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States
  Features and specifications on our full line of appliances.
  Referrals to local Whirlpool dealers.
  Use and maintenance procedures.
  ■ Accessory and repair parts sales.
  Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool

Canada LP with any questions or concerns at:

Whirlpool Brand Home Appliances

Customer eXperience Centre

Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Stainless Steel Cleaner and Polish

Order Part Number 31462A

Charcoal Filter Kit

Order Part Number W10355450

Power Cord Kit

Order Part Number W10355452

WHIRLPOOL® MAJOR APPLIANCE LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

Name, address and telephone number
Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit www.whirlpool.com/product_help.
2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Whirlpool Customer eXperience Center

www.whirlpool.com/product_help

In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.

If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).
5. Conversion of products from natural gas or L.P. gas.
6. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Whirlpool.
7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.
9. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
10. Food or medicine loss due to product failure.
11. Pick-up or delivery. This product is intended for in-home repair.
12. Travel or transportation expenses for service in remote locations where an authorized Whirlpool servicer is not available.
13. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
14. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTYES

IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

SECURITE DE LA HOTTE DE CUISINIÈRE

Spcifications electrodes

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

ASSISTANCE OU SERVICE
